Operating instructions

for condenser tumble dryer

T 495 C

It is essential to read these

operating instructions before Q\

installing or using the machine

to avoid the risk of accident,

or damage to the machine. M.-Nr. 04 939 841

Contents

Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to dry correctly

Hints on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 Switching on and loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2 Selecting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Selecting additional option(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4 Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

After drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Altering a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programmable functions

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Correcting the drying level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Buzzer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Anti-crease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Activating and storing in the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents

Cleaning and care

Cleaning the fluff filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Emptying the condensed water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

After sales service

Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Future updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

Guide to the appliance

General view

1 Supply cable for electrical connection

2Condensed water container

3 Control panel

4 Door

5 Condenser unit cover

6 Drain hose for condensed water (if fitted)

7 Four height-adjustable screw feet

Guide to the appliance

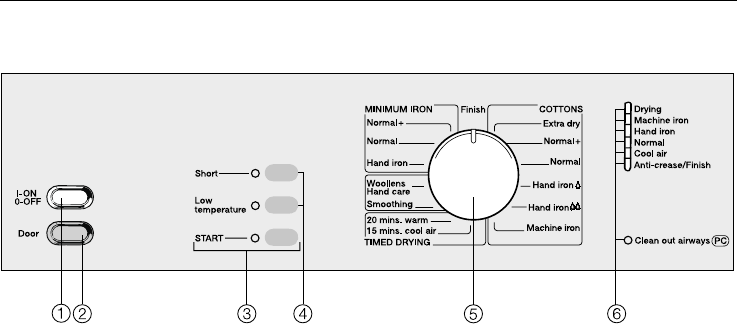

Control panel

b“I-On/0-Off” button

for switching the appliance on and off.

When the machine is switched on, the

drum light will come on as you open

the door.

c“Door” button

to open the door/cancel a programme.

This button does not stay pressed in.

d“START” button

starts a drying programme.

The indicator light:

– flashes to indicate that the pro-

gramme can be started;

– remains on once the programme has

commenced.

eAdditional option buttons

Indicator lights: on= option selected

off= option not selected

fProgramme selector

can be turned clockwise or anti-clock-

wise.

gSequence indicator and check

lights

Please consult the section “Problem

solving guide” for the check lights.

Guide to the appliance

Caring for the environment

Disposal of packing

The transport and protective packing

has been selected from materials

which are environmentally friendly for

disposal and can normally be recycled.

Rather than just throwing these ma-

terials away, please ensure they are of-

fered for recycling.

Disposal of your old

machine/appliance

Old machines/appliances contain ma-

terials which can be recycled. Please

contact your dealer, your local waste

collection centre or scrap merchant

about potential recycling schemes. En-

sure that the machine/appliance pres-

ents no danger to children while being

stored for disposal. See the appropri-

ate advice in the “Warning and safety”

instructions.

Caring for the environment

Warning and safety instructions

Please read the operating instruc-

tions before using the tumble dryer

for the first time. They contain im-

portant information about the safety,

use and maintenance of the

machine. This will avoid the risk of

accidents and damage to the ma-

chine. Keep these operating in-

structions in a safe place and en-

sure that new users are familiar with

the content. Pass them on to any fu-

ture owners of the machine.

Correct usage

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution and are

marked on the manufacturer’s wash

care label as being suitable for tumble

drying.

Any other applications may be dan-

gerous. The manufacturer is not liable

for damage resulting from improper

use or operation.

Do not let small children play with

the machine and its controls or

operate it. Please supervise its use by

the elderly or infirm.

Technical safety

Check for visible external damage

before installation.

Do not install or operate a damaged

machine or appliance.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and fre-

quency) matches the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this ma-

chine can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations. It is most import-

ant that this basic safety requirement is

regularly tested by a qualified electri-

cian. The manufacturer cannot be held

responsible for the consequences of

an inadequate earthing system.

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for which

the manufacturer cannot accept respon-

sibility. Repairs should only be under-

taken by a Miele approved engineer.

In the event of a fault, or for clean-

ing purposes, the machine is only

completely isolated from the electricity

supply when:

– the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn.

Warning and safety instructions

For safety reasons, do not use an ex-

tension cable. There is a danger of

overheating.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

Use

Do not install the machine in a

room where the temperature may

drop below freezing, as temperatures

below zero could damage the ma-

chine.

Frozen condensed water in the pump,

hose and condensed water container

could also lead to damage.

If the water is drained externally

through the drain hose instead of

being collected in the condensed

water container, make sure the drain

hose is securely attached if you hang it

in a sink or basin to avoid the hose slip-

ping and the water causing damage.

Condensed water is not drinking

water. It can cause health prob-

lems in people and animals.

Always close the door after use to

avoid the danger of:

– someone leaning on the door which

could cause the machine to tip;

– children climbing into the machine or

hiding objects in it.

There is a danger of fire with fab-

rics which:

– contain rubber, foam rubber or rub-

ber-like materials;

– have been treated with inflammable

cleaning agents;

– have been splashed with hair lac-

quer, hair spray, nail varnish

remover or similar;

– also padded items (eg cushions,

jackets) which have been damaged,

as the padding could fall out and

catch fire;

– are soiled with grease or oil.

Warning and safety instructions

In countries where there are areas

which may be subject to infesta-

tion by cockroaches or other vermin,

pay particular attention to keeping the

appliance and its surroundings in a

clean condition at all times. Any dam-

age which may be caused by cock-

roaches or other vermin will not be

covered by the appliance guarantee.

Using accessories

Accessory parts may only be fitted

when expressly approved by

Miele. If other parts are used, guaran-

tee, performance and product liability

claims may be invalidated.

Disposing of your old machine

Before discarding an old machine,

unplug it and render the plug use-

less. Cut off the cable directly behind

the appliance to prevent misuse.

Warning and safety instructions

Brief instructions

Brief description

Programmes are selected by turning

the programme selector and can be

supplemented by pressing the addi-

tional option buttons.

Press the “START” button to begin a

programme.

The indicator lights in the sequence dis-

play (on the right hand side of the con-

trol panel) show which stage has been

reached in the programme.

The Sensitive system automatically ad-

justs drying to suit the water quality

and ensure more precise results.

The Novotronic controls measure and

and compensate for variations to

achieve a uniform residual moisture

level.

The automatic reversing action turns

the drum clockwise and anti-clockwise

to loosen the laundry and prevent

uneven drying, ensuring good results.

Once the required degree of dryness is

achieved, the laundry is allowed to cool

down.

At the end of the programme the anti-

crease action period begins. The drum

turns intermittently to reduce the forma-

tion of creases and folds.

Programmable functions can be used

to select or de-select some of the addi-

tional options and introduce further

functions. These combinations can be

stored in the machine’s memory and

called up.

Please read the sections on “Warn-

ing and safety” and “Notes on

laundry care”.

1Switching the machine on and

loading the laundry

Switch on by pressing the “I-On/0-

Off” button.

Press the “Door” button to open the

door.

Place the laundry loosely in the drum.

Close the door.

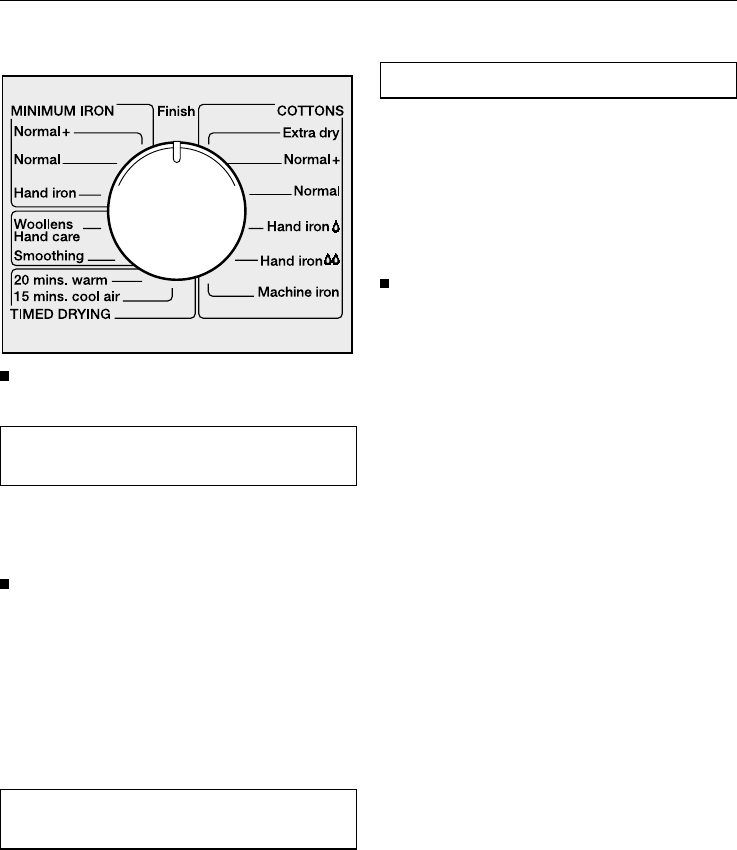

2Selecting a programme

Turn the programme selector to the

drying level you require.

3Selecting additional options

Press the buttons to switch addi-

tional options on or off as required.

4Starting the programme

Press the “START” push button.

Brief instructions

Notes on laundry care

Before drying, check the drying sym-

bol on the textile care label.

Significance of symbols:

q = Dry at normal temperature

r = Dry at low temperature

(also push in the “Low temperature”

button if required)

s = Do not tumble dry

t = Can be tumble dried

If no symbol is featured, dry at your own

risk applying the following principles:

Cotton and minimum iron items should

be dried in the appropriate programme

(see programme charts).

For delicate fabrics, eg acrylic, select

"Minimum iron" and also press the "Low

temperature" button.

Never overload the drum. Always

observe the maximum recom-

mended loads given in the “Pro-

gramme chart”. Overloading can

cause unnecessary wear and tear

to the laundry, give a disappointing

drying result and cause more creas-

ing.

The following fabrics should not be

dried in a tumble dryer:

– Woollens and wool blends

These fabrics tend to become matted

and shrink. These fabrics can, however,

be partially dried using the “Woollens

hand care” programme.

– Down-filled items*

The fine fabric interior tends to shrink,

depending on the quality.

– Pure linen*

These items should only be machine

dried if specified as suitable by the

manufacturer on the textile care label,

as the surface of the fabric may other-

wise “roughen”.

* Linen and down-filled items can, how-

ever, be partially dried using the

“Smoothing” programme.

Notes:

Some woven and loopknit materials

(eg T-shirts, cotton jersey material)

have a tendency to shrink, depending

on their quality, and this is often made

worse by over-drying. When purchas-

ing woven materials, it is advisable to

take their shrinkage properties into ac-

count.

Starched washing can be dried in the

tumble dryer. In order to achieve the

usual finish, double the amount of

starch should be used.

Minimum iron fabrics and 100% cotton

shirts or blouses tend to crease more,

when larger loads being dried, particu-

lary when the weave of the fabric is

very fine. Reduce the load or use the

Special care “Minimum iron – Hand

iron” programme. If this is unsatisfac-

tory use the “Smoothing” setting, then

hang the garments on a hanger to dry.

New dark-coloured fabrics should be

dried separately from light-coloured

fabrics to avoid colours running.

Notes on laundry care

How to dry correctly

Hints on saving energy

Make sure that your laundry has been

thoroughly spun at the highest appro-

priate spin speed before drying. Spin-

ning at 1600 rpm, for example, saves

approximately 30% energy and time

compared with 800 rpm.

Load the full amount of laundry ac-

cording to the programme chosen

(see “Programme chart”) for the

most economical drying related to

the size of the load. Make sure that

the drum is not over- or underloaded.

As far as possible, sort fabrics for:

– the type of fibre or weave

– the degree of drying required

– similar size of items

– the moisture content after

spinning.

This will help towards an even drying

result.

Ensure the room is well ventilated.

1Switching on and loading

Fasten duvet covers etc to prevent

small items from being rolled up in-

side them.

Do up zips and tie fabric belts and

apron strings.

Press the “l-On / 0-Off” button.

Press the “Door” button and open

the door.

Make sure there is no washing

detergent dispenser among the

laundry, as this could melt and dam-

age the machine and the laundry.

Load the laundry very loosely into

the drum.

Do not overload the drum. Over-

loading can cause unnecessary

wear and tear to the laundry and

give a disappointing drying result.

Close the door.

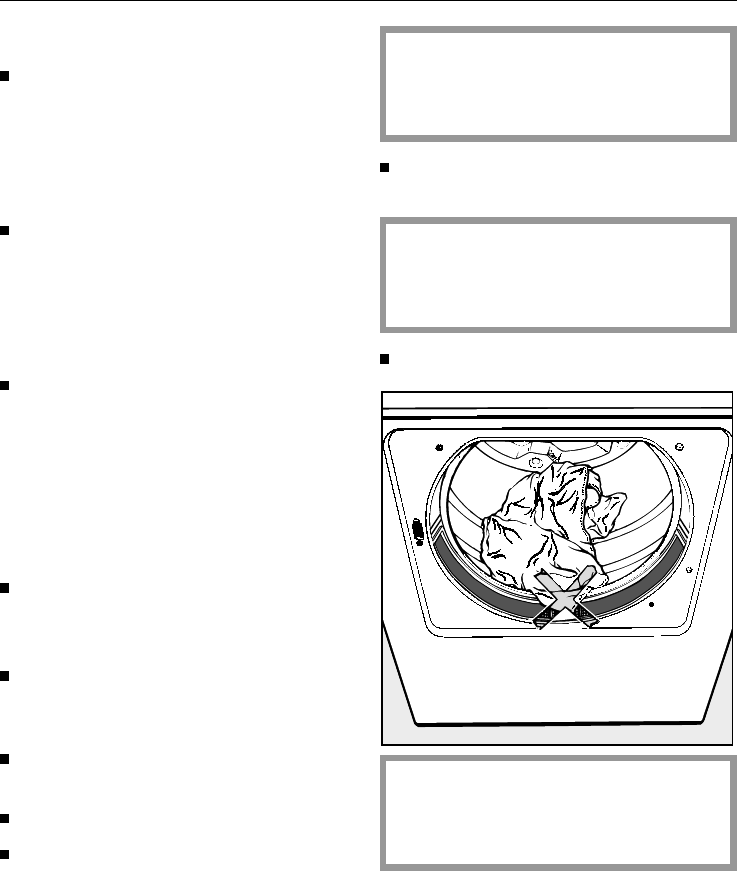

Important: Please check that items

of laundry cannot be trapped by the

door, as this will cause damage to

the fabric.

How to dry correctly

2Selecting a programme

Turn the programme selector to the

programme required.

See the “Programme chart” for a de-

scription of each programme.

3Selecting additional

option(s)

Additional options are switched on

or off by pressing the appropriate

buttons.

Indicator lights:

–on= additional option selected

–off= additional option not selected

Short

The programme running time is re-

duced.

–For drying fabrics that are not deli-

cate.

Low temperature

The drying temperature is reduced.

–For delicate fabrics (drying symbol

r), eg acrylic.

The programme running time is in-

creased.

4Starting a programme

Press the “START” button.

The drying stage reached display on

the right hand side of the facia panel

will indicate which drying stage the pro-

gramme has reached.

The memory function:

If the memory function has been acti-

vated, the machine will automatically

call up the additional options selected

for the last programme used. The indi-

cator lights will indicate which options

are selected.

For further details on the memory func-

tion, please see the section “Programm-

able functions”.

How to dry correctly

"Clean out airways" indicator light

This indicator light shows that the dryer

is not working most efficiently or econ-

omically.

The causes of this check message can

be:

–the fluff filters in the door and the

secondary filters in the door opening

are blocked;

–the condenser unit is blocked.

The "Clean out airways" check light will

only go out before the start of a pro-

gramme if the dryer has been switched

off with the "l-On/0-Off" button.

After drying

When the drying programme has fin-

ished the “Anti-crease / finish” se-

quence indicator light comes on.

Press the “Door” button to open the

door.

Remove the laundry.

Make sure that the drum is empty.

If items are left in the dryer, they

could be damaged by overdrying

when the dryer is next used.

After every cycle remove the fluff

from

–the fluff filter in the door

–the filters in the door opening

(See the section on “Cleaning and

care”).

Empty the condensed water con-

tainer (where there is no external

drainage of the water). See the sec-

tion on “Cleaning and care”.

Close the door and switch off the ma-

chine after each use.

Press the “l-On / 0-Off” button to

switch off.

How to dry correctly

Altering a programme

Once a programme has started, no

changes to the programme or addi-

tional options will be accepted.

If the programme selector is turned to

a different programme after a pro-

gramme has begun, the “Drying” indi-

cator light will flash. The programme

originally selected will continue to run

as normal. The indicator light will go

out when the selector is returned to its

original position.

To cancel a programme

Open the door or switch off the ma-

chine.

To select a different pro-

gramme

Turn the programme selector to “Fin-

ish”.

–The “Anti-crease/Finish” indicator

light will flash by itself to indicate that

the programme has been cancelled.

Turn the programme selector to the

drying level required.

Switch additional options on or off as

required.

Press the “START” button.

To open the door during a pro-

gramme to add or remove

garments

Cancel the programme by:

Pressing the “Door” button and open-

ing the door.

–Items can now be added or removed

early.

Restart the programme by:

Closing the door.

Pressing the “START” button.

–The programme will restart.

If there is a power cut, TIMED

DRYING programmes have to be re-

started once the power supply is re-

stored.

Altering a programme

Programme chart

Programme Fabric type maximum

load (2) Special notes

COTTONS

Extra dry Multi-layered fabrics, not

thoroughly dried with

“Normal +”

5 kg Do not dry jersey wear in the

Extra dry programme –

tendency to shrink.

Normal + Mixed load of cotton fabrics,

eg towelling, jerseywear, ie

single and multi-layered

fabrics.

5 kg –

Normal (1) Load of similar fabrics (jersey

wear, flannelette sheets,

towelling).

5 kg If fabrics are too damp,

select “Normal +”.

Hand iron rCotton or linen fabrics (eg

table linen, bedlinen,

starched laundry etc)

5 kg –

Hand iron rr (1) 5 kg If laundry is still too damp for

hand ironing, then select

“Hand iron r” in the future.

Machine iron Cotton or linen fabrics,

including starched laundry,

for machine ironing

5 kg The laundry should be rolled

up to prevent it from drying

out until it can be ironed.

MINIMUM IRON

Normal+ Minimum iron items which

are made of synthetics or

blended fabrics, (eg

pullovers, dresses, trousers)

which are not dried

adequately in the “Normal”

programme

2.5 kg Spin minimum iron fabrics for

at least 30 seconds in the

washing machine before

drying

Normal (1) Minimum iron shirts, Table

cloths etc made of blended

fabrics, (eg cotton/synthetics) .

2.5 kg

Hand iron Minimum iron shirts, Table

cloths etc made of blended

fabrics, (eg cottons and

synthetics), which are still to

be hand ironed.

2.5 kg Spin minimum iron fabrics for

at least 30 seconds in the

washing machine before

drying. For extra special care

of delicate fabrics and to

reduce creacing even more,

reduce the load to 1 kg.

(1) Note for Test Institutes: These are the programmes that should be tested according to

the EN 61121/A11 Standard.

(2) Weight of dry laundry

Programme chart

Programme Fabric type Maximum

load (2) Special notes

TIMED DRYING

Warm air Individual items, (eg bathing

costumes, bath towels, tea

towels)

5 kg –

Multi-layered fabrics whose

layers have different drying

characteristics.

Cool air Items which are only to be

aired

5 kg –

Special care programmes

Woollens

hand care

Woollen fabrics 1 kg To refresh and fluff up woollen

garments quickly.

Remove garments immediately

at the end of the programme.

Do not repeat. Woollen fabrics

are not dried completely by this

programme.

Smoothing Minimum iron items made of

cotton, blended fabrics or

synthetics

2.5 kg Smooths out creases caused

during the spin cycle in the

washing machine.

Fabrics are not dried

completely in this programme.

Remove garments immediately

at the end of the programme

and hang on a line or coat

hangers to dry.

(2) Weight of dry laundry

Programme chart

Programmable functions

Notes

The programmable functions can be

used to create drying programmes to

suit your individual requirements.

They will remain in the machine’s

memory until cancelled.

One or all of the programmable func-

tions can be activated or cancelled

(See following page).

Correcting the drying level

The Sensitive System aims to dry

using as little energy as possible.

However, if you require the washing

to be drier, it is possible to reduce

the final moisture level on all pro-

grammes. (It is not possible to alter

an individual programme).

The machine is delivered with this func-

tion switched off.

Buzzer

An audible tone sounds repeatedly

at the end of a programme.

The machine is delivered with the buzz-

er switched on, but it can be switched

off (see next page).

The volume of the buzzer can be al-

tered (the pitch changes at the same

time).

Proceed as follows:

1. Select the programmable function

“Buzzer”(see next page,

points 1 to 6).

2. Press the “START” button. The

indicator light for “machine iron”

goes out.

3. Press the “START” button again and

keep it pressed in. The indicator

light for “machine iron”

will light up.

4. Release the “START” button when

the volume you want is reached.

5. Turn the programme selector to the

“Finish” position.

6. Switch the machine off with the

“I-On/0-Off” button.

The change to the volume has

been stored in memory.

To switch the buzzer off altogether see

the next page (points 1 to 0).

Memory

The additional options selected pre-

viously for specific programmes are

stored in the machine’s memory.

The memory programmable function can

be used to switch the memory function

on or off. The machine is delivered with

the memory function activated.

Anti-crease

Once a programme has ended, the

drum will turn at regular intervals to

prevent the laundry from settling into

creases and folds.

This programmable function can be

used to switch the memory function on

or off. The machine is delivered with

the “Anti-crease” function activated.

Programmable functions

Activating and

storing in the memory

The programmable functions are acti-

vated using the additional option but-

tons in special combinations with the

programme selector to introduce extra

features not marked up on the control

panel.

1Switch the machine off and shut the

door.

Turn the programme selector to “Fin-

ish”.

2Press the “Short” and “Low tempera-

ture” buttons in. Hold them there

and ...

3... switch the machine on by pressing

the “I-On / 0-Off” button.

4Release all the buttons.

5The “Drying” and “Cool air” indicator

lights will flash.

6Turn the programme selector to one

of the following positions:

–COTTONS / Extra dry for the func-

tion

“Correcting the drying level”

–COTTONS / Normal + for the function

“Buzzer”

–COTTONS / Normal for the

"Memory function"

–COTTONS / Hand iron r

for the function

“Anti-crease”

7If the “Machine iron” indicator light

comes on, then the chosen function

has been activated.

8Each programmable function can be

switched on or off by pressing the

“START” button:

“Machine iron” indicator light

- on = Programmable function

activated

- off = Programmable function

de-activated.

9If you wish to activate a further pro-

grammable function, repeat steps 6

to 8. If not:

0To store in the memory:Turn the pro-

gramme selector to “Finish” and

switch the machine off by pressing

the “I-On/0-Off” button.

To de-select a programmable func-

tion

Carry out steps 1 to 0.

To check whether a programmable

function is activated:

Carry out steps 1 to 7.

Switch the machine off.

This completes the check.

Programmable functions

Cleaning and care

Cleaning the fluff filters

The fluff which is created by the drying

process is collected in the fluff filters in

the door and door opening.

Clean the filters after every pro-

gramme to reduce drying time and

save energy.

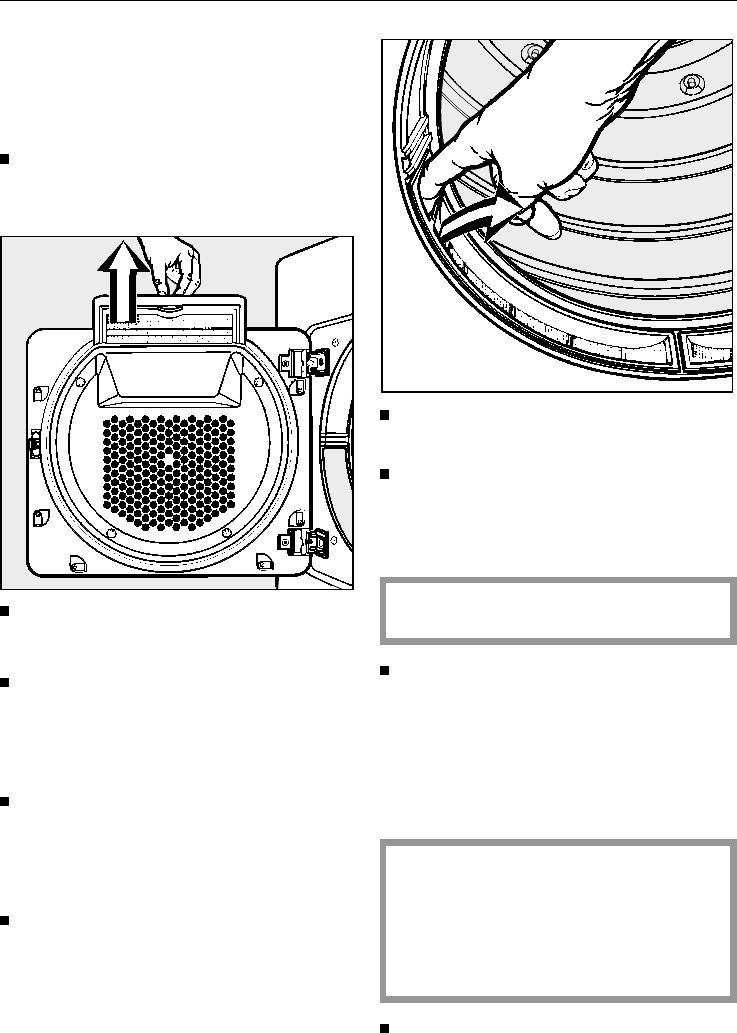

Open the door. Grip the filter by the

recessed handle and pull upwards

to remove.

Remove the fluff from:

–the filter in the door

–the filters in the door opening

Do not use any sharp or pointed ob-

jects.

Remove any fluff from the hollow part

of the door holder through the wide slit

at the bottom. A cleaning brush is

available at extra cost from the Miele

Spare Parts Department.

Push the cleaned filter back into the

door holder and close the door.

If there is a great deal of compacted fluff

on the filters, they can be cleaned under

hot running water.

These filters should only be removed

for cleaning with water.

Dry the filters well after rinsing and

put back in place.

Cleaning the tumble dryer

Disconnect the machine from the

power supply.

Clean . . .

. . . the housing and control panel:

with a mild detergent or soapy water;

. . . the drum and other stainless

steel parts: with a suitable proprie-

tary stainless steel cleaner following

the manufacturer’s instructions.

Never use abrasive substances,

scouring pads, glass or general pur-

pose cleaners. These could damage

plastic surfaces and other parts.

The machine must never be hosed

down.

Dry all parts with a soft cloth.

Cleaning and care

Emptying the condensed

water container

If the hose drain has not been fitted

and connected, the condensed water

will be collected in the condensed

water container.

The condensed water container

should be emptied after every

drying cycle, or as soon as the

“Empty out container” indicator light

comes on.

If . . .

. . . the condensed water container is

full when a programme is started or

. . . it becomes full during a drying cycle:

–the “Empty out container” light will

come on,

–the buzzer will sound,

–the programme will be stopped,

–the washing will be cooled down and

the “Cool air” light will come on.

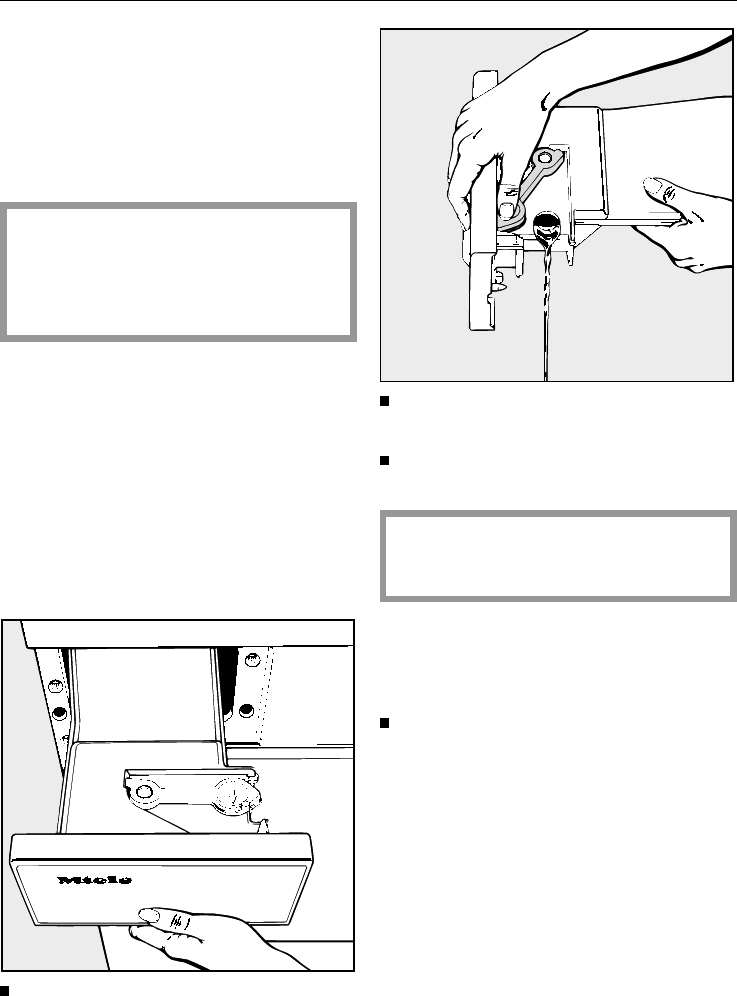

Pull the container out of the machine,

gripping it firmly with both hands.

Slide back the cap and pour the

water away.

Push the container back into the ma-

chine until it engages into place.

Condensed water should not be

drunk. It could lead to health prob-

lems for humans and animals.

Condensed water can be put to house-

hold use, eg used in a steam iron or hu-

midifier.

Note:

To ensure that no particles of fluff

are left which could damage the ap-

pliance, pass the condensed water

through a fine sieve or paper filter.

Cleaning and care

Cleaning the condenser unit

The machine must be disconnected from

the electricity supply before cleaning.

Check the condenser unit at least twice a

year and clean it if necessary. If the dryer is

used frequently then clean the condenser

unit after approx. 100 drying cycles.

Keep hold of the outer condenser

unit cover while removing it, then

place it to one side.

Turn the inner cover lock downwards

to the vertical position.

Pull the cover off.

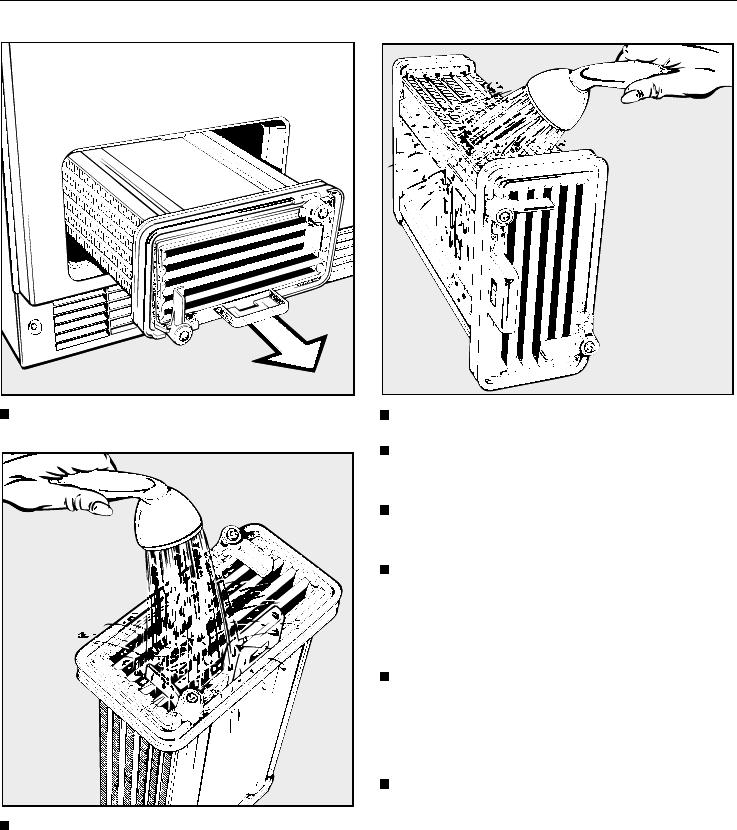

Turn both the levers on the conden-

ser unit to the vertical position.

Cleaning and care

Pull the condenser unit out.

Clean the condenser unit at both

ends (front and back).

Wipe the rubber seals at both ends

gently but thoroughly.

Clean the two long sides of the unit.

Stand the condenser unit lengthwise

on a towel until it is quite dry.

Replace the condenser unit correctly

(see illustration above left).

Return both levers on the condenser

unit to the horizontal position.

Pull forwards on the unit to check

that it is firmly in place.

Replace the inner cover and check

that it is also firmly in place, other-

wise water may leak from the ma-

chine.

Reposition the outer cover and push

back into place.

Cleaning and care

Problem solving guide

What to do if ...

Electrical appliances should only be repaired by qualified personnel. Incorrectly repaired ma-

chines may pose a considerable risk to the user.

What to do if . . . Cause . . . Remedy . . .

. . . the tumble dryer fails to

start when switched on

This may be due to an incorrect

selection procedure sequence

when switching on the machine.

Repeat the switch-on procedure

(see section on “Drying

correctly”). Also check the

following:

–Is the machine plugged in at

the mains switch?

–Is the door closed properly?

–Was the “”I-On/0-Off” button

pushed in?

–Was the “START” button

pushed in?

–Has the fuse or circuit

breaker tripped? If so,

contact the Miele Service

Department.

. . . items made of synthetic

fibres are charged with static

electricity after drying

Static charge can be reduced

by adding a fabric conditioner

for the final rinse in the washing

machine.

. . . the laundry is not suffi-

ciently dry

The load consists of different

fabrics.

Select a more suitable drying

programme next time.

. . . there is a build-up of fluff Fluff is principally the result of friction when garments are being

worn and washed. Machine drying hardly causes any fluff to form

and, as has been established by research institutes, has no effect

on the lifetime of fabric.

Problem solving guide

What to do if . . . Cause . . . Remedy . . .

. . . the drying process goes

on too long.

Ventilation to and from the dryer

is insufficient (eg in a small

room). This could cause the

room temperature to rise sharply.

Open a door or window while

the machine is in operation for

increased air flow.

The vent below the door is

blocked.

Remove any objects that are

blocking the vent below the

door.

The dryer cannot blow air out

correctly. –Clean the fluff filters in the

door and the door opening.

–Clean the condenser unit.

The laundry was not sufficiently

spun.

Spin the laundry in the washing

machine at the highest possible

spin speed.

. . . water droplets appear at

the upper edge of the drum

aperture.

A double filter system with dual

insulation prevents fluff from

being deposited in the

condenser unit. This insulation

can lead to a build-up of

condensation.

Laundry being removed from

the machine may come into

contact with these water

droplets, but they will dry off in

a matter of minutes.

. . . water leaks from the ma-

chine after the condenser unit

has been cleaned.

The condenser unit has not

been correctly locked into place.

Ensure that the condenser unit

and cover are firmly in position

and lock into place again.

. . . the interior drum lighting

does not come on.

It only lights up when the

machine is switched on. The

bulb may be defective.

Change the bulb. See

instructions at the end of this

section.

. . . you need to open the door

during a power cut.

See instructions at the end of

this section.

Problem solving guide

Check and indicator lights

What to do if . . . Cause . . . Remedy . . .

. . . the “Drying” indicator

light flashes.

The programme selector was

moved after the beginning of

the programme, but the

programme continues to run

correctly.

Turn the programme selector

back to its original position and

the light will go out.

. . . the “Anti-crease/Finish”

light flashes.

There could be a fault. –Switch the machine off and

on again.

–Select the programme and

press “START”.

Cold surrounding temperatures

below freezing are affecting the

machine (frozen condensed

water).

–Install the appliance in a

warmer room.

If the light continues to flash there

is a problem. Contact Miele

Service Department.

. . . the “Empty out container”

light comes on.

The condensed water container

is full.

Empty the container.

Check that the condensed

water container is correctly

positioned.

. . . the “Clean out airways”

light comes on.

The fluff filters are blocked. –Switch the dryer off with the

"l-On/0-Off" button.

–Clean the fluff filters after

every use. (See "Cleaning

and care").

The condenser unit may be

blocked because it has not

been cleaned for a long time.

–Switch the dryer off with the

"l-On/0-Off" button.

–Please note that the

condenser unit must be

cleaned regularly (see

"Cleaning and care").

. . . the programme is interrupted

and the “Anti-crease/Finish”

light comes on.

If there is no laundry in the drum when the programme is started,

the electronics will register this and stop the programme. The

programme will also be interrupted if the laundry placed in the drum

is already dry.

Problem solving guide

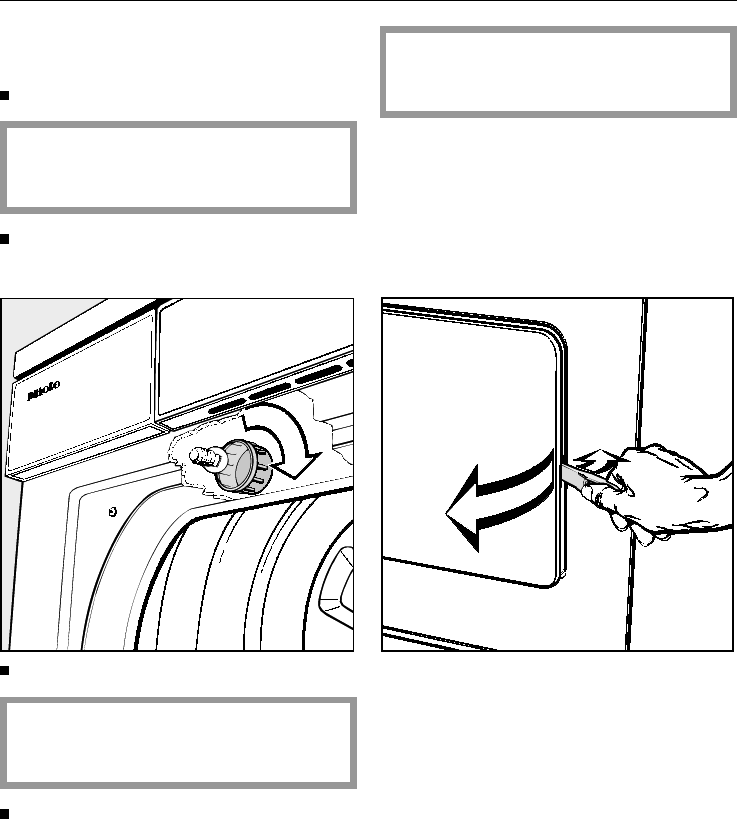

The interior drum lighting does not

come on: changing the bulb

Open the door.

Before changing the bulb, discon-

nect the machine from the mains

power supply.

Unscrew the plastic cover above the

door inside the drum.

Replace the bulb.

The light bulb must not exceed the

maximum wattage quoted on the

data plate and the light cover.

Replace the plastic cover and screw

back on.

The cover must be fixed securely

otherwise moisture may seep in and

cause a short circuit.

The temperature resistant bulb should

only be ordered from your Miele dealer

or the Miele Spare Parts Department.

Opening the door in the event of a

power failure.

Problem solving guide

After sales service

Repairs

In the event of any fault which you can-

not remedy yourself, please contact:

–your Miele dealer

–your nearest Miele Service Depart-

ment (see back cover for the ad-

dress).

When contacting the Service Depart-

ment, please quote the model and ser-

ial numbers of your appliance, both of

which are shown on the data plate

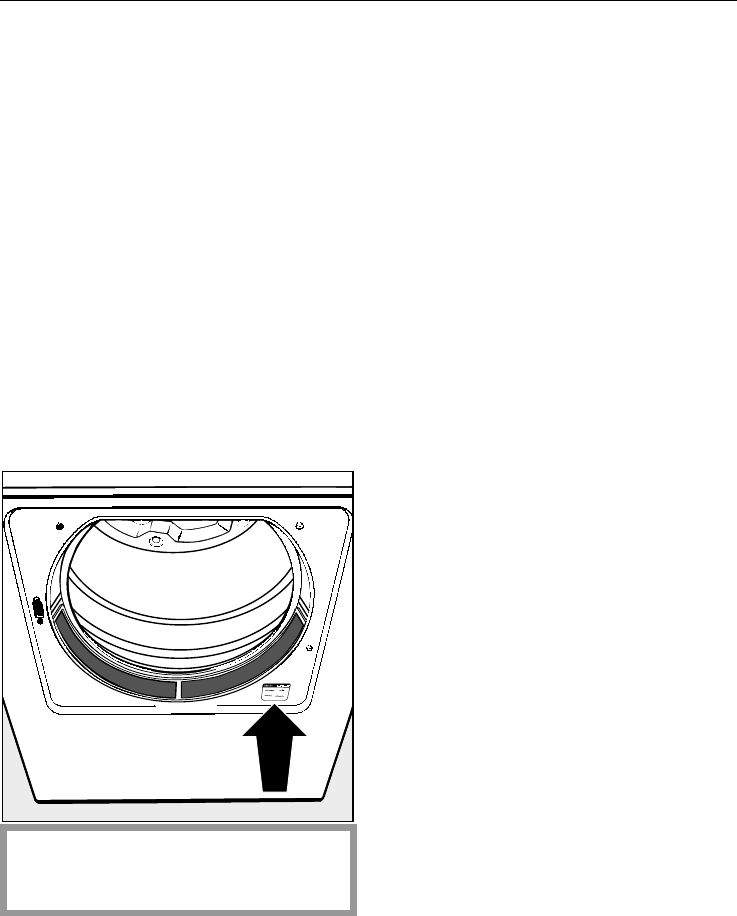

which is located beneath the drum

opening on the right.

Please note that telephone calls

may be monitored and recorded to

improve our service.

Future updates

The indicator or check light marked PC

allows a service engineer to update

your machine in future years.

When, for example, new programmes

are developed or new fabrics are intro-

duced, a service engineer will be able

to modify existing programme cycles

accordingly.

Miele will provide information when

such possibilities become available.

After sales service

Installation

The machine must be perfectly level to

ensure safe and proper operation.

Minor differences do not, however,

have an adverse effect on operation.

The screw feet can be adjusted to

compensate for any uneveness in

the floor surface.

The ventilation slots beneath the door

must on no account be blocked as

this will prevent a sufficient intake of

cold air.

The UBT/UBW building under kit

cannot be used with sloping facia

machines.

The machine complete with its own lid

which must not be removed can still be

slid under a worktop, if there is enough

space.

The machine must be allowed to jut out

sufficiently for the control panel not to

be obscured.

The tumble dryer can also be com-

bined with a Miele washing machine in

a washer and dryer stack. For this pur-

pose the appropriate stacking kit* to

match your washing machine is re-

quired.

*Available from your Miele dealer.

Installation

External condensed water out-

let

The condensed water can be drained off

directly if the machine is installed near a

sink, drain outlet etc.

Maximum drain hose length: 3.00

metres

Maximum delivery head: 1.00 metre

Accessories supplied:

–2 metre drain hose

–Hose clamp

–Adapter sleeve

–Hose clip

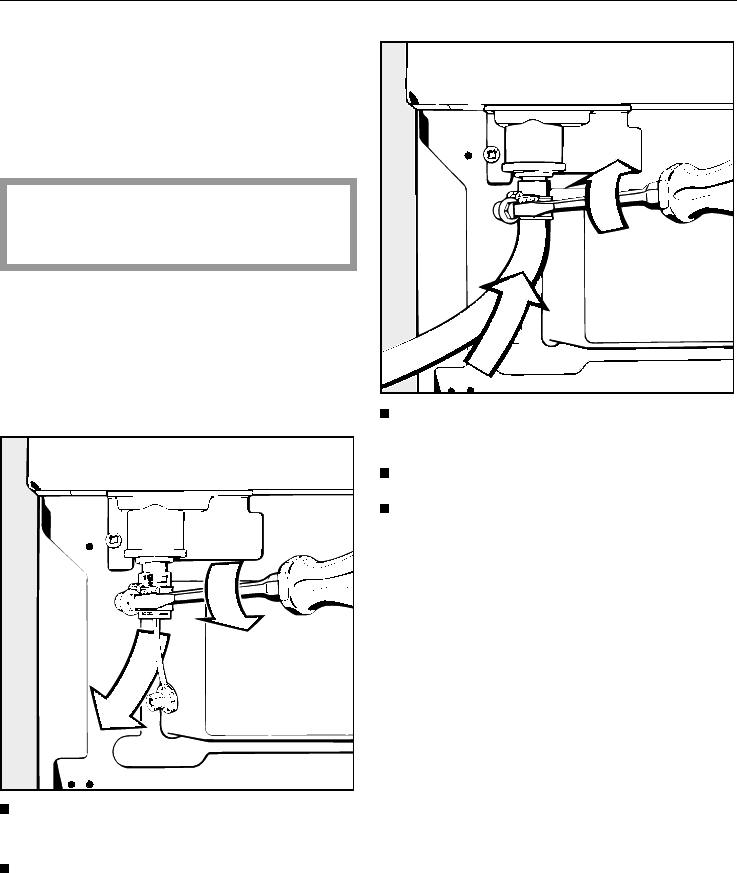

Unscrew the hose clip from the drain

outlet at the back of the machine.

Remove the rubber plug.

Push the drain hose onto the drain

outlet.

Secure the hose firmly with the clip.

Make sure that the hose is not

kinked.

Installation

The dryer is fitted with a non-return

valve as standard to prevent water

from flowing back into the machine.

Close the water inlet port to the con-

densed water container with the bot-

tom part of the rubber plug.

The plug must face towards the inte-

rior of the machine so that the con-

densed water container can be

pushed in easily.

Connection to wash basin drain out-

let (where appropriate)

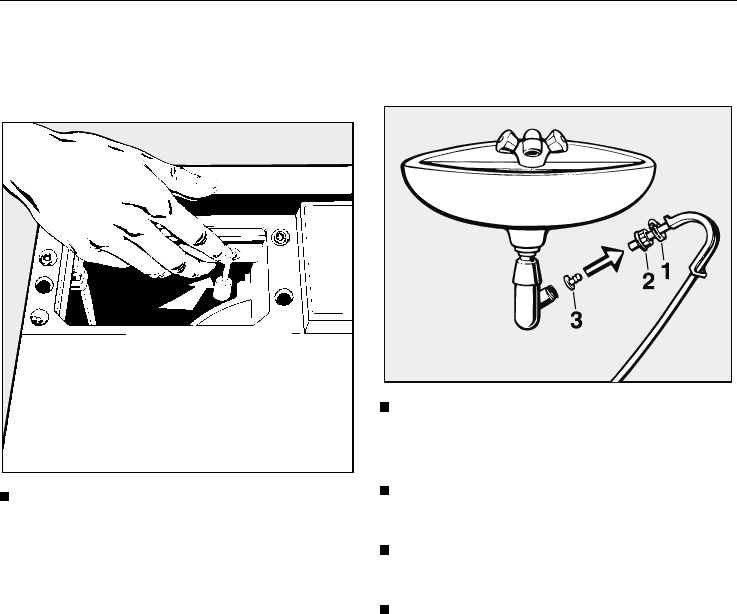

Push the hose clip (1) and the

knurled nut connector from the sink

drain outlet (2) over the drain hose.

Push the adapter sleeve (3) into the

hose.

Screw the drain hose to the drain out-

let with the knurled nut connector.

Tighten the hose clip up close to the

nut.

Installation

Electrical connection

Electrical connection U.K.

All electrical work should be carried out

only by a suitably competent person, in

strict accordance with national and

local safety regulations.

The appliance is supplied with a mains

cable with moulded plug for connection

to a 230-240V mains supply. The volt-

age, rated load and fuse rating are given

on the data plate. Please ensure these

match the household mains supply.

Connection should be made via a

fused plug and suitable switched

socket which is easily accessible after

installation. For extra safety it is advis-

able to install a residual current device

(RCD), with a trip current of 30 mA. Do

not connect via an extension lead.

Important

The wires in the mains lead are col-

oured in accordance with the following

code:

Green/yellow = earth

Blue = neutral

Brown = live

Where it is necessary to change plugs,

if the colours of the wires in the mains

lead of this appliance do not corre-

spond with the coloured markings

identifying the terminals of your plug,

proceed as follows:

The wire which is coloured green and

yellow must be connected to the termi-

nal in the plug which is marked with the

letter E or by the earth symbol z or col-

oured green, or green and yellow.

The wire which is coloured blue must

be connected to the terminal in the

plug which is marked with the letter N

or coloured black.

The wire which is coloured brown must

be connected to the terminal in the

plug which is marked with the letter L

or coloured red.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Ensure power is not restored to the ap-

pliance while installation work is being

carried out.

Non-rewireable plugs BS 1363

If this machine is fitted with a non-re-

wireable plug, the following information

applies:

If the socket outlets are not suitable for

the plug supplied with the product, it

must be cut off and an appropriate

plug fitted.

The plug cut from the flexible cord should

be disposed of and on no account be in-

serted into any socket elsewhere in the

house (electric shock hazard).

The fuse cover must be refitted when

changing the fuse, and if the fuse cover is

lost, the plug must not be used until a suit-

able replacement is obtained. The colour

of the correct replacement cover is that of

the coloured insert in the base of the plug,

or the colour that is embossed in words on

the base of the plug (as applicable to the

design of plug fitted).

Replacement fuses should be ASTA ap-

proved to BS 1362 and have the cor-

rect rating. Replacement fuse covers

may be purchased from your local elec-

trical supplier or Service agent.

Electrical connection

Consumption data

Programme Cap-

acity Final spin speed

(in a domestic

washing machine)

Electricity

consump-

tion

Drying time incl.

cooling down time

Minutes

kg rpm kWh 10 A (2) 16 A (2)

COTTONS

Extra dry 5 1200

1400

1600

3.4

3.3

3.0

102

Normal + 5 1200

1400

1600

2.9

2.75

2.45

Normal (1) 5 800 (70 % residual moisture) 3.5 109 88

Normal 5 1200

1400

1600

2.75

2.6

2.35

Hand iron rr (1) 5 800 (70 % residual moisture) 2.85 91 74

Hand iron rr 5 1200

1400

1600

2.1

1.95

1.65

Machine iron 5 1200

1400

1600

1.7

1.55

1.25

MINIMUM IRON

Normal (1) 2.5 1000 (50 % residual moisture) 1.3 52 44

Hand iron 2.5 1000 1.15 48 40

Special care

Woollens, Hand care 1–0.2 3 3

Smoothing 2.5 –0.3 8 8

(1) Test performance in accordance with EN 61121/A11.

(2) Drying times may vary slightly. For fuse rating see data plate.

All values obtained in accordance with standard test EN 61121/A11.

Different types of fabric, the load and residual moisture after spinning may affect the figures given.

Consumption data

Technical data

Height. . . . . . . . . . . . . . . . . . . . . . . . . .

Width . . . . . . . . . . . . . . . . . . . . . . . . . .

Depth . . . . . . . . . . . . . . . . . . . . . . . . . .

Weight . . . . . . . . . . . . . . . . . . . . . . . . .

Drum volume . . . . . . . . . . . . . . . . . . . .

Maximum capacity. . . . . . . . . . . . . . . .

Capacity of condensed

water container . . . . . . . . . . . . . . . . . .

Maximum delivery head. . . . . . . . . . . .

Maximum drain hose length. . . . . . . . .

Voltage . . . . . . . . . . . . . . . . . . . . . . . . .

Rated load . . . . . . . . . . . . . . . . . . . . . .

Fuse rating . . . . . . . . . . . . . . . . . . . . . .

Electricity consumption . . . . . . . . . . . .

Test certificates awarded. . . . . . . . . . .

850 mm (adjustable +10/-5 mm)

595 mm

600 mm (incl. distance from wall)

52 kg

103 l

5 kg dry weight

approx 4 l

1 m

3 m

} see data plate

see section “Consumption data”

Radio/TV suppressed, VDE

Technical data

Alteration rights reserved/002 0600

This paper is made from 100% chlorine free bleached cellulose and is recyclable.

Miele T495C User Manual To The 8365575c 320c 4e2f 84d5 943758736d6b

Navigation menu

Versions of this User Manual:

Views

Navigation
