Contents

Operating instructions

for Washing machine

W 5872 Edition 111

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed and used for the

first time. M.-Nr. 09 495 130

en-GB

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and should be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Disposal of your old machine

Electrical and electronic machines

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your machine.

Please do not therefore dispose of it

with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre or contact your Dealer for

advice. Ensure that it presents no

danger to children while being stored

for disposal.

Caring for our environment

Caring for our environment .........................................2

Warning and Safety instructions .....................................6

Operating the washing machine.....................................13

Control panel .....................................................13

Optional programme packages.......................................15

Before using for the first time.......................................16

Washing environmentally and economically ..........................17

Energy and water consumption ....................................17

Detergent .....................................................17

Eco feedback.....................................................18

How to wash correctly.............................................19

Spinning ........................................................24

Final spin speed ..................................................24

Delay start.......................................................25

Programme chart .................................................26

Extra options ....................................................30

Short............................................................30

Stains 4........................................................30

Further extras 4..................................................30

Pre-wash ......................................................31

Soak .........................................................31

Garment care label symbols ........................................33

Programme sequence .............................................34

Changing the programme sequence .................................36

Cancelling a programme ............................................36

Interrupting a programme ...........................................36

Making changes to a programme .....................................36

Adding or removing laundry after a programme has started ................37

Safety lock .......................................................37

Contents

Detergent .......................................................38

The correct detergent ..............................................38

Water softener ....................................................40

Washing with several components ....................................40

Fabric conditioners and liquid starch ..................................41

Colour run and dye removers/dyes ....................................41

Cleaning and care ................................................42

Cleaning the drum (Hygiene info) .....................................42

External casing and fascia panel .....................................42

Cleaning the detergent dispenser drawer...............................42

Cleaning the water inlet filters ........................................44

Problem solving guide ............................................45

The programme does not start .......................................45

The following fault messages appear in the display and the programme stops. . 46

The following fault messages appear in the display .......................47

General problems .................................................48

An unsatisfactory wash result ........................................49

The drum door does not open when you press the Door button..............50

Opening the drum door in the event of a blocked drain outlet and/or power

failure ...........................................................51

Blocked drain outlet .............................................51

After sales service ................................................53

Future updates (PC) .............................................53

Guarantee .....................................................53

Optional spare parts and accessories ...............................53

Installation and connection ........................................54

Front view........................................................54

Rear view ........................................................55

Installation surface.................................................56

Transporting the washing machine to its installation site .................56

Removing the transit bars ...........................................56

Re-fitting the transit bars ............................................58

Contents

Levelling the machine ..............................................59

Screwing out and adjusting the feet .................................59

Building under a continuous worktop/in a kitchen run ...................60

Washer and Dryer stack ..........................................60

The Miele water protection system ....................................61

Connection to the water supply .......................................62

Connection to the drainage system....................................63

Electrical connection U.K. ...........................................64

Technical data ...................................................65

Consumption data ................................................66

Notes for test institutes: ..........................................67

Settings.........................................................68

To access Settings ..............................................68

To select a Setting ..............................................68

To alter a Setting................................................68

To come out of Settings ..........................................68

Language !......................................................68

Total usage ......................................................69

Water plus .......................................................69

Soak ............................................................69

Gentle action .....................................................70

Suds cooling .....................................................70

Code ...........................................................70

Temperature unit ..................................................71

Buzzer ..........................................................71

Keypad tone .....................................................71

Brightness .......................................................71

Standby display ...................................................72

Memory .........................................................72

Anti-crease.......................................................72

Optional accessories..............................................73

CareCollection ....................................................73

Contents

This washing machine conforms to current safety requirements.

Inappropriate use can, however, lead to personal injury and

damage to property.

To avoid the risk of accidents and damage to the washing

machine, please read these instructions carefully before using it

for the first time. They contain important information on its

installation, safety, use and maintenance.

Keep these instructions in a safe place and ensure that new users

are familiar with the content. Pass them on to any future owner.

Correct application

~This washing machine is not designed for commercial use. It is

intended for use in domestic households and in similar working and

residential environments.

~The washing machine is not intended for outdoor use.

~It must only be used as a domestic appliance to wash items

which are specified by the manufacturer as being washable on the

care label.

Any other usage is not supported by the manufacturer and could be

dangerous. Miele cannot be held liable for damage resulting from

incorrect or improper use or operation of the washing machine.

~The washing machine can only be used by people with reduced

physical, sensory or mental capabilities, or lack of experience and

knowledge, if they are supervised whilst using it or have been shown

how to use it in a safe way and understand the hazards involved.

Warning and Safety instructions

Safety with children

~Children 8 years and older may use, clean or maintain the

washing machine without supervision only if they have been shown

how to do so in a safe way and understand the hazards involved.

~Children under 8 years of age must be kept away from the

machine unless they are constantly supervised.

~The washing machine is not a toy! To prevent the risk of injury, do

not allow children to play with it or near it, or to play with the

controls.

~For machines with a 'porthole' door, remember that the porthole

glass will be hot when washing at high temperatures

Do not let children touch it.

Warning and Safety instructions

Technical safety

~Before setting up the washing machine, check it for any externally

visible damage.

Do not install or use a damaged washing machine.

~Before connecting the washing machine, ensure that the

connection data on the data plate (voltage and frequency) match

the mains electricity supply. If in any doubt, consult a qualified

electrician.

~The electrical safety of this washing machine can only be

guaranteed when correctly earthed. It is most important that this

basic safety requirement is observed and regularly tested, and

where there is any doubt the household wiring system should be

inspected by a qualified electrician. The manufacturer cannot be

held liable for the consequences of an inadequate earthing system

(e.g. electric shock).

~Do not connect the washing machine to the mains electricity

supply by an extension lead. Extension leads do not guarantee the

required safety of the machine (e.g. danger of overheating).

~Faulty components must only be replaced by genuine Miele

original spare parts. Only when these parts are fitted can the safety

standards of the machine be guaranteed.

Warning and Safety instructions

~Unauthorised repairs could result in unforeseen dangers for the

user, for which Miele cannot accept liability. Repairs should only be

undertaken by a Miele approved service technician.

~If the connection cable is faulty it must only be replaced by a

Miele approved service technician to protect the user from danger.

~The machine must be isolated from the electricity supply in the

event of a fault and during installation, maintenance and repair work.

~This washing machine must only be connected to the on-site

water supply using a new hose kit. Old hoses must not be re-used.

~In areas which may be subject to infestation by cockroaches or

other vermin, pay particular attention to keeping the machine and its

surroundings in a clean condition at all times. Any damage which

may be caused by cockroaches or other vermin will not be covered

by the guarantee.

~This machine must not be used in a non-stationary location (e.g.

on a ship).

~Do not make any alterations to the washing machine, unless

authorised to do so by Miele.

Warning and Safety instructions

Correct use

~Do not install your washing machine in rooms where temperatures

below freezing may occur. Frozen hoses may burst or split. The

reliability of the electronic control unit may be impaired at

temperatures below freezing point.

~Before using the washing machine for the first time, check that

the transit bars at the rear of the machine have been removed (see

section on "Installation and connection"). During spinning, a transit

bar which is still in place may result in damage to both the machine

and adjacent furniture or appliances.

~Turn off the stopcock if the machine is to be left for any length of

time (e.g. holiday), especially if there is no floor drain (gully) in the

immediate vicinity.

~Flooding danger.

If hooking the drain hose into a wash basin, check that the water can

drain off quickly enough to prevent the sink from overflowing. Make

sure the drain hose is secure, so that the force of the water flowing

out of the hose does not dislodge it.

~Take care to ensure that foreign objects (e.g. nails, pins, coins,

paper clips) do not find their way into the machine with the laundry.

These may damage components of the machine (e.g. suds

container, drum), which in turn can result in damage to the laundry.

Warning and Safety instructions

~If the correct amount of detergent is dispensed, the machine

should not need to be descaled. If, however, you do wish to descale

the machine only use proprietary non-corrosive descaling agents

and strictly observe the instructions on the packaging. A special

descaling agent is available to order from the Miele Spare Parts

Department or via the internet on www.miele-shop.com.

~Textiles which have been pre-treated in solvent based cleaning

agents must be thoroughly rinsed in clean water before being

washed in the machine.

~Do not use solvent based cleaning agents, e.g. those containing

benzine, in this machine, as this may result in damage to component

parts and create toxic fumes. Such agents also pose a fire and

explosion hazard.

~Do not use solvent based cleaning agents, e.g. those containing

benzine, to clean the outside surfaces of this machine. They can

cause damage to plastic surfaces.

~Only use dyes specified by the manufacturer as being suitable for

use in a domestic washing machine. Always observe the

manufacturer's instructions carefully.

~Colour run and dye removers contain sulphur compounds which

can cause damage such as corrosion. Do not use these products in

this machine.

~If detergent comes into contact with the eyes, rinse them

thoroughly with lukewarm water immediately. If swallowed, seek

medical assistance immediately and retain the packaging or label

for reference. Those with skin problems or sensitive skin should

avoid their skin coming into contact with detergent.

Warning and Safety instructions

Accessories

~Accessory parts may only be fitted when expressly approved by

Miele. If other parts are used, guarantee, performance and product

liability claims will be invalidated.

Miele cannot be held liable for damage caused by non-

compliance with these Warning and Safety instructions.

Warning and Safety instructions

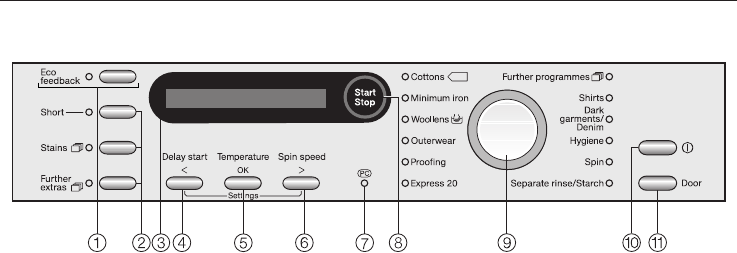

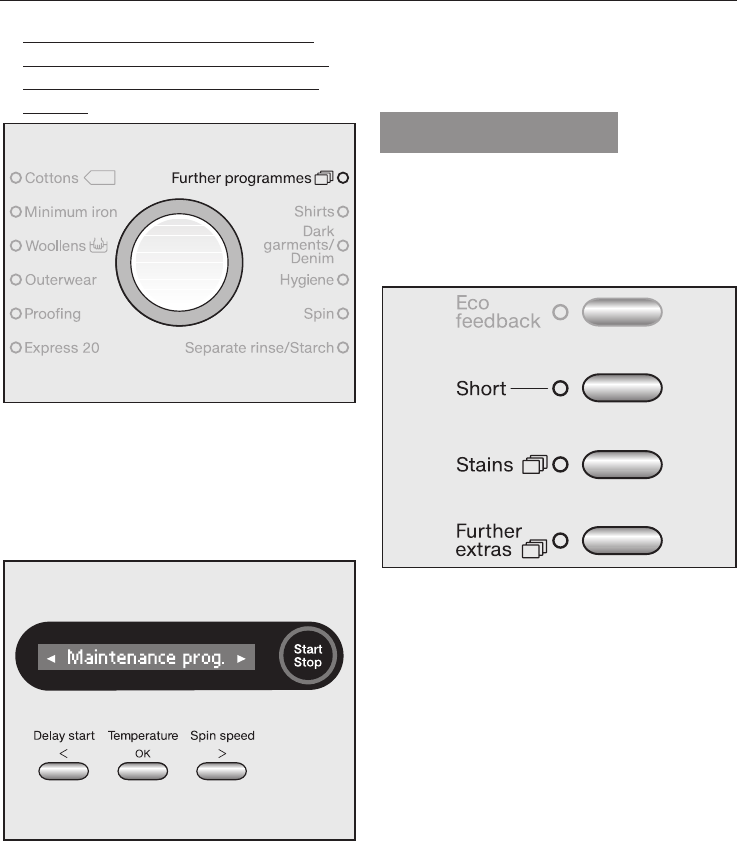

Control panel

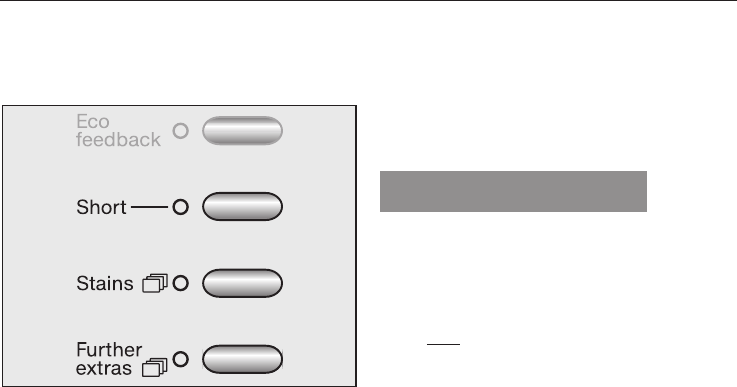

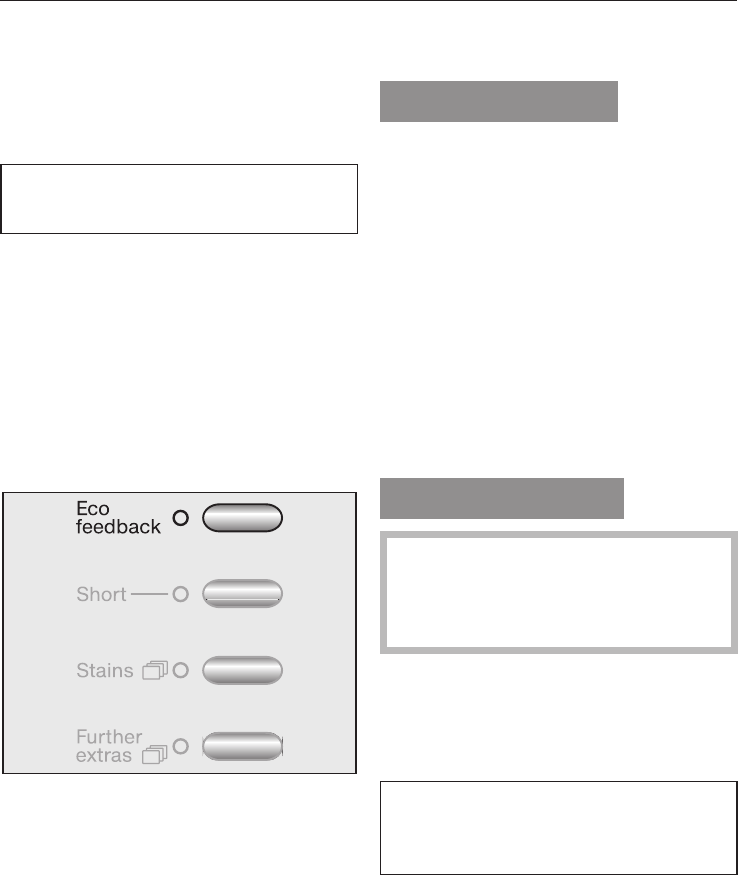

aEco feedback button

See "Eco feedback" in "Washing

environmentally and economically"

for more details about this function.

bExtra option buttons

Various Extra options can be added

to the washing programmes.

cDisplay

See the following page for more

information.

dDelay start button (V)*

For delaying the start time of a

programme.

eTemperature button (OK)*

For selecting a temperature.

fSpin speed button (W)*

For selecting the final spin speed or

Rinse hold/eor No .(No spin).

*(V/OK/W) = These have a second

function, please see the following

page

gPC/Optical interface

This is used by service technicians

to run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

hStart/Stop button

For starting the programme selected

and cancelling a programme once it

has started.

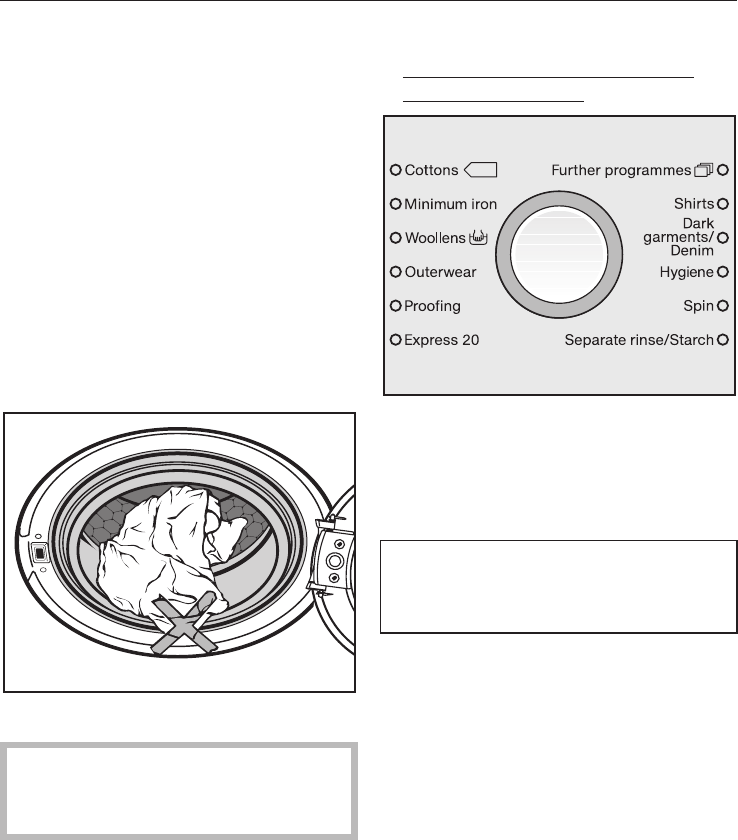

iProgramme selector

For selecting a programme. The

indicator light next to the selected

programme will come on. The

programme selector can be turned

clockwise or anti-clockwise.

jKButton

For switching the washing machine

on and off.

To save energy, the washing

machine will switch itself off

automatically 15 minutes after the

end of the programme/anti-crease

phase or after being switched on, if

no other selection is made.

kDoor button

Opens the machine door.

Operating the washing machine

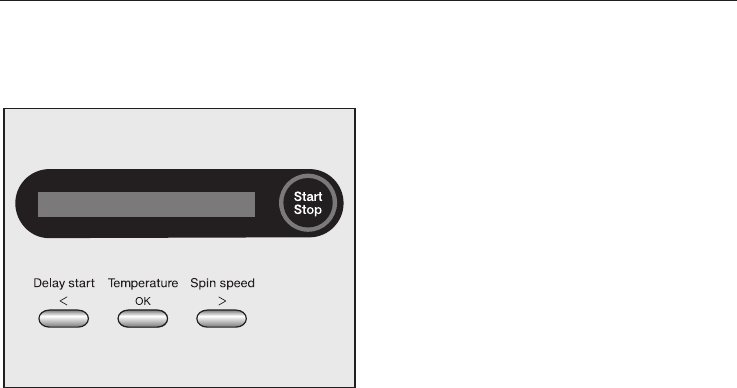

Second function of the Delay start

(V), Temperature (OK) and Spin

speed (W) buttons

These buttons have a second function

when Further programmes 4is

selected and also in the Settings. The

second function is represented by

symbols in the display.

– The Delay start (V) button scrolls

through the list of options to the right

or decreases values.

–The Spin speed (W) button scrolls

through the list of options to the left

or increases values.

–The Temperature (OK) button

confirms the programme selected,

the value set or opens the sub menu

of the Setting selected.

Programme duration

After the start of a programme, the

estimated programme duration will

appear in the display in hours and

minutes.

When delay start is being used, the

programme duration will appear after

the delay start time has elapsed.

During the first 8 minutes the washing

machine measures how much water is

being absorbed by the laundry and

uses this to calculate the load. The

programme duration may be longer or

shorter depending on this absorbency

rate.

Delay start

The delay start time selected will

appear in the display.

After the machine has started, the delay

start time counts down. If the delay start

time is more than 10 hours, it will count

down by the hour. If it is less than 9

hours and 59 minutes it will count down

minute by minute.

Once the delay start time has elapsed,

the programme will begin and the

estimated programme duration will

appear in the display.

Settings

The Settings can be used to tailor

machine to suit your personal

preferences.

Operating the washing machine

Optional programme packages

You can have additional programme

packages (containing a number of

individual programmes) loaded into

your machine.

These have to be downloaded by a

Miele service engineer.

The following programme packages

can be downloaded into your machine

if they were not supplied with your

machine ex-works (depending on

model):

Eco

– Cottons Eco

– Cottons Eco plus

– Minimum iron Eco

Home

– Curtains

– Down filled items

–Pillows

–Silks/lingerie

Home XL

–Bathrobes

–Curtains

–Down filled items

–Pillows

Hygiene & kids

–Kids' quick wash

–Minimum iron hygiene

–Toy building blocks

Medic

–First wash

–Minimum iron hygiene

–Nappies

–Pillows

Nursery

– Baby towelling

– Baby Wear

– Kids' sleeping bags

– Nappies

– Soft toys

Sport & leisure

–Bathrobes

–Sportswear

–Trainers

The new programmes can then be

selected by turning the programme

selector to Further programmes 4.

Operating the washing machine

Before using the machine for the first

time ensure that it is correctly

installed and connected. Also

check that the drain filter is securely

tightened to prevent the risk of leaks

during use. See "Installation and

connection".

This washing machine has

undergone a complete functional test

at the factory and there will be some

residual water in the drum from this

process.

For safety reasons, spinning is not

possible until the machine has been

prepared for using for the first time. To

activate the spinning function you must

run a wash programme without laundry

and without detergent.

Using detergent could result in an

excessive build-up of foam.

This also activates the ball valve. The

ball valve prevents detergent escaping

from the suds container into the sump

during a wash programme, thus making

maximum use of the detergent.

^Press the Kbutton.

If the washing machine is being

switched on for the first time, the

welcome screen will appear.

The welcome screen will appear in

the display every time the washing

machine is switched on until a

programme lasting longer than

1 hour has been completed.

Setting the language

You will be asked to select the

language you require for the display. It

is possible to change the language at

any time via the Settings.

!deutsch

^If the language shown is not the one

you want, select the language you do

want by turning the programme

selector. Confirm your selection by

pressing the Start/Stop button.

Reminder to remove transport bars

To avoid the risk of damage, the

transport bars must be removed

before the machine is used for the

first time. See "Installation and

connection" for instructions on how

to do this.

^After removing the transport bars (if

this has not already been done by

your fitter), press the Start/Stop

button.

Running your first programme

Cottons rwill be selected

automatically. Run this programme

without any laundry and without

detergent.

^Open the stopcock.

^Press the Start/Stop button.

^At the end of the programme switch

the machine off.

The washing machine is now ready for

use.

Before using for the first time

Energy and water consumption

–Water consumption and energy

usage are determined by the size of

the load.

To make the most out of your

machine, load the maximum dry load

for the programme you are using.

–When smaller amounts of laundry are

washed, the automatic load

recognition system will reduce the

amount of water, time and energy

used. This may mean that the time

left shown in the display is adjusted

during the course of the wash

programme.

– Use the Express 20 programme for

small loads.

– Modern detergents make it possible

to wash at lower temperatures (e.g

20°C). Washing using lower

temperature settings will save

energy.

– To maintain the hygiene of the

washing machine, carry out a hot

wash (60°C or above) using powder

detergent at regular intervals. The

Hygiene Info message will appear in

the display to remind you to carry out

a hot wash.

Detergent

–Do not exceed the amounts of

detergent recommended by the

manufacturer on the packaging.

–Adjust the dosage to the degree of

soiling of the laundry.

–Reduce the amount of detergent with

smaller loads (approx. 1/3less than

the amount recommended can be

used when washing a half load).

Choosing the correct Extra option

(Short, Pre-wash and Soak)

Select:

– A wash programme together with the

Short extra option for light soiling

where there are no obvious marks.

– A wash programme without any extra

options for normal to heavy soiling

with visible staining.

– A wash programme together with the

Soak extra option for very heavily

soiled laundry.

–The Pre-wash extra option for laundry

with large amounts of dirt (e.g. dust,

sand).

When drying with a tumble dryer

Selecting the highest possible spin

speed for the wash programme will

save energy when drying in a tumble

dryer afterwards.

Washing environmentally and economically

Eco feedback

The Eco feedback button is used for

calling up information about the

machine's energy and water

consumption.

The Eco feedback button must be

held in to display this information.

Pressing the Eco feedback button gives

two different types of information:

–Before and during the programme an

estimate is shown.

– At the end of the programme it

shows actual water and energy

consumption.

1. Estimate

^Press and hold the Eco feedback

button after selecting the

programme.

The probable consumption levels will

then be displayed by a bar chart.

Energy eeee Water ee

The more bars (e) in the display, the

more energy or water will be used.

The estimate is influenced by the

programme selected, the temperature

and any Extra options selected.

2. Actual usage

The actual amount of energy and water

used can be shown in the display

before opening the door at the end of a

programme.

^Press and hold the Eco feedback

button.

1.5 kWh 55 l

Opening the door or automatic

switching off at the end of the

programme resets the data to the

estimated values.

Total usage

The Total usage Setting gives details of

energy and water consumption over a

period of time.

Energy consumption is always given

in whole numbers, rounded up or

down.

For more information see "Settings".

Washing environmentally and economically

Brief instructions

The headings numbered A,B,C,...

show the operating sequence and can

be used as brief instructions.

ASort the laundry

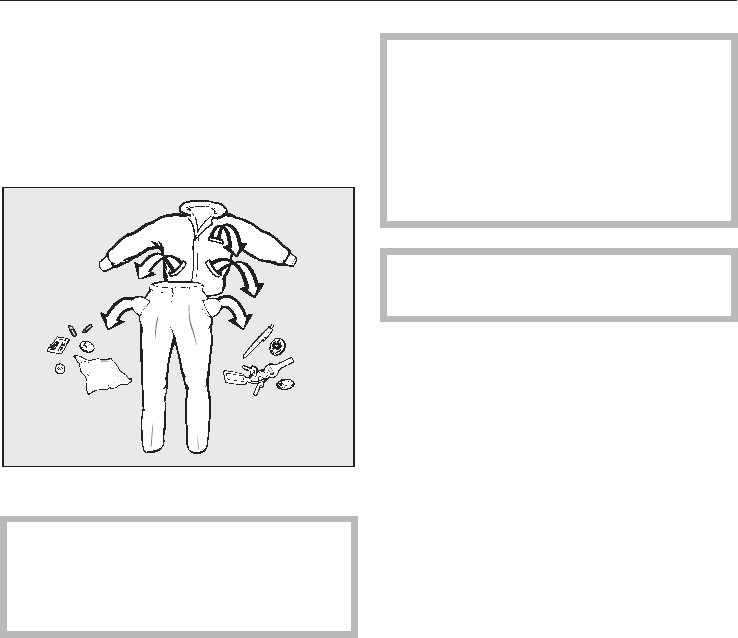

^Empty all pockets.

,Foreign objects (e.g. nails,

coins, paper clips, etc.) can cause

damage to garments and

components in the machine.

^Badly soiled areas, stains etc. should

be cleaned as soon as possible,

preferably whilst still fresh. Spillages

should be carefully dabbed off using

a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated

with liquid detergent, stain removers

etc. first, following the manufacturer's

instructions. With particularly stubborn

stains ask your dry cleaner for advice.

,If you use a solvent-based

cleaning agent (e.g. one containing

benzene) to pre-treat a stain, make

sure that any plastic parts (e.g.

buttons) are protected, and that the

cleaning agent is rinsed off before

washing the garment in the machine.

,Do not use solvent-based

cleaning agents in or on this machine.

^Sort the laundry by colour and by

care label. Most garments have a

textile care label in the collar or side

seam.

Dark textiles often contain excess dye

and should be washed separately

several times before being included in

a mixed load. Always wash whites and

coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

–Knitted garments, trousers and

jeans, T-shirts and sweat shirts: Turn

inside out, if recommended by the

manufacturer.

–Close any zips, fasten hooks and

eyes etc before washing.

–Fasten duvet covers etc. to prevent

small items from being rolled up

inside them.

Do not wash any items in this machine

which are specified by the

manufacturer as not washable on the

care label. (hsymbol)

How to wash correctly

BSwitch on the washing machine

CLoad the drum

^Press the Door button to open the

drum door.

^Unfold the laundry and load loosely

into the drum. Mixing both large and

small items gives better wash results

and also helps distribute the load

evenly during spinning.

The most efficient use of energy and

water is achieved when a full load is

washed. However, do not overload as

this causes creases and reduces

cleaning efficiency.

^Shut the door with a gentle swing.

Make sure that items do not get

caught between the drum door and

the seal.

DSelect a programme

A. Selecting programmes using the

programme selector

^Turn the programme selector

clockwise or anti-clockwise to the

required programme. The

programme indicator light for the

programme selected will come on.

Further programmes are available

under the programme setting Further

programmes 4.

How to wash correctly

B. Selecting programmes using the

programme selector at the Further

programmes 4position and the

display

^Turn the programme selector

clockwise until the indicator light for

Further programmes 4comes on.

^The following will appear in the

display:

^Scroll through the list using the

Delay start (V) and Spin speed (W)

buttons.

^When the programme you want

shows in the display, confirm your

selection by pressing the

Temperature (OK) button.

ESelect a temperature / spin speed

The suggested temperature and/or spin

speed can be changed.

2:59 r1600

^Press the Temperature button to alter

the temperature and press the Spin

speed button to alter the spin speed.

FSelect any Extra option(s)

^Select any Extra options by pressing

the appropriate button. The relevant

indicator light will come on to show

which Extra option has been

selected.

Not all Extra options are suitable for use

with every programme.

You can only select Extra options which

are compatible with the programme

being used.

See "Extra options" for more

information.

How to wash correctly

GSelect Delay start (if required)

The start of a programme can be

delayed from 15 minutes up to 24

hours, allowing you to make use of

night-time economy electricity rates, for

example.

See "Delay start" for more information.

HAdd detergent

It is important to dispense the correct

amount, because... . .

. . . too little detergent results in:

–Laundry not getting properly clean

and with time it may become grey

and hard to the touch.

– Greasy particles clinging to the

laundry.

– Limescale deposits on the heater

elements.

. . . too much detergent results in:

– Excessive foam which causes a low

level of agitation and poor wash,

rinse and spin results.

–Higher water consumption (an

additional rinse cycle will

automatically switch in).

–A burden to the environment.

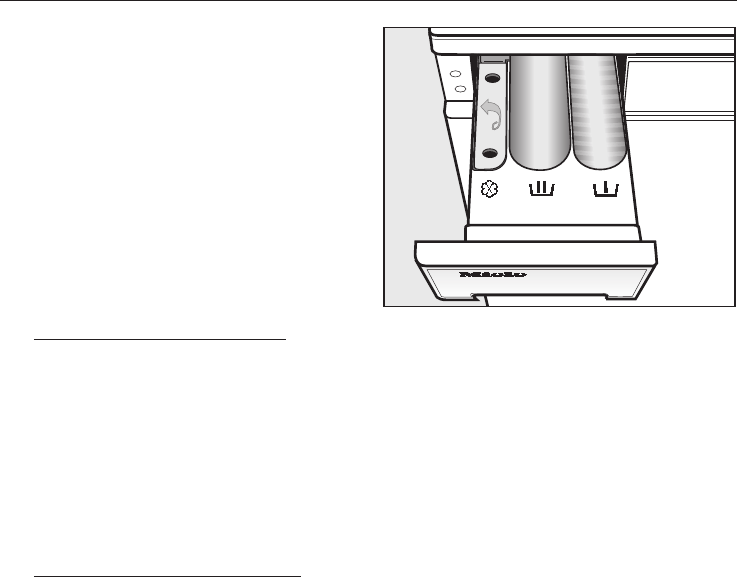

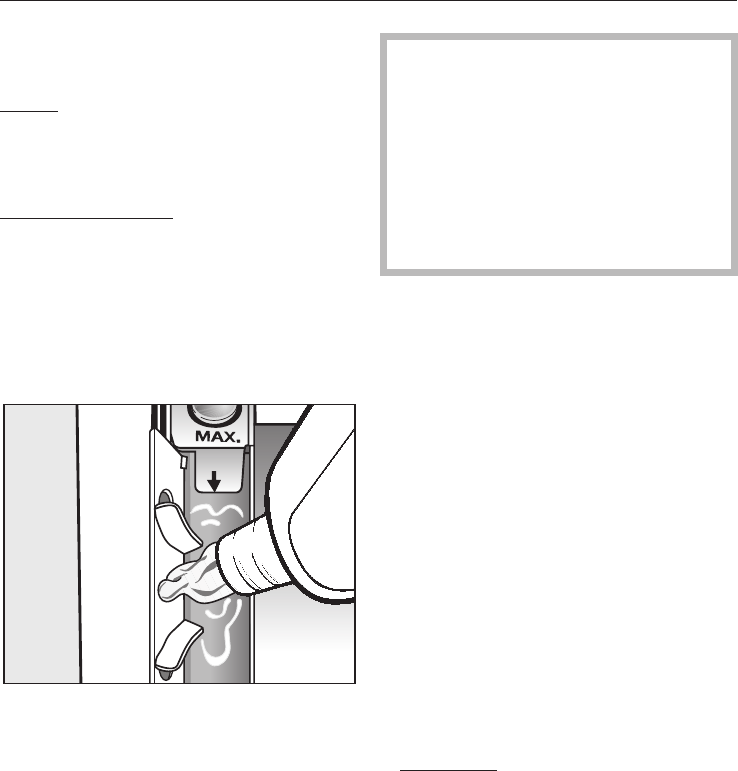

^Pull out the detergent drawer and

add detergent to the compartments

as follows:

Detergent for the pre-wash. Divide

the total recommended amount as

follows: add 1/3to compartment i

and 2/3to compartment j

Detergent for the main wash,

including Soak if selected

Fabric conditioner and liquid starch

^Close the detergent drawer.

See "Detergent" for further information

on detergent dispensing.

How to wash correctly

IStart the programme

^Press the flashing Start/Stop button.

If a delay start time has been selected,

then this will count down in the display.

At the end of the delay start time or im-

mediately after the programme has

started (if no delay start time has been

selected) the estimated programme

duration will appear in the display.

During the first 8 minutes the machine

measures how much water is being

absorbed by the laundry. The

programme duration may be longer or

shorter depending on this absorbency

rate.

The programme sequence is also

shown in the display. The washing

machine shows you when each section

of the programme is reached.

JRemove the laundry when the

programme has finished

In the anti-crease phase after the

programme has finished, the following

will appear alternately in the display:

0:00 Anti-crease

and

0:00 Finish

^Press the Door button to open the

drum door.

The washing machine will switch off

automatically 15 minutes after the

end of the anti-crease phase. You will

need to press the Kbutton to switch

it back on again.

^Remove the laundry.

Check that all items have been

removed from the drum. Items left in

the drum could discolour other items

in the next wash or become

discoloured themselves.

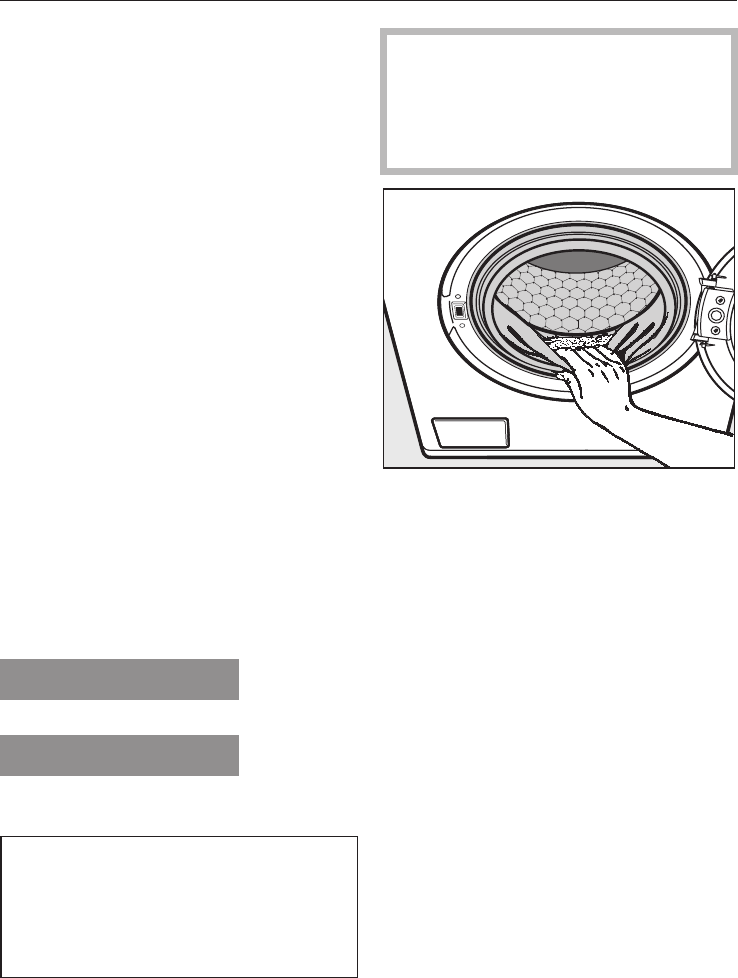

^Check the folds in the door seal for

any small articles, e.g. buttons, which

might be lodged there.

^Switch the machine off with the

Kbutton.

^Close the drum door. Otherwise there

is the danger of objects being placed

inadvertently in the drum. If these

remained unnoticed and were

washed in the next load, they could

damage the laundry.

How to wash correctly

Final spin speed

You can reduce the final spin speed.

However, you cannot select a final spin

speed higher than that shown in the

chart above.

Rinse and interim spin

There is a spin after the main wash and

between the rinses. A reduction in the

final spin speed will also reduce the

interim spin speed. If a spin speed of

less than 700 rpm is selected for a

Cottons programme, an additional rinse

is introduced.

To omit the final spin (Rinse hold)

^Select the Rinse hold (e) setting

using the Spin speed button. The

laundry will not be spun and will

remain suspended in the final rinse

water. This reduces creasing if the

laundry is not going to be removed

from the drum immediately after the

end of the programme.

–To start the final spin:

The washing machine will display the

maximum spin speed possible. You

can select a spin speed lower than

this. Start the final spin by pressing

the Start/Stop button.

– To end the programme:

Press the Door button. The water will

drain away. Press the Door button

again to open the door.

To omit rinse and interim spin and

the final spin (No .)

^Select the No .setting using the

Spin speed button.

The laundry is not spun after the final

rinse. The water will drain away and the

machine will go straight into the anti-

crease stage.

With some programmes an additional

rinse is introduced if this setting is

selected.

Spinning

Programme rpm

Cottons 1600

Minimum iron 1200

Delicates 600

Woollens /1200

Proofing 1000

Express 20 1600

Automatic plus 1200

Dark garments / Denim 1200

Shirts 600

Spin 1600

Separate rinse/Starch 1200

Maintenance prog. –

Hygiene 1600

Outerwear 800

Down duvets 1200

Delay start allows you to choose when

you want the programme to start. The

start of a programme can be delayed

from 15 minutes up to a maximum of 24

hours, allowing you to make use of

night-time economy electricity rates, for

example.

Selecting delay start

^Press the Delay start button. The

following will appear in the display:

0:15 ,60° 1600

^Each press on the Delay start button

increases the start time:

– in 15 minute steps up to 1 hour,

– in 30 minute steps up to 10 hours,

– in 1 hour steps from 10 hours

upwards.

If you keep the Delay start button

pressed in, the time will continue to

count up to 24 hours.

Activating delay start

^Press the Start/Stop button to activate

delay start. The following will appear

in the display:

4:30 ,until start

After the delay start time has elapsed,

the washing programme will start and

the estimated programme duration and

the programme sequence will show in

the display.

Altering delay start

You can change the delay start time at

any time by pressing the Delay start

button.

Cancelling delay start before delay

start has been activated

^Press the Delay start button until

24 h is showing in the display. Then

press the Delay start button again

briefly to cancel delay start.

If you cancel delay start after the Start/

Stop has been pressed, the washing

programme will start immediately.

Delay start

Please refer to the separate booklet for information on programmes available as

additional programme packages.

Programme chart

Cottons 9876* cold to 90°C Max. load 8.0 kg

Use for Cotton, linen or cotton mix fabric, e.g. table linen, towelling,

underwear, T-shirts etc.

Note The 60°/40°C programmes differ from the r/sprogrammes

as follows:

–Shorter programme duration

–Longer temperature holding times

–Higher energy consumption

Where particularly high levels of hygiene are required please

select a temperature of 60°C or higher.

Minimum iron

43218E76*

cold to 60°C Max. load 3.5 kg

Use for Synthetic, mixed fibre and easy care cotton. If fabrics have a high

proportion of man-made fibres it is advisable to programme the

machine for "Gentle action".

Note Reduce the spin speed for fabric which creases easily.

Woollens /ac* cold to 40°C Max. load 2.0 kg

Use for Machine-washable or hand-washable wool or wool blend fabrics.

If the care label does not specify a temperature, wash using the

cold setting.

Note Reduce the spin speed for items which crease easily.

Cottons r/sMax. load 8.0 kg

Use for Normally soiled cotton garments

Notes – These settings are the most efficient in terms of energy and

water consumption for washing cottons.

– With rthe actual wash temperature reached will be lower

than 60°C although the wash performance is the same as with

the standard Cottons 60°C programme.

Note for test institutes:

The test programme conforms to EN 60456 and the energy label with

Directive 1061/2010.

Programme chart

Express 20 76* cold to 40°C Max. load 3.5 kg

Use for Cotton and minimum iron garments that have hardly been worn or

are only very lightly soiled.

Note The Short extra option will be activated automatically.

Maintenance prog. 75°C Empty

With frequent washing at low temperatures, there is the danger of a build-up of

bacteria in the washing machine.

Cleaning the washing machine will significantly reduce bacteria, fungus and

biofilm and help prevent the build-up of unpleasant odours.

Notes –Optimum results can be achieved by using Miele machine

cleaner. Alternatively a universal powder detergent can be

used.

–Dispense the machine cleaner or universal powder via the

detergent compartment.

–Do not load any laundry. The drum must be empty for the

maintenance programme.

Proofing 40°C Max. load 2.5 kg

Use for Treating microfibre fabric, skiwear, and table linen made from

mainly synthetic fibres to provide a water and stain resistant finish.

Notes –The items should be freshly laundered and spun or dried before

proofing.

– For best results, the items should be heat-treated afterwards,

either in a tumble dryer or by ironing.

Outerwear cold to 40°C Max. load 2.5 kg

Use for Outerwear made from membrane fabric such as Gore-Tex®,

SYMPATEX®, WINDSTOPPER®etc.

Notes –Zip up jackets before washing.

–Do not use fabric conditioner.

–If wished these garments can also be re-proofed using the

Proofing programme. Proofing should not be done every time

the garment is washed.

Programme chart

Dark garments / Denim cold to 60°C Max. load 3.0 kg

Use for Black and dark garments made from cotton, mixed fibre or denim.

Notes –Wash inside out.

–Denim often contains excess dye and may run during the first

few washes. Wash light and dark coloured items separately.

Automatic plus 7621* cold to 40°C Max. load 5.0 kg

Use for Mixed loads of garments suitable for the Cottons and Minimum

iron programmes. Sort according to colour.

Note The wash parameters (e.g. water level, wash rhythm and spin

speed) are adjusted automatically in this programme to ensure the

best possible care and wash result for each item.

Shirts cold to 60°C Max. load 2.0 kg

Notes –Pre-treat collars and cuffs if necessary.

–Wash silk shirts and blouses in the Delicates programme.

Delicates 4321ac* cold to 60°C Max. load 2.5 kg

Use for Delicate garments made from synthetic fibre, mixed fibre, rayon

and easy care cotton.

Curtains, including net curtains, specified as machine-washable

by the manufacturer.

Notes –Dust in curtains usually makes using a programme with pre-

wash advisable.

– Select No .(No spin) for items which crease easily.

Down duvets cold to 60°C Max. load 2.5 kg

1 down duvet

2.20m x 2.00m

Use for Down filled duvets.

Note Please observe the manufacturer's care label.

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

Programme chart

Spin

Notes –To drain only: Select No .(No spin).

–Make sure you select the appropriate spin speed.

Separate rinse/Starch Max. load 7.0 kg

Use for – Rinsing hand-washed items.

– Starching table cloths, serviettes and workwear

Notes – Reduce the spin speed for fabrics which crease easily.

– Items for starching should be freshly laundered but not treated

with fabric conditioner.

– You can achieve a particularly good rinse result with two rinses

by activating the Water plus extra option. For this, the Extra

rinse option of the Water plus Setting must be activated (see

"Settings" at the end of this booklet).

Hygiene 30°C to 90°C Max. load 7.0 kg

Use for Cotton and linen fabric which have been in direct contact with the

skin, e.g. underwear, nappies, towelling, bed linen, pillow and

mattress covers or where high standards of hygiene are required.

Notes –For optimum hygiene results select a temperature of 60°C or

above.

–Observe the manufacturer's care label.

Extra options are selected or

deselected by pressing the appropriate

button and via the display.

^Press the Short button or the Stains

4button and/or the Further extra

options 4button.

Short

For light to normal soiling with no visible

staining.

This shortens the programme running

time.

Stains 4

There is a choice of various types of

stains for achieving the optimum wash

result with stain removal. The wash

programme is optimised for the type of

stain. One stain type can be selected

per wash programme.

If the "Short" extra option was selected

previously, it will be deselected

automatically.

Press the Stains 4button again to

come out of the Stains sub-menu.

Further extras 4

The Further extras sub-menu will open

in the display.

Extra options available for that

programme are shown in the display.

<Water plus .

^Scroll through the list using the Delay

start (V) and Spin speed (W) buttons.

Press the Temperature (OK) button to

select the Extra option displayed.

Only one further Extra option may be

selected.

The Extra option can be deselected by

pressing the Further extras 4button

again.

Water plus

The water level in the main wash and

the rinses will be increased.

You can select other settings for Water

plus. These are described in "Settings".

Extra options

Pre-wash

For laundry with large amounts of dirt

e.g. dust, sand.

Soak

For heavily soiled items with protein

stains.

You can select a soak time of between

30 minutes and 2 hours in 30 minute

steps. This is described in "Settings".

The default setting is 2 hours.

Extra quiet

If using your washing machine during

quiet periods, you can reduce the noise

levels even more.

If the Extra quiet Extra option is

selected, the machine will activate the

Rinse hold option and not spin. The

programme duration is longer.

To deactivate Rinse hold

^Use the Spin button to select the spin

speed you want.

By using Delay start you can make sure

the final spin occurs outside quiet

periods in the home.

Extra options

The following Extra options can be selected in addition to the programme:

Short

Stains

Water plus

Pre-wash

Soak

Extra quiet

Cottons ######

Minimum iron ######

Woollens handcare /#

Outerwear ######

Proofing #

Express 20 #1) ##

Maintenance prog.

Down duvets #

Delicates ## ###

Automatic plus ##

Shirts ######

Dark garments/Denim ## ###

Hygiene #####

Spin

Separate rinse/Starch ##

Extra options

Washing

The figure quoted in the bucket is the

maximum temperature the garment

can be washed at. The number of

bars under the symbol indicates the

level of agitation permitted.

9No bar under the symbol: =

normal agitation

4One bar under the symbol: =

reduced agitation

cTwo bars under the symbol: =

much reduced agitation

/Hand wash (if no temperature

is specified use the lowest

temperature or cold)

hDo not wash

Drying

The number of dots indicates the

drying temperature

qNormal temperature

rLow temperature

sDo not tumble dry

Ironing

The number of dots indicates the

ironing temperature

IHot iron (max sole plate temp.

approx. 200°C)

HMedium hot iron (max sole

plate temp. approx. 150°C)

GCool iron (max sole plate

temp. approx. 110°C). Do not

steam iron garments carrying

this symbol.

JDo not iron

Professional cleaning

fDry clean only. The letters

indicate the type of cleaning

agent required.

wProfessional Wet Clean only

DDo not dry clean

Bleaching

xAny oxidising bleaching

agent can be used

{Only use an oxygen based

bleach or a non-chlorine

bleach

zDo not bleach

Garment care label symbols

Main wash Rinses Spinning

Water

level

Wash

rhythm

Water

level

Rinses Interim

spin

Final

spin

Programme sequence

Cottons da(2-41)2) LL

Minimum iron (ce2-33) LL

Woollens /efe2LL

Proofing (d–––L

Express 20 dbd1-33) LL

Automatic plus (abc e2-33) LL

Dark garments /

Denim

(bd3–L

Shirts ece2–L

Spin – – –––L

Separate rinse/

Starch

––e1–L

Please see next page for description of the symbols

Outerwear ede3L4) L

Maintenance prog. (ae2– –

Hygiene (b(3-42) LL

Down duvets5) (de3–L

d= Low water level

(= Medium water level

e= High water level

a= Intensive rhythm

b= Normal rhythm

c= Gentle rhythm

d= Sensitive rhythm

e= Ultra sensitive rhythm

f= Handwash rhythm

This machine has fully electronic

controls with automatic load

recognition. It takes in the right amount

of water required for the programme

depending on the amount of laundry

and its absorbency rate. This means

that programme cycles and durations

can vary.

The programme sequences outlined in

the chart are based on the basic

programme with a full load. Extra

options which can be selected have not

been taken into account.

The display shows the stage the

programme has reached.

Special features in the programme

sequences:

Anti-crease:

At the end of every programme, with

the exception of the Woollens

programme, the drum continues to turn

at intervals for up to 30 minutes to help

prevent creasing.

The door can be opened and laundry

removed at any time during the anti-

crease phase.

1) A second rinse is carried out when a

temperature between 60°C and 90°C

has been selected. A third rinse is

carried out when a temperature

below 60°C is selected.

2) A third or fourth rinse is carried out if:

– there is too much foam in the drum

– a spin speed lower than 700 rpm has

been selected

– The spin speed has been

deselected.

3) A third rinse is carried out if:

–The spin has been deselected.

4) In the Outerwear programme,

laundry is only spun after the main

wash.

5) Run-up to spin: A run-up to spin is

carried out before the wash process

begins, to deflate down-filled items.

Subsequent water intake for the main

wash is through compartment j.

6) Pre-rinse: A pre-rinse without

detergent is carried out automatically

to remove dust.

Programme sequence

Cancelling a programme

You can cancel a programme at any

time after it has started.

^Press the Start/Stop button.

Cancel programme

^Press the flashing Start/Stop button

again.

The suds will be pumped away.

If you want to remove the laundry:

^Press the Door button.

If you want to select a different

programme:

^Switch the machine off with the K

button.

^Switch the washing machine back on

again.

^Check that there is still detergent in

the detergent drawer. Add detergent,

if necessary.

^Select a new programme.

Interrupting a programme

^Switch the machine off with the K

button.

To continue with the same programme:

^Switch the machine back on again

with the Kbutton.

Making changes to a

programme

After the start of a programme it is no

longer possible to select a different

programme.

Temperature

It is possible to select a different

temperature up to 5 minutes after the

programme has started, except with the

Cottons programme.

^Press the Temperature button.

Spin speed

It is possible to change the spin speed

up until the final spin begins.

^Press the Spin speed button.

Extra options

It is possible to select or deselect the

Short,Water plus and Extra Quiet Extra

options up to five minutes after the

programme has started.

A programme cannot be cancelled

or changed if the safety lock has

been activated.

Changing the programme sequence

Adding or removing laundry

after a programme has started

^Press the Door button to open the

drum door.

^Add or remove items.

^Close the drum door.

The programme will continue

automatically.

Please note:

Once a programme has started the

machine cannot recognise any

adjustment to the load.

For this reason, if laundry is added or

removed after the start of a programme,

the machine will always complete the

programme cycle assuming a full load

which can lead to an increase in the

programme duration shown in the

display.

The door cannot be opened, if:

–the suds temperature is above 55°C.

–the water is above a certain level.

–the programme has reached the

Final spin stage.

If you press the Door button when the

above conditions are present, the

following will appear in the display:

:Door locked

Safety lock

The safety lock prevents the machine

from being opened and programmes

from being cancelled during a wash

programme.

To activate the safety lock

^Press and hold in the Start/Stop

button after the programme has

started.

Stop or in 3 secs 0

^Keep the Start/Stop button pressed in

until the time has elapsed and the

following appears in the display:

Locked 0

The safety lock is now activated. It is

deactivated automatically at the end of

the programme.

To deactivate the safety lock

^Press and hold in the Start/Stop

button after the programme has

started.

Unlock in 3 secs 0

^Keep the Start/Stop button pressed in

until the time has elapsed and the

following appears in the display:

Unlocked 1

Changing the programme sequence

The correct detergent

All modern detergents produced for automatic washing machines are suitable.

Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets

are suitable for full loads, but note that it may be impractical to reduce tablets for

smaller loads. Some tablets do not dissolve as rapidly as others, and may not be

suitable for programmes with short durations.

Do not use biological detergents on silk as the enzymes may damage the silk!

Instructions for use and recommended dosage amounts are given on the

detergent packaging.

See "Optional accessories" at the end of this booklet for details of Miele

branded care products including detergents and fabric conditioner.

Detergent

Universal

detergent

Detergent

for

coloureds

Detergent

for

delicates

Specialist

detergent*

Proofing

agent**

Fabric

conditioner

Minimum iron X X – – – X

Cottons X X – – – X

Delicates X X X – – X

Woollens /–––X–X

Proofing – – – – X –

Express 201) XX– ––X

Automatic plus X X – – – X

Dark garments /

Denim1)

XXX ––X

Shirts X X – – – X

Separate rinse/

Starch

–––X–X

Outerwear1) ––XX––

Maintenance

programme

X–– X––

Hygiene2) X–– ––X

1) Liquid detergent

For programmes with a pre-wash you will need to purchase a special container

from the Miele Spare Parts Department which sits in the main wash

compartment j. Add liquid detergent to this container for the main wash and

to compartment ifor the pre-wash

2) Use powder detergent

* Specialist detergent

Detergent designed specifically for the wash programme or type of fabric.

** Only use proofing agents containing fluorochemical compounds which are

stated by the manufacturer as being "suitable for use on membrane textiles".

Do not use proofing agents which contain paraffin. Add proofing agents to

compartment §.

Down duvets1) –XXX––

The right amount to dispense will

depend on the following:

–The quantity of laundry

–The soiling level of the laundry

Lightly soiled

No visible dirt or stains. Possibly

slight body odour.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Visible dirt and stains and/or dried on

soiling.

– The water hardness level.

Check with your local water supplier

if you do not know the hardness level

in your area.

Water hardness levels

Hardness

scale

Hardness level

mmol/l

German

°d

I (soft) 0 - 1.5 0 - 8.4

II (medium) 1.5 - 2.5 8.4 - 14

III (hard) Above 2.5 Above 14

Refill packs of detergent

When purchasing detergent buy refill

packs wherever possible. This helps

reduce the amount of waste packaging.

Water softener

A water softener can be used to cut

down on the use of detergents in hard

water areas. Dispense according to the

amount specified on the packaging.

First add detergent and then the water

softener.

Miele branded water softening tablets

are available from the Miele Spare Parts

Department or via the internet on

www.miele-shop.com.

Use a quantity of detergent as for soft

water.

Washing with several

components

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the

following order:

1. Detergent

2. Water softeners

3. Stain remover

This way the agents are distributed

more evenly.

Detergent

Fabric conditioners and liquid

starch

Starch

Stiffens and gives body to items of

laundry, e.g. shirts, tablecloths and bed

linen.

Fabric conditioners

Make garments soft to handle and help

prevent static cling when tumble

drying.

Automatic dispensing of fabric

conditioner or liquid starch to

laundry at the end of a programme

^Add the fabric conditioner or liquid

starch to compartment §.Do not

exceed the maximum level mark.

It will be dispensed automatically in the

last rinse. At the end of the programme

a small amount of water remains in the

fabric conditioner compartment §.

If starching frequently, thoroughly

clean the dispenser compartment,

especially the siphon tube and

fabric conditioner channel, regularly.

See "Cleaning the detergent

dispenser drawer". Do not use

powder starch formulations or

viscous liquid starch in the

§compartment as it will clog up.

Adding fabric conditioner or starch

separately

^Dispense in accordance with

manufacturer's instructions on the

packaging.

^Dispense liquids into the §

compartment and powder or viscous

formulations into the i

compartment.

^Turn the programme selector to

Separate rinse/Starch.

^Select a spin speed.

^Press the Start/Stop button.

Colour run and dye removers/

dyes

^Do not use colour run or dye

removers in this machine.

^Dyes suitable for use in domestic

washing machines can be used.

However, please note that the salt

used in the dyeing process can

cause corrosion to stainless steel

components in the machine if you

dye frequently. Follow the

manufacturer's instructions carefully.

Detergent

A range of Miele branded cleaning and

conditioning products is available to

order from Miele or the internet at

www.miele-shop.com.

Cleaning the drum (Hygiene

info)

Washing at low temperatures and/or

using liquid detergent can cause

bacteria and unpleasant odours to

build up in the machine. The washing

machine can be cleaned using the

Maintenance programme. This should

be done regularly, at the latest when

the Hygiene Info message appears in

the display.

,Disconnect the machine from the

mains electricity supply and

withdraw the plug from the socket

before cleaning the machine.

,The machine must not be hosed

down.

External casing and fascia

panel

^Clean the casing using a Miele E-

cloth or with a mild non-abrasive

cleaning agent or soap and water

using a well wrung-out cloth. Wipe

dry with a soft cloth.

^The drum can be cleaned with a

proprietary stainless steel cleaning

agent, following the manufacturer's

instructions on the packaging.

,Do not use solvents, abrasive

cleaners, glass cleaners or multi-

purpose cleaning agents.

These could damage plastic

surfaces and other parts.

Cleaning the detergent

dispenser drawer

The pre-wash and main wash

compartments of the detergent

dispensing drawer are self-cleaning.

For hygiene reasons, clean the entire

drawer at regular intervals.

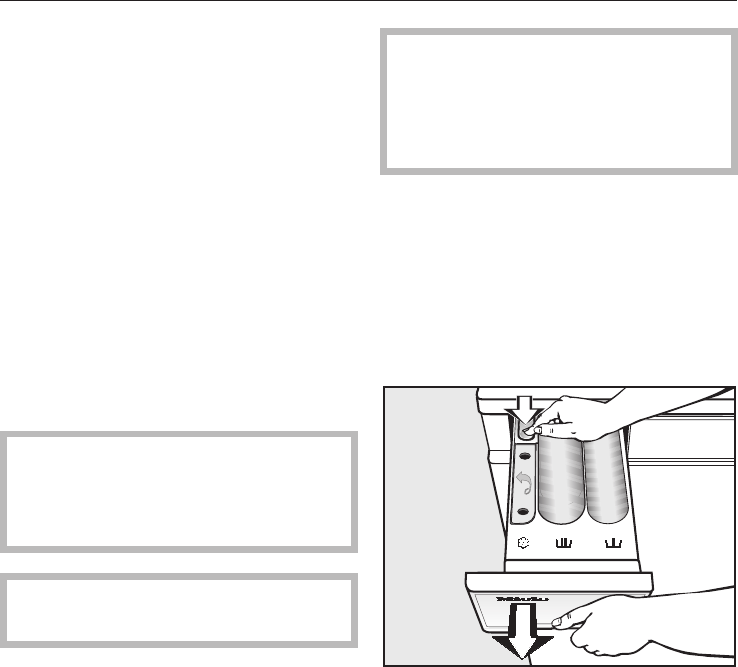

^Pull out the detergent dispenser

drawer until a resistance is felt. Press

down the release catch and at the

same time pull the drawer right out of

the machine.

^Clean the drawer with hot water.

Cleaning and care

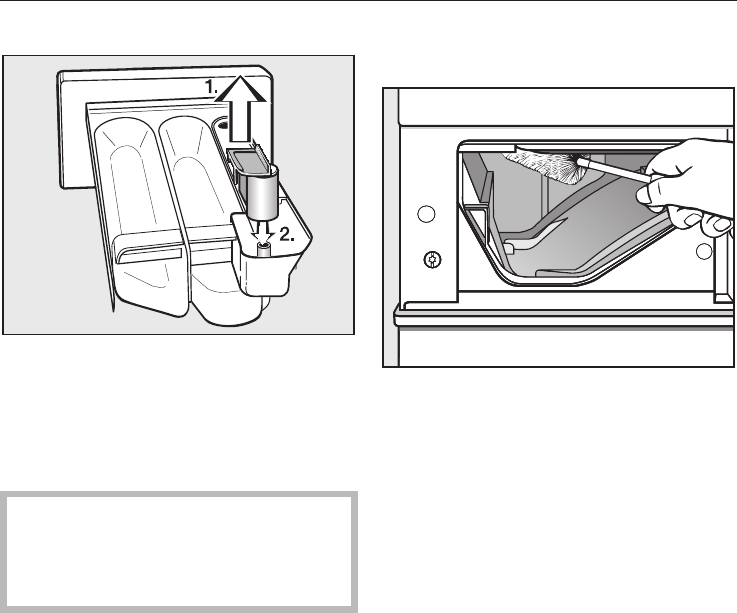

^Clean the siphon.

1. Remove the siphon from

compartment §and rinse under hot

running water. Clean the siphon tube

in the same way.

2. Replace the siphon.

If starching frequently, thoroughly

clean the siphon and siphon tube

regularly. A build-up of liquid starch

will cause them to get clogged.

Cleaning the detergent dispenser

drawer housing

^Use a bottle brush to remove

detergent residues and limescale

from the jets inside the detergent

dispenser drawer housing.

Cleaning and care

Cleaning the water inlet filters

The washing machine has two filters to

protect the inlet valves.

These filters should be checked every

six months or so, or more often if there

are frequent interruptions to the water

supply.

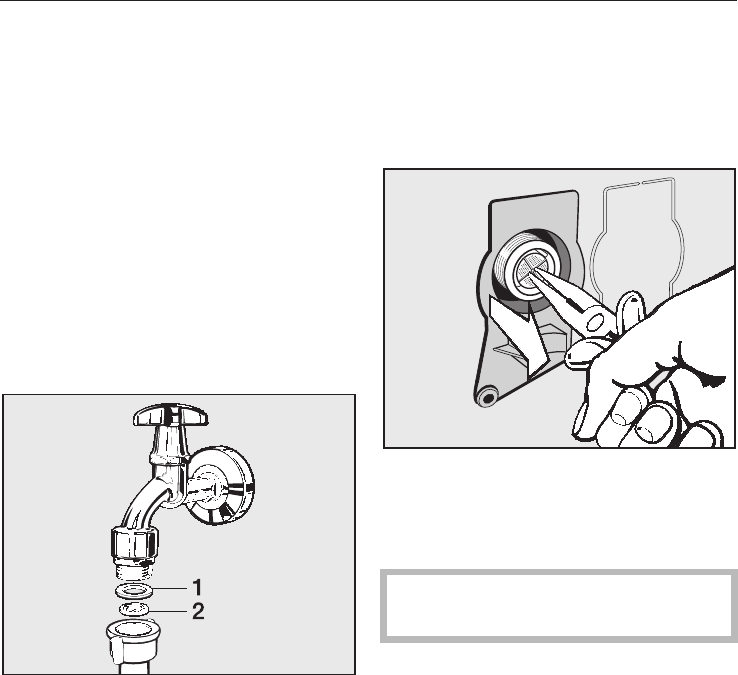

To clean the filter in the union in the

open end of the inlet hose:

^First turn off the stopcock.

^Unscrew the inlet hose from the

stopcock.

^Remove rubber seal 1from the

recess.

^Using pointed pliers, take hold of

plastic filter bar 2, remove the filter

and clean it.

^Put the filter and seal back in the

reverse order and reconnect the

hose.

^Turn on the stopcock and check the

connection is watertight. If it leaks,

tighten the connection.

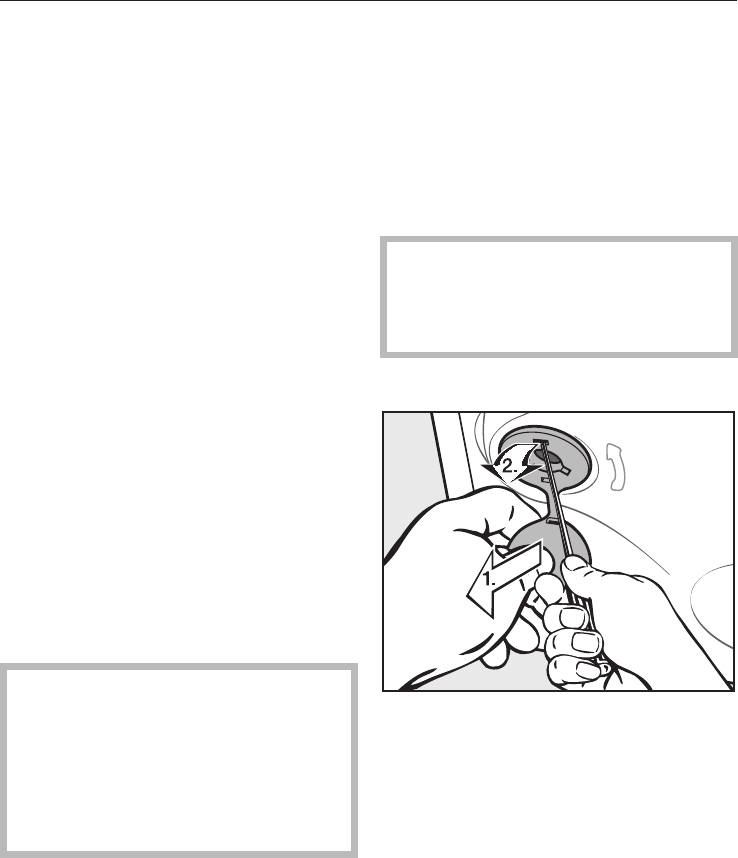

To clean the filter in the water inlet

valve:

^Using pliers, carefully loosen the

ribbed plastic nut on the inlet valve

and unscrew.

^Use pointed nose pliers to withdraw

the plastic filter by the bar (see

illustration). Clean, put back and

secure.

The two filters must be put back in

place after cleaning.

Cleaning and care

With the help of the following notes, minor faults in the performance of the

machine, some of which may result from incorrect operation, can be put right

without contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a

suitably qualified person in strict accordance with current local and national

safety regulations. Repairs and other work by unqualified persons could be

dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains

dark, and the Start/

Stop button indicator

light does not come

on.

There is no power to

the machine.

Check whether

– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

The washing machine

has turned itself off

automatically to save

energy.

Switch the machine back on

again with the Kbutton.

You are asked to enter

a code.

Access via a code has

been activated.

Enter the code and confirm

the entry. Deactivate the

code if you do not wish this

message to appear in the

display the next time the

machine is switched on.

The display is dark. The display has

switched off

automatically to save

energy (Standby

mode).

Press a button. The machine

will come out of standby

mode.

Problem solving guide

The following fault messages appear in the display and the

programme stops

Fault message Possible cause Remedy A

;Drain

fault –The water outlet is

blocked or restricted.

–The drain hose has

been fixed too high.

–Clean the drain filter and

the drain pump.

–The maximum delivery head

is1m.

;Water inlet

fault The water inlet is blocked

or restricted.

Check whether

–the stopcock is opened

properly.

–the inlet hose is kinked.

– the water pressure is too

low.

The filter in the water inlet

hose is dirty.

Clean the filter.

;Waterproof

fault The water protection

system has reacted.

– Close the stopcock.

– Call the Service

Department.

;Technical

fault There is a fault. Start the programme again.

If the fault message appears

again, contact the Service

Department.

ATo switch off the fault message: Switch the machine off with the Kbutton.

Problem solving guide

The following fault messages appear in the display

Fault message Possible cause Remedy

Heating fault The washing machine is

not heating up the water.

Start the programme again.

If the fault message appears

again, contact the Service

Department.

Chk detergent Excessive foam has built

up during washing.

Use less detergent next time

and follow the manufacturer's

instructions on dosage given on

the packaging.

Hygiene info A programme using a

temperature above 60°C

has not been run for a

long time.

In order to prevent bacteria and

unpleasant odours building up

in the machine, run the

Maintenance programme using

Miele machine cleaner or a

universal powder detergent.

The messages are displayed at the end of the programme and when the washing

machine is switched on.

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes

during the spin cycle.

The machine feet are

not level.

Level the machine (see

"Installation and

connection").

The laundry has not

been spun properly and

is still wet.

The machine detected

an imbalance during

the final spin and

reduced the spin

speed automatically.

Include both large and

small items in the load as

this will give better

distribution during spinning.

The laundry has not

spun satisfactorily.

The spin speed

selected was too low.

Select a higher spin speed

next time.

The pump makes

strange noises.

This is not a fault. These noises occur at the end of a

pump sequence as a normal part of the operation.

Large amounts of

detergent residue remain

in the detergent

dispenser drawer.

The water pressure is

too low.

– Clean the filter in the

water inlet.

– Select Water plus.

Powder detergent

used with water

softeners can become

sticky.

Clean the drawer. Add

washing powder and then

add the water softener.

Fabric conditioner is not

completely dispensed or

too much water remains

in the §compartment.

The siphon tube is not

correctly positioned or

is clogged up.

Clean the siphon (see

"Cleaning and care -

Cleaning the detergent

dispenser drawer").

The display is in a

different language.

A different language

has been selected via

the "Language !".

Set the language you want.

The flag symbol will guide

you.

When laundry is dry, it

feels hard to the touch.

Too vigorous wash

action.

Programme in gentle action

and more water.

Not enough detergent

used.

Increase detergent dose to

prevent limescale build-up

in laundry.

No fabric conditioner

used.

Use fabric conditioner in the

last rinse.

Problem solving guide

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent

does not give the

required result.

Liquid detergents usually

contain no bleaching

agents. They do not

remove fruit, coffee and

tea stains.

–Use a general purpose

detergent containing a

bleaching agent.

–Add stain removers into

compartment jof the

detergent dispenser drawer

and liquid detergent into a

dispenser ball.

–Never put stain removers

and liquid detergent together

in the dispenser drawer.

Grey, greasy

particles cling to

washed laundry.

Insufficient amounts of

detergent were used to

break down the particles

of grease in heavily

soiled laundry.

– Use more detergent.

– Before the next wash, run the

Maintenance programme

using Miele machine cleaner

or a universal powder

detergent.

White residues

which look like

powder detergent

are seen on dark

textiles after

washing.

The detergent contained

compounds (zeolites) to

aid water softening

which are not soluble in

water. They have ended

up on the laundry.

– Try and brush off the

residues with a soft brush

once the laundry is dry.

–Wash dark textiles using a

detergent which contains no

zeolites. Liquid detergents

usually contain no zeolites.

–Use the Dark garments /

Denim programme for dark

coloured laundry.

Problem solving guide

The drum door does not open when you press the Door button

Possible cause Remedy

The washing machine is

not connected to the

electricity supply and/or is

not switched on.

Insert the plug in the socket and switch on and / or

switch the machine on with the Kbutton.

The safety lock has been

activated.

Deactivate the safety lock as described in

"Changing the programme sequence - Safety

lock".

Access via a code has

been activated.

Deactivate the code as described in "Settings -

Code".

Power cut. Open the drum door as described in the next

section.

The door was not correctly

engaged.

Press hard against the lock side of the drum door

and then press the Door button.

There is still water in the

drum and the machine is

unable to drain.

Clean the drain filter and drain pump as described

in the next section.

For safety reasons the drum door cannot be opened if the suds temperature is

higher than 55°C.

Problem solving guide

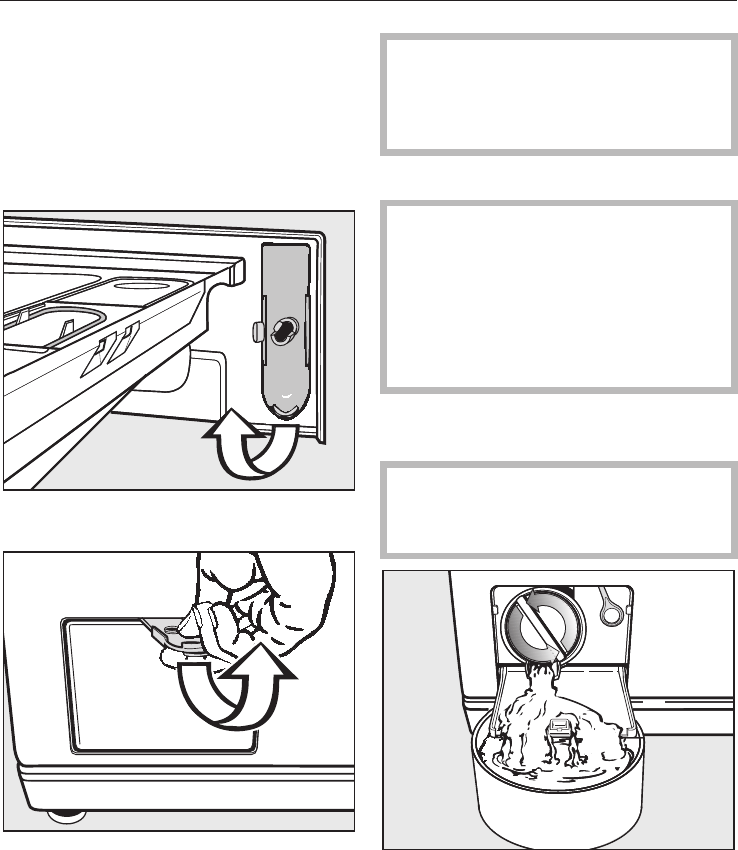

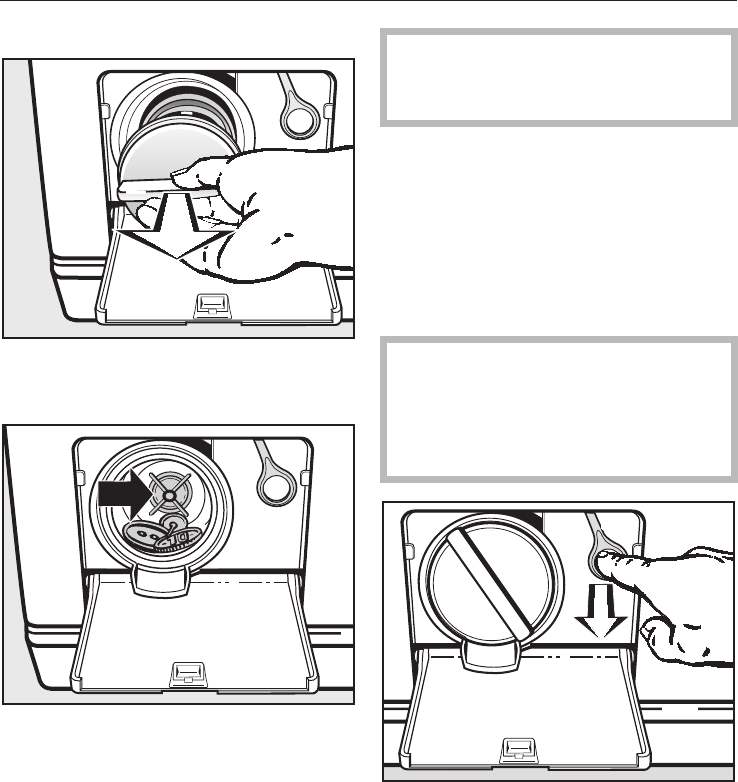

Opening the drum door in the

event of a blocked drain outlet

and/or power failure

^Switch the washing machine off.

There is a lever behind the detergent

drawer fascia panel.

^Remove the lever.

^Use it to open the access flap.

Blocked drain outlet

If the drain outlet is blocked, up to

25 litres of water will be retained in the

machine.

,Caution: if laundry has been

washed at a high temperature, water

draining out of the machine will still

be hot. Danger of scalding!

Procedure for draining the machine

Be careful not to release too much

water at once. If the flow of water is

too strong, some water can seep

into the washing machine base and

activate the water protection system

float switch. This will prevent the

washing machine from functioning.

^Place a suitable container under the

access flap.

When draining water from the

machine, do not unscrew the drain

filter completely or take it right out.

^Slowly and carefully unscrew the

drain filter to let the water out.

If you need to interrupt the flow of

water:

^Tighten the drain filter back up again.

Problem solving guide

Once the flow of water ceases:

^Remove the drain filter completely.

^Clean it thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff from the

filter housing. Turn the impeller by

hand to check that it rotates freely.

Any foreign object causing an

obstruction should be removed.

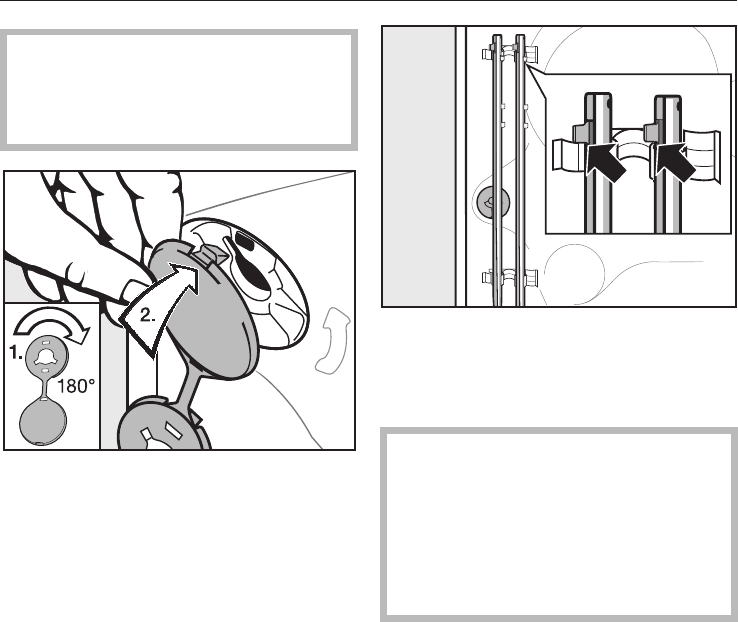

^Put the drain filter back in place and

secure.

,Make sure the drain filter is

securely tightened. Otherwise there

is a risk of water leakage during use.

To avoid loss of detergent, pour

approx. 2 litres of water into the

detergent dispenser drawer after

cleaning the drain filter. Excess water

will be pumped out automatically

before the next wash programme.

Opening the drum door

,Always make sure that the drum

is stationary before reaching into the

machine to remove laundry.

Reaching into a moving drum is

extremely dangerous.

^Pull the emergency release

downwards (see illustration). The

drum door will open.

Problem solving guide

In the event of any faults which you

cannot remedy yourself, please

contact:

–your Miele Dealer or

–Miele (see back cover for contact

details).

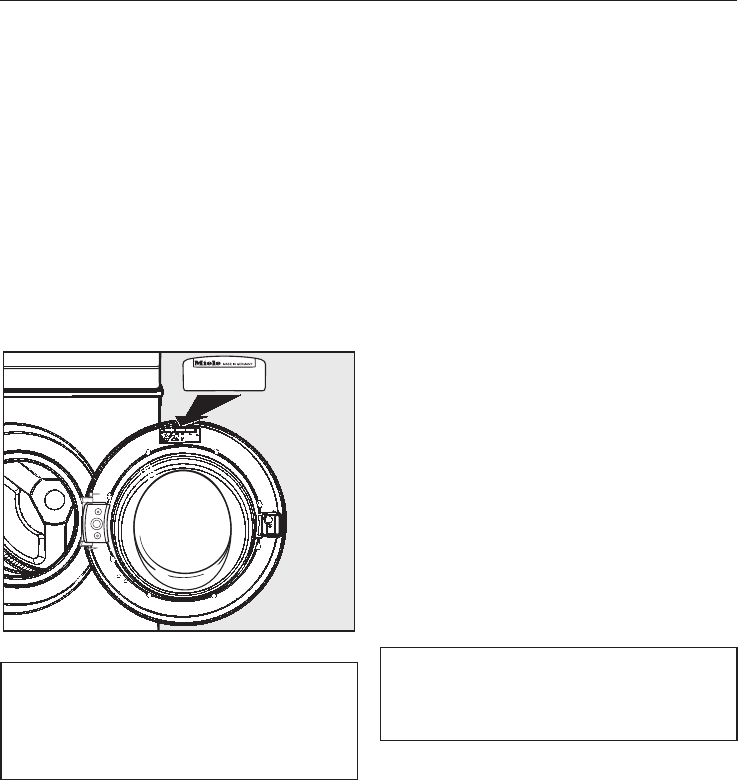

When contacting your Dealer or Miele,

please quote the model and serial

number of your machine, both of which

are shown on the data plate visible

above the porthole glass when the door

is open.

N.B. A call-out charge will be applied

for service visits where the problem

could have been resolved as

described in these instructions.

Future updates (PC)

The indicator light marked PC is the

interface used by Miele service

technicians during servicing work for

testing purposes and for updating the

machine's programme data.

Guarantee

For information on the appliance

guarantee specific to your country

please contact Miele. See back cover

for contact details.

In the U.K. your appliance is

guaranteed for 2 years from the date of

purchase. However, you must activate

your cover by calling 0845 365 6640 or

registering online at www.miele.co.uk.

Optional spare parts and accessories

for this washing machine are available

from your Miele Dealer, the Miele Spare

Parts Department or via the internet at

www.miele-shop.com.

Please note that telephone calls may

be monitored and recorded for

training purposes.

After sales service

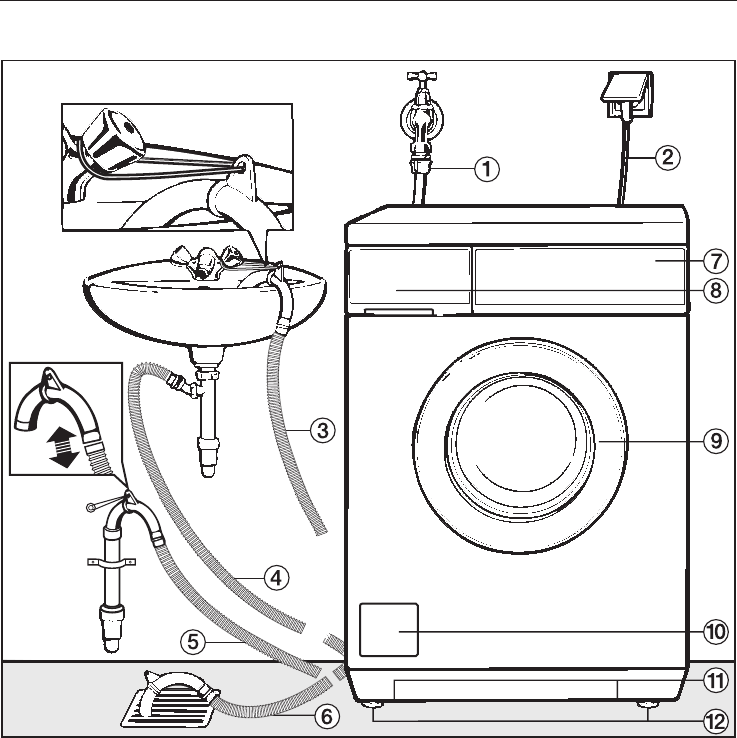

Front view

aInlet hose (tested to withstand

pressure of at least 7,000 kPa)

bElectricity supply cable

c-fFlexible drain hose (with

detachable swivel elbow)

gControl panel

hDetergent dispenser drawer

iDrum door

jAccess to drain filter, drain pump

and emergency release

kHandle recesses for moving the

machine

lFour height adjustable feet

Installation and connection

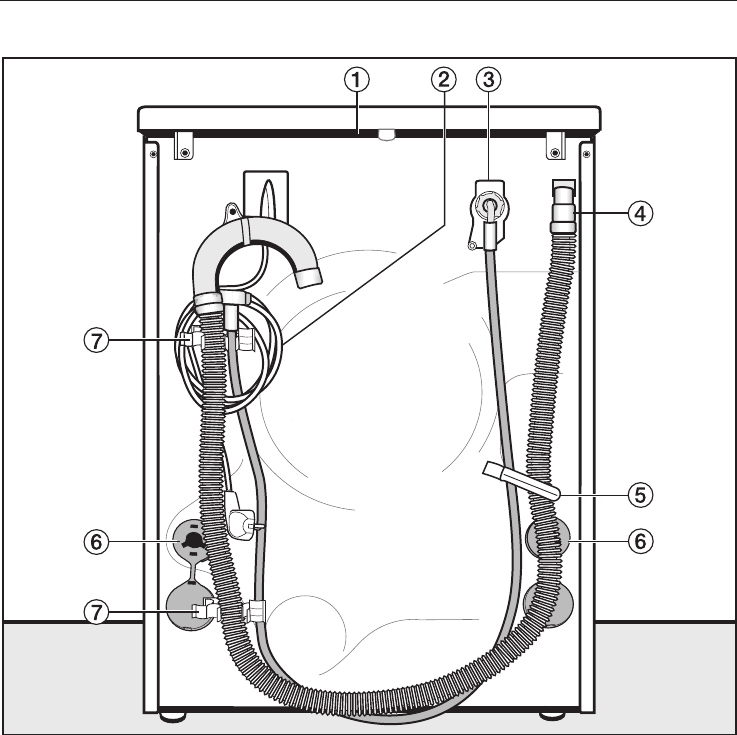

Rear view

aProtruding lid for holding when

moving the machine

bElectricity supply cable

cInlet hose (tested to withstand

pressure of at least 7,000 kPa)

dDrain hose

eTransport clip for inlet and drain

hoses

fSafety cap for transit bars

gTransport clip for inlet and drain

hoses and for storing transit bars

when not in use.

Installation and connection

Installation surface

A concrete floor is the most suitable

installation surface for a washing

machine, being far less prone to

vibration during the spin cycle than

wooden floorboards or a carpeted

surface.

Please note:

^The machine must be level and

securely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

If installing on a wooden joist floor:

^We recommend a plywood base (at

least 59x52x3 cm). The base should

span several joists and be bolted to

the joists and not only to the

floorboards. Check for the presence

of pipes and cables first.

If possible, install the machine in a

corner, as this is usually the most stable

part of the floor.

,If the machine is installed on a

raised plinth, it has to be secured

against slippage during spin using

retaining clips (available from the

Miele Spare Parts Dept). Otherwise

there is the danger of the machine

moving and falling off the plinth.

Transporting the washing machine to

its installation site

To manoeuvre the machine out of its

packing case to its installation site, hold

it by the edge of the lid where it

protrudes to the rear of the machine as

well as by the handle recesses at the

front.

,Ensure that the machine feet and

the floor are dry to prevent the

machine from slipping during the

spin cycle.

Removing the transit bars

^To remove the left and right covers

1. Pull on the attached stopper,

2. then use a screwdriver to release the

catch at the top.

Installation and connection

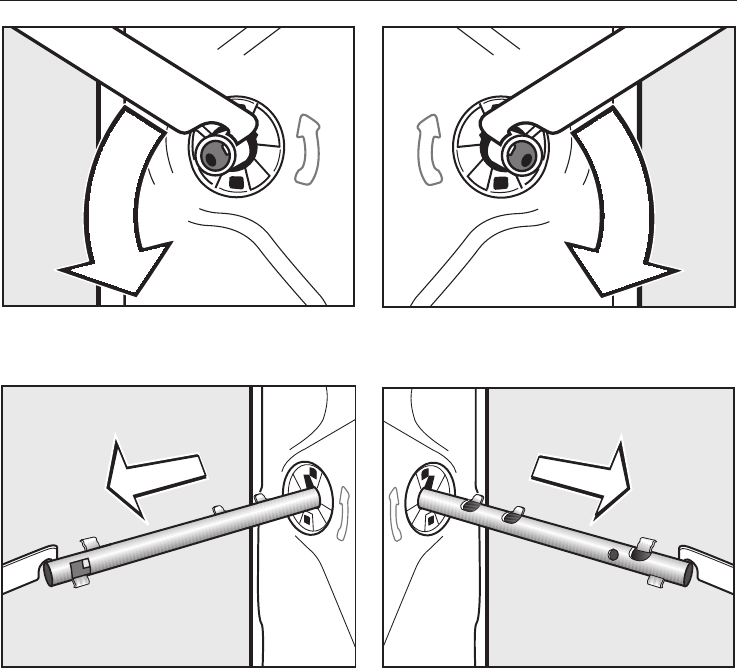

^Using the spanner supplied, turn the

left-hand transit bar 90°, then

^withdraw the transit bar.

^Turn the right-hand transit bar 90°,

then

^withdraw the transit bar.

Installation and connection

,To avoid the risk of injury the

holes for the transit bars must be

covered after the transit bars have

been removed.

^Plug the holes with the plastic caps

as illustrated.

^Secure the transit bars to the back of

the washing machine. Make sure that

the top catch is located above the

holder.

,The machine must not be moved

without the transit bars in place.

Store them as shown or keep them

in a safe place for future use. They

must be re-fitted if the machine is to

be moved again (e.g. when moving

house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Installation and connection

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase

electricity and water consumption and

may cause the machine to move about.

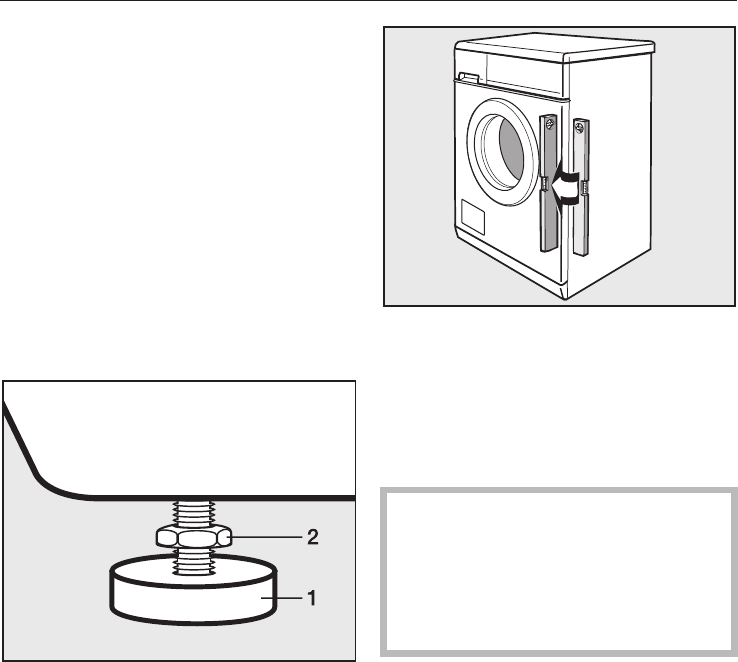

Screwing out and adjusting the feet

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is

delivered.

^Using the spanner supplied turn

counternut 2in a clockwise direction.

Then turn counternut 2together with

foot 1to unscrew.

^Use a spirit level to check the

machine is standing level.

^Hold foot 1securely with a pipe

wrench. Turn counternut 2again

using the spanner supplied until it

sits firmly up against the housing.

,All four counternuts must be

firmly up against the housing. Please

also check this for the feet which did

not need adjustment. Otherwise

there is the danger of the machine

moving about.

Installation and connection

The fitting of building-under kits*

and stacking kits* must only be

undertaken by qualified and

competent persons, in accordance

with the instructions supplied with

the kit.

Building under a continuous

worktop/in a kitchen run

If you wish to push your machine under

a worktop and there is space to do this

without removing the lid, the

conversion kit is not necessary.

Otherwise the conversion kit is

essential.

– A special building-under conversion

kit* is required.

To ensure electrical safety, the

washing machine lid must be

replaced by the cover plate supplied

with the conversion kit.

– For installation under a work surface

900/910 mm from the floor, a raising

kit* is required.

–Connections for electricity, water and

drainage should be installed in such

a way that they remain accessible

when the machine is in place.

Fitting instructions are supplied with the

conversion kit.

All parts marked* are available from

your Dealer, the Miele Spare Parts

Department or via the internet at

www.miele-shop.com.

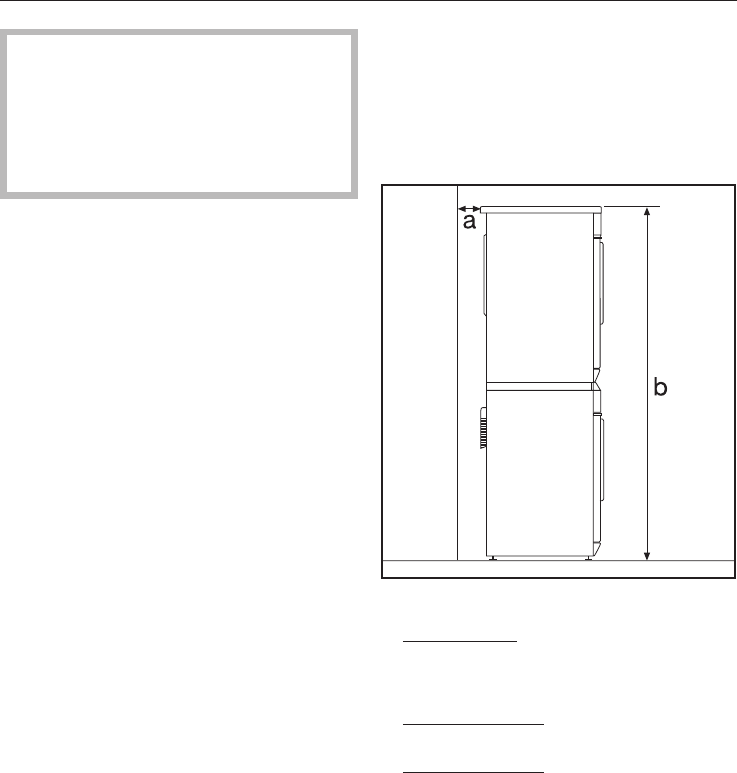

Washer and Dryer stack

A Miele tumble dryer can be stacked

with the washing machine. A "WTV"

stacking kit* is necessary.

Please note:

aSafety distance to wall:

at least 2 cm

bHeight:

Stacking kit with pull-out shelf:

approx. 169 cm

Stacking kit without pull-out shelf:

approx. 170 cm

Installation and connection

The Miele water protection

system

The Miele water protection system

protects the washing machine from

water damage.

The system consists of three main

components:

1) the inlet hose

2) the electronic unit and the washing

machine housing

3) the drain hose

1) Inlet hose

The inlet hose is tested to withstand

pressure of more than 7,000 kPa.

2) Electronic unit and washing

machine housing

– Sump

Any leaking water is collected in a

sump in the base of the machine. A

float switches off the safety valves,

preventing any more water flowing

into the machine and water in the

suds container is pumped away.

–Overflow protection

This prevents the washing machine

taking in too much water. If the water

level exceeds a certain level, the

drain pump switches in and pumps

the excess water away.

3) Drain hose

The drain hose is protected by a

ventilation system which prevents the

washing machine from being

emptied completely.

Installation and connection

Connection to the water

supply

The machine should be connected to a

mains water supply in accordance with

local and national safety regulations.

The German authorities do not require it

to have a non-return valve as the

washing machine has been designed

to comply with DIN regulations.

The machine is designed to operate

with a flow pressure of between

100 kPa and 1,000 kPa. If it is higher

than 1,000 kPa it is essential to fit a

pressure reducing valve.

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4" thread. The stopcock should

be fitted by a qualified plumber.

,The connection point is subject

to mains water pressure. Turn on the

stopcock slowly and check for leaks.

Correct the position of the washer

and union if appropriate.

The washing machine is not suitable

for connection to a hot water supply.

Maintenance and care

Only use a genuine Miele hose should

you ever need a replacement or

extension. These are tested to

withstand pressure of at least

7,000 kPa.

In order to protect the water inlet

valve, the two dirt filters - one in the

open end of the inlet hose, one at

the inlet point in the machine - must

not be removed.

Extension hose

–Longer hoses 2.5 or 4.0 m in length

are available from your Miele dealer

or the Miele Spare Parts Department

as optional extras.

Installation and connection

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre*. The

drain hose must not be kinked as this

restricts drainage. The swivel elbow at

the end of the hose can be turned in

either direction, or can be detached if

required, with a sharp twist and pull.

If required, the drain hose can be

extended to a length of 5 m. The

necessary parts can purchased from

the Miele Spare Parts Department or

your Miele dealer.

* For a delivery head of more than 1 m

(up to a max. of 1.8 m) a replacement

drain pump will need to be fitted.

Please contact the Miele Spare Parts

Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

–Hook the hose over the edge and

secure.

–Make sure that the water can drain

away freely without hindrance.

Otherwise there is a risk of water

overflowing or of some of the drained

water being sucked back into the

machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.

There is no need to use a non-return

valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

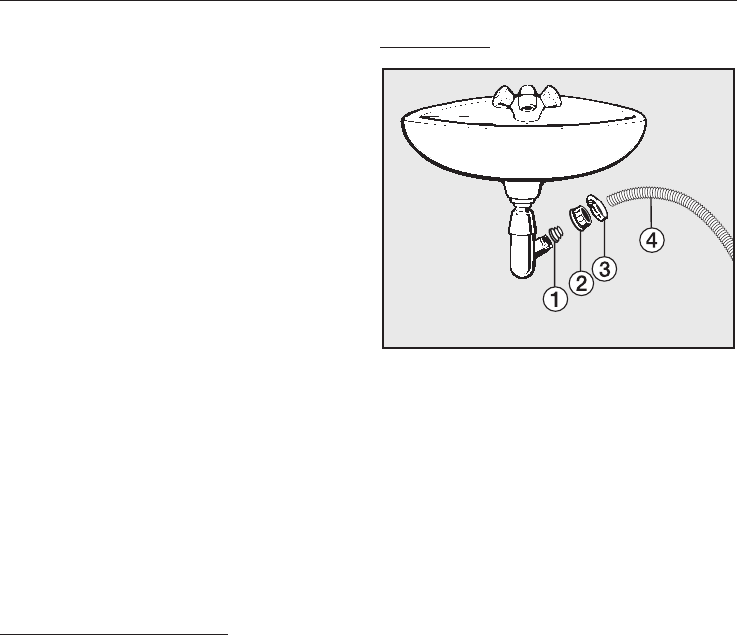

Please note:

aAdapter

bNut

cHose clip

dEnd of the hose

^Fit adapter ato the sink drain outlet

using nut b.

^Attach the end of the hose dto

adapter a.

^Use a screwdriver to tighten hose

clip cup close to the nut.

Installation and connection

Electrical connection U.K.

All electrical work should be carried out

by a suitably qualified and competent

person, in strict accordance with

current national and local safety

regulations (BS 7671 in the UK).

Ensure power is not supplied to the

appliance until after installation work

has been carried out.

The appliance is supplied with a mains

cable with moulded plug ready for

connection to a 230-240V mains

supply.

Please ensure the connection data

quoted on the data plate match the

household mains supply.

Connection should be made via a

suitable switched socket which is easily

accessible after installation.

For extra safety it is advisable to protect

the machine with a suitable residual

current device (RCD). Contact a

qualified electrician for advice.

Do not connect via an extension lead.

Extension leads do not guarantee the

required safety of the appliance (e.g.

danger of overheating).

Non-rewireable plugs BS 1363

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA

approved to BS 1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation and connection

Height 850 mm

Width 595 mm

Depth 615 mm

Depth with door open 993 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 600 mm

Weight 98 kg

Capacity 8 kg dry laundry

Voltage See data plate

Connected load See data plate / plug

Fuse rating See data plate

Consumption data See "Consumption data"

Water flow pressure minimum 100 kPa (1 bar)

Water flow pressure maximum 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Delivery head max. 1.00 m

Maximum drainage length 5.00 m

LEDs Class 1

Test certificates awarded See data plate

Power consumption when switched off 0.1 W

Power consumption

when not switched off

2.5 W

Technical data

Consumption data

Load Consumption data

Energy Water Duration Residual

moisture

in kWh in litres

Cottons 90°C 8.0 kg 2.30 64 2 h 29 min 50%

60°C 8.0 kg 1.52 55 1 h 59 min 50%

60°C 4.0 kg 1.15 47 1 h 59 min 50%

r* 8.0 kg 0.94 55 2 h 59 min 44%

r* 4.0 kg 0.94 47 2 h 59 min 44%

40°C 8.0 kg 0.96 72 2 h 29 min 44%

40°C 4.0 kg 0.83 47 2 h 29 min 44%

s8.0 kg 0.80 55 2 h 59 min 44%

s* 4.0 kg 0.66 47 2 h 59 min 44%

Minimum iron 40°C 3.5 kg 0.56 52 1 h 52 min 30%

Delicates 30°C 2.0 kg 0.38 69 59 min –

Woollens /30°C 2.0 kg 0.23 39 39 min –

Proofing 40°C 2.5 kg 0.35 12 40 min –

Express 20 40°C 3.5 kg 0.32 30 20 min –

Automatic plus 40°C 5.0 kg 0.52 62 1 h 29 min –

Dark garments / Denim 40°C 3.0 kg 0.60 52 1 h 12 min –

Shirts 60°C 2.0 kg 0.95 59 1 h 11 min –

Maintenance prog. 75°C 0 kg 0.80 42 43 min –

Hygiene 60°C 7.0 kg 1.70 80 2 h 35 min –

Outerwear 40°C 2.5 kg 0.45 55 1 h 02 min –

Down duvets 40°C 2.5 kg 0.70 43 1 h 24 min –

Consumption data

The consumption data displayed using the Eco feedback function may differ

from the values shown above. The deviation relates to the manner in which

data is captured on the machine. For example, water consumption is

calculated according to how long the water inlet valve is opened for.

Fluctuations in the water supply, or a water pressure under 170 kPa can cause

values to differ.

Notes for test institutes:

* The test programme conforms to EN 60456 and the energy label with

Directive 1061/2010.

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any extra options

selected.

The Settings are used to alter the

machine's electronics to suit

changing requirements.

Settings can be altered at any time.

To access Settings

Before you begin, ensure that:

–The washing machine is switched on.

–The machine door is closed properly.

^Press the Delay start (V) and Spin

speed (W) buttons at the same time

until:

Language !...

appears in the display. You are now in

Settings.

To select a Setting

^Press the Spin speed (W)orDelay

start (V) button until the Setting you

want appears in the display.

–Use the Delay start (V) button to

scroll through the list of options to

the left.

–Use the Spin speed (W) button to

scroll through the list of options to

the right.

^Press the Temperature (OK) button to

confirm your selection.

To alter a Setting

^You can see the different options

available for a Setting by pressing

the Spin speed (W) button.

The option which is currently set will

have a tick Lbeside it.

^When the option you want appears in

the display, press the

Temperature (OK) button to activate

this option.

To come out of Settings

^Press the Spin speed (W)orDelay

start (V) button repeatedly until Back

appears in the display.

^Press the Temperature (OK) button.

Language !

The display can be set to appear in

one of several different languages.

The flag !after the word Language acts

as a guide to prevent a language which

will not be understood from being set.

The language selected is saved to

memory.

Settings

Total usage

This gives the sum total of all energy

and water consumption.

Energy

This gives the sum total of all energy

consumption.

Water

This gives the sum total of all water

consumption.

Reset function

This resets the total consumption data

figure back to zero.

Water plus

You can increase the amount of

water used in the wash programmes.

There are three different options:

Water +

(The machine is delivered with this

option selected.)

The water level is increased in the wash

and rinse stages.

Extra rinse

An extra rinse is introduced.

Water+ & Extra rinse

The water intake is increased in the

wash and rinse stages and an extra

rinse is carried out.

Soak

The soak time can be set between 30

minutes and 2 hours 30 minutes.

The washing machine is delivered with

a two hour soak time set as standard.

Settings

Gentle action

Activating Gentle action reduces the

drum action and is suitable for

washing slightly soiled items more

gently. It should be activated for

garments with a single bar under the

"bucket" in the care label and for

articles which feel too hard after they

have been dried.

Gentle action can be activated for the

Cottons and the Minimum iron

programmes.

The machine is delivered with this

option deactivated.

Suds cooling

When this is activated, additional

water flows into the drum at the end

of the main wash to cool the suds

down. Hot suds can damage plastic

drainage pipes.

Suds cooling takes place when

temperatures of 90°C and 75°C are

selected.

Suds cooling should be activated:

–to prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

–where the drainage pipes do not

comply with DIN 1986.

The machine is delivered with this

option deactivated.

Code

The code prevents the washing

machine being used without your

knowledge.

To activate the code

^Select activate and confirm this by

pressing the Temperature (OK)

button.

You will be prompted to enter a code.

The code is 125 and cannot be

altered.

^Press the Spin speed (W) button until

the first number appears in the

display.

^Confirm your selection of the number

by pressing the Temperature (OK)

button.

^Repeat the process until all three

numbers have been entered.

^Press the Temperature (OK) button.

To use the washing machine when

the code is activated

When the washing machine is switched

on again, the display will request the

code.

^Enter code 125 as described above

and confirm the entry.

The washing machine is now unlocked

and ready for use.

To deactivate the code

Proceed as for activating the code.

Settings

Temperature unit

You can choose for the temperature

to be displayed in °C/Celsius or

°F/Fahrenheit.

The machine is delivered with

°C/Celsius as the default setting.

Buzzer

When the buzzer function has been

activated, an audible tone sounds at

the end of a programme or when

Rinse hold is reached.

There are two volumes:

Off

(The machine is delivered with this

option selected.)

The buzzer is switched off.

Normal

The buzzer sounds at normal volume at

the end of a programme or when Rinse

hold is reached.

Loud

The buzzer sounds at maximum volume

(Loud) at the end of a programme or

when Rinse hold is reached.

Keypad tone

An audible tone sounds each time a

button is pressed.

The machine is delivered with the

keypad tone deactivated.

Brightness

There are ten different display

brightness settings.

The bar chart shows you the setting.

The washing machine is delivered with

the display brightness on setting 5.

The brightness will change as soon as

a different setting is chosen.

Settings

Standby display

To save energy, the display goes out

and the indicator light for the Start/

Stop button will start flashing slowly.

The display will always go out,

–if a programme is not selected within

10 minutes of the machine being

switched on.

–10 minutes after the end of a

programme.

Pressing one of the buttons switches

the display back on again.

You can also choose whether you want

the display to go out 10 minutes after a

programme has started or to remain

visible throughout the programme.

The standby function is switched on.

When this option is selected, the

display will go out 10 minutes after a

programme has started.

Not in current prog.

(the machine is delivered with this

option selected)

The standby function is switched off.

The display will remain visible during a

programme.

Memory

The washing machine will store the

most recently selected settings

(programme, temperature, spin

speed and any extra options) in

memory once the programme has

started.

These settings will appear in the

display the next time the machine is

switched on.

The machine is delivered with the

memory function deactivated.

Anti-crease

Anti-crease helps prevent creasing if

laundry is not normally removed

immediately after the end of a

programme.

The drum will turn at intervals for up to

30 minutes after the programme has

finished.

The door can be opened and laundry

removed at any time during the anti-

crease phase.

(the machine is delivered with this

option selected)

Anti-crease is activated.

Off

Anti-crease is deactivated.

Settings

Miele washing machines offer perfect

care for your laundry and feature a

wide range of special programmes

designed to suit the fabric being

washed. Miele have also developed a

range of specialist CareCollection

detergents and conditioning products

to offer you a complete package for

cleaning and caring for your laundry.

The Miele CareCollection detergents

and conditioning products are listed

below. You can order these and many

other useful products via the internet at:

All the products can also be ordered

via the Miele Customer Contact Centre

(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your

water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is

designed to clean sportswear and

remove odours whilst taking care of the

special microfibres used in these

garments.

"Down Items"

This special-purpose detergent

contains a mild tenside and has been

specially formulated to keep down-filled

items supple and to give them bounce.

Miele proofing agent

This special finishing agent reproofs

garments against wind and water and

provides a dirt-repellent finish whilst

retaining elasticity and breathability.

Optional accessories

"UltraWhite" detergent

This multi-purpose powder detergent

has excellent stain removal properties

and is suitable for white and light

coloured laundry as well as heavily

soiled coloured items.

"UltraColor" detergent for coloured

garments

This liquid detergent is particularly

suitable for cleaning coloured and dark

garments. The special formulation

offers effective stain removal, even at

low temperatures, while helping to

prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the

gentle treatment of delicate fabrics,

such as wool and silk. Its special

formulation cleans effectively at

temperatures as low as 20°C, while

protecting the colour of your delicate

garments.

Fabric conditioner

The Miele fabric conditioner will give

your laundry a fresh, natural fragrance.

It makes garments soft to handle and

prevents static build-up during tumble

drying.

Optional accessories

Alteration rights reserved/4112/W 5872 Edition 111 M.-Nr. 09 495 130 / 00

Miele W 5872 Edition 111 W5872 GB.vp User Manual To The 5a3ac236 154e 4ddb A347 E0ff65088fb0

Navigation menu

Versions of this User Manual:

Views

Navigation
