Contents

Operating instructions

for Washing machine

W 939 WPS

To avoid the risk of accidents or

damage to the appliance it is

essential to read these operating instructions

before it is installed or used for the

first time.

M.-Nr. 04 973 340

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed safely and kept

out of the reach of babies and young

children. Danger suffocation!

Rather than just throwing these materi-

als away, please ensure they are of-

fered for recycling.

Disposal of your old appliance

Old appliances contain materials which

can be recycled. Please contact your

dealer, your local waste collection cen-

tre or scrap merchant about potential

recycling schemes.

Ensure that the appliance presents no

danger to children while being stored

for disposal. See the appropriate ad-

vice in the "Warning and safety instruc-

tions".

Caring for our environment

Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Proceed as follows: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Water hardness reminder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Brief guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Before washing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To start a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

After washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Load indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 17

Programmes . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . cancelling a programme and selecting a different one . . . . . . . . . . . . . . . 18

. . . altering a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . repeating a section (e.g. rinse). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . skipping a programme stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

It is important to dispense the correct amount, because . . . . . . . . . . . . . . . . . . . 19

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fabric conditioners, texturisers, liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Automatic fabric conditioners, texturisers, or liquid starch . . . . . . . . . . . . . . . 21

Separate fabric conditioner or texturiser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Starching separately. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contents

Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Care symbols - washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Pre-wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Water plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Spin and Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Electronic programme locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Electronic Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Delay start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Time left display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P1 = Maximum water level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P2 = Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P4 = Activating the icompartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P9 = Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

P10 = Top-up rinse for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

P11 = Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Programming and storing in memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

1. Selecting programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2. Selecting a programmable function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3. To activate or deactivate a programmable function . . . . . . . . . . . . . . . . . . . 36

4. Saving the programmable function in memory. . . . . . . . . . . . . . . . . . . . . . . 36

Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Cleaning the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Extra cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Cleaning the detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning the fluff (drain) filter and pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 43

A fault indicator light comes on but the wash programme continues as normal. . 44

General problems or an unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . 45

Opening the drum door in the event of a power failure. . . . . . . . . . . . . . . . . . . . . 48

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Customer contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Removing the transit fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Unscrewing and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Building under: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Washer - dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Fitting or changing the decor panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Decor panel dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Fitting a plinth facing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Fitting the plinth facing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Connection to water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Contents

General view

aElectric supply cable

bInlet hose with "Waterproof" system

cFlexible drain hose (with detachable

swivel elbow)

dDetergent dispenser drawer

eFacia panel with controls

fDrum door

gAccess panel for drain pump and fil-

ter

hFour height adjustable feet

iPanel for emergency door release

(door hinged right) and for drainage

(door hinged left or right)

jPanel for emergency door release

(door hinged left)

Guide to the machine

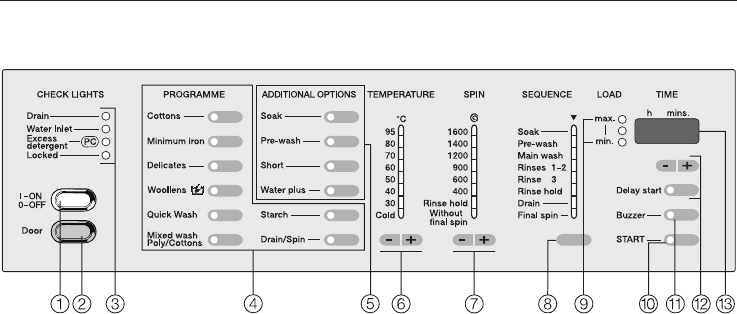

Control panel

aI-On/0-Off button

for switching the machine on or off

or interrupting a programme

bDoor button

opens the machine door

cCHECK LIGHTS

dPROGRAMME touch pads

eADDITIONAL OPTION touch pads

Indicator light on = option selected

Indicator light off = option not se-

lected

fTEMPERATURE display

with $& touch pads for setting the

wash temperature

gSPIN SPEED display

with $& touch pads for setting the

final spin speed

hSEQUENCE display

with touch pad for changing the

programme sequence

iIndicator lights for LOAD display

jSTART touch pad

starts the wash programme

kBuzzer touch pad

lDelay start touch pad

with $& touch pads for setting the

time

mDisplay

The display has several functions:

–it displays the programme duration

–it displays the “Delay start” time re-

maining until a programme starts

–it displays programming functions

when they are called up

Guide to the machine

Read the operating instructions be-

fore using this machine for the first

time. They contain important infor-

mation about the safety, use and

maintenance of the machine. This

way you will avoid the risk of acci-

dents and damage to the machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Correct usage

Only use the washing machine to

wash items which are specified by

the manufacturer to be machine-wash-

able on the wash-care label, and tex-

tiles composed of hand-washable wool

or wool blend fabrics as well as satin,

lace, silk and other hand-washable gar-

ments.

Any other applications may be danger-

ous. The manufacturer is not liable for

damage resulting from improper use or

operation.

This appliance should not be oper-

ated by children. Supervise its use

by the elderly or infirm.

Technical safety

Before setting up the machine,

check it for any externally visible

damage. Do not install and use a dam-

aged machine.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and fre-

quency) match the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this appli-

ance can only be guaranteed when

continuity is complete between the ma-

chine and an effective earthing system

which complies with local and national

regulations. It is most important that this

basic safety requirement is regularly

tested by a qualified electrician.

The manufacturer cannot be held liable

for the consequences of an inadequate

earthing system (e.g. electric shock).

Do not connect the appliance to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for which

the manufacturer cannot accept liabilty.

Repairs should only be undertaken by a

Miele approved engineer.

Ensure current is not supplied to the

appliance while maintenance or repair

work is being carried out.

The machine is only completely

isolated from the electricity supply

when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Warning and safety instructions

The Miele "Waterproof system" pro-

tects from water damage provided

the following conditions have been met:

–the machine is correctly plumbed in

and connected to the electricity sup-

ply.

–if a fault has been identified, the ma-

chine must be examined by a com-

petent person before further use,

and repaired if necessary.

Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

If the connection cable is damaged

it must be replaced by a special

Miele cable.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the appli-

ance and its surroundings in a clean

condition at all times. Any damage

which may be caused by cockroaches

or other vermin will not be covered by

the appliance guarantee.

Use

This equipment is not designed for

maritime use, or for use in mobile

installations such as caravans, aircraft

etc. However, it may be suitable for

such usage subject to a risk assess-

ment of the installation being carried

out by a suitably qualified engineer.

Do not install your washing ma-

chine in rooms where temperatures

below freezing may occur. Frozen

hoses may burst under pressure. The

reliability of the electronic control sys-

tem may be impaired at temperatures

below freezing point.

Before using the machine for the

first time, check that the transit fit-

ting at the rear of the machine has been

removed (see section on "Installation").

During spinning, a transit fitting which is

still in place may result in damage to

both the machine and adjacent furni-

ture or appliances.

Turn off the stopcock if the ma-

chine is to be left for any length of

time (e.g. holiday), especially if there is

no floor drain (gully) in the immediate

vicinity.

Flooding danger.

If hooking the drain hose into a

wash basin, check that the water can

drain off quickly enough to prevent the

sink from overflowing.

Make sure the drain hose is secure, so

that the force of the water flowing out of

the hose does not dislodge it. Other-

wise this will result in flooding.

Take care to ensure that foreign ob-

jects (e.g. nails, needles, coins,

paper clips, etc.) do not find their way

into the machine with the washing (e.g.

in pockets). These may damage com-

ponents of the machine (e.g. suds con-

tainer, drum), which in turn can result in

damage to the washing.

Warning and safety instructions

If the correct amount of detergent

is dispensed, the machine should

not need to be descaled. If, however,

you do wish to descale the machine

only use proprietary non-corrosive

descaling agents and strictly observe

the manufacturer’s instructions given on

the packaging. If in doubt, contact the

Miele Customer Service Dept. or your

Miele Dealer.

Textiles which have been

pre-treated in solvent-based clean-

ing agents must be thoroughly rinsed in

clean water before being washed in the

machine.

Never use solvent-based cleaning

agents in this machine, as this may

result in damage to component parts

and create toxic fumes. Such deter-

gents also pose a fire and explosion

hazard.

Only use dyes specified by the

manufacturer as being suitable for

use in a domestic washing machine. Al-

ways observe the manufacturer's in-

structions carefully.

Colour run and dye removers con-

tain sulphur compounds which can

cause damage such as corrosion. Do

not use these products in this machine.

Always make sure the drum is sta-

tionary before reaching in to re-

move laundry. Reaching into a moving

drum is extremely dangerous.

Accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If other parts are used, guarantee, per-

formance and product liability claims

may be invalidated.

Disposal of your old machine

Before discarding an old machine

unplug it. Render the plug useless.

Cut off the cable directly behind the ap-

pliance to prevent misuse. This should

be done by a competent person.

Warning and safety instructions

–Water consumption and energy us-

age are determined by the size of the

load. Load to the maximum recom-

mended for the programme selected.

–Programme durations can vary con-

siderably due to the automatic load

adjustment feature. Depending on

the amount of laundry, the main wash

may be shortened and one rinse

omitted.

–Use the

Mixed Wash

programme or

the

Quick Wash

programme for

smaller amounts of laundry.

– To save energy wash normally and

lightly soiled laundry at lower tem-

peratures. The 95°C Cottons

programme is probably only needed

in exceptional circumstances, e.g.

for oil based stains or where a very

hot wash is required.

– A main wash (programme without

pre-wash) is sufficient to clean nor-

mally soiled laundry.

–By using the additional option

Soak

for heavily soiled laundry you can se-

lect a lower temperature in the main

wash.

–Use the additional option

Soak

in-

stead of

Pre-wash

with heavily soiled

laundry.

Soak

is followed immediately by a

main wash the same suds are used.

–Use the

Short

wash option for nor-

mally or very lightly soiled laundry.

–Do not exceed the amounts of deter-

gent which may be recommended by

the manufacturer on the packaging.

–Reduce the amounts of detergent

with smaller loads, (e.g. with a half

load, approx. one third less deter-

gent).

–Select the highest suitable spin

speed in the wash programme when

tumble drying afterwards.

Washing environmentally and economically

Before using the machine for the first

time ensure that it is correctly in-

stalled and connected. See the rele-

vant section under "Installation".

Also check that the fluff filter is se-

curely tightened to prevent the risk

of water leaks during use.

For safety reasons spinning is not pos-

sible until the machine has been pre-

pared for using for the first time. To acti-

vate the spinning function you must run

a wash programme without laundry.

This also activates the ball valve. The

ball valve prevents detergent escaping

from the suds container into the sump

during a programme, thus making max-

imum use of the detergent.

Proceed as follows:

^Open the stopcock

^Do not load any laundry

^Add max. 1/4of the amount of deter-

gent you would use for a full load to

compartment j

^Press the I-ON/O-OFF button in

^Press the

Cottons

programme touch

pad

^Use the $& touch pads to select a

temperature of 60°C

Important

This temperature is required to prepare

the machine for operation.

^Press the

Water plus

touch pad

The indicator light will come on

^Use the $& touch pads to set the

spin speed selector to

Without final spin

^Press the START touch pad

^Any residues in the machine will be

flushed out by the end of the

programme and your machine is now

ready for use.

Water hardness reminder

The amount of detergent required will

depend on various factors including

water hardness. The dial in the deter-

gent dispenser can be set as a water

hardness reminder.

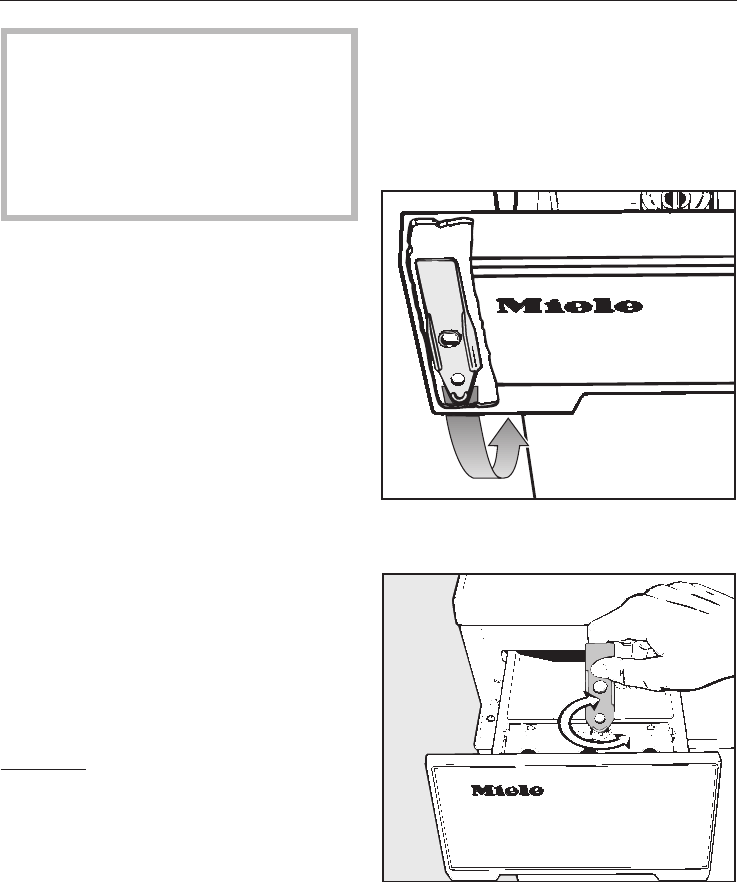

^Remove the yellow lever from behind

the detergent drawer facia panel.

^Use it to turn the dial to the position

which represents your water hard-

ness level.

Your local water authority can advise on

water hardness in your area.

Before using for the first time

Brief guide

The headings numbered (A,B,C,...)

show the operating sequence and can

be used as a brief guide.

Before washing

ASort the laundry.

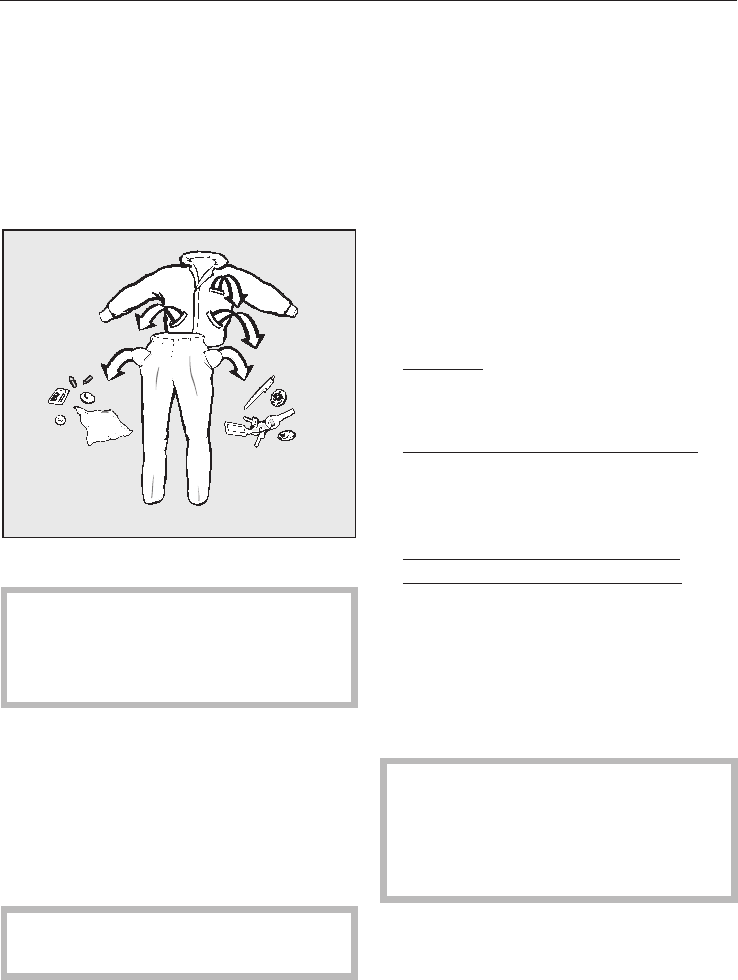

^Empty all pockets.

Foreign objects (e.g. nails, coins,

paper clips, etc.) can cause dam-

age to textiles and components in

the machine.

^Badly soiled areas, e.g. collars and

cuffs, and water soluble stains can

be pre-treated with bar soap, liquid

detergent or detergent mixed into a

solution or paste.

With particularly stubborn stains ask

your dry cleaner for advice.

Do not use solvent-based cleaning

agents in this machine.

^Sort the washing by colour and by

care label symbols. Most garments

have a textile care label in the collar

or side seam.

Dark textiles often contain excess dye

and should be washed separately sev-

eral times before being included in a

mixed load. Always wash whites and

coloureds separately.

Delicate textiles should be washed sep-

arately in a delicates programme (use a

washing bag where appropriate).

–Curtains:

Remove lead weights and strips or

place in a laundry bag.

– Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

– Knitted garments, trousers and

jeans, T-shirts and sweat shirts:

Turn inside out, if recommended by

the manufacturer.

–Close any zips, fasten hooks and

eyes etc. before washing.

–Fasten duvet covers to prevent

smaller items rolling up inside them.

Do not wash any items in this ma-

chine which are specified by the

manufacturer as non-machine

washable on the care label. (h

symbol)

How to wash correctly

BPress in the I-ON/0-OFF button.

The machine is switched on.

CPress the Door button.

DLoad the drum.

Unfold laundry and load loosely in the

drum. To achieve best results it is ad-

visable to make up mixed loads con-

sisting of both large and small items.

This improves the washing effect and

helps distribute the load evenly to keep

the machine stable and reduce the

noise level during spinning.

Overloading reduces the wash result

and causes more creasing.

Maximum load weights are noted

below:

Cottons . . . . . . . . . . . . . . . . . . . . 5.0 kg

Minimum iron . . . . . . . . . . . . . . . . 2.5 kg

Delicates/Synthetics . . . . . . . . . . 1.0 kg

Woollens /. . . . . . . . . . . . . . . . 1.0 kg

Quick Wash . . . . . . . . . . . . . . . . . 2.5 kg

Mixed Wash/Poly Cottons . . . . . . 3.0 kg

EClose the drum door.

Make sure that there is no obstruction

between the drum door and seal.

FOpen the stopcock.

GAdd detergent.

See section on "detergent" for details.

To start a programme

HSelect the basic programme

^Press the required basic programme

touch pad (see the programme

chart).

ISet the required temperature

^Use the _touch pads until the in-

dicator light for the required tempera-

ture lights up.

The maximum temperature is limited in

some programmes (see the programme

chart).

How to wash correctly

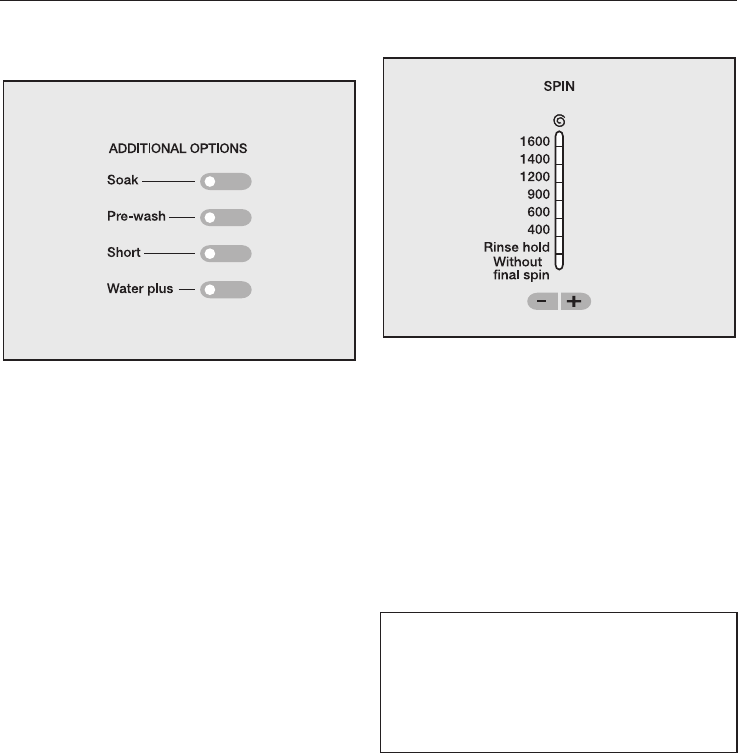

JSelect any additional option re-

quired.

^Press the relevant touch pad.

Indicator light on = selected

Indicator light off = not selected

An additional option that has been se-

lected can be de-selected by pressing

the touch pad again.

KSelect a spin speed.

^Use the _, touch pads until the

indicator light for the required final

spin speed lights up.

In some programmes the maximum

spin speed is limited. The machine will

not allow a higher spin speed to be se-

lected (see section "programme sur-

vey").

Memory function

If the last time a programme was run

an additional option or different spin

speed was selected, the machine will

have stored this information in its

memory.

The next time that programme is se-

lected the machine displays the addi-

tional option, temperature and spin al-

ready stored in memory.

Exception:

Soak and Delay start.

How to wash correctly

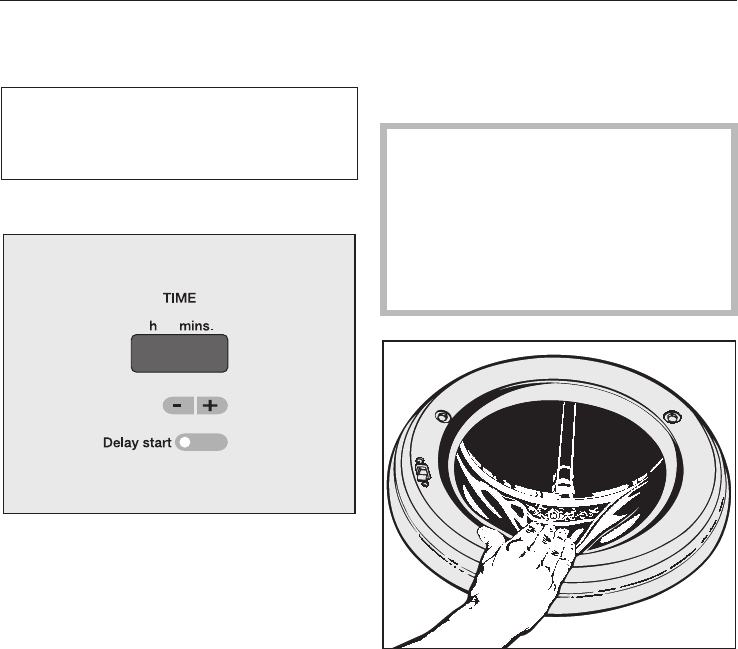

Delay start

LSelect delay start if required.

The start of a programme can be de-

layed from 30 minutes up to a maxi-

mum of 24^ hours.

^Press the

delay start

touch pad.

^Use the _touch pads to set the

length of delayed time.

Each press on the &touch pad in-

creases the delayed time or on the $

touch pad shortens it:

–by 30 minutes up to 10 hours.

–by one hour from 10 hours upwards.

To delete delay start:

Press the delay start touch pad.

MPress the START touch pad.

This starts the programme.

After washing

NPress the Door button.

ORemove the laundry.

Only remove laundry from the ma-

chine once the drum has stopped

turning, otherwise you may seriously

injure yourself. Make sure the drum

is empty. Items left behind could col-

our run, shrink, or be damaged in

the next programme.

PCheck the folds in the door seal for

any small articles e.g. buttons

which might be lodged there.

QPress and release the I-ON/0-OFF

button.

RClose the drum door.

Otherwise there is a danger of objects

being placed inadvertently in the drum.

If these remained unnoticed and were

washed in the next load, they could

damage the laundry.

How to wash correctly

Load indicator lights

The machine can identify the size of

the load or its composition from the

absorbency of a wash load.

This recognition takes place within the

first 10 minutes of the programme.

The indicator lights show how the load

has been identified in the

Cottons

and

Minimum iron

programmes.

1 indicator light on = Minimum

load

2 indicator lights on = Medium

load

3 indicator lights on = Full

load

Adding or removing laundry

after a programme has started

Laundry can be added or removed af-

ter the start of one of the following

programmes:

–Cottons

–Minimum iron

–Woollens

–Quick wash

–Mixed wash

–Starch

^Press the

Door

button in and hold it

until the door springs open.

^Add or remove items.

^Close the door.

The door can be opened during all

stages, except the spin, of the

Cottons

Woollens

Quick wash

Mixed wash

(high percentage of cotton) and

Starch

programmes.

The door can be opened during the

main wash of the

Minimum iron

and

Mixed wash

(high percentage of poly-

ester) programmes.

Exceptions:

The door cannot be opened, if:

– the suds temperature is above 55°C

– the additional option

Water plus

has

been selected

– programme locking is switched on.

Load recognition is switched off if ex-

tra laundry is added or taken out of

the drum. The machine will wash as

for a full load and the maximum load

indicator will light up.

How to wash correctly

Programmes . .

. . . cancelling a programme and

selecting a different one

^Switch the machine off and on again.

^Start the new programme as de-

scribed in "Programme start".

Load recognition is switched off if a

programme is re-started. The ma-

chine will wash as for a full load and

the maximum load indicator will light

up.

. . . altering a programme

The machine will accept the following

changes after a programme has

started:

– up to 6 minutes after the start, the

Water plus

and

Short

additional op-

tions can be selected or de-selected

and a different temperature can be

selected for the programme in use.

–the final spin speed can be changed

within the limits for the programme.

Additional functions cannot be

changed if the door has been

opened.

In order to select another programme

the old programme must be cancelled

before the new one can be started.

. . . repeating a section (e.g. rinse)

A programme section can be repeated

or a particular section be selected on

its own.

^Switch the machine on

^Select the programme

^Press the START touch pad

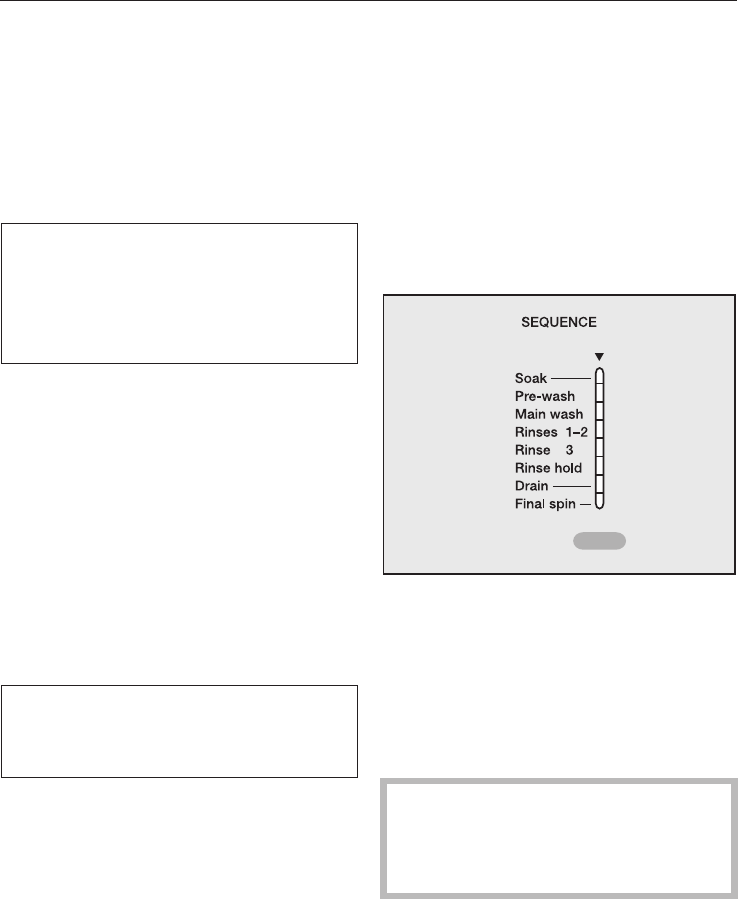

^Press the programme sequence

touch pad repeatedly until the re-

quired position is reached.

For rinsing launcry we recommend us-

ing the

Delicates

programme.

. . . skipping a programme stage

^Press the programme sequence

touch pad when the light comes on

next to the section you want to skip.

The programme will then continue with

the next programme stage. The rele-

vant programme sequence indicator

will light up.

If programme locking has been acti-

vated the programme cannot be

changed nor can a programme sec-

tion be repeated or skipped.

How to wash correctly

All modern detergents produced for

automatic washing machines are suit-

able, including liquid, compact (con-

centrated), tablets, liquid tablets and

special application detergents. Use dis-

pensing aids, e.g. balls, if these are

supplied with the detergent. Tablets are

suitable for full loads, but note that it

may be impractical to reduce tablets by

proportion to suit smaller loads.

Woollens and knitwear containing wool

mixtures and hand-washable garments

should be washed using a detergent

specifically designed for washing

woollens.

Silk should be washed using a liquid

detergent specifically designed for

washing woollens. Do not use biologi-

cal detergents on silk as the enzymes

may damage the silk!

Add detergent according to the amount

recommended on the packaging. The

right amount to dispense will depend

on the following:

–The quantity of laundry.

–The soiling level of the laundry.

Lightly soiled

No visible dirt or stains. Possibly

slight body odour.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Stains and soiling clearly visible.

–The water hardness level

Check with your local water supplier

if you do not know the water hard-

ness level in your area.

Water Hardness

Hardness

range

Type of

water

(hardness)

Hardness

level in

mmol / l

°dH

German

I soft 0 - 1.3 0 - 7

II medium 1.3 - 2.5 7 - 14

III hard 2.5 - 3.8 14 - 21

IV very hard over 3.8 over 21

It is important to dispense the

correct amount, because . . .

. . . too little has the following results:

– Laundry will not be properly clean

and will in time become grey and

hard to the touch.

– Greasy particles cling to the laundry.

– Limescale deposits on the heater el-

ements.

. . . too much results in the following:

– Excessive foam.

–Low level of agitation.

–Poor washing, rinsing and spinning

results.

–High water consumption (an addi-

tional rinse cycle will automatically

switch in).

–Burdening the environment.

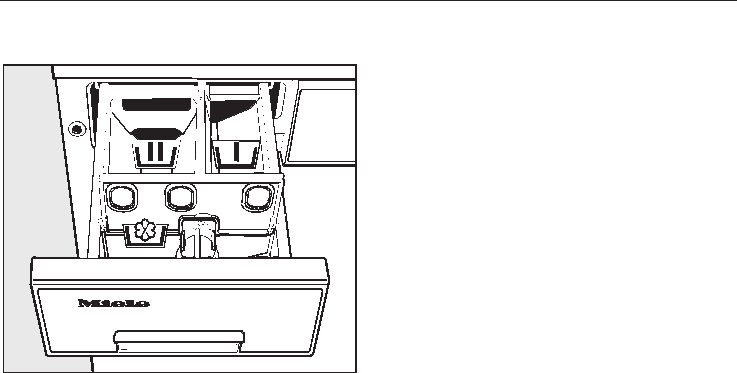

Adding detergent

i= Compartment for pre-wash.

This compartment is also used

for starch formulations when

starching separately.

j= Compartment main wash

p= Compartment fabric conditioner

Water is taken in through compartment

iin the pre-wash.

Water is taken in through compartment

jin the main wash. If the capacity of

compartment jis insufficient for the

amount of detergent needed for a

COTTONS programme (e.g. in very

hard water areas), the machine can be

programmed so that water and deter-

gent can also be taken into the main

wash through compartment i, see

"Programmable functions", "Activating

compartment i".

Water softeners

A water softener can be used to cut

down on the use of detergents in ex-

tremely hard water areas. Dispense ac-

cording to the amount specified on the

packaging. First add detergent and

then the water softener.

Dispense detergent as specified for

soft water areas.

Miele do not recommend connecting

the machine to a household water soft-

ener.

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the fol-

lowing order:

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed

more efficiently.

Fabric conditioners,

texturisers, liquid starch

Fabric conditioners make garments soft

and fluffy to handle and help prevent

static cling when tumble drying.

Texturisers are synthetic starch formula-

tions and give body to items e.g. shirts,

tablecloths and bed linen.

Starch gives body to items of washing.

^Dispense according to the amount

specified on the packaging.

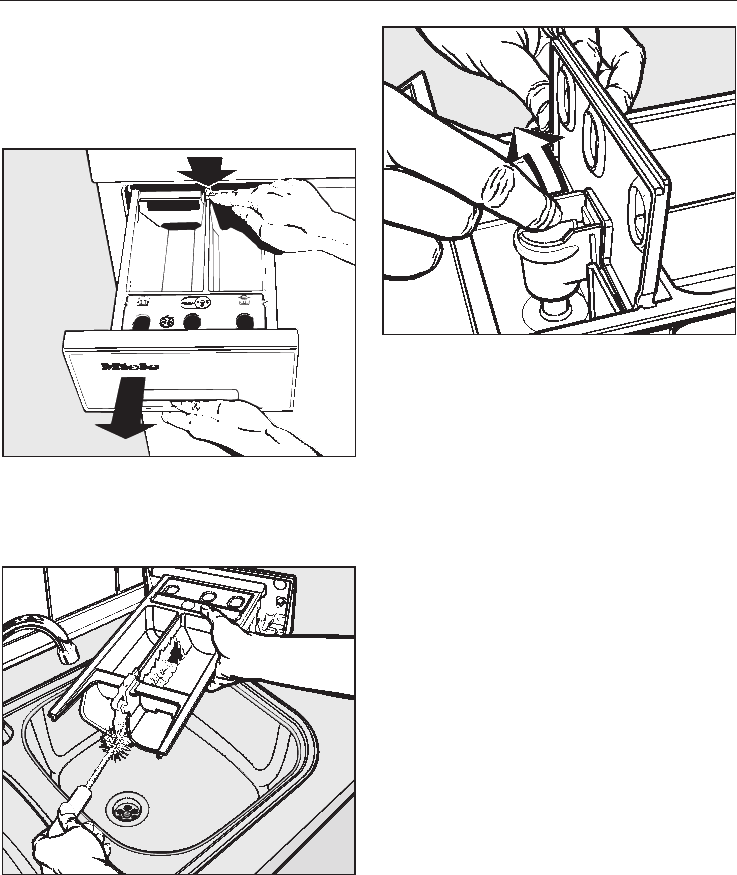

Adding detergent

Automatic fabric conditioners,

texturisers, or liquid starch

^Open the lid of compartment p.

^Add the fabric conditioner, texturiser

or liquid starch. Do not exceed the

maximum level mark.

^Close the compartment lid.

^Push the drawer back in.

The conditioner, texturiser or liquid

starch is automatically dispensed in the

last rinse. At the end of the programme

there will be a small amount of water

left in the fabric conditioner compart-

ment p.

If starching frequently, clean the dis-

penser compartment and especially

the siphon tube and conditioner

channel regularly. (See section on

the detergent dispenser drawer in

"Cleaning and Care") .

Separate fabric conditioner or

texturiser

^Add fabric conditioner or texturiser to

the compartment p.

^Press the

Starch

touch pad

^Select a spin speed.

^Press the START touch pad.

Starching separately

^Measure and prepare starch in ac-

cordance with the manufacturer's in-

structions.

^Add the starch to compartment i.

^Press the

Starch

touch pad.

^Select a spin speed.

^Press the START touch pad.

Adding detergent

Programme selection

Programme Fabric Temperature max.

spin speed

Cottons

9876

Cottons and linen fabrics, eg bed linen, table

linen, towelling, jeans, underwear, T-shirts, nap-

pies.

95°C to cold 1600

Cottons 60°C Wash load for standard tests 60°C 1600

Minimum iron

4321

876

(60°C) white nylon, white polyester fabrics (50°C),

coloured nylon, polyester, cotton and viscose fab-

rics with special finishes, acrylic, cotton fabrics,

coloured polyester / cotton fabrics, (40°/30°C) min-

imum iron fabrics not washable at higher tempera-

tures

60°C to cold 900

Delicates

Acrylics, acetate and triacetate, socks and stock-

ings in man-made fibres, (not wool or wool blends)

40°C to cold 600

Curtains, specified machine-washable by the

manufacturer (pre-wash probably advisable).

30°C to cold 600

Woollens /

Programme for machine-washable or hand-wash-

able wool or wool blend fabrics

40°C to cold 1200

Also suitable for satin, lace, silk and other hand

washable garments.*

Quick Wash 7For very lightly soiled fabrics, which can be

washed in the Cottons programme.

40°C to cold 1600

Mixed wash

Suitable for small loads of garments made from

man-made fibres and cotton garments which can

be washed together. Sort according to colour.

60°C to cold 900

Starch Table cloths, napkins, overalls, uniforms. cold 1600

Spin Articles which can be spun, eg handwashed

items, max weight according to fabric. N.B. do not

use for woollens.

1600

Drain

Cold: If

Cold

is selected for the temperature, the water is warmed to 24°C. This uniform temperature

helps the effect of the detergent.

Programmes

max. load Additional options Notes

5 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,3,4)

With heavily soiled items select

Soak

Pre-wash

. Wash

dark colours in liquid detergent.

For normally soiled items select

Short

5 kg For test institutes:

Programme setting for tests according to EN 60456 Stan-

dard Programme

2.5 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2)

With heavily soiled items select

Soak

Pre-wash

For normally soiled items select

Short

fIf fabrics have a high proportion of man-made fibres it is

advisable to programme the machine for "Gentle Action".

See "Programmable functions".

1 kg –Soak

–Pre-wash

–Short

Use the Wool programme for textiles with wool content

Fill the drum

loosely 1/2to 3/4

full

–Soak

–Pre-wash

–Short

Dust in curtains usually makes pre-wash advisable.

1 kg Use liquid wool detergent.

Do not overload Hand washable garments will not shrink, stretch, matt or felt

beyond the accepted tolerance.

*For satin, lace silk and other hand washable garments

manually reduce the spin speed or select without final spin.

2.5 kg –Water plus

(Option 1,2)

Add less detergent (half load)

3.0 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,3*,4*)

The water level, number of rinses and programme time are

set automatically in relation to composition of the washing.

*Option is only carried out with a high proportion of cotton.

5.0 kg The washing should be washed, but not treated with fabric

conditioner.

5.0 kg

See Section on Additional options for more details.

Programmes

Programme sequence

Cottons1) Minimum iron1) Delicates

Soak optional optional optional

Pre-wash optional optional optional

Main wash ßßß

Top up rinse from 70°C programmable - -

Graduated rinsing - from 40°C from 50°C

No. of rinses

–minimum load

–medium load

–full load

–with Short touch pad

3 or 42)

Rinse and interim spin (rpm) max. 1000 max. 500 -

Final spin (rpm) max. 1600 max. 900 max. 600

Anti-crease, loosen max. 30 min max. 30 min max. 30 min

Rinse hold optional optional optional

Without final spin optional optional optional

Wash rhythm normal normal gentle action

Water level - Wash

- Rinse

low3)

low3) low3)

medium3) high

high

Explanations:

ßProgramme section included

- Programme section not included

1)Load recognition:

The programme sequence is modified in these programmes according to the absorbancy of the load.

The indicator lights under

Load

on the control panel show the load identified by the machine.

2) A 4th rinse automatically switches in if there is too much foam in the drum, or if a spin speed lower

than 700 rpm has been selected.

3) Increasing the water level:

The water level can be increased from a low level to a higher level by pressing the

Water plus

touch

pad.

Woollens:

Wool is susceptible to damage from movement when it is wet. The wash action during the course of

the programme is low.

Programmes

Woollens

Quick wash Mixed Wash Starch

high cotton

content

high polyester

content

- - optional optional -

- - optional optional ß

ßßßß-

-----

- - - from 40°C -

3 or 42)

max. 600 max. 500 max. 900 max. 500 -

max. 1200 max. 1600 max. 900 max. 900 max. 1600

- max. 30 min max. 30 min max. 30 min max. 30 min

optional optional optional optional optional

Wool normal normal normal normal

medium

low3)

medium3) low3)

low3) low3)

medium3) low

Top-up rinse (programmable):

At the end of the main wash additional water flows into the drum, and the suds are cooled slightly. Hot

water might damage plastic drain pipes.

Graduated rinsing:

The suds are cooled at the end of the wash cycle by water flowing in and being pumped away at inter-

vals thereby minimising creasing.

Rinse and interim spin:

There is a spin between the rinses.

Final spin:

The maximum spin speed according to the programme can be selected with the Spin touch pad. In

the programmes

Minimum Iron

Delicates

Woollens

and

Mixed Wash

the spin speed is automatically

limited to the above stated maximum spin speed.

Anti-crease, and loosen:

The anti-crease action guards against the tendency for creases to set in if laundry is not removed from

the drum as soon as a programme has finished. There is drum movement twice a minute. The door

can be opened and laundry removed at any time during the anti-crease phase.

Programmes

Care symbols - washing

Care

symbols

Fabric

types

Description of

process

Programme:

(select the appropriate temperature ac-

cording to the temperature on the care

label symbol)

no bar

Cottons Normal (maxi-

mum) machine

action and nor-

mal spinning

Cottons, Minimum iron, Quick wash

single bar

Synthetics Reduced (me-

dium) machine

action and re-

duced spinning

Delicates

*If the gentle action option has been

programmed into your machine via the

programmable functions, garments

with a single bar under the care label

fcan also be processed using a

Cottons, Minimum Iron, Quick wash,

Mixed Wash or Starch programme.

broken

bar

Woollens Much reduced

(minimum) ma-

chine action but

with normal

spinning

Hand Wash Woollens programmes.

Programmes

Important - other care symbols

/Hand wash (if a temperature

is not specified, use the low-

est temperature or cold)

hDo not wash

apf Dry clean

DDo not dry clean

ySuitable for chlorine bleach-

ing

zDo not use chlorine bleach

Tumble dry

qAt normal temperature

rAt low temperature

sDo not tumble dry

Ironing

IHot iron

HMedium hot iron

GCool iron

JDo not iron

N.B. If you have any textiles with the

older wash care labels, select a

programme according to the label be-

low:

[:\] Cottons

?;\ Minimum iron

={ Delicates

#Woollens

Programmes

To select an additional option to the ba-

sic programme press the touch pad for

that option. The indicator light for the

option touch pad comes on.

If an additional option is chosen which

is unsuitable for the basic programme,

(see the Programme Survey):

–the indicator light goes out when the

touch pad is released.

If a spin speed is chosen which is un-

suitable for the programme (see the

Programme survey):

–pressing the touch pad has no effect.

Soak

For heavily soiled and stained items

with protein stains (e.g. blood, fats

and oils, cocoa).

A length of time of between 30 minutes

and 6 hours can be chosen, in 30 min-

ute periods, for the

Soak

process.

Setting soak time

ASelect a programme.

BPress the

Soak

touch pad, the indi-

cator light flashes and the first 30

minutes of the soak time are

switched on.

CThe &touch pad underneath the

"time" display can be used to

lengthen the soak time, and the $

touch pad to shorten it.

–Important

The soak time chosen will be added

to the original programme duration in

the "time" display.

DPress the START touch pad, unless

Delay start

is to be selected.

Deleting soak time

Press the

Soak

touch pad, the indicator

light goes out.

Adding detergent for the Soak

programme:

–Programmes without pre-wash:

Add the total amount into compart-

ment jor directly on to the wash-

ing in the drum.

– Programmes with pre-wash:

1/4of the detergent should be added

to compartment ifor

soak

and

pre-wash

,3/4of the detergent into

compartment jfor the main wash.

Pre-wash

For heavily soiled and stained items

Short

This shortens the programme running

time. For lightly soiled items.

In the

Cottons

Minimum Iron

and

Mixed

Wash

Poly/Cottons

programmes only

two rinse cycles are carried out with a

higher water level.

Additional options

Water plus

The water level increases in

soak

pre-wash

main wash

and/or

rinses

and/or an extra rinse can be carried

out.

You can choose between four options

with the

Water plus

touch pad.

See "Water plus system" in the "Pro-

grammable functions" section.

Buzzer

At the end of the programme or when

Rinse hold is reached an audible

tone sounds repeatedly.

The buzzer sounds for one hour maxi-

mum.

Switching off the additional options

Press the touch pad for the relevant ad-

ditional option, the indicator light goes

out.

Spin and Drain

For fabrics which can be spun after

having been hand-washed.

Without final spin

Washing is not spun after the final rinse.

After water has been drained the ma-

chine switches automatically to the

anti-crease phase.

Interim rinse and spin is carried out in

the relevant programme sections.

Rinse hold

The washing remains suspended in wa-

ter after the final rinse.

This helps to reduce the possibility of

creasing if the washing is left for some

time before being taken out of the ma-

chine.

Interim rinse and spin is carried out in

the relavant programme sections.

To continue the programme

with final spin:

Select the required spin speed with the

&touch pad under the Spin selection

display.

without final spin:

Press the $touch pad under the spin

display once. The

without final spin

in-

dicator light comes on and the machine

pumps the water away.

Additional options

Electronic programme locking

Programme locking prevents the ma-

chine from being opened or the

programme cancelled using a wash

programme.

Switching on programme locking

^Select a programme, (see Brief guide

to washing correctly).

^Press the START touch pad for at

least 4 seconds, until the

locked

check light comes on, (upper left on

the control panel).

Programme locking is now activated.

The machine will now not accept any

changes, and the wash programme

proceeds through to the end.

At the end of the wash programme, and

in "Rinse hold" the programme locking

is deactivated, so that a new wash

programme can be chosen.

Switching off programme locking

^Press the START touch pad until the

locked

check light goes out.

Additional options

Electronic Locking

The locking function prevents your

machine being used without your

knowledge.

When the locking function is switched

on:

–the machine cannot be opened,

–a programme cannot be selected,

–the machine cannot be started.

Switching on the locking function

AShut the drum door.

BSwitch on the machine.

CPress the

Pre-wash

touch pad and

hold pressed in while carrying out

steps Dand E:

DPress the

Mixed Wash

touch pad

once.

EPress the

Minimum iron

touch pad

once.

–The

locked

check light flashes, (up-

per left on the control panel).

FRelease the

Pre-wash

touch pad.

GSwitch off the machine.

To switch off the locking function

Repeat steps Ato F. The check light

locked

goes out.

Additional options

The time left shows in the display, or

the time left plus soak time or the de-

lay start period.

In addition it serves as a display for

the programmable functions.

Delay start

A period of delay shows in the display.

After the appliance has started the de-

lay start time counts down.

If a delay start is higher than 10 hours it

will count down hourly, from 9h59 it

will count down in minutes.

Once the delay start period is com-

pleted the programme begins and the

actual programme duration shows in

the display.

See the section "How to wash correctly

(Programme start)".

Time left display

At the beginning of a programme, the

maximum duration of a programme is

shown in hours and minutes, where de-

lay start has not been selected.

In the

Cottons

Minimum Iron

and

Mixed

Wash

programmes the type and volume

of the wash will be monitored during the

first water inlet phase. With a part load

the time could be reduced by up to 60

minutes.

Soak

If a time is selected for soaking, this is

added to the prescribed running time

for the programme and the total shown

in the display.

Example:

The

Cottons

60°C programme is se-

lected:

–The display shows a programme run-

ning time of 1h58.

–A soaking time of one hour is cho-

sen.

– The display shows a total running

time of 2h58. For more detailed in-

formation on soaking see the section

Additional options

Soak

Display

The programmable functions enable

the user to introduce further features as

required. The programmable functions

remain stored in memory until they are

cancelled by the user.

The following programmable

functions can be selected:

P1 = Maximum water level

The water level for rinsing is automat-

ically raised to the maximum level

where rinse results are particularly

important.

Effective for the rinses in programmes:

– Cottons

– Minimum iron

– Quick Wash

– Mixed wash

P2 = Water plus system

The

Water plus

touch pad offers four

options for increasing the water level

and/or bringing in an extra rinse cy-

cle.

Option 1

Increases the rinse water level in the

Cottons

Minimum iron

Quick Wash

and

Mixed wash

programmes, where

for example rinse results are particu-

larly important.

Option 2

Increases the water level in soak,

pre-wash, main wash and rinses in the

Cottons

Minimum iron

Quick wash

and

Mixed wash

programmes and is

particularly suitable for fabrics that

need special care, or where extra atten-

tion must be taken in dissolving deter-

gent. This option is already set when

the machine is delivered from the fac-

tory.

Option 3

An extra rinse cycle is introduced to the

Cottons

programme, e.g. when rinse re-

sults are particularly important.

Option 4

Is Option 2 plus Option 3, where this

quality of rinse is required.

P4 = Activating the i

compartment

For the first 10 seconds of the main

wash cycle water flows in through

compartment i.

Compartment jmay sometimes not

be able to hold the total amount of de-

tergent required:

–if the water is very hard (over

3.8 mmol/l, water hardness level IV))

and

–if laundry is heavily soiled.

Compartment ican be used to flush

in the extra detergent for the main

wash.

Programmable functions

P9 = Gentle action

For gentle washing of slightly soiled

items. Drum action is reduced.

Gentle action can be used with the

Cot-

tons

Minimum iron

Quick Wash

Mixed

wash

and

Starch

programmes.

If "Gentle action" has been pro-

grammed, every wash cycle in these

programmes is carried out with gentle

action rhythm.

P10 = Top-up rinse for Cottons

At the end of the main wash addi-

tional water flows into the drum to

cool the suds down.

Hot suds can damage plastic drain-

age pipes.

Top-up rinse takes place when temper-

atures of 95°C, 80°C and 70°C are se-

lected.

Top-up rinse should be activated:

–to prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

–where the drainage pipes do not

comply with DIN 1986."

P11 = Memory function

If an additional function is selected

for a programme, and/or the spin

speed is altered, the machine stores

these changes in memory at the start

of a programme.

The memory function is active when the

machine is first delivered, but can be

programmed to be switched off.

See the following pages for how to

programme the programmable func-

tions.

Programmable functions

Programming and storing in

memory

The programmable functions are acti-

vated to call up further features not

shown on the control panel by using the

additional option touch pads in combi-

nation with the programme touch pads.

Programming is carried out in for steps:

1. Select programming mode

2. Select programmable function

3. Activate or deactivate the program-

mable function

4. Save the programmable function in

memory

1. Selecting programming mode

AThe machine must be switched off

and the drum door closed.

BPress the

Cottons

and the

Soak

touch pads at the same time, hold

pressed in and

C. . . switch the machine on with the

I-ON/0-OFF button.

DLet go of all these touch pads/but-

tons.

P 0 will appear in the display.

2. Selecting a programmable function

EPress the &touch pad under the

display. The Pwill now flash in the

display alternating with the number

of the programmable function e.g.

P...1...P...1

FPress the $& touch pads repeat-

edly until the the display shows the

number of the programmable func-

tion required, alternating with the P.

P1 = High water level

P2 = Water plus system

P4 = Activate compartment i

P9 = Gentle action

P10 = Activate top-up rinse for

Cottons

P11 = Memory function

In addition, one of the following will ap-

pear on the right of the display:

P0= Programmable function is

de-activated

P1= Programmable function is

activated

with P 2 a2will appear on the right to

show that option 2 is active.

Programmable functions

3. To activate or deactivate a pro-

grammable function

For programmable functions P1,P4,

P9,P10,P11

GPressing the START touch pad once

will toggle the display message from

0to 1(active) or from 1to 0(de-acti-

vated).

For programmable function P2

GBy pressing the START touch pad

you can select different options:

1on the right = Option 1

2on the right = Option 2

3on the right = Option 3

4on the right = Option 4

4. Saving the programmable function

in memory

HSwitch the machine of with the

I-ON/0-OFF button.

You can now start the programme

you want.

The programmable function is now

stored in memory and will remain so un-

til you alter it.

Programmable functions

Cleaning the washing machine

^Clean the casing with a mild

non-abrasive detergent or soap and

water. Wipe dry with a soft cloth.

^Clean the facia panel and lid with a

damp cloth and dry with a soft cloth.

^The drum can be cleaned using a

suitable proprietary stainless steel

cleaner.

Do not use solvents, abrasive

cleaners, glass cleaners or all-pur-

pose cleaners. These might cause

damage to the plastic surfaces be-

cause of the chemicals they contain.

The washing machine must not be

hosed down.

E-cloth

A microfibre "E-Cloth" is available from

the Miele UK Spare Parts Department,

Part Number 98013530, which is suit-

able for cleaning surfaces such as

stainless steel, glass, plastic and

chrome without the use of chemicals.

Extra cleaning

Carrying out a hot wash (70°C or

above) with powder detergent approx.

once every six weeks will help prevent

deposits building up in the machine.

These can occur when washing is

mainly done at low temperatures, and

lead to unpleasant smells. If you have

no reason to wash laundry occasionally

at this high temperature, then carry out

a 95°C COTTONS programme as a

cleaning cycle with powder detergent,

but not laundry, at regular intervals.

Cleaning and care

Cleaning the detergent dis-

penser drawer

^Pull out the detergent dispenser

drawer until a resistance is felt.

^Press down the red release catch

and at the same time pull the drawer

right out of the machine.

^Clean the dispenser compartments

and conditioner channel.

Regularly remove any detergent resi-

dues.

^Remove the siphon from compart-

ment p.

Wash under running warm water and

replace.

Over time, detergent residue can build

up in the water jets in the top of the de-

tergent drawer housing.

^Before replacing the detergent

drawer, use a bottle brush or similar

to clean them out.

Cleaning and care

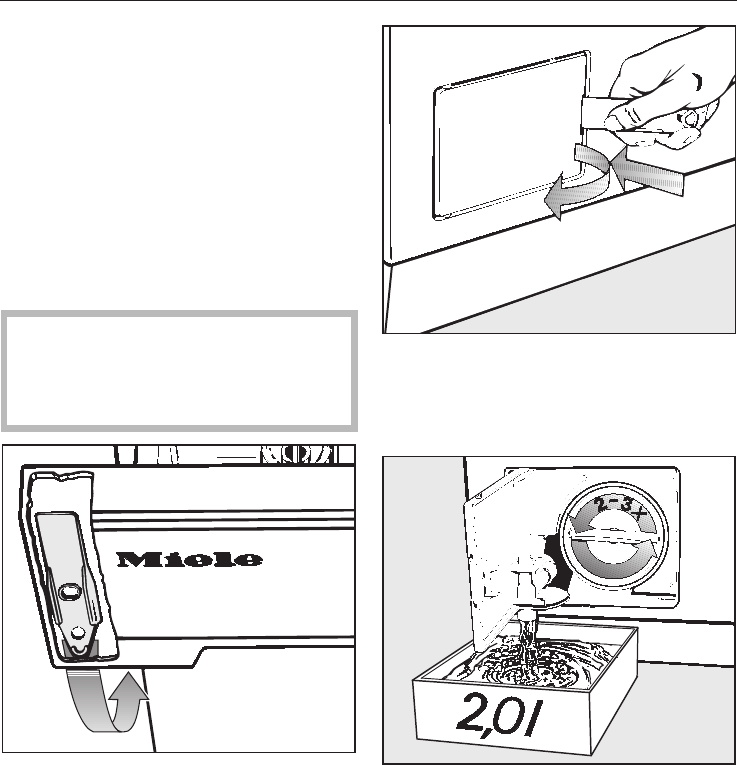

Cleaning the fluff (drain) filter

and pump

Check the fluff (drain) filter initially after

3-4 washes to ascertain how often it is

likely to require cleaning.

With normal cleaning approx. 2 litres of

water run out.

If the drain outlet is clogged, more wa-

ter will be retained in the machine (up

to 25 litres).

Caution: If laundry has been washed

at a high temperature, water drain-

ing out of the machine will still be

hot.

Take the (yellow) filter flap opener from

behind the detergent drawer facia

panel, (see illustration above).

^Open the door.

^Open the flap.

^Place a suitable container under the

drain fixture.

^Turn the fluff filter lid round 2-3 times.

Do not take it right out.

With large volumes of water, when the

container is full, screw the fluff filter

back into position, and empty the dish

before repeating the procedure.

Cleaning and care

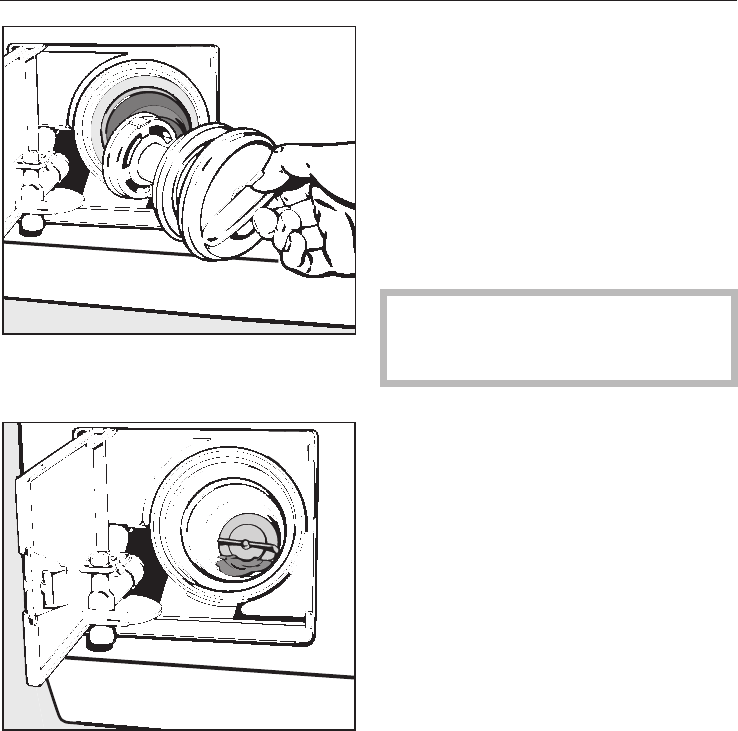

^Once the flow of water ceases, re-

move the fluff filter completely.

^Clean the fluff filter thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff.

^Turn the impeller by hand to make

sure it rotates freely. Any foreign ob-

jects causing an obstruction should

be removed.

^Clean the inside of the fluff filter hous-

ing.

Remove any deposits of limescale and

detergent or foreign objects from the

thread of the filter housing and filter unit

as they can cause water to leak.

Limescale deposits are often a sign of

using too little detergent.

^Put the fluff filter back in place and

secure it.

Make sure the fluff filter is securely

tightened. Otherwise there is a risk

of water leakage during use.

After cleaning

^Pour approx. 2 litres of water into the

detergent dispenser compartment

jto reactivate the ball valve which

keeps detergent in circulation in the

suds.

Cleaning and care

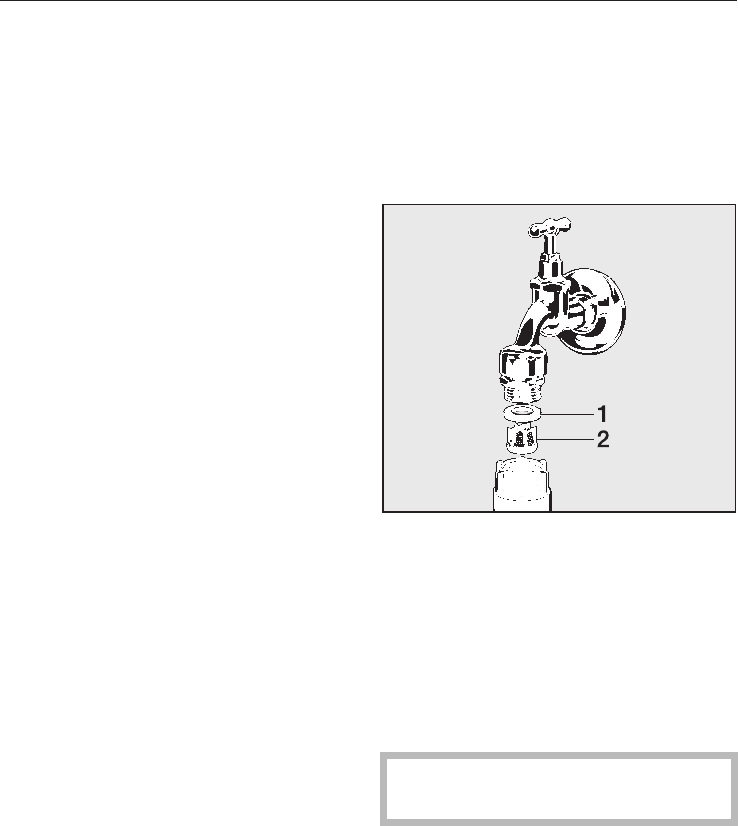

Cleaning the filter in the water

inlet

The washing machine has a filter to

protect the water inlet valve.

The accessible filter in the union in the

open end of the inlet hose should be

checked every six months, or more of-

ten if there are frequent interruptions to

the external water supply.

^First turn off the stopcock.

^Unscrew the threaded union connect-

ing the free end of the inlet hose to

the stopcock.

^Remove rubber seal afrom the re-

cess.

^Using pointed pliers, take hold of the

plastic filter bar, remove the filter b

and clean.

^Put the filter and seal back in the re-

verse order and reconnect the hose.

Turn on the stopcock and check the

connection is watertight. If water drips

out, tighten the connection.

Never forget to put the filter back in

place after cleaning it.

Cleaning and care

With the help of the following notes minor faults in the performance of the appli-

ance, some of which may result from incorrect operation, can be put right without

contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a suit-

ably qualified person in accordance with local and national safety regulations.

Unauthorised repairs could be dangerous.

The chart is divided into the following sections to help you:

–The programme does not start.

–The wash programme stops and a fault indicator light comes on.

–A fault indicator light comes on but the wash programme continues as normal.

–General problems or an unsatisfactory wash result.

The programme does not start.

What to do if . . . Possible cause Remedy

The indicator lights

for the PROGRAMME

touch pads have not

lit up.

There is no power. Check that

–the door is properly closed.

–the mains plug is plugged in.

–the fuse or circuit breaker has

not tripped.

The CHECK LIGHT

Locked is flashing.

The lock function is

switched on.

Switch the lock function off.

Problem solving guide

The wash programme stops and a fault indicator light comes

on.

What to do if . . . Possible cause Remedy

The buzzer sounds and

the CHECK LIGHT Drain is

flashing.

The water outlet is

blocked.

Clean the fluff (drain) filter

and drain pump.

The drain hose has

been fixed too high.

The maximum drain height is

1 m.

The buzzer sounds and

the CHECK LIGHT Water

inlet is flashing.

The water inlet is

blocked –Open the stopcock.

–Start the programme

again.

The buzzer sounds and

the CHECK LIGHT Water

inlet and Drain flash.

The Waterproof sys-

tem has reacted.

Call the Service Department.

One of the following indi-

cator lights is flashing:

–Pre-wash + buzzer

–Main wash

–Rinses 1-2 + buzzer

–Rinse 3

There is a fault. –Press I-ON/0-OFF button

to release it.

–Re-start the programme.

–If the fault indicators oc-

cur again, call the Service

Department.

Three horizontal bars

– – – appear in the display

and the buzzer is sound-

ing.

There is a fault. –Press I-ON/0-OFF button

to release it.

–Re-start the programme.

–If the three horizontal bars

– – – appear again, call

the Service Department.

Problem solving guide

A fault indicator light comes on but the wash programme

continues as normal.

What to do if . . . Possible cause Remedy

The CHECK LIGHT Drain

is flashing.

The drain outlet is

restricted.

Clean the fluff (drain) filter

and drain pump.

The CHECK LIGHT Water

inlet is flashing.

The water inlet is re-

stricted or the water

pressure is too low.

–make sure the stopcock is

opened wide enough.

–make sure the inlet hose is

not kinked.

The filter in the inlet

hose is dirty.

Clean the filter.

The Final spin indicator

light flashes in the

programme sequence dis-

play.

The final spin has

not taken place.

The machine de-

tected an imbal-

ance.

–Loosen and re-distribute

the washing.

–Select the programme

Drain/Spin

–Take into account the spin

speed of the relevant

programme.

The CHECK LIGHT

Locked is on.

Programme locking

is switched on.

Switch off the programme

locking.

The CHECK LIGHT Excess

detergent is flashing.

Excessive foam has

built up during

washing.

Use less detergent next time

and follow the recommenda-

tion on the packaging.

Problem solving guide

General problems or an unsatisfactory wash result

What to do if . . . Possible cause Remedy

The machine shakes

during the spin cycle.

The four feet are not

resting evenly on the

floor.

Level the machine. See advice

on installation.

The laundry has not

been spun satisfacto-

rily.

The spin speed se-

lected was too low.

Select a higher spin speed

next time.

The drum door cannot

be opened by press-

ing the Door button.

The machine is not

connected to the elec-

tricity supply.

Put the plug in the socket and

switch on.

Power cut. Open the drum door as de-

scribed in the section "Open-

ing the door in the event of a

power failure".

The door was not cor-

rectly engaged.

Press hard against the lock

side of the drum door and then

press the

Door

button.

There is still water in

the drum and the ma-

chine is unable to

drain.

Clean the fluff (drain) filter and

the drain pump.

For safety reasons the drum door cannot be opened if

the suds temperature is higher than 55°C.

Problem solving guide

What to do if . . . Possible cause Remedy

The pump makes

strange noises.

These do not indicate a fault. They occur at the begin-

ning and end of a pumping sequence as a normal part

of the operation.

Large residues of de-

tergent remain in the

dispenser drawer.

The water supply pres-

sure is too low. –Clean the filter in the water

inlet system.

–It may be useful to press the

Water plus button.

Washing powder used

with water softener

tends to become

sticky.

Pour washing powder into the

dispenser before adding any

water softener.

Fabric conditioner is

not completely dis-

pensed or too much

water remains in the

pcompartment.

The siphon is either in-

correctly positioned or

clogged.

Clean the siphon, see

"Cleaning and care - Cleaning

the detergent drawer".

The fabric conditioner

channel is clogged.

Clean the fabric conditioner

channel.

Liquid detergent does

not give the required

result.

Liquid detergents do

not contain bleaching

agents. They do not

remove fruit, coffee

and tea stains.

–Use a general purpose

washing machine powder

containing a bleaching

agent.

–Pour stain removers into

compartment jof the dis-

penser drawer and liquid

detergent into a dispenser

ball.

–Never put stain removers

and liquid detergent to-

gether in the dispenser

drawer.

Problem solving guide

What to do if . . . Possible cause Remedy

Grey, greasy parti-

cles cling to

washed laundry.

Insufficient amounts of

detergent were used to

break down the particles

of grease, e.g. from oils

and lotions, in heavily

soiled laundry.

–Add more detergent.

–Before washing the next load

run a COTTONS programme

at 70°C or above with pow-

der detergent but without a

load. (See "Extra cleaning" in

Cleaning and Care).

There are white res-

idues which look

like powder deter-

gent on dark col-

oured laundry.

The detergent contained

compounds (zeolites) to

aid water softening

which are not soluble in

water. These have

ended up on the laundry.

–Try and brush off the resi-

dues with a soft brush once

the laundry is dry.

–Use a liquid detergent to

wash dark coloured textiles.

Liquid detergents usually

contain no zeolites.

Problem solving guide

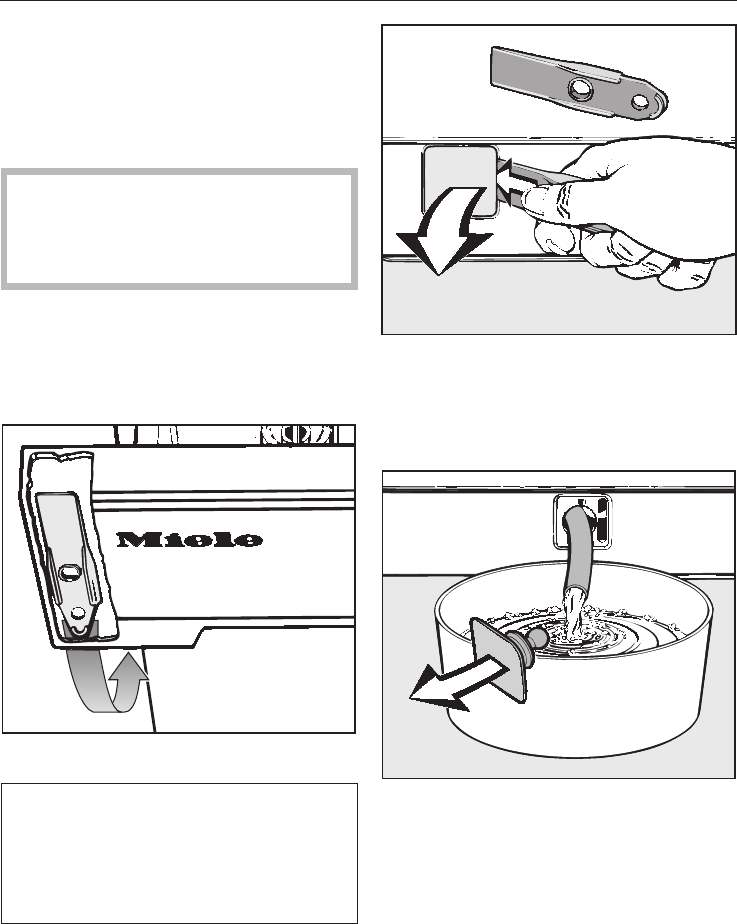

Opening the drum door in the

event of a power failure

If the drain outlet is clogged, more wa-

ter will be retained in the machine (up

to 25 litres).

Caution: If laundry has been washed

at a high temperature, water drain-

ing out of the machine will still be

hot.

^Switch off the washing machine.

Take the (yellow) filter flap opener from

behind the detergent drawer facia

panel, (see illustration below).

^Remove the opener.

Important

Left hand hinged machines have two

access panels in the plinth. The left

hand panel conceals the emergency

drainage.

^Open the flap (in the machine plinth).

^Place a dish or bowl under the spout.

^Point the drain hose into the con-

tainer.

^Remove the stopper. When no more

water comes out, replace the stopper

in the end of the hose.

^If there is a large amount of water in

the machine this procedure will have

to be repeated several times.

Problem solving guide

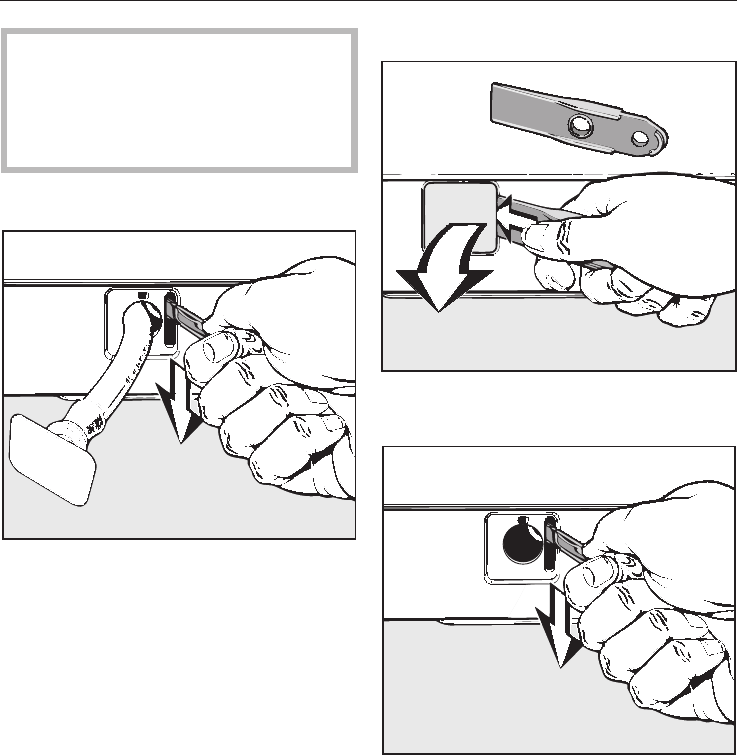

Always make sure the drum is sta-

tionary before reaching in to the ma-

chine to remove washing. Reaching

into a moving drum is extremely

dangerous.

Door hinged right

^Pull the emergency door latch down-

wards (see illustration). The machine

door will then open.

Door hinged left

^Open the access panel on the right

hand side of the plinth.

^Pull the emergency door latch down-

wards (see illustration). The machine

door will then open.

Problem solving guide

Customer contact

In the event of any faults which you

cannot remedy yourself please contact

–Your Miele Dealer or

–Your nearest Miele Service depart-

ment

(see back cover for the address).

When contacting the Service Depart-

ment, please quote the Model and Se-

rial Nos. of your appliance, both of

which are shown on the data plate visi-

ble above the porthole glass when the

door front is opened.

Please note that telephone calls may

be monitored and recorded to im-

prove our service.

Future updates (PC)

The indicator light or check light

marked PC is reserved for the service

engineer, for updates to your machine

in future years.

When for example technological devel-

opments offer advanced modifications

to your existing programme cycles, a

service engineer will be able to input

these into your machine controls.

Miele will provide information when

such possibilities become available.

After sales service

Installation surface

A concrete floor is the most suitable in-

stallation surface for a washing ma-

chine, being far less prone to vibration

during the spin cycle than wooden

floorboards or a carpeted surface.

Please note the following points:

^The machine must be level and se-

curely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

^If installing on a wooden joist floor, we

recommend a plywood base at least

30 mm thick, 590 x 520 mm wide.

The base should span several joists

and be bolted to the joists, not only to

the floorboards. Check for the pres-

ence of pipes and cables first.

The most stable part of the floor is

usually in the corner.

,If the machine is installed on a

raised plinth, it has to be secured

against slippage during spin using

retaining clips (available from the

Miele Spare Parts Dept).

Installation

Lift the machine from its packaging

base and move it to its site. Please

note:

^Do not lift the machine by the drum

door.

^Ensure that the machine feet and the

floor are dry to prevent the machine

from slipping during the spin cycle.

Removing the transit fitting

ATurn the left-hand transit bar 90°.

Installation

BTurn the right-hand transit bar 90°.

CWithdraw the two bars together with

the support plate.

DPlug the two holes with the plastic

caps supplied.

,The washing machine must not

be moved without the transit bars in

place.

Store the transit bars in a safe place

for future use. They must be re-fitted

if the machine is to be moved again

(e.g.when moving house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Installation

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase elec-

tricity and water consumption and may

cause the machine to move about.

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is deliv-

ered.

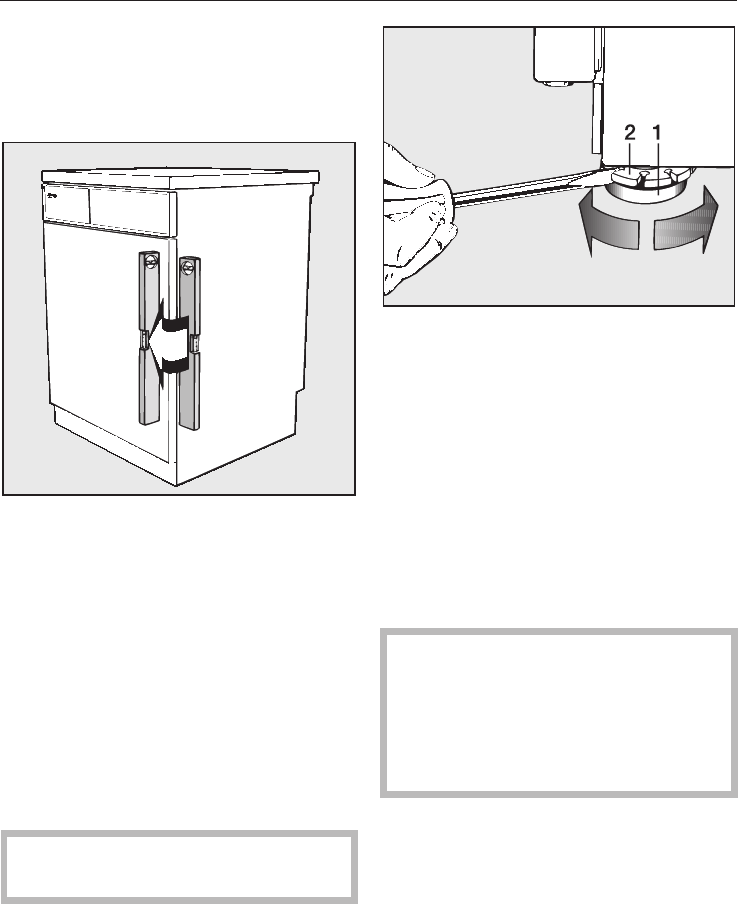

Unscrewing and adjusting the feet

^Gently tip the machine and prop it up

using a solid wood wedge for exam-

ple, to ensure stability.

,Make sure the machine does not

slip as this could cause injury.

^Using a screwdriver loosen foot 1to-

gether with counter nut 2by turning it

anti-clockwise, and unscrew to the

required height.

^Put the machine back on all four feet.

^Use a spirit level to check the ma-

chine is standing level.

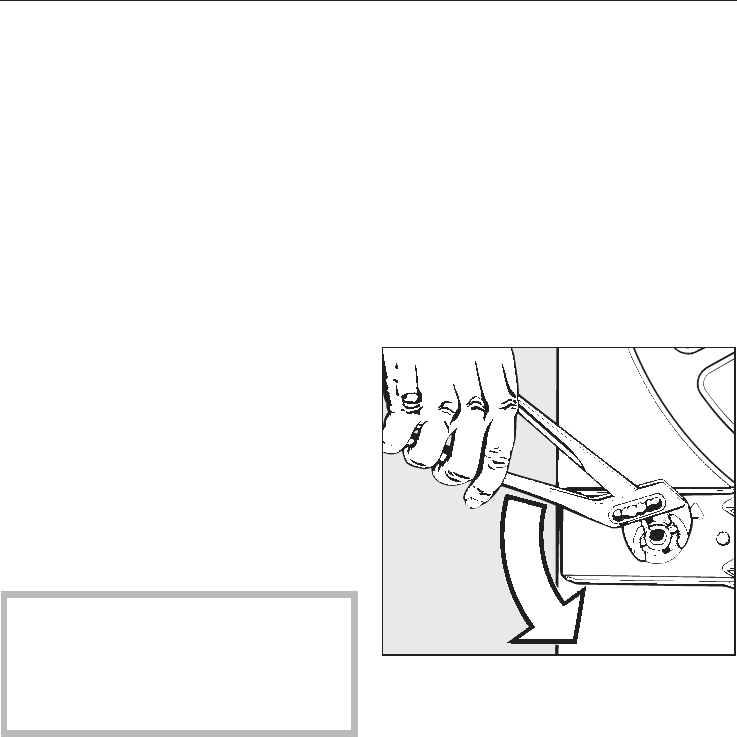

^Hold foot 1securely using a pipe

wrench and using a screwdriver turn

the counternut 2clockwise until it sits

firmly up against the housing.

,All four counternuts must sit

firmly up against the housing. Please

also check this for the feet which did

not need adjustment. Otherwise

there is the danger of the machine

moving about.

Installation

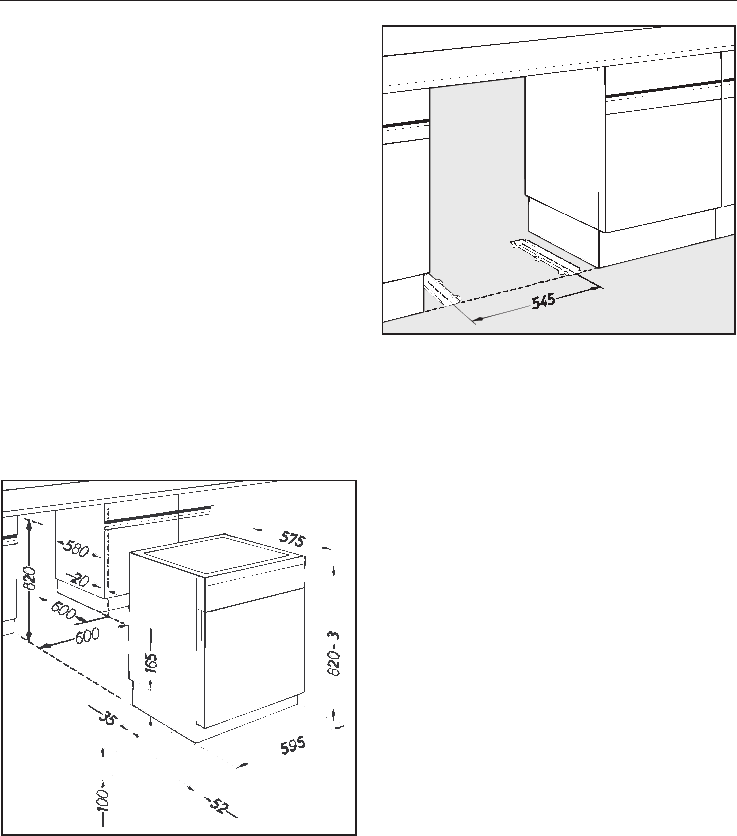

Building under:

Building under a continous worktop / in

a row of kitchen units

^A special building-under kit* is re-

quired. The machine lid has to be re-

placed by a special cover plate**

and to ensure electrical safety it

should be fitted by a competent per-

son.

** N.B.: If you wish to push your ma-

chine under a worktop and there is

space to do this without removing the

lid, the building-under kit is not nec-

essary. Otherwise

^Fitting instructions are supplied with

the building under kit.

^If it is being installed under a 900/910

mm high worktop a raising kit* is re-

quired.

Connections for electricity, water and

drainage should be installed in such a

way that they are accessible after the

machine has been installed.

The slides supplied should be used to

protect the floor from damage when the

machine is pushed into position or

taken out for servicing.

Washer - dryer stack

A Miele tumble dryer can be stacked

on top of this washing machine. To do

this the appropriate stacking kit* (WTV)

to match your washing machine is re-

quired.

All items marked * are available to order

from your Miele Dealer or from the Miele

Spare Parts Dept.

Installation

Fitting or changing the decor

panel

Note: The door should be kept shut

for fitting or changing the decor

panel.

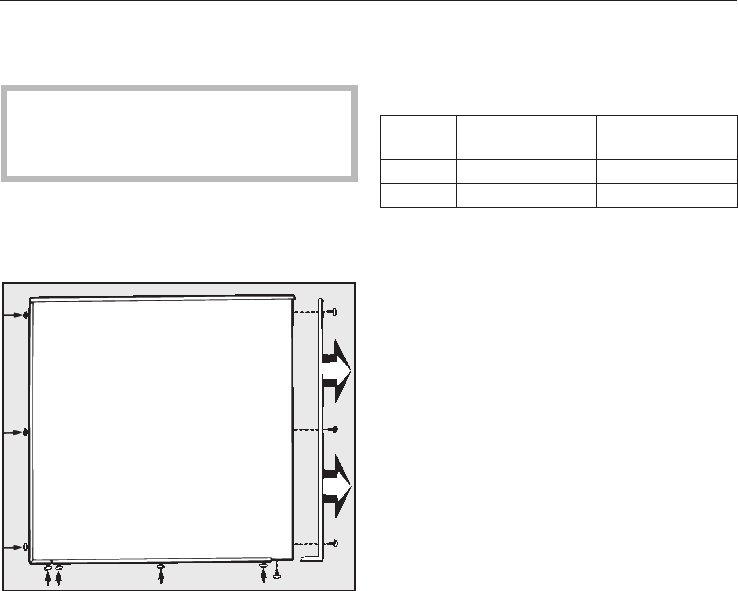

^Unscrew 4 screws from the decor

strip on the door catch side of the

door and take the decor strip off.

^Unscrew the remaining 7 screws from

the lower and side decor strips until

the decor panel bows slightly. It can

then be taken off and a new one fit-

ted.

Re-assemble in the reverse order and

tighten the screws.

Decor panel dimensions

(The figures given in brackets indicate

the tolerance level in mm.)

Panel thickness

1 mm to 1.5 mm

Panel thickness

1.6 mm to 4 mm

Width 586 (+1) mm 586 (+1) mm

Height 600 (+1.5) mm 595.0 (+1.5) mm

Panels more than 1.5 mm thick require

an adapter strip for a 4 mm thick decor

panel. This is available from your Miele

dealer or the Miele Spare Parts Depart-

ment:

Installation

Fitting a plinth facing

The appliance plinth below the door

can be fitted with a plinth facing to

match your kitchen.

The height and return of the appliance

plinth cannot be altered.

Higher plinth can only be fitted if the

overall niche height is higher.

Plinth height Niche height

100 mm

(standard)

820 mm

150 mm 870 mm one raising kit is

required

200 mm 920 mm two raising kits

are required

A plinth facing (600 mm long) can be

ordered from your Kitchen Dealer or

manufacturer. For Miele kitchens please

quote the model number of your ma-

chine when ordering.

Before fitting the plinth facing, please

note: Under no circumstances must

anything be stuck over the flap(s) in

the appliance plinth.

In order to open the drum door dur-

ing an emergency the plinth facing

must be removable.

Fitting the plinth facing:

^Stick the velcro strip provided to the

appliance plinth.

For this the following procedure is rec-

ommended:

^Match up the hooked side and the

looped side of the velcro strip length-

wise.

^Cut it into 2 or 3 sections.

^Peel the protective backing off one

side of the lengths of velcro.

^Position the velcro strips along the

appliance plinth, at the left and right

hand sides and in the middle and

then press firmly into place.

^Carefully remove the remaining pro-

tective foil from the velcro.

Press the plinth facing onto the adhe-

sive surface of the velcro strips and

press firmly into position.

Installation

Connection to water supply

Fitting

The machine should be connected to a

mains water supply in accordance with

standard regulations. In Germany the

washing machine is not required to

have a non-return valve as it has been

designed to comply with the relevant

German DIN standard.

The machine is designed to operate

with a minimum water pressure of 1 bar.

There is a minimum flow pressure of 1

bar if 5 litres of water flow into a suit-

able container in 15 seconds. The static

water pressure must not exceed 10 bar.

If it is higher than 10 bar it is essential

to fit a reducer valve.

The Miele Waterproof-System con-

nected between the stopcock and the

machine offers the safest protection

against water leaks.

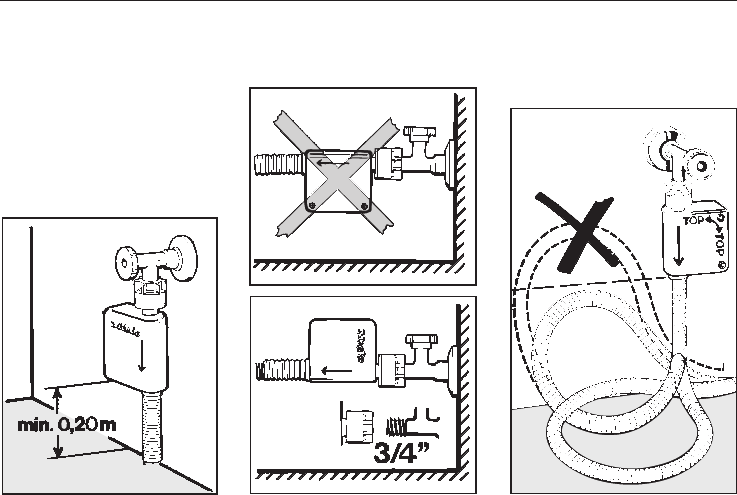

For the Waterproof system to function

correctly, it may only be fitted in the po-

sitions shown (see illustrations).

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4'' thread. The stopcock should

be fitted by a qualified plumber.

Installation

The connection point is subject to

mains water pressure. Turn on the

stopcock slowly and check for leaks.

Correct the position of the washer

and union if appropriate.

The "Waterproof system" is NOT suit-

able for connection to a hot water

supply.

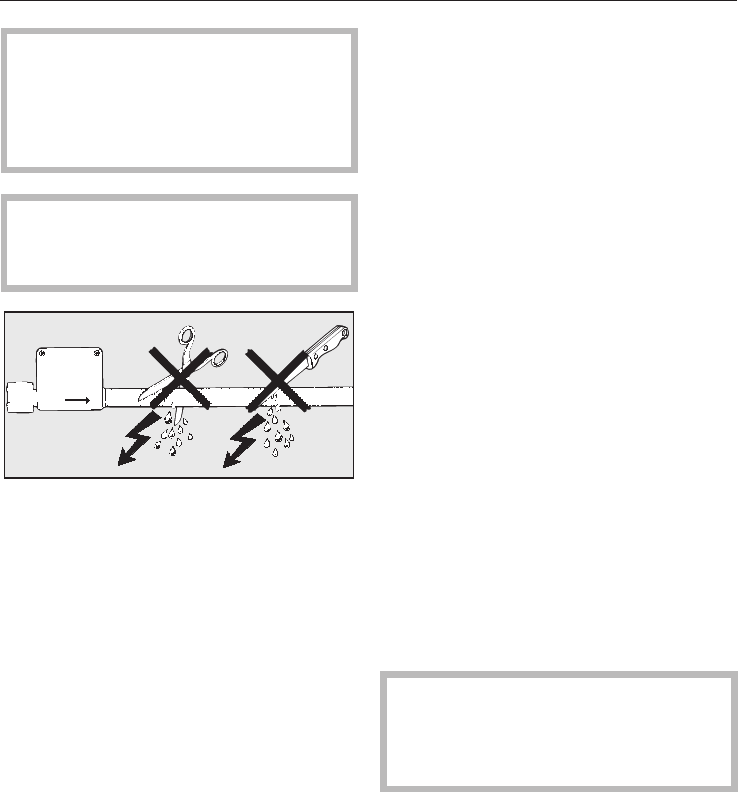

The protective sleeve of the hose must

not be damaged (see illustration).

A "Waterproof system" with a hose

length of approx. 4.5 metres is available

as an optional extra from your Miele

dealer or the Spare Parts Department.

Function

At the heart of this leak protection sys-

tem there is an electric safety valve,

which works like an automatic stop-

cock.

The Miele "Waterproof system" protects

from water damage in the following

cases:

Protection in the event of a leaking

machine.

Any leaking water is collected in a

sump in the base of the appliance. A

float switch switches the safety valve off

electrically. No more water will flow in.

Protection in the event of a leaking

water inlet hose

Leaking water is fed into the sump

through the protective covering which

surrounds the inlet hose as a "second

skin". The float switch turns off the water

supply.

Maintenance

N.B. If you need to unscrew the "Water-

proof system" unit from the mains water

supply it is essential that the machine is

first disconnected from the electricity

supply.

Only use a genuine Miele "Waterproof

system" able to withstand pressure of

up to 70 bar, should you ever need a

replacement.

To protect the filters in the water inlet

valves the dirt filter in the "Water-

proof system" connection must not

be removed.

Installation

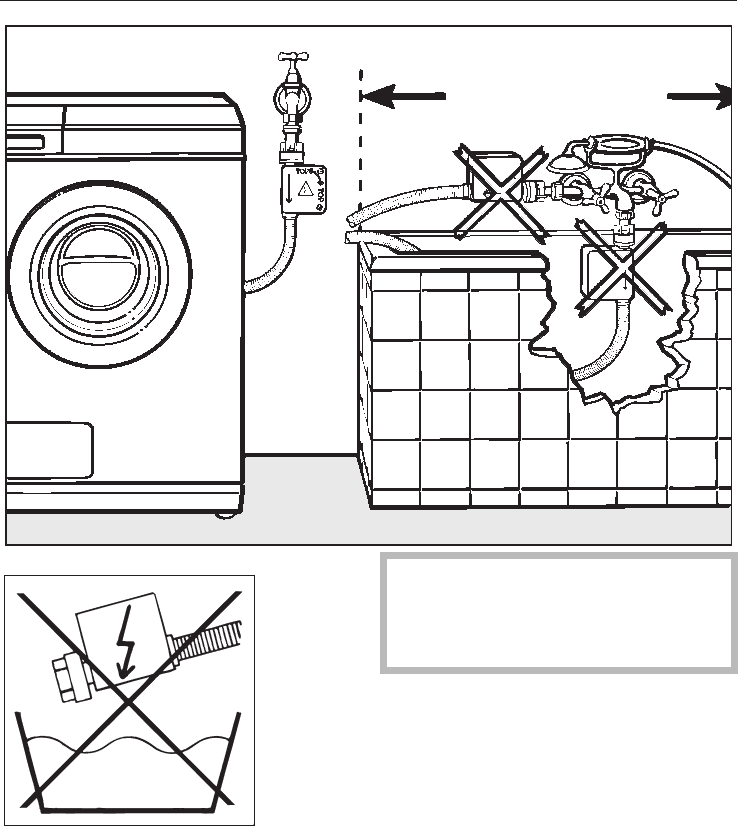

Important!

The plastic casing of the water connec-

tion contains an electric component.

Do not dip into any liquid!

The "Waterproof system" must only

be connected to its own stopcock. It

must not be connected to mixer taps

or similar.

Installation

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre.

The drain hose is 1.5 m long. It must

not be kinked as this restricts drainage.

The swivel elbow at the end of the hose

can be turned in either direction, or can

be detached if required, with a sharp

twist and pull.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following

–Hook the hose over the edge and se-

cure.

–Make sure that the water can drain

away freely without hindrance. Other-

wise there is a risk of water overflow-

ing or of some of the drained water

being sucked back into the machine.

2. Connected securely to a plastic drain

pipe with a rubber nipple. There is no

need to use a non-return valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

If required, the drain hose can be ex-

tended to a length of 5 m. The neces-

sary parts can be purchased from the

Miele Spare Parts Department, or your

Miele dealer.

For a delivery head of more than 1 m

(up to a maximum of 1.8 m) a second

Duo-drain pump is available with the

corresponding conversion kit from the

Miele Spare Parts Department or your

Miele dealer.

Installation

Electrical connection U.K.

All electrical work should be carried out

only by a suitably qualified and compe-

tent person, in strict accordance with

national and local safety regulations.

Ensure power is not supplied to the ap-

pliance while installation work is being

carried out.

The appliance is supplied with a mains

cable with moulded plug for connection

to a 230-240V mains supply. The volt-

age, rated load and fuse rating are

given on the data plate. Please ensure

these match the household mains sup-

ply.

Connection should be made via a fused

plug and suitable switched socket

which is easily accessible after installa-

tion.

For extra safety it is advisable to install

a residual current device (RCD), with a

trip current of 30 mA (in accordance

with DIN VDE 0664, VDE 0100, section

739).

Do not connect via an extension lead.

Electrical connection U.K.

Non-rewireable plugs BS 1363

If this machine is fitted with a

non-rewireable plug and the socket out-

lets are not suitable for the plug sup-

plied or if the existing plug needs to be

replaced by a new one, the old plug will

need to be cut off and an appropriate

plug fitted. The fuse carrier and the

fuse should be removed from the old

plug and disposed of.

The plug cut from the cable should then

be disposed of and on no account be

inserted into any socket elsewhere in

the house (electric shock hazard).

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is em-

bossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA ap-

proved to BS 1362 and have the cor-

rect rating. Replacement fuse covers

may be purchased from your local elec-

trical supplier or Service agent.

Installation

Important

The wires in the mains lead are col-

oured in accordance with the following

code:

Green/yellow = earth

Blue = neutral

Brown = live

If the colours of the wires in the mains

lead of this appliance do not corre-

spond with the coloured markings iden-

tifying the terminals of your plug, pro-

ceed as follows:

^The wire which is coloured green and

yellow must be connected to the ter-

minal in the plug which is marked

with the letter E or by the earth sym-

bol zor coloured green, or green

and yellow.

^The wire which is coloured blue must

be connected to the terminal in the

plug which is marked with the letter N

or coloured black.

^The wire which is coloured brown

must be connected to the terminal in

the plug which is marked with the let-

ter L or coloured red.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation

Programme

(without any additional op-

tions or

programmable functions)

Load Consumption data

Energy Water Programme time

in kWh litres normal short

COTTONS

95°C 5.0 kg 1.70 49 1 h 54 mins 1 h 22 mins

60°C (1) 5.0 kg 0.95 49 1 h 58 mins 1 h 16 mins

40°C 5.0 kg 0.55 49 1 h 58 mins 1 h 06 mins

MINIMUM IRON

40°C 2.5 kg 0.45 58 1 h 20 mins 49 mins

DELICATES

30°C 1.0 kg 0.40 75 58 mins 48 mins

WOOLLENS

30°C 1.0 kg 0.15 25 35 mins -

(1) EN 60456 test programme

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any additional func-

tions selected.

N.B.

Consumption data obtained from a machine designed for the German market.

Consumption data

Height 85.0 cm

Width 59.5 cm

Depth 60.0 cm

Depth with door open 97.0 cm

Weight 102 kg

Maximum floor load 1600 Newton (ca. 160 kg)

Capacity 5 kg dry laundry

Voltage see data plate

Rated load see data plate

Fuse rating see data plate

Water flow pressure min. 1 bar (100 kPa)

Water flow pressure max. 10 bar (1000 kPa)

Drain pump head max. 1.00 m

Drain pump head max. 5.00 m

Test certificates awarded Radio/TV suppression, VDE

Technical Data

M.-Nr. 04 973 340 / V11

Alteration rights reserved/3702

This paper consists of cellulose which has been bleached without the use of chlorine.

Miele W 939 WPS User Manual To The 7e084226 55c4 4475 A672 90bebc8dfbaf

Navigation menu

Versions of this User Manual:

Views

Navigation
