Operating instructions

for Washing machine

W 989i WPS

It is essential to read these

operating instructions before G

installing or using the machine, to

avoid the risk of accident, or damage

to the machine. M.-Nr. 04 953 271

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed safely and kept

out of the reach of babies and young

children. Danger suffocation!

Rather than just throwing these materi-

als away, please ensure they are of-

fered for recycling.

Disposal of your old appliance

Old appliances contain materials which

can be recycled. Please contact your

dealer, your local waste collection cen-

tre or scrap merchant about potential

recycling schemes.

Ensure that the appliance presents no

danger to children while being stored

for disposal. See the appropriate ad-

vice in the "Warning and safety instruc-

tions".

Caring for our environment

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Guide to the machine

General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time

Flushing out the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Water hardness reminder dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to wash correctly

Brief guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Before washing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To start a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

After washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adding or removing washing after programme start. . . . . . . . . . . . . . . . . . . . . . . 17

Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . interruption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . alteration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . Skipping a programme stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding detergent

It is important to dispense the correct amount, because . . . . . . . . . . . . . . . . . . . 19

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fabric conditioners, texturisers, liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Automatic fabric conditioners, texturisers, or liquid starch . . . . . . . . . . . . . . . 21

Separate fabric conditioner or texturiser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Starching separately. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programmes

Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Care symbols - washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Contents

Additional options

Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Pre-wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Water plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

"Without final spin". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

"Rinse hold". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Electronic programme locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Electronic Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Display

Delay start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Time left display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Programmable functions

P1 = Water level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P2 = Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P4 = Activating the icompartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P9 = Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

P10 = Top-up rinse for Cottons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

P11 = Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Programming and storing in memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

1. Selecting programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2. Selecting a programmable function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3. To activate or deactivate a programmable function. . . . . . . . . . . . . . . . . . . 36

4. Storing the programmable function in memory . . . . . . . . . . . . . . . . . . . . . . 36

Cleaning and care

Cleaning the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Extra cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Cleaning the detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning the fluff (drain) filter and pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Contents

Problem solving guide

The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 44

A fault indicator light comes on but the wash programme continues as normal. . 45

General problems or an unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . 46

Opening the drum door in the event of a power failure. . . . . . . . . . . . . . . . . . . . . 49

After sales service

Customer contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Installation

Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Removing the transit fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Building under . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Adjusting the facia height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Fitting the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Front panel dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Drilling template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Example 1: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Example 2: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Aligning the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Fitting a plinth facing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Fitting the plinth facing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Washer and dryer Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Connection to water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Contents

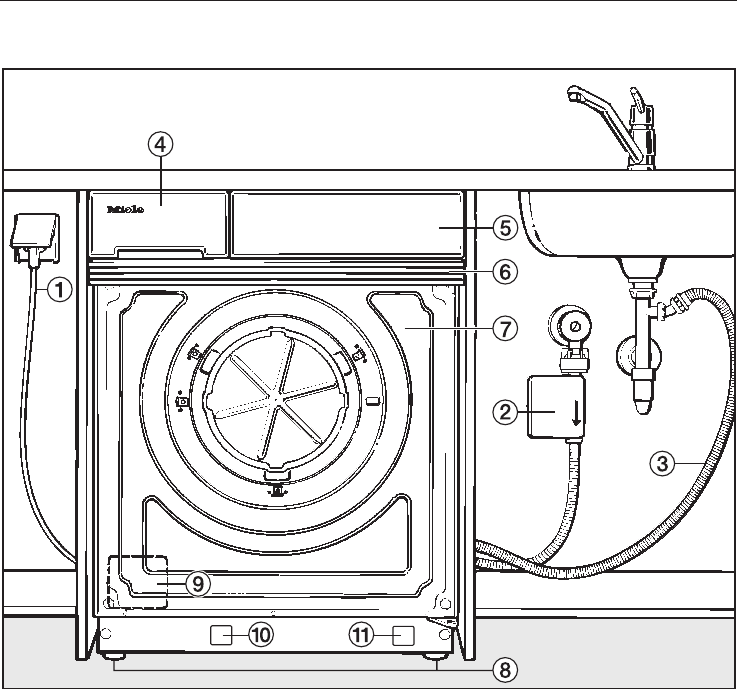

General view

aElectric supply cable

bInlet hose with "Waterproof" system

cFlexible drain hose (with detachable

swivel elbow)

dDetergent dispenser drawer

eFacia panel with controls

fAdapter strips

gDoor interior plate with fixing points

for a front panel

hFour height adjustable feet

iAccess panel for drain pump and fil-

ter

jPanel for emergency door release

(door hinged right) and for drainage

(door hinged left or right)

kPanel for emergency door release

(door hinged left)

Guide to the machine

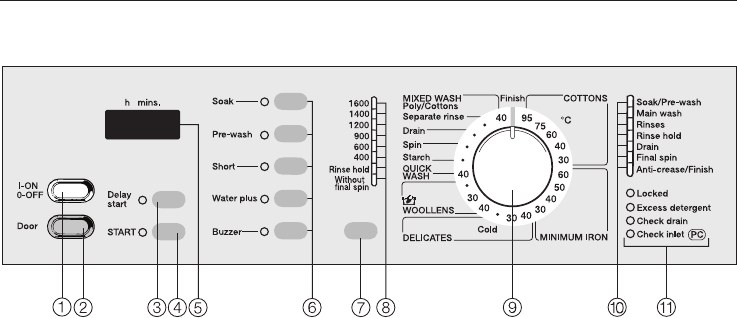

Control panel

a"I-ON / 0-OFF" button

To switch the machine ON or OFF or

to interrupt a programme.

b"Door" button

opens the machine door.

c"Delay start" button

With delay start the start of the

programme can be delayed from 30

minutes up to a maximum of 24^.

d"START" button

starts the wash programme

eDisplay

Display fulfils several functions:

–shows the length of programme;

–with "delay start" shows the time until

the programme starts.

–shows the programming functions

when they are called up.

fButtons for additional options

Indicator light on = selected

Indicator light off = not selected

g"Spin" button

for spin speed, Rinse hold and With-

out final spin

hIndicator lights

showing the selected spin speed.

iProgramme selector

Can be turned clockwise or anti-clock-

wise.

The ring display goes out in the

following circumstances:

–if a few minutes after switching on no

programme selection or programme

start has been selected.

–a few minutes after the programme

has ended.

jProgramme sequence indicator

lights

kCheck lights

Guide to the machine

Read the operating instructions be-

fore using this machine for the first

time. They contain important infor-

mation about the safety, use and

maintenance of the machine. This

way you will avoid the risk of acci-

dents and damage to the machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Correct usage

Only use the washing machine to

wash items which are specified by

the manufacturer to be machine-wash-

able on the wash-care label, and tex-

tiles composed of hand-washable wool

or wool blend fabrics as well as satin,

lace, silk and other hand-washable gar-

ments.

Any other applications may be danger-

ous. The manufacturer is not liable for

damage resulting from improper use or

operation.

This appliance should not be oper-

ated by children. Supervise its use

by the elderly or infirm.

Technical safety

Before setting up the machine,

check it for any externally visible

damage. Do not install and use a dam-

aged machine.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and fre-

quency) match the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this appli-

ance can only be guaranteed when

continuity is complete between the ma-

chine and an effective earthing system

which complies with local and national

regulations. It is most important that this

basic safety requirement is regularly

tested by a qualified electrician.

The manufacturer cannot be held re-

sponsible for the consequences of an

inadequate earthing system (e.g. elec-

tric shock).

Do not connect the appliance to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for which

the manufacturer cannot accept re-

sponsibility. Repairs should only be un-

dertaken by a Miele approved

engineer.

Ensure current is not supplied to the

appliance while maintenance or repair

work is being carried out.

The machine is only completely

isolated from the electricity supply

when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Warning and safety instructions

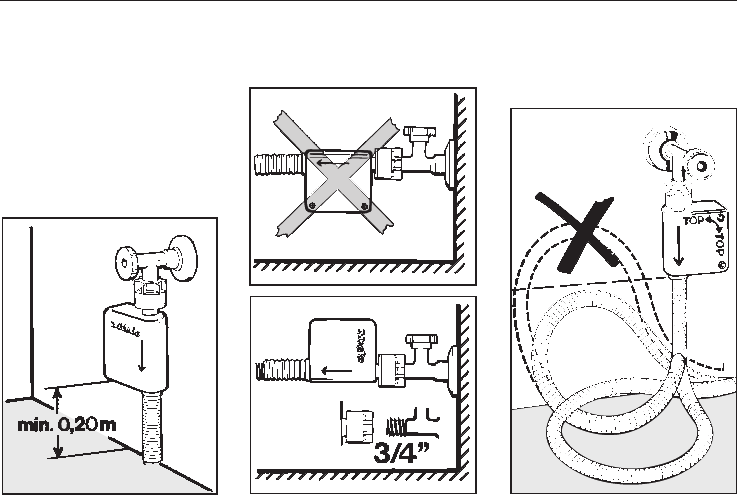

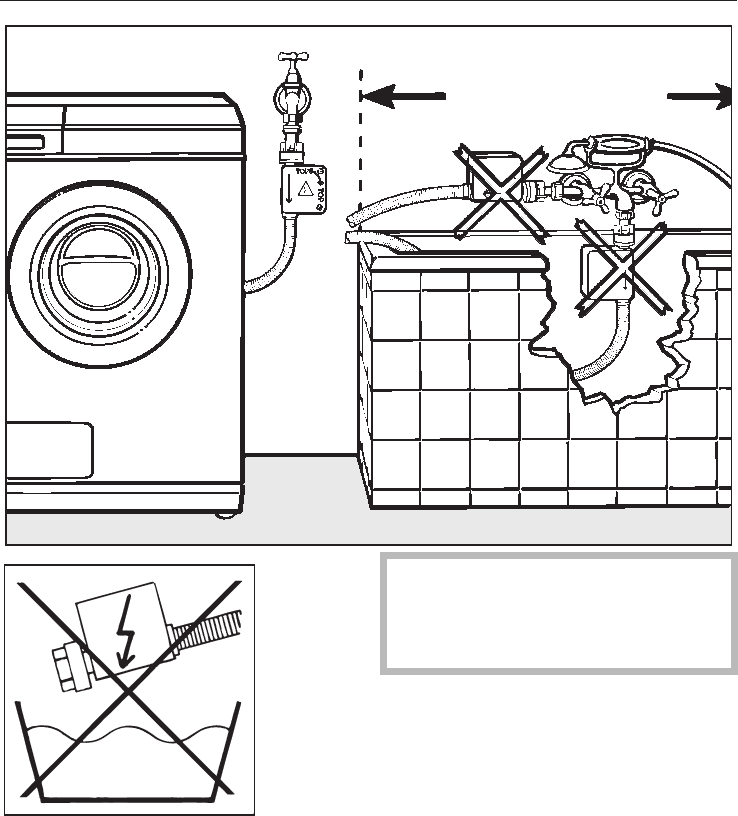

The Miele "Waterproof system" pro-

tects from water damage provided

the following conditions have been met:

–the machine is correctly plumbed in

and connected to the electricity sup-

ply.

–if a fault has been identified, the ma-

chine must be examined by a com-

petent person before further use,

and repaired if necessary.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

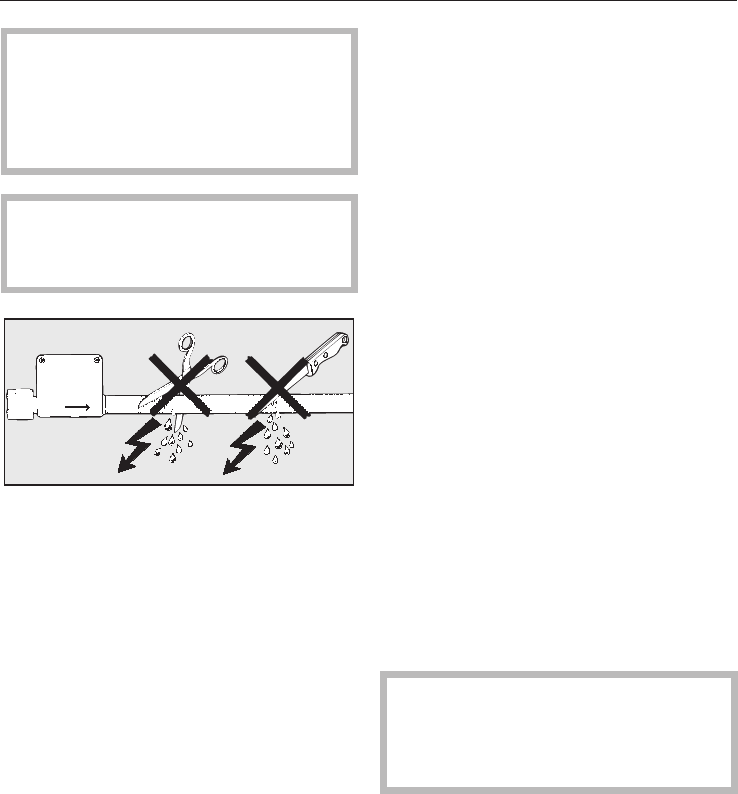

If the connection cable is damaged

it must be replaced by a special

Miele cable.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the appli-

ance and its surroundings in a clean

condition at all times. Any damage

which may be caused by cockroaches

or other vermin will not be covered by

the appliance guarantee.

Use

This equipment is not designed for

maritime use, or for use in mobile

installations such as caravans, aircraft

etc. However, it may be suitable for

such usage subject to a risk assess-

ment of the installation being carried

out by a suitably qualified engineer.

Do not install your washing ma-

chine in rooms where temperatures

below freezing may occur. Frozen

hoses may burst under pressure. The

reliability of the electronic control sys-

tem may be impaired at temperatures

below freezing point.

Before using the machine for the

first time, check that the transit fit-

ting at the rear of the machine has been

removed (see section on "Installation").

During spinning, a transit fitting which is

still in place may result in damage to

both the machine and adjacent furni-

ture or appliances.

Turn off the stopcock if the ma-

chine is to be left for any length of

time (e.g. holiday), especially if there is

no floor drain (gully) in the immediate

vicinity.

Flooding danger.

If hooking the drain hose into a

wash basin, check that the water can

drain off quickly enough to prevent the

sink from overflowing.

Make sure the drain hose is secure, so

that the force of the water flowing out of

the hose does not dislodge it. Other-

wise this will result in flooding.

Take care to ensure that foreign ob-

jects (e.g. nails, needles, coins,

paper clips, etc.) do not find their way

into the machine with the washing (e.g.

in pockets). Foreign objects can dam-

age components of the machine, which

in turn can result in damage to the

washing.

Warning and safety instructions

If the correct amount of detergent

is dispensed, the machine should

not need to be descaled. If, however,

you do wish to descale the machine

only use proprietary non-corrosive

descaling agents and strictly observe

the manufacturer’s instructions given on

the packaging. Consult the Miele Cus-

tomer Service Department if necessary.

Textiles which have been pre-

treated in solvent-based cleaning

agents must be thoroughly rinsed in

clean water before being washed in the

machine.

Never use solvent-based cleaning

agents in this machine, as this may

result in damage to component parts

and create toxic fumes. Such deter-

gents also pose a fire and explosion

hazard.

Only use dyes specified by the

manufacturer as being suitable for

use in a washing machine. Always ob-

serve the manufacturer’s instructions

carefully.

Colour run and dye removers may

contain sulphur compounds which

cause damage such as corrosion. Do

not use these products in this machine.

Always make sure the drum is sta-

tionary before reaching in to re-

move laundry. Reaching into a moving

drum is extremely dangerous.

Accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If other parts are used, guarantee, per-

formance and product liability claims

may be invalidated.

Disposal of your old machine

Before discarding an old machine

unplug it. Render the plug useless.

Cut off the cable directly behind the ap-

pliance to prevent misuse.

Warning and safety instructions

–Water consumption and energy us-

age are determined by the size of the

load. Load to the maximum recom-

mended for the programme selected.

–The washing times can vary consid-

erably due to the automatic load ad-

justment feature. Depending on the

amount of the load, the main wash

may be shortened and one rinse

omitted.

–Use the Mixed Wash poly/cottons

programme or the Quick Wash

programme for smaller amounts of

laundry.

– To save energy wash normally and

lightly soiled laundry at lower tem-

peratures. The 95°C Cottons

programme is probably only needed

in exceptional circumstances, e.g.

for oil based stains or where a very

hot wash is required.

– A main wash (programme without

pre-wash) is sufficient to clean nor-

mally soiled laundry.

–By using the additional option "Soak"

for heavily soiled laundry you can se-

lect a lower temperature in the main

wash.

–Use the additional option "Soak" in-

stead of "Pre-wash" with heavily

soiled laundry.

If "Soak" is followed immediately by a

main wash the same suds are used.

–Use the "Short" wash option for nor-

mally or very lightly soiled laundry.

–Do not exceed the amounts of deter-

gent which may be recommended by

the manufacturer on the packaging.

–Reduce the amounts of detergent

with smaller loads, (e.g. with a half

load, approx. one third less deter-

gent).

–Select the highest suitable spin

speed in the wash programme when

tumble drying afterwards.

Washing environmentally and economically

Before using the machine for the first

time ensure that it is correctly in-

stalled and connected. See the rele-

vant section under "Installation".

Also check that the fluff filter is se-

curely tightened. Otherwise there is

a risk of water leakage during use.

Flushing out the machine

Any residual lubricants and water from

testing still in the machine should be

flushed out as follows:

^Turn on the stopcock.

^Do not load any laundry.

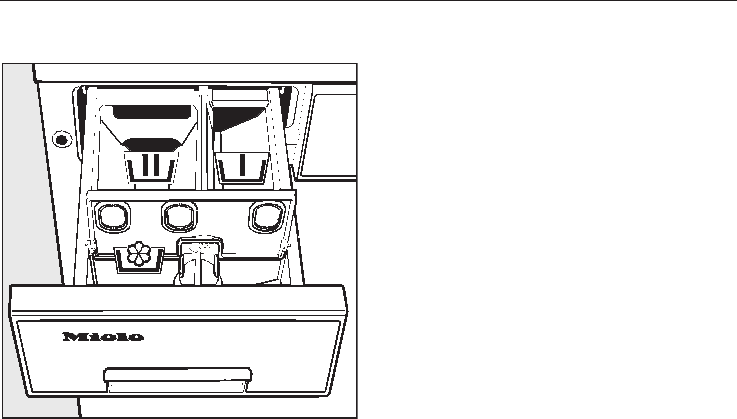

^Add detergent to compartment j,

however only add max.1/4of the

amount recommended on the pack-

aging for a full load.

^Press the "I-ON/0-OFF" button in.

^Turn the programme selector to

"COTTONS 60°C".

Important!

This programme must be selected in or-

der to prepare the machine for spinning

and to activate the ball valve.

^Press the "Water plus" button in. The

indicator light next to it will come on.

^Press the "Spin" button repeatedly un-

til the "Without final spin" indicator

light comes on.

^Press the "START" button.

^When this programme has finished

your washing machine is ready for

using for the first time.

Water hardness reminder dial

Several factors including the water

hardness level in your area will affect

how much detergent you should use.

The small dial in the detergent dis-

penser drawer can be set purely as a

reminder of the hardness level.

^Remove the yellow spatula from in-

side the dispenser drawer.

^Adjust the dial to the appropriate set-

ting (1 = soft, 4 = very hard).

Before using for the first time

Brief guide

The headings numbered (A,B,C,...)

show the operating sequence and can

be used as a brief guide.

Before washing

ASort the laundry.

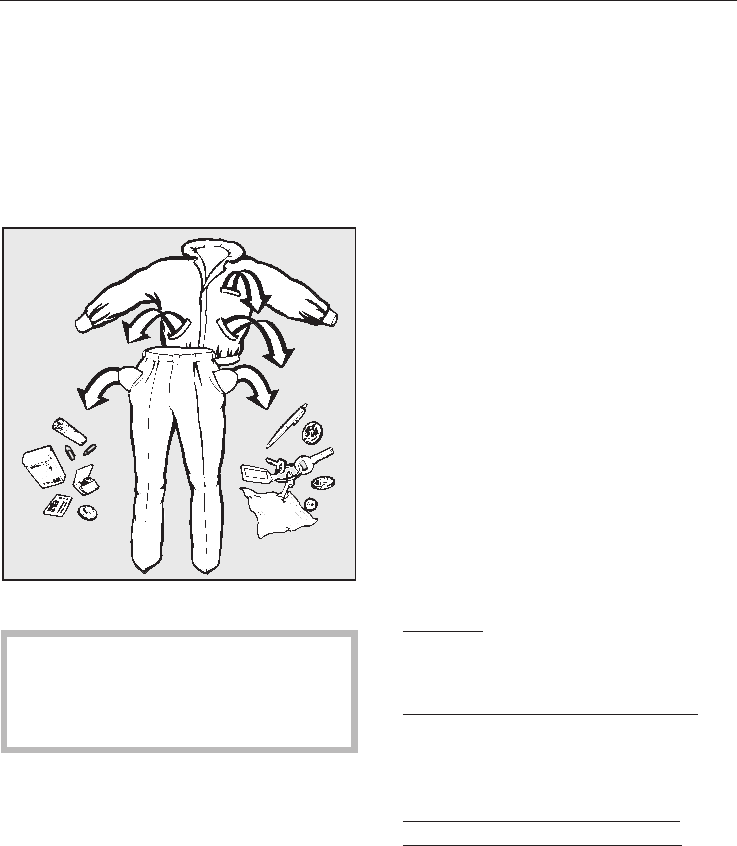

^Empty all pockets.

Foreign objects (e.g. nails, coins,

paper clips, etc.) can cause dam-

age to textiles and components in

the machine.

Most garments have a textile care label

in the collar or side seam. Sort the

washing by care label symbols. (See

"Programmes - Care symbols" for their

explanation).

Dark textiles often contain excess dye

and should be washed separately sev-

eral times before being included in a

mixed load.

Delicate textiles should be washed sep-

arately in a delicates programme (use a

washing bag where appropriate).

Do not wash any items in this machine

which are specified by the manufac-

turer as non-machine washable on the

care label. (hsymbol)

Pre-treat the laundry

Badly soiled areas, e.g. collars and

cuffs, and water soluble stains can be

pre-treated with bar soap, liquid deter-

gent or detergent mixed into a solution

or paste.

With particularly stubborn stains ask

your dry cleaner for advice. Do not

used solvent-based cleaning agents in

this machine.

– Curtains:

Remove lead weights and strips or

place in a laundry bag.

–Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

–Knitted garments, trousers and

jeans, T-shirts and sweat shirts:

Turn inside out, if recommended by

the manufacturer.

–Close any zips, fasten hooks and

eyes etc. before washing.

–Fasten duvet covers to prevent

smaller items rolling up inside them.

How to wash correctly

BPress the "Door" button.

CLoad the drum.

Unfold washing and load loosely in the

drum. To achieve best results it is ad-

visable to make up mixed loads con-

sisting of both large and small items.

This improves the washing effect and

helps distribute the load evenly to keep

the machine stable and reduce the

noise level during spinning.

Overloading reduces the wash result

and causes more creasing.

Maximum load weights are noted be-

low:

COTTONS . . . . . . . . . . . . . . . . . . 5.0 kg

MINIMUM IRON. . . . . . . . . . . . . . 2.5 kg

DELICATES/SYNTHETICS . . . . . . 1.0 kg

WOOLLENS /. . . . . . . . . . . . . . 1.0 kg

QUICK WASH . . . . . . . . . . . . . . . 2.5 kg

MIXED WASH (Poly/Cottons). . . . 3.0 kg

DShut the door with a light swing

but do not slam it. Do not push on

the door to shut it.

Make sure that no washing is trapped

between the drum door and seal.

EOpen the stopcock.

FAdd detergent.

See section on "detergent" for details.

To start a programme

GPress in the "I-ON/0-OFF" button.

–The programme selector should be

pointing to Finish, the indicator light

"Anti-crease/Finish" is lit up in the se-

quence display.

–If the programme selector is pointing

to a programme, the programme

time is shown in the display and the

"START" button flashes.

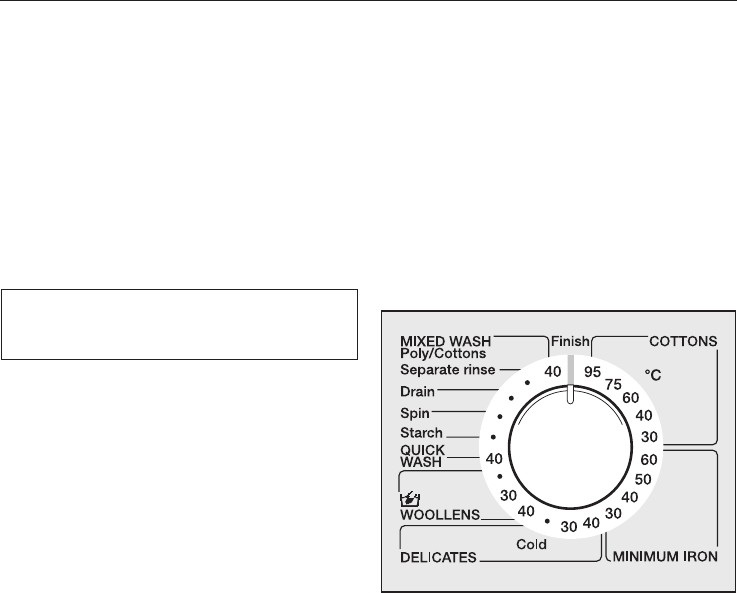

HTurn the programme selector to

the programme required

See "Programme survey" section.

How to wash correctly

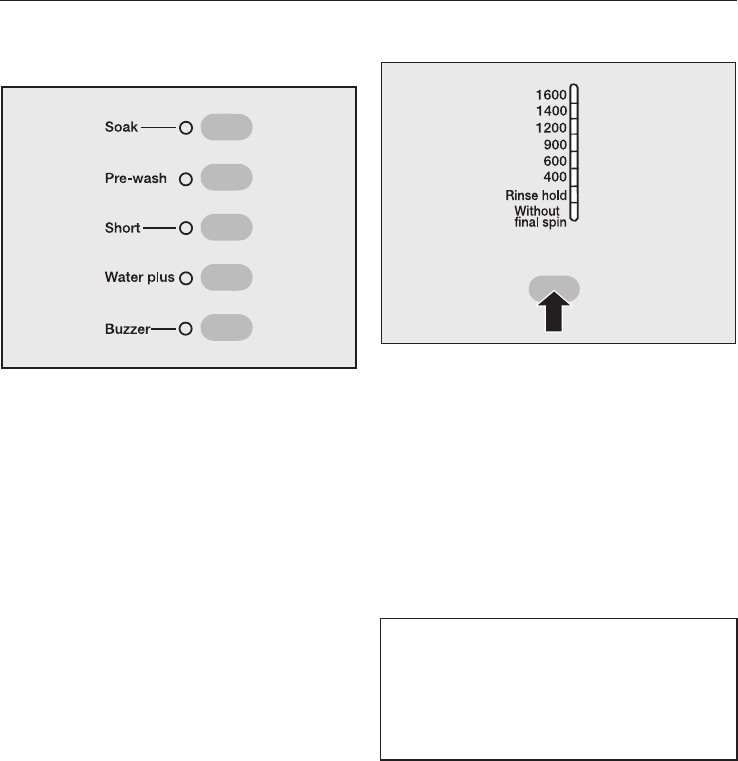

ISelect any additional option re-

quired.

^Press the relevant button.

Indicator light on = selected

Indicator light off = not selected

An additional option that has been se-

lected can be de-selected by pressing

the button.

Exception:

With the additional option "Soak" the

soak time increases each time the but-

ton is pressed, up to a maximum of 6

hours. If the button is pressed again it

switches the "Soak" option off, (see sec-

tion "Additional options, Soak").

JSelect a spin speed

^Press the "Spin" button enough times

until the indicator light for the re-

quired final spin speed lights up.

In some programmes the maximum

spin speed is limited. The machine will

not allow a higher spin speed to be se-

lected. (see "Programme survey" sec-

tion).

Memory-Function

If the last time a programme was run

an additional option or different spin

speed was selected, the machine will

have stored this information in its

memory.

The next time that programme is se-

lected the machine offers the additional

option and / or spin already stored in

memory.

Exception:

Buzzer and Delay start

How to wash correctly

Delay start

KSelect delay start if required.

The start of programmes can be de-

layed from 30 minutes up to a maxi-

mum of 24^.

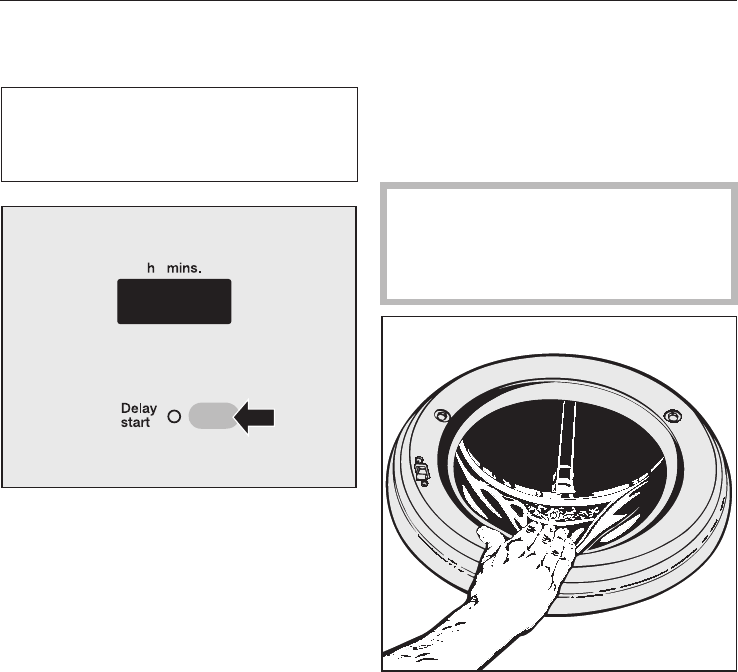

^Press the "Delay start" button. Each

press increases the delayed time,

– by 30 minutes up to 10 hours,

– by one hour from 10 hours upwards.

^Delay start can be cancelled by

bringing up 24^ and pressing the

"Delay start" button once more.

LPress the "START" button

This starts the programme.

After washing

MPress the "Door" button.

NPress and release the "I-On/0-Off"

button.

ORemove the washing.

Only remove washing from the ma-

chine once the drum has stopped

turning, otherwise you may seriously

injure yourself.

PCheck the folds in the door seal for

any small articles e.g. buttons

which might be lodged there.

QClose the drum door.

Otherwise there is a danger of objects

being placed inadvertently in the drum.

If these remained unnoticed and were

washed in the next load, they could

damage the washing.

How to wash correctly

Adding or removing washing

after programme start

Washing can be added or removed af-

ter the programme has already started,

when using the following programmes.

–COTTONS

–MINIMUM IRON

–WOOLLENS /

–QUICK WASH

–Starch

–MIXED WASH

^Press the"Door" button and hold it un-

til the door springs open.

^Add or remove items

^Shut the door.

The programme will automatically con-

tinue.

– Apart from some exceptional cases

the door can be opened during all

sections of COTTONS,WOOLLENS,

QUICK WASH, Starch and MIXED

WASH - Poly/Cottons (high cotton

percentage) programmes.

–With MINIMUM IRON and

MIXED WASH - Poly/Cottons (high

polyester percentage) the door can

be opened during the main wash

with some exceptions.

General exceptions:

The door cannot be opened when:

–the suds temperature is above 55°C.

–the additional option "Water plus" has

been selected,

–programme locking is switched on,

–the programme has reached the "Fi-

nal spin" stage.

How to wash correctly

Programme . . .

. . . interruption

^Press the "I-ON/0-OFF" button.

^To continue with the same

programme press the"I-ON/0-OFF"

button again.

. . . alteration

The machine will accept the following

changes after the "Start" button has

been pressed.

– selection of a different temperature,

extra selection or de-selection of the

"Water plus", and "Quick wash" op-

tions can be carried out up to 6 min-

utes after start.

– the spin speed for final spin can be

changed within the limits for the

programme.

After start it is no longer possible to se-

lect a different programme.

If a different programme or 6 minutes

after start another temperature is se-

lected, the indicator light "Anti-

crease/Finish" flashes. This does not af-

fect the programme sequence. The in-

dicator light goes out when the

programme selector is set back to the

programme or temperature previously

chosen.

To select a different programme pro-

ceed as follows:

^With the "I-On/0-Off" button switch off

the appliance.

^Turn the programme selector to "Fin-

ish".

^Switch the machine on with the "I-

On/0-Off" button.

^Select a new programme.

^Press the "START" button.

. . . Skipping a programme stage

^Turn the programme selector to "Fin-

ish".

As soon as the programme sequence

light starts flashing for the stage at

which the programme should continue:

^Turn the programme selector switch

to the appropriate programme within

4 seconds.

When programme locking has been

activated the programme cannot be

changed or a programme stage left

out.

How to wash correctly

All modern detergents produced for au-

tomatic washing machines are suitable,

including liquid, compact (concen-

trated), tablets and special application

detergents. Use dispensing aids, e.g.

balls, if these are supplied with the de-

tergent.

Woollens and knitwear containing wool

mixtures and hand-washable garments

should be washed using a detergent

specifically designed for washing

woollens.

Silk should be washed using a liquid

detergent specifically designed for

washing woollens. Do not use biologi-

cal detergents on silk as the enzymes

will damage the silk!

Add detergent according to the amount

recommended on the packaging. The

right amount to dispense will depend

on the following:

– The quantity of laundry.

– The soiling level of the laundry.

Lightly soiled

No visible dirt or stains. Possibly

slight body odour.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Stains and soiling clearly visible.

–The water hardness level

Check with your local water supplier

if you do not know the water hard-

ness level.

Water Hardness

Hardness

range

Type of

water

(hardness)

Hardness

level in

mmol / l

°dH

German

I soft 0 - 1.3 0 - 7

II medium 1.3 - 2.5 7 - 14

III hard 2.5 - 3.8 14 - 21

IV very hard over 3.8 over 21

It is important to dispense the

correct amount, because . . .

. . . too little has the following results:

– Laundry will not be properly clean

and will in time become grey and

hard to the touch.

– Greasy particles cling to the laundry.

– Lime deposits on the heater ele-

ments.

. . . too much results in the following:

– Excessive foam.

–Low level of agitation.

–Poor washing, rinsing and spinning

results.

–High water consumption (an addi-

tional rinse cycle will automatically

switch in).

–Burdening the environment.

Adding detergent

i= Compartment soak/pre-wash

j= Compartment main wash

p= Compartment fabric conditioner

Water is taken in through compartment

iin the pre-wash.

Water is taken in through compartment

jin the main wash. If the capacity of

compartment jis insufficient for the

amount of detergent needed for a

COTTONS programme (e.g. in very

hard water areas), the machine can be

programmed so that water and deter-

gent can also be taken into the main

wash through compartment i, see

"Programmable functions", "Activating

compartment i".

Water softeners

A water softener can be used to cut

down on the use of detergents in water

hardness ranges II-IV. Dispense ac-

cording to the amount specified on the

packaging. First add detergent and

then the water softener.

Use a quantity of detergent as for soft

water.

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the fol-

lowing order:

1. Detergent

2. Water softener

3. Stain salts

This way the agents are distributed

more efficiently.

Fabric conditioners,

texturisers, liquid starch

Fabric conditioners make garments soft

and fluffy to handle and help prevent

static cling when tumble drying.

Texturisers are synthetic starch formula-

tions and give body to items e.g. shirts,

tablecloths and bed linen.

Starch gives body to items of washing.

^Dispense according to the amount

specified on the packaging.

Adding detergent

Automatic fabric conditioners,

texturisers, or liquid starch

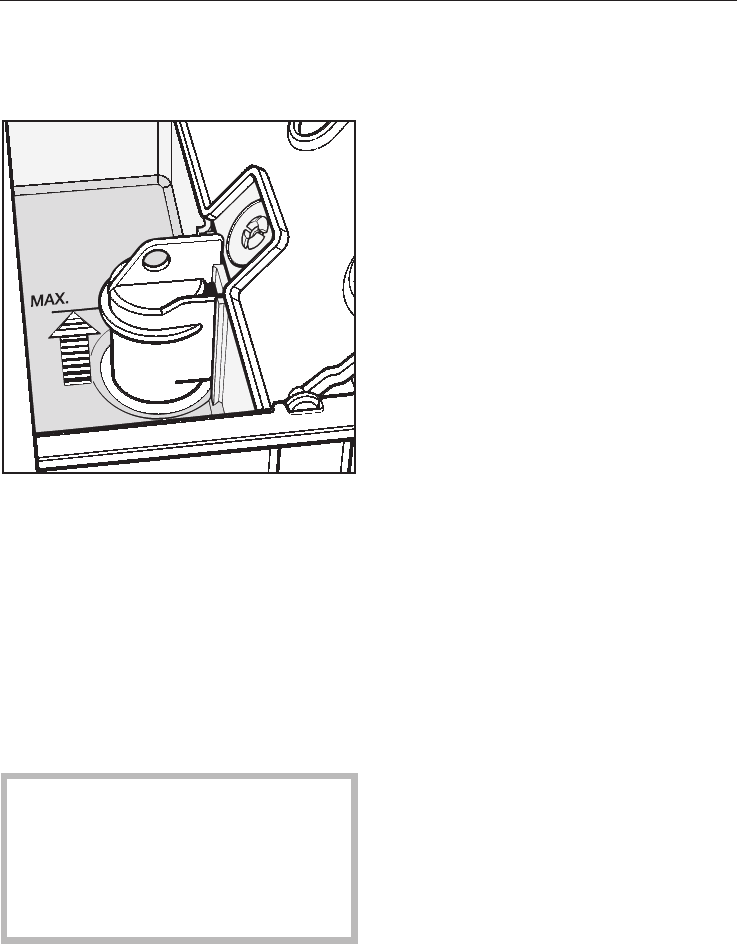

^Open the lid of compartment p.

^Add the fabric conditioner, texturiser

or liquid starch. Do not exceed the

maximum level mark.

^Close the compartment lid.

^Push the drawer back in.

The conditioner, texturiser or liquid

starch is automatically dispensed in the

last rinse. At the end of the programme

a small amount of water remains in the

fabric conditioner compartment p.

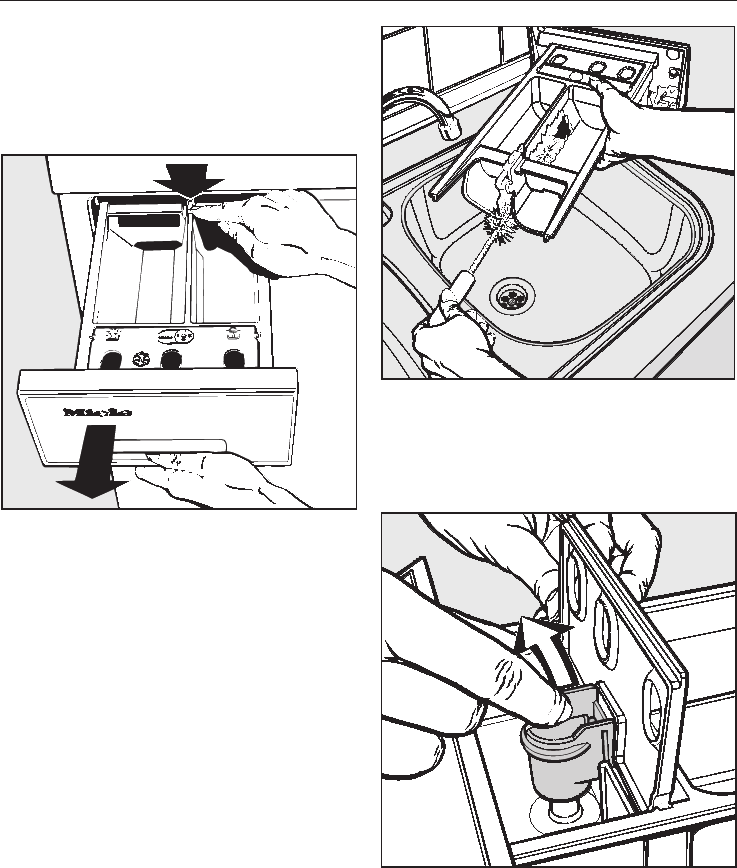

If starching frequently, clean the dis-

penser compartment and especially

the siphon tube and conditioner

channel. (See section on the deter-

gent dispenser drawer in "Cleaning

and Care") .

Separate fabric conditioner or

texturiser

^Add fabric conditioner or texturiser to

the compartment p.

^Turn the programme selector to

"Starch".

^Select a spin speed.

^Press the "Start" button.

Starching separately

^Measure and prepare starch in ac-

cordance with the manufacturer’s in-

structions.

^Add the starch to compartment i.

^Turn the programme selector to

"Starch".

^Select a spin speed.

^Press the "Start" button.

Adding detergent

Programme selection

Programme Fabric Temperature max.

spin speed

COTTONS Cottons and linen fabrics, eg bed linen, table

linen, towelling, jeans, underwear, T-shirts, nap-

pies.

95°C to 30°C 1600

COTTONS Wash load as for standard tests 60°C 1600

MINIMUM IRON (60°C) white nylon, white polyester fabrics (50°C),

coloured nylon, polyester, cotton and viscose fab-

rics with special finishes, acrylic, cotton fabrics,

coloured polyester / cotton fabrics, (40°/30°C) min-

imum iron fabrics not washable at higher tempera-

tures

60°C to 30°C 900

DELICATES Acrylics, acetate and triacetate, socks and stock-

ings in man-made fibres, (not wool or wool blends)

40°C to cold 600

Curtains, specified machine-washable by the

manufacturer (pre-wash probably advisable).

30°C to cold 600

WOOLLENS

Programme for machine-washable or hand-wash-

able wool or wool blend fabrics

40°C to cold 1200

Also suitable for satin, lace, silk and other hand

washable garments.*

QUICK WASH Very lightly soiled fabrics, which can be washed in

the Cottons programme.

40°C to cold 1600

Starch Table cloths, napkins, overalls, uniforms cold 1600

Spin Articles which can be spun, eg handwashed

items, max weight according to fabric

1600

Drain

Separate rinse Fabrics which were washed by hand and only

need to be rinsed and spun.

cold 1200

MIXED WASH

Poly/Cottons

Suitable for small loads of garments made from

man-made fibres and cotton garments which can

be washed together. Sort according to colour.

40°C 900

cold:

Programmes

max. load Additional options Notes

5 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,3,4)

With heavily soiled items select "Soak" or "Pre-wash". Wash

dark colours in liquid detergent.

For normally soiled items select "Short".

5 kg For test institutes:

Programme setting for tests according to EN 60456 Stan-

dard Programme

2.5 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,4)

With heavily soiled items select "Soak" or "Pre-wash"

For normally soiled items select "Short"

fIf fabrics have a high proportion of man-made fibres

it is advisable to programme the machine for "Gentle

Action". see "Programmable functions"

1 kg –Soak

–Pre-wash

–Short

Use the Wool programme for textiles with wool content

Fill the drum

loosely 1/2to 3/4

full

–Soak

–Pre-wash

–Short

Dust in curtains usually makes pre-wash advisable.

2 kg

Do not overload

Use liquid wool detergent.

Hand washable garments will not shrink, stretch, matt or felt

beyond the accepted tolerance.

*For satin, lace, silk and other hand washable garments

manually reduce the spin speed or select without final spin.

2.5 kg –Water plus

(Option 1,2,4)

Add less detergent (half load)

5 kg The washing should be washed, but not treated with fabric

conditioner.

5 kg

3 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,3*,4*)

The water level, number of rinses and programme time are

set automatically in relation to composition of the washing

(see "Programmes" Sequence).

*Option is only carried out with a high proportion of cotton.

See Section on Additional options for more details.

Programmes

Sequence

COTTONS1) MINIMUM IRON1) DELICATES WOOLLENS /

Soak optional optional optional –

Pre-wash optional optional optional –

Main wash ßßßß

Top-up rinse from 75°C programmable – – –

Graduated rinsing – from 40°C – –

No. of rinses

–normal

–medium load

–short

3 or 42)

–

Rinse and interim spin (rpm) max. 1000 max. 500 – max. 600

Final spin (rpm) max. 1600 max. 900 max. 600 max. 1200

Anti-crease, and loosen max. 30 mins max. 30 mins max. 30 mins –

Rinse-hold optional optional optional optional

Without final spin optional optional optional optional

Wash rhythm normal normal gentle action wool

Water level – Wash

– Rinse

low

medium

high

medium

Explanations:

ßProgramme section included

– Programme section not included

1) Load recognition:

The programme sequence is modified in these programmes according to the absorbency of the load.

2) A 4th rinse

automatically switches in if there is too much foam in the drum, or if a spin speed lower than 700 rpm

has been selected.

Wool:

Wool is susceptible to damage from movement when it is wet. The wash action during the course of

the programme is low.

Programmes

QUICK WASH Starch Spin Separate rinse MIXED WASH 1)

high cotton

content

high polyester

content

––––optional optional

–ß– – optional optional

ß–––ßß

––––––

–––––ß

–

3 or 42)

max. 500 – – – max. 900 max. 500

max. 1600 max. 1600 max. 1600 max. 1200 max. 900 max. 900

max. 30 mins max. 30 mins max. 30 mins – max. 30 mins max. 30 mins

optional optional – optional optional optional

normal normal – gentle action normal normal

low

medium

low

–

– high

low

medium

Top-up rinse (programmable):

At the end of the main wash additional water flows into the drum, and the suds are cooled slightly. Hot

water might damage plastic drain pipes.

Graduated rinsing:

The suds are cooled at the end of the wash cycle by water flowing in and being pumped away at inter-

vals thereby minimising crease formation.

Rinse and interim spin:

There is a spin between the rinses.

Final spin:

The maximum spin speed according to the programme can be selected with the Spin button. In the

programmes MINIMUM IRON, DELICATES, WOOLLENS, Separate rinse and MIXED WASH the spin

speed is automatically limited to the above stated maximum spin speed.

Anti-crease, and loosen:

The anti-crease action guards against the tendency for creases to set in when fabrics have been left in

the drum for a long time. There is drum movement twice a minute.

Programmes

Care symbols - washing

Care

symbols

Fabric

types

Description of

process

Programme:

no bar

Cottons Normal (maxi-

mum) machine

action and nor-

mal spinning

Cottons, Minimum iron, Quick wash

single bar

Synthetics Reduced (me-

dium) machine

action and re-

duced spinning

Delicates

*If the gentle action option has been

programmed into your machine via the

programmable functions garments with

a single bar under the care label f

can also be processed using a Cot-

tons, Minimum Iron, Quick wash, Mixed

Wash or Starch programme.

broken

bar

Woollens Much reduced

(minimum) ma-

chine action but

with normal

spinning

Hand Wash Woollens programmes.

Programmes

Important - other care symbols

/Hand wash

hDo not wash

apf Dry clean

DDo not dry clean

ySuitable for chlorine bleach-

ing

zDo not use chlorine bleach

Tumble dry

qAt normal temperature

rAt low temperature

sDo not tumble dry

Ironing

IHot iron

HMedium hot iron

GCool iron

JDo not iron

N.B. If you have any textiles with the

older wash care labels, select a

programme according to the label be-

low:

[:\] Cottons

?;\ Minimum iron

={ Delicates

#Woollens

Programmes

To select an additional option to the ba-

sic programme press the button for that

option. The indicator light for the option

button comes on.

If an additional option is chosen which

is incompatible with the basic

programme, (see the "Programme Sur-

vey"):

–the indicator light goes out when the

button is released.

Soak

For heavily soiled and stained items

with dried-on stains, or ones which

cannot be bleached out, (e.g. blood,

fats and oils, cocoa).

A length of time of between 30 minutes

and 6 hours can be chosen, in 30 min-

ute periods, for the "Soak" process.

Setting soak time

ASelect a programme.

BPress the "Soak" button repeatedly

until the length of time required for

soaking is reached. Each press of

the button increases soak time by 30

minutes.

–The indicator light next to the ‘Soak’

button flashes.

–Important

The soak time chosen will be added

to the original programme duration in

the "time" display.

CPress the "Start" button, unless "De-

lay start" is to be selected. The indi-

cator light for the ‘Soak’ button stays

on.

Deleting soak time

Keep pressing the "Soak" button, until

the indicator light goes out.

Adding detergent for the Soak op-

tion:

–Programmes without pre-wash:

Add the total amount into compart-

ment jor directly on to the wash-

ing in the drum.

–Programmes with pre-wash:

1/4of the detergent should be added

to compartment ifor "soak" and

"pre-wash", 3/4of the detergent into

compartment jfor the main wash.

Pre-wash

For heavily soiled and stained items

Short

This shortens the programme run-

ning. For lightly soiled items.

In the COTTONS, MINIMUM IRON and

MIXED WASH-Poly/Cottons

programmes only two rinse cycles are

carried out with a higher water level.

Additional options

Water plus

The water level increases in "soak",

pre-wash", "main wash" and / or

"rinses", and / or an extra rinse can

be carried out.

You can choose between four options

for the "Water plus" button.

The options can be called up through

one of the programmable functions,

(see Water plus system in the Section

on programmable functions).

Buzzer

At the end of the programme or when

Rinse hold is reached an audible

tone sounds repeatedly.

The buzzer sounds until the machine is

switched off.

Switching off the additional options

If an additional option is switched on

(and the corresponding button indicator

light is lit up), the option can be

switched off by pressing the button

again. The indicator light goes out.

Spin

A final spin is carried out at the end

of each of the basic programmes, if a

spin speed had been selected.

"Without final spin"

Washing is not spun after the final rinse.

After water has been drained the ma-

chine switches automatically to the anti-

crease phase.

Interim rinse and spin is carried out in

the relevant programme sections.

"Rinse hold"

The washing remains suspended in wa-

ter after the final rinse.

This helps to reduce the possibility of

creasing if the washing is left for some

time before being taken out of the ma-

chine.

Interim rinse and spin is carried out in

the relevant programme sections.

To continue the programme

- with final spin:

Select the required spin speed with the

Spin button under the Spin selection

display.

- without final spin:

Press the Spin button under the spin

display once to highlight "without final

spin". The machine pumps the water

away.

Additional options

Electronic programme locking

Programme locking prevents the ma-

chine from being opened or the

programme cancelled using a wash

programme.

Switching on programme locking

ASelect a programme, (see Brief

guide to washing correctly).

BPress the "START" button for at least

4 seconds, until the "locked" check

light comes on, (lower right on the

control panel).

Programme locking is now activated.

The machine will now not accept any

changes, and the wash programme

proceeds through to the end.

At the end of the wash programme, and

in "Rinse hold" the programme locking

is discontinued, so that a new wash

programme can be chosen.

Switching off programme locking

APress the "Start" button until the

"locked" check light goes out.

Exception:

The indicator light "Anti-crease/Finish"

in the Sequence display flashes.

ATurn the programme selector to the

programme previously chosen. The

"Anti-crease" light goes out.

BPress the START button for at least 4

seconds until the "Locked" check

light (lower right on the control panel)

goes out.

Additional options

Electronic Locking

The locking function prevents your

machine being used without your

knowledge.

when the locking function is switched

on:

–the machine cannot be opened,

–no programme can be selected,

–the machine cannot be started.

Switching on the locking function

AShut the drum door, turn the

programme selector to "Finish".

BSwitch on the machine.

CPress the "Pre-wash" button and hold

pressed in while carrying out steps

Dto F.

DTurn the programme selector slowly

step by step clockwise to COTTONS

40°C.

ETurn the programme selector slowly

step by step anti-clockwise to Finish.

FTurn the programme selector slowly

step by step anti-clockwise to "Spin".

–The "locked" check light flashes,

(lower right on the control panel).

GRelease the "Pre-wash" button.

HSwitch off the machine.

To switch off the locking function

Repeat steps Ato G. The check light

"locked" goes out.

Additional options

The time left shows in the display, or

the time left plus soak time or the de-

lay start period.

In addition it serves as a display for

the programmable functions.

Delay start

A period of delay shows in the display.

After the appliance has started the de-

lay start time counts down.

If a delay start is higher than 10 hours it

will count down hourly, from 9h59 it

will count down in minutes.

Once the delay start period is com-

pleted the programme begins and the

actual programme duration shows in

the display.

See the section "How to wash correctly

(Programme start)".

Time left display

At the beginning of a programme, the

maximum duration of a programme is

shown in hours and minutes, where de-

lay start has not been selected.

In the Cottons, Minimum Iron and Mixed

Wash Poly/Cottons programmes the

type and volume of the wash will be

monitored during the first water inlet

phase. With a part load the time may

now be shortened by up to 60 minutes.

Soak

If a time is selected for soaking, this is

added to the prescribed running time

for the programme and the total shown

in the display.

Example:

The COTTONS 60°C programme is se-

lected:

–The display shows a programme run-

ning time of 1h58.

–A soaking time of one hour is cho-

sen.

– The display shows a total running

time of 2h58. For more detailed in-

formation on soaking see the section

Additional options "Soak".

Display

The programmable functions enable

the user to introduce further features as

required. The programmable functions

remain stored in memory until they are

cancelled by the user.

The following programmable

functions can be selected:

P1 = Water level

The water level for rinsing is automat-

ically raised to the maximum level

where rinse results are particularly

important.

Effective for the rinses in programmes:

– COTTONS

– MINIMUM IRON

– QUICK WASH

– MIXED WASH - Poly/Cottons

P2 = Water plus system

The "Water plus" button offers four

options, increasing water level and /

or bringing in an extra rinse cycle.

Option 1

Increase in the rinse water level in the

Cottons, Minimum iron, Quick Wash

and Mixed wash - Poly/Cottons

programmes, where for example rinse

results are particularly important.

Option 2

Increase in the water level in soak, pre-

wash, main wash and rinses for Cot-

tons, Minimum iron, Delicates, Quick

wash, and Mixed wash particularly for

fabrics that need special care, or where

extra attention must be given to dissolv-

ing detergent. This option is already set

when the machine is delivered from the

factory.

Option 3

An extra rinse cycle is introduced to the

Cottons programme, e.g. when rinse re-

sults are particularly important.

Option 4

Is Option 2 plus Option 3, where this

quality of rinse is required.

P4 = Activating the i

compartment

For the first 10 seconds of the main

wash cycle, water flows in through

compartment i.

Compartment jmay sometimes not

be able to hold the total amount of de-

tergent required:

–when the water is very hard (over

3.8 mmol/l, water hardness level IV)

and

–the washing is heavily soiled.

In this case compartment ican be

used to flush in the extra detergent for

the main wash.

Programmable functions

P9 = Gentle action

For gentle washing of slightly soiled

items. Drum action is reduced.

Gentle action can be used with the Cot-

tons, Minimum iron, Quick Wash, Mixed

wash and Starch programmes.

If "Gentle action" has been pro-

grammed, every wash cycle in these

programmes is carried out with gentle

action rhythm.

P10 = Top-up rinse for Cottons

At the end of the main wash addi-

tional water flows into the drum and

the suds are cooled down.

Hot suds can damage plastic drainage

pipes.

Top-up rinse takes place when temper-

atures of 95°C and 75°C are selected.

P11 = Memory function

If an additional option is selected for

a programme, and / or the spin

speed is altered, the machine stores

these changes in memory at the start

of a programme.

The memory function is active when the

machine is first delivered, but can be

programmed to be switched off.

See the following pages for how to

programme the programmable func-

tions.

Programmable functions

Programming and storing in

memory

The programmable functions are acti-

vated using the additional option but-

tons and the programme selector in

special combinations, which intro-

duce extra features not marked up on

the control panel.

Programming is carried out in four

steps:

1. Select programming mode

2. Select programmable function

3. Activate or deactivate programmable

function

4. Store the programmable function in

memory

1. Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

"Finish".

BPress the additional option buttons

"Soak" and "Pre-wash" at the same

time and hold pressed in and:. . .

C. . . switch the machine on with the "I-

ON/0-OFF"-button.

DRelease all these buttons.

P 0 appears in the "time" display.

2. Selecting a programmable function

EFor the programmable function re-

quired turn the programme selector

to the setting given:

–for P1 High Water level

to - MIXED WASH Poly/Cottons -

–for P2 Water plus system

to - Separate rinse -

–for P4 activate icompartment

to - Spin -

–for P9 Gentle action

to - WOOLLENS 40°C -

– for P10 Activate top-up rinse for

COTTONS wash

to - DELICATES cold -

– for P11 Memory Function

to - DELICATES 30°C -

FIn the Display the Pnow flashes al-

ternating with the number of the pro-

grammable function

e.g. P...1...P...1

The following also appears on the right:

0= Programmable function is

not active

1= Programmable function

is active

with P 2, a 2appears on the right = Op-

tion 2 is active.

Programmable functions

3. To activate or deactivate a

programmable function.

For the programmable functions P1,

P4,P9,P10,P11.

GPressing the "Start" button once will

make the display message change

from "0" to "1" (active), or from "1" to "0"

(not active).

For the programmable function P2

GBy pressintg the "Start" button you

can select various options.

If 1appears on the right = Option 1

If 2appears on the right = Option 2

If 3appears on the right = Option 3

If 4appears on the right = Option 4

4. Storing the programmable function

in memory

HSwitch the machine off with the

"I-ON/0-OFF" button.

Now you can start the wash

programme that you want.

The programmable function is now

stored in memory and is available at

any time, until it is deleted.

Programmable functions

Cleaning the washing machine

^Clean the casing with a mild non-

abrasive detergent or soap and wa-

ter. Wipe dry with a soft cloth.

^Clean the facia panel and lid with a

damp cloth and dry with a soft cloth.

^The drum can be cleaned using a

suitable proprietary stainless steel

cleaner.

Do not use abrasive cleaners, glass

cleaners or all-purpose cleaners.

These might cause damage to the

plastic surfaces because of the

chemicals they contain.

E-cloth

A microfibre "E-Cloth" is available from

the Miele UK Spare Parts Department,

Part Number 98013530, which is suit-

able for cleaning surfaces such as

stainless steel, glass, plastic and

chrome without the use of chemicals.

Extra cleaning

Carrying out a hot wash (70°C or

above) with powder detergent approx.

once every six weeks will help to en-

sure that no deposits build up in the

machine. These can occur when wash-

ing is mainly done at low temperatures,

and also lead to unpleasant smells. If

you have no reason to wash laundry oc-

casionally at this high temperature, then

carry out a 95°C Cottons programme as

a cleaning cycle with powder detergent

and no washing, at regular intervals.

Cleaning and care

Cleaning the detergent

dispenser drawer

^Pull out the detergent dispenser

drawer until a resistance is felt.

^Press down the red release catch

and at the same time pull the drawer

right out of the machine.

^Clean the dispenser compartments

and conditioner channel.

Regularly remove any detergent resi-

dues.

^Remove the siphon tube from com-

partment p.

Wash under running warm water and

put back.

Cleaning and care

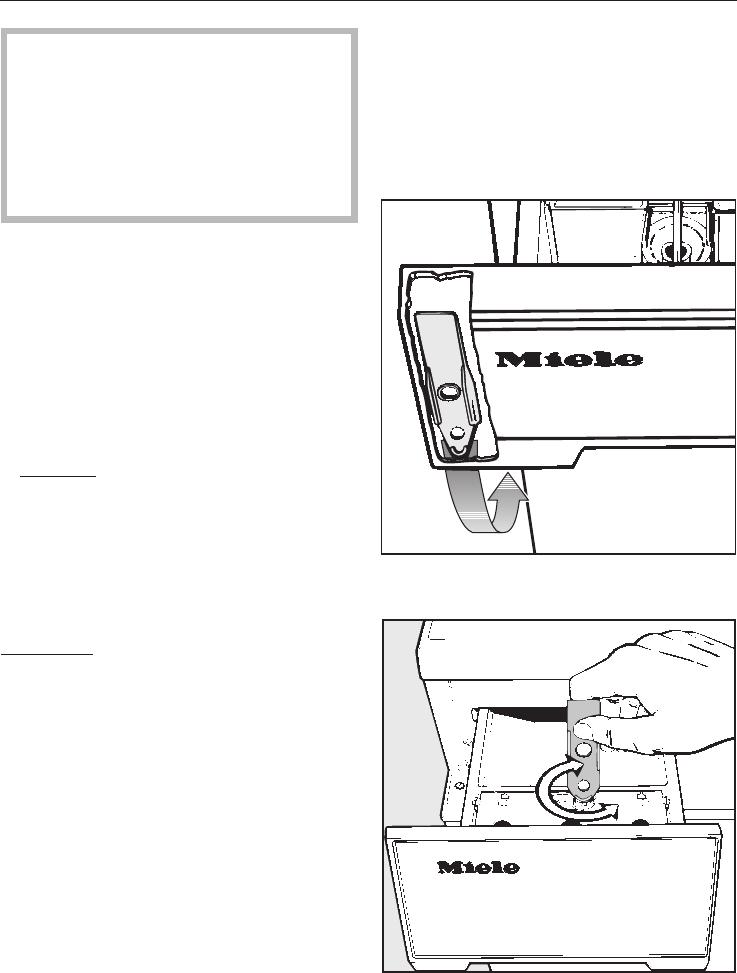

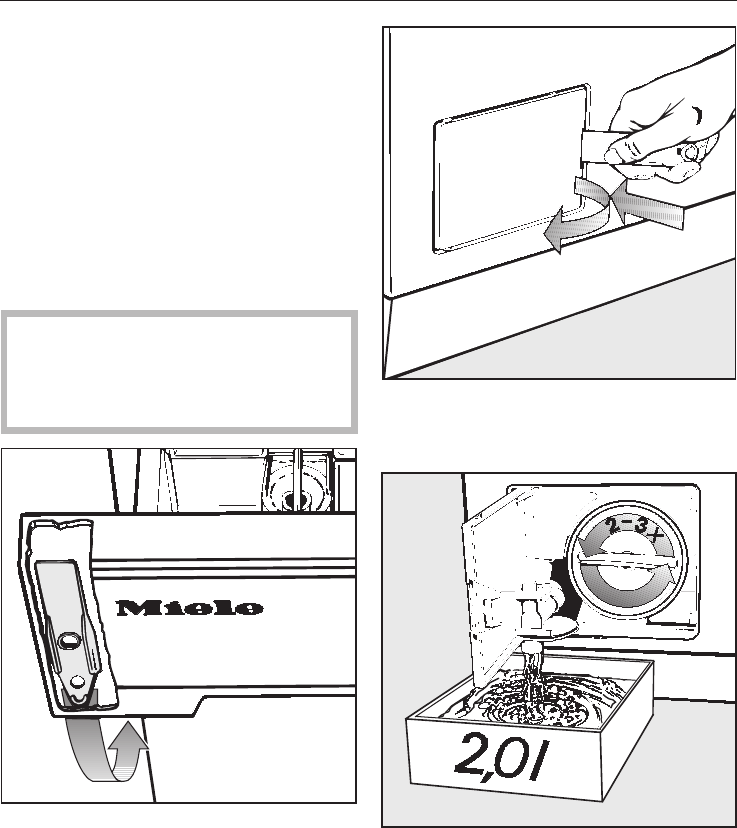

Cleaning the fluff (drain) filter

and pump

Check the fluff (drain) filter initially after

3-4 washes to ascertain how often it is

likely to require cleaning.

With normal cleaning approx. 2 litres of

water run out.

If the drain outlet is clogged, more wa-

ter will be retained in the machine (up

to 25 litres).

Caution: If laundry has been washed

at a high temperature, water drain-

ing out of the machine will still be

hot.

Take the (yellow) filter flap opener from

behind the detergent drawer facia

panel, (see illustration above).

^Open the door.

^Open the flap.

^Place a dish under the drain fixture.

^Turn the fluff filter lid round 2-3

times. Do not take it right out.

With large volumes of water, when the

dish is full, screw the fluff filter back into

position, and empty the dish before re-

peating the procedure.

Cleaning and care

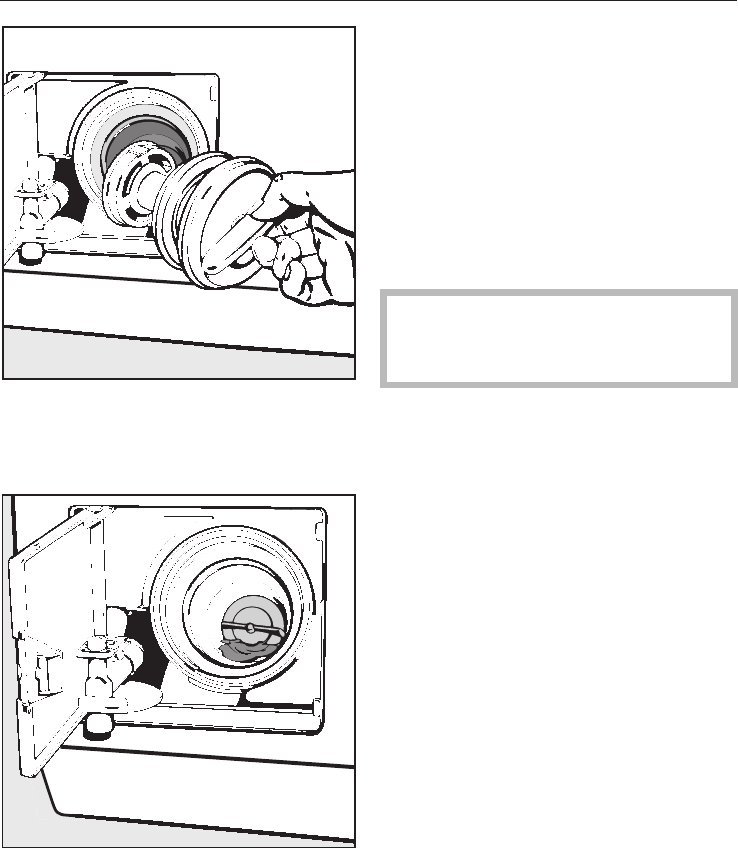

^Once the flow of water ceases, re-

move the fluff filter completely.

^Clean the fluff filter thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff.

^Turn the impeller by hand to check

that it is free to rotate. Any foreign ob-

jects causing an obstruction should

be removed.

^Clean the inside of the fluff filter hous-

ing.

Remove any deposits of lime scale and

detergent or foreign objects from the

thread of the filter housing and filter unit

(as these objects can cause a leakage

of water). Deposits of lime scale are of-

ten a sign of underdosage of powder.

^Put the fluff filter back in place and

secure.

Make sure the fluff filter is securely

tightened. Otherwise there is a risk

of water leakage during use.

After cleaning

^Pour approx. 2 litres of water into the

detergent dispenser compartment

jto reactivate the ball valve which

keeps detergent in circulation in the

suds.

Cleaning and care

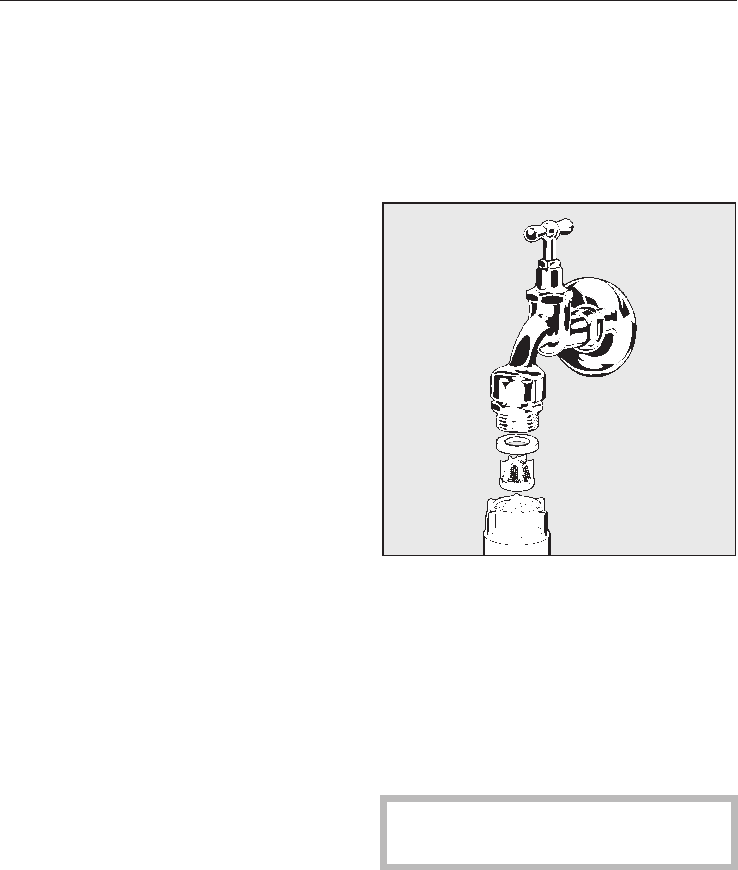

Cleaning the filter in the water

inlet

The washing machine has a filter to

protect the water inlet valve.

The accessible filter in the union in the

open end of the inlet hose should be

checked every six months, or more of-

ten if there are frequent interruptions to

the external water supply.

^First turn off the stopcock.

^Unscrew the threaded union connect-

ing the free end of the inlet hose to

the stopcock.

^Remove the rubber seal 1from the

recess.

^Using pointed pliers, take hold of the

plastic filter bar 2, remove the filter

and clean.

^Put the filter and seal back in the re-

verse order and reconnect the hose.

Turn on the stopcock and check the

connection is watertight. If water drips

out, tighten the connection.

Never forget to put the filter back in

place after cleaning it.

Cleaning and care

With the help of the following notes minor faults in the performance of the appli-

ance, some of which may result from incorrect operation, can be put right without

contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a suit-

ably qualified person in accordance with local and national safety regulations.

Unauthorised repairs could be dangerous.

The chart is divided into the following sections to help you:

–The programme does not start.

–The wash programme stops and a fault indicator light comes on.

–A fault indicator light comes on but the wash programme continues as normal.

–General problems or an unsatisfactory wash result.

Problem solving guide

The programme does not start.

What to do if ... Possible cause Remedy

The Anti-crease / Fin-

ish indicator light is

not on.

There is no power. Check that

–the door is properly closed.

–the mains plug is plugged in.

–the fuse or circuit breaker has

not tripped.

The programme does

not start when Spin

has been selected.

The washing ma-

chine has not been

prepared for using

for the first time.

Prepare the machine as de-

scribed in "Before using for the

first time".

The "Locked" check

light is flashing.

The lock function is

switched on.

Switch the lock function off.

At the end of one

programme you can-

not start the next

programme.

The programme se-

lector has not been

turned past the

"Finish" postion.

Turn the programme selector to

the "Finish" postion and then to

the programme you want to run.

Problem solving guide

The wash programme stops and a fault indicator light comes

on.

What to do if ... Possible cause Remedy

The buzzer sounds and

the Check drain light is

flashing.

The water outlet is

blocked.

Clean the fluff (drain) filter

and drain pump.

The drain hose has

been fixed too high.

The maximum drain height

is 1 m.

The buzzer sounds and

the Check inlet light is

flashing.

The water inlet is

blocked –Open the stopcock.

–Start the programme

again.

The buzzer sounds and

the Check inlet and

Check drain lights flash.

The Waterproof system

has reacted.

Call the Service Depart-

ment.

One of the following in-

dicator lights is flashing

and the buzzer is

sounding.

–"Soak/Pre-wash"

–"Main wash"

–"Rinses"

–"Rinse hold"

There is a fault. –Start the programme

again.

–If the check lights flash

again, contact the Service

Department.

Three horizontal bars

"- - -" appear in the dis-

play and the buzzer is

sounding.

There is a fault. –Start the programme

again.

–If the three horizontal bars

"- - -" appear again, call

the Service Department.

Problem solving guide

A fault indicator light comes on but the wash programme

continues as normal.

What to do if ... Possible cause Remedy

The Check drain

light flashes.

The drain outlet is re-

stricted.

Clean the fluff (drain) filter and

drain pump.

The Check inlet

light flashes.

The water inlet is re-

stricted or the water pres-

sure is too low.

–make sure the stopcock is

opened wide enough.

–make sure the inlet hose is

not kinked.

The filter in the inlet hose

is dirty.

Clean the filter.

The Excess deter-

gent check light

comes on.

Excessive foam has built

up during washing.

Use less detergent next time

and follow the recommendation

on the packaging.

The "Locked"

check light is on.

Programme locking is

switched on.

Switch off the programme lock-

ing.

The "Final spin"

indicator light

flashes in the

programme se-

quence display.

The final spin has not

taken place. The machine

detected an imbalance.

–Loosen and re-distribute the

washing.

–Select the programme Spin

or Drain.

–Take into account the spin

speed of the relevant

programme.

The Anti-crease /

Finish indicator

light flashes in the

programme se-

quence display.

The position of the programme selector was altered after

the start of the programme. Turn the programme selector

back to the programme previously chosen.

Problem solving guide

General problems or an unsatisfactory wash result

What to do if... Possible cause Remedy

The machine shakes

during the spin cycle.

The four feet are not

resting evenly on the

floor.

Level the machine. See advice

on installation.

The laundry has not

been spun satisfacto-

rily.

The spin speed se-

lected was too low.

Select a higher spin speed

next time.

The light ring does

not come on.

This is not a fault. See "Guide to the machine".

The drum door cannot

be opened by press-

ing the Door button.

The machine is not

connected to the elec-

tricity supply.

Put the plug in the socket and

switch on.

Power cut. Open the drum door as de-

scribed in the section

"Opening the door in the event

of a power failure".

The door was not cor-

rectly engaged.

Press hard against the lock

side of the drum door and then

press the "Door" button.

There is still water in

the drum and the ma-

chine is unable to

drain.

Clean the fluff (drain) filter and

the drain pump.

For safety reasons the drum door cannot be opened

when the suds temperature is higher than 55°C.

Problem solving guide

What to do if ... Possible cause Remedy

The pump makes

strange noises.

These do not indicate a fault. They occur at the end of

a pump sequence as a normal part of the operation.

Large residues of de-

tergent remain in the

dispenser drawer.

The water supply pres-

sure is too low. –Clean the filter in the water

inlet system.

–It may be useful to press

the Water plus button.

Washing powder used

with water softener

tends to become

sticky.

Pour washing powder into the

dispenser before adding any

water softener.

Fabric conditioner is

not completely dis-

pensed or too much

water remains in the

pcompartment.

The siphon is either in-

correctly positioned or

clogged.

Clean the siphon, see

"Cleaning and care - Cleaning

the detergent drawer".

The fabric conditioner

channel is clogged.

Clean the fabric conditioner

channel.

Liquid detergent does

not give the required

result.

Liquid detergents do

not contain bleaching

agents. They do not

remove fruit, coffee

and tea stains.

–Use washing machine pow-

der containing a bleaching

agent.

–Pour stain removers into

compartment jof the dis-

penser drawer and liquid

detergent into a dispenser

ball.

–Never put stain removers

and liquid detergent to-

gether in the dispenser

drawer.

Problem solving guide

What to do if... Possible cause Remedy

Grey, greasy parti-

cles cling to

washed laundry.

Insufficient amounts of

detergent were used to

break down the particles

of grease in heavily

soiled laundry.

–Add more detergent.

–Before washing the next load

run a COTTONS 95°C

programme with powder de-

tergent but without a load.

(See also "Extra cleaning" in

Cleaning and Care).

There are white res-

idues which look

like powder deter-

gent on dark col-

oured laundry.

The detergent contained

compounds (zeolites) to

aid water softening

which are not soluble in

water. These have

ended up on the laundry.

–Try and brush off the resi-

dues with a soft brush once

the laundry is dry.

–Use a liquid detergent to

wash dark coloured textiles.

Liquid detergents usually

contain no zeolites.

Problem solving guide

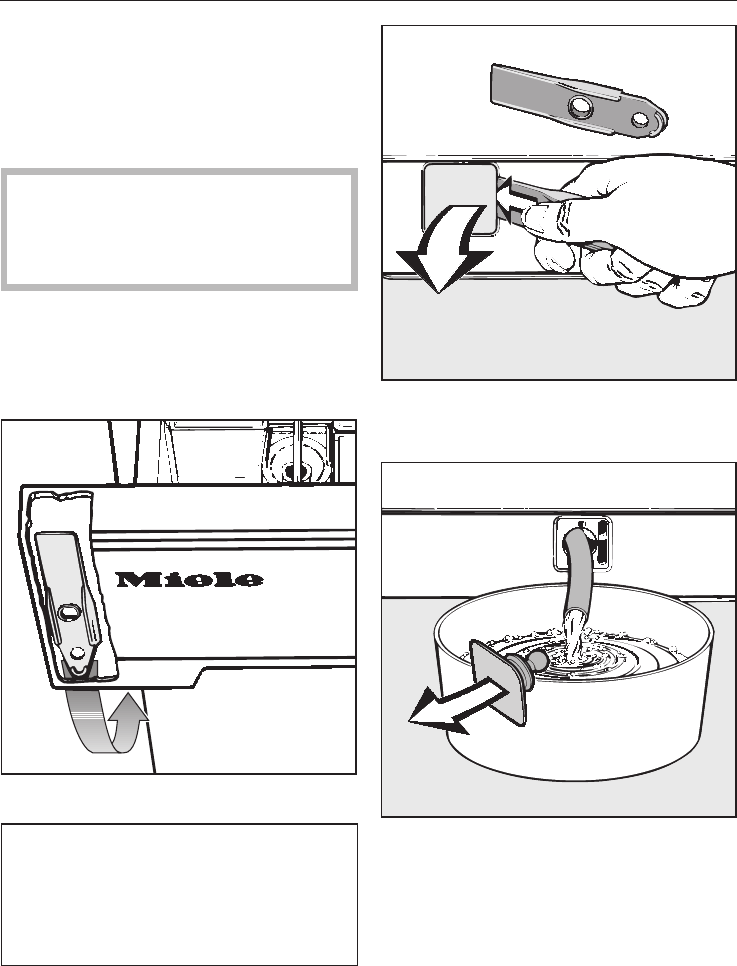

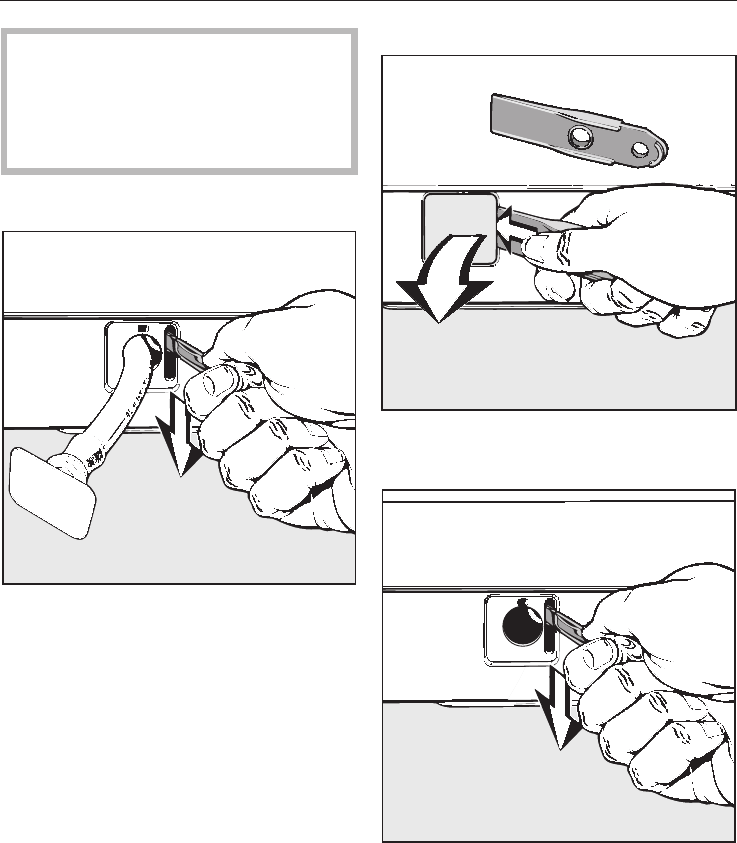

Opening the drum door in the

event of a power failure

If the drain outlet is clogged, more wa-

ter will be retained in the machine (up

to 25 litres).

Caution: If laundry has been washed

at a high temperature, water drain-

ing out of the machine will still be

hot.

^Switch off the washing machine.

Take the (yellow) filter flap opener from

behind the detergent drawer facia

panel, (see illustration below).

^Remove the opener.

Important

Left hand hinged machines have two

access panels in the plinth. The left

hand panel conceals the emergency

drainage.

^Open the flap (in the machine plinth).

^Place a dish or bowl under the spout.

^Point the drain hose into the con-

tainer.

^Remove the stopper. When no more

water comes out, replace the stopper

in the end of the hose.

^If there is a large amount of water in

the machine this procedure will have

to be repeated several times.

Problem solving guide

Always make sure the drum is sta-

tionary before reaching in to the ma-

chine to remove washing. Reaching

into a moving drum is extremely

dangerous.

Door hinged right

^Pull the emergency door latch down-

wards (see illustration). The machine

door will then open.

Door hinged left

^Open the access panel on the right

hand side of the plinth.

^Pull the emergency door latch down-

wards (see illustration). The machine

door will then open.

Problem solving guide

Customer contact

In the event of any faults which you

cannot remedy yourself please contact

–Your Miele Dealer or

–Your nearest Miele Service depart-

ment

(see back cover for the address).

When contacting the Service Depart-

ment, please quote the Model and Se-

rial Nos. of your appliance, both of

which are shown on the data plate visi-

ble above the porthole glass when the

door front is opened.

Please note that telephone calls may

be monitored and recorded to im-

prove our service.

Future updates (PC)

The indicator light or check light

marked PC is reserved for the service

engineer, for updates to your machine

in future years.

When for example technological devel-

opments offer advanced modifications

to your existing programme cycles, a

service engineer will be able to input

these into your machine controls.

Miele will provide information when

such possibilities become available.

After sales service

Installation surface

A concrete floor is the most suitable in-

stallation surface for a washing ma-

chine, being far less prone to vibration

during the spin cycle than wooden

floorboards or a surface with "soft"

properties.

Please note the following points:

^The machine must be level and se-

curely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

^If installing on a wooden joist floor, we

recommend a plywood base at least

30 mm thick, 590 x 520 mm wide.

The base should span several joists

and be bolted to the joists, not only to

the floorboards. Check for the pres-

ence of pipes and cables first.

The most stable part of the floor is

usually in the corner.

If the machine is installed on a

raised plinth, it has to be secured

against slippage during spin using

retaining clips (available from the

Miele Spare Parts Dept).

Installation

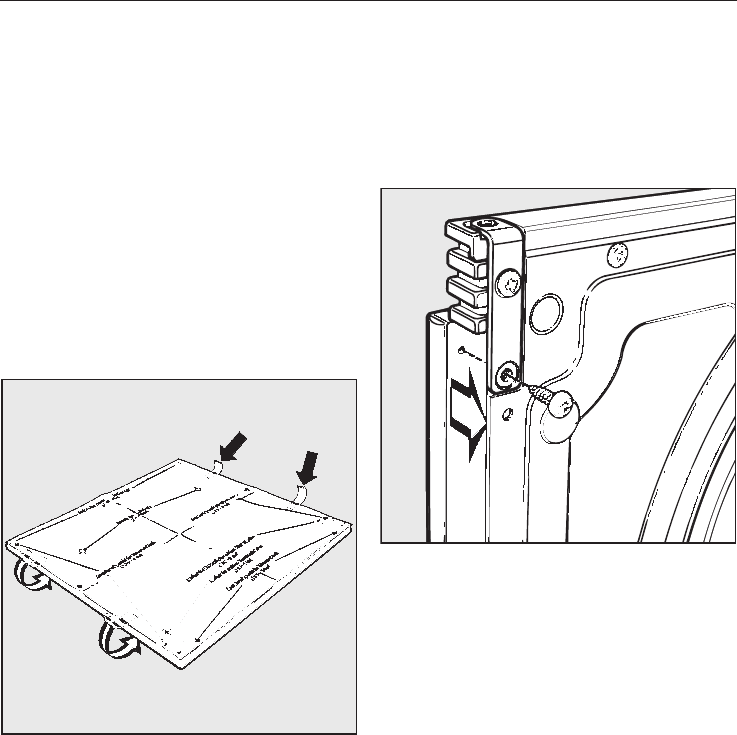

Lift the machine from its packaging

base and move it to its site. Please

note:

^Do not lift the machine by the

drum door.

^Ensure that the machine feet and the

floor are dry to prevent the machine

from slipping during the spin cycle.

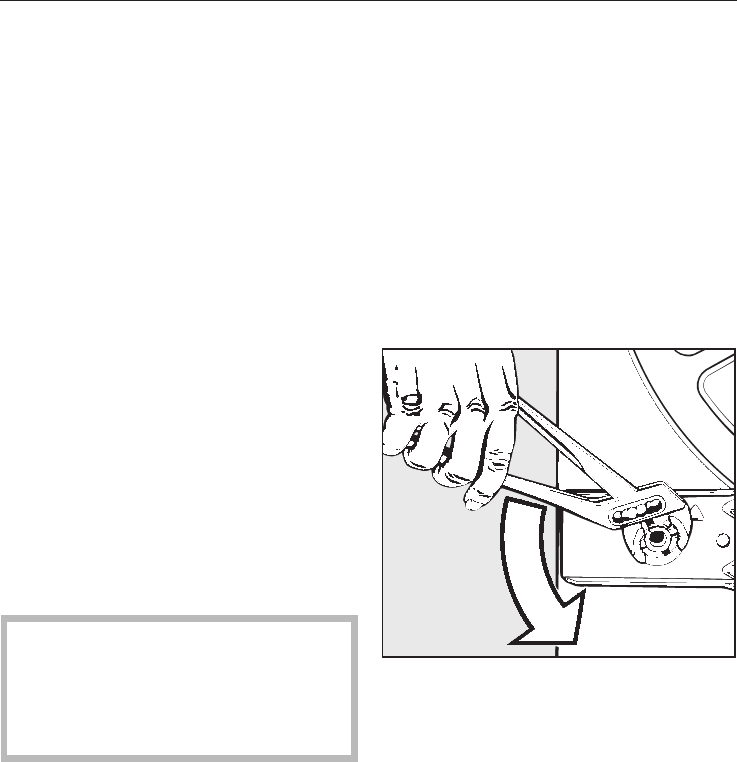

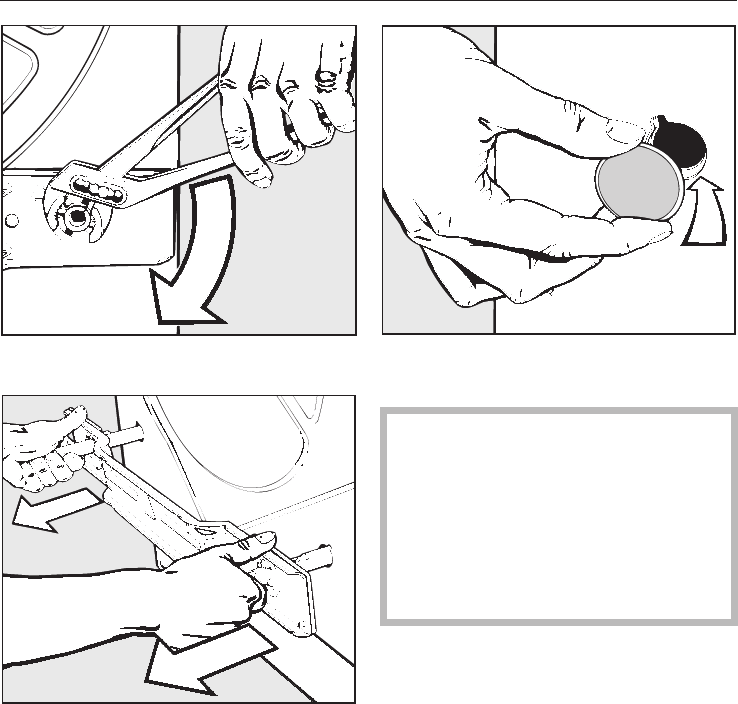

Removing the transit fitting

1. Turn the left-hand transit bar 90°.

Installation

2. Turn the right-hand transit bar 90°.

3. Withdraw the two bars together with

the support plate.

4. Plug the two holes with the plastic

caps supplied.

,The washing machine must not

be moved without the transit bars in

place.

Store the transit bars as shown or

keep them in a safe place for future

use. They must be re-fitted if the ma-

chine is to be moved again

(e.g.when moving house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Installation

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase elec-

tricity and water consumption and may

cause the machine to move about.

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is deliv-

ered.

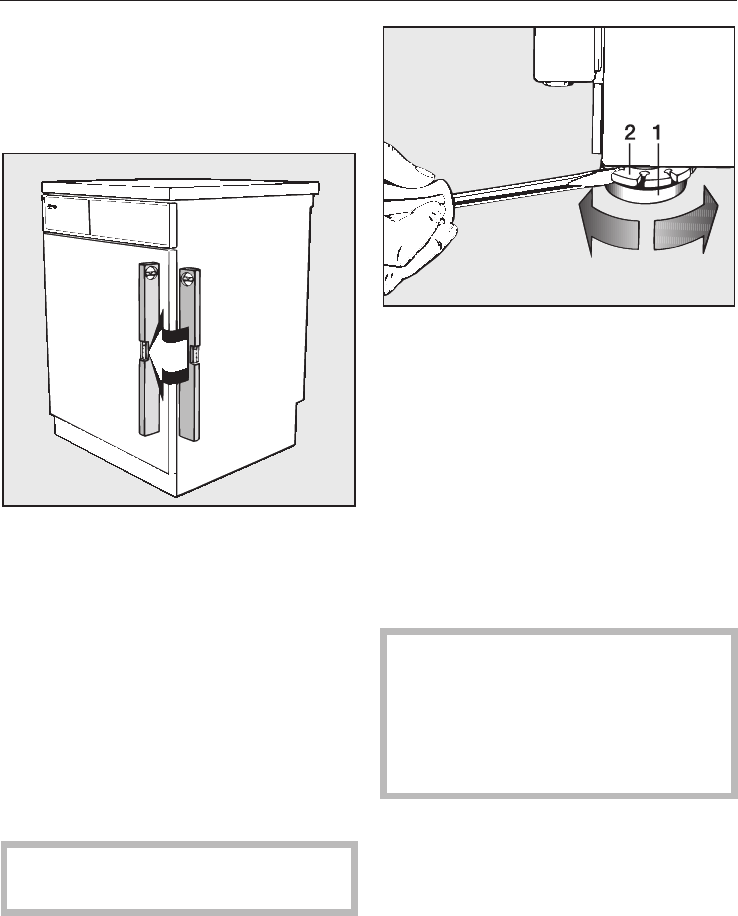

Screwing out and adjusting the feet

^Gently tip the machine and prop it up

using a solid wood wedge for exam-

ple, to ensure stability.

,Make sure the machine does not

slip as this could cause injury.

^With a screwdriver loosen and turn

the foot 1together with the

counternut 2to the left, (see illustra-

tion below) and screw out.

^Put the machine back on all four feet.

^Use a spirit level to check the ma-

chine is standing level.

^Hold the foot 1firm using a pipe

wrench and turn the counternut 2to

the right firmly up against the housing

with a screwdriver.

,All four counternuts must be

firmly up against the housing. Please

also check this for the feet which did

not need adjustment. Otherwise

there is the danger of the machine

moving about.

Installation

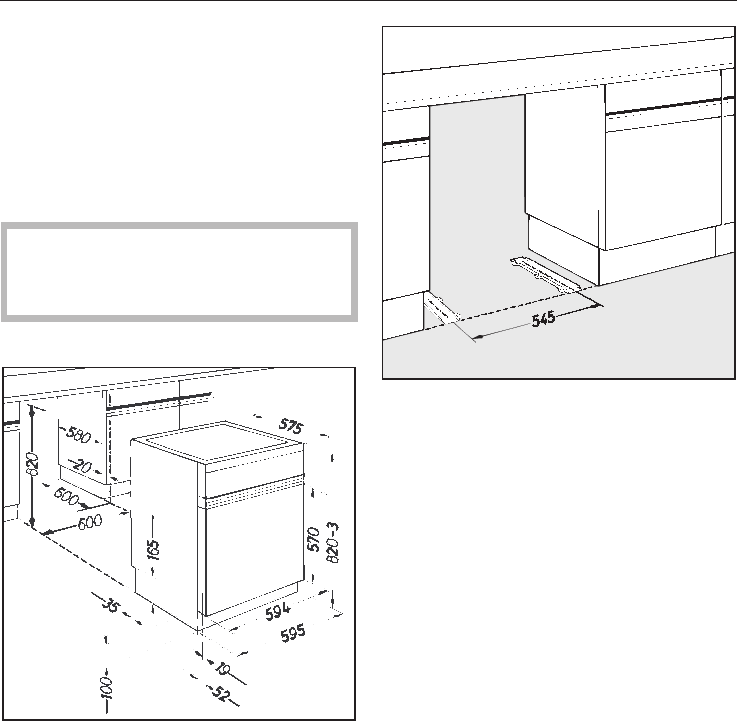

Building under

This washing machine is specially de-

signed for installation under a continu-

ous worktop.

This machine is fitted with a protective

coverplate which replaces the machine

lid.

,For reasons of electrical safety

this coverplate is necessary, and

must not be removed.

Please note the following:

–The machine should never be oper-

ated without the front panel firmly in

place.

–The electrical and water connection

points should be close to the ma-

chine and easily accessible.

– The skids provided with the machine

are intended to prevent damage to

floor coverings when manoeuvring it

into position.

Installation under a work surface 900 to

910 mm or 950 to 960 mm from the

floor, requires one or two raising kit(s)

respectively, available with fitting in-

structions from Miele dealers and the

Miele Spare Parts dept.

Installation

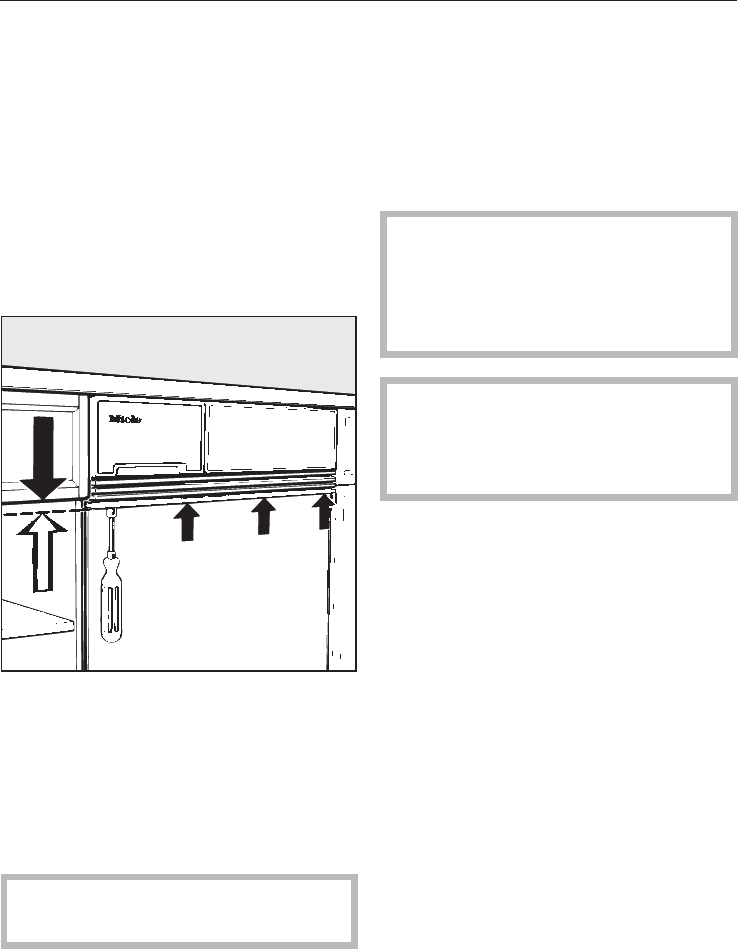

Adjusting the facia height

The adapter can be adjusted to match

the machine facia to the height of an

adjacent drawer by:

–altering the position of the nuts

–by removing one or more of the

strips.

Adapter strip adjustment range:

–max. 10 mm upwards (see arrows il-

lustrated),

–max. 25 mm downwards (this re-

quires additional adapter strip(s) and

longer screws, available from the

Miele Spare Parts dept, or your Miele

dealer).

After adjustments have been made,

cut or pinch off any excess thread.

Fitting the front panel

The front of this appliance can be fitted

with a door panel to match surrounding

units. If the unit is fitted in a MIELE

KITCHEN, a door panel with the appro-

priate dimensions and the necessary

holes pre-drilled can be provided.

If the kitchen is from a manufacturer

other than Miele, it is recommended

that the panel be cut to size and

holes drilled by a specialist, accord-

ing to Miele specifications.

The rear side of the front panel must

be completely flat (without profile).

Any unevenness must be levelled

out.

Front panel dimensions:

Height: . . . . . . . . 570 mm (+10/-25mm)

Width: . . . . . . . . . . . . . . . 588 - 596 mm

Thickness: . . max 19 mm (at the edges)

The template provided serves to locate

and drill the fixing holes for non-Miele

kitchens.

Installation

Drilling template

^Place the template on the lower edge

of the rear of the door panel.

There are four short parallel marks in all

four corners of the template.

^Use these short markings to position

the template correctly.

Example:

On a 594 mm wide panel the 2nd mark-

ing from the centre must line up with

the left and right hand outer edge of the

door panel.

^Affix the template to the panel using

adhesive tape.

There are various ways of fixing the

panel in position.

Example 1:

^Drill all fixing holes for the inner door

panel to the specified depth. On

chipboard fronts: inject silicone seal-

ant (supplied) into the (= Ø 10 mm)

free holes.

^Unscrew the lower screws on the top

hinges on both the left and right hand

side of the door (see illustration).

^Screw the front panel on through drill

holes 1 and 2 of the inner door panel

(see template) - do not overtighten,

(screws are supplied).

^Align the front panel.

^Tighten the screws

^Fit the front panel with the remaining

screws provided and the hinge

screws.

Installation

Example 2:

^Drill the numbered holes and the

screw points for the inner door panel

to the specified depth.

On chipboard fronts: inject silicone

sealant (supplied) into the (= Ø 10

mm) free holes.

Note that some different holes are re-

quired for left or right hand hingeing.

Left hand hingeing:

left drawing (see template), holes 1, 2,

3, 4, 5, 7, 8

Right hand hingeing:

right drawing (see template), holes 1, 2,

4, 5, 6, 7, 8

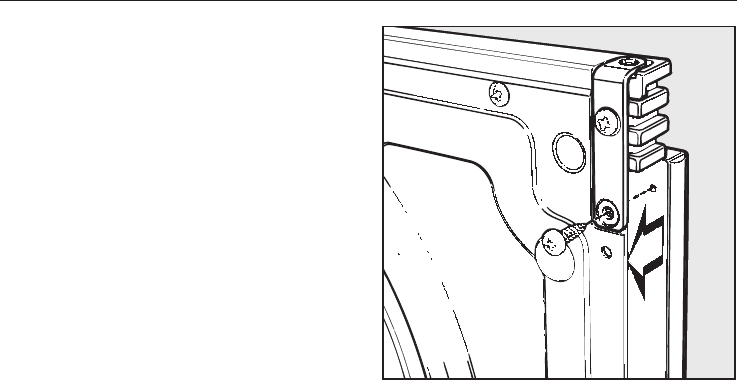

^Unscrew the lower screws on the top

hinges on both the left and right hand

sides of the door, (see illustration).

^Screw the front panel on through the

drilled holes 1 and 2 on the inner

door panel (see template) - do not

over-tighten (screws are supplied).

^Align the front panel.

^Tighten the screws.

^Drill any more holes required through

the drill holes in the door inner panel.

^Securely fit the front panel with the re-

maining screws provided and the

hinge screws.

Installation

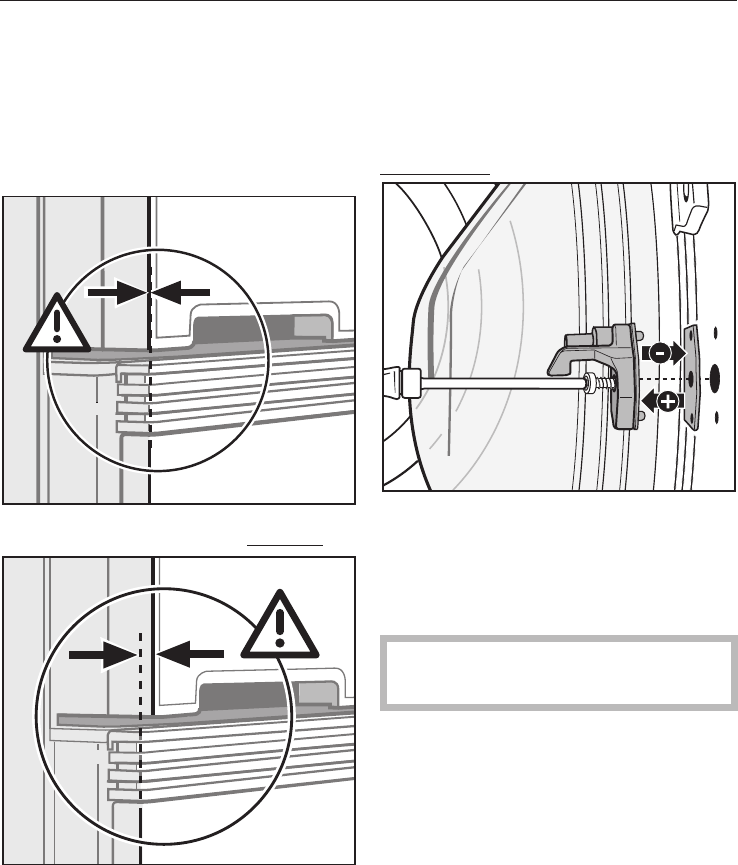

Aligning the door

The door must align so that it is flush

with the control panel. If the door is not

flush with the control panel it will not

shut properly.

Example of a flush door:

Example of a door which is not flush:

To align the door add or remove the

spacers located underneath the door

latch.

Additional spacers are supplied in the

accessory pack.

Please note:

If you use too many spacers the door

will not provide a sufficient seal when

shut.

If this is the case remove one or more

spacers until the door shuts correctly.

After aligning the door test it to make

sure that the seal is adequate.

Installation

Fitting a plinth facing

The appliance plinth below the door

can be partially concealed using a

plinth facing.

The height and return of the appliance

plinth cannot be altered.

A taller plinth facing can only be in-

stalled if the overall niche height is

higher.

Plinth

height

Niche height

100 mm (stan-

dard)

820 mm

150 mm 870 mm one spacer

frame is re-

quired

200 mm 920 mm two spacer

frames are re-

quired

A plinth facing (600 mm long) can be

ordered from your kitchen Dealer or

manufacturer. For Miele kitchens please

quote the model number when order-

ing.

Before fitting the plinth facing, please

note:

Under no circumstances must any-

thing be stuck over the flap(s) in the

appliance plinth.

In order to open the drum door dur-

ing an emergency the plinth facing

must be removable.

Fitting the plinth facing:

Stick the velcro fastener provided to the

appliance plinth.

For this the following procedure is rec-

ommended:

^Match up the hooked side and the

looped side of the velcro fastener

lengthwise.

^Cut into 2 or 3 pieces.

^Peel off the protective backing from

one of the velcro fastener pieces.

^Position the cut pieces along the ap-

pliance plinth, at the left and right

hand edge, and in the middle, avoid-

ing the drain flaps. Press firmly into

place.

^Now peel the protective backing off

the other velcro fastener piece.

^Address the plinth facing to the ad-

hesive backing and press firmly into

place.

Washer and dryer Stack

A Miele tumble dryer can be stacked

with this washing machine. A stacking

kit* and special accessories* are nec-

essary.

* All parts marked * are available from

the Miele Spare Parts or Sales depart-

ments and from some Miele Dealers.

Installation

Connection to water supply

Fitting

The machine should be connected to a

mains water supply in accordance with

standard regulations. In Germany the

washing machine is not required to

have a non-return valve as it has been

designed to comply with the relevant

German DIN standard.

The machine is designed to operate

with a minimum water pressure of 1 bar.

There is a minimum flow pressure of 1

bar if 5 litres of water flow into a suit-

able container in 15 seconds. The static

water pressure must not exceed 10 bar.

If it is higher than 10 bar it is essential

to fit a reducer valve.

The Miele Waterproof-System con-

nected between the stopcock and the

machine offers the safest protection

against water leaks.

For the Waterproof system to function

correctly, it may only be fitted in the po-

sitions shown (see illustrations).

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4’’ thread. The stopcock should

be fitted by a qualified plumber.

Installation

The connection point is subject to

mains water pressure. Turn on the

stopcock slowly and check for leaks.

Correct the position of the washer

and union if appropriate.

The "Waterproof system" is NOT suit-

able for connection to a hot water

supply.

The protective sleeve of the hose must

not be damaged (see illustration).

The "Waterproof system" with a hose

length of approx. 4.5 metres is available

as an optional extra from your Miele

dealer or the Spare Parts Department.

Function

At the heart of this leak protection sys-

tem there is an electric safety valve,

which works like an automatic stop-

cock.

The Miele "Waterproof system" protects

from water damage in the following

cases:

Protection in the event of a leaking

machine.

Any leaking water is collected in a

sump in the base of the appliance. A

float switch switches the safety valve off

electrically. No more water will flow in.

Protection in the event of a leaking

water inlet hose

Leaking water is fed into the sump

through the protective covering which

surrounds the inlet hose as a "second

skin". The float switch turns off the water

supply.

Maintenance

N.B. If you intend to unscrew the "Wa-

terproof system" unit from the mains wa-

ter supply it is essential that the ma-

chine is first disconnected from the

electricity supply.

Only use a genuine Miele "Waterproof

system" able to withstand pressure of

up to 70 bar, should you ever need a

replacement.

To protect the filters in the water inlet

valves the dirt filter in the "Water-

proof system" connection must not

be removed.

Installation

Important!

The plastic casing of the water connec-

tion contains an electric component.

Do not dip into any liquid!

The "Waterproof system" must only

be connected to its own stopcock. It

must not be connected to mixer taps

or similar.

Installation

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre.

The drain hose is 1.5 m long. It must

not be kinked as this restricts drainage.

The swivel elbow at the end of the hose

can be turned in either direction, or can

be detached if required, with a sharp

twist and pull.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following

–Hook the hose over the edge and se-

cure.

–Make sure that the water can drain

away freely without hindrance. Other-

wise there is a risk of water overflow-

ing or of some of the drained water

being sucked back into the machine.

2. Connected securely to a plastic drain

pipe with a rubber nipple. There is no

need to use a non-return valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

If required, the drain hose can be ex-

tended to a length of 5 m. The neces-

sary parts can be purchased from the

Miele Spare Parts Department, or your

Miele dealer.

For a delivery head of more than 1 m

(up to a maximum of 1.8 m) a second

Duo-drain pump is available with the

corresponding conversion kit from the

Miele Spare Parts Department or your

Miele dealer.

Installation

Electrical connection U.K.

All electrical work should be carried out

only by a suitably qualified and compe-

tent person, in strict accordance with

national and local safety regulations.

The appliance is supplied with a mains

cable with moulded plug for connection

to a 230-240V mains supply. The volt-

age, rated load and fuse rating are

given on the data plate. Please ensure

these match the household mains sup-

ply.

Connection should be made via a fused

plug and suitable switched socket

which is easily accessible after installa-

tion. For extra safety it is advisable to

install a residual current device (RCD),

with a trip current of 30 mA (in accor-

dance with DIN VDE 0664, VDE 0100,

section 739). Do not connect via an ex-

tension lead.

Ensure power is not supplied to the ap-

pliance while installation work is being

carried out.

Important

The wires in the mains lead are col-

oured in accordance with the following

code:

Green/yellow = earth

Blue = neutral

Brown = live

Where it is necessary to change plugs,

if the colours of the wires in the mains

lead of this appliance do not corre-

spond with the coloured markings iden-

tifying the terminals of your plug, pro-

ceed as follows:

^The wire which is coloured green and

yellow must be connected to the ter-

minal in the plug which is marked

with the letter E or by the earth sym-

bol zor coloured green, or green

and yellow.

^The wire which is coloured blue must

be connected to the terminal in the

plug which is marked with the letter N

or coloured black.

^The wire which is coloured brown

must be connected to the terminal in

the plug which is marked with the let-

ter L or coloured red.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation

Electrical connection U.K.

Non-rewireable plugs BS 1363

If this machine is fitted with a non-

rewireable plug, the following informa-

tion applies:

If the socket outlets are not suitable for

the plug supplied with the product, it

must be cut off and an appropriate plug

fitted. The fuse carrier and fuse should

be removed from the old plug and dis-

posed of.

The plug cut from the flexible cord

should then be disposed of and on no

account be inserted into any socket

elsewhere in the house (electric shock

hazard).

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is em-

bossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA ap-

proved to BS 1362 and have the cor-

rect rating. Replacement fuse covers

may be purchased from your local elec-

trical supplier or Service agent.

Installation

Programme

(without any additional op-

tions or

programmable functions)

Load Consumption data

Energy Water Programme time

in kWh litres normal short

COTTONS

95°C 5.0 kg 1.70 49 1 h 54 mins 1 h 22 mins

60°C (1) 5.0 kg 0.95 49 1 h 58 mins 1 h 16 mins

40°C 5.0 kg 0.55 49 1 h 58 mins 1 h 06 mins

MINIMUM IRON

40°C 2.5 kg 0.45 58 1 h 20 mins 49 mins

DELICATES

30°C 1.0 kg 0.40 75 58 mins 48 mins

WOOLLENS

30°C 1.0 kg 0.15 25 35 mins -

(1) EN 60456 test programme

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any additional func-

tions selected.

N.B.

Consumption data obtained from a machine designed for the German market.

Consumption data

Height 82.0 cm

Width 59.5 cm

Depth 60.0 cm

Depth with door open 118.0 cm

Weight 96 kg

Maximum floor load 1600 Newton (approx. 160 kg)

Capacity 5 kg dry laundry

Voltage see data plate

Rated load see data plate

Fuse rating see data plate

Consumption data see "Consumption data"

Water flow pressure min. 1 bar (100 kPa)

Water flow pressure max. 10 bar (1000 kPa)

Drain pump head max. 1.00 m

Drain pump length max. 5.00 m

Test certificates awarded Radio/TV suppression, VDE

Technical Data

Alteration rights reserved/000 2401

This paper consists of cellulose which has been bleached without the use of chlorine.

Miele W 989i WPS User Manual To The F29adb08 B142 48cb 93b4 35ebfe1391b1

Navigation menu

Versions of this User Manual:

Views

Navigation
