Contents

Operating instructions

Washer-dryer

WT 2670

To avoid the risk of accidents

or damage to the machine

it is essential to read

these instructions before it is

installed and used for the first time.

M.-Nr. 06 717 280

Disposal of the packing material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed safely and kept

out of the reach of babies and young

children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your appliance or

machine. Please do not therefore

dispose of it with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre and ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person. The plug must be

rendered useless and the cable cut off

directly behind it to prevent misuse.

See the "Warning and Safety" section of

this booklet for further details.

Caring for the environment

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Calibrating the load size sensor to zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Washing and drying environmentally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

WASHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Separate washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Pre-wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Short . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Water plus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Buzzer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 21

Spinning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Rinse and interim spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

To omit the final spin (Rinse hold). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

To omit rinse and interim spin and the final spin . . . . . . . . . . . . . . . . . . . . . . . 22

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Water softeners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Washing with several components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Fabric conditioners or liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Automatic dispensing of fabric conditioner or liquid starch to laundry at

the end of a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Adding fabric conditioner separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Contents

Adding starch separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Colour run and dye removers / dyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Separate drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Extra option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Low temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Thermospin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 35

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

WASHING AND DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Washing and drying in a continuous sequence . . . . . . . . . . . . . . . . . . . . . . . . . . 40

After each washing or drying programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Rinse out fluff programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Interrupting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Altering a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Electronic programme locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Cleaning the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

What to do, if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Problems with the load size indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

An unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

An unsatisfactory drying result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

The drum door cannot be opened by pressing the button. . . . . . . . . . . . . . 55

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Contents

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Installing the washer-dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Removing the transit fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Building under a continous worktop / in a kitchen run . . . . . . . . . . . . . . . . . . . 65

The Miele water protection system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Note for test institutes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Time of day Y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Water plus T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Gentle action U. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Suds cooling R. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Door release Ü. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Distribution controller g. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Alter time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Lock X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Temperature S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Buzzer O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Keypad tones P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Display contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Standby Q. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Memory V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Set extended cool-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Correct usage

This washer-dryer must only be

used:

– to wash items which are specified by

the manufacturer to be washable on

the care label.

– to dry textiles which have been

washed in a water solution, marked on

the manufacturer's care label as being

suitable for tumble drying. "Dry

cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be dange-

rous. The manufacturer cannot be held

liable for damage caused by improper

or incorrect use of the appliance.

Technical safety

Before setting up the machine,

check it for any externally visible

damage. Do not install or use a

damaged machine.

Before connecting the machine,

ensure that the connection data on

the data plate (voltage and connected

load) matches the mains electricity

supply. If in any doubt, consult a

qualified electrician.

The electrical safety of this

machine can only be guaranteed

when continuity is complete between

the machine and an effective earthing

system which complies with local and

national safety regulations.

It is most important that this basic

safety requirement is present and

regularly tested and where there is any

doubt the household wiring system

should be inspected by a qualified

electrician.

The manufacturer cannot be held liable

for the consequences of an inadequate

earthing system (e.g. electric shock).

Do not connect the appliance to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

Warning and Safety instructions

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for

which the manufacturer cannot accept

liability. Repairs should only be

undertaken by a Miele approved

technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

The machine is only completely

isolated from the electricity supply

when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn, or

– the screw-out fuse is removed in

countries where this is applicable.

This machine must only be

connected to the on-site water

supply using a new hose kit. Old hoses

must not be re-used. Check the hose

regularly for signs of wear and tear.

Change in good time to avoid the risk of

leaks and subsequent damage.

If a fault has been identified, the

machine must be examined by a

competent person before further use,

and repaired if necessary.

–Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

–If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to

protect the user from danger.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

appliance and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the appliance guarantee.

Use

This equipment may only be used

in mobile installations such as

ships, caravans, aircraft etc. if a risk

assessment of the installation has been

carried out by a suitably qualified

engineer.

Do not install your machine in

rooms where temperatures below

freezing may occur. Frozen hoses may

burst under pressure.The reliability of

the electronic control unit may be

impaired at temperatures below

freezing point.

Warning and Safety instructions

Before using the machine for the

first time, check that the transit

fittings at the rear of the machine have

been removed (see section on

"Installation"). During spinning, a transit

fitting which is still in place may result in

damage to both the machine and

adjacent furniture or appliances.

Turn off the stopcock if the

machine is to be left for any length

of time (e.g. holiday), especially if there

is no floor drain (gully) in the immediate

vicinity.

Flooding danger. If hooking the

drain hose into a wash basin,

check that the water can drain off

quickly enough to prevent the sink from

overflowing. Make sure the drain hose

is secure, so that the force of the water

flowing out of the hose does not

dislodge it.

Take care to ensure that foreign

objects (e.g. nails, pins, coins,

paper clips) do not find their way into

the machine with the laundry. These

may damage components of the

machine (e.g. suds container, drum),

which in turn can result in damage to

the laundry.

If the correct amount of detergent

is dispensed, the machine should

not need to be descaled. If, however,

you do wish to descale the machine

only use proprietary non-corrosive

descaling agents and strictly observe

the instructions on the packaging. If in

doubt contact the Miele Customer Ser-

vice Dept. or your Miele Dealer.

Textiles which have been

pre-treated in solvent based

cleaning agents must be thoroughly

rinsed in clean water before being

washed in the machine.

Never use solvent based cleaning

agents in this machine, as this may

result in damage to component parts

and create toxic fumes. Such

detergents also pose a fire and

explosion hazard.

Only use dyes specified by the

manufacturer as being suitable for

use in a domestic washing machine.

Always observe the manufacturer's

instructions carefully.

Colour run and dye removers

contain sulphur compounds which

can cause damage such as corrosion.

Do not use these products in this

machine.

Always make sure the drum is

stationary before reaching in to

remove laundry. Reaching into a

moving drum is extremely dangerous.

Warning and Safety instructions

To prevent the risk of fire the

following textiles must not be dried

in this machine:

–fabrics which contain a large

proportion of rubber, foam rubber or

rubber like materials.

–items which contain padding or

fillings (e.g. pillows, jackets).

–items which have been treated with

inflammable cleaning agents.

–items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

– items which have been soiled with

oils or residues containing grease

(kitchen oils, cosmetics etc.).

– items soiled with wax or other

chemicals (e.g. mops and floor

cloths).

– items which have not been

thoroughly cleaned and which are

still soiled with grease or oil, e.g.

workwear. Such clothing may require

a heavy duty detergent to get them

clean. If necessary, consult the

detergent manufacturer for advice.

Make sure that any dispensing

balls etc. are removed from laundry

before the drying programme. These

dispensers can melt during the drying

programme and cause damage to the

machine and the laundry. Do not use

liquid dispenser balls or similar if you

are planning to wash and then dry in

one continuous sequence.

Take care, the metal cap is hot

after drying. Open the door wide

after the drying cycle. Do not touch the

metal cap located on the inside of the

door glass. It will still be hot and could

cause a burn.

Accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If other parts are used, guarantee,

performance and product liability

claims will be invalidated.

Safety with children

This machine is not a toy! To avoid

the risk of injury do not allow

children to play on or near it or to play

with its controls. Supervise its use by

the elderly or infirm, and supervise

children whilst you are operating the

machine.

Disposal of your old machine

Before discarding an old machine,

switch it off at the wall socket and

unplug it. Render the plug useless. Cut

off the cable directly behind the

machine to prevent misuse. This should

be done by a competent person.

The manufacturer cannot be held

liable for damage caused by

non-compliance with these Warning

and Safety instructions.

Warning and Safety instructions

Control panel

aStart/Stop button

For starting the programme selected

and cancelling a programme once it

has started.

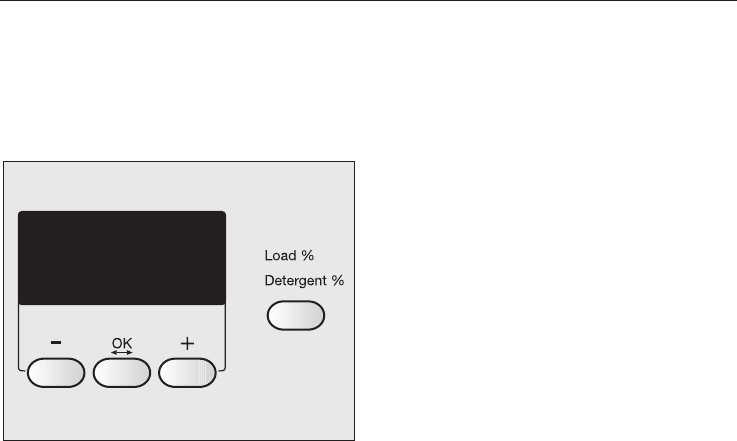

bDisplay with – , OK, + and

Load/Detergent buttons

See the following page for more

details.

cmbutton

For selecting delay start and

setting the time of day.

dPC / Optical interface

This is used by service technicians

to run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

eExtra option buttons

with indicator lights

Various extra options can be added

to the programmes.

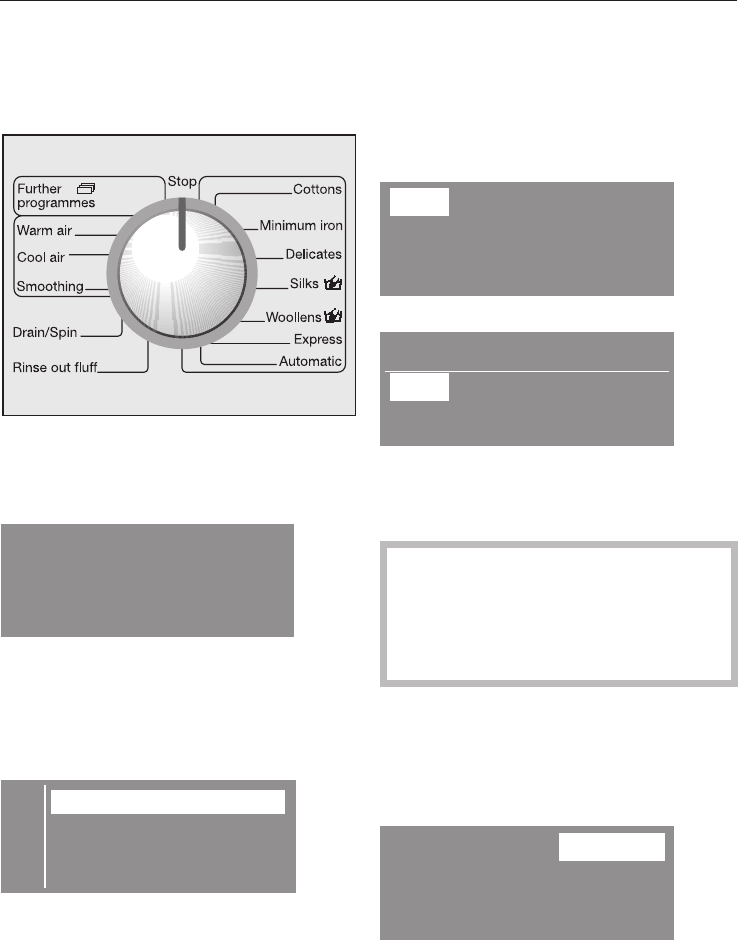

fProgramme selector

For selecting washing and drying

programmes. The programme

selector can be turned clockwise or

anti-clockwise.

gWashing/Drying button

for selecting:

– Washing

– Drying

– Washing and Drying.

hI-On/0-Off button

For switching the washer-dryer on

and off.

iDoor button

Opens the machine door.

Guide to the machine

Display

When a programme is selected the

display can be used to select and

change programme parameters.

- / + buttons

For altering the parameters highlighted

in the display:

-decreases the parameter or moves

the highlighting upwards

+increases the parameter or moves

the highlighting downwards.

OK button

For confirming the parameter selected

and choosing the next parameter.

Load/Detergent button

For calling up the load size and the

detergent amount.

With the programme selector at the

Further programmes

position, you can

select the following programmes via the

display:

Dark garments

Shirts

Denim

Sportswear

Outerwear

Proofing

Curtains

Separate rinse

and

Starch

Delay start and the soak time are

selected via the display.

The display shows the duration of the

programmes and the current time of

day.

The

Settings

Jmenu is also operated

via the display.

Use

This washer-dryer can be used:

–to wash separately

max. load 5 kg (depending on

programme);

–to dry separately

max. load 2.5 kg (depending on

programme);

–to wash and dry in a continuous

sequence

max. load 2.5 kg (depending on

programme).

Guide to the machine

Before using the machine for the first

time ensure that it is correctly

installed and connected. See

"Installation and connection". Also

check that the drain filter is securely

tightened to prevent the risk of water

leaks during use.

The washer-dryer has a sensor which

measures the amount of laundry in the

drum. This determines the amount of

detergent required. To allow the load

size indicator to function correctly, you

must first run a wash programme

without any laundry and without

detergent.

^Open the stopcock.

^Press the

I-On/0-Off

button in.

If the washer-dryer is being switched on

for the first time, the welcome screen

will appear.

Willkommen

The welcome screen will not appear

again once a programme lasting

longer than 1 hour has been

completed.

After a few seconds the display will

change to show the screen for

selecting your language.

Setting the language

Cèeština

Fdansk

deutsch H

^Use the –and +buttons to select the

language you want and confirm your

selection by pressing the OK button.

Setting the time of day

The display for setting the time will

appear.

12:00

Set the time

^Set the hour with the –and +buttons

and confirm your setting by pressing

the OK button. Now set the minutes.

After you have confirmed the minute

setting, the display will change to

show the reminder to remove the

transport struts.

Before using for the first time

Reminder to remove transport struts

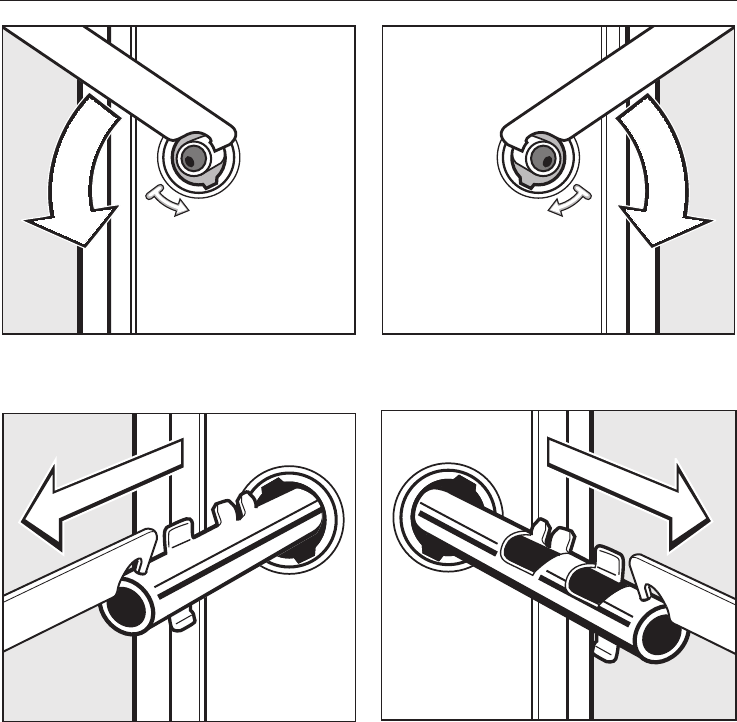

To avoid the risk of damage, the

transport struts must be removed

before the washer-dryer is used for

the first time. See "Installation and

connection" for instructions on how

to do this.

iRemove transport

struts

^After removing the transport struts (if

this has not already been done by

your fitter) press the OK button.

Running your first programme

Your washer-dryer is now ready for the

first programme to be run.

15:00

Select programme

^Turn the programme selector to the

Cottons

position.

^Press the

Start/Stop

button.

^When the programme has finished,

turn the programme selector to

Stop

and switch off the washer-dryer.

The load sensor must then be

calibrated to zero as you would with

bathroom scales.

Calibrating the load size sensor to

zero

^Switch the machine on.

^Open the drum door.

^Turn the programme selector to the

Cottons

position.

^Press and hold the

Load/Detergent

button pressed in until the following

message appears in the display:

iZero setting

^Turn the programme selector to

Stop

and switch off the washer-dryer.

The machine is now ready for use.

Before using for the first time

Energy and water consumption

–Water consumption and energy

usage are determined by the size of

the load.

To make the most out of your

machine, load the maximum dry load

for the programme you are using.

–Use the

Automatic

and

Express

programmes for small loads.

–When smaller amounts of laundry are

washed using the

Cottons

programmes, the automatic load

recognition system will reduce the

amount of water, time and energy

used. This may mean that the

programme duration is adjusted

during the course of the wash

programme.

– Using the

Cottons

60°C programme

instead of the

Cottons

95°C

programme will give energy savings

of between 35% and 45%. This is

sufficient for most levels of soiling.

For stubborn or old stains, use the

Soak

extra option.

Detergent

–Do not exceed the amounts of

detergent recommended by the

manufacturer on the packaging.

–Reduce the amount of detergent for

smaller loads. Use the

Load/

Detergent

button.

Choosing the correct extra option

(Pre-wash, Soak, Short)

Select:

A wash programme together with the

Short

extra option for light to normal

soiling where there are no obvious

marks.

A wash programme without any extra

options for normal to heavy soiling.

A wash programme together with the

Soak

option for heavily soiled

laundry.

– Use the extra option

Soak

instead of

Pre-wash

. If Soak is followed immedi-

ately by a main wash, the same suds

are used.

When drying straight afterwards

–Select a high spin speed for the

wash programme, as well as for the

Thermospin, if tumble drying this

laundry afterwards. This saves time

and energy.

Washing and drying environmentally

Brief instructions

The headings numbered A,B,C, . . .

show the operating sequence and can

be used as brief instructions.

Separate washing

ASort the laundry

^Empty all pockets.

,Foreign objects (e.g. nails,

coins, paper clips, etc.) can cause

damage to garments and

components in the machine.

^Badly soiled areas, stains etc. should

be cleaned as soon as possible,

preferably whilst still fresh. Spillages

should be carefully dabbed off using

a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated

with liquid detergent, stain removers

etc. first, following the manufacturer's

instructions. With particularly stubborn

stains ask your dry cleaner for advice.

,Do not use solvent-based

cleaning agents in this machine.

^Sort the laundry by colour and by

care label. Most garments have a

textile care label in the collar or side

seam.

Dark textiles often contain excess dye

and should be washed separately

several times before being included in

a mixed load. Always wash whites and

coloureds separately.

–Curtains: Remove lead weights first

or place in a laundry bag.

– Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

– Knitted garments, trousers and

jeans, T-shirts and sweat shirts: Turn

inside out, if recommended by the

manufacturer.

–Close any zips, fasten hooks and

eyes etc before washing.

–Fasten duvet covers and pillow

cases to prevent small items from

being trapped inside them.

Do not wash any items in this machine

which are specified by the

manufacturer as non-machine

washable on the care label. (h

symbol)

WASHING

BSwitch the machine on

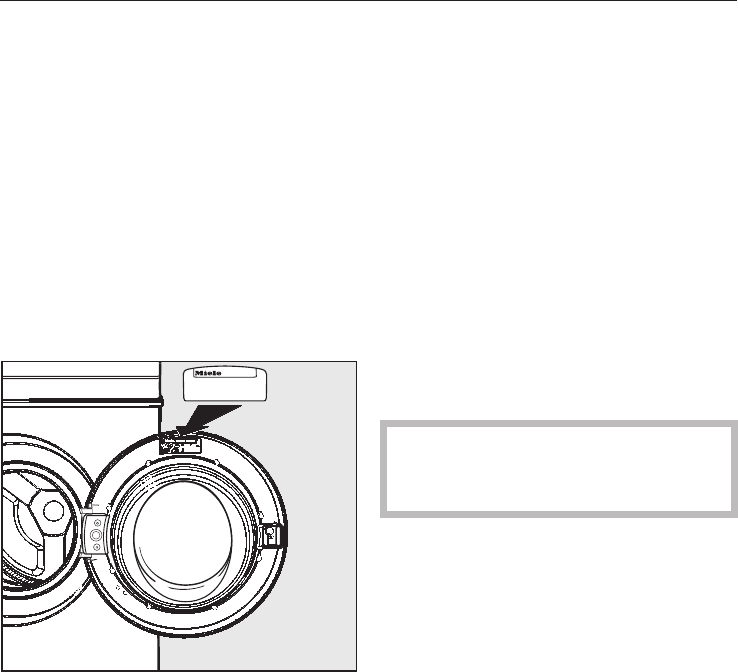

The interior drum lighting will come on.

CSelect a programme

^Select the programme you want.

The programme selected will appear in

the display.

Minimum iron

Further programmes:

When you turn the programme selector

Further programmes

, a list of these

programmes will appear in the display.

EDark garments

Denim

Shirts H

^Use the -or +button to highlight the

programme you wish to select and

confirm your selection by pressing

the OK button.

Wait until the display switches to show

the menu for the programme selected.

40°C 900 rpm

Duration: 1:00 h

Denim

40°C 900 rpm

Duration: 1:00 h

^Press the

Washing/Drying

button

repeatedly until only the Washing

indicator light is lit up.

The

Drying

indicator light must not

be lit up as well as this would mean

that the washing programme would

be followed immediately by the

drying programme.

^You can alter the highlighted

temperature with the -or +buttons.

Press the OK button to confirm the

temperature you want and move on

to the spin speed.

30°C 900 rpm

Duration 0:57 h

^You can then alter the highlighted

spin speed with the -or +buttons.

WASHING

^You can select any extras options

with the extra option buttons.

^Each press of the top right hand

button selects the extra option in the

following order:

Pre-wash

Soak

no option is selected.

Not all the extra options are suitable for

use with every wash programme.

You can only select extra options which

are compatible with the basic

programme being used.

^Select Delay start, if required.

DLoad the drum

^Press the

Door

button to open the

drum door.

The load size indicator display will

appear.

Load <25%

The display shows the amount of

laundry loaded in the drum as a % (in

25% steps) of the maximum load

permissible for the programme

selected.

^Unfold the laundry and load loosely

in the drum. Mixing both large and

small items gives better wash results

and also helps distribute the load

evenly during spinning.

The most efficient use of energy and

water is achieved when a full load is

washed. However, do not overload as

this causes creases and reduces

cleaning efficiency.

Make sure that no garments are

caught between the drum door and

seal.

^Shut the door with a gentle swing.

WASHING

EAdd detergent

The load size indicator display will be

replaced with the detergent percentage

display.

Detergent 75%

40% Add slightly less than half the

amount recommended . . .

50% Add half the amount

recommended . . .

60% Add slightly more than half the

amount recommended . . .

75% Add three quarters of the

amount recommended . . .

100% Add the full amount

You also need to take the level of

soiling and water hardness into

account.

too little detergent results in:

–Laundry not getting properly clean

and with time it may become grey

and hard to the touch.

–Greasy particles clinging to the

laundry.

–Limescale deposits on the heater

elements.

too much detergent results in:

–Excessive foam which causes a low

level of agitation and poor wash,

rinse and spin results.

–High water consumption (an

additional rinse cycle will

automatically switch in).

–A burden to the environment.

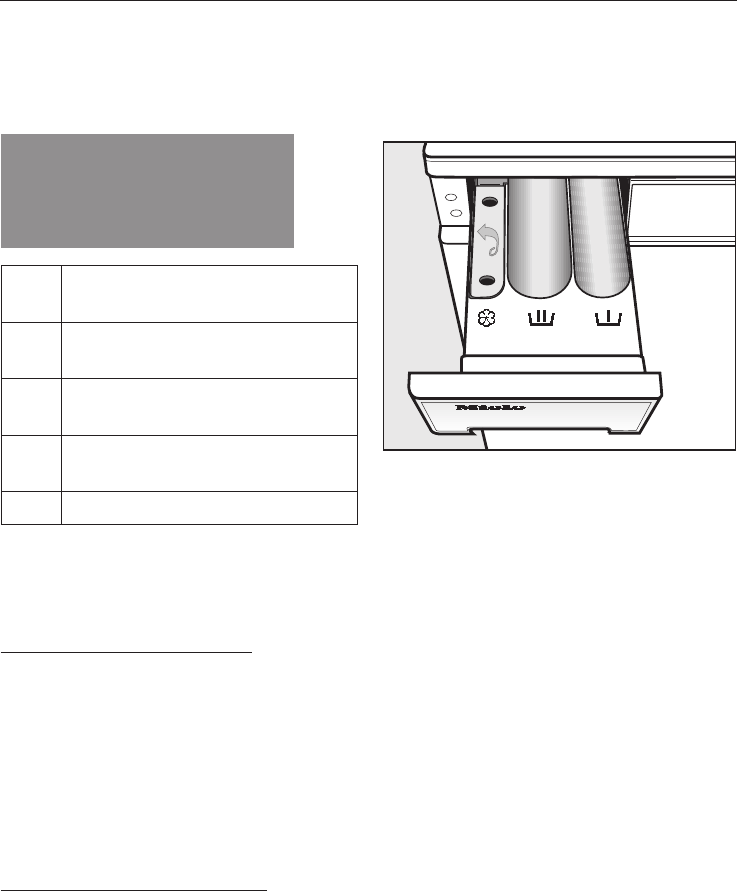

^Pull out the detergent drawer and

add detergent to the compartments

as follows:

i= Detergent for the pre-wash

(1/4of the total amount

recommended). This

compartment is also used for

starch formulations when

starching separately.

j= Detergent for the main wash

including Soak

§= Fabric conditioner or liquid

starch

^Close the detergent drawer.

See "Detergent" for further information.

WASHING

FStart the programme

^Press the flashing

Start/Stop

button.

The estimated programme duration will

count down in the display in one minute

steps. During the first 10 minutes the

machine measures how much water is

being absorbed by the laundry. The

programme duration may be longer or

shorter depending on this absorbency

rate.

The programme sequence is also

shown in the display. The washer-dryer

shows you when each section of the

programme is reached.

The drum lighting switches off once the

programme has started.

GRemove the laundry when the

programme has finished

In the anti-crease phase after the

programme has finished, the following

will appear alternately in the display:

Anti-crease

and

iProgramme finished.

Remove laundry, then

switch the machine off.

^Turn the programme selector to the

Stop

position. Press the

Door

button

to open the drum door.

^Remove the laundry.

Only remove laundry from the

machine once the drum has

stopped turning. Reaching into a

moving drum is extremely

dangerous and could result in injury.

Check that all items have been

removed from the drum. Items left in

the drum could discolour other items

in the next wash or become

discoloured themselves.

Important! Always remove the

laundry before switching the machine

off. This is important to ensure that

the load size indicator works

correctly.

^Switch the machine off with the

I-On/

0-Off

button.

See "After each washing or drying

programme" for further information.

After washing a full load

If you have washed a full load of

laundry and you wish to dry the

laundry in the washer-dryer

afterwards you will have to remove

half the load. Carry out the drying

procedure in two batches.

WASHING

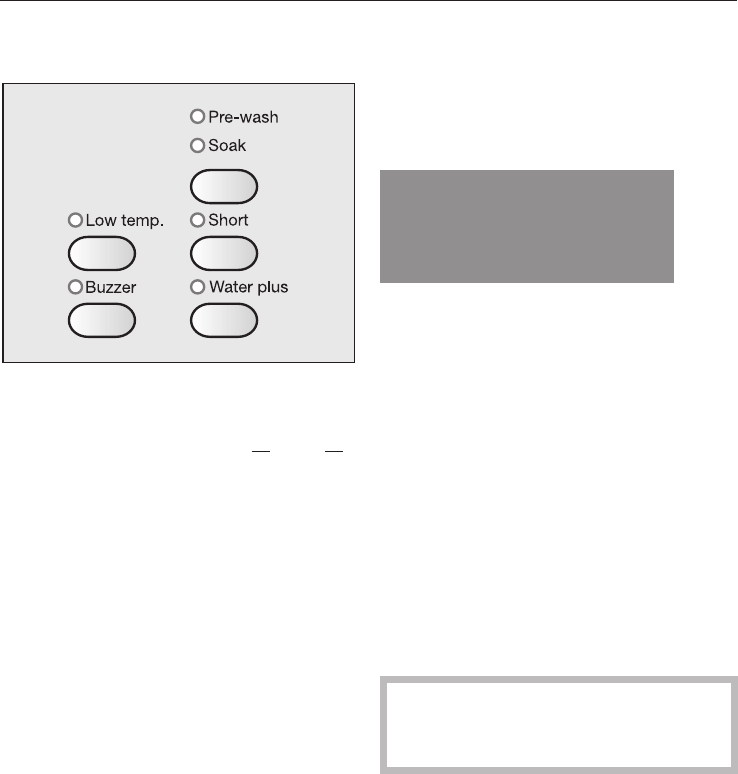

Extra options

You can use the

Extra option

buttons to

augment the basic wash programmes.

Pre-wash

For laundry with large amounts of dirt

(e.g. dust, sand).

Soak

For heavily soiled and stained items

with protein stains (e.g. blood, fats

and oils, cocoa).

A length of time of between 30 minutes

and 6 hours can be chosen, in 30

minute periods for the "Soak" process.

To select the soak time

^After selecting a programme, press

the

Pre-wash/Soak

button repeatedly

until the

Soak

indicator light comes

on.

15:06

Finish: 17:04

Soak: 0.30 h

Use the –and +buttons to enter the

soak time. The display will also show

the corresponding finishing time for the

washing programme. Press the OK

button to confirm the soak time you

want.

To delete the soak time

^Set the soak time to 0.00 h and

confirm this with the OK button.

Short

For light to nomal soiling with no

visible staining.

The duration of the main wash is

reduced.

Water plus

The machine is set at the factory so

that the water level in the main wash

and rinses will be increased if the

Water plus

extra option is selected.

However, you can select other settings

for

Water plus

. These are described in

Settings

menu J".

Buzzer

An audible tone sounds repeatedly at

the end of a programme or when

Rinse hold is reached.

The buzzer will sound repeatedly until

the machine is switched off.

Once switched on, the buzzer is active

in all programmes until it is switched off

again.

You can switch the buzzer off by

pressing the buzzer button. You can

also change the volume of the buzzer.

These are described in "Settings J".

The buzzer will always sound when

there is a fault, even if the buzzer has

been switched off.

WASHING

Adding or removing laundry

after a programme has started

Laundry can be added or removed

after the programme has started when

using the following programmes:

–Cottons

–Minimum iron

–Automatic

–Express

–Starch

^Press the

Door

button to open the

drum door.

,Warning: The water in the

machine will be very hot and

could cause burning or scalding.

^Add or remove items.

^Close the drum door.

The programme will continue

automatically.

Please note:

Once a programme has started the

machine cannot recognise any

adjustment to the load.

For this reason, if laundry is added or

removed after the start of a programme,

the machine will always complete the

programme cycle assuming a full load

which can lead to an increase in the

programme duration shown in the

display.

The door cannot be opened, if:

–the suds temperature is above a

certain temperature (see "Settings

menu - Door release").

–the water is above a certain level

(e.g. when the

Water plus

extra

option has been selected).

–the programme has reached the

Final spin

stage.

–the electronic programme locking

has been activated.

WASHING

Spinning

The maximum final spin speed

depends on the programme chosen.

Programme rpm

Cottons 1600

Minimum iron 1200

Delicates 600

Silks 400

Woollens 1200

Express 1600

Automatic 1200

Dark garments 1200

Shirts 600

Denim 900

Sportswear 1200

Outerwear 800

Proofing 1000

Curtains 600

Separate rinse 1200

Starch 1500

Drain/Spin 1600

You can reduce the final spin speed.

However, you cannot select a final spin

speed higher than that shown in the

chart above.

Rinse and interim spin

There is a spin after the main wash and

between the rinses. A reduction in the

final spin speed will also reduce the

interim spin speed. If a spin speed of

less than 700 rpm is selected for a

Cottons

programme, an additional rinse

is introduced.

To omit the final spin (Rinse hold)

^Select the

Rinse hold

setting. The

laundry will not be spun and will

remain suspended in the final rinse

water. This reduces creasing if the

laundry is not going to be removed

from the drum immediately after the

end of the programme.

–To start the final spin:

The machine will display the

maximum spin speed possible. You

can select a spin speed lower than

this. Start the final spin by pressing

the

Start

Stop

button.

– To end the programme:

Press the

Door

button. The water will

drain away. Press the

Door

button

again to open the door.

To omit rinse and interim spin and

the final spin

^Select the

Without spin

setting. The

laundry is not spun after the final

rinse. The water will drain away and

the machine will go straight into the

anti-crease stage. An additional rinse

is introduced if this setting is selected

with the

Cottons

Minimum iron

Express

and

Automatic

programmes.

WASHING

Programme chart

Cottons 30°C to 95°C 9876 max. 5.0 kg

Fabric type Cottons, linens or cotton mix fabrics.

Extra options Pre-wash or Soak, Short, Water plus

Detergent Powder detergent, detergent for coloured fabrics, liquid

detergent, tablet detergent and liquid tab detergent.

Minimum iron 30°C to 60°C 876421 max. 2.5 kg

Fabric type Synthetics, mixed fibres and easy care cottons. If fabrics have a

high proportion of man-made fibres it is advisable to programme

the machine for "Gentle action". See "Settings menu J.

Extra options Pre-wash or Soak, Short, Water plus

Detergent Powder detergent, detergent for coloured fabrics, liquid

detergent, detergent for delicates, tablet detergent and liquid tab

detergent.

Delicates cold to 60°C 421 max. 1.0 kg

Fabric type For delicate garments made of synthetic fibres, mixed fibres,

rayon and easy care cottons.

Extra options Pre-wash or Soak, Short

Detergent Liquid detergent for delicates.

WASHING

Silks /cold to 30°C cmax. 1.0 kg

Fabric type Silks and other handwashable fabrics with no wool content, e.g.

satin, lace and silk.

Note Place socks, tights, bras etc. in a washing bag.

Extra option Water plus

Detergent Liquid detergent for delicates.

Woollens /cold to 40°C ac max. 2.0 kg

Fabric type Machine-washable or hand-washable wool or wool blend fabrics.

If the care label does not specify a temperature, wash using the

cold setting.

Detergent Liquid detergent for machine-washable woollens.

Express cold to 40°C 76 max. 2.5 kg

Fabric type Small loads of items which require freshening up and which can

be washed in the

Cottons

programme.

Extra option Water plus

Detergent Powder detergent, detergent for coloured fabrics, liquid detergent.

WASHING

Automatic cold to 40°C 7621 max. 2.5 kg

Fabric type Mixed loads of garments suitable for the

Cottons

and

Minimum iron

programmes. Sort according to colour.

Extra option Pre-wash or Soak, Short, Water plus

Detergent Powder detergent, detergent for coloured fabrics, liquid

detergent.

Dark garments cold to 40°C max. 2.5 kg

Garment Dark garments made from cotton or mixed fibres.

Note Wash inside out.

Detergent Liquid detergent for coloured fabrics.

Shirts cold to 60°C max. 2.0 kg

Notes –Pre-treat collars and cuffs if necessary.

–Wash silk garments in the

Silks

programme.

Detergent Powder detergent, detergent for coloured fabrics, liquid

detergent.

Denim cold to 40°C max. 2.5 kg

Notes –Wash denim inside out.

–Denim often contains excess dye and will run during the first

few washes. Wash light and dark coloured items separately.

Detergent Liquid detergent for coloured fabrics.

Sportswear 30°C to 60°C max. 2.0 kg

Garment Lightly soiled sports garments which require washing or

freshening up.

Detergent Powder detergent, detergent for coloured fabrics, liquid

detergent.

Outerwear cold to 40°C max. 2.0 kg

Garment Outerwear made from micro-fibres such as Gore-Tex®,

SYMPATEX®, WINDSTOPPER®etc.

Notes –Zip up jackets before washing.

–Do not use fabric conditioner.

Detergent Specialist or liquid detergent for delicates.

WASHING

Proofing 40°C max. 3.0 kg

Item For treating microfibre fabrics, skiwear, fine, closeweave

cotton garments (poplin) or tablecloths to provide a water

and dirt resistant finish.

Notes –The items should be freshly washed and spun or dried

before proofing.

–For best results, the items should be heat-treated

afterwards, either in a tumble dryer or by ironing.

Proofing agent –Only use proofing agents which are stated by the

manufacturer as being "suitable for use on membrane

textiles" as these consist of fluorochemical compounds.

Do not use proofing agents which contain paraffin.

–Add proofing agents to compartment j.

Curtains cold to 40°C max. 2.0 kg

Item Curtains, including net curtains, specified as

machine-washable by the manufacturer. A Pre-rinse without

detergent is carried out automatically to remove dust.

Note For curtains which crease easily, reduce the spin speed or

select Without spin.

Extra option Water plus

Detergent All purpose powder detergent, powder detergent for coloured

fabrics or detergent specifically designed for washing

curtains.

Separate rinse max. 5.0 kg

Extra option Rinse hold

Starch max. 5.0 kg

Note The laundry (table cloths, napkins, overalls) should be

washed but not treated with fabric conditioner.

Starching agent Liquid starch, starch formulations, viscous liquid starch,

starch

Drain/Spin max. 5.0 kg

Note For spinning fabrics. Please make sure you select the

appropriate spin speed.

Drain only: Select

Without spin

. Do not use for woollens.

WASHING

Programme sequence

Main wash Rinses Spinning

Water

level

Wash

rhythm

Water

level

Rinses Spinning Final spin

Cottons da(2-32) LL

Minimum iron da(2-33) LL

Delicates ebe3–L

Silks ede2–L

Woollens (c(2LL

Express da(2-33) LL

Automatic (a(2-33) LL

Dark garments (a(3LL

Shirts (a(2–L

Denim (a(3–L

Sportswear da(2LL

Outerwear (be3L4) L

Proofing ––(1–L

Curtains1) (a(3–L

Separate rinse ––e2–L

Starch ––(1–L

Drain/Spin ––––– L

d= Low water level

(= Medium water level

e= High water level

a= Normal wash rhythm

b= Gentle action

c= Woollens

d= Silks

Please continue reading for further details about the programme sequences.

WASHING

This washer-dryer has fully electronic

controls with automatic load

recognition. It takes in the right amount

of water required for the programme

depending on the amount of laundry

and its absorbency rate. This means

that programme cycles and durations

can vary.

The programme sequences outlined in

the chart are based on the basic

programme with a full load. Extra

options which can be selected have not

been taken into account.

The display shows the stage the

programme has reached.

Special features in the programme

sequences:

Anti-crease:

At the end of every programme, with

the exception of the

Woollens

programme, the drum continues to turn

at intervals for up to 30 minutes to help

prevent creasing. The door can be

opened and laundry removed at any

time during the anti-crease phase.

1) Pre-rinse: A Pre-rinse without

detergent is carried out automatically

to remove dust.

2) A third rinse is carried out if:

– there is too much foam in the drum

– a spin speed lower than 700 rpm has

been selected

–

Without spin

has been selected

3) A third rinse is carried out if:

Without spin

has been selected

4) In the

Outerwear

programme, laundry

is only spun after the main wash.

WASHING

Garment care label symbols

/Hand wash (If no temperature

is specified use the lowest

temperature or cold)

hDo not wash

apf Dry clean

DDo not dry clean

ySuitable for chlorine

bleaching

zDo not use chlorine bleach

Tumble dry

qAt normal temperature

rAt low temperature

sDo not tumble dry

Ironing

IHot iron

HMedium hot iron

GCool iron

JDo not iron

Detergent

All modern detergents produced for

automatic washing machines are

suitable, including liquid, compact

(concentrated), tablets and special

application detergents. Use dispensing

aids, e.g. balls, if these are supplied

with the detergent. Tablets are suitable

for full loads but note that it may be

impractical to reduce tablets for smaller

loads. Some tablets do not dissolve as

rapidly as others and may not be

suitable for programmes with short

durations.

Silks, woollens and knitwear containing

wool mixtures and hand-washable

garments should be washed using a

detergent specifically designed for

washing silks and woollens. Do not use

biological detergents on silk as the

enzymes may damage the silk.

Instructions for use and recommended

amounts for a full load are given on the

detergent packaging.

Liquid detergent should be dispensed

using a ball provided by the

manufacturer for programmes without a

pre-wash. Remember to take it out of

the drum before running a drying

programme!

For programmes with a pre-wash you

will need to purchase a special

container from the Miele Spare Parts

department which sits in the main wash

compartment jof the detergent

dispenser drawer. Add liquid detergent

to this container for the main wash and

to compartment ifor the pre-wash.

WASHING

The right amount to dispense will

depend on the following:

–The soiling level of the laundry

Lightly soiled

No visible dirt or stains.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Stains and soiling clearly visible.

–The water hardness level.

Check with your local water supplier

if you do not know the hardness level

in your area.

– The quantity of the laundry (add the

recommended amount of detergent).

Water softeners

A water softener can be used to cut

down on the use of detergents in hard

water areas. Dispense according to the

amount specified on the packaging.

First add detergent and then the water

softener.

Use a quantity of detergent as for soft

water.

Miele do not recommend connecting

the machine to a household water

softener.

Washing with several components

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the

following order:

1. Detergent

2. Water softeners

3. Stain remover

This way the agents are distributed

more evenly.

WASHING

Fabric conditioners or liquid starch

Fabric conditioners make garments soft

to handle and help prevent static cling

when tumble drying.

Starch stiffens and gives body to items

of laundry, e.g. shirts, tablecloths and

bed linen.

^Dispense according to the amount

specified on the packaging.

Automatic dispensing of fabric

conditioner or liquid starch to

laundry at the end of a programme

^Add the fabric conditioner or liquid

starch to compartment §.Do not

exceed the maximum level mark.

It will be automatically dispensed in the

last rinse. At the end of the programme

a small amount of water remains in the

fabric conditioner compartment §.

If starching frequently, clean the

dispenser compartment and

especially the siphon tube and

conditioner channel regularly. See

"Cleaning the detergent dispenser

drawer". Do not add starch

formulations or viscous liquid starch

to the §compartment as it will clog

up.

Adding fabric conditioner separately

^Add fabric conditioner to

compartment §.

^Turn the programme selector to

Further programmes

and select the

Starch

programme.

^Press the

Start/Stop

button.

Adding starch separately

^Prepare the starch solution in

accordance with manufacturer's

instructions on the packaging.

^Add the starch to compartment i.

^Turn the programme selector to

Further programmes

and select the

Starch

programme.

^Press the

Start/Stop

button.

Colour run and dye removers / dyes

^Do not use colour run or dye

removers in this machine.

^Dyes suitable for use in domestic

washing machines can be used.

However, please note that the salt

used in the dyeing process can

cause corrosion to stainless steel

components in the machine if you

dye frequently. Always observe the

manufacturer's instructions carefully.

WASHING

Separate drying

The separate drying programme

must be used if the load in the wash

programme is greater than the

maximum load permitted for drying,

or if you only want to dry part of the

load that was washed.

^Before drying check the drying

symbol on the care label.

qDry at normal temperature

rDry at a low temperature

(select the

Low temperature

extra

option)

sDo not tumble dry

If there is no symbol, dry at your own

risk applying the following principles:

– Cottons and minimum iron items

should be dried using the

appropriate programme.

– Delicate fabrics, e.g. acrylics, should

be dried at a low temperature (select

the

Low temperature

extra option).

Tips on drying

Do not put soaking wet items into

the tumble dryer. Spin them

thoroughly after washing using the

appropriate spin speed.

–Woollens and wool blends tend to

become matted and shrink if dried in

a tumble dryer. They can be partially

dried using the

Woollens

programme.

–Down-filled garments have linings

which have a tendency to shrink,

depending on the quality of the item.

They can be partially dried using the

Smoothing

programme.

–Pure linen should only be machine

dried if specified as suitable by the

manufacturer on the care label, as

the surface of the fabric may

otherwise tend to roughen. They can

be partially dried using the

Smoothing

programme.

–Loopknit garments (e.g. T-shirts and

underwear) tend to shrink depending

on their quality.Do not over-dry these

textiles. When purchasing these

garments it is advisable to take their

shrinkage properties into account.

– Starched laundry can be dried in the

tumble dryer. To achieve the usual

finish, double the amount of starch

should be used.

– Minimum iron fabrics and 100%

cotton shirts or blouses tend to

crease more, the larger the load. This

is particulary the case with delicate

fabrics. If in doubt, reduce the load

or use the

Shirts

programme.

–New dark coloured garments should

be washed and dried separately

from light coloured garments to avoid

the danger of colours running and

discolouring other garments. Dark

coloured fibres can also settle on

light coloured garments and vice

versa.

DRYING

ASort the laundry

^Sort the laundry according to

type of fibre / weave and the residual

moisture content. This will help

achieve an even drying result.

BSwitch the machine on

The interior drum lighting will come on.

CSelect a programme

^Turn the selector to the drying

programme you require.

The programme selected will appear in

the display.

Minimum iron

Further programmes:

When you turn the programme selector

Further programmes

, a list of these

programmes will appear in the display.

EDark garments

Shirts

Denim H

^Select the programme you want and

confirm your selection with the OK

button.

^Press the

Washing/Drying

button

repeatedly until only the

Drying

indicator light is lit up.

The

Washing

indicator light must not

be lit up as this would mean that the

corresponding washing programme

would begin before the drying

process.

900 rpm

Normal

Duration: 0:27 h

Denim

900 rpm Normal

Duration: 1:15 h

^You can then alter the thermospin

speed which is shown highlighted

with the -or +buttons. Press the OK

button to confirm the thermospin

speed you want. The display will then

change to show the drying level.

^You can then alter the drying level

which is shown highlighted with the -

or +buttons.

The thermospin is not carried out

with Smoothing or timed drying.

^Select the

Low temperature

extra

option if required.

Exception: If the

Low temperature

extra option has been selected, the

thermospin will only be carried out in

the

Express

programme.

^Select Delay start, if required.

DRYING

DLoad the drum

^Open the drum door.

^Load the laundry loosely into the drum.

Do not overload the drum. See the

"Programme chart" in the "Drying"

section for recommended loads for

each programme. Overloading can

cause unnecessary wear and tear to the

laundry and give a disappointing drying

result.

EClose the drum door

Make sure you have removed any

detergent dispensing aids, e.g. plastic

dispenser balls, before drying. These

dispensers can melt during the drying

programme and cause damage to the

machine and the laundry.

Make sure that no garments are caught

between the drum door and seal.

The stopcock must be open even if you

are only using the machine for drying.

FStart the programme

^Press the flashing

Start/Stop

button.

The estimated programme duration will

appear in the display. The electronics

continually assess the residual moisture

content of the laundry and adjust the

estimated time remaining for a more

accurate reading. Because of this the

time displayed can alter during the

course of a programme. The time

remaining will count down in one

minute steps. The programme

sequence and the drying level reached

will also be shown in the display.

The drum lighting switches off once the

programme has started.

GRemove the laundry when the

programme has finished

In the anti-crease phase after the

programme has finished, the following

will appear alternately in the display:

Anti-crease

and

iProgramme finished.

Remove laundry, then

switch the machine off.

^Turn the programme selector to the

Stop

position.

^Open the drum door.

^Remove the laundry.

Check that all items have been removed

from the drum. If items are left in the

dryer, they could be damaged by

overdrying when the dryer is next used.

Important: Always remove the laundry

before switching the machine off. This is

important to ensure that the load size

indicator works correctly the next time

the machine is used.

^Switch the machine off.

See "After each washing or drying

programme" for further information.

DRYING

Extra option

Low temperature

The temperature is reduced during

the drying programme.

For all delicate or minimum iron fabrics

with the rsymbol on the care label

(e.g. acrylic garments).

With the exception of the

Express

programme, the thermospin is not

carried out when the

Low temperature

extra option has been selected.

Because the temperature is reduced

when the

Low temperature

extra option

has been selected, the programme

duration is longer.

Thermospin

To save energy a thermospin is carried

out before the drying process begins in

the

Cottons

Minimum iron

Express

Automatic

Dark garments

Shirts

Denim

Sportswear

, and

Outerwear

programmes.

Exception: If the

Low temperature

extra

option has been selected, the

thermospin will only be carried out in

the

Express

programme.

Exception: Thermospin will not be

carried out if

Timed drying

Smoothing

has been selected.

The maximum spin speed for the

thermospin is the same as the

maximum final spin speed for the

relevant wash programme.

Adding or removing laundry

after a programme has started

^Press the

Door

button to open the

drum door.

,Do not touch the metal cap

located on the inside of the door

glass or the back of the drum when

adding or removing items. They

could be very hot - Danger of

burning.

^Add or remove items as required.

^Close the drum door.

The programme will continue

automatically.

The time left shown in the display may

now vary from the actual drying time.

The door cannot be opened, if:

– the temperature is above 70°C (see

"Settings menu - Door release").

–the programme has reached the

Thermospin

stage.

–the electronic programme locking

has been activated.

DRYING

Programme chart

Cottons max. 2.5 kg*

Extra dry, Normal+, Normal**, Timed drying1)

Fabric type Single and multi-layered cotton fabrics such as towelling,

jerseywear, underwear, flannelette bed linen.

Note Do not use

Extra dry

for jersey fabrics as they have a tendency to

shrink.

Extra options Low temperature, thermospin max. 1600 rpm

Hand iron r, Hand iron rr, Machine iron, Timed drying1)

Fabric type Cotton or linen fabrics (e.g. table linen, bed linen, starched

laundry etc.).

Note To prevent laundry from drying out it should be rolled up until you

are ready for ironing.

Extra options Low temperature, thermospin max. 1600 rpm

Minimum iron max. 1.25 kg*

Normal+, Normal**, Timed drying1)

Fabric type Minimum iron items made of cotton, synthetic or blended fabrics,

e.g. shirts, blouses, skirts and table cloths.

Extra options Low temperature, thermospin max. 1200 rpm

Hand iron r, Timed drying1)

Fabric type Minimum iron items made of cotton or blended cotton/synthetic

fabrics, e.g. blouses, table cloths, for machine ironing.

Extra options Low temperature, thermospin max. 1200 rpm

* Weight of dry laundry

** Note for test institutes: Use this programme when testing according to EN 50229 standard

DRYING

Delicates max. 1.0 kg*

8 minutes

Fabric type For delicate fabrics made of synthetic fibres, mixed fibres,

easy care cotton shirts and blouses.

Note This programme is for "loosening" up fabrics. They are not

completely dried in this programme. Remove garments imme-

diately at the end of the programme.

Woollens max. 1.0 kg*

3 minutes

Fabric type Woollen or wool blend fabrics.

Note This programme only fluffs up woollen garments. They are not

dried completely by this programme. Remove garments im-

mediately at the end of the programme.

Express max. 2.5 kg*

Extra dry, Normal+, Normal

Hand ironr, Hand iron rr, Machine iron, Timed drying1)

Fabric type Small loads of garments which can be dryed in the Cottons

programme.

Extra options Low temperature, thermospin max. 1600 rpm

Automatic max. 2.5 kg*

Normal+, Normal, Hand iron r, Timed drying1)

Fabric type Mixed load of cotton and minimum iron fabrics.

Extra options Thermospin max. 1200 rpm

Dark garments max. 2.5 kg*

Normal+, Normal, Hand iron r, Timed drying1)

Item Dark garments made from cotton or mixed fibres.

Extra options Low temperature, thermospin max. 1200 rpm

* Weight of dry laundry

DRYING

Shirts max. 1.0 kg*

Normal+, Normal, Hand iron r, Timed drying1)

Garment Shirts and blouses.

Extra option Thermospin max. 600 rpm

Denim max. 2.5 kg*

Extra dry, Normal+, Normal

Hand iron r, Hand iron rr, Machine iron, Timed drying1)

Extra option Thermospin max. 900 rpm

Sportswear max. 2.0 kg*

Normal+, Normal, Hand iron r, Timed drying1)

Garment Sportswear which is suitable for drying in a tumble dryer.

Extra option Thermospin max. 1200 rpm

Outerwear max. 1.0 kg*

Normal+, Normal, Hand iron r, Timed drying1)

Garment Outerwear which is suitable for drying in a tumble dryer.

Extra option Thermospin max. 800 rpm

Proofing max. 1.5 kg*

Hand iron r

Garment For thermally fixing textiles which are suitable for drying in a

tumble dryer and have been treated with a proofing agent.

Extra option Low temperature

* Weight of dry laundry

1) Timed drying: The

Cottons

Minimum iron

Express

Automatic

Dark garments

Shirts

Denim

Sportswear

and

Outerwear

programmes can be dried using

warm

air

timed drying for durations of between 15 minutes and 2 hours. The drying

temperature is determined by the particular programme being used.

To smooth out creasing, you can also use

Smoothing

(fabrics are not dried

completely).

DRYING

Smoothing max. 2.5 kg*

8 minutes

Fabric type Cotton and linen fabrics. Minimum iron items made of mixed

fibres, cottons or synthetics, e.g. trousers, jackets, shirts.

Note Smooths out creasing caused during the spin cycle in the wash

programme. Fabrics are not completely dried in this

programme. Remove garments as soon as the programme has

finished and leave to finish drying at room temperature.

Timed drying

- Warm air

max. 2.5 kg*

15 minutes to 2 hours

Fabric type For drying or airing individual items.

Note Do not select the longest drying time to start with. Check the

items as you are drying them to find the optimum time.

Timed drying

- Cool air

max. 2.5 kg*

15 minutes to 2 hours

Fabric type Any item which only needs airing.

* Weight of dry laundry

DRYING

Washing and drying in a

continuous sequence

Where the amount of laundry to be

washed and dried in one programme

does not exceed the maximum

weight permitted for the drying

programme, washing and drying in

one continuous sequence is

recommended.

It is very important to read both the

"Washing" and "Drying" sections

before proceeding.

ASort the laundry into colours and

fabric types

BSwitch the machine on

CSelect a programme

^Turn the programme selector to the

required programme.

Minimum iron

^Press the

Washing/Drying

button

repeatedly until both the

Washing

and

Drying

buttons are lit up.

40°C 900 rpm

Normal

Duration: 1:26 h

^Select the temperature and spin

speed you want and confirm with the

OK button.

When washing and drying in a

continuous sequence the laundry is

spun at max. 1200 rpm at the end of

the wash cycle to prevent it sticking

to the drum.

^Select the drying level or drying time

you require.

Denim

40°C 900 rpm ~

Duration: 2:15 h

When you select

Further programmes

the arrow next to the spin speed in the

display indicates that you can call up

the drying level designated for the

programme.

^Now select extra options, if required.

Thermospin will be carried out at the

same speed as the spin speed

displayed for the washing

programme.

Exception: If the

Low temperature

extra option has been selected, the

thermospin will only be carried out in

the

Express

programme.

^Select Delay start, if required.

WASHING AND DRYING

DLoad the drum

^Open the drum door and load the

laundry loosely in the drum.

Follow the load size indicator and do

not overload.

Do not use detergent dispensing

aids, e.g. plastic dispenser balls, for

washing followed immediately by the

drying programme. These

dispensers can melt during the

drying programme and cause

damage to the machine and the

laundry.

EClose the drum door

FAdd detergent

Follow the detergent percentage

display.

GStart the programme

^Press the

Start/Stop

button.

HRemove the laundry when the

programme has finished

^Turn the programme selector to the

Stop

position.

^Open the drum door and remove the

laundry.

See "After each washing or drying

programme" for further information.

WASHING AND DRYING

^Open the drum door fully.

,Warning, the metal cap located

on the inside of the door glass is

very hot after drying. Do not touch

it. Danger of burning!

^Remove the laundry.

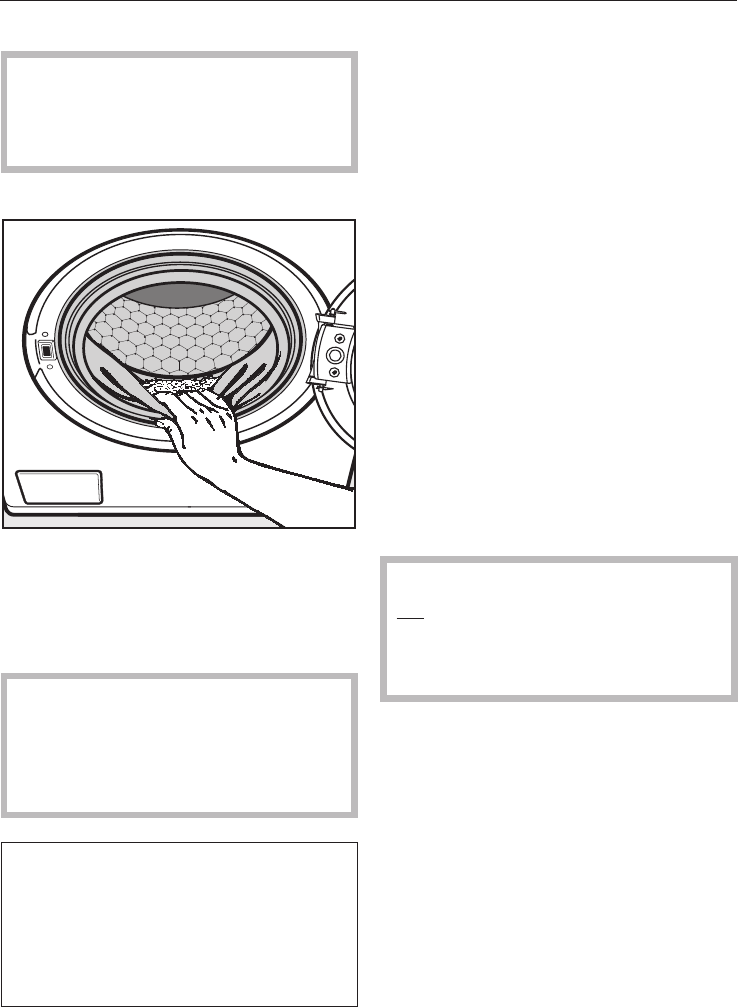

^Check the folds in the door seal for

any small articles, e.g. buttons which

might be lodged there. Remove any

fluff from drying from around the door

seal.

Check that all items have been

removed from the drum. Items left

behind could colour run, shrink or

be damaged in the next washing or

drying programme.

Important: Always remove the

laundry before switching the machine

off. This is important to ensure that

the load size indicator works

correctly the next time the machine is

used.

^Switch the machine off with the

I-On/

0-Off

button.

^Close the door.

Otherwise there is the danger of

objects being placed inadvertently in

the drum. If these remained

unnoticed and were washed or dried

in the next load, they could damage

the laundry.

After drying

Rinse out fluff programme

The fluff which occurs during drying

can collect in the drum and also in the

suds container. It is best to rinse out

this fluff before the machine is used

again so that it cannot be deposited on

the next load (e.g. fluff from dark

garments being deposited on lighter

coloured items) or cause a blockage.

The

Rinse out fluff

programme must

not be used for rinsing laundry.

Make sure that there is no laundry in

the drum before starting this

programme.

^Switch the machine on.

^Turn the programme selector to the

Rinse out fluff

programme.

^Press the

Start/Stop

button.

The fluff will be rinsed out after a few

minutes.

^Remove any remaining fluff from

around the door seal.

^Switch the machine off.

After each washing or drying programme

Cancelling a programme

You can cancel a programme at any

time after it has started.

^Press the

Start/Stop

button briefly or

turn the programme selector to

Stop

... During washing:

The suds will be pumped away and the

washing programme is cancelled.

... During drying:

The garments will be cooled down

before the door can be opened.

If you want to remove the laundry:

^Press the

Door

button.

If you want to select a different

programme:

^Switch the machine off with the

I-On/

0-Off

button.

^Switch the machine back on again

and select a new programme.

Interrupting a programme

^Switch the machine off with the

I-On/

0-Off

button.

To continue with the same programme:

^Switch the machine on with the

I-On/

0-Off

button.

Altering a programme

After the start of a programme it is no

longer possible to select a different

programme.

You will need to cancel the current

programme before you can select a

new one.

Altering the temperature

You can alter the temperature of a

washing programme up to 5 minutes

after the programme has started.

^Use the –and +buttons to alter the

temperature.

Altering the spin speed

^Press the OK button. The spin speed

will be shown highlighted. You can

use the –and +buttons to change

the spin speed up until the final spin

begins.

You can change the thermospin

speed up until the thermospin

begins.

Altering the drying level / drying time

You can alter the drying level or drying

time during the washing programme

but not once the drying programme has

started.

Changing the programme sequence

Selecting or deselecting a drying

programme

You can select or deselect the drying

function during a washing programme if

this is permitted for the particular

programme.

Changing extra options

It is possibe to select or deselect the

Short

and

Water plus

extra options up

to 5 minutes after the washing

programme has started.

The buzzer can be switched on or off at

any time.

Please note that no changes are

possible if programme locking has

been activated.

Electronic programme locking

Programme locking prevents the

machine from being opened or the

programme cancelled during a

washing or drying programme.

To activate programme locking

^Once the programme has started,

press the

Start/Stop

button for at

least 6 seconds until the following

appears in the display:

XLocked

The machine will now not accept any

changes and the programme will

proceed through to the end.

Programme locking is deactivated

automatically at the end of the

programme.

Deactivating programme locking

early

^Press the

Start/Stop

button for at

least 6 seconds until the following

appears in the display:

WReady

Changing the programme sequence

With delay start you can choose when

you want the programme to end. The

start of a programme can be delayed

from 30 minutes up to a maximum of 24

hours, allowing you to make use of

night-time economy electricity rates, for

example.

The current time of day needs to

have been set for delay start to work

correctly.

To select Delay start

^Select the programme you want and

then press the mbutton.

9:51

Start time: 9:51

Finish: 11:19

The display shows the current time of

day and the time the programme is due

to end.

^Use the +button to select the time

you want the programme to end at.

9:51

Start time: 13:32

Finish: 15:00

The first press on the button will adjust

the programme end time to the next full

or half hour. Each subsequent press on

the button will delay the programme

end time by 30 minutes.

Use the -button to shorten the time if

you have chosen too long a time.

^Confirm the programme end time by

pressing the OK button.

To begin Delay start

^Press the

Start/Stop

button.

30°C 900 rpm

Start in: 3:41 h

The display will show when the

programme will be started in hours and

minutes.

To alter Delay start

^Press the mbutton.

^Use the +and –buttons to alter the

time you want the programme to end

at.

^Press the OK button to confirm the

time selected.

To cancel Delay start

^Press the mbutton.

^Use the –button to bring the end

time of the programme forward until it

is the same as the current time of

day.

^Press the OK button to confirm.

The programme will now start immedi-

ately.

The actual load size can only be

determined accurately by the

machine once the programme has

started. The programme end time

may, therefore, be a bit later or

earlier than first indicated.

Delay start

,Disconnect the machine from the

electricity supply by switching off at

the wall socket and withdrawing the

plug before any cleaning and

maintenance work.

Cleaning the machine

,Do not use solvents, abrasive

cleaners, glass cleaners or

all-purpose cleaning agents.

These might damage plastic

surfaces and other components

because of the chemicals they

contain. The machine must not be

hosed down.

^Clean the casing with a mild

non-abrasive cleaning agent or soap

and water. Wipe dry with a soft cloth.

^The drum can be cleaned using a

suitable proprietary stainless-steel

cleaning agent following the

manufacturer's instructions on the

packaging.

E-Cloth

A microfibre "E-Cloth" is available from

the Miele UK Spare Parts Department,

which is suitable for cleaning surfaces

such as stainless steel, glass, plastic

and chrome without the use of

chemicals.

Extra cleaning

Carry out a hot wash (70°C or above)

with powder detergent approx. every 6

weeks to help prevent deposits building

up in the machine. These can occur

when washing is mainly done at low

temperatures, and also lead to

unpleasant smells. If you have no

reason to wash occassionally at this

high temperature, then run a Cottons

95°C programme with detergent but no

laundry at regular intervals.

Cleaning and care

Cleaning the detergent dispenser

drawer

Remove detergent residues regularly.

^Pull out the detergent dispenser

drawer until a resistance is felt. Press

down the release catch and at the

same time pull the drawer right out of

the machine.

^Clean the detergent drawer with

warm water.

^Clean the siphon.

1. Remove the siphon from

compartment §and rinse under

warm running water. Clean the

siphon tube in the same way.

2. Replace the siphon.

Over time, detergent residue can build

up in the water jets in the top of the

detergent drawer housing.

^Before replacing the detergent

drawer, use a bottle brush or similar

to clean them out.

Cleaning and care

Cleaning the porthole glass

^From time to time you should also

clean ...

–the door glass on the inside using a

mild detergent or soap and water.

–the metal cap on the inside of the

door glass with a suitable proprietary

stainless steel cleaning agent

following the manufacturer's

instructions on the packaging.

^Wipe dry using a soft cloth.

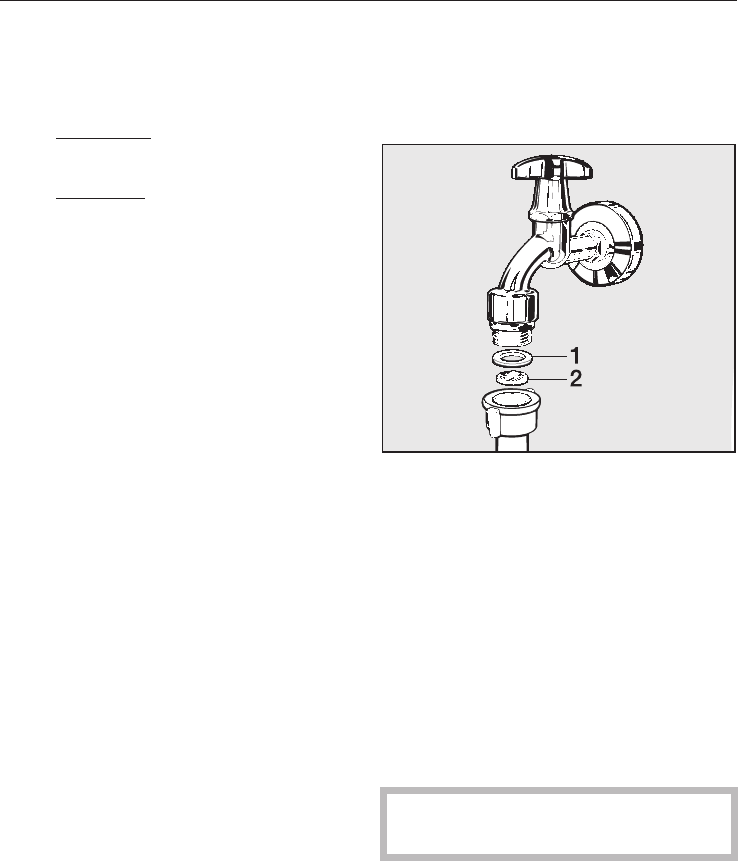

Cleaning the filter in the water

inlet

The machine has a filter to protect the

water inlet valve.

The accessible filter in the union in the

open end of the inlet hose should be

checked every six months, or more

often if there are frequent interruptions

to the external water supply.

^First turn off the stopcock.

^Unscrew the threaded union

connecting the free end of the inlet

hose to the stopcock.

^Remove the rubber seal 1from the

recess.

^Using pointed pliers, take hold of the

plastic filter bar 2and remove.

^Clean the plastic filter.

^Put the filter and seal back in the

reverse order and reconnect the

hose.

Turn on the stopcock and check the

connection is watertight. If water drips

out, tighten the connection.

Never forget to put the filter back in

place after cleaning.

Cleaning and care

What to do, if . . .

With the help of the following notes, minor faults in the performance of the

appliance, some of which may result from incorrect operation, can be put right

without contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a

suitably qualified person in accordance with local and national safety

regulations. Repairs and other work by unqualified persons could be

dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start.

Problem Possible cause Remedy

The display remains

dark and the

programme selector is

not lit up.

There is no power to

the machine.

Check whether

–the mains plug is plugged

in and switched on.

–the fuse or circuit breaker

has tripped.

The display shows:

Machine locked

Enter code.

The electronic system

lock has been

activated (see

Settings

Lock

Enter the code for the system

lock and confirm the entry.

Deactivate the system lock if

you do not wish this message

to appear in the display the

next time the machine is

switched on.

The programme does

not start when Drain/

Spin has been

selected.

The machine has not

been prepared for

using for the first time.

Prepare the machine as

described in "Before using for

the first time".

The display is dark. The display has

switched off

automatically to save

energy (Standby

mode).

Press a button. Standby

comes to an end.

Problem solving guide

Fault messages in the display

Message in the display Possible cause Remedy A

qDrain

fault –The water outlet is

blocked or

restricted.

–The drain hose has

been fixed too high.

–Clean the drain filter and

the drain pump as

described in "Opening

the drum door in the

event of a blocked drain

outlet and/or power

failure".

–The maximum drain

height is 1 m.

pInlet

fault –The water inlet is

blocked or

restricted.

Check whether

–the stopcock is opened

wide enough.

–the inlet hose is kinked.

oWPS

activated The water protection

system has reacted.

Call the Service

Department.

äDrum lighting

fault The drum lighting unit

is not fitted correctly.

Fit it correctly.

,Technical fault

Call the Service

Department

There is a fault. Start the programme again.

If the fault message

appears again, contact the

Service Department.

ATo switch off the fault message: Switch the machine off with the

I-On/0-Off

button.

Problem solving guide

Problems with the load size indicator

Problem Possible cause Remedy

The display

indicates a load of

<25% or no load

size is indicated

when the drum is

full.

There was

laundry in the

drum when the

machine was

switched on.

This has

decalibrated the

sensor from the

zero setting.

To recalibrate the sensor to the zero setting:

–Remove the laundry from the drum.

–Switch off the machine and leave the

door open.

–Switch on the machine.

–Turn the programme selector to the

Cottons

position.

Press and hold the

Load/Detergent

button pressed in until the following

appears in the display:

Zero setting OK

The display

indicates a load

greater than <25%

when the drum is

empty.

The load size

sensor has been

decalibrated

from the zero

setting.

Rotate the drum once. If the display still

indicates a load greater than

<25%

recalibrate the sensor to zero again (see

above section).

The following fault

message appears

inthe display:

Zero setting not

possible

The drum door is

closed. –Open the drum door.

–Recalibrate the sensor to zero

again.

The drying

programme stops

and the following

message appears

in the display:

Check load

There is very little or no

laundry in the drum.

Drying individual

garments or items which

are already dry can also

cause the programme to

be cancelled.

In future, use timed drying after

selecting a specific drying

programme or use the

Warm air

timed drying programme for drying

individual items.

At the end of a

drying programme

the following

message appears

in the display:

Check load

The machine has

recognised an

overload.

In future do not exceed the

maximum load.

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes

during the spin cycle.

The machine feet are not

level.

Level the machine (see

"Installation and

connection").

The pump makes

strange noises.

This is not a fault! These noises occur at the end of a

pump sequence as a normal part of the operation.

Large amounts of

detergent residue

remain in the detergent

dispenser drawer.

The water supply pressure

is too low. –Clean the filter in the

water inlet.

–It may be useful to

select the

Water plus

extra option.

Powder detergent used in

conjunction with water

softeners tends to become

sticky.

In future, add washing

powder into the

dispenser drawer first,

and then add the water

softener.

Fabric conditioner is

not completely

dispensed or too much

water remains in the §

compartment.

The siphon tube is not

correctly positioned or is

clogged up.

Clean the siphon, (see

"Cleaning and care -

Cleaning the detergent

dispenser drawer").

The laundry has not

been spun

satisfactorily.

The spin speed selected

was too low.

Select a higher spin

speed next time.

When laundry is dry it

feels hard to the touch.

Too vigorous wash action. Programme in gentle

action and more water.

Not enough detergent was

used.

Increase detergent dose

to prevent limescal build

up in laundry.

No fabric conditioner was

used.

Use fabric conditioner in

last rinse.

The display is in a

different language.

A different language has

been selected in

"Settings J" "Language J".

Set the language you

want. The flag symbol will

guide you.

Problem solving guide

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent

does not give the

required result.

Liquid detergents

usually contain no

bleaching agents. They

do not remove fruit,

coffee and tea stains.

–Use a general purpose

detergent containing a

bleaching agent.

–Pour stain removers into

compartment jand liquid

detergent into a dispenser

ball (remember to remove

the dispensing ball before

drying!).

–Never put stain removers

and liquid detergent together

in the dispenser drawer.

Grey, greasy

particles cling to

washed laundry.

Insufficient detergent

has been used to break

down the particles of

grease in heavily soiled

laundry.

–Use more detergent.

–Before washing the next load

run a

Cottons 95°C

programme with powder

detergent but without a load.

White residues

which look like

powder detergent

are seen on dark

textiles after

washing.

The detergent contained

compounds (zeolites) to

aid water softening

which are not soluble in

water. They have ended

up on the laundry.

–Try and brush off the

residues with a soft brush

once the laundry is dry.

–Wash dark textiles using a

detergent which contains no

zeolites. Liquid detergents

usually contain no zeolites.

A stale smell is in

the drum and on

laundry.

Low temperature

washing.

Before washing the next load

run a Cottons 95°C programme

with powder detergent but

without a load.

Clothes are coming

out creased.

Programme was

overloaded.

Reduce quantity of clothes in

the drum.

The wrong programme

was used. –Check care labels and the

programme chart.

–Use easy iron conditioners.

Problem solving guide

An unsatisfactory drying result

Problem Possible cause Remedy

The laundry is still

damp after a drying

cycle.

The load was too small

for the electronics to

assess the residual

moisture correctly.

In future dry small loads in a

timed drying programme.

The laundry has formed

a ring in the drum during

the spin because it was

distributed unevenly.

–Turn the programme selector

Stop

–Open the door and loosen

the laundry.

–Start the drying programme

again using a lower spin

speed.

The laundry has formed

a ring in the drum during

the thermospin because

it was too damp or the

spin speed was set too

high.

Warm laundry feels

damp.

Extend the cool down time, as

described in "Settings menu J",

"Set extended cool-down".

The laundry is too

damp or too dry

after a drying cycle.

The required residual

moisture level is

between two drying

levels.

Either extend or shorten the

drying times, as described in

"Settings menu J", "Alter time".

There is still water

in the drum after

drying.

There is a blockage in

the water outlet.

Clean the drain filter and the

drain pump as described in

"Problem solving guide –

Opening the drum door in the

event of a blocked drain outlet

and/or power failure".

Problem solving guide

The drum door cannot be opened by pressing the Door button

Problem Remedy

The machine is not

connected to the

electricity supply and / or

is not switched on.

Insert the plug in the socket and switch on and /

or switch the machine on with the

I-On/0-Off

button.

The electronic programme

locking has been

activated.

Deactivate programme locking as described in

"Electronic programme locking".

The electronic system lock

has been activated.

Deactivate the system lock as described in

"Settings menu J".

Power cut. Open the drum door as described in the next

section.

The door was not correctly

engaged.

Press hard against the lock side of the drum door

and then press the

Door

button.

There is still water in the

drum and the machine is

unable to drain.

Clean the drain filter and drain pump as

described in the next section.

The door cannot be

opened during or after a

washing or drying

programme.

For safety reasons the drum door cannot be

opened if the temperature higher than 70°C.

–Wait until the temperature is below 70°C.

–If the Door release setting has been

deactivated, the door can only be opened if the

temperature is below 55°C. Activate the Door

release setting, as described in "Settings

menu J".

–Use the "Set extended cool-down" setting, as

described in "Settings menu J".

Problem solving guide

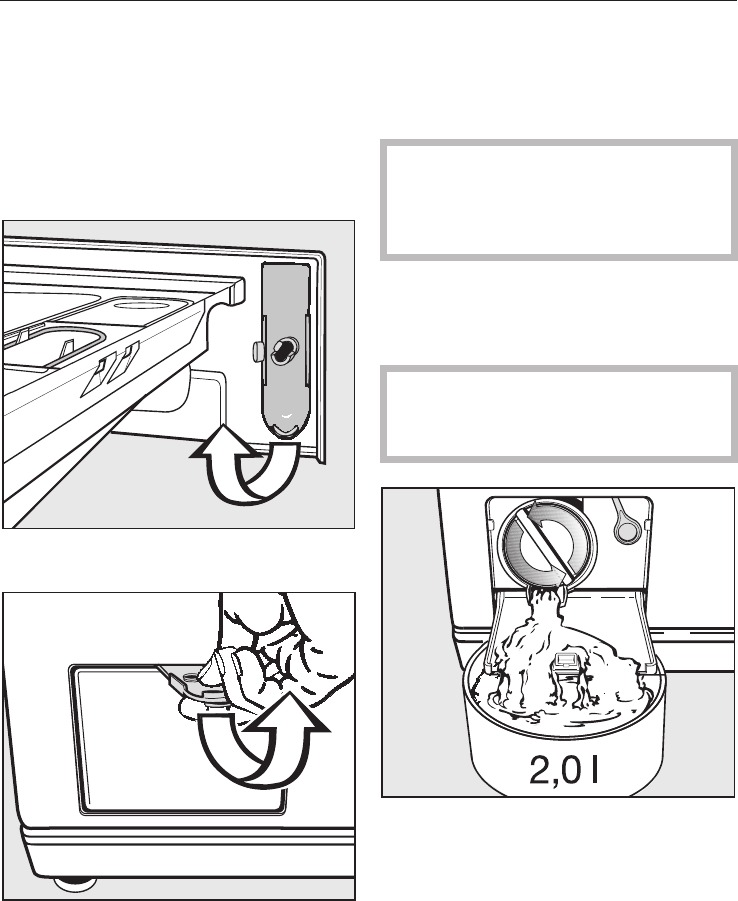

Opening the drum door in the

event of a blocked drain outlet

and/or power failure

^Switch the machine off.

There is a lever behind the detergent

drawer fascia panel.

^Remove the lever.

^Use it to open the access flap.

Blocked drain outlet

If the drain outlet is blocked, up to 25

litres of water will be retained in the

machine.

,Caution: if laundry has been

washed at a high temperature, water

draining out of the machine will still

be hot. Danger of scalding!

Procedure for draining the machine

^Place a suitable container under the

access flap.

When draining water from the

machine, do not unscrew the drain

filter completely or take it right out.

^Unscrew the drain filter lid until water

runs out.

To interrupt the flow of water:

^Tighten the drain filter back up again.

Problem solving guide

Once the flow of water ceases:

^Remove the drain filter completely.

^Clean it thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff from the

filter housing. Turn the impeller by

hand to check that it rotates freely.

^Put the drain filter back in place and

secure.

,Make sure the drain filter is

securely tightened. Otherwise there

is a risk of water leakage during use.

Opening the drum door

,Always make sure that the drum

is stationary before reaching into the

machine to remove laundry.

Reaching into a moving drum is

extremely dangerous.

^Pull the emergency release

downwards (see illustration). The

drum door will open.

Problem solving guide

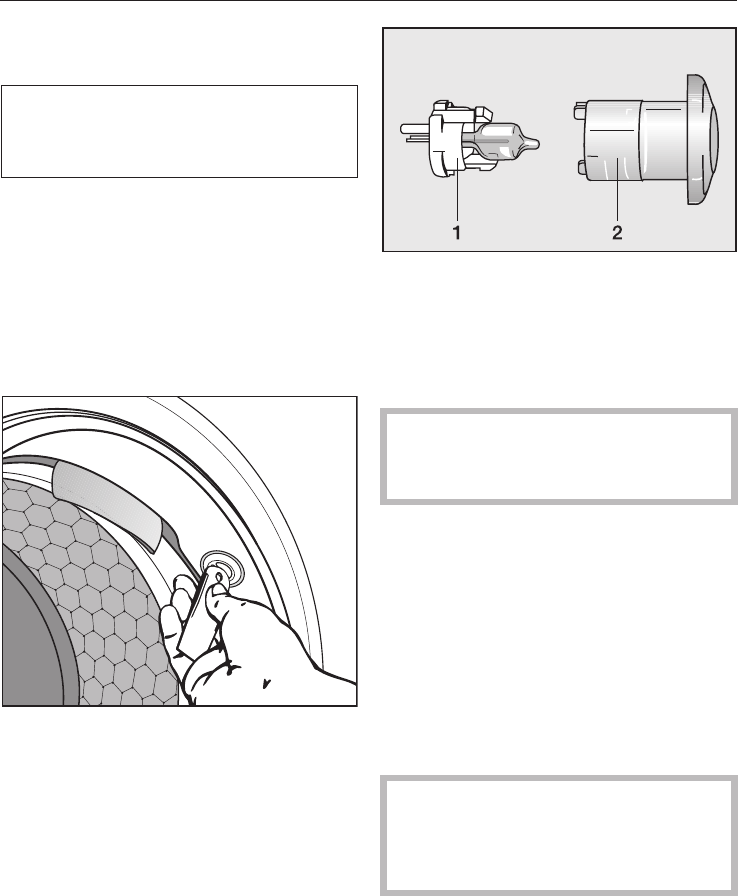

Changing the lamp for the

drum lighting

The machine will still operate with no

lamp in place or if the lighting is

faulty.

^Remove the yellow lever from behind

the detergent drawer facia panel.

^Switch the machine on and open the

drum door.

^Now disconnect the machine from

the electricity supply, see "Warning

and Safety instructions".

^Insert the lever in the slot provided in

the drum lighting unit (see illustration)

and turn anti-clockwise (a quarter

turn) until you feel a resistance.

^Carefully pull out the loosened unit,

using the lever to help you.

^Press the two prongs to separate the

plastic holder 1from the protective

cover 2.

^Remove the faulty lamp from the

plastic holder.

The new lamp must be of the same

type (G4) with a maximum power

output of 5 watts/12 volts.

The lamps are available from an

electrical retailer, your Miele Dealer or

from the Miele Spare Parts Department.

^Insert the new lamp in the plastic

holder.

^Carefully fit the plastic holder and the

protective cover together.

^Insert the lighting unit into the socket

and turn it clockwise to secure it.

It is absolutely essential for the

correct functioning of the machine

that the lighting unit is fitted correctly

in position.

Problem solving guide

In the event of any faults which you

cannot remedy yourself, please

contact:

–your Miele dealer, or

–the Miele Service Department

(see back cover for contact details).

When contacting the Service

Department, please quote the model

and serial number of your appliance,

both of which are shown on the data

plate visible above the door glass when

the door is open.

Future updates (PC)

The indicator or check light marked PC

is the interface used by Miele service

technicians during servicing work for

testing purposes and for updating the

machine's programme data.

Appliance guarantee

Please see the guarantee card

supplied with your machine.

Optional accessories

Optional accessories for this machine

are available from your Miele Dealer or

from the Miele Spare Parts Department.

Please note that telephone calls may

be monitored and recorded for

training purposes.

After sales service

Front view

aInlet hose

bElectricity supply cable

c-fFlexible drain hose (with

detachable swivel elbow)

gControl panel

hDetergent dispenser drawer

iDrum door

jAccess to drain filter, drain pump

and emergency release

kHandle recesses for moving the

machine

lFour height adjustable feet

Installation and connection

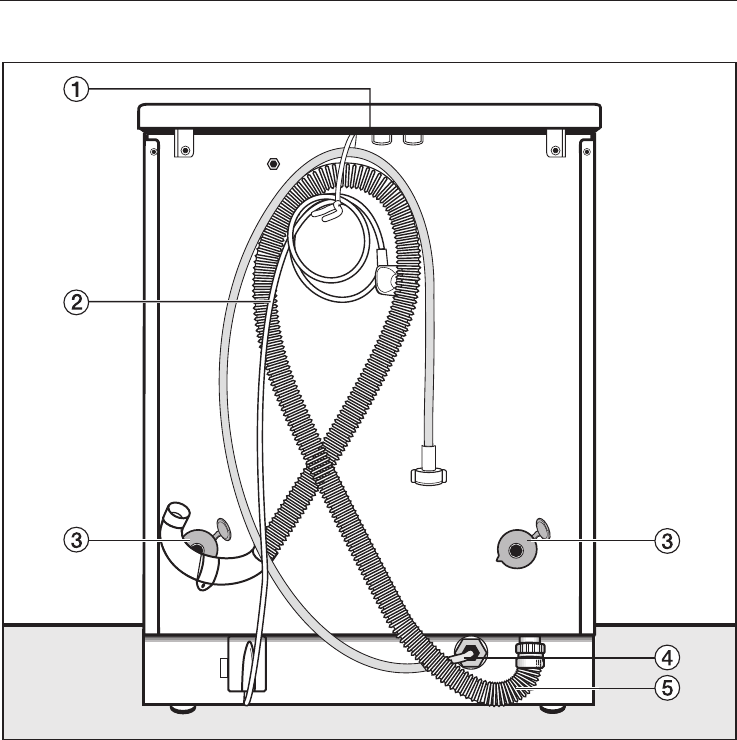

Rear view

aProtruding lid for holding when

moving the machine

bElectricity supply cable

cTransit bar covers

dInlet hose

eDrain hose

Installation and connection

Installation surface

A concrete floor is the most suitable

installation surface, being far less

prone to vibration during the spin cycle

than wooden floorboards or a carpeted

surface.

Please note the following points:

^The machine must be level and

securely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

If installing on a wooden joist floor:

^We recommend a plywood base (at

least 59x52x3 cm) The base should

span several joists and be bolted to

the joists and not only to the

floorboards. Check for the presence

of pipes and cables first.

If possible, install the machine in a

corner, as this is usually the most stable

part of the floor.

,If the machine is installed on a

raised plinth, it has to be secured

against slippage during spinning

using retaining clips (available from

the Miele Spare Parts Dept).

Installing the washer-dryer

To manoeuvre the machine out of its

packing case to its installlation site,

hold it by the edge of the lid where it

protrudes to the rear of the machine as

well as by the handle recesses at the

front.

Please note:

^Do not lift the machine by the drum

door.

,Ensure that the machine feet and

the floor are dry to prevent the

machine from slipping during the

spin cycle.

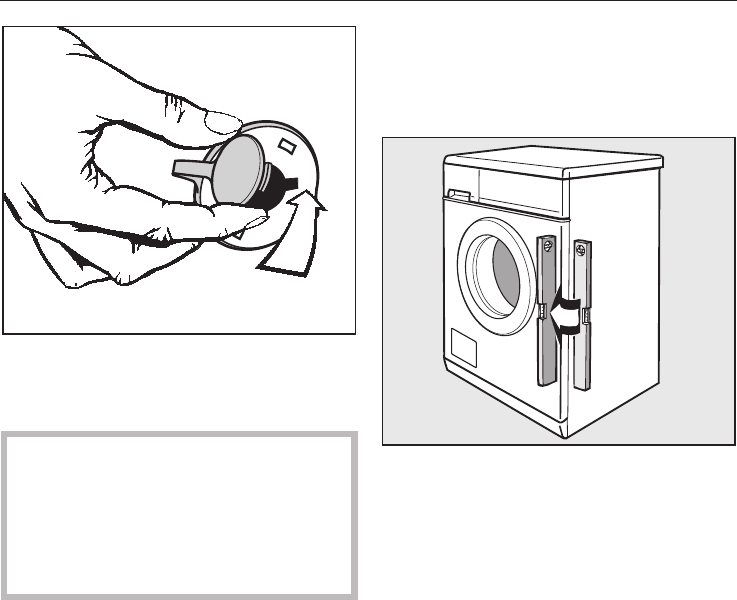

Removing the transit fittings

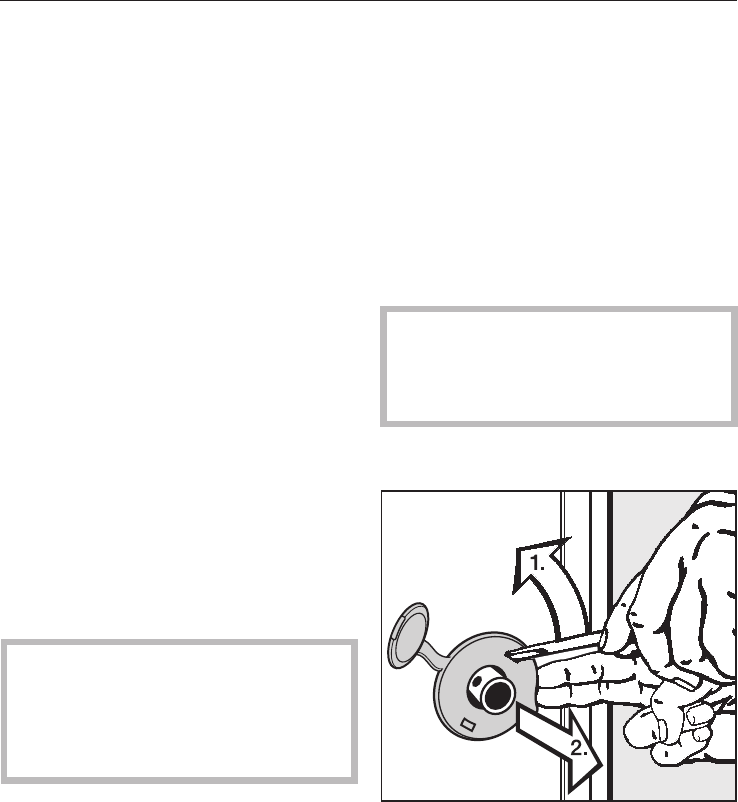

^To remove the left and right covers

1. Use a screwdriver to prise out the

cover as illustrated.

2. Pull the cover forwards to remove.

Installation and connection

^Using the spanner supplied turn the

left-hand transit bar 90°, then

^withdraw the transit bar.

^Turn the right-hand transit bar 90°,

then

^withdraw the transit bar.

Installation and connection

^Fit the covers on to the two holes.

Then plug the holes as shown with

the caps.

,The machine must not be moved

without the transit fittings in place.

Store them in a safe place for future

use. They must be re-fitted if the

machine is to be moved again (e.g.

when moving house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase

electricity and water consumption and

may cause the machine to move about.

False values may also show in the Load

and Detergent display.

Installation and connection

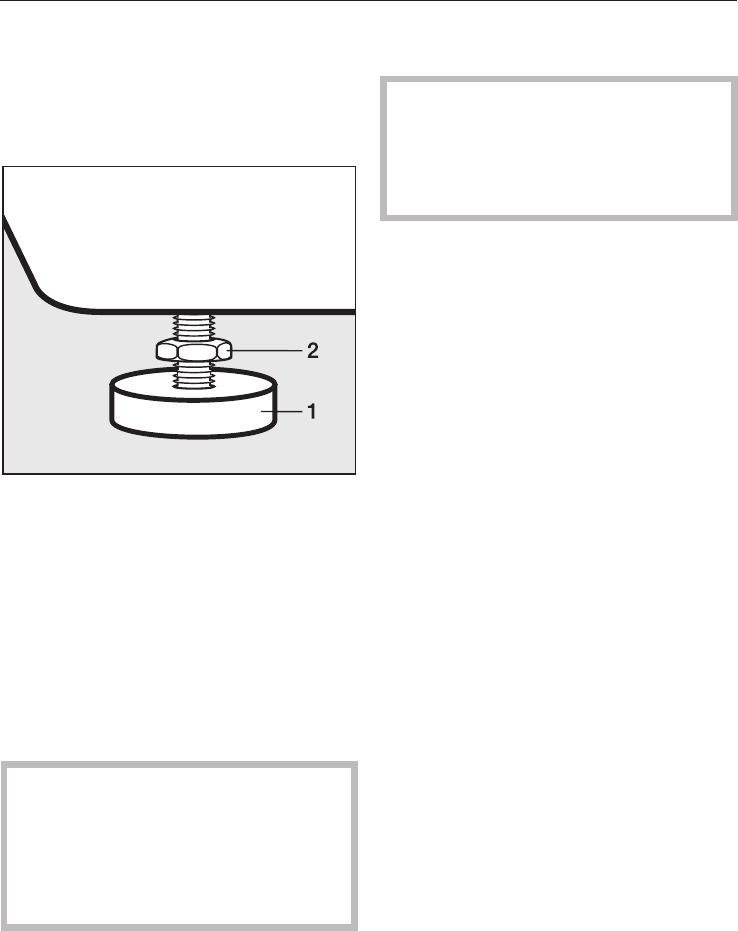

Screwing out and adjusting the feet

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is

delivered.

^Using the spanner supplied turn

counter nut 2in a clockwise

direction. Then turn counter nut 2

together with foot 1to unscrew.

^Use a spirit level to check the

machine is standing level.

^Hold foot 1securely with a pipe

wrench. Turn counter nut 2again

using the spanner supplied until it

sits firmly up against the housing.

,All four counternuts must sit

firmly up against the housing. Please

also check this for the feet which did

not need adjustment. Otherwise

there is the danger of the machine

moving about.

Building under a continous worktop /

in a kitchen run

The fitting of building under kits

must only be undertaken by

qualified and competent persons, in

accordance with the instructions

supplied with the kit.

If you wish to push your machine under

a worktop and there is space to do this

without removing the lid, the

conversion kit is not necessary.

Otherwise it is essential.

– The building under conversion kit*

includes a cover plate which must be

fitted to ensure electrical safety.

– When installing under a 900/910 mm

high worktop a raising kit* is

required.

– Connections for electricity, water and

drainage should be installed in such

a way that they remain accessible

when the machine is in place.

Fitting instructions are supplied with the

conversion kit.

All parts marked * are available from

the Miele Spare Parts Department.

Installation and connection

The Miele water protection

system

The Miele water protection system

protects the machine from water

damage.

The system consists of three main

components:

1) the inlet hose

2) the electronic unit and the machine

housing

3) the drain hose

1) Inlet hose

The inlet hose can withstand

pressure of more than 7,000 kPa.

2) Electronic unit and machine

housing

– Sump

Any leaking water is collected in a

sump in the base of the machine. A

float switches off the safety valves,

preventing any more water flowing

into the machine and water in the

suds container is pumped away.

–Overflow protection

This prevents the machine taking in

too much water. If the water level

exceeds a certain level, the drain

pump switches in and pumps the

excess water away.

3) Drain hose

The drain hose is protected by a

ventilation system which prevents the

machine from being emptied

completely.

Installation and connection

Connection to the water supply

The machine should be connected to a

mains water supply in accordance with

local and national safety regulations.

The German authorities do not require it

to have a non-return valve as the

machine has been designed to comply

with DIN regulations.

The machine is designed to operate

with a flow pressure of between

100 kPa and 1,000 kPa. If it is higher

than 1,000 kPa it is essential to fit a

reducer valve.

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4" thread. The stopcock should

be fitted by a qualified plumber.

,The connection point is subject

to mains water pressure. Turn on the

stopcock slowly and check for leaks.

Correct the position of the washer

and union if appropriate.

The machine is not suitable for

connection to a hot water supply

and connection to a household

water softener is not recommended.

Maintenance and care

Only use a genuine Miele hose should

you ever need a replacement or

extension. These are tested to

withstand pressure of at least

7,000 kPa.

In order to protect the water inlet

valve, the two dirt filters - one in the

open end of the inlet hose, one at

the inlet point in the machine must

not be removed.

Extension hose

Longer hoses 2.5 or 4.0 m in length are

available from your Miele dealer or the

Miele Spare Parts Department as

optional extras.

Installation and connection

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre*. The

drain hose must not be kinked as this

restricts drainage. The swivel elbow at

the end of the hose can be turned in

either direction, or can be detached if

required, with a sharp twist and pull.

If required the drain hose can be

extended to a length of 5 m. The

necessary parts can purchased from

the Miele Spare Parts Department or

your Miele dealer.

* For a delivery head of more than 1 m

(up to a max. of 1.8 m) a second

duo-drain pump is available with the

corresponding kit from the Miele Spare

Parts Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin.

Please note the following:

–Hook the hose over the edge and

secure.

–Make sure that the water can drain

away freely without hindrance.

Otherwise there is a risk of water

overflowing or of some of the drained

water being sucked back into the

machine.

2. Connected securely to a plastic drain

pipe with a rubber nipple. There is no

need to use a non-return valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

Installation and connection

Electrical connection U.K.

All electrical work should be carried out

by a suitably qualified and competent

person, in strict accordance with

national and local safety regulations.

Ensure power is not supplied to the

appliance until after installation work

has been carried out.

The appliance is supplied with a mains

cable with moulded plug ready for

connection to a 230-240V mains

supply. The voltage and connected

load are given on the data plate.

Please ensure these match the

household mains supply. The fuse

rating is quoted on the plug.

Connection should be made via a

suitable switched socket which is easily

accessible after installation.

For extra safety it is advisable to install

a residual current device (RCD), with a

trip current of 30 mA (in accordance

with DIN VDE 0664, VDE 0100 Section

739).

Do not connect via an extension lead.

Extension leads do not guarantee the

required safety of the appliance (e.g.

danger of overheating).

Non-rewireable plugs BS 1363

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA

approved to BS 1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation and connection

Load Consumption data

Energy Water Duration

in kWh in litres Short Normal

Washing

Cottons 95°C 5.0 kg 1.70 42 1 h 53 min 2 h 08 min

60°C1) 5.0 kg 0.85 42 1 h 29 min 1 h 58 min

40°C1) 5.0 kg 0.49 42 1 h 29 min 1 h 58 min

Minimum iron 40°C1) 2.5 kg 0.44 49 1 h 05 min 1 h 20 min

Delicates 30°C 1.0 kg 0.33 65 49 min 59 min

Automatic 40°C 2.5 kg 0.30 - 0.60 30 - 50 44 min 59 min

Express 40°C 2.5 kg 0.30 30 - 32 min

Woollens /30°C 2.0 kg 0.22 35 - 39 min

Silks /30°C 1.0 kg 0.24 39 - 36 min

Drying

Cottons Normal 2) 2.5 kg 1.30 11 - 1 h 12 min

Minimum iron Normal 2) 2.5 kg 0.65 5 - 37 min

Washing and Drying in a continuous sequence

Cottons 60°C

Normal3) 5.0 kg 3.40 65 - 4 h 30 min

Cottons 60°C

Normal

2.5 kg 2.30 45 - 3 h 00 min

Note for test institutes:

1) EN 60456 test programme

2) EN 61121 test programme

3) EN 50229 test programme

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any extra options

selected.

Consumption data

Height 85.0 cm

Width 59.5 cm

Depth 58.0 cm

Depth with door open 97.5 cm

Weight 101 kg

Maximum floor load 1600 Newton (approx. 160 kg)

Capacity - Washing

Capacity - Drying

5.0 kg dry laundry

2.5 kg dry laundry

Voltage see data plate

Connected load see data plate

Fuse rating see plug

Consumption data see "Consumption data"

Water flow pressure minimum 100 kPa (1 bar)

Water flow pressure maximum 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Connection cable length 1.60 m

Drain pump head max. 1.00 m

Drain pump length max. 5.00 m

Lamp for drum lighting Type G4 (5 watts/12 volts)

Test certificates awarded Radio / TV suppression, VDE

Technical data

Settings menu J

for changing standard settings

The Settings menu is used to alter the machine's electronics to suit changing

requirements.

Settings can be altered at any time.

To open the Settings menu

ASwitch on the machine. The main

menu will appear.

15:03

Select programme

BAfter a few seconds an additional

line will appear in the display.

15:03

Select programme

Settings F...

CConfirm your selection by pressing

the OK button.

DThis will take you into the

Settings

menu.

CBack A

Language F...

Time . . . H

EUse the –and +buttons to select the

setting you want and confirm your

selection by pressing the OK button.

Important:

If you do not make a selection in the

Settings menu and in its sub-menus

within approx. 20 seconds, the menu

display will revert to the main menu.

Language J

The display can be set via the

Language sub-menu to appear in

one of several different languages.

The flag after the word

Language

acts

as a guide to prevent a language which

will not be understood from being set.

A tick will appear beside the language

to show that it has been set.

^Select the language you want and

confirm your selection.

Settings menu J

Time of day Y

You first have to decide whether you

want the time to show in the display.

Then you have to select either a 24

hour or 12 hour clock.

Then set the current time of day.

To select a 24 hour or 12 hour clock

^Use the –and +buttons to select the

clock option setting you want and

confirm your selection by pressing

the OK button.

The display for setting the time of day

will then appear.

To set the time of day

00 :00

Set the time

^Set the hour with the –and +buttons

and confirm your setting by pressing

the OK button. Now set the minutes.

The display will return to the

Settings

menu.

The time of day can also be set by

pressing the mbutton before

selecting a programme.

Water plus T

This setting is used to select the

water intake setting for the

Water plus

extra option.

There are three different options:

Water + (the machine is delivered with

this option selected)

The water intake is increased in the

wash and rinse stages of the

programmes.

Extra rinse

An extra rinse is introduced in the

Cottons

and

Minimum iron

programmes.

Water + and Extra rinse

^The water intake is increased in the

wash and rinse stages and an

additional rinse is also introduced in

the

Cottons

and

Minimum iron

programmes.

A tick will appear beside the option to

show that it has been set.

Settings menu J

Gentle action U

Activating gentle action reduces the

drum action and is suitable for

washing slightly soiled items more

gently. It should be activated for

garments with a single bar under the

care label and for articles which feel

too hard after they have been dried.

Gentle action can be activated for the

Cottons

and the

Minimum iron

programmes.

The machine is delivered with the

Gentle action setting deactivated.

A tick will appear beside the option to

show that it has been set.

Suds cooling R

When this is activated, additional

water flows into the drum at the end

of the main wash to cool the suds

down. Hot suds can damage plastic

drainage pipes.

Suds cooling takes place when a

Cottons 95-75°C

programme is

selected.

Suds cooling should be activated:

–to prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

–where the drainage pipes do not

comply with DIN 1986.

The machine is delivered with Suds

cooling deactivated.

A tick will appear beside the option to

show that it has been set.

Door release Ü

When this setting is activated the

drum door can be opened during a

washing or drying programme at

temperatures up to 70°C.

If the Door release setting is

deactivated, the door can only be

opened at temperatures up to 55°C.

,Warning: High temperatures

can cause burning or scalding.

The machine is delivered with this

setting activated.

A tick will appear beside the option to

show that it has been set.

^Select the option you want and

confirm your selection.

Settings menu J

Distribution controller

The maximum final spin speed is

limited to prevent the laundry sticking

to the drum. (This setting is only

available when washing and drying

in a continuous sequence).

There are 4 different options:

1200 rpm (factory default setting)

1100 rpm

1000 rpm

900 rpm.

A tick will appear beside the option to

show that it has been set.

Alter time

The machine is designed to dry

effectively using as little energy as

possible. However, it is possible to

lengthen or shorten the drying time

by up to 4 minutes.

The machine is delivered with the

drying time on setting 3 (= 0 minutes).

Settings menu J

Lock X

The system lock prevents your

machine being used without your

knowledge.

When the system lock has been

activated, you have to enter a code

after switching the machine on.

Otherwise the machine cannot be

operated.

To activate the lock

CBack A

XActivate

^Select

Activate

and confirm your

selection.

^The display will now request that a

code is entered. The code is 125 and

cannot be altered.

To enter the lock code

The code is: 125

0__

Enter code

^Use the +button to enter the first

number. Confirm your selection of

this number by pressing the OK

button. Now set the second number.

^Repeat the process until all three

numbers have been entered.

^After the last number has been

entered, press the OK button.

Yes 125 No

Confirm code

^Confirm the code with the OK button

or if you want to correct a mistake,

press the –button.

^The lock will now be activated when

the machine is switched off.

To unlock the washer-dryer

When the machine is switched on

again, the display will request the lock

code.

^Enter lock code 125 as described

above and confirm the entry.

WEntry OK

Lock deactivated

The machine is now unlocked.

To deactivate the lock

Proceed as for activating the lock.

Settings menu J

Temperature S

You can choose for the temperature

to be displayed as

°C/Celsius

°F/Fahrenheit

A tick will appear beside the option to

show that it has been set.

^Select the option you want and

confirm your selection.

Buzzer O

When the buzzer function has been

activated, an audible tone sounds at

the end of a programme or when

Rinse hold is reached.

There are two volumes.

Normal (the machine is delivered with

this option selected)

The buzzer sounds at the end of a

programme or when Rinse hold is

reached.

Loud

The buzzer sounds at maximum volume

at the end of a programme or when

Rinse hold is reached.

A tick will appear beside the option to

show that it has been set.

^Select the option you want and

confirm your selection.

Keypad tones P

An audible tone sounds each time a

button is pressed.

The machine is delivered with the

keypad tone switched off.

A tick will appear beside the option to

show that it has been set.

Display contrast

There are ten different display

contrast settings.

The machine is delivered with the

display contrast on setting 5.

The display contrast will change as

soon as a different setting is chosen.

^Set the display contrast you require.

Display brightness

There are ten different display

brightness settings.

The machine is delivered with the

display brightness on setting 5.

The display brightness will change as

soon as a different setting is chosen.

^Set the display brightness you

require.

Settings menu J

Standby Q

To save energy, the display goes out

after 10 minutes and the indicator

light for the

Start/Stop

button will start

flashing slowly.

There are two options:

Standby is activated:

–if a programme is not selected after

the machine has been switched on.

–after a programme has started.

– at the end of a programme.

Not in current Prog. (the machine is

delivered with this option selected)

Standby is activated:

– if a programme is not selected after

the machine has been switched on.

– at the end of a programme.

Pressing one of the buttons switches

the display back on again.

A tick will appear beside the option to

show that it has been set.

Memory V

If an extra option has been selected

for a programme, or the

recommended spin speed has been

altered, the machine will store the

changes in memory at the start of a

programme.

When this programme is chosen again

these settings will appear in the display.

The machine is delivered with the

memory function deactivated.

A tick will appear beside the option to

show that it has been set.

Set extended cool-down

The cooling down phase which takes

place before the end of a programme

can be lengthened if required. This

makes the garments easier to

handle.

The cooling down phase can be

lengthened from 0 min (standard

cooling down phase = default setting)

to 18 minutes.

The programme duration will increase

accordingly.

To close the Settings menu

CBack A

LanguageF

Time . . . H

^Select

Back

and confirm your

selection.

Settings menu J

Alteration rights reserved/3605 M.-Nr. 06 717 280 / 00

en-GB

Miele WT 2670 Wt2670_gb.vp User Manual To The 3ac63cb9 D62e 4d07 8f47 341790daebc1

Navigation menu

Versions of this User Manual:

Views

Navigation
