Operating instructions
Washer-dryer
WT 945 S WPS
To avoid the risk of accidents
or damage to the machine
it is essential to read
these instructions before it is
installed or used for the first time.
G
M.-Nr. 05 876 080
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal of your old appliance or machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Special programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programme lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Important control panel features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programme selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Additional option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
"Spin" button with indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Washing and drying environmentally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
WASHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care symbols - washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Separate washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Before washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Select a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Selecting additional options for the wash programme. . . . . . . . . . . . . . . . . . . 21
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adding and removing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Programme cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents
2
Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Washing with several components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Fabric conditioners / starch formulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Fabric conditioners, texturisers and starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Automatic dispensing of fabric conditioners, texturisers or liquid starch to
laundry at the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adding fabric conditioner or liquid starch separately . . . . . . . . . . . . . . . . . . . 28
Separate starching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Separate drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Before drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Additional options for the drying programmes. . . . . . . . . . . . . . . . . . . . . . . . . 33
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
WASHING AND DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Washing and drying in a continuous sequence . . . . . . . . . . . . . . . . . . . . . . . . . . 35
After each washing or drying programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Changing a programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Contents
3
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
What to do if ... ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 45
A fault indicator lamp comes on but the wash programme continues as normal. 46
General problems or an unsatisfactory wash or drying result. . . . . . . . . . . . . . . . 47
Opening the drum door in the event of a blocked drain outlet and/or power
failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Blocked drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Opening the drum door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Removing the transit fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Building under a continous worktop / in a row of kitchen units . . . . . . . . . . . . . . . 60
The Miele Waterproof system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
High water level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Additional rinse for the COTTONS programme . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Opening the door at high temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Final residual moisture after drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Contents
4
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed safely and kept
out of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details
Caring for the environment
5
Read the operating instructions
before using this machine for the
first time. They contain important
information about the safety,
installation, use and maintenance of
the machine. This way you will avoid
the risk of accidents and damage to
the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Correct usage
This washer-dryer must only be
used:
– to wash textiles which are declared
by the manufacturer on the care
label to be machine washable, as
well as hand washable woollens.
– to dry textiles which have been
washed in a water solution, marked on
the manufacturer's wash care label as
being suitable for tumble drying.
Any other applications may be dange-
rous. The manufacturer cannot be held
responsible for damage caused by
improper or incorrect use of the appliance.
Do not let small children play with
the machine and its controls or
operate it. Supervise its use by the
elderly or infirm.
Technical safety
Before setting up the machine,
check it for any externally visible
damage. Do not install or use a
damaged machine.
Before connecting the machine,
ensure that the connection data on
the data plate (fusing, voltage and
frequency) matches the mains
electricity supply. If in any doubt,
consult a qualified electrician.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national safety regulations.
It is most important that this basic
safety requirement is regularly tested
by a qualified electrician.
The manufacturer cannot be held
responsible for the consequences of an
inadequate earthing system.
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
responsibility. Repairs should only be
undertaken by a Miele approved
technician.
The machine is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed in
countries where this is applicable.
Warning and Safety instructions
6

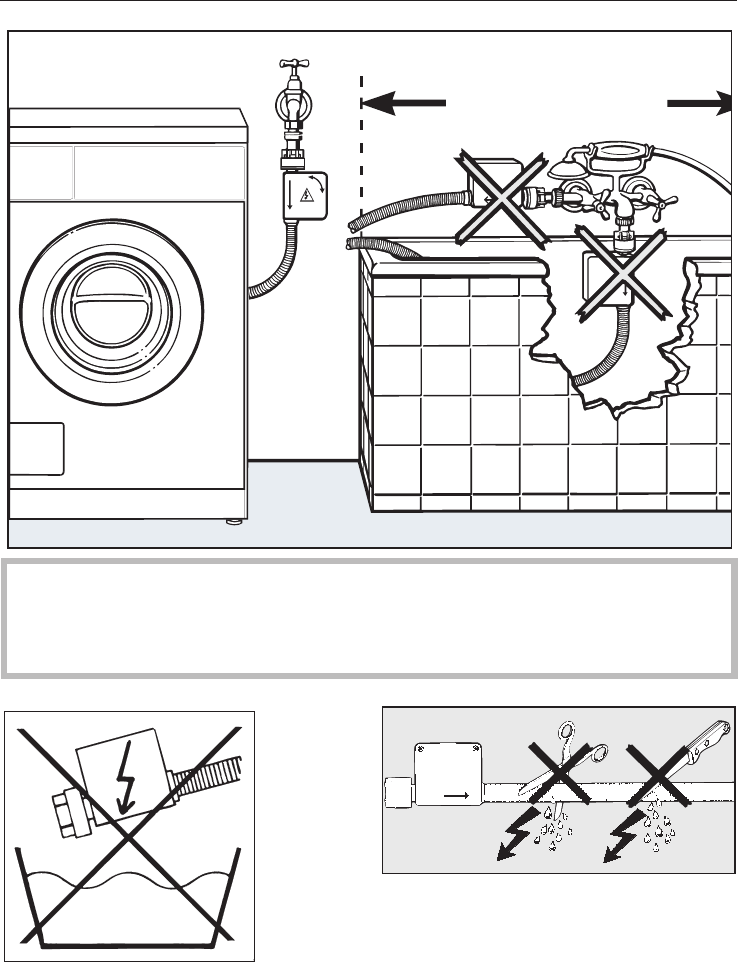

The Miele "Waterproof system"
protects from water damage
provided the following conditions have
been met:
–the machine is correctly plumbed in
and connected to the electricity
supply.
–if a fault has been identified, the
machine must be examined by a
competent person before further use,
and repaired if necessary.
Faulty components must only be
exchanged for Miele original spare
parts. Only when these parts are fitted
can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Use
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk
assessment of the installation being
carried out by a suitably qualified
engineer.
Take care, the metal cap is hot
after drying. Open the door wide
after the drying cycle. Do not touch the
metal cap located on the inside of the
door glass. It will still be hot and could
cause a burn.
Do not install your machine in
rooms where temperatures below
freezing may occur. Frozen hoses may
burst under pressure.The reliability of
the electronic control unit may be
impaired at temperatures below
freezing point.
Before using the machine for the
first time, check that the transit
fitting at the rear of the machine has
been removed (see section on
"Installation"). During spinning, a transit
fitting which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Turn off the stopcock if the machine
is to be left for any length of time
(e.g. holiday), especially if there is no
floor drain (gully) in the immediate vicinity.
Flooding danger. If hooking the drain
hose into a wash basin, check that
the water can drain off quickly enough to
prevent the sink from overflowing. Make
sure the drain hose is secure, so that the
force of the water flowing out of the hose
does not dislodge it.
Take care to ensure that foreign
objects (e.g. nails, pins, coins,
paper clips) do not find their way into
the machine with the laundry. These
may damage components of the
machine (e.g. suds container, drum),
which in turn can result in damage to
the laundry.
Warning and Safety instructions
7
For machines with a 'porthole'
door, remember that the porthole
glass will be hot when washing at very
high temperatures.
Do not let children touch it during a hot
wash programme.
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive
descaling agents and strictly observe
the instructions on the packaging. If in
doubt contact the Miele Customer Ser-
vice Dept. or your Miele Dealer.
Never use solvent based cleaning
agents in this machine, as this may
result in damage to component parts
and create toxic fumes. Such
detergents also pose a fire and
explosion hazard.
Textiles which have been
pre-treated in solvent based
cleaning agents must be thoroughly
rinsed in clean water before being
washed in the machine.
Only use dyes specified by the
manufacturer as being suitable for
use in a domestic washing machine.
Always observe the manufacturer's
instructions carefully.
Colour run and dye removers
contain sulphur compounds which
can cause damage such as corrosion.
Do not use these products in this
machine.
Always make sure the drum is
stationary before reaching in to
remove laundry. Reaching into a
moving drum is extremely dangerous.
There is a danger of fire during
drying with fabrics which:
–contain rubber, foam rubber or
rubber like materials
–have been treated with inflammable
cleaning agents
–have been splashed with hair
lacquer, hair spray, nail varnish
remover or similar substances
–which contain padding or fillings
(e.g. pillows, jackets). If these were
damaged, the filling could get out
with the risk of igniting in the dryer.
Make sure that any dispensing
balls etc. are removed from laundry
before the drying programme. These
dispensers can melt during the drying
programme and cause damage to the
machine and the laundry. Do not use
liquid dispenser balls or similar if you
are planning to wash and then dry in
one continuous sequence.
Using accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims will be invalidated.
Disposal of your old machine
Disconnect and remove the mains plug
from the socket. Render the plug
useless. Cut off the cable directly
behind the appliance to prevent
misuse.
Warning and Safety instructions
8
This washer-dryer can be used:
–to wash separately
with a max. load (depending on
programme) of 5 kg;
–to dry separately
with a max. load (depending on
programme) of 2.5 kg;
or
–to wash and dry in a continuous
sequence
with a max. load (depending on
programme) of 2.5 kg;
Features
Special programmes
– Programme for hand-washable
fabrics (WOOLLENS /)
Hand-washable or
machine-washable wool or wool
blend fabrics can be washed in the
WOOLLENS /programme.
–Programme for small loads (Quick
wash)
This is a Cottons programme for very
lightly soiled fabrics.
–Rinse programme (Separate rinse)
Articles are only rinsed and spun in
the machine.
Delay start
Delay start allows you to delay the start
of a programme from 1 hour up to a
maximum of 9 hours.
Programme lock
Electronic programme locking prevents
the door from being opened or the
programme cancelled during a wash
programme. The electronic programme
locking is automatically cancelled at the
end of the programme.
Programmable functions
The programmable functions can be
used to tailor washing programmes to
suit your individual requirements. The
selected function is displayed when in
programming mode.
Future updates (PC)
The indicator or check lamp marked PC
allows a service engineer to update
your machine in future years.
When, for example, new programmes
are developed or new fabrics are
introduced, a service engineer will be
able to modify existing programme
cycles accordingly.
Description of the appliance
9

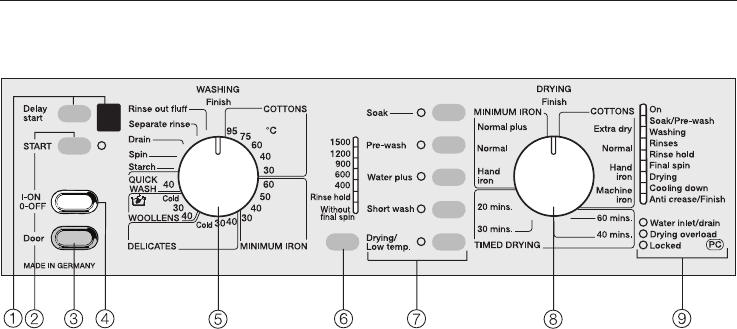

Control panel

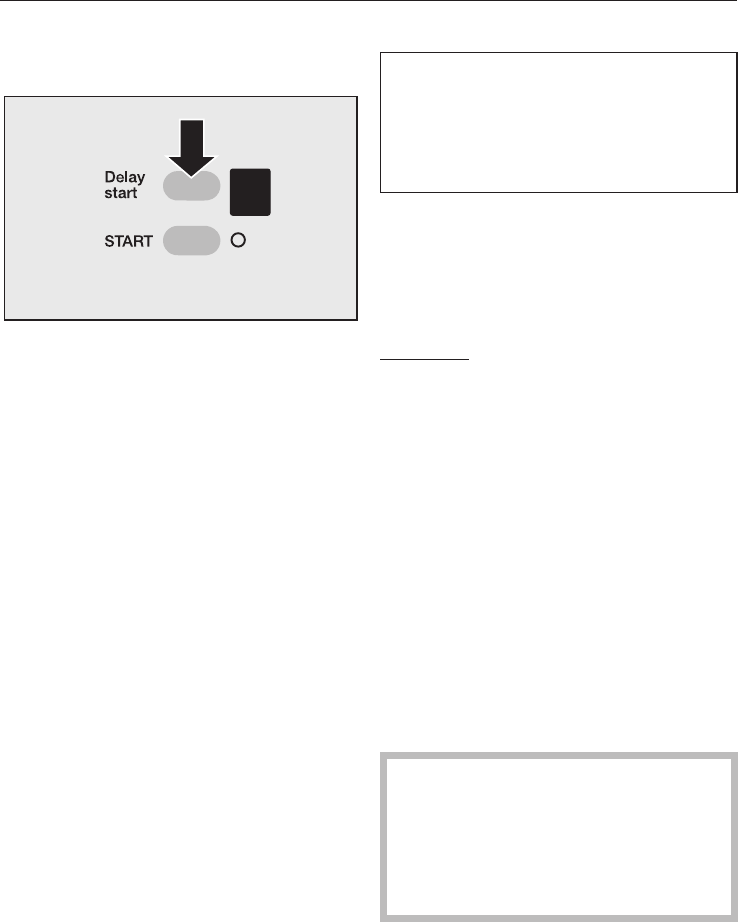

aDelay start button and display
This is used to delay the start of a
programme.
The delay time will appear in the
display.
b"START" button
Press the Start button to start a
programme.
The Start indicator lamp will flash as
soon as a programme can be
started.
cDoor button
Opens the drum door.
dI-ON / 0-OFF button
to switch the machine on and off and
to interrupt a programme that is
currently running.

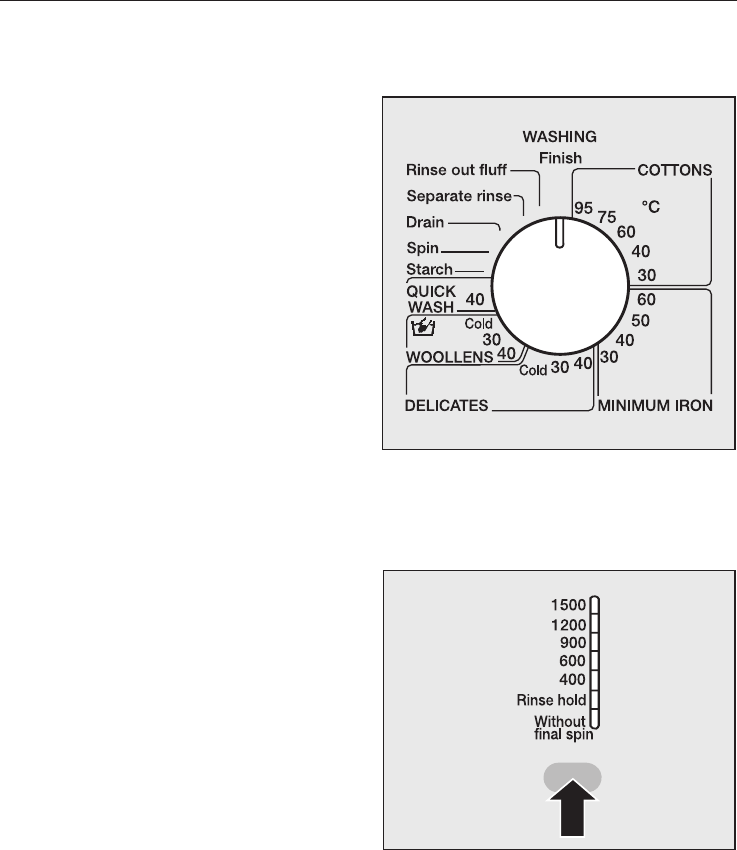

eWASHING programme selector
for selecting a basic wash
programme and temperature.
The programme selector can be
turned clockwise or anti-clockwise.
f"Spin" button
for changing a spin speed or
selecting
– Rinse hold or
– Without final spin.

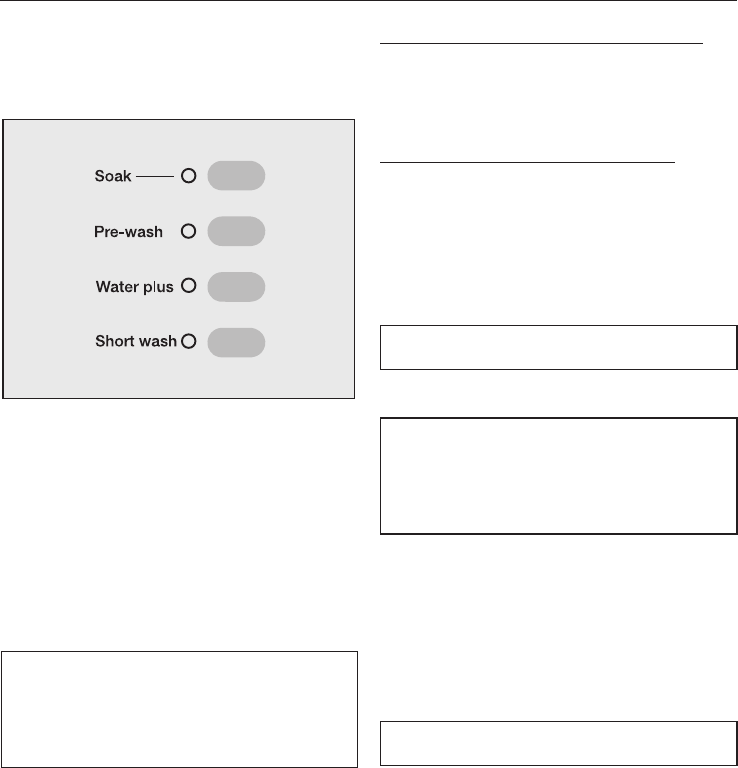

gAdditional option buttons
for selecting additional functions.
When an additional option is selected
the relevant indicator lamp will come
on.

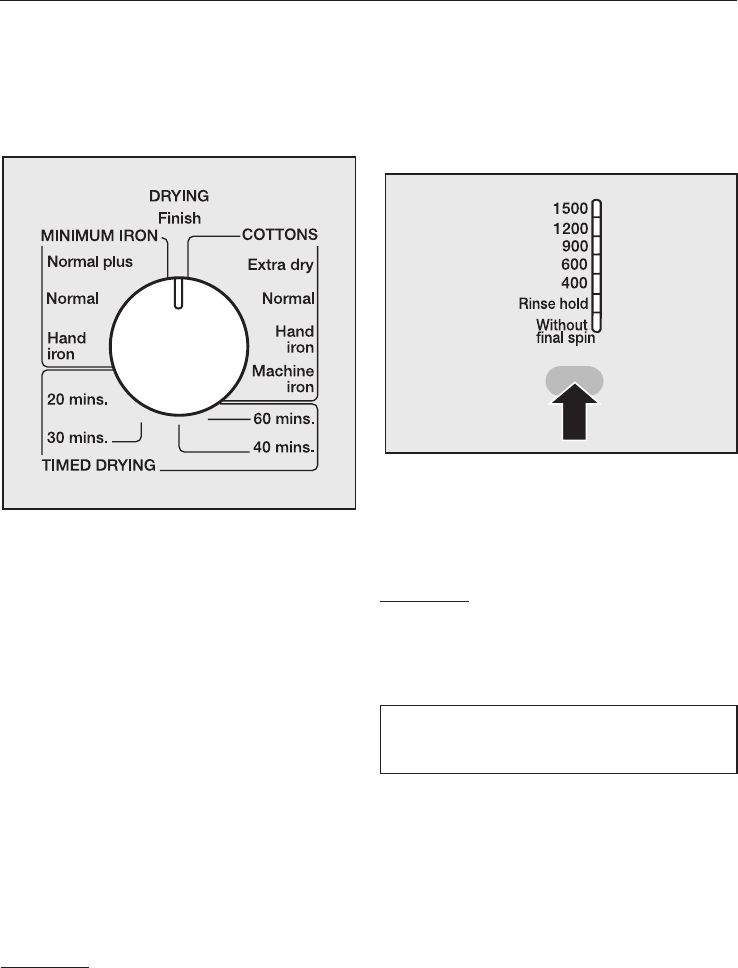

hDRYING programme selector
for selecting the drying programme
and the drying level required. The
programme selector can be turned
clockwise or anti-clockwise.
iProgramme sequence
Programme sequence indicator
lamps show which section of the
programme has been reached
and fault / check indicator lamps.
Description of the appliance
10
Important control panel
features
Programme selector
The programme selector is used to set
the
–basic wash programmes and
temperatures
and
–the drying programmes and
temperatures.
Additional option buttons
Additional options can be added to the
basic programme. Pressing the relevant
button selects or de-selects the
particular option. An additional option is
selected if its indicator lamp is on.
If the lamp does not come on, the
function is not compatible with the
programme you are trying to use it with.
The indicator lamp will go out when the
option button is released.
"Spin" button with indicator lamps
To change the spin speed press the
"Spin" button.
It is not possible to select a spin speed
higher than the permitted maximum
spin for the basic wash programme.
The indicator lamps show the setting
selected.
Spinning at 400 - 1500 rpm
The spin can be set within this range for
the
–final spin during a wash programme
or
–for "Thermospin" during drying (see
"DRYING - Programme selection" for
information on the "Thermospin").
The final spin in a wash programme
can also be deactivated:
^Press the "Spin" button until you
reach
"Rinse hold"
The laundry is not spun and remains
suspended in the final rinse water. This
reduces creasing if the laundry is not
going to be removed from the drum im-
mediately after the end of the
programme.
To continue the programme:
– with a final spin
press the "Spin" button until you
reach the spin speed you want.
–without a final spin
Press the "Spin" button repeatedly
until the
Without final spin
indicator
lamp lights up.
Without final spin
The laundry is not spun after the final
rinse but the water is drained away and
the machine goes straight into the
anti-crease stage.
Description of the appliance
11
–Ideally load the maximum amount
specified for the programme you are
using.
This way energy and water
consumption will be kept to a
minimum.
–Use the QUICK WASH programme
for small loads.
–Use the
Short wash
option for lightly
soiled laundry.
–A main wash (programme without
pre-wash) is sufficient for cleaning
normally soiled laundry.
– Use the
Soak
option for heavily
soiled laundry. The wash
temperature can be reduced for the
main wash when using the additonal
soak option.
– Use the additional option
Soak
instead of
Pre-wash
with heavily
soiled laundry. If Soak is followed im-
mediately by a main wash the same
suds are used.
–Do not exceed the amounts of
detergent which may be
recommended by the manufacturer
on the packaging.
–Reduce the amount of detergent with
smaller loads (approx. 1/3 less than
the amount recommended can be
used when washing a half load).
–Load recognition can cause the
duration of a programme to vary
greatly. The main wash may be
shortened and a rinse cycle omitted
depending on the amount of laundry.
– Select a high spin speed for the
wash programme, as well as for the
Thermospin, if tumble drying the
laundry afterwards. This saves time
and energy.
Washing and drying environmentally
12
Before using the machine for the first
time ensure that it is correctly
installed and connected. See the
relevant section under "Installation".
Flushing out the drum
^Turn on the stopcock.
^Turn both programme selectors to the
Finish
position.
^Switch the machine on with the
I-ON /
0-OFF
button.
Do not load any laundry.
^Add max. 1/4 of the amount of
detergent recommended for a full
load into Compartment jof the
detergent dispenser.
^Turn the WASHING programme
selector to the "COTTONS 60°C"
position.
Important! This programme is required
to prepare the machine for operation.
^Press the
Water plus
button.
^Press the "Spin" button repeatedly
until the
Without final spin
indicator
lamp comes on.
^Press the START button.
This will flush out any residues in the
machine by the end of the programme.
Water hardness reminder
The amount of detergent required will
depend on various factors, including
water hardness. The dial in the
detergent dispenser can be set as a
water hardness reminder.

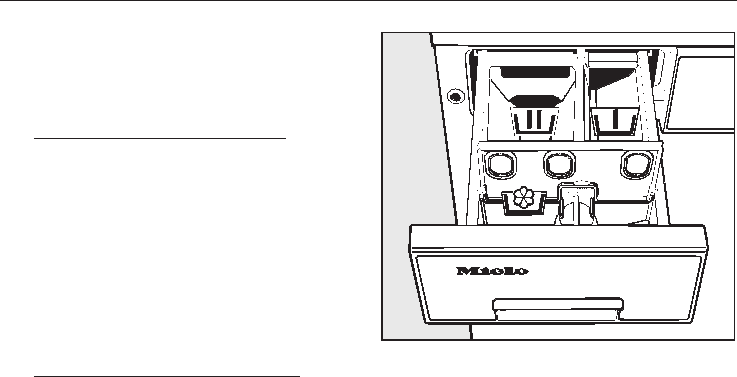

There is a yellow lever behind the
detergent drawer facia panel.
^Remove the lever.
^Use it to turn the dial to the position
which represents your water
hardness level.
Your local water authority can advise on
water hardness in your area.
Before using for the first time
13
Programme overview
COTTONS e
Fabric type Cottons and linen fabrics, e.g. bed linen, table linen,
towelling, jeans, underwear, T-shirts, nappies.
Additional options Soak, Pre-wash, Water plus, Short.
Notes –Only use the COTTONS 95°C programme for heavily
soiled and incontinent laundry.
–For heavily soiled laundry select the
Soak
or
Pre-wash
additional option.
–For lightly soiled laundry select the
Short
option.
–For dark coloured fabrics use a detergent for coloured
fabrics, or liquid detergent.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent.
Max. load 5 kg
Note for test institutes:
Programme setting for the EN 50229 Standard Cottons 60°C
MINIMUM IRON ef
Fabric type White nylon (60°C), white polyester fabrics (50°C),
coloured nylon, polyester, cotton and viscose fabrics with
special finishes, acrylic, cotton fabrics, coloured
polyester / cotton fabrics, (40°/30°C) minimun iron fabrics
not washable at higher temperatures.
Additional options Soak, Pre-wash, Water plus, Short.
Notes –For heavily soiled laundry select the
Soak
or
Pre-wash
additional option.
–For lightly soiled laundry select the
Short
option.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent, detergent for delicates.
Max. load 2 kg
WASHING
14
Programme overview
DELICATES f
Fabric type Acrylics, acetate and triacetate, 100% cotton easy care
shirts and blouses.
Curtains, specified machine-washable by the
manufacturer.
Additional options Soak, Pre-wash, Short
Notes –Laundry remains relatively crease-free for easier
ironing.
–Dust in curtains usually makes using a programme with
Pre-wash
advisable.
–For curtains made from delicate fabrics reduce the
spin speed or select Without final spin.
Detergent Detergent for delicates
Max. load 1 kg
WOOLLENS g
Fabric type Machine-washable or hand-washable wool or wool blend
fabrics. Please note that hand-washable wool or wool
blend fabrics will not shrink, stretch, matt or felt beyond
the accepted tolerance of the item.
Notes –For hand-washable garments made from delicate
fabrics reduce the spin speed or select Without final
spin.
Detergent Liquid detergent for machine washable woollens
Max. load 1 kg
Quick wash
Fabric type Very lightly soiled fabrics, which can be washed in the
Cottons programme.
Additional option Water plus
Notes –Use less detergent (as for a half load).
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent.
Max. load 2.5 kg
WASHING
15
Programme overview
Starch
Fabric type Table cloths, napkins, overalls, aprons.
Notes –The laundry should be washed but not treated with
fabric conditioner.
Max. load 5 kg
Drain / Spin
Notes –Drain only: Select
Without final spin
.
Max. load 5 kg
Separate rinse
Fabric type Articles which have been washed by hand and only need
to be rinsed and spun in the machine.
Notes –Do not use for woollens.
Max. load 5 kg
Flushing out the drum
Notes –Fluff residues left in the drum after a Drying
programme can be rinsed out.
Important: there must be no items of laundry left in
the drum! Always check that it is empty before
selecting this option.
If "cold" is selected, the water is warmed to 24°C. This is to even out any
fluctuations in the incoming water and helps the detergent to dissolve properly.
WASHING
16
Care symbols - washing
Care
symbols
Fabric
types
Description of
process
Programme:
(select the appropriate temperature
according to the temperature on the
care label symbol)
e
no bar
Cottons Normal
(maximum)
machine action
and normal
spinning
Cottons, Minimum iron, Quick wash
f
single bar
Synthetics Reduced
(medium)
machine action
and reduced
spinning
Delicates
g
broken
bar
Woollens Much reduced
(minimum)
machine action
but with normal
spinning
Hand Wash Woollens programmes.
How to wash correctly
17
Important - other care symbols
/Hand wash
hDo not wash
apf Dry clean
DDo not dry clean
ySuitable for chlorine
bleaching
zDo not use chlorine bleach
Tumble dry
qAt normal temperature
rAt low temperature
sDo not tumble dry
Ironing
IHot iron
HMedium hot iron
GCool iron
JDo not iron
How to wash correctly
18
Separate washing
Make sure that the DRYING
programme selector is at the
Finish
position. Otherwise the drying
programme set will follow on from
the washing programme.
Before washing

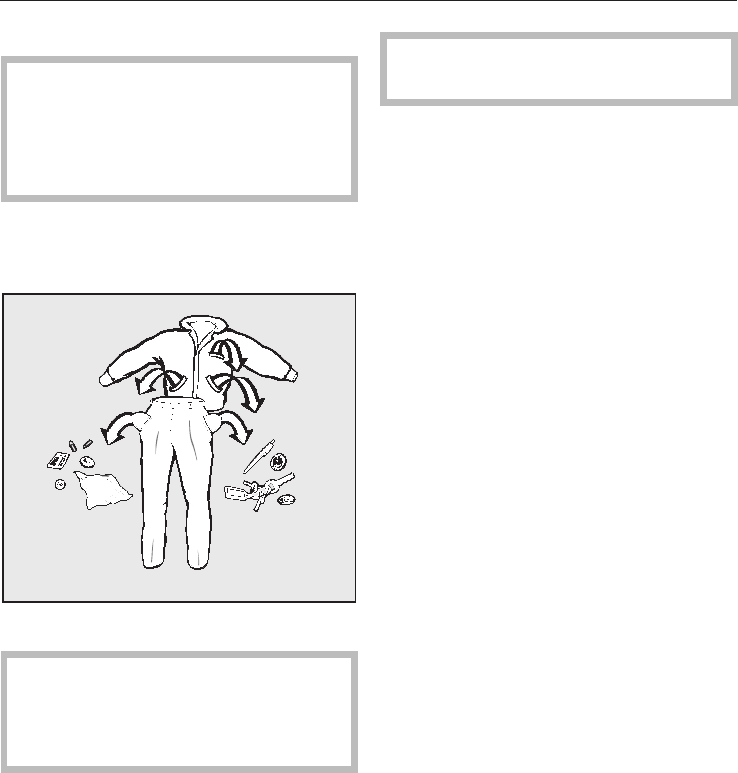

ASort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^Stains etc. should be removed as
soon as possible whilst still fresh.
Spillages should be carefully dabbed
off using a soft, colourfast cloth. Do
not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,Do not use solvent-based
cleaning agents in this machine.
^Sort the laundry by colour and by
care label symbol. Most garments
have a textile care label in the collar
or side seam. See the "Programme
overview chart" for information on
which programmes to use for
different fabric types.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load.
– Curtains: Remove lead weights and
strips or place in a laundry bag.
– Bras: Ensure any underwiring is
securely sewn in. If not, remove it.
– Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.
– Close any zips, fasten hooks and
eyes etc before washing.
–Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.
Do not wash any items in this machine
which are specified by the
manufacturer as non-machine
washable on the care label (h
symbol).
How to wash correctly
19
BSwitch the machine on
^Press in the
I-ON/0-OFF button.
COpen the drum door
^Press the
Door button
and open the
drum door.
DLoad the drum
^Unfold the laundry and load loosely
in the drum. To achieve best results
make up mixed loads consisting of
both large and small items.
Do not exceed the maximum load for
the programme selected. This uses the
energy and water to the best
advantage. Exceeding the maximum
load will result in poorer wash results
and an increased level of creasing.
EClose the drum door
Make sure that no garments are caught
between the drum door and seal.
FOpen the stopcock
Select a programme
GSelect the wash programme.
^Turn the programme selector to the
required programme.
HSelect a spin speed.
^Press the "Spin" button repeatedly
until the indicator lamp for the spin
speed you want comes on.
In some programmes, the maximum
spin speed is limited. The machine will
not allow a higher spin speed to be
selected.
How to wash correctly
20
Selecting additional options for the
wash programme
ISelect additional option(s)
^Press the required addtional option
button(s).
Additional options which are not
compatible with the basic programme
cannot be selected. The indicator lamp
will go out when the option button is
released.
Soak
For heavily soiled and stained items
with dried-on stains, or ones which
can be bleached out, (e.g. blood,
fats and oils, cocoa).
Duration of soak:
2 hours.
Detergent dispensing when selecting
the soak option:
The amount to dispense will depend on
which programme is to follow on from
the soak process.
For programmes without a pre-wash:
–Add the total amount to compartment
jor directly into the drum on top of
the laundry.
For programmes with a pre-wash:
–Add 1/4 of the detergent for the soak
and pre-wash into compartment i,
and 3/4 into compartment jfor the
main wash.
Pre-wash
For heavily soiled and stained items.
Water plus
The water level increases in all
sections of the COTTONS / MINIMUM
IRON and QUICK WASH 40°C
programmes.
– for particularly delicate fabrics.
– if more water is required for
dispensing the detergent.
–where a higher quality rinse is
required.
Short
For lightly soiled items.
This shortens the programme running
time. In the COTTONS and MINIMUM
IRON programmes only two rinses are
carried out with a higher water level.
How to wash correctly
21
JAdding detergent
It is important to dispense the correct
amount, because... . .
. . . too little detergent results in:
–Laundry not being cleaned properly
and with time it may become grey
and hard to the touch.
–Greasy particles clinging to the
laundry.
–Limescale deposits on the heater
elements.
. . . too much detergent results in:
– Excessive foam, which causes a low
level of agitation and poor wash,
rinse and spin results.
– Higher water consumption because
an extra rinse is automatically
activated.
– A burden to the environment.
Add detergent for the pre-wash to
compartment iand to compartment
jfor the main wash. If the capacity of
compartment jis not sufficient (e.g.
in water hardness area III), some of the
main wash detergent can be added to
compartment i.
^Pull out the detergent drawer and
place detergent in the compartments
as follows:
i= Pre-wash
(if selected, 1/4 of the total
amount recommended for the
programme)
j= Main wash
including the Soak period
if selected
p= Fabric conditioner or
liquid starch.
See "Detergent" section for further
information.
How to wash correctly
22
Delay start

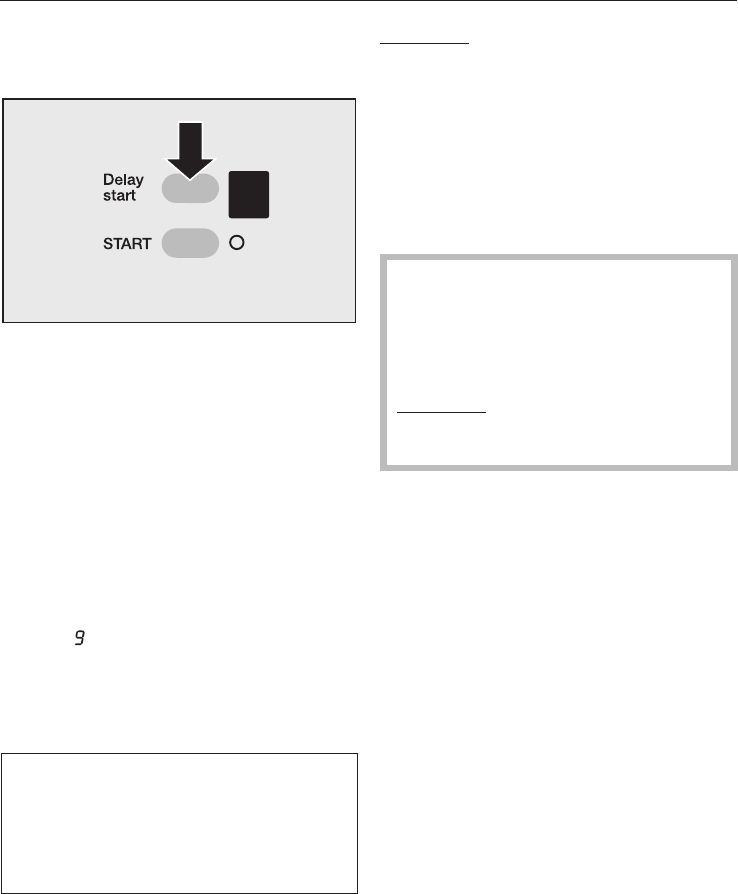

KSelect Delay start
^Press the
Delay start
button
repeatedly until the required delay
start period shows up in the display
(from ito 9hours).
Press the "START" button. The chosen
time will start to count down hour by
hour. The programme will then start
automatically.
To cancel "Delay start":
^Press the Delay start button once
when 9is showing in the display, or
^Switch the machine off with the
I-ON /
0-OFF
button.
Memory function
If an additional option(s) is selected
for a programme, and / or the spin
speed is altered, the machine stores
these changes in memory at the start
of a programme.
When that particular programme is
chosen again, the display will show the
additional option(s) and / or spin speed
which have been stored for that
programme in the memory.
Exception: Delay start
LStart the programme
The START indicator lamp will flash as
soon as a programme can be started.
^Press the START button.
After the programme has started the
START indicator lamp will light up
constantly.
At the end of a programme
A buzzer will sound (see
"Programmable functions") and the
anti-crease / Finish light will come on.
After washing a full load
If you have washed a full load of
laundry and you wish to dry the
laundry in the dryer afterwards you
will have to remove half the load.
Carry out the drying procedure in
two batches.
For further information on drying see
section "After each washing or drying
programme".
How to wash correctly
23
Adding and removing laundry
Laundry can be added or removed
after the start of one of the following
programmes:
–COTTONS
–MINIMUM IRON
–QUICK WASH 40°C
^Press the
Door
button in and hold it
until the door springs open.
^Add or remove items.
^Close the door.
The programme will continue
automatically.
The door cannot be opened, if:
–the suds temperature is above 70°C
(except when the programmable
function "Opening the door at high
temperatures" has been activated.
Warning: The water in the machine
will be very hot and could cause
burning or scalding.
–the additional function
Water plus
has been selected (because the
water level will be too high).
–the safety lock has been activated.
–the programme has reached the
Final spin
stage.
The
locked
indicator lamp will come on
if the
Door
button is pressed when the
above conditions are present.
How to wash correctly
24
Programme cycle
This washing machine has fully
electronic controls with automatic load
recognition. This machine takes in the
right amount of water required for the
programme, depending on the amount
of laundry and its absorbancy rate. This
means that programme cycles and
durations can vary.
The programme sequences outlined
below are based on the basic
programme with a full load. Additional
options which can be selected, have
not been taken into account.
The programme sequence indicator
lamps show the stage the programme
has reached.
COTTONS
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: low
No of rinses: 3 or 41)
Spinning
Rinse and interim spin2): yes
Final spin: yes
MINIMUM IRON
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: medium
No of rinses: 3
Graduated rinsing3) : above 40°C
Spinning
Rinse and interim spin2): yes
Final spin: yes
DELICATES
Main wash
Water level: high
Wash rhythm: Gentle action
Rinses
Water level: high
No of rinses: 3
Spinning
Rinse and interim spin2): no
Final spin: yes
WOOLLENS
Main wash
Water level: low
Wash rhythm: Woollens
Rinses
Water level: low
No of rinses: 2
Spinning
Rinse and interim spin2): yes
Final spin: yes
How to wash correctly
25
QUICK WASH
Main wash
Water level: low
Wash rhythm: normal
Rinses
Water level: medium
No of rinses: 2
Spinning
Rinse and interim spin2): yes
Final spin: yes
Starch
Water level: low
Wash rhythm: normal
Final spin: yes
Separate rinse
Water level: high
No of rinses: 2
Final spin: yes
Special features in the programme
sequences:
Anti-crease:
At the end of every programme, with
the exception of the WOOLLENS
programme, the anti-crease action
switches on for a maximum of 30
minutes.
1) A fourth rinse takes place
automatically when:
–there is too much foam in the drum
–if a spin speed of lower than 700 rpm
has been selected.
–if
Without final spin
has been
selected
2) Rinse and interim spin:
There is a spin between the rinses.
3) Graduated rinsing:
The suds are cooled at the end of the
main wash cycle by water flowing in
and being pumped away at intervals.
This also helps minimise creasing.
How to wash correctly
26
Detergent
All modern detergents produced for
automatic washing machines are
suitable, including liquid, compact
(concentrated), tablets and special
application detergents.
Woollens and knitwear containing wool
mixtures and hand-washable garments
should be washed using a detergent
specifically designed for washing
woollens.
Instructions for use and recommended
amounts for a full load are given on the
detergent packaging.
The right amount to dispense will
depend on the following:
– The soiling level of the laundry.
Lightly soiled
No visible dirt or stains. Possibly
slight body odour.
Normally soiled
Visibly dirty and/or just a few slight
stains.
Heavily soiled
Stains and soiling clearly visible.
–The quantity of laundry
–The water hardness level in the area
If you do not know the hardness level
contact your local water authority
who will be able to advise you.
Water hardness
Hardness
range
Water
hardness
level
mmol/l German
scale
°d
I soft 0 - 1.3 0 - 7
II medium 1.3 - 2.5 7 - 14
III hard to
very hard
above 2.5 above 14
Water softener
A water softener can be used to cut
down on the use of detergents in water
hardness ranges II - III. Dispense
according to the amount specified on
the packaging. First add detergent and
then the water softener.
Use a quantity of detergent as for soft
water.
Washing with several
components
If you wash using several components
(e.g. special application detergents),
we recommend always dispensing the
agents into compartment jin the
following order:
1. Detergent
2. Water softener
3. Stain remover
This way the agents are distributed
more evenly.
Adding detergent
27
Fabric conditioners, texturisers
and starch
Fabric conditioners make garments soft
and fluffy to handle and help prevent
static cling when tumble drying.
Texturisers are synthetic starch
formulations, which stiffen items of
laundry, e.g. shirts, tablecloths and bed
linen.
Starch stiffens and gives body to items
of laundry, e.g. shirts, tablecloths and
bed linen.
^Dispense according to the amount
specified on the packaging.
Automatic dispensing of fabric
conditioners, texturisers or liquid
starch to laundry at the end of a
programme
^Open the lid to compartment pand
add conditioner, texturiser or starch.
Do not exceed the maximum level
mark.
^Close the lid and push the dispenser
drawer back in.
The conditioner or liquid starch is
automatically dispensed in the last
rinse. At the end of the programme a
small amount of water remains in
compartment p.
If starching frequently, clean the
dispenser compartment and
especially the siphon tube and
conditioner channel. See "Cleaning
the detergent dispenser drawer".
Adding fabric conditioner or liquid
starch separately
^Add fabric conditioner or starch to
compartment p.
^Turn the WASHING programme
selector to
Starch.
^Select a spin speed.
^Press the START button.
Separate starching
^Prepare the starch solution in
accordance with manufacturer's
instructions on the packaging.
^Add the starch formulation to
compartment i.
^Turn the WASHING programme
selector to
Starch.
^Select a spin speed.
^Press the START button.
Fabric conditioners / starch formulations
28
Tips on drying
^Before drying check the drying
symbol on the wash care label.
qDry at normal temperature
rDry at low temperature
(select the
Drying/low temp
additional option)
sDo not tumble dry
If there is no symbol, dry at your own
risk applying the following principles:
–Cottons and minimum iron items
should be dried using the
appropriate programme.
– Delicate fabrics, e.g. acrylics, should
be dried at a low temperature (select
the
Drying/low temp
additional
option).
The following fabrics should not be
tumble dried:
– Woollens and wool blends
these fabrics tend to become matted
and shrink.
–Items filled with down
the fine fabric interior tends to shrink,
depending on the quality involved.
–Pure linen
should only be machine dried if
specified as suitable by the
manufacturer on the wash care label,
as the surface of the fabric may
otherwise tend to roughen.
Woven and loopknit materials (e.g.
T-Shirts, knitted garments) tend to
shrink to varying extents depending on
their quality. Therefore: to prevent
further shrinkage do not over-dry these
textiles. When purchasing these
garments it is advisable to take their
shrinkage properties into account.
Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
Fabrics which crease easily should only
be given a short period in the dryer.
Minimum iron shirts in 100% cotton may
crease during tumble drying depending
on the quality of the weave. Use a short
programme with a low setting. In
extreme cases do not tumble dry these
garments, but dry them on a hanger.
Minimum iron fabrics tend to crease
more, the greater the load. This is
particulary the case with delicate
fabrics. Reduce the load.
New dark coloured garments should
be dried separately from light coloured
garments to avoid the danger of
colours running.
DRYING
29
Programme overview
COTTONS
Extra dry
Fabric type Multi-layered fabrics, which are thoroughly dried in the
Normal
programme.
Additional options Thermospin max. 1500 rpm, Drying / Low temp.
Note –Do not dry jerseywear in the
Extra dry
programme
(tendency to shrink)
Max. load 2.5 kg
Normal
Fabric type Single and multi-layered fabrics, e.g. mixed load of cotton
fabrics (e.g. towelling, jerseywear).
Additional options Thermospin max. 1500 rpm, Drying / Low temp.
Max. load 2.5 kg
Note for test institutes:
Programme setting for the EN 50229 Standard:
COTTONS Normal
Hand iron
Fabric type Cotton or linen fabrics (e.g. table linen, bed linen, starched
laundry etc.).
Additional options Thermospin max. 1500 rpm, Drying / Low temp.
Max. load 2.5 kg
Machine iron
Fabric type Cotton or linen fabrics, including starched laundry for
machine ironing.
Additional options Thermospin max. 1500 rpm, Drying / Low temp.
Note –The laundry should be rolled up before ironing to prevent
it from drying out.
Max. load 2.5 kg
DRYING
30
Programme overview
MINIMUM IRON
Normal plus
Fabric type Minimum iron items which are made of synthetic or blended
fabrics (e.g. pullovers, dresses, trousers) which are not dried
adequately in the
Normal programme.
Additional
options
Thermospin max. 900 rpm, Drying / Low temp.
Note –Spin fabrics for approx. 30 seconds before drying.
Max. load 1 kg
Normal
Fabric type Minimum iron shirts, table cloths etc. made of mixed fibres, e.g.
cottons / synthetics.
Additional
options
Thermospin max. 900 rpm, Drying / Low temp.
Max. load 1 kg
Hand iron
Fabric type Minimum iron shirts, table cloths etc. made of mixed fibres, e.g.
cottons / synthetics, which are still to be hand ironed.
Additional
options
Thermospin max. 900 rpm, Drying / Low temp.
Max. load 1 kg
TIMED DRYING 20 min / 30 min / 40 min / 60 min
Do not select the longest drying time to start with. Check by experimenting, how
long it takes to reach the level of drying you require.
Fabric type Multi-layered or padded items, which because of their composition
will take varying times to dry. Items which need extra drying.
Additional
options
Drying / Low temp.
Note –When drying minimum iron fabrics:
always select the Drying / Low temp. option.
Max. load 1 - 2.5 kg (depending on type of fabric)
DRYING
31
Separate drying
The separate drying programme
must be used if the load in the wash
programme is greater than the
maximum load permitted for drying,
or if you only want to dry part of the
load that was washed.
Make sure that the WASHING
programme selector is at the
Finish
position. Otherwise the washing
programme will begin before the
drying programme.
Before drying
APreparing the laundry
^Sort the laundry according to type of
fibre / weave and the residual
moisture content. This will help
towards achieving an even drying
result.
BSwitch the machine on
^Press in the
I-ON/0-OFF button.
COpen the drum door
^Press the
Door button
and open the
drum door.
DLoad the drum
^Unfold the laundry and load loosely
in the drum.
Maximum load:
Cottons . . . . . . . . . . . . . . . . . . . . 2.5 kg
Minimum iron . . . . . . . . . . . . . . . . 1.0 kg
Timed drying . . . . . . . . . . . . . . . . 2.5 kg
Make sure you have removed any
detergent dispensing aids, e.g.
plastic dispenser balls, before
drying. These dispensers can melt
during the drying programme and
cause damage to the machine and
the laundry.
Do not overload the drum.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
EClose the drum door
Make sure that no garments are caught
between the drum door and seal.
FOpen the stopcock
DRYING
32
Programme selection
GSelect a drying programme
The programmes are described in the
"Drying programme charts".
^Turn the programme selector to the
required drying programme.
^For minimum iron fabrics which are
being dried in the TIMED DRYING
programme, you should always
select the
Drying/ Low temp.
additional option.
The sensor drying programmes for
COTTONS and MINIMUM IRON include
a thermospin process. This process
uses heat during a pre-tumbling spin to
break the bond between the water and
the clothes being dried. This reduces
drying times and the amount of energy
required for drying (one of the spin
speed indicator lamps will light up).
Exception: The thermospin will not be
carried out if the additional function
Drying/Low temp.
has been selected.
Additional options for the drying
programmes
HSelect an additional option
"Thermospin"
^Press the "Spin" button repeatedly
until the indicator lamp for the spin
speed you want for the thermospin
comes on.
Exception: The thermospin will not be
carried out if
TIMED DRYING
has been
selected.
Drying / Low temp.
The temperature is reduced during
the drying programme.
–This is suitable for particularly
sensitive fabrics (care symbol r)
e.g. acrylics.
The additional option
Drying/Low temp.
can be selected for any programme
where it is required.
The thermospin will not take place.
DRYING
33
Delay start
ISelect Delay start
^Press the
Delay start
button
repeatedly until the required delay
start period shows up in the display
(from ito 9hours).
Press the"START" button. The chosen
time will start to count down hour by
hour. The programme will then start
automatically.
To cancel "Delay start":
^Press the
Delay start button once
when is showing in the display, or
^Switch the appliance off using the
I-ON/0-OFF
button.
Memory function
If an additional option(s) is selected
for a programme, and / or the spin
speed is altered, the machine stores
these changes in memory at the start
of a programme.
When that particular programme is
chosen again, the display will show the
additional option(s) and / or spin speed
which have been stored for that
programme in the memory.
Exception: Delay start
JStart the programme
The START indicator lamp will flash as
soon as a programme can be started.
^Press the START button.
After the programme has started the
START indicator lamp will light up
constantly.
The door cannot be opened if the
temperature is higher than 70°C. If
this is the case the
locked
indicator
light will flash when the
Door
button
is pressed.
Exception: when the programmable
function "Opening the door at high
temperatures" has been activated.
At the end of a programme
When the drying programme has
finished the buzzer will sound (see
"Programmable functions") and the
Anti-crease / finish sequence indicator
lamp will come on.
^Remove the laundry.
If you want to dry a further load:
^First switch the machine off and then
on again with the
I-ON/0-OFF
button.
^Proceed as described before in this
section.
After drying
For further information on drying see
section "After each washing or drying
programme".
DRYING
34
Washing and drying in a
continuous sequence
Where the amount of laundry to be
washed and dried in one programme
does not exceed the maximum
weight permitted for the drying
programme, washing and drying in
one continuous sequence is
recommended.
It is essential to read both sections
"Separate washing" and "Separate
drying" first.
ASort the laundry
BSwitch the machine on
COpen the drum door
DLoad the drum
Maximum loads:
Cottons . . . . . . . . . . . . . . . . . . . . 2.5 kg
Minimum iron . . . . . . . . . . . . . . . . 1.0 kg
Quick wash . . . . . . . . . . . . . . . . . 1.0 kg
Spin . . . . . . . . . . . . . . . . . . . . . . . 2.5 kg
Do not use detergent dispensing
aids, e.g. plastic dispenser balls, for
washing followed immediately by the
drying programme. These
dispensers can melt during the
drying programme and cause
damage to the machine and the
laundry.
EClose the drum door
FOpen the stopcock
GAdd detergent
Use approximately 1/3 less detergent
than is recommended by the
manufacturer on the packaging.
HSelect the programme.
^Turn the WASHING programme
selector to the required programme.
^Press the "Spin" button repeatedly
until the indicator lamp for the spin
speed you want comes on.
^Select any additional options that you
require for the washing programme.
ISelect a drying programme
^Turn the DRYING programme
selector to the required drying
programme.
The Thermospin will automatically be
carried out using the same spin speed
as used in the wash programme.
The Thermospin will not be carried out
if:
–you have selected a TIMED DRYING
programme;
–the additional option
Drying/Low
temp
has been selected.
^If required, select the additional
option
Drying/Low temp
.
JIf required, select a "Delay start"
period.
KStart the programme
^Press the START button.
WASHING AND DRYING
35
At the end of a programme
^A buzzer will sound (see
"Programmable functions") and the
Anti crease / Finish light will come on.
Press the
Door
button and open the
drum door wide.
,Take care, the metal cap is hot
after drying. Do not touch the metal
cap located on the inside of the door
glass. Danger of burning!
^Remove the laundry.

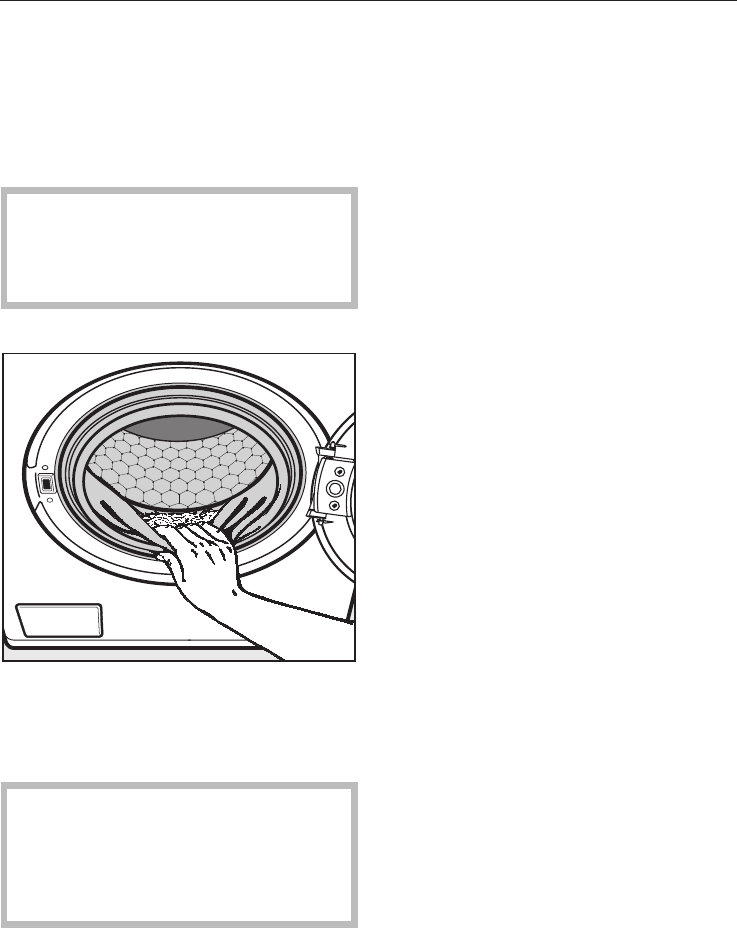

^Check the folds in the door seal for
any small articles, e.g. buttons.
Remove any fluff from drying from
around the door seal.
Check that all items have been
removed from the drum. Items left
behind could colour run, shrink or
be damaged in the next washing or
drying programme.
^Close the door.
Otherwise there is the danger of
objects being placed inadvertently in
the drum. If these remained
unnoticed and were washed in the
next load, they could damage the
laundry.
^Press in the
I-ON/0-OFF
button to
switch the machine off.
After each washing or drying programme
36
After drying
"Rinse out fluff" programme
The fluff which occurs during drying
can collect in the drum and also in
the suds container. It is best to rinse
out this fluff before the machine is
used again, so that it cannot be
deposited on the next load of
laundry.
The
Rinse out fluff
programme must
not be used for rinsing items of
laundry. Make sure that there are no
items of laundry in the drum before
starting this programme.
^Switch the machine on.
^Turn the DRYING programme
selector to the
Finish
position.
^Turn the WASHING programme
selector to the
Rinse out fluff
programme.
^Press the START button.
The fluff will rinsed out in a few minutes.
^Remove any fluff remaining from
around the door seal.
^Switch the machine off.
After each washing or drying programme
37
Programme sequences can be
changed after the START button has
been pressed. It is also possible to
select a follow-on drying programme
any time up to the end of a washing
programme.
To cancel a programme
^Turn both programme selectors to the
Finish
position.
The programme sequence indicators
will flash one after the other in the
programme sequence display. The
programme has been successfully
cancelled when only the
On
indicator
lamp is on.
To cancel an incorrectly
selected programme
^Turn both programme selectors to the
Finish
position.
When only the
On
indicator lamp is on:
^Turn the programme selector to the
required programme.
^Switch additional options on or off as
required.
^Press the START button.
To change a programme which
has been locked
See section "Safety lock".
Changing a programme sequence
38
Safety lock
Electronic programme locking (the
Locked
indicator lamp is on)
prevents the door from being opened
or the programme cancelled during a
programme.
–The
Anti-crease/Finish
lamp flashes
to show that an attempt has been
made to alter a programme. This has
no effect on the programme
sequence.
–The locking function is switched off
at the end of the programme, during
"Rinse hold" and after the appliance
has been switched off.
Engaging the safety lock
^Select a programme.
^Press the START button until the
Locked
indicator lamp comes on.
– The safety lock has been activated.
–The machine will not accept any
changes to the programme and the
programme will proceed to the end.
To de-activate the safety lock
^Press the START button until the
Locked
indicator lamp goes out.
Or, if the
Anti-crease / Finish
indicator is
flashing:
^Select the programme originally
selected, and press the START
button until the
Locked
indicator
lamp goes out.
Safety lock
39
,Disconnect the machine from the
electricity supply by switching off at
the wall socket and withdrawing the
plug before any cleaning and
maintenance work.
Cleaning the machine
^Clean the casing with a mild
non-abrasive cleaning agent or with
soap and water. Wipe dry with a soft
cloth.
^Clean the drum with a suitable
proprietary cleaner for stainless steel.
E-Cloth
^A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department, Part Number 98013530,
which is suitable for cleaning
surfaces such as stainless steel,
glass, plastic and chrome without the
use of chemicals.
,Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic surfaces and other
parts. Do not use a hose to wash the
machine down.

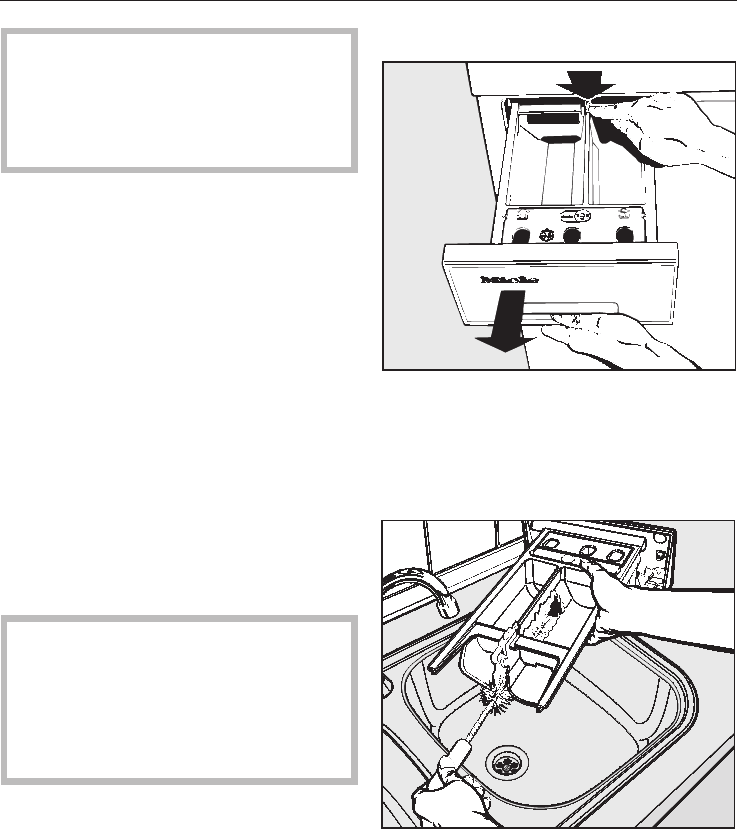

Cleaning the detergent dispenser
^Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the red release catch and at
the same time pull the drawer right
out of the machine.
^Clean the detergent dispenser
compartments and the fabric
conditioner compartment with warm
water.
Cleaning and care
40

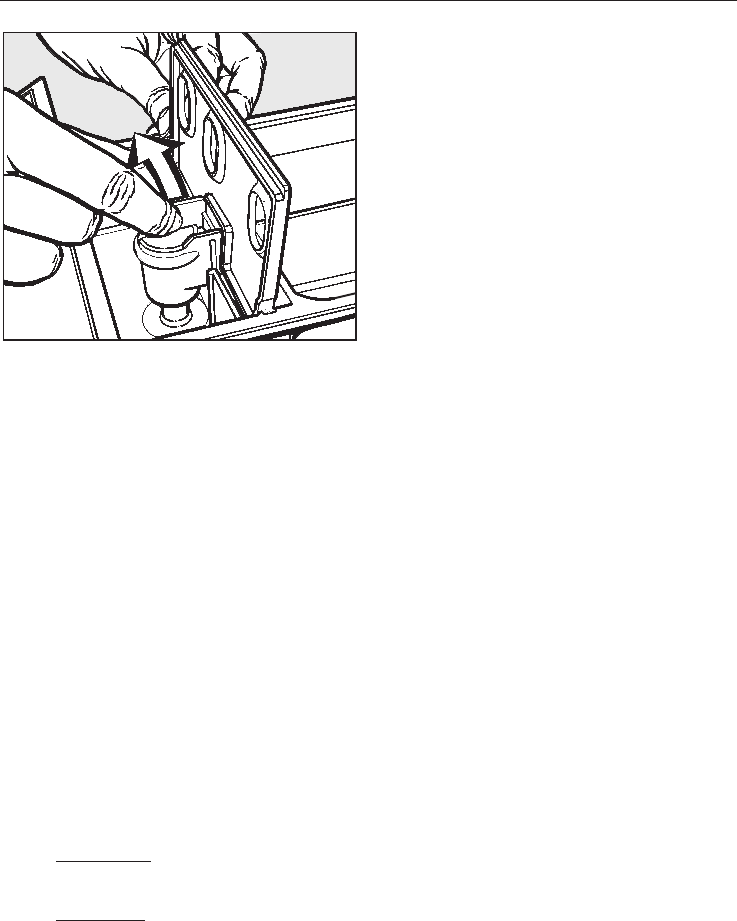

^Clean the siphon tube.
1. Remove the siphon from
compartment pand rinse under
warm running water. The channel in
compartment pshould also be
cleaned.
2. Replace the siphon securely.
Over time, detergent residue can build
up in the water jets in the top of the
detergent drawer housing.
Before replacing the detergent drawer,
use a bottle brush or similar to clean
them out.
Clean the porthole glass.
^From time to time you should also
clean ...
–the door glass on the inside using a
mild detergent or soap and water.
–the metal cap inside the door glass
with a suitable proprietary stainless
steel cleaning agent.
^Wipe dry using a soft cloth.
Cleaning and care
41

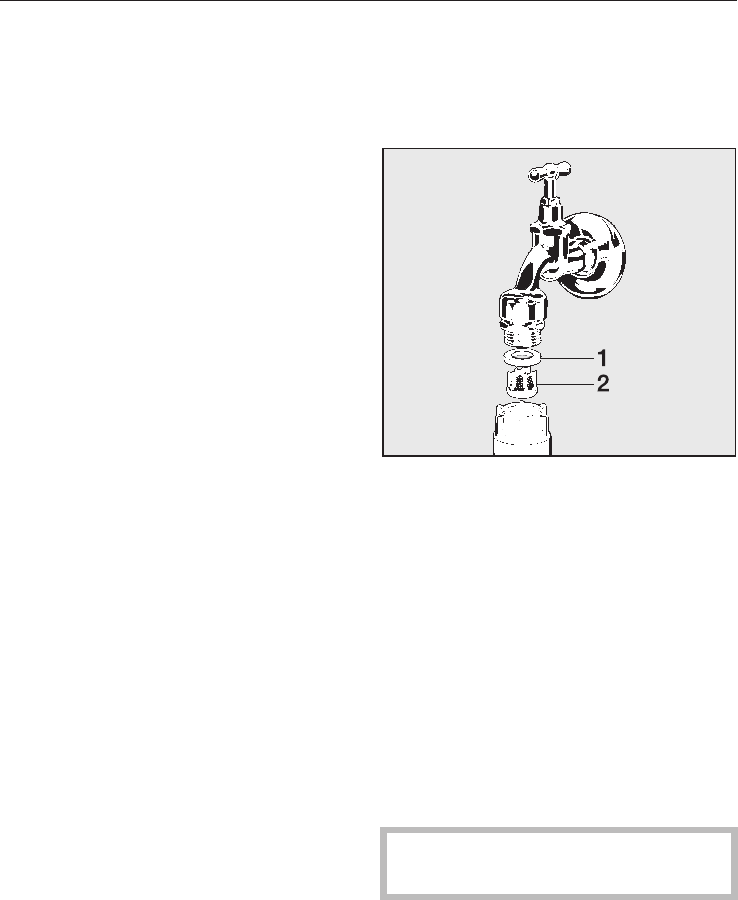

Cleaning the filter in the water
inlet
The machine has a filter to protect the
water inlet valve.
The filter in the open end of the inlet
hose should be checked and cleaned
approx. every 6 months. It should also
be checked after an interruption to the
external water supply.
^First turn off the stopcock.
^Unscrew the threaded union
connecting the free end of the inlet
hose to the stopcock.
^Remove the rubber seal 1from the
recess.
^Using pointed pliers, take hold of the
plastic filter 2bar and remove.
^Clean the plastic filter.
Put the filter and seal back in the
reverse order and reconnect the hose.
^Make sure it goes on correctly and is
not cross-threaded.
^Turn on the stopcock and check that
the connection is watertight. If water
drips out, tighten the connection.
Never forget to put the filter back in
place after cleaning.
Cleaning and care
42
What to do if ... ?
With the aid of the following guide, minor problems can be easily corrected
without calling in a Miele service technician, saving you both time and money.
The following charts are designed to help you establish the cause of a fault or
problem, and rectify it. Please note the following:
,Repair work to electrical appliances should only be carried out by a
suitably qualified person in accordance with local and national safety
regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held responsible for unauthorised
work.
The chart is divided into the following sections to help you:
The programme does not start.
The programme stops and a fault indicator lamp comes on.
A fault indicator lamp comes on but the wash programme continues as
normal.
General problems or an unsatisfactory wash or drying result.
Problem solving guide
43
The programme does not start.
Problem Possible cause Remedy
The On indicator lamp
does not light up in the
programme sequence
display or the START
button indicator lamp
does not flash.
There is no power to
the machine.
Check whether
–the door is properly closed.
–the mains plug is plugged
in.
–the mains fuse has blown.
If one of the following
indicator lamps is
flashing
-Soak/Pre-wash
-Washing
-Rinses
There is a fault. Start the programme again.
If the indicator light flashes
again, call the Miele Service
Dept.
The "Locked" indicator
lamp is on.
The safety lock is
activated.
De-activate the safety lock as
described in the section
"Safety lock".
Problem solving guide
44
The wash programme stops and a fault indicator light comes
on.
Problem Possible cause Remedy
The Water inlet/drain
indicator lamp is
flashing and the load in
the machine has not
been washed.
The water inlet system
is blocked. –Turn the programme
selectors to
Finish
.
–Open the stopcock.
–Select and start the
programme again.
The Water inlet/drain
indicator lamp is
flashing.
There is a blockage in
the water outlet. –Clean the fluff filter and
the drain pump.
–Has the drain hose been
fitted too high? Maximum
delivery head 1.00 m.
The Waterproof system
has reacted. –Call the Miele Service
department.
The Final spin indicator
lamp is flashing in the
programme sequence
display.
The final spin has not
taken place. The
machine detected an
imbalance.
–Loosen the laundry.
–Turn the WASHING
programme selector to
Spin
.
–Make sure you select an
appropriate spin speed
for the type of load.
Problem solving guide
45
A fault indicator lamp comes on but the wash programme
continues as normal.
Problem Possible cause Remedy
The Water inlet/drain
indicator lamp flashes
during a programme,
but the wash
programme has run
normally.
There is a blockage in
the water inlet.
Check whether:
–the stopcock is opened
wide enough.
–the inlet hose is kinked.
The water pressure is
too low. –In this case, call the Miele
Service Dept.
The filter in the water
inlet hose is dirty. –Clean the filter as described
in "Cleaning and care".
The Water inlet/drain
indicator lamp is
flashing.
There is a blockage in
the water outlet. –Clean the fluff filter and the
drain pump.
–Has the drain hose been
fitted too high? Max.
delivery head, 1.00 m
The Drying overload
indicator lamp is
flashing towards the
end of a drying
programme.
The load was too
large. –In future do not exceed the
maximum load. This way
you will avoid:
a) Creasing of
delicate textiles
b) Uneven drying
results / damp laundry
Complete the drying process
using a TIMED DRYING
programme.
The Anti-crease/Finish
indicator lamp is
flashing and the
locked indicator lamp
is on.
The selected
programme was
altered with the safety
lock activated.
See section "Safety Lock".
Problem solving guide
46
General problems or an unsatisfactory wash or drying result.
Problem Possible cause Remedy
The door cannot be
opened.
The machine is not
connected to the
electricity supply.
Insert the plug in the
socket.
Power cut. Open the door as
described at the end of this
section.
The door was not
correctly closed.
Press hard against the left
hand side of the door and
press the
Door
button.
There is still water in the
drum. –Turn the WASHING
programme selector to
Drain
. The water will be
drained away.
–Open the door.
The door cannot be
opened and when the
Door button is pressed
the locked indicator
lamp flashes.
This is not a fault. The
temperature "locking"
function is activated.
For safety reasons the door
cannot be opened when
the internal temperature is
above 70°C.
Problem solving guide
47
Problem Possible cause Remedy
The door cannot be
opened during or after
drying.
For safety reasons the
door cannot be
opened when the
internal temperature is
above 70°C.
Option 1
Wait until the temperature has
dropped below 70°C and then
open the door.
Option 2
Select the cooling down
phase*:
–Turn the DRYING
programme selector to the
Finish position
.
–Turn the DRYING
programme selector imme-
diately to a programme:
the
Cooling down
indicator
lamp will light up and the
cooling down phase has
been selected.
–At the end of the cooling
down phase (the
Anti-
crease/Finish
light comes
on), you can open the door.
* If the drying programme has
already finished, first start a
new drying programme for a
few minutes.
Option 3
Activate the programmable
function "Opening the door at
high temperatures".
Problem solving guide
48
Problem Possible cause Remedy
The laundry is still
damp after a drying
cycle.
The load weighed less
than 1 kg. The moisture
sensing system cannot
operate with too small a
load.
In future dry small loads in
a TIMED DRYING
programme.
When washing and
drying in one continuous
sequence:
during the spin the laundry
formed a ring in the drum
because the laundry was
distributed unevenly.
When drying separately:
during the Thermospin the
laundry formed a ring in
the drum because the
laundry was too damp or
because the spin was set
too high.
–Turn the WASHING and
DRYING programme
selectors to the
Finish
position.
–Open the door and
loosen the laundry.
–Select a lower spin
speed.
–Start the drying
programme again.
There is still water in
the drum after drying.
There is a blockage in the
water outlet.
Clean the fluff filter and the
drain pump as described in
"Opening the drum door in
the event of a blocked
drain outlet and/or power
failure".
Problem solving guide
49
Problem Possible cause Remedy
The laundry is not
spun satisfactorily.
The spin speed selected
was too low.
Select a higher spin speed
for the next wash
programme.
The machine was not
able to distribute the
laundry load evenly.
Laundry was spun at a
reduced spin speed to
protect the machine.
Always mix large and small
items in a load to avoid
imbalance.
The fluff filter is clogged. Clean the fluff filter.
The machine is not
steady during a spin
cycle.
The machine feet are not
level.
Level the machine (see
"Installation").
In spite of adequate
water pressure, the
water flows into the
machine too slowly.
The filter in the water inlet
hose is dirty
Clean the filter.
Large amounts of
detergent residue
remain in the
detergent dispenser
drawer.
The water pressure is too
low. –Clean the filter in the water
inlet.
–Press the
Water plus
button.
Powder detergent used in
conjunction with water
softeners tends to
become sticky.
In future, add washing
powder into the dispenser
first, and then add the water
softener.
Fabric conditioner is
not completely
dispensed or too
much water remains
in the
compartment.
The detergent dispenser
drawer was opened or
was not pushed right in
whilst conditioner was
being flushed in.
The siphon tube is not
correctly positioned, or is
clogged up.
–Clean the siphon tube.
–Also clean the channel in
compartment p.
Problem solving guide
50
Problem Possible cause Remedy
There is an excessive
build-up of foam.
Too much detergent
was used. –Follow the manufacturer's
instructions on dosage
given on the packaging.
–Take the water hardness
level into account.
–Use less detergent for
lightly soiled or small loads.
White residues which
look like powder
detergent are seen on
dark textiles after
washing.
The detergent
contained compounds
(zeolites) to aid water
softening where are not
soluble in water. They
have ended up on the
textiles.
–Try and brush out the
residues after drying using
a soft brush.
–Wash dark textiles using a
detergent which contains
no zeolites. Liquid
detergents usually contain
no zeolites.
Grey, greasy particles
cling to washed
laundry.
Insufficient amounts of
detergent have been
used to break down the
particles of grease in
heavily soiled laundry.
–Use more detergent.
–Before washing the next
load run a COTTONS 95°C
programme with powder
detergent but without a
load.
Problem solving guide
51
Problem Possible cause Remedy
Liquid detergent does
not give the required
result.
Liquid detergents usually
contain no bleaching
agents. They do not
remove fruit, coffee and
tea stains.
–Use a general purpose
detergent containing a
bleaching agent.
–Pour stain removers into
compartment jand
liquid detergent into a
dispensing ball
(Remember to remove
the dispensing ball
before drying!).
–Never put stain
removers and liquid
detergent together in the
dispenser drawer.
Limescale deposits
appear on the drum
surface.
Not enough detergent
was used. –Use a descaling agent,
suitable for use in
washing machines, to
remove the limescale
deposits.
–Use the correct amount
of detergent for the
water hardness level.
The pump makes
strange noises.
This is not a fault! These
noises occur at the end
of a pump sequence as
a normal part of the
operation.
Problem solving guide
52
Opening the drum door in the
event of a blocked drain outlet
and/or power failure
^Switch the machine off.
There is a yellow filter flap opener
behind the detergent drawer fascia
panel.
^Remove the opener.
^Use it to open the access flap.
Blocked drain outlet
If the drain outlet is clogged, a large
amount of water will be retained in the
machine (up to 25 litres).
,Caution: If laundry has been
washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!
^Place a suitable container under the
access flap.
^Turn the fluff filter lid round 2-3 times.
Do not take it right out.
With large volumes of water the
container will need to be emptied
several times. Secure the fluff filter back
into position and empty the container
before repeating the procedure. To stop
the flow of water: Tighten the fluff filter
lid again.
Problem solving guide
53

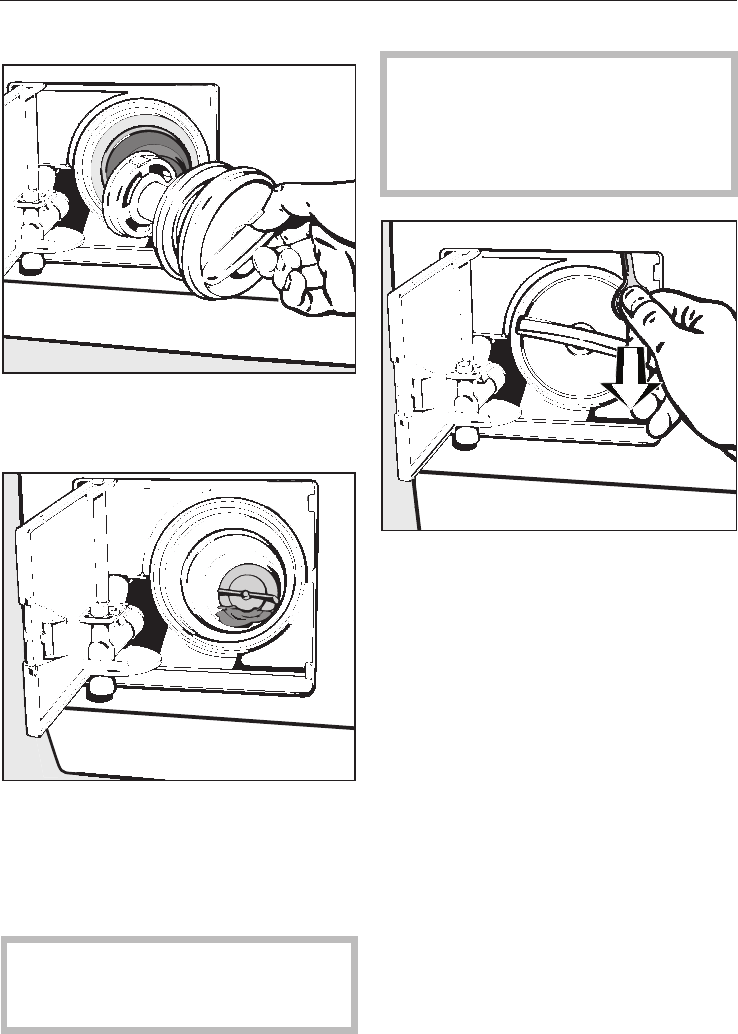

Once the flow of water ceases:
^Remove the fluff filter completely.
^Clean the fluff filter thoroughly.
^Check that the impeller can turn
easily. Remove any foreign objects
(e.g. buttons, coins, etc.) and fluff.
Clean the fluff filter housing.
^Replace the fluff filter.
,Make sure it is securely
tightened. Otherwise there is a risk
of water leakage during use.
Opening the drum door
,Always make sure that the drum
is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.
^Pull the emergency release
downwards (see illustration). The
drum door will open.
Problem solving guide
54
After sales service
In the event of any faults which you
cannot remedy yourself, please contact
–Your Miele Dealer or
–The Miele Service Department (see
address on back cover).
When contacting the Service
Department, please quote the model
and serial number of your appliance,
both of which are shown on the data
plate.
,Please note that telephone calls
may be monitored and recorded to
improve our service.
Appliance guarantee
The appliance is guaranteed for a
period of 1 year.
See the guarantee card supplied with
the appliance for further details.
Problem solving guide
55
Front view
aElectrical connection
bInlet hose with "Waterproof" system
cDrain hose with flexible / detachable
swivel elbow
dDetergent dispenser
eControl panel
fDoor
gFlap for fluff filter and drain pump
hFour height adjustable screw feet
Installation and connection
56
Installation surface
A concrete floor is the most suitable
installation surface. It is far less prone
to vibration during the spin cycle than
wooden floorboards or a carpeted
surface.
Please note the following:
^The machine must be level and
securely positioned.
^To avoid vibrations during spinning
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
^We recommend the use of a plywood
base at least 59x52x3 cm. The base
should span several joists and be
bolted to the joists and not only to the
floorboards. Check for pipes and
cables beforehand!
The most stable part of the floor is
usually in the corner.
,If the machine is installed on a
raised plinth, it has to be secured
against slippage during spin using
retaining clips (available from the
Miele Spare Parts Dept). Otherwise
there is the danger of the machine
moving about.
Installation
Lift the machine from its packaging
base and move it to its site. Please note
the following:
^Do not lift the machine by the drum
door.
,Ensure that the machine feet and
the floor area are dry to prevent the
machine from slipping during the
spin cycle.
Installation and connection
57

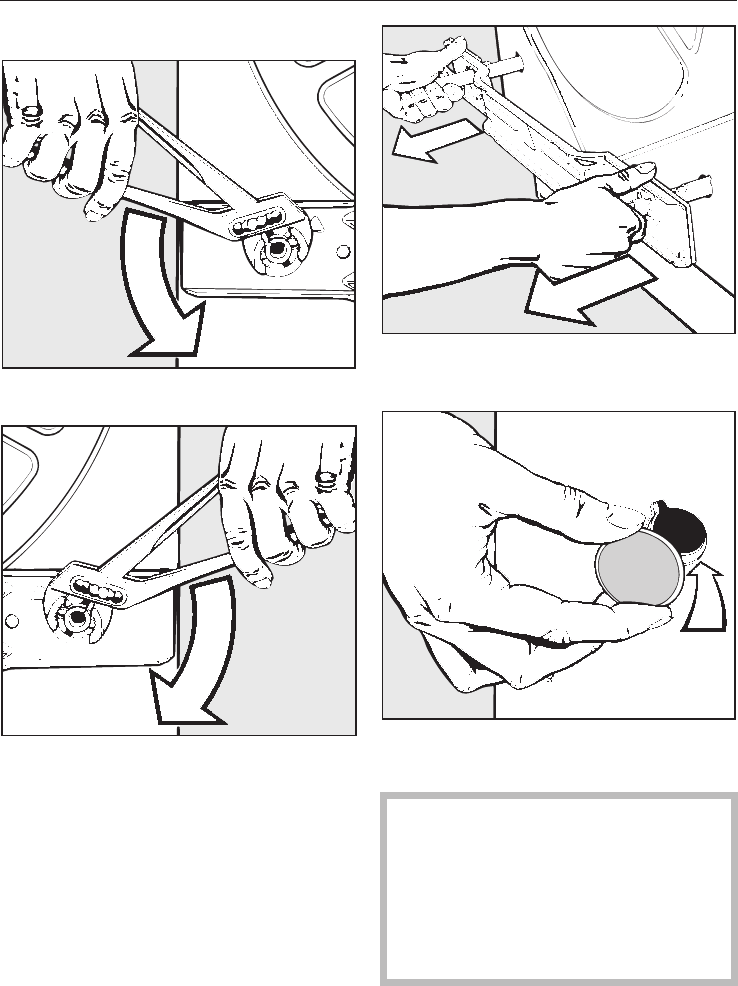

Removing the transit fitting
ATurn the left-hand transit bar 90°.
BTurn the right-hand transit bar 90°.
CWithdraw the two bars together with
the support plate.
DPlug the holes with the plastic caps
supplied.
The machine must not be moved
without the transit fitting in place.
Store the transit fitting in a safe
place for future use. It must be
re-fitted if the machine is to be
moved again (e.g. when moving
house).
Re-fitting is carried out by reversing the
procedure.
Installation and connection
58

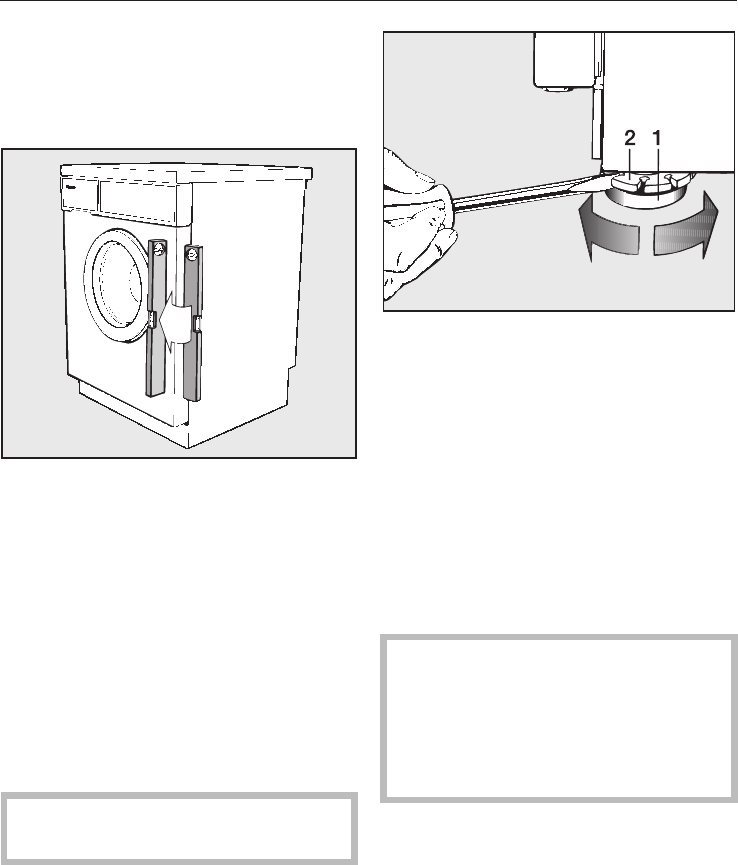

Levelling the machine
The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.
Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.
The four adjustable feet are used to
level the machine. All four feet are
screwed in when the machine is
delivered.
Screwing out and adjusting the feet
^Gently tip the machine and prop it up
using a solid wooden wedge for
example, to ensure stability.
,Make sure the machine does not
slip as this could cause injury.
^Loosen counternut 2with a
screwdriver by turning it
anti-clockwise, then unscrew foot 1
together with the counternut.
^Put the machine back on all four feet.
^Use a spirit level to check the
machine is standing level.
^Hold the foot 1firm using a pipe
wrench and using a screwdriver turn
the counternut 2to the right firmly up
against the housing.
,All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.
Installation and connection
59
Building under a continous
worktop / in a row of kitchen
units
The building under kit* must be
fitted by a suitably qualified fitter.
–A special building under kit* is
required. The cover plate supplied
with the building under kit* replaces
the machine's lid.
To ensure electrical safety the cover
plate must be fitted.
–When installing under a 900/910 mm
high worktop a spacer kit* is
required.
– Connections for electricity, water and
drainage should be installed in such
a way that they remain accessible
when the machine is in place.
Fitting instructions are supplied with the
building under kit.
All items marked * are available to order
from your Miele Dealer or from the Miele
Spare Parts Dept.
Installation and connection
60
The Miele Waterproof system
The Miele Waterproof system protects
the washing machine from water
damage.
The system consists of three main
components:
1) the inlet hose
2) the electronic unit and the washing
machine housing
3) the drain hose
1) Inlet hose
– The inlet hose is fitted with an
additional electrical safety valve
which works like an automatic
stopcock and is housed in the inlet
hose connection box.
– It is pressure proof to between 70
and 100 bar.
– The inlet hose has a protective
sleeve.
Any leaking water from the inlet hose
is fed into the sump through this
protective sleeve. A float switches off
the safety valve, preventing any more
water from flowing into the machine
and water in the suds container is
pumped away.
2) Electronic unit and washing
machine housing
–Sump
Any leaking water is collected in a
sump in the base of the appliance. A
float switches off the safety valves,
preventing any more water from
flowing into the machine and water in
the suds container is pumped away.
–Overflow protection
This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.
3) Drain hose
The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.
Installation and connection
61
Connection to the water supply
Installation
For the Miele Waterproof system to
function correctly, it may only be fitted
in the positions shown in the
illustrations above.
The machine should be connected to a
mains water supply in accordance with
local and national safety regulations.
The German authorities do not require it
to have a non-return valve as the
washer-dryer has been designed to
comply with DIN regulations.
The machine is designed to operate
with a flow pressure of between 1 and
10 bar. If it is higher than 10 bar it is
essential to fit a reducer valve.
Connection to the mains water supply
should incorporate a mains stopcock
with 3/4" thread. The stopcock should
be fitted by a qualified plumber.
,The connection point is subject
to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.
The appliance is not suitable for
connection to a hot water supply
and connection to a household
water softener is not recommended.
Installation and connection
62
The plastic casing of the safety valve contains electrical components. The
Waterproof system must only be connected to its own stopcock. It must not be
connected to mixer taps or similar and must not be fitted in areas where there
is the risk of water or other liquids reaching it.
Do not get wet.
The protective sleeve of the hose
must not be damaged or kinked.
Installation and connection
63
Maintenance and care
If you intend to unscrew the Miele
Waterproof system hose from the
stopcock it is essential to disconnect
the machine from the electricity supply
first.
Only use a Miele Waterproof system
hose should you need a replacement.
In order to protect the water inlet
valves, the dirt filter in the water inlet
safety valve connection must not be
removed.
Extension hose
A 4.5 m Miele Waterproof system
extension hose is available from your
Miele Dealer or the Miele Spare Parts
Department as an optional extra.
Installation and connection
64
Connection to the drainage
system
The machine drains via a drain pump
with a delivery head of 1 metre.
The drain hose is 1.5 m long. It must
not be kinked as this restricts drainage.
The swivel elbow at the end of the hose
can be turned in either direction, or can
be detached if required, with a sharp
twist and pull.
Drain hose connection:
1. Direct into a sink.
Please note the following
–Hook the hose over the edge and
secure.
–Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.
2. Connected securely to a plastic drain
pipe with a rubber nipple. There is no
need to use a non-return valve.
3. Connected securely to a standpipe.
4. Connected securely to a floor gully.
If required the drain hose can be
extended to a length of 5 metres. The
accessories required can be
purchased from the Miele Spare Parts
Dept.
For draining the water away with a
delivery head over 1 metre (and up to a
max. of 1.8 metres) a 2nd "Duo-drain
pump" is available together with the
corresponding kit from your Miele
Dealer or the Miele Spare Parts Dept.
Installation and connection
65
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
national and local safety regulations.
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. The voltage and connected
load are given on the data plate.
Please ensure these match the
household mains supply. The fuse
rating is quoted on the plug.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Installation and connection
66
Programmes
Full
load
Energy
consumpti
on
Water
consumpt
ion
Programme
duration
kg kWh l h min
WASHING
COTTONS 95°C 5.0 1.70 59 1 53
COTTONS 60°C (1) 5.0 0.95 56 1 56
COTTONS 40°C 5.0 0.50 56 1 56
MINIMUM IRON 40°C 2.0 0.45 57 1 20
DELICATES 30°C 1.0 0.40 75 1 00
WOOLLENS 30°C 1.0 0.15 25 0 38
DRYING
COTTONS Normal(2) 2.5 1.45 9 1 03
1) EN 60456 test programme
2) EN 61121 test programme
Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any additional options
selected.
Consumption data
67
Height 85.0 cm
Width 59.5 cm
Depth with lid fitted 60.0 cm
Depth without lid 57.5 cm
Weight, empty 99 kg
Max. floor load 1600 Newton (approx. 160 kg)
Capacity – Washing
Capacity – Drying max. 5.0 kg dry laundry
max. 2.5 kg Cottons
Voltage see data plate
Rated load see data plate
Fuse rating see data plate
Consumption data see "Consumption data" section
Minimum water flow pressure 1 bar (100 kPa)
Maximum water flow pressure 10 bar (1000 kPa)
Maximum drain pump head 1.00 m
Maximum drain pump length 5.00 m
Test marks VDE, radio and television suppressed
Technical data
68
Programmable functions
for changing
standard settings
The programmable functions can be
used to tailor programmes to suit
your individual requirements. Once
activated the programmable
functions remain in memory until they
are deactivated.
High water level
This is useful where a higher quality
rinse is required.
It is available for the rinses in the
following wash programmes:
– COTTONS
– MINIMUM IRON
– QUICK WASH 40°C
Follow steps Ato Gto programme and
store in memory.
The programmable functions are
activated with the help of the additional
option buttons and the WASHING
programme selector.
Before you begin, first ensure that:
–the machine is switched off.
–the drum door is closed.
–the WASHING and DRYING
programme selectors are at the
Finish
position.
APress the additional option buttons
Soak
and Pre-wash at the same time,
hold pressed in and . .
B. . . switch the machine on with the
I-ON / 0-OFF
button.
CThen release these buttons.
–The
Soak/Pre-wash
and
Washing
sequence indicator lamps will flash.
–APwill appear in the left of the
display.
DTurn the WASHING programme
selector to the
Rinse out fluff
position.
EThe following will appear in the
display:
0= Programmable function off
(de-activated)
or
i= Programmable function on
(active)
Press the START button to switch
between
0to iactivated or from
ito 0deactivated.
FSwitch the machine off with the
I-ON
/ 0-OFF
button.
The setting you have selected is now
stored in memory.
GTurn the WASHING programme
selector to the
Finish
position.
Programmable functions
70
Additional rinse for the
COTTONS programme
Suitable for areas with soft water
(hardness range I).
If a particularly good rinsing effect is
required in an area with soft water, then
the high water level can be activated in
addition to the additional rinse.
Follow steps Ato Gto programme and
store in memory.
The programmable functions are
activated with the help of the additional
option buttons and the WASHING
programme selector.
Before you begin, first ensure that:
– the machine is switched off.
– the drum door is closed.
– the WASHING and DRYING
programme selectors are at the
Finish
position.
APress the additional option buttons
Soak
and Pre-wash at the same time,
hold pressed in and . .
B. . . switch the machine on with the
I-ON / 0-OFF
button.
CThen release these buttons.
–The
Soak/Pre-wash
and
Washing
sequence indicator lamps will flash.
–APwill appear in the left of the
display.
DTurn the WASHING programme
selector to the
Separate rinse
position.
EThe following will appear in the
display:
0= Programmable function off
(de-activated)
or
i= Programmable function on
(active)
Press the START button to switch
between
0to iactivated or from
ito 0deactivated.
FSwitch the machine off with the
I-ON
/ 0-OFF
button.
The setting you have selected is now
stored in memory.
GTurn the WASHING programme
selector to the
Finish
position.
Programmable functions
71
Buzzer
An audible tone will sound at the end
of a washing / drying programme.
The machine is delivered with this
programmable function activated.
Follow steps Ato Gto programme and
store in memory.
The programmable functions are
activated with the help of the additional
option buttons and the WASHING
programme selector.
Before you begin, first ensure that:
– the machine is switched off.
– the drum door is closed.
– the WASHING and DRYING
programme selectors are at the
Finish
position.
APress the additional option buttons
Soak
and Pre-wash at the same time,
hold pressed in and . .
B. . . switch the machine on with the
I-ON / 0-OFF
button.
CThen release these buttons.
–The
Soak/Pre-wash
and
Washing
sequence indicator lamps will flash.
–APwill appear in the left of the
display.
DTurn the WASHING programme
selector to the "COTTONS 40°C"
position.
EThe following will appear in the
display:
0= Programmable function off
(de-activated)
or
i= Programmable function on
(active)
Press the START button to switch
between
0to iactivated or from
ito 0deactivated.
FSwitch the machine off with the
I-ON
/ 0-OFF
button.
The setting you have selected is now
stored in memory.
GTurn the WASHING programme
selector to the
Finish
position.
Programmable functions
72
Opening the door at high
temperatures
It is possible to open the door during
a washing or drying programme,
even if the temperature is above
70°C.
,Warning: The water in the
machine will be very hot and
could cause burning or scalding.
The machine is delivered with the
programmable function switched off.
Follow steps Ato Gto programme and
store in memory.
The programmable functions are
activated with the help of the additional
option buttons and the WASHING
programme selector.
Before you begin, first ensure that:
– the machine is switched off.
–the drum door is closed.
–the WASHING and DRYING
programme selectors are at the
Finish
position.
APress the additional option buttons
Soak
and Pre-wash at the same time,
hold pressed in and . .
B. . . switch the machine on with the
I-ON / 0-OFF
button.
CThen release these buttons.
–The
Soak/Pre-wash
and
Washing
sequence indicator lamps will flash.
–APwill appear in the left of the
display.
DTurn the WASHING programme
selector to the "DELICATES Cold"
position.
EThe following will appear in the
display:
0= Programmable function off
(de-activated)
or
i= Programmable function on
(active)
Press the START button to switch
between
0to iactivated or from
ito 0deactivated.
FSwitch the machine off with the
I-ON
/ 0-OFF button.
The setting you have selected is now
stored in memory.
GTurn the WASHING programme
selector to the
Finish
position.
Programmable functions
73
Final residual moisture after
drying
The machine is set to give the best
drying results. You do, however, have
the option of shortening or
lengthening the drying time if you
prefer.
Shortening the drying time:
by:
1 minute
2 minutes
3 minutes
4 minutes
the display will
show:
I
2
3
4
Lengthening the drying time:
by:
1 minute
2 minutes
3 minutes
4 minutes
the display will
show:
5
6
7
8
Factory setting: 0
Follow steps Ato Gto programme and
store in memory.
The programmable functions are
activated with the help of the additional
option buttons and the WASHING
programme selector.
Before you begin, first ensure that:
–the machine is switched off.
–the drum door is closed.
–the WASHING and DRYING
programme selectors are at the
Finish
position.
APress the additional option buttons
Soak
and Pre-wash at the same time,
hold pressed in and . .
B. . . switch the machine on with the
I-ON / 0-OFF
button.
CThen release these buttons.
–The
Soak/Pre-wash
and
Washing
sequence indicator lamps will flash.
–APwill appear in the left of the
display.
DTurn the WASHING programme
selector to MINIMUM IRON 30°C .
EA number between 0and 8will
appear in the display.
By pressing the START button
repeatedly you can:
– shorten
the drying time in 1 minute steps:
I,2,3or 4will appear in the display;
–increase
the drying time in 1 minute steps, 5,
6,7or 8will appear in the display;
–or accept the factory setting
(0will appear in the display).
FSwitch the machine off with the
I-ON
/ 0-OFF
button.
The setting you have selected is now
stored in memory.
GTurn the WASHING programme
selector to the
Finish
position.
Programmable functions
74
75
Alteration rights reserved / 3404 / WT 945 S
This paper consists of cellulose which has been bleached without the use of chlorine.
M.-Nr. 05 876 080 / 02
en-GB

Navigation menu
