R11e-5HacT
The R11e-5HacT is a miniPCIe format wireless interface that can operate in the 5GHz wireless spectrum. The card features
three MMCX antenna connectors.
Assembly and mounting
The card is a mini PCIe full length format. Unplug the host device from power, and remove the preinstalled screws from the two
locations where the card will be inserted. Insert the card at a slight angle, with the connector end first, push it slightly, so that it
clicks into place. Lower the card until it is parallel to the motherboard and then use the two screws to fasten it in place. Attach the
antenna to the card antenna connectors.
Configuration
The device will be automatically recognized when used in a RouterOS powered device. Configuration can be set in the
“Wireless” menu. More information about using RouterOS can be found in our documentation: http://mt.lv/help
Operating system support
The device is tested with RouterOS v6 and above. It might be compatible with other operating systems, but drivers are not
included with the card.
See www.mikrotik.com for more information or contact support@mikrotik.com 23-Nov-17 .
Federal Communication Commission Interference Statement
(FCC ID: TV7R11E5HACT)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antenna must not be co-located or operation in conjunction with any other antenna
or transmitter.
IMPORTANT: Exposure to Radio Frequency Radiation.
2.37m minimum distance has to be maintained between the antenna and the occupational user and
5.25m to general public. Under such configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
List of approved antennas for 5GHz:
• Omni Directional, MT-482016/N/A, 8.5dBi;
• Panel, PA58-24-ANT, 24dBi;
• Dish, HDDA5W-32-DP2, 32dBi.
Antenna Installation. WARNING: It is installer's responsibility to ensure that when using the
authorized antennas in the United States (or where FCC rules apply); only those antennas certified
with the product are used. The use of any antenna other than those certified with the product is
expressly forbidden in accordance to FCC rules CFR47 part 15.204. The installer should configure the
output power level of antennas, according to country regulations and per antenna type.
Professional installation
is required of equipment with connectors to ensure compliance with health and safety issues.
See www.routerboard.com for more information. Contact support@mikrotik.com 23-Nov-17
OEM statement. This module is intended for OEM installations only. As such the OEM
integrator is responsible for ensuring that the end-user has no manual instructions to remove install or
modify the module. This module is limited to installations in mobile or fixed applications. OEM
integrators may utilize antennas of like an equal or lesser gain as appearing in the list in this
document (reference 47 CFR, paragraph 15.204(c)(4) for further information on this topic. The
MikroTik OEM RF Module complies with Part 15 of the FCC rules and regulations.
The Grantee will provide guidance to the Host Manufacturer in ensuring compliance with the Part 15
Subpart B requirements.
OEM Modules have been certified by the FCC for use with other products without any further
certification (as per FCC section 2.1091). Separate approval is required for other operating
configurations including portable configurations with respect to 47CFR paragraph 2.1093 and different
antenna configurations. The OEM is required to comply with all 47CFR labeling instructions and
requirements for the finished products.
Changes or modifications not expressly approved by MikroTik could void the OEM authority to install or
operate the equipment. OEMs must test their final product to comply with unintentional radiators (FCC
section 15.107 and 15.109) before declaring compliance of their final product to Part 15 of the FCC
Rules.
WARNING: the OEM must ensure that the FCC labeling requirements are met. This includes a clearly
visible label on the outside of the OEM enclosure specifying the appropriate MikroTik OEM RF Module
FCC identifier for this product as well as any other required FCC notices as presented below.

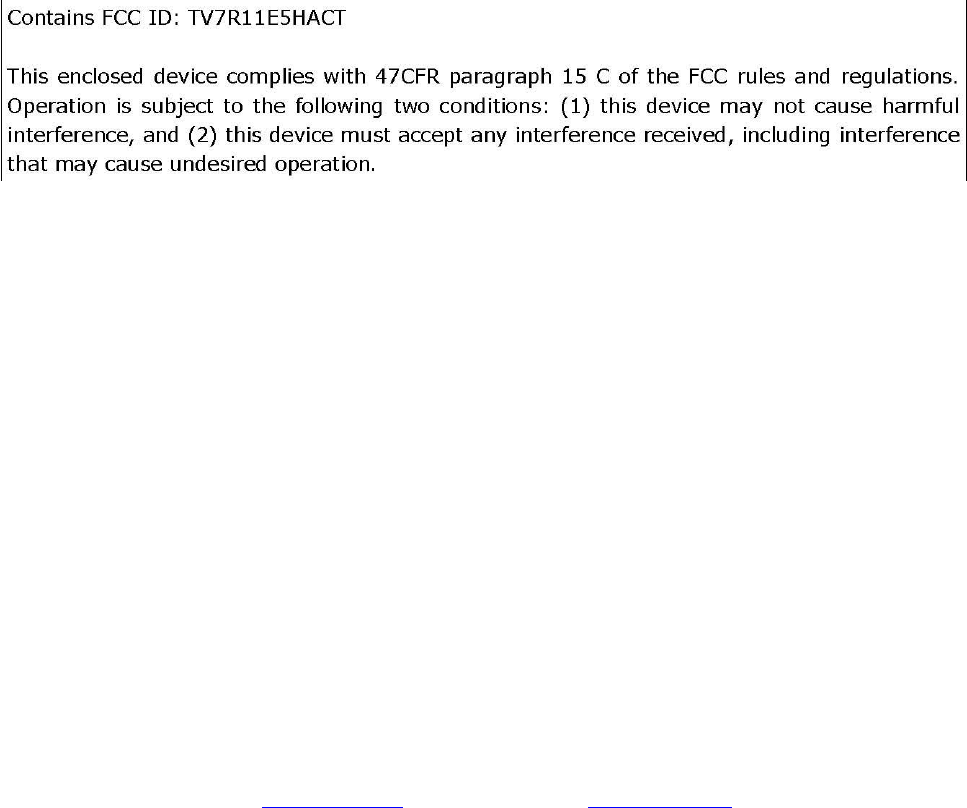

Contains FCC ID: TV7R11E5HACT
