RouterBOARD 711-5Hn
Quick Setup Guide and Warranty Information
First use
1. Connect antenna cable to the built in WiFI connector (uFL or MMCX depending on model)
2. Connect a passive PoE powered ethernet cable to the device
Powering
The board accepts powering only from the LAN1 Ethernet port:
●LAN1 Ethernet port J4 accepts 9..28V DC input (at the board; higher voltage needed to compensate for power loss on
long cables; at least 18V suggested) from non-standard (passive) Power over Ethernet injectors (no power over
datalines). The board does not work with IEEE802.3af compliant 48V power injectors. This device doesn't come fitted
with a power jack.
Booting process
This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet cable, using
the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of 192.168.88.1 with the username
admin and no password.
In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More
information here:
http://wiki.mikrotik.com/wiki/First_time_startup
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the S301 button of the device
when starting it until it beeps and the LED light turns off and RB711 will look for Netinstall servers.
Extension Slots and Ports
●One Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight
or cross-over cables for connecting to other network devices. The Ethernet port accepts 9..28 V DC powering from a
passive PoE injector.
●Built-in 802.11a/n WiFi card (AR9280) with one MMCX/uFL (depends on model) connector to the left of it
Buttons and Jumpers

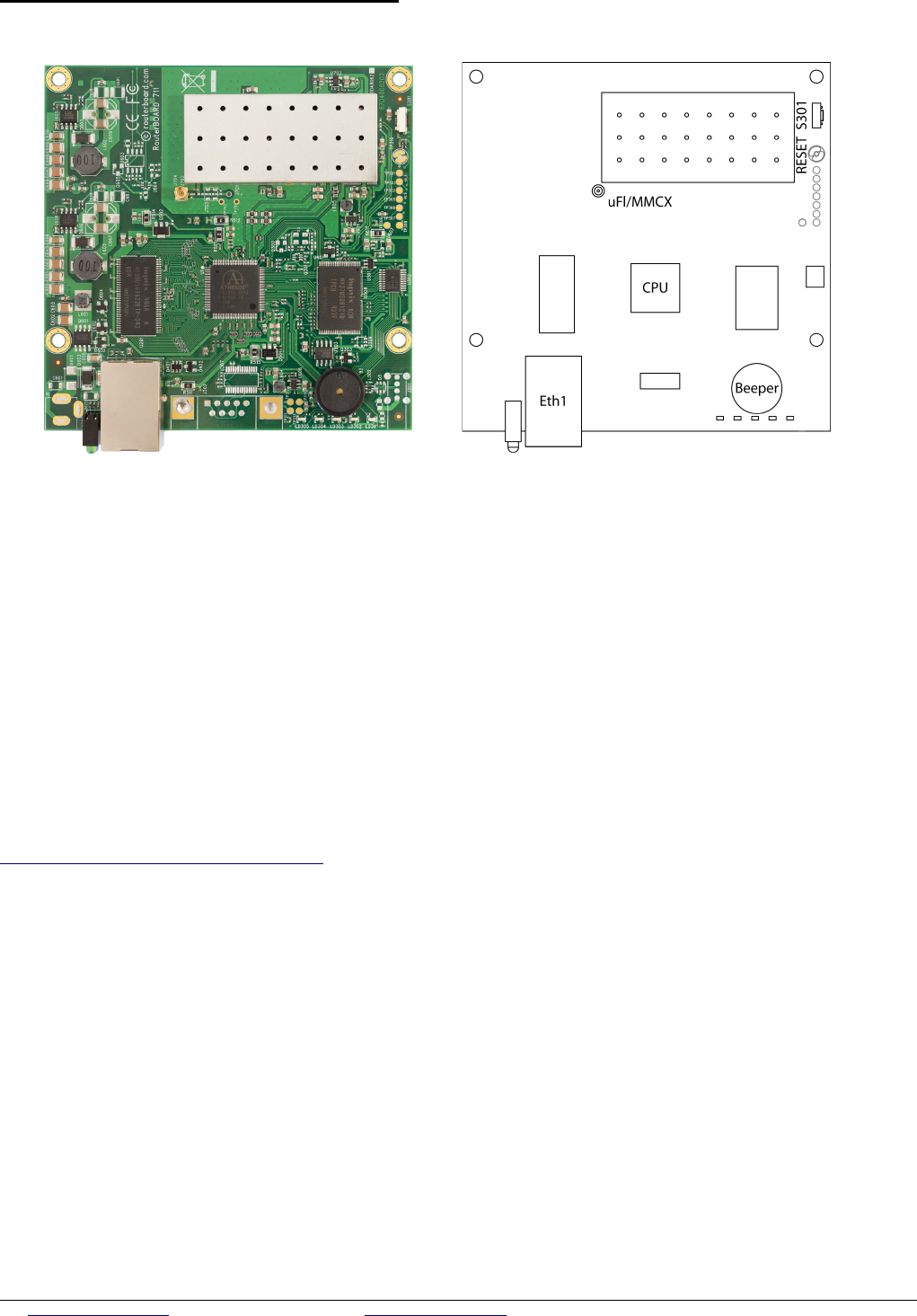

●RouterOS reset jumper hole (RESET, marked with a black circle in the diagram above, below S301) – resets
RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and
boot the device. Hold screwdriver in place until RouterOS configuration is cleared.
●S301 – Holding this button during boot time will make RB711 look for Netinstall servers. Release the button after
the LED light goes out.
Operating System Support
Currently tested operating system is MikroTik RouterOS (starting from version v4.10).
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. rev. A (9-Jul-2010)
![](/img.php?id=1319453&img=bg2.png)
Copyright and Warranty Information
Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No
part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder.
RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered
trademarks appearing in this manual are the property of their respective holders.
Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of one year from the shipping date to be
free of defects in materials and workmanship under normal use and service, except in case of damage caused by
mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other
acts of nature.
If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty
and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia
To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure.
Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Take into
account that all goods have one year warranty.
Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to,
the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to
ensure the accuracy of the contents of this manual, however, it is possible that it may contain technical inaccuracies,
typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect,
incidental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of
data or profits. Please report any inaccuracies found to support@mikrotik.com
Federal Communication Commission Interference Statement (FCC ID: TV7RB711-5HN)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This device and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter.
IMPORTANT: Exposure to Radio Frequency Radiation.
20 cm minimum distance has to be maintained between the antenna and the occupational user and 45 cm to general public.
Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be
satisfied.
List of approved antennas.
5.47-5.85GHz 12dBi Omnidirectional Antenna OD58-12
5.15-5.85GHz 23dBi Panel Antenna ARC-5823P
Installer shall be responsible for ensuring that the proper antenna is employed so that the limits stated in FCC Part 15 are
not exceeded. Equipment employs auto power reduction when utilizing antennas with gain greater than 6 dBi.
