MilDef Crete RK886EX Notebook Computer with 802.11 a/b/g radio User Manual RK886EX UserMan 0703
MilDef Crete Inc. Notebook Computer with 802.11 a/b/g radio RK886EX UserMan 0703
Manual
NOTEBOOK COMPUTER
RK886EX
USER’S GUIDE
Copyright © 2007
All rights reserved. No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language, or
computer language, in any form, or by any means, electronic, mechanical,
magnetic, optical, chemical, or other, without the prior written permission of the
manufacturer.
The manufacturer reserves the right to revise this publication and to make changes
to the contents hereof without obligation to notify any person of such revision or
changes.
The manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of the
software described in this manual is sold or licensed "as is". Should the programs
prove defective following purchase, the buyer (and not the manufacturer, its
distributor, or its dealer), assumes the entire cost of all necessary servicing, repair
and any incidental or consequential damages resulting from any software defects.
Trademark Acknowledgments
IBM, PC, AT, XT are registered trademarks of International Business Machines
Corp.
MS-DOS and Windows are registered trademarks of Microsoft Corp.
Pentium is the registered trademark of Intel Corp.
All product and company names are trademarks or registered trademarks of their
respective holders.
EMC and Safety Notice
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this RK886EX must be in strict accordance with the
instructions included in the user documentation provided with the product. Any
changes or modifications (including the antennas) made to this device that are not
expressly approved by the manufacturer may void the user’s authority to operate
the equipment.
The manufacturer is not responsible for any radio or television interference caused
by unauthorized modification of this device, or the substitution of the connecting
cables and equipment other than manufacturer specified. It is the responsibility of
the user to correct any interference caused by such unauthorized modification,
substitution or attachment. Manufacturer and its authorized resellers or
distributors will assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.
IMPORTANT NOTE (CO-LOCATION)
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This device
and its antenna must not be co-located or operating in conjunction with any other
antenna or transmitter.
In order to maintain compliance with the FCC RF exposure guidelines, this
equipment should be installed and operated with minimum distance 20cm
between the radiator and your body. Use only with supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter
and may violate FCC regulations.
This device is restricted to INDOOR USE due to its operation in the 5.15 to
5.25GHz frequency range. According to FCC 15.407(e), requires this product to
be used indoors for the frequency range 5.15 to 5.25GHz to reduce the potential
for harmful interference to co-channel of the Mobile Satellite Systems.
CE
!
0984
Products with the CE Marking comply with both the EMC Directive
(2004/104/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following
European Norms:
EN 300 328 V.1.6.1 (2004)y
EN 301 489-1 V.1.6.1 (2005) / EN 301 489-17 V.1.2.1 (2002)
EN 301 893 V.1.2.3 (2003)
EN 50371: 2002
EN 60950-1: 2002
EN 55022 / EN 55024
R&TTE (CE) MANUAL REGULATORY REQUIREMENT (WLAN -
IEEE 802.11b/g)
802.11b/g Restrictions:
European standards dictate maximum radiated transmit power of 100mW
EIRP and frequency range 2.400-2.4835GHz. In France, the equipment must
be restricted to the 2.4465-2.4835GHz frequency range and must be restricted
to indoor use.
D=0.0178m is the minimum distance between the EUT and human body to meet the
E-field strength of 61V/m
UL, TÜV
AC Adapter (TÜV includes EN60950 LVD)
Power Conservation
This computer consumes much less power than conventional computers; however,
power consumption may be reduced by properly configuring the Power
Management Setups.
It is recommended that the power saving functions be enabled even when not
running on battery power.
Power Management generally does not degrade system performance while saving
power.
Material Safety and Recycling
All materials used in the construction of this unit are recyclable or
environmentally friendly. No CFC or related materials were used in the
manufacturing process or inside the product.
Please recycle the packing materials, and at the end of the computer's life, all other
materials in accordance with the local regulations.
Please refer “Material and Recycling” for the contents of the materials.
Environmental Information
The equipment that you bought has required the extraction and use of natural
resources for its production. It may content hazardous substances for the
health and the environment.
In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you to
use the appropriate take-back systems. Those systems will reuse or recycle
most of the materials of your end life equipment in a sound way.
The cross-bin symbol invites you to use those systems
If you need more information on the collection, reuse and recycling systems,
please contact your local or regional waste administration.
You can also contact us for more information on the environmental
performances of our products.
CONTENTS
GETTING STARTED.................................................................................................................... 1

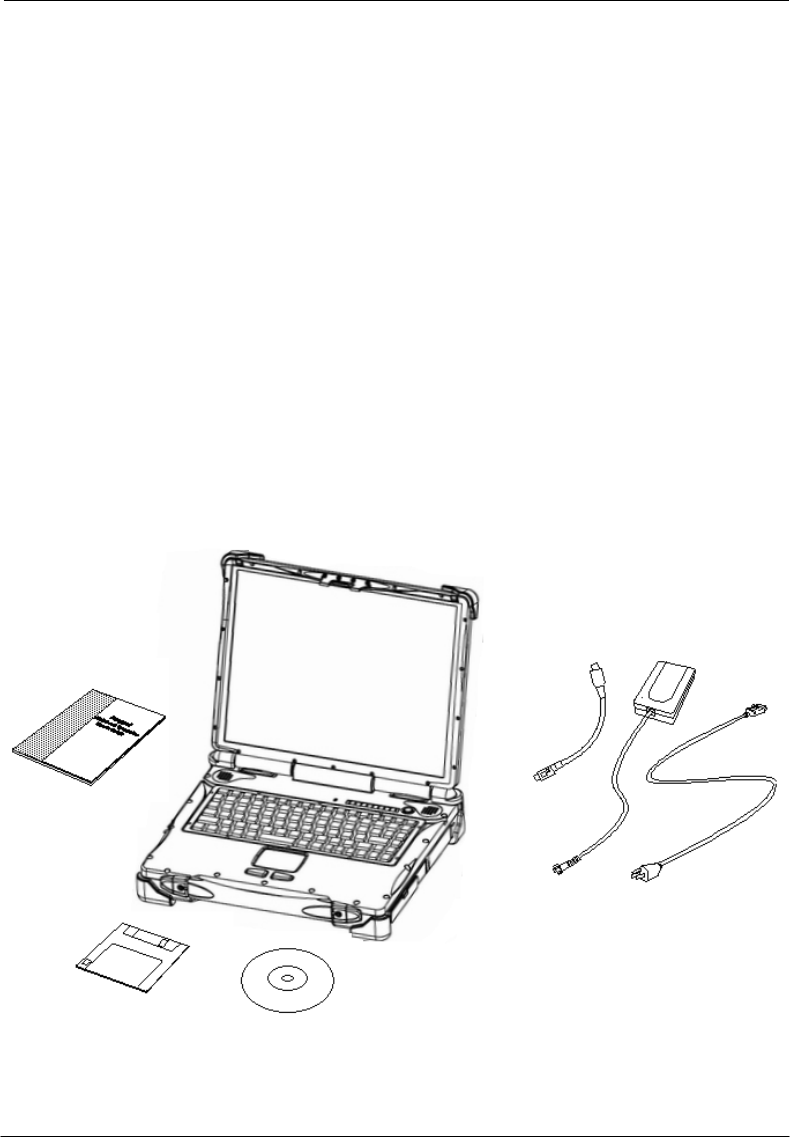

UNPACKING................................................................................................................................... 1
QUICK OPERATION........................................................................................................................ 2

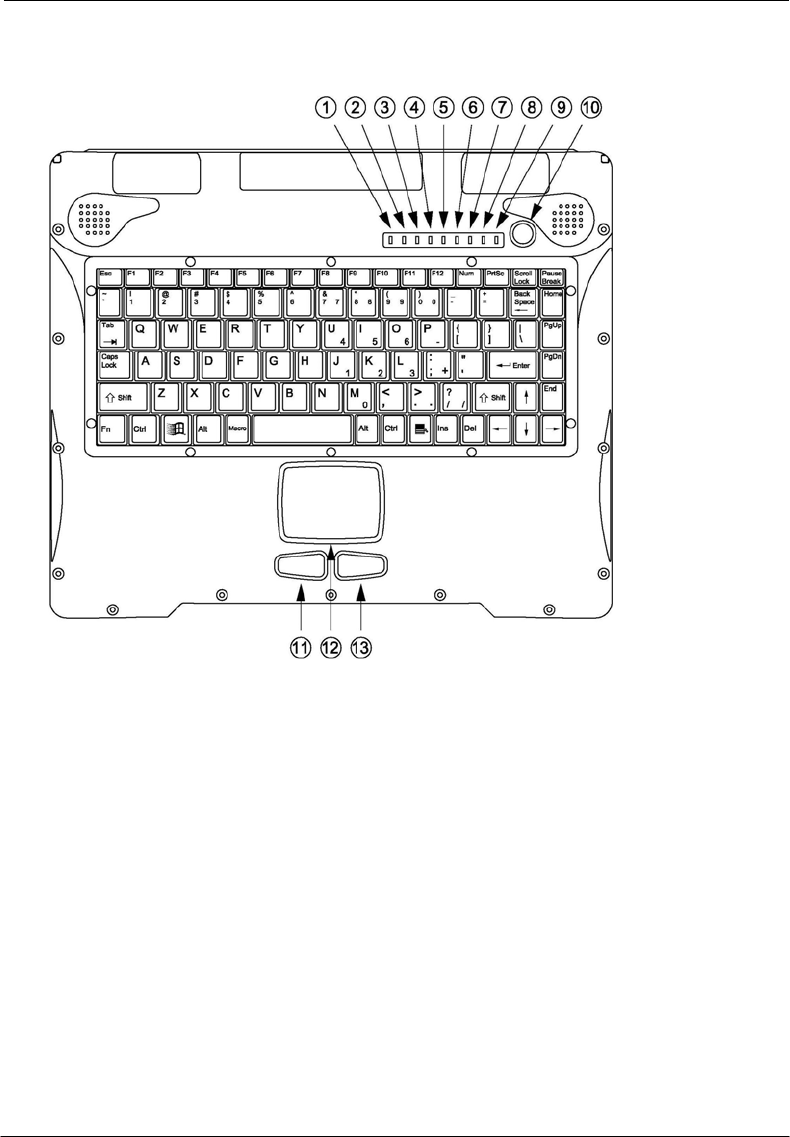

CONTROLS AND INDICATORS......................................................................................................... 3
USEFUL INFORMATION ........................................................................................................... 7
LOCATION ..................................................................................................................................... 7
RUGGEDNESS ................................................................................................................................7
OPERATING SYSTEMS.................................................................................................................... 7
AC ADAPTER ................................................................................................................................8
BATTERY ...................................................................................................................................... 9
BOOT UP AND POST................................................................................................................... 10
STANDBY/HIBERNATE/RESUME .................................................................................................. 11
SHUTDOWN ................................................................................................................................. 11
DVI............................................................................................................................................. 11
RTC............................................................................................................................................ 12

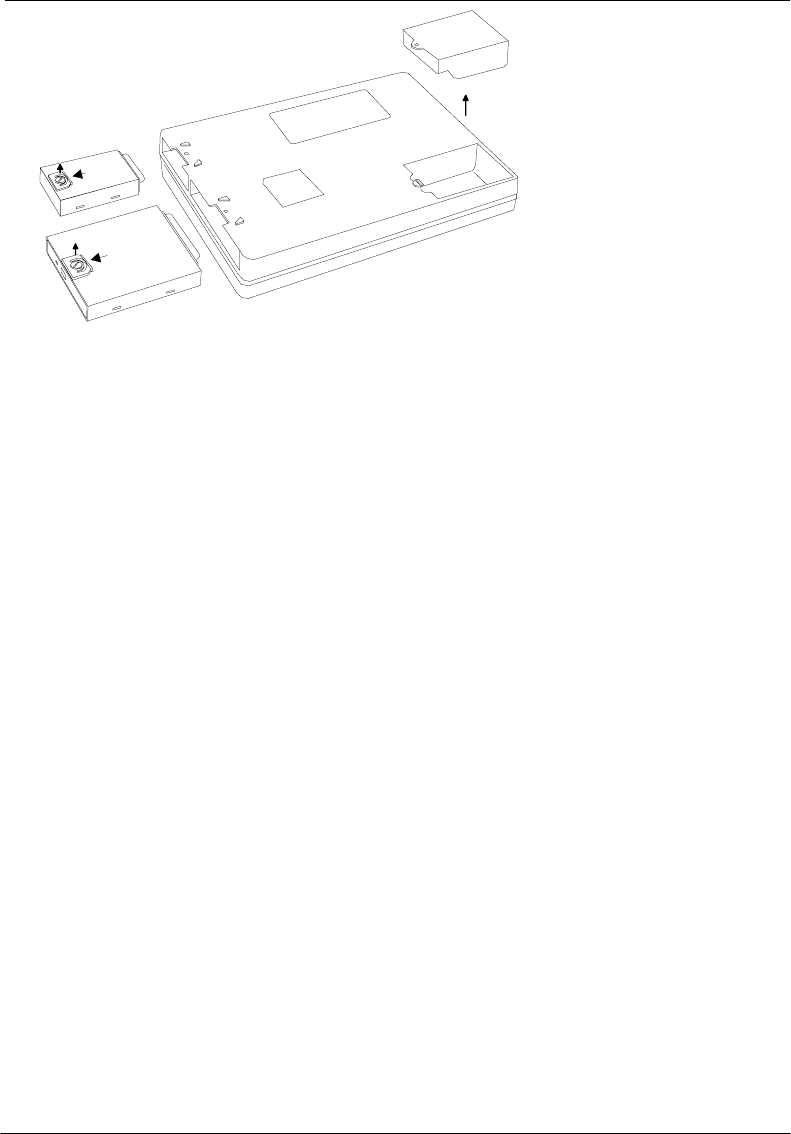

REPLACING MODULES................................................................................................................. 12
COMPONENTS AND FUNCTIONS ......................................................................................... 14
KEYBOARD ................................................................................................................................. 14

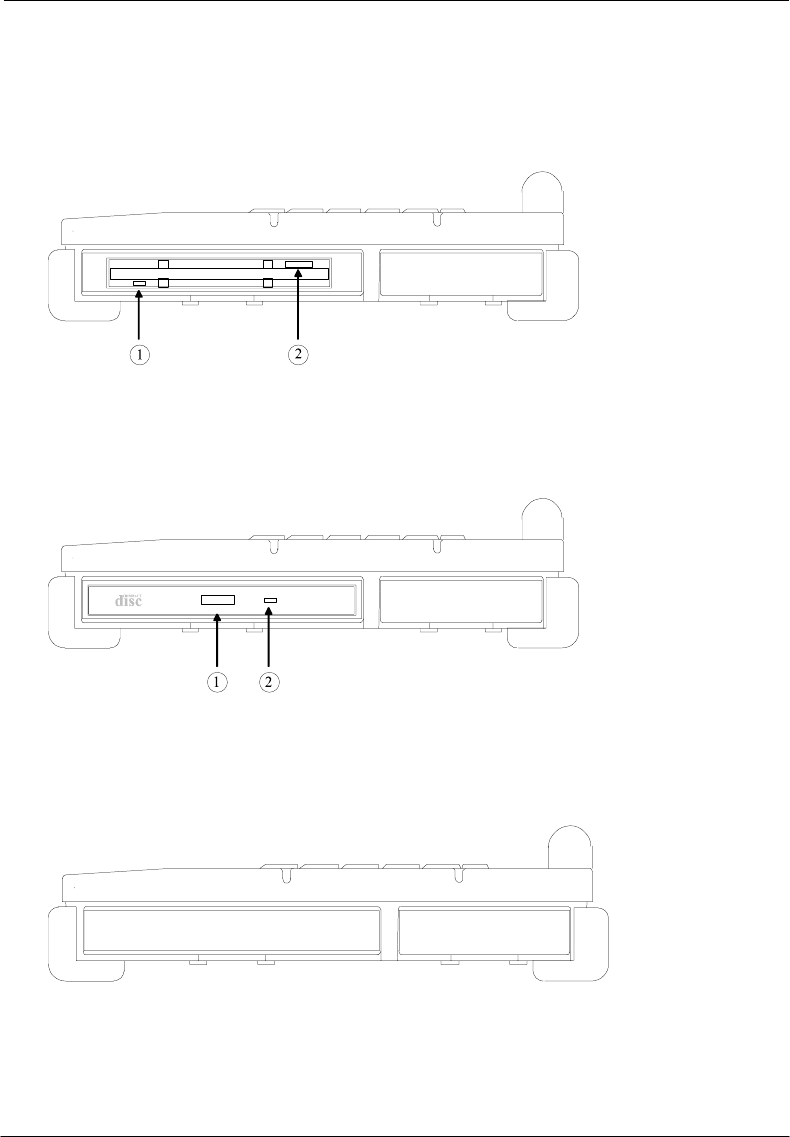

FLOPPY DISK DRIVE.................................................................................................................... 15
PRINTER CABLE .......................................................................................................................... 15
HARD DISK DRIVE ...................................................................................................................... 15
CD-ROM DRIVE......................................................................................................................... 16
EXPRESS AND PCMCIA CARDS.................................................................................................. 16

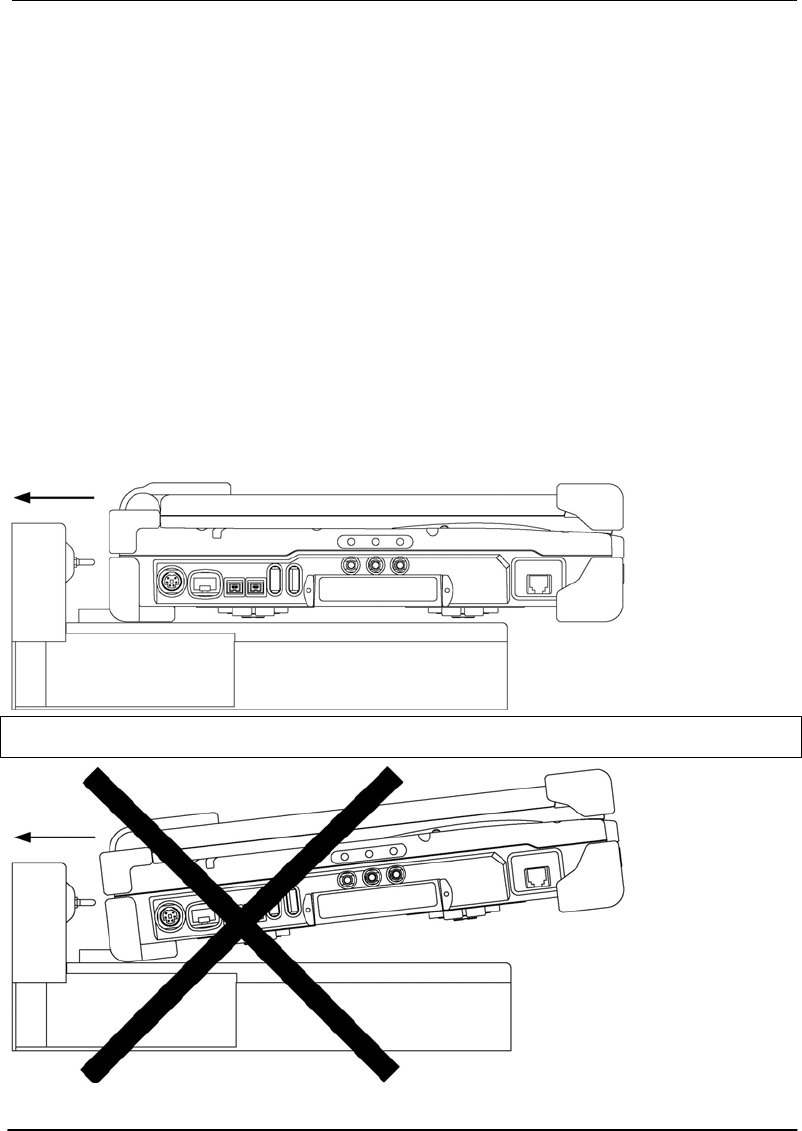

DOCKUNDER (OPTIONAL) ............................................................................................................ 16
OPTIONAL DEVICES................................................................................................................21
MEMORY CARD .......................................................................................................................... 21
2ND BATTERY............................................................................................................................... 21
LAN AND FAX/MODEM CARD .................................................................................................... 21
WIRELESS LAN CARD ................................................................................................................ 21
DVD ROM DRIVE...................................................................................................................... 21
CD-RW DRIVE ........................................................................................................................... 21
DVD-RW DRIVE ........................................................................................................................ 21
2ND HDD ..................................................................................................................................... 21
TOUCH SCREEN........................................................................................................................... 21
PCMCIA COVER ........................................................................................................................ 22
VEHICLE ADAPTER...................................................................................................................... 22
DUAL BATTERY CHARGER .......................................................................................................... 22
DOCKUNDER ............................................................................................................................... 22
SPECIFICATIONS...................................................................................................................... 23
CPU............................................................................................................................................ 23
MEMORY..................................................................................................................................... 23
DISPLAY...................................................................................................................................... 23
KEYBOARD ................................................................................................................................. 23
FLOPPY DISK DRIVE.................................................................................................................... 24
HARD DISK DRIVE ...................................................................................................................... 24
CD-ROM DRIVE......................................................................................................................... 24
TOUCH SCREEN........................................................................................................................... 24

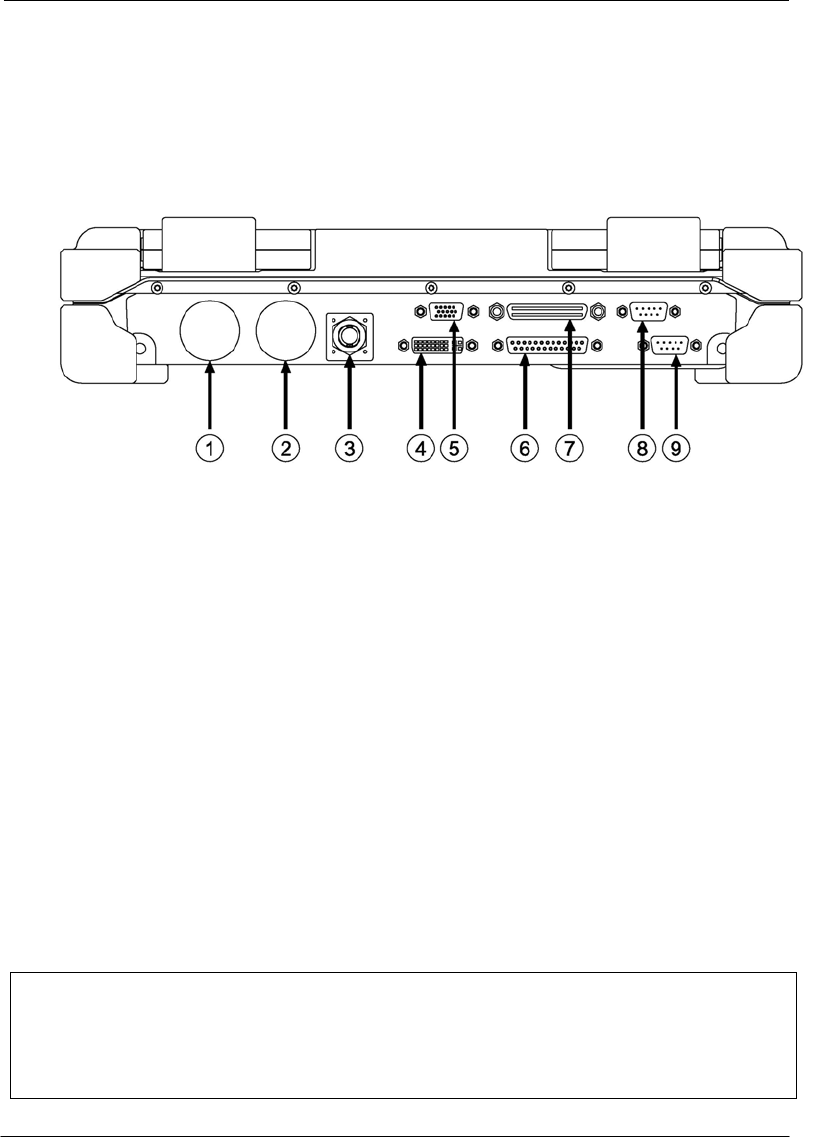

I/O PORTS ................................................................................................................................... 24
AC ADAPTER .............................................................................................................................. 25
VEHICLE ADAPTER...................................................................................................................... 25
BATTERY .................................................................................................................................... 25
SYSTEM UNIT DIMENSIONS AND WEIGHT.................................................................................... 26
MATERIALS AND RECYCLING ...................................................................................................... 26
ENVIRONMENTAL........................................................................................................................ 27
BIOS SETUP ................................................................................................................................ 28
MAIN MENU................................................................................................................................28
IDE CHANNEL 0 MASTER SUB-MENU ........................................................................................ 29
IDE CHANNEL 0 SLAVE SUB-MENU ........................................................................................... 30
SATA PORT 0 SUB-MENU .......................................................................................................... 31
SATA PORT 1 SUB-MENU .......................................................................................................... 32
THE GENERAL HELP WINDOW .................................................................................................... 33
ADVANCED MENU ...................................................................................................................... 34
ADVANCED MENU SELECTIONS .................................................................................................. 34
SIO SMC227 CONFIGURATION SUB-MENU ......................................................................... 36
SECURITY MENU......................................................................................................................... 41
FOR MOST FREQUENTLY ALTERED SETUP “RF SECURITY CONTROL” PLEASE REFER FOLLOWING:43
RF SECURITY CONTROL SUB-MENU........................................................................................... 43
TPM STATE MENU ..................................................................................................................... 44
BOOT MENU................................................................................................................................44
EXIT MENU ................................................................................................................................. 46
UTILITIES AND DRIVERS ....................................................................................................... 47
CHIPSET ...................................................................................................................................... 47
VGA UTILITY ............................................................................................................................. 47
DISPLAY CAPABILITY .................................................................................................................. 47
AUDIO DRIVER............................................................................................................................ 48
USB 2.0...................................................................................................................................... 48
TOUCH SCREEN DRIVER ............................................................................................................. 48
CD-ROM DRIVER ...................................................................................................................... 49
PCMCIA DRIVER ....................................................................................................................... 49
MINI PCI 1G AX92200 LAN ...................................................................................................... 49
MINI PCI INT8100 LAN ............................................................................................................. 49
MINI PCI-E 1G RTL8111B LAN ................................................................................................ 49
MINI PCI-E INTEL 3945ABG WLAN .......................................................................................... 49
FAX/MODEM CARD DRIVER........................................................................................................ 49
WIRELESS MANAGER .................................................................................................................. 50
MAINTENANCE / SERVICE..................................................................................................... 51
CLEANING ................................................................................................................................... 51
TROUBLESHOOTING .................................................................................................................... 51
RMA SERVICE ............................................................................................................................ 51
Getting Started
1
GETTING STARTED
Unpacking
The following components come with your computer. If anything is missing or
damaged please notify the dealer immediately.
• Computer unit
• Removable drive installed on computer (FDD or CD-ROM/DVD)
• AC Adapter
• AC Power Cord
• Utility Diskettes or CD
• User's Guide
• External Keyboard Adapter Cable
• Printer adapter cable
• Carrying Bag
Getting Started
2
Quick Operation
• Loosen the battery screw, remove the battery insulation sheet, and then re-
position the battery for operation.
• Attach the AC adapter and charge battery for at least 10 minutes.
Turn ON the computer by pressing the power switch momentarily.
Notice:
• When ambient temperature is under 0℃, the system may
not boot up immediately.
System will beep with heater light flashing while heater
working.
After 13~15 minutes, the system will boot up automatically.
• Under emergency situation, to skip heating and boot up
system immediately by pressing power button for >10
seconds
(can not guarantee all devices work properly)
• Turn OFF the computer using either one of the following procedures:
1. Press power switch to “Shut down”, “Standby”* or “Hibernate”*
dependent on operating system (OS) and power management settings.
2. Press power switch for 4 seconds for a “Hard” power off.
System shuts down immediately without saving any data or
parameters.
*: Some operating systems may not support these functions.
3. Click Start → Shut Down in Windows to turn OFF.
Driver or application software installation may be necessary for further
operation.
Getting Started
3
Controls and Indicators
Controls and Indicators (Upper)
1. Heater
2. BT/WLAN/GPS
3. Keyboard Scroll Lock
4. Keyboard Number Lock
5. Keyboard Caps Lock
6. HDD in use
7. Secondary Battery Charge
8. Primary Battery Charge
9. Power indicator
10. Power switch
11. Touch pad left button
Getting Started
4
12. Touch pad
13. Touch pad right button
Controls and Indicators (Right)
FDD Configuration:
1. FDD in use
2. Diskette eject button
CD-ROM Drive Configuration:
1. CD-ROM eject button
2. CD-ROM in use
2nd Battery Configuration: (optional)
No special control or indicator.
Getting Started
5
Controls and Indicators (Left)-Standard
1. External Keyboard + PS/2 port
2. LAN Jack
3. IEEE1394 port (Fire Wire)
4. IEEE1394 port
5. USB port (Universal Serial Bus)
6. USB port (Universal Serial Bus)
7. 1x Express and 1x PCMCIA Slots (Option: 2x PCMCIA)
8. External Speaker & Ear phone Jack
9. Line In Jack
10. Microphone Jack
11. Optional COM 3 port
12. Optional COM 4 port
13. Modem Jack/Fiber LAN(Option)
Getting Started
6

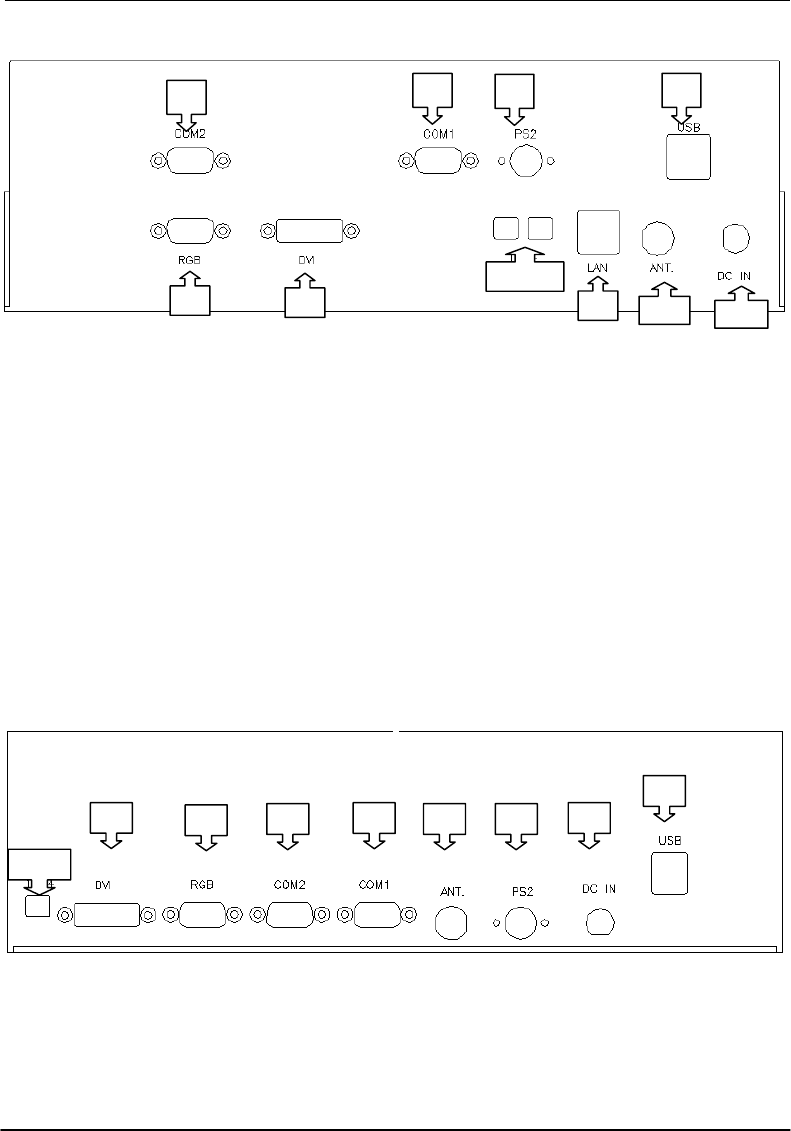

Controls and Indicators (Rear)
1. Optional Military connector port
2. Optional Military connector port
3. DC Power Jack
4. External DVI port
5. External RGB Monitor Port
6. Printer/External FDD Port*
7. Docking Port
8. Serial Port COM2
9. Serial Port COM1
*: The port is a dual function port and default as printer output. System will
detect the device attached then switch to proper output automatically. Hot
swap is possible under most conditions. However, if unable to hot swap,
please re-boot computer with the new device attached.
Useful Information
7
USEFUL INFORMATION
Location
A clean and moisture-free environment is preferred. Make room for air circulation.
Avoid areas with:
• Sudden or extreme changes in temperature.
• Extreme heat.
• Strong electromagnetic fields (near television set, motor rotation area, etc.).
• Dust or high humidity.
If it is necessary to work in a hostile environment, please regularly maintain your
computer by cleaning dust, water, etc. to keep it in optimal condition.
Ruggedness
The computer is designed with rugged features such as vibration, shock, dust, and
rain/water protection. However, it is still necessary to provide appropriate
protection while operating in harsh environments.
The computer is designed to withstand rainfall from top with mild wind blowing
only. Please keep the keyboard facing up, i.e., normal operating direction, to
maintain water resistance. NEVER immerse the unit in water, or spray water at
an upside-down system. Doing so may cause permanent damage.
The D-sub connector caps on the rear of the computer are for dust and shock
protection. The connectors are sealed internally. Other I/O ports and devices on
the left or right must have caps tightly closed or cable inlets sealed while exposed
to water or dust.
There are optional gaskets for DB-9 and DB-25 connectors. You may install them
to improve rain/dust/moisture resistance on your commercial type cable. Insert
the packing into the male connector (with pins) and fasten the screws.
All connectors will be corroded if exposed to water or moisture. Corrosion is
accelerated if the system’s power is ON. Please take proper water-resistant
measures for cable connections.
The DC jack and cables are sealed and may be operated with water splashing
while attached. All port covers should be in place when no cable is attached.
Operating Systems
Useful Information
8
The computer is compatible with most operating systems (OS). However, not all
functions are 100% compatible.
For example, ACPI, APM, Smart Battery, etc. are not available on DOS,
Windows NT, and other non-Microsoft OS. Consequently “Standby”,
“Hibernation”, “Battery Gauge” etc. would not work under such operating
systems.
ACPI: Advanced Configurations and Power Interface
APM: Advanced Power Management
For power consumption and heat dissipation consideration, ACPI OS
(Windows 2000, XP, etc.) are highly recommended especially Windows XP or
newer
Set Power Options as ”Portable/Laptop” in Control Panel to fully implement
the power management features
AC Adapter
The AC adapter performs two functions:
• It powers the computer from an external AC source.
• It charges the computer battery.
The adapter automatically detects the AC line voltage (110V or 220V) and
adjusts accordingly.
The following are recommended when using the AC adapter:
• Use a properly grounded AC outlet.
• Use one AC outlet exclusively for the computer. Having other appliances
on the same line may cause interference.
• Use a power strip with built-in surge protection.
Connect the AC adapter:
1. Plug the AC cord to the adapter.
2. Plug the other end of the AC cord into the wall outlet. Make sure the green
LED on the adapter turns on.

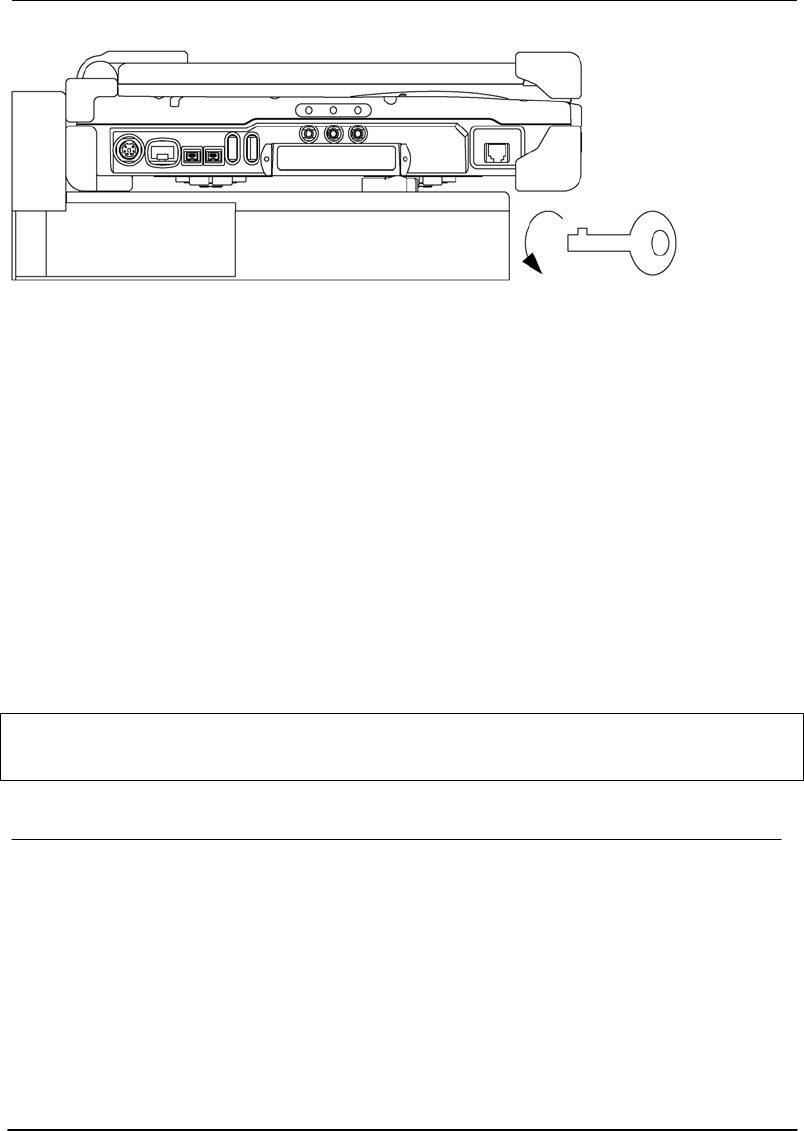

3. Attach the DC plug into the power jack of the computer; turn the lock ring
clockwise to secure it.
AC Adapter Indicator
Useful Information
9
The green LED indicates that the AC power is ready.
Battery
The computer will automatically switch to battery power when the external
power source (AC adapter or optional vehicle adapter) is disconnected.
Battery Power Saving Tips
The computer comes with an intelligent power-saving feature. You may extend
the battery life by:
• Setup power saving functions in Operating System Power Management
options (e.g. Windows 2000/XP Power Options).
• Lower the intensity of the display by brightness control.
• Use standby option when computer is temporarily not in use.
• Shut down the computer when it will not be in use for long periods of time.
Battery Low
When the battery is nearly exhausted, the computer gives the following “Battery
Low” warnings:
• Windows 2000/XP battery low warning (when operating system is
Windows)
• The power LED flashes.
Once the Battery Low warning occurs, please:
1. Save and close the files you are currently working on.
2. Plug in the AC adapter to recharge the battery.

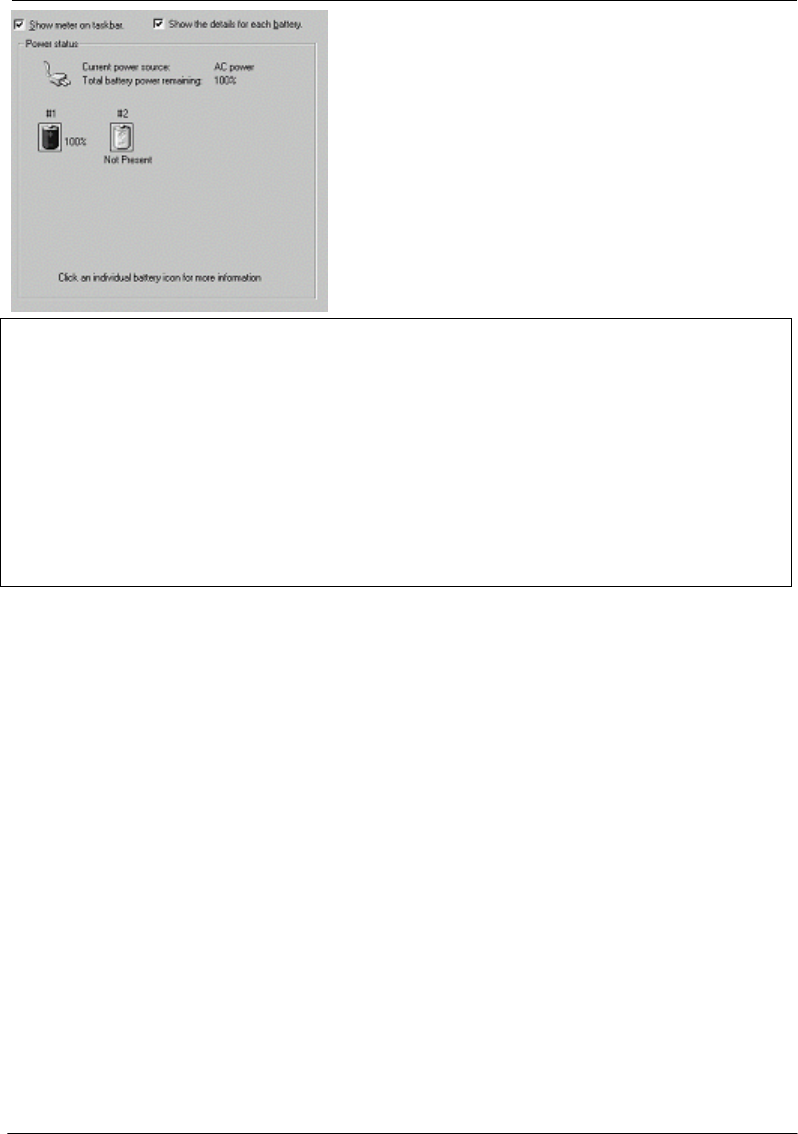

Battery Gauge
In Windows 2000/XP, etc. you may check battery status information from battery
gauge. Click the power/battery icon to reveal the battery gauge window.
Useful Information
1
0
Note: Battery characteristic varies depending on factors such as ambient
temperature, charging method, load current, aging, etc.
For example, at low temperature the chemicals of the battery are more
inactive, thus decreases the output power.
The battery gauge should only be used as a reference. Please do not
expect it to show the exact amount of the power remaining.
There is no memory effect on Lithium Ion battery cells. However,
discharge the battery to nearly empty every month will help calibrate the
internal gauge.
Charging the Battery
Plug in the AC adapter (or optional vehicle adapter) to start the battery charging.
If the battery is already full, the sense circuitry will stop high current charge
within several minutes.
There are two LED indicators next to the power indicator for the Primary and
Secondary battery respectively. Indicator turns ON when the battery is charging
and turns OFF when the battery charge is completed.
To charge the Secondary Battery, simply install it into the computer and attach
the AC adapter. The internal charger will charge the Primary and Secondary
batteries simultaneously.
Optional Dual Battery Charger can charge Primary and Secondary batteries
externally.
Boot Up and POST
The computer turns ON and loads the operating system (such as Windows) into
the system memory. This start-up procedure is called “boot up”.
Useful Information
11
The ROM BIOS Power On Self-Test (POST)
Each time the computer powers on, it automatically performs a self-test of its
memory and hardware devices.
Standby/Hibernate/Resume
The system can enter standby or hibernate mode by either pressing the power
switch or staying idle till timeout.
Note: Standby/Hibernate/Resume works with both AC adapter and battery.
The power management functions may not work under Windows NT or
non-Windows operating systems.
Shutdown
The following procedure is recommended in shutting down the computer:
1. Save any work you want to keep.
2. Make sure none of the disk drives are active (HDD, FDD, and CD-ROM
drive).
3. Remove any diskettes, CD-ROMs, or other media if necessary.
4. Follow the shut down procedure of your operating system.
5. Let the computer shut down or push the power switch to turn OFF.
Failure to shut down the computer properly may result in loss of data or hardware
damages.
Automatic shut down is activated at battery exhaust. Be sure to finish your work
and save all your data when the battery low warning appears.
DVI
LCD and DVI monitor simultaneous display needs both BIOS and Windows
settings
BIOS setting:
Advanced->Bootup display->"EFP" or "CRT+EFP" (EFP=DVI)
The available BIOS options are as follows only:
CRT
LCD
Useful Information
1
2
CRT+LCD
EFP
TV
CRT+EFP
(no simultaneous LCD+CRT+EFP)
Windows setting:
Control panel->Intel(R) Extreme Graphics -> select under Device
Display resolution of notebook LCD and DVI monitor must be identical
Note: Only DVI displays during DOS prompt. After entered Windows both LCD
and DVI will display
RTC
Battery backed up RTC (Real Time Clock/Calendar) is built in an on-board
CMOS (Complementary Metal Oxide Semiconductor) chip. The RTC keeps
track of the time and date while the computer is off. The CMOS chip also stores
system setup information.
RTC battery is also recharged when AC adapter is attached. Recharge the
computer approximately once per month to ensure RTC operation.
Replacing Modules
Caution! You must turn the power OFF before replacing the FDD, CD-ROM,
and HDD modules.
To remove the modules:
1. Turn OFF the computer or hibernate.
2. Disconnect all cables from the computer.
3. Use a coin to turn and loose the screws on the modules.
4. Remove the battery from the compartment.
5. Push the latch knob to release the CD-ROM or HDD module and push them
outward.
6. Remove the module from the computer.
Useful Information
13
To re-install the modules:
Gently push the module into the slot. Fasten the screw to fix the module.
Components and Functions
1
4
COMPONENTS AND FUNCTIONS
Keyboard
The keyboard is functionally equivalent to a full size desktop keyboard.

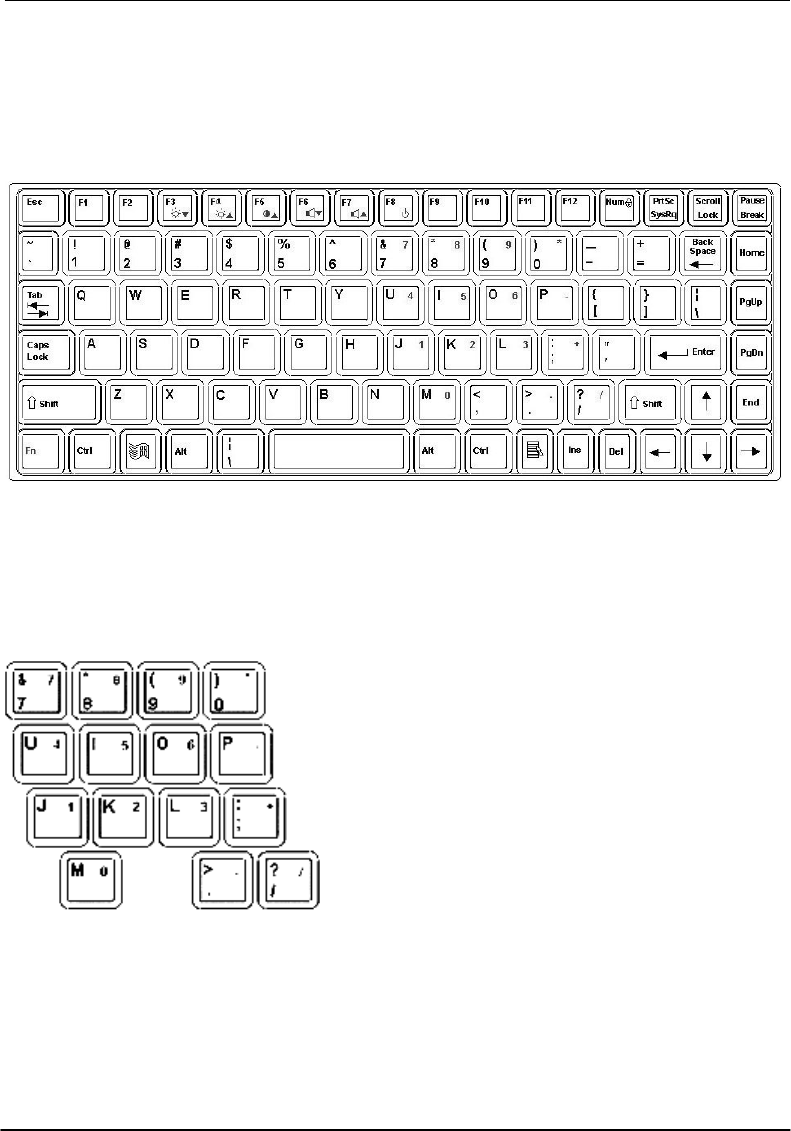

A sample key layout is shown below.
The Numeric Keypad
The numeric keypad functions like an electronic calculator. It is embedded in the
main keyboard, with the numeric figures printed on the upper right of their
respective keys. The keypad has keys for the digits 0 through 9, the decimal point
( . ), addition ( + ), subtraction ( - ), multiplication ( * ), and division ( / ).
To activate the keypad, press the Num Lock key. The 15 keys shown in the figure
switch from alphabetic keys to numeric keys. Press Num Lock again to return to
alphabetic.
Components and Functions
15
Keyboard Backlight (optional)
Press [Fn] [F5] key for approximately 1 second turns keyboard backlight ON or
OFF.
Floppy Disk Drive
The computer comes with a 3.5" 1.44MB floppy disk drive (FDD). The 1.44MB
FDD can also read and write 720KB double side double density diskette. It is
recommended that high density (2HD marking) diskette been used only.
FDD can be removed and swapped with CD-ROM drive or 2nd battery. When
CD-ROM drive or 2nd battery is installed, you may still use FDD by connecting it
via the rear DB-25 port.
Printer Cable
For most printers there is no special requirement in connection. However, some
printer cables do not contain all 25 wires. To avoid malfunction, the printer
adapter cable comes with your computer should be attached to the printer cable.
The purpose is to re-connect all the ground pins. Devices equivalent to printer
such as scanner, Laplink cable, etc. also need this cable.
Please note do not use the FDD cable as printer adapter cable.
Hard Disk Drive
The Hard Disk Drive (HDD) is a 2.5” type standard SATA interface data storage
device.
HDD and FDD, CD-ROM drives are removable. This provides convenience and
security. They can ONLY be removed while the power is OFF.
Components and Functions
1
6
Note: NEVER drop your HDD, FDD, CD-ROM module or expose them to high
temperature, high humidity, or any hazardous environment. NEVER try to
disassemble the module.
Static discharge may destroy your device and data. Always pick up the
modules by touching the case only.
CD-ROM Drive
The CD-ROM drive is a standard IDE ATAPI type, which accepts a variety of
standard 12cm CDs such as CD-ROM, audio CD, CD-I, Photo CD, video CD,
etc.
The following procedure assumes that all the necessary CD-ROM utilities were
installed on the computer. For CD-ROM utility installation, please refer
“Utilities and Drivers”.
Put CD into CD-ROM drive
While the power is ON, push the CD-ROM drive's eject button. The tray will
release. Then gently pull the tray out. Put the CD on the holder and push the tray
back into the cabinet. Any dirt on the data side of the CD may cause read error.
Please do not touch this side when handling CDs.
Read from CD-ROM drive
The CD-ROM drive may be designated as drive D: or higher depending on your
configuration. You may access it in DOS or Windows the same way you would
for the floppy disk drive or hard disk drive. The CD-ROM is a read-only device.
Any command attempting to write onto it will be denied.
Please avoid shock or vibration while the CD-ROM drive is active.
Express and PCMCIA Cards
The computer supports one type-II PCMCIA and one Express card or two type-II
PCMCIA cards. To remove the card, push the button on the right of the card to
eject it. The eject button can hide into the compartment by pushing it inward
gently.
Dock under (optional)
Dock under is utilized for system unit docking. The AC adapter or vehicle
adapter attaches directly to Dock under and automatically charges the computer
while docked.
Components and Functions
17
Ports (horizontal version, ports on rear)
1. COM2
2. COM1
3. PS/2
4. USB #1 & #2
5. RGB
6. DVI
7. LAN
8. ANT.
9. DC jack
Ports (vertical version, ports on bottom)
1. DVI
2. RGB
1
2
3
4
5
7
8
9
6
1 3
2 45 6 7
8
N/A
N
/
A
Components and Functions
18
3. COM2
4. COM1
5. ANT.
6. PS/2
7. DC jack
8. USB
Mount the Dockunder:
1. Turn OFF the power.
2. Open the rubber cap of the docking connector.
3. Align the docking connector.
4. Push the computer to join the guiding pins. Do not lift the computer up while
docking.
Note: Do not lift up the computer while engaging.
Components and Functions
19
5. Lock the computer.
There are 2 PCI slots on the Dockunder. Maximum card dimensions are 260mm
(L: length, including L-bracket thickness) x 115mm (W: width, including gold
fingers) x 25 mm (H: height). The total power rating of 2 PCI slots is +5V 3A,
+3.3V 3A, +12V 300mA, -12V 300mA.
To install expansion card in Dockunder:
1. Unplug the AC adapter.
2. Release and remove the computer.
3. Remove the screws on the upper and lower covers.
1. Open the upper cover.
2. Install the expansion card into the slot and fix the L-bracket.
3. Assemble the upper cover.
4. Attach the computer and perform functions test.
Note: Please check IRQ conflict before installing cards and drivers.
Never dock or un-dock the computer while power is ON.
IRQ DMA
0 Timer output 0 0 Sound
1 KB 1 Sound
2 8 RTC 2 FDD
9 ACPI (or Free) 3 Reserved (or ECP/EPP)
10 Free (16-bit PCMCIA, or COM3*)
11 PCI devices or Card Bus 0/1 (Sound, LAN*, 32-bit PCMCIA, etc.)
Components and Functions
2
0
12 Touch pad (PS/2 mouse)
13 Co-processor
14 HDD
15 CD-ROM drive
3 COM2 (or Fax/Modem*, IrDA)
4 COM1 (or Touch screen)
5 Free (COM4*)
6 FDD
7 Parallel port 1
*: Optional devices.
Optional Devices
21
OPTIONAL DEVICES
Memory Card
The memory card will expand your memory to facilitate better system
performance. The cards are available as following:
512MB,1 GB,2 GB
2nd Battery
A Lithium Ion rechargeable 2nd battery may install into the CD-ROM/FDD
compartment. It has the same capacity of primary battery and Smart Battery
compliance.
The computer’s internal charger can detect 2nd battery and perform charging
accordingly.
LAN and Fax/Modem Card
10/100/1000 M Base-T Ethernet LAN card for a wired network and V.90 56K
Fax/Modem.
Wireless LAN Card
IEEE 802.11a,b,g wireless LAN card and rugged antenna.
DVD ROM Drive
Swappable with CD-ROM drive for DVD playback. Backward compatible with
CD-ROM, VCD, etc.
CD-RW Drive
Swappable with CD-ROM drive for writing CD-R. Backward compatible with
CD-ROM, VCD, etc.
DVD-RW Drive
Swappable with CD-ROM drive for DVD playback and writing CD-R. Backward
compatible with CD-ROM, VCD, etc.
2nd HDD
Swappable with CD-ROM drive. Set as IDE secondary master drive.
Touch Screen
Optional Devices
2
2
Resistive touch screens for direct finger touch or pen input instead of mouse or
touch pad.
PCMCIA Cover
Besides the attached PCMCIA rubber cover, there is an optional cover with a
metal frame that can be fixed using screws. The cover provides protection from
dust or water for cabled PCMCIA cards. Users may seal the cable outlet after
installation.
Vehicle Adapter
Converts power from car lighters or truck batteries to DC +19V, the same output
ratings as AC adapters. It can power the system and charge the batteries
simultaneously.
Remove or disconnect the adapter when leaving the vehicle to avoid battery
exhaustion.
Dual Battery Charger
This charger provides two slots for the Primary and Secondary battery
respectively. It allows charging of both batteries simultaneously. Accepts power
from AC adapter or Vehicle adapter. It takes approximately 3 hours to fully
charge both batteries.
Dockunder
3 models are available:
Dockunder RT7-H: (no hot docking)
2 PCI slots, serial ports x 2, PS/2, RGB, LAN.
Ports are on the rear.(DVI option)
Hot docking: Docking while computer power is ON.
Dockunder RT7-V: (no hot docking)
2 PCI slots, serial ports x 2, PS/2, RGB.
Ports are on the bottom. (DP/DVI option)
Specifications
23
SPECIFICATIONS
CPU
RK886EX: Intel Core2 Duo (Merom)
CPU runs at multiple speeds dependent on CPU type and operating system:
The CPU speed switches automatically by detecting AC adapter/battery operation
and busy state.
Memory
System memory Standard: 512MB
Expandable:4GB (2GBx 2)
Cache memory Internal Level-2 2MB
Video memory 128MB (shared RAM)
Display
The display is a XGA compatible LCD (Liquid Crystal Display) of 1024 x 768
dots (horizontal x vertical) or SVGA 800 x 600 dots with 16, 24 or 32 bit color
depth. The computer is capable of displaying 2048 x 1536 dots on the LCD or
external monitor.
LCD applies a “Panning” technique to display resolutions higher than 800 x 600
or 1024 x 768 dots. In Panning, you may move the cursor out of the screen
boundary, then the display will scroll to show the hidden area.
LCD:
Type: 15.1” Active TFT Color
Resolution: 1024 x 768 pixels (15.1”)
Mode: VGA, EGA, MGA, SVGA, and XGA
Color: 16, 24 or 32-bit color depths on all modes
Characters x Row: 80 x 25
Keyboard
Number of keys: 89
Key travel: 2.5 mm (standard)
1.5 mm (optional backlight)
Specifications
2
4
Function: Emulates standard 101/102-key keyboard
Floppy Disk Drive
Standard:
Size: 3.5"
Capacity: 1.44MB (formatted)
Rotation: 300 RPM
Transfer Rate: 500KB/sec
Average Access: 94 ms (with settling)
Hard Disk Drive
Type: 2.5”
Interface: Serial ATA
CD-ROM Drive
Speed: 24 x
Interface: (ATAPI)
Data transfer rate: 16.7MB/sec
Modes: CD-ROM mode 1 & 2, CD-Audio, VCD, Multi-
session Photo CD
Dimensions: 128mm (W) x 130mm (D) x 12.7mm (H)
Weight: 280g
Touch Screen
Type: Resistive
Interface: Serial
Resolution: >1024x1024
I/O ports
• 2x Serial ports
• External RGB monitor port
• External DVI port
Specifications
25
• External PS/2+Keyboard port
• Audio ports (External Speaker/Earphone, Microphone, Line-in)
• RJ11 Phone jack for internal Fax/Modem (optional)
• RJ45 jack for internal LAN card (optional)
• 2 type II or 1 type-III PCMCIA slots
• Printer/External FDD port
• Docking port
• 2xUSB 2.0 port
• 2x1394 port
• 2x optional serial port
• 2x optional military connector port
AC Adapter
Voltage: AC 90~240 V
Frequency: 50/60 Hz
Output Voltage: DC 19V
Maximum Power: 90 Watts
Dimension: 130mm (W) x 60mm (D) x 34mm (H)
Weight: 430 g (0.9 lb.)
Vehicle Adapter
Input Voltage 12V/24V (10~32V) Auto-sense
Input Current 2.5A/5.5A max. (12V/24V respectively)
Output Voltage 19V +/-5%
Output Current 2.8A
Wiring Cigarette lighter/ Truck battery
Application Car or Truck installation
Battery
Specifications
2
6
Primary Battery:
Type: 9 x 18650 cells Lithium Ion
Capacity: 11.1V 6600mAH
Dimension: 103 mm(W) x 73 mm(D) x 38 mm(H)
Weight: 435 g (0.95 1b.)
2nd Battery (optional):
Type: 9 x 18650 cells Lithium Ion
Capacity: 11.1V 6600mAH
Dimension: 150 mm(W) x 90 mm(D) x 20 mm(H)
Weight: 560 g (1.2 1b.)
System Unit Dimensions and Weight
Width: 339.6mm (13.4”)
Depth: 293.5mm (11.5”)
Height: 63.7mm (2.5”)
Weight: 6.0Kg (13.2 lb. including CD-ROM drive and primary
battery)
Note: Weight varies depending on system configurations.
Materials and Recycling
Materials of the computer are as follows:
Cabinet: Aluminum alloy ADC-12 or A380,
Magnesium alloy AZ91D,
UL grade PC+ABS GE C6200 or TN-3813BW
Bracket: Aluminum 5052, Steel with Nickel plating, or Stainless Steel
S304
Cushion pad: Rubber
PCB: FR-4, UL 94V0
Battery: Rechargeable Lithium Ion, 9 cells per pack
Specifications
27
Packing: Carton: Unbleached paper
Cushion: Recyclable EPE
Carrying bag: Recyclable PE Fiber
User's Guide: Recycled/Recyclable paper
Please recycle the parts according to local regulations.
Environmental
Temperature: -20 ~ 50ºC (32 ~ 122ºF) operating
-40 ~ 70ºC (-40 ~ 158ºF) storage
Humidity: 5~95% Non-condensing operating
95% maximum storage
Altitude: 0 ~ 12,180 meters (0 ~ 70,000 feet) operating
BIOS Setup
28
BIOS SETUP
Press [F2] at boot up to enter BIOS setup. Use arrow keys to select options and [+/-]
to modify them. When finished, move to ”Exit” and press [Enter] then confirm
save by pressing [Y].
Main Menu
Phoenix TrustedCore(tm) Setup Utility
Main Advanced Security TPM State Boot Exit
Item Specific Help
System Time: [16:19:20]
System Date: [03/02/2007]
Legacy Diskette A: [1.44/1.25MB 3½"]
• IDE Channel 0 Master [None]
• IDE Channel 0 Slave [None]
• SATA Port 0 [None]
• SATA Port 1 [None]
System Memory: 640 KB
Extended Memory: 522752 KB
<Tab>, <Shift-Tab>, or
<Enter> selects field
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Note: The contents may vary depending on computer configurations.
Main Menu Selections
You can make the following selections on the Main Menu. Use the sub menus for
other selections.
Feature Options Description
System Time HH:MM:SS Set the system time Hour, Minute,
Second.
System Date MM/DD/YYYY Set the system date Month, Day,
Year.
BIOS Setup
29
Legacy Diskette A Disabled
360 Kb 5¼"
1.2 MB 5¼"
720 Kb 3½"
1.44/1.25 MB3½"
2.88 MB 3½"
Select floppy type. Note that 1.25
MB 3½” references a 1024
byte/sector Japanese media
format. The 1.25MB, 3½" diskette
requires a 3-Mode floppy-disk
drive.
IDE Channel 0 Master Sub-Menu
Phoenix TrustedCore(tm) Setup Utility
Main
IDE Channel 0 Master [None] Item Specific Help
Type: [Auto]
Multi-Sector Transfers: [Disabled]
LBA Mode Control: [Disabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Standard]
Ultra DMA Mode: [Disabled]
User = you enter parameters
of hard-disk drive installed
at this connection.
Auto = autotypes hard-disk
drive installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
IDE Channel 0 Master Sub-Menu Selections
You can make the following selections on the IDE Channel 0 Master sub menu.
Feature Options Description
BIOS Setup
3
0
Type User
Auto
CD-ROM
ATAPI
Removable
User = you enter parameters of
hard-disk drive installed at this
connection.
Auto = autotypes hard-disk drive
installed here.
CD-ROM = a CD-ROM drive is
installed here.
ATAPI Removable = removable
disk drive is installed here.
32 Bit I/O Disabled
Enabled
This setting enables or disables 32
bit IDE data transfers.
IDE Channel 0 Slave Sub-Menu
Phoenix TrustedCore(tm) Setup Utility
Main
IDE Channel 0 Slave [None] Item Specific Help
Type: [Auto]
Multi-Sector Transfers: [Disabled]
LBA Mode Control: [Disabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Standard]
Ultra DMA Mode: [Disabled]
SMART Monitoring: Disabled
User = you enter parameters
of hard-disk drive installed
at this connection.
Auto = autotypes hard-disk
drive installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
IDE Channel 0 Slave Sub-Menu Selections
You can make the following selections on the IDE Channel 0 Slave sub menu.
Feature Options Description
BIOS Setup
31
Type User
Auto
CD-ROM
ATAPI
Removable
User = you enter parameters of
hard-disk drive installed at this
connection.
Auto = autotypes hard-disk drive
installed here.
CD-ROM = a CD-ROM drive is
installed here.
ATAPI Removable = removable
disk drive is installed here.
32 Bit I/O Disabled
Enabled
This setting enables or disables 32
bit IDE data transfers.
SATA Port 0 Sub-Menu
Phoenix TrustedCore(tm) Setup Utility
Main
SATA Port 0 [None] Item Specific Help
Type: [Auto]
Multi-Sector Transfers: [Disabled]
LBA Mode Control: [Disabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Standard]
Ultra DMA Mode: [Disabled]
User = you enter parameters
of hard-disk drive installed
at this connection.
Auto = autotypes hard-disk
drive installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
SATA Port 0 Sub-Menu Selections
You can make the following selections on the SATA Port 0 sub menu.
Feature Options Description
BIOS Setup
3
2
Type User
Auto
CD-ROM
ATAPI
Removable
User = you enter parameters of
hard-disk drive installed at this
connection.
Auto = autotypes hard-disk drive
installed here.
CD-ROM = a CD-ROM drive is
installed here.
ATAPI Removable = removable
disk drive is installed here.
32 Bit I/O Disabled
Enabled
This setting enables or disables 32
bit IDE data transfers.
SATA Port 1 Sub-Menu
Phoenix TrustedCore(tm) Setup Utility
Main
SATA Port 1 [None] Item Specific Help
Type: [Auto]
Multi-Sector Transfers: [Disabled]
LBA Mode Control: [Disabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Standard]
Ultra DMA Mode: [Disabled]
User = you enter parameters
of hard-disk drive installed
at this connection.
Auto = autotypes hard-disk
drive installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
SATA Port 1 Sub-Menu Selections
You can make the following selections on the SATA Port 1 sub menu.
Feature Options Description
BIOS Setup
33
Type User
Auto
CD-ROM
ATAPI
Removable
User = you enter parameters of
hard-disk drive installed at this
connection.
Auto = autotypes hard-disk drive
installed here.
CD-ROM = a CD-ROM drive is
installed here.
ATAPI Removable = removable
disk drive is installed here.
32 Bit I/O Disabled
Enabled
This setting enables or disables 32
bit IDE data transfers.
The General Help Window
Pressing <F1> or <Alt-H> on any menu brings up the General Help window that
describes in detail the keys and functions for setup.
The scroll bar on the right of any window indicates that there is more than one page
of information in the window. Use <PgUp> and <PgDn> to display all the pages.
Pressing <Home> and <End> displays the first and last page. Pressing <Enter>
displays each page and then exits the window.
Press <Esc> to exit the current window.
BIOS Setup
3
4
Advanced Menu
Phoenix TrustedCore(tm) Setup Utility
Main Advanced Security TPM State Boot Exit
Item Specific Help
Legacy USB Support: [Enabled]
Summary screen: [Disabled]
Boot-time Diagnostic Screen: [Enabled]
QuickBoot Mode: [Enabled]
Extended Memory Testing [Just zero it]
IGD – Boot Type: [VBIOS Default]
PS/2 Mouse [Auto Detect]
PCI Express – Root Port 1: [Enabled]
USB – Device 29, Function 7: [Enabled]
• SIO SMC227 CONFGURATION
Display the diagnostic
screen during boot
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Warning: Incorrect settings may cause system malfunction. To correct it,
restore the Setup Defaults with <F9>.
Advanced Menu Selections
You can make the following selections on the Advanced Menu.
Feature Options Description
Legacy USB Support Disabled
Enable
Enable support for Legacy
Universal Serial Bus
Summary screen Disabled
Enable
Display system configuration on
boot
Boot-time Diagnostic
Screen
Disabled
Enable
Display the diagnostic screen
during boot
BIOS Setup
35
QuickBoot Mode Disabled
Enable
Allows the system to skip certain
tests while booting. This will
decrease the time needed to boot
the system.
Extended Memory
Testing
Normal
Just zero it
None
Determines which type of tests
will be performed on extended
memory (above 1M).
IGD – Boot Type VBIOS Default
CRT
LFP
CRT+LFP
TV
LFP-SDVO
EFP
TV-SDVO
CRT+LFP-SDVO
CRT+EFP
Select the Video Device that will
be activated during POST
PS/2 Mouse Disabled
Enable
Auto Detect
’Disabled’ prevents any installed
PS/2 mouse from functioning, but
frees up IRQ 12.
’Enabled’ forces the PS/2 mouse
port to be enabled regardless if a
mouse is present.
’Auto Detect’ will enable the PS/2
mouse only if present.
’OS Controlled’ only displayed if
the OS controls the mouse.
BIOS Setup
3
6
PCI Express – Root
Port 1
Disabled
Enable
Auto
Control the PCI Express Port via
this setup option.
Disabled – Port always disabled.
Enabled – Port always enabled.
Auto – Only enable if card
found.
Note that if Root Port 1 is
disabled, Root Ports 2-4 will be
disabled as well.
USB – Device 29,
Function 7
Disabled
Enable
Control USB 2.0 functionality
through this Setup Item
For most frequently altered setup “SIO SMC227 CONFIDURATION” please refer
following:
Warning: Make sure internal COMx mode settings must be with the same type
of the external connected devices. Otherwise it may cause Serial
components Damaged in either side. Must be cautious before
connected.
SIO SMC227 CONFIGURATION Sub-Menu
Phoenix TrustedCore(tm) Setup Utility
Advanced
SIO SMC227 CONFIGURATION Item Specific Help
BIOS Setup
37
COM1 port: [3F8-IRQ 4]
COM1 mode: [RS232]
COM2 port: [2F8-IRQ 3]
COM2 mode: [RS232]
COM3 port: [3E8-IRQ 10]
COM3 mode: [RS232]
COM4 port: [2E8-IRQ 5]
COM4 mode: [RS232]
Printer1: [378-IRQ 7]
Printer1 mode: [Standatd]
Configure COM1 using
device options:
[Disabled]
No configuration
[3F8-IRQ 4]
Set the base I/O address
for COM1
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
SIO SMC227 CONFIGUARTION Sub-Menu Selections
You can make the following selections on the SIO SMC227 CONFIGURATION
sub menu.
Feature Options Description
COM1 port Disabled
3F8-IRQ 4
Configure COM1 using device
options:
[Disabled]
No configuration
[3F8-IRQ 4]
Set the base I/O address for
COM1
BIOS Setup
38
COM1 mode RS485
RS422
RS232
TTL1
Configure UART mode options:
[RS485]：External Device
[RS422]：External Device
[RS332]：External Device
[TTL1]：Internal Device
COM2 port Disabled
2F8-IRQ 3
Configure COM2 using device
options:
[Disabled]
No configuration
[2F8-IRQ 3]
Set the base I/O address for
COM2
COM2 mode RS485
RS422
RS232
TTL2
Configure UART mode options:
[RS485]：External Device
[RS422]：External Device
[RS232]：External Device
[TTL2]：Internal Device
BIOS Setup
39
COM3 port Disabled
3E8-IRQ 10
Configure COM3 using device
options:
[Disabled]
No configuration
[3E8-IRQ 10]
Set the base I/O address for
COM3
COM3 mode RS485
RS422
RS232
TTL3
Configure UART mode options:
[RS485]：External Device
[RS422]：External Device
[RS232]：External Device
[TTL3]：Internal Device
COM4 port Disabled
2E8-IRQ 5
Configure COM4 using device
options:
[Disabled]
No configuration
[2E8-IRQ 5]
Set the base I/O address for
COM4
BIOS Setup
4
0
COM4 mode RS485
RS422
RS232
TTL4
Configure UART mode options:
[RS485]：External Device
[RS422]：External Device
[RS232]：External Device
[TTL4]：Internal Device
Printer1 Disabled
378-IRQ 4
Configure Printer1 device options:
[Disabled]
No configuration
[378-IRQ 7]
Set the base I/O address for
Printer1
Printer1 mode Standard
ECP
EPP
Configure Printer1 mode options:
Standard
EPP
ECP
BIOS Setup
41
Security Menu
Warning: If you forget user/supervisor password, the computer has to send
back to manufacturer and replace EEPROM to make it work again.
Phoenix TrustedCore(tm) Setup Utility
Main Advanced Security TPM State Boot Exit
Item Specific Help
Processor Serial Number [Disabled]
Fixed disk boot sector: [Normal]
Diskette access: [Supervisor]
USB Interface: [Enabled]
AC97 Audio Interface: [Auto]
AC97 Modem Interface: [Auto]
Cardbus/1394 Interface [Auto]
• RF Security Control:
TPM Support [Disabled]
Controls detection of
Processor Serial No.
System must be reset or
restarted from power-on
for settings to take effect.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Security Menu Selections
You can make the following selections on the Security Menu.
Feature Options Description
Processor Serial
Number
Disabled
Enabled
Controls detection of Processor
Serial No. System must be reset or
restarted from power-on for
settings to take effect.
Fixed disk boot sector Normal
Write Protect
Write protects the boot sector on
the hard disk to protect against
viruses.
BIOS Setup
4
2
Diskette access Supervisor
User
Control access to diskette drives
USB Interface Disabled
Enabled
Control the listed USB Functions
by setting the item to the desired
value.
AC97 Audio Interface Disabled
Auto
Control Detection of the AC97
Audio Device.
Auto = AC97 Audio will be
enabled if present, disabled
otherwise.
Disabled = AC97 Audio will be
unconditionally disabled,
regardless of presence.
AC97 Modem
Interface
Disabled
Auto
Control Detection of the AC97
Modem Device.
Auto = AC97 Modem will be
enabled if present, disabled
otherwise.
Disabled = AC97 Modem will be
unconditionally disabled,
regardless of presence.
Cardbus/1394
Interface
Disabled
Auto
Cardbus Device Function
Disable/Enable
TPM Support Disabled
Enabled
Enable Trusted Platform Module
support
BIOS Setup
43
For most frequently altered setup “RF Security Control” please refer
following:
RF Security Control Sub-Menu
Phoenix TrustedCore(tm) Setup Utility
Security
RF Security Control: Item Specific Help
Wireless Lan: [Disabled]
Wireless Lan Control
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
RF Security Control Sub-Menu Selections
You can make the following selections on the RF Security Control sub menu.
Feature Options Description
Wireless Lan Disabled
Enabled
Wireless Lan Control
Enabled Wireless function
BIOS Setup
4
4
TPM State Menu
Phoenix TrustedCore(tm) Setup Utility
Main Advanced Security TPM State Boot Exit
Item Specific Help
Current TPM State: Enabled and Deactivated
Change TPM State: [No Change]
Change TPM State
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
TPM State Menu Selections
You can make the following selections on the TPM State Menu.
Feature Options Description
Change TPM State No Change
Enable & Activate
Deactivate &
Disable
Clear
Change TPM State
Boot Menu
Phoenix TrustedCore(tm) Setup Utility
Main Advanced Security TPM State Boot Exit
Boot priority order: Item Specific Help
BIOS Setup
45
Keys used to view or
configure devices:
Up and Down arrows select
a device.
<+> and <–> moves the
device up or down .
<f> and <r> specifies the
device fixed or removable .
<x> exclude or include the
device to boot .
<Shift + 1> enables or
disables a device.
<1 – 4> Loads default boot
sequence.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
The system will try to boot from device on top then the 2nd and so on. If there are
more than one device in each category, only the device on top of sub-menu can boot
up.
BIOS Setup
4
6
Exit Menu
Phoenix TrustedCore(tm) Setup Utility
Main Advance Security TPM State Boot Exit
Item Specific Help
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit System Setup and save
your changes to CMOS.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Exit Menu Selections
You can make the following selections on the Exit Menu.
Feature Options Description
Exit Saving Changes Exit System Setup and save your
changes to CMOS.
Exit Discarding
Changes
Exit utility without saving Setup
data to CMOS.
Load Setup Defaults Load default values for all SETUP
items.
Discard Changes Load previous values from CMOS
for all SETUP items.
Save Changes Save Setup Data to CMOS
Utilities and Drivers
47
UTILITIES AND DRIVERS
Note: Most device drivers are available in Windows 2000/XP. Only when the
default driver does not work properly you need to install the factory
bundled drivers.
The utility CD includes most drivers of the computer’s installed devices.
Consult dealer if any driver is missing.
Re-install drivers or perform “Driver Update” to replace the Windows
default drivers.
Check readme.txt file on utility CD to get the newest information before
starting to install drivers.
Chipset
Windows WIN2000/WINXP Driver Installation:
Insert the Driver CD into the CD-ROM. Click infinst_autol.exe in the directory
of RK8EX\Driver\Chipset\Xp32 then follow the prompt to complete installation.
VGA Utility
Display Capability
Resolution & Color LCD RGB LCD + RGB
640x 480x 16-bit color O O O
640x 480x 24-bit color O O O
640x 480x 32-bit color O O O
800x 600x 64K color O O O
800x 600x 24-bit color O O O
800x 600x 32-bit color O O O
1024x 768x 16-bit color O O O
1024x 768x 24-bit color O O O
1280x 1024x 16-bit color O* O O*
Utilities and Drivers
48
1280x 1024x 24-bit color O* O O*
1280x 1024x 32-bit color O* O O*
1600x 1200x 16-bit color O* O O*
1600x 1200x 24-bit color O* O O*
1600x 1200x 32-bit color O* O O*
2048x 1536x 16-bit color O* O O*
2048x 1536x 24-bit color O* O O*
2048x 1536x 32-bit color O* O O*
*: By Panning.
The table lists typical display modes only. The system also supports standard
video modes with lower resolution and color.
Windows 2000/XP Driver Installation:
Insert the Driver CD into the CD-ROM. Click win2k_xp.exe in the directory of
RK8EX\Driver\VGA\Xp32 then follow prompt to complete driver installation.
Windows 2000/XP may recommend using their driver, but you should confirm
changing to the factory bundled driver.
After restart and back to Settings window, choose proper Colors and Screen
Area.
Audio Driver
Windows 2000/XP
Insert the Driver CD into the CD-ROM. Click WDM_A397.exe in the directory
of RK8EX\Driver\Audio\Xp3264 then follow the prompt to complete installation.
USB 2.0
The Windows 2000/XP are not necessary to install the driver.
Touch Screen Driver
Enter BIOS Setup and set COM1 port as “TTL1”. (COM1 has multiple
connectivity so it’s necessary to setup. Optional COM4 may be configured as
touch screen and doesn’t need BIOS setup.)
Utilities and Drivers
49
Then cancel the prompt of installation wizard to setup the driver from the CD
(\RK8EX\Driver\Touchscreen\DP9000\DMC9000 Windows 2000-XP-
2003\setup) then follow the prompt to complete installation and restart.
CD-ROM Driver
In Windows 2000/XP, you don’t need to install drivers, because it is included in
the drivers list.
Only non-Windows OS need the driver
PCMCIA Driver
Windows 2000/XP
The driver is automatically installed under Windows.
Mini PCI 1G AX92200 Lan
Insert the Driver CD into the CD-ROM. Click Setup.exe in the directory of
E:\AX92200\DRIVER\RTL8110S\windows(612) then Follow the prompt to
complete installation.
Mini PCI INT8100 Lan
The Windows 2000/XP are not necessary to install the driver.
Mini PCI-E 1G RTL8111B Lan
Insert the Driver CD into the CD-ROM. Click setup.exe in the directory of
RK8EX\Driver\PCIe Lan\Xp3264\PCIE_Installshield then follow the prompt to
complete installation.
Mini PCI-E Intel 3945ABG WLan
Insert the Driver CD into the CD-ROM. Click wireless_TIC.exe in the directory
of RK8EX\Driver\PCIe WLan\Xp32 then follow the prompt to complete
installation.
Fax/Modem Card Driver
Insert the Driver CD into the CD-ROM. Click setup.exe in the directory of
RK8EX\Driver\MDC\mdc_w2kxp then follow the prompt to complete
installation.
Utilities and Drivers
5
0
Wireless Manager
For flight safety and power saving reason, there is a utility provided easily to
enable/disable RF devices of Wireless Lan/GPRS/GPS/Bluetooth in the run time.
Insert the Driver CD into the CD-ROM. Click setup.exe in the directory of
Utilities\WirelessManager then follow the prompt to complete installation.
51
MAINTENANCE / SERVIC
E
Cleaning
ALWAYS turn OFF the power, unplug the power cord and remove the battery before
cleaning.
The exterior of the system and display may be wiped with a clean, soft, and lint-free cloth.
If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to
the cloth and wipe.
An air gun is recommended for cleaning water and dust. For salty water please clean
with fresh water then blow-dry with an air gun. Be sure not to turn the computer up
side down while there is water being applied.
Troubleshooting
Should the computer fail to function properly, the troubleshooting steps below may be
followed.
• Check AC/vehicle adapter, battery, and the power source.
• Minimize the configuration, i.e., remove extra peripherals and devices.
• Remove the modules one by one (HDD, CD-ROM, FDD, Battery, etc.).
• Remove the software suspected.
• Set BIOS fail-safe default.
• Re-install operating system and application software.
RMA Service
If troubleshooting steps are unsuccessful, consult your dealer for service. If it is necessary
for you to send in your computer for repairs, a representative from your authorized
technical support department will provide you with an RMA#. Only after you have spoken
with a technical support representative and received an RMA# should you send in your
computer.
Shipping instructions:
1. Remove any personal diskettes, CD's, or other media.
2. Use the original shipping container and packing materials, if possible.
3. If the original packing materials are not available, wrap the equipment with soft material
(e.g., PU/ PE form) then put the wrapped equipment into a hard cardboard shipping box.
4. Include a sheet with the following information: (Note: please keep a copy of this sheet
52
for your records)
• Name
• Address
• Unit serial number
• Place and date of purchase or the original invoice number
• Date of failure
• A DETAILED Description of the problems you have encountered
• A list of the hardware/software configuration, if applicable.
5. Clearly mark the outside of the shipping box with the RMA #. If an RMA # is not
present on the shipping box, receiving will be unable to identify it and it might be
returned.
6. Unless prior arrangements have been made, the customer is responsible for all shipping
costs. Unauthorized use of the company’s shipping accounts is not permitted.
Recycled / Recycleable
Printed in Taiwan
P/N:63070000
