Mileseey Technology MC160001 Laser Distance Meter User Manual
Shenzhen Mileseey Technology Co., Ltd Laser Distance Meter
user manual
Laser Distance Meter
User Manual
Congratulations on the purchase of your products.
Carefully read the Safety Instructions and the User Manual before using this product.
The person responsible for the instrument must ensure that all users understand these
directions and adhere to them.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
FCC ID：2AEOGMC160001
Radio Frequency Interference Requirements-FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Hereby, [Shenzhen Mileseey Co, Ltd], declares that this S6 is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC. A copy of the full DoC is attached.
Contents
Safety Instructions ..................................................................................................... 1
Overview .....................................................................................................................6
Warning ....................................................................................................................6
Power on/off ................................................................................................................6
Button functions ......................................................................................................... 6
Display ....................................................................................................................... 7
Single Distance Measurement......................................................................................7
Continuous Measurement(Min/max)............................................................................7
Area Measurement........................................................................................................8
Volume Measurement...................................................................................................8
Indirect Measurement-Pythagoras................................................................................9
Pythagorean Method-Two points..................................................................................9
Pythagorean Method-Three points................................................................................9
Auto Height Measurement...........................................................................................10
Addition/Subtraction....................................................................................................11
Bluetooth......................................................................................................................11
Set up reference point ..................................................................................................12
Unit change..................................................................................................................12
Cancel/Clear.................................................................................................................12
Historical Data..............................................................................................................12
Troubleshooting............................................................................................................13
Specifications...............................................................................................................14
Contact us.....................................................................................................................15
Copyrights....................................................................................................................15
1
Safety Instructions
Symbols used
The following displays are used to distinguish precautions by the degree
of injury or damage
that may result in the precaution is ignored.
WARNING:
Indicate a potentially hazardous situation or an unintended use which, if not
avoided, will result in death or serious injury.
CAUTION:
Indicate a potentially hazardous situation or an unintended use which, if not
avoided, may result in minor injury and / or in appreciable material, financial
and environmental damage.
Use of the instrument
a). Press the button to switch on the device. The laser beam emits from the front.
b). Press again to measure the distance. The result will show on the screen.
If there is no laser beam or no data displayed on the screen; or “0000” shows on the display.
Contact the local dealer for advice or solution.
Possible danger when use the device:
-The laser beam will harm eyes when aim to eyes directly
-The device may produces a spark and light dust or gas
-When clean battery electrolyte, heman fingers may be affected
-The device may cause an hazardous radiation explosion
-Laser exposure radiation damage
Caution:
-Do not look straight at the laser beam
-Do not use the device in inflammable and explosive environment
-Remove the batteries to avoid the electrolyte leakage when not use the device.
-Do not try other functions that the device does not have itself
-Do not attempt to convert the performance of the device in any way
- After repaired, this equipment shall be re-evaluated to comply with the safety requirement
according to standard EN 61010-1: 2010.
- If the equipment is used in a manner not specified by the manufacture, the protection
provided by the equipment may be impaired.
- This equipment contains no operator serviceable parts, serviced by the qualified person
only.
- Must be consulted this manual in all cases where symbol is marked.
2
Care
Wipe off dirt with a damp, soft cloth. If the water does not clean the dirt, use a clean cloth
moistened with alcohol to wipe the dirt. Be careful with the optical components (such as optical
lens): wipe with a clean soft cloth or cotton swab moistened with distilled water (as cleaning
glass or camera lens).Do not use aggressive cleaning agents or solutions.
Permitted use
Measuring distances
Computing functions, e.g. areas and volumes
Indirect measurement
Addition and subtraction operations of measurement
Prohibited use
Using the instrument without instruction.
Using outside the stated limits.
Deactivation of safety systems and removal of explanatory and hazard labels.
Opening of the equipment by using tools (screw drivers, etc.), as far as not
specifically permitted for certain cases.
Carrying out modification or conversion of the product.
Use of accessories from other manufacturers without the express approval of our
company.
Deliberately or irresponsible behavior on scaffolding, when using ladders, when
measuring near machines which are running, or near parts of machines or
installations which are unprotected.
Aiming directly into the sun.
Deliberately dazzling of third parties; also in the dark.
Inadequate safeguards at the surveying site (e.g. when measuring on roads,
construction sites, etc.)
Limits of use
See section “Technical Date” .
The product is designed for use in areas permanently habitable by humans, do not use
the product in explosion hazardous areas or in aggressive environments.
Areas of responsibility
3
As the original producer responsiblity:
Responsible for providing security products include manual and origin of the parts.
Responsibilities of the manufacturer of non-original accessories:
The manufacturers of non-original accessories for the products are responsible for
developing, implementing and communicating safety concepts for their products.
They are also responsible for the effectiveness of these safety concepts in combination
with the products equipment.
Responsibilities of the person in charge of the instrument:
WARNING:
The person responsible for the instrument must ensure that the equipment is
used in person is also accountable for the deployment of personnel and for their
accordance with the instructions. This training and for the safety of the equipment
when in use. The person in charge of the instrument has the following duties:
To understand the safety instructions on the product and the instructions in the
User Manual.
To be familiar with local safety regulations relating to accident prevention.
To inform local dealser immediately if the equipment becomes unsafe.
Hazards in use
CAUTION:
Watch out for erroneous distance measurements if the instrument is defective or if it
has been dropped or has been misused or modified.
Precautions:
Carry out periodic test measurements. Particularly after the instrument has been
subject to abnormal use, and before, during and after important measurements.
Make sure the optics is kept clean and that there is no mechanical damage to the
bumpers.
CAUTION:
In using the instrument for distance measurements or for positioning moving objects
(e.g. cranes, building equipment, platforms, etc.)
Unforseen events may cause erroneous measurements.
Precautions:
Only use this product as a measuring sensor, not as a control device. Your system
4
must be configured and operated in such a way, that in case of an erroneous
measurement, malfunction of the device or power failure due to installed safety
measures (e.g. safety limit switch), it is assured that no damage will occur.
WARNING:
Flat batteries must not be disposed of with household waste. Care for the environment.
Always prevent access to the product by unauthorized personnel.
And take them to the collection points provided in accordance with national
or local regulations. The product must not be disposed of with household waste.
Dispose of the product appropriately in accordance with the national regulations in
force in your country.
Electromagnetic Compatibility (EMC)
The term “electromagnetic compatibility” is taken to mean the capability of the
product to function smoothly in an environment where electromagnetic radiation and
electrostatic discharges are present, and without causing electromagnetic interference
to other equipment.
WARNING:
The products conform to the most stringent requirements of the relevant standards and
regulations. Yet, the possibility of it causing interference in other devices cannot be
totally excluded.
CAUTION:
Never attempt to repair the product yourself. In case of damage, contact the local
dealership.
5

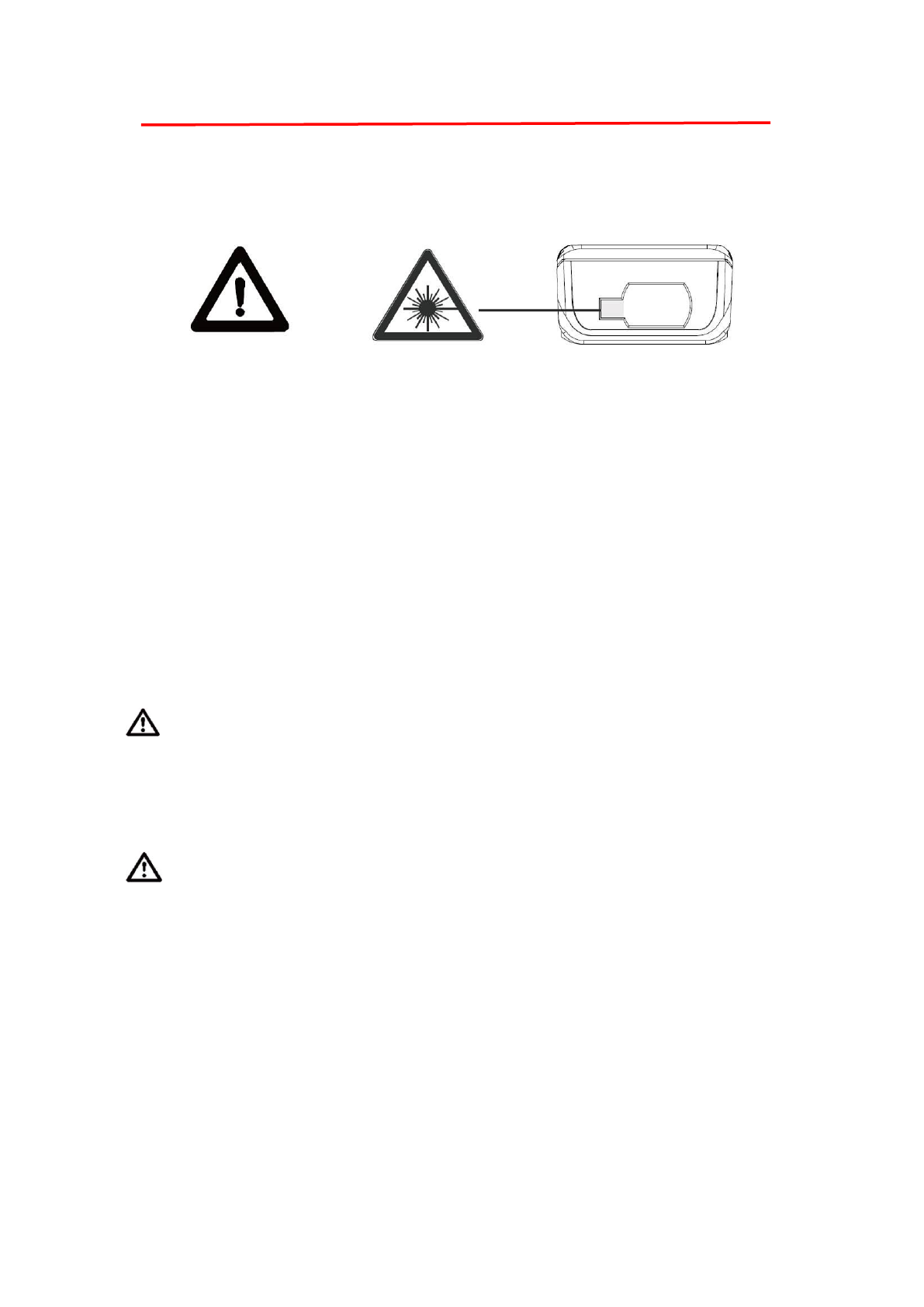

Laser classification
Integrated distance meter
- That produces a visible laser beam which emerges from the front of the instrument.
It is a Class 2 laser product in accordance with:
IEC60825-1: 2007 “Radiation safety of laser products”
- Do not stare into the laser beam or direct it towards other people unnecessarily.
- Eye protection is normally afforded by aversion responses including the blink reflex.
- The radiation pattern emitted from this equipment during the performance of
operation and maintenance procedure:
Wavelength: 630-670nm
Beam divergence: 0.16 x 0.6 mrad
Pulse duration: 0.25s (continuous)
Maximum power or energy output: <1mW
- Caution – Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
WARNING:
Looking directly into the beam with optical aids ( e.g. binoculars, telescopes) can be
hazardous.
Precautions:
Do not look directly into the beam with optical aids.
CAUTION:
Looking into the laser beam may be hazardous to the eyes.
Precautions:
Do not look into the laser beam. Make sure the laser is aimed above or below eye
level. (particularly with fixed installations, in machines, etc.)
6
Overview
Thank you for purchasing MileSeey products! Please carefully read this product
Quick Start to ensure the safe and most efficient use of this product. S6 is a
masterpiece by globally recognized designer adopting the idea of “brics”, with
beautiful “Cadillac” geometries and outlines,adding a stale and reliable impression to
Users. The silk-like smooth soft rubber, the multifunctional end-piece, 10° angled
ergonomic housing and powerful function list, excellent performances made S6 one of
the best choice for users of laser distance meter from the globe.
Warning
Laser Class 2 products;
Do not look directly into the bean with
optical aids or direct it towards other
people unnecessarily.
Power on / off
Inserting/replacing batteries Remove battery compartment lid by lifting it lightly,
insert the provided batteries and close the cover.
Power on
Long press to power on the device, and directly goes to single distance
measurement interface.
Power off (manually)
Long press to switch offthe device.
Power off (automatically)
The instrument switches off automatically
after three minutes of inactivity.

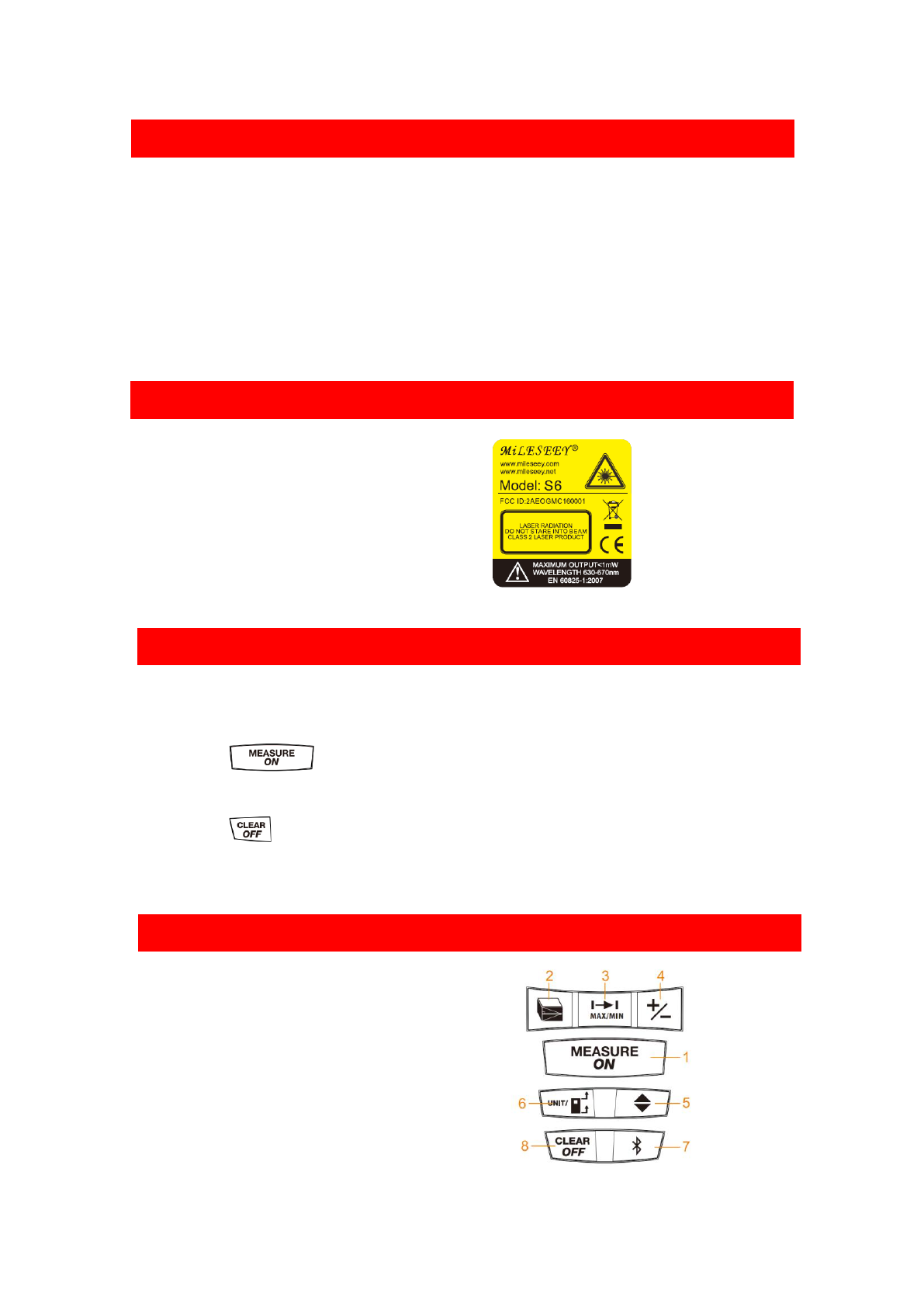

Button functions
1. Power on / Laser on / Measure
2. More functions
3. Continuous measurement
4. Addition / Subtraction
5. Historical data
6. Reference point / Unit
7. Bluetooth
8. Clear / Power off
7

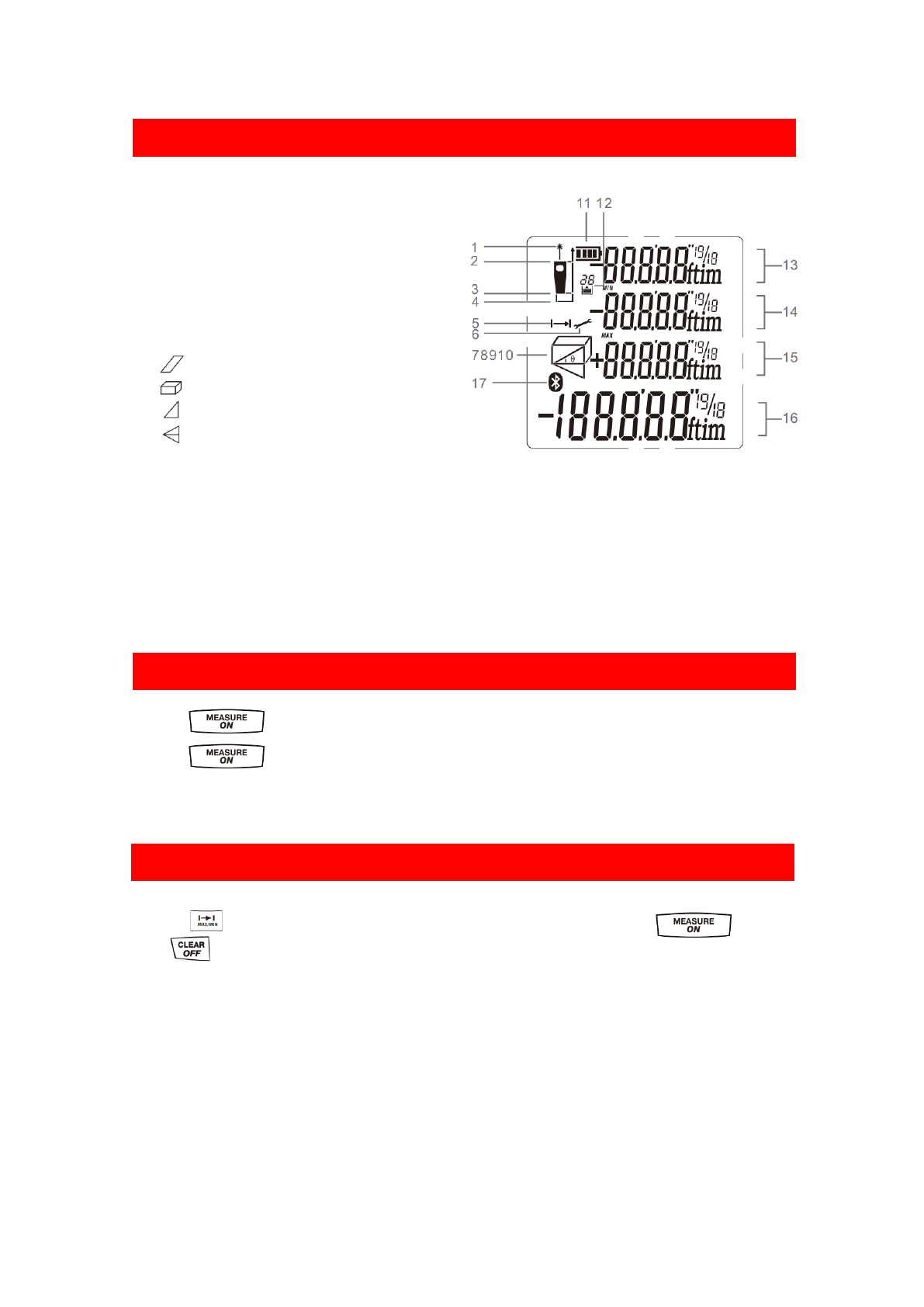

Display
1. Laser on
2. Reference point (top)
3. Reference point (bottom)
4. Reference point (end-piece)
5. Continuous measurement
6. Error message
7, 8, 9, 10 auxi l iary tools:
Area measurement
Volume measurement
Pythagoras two points
Pythagoras three points
11. Battery status
12. Historical data
13. Angle
14. Value 2 / Min value
15. Value 3 / Max value
16. Summary l ine / latest value /calculation result
17.Bluetooth
Single Distance Measurement
Press to activate the laser.
Press again to trigger the distance measurement. The result is displayed
immediately
Continuous Measurement (Min / Max)
Press key to activate continuous measurement. User can press
or to stop the function and the values of maximum and minimum distances
are shown in the display as well as the last measured value in the summary line.
This function will be stopped automatically after 5 minutes of inactivity.
8

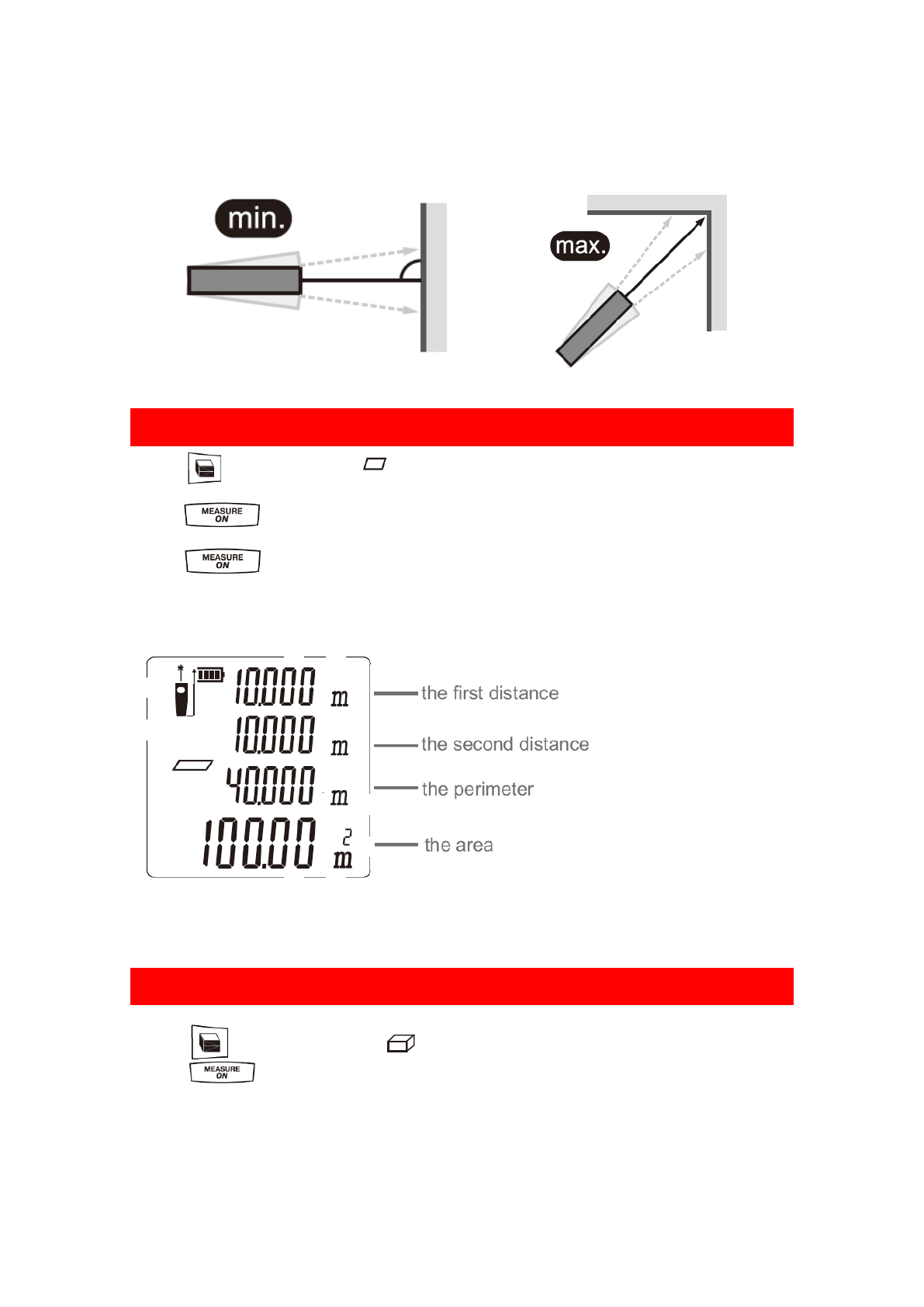

Area Measurement
Press once, the symbol appears in function filed of display.
Press to take the first distance measurement (e.g. Length).
Press again to take the second distance measurement (e.g. width).
The results of length, width and area are displayed in the display orderly.
Volume Measurement
Press twice, the symbol appears in the function field on the display.
Press to take the first length measurement (e.g. Length). Next get the width,
then height, the result of length, width, height and volume is displayed orderly.
9

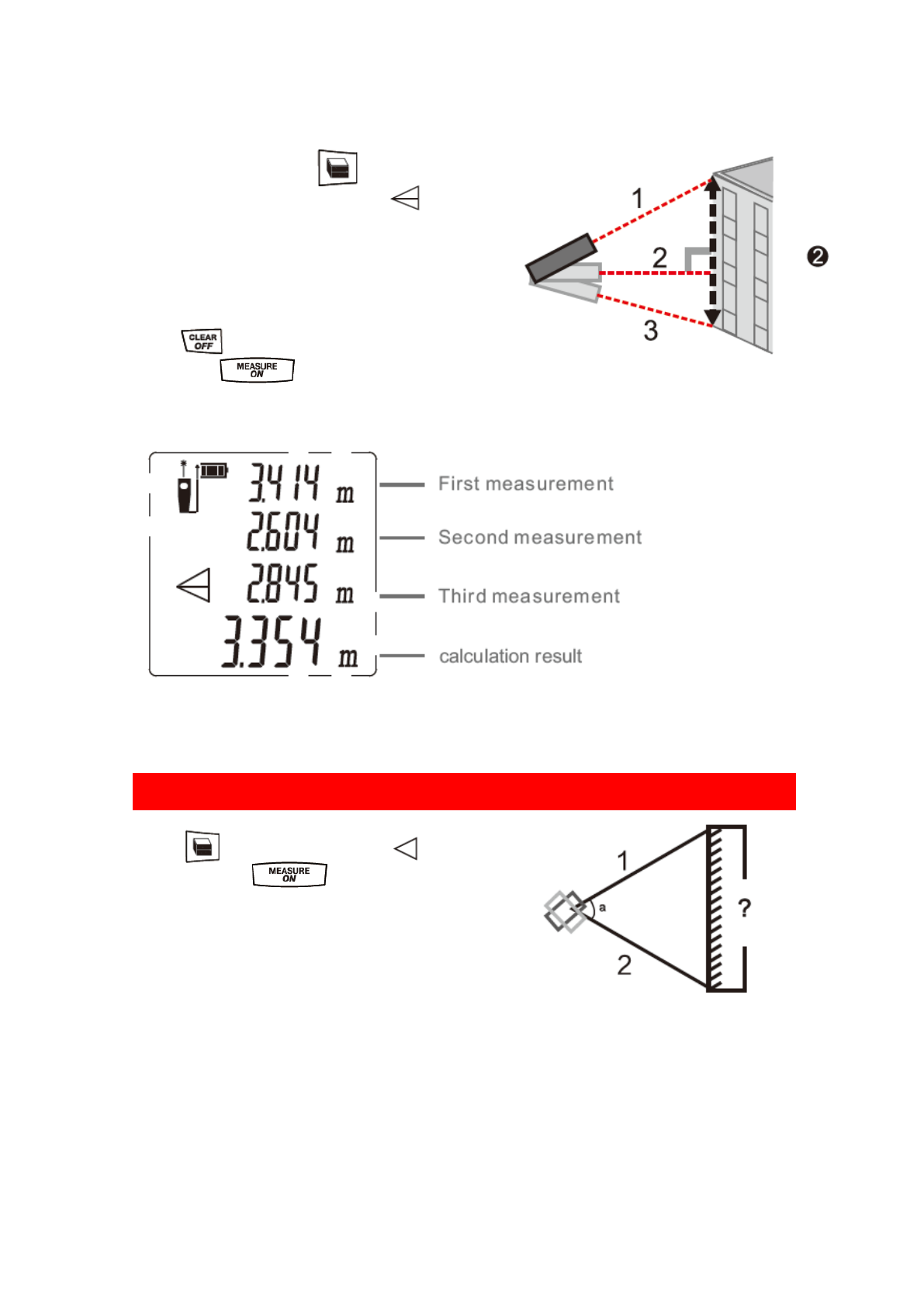

Indirect Measurement - Pythagoras
S6 calculates indirect distance using Pythagorean Theorem. Note: Target points
should be in the same line. When measuring the 2nd distance, laser beam should be
right-angled to the line.
Pythagorean Method-Tow points

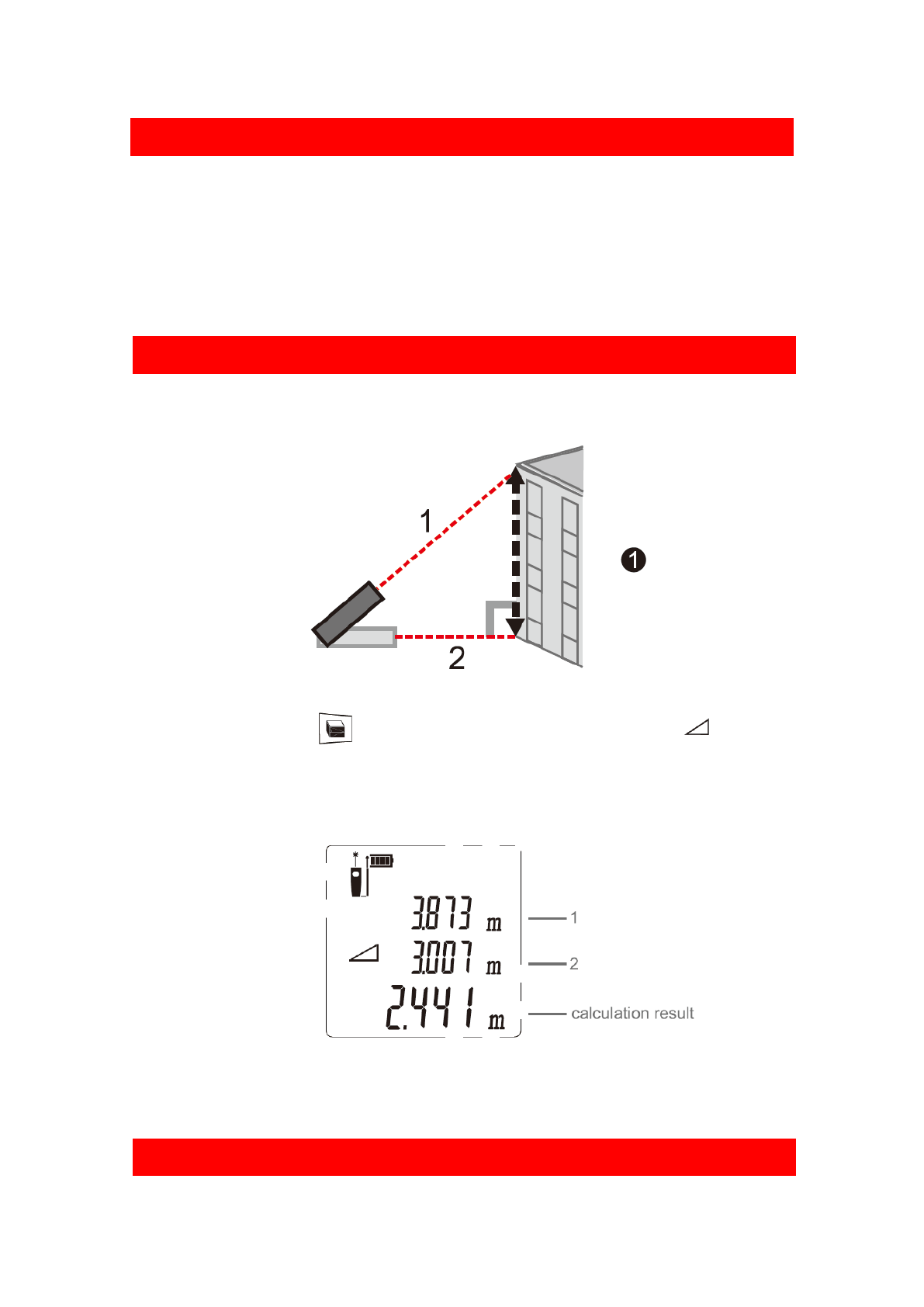

Refer to figure 1. Press 3 times to activate the function, the symbol appears
in the function field on the display. Take measurement with the 2 points shown on
below figure in numeric sequence, the height of the object will be calculated
automatically and displayed on screen.
Pythagorean Method-Three points
10
Refer to figure 2. Press four times to
activate the function, the symbol appears
in thefunction field on the display.
Take measurement with the 3 points shown on
below figure in numeric sequence, the height
is calculated and displayed on the summary
line.
Press to delete any measured length and
then press to re-measure.
Auto Height Measurement
Press five times, the symbol appears on
display. Press button to measure
distance to the top and to the bottom of the object,
distance of two hypotenuse, and height of object
will be seen on display. Refer to the figure below.
11
Addition/Subtraction
Take a measurement, then press or long press it, addition/subtraction symbol will
appear on display, then press button to take the second measurement, the
second value will be automatically added to/subtracted from the first one.
Note: This process can be repeated as required.
Bluetooth
Initiate Bluetooth On the device
Long press to initiate Bluetooth function, the Bluetooth icon will be displayed
on LCD, and the device is ready for Bluetooth connection. User must open the
"mileseey imeter" on smart phone and operate according to the quick guide on APP.
Mobile phone operation steps
1, Open APP to enter scene measuring, press the Bluetooth button on up-right, then
the Bluetooth will be turned on.
2, Search for Bluetooth name of the instrument, for example： , click it and
connect them.
The Bluetooth function must be initiated first.
3, After connection, Bluetooth icon turns green, and the on the device stops
flashing. At this time users can remotely control the device, press in APP to take
measurements and distance will be shown on APP and S6.
4, Open the APP to enter the scene measuring, short press the button on the
device, the realtime data on the instrument will be synchronous transmitted to the
display window of the APP.
5, Touch the data in the display window, and you can move data to any line in the
drawing area.
6, Open APP and find “import records” function. Click button to connect with
the instrument, and you can import all data stored on S6 to the
APP.
* The APP is also equippedwith professional mapping software; available to users for
free for one month.
APP Download address:
1, Android users can download in the android market or from official website of
Mileseey (www.mileseey.net) .
2,Apple users can download and install directly in App Store.
* S6’s Bluetooth function can only work with the APP on Android and Ios platform.
Please download and install Mileseey APP in advance.
APP name: “Mileseey iMeter”.
APP Operating environment requirements:
12
1, Android platform: Android 4.3 and above version. The Bluetooth
module need to be version 4.3 and above, lowpower Bluetooth.
2, iOS platform: Applicable to the iPhone 4s and above, iPad 3 and above.

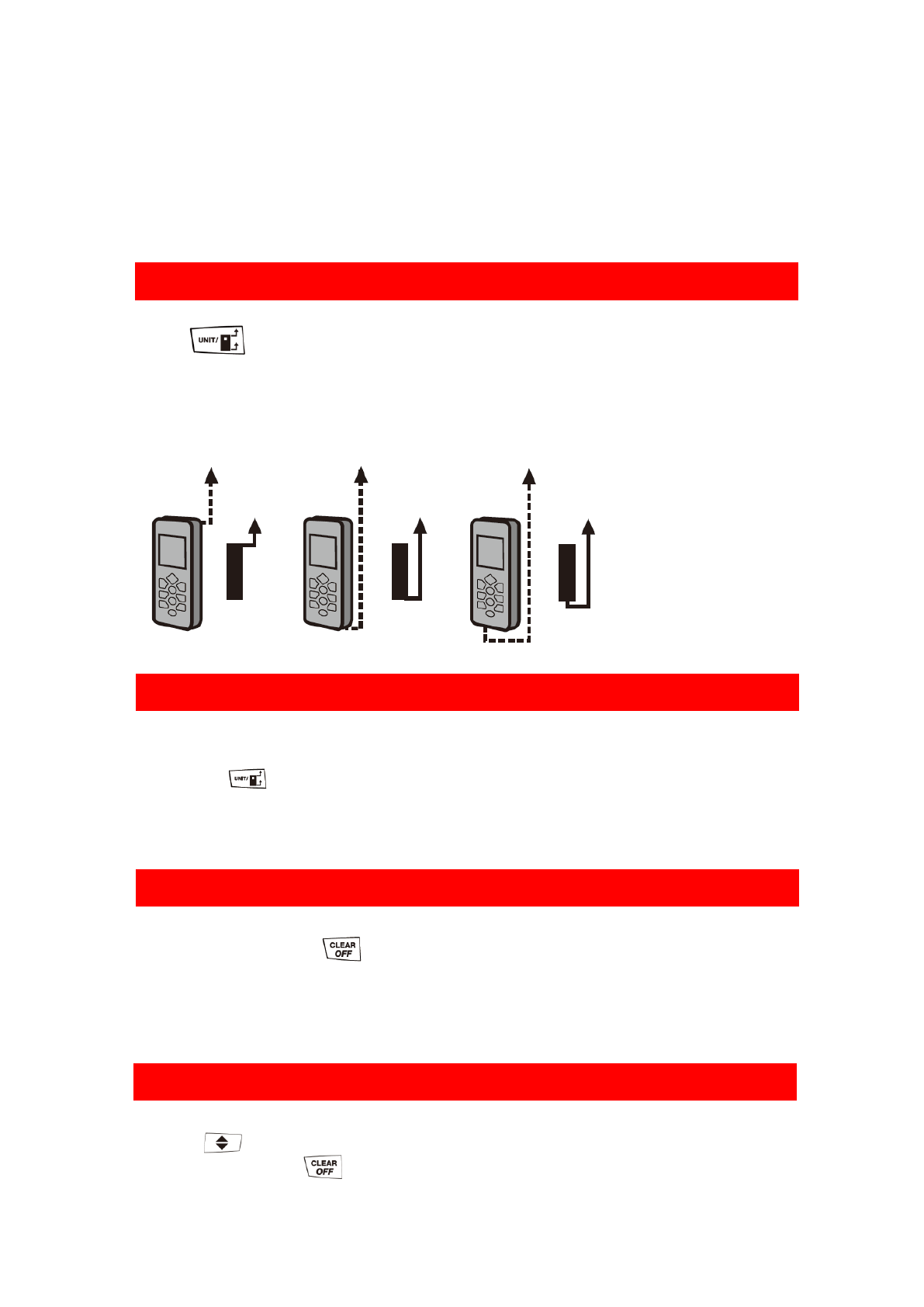

Set up Reference Point
Press to switch reference point between the top, bottom and end-piece of the
instrument. There is a beep warning tone when reference point is changed.
The default reference setting is from the bottom of the instrument. The reference point
will be set to default every time when it’s powered off, I.E. the measuring reference
point is from the bottom of the instrument every time when it’s powered on.
Unit Change
Long press to change distance unit between m, ft, in and ft+in.The default unit is
ft.
Cancel/Clear
When measuring, press to cancel the last action or clear measured data.
Historical Data
Pressvv to view historical data, the last 20 measured data will be displayed in
reversed order. Press to quit historical data viewing.
13
Troubleshooting
All errors or failures will be shown as codes. The following table explains the
meaning of codes and solutions.
Code
Cause
Corrective Measure
204
Calculation error
Refer to user manual,
repeat the procedures.
208
Excessive current
Please contact your
distributor
220
Battery low
Replace new batteries.
252
Temperature is
too high
The external temperature
for the instrument should
be kept at 0°C-40°C
253
Low temperature
Warm up the device
to meet work conditions.
255
Received signal
too weak,
measurement
time too long
Use target plate or
change a good
refection.
256
Received signal
too strong
Target too reflective
use target plate or do
not aim at strong light
objective.
261
Measure value
over range
Please make
measurement within its
range.
500
Hardware error
Switch on/off the
device several times.
If the symbol still
appears, then your
instrument is defective.
Please call your dealer
for assistance.
14
Specifications
Note:
The maximum measuring range is determined by the version of the meter. Exact measuring
range for the laser distance meter is shown on the gift box.
Range and accuracy are based on typical conditions, may deteriorate under unfavorable conditions
such as bright sunlight or poor reflectivity.
Specification
S6
The Maximum Measuring range
0.2 ~40M*
Typical Measuring accuracy
±1.5 mm**
Measuring units
m / ft / in /ft+in
Laser class
Class 2
Laser type
630-670nm, <1mW
Area, Volume measurement
●
Addition/subtraction
●
Single distance
measurement
●
Continuous
measurement
●
4-line display with
backlight
●
Continuous distance
measurement (Min/Max)
●
Bluetooth
●
Ingress protection
IP30
Historical data
20 sets
Operating temperature
0ºC~40ºC
Storage temperature
-10ºC~60ºC
Battery life
5,000 measurement times
Battery type
Type AAA 2 x 1.5V
Auto laser off
30 seconds
Auto instrument off
180 seconds
Dimensions
115*52*32 mm
Weight
118g
15
Contact us
MileSeey Technology Co., LTD
Tel: +86 755 86329055
Fax: +86 755 86701592
Website: www.mileseey.net
Email: info@mileseey.net
Address: F/6, Building 9, Zhongguan Honghualing Industrial South Park II, 1213 Liuxian Ave,
Taoyuan Street, Nanshan District, Shenzhen, 518055, The Maximum P.R. China.
Copyrights
Product design, specifications may change without prior notice. MileSeey trademark, images,
specifications are properties of MileSeey Technology Co., LTD. All rights reserved.
