Model: NC-076
Nominal Capacity: 6 Kilograms
Manufacturer: North Coee Equipment Co. LTD, Shenzen, China
Distributor: Mill City Roasters, Minneapolis, MN, USA
Current Certications
ROASTER SPECIFICATIONS

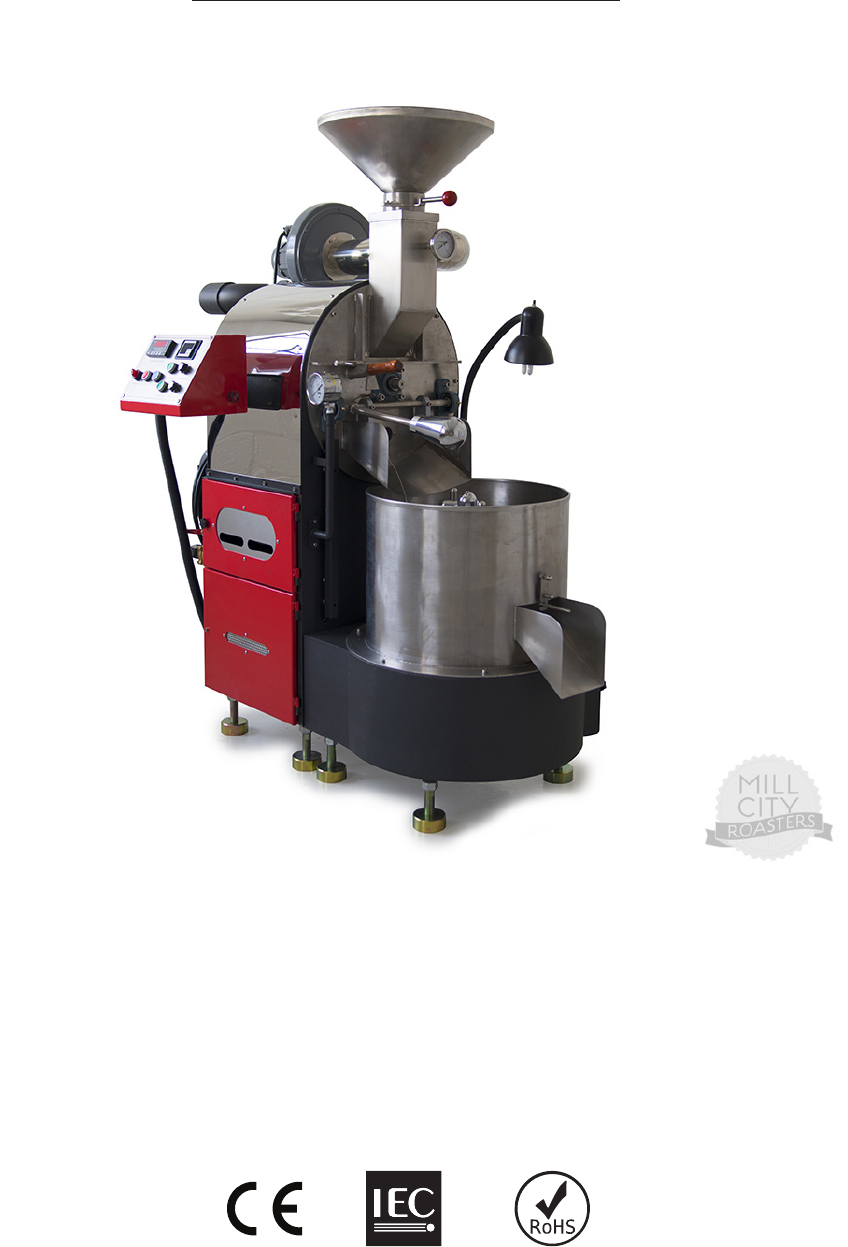

6KG GAS COFFEE ROASTER
Roaster Dimensions (L x W x H) 59 x 38 x 68 in (1499 x 965 x 1727 mm)
Roaster Weight 771.6 lb (350 kg)
Cha Collector Dimensions (Dia. x H) 20 x 56 in (508 x 1422 mm)
Cha Collector Weight 92.6 lb (42 kg)
Cooling Tray Fan Dimensions (Dia. x H) 17 x 20 in (432 x 508 mm)
Cooling Tray Fan Weight --
Crate Dimensions (L x W x H) 44 x 57 x 69 in (1118 x 1448 x 1753 mm)
32 x 30 x 41 in (813 x 762 x 1041 mm)
62.75 x 25.75 x 29.75 in (1594 x 654 x 756 mm)
Crate Weight 1040 lb (472 kg)
322 lb (146 kg)
255 lb (116 kg)
Drum Construction Double-walled Drum, 430 Stainless Steel, Welded
Drum Diameter/length 13.8 / 15.7 in (350 / 400 mm)
Cooling Tray Diameter 15.7 in (400 mm)
Cooling Tray Stirring Arm Length 11.8 in (300 mm)
Dimensions
Batch Size 1.2 kg - 7.2 kg
Average Roasting Time 15 minute batch
Production 52.9 lb/hr, 423.3 lb/day (24 kg/hr, 192 kg/day)
Capacity / Output
Roaster Voltage/Frequency Single phase phase 220v, 15 amp service 50-60Hz
Step-up Transformer 120v to 220v, 1000w
Drum Motor 400w
Exhaust Fan Motor 750w
Exhaust Fan Max Airow 200m 3/h
Cooling Fan Motor 400w
Cooling Tray Stirring Motor 400w
Power
Heating Mode Natural Gas -or- Propane
Max BTU 75,000
Burner Control Manual Valve
Gas Connection 1/2" NPT
Gas Pressure (inches of water column) 12” minimum - 20” maximum
Typical Cha Collector Exhaust Temp 300F
Recommended Temp Controller Limit 455F (about 30 seconds into rolling second crack)
Max Gas Usage 2.2 lb/hr (1 kg/hr)
Gas
USB Logging Interface Phidget 1048
Logging Thermocouples BT, ET, Incoming Air
Data Logging
