ET33 tag use’s manual
version number： V1.0
Mine Site Technologies Pty Ltd
1
MineSiteTechnologiesPtyLtd
Table of Contents
Statement ................................................................................. 3
GeneralInformation ................................................................... 3
Physicalmap ............................................................................ 4
Componentfunction .................................................................. 4
Performanceindex ..................................................................... 5
Accessories................................................................................ 6
Generalattention ....................................................................... 6
Warrantyconditions................................................................... 7
FCCStatement……………………………………………………………………………….8
2
MineSiteTechnologiesPtyLtd
Statement
Thank you for using this electronic product of our company. In order
to let you experience the product swimmingly, detailed instruction is
provided which you can find the product’s introduction, usage and
other information. Before using this product, please read the
manual carefully, so that you can correctly use it. In case of any
printing or translation error, we apologize for the inconvenience. As
for the content change, we are sorry for no further notice.
General Information
The Mine Site Technologies ET33 tag is a radio frequency
indentification module operating at 2.4GHz. The AL2236 IC of
Airoha Technologu Corp and MSP430 microcontroller unit are
working together, realizing the carrier arising,signal amplify,data
modulation,demodulation and decoding. Radio-frequency mode in
the reader and ET33 Rf tag no contact between the bidirectional
data transmission, in order to achieve target recognition and data
exchange. And the tradition of code, magnetic and IC card,
compared with non-contact, RF card reading speed, wear, not by
environmental impact, long life, easy to use and has the
characteristics of anti-collision function. ET33 tag is mainly used for
3
MineSiteTechnologiesPtyLtd
container port.
Physical map

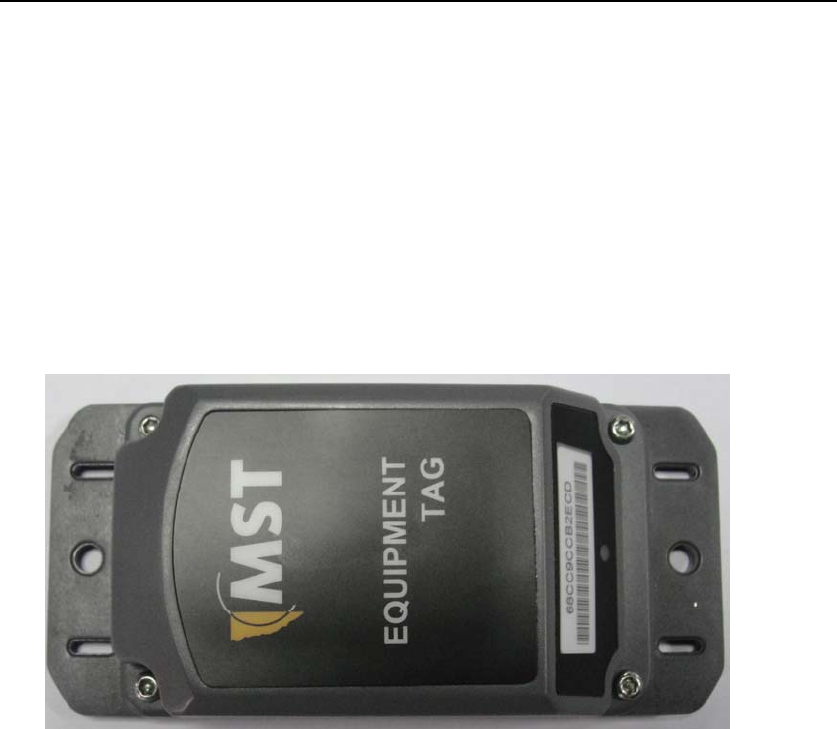

ET33 Tag physical map as follows.
Component function
LED light：After press button and low voltage alarm.
Button：Alarm.
4
MineSiteTechnologiesPtyLtd
Performance index
Mechanical Structure Index
Item Name Specific parameters
1 Size 124mm X 57mm X 28mm
2 Weight 124g
Electrical Performance Index
Item Name Specific parameters
1 Power supply Battery
2 Rated voltage DC 3.0V～4.2V
3 Working frequency
Transmitter
frequency:2.4GHz;
Receive frequency:125KHz
4
Communication
protocol
IEEE 802.11b
5 Transmitter frequency Adjust
6 Low voltage alarm ≤3.05V
Environment Index
Item Name Specific parameters
1 Operating temperature. -25℃～+60℃
2 Anti-static grade Air discharge：8000V
5
MineSiteTechnologiesPtyLtd
Accessories
1. Tag.
2. A set of Use’s Manual & warranty card.
General attention
1.To avoid degaussing, please keep the tag away from the
magnetic materials, such as disk, credit cards, etc., to ensure that
the tag is not contact with any liquid.
Do not bump,shake or throw the tag in case of malfunction or
lighting a fire.
Do not put tag on microwave oven or high-tension apparatus to
avoid circuit damage and fire accident.
Do not use under flammable and explosive gas in case of
malfunction or lighting a fire.
Do not put it on uneven or unstable surfaces to avoid falling off or
breakdown.
2. ET33 Tag use disposable batteries.Can’t recharge. You can
replace if the battery capacity is insufficient. Use the battery
appointed by the company. Other production may cause battery
leakage, overheating, explosions and lighting a fire.
6
MineSiteTechnologiesPtyLtd
Warranty conditions
For any defect, in the judgment of our technician, caused under
normal use, we are responsible for repairing free of tages one year
commencing from the date of purchase at the discretion of our
company. A valid warranty card and original purchase invoice must
be presented upon request of warranty service.
This warranty card shall not apply to the product if
(1) It has explicitly modified or repaired in any wan by persons other
than technicians of this company, or
(2) It has been damaged through misuse, malicious acts,
negligence, and inflow of any liquid, accident or natural calamities.
No alteration to this warranty card will be allowed
The warranty terms and conditions will be subjected to change with
prior notice.
Please retain you proof of purchase for warranty service.
7
MineSiteTechnologiesPtyLtd
FCCStatement
This equipment has been tested and found to comply with the limit
s for a Class B digital device, pursuant to part 15 of the FCC Rules
. These limits are designed to provide reasonable protection again
st harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is n
o guarantee that interference will not occur in a particular installatio
n. If this equipment does cause harmful interference to radio or tel
evision reception, which can be determined by turning the equipme
nt off and on, the user is encouraged to try to correct the interferen
ce by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
8
MineSiteTechnologiesPtyLtd
—
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth f
or an uncontrolled environment and it also complies with Part 15 of
the FCC RF Rules. This equipment must be installed and operate
d in accordance with provided instructions and the antenna(s) use
d for this transmitter must be installed to provide a separation dista
nce of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter. E
nd-users and installers must be provided with antenna installation i
nstructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is s
ubject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including int
9
MineSiteTechnologiesPtyLtd
10
erference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operat
e the equipment.
