Mine Site Technologies MP10-G2 Mine Phone User Manual MP10 user s manual

Mine Site Technologies Pty Ltd Mine Phone MP10 user s manual

User Manual

...................................................................................................................................... MP10-G2 Configuration Guide v. 1.1-SNAPSHOT Ref: MP10-G2_CG_1.1-SNAPSHOT ...................................................................................................................................... Mine Site Technologies 2013-01-15

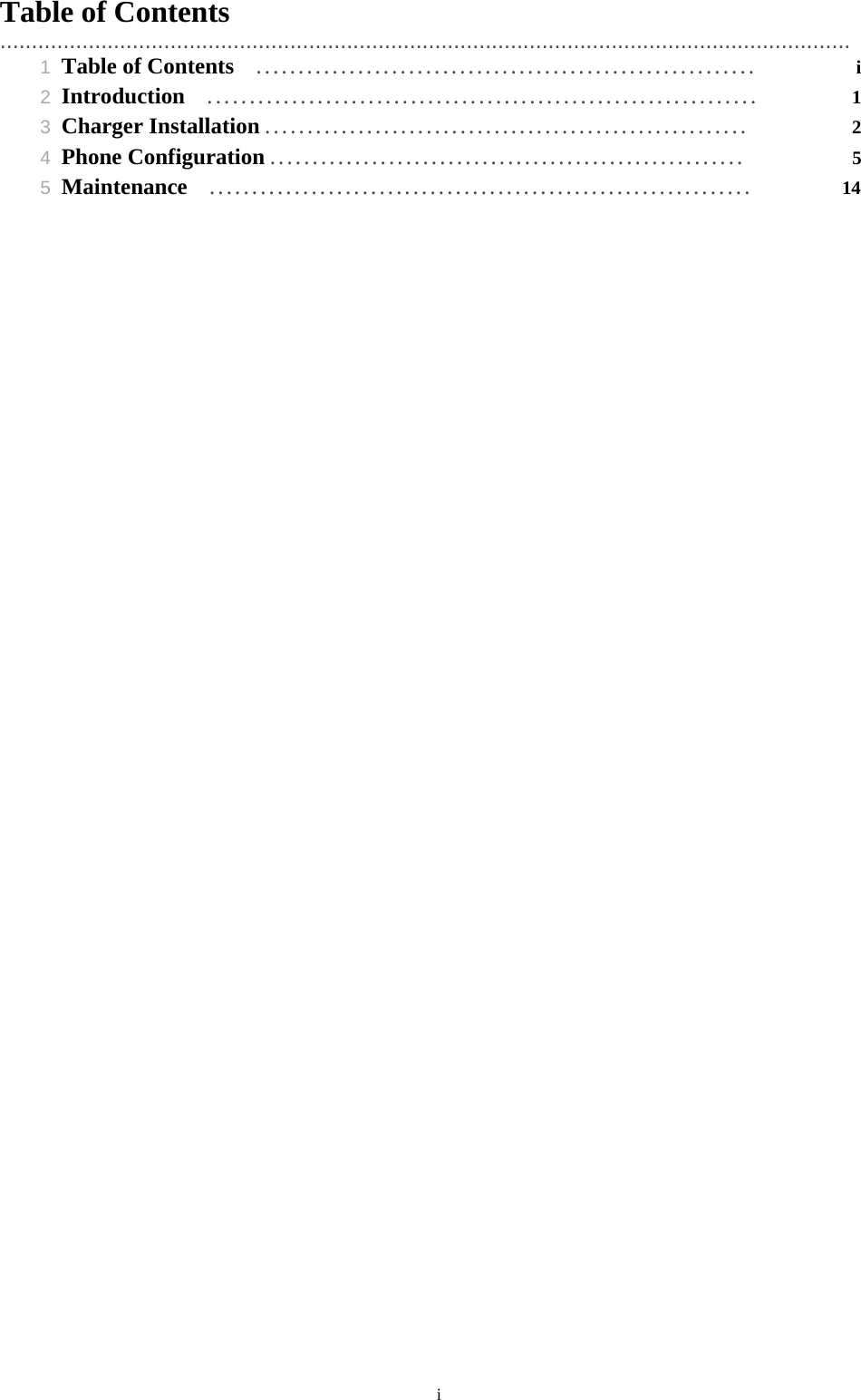

i Table of Contents ....................................................................................................................................... 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i 2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3 Charger Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 4 Phone Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

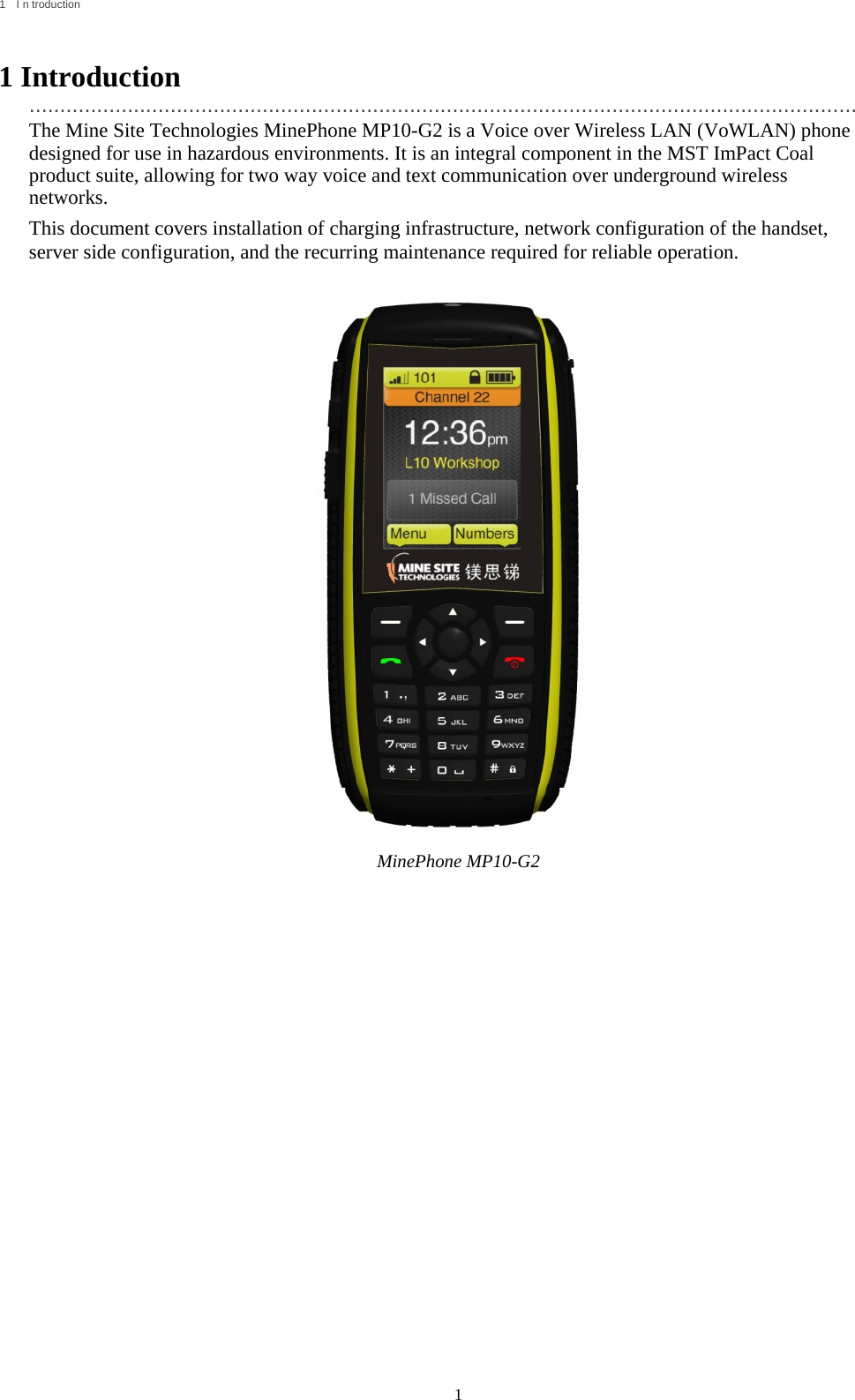

1 1 I n troduction 1 Introduction ....................................................................................................................................... The Mine Site Technologies MinePhone MP10-G2 is a Voice over Wireless LAN (VoWLAN) phone designed for use in hazardous environments. It is an integral component in the MST ImPact Coal product suite, allowing for two way voice and text communication over underground wireless networks. This document covers installation of charging infrastructure, network configuration of the handset, server side configuration, and the recurring maintenance required for reliable operation. MinePhone MP10-G2

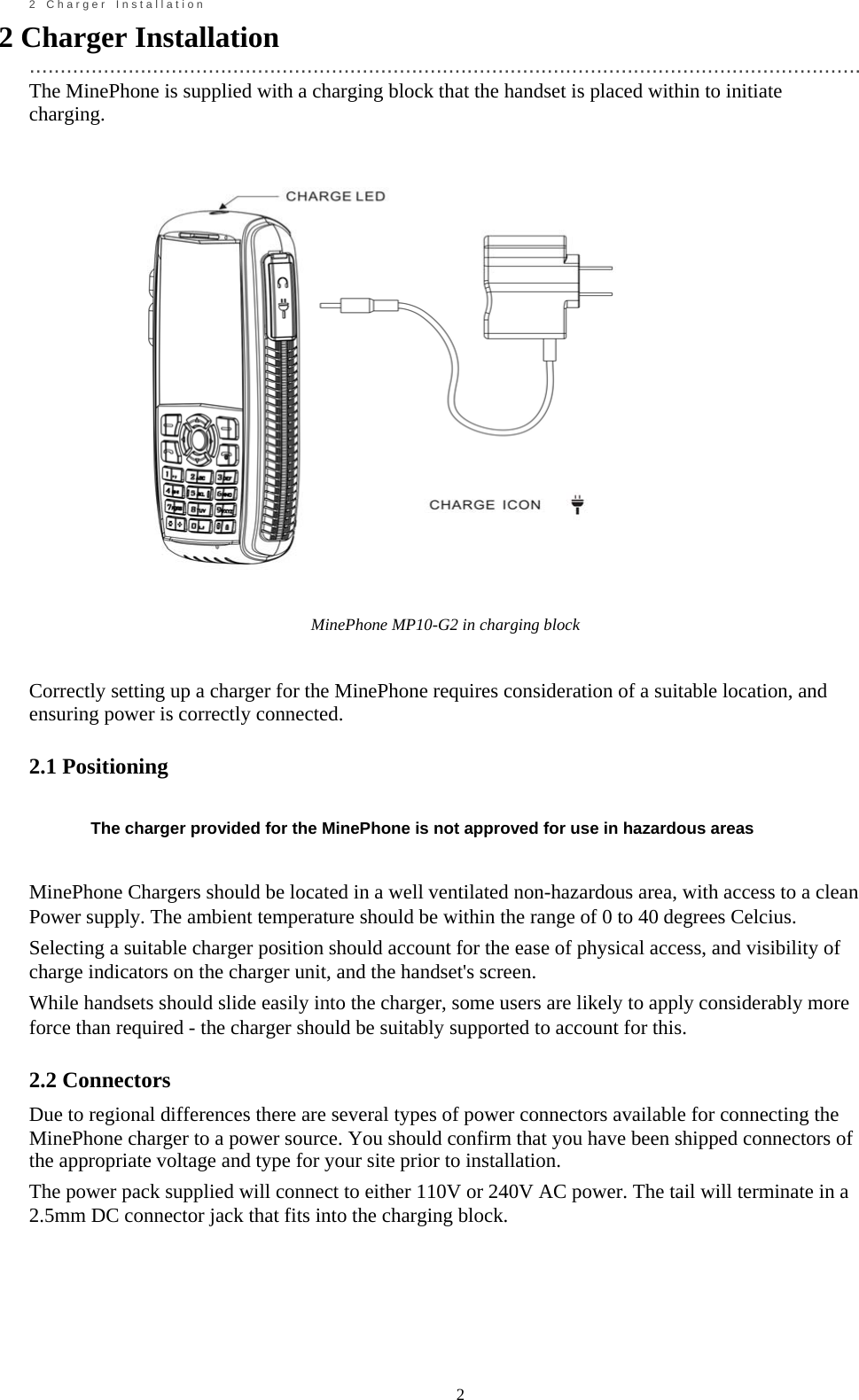

2 2 C h a r g e r I n s t a l l a t i o n 2 Charger Installation ....................................................................................................................................... The MinePhone is supplied with a charging block that the handset is placed within to initiate charging. MinePhone MP10-G2 in charging block Correctly setting up a charger for the MinePhone requires consideration of a suitable location, and ensuring power is correctly connected. 2.1 Positioning The charger provided for the MinePhone is not approved for use in hazardous areas MinePhone Chargers should be located in a well ventilated non-hazardous area, with access to a clean Power supply. The ambient temperature should be within the range of 0 to 40 degrees Celcius. Selecting a suitable charger position should account for the ease of physical access, and visibility of charge indicators on the charger unit, and the handset's screen. While handsets should slide easily into the charger, some users are likely to apply considerably more force than required - the charger should be suitably supported to account for this. 2.2 Connectors Due to regional differences there are several types of power connectors available for connecting the MinePhone charger to a power source. You should confirm that you have been shipped connectors of the appropriate voltage and type for your site prior to installation. The power pack supplied will connect to either 110V or 240V AC power. The tail will terminate in a 2.5mm DC connector jack that fits into the charging block.

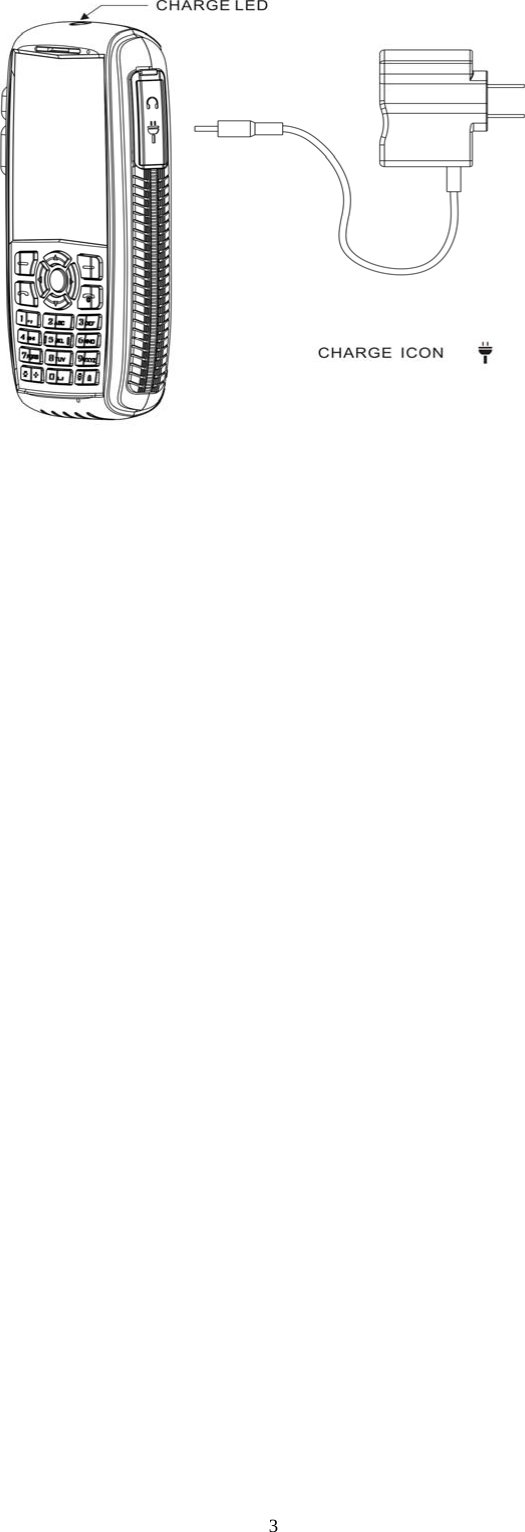

3

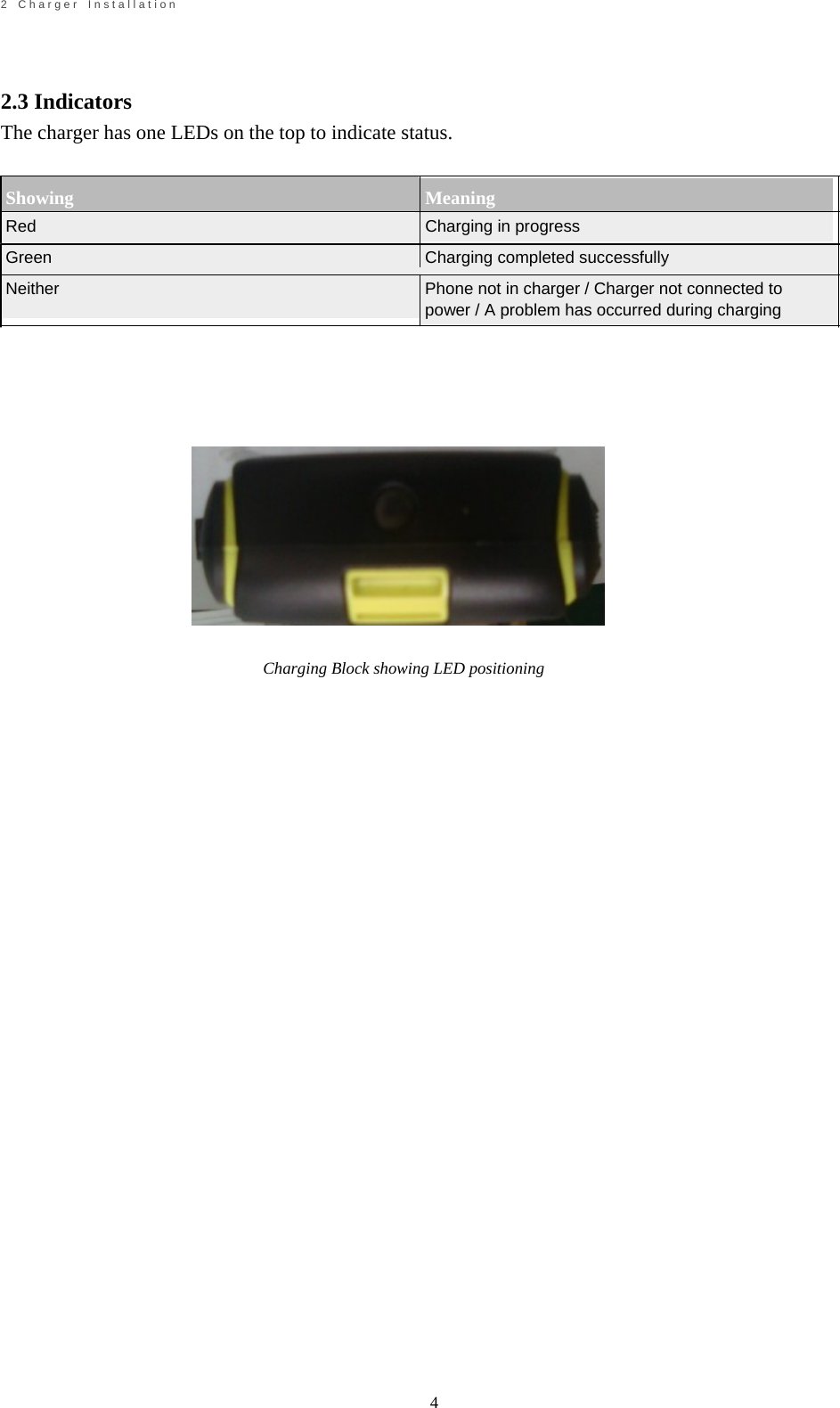

4 2 C h a r g e r I n s t a l l a t i o n 2.3 Indicators The charger has one LEDs on the top to indicate status. Showing Meaning Red Charging in progress Green Charging completed successfully Neither Phone not in charger / Charger not connected to power / A problem has occurred during charging Charging Block showing LED positioning

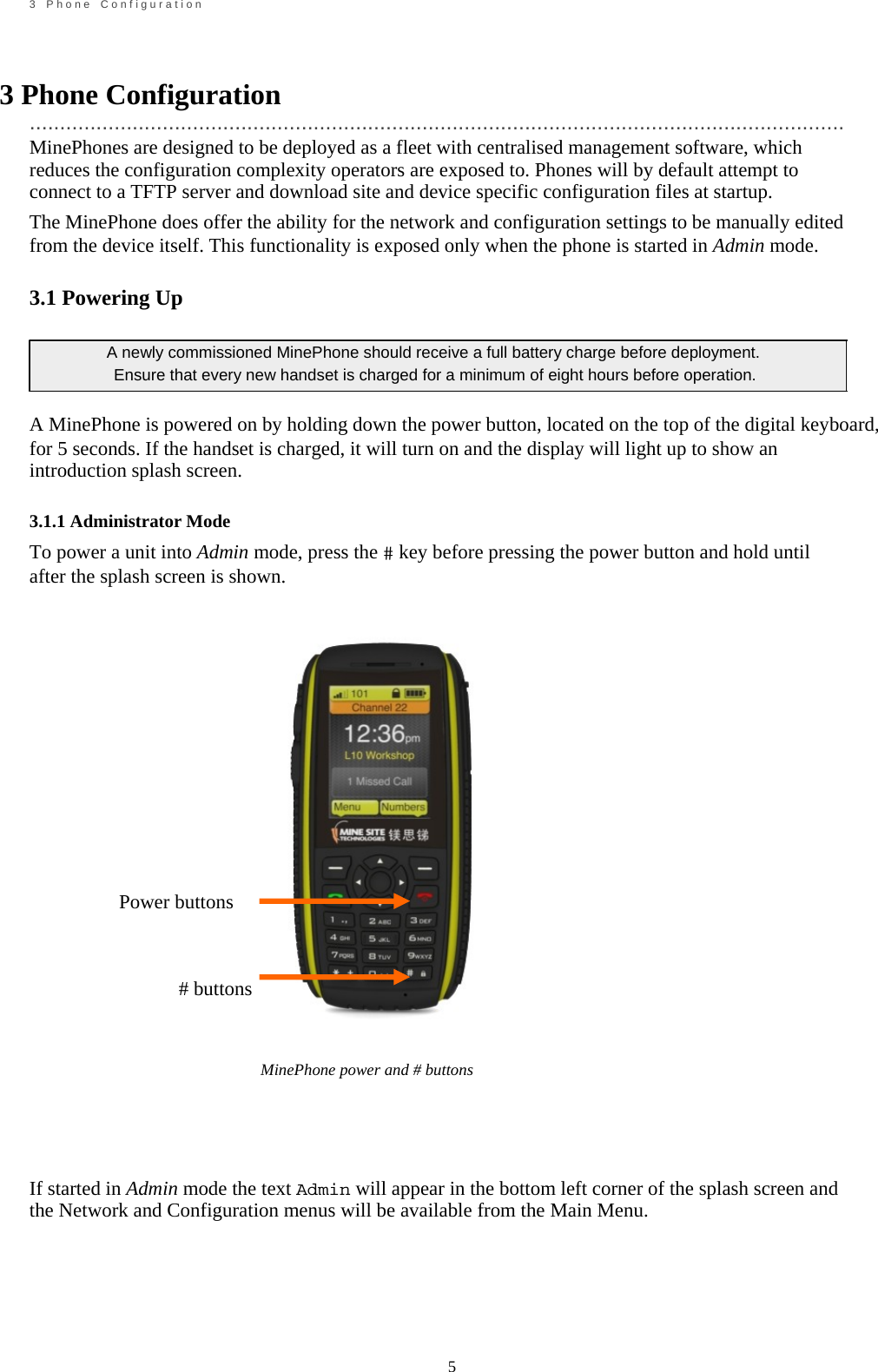

5 3 P h o n e C o n f i g u r a t i o n 3 Phone Configuration ....................................................................................................................................... MinePhones are designed to be deployed as a fleet with centralised management software, which reduces the configuration complexity operators are exposed to. Phones will by default attempt to connect to a TFTP server and download site and device specific configuration files at startup. The MinePhone does offer the ability for the network and configuration settings to be manually edited from the device itself. This functionality is exposed only when the phone is started in Admin mode. 3.1 Powering Up A newly commissioned MinePhone should receive a full battery charge before deployment. Ensure that every new handset is charged for a minimum of eight hours before operation. A MinePhone is powered on by holding down the power button, located on the top of the digital keyboard, for 5 seconds. If the handset is charged, it will turn on and the display will light up to show an introduction splash screen. 3.1.1 Administrator Mode To power a unit into Admin mode, press the # key before pressing the power button and hold until after the splash screen is shown. Power buttons # buttons MinePhone power and # buttons If started in Admin mode the text Admin will appear in the bottom left corner of the splash screen and the Network and Configuration menus will be available from the Main Menu.

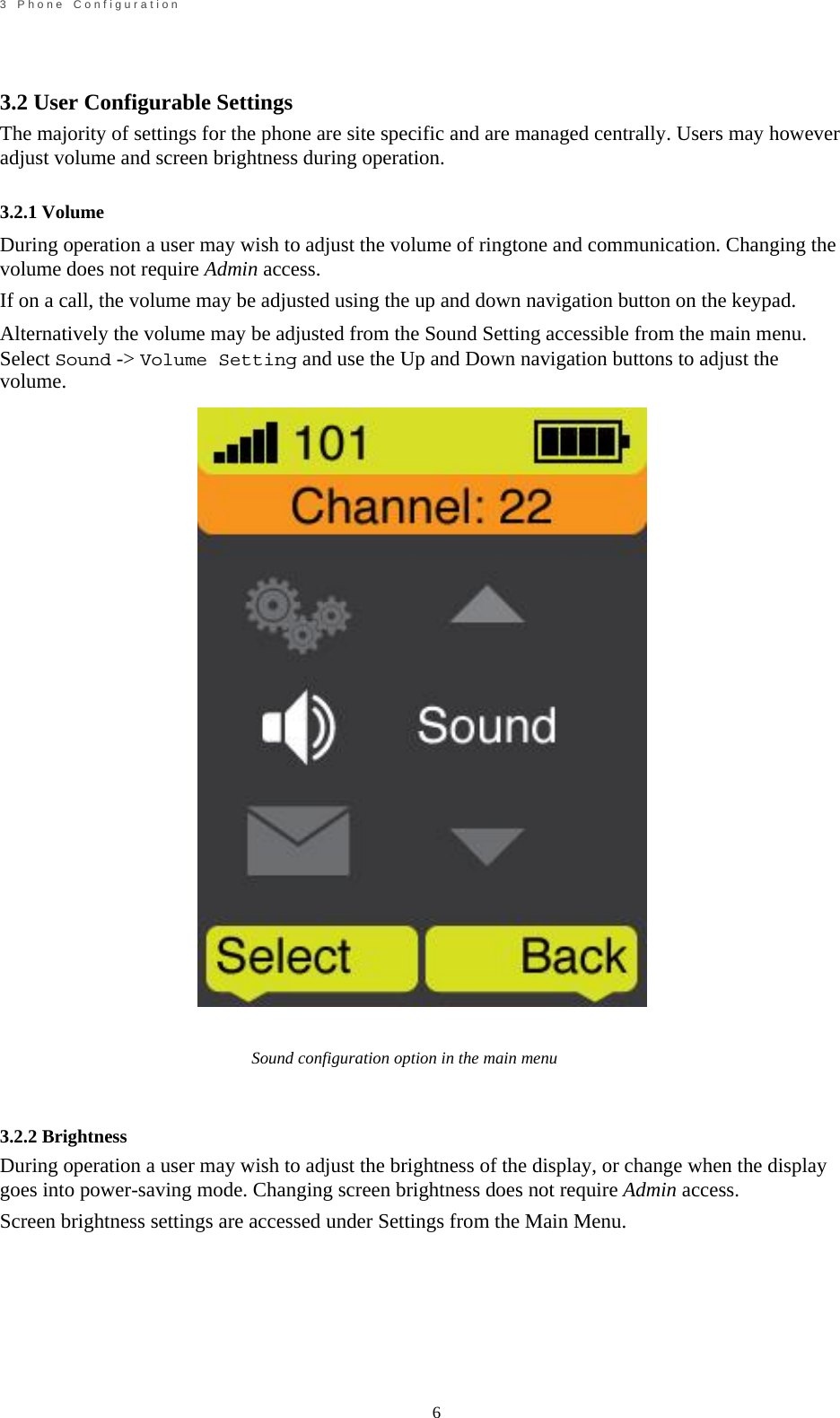

6 3 P h o n e C o n f i g u r a t i o n 3.2 User Configurable Settings The majority of settings for the phone are site specific and are managed centrally. Users may however adjust volume and screen brightness during operation. 3.2.1 Volume During operation a user may wish to adjust the volume of ringtone and communication. Changing the volume does not require Admin access. If on a call, the volume may be adjusted using the up and down navigation button on the keypad. Alternatively the volume may be adjusted from the Sound Setting accessible from the main menu. Select Sound -> Volume Setting and use the Up and Down navigation buttons to adjust the volume. Sound configuration option in the main menu 3.2.2 Brightness During operation a user may wish to adjust the brightness of the display, or change when the display goes into power-saving mode. Changing screen brightness does not require Admin access. Screen brightness settings are accessed under Settings from the Main Menu.

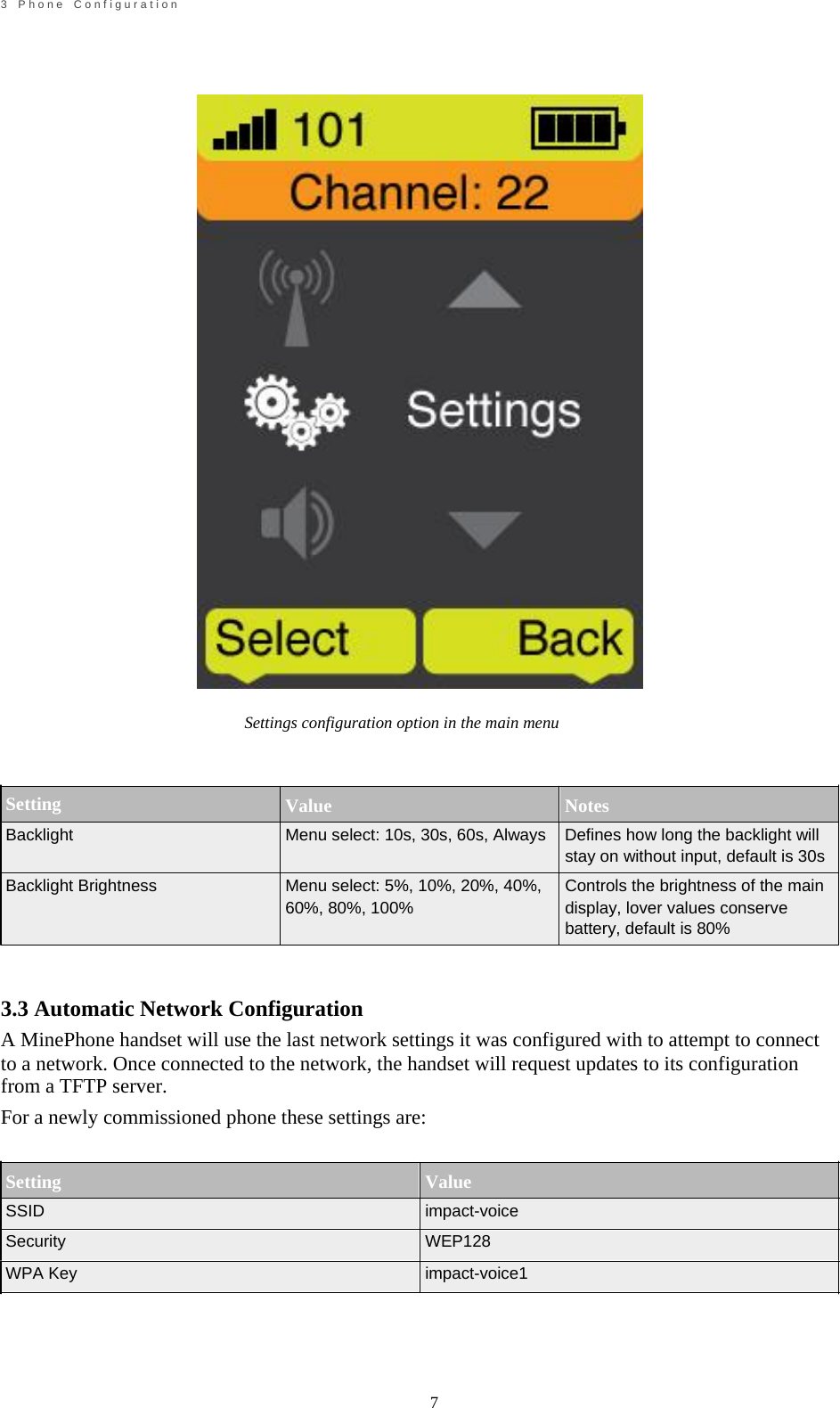

7 3 P h o n e C o n f i g u r a t i o n Setting Backlight Settings configuration option in the main menu Value Notes Menu select: 10s, 30s, 60s, Always Defines how long the backlight will Backlight Brightness Menu select: 5%, 10%, 20%, 40%, 60%, 80%, 100% stay on without input, default is 30s Controls the brightness of the main display, lover values conserve battery, default is 80% 3.3 Automatic Network Configuration A MinePhone handset will use the last network settings it was configured with to attempt to connect to a network. Once connected to the network, the handset will request updates to its configuration from a TFTP server. For a newly commissioned phone these settings are: Setting SSID Security WPA Key Value impact-voice WEP128 impact-voice1

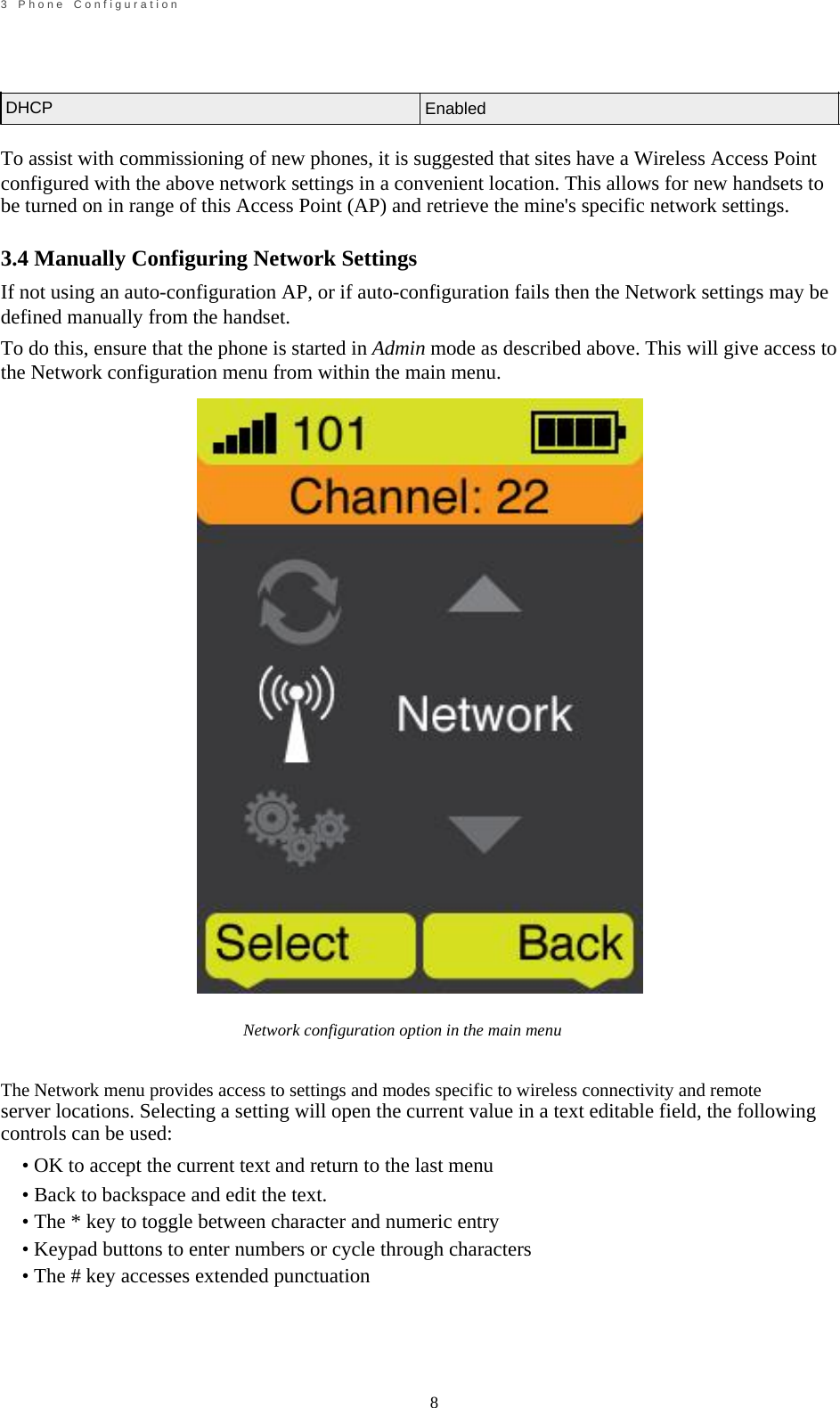

8 3 P h o n e C o n f i g u r a t i o n DHCP Enabled To assist with commissioning of new phones, it is suggested that sites have a Wireless Access Point configured with the above network settings in a convenient location. This allows for new handsets to be turned on in range of this Access Point (AP) and retrieve the mine's specific network settings. 3.4 Manually Configuring Network Settings If not using an auto-configuration AP, or if auto-configuration fails then the Network settings may be defined manually from the handset. To do this, ensure that the phone is started in Admin mode as described above. This will give access to the Network configuration menu from within the main menu. Network configuration option in the main menu The Network menu provides access to settings and modes specific to wireless connectivity and remote server locations. Selecting a setting will open the current value in a text editable field, the following controls can be used: • OK to accept the current text and return to the last menu • Back to backspace and edit the text. • The * key to toggle between character and numeric entry • Keypad buttons to enter numbers or cycle through characters • The # key accesses extended punctuation

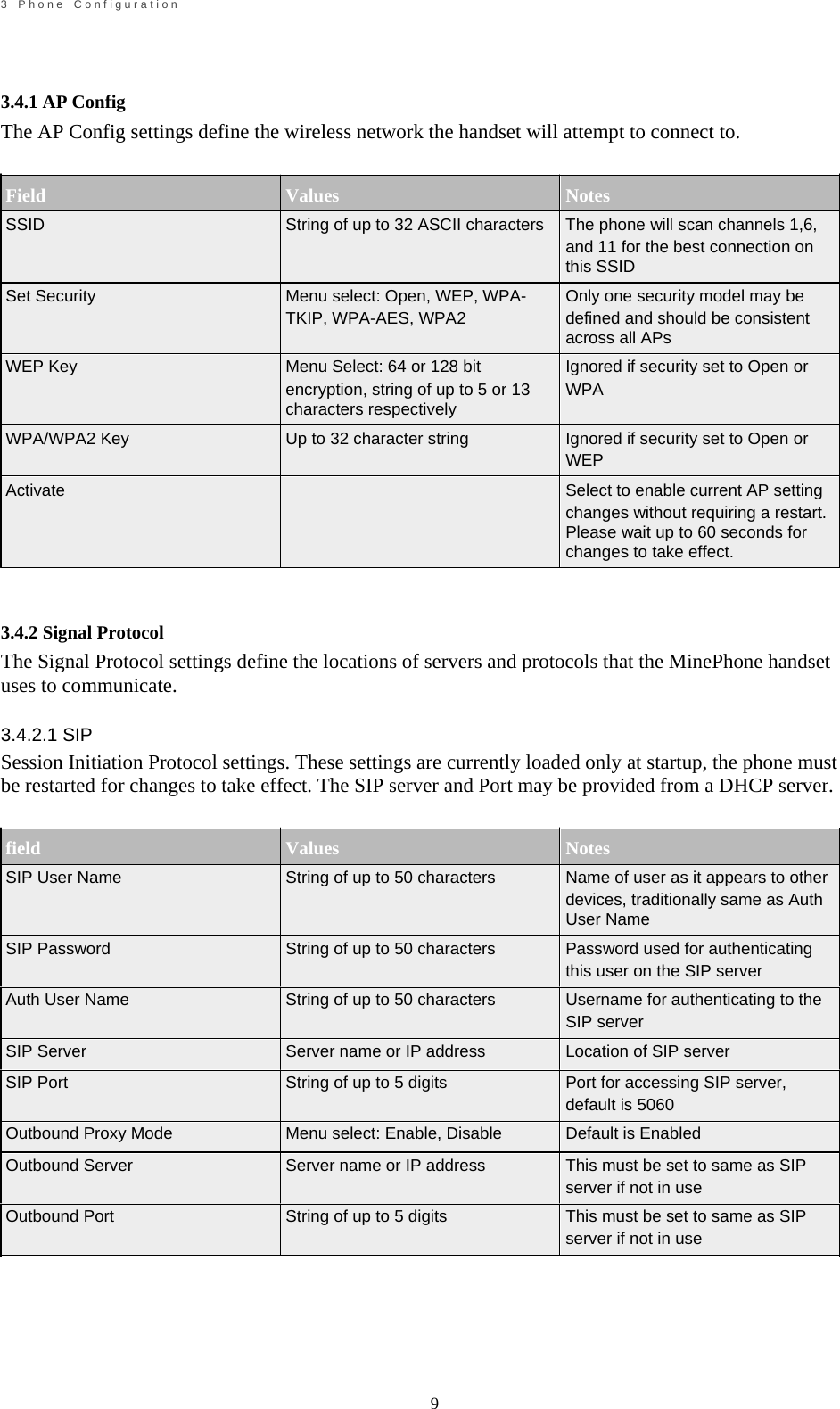

9 3 P h o n e C o n f i g u r a t i o n 3.4.1 AP Config The AP Config settings define the wireless network the handset will attempt to connect to. Field Values Notes SSID String of up to 32 ASCII characters The phone will scan channels 1,6, and 11 for the best connection on this SSID Set Security WEP Key WPA/WPA2 Key Activate 3.4.2 Signal Protocol Menu select: Open, WEP, WPA- TKIP, WPA-AES, WPA2 Menu Select: 64 or 128 bit encryption, string of up to 5 or 13 characters respectively Up to 32 character string Only one security model may be defined and should be consistent across all APs Ignored if security set to Open or WPA Ignored if security set to Open or WEP Select to enable current AP setting changes without requiring a restart. Please wait up to 60 seconds for changes to take effect. The Signal Protocol settings define the locations of servers and protocols that the MinePhone handset uses to communicate. 3.4.2.1 SIP Session Initiation Protocol settings. These settings are currently loaded only at startup, the phone must be restarted for changes to take effect. The SIP server and Port may be provided from a DHCP server. field SIP User Name SIP Password Auth User Name SIP Server SIP Port Outbound Proxy Mode Outbound Server Outbound Port Values String of up to 50 characters String of up to 50 characters String of up to 50 characters Server name or IP address String of up to 5 digits Menu select: Enable, Disable Server name or IP address String of up to 5 digits Notes Name of user as it appears to other devices, traditionally same as Auth User Name Password used for authenticating this user on the SIP server Username for authenticating to the SIP server Location of SIP server Port for accessing SIP server, default is 5060 Default is Enabled This must be set to same as SIP server if not in use This must be set to same as SIP server if not in use

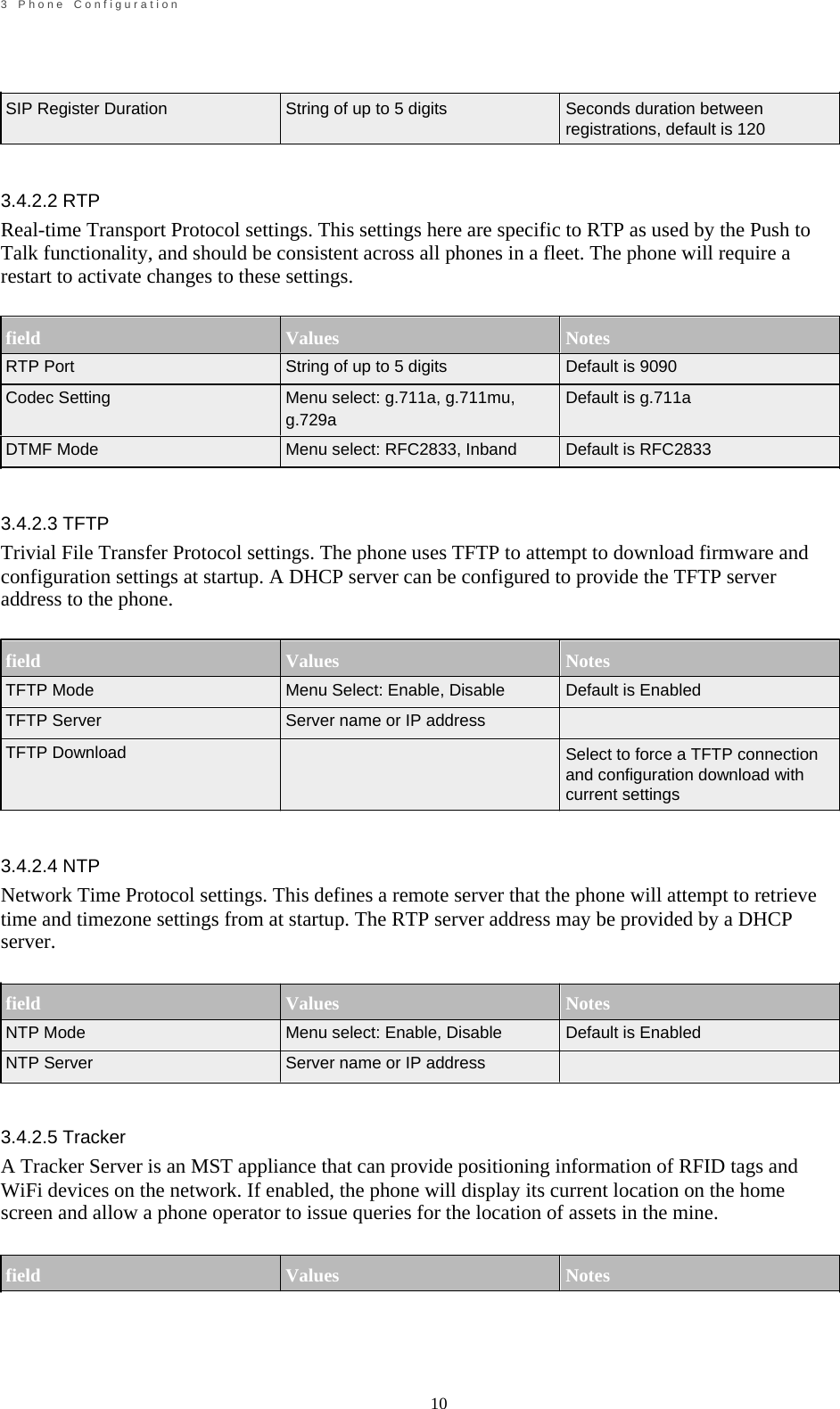

10 3 P h o n e C o n f i g u r a t i o n SIP Register Duration 3.4.2.2 RTP String of up to 5 digits Seconds duration between registrations, default is 120 Real-time Transport Protocol settings. This settings here are specific to RTP as used by the Push to Talk functionality, and should be consistent across all phones in a fleet. The phone will require a restart to activate changes to these settings. field RTP Port Codec Setting DTMF Mode 3.4.2.3 TFTP Values String of up to 5 digits Menu select: g.711a, g.711mu, g.729a Menu select: RFC2833, Inband Notes Default is 9090 Default is g.711a Default is RFC2833 Trivial File Transfer Protocol settings. The phone uses TFTP to attempt to download firmware and configuration settings at startup. A DHCP server can be configured to provide the TFTP server address to the phone. field TFTP Mode TFTP Server TFTP Download 3.4.2.4 NTP Values Menu Select: Enable, Disable Server name or IP address Notes Default is Enabled Select to force a TFTP connection and configuration download with current settings Network Time Protocol settings. This defines a remote server that the phone will attempt to retrieve time and timezone settings from at startup. The RTP server address may be provided by a DHCP server. field NTP Mode NTP Server 3.4.2.5 Tracker Values Menu select: Enable, Disable Server name or IP address Notes Default is Enabled A Tracker Server is an MST appliance that can provide positioning information of RFID tags and WiFi devices on the network. If enabled, the phone will display its current location on the home screen and allow a phone operator to issue queries for the location of assets in the mine. field Values Notes

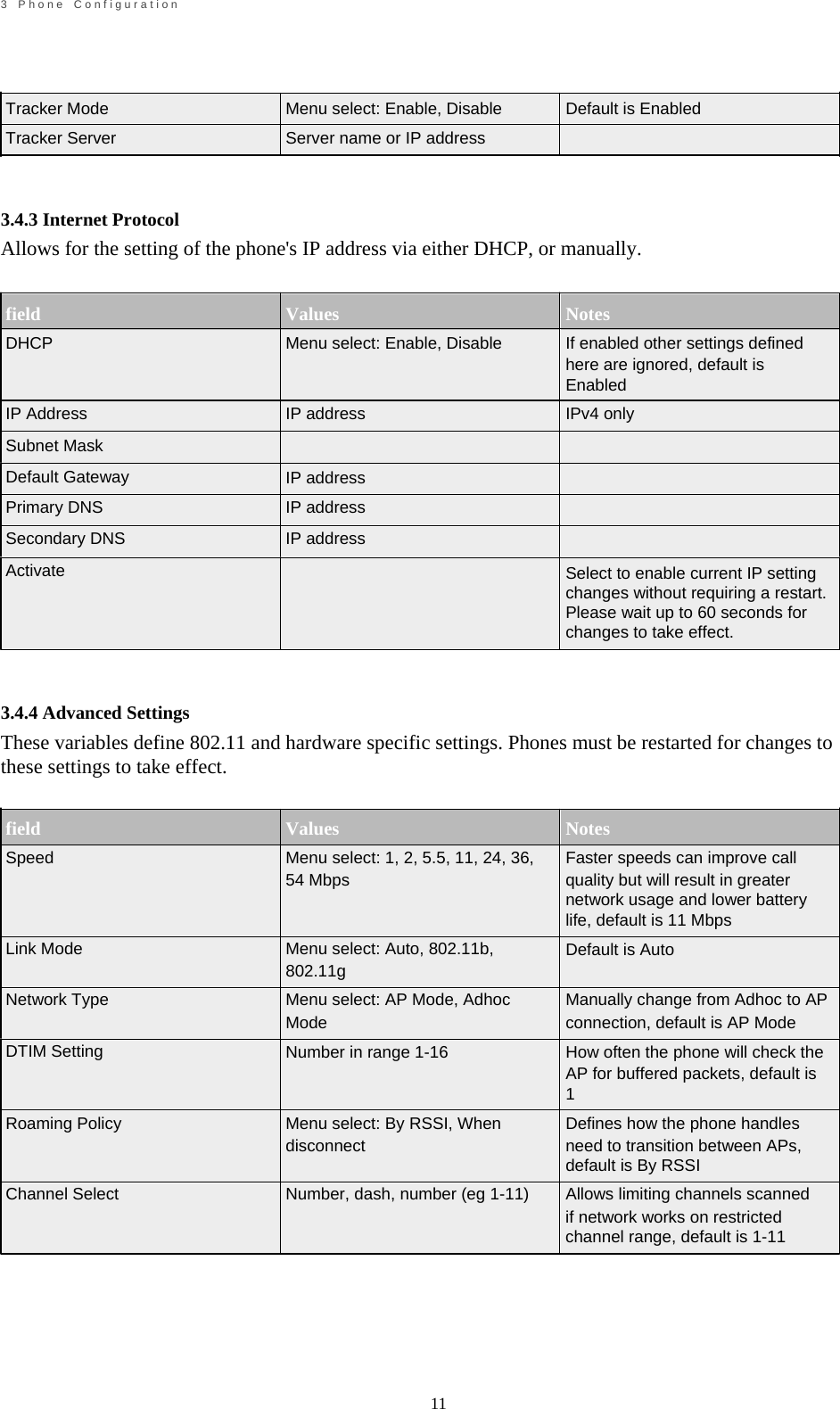

11 3 P h o n e C o n f i g u r a t i o n Tracker Mode Tracker Server 3.4.3 Internet Protocol Menu select: Enable, Disable Server name or IP address Default is Enabled Allows for the setting of the phone's IP address via either DHCP, or manually. field DHCP IP Address Subnet Mask Default Gateway Primary DNS Secondary DNS Activate 3.4.4 Advanced Settings Values Menu select: Enable, Disable IP address IP address IP address IP address Notes If enabled other settings defined here are ignored, default is Enabled IPv4 only Select to enable current IP setting changes without requiring a restart. Please wait up to 60 seconds for changes to take effect. These variables define 802.11 and hardware specific settings. Phones must be restarted for changes to these settings to take effect. field Speed Link Mode Network Type DTIM Setting Roaming Policy Values Menu select: 1, 2, 5.5, 11, 24, 36, 54 Mbps Menu select: Auto, 802.11b, 802.11g Menu select: AP Mode, Adhoc Mode Number in range 1-16 Menu select: By RSSI, When disconnect Notes Faster speeds can improve call quality but will result in greater network usage and lower battery life, default is 11 Mbps Default is Auto Manually change from Adhoc to AP connection, default is AP Mode How often the phone will check the AP for buffered packets, default is 1 Defines how the phone handles need to transition between APs, default is By RSSI Channel Select Number, dash, number (eg 1-11) Allows limiting channels scanned if network works on restricted channel range, default is 1-11

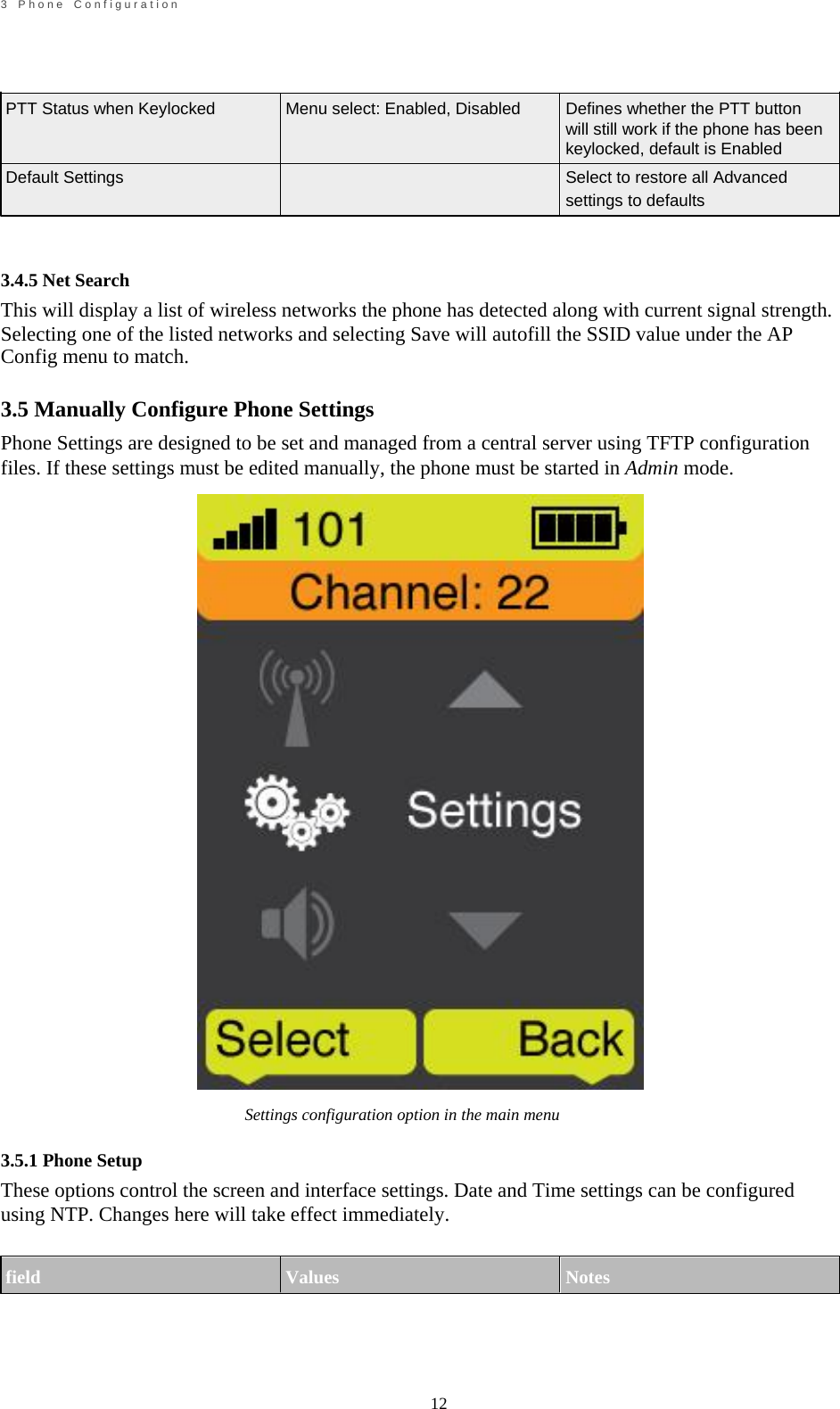

12 3 P h o n e C o n f i g u r a t i o n PTT Status when Keylocked Default Settings 3.4.5 Net Search Menu select: Enabled, Disabled Defines whether the PTT button will still work if the phone has been keylocked, default is Enabled Select to restore all Advanced settings to defaults This will display a list of wireless networks the phone has detected along with current signal strength. Selecting one of the listed networks and selecting Save will autofill the SSID value under the AP Config menu to match. 3.5 Manually Configure Phone Settings Phone Settings are designed to be set and managed from a central server using TFTP configuration files. If these settings must be edited manually, the phone must be started in Admin mode. Settings configuration option in the main menu 3.5.1 Phone Setup These options control the screen and interface settings. Date and Time settings can be configured using NTP. Changes here will take effect immediately. field Values Notes

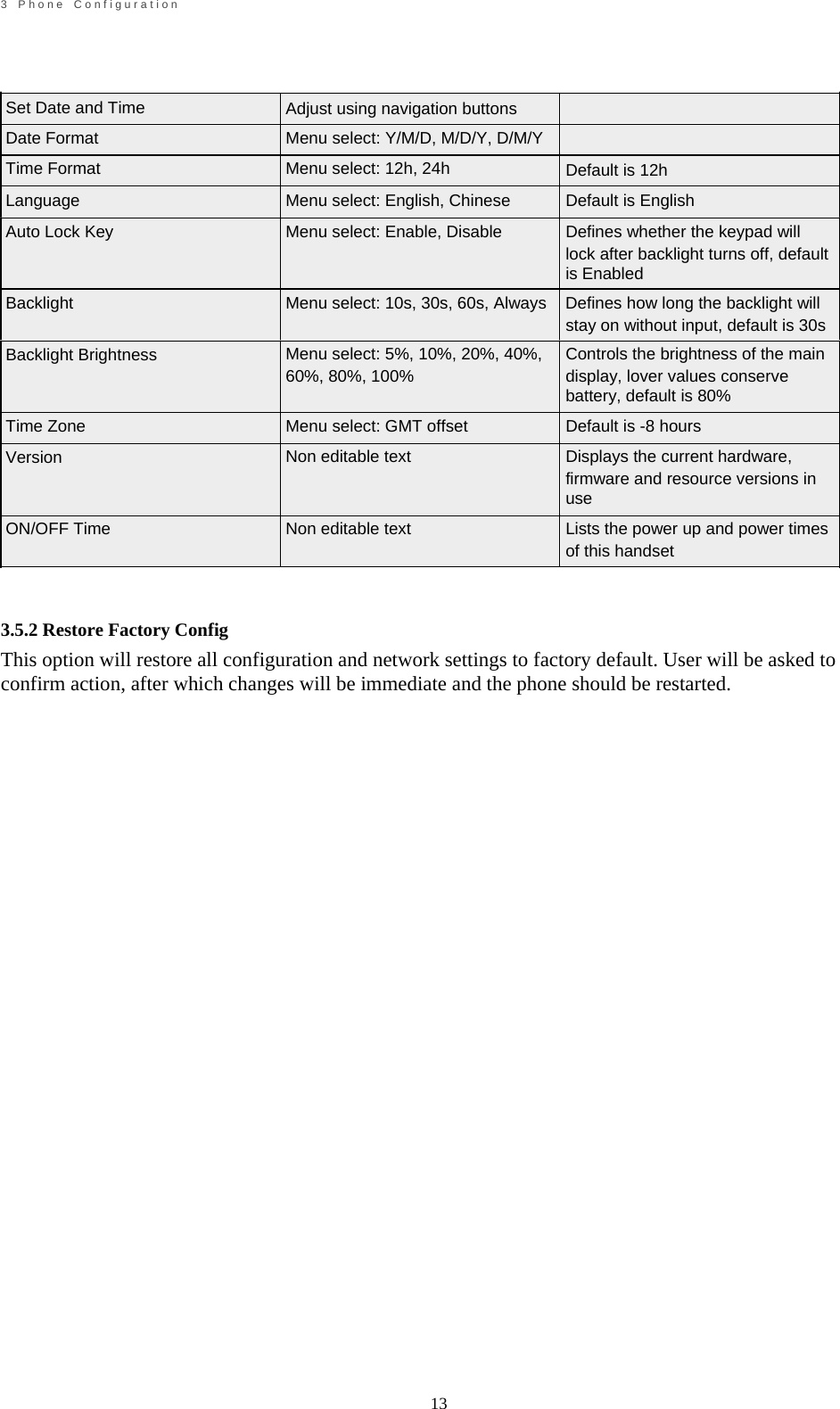

13 3 P h o n e C o n f i g u r a t i o n Set Date and Time Date Format Time Format Language Auto Lock Key Adjust using navigation buttons Menu select: Y/M/D, M/D/Y, D/M/Y Menu select: 12h, 24h Menu select: English, Chinese Menu select: Enable, Disable Default is 12h Default is English Defines whether the keypad will Backlight lock after backlight turns off, default is Enabled Menu select: 10s, 30s, 60s, Always Defines how long the backlight will stay on without input, default is 30s Backlight Brightness Time Zone Version ON/OFF Time 3.5.2 Restore Factory Config Menu select: 5%, 10%, 20%, 40%, 60%, 80%, 100% Menu select: GMT offset Non editable text Non editable text Controls the brightness of the main display, lover values conserve battery, default is 80% Default is -8 hours Displays the current hardware, firmware and resource versions in use Lists the power up and power times of this handset This option will restore all configuration and network settings to factory default. User will be asked to confirm action, after which changes will be immediate and the phone should be restarted.

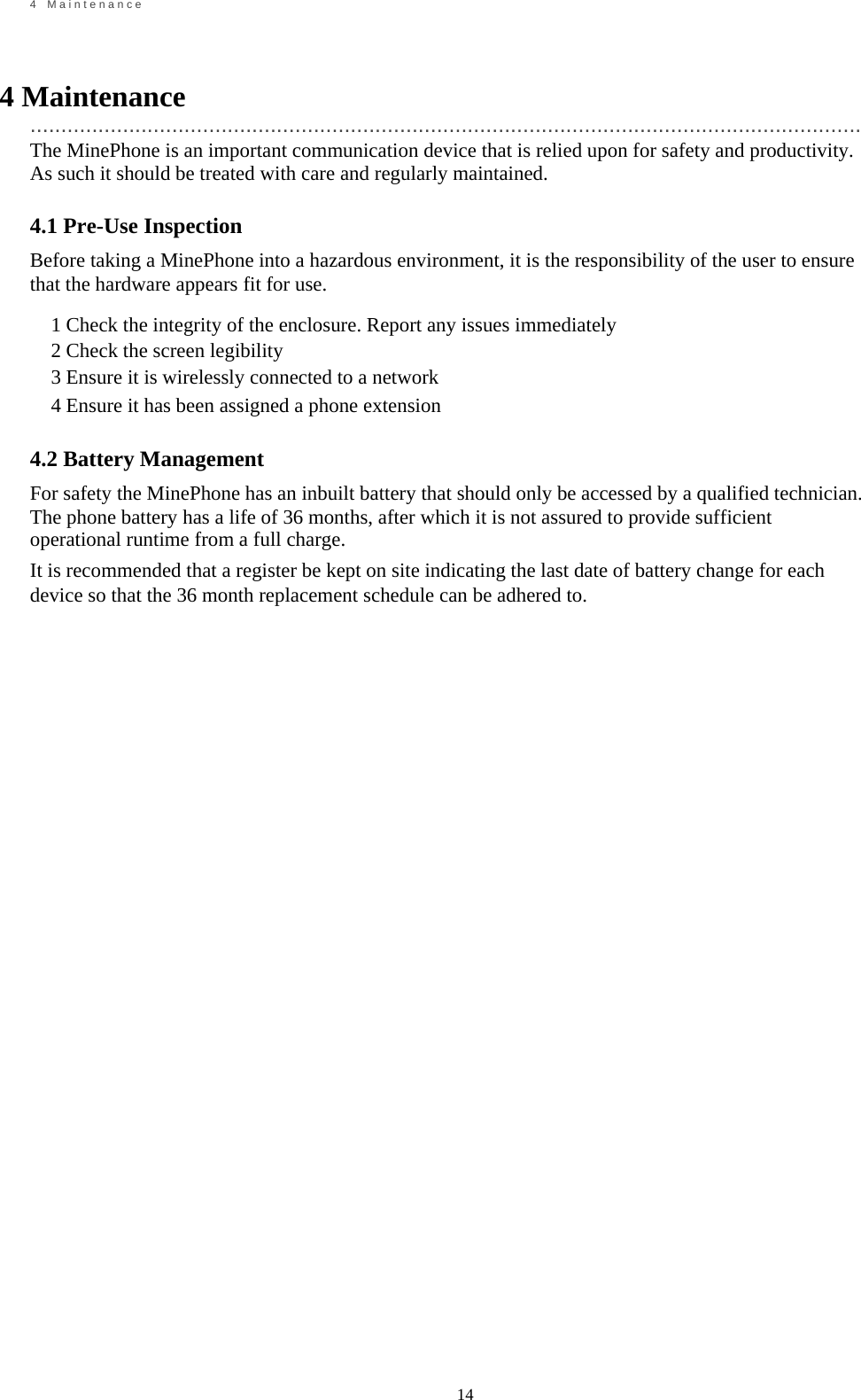

14 4 M a i n t e n a n c e 4 Maintenance ....................................................................................................................................... The MinePhone is an important communication device that is relied upon for safety and productivity. As such it should be treated with care and regularly maintained. 4.1 Pre-Use Inspection Before taking a MinePhone into a hazardous environment, it is the responsibility of the user to ensure that the hardware appears fit for use. 1 Check the integrity of the enclosure. Report any issues immediately 2 Check the screen legibility 3 Ensure it is wirelessly connected to a network 4 Ensure it has been assigned a phone extension 4.2 Battery Management For safety the MinePhone has an inbuilt battery that should only be accessed by a qualified technician. The phone battery has a life of 36 months, after which it is not assured to provide sufficient operational runtime from a full charge. It is recommended that a register be kept on site indicating the last date of battery change for each device so that the 36 month replacement schedule can be adhered to.

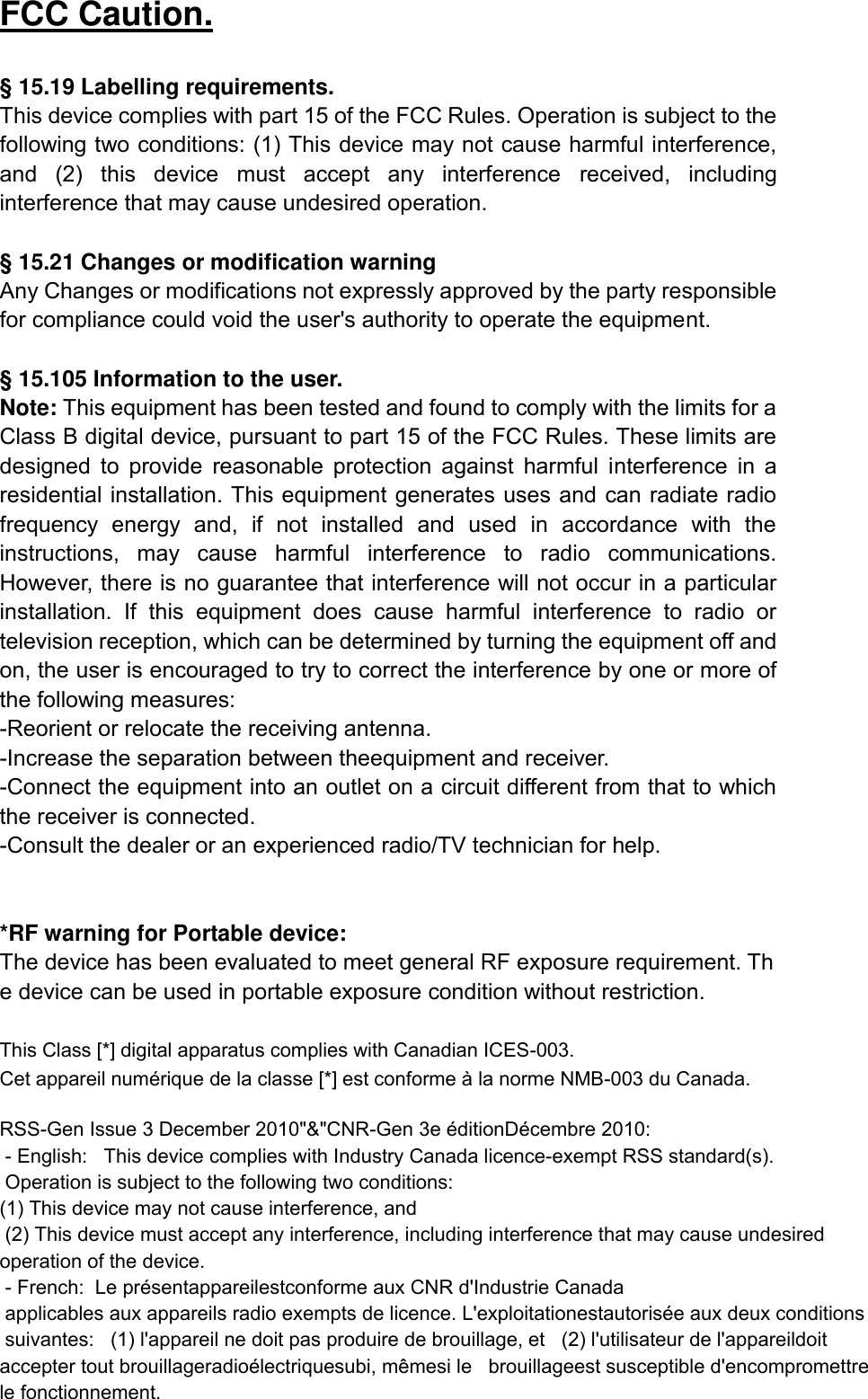

FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Changes or modification warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between theequipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This Class [*] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada. RSS-Gen Issue 3 December 2010"&"CNR-Gen 3e éditionDécembre 2010: - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. - French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement.
