PT33 use’s manual
version number： V1.0
Mine Site Technologies Pty Ltd
MineSiteTechnologiesPtyLtd
2
Table of Contents
Statement .................................................................................. 3
GeneralInformation
.................................................................. 3
Physicalmap
............................................................................. 4
Componentfunction
................................................................. 4
Performanceindex
.................................................................... 5
Accessories
............................................................................... 6
Generalattention
...................................................................... 6
MineSiteTechnologiesPtyLtd
3
Statement
Thank you for using this electronic product of our company. In order
to let you experience the product swimmingly, detailed instruction is
provided which you can find the product’s introduction, usage and
other information. Before using this product, please read the
manual carefully, so that you can correctly use it. In case of any
printing or translation error, we apologize for the inconvenience. As
for the content change, we are sorry for no further notice.
General Information
The Mine Site Technologies model PT33 tag is a radio frequency
indentification module operating at 2.4GHz. The AL2236 IC of
Airoha Technologu Corp and MSP430 microcontroller unit are
working together, realizing the carrier arising,signal amplify,data
modulation,demodulation and decoding. Radio-frequency mode in
the reader and PT33 tag no contact between the bidirectional
data
transmission, in order to achieve target recognition and data
exchange. And the tradition of code, magnetic and IC card,
compared with non-contact, RF card reading speed, wear, not by
environmental impact, long life, easy to use and has the
characteristics of anti-collision function. Model PT33 tag is mainly
used for personnel to wear.
MineSiteTechnologiesPtyLtd
4
Physical map

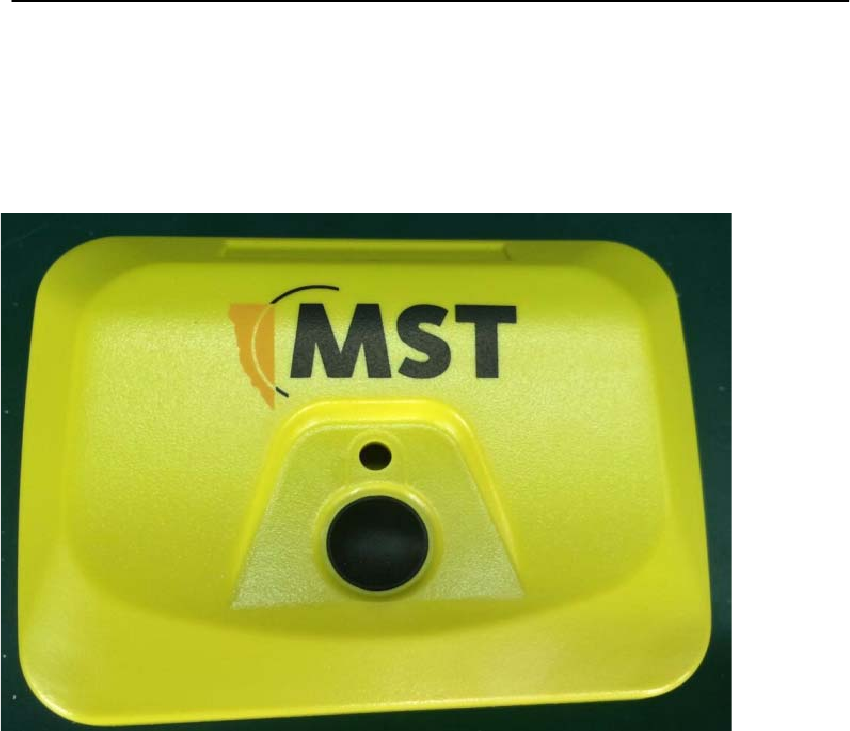

Model PT33 Tag physical map as follows.
Component function
LED light：After press button and low voltage alarm.
Button：Alarm.
MineSiteTechnologiesPtyLtd
5
Performance index
Mechanical Structure Index
Item
Name Specific parameters
1
Size 69mm×53mm×30mm
2
Weight 54g
Electrical Performance Index
Item
Name Specific parameters
1
Power supply Battery
2
Rated voltage DC 3.3V～3.6V
3
Working frequency
Transmitter
frequency:2.4GHz;
Receive frequency:125KHz
4
Communication
protocol
IEEE 802.11b
5
Transmitter frequency Adjust
6
Low voltage alarm ≤3.30V
Environment Index
Item
Name Specific parameters
1
Operating temperature. -25℃～+60℃
2
Anti-static grade Air discharge：8000V
MineSiteTechnologiesPtyLtd
6
Accessories
1.
Tag.
2.
A set of Use’s Manual & warranty card.
General attention
1.Do not put tag on microwave oven or high-tension apparatus
to
avoid circuit damage and fire accident.
2.Do not use under flammable and explosive gas in case of
malfunction or lighting a fire.
3.Do not put it on uneven or unstable surfaces to avoid falling off
or
breakdown.
4.Tag use disposable batteries.Can’t recharge. You can
replace
if the battery capacity is insufficient. Use the battery
appointed by
the company. Other production may cause battery
leakage,
overheating, explosions and lighting a fire.
5.Tag is worn by belt clips and lanyard Around the waist.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
} -Reorient or relocate the receiving antenna.
} -Increase the separation between the equipment and receiver.
} -Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
} -Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: UT33 Tag
(FCC ID: N73-PT33) has also been tested against this SAR limit. The highest SAR value reported under
this standard during product certification for use on the body is 0.180W/kg. This device was tested for
typical body-worn operations with the back of the handset kept 0mm from the body. To maintain
compliance with FCC RF exposure requirements, use accessories that maintain a 0mm separation
distance at the user's body . The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not satisfy these requirements may
not comply with FCC RF exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a
minimum separation distance of 0mm must be maintained at the user’s body including the antenna.
Third-party belt-clips, holsters, and similar accessories used by this device should not contain any
metallic components. Body-worn accessories that do not meet these requirements may not comply with
RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
