Users Manual



MinewiseTechnologyLtd.



727LorneSt

SudburyOntario

P3C4R5



Ph.(705)674‐3332fax.(705)674‐2221



Rev1.0www.minewise.net



DiversityVideoRFMuckingSystem



Model#:DVLINK



‘Technologythatpaysitsway’

2DVLINKInstallationGuide

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS

SUBJECT TO THEFOLLOWING TWOCONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2) THIS DEVICEMUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION. THIS DEVICE

COMPLIES WITH INDUSTRY CANADA LICENSE-EXEMPTRSS STANDARD(S).

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS

DEVICE MAY NOT CAUSE INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY

INTERFERENCE, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED

OPERATION OF THEDEVICE.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCECAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULDVOID THE USER'S AUTHORITY

TO OPERATE THE EQUIPMENT

THIS DEVICE COMPLIES WITH INDUSTRY CANADA LICENSE-EXEMPT

RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO

CONDITIONS:

(1) THISDEVICE MAY NOT CAUSE INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANYINTERFERENCE, INCLUDING INTERFERENCE

THAT MAY CAUSE UNDESIRED OPERATION OF THEDEVICE.



NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCECAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULDVOID THE USER'S AUTHORITY

TO OPERATE THE EQUIPMENT

THE ANTENNA(S) USED FOR THIS TRANSMITTER MUST BE INSTALLED TO PROVIDE

A SEPARATION DISTANCE OF AT LEAST 20 CM FROM ALL PERSONS.

7DVLINKInstallationGuide



ConnectingpowertotheRRCpowerispreferential.Connectingthe

“Reverse”leadtothereversesignalgeneratedbytheRRCallowsthe

Videosystemtoautomaticallyselectthereversesignal(whilethemode

selectorisinthe“Auto”position).



6DVLINKInstallationGuide



Installation:

Therearcamera/transmittershipswithapedestalmountwhichcanbe

weldedorboltedtoyourpieceofmobileequipment.Thefrontcamera

mountssimplywithamagneticbaseandtheviewanglecanbeadjusted

withthegymbalmount.

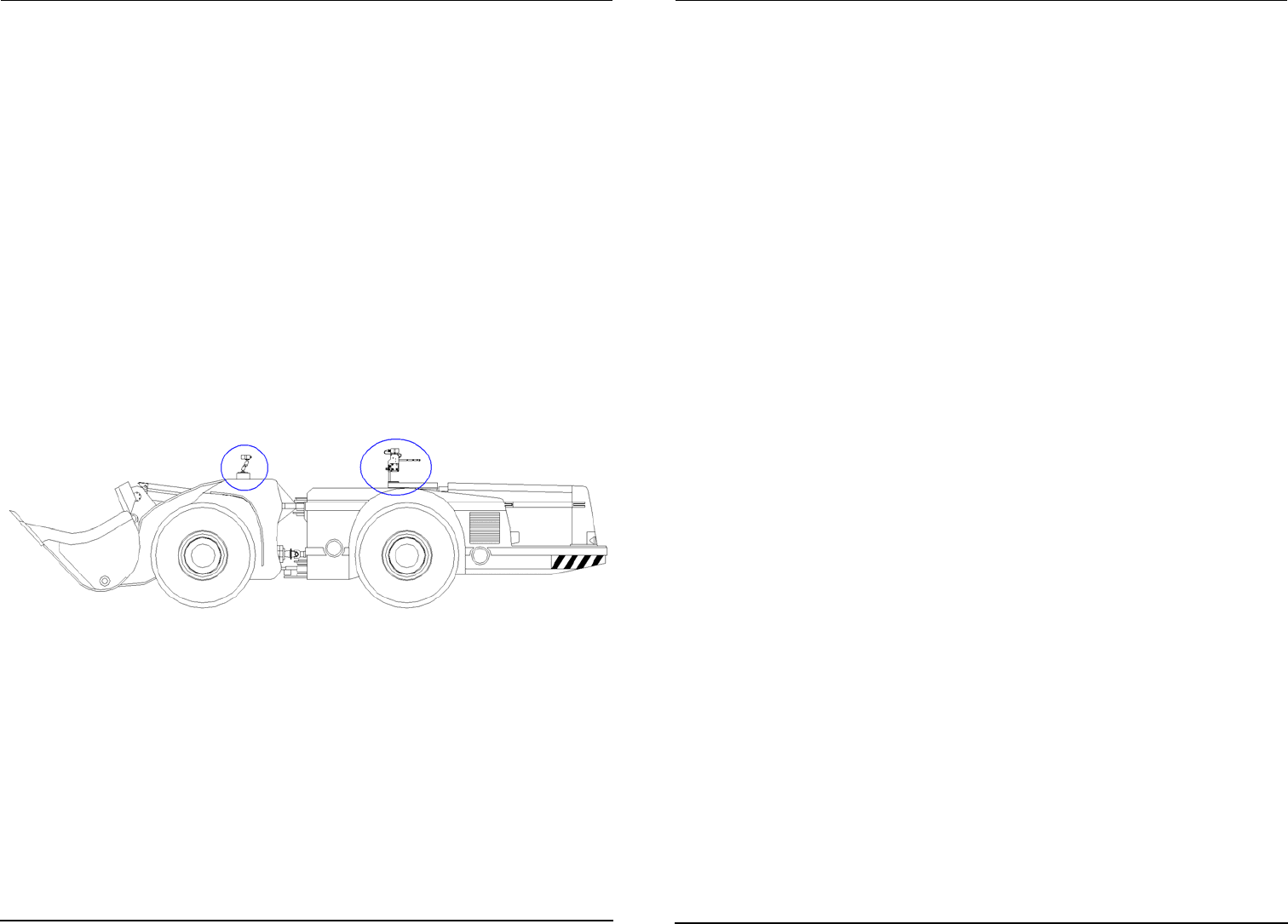

Cameraplacementiskeytoachievingoptimaluseofthesystem.The

forwardfacingcameraneedstobeplacedaheadofthemidshipinorder

tomaintainviewofthebucketwhilecornering.Typicalplacementison

topofaheadlighthousingtotheleftoftheboom(simulatingtheview

fromtheoperatorscab).Therearcamerashouldbemountedonthe

centerlineofthemachineandplacedjustaheadoftherearaxle.(Shown

below)





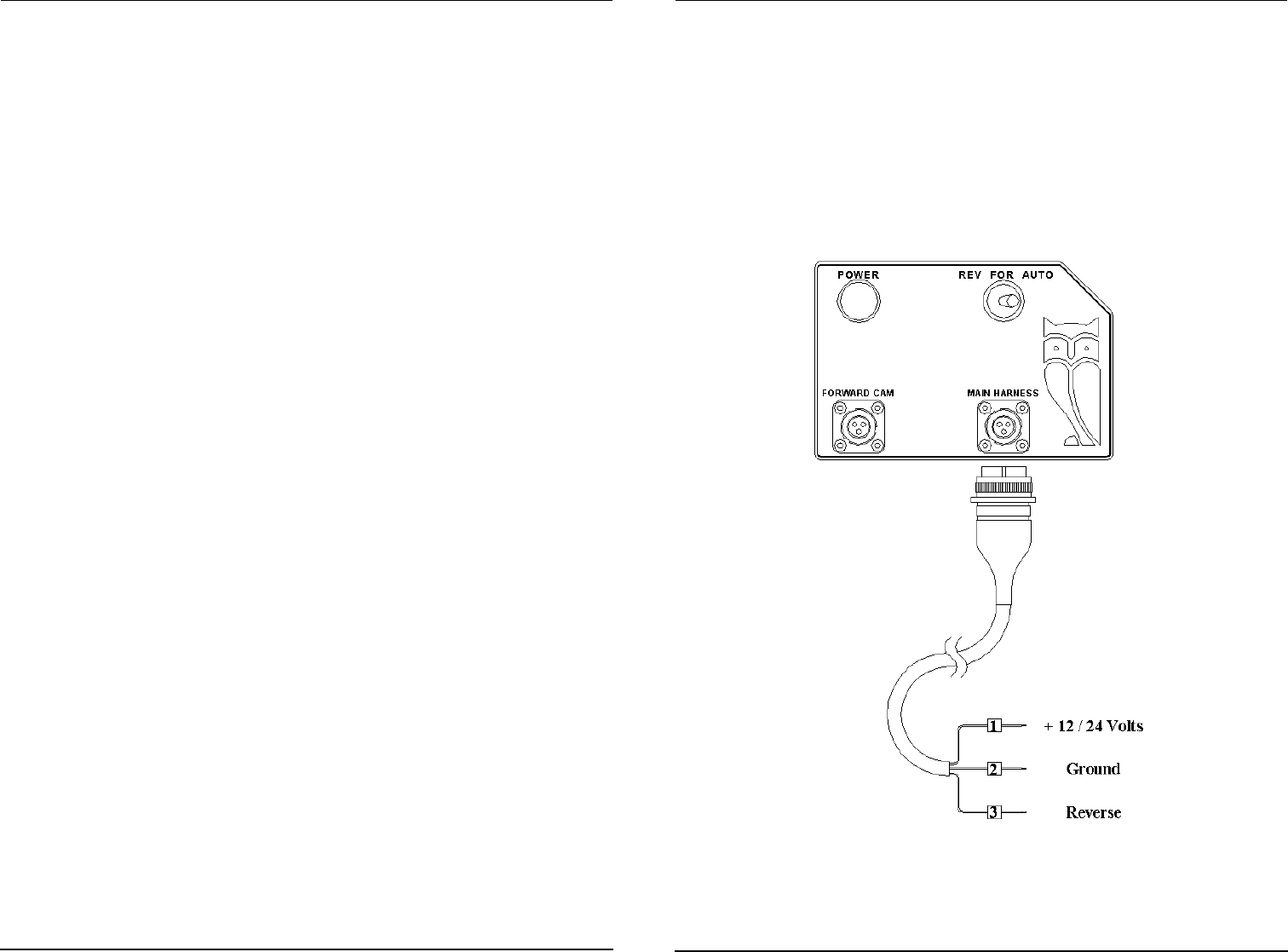

Power:

TheMainharnessconsistsof3conductors.

1) 12/24volts

2) VehicleGround

3) RRCReversesignal



3DVLINKInstallationGuide



DVLINK



InstallationGuide



Introduction:

ThankyouforpurchasingaDiversityVideoRFMuckingSystem(Model#:

DVLINK).Thisbookletdescribesthestepsnecessaryforinstallingthe

DVLINKonyourpieceofmobileequipment.

UnpackingtheSystem:

Carefullyunpackthesystem.Pleasereadanyinstructionsorcautionsthat

appearontheshippingcontainer.Checkallmaterialinthecontainer

againstthepackinglist.MinewiseTechnologywillnotaccept

responsibilityforshortagesagainstthepackinglistunlessnotifiedwithin

30days.Theequipmentandaccessorieswereinspectedandtestedby

MinewiseTechnologybeforeshipment;alloftheequipmentshouldbein

goodworkingorder.Examinetheequipmentcarefully;ifanyshipping

damageisevident,notifythecarrierimmediately.Youareresponsiblefor

claimnegotiationswiththecarrier.Savetheshippingcontainerand

packingmaterialincasetheequipmentneedstobestored,returnedto

MinewiseTechnology,ortransportedforanyreason.

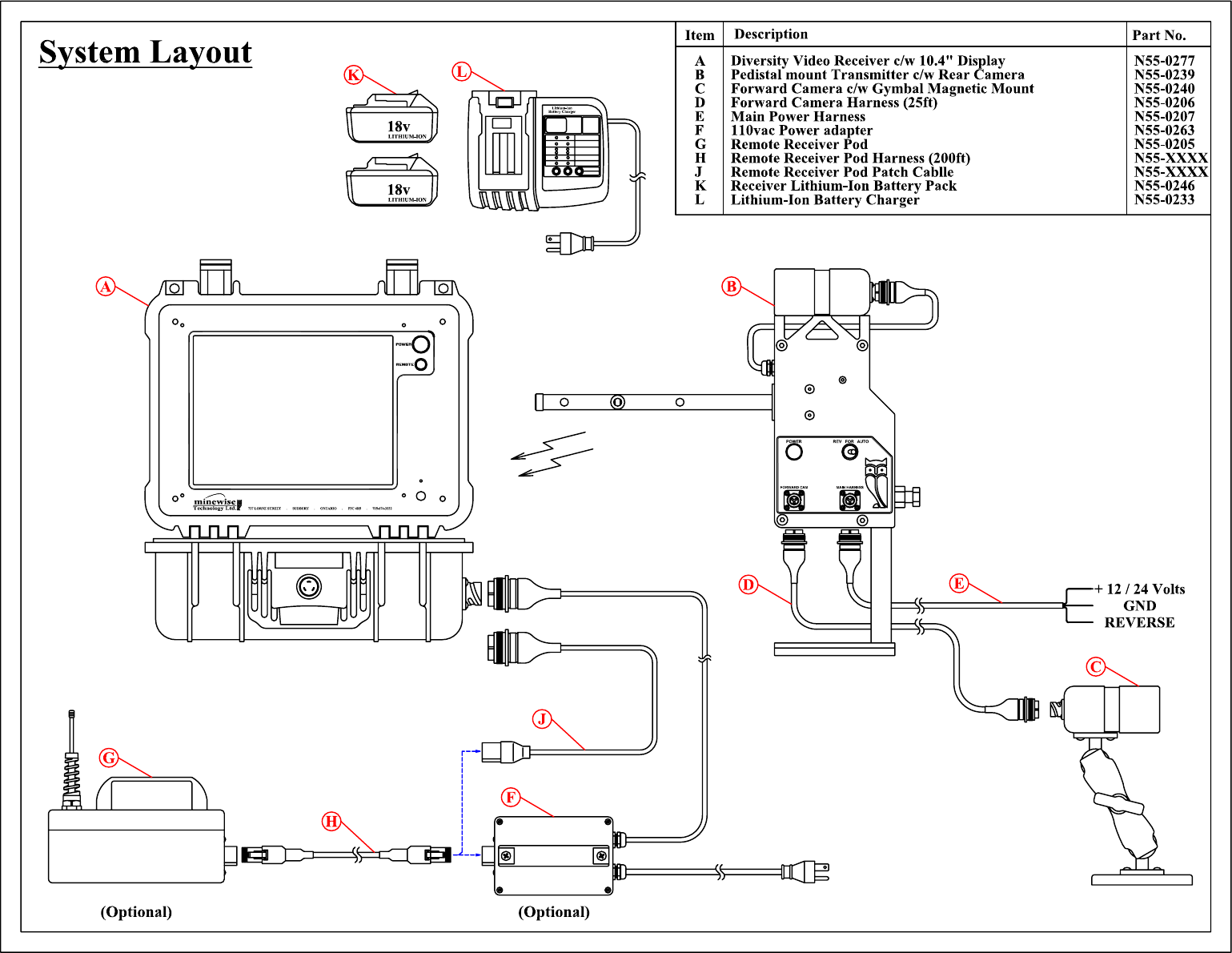

Parts:

Seepages4and5forpartslist.


