Mini 2011 Countryman Owners Manual

2015-09-08

: Mini Mini-2011-Countryman-Owners-Manual-763435 mini-2011-countryman-owners-manual-763435 mini pdf

Open the PDF directly: View PDF .
Page Count: 176 [warning: Documents this large are best viewed by clicking the View PDF Link!]

CONTENTS
Notes
AT A GLANCE
- Cockpit
Controls
Driving tips
- Things to remember when driving
Communications
- Telephone
Mobility
Reference
- Technical data
- Everything from A to Z
  - Index

OWNER'S MANUAL

MINI COUNTRYMAN

Contents

A - Z

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Cooper

Cooper S

Cooper S ALL4

Congratulations on your new MINI

This Owner's Manual should be considered a permanent part of

this vehicle. It should stay with the vehicle when sold to provide

the next owner with important operating, safety and mainte-

nance information.

We wish you an enjoyable driving experience.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Aktiengesellschaft

Munich, Germany

Reprinting, including excerpts, only with the

written consent of BMW AG, Munich.

US English X/10

Printed on environmentally friendly paper,

bleached without chlorine, suitable for recycling.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

CONTENTS

The fastest way to find information on a particu-

lar topic or item is by using the index, refer to

page 162.

Using this Owner's Manual

4Notes

6Reporting safety defects

AT A GLANCE

10 Cockpit

Controls

18 Opening and closing

30 Adjustments

36 Transporting children safely

39 Driving

48 Controls overview

56 Technology for driving comfort and safety

67 Lamps

72 Climate

77 Practical interior accessories

Driving tips

86 Things to remember when driving

Communications

98 Telephone

Mobility

112 Refueling

114 Wheels and tires

121 Under the hood

125 Maintenance

127 Care

131 Replacing components

140 Giving and receiving assistance

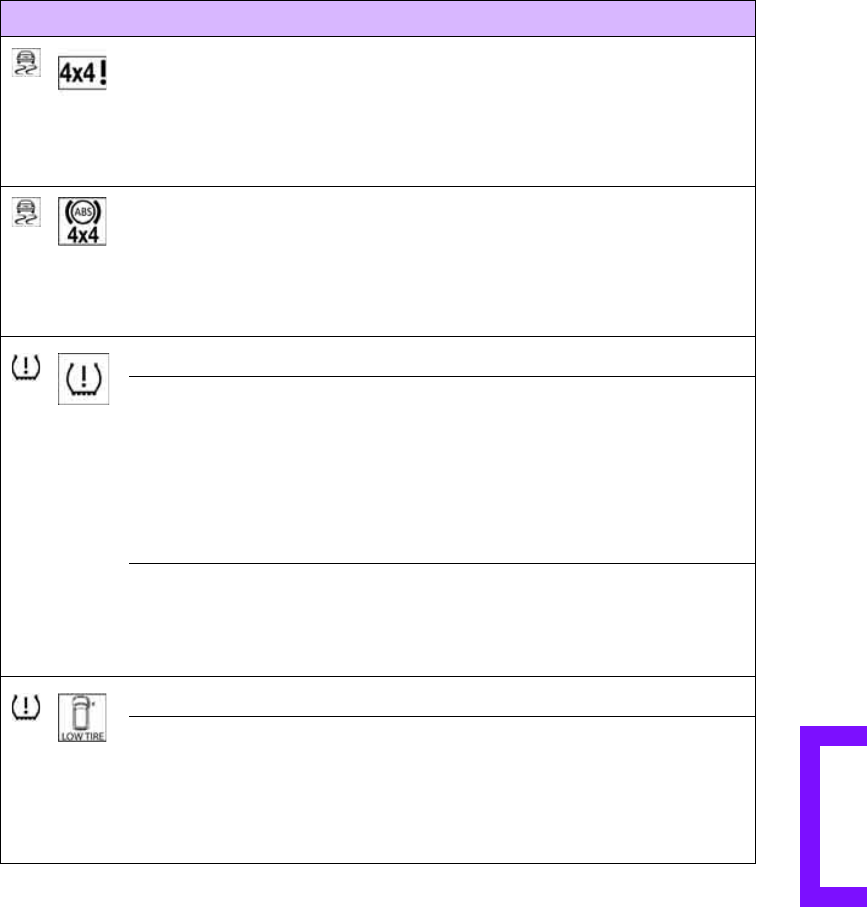

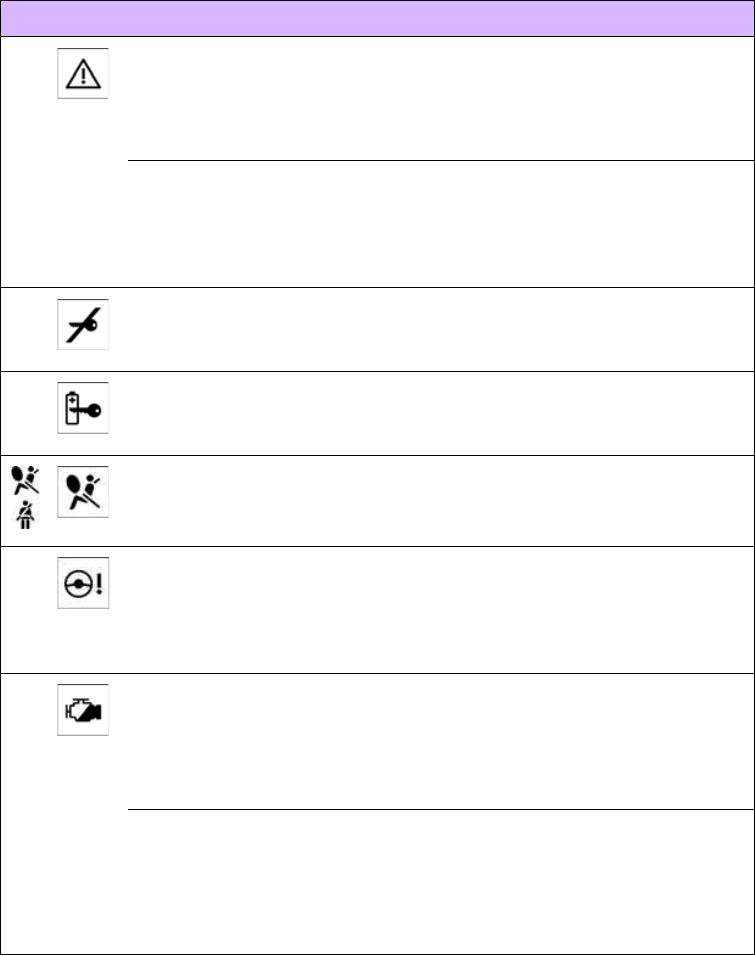

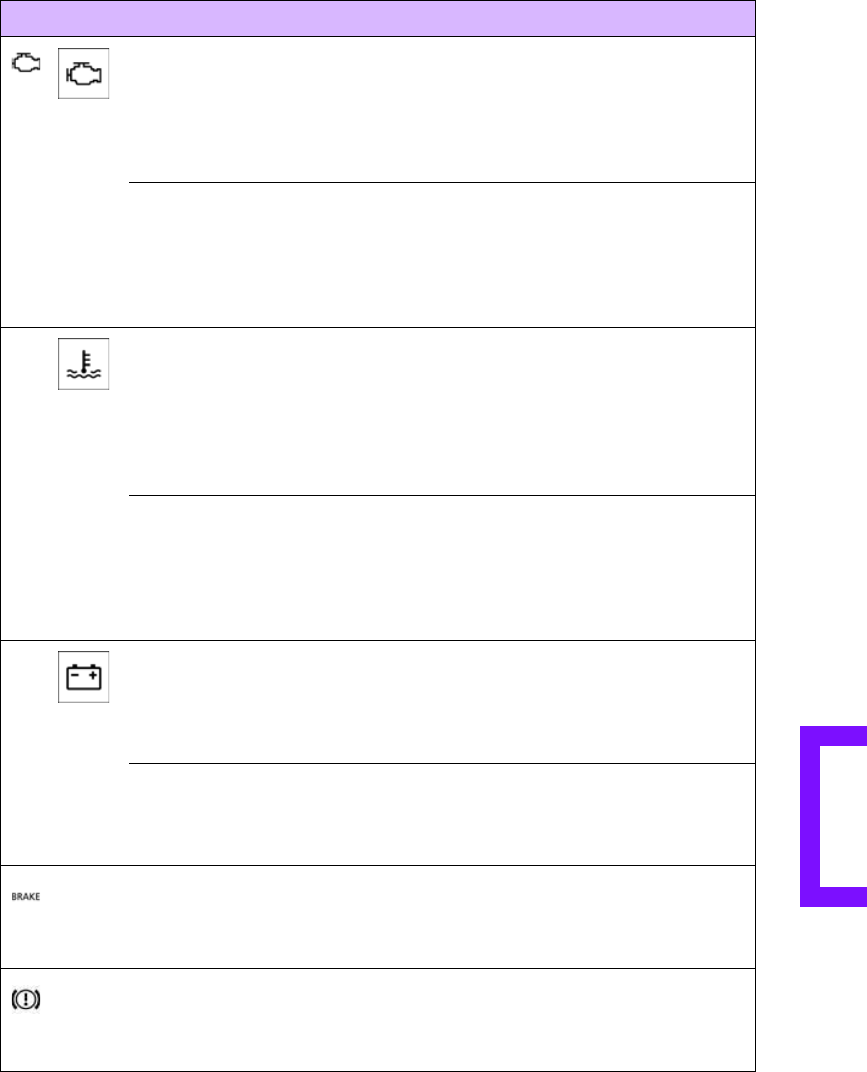

144 Indicator and warning lamps

Reference

158 Technical data

162 Everything from A to Z

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Notes

Using this Owner's

Manual

We have tried to make all the information in this

Owner's Manual easy to find. The fastest way to

find specific topics is to refer to the detailed

index at the back of the manual. If you wish to

gain an initial overview of your vehicle, you will

find this in the first chapter.

Should you wish to sell your MINI at some time in

the future, remember to hand over this Owner's

Manual to the new owner; it is an important part

of the vehicle.

Additional sources of information

Should you have any other questions, your MINI

dealer will be glad to advise you at any time.

You can find more information about the MINI,

for example on its technology, on the Internet at

www.MINI.com.

Symbols used

Indicates precautions that must be fol-

lowed precisely in order to avoid the pos-

sibility of personal injury and serious damage to

the vehicle.<

Indicates information that will assist you in

gaining the optimum benefit from your

vehicle and enable you to care more effectively

for your vehicle.<

Refers to measures that can be taken to

help protect the environment.<

<Marks the end of a specific item of informa-

tion.

*Indicates special equipment, country-specific

equipment and optional accessories, as well as

equipment and functions not yet available at the

time of printing.

Symbols on vehicle components

Indicates that you should consult the rele-

vant section of this Owner's Manual for

information on a particular part or assembly.

The individual vehicle

The manufacturer of your MINI is the Bayerische

Motoren Werke Aktiengesellschaft, BMW AG.

When you ordered your MINI, you chose various

items of equipment. This Owner's Manual

describes the entire array of options and equip-

ment that the manufacturer of your MINI makes

available with a specific model range.

Bear in mind that the manual may contain infor-

mation on accessories and equipment that you

have not specified for your own vehicle. Sections

describing options and special equipment are

marked by asterisks * to assist you in identifying

possible differences between the descriptions in

this manual and your own vehicle's equipment.

If your MINI features equipment not described in

this Owner's Manual, observe the enclosed Sup-

plementary Owner's Manuals.

Editorial notice

The manufacturer pursues a policy of continu-

ous, ongoing development that is conceived to

ensure that MINI vehicles continue to embody

the highest quality and safety standards com-

bined with advanced, state-of-the-art technol-

ogy. For this reason, it is possible in exceptional

cases that features described in this Owner's

Manual could differ from those on your vehicle.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

For your safety

Maintenance and repair

Advanced technology, e.g. the use of

modern materials and high-performance

electronics, requires specially adapted mainte-

nance and repair methods. Therefore, have the

necessary work on your MINI only carried out by

a MINI dealer or a workshop that has specially

trained personnel working in accordance with

the specifications of the MINI manufacturer. If

this work is not carried out properly, there is a

danger of subsequent damage and related

safety hazards.<

Parts and accessories

For your own safety, use genuine parts

and accessories approved by the manu-

facturer of the MINI.

When you purchase accessories tested

and approved by the manufacturer of the MINI

and Original MINI Parts, you simultaneously

acquire the assurance that they have been thor-

oughly tested by the manufacturer of the MINI

to ensure optimum performance when installed

on your vehicle.

The manufacturer of the MINI warrants these

parts to be free from defects in material and

workmanship.

The manufacturer of the MINI will not accept any

liability for damage resulting from installation of

parts and accessories not approved by the man-

ufacturer of the MINI.

The manufacturer of the MINI cannot test every

product made by other manufacturers to verify

if it can be used on a MINI safely and without risk

to either the vehicle, its operation, or its occu-

pants.

Original MINI Parts, MINI Accessories and other

products approved by the manufacturer of the

MINI, together with professional advice on using

these items, are available from all MINI dealers.

Installation and operation of accessories that

have not been approved by the manufacturer of

your MINI, such as alarms, radios, amplifiers,

radar detectors, wheels, suspension compo-

nents, brake dust shields, telephones, including

operation of any mobile phone from within the

vehicle without using an externally mounted

antenna, or transceiver equipment, for instance,

CBs, walkie-talkies, ham radios or similar acces-

sories, may cause extensive damage to the vehi-

cle, compromise its safety, interfere with the

vehicle's electrical system or affect the validity of

the MINI Limited Warranty. See your MINI dealer

for additional information.<

Maintenance, replacement, or repair of

the emission control devices and systems

may be performed by any automotive repair

establishment or individual using any certified

automotive part.<

California Proposition 65 warning

California law requires us to issue the following

warning:

Engine exhaust and a wide variety of

automobile components and parts,

including components found in the interior fur-

nishings in a vehicle, contain or emit chemicals

known to the State of California to cause cancer

and birth defects and reproductive harm. In

addition, certain fluids contained in vehicles and

certain products of component wear contain or

emit chemicals known to the State of California

to cause cancer and birth defects or other repro-

ductive harm.

Battery posts, terminals and related accessories

contain lead and lead compounds. Wash your

hands after handling.

Used engine oil contains chemicals that have

caused cancer in laboratory animals. Always

protect your skin by washing thoroughly with

soap and water.<

Service and warranty

We recommend that you read this publication

thoroughly.

Your MINI is covered by the following warran-

ties:

>New Vehicle Limited Warranty

>Rust Perforation Limited Warranty

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Notes

>Federal Emissions System Defect Warranty

>Federal Emissions Performance Warranty

>California Emission Control System Limited

Warranty

Detailed information about these warranties is

listed in the Service and Warranty Information

Booklet for US models or in the Warranty and

Service Guide Booklet for Canadian models.

Your vehicle has been specifically adapted and

designed to meet the particular operating con-

ditions and homologation requirements in your

country and continental region in order to

deliver the full driving pleasure while the vehicle

is operated under those conditions. If you wish

to operate your vehicle in another country or

region, you may be required to adapt your vehi-

cle to meet different prevailing operating condi-

tions and registration requirements. You should

also be aware of any applicable warranty limita-

tions or exclusions for such country or region. In

such a case, please contact Customer Relations

for further information.

Reporting safety defects

For US customers

The following applies only to vehicles owned

and operated in the US.

If you believe that your vehicle has a defect that

could cause a crash or could cause injury or

death, you should immediately inform the

National Highway Traffic Safety Administration,

NHTSA, in addition to notifying MINI of North

America, LLC, P.O. Box 1227, Westwood, New

Jersey 07675-1227, Telephone 1-800-831-

1117.

If NHTSA receives similar complaints, it may

open an investigation, and if it finds that a safety

defect exists in a group of vehicles, it may order

a recall and remedy campaign. However, NHTSA

cannot become involved in individual problems

between you, your dealer, or MINI of North

America, LLC.

To contact NHTSA, you may call the Vehicle

Safety Hotline toll-free at 1-888-327-4236 (TTY:

1-800-424-9153); go to http://www.safer-

car.gov; or write to: Administrator, NHTSA, 400

Seventh Street, SW., Washington, DC 20590. You

can also obtain other information about motor

vehicle safety from http://www.safercar.gov

For Canadian customers

Canadian customers who wish to report a

safety-related defect to Transport Canada,

Defect Investigations and Recalls, may tele-

phone the toll-free hotline1-800-333-0510.

You can also obtain other information about

motor vehicle safety from http://www.tc.gc.ca/

roadsafety.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCE

Controls

Driving tips

Communications

Mobility

Reference

AT A GLANCE

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Cockpit

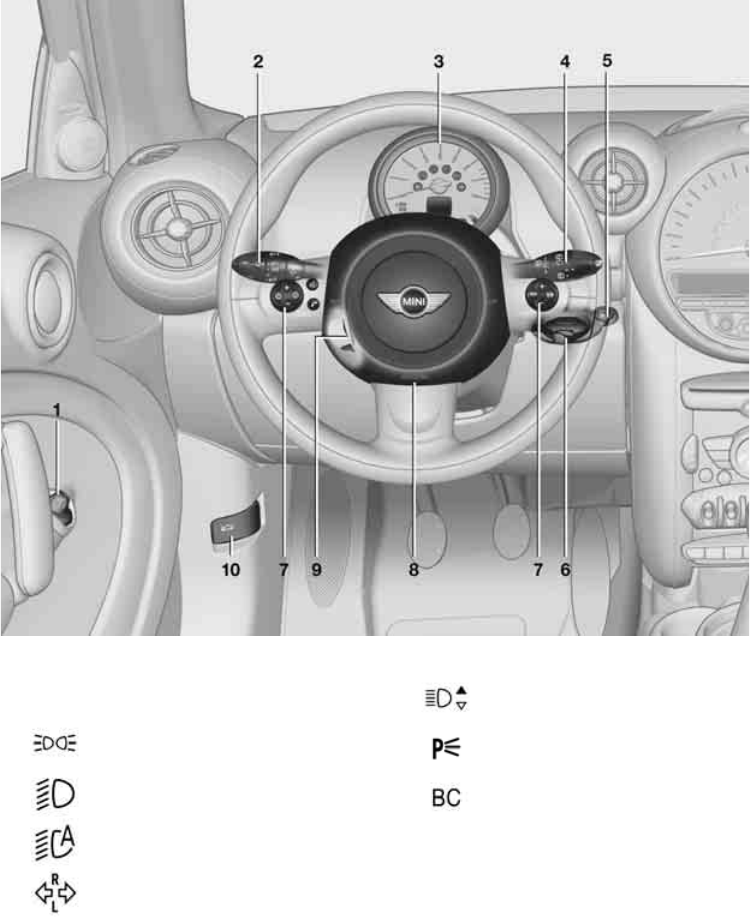

Around the steering wheel: Controls and displays

1Adjusting the exterior mirrors, folding them

in and out*34

2Parking lamps 67

Low beams 67

Automatic headlamp control*67

Adaptive Light Control*69

Turn signals 43

High beams 69

Headlamp flasher 43

Roadside parking lamps*69

Computer*49

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

6Ignition lock 39

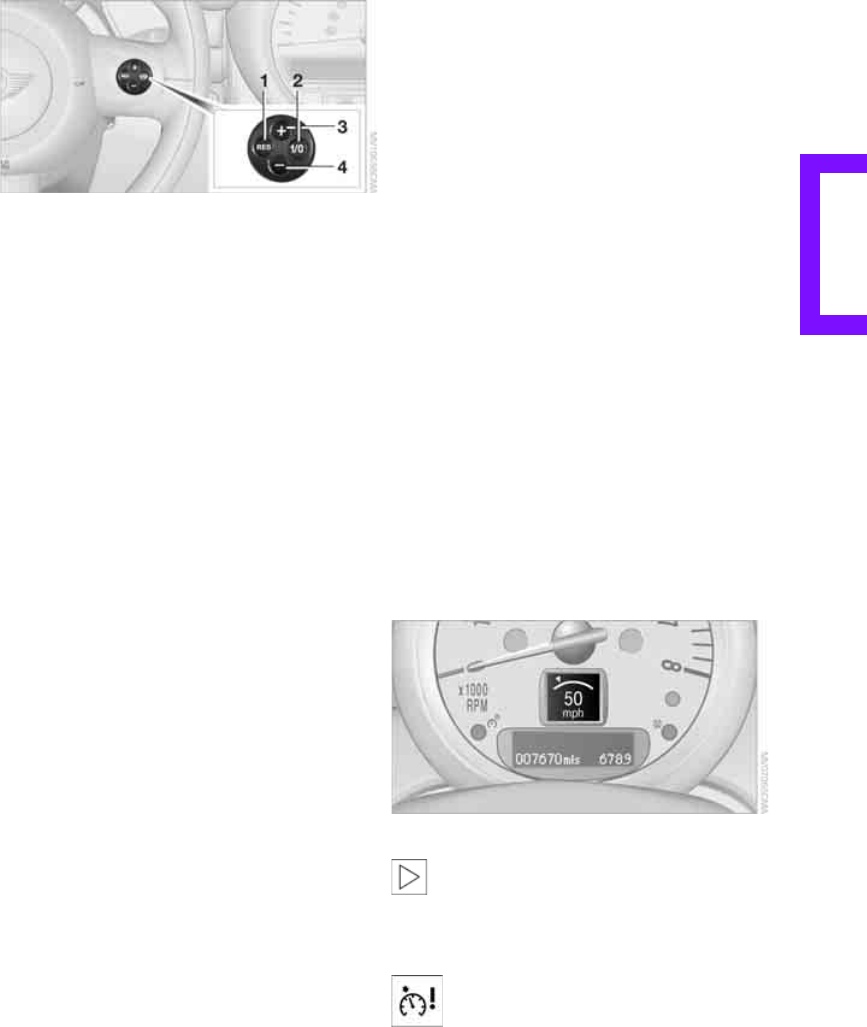

7Buttons* on steering wheel

8Horn: the entire surface

9Adjusting the steering wheel 35

10 Releasing the hood 121

3Tachometer 12

Instrument lighting 70

Resetting the trip odometer 48

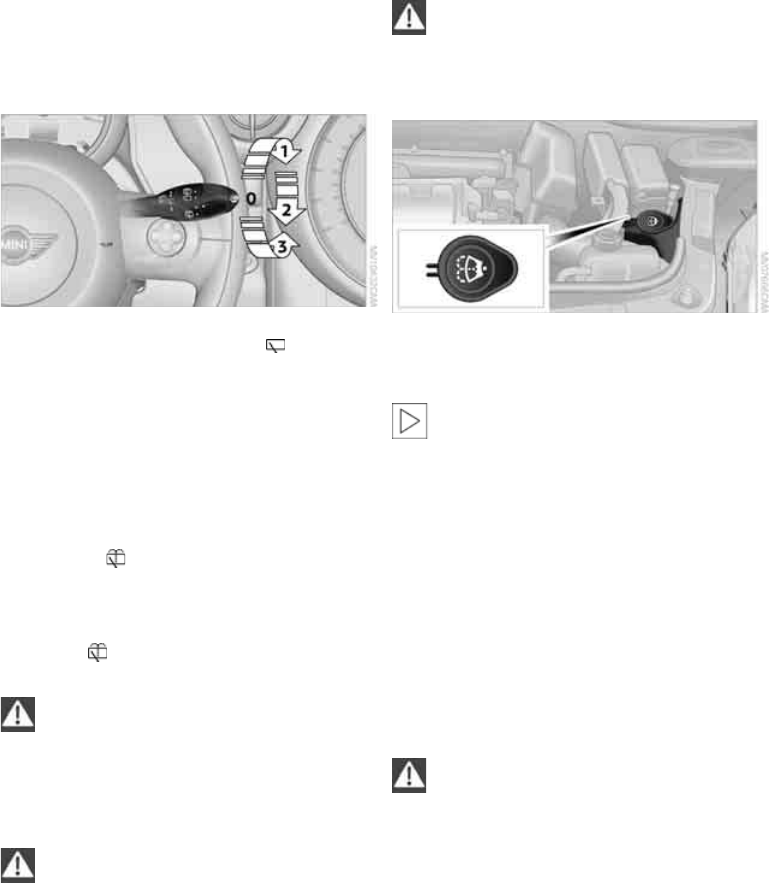

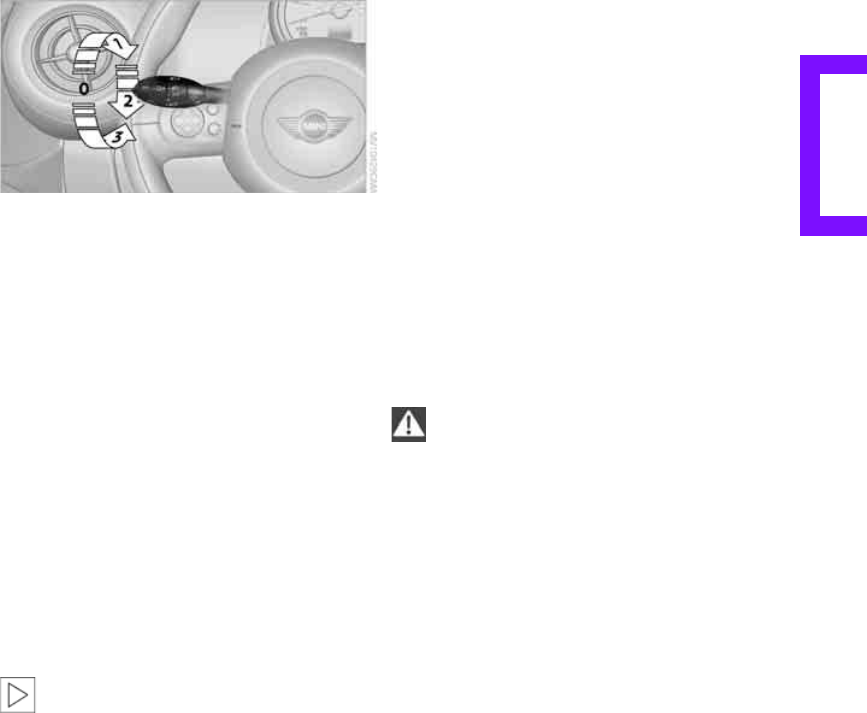

4Wiper system 44

5Switching the ignition on/off and

starting/stopping the engine 39

Continuing cruise control*46

Right:

Storing speed and accelerating or

decelerating

Left:

Increase or reduce volume

Activating/deactivating cruise

control*47

Telephone*:

Accepting and ending a call, start-

ing dialing* of selected phone

number and redialing if no phone

number is selected

Activating/deactivating voice acti-

vation system*

Changing the radio station

Selecting a music track

Scrolling through the redial list

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Cockpit

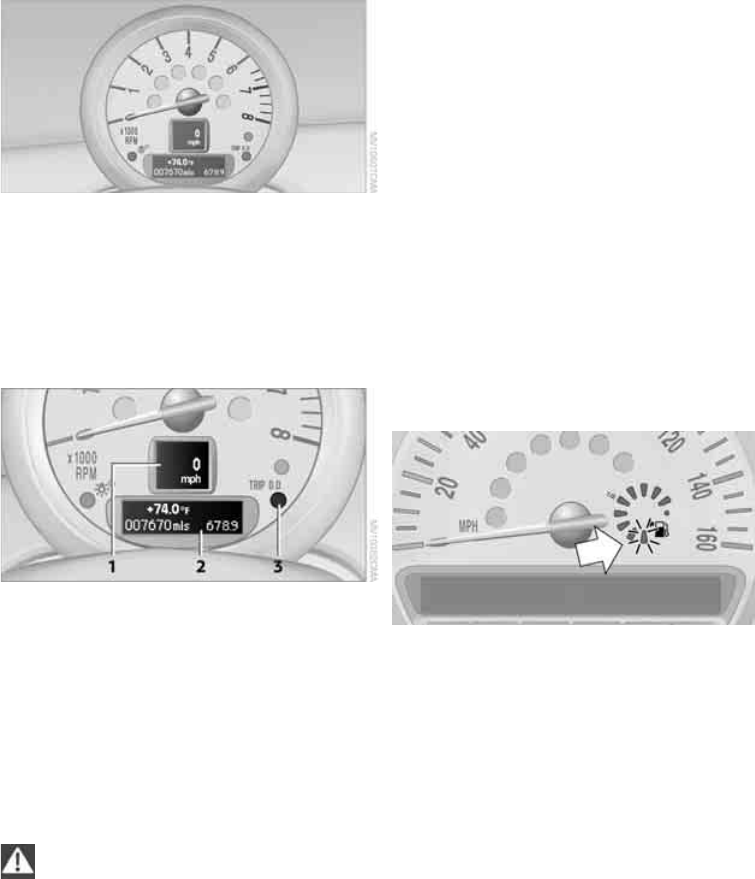

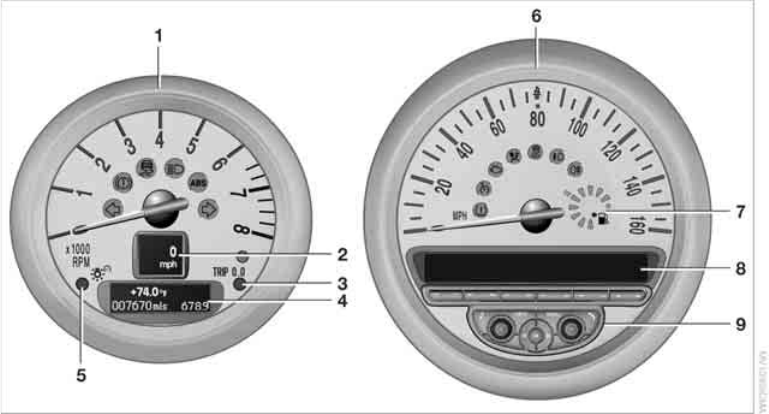

Displays

1Tachometer 48

with indicator and warning lamps 13

2Display for

>Current vehicle speed 48

>Indicator and warning lamps 13

3Resetting the trip odometer 48

4Display for

>Outside temperature 48

>Position of automatic transmission*41

>Computer*49

>Date of next scheduled service, and

remaining distance to be driven 52

>Odometer and trip odometer 48

>Initializing the Flat Tire Monitor*59

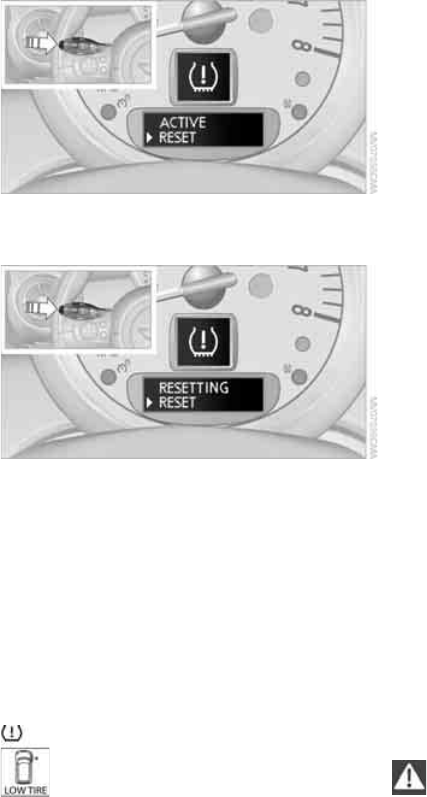

>Resetting the Tire Pressure Monitor*61

>Settings and information 50

>Personal Profile settings 18

5Instrument lighting 70

6Speedometer

with indicator and warning lamps 13

7Fuel gauge 48

8Radio display, refer to separate Owner's

Manual

9Radio, refer to separate Owner's Manual

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

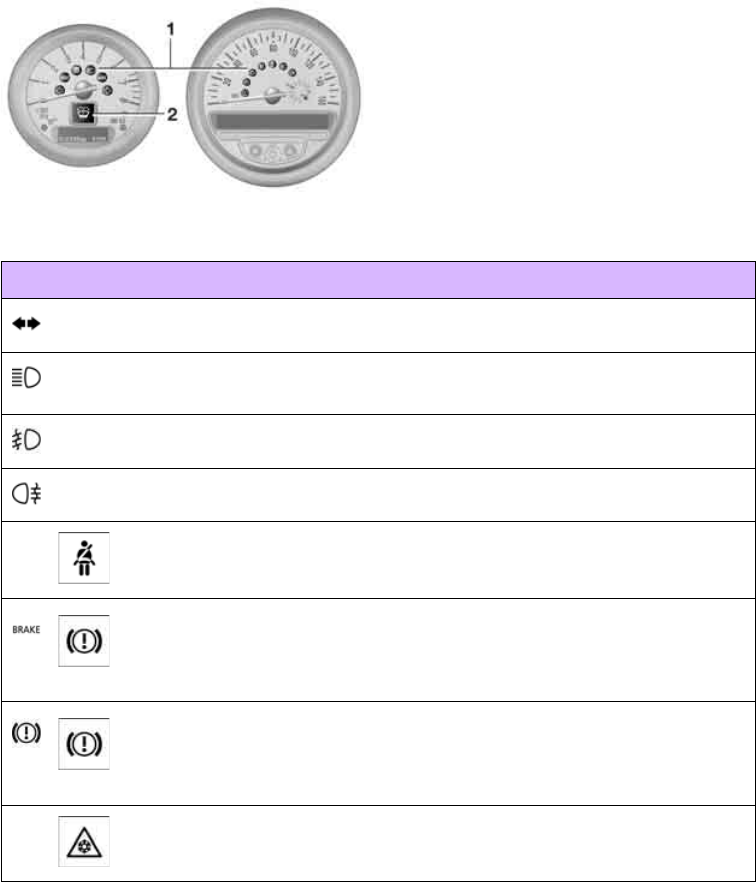

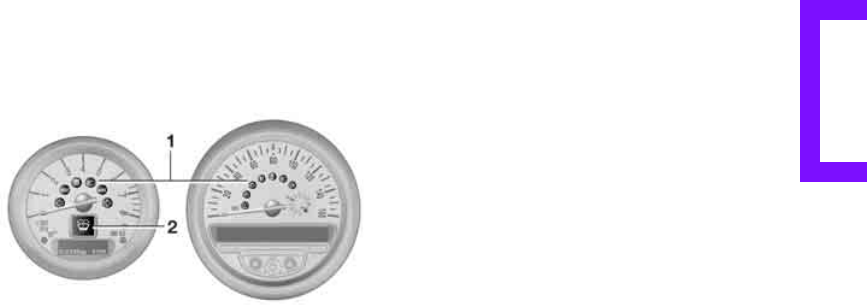

Indicator and warning

lamps

The concept

Indicator and warning lamps can light up in var-

ious combinations and colors in indicator area 1

or 2.

Some lamps are checked for proper functioning

and thus come on briefly when the engine is

started or the ignition is switched on.

What to do in case of a malfunction

A list of all indicator and warning lamps, as well

as notes on possible causes of malfunctions and

on how to respond, can be found starting on

page 144.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Cockpit

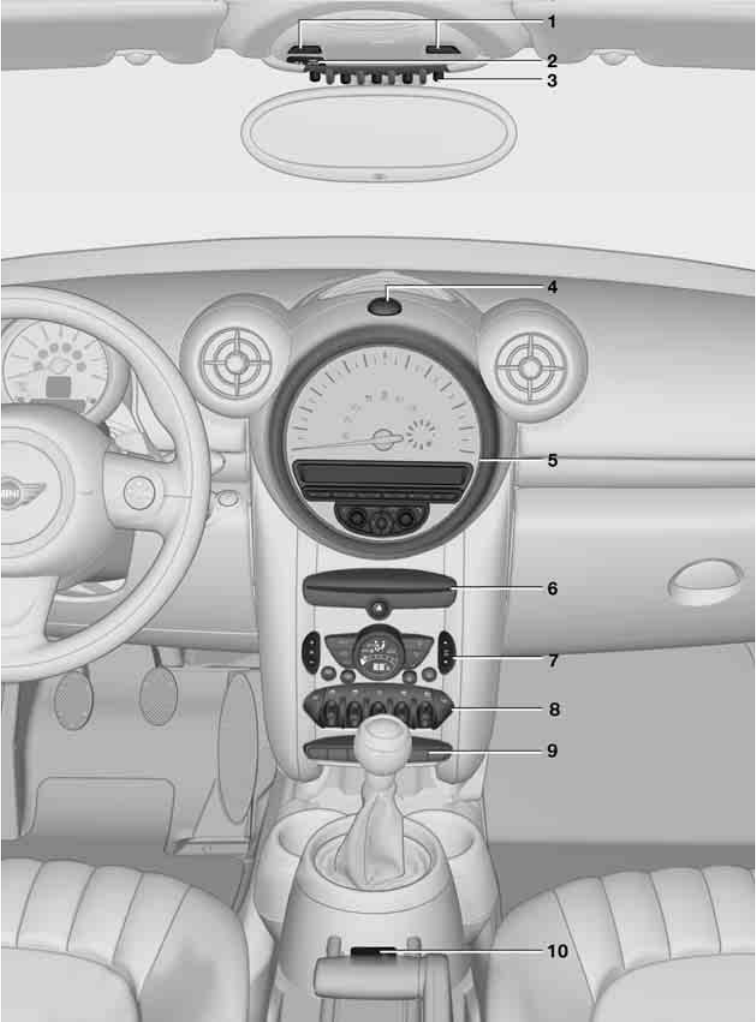

Around the center console

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

1Microphone for voice activation system*

and for telephone in hands-free mode*

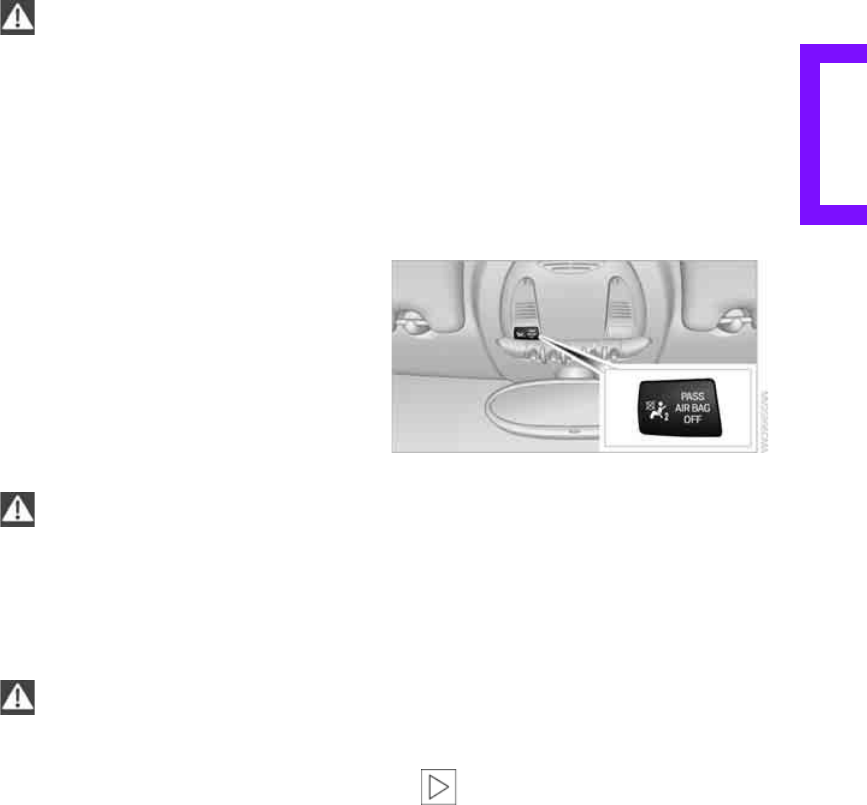

2Indicator/warning lamp* for front passen-

ger airbags 65

4Hazard warning flashers

5Speedometer 12

6Radio/CD, refer to separate Owner's Manual

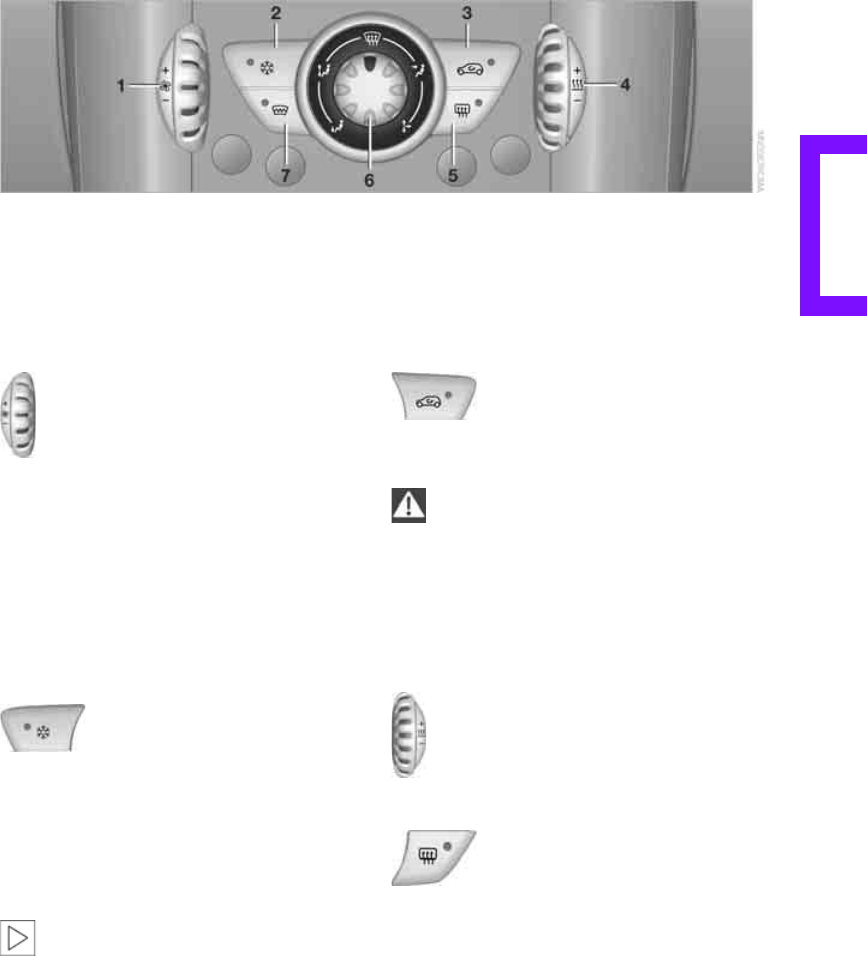

7Air conditioner or automatic climate

control*72

8Switches in the center console

9Buttons in the center console

10 AUX-IN connection/USB audio

interface*79

3Reading lamps*71

Ambient lighting*71

Glass sunroof, electric*27

Interior lamps 70

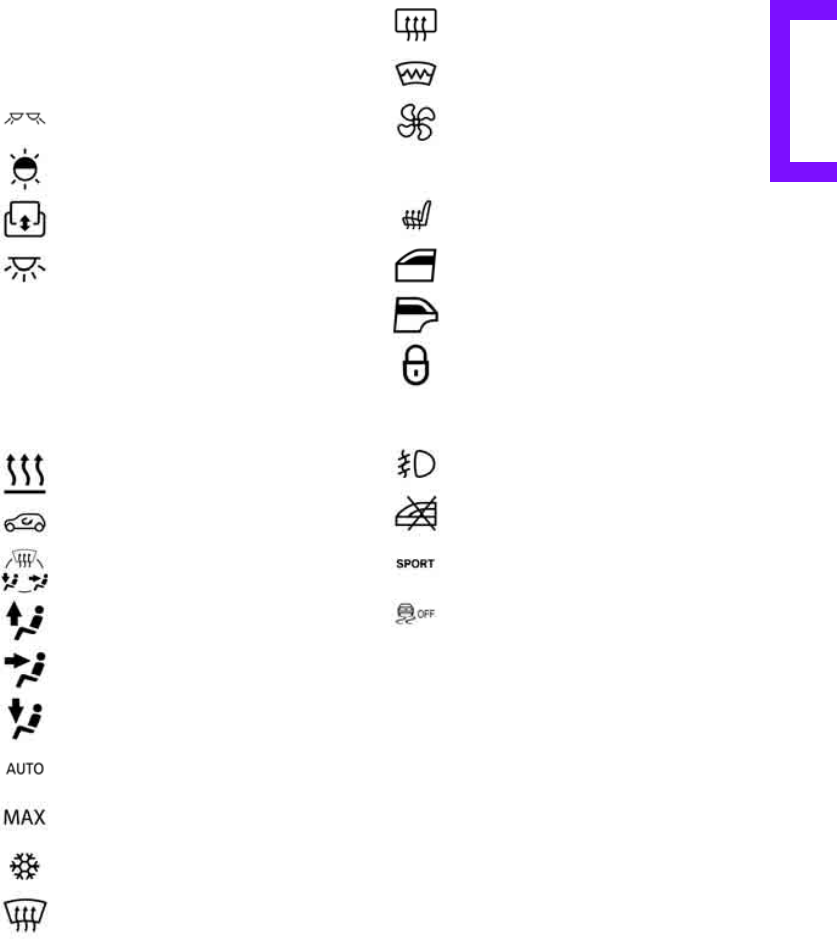

Temperature

Recirculated-air mode

Air distribution for air conditioner

Air distribution to the windshield*

Air distribution to the upper body

area*

Air distribution to the footwell*

Automatic air distribution and flow

rate*

Maximum cooling*

Cooling function

Defrosting windows*

Rear window defroster

Windshield heating*

Air flow rate

Seat heating*33

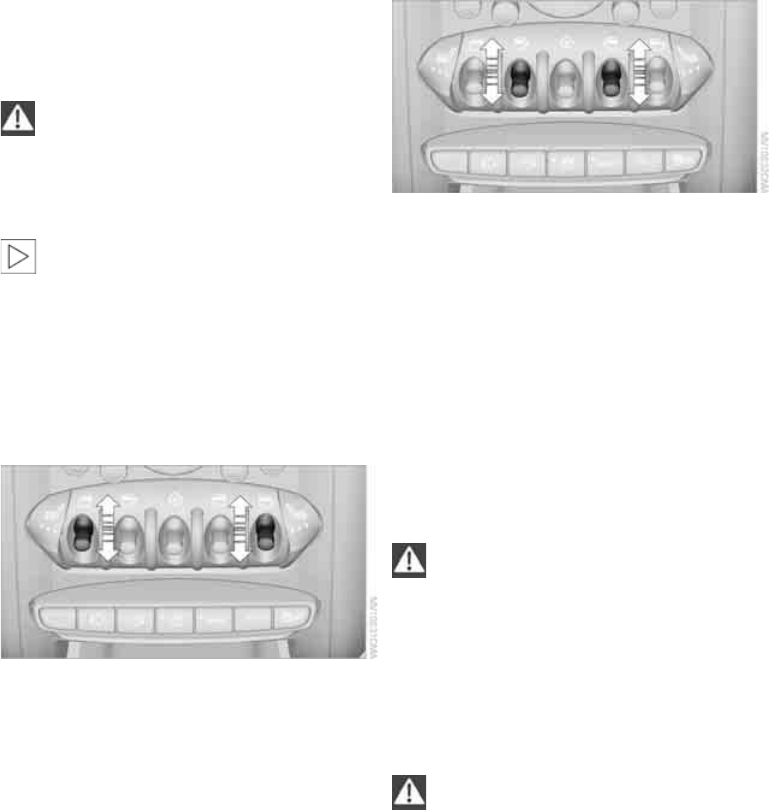

Power windows, front 28

Power windows, rear 28

Central locking system, inside 22

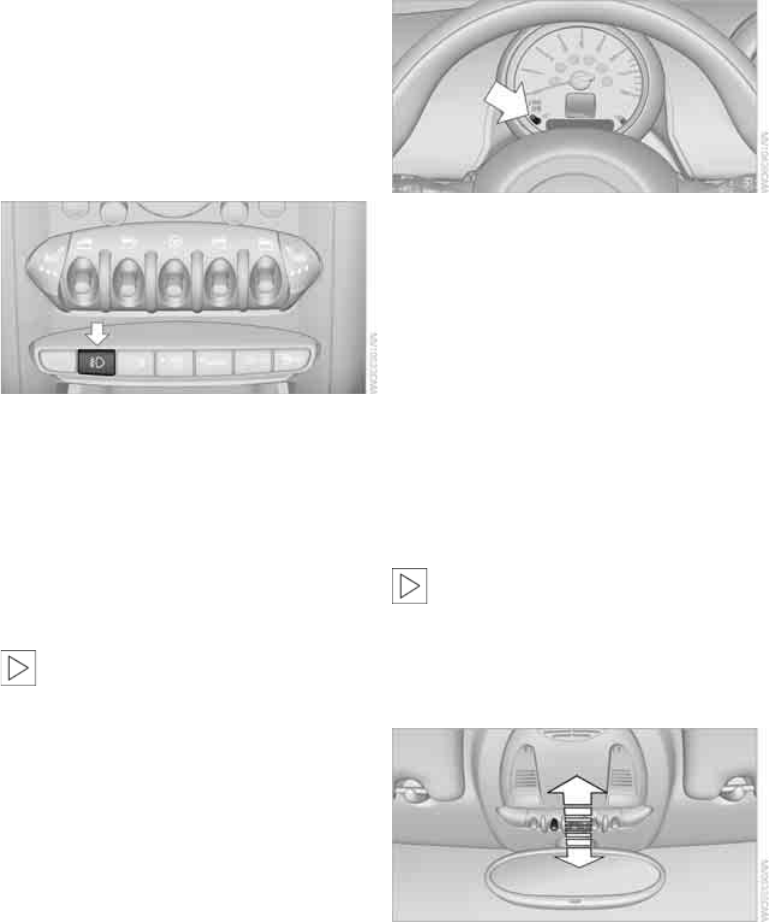

Fog lamps*70

Safety switch for power windows in

rear passenger compartment 29

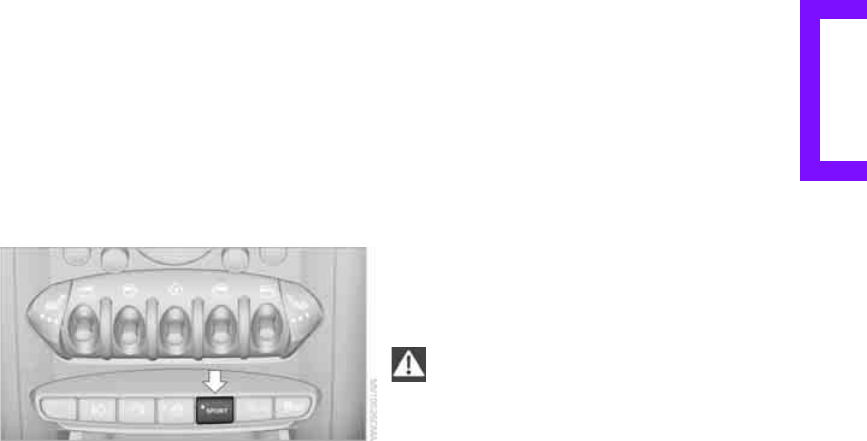

Sport button*59

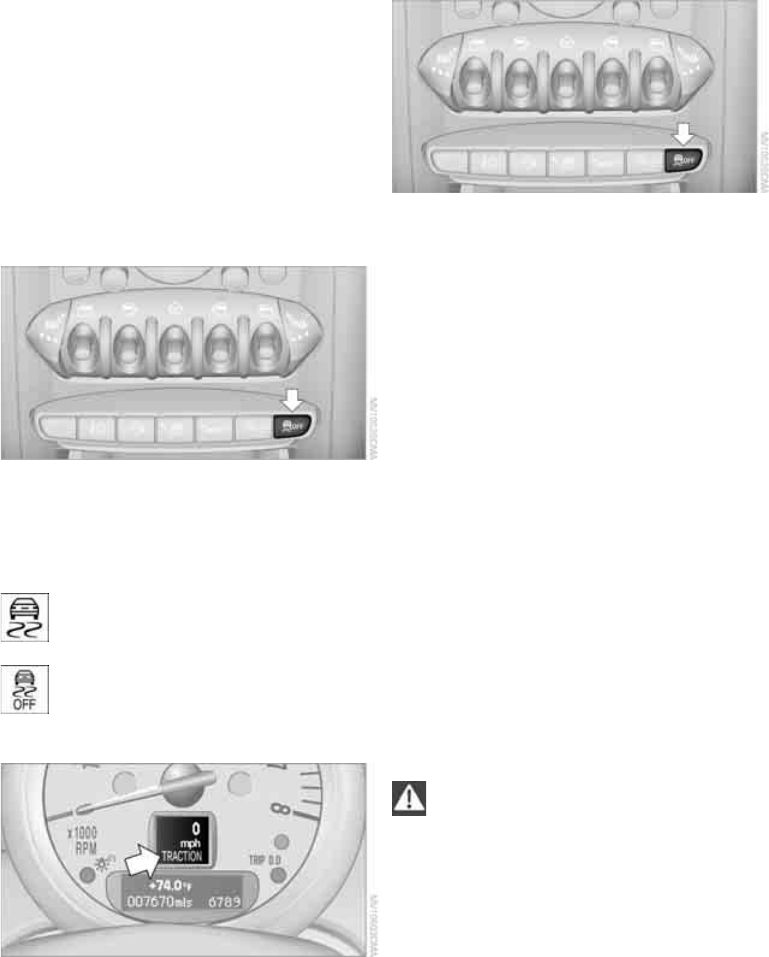

Driving stability control systems

Dynamic Stability Control DSC 57

Dynamic Traction Control

DTC*57

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Controls

AT A GLANCE

Driving tips

Communications

Mobility

Reference

Controls

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Opening and closing

Keys/remote controls

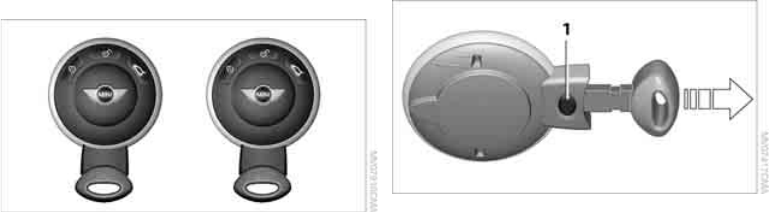

Remote control

Each remote control contains a rechargeable

battery that is recharged when it is in the igni-

tion lock while the car is being driven. You

should therefore use each remote control at

least twice a year to maintain the charge status.

In vehicles equipped with Comfort Access*, the

remote control contains a replaceable battery,

page 27.

If more than one remote control unit is used, the

settings called up and implemented depend on

which remote control is recognized when the

car is unlocked, refer to Personal Profile,

page 18.

In addition, information about service require-

ments is stored in the remote control, refer to

Service data in the remote control, page 125.

New remote controls

Your MINI dealer can supply new remote con-

trols as additional units or as replacements in the

event of loss.

Integrated key

Press button 1 to release the key.

The integrated key fits the following locks:

>Driver's door, page 21.

Personal Profile

The concept

The functions of your MINI can be set individu-

ally. By means of Personal Profiles, most of these

settings are stored for the remote control cur-

rently in use. When you unlock the car, the

remote control is recognized and the settings

stored for it are called up and implemented.

This means that your settings will be activated

for you, even if in the meantime your car was

used by someone else with another remote con-

trol and the corresponding settings.

At most three remote controls can be set for

three different people. A prerequisite is that

each person uses a separate remote control.

Personal Profile settings

For more information on specific settings, refer

to the specified pages.

>Response of the central locking system

when the car is being unlocked 19

>Automatic locking of the vehicle 22

>Triple turn signal activation 43

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

>Settings for the displays in the speedometer

and tachometer:

>12h/24h mode of the clock, refer to For-

mats and units of measure 51

>Date format, refer to Formats and units

of measure 51

>Units of measure for fuel consumption,

distance covered/remaining distances

and temperature, refer to Formats and

units of measure 51

>Light settings:

>Pathway lighting 67

>Daytime running lights 68

>Automatic climate control*: activating/

deactivating the AUTO program, setting the

temperature, air volume and air

distribution 74

>Entertainment:

>Adjusting volume levels, refer to separate

Owner's Manual

>Adjusting tone, refer to separate Owner's

Manual

Central locking system

The concept

The central locking system is ready for operation

whenever the driver's door is closed.

The system simultaneously engages and

releases the locks on the following:

>Doors

>Liftgate

>Fuel filler flap

Operating from outside

>Via the remote control

>Via the door lock*

>In cars with Comfort Access*, via the door

handles on the driver's and passenger's

sides

The remote control can also be used to switch

on/off the welcome lamps and interior lamps.

The alarm system* is also activated or deacti-

vated, page 24.

Operating from inside

Button for central locking system, page 22.

In the event of a sufficiently severe accident, the

central locking system unlocks automatically. In

addition, the hazard warning flashers and inte-

rior lamps come on.

Opening and closing:

from outside

Persons or animals in a parked vehicle

could lock the doors from the inside. Take

the key with you when you leave the vehicle so

that the vehicle can be opened from the out-

side.<

Using the remote control

Unlocking

Press the button.

The welcome lamps and interior lamps come on.

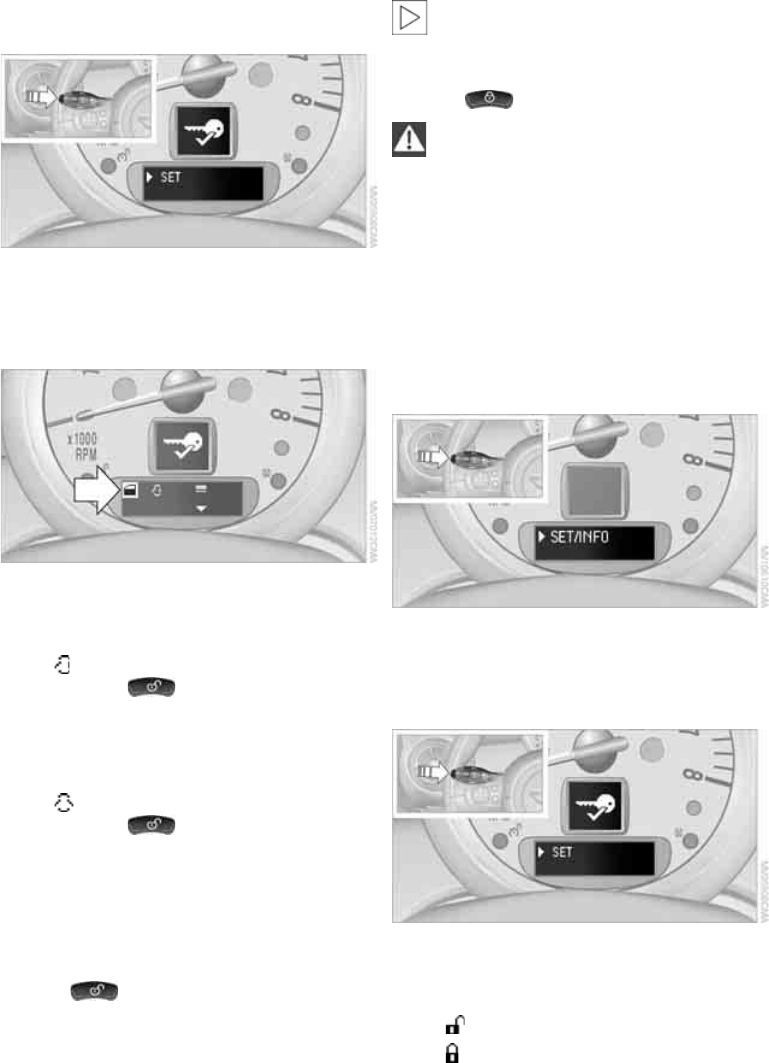

Unlocking mode

You can also set which parts of the car are

unlocked. The setting is stored for the remote

control in use.

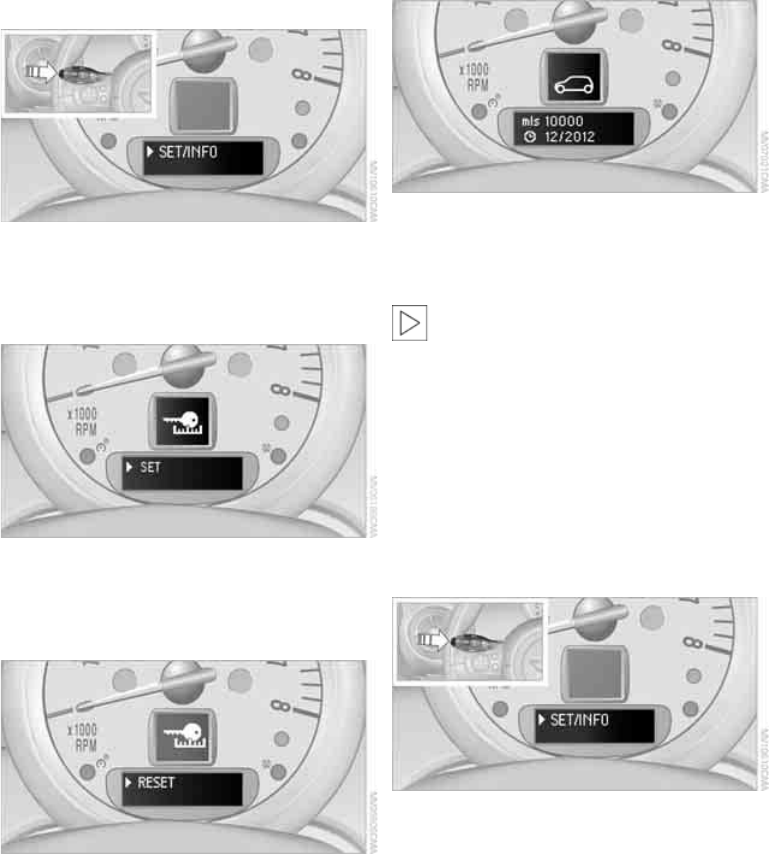

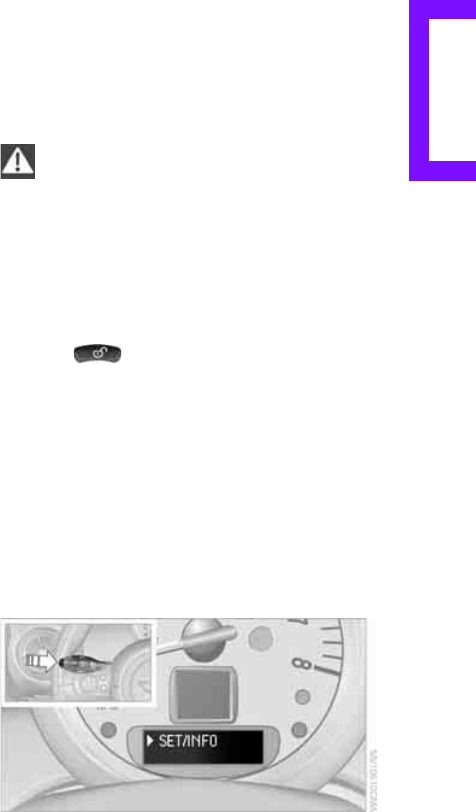

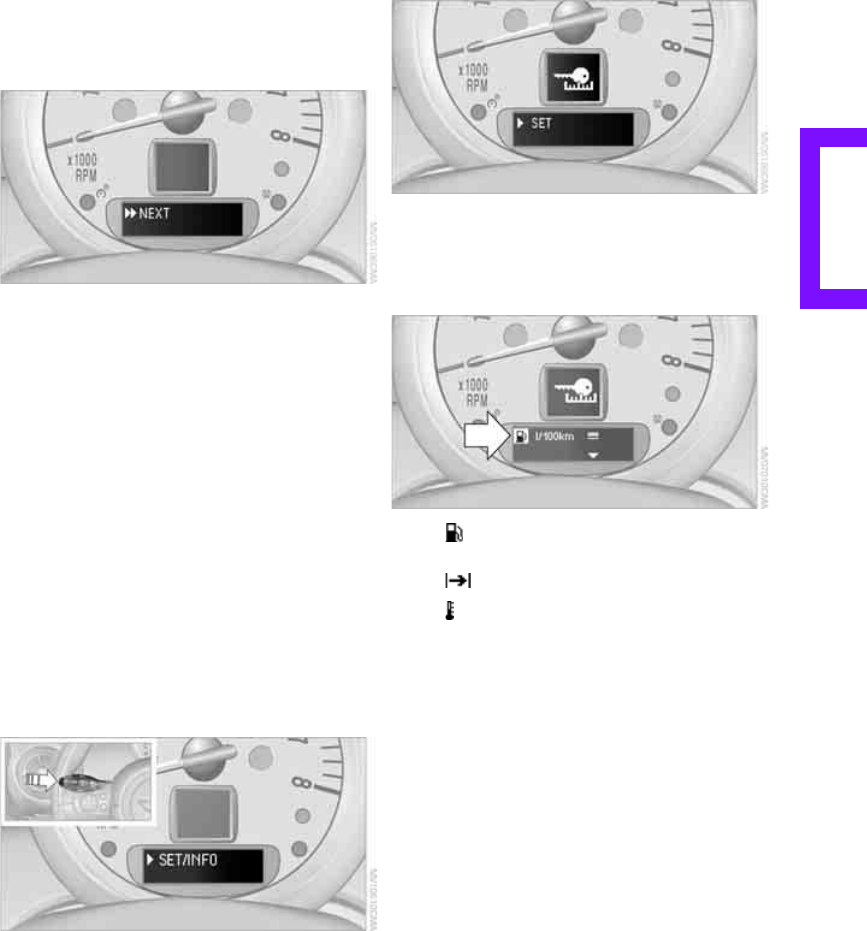

1. Switch on the ignition, refer to page 39.

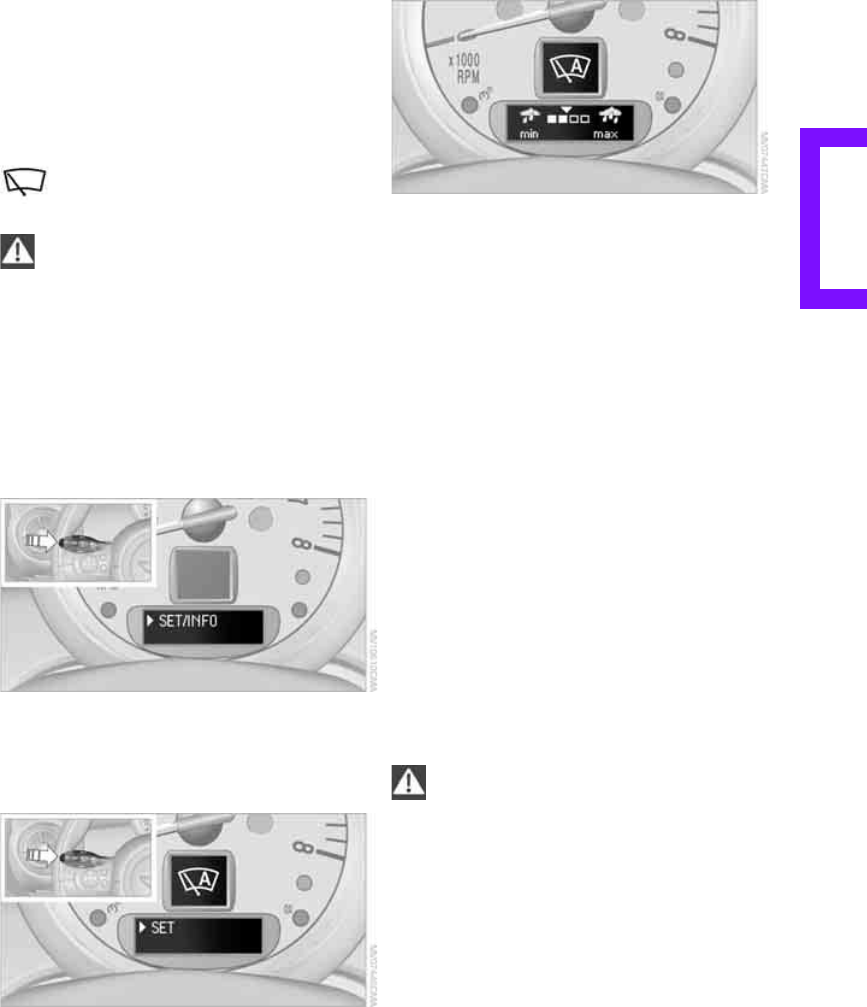

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Opening and closing

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button repeatedly until the

display shows the illustrated symbol, arrow.

7. Press and hold the button until the display

changes.

8. Briefly press the button to select:

Press the button once to unlock

only the driver's door and the fuel filler

flap*.

Press the button twice to unlock the

entire vehicle.

Press the button once to unlock

the entire vehicle.

9. Press and hold the button until the display

changes. The setting is stored for the remote

control currently in use.

Convenient opening

Hold the button down.

The power windows are opened and the glass

sunroof* is tilted.

Convenient closing is not possible by

means of the remote control.<

Locking

Press the button.

Do not lock the vehicle from the outside if

there is any person inside, because the

vehicle cannot be unlocked from inside without

special knowledge.<

Setting confirmation signals

To have the vehicle confirm when it has been

locked or unlocked.

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

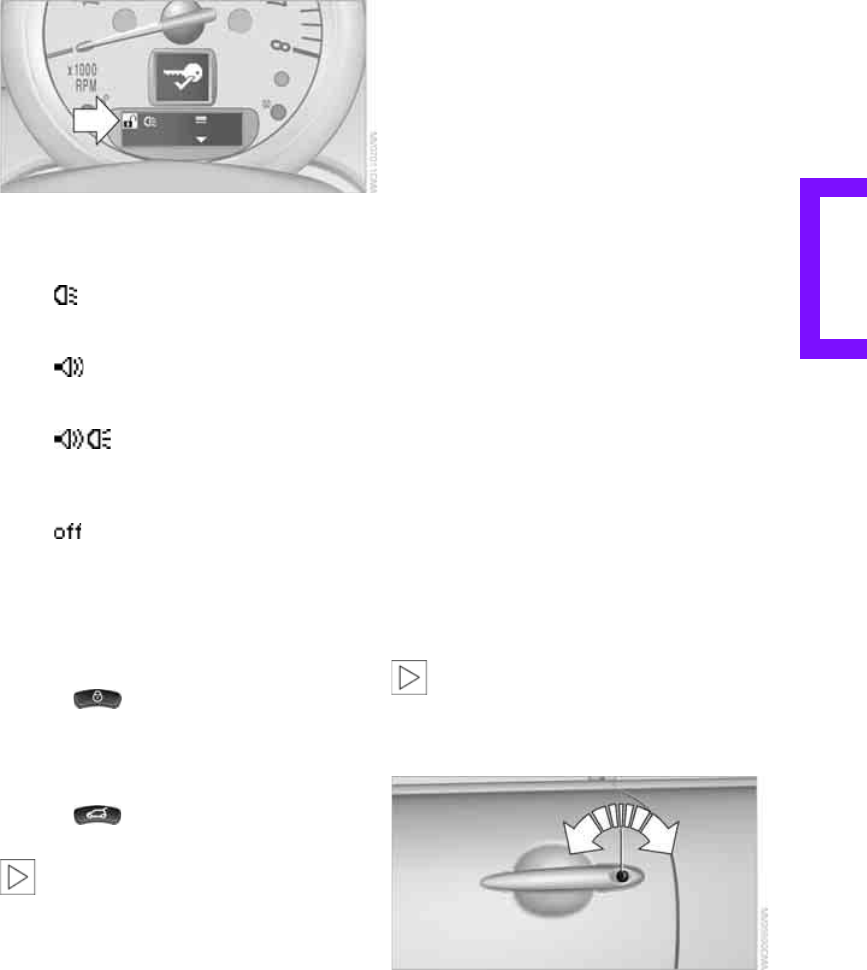

6. Briefly press the button to select, arrow:

> Confirmation signal during unlocking

> Confirmation signal during locking

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

7. Press and hold the button until the display

changes.

8. Briefly press the button to select:

The hazard warning flashers light up dur-

ing unlocking/locking.

An acoustic signal sounds during unlock-

ing/locking.

The hazard warning flashers light up and

an acoustic signal* sounds during

unlocking/locking.

The function is deactivated.

9. Press and hold the button until the display

changes. The setting is stored.

Switching on interior lamps

While the car is locked:

Press the button.

You can also use this function to locate your

vehicle in parking garages, etc.

Unlocking liftgate

Press the button for approx. 1 second

and then release it.

When it is opened, the liftgate swings out

and up toward the rear. Make sure that

adequate clearance is available before opening.

To prevent accidentally locking yourself out, do

not place the key down in the cargo area. If the

liftgate was locked before opening, it will be

locked again after it is closed.

Before and after each trip, check that the liftgate

has not been inadvertently unlocked.<

Malfunctions

The remote control may malfunction due to

local radio waves. If this occurs, unlock and lock

the car at the door lock with the integrated key.

If the car can no longer be locked with a remote

control, the battery in the remote control is dis-

charged. Use this remote control during an

extended drive; this will recharge the battery,

page 18.

For US owners only

The transmitter and receiver units comply with

part 15 of the FCC/Federal Communications

Commission regulations. Operation is governed

by the following:

FCC ID:

LX8766S

LX8766E

LX8CAS

Compliance statement:

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions:

>This device must not cause harmful interfer-

ence, and

>this device must accept any interference

received, including interference that may

cause undesired operation.

Any unauthorized modifications or

changes to these devices could void the

user's authority to operate this equipment.<

Using the door lock

You can set which parts of the car are unlocked,

page 19.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Opening and closing

Do not lock the vehicle from the outside if

there is any person inside, because the

vehicle cannot be unlocked from inside without

special knowledge.<

When there is no alarm system* or Com-

fort Access*, only the driver's door is

locked with the door lock.<

To lock all doors, the fuel filler flap, and the lift-

gate together:

>With the doors closed, press the interior cen-

tral locking button, page 22 to lock the vehi-

cle.

>Unlocking and opening the driver or passen-

ger door, page 22.

Locking the vehicle.

>Lock the driver's door with the integrated

key via the door lock, or

>press the safety lock button on the pas-

senger's door and close the door from

the outside.

Convenient operation

With an alarm system* or Comfort Access*, the

windows and glass sunroof* can be operated

via the door lock.

Opening/closing

Hold the key in the position for unlocking or

locking.

Watch during the closing process to be

sure that no one is injured. Releasing the

key stops the operation.<

Manual operation

In the event of an electrical malfunction, the

driver's door can be unlocked or locked by turn-

ing the integrated key in the door lock to the end

positions.

Opening and closing:

from inside

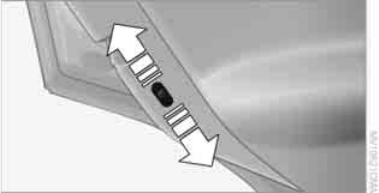

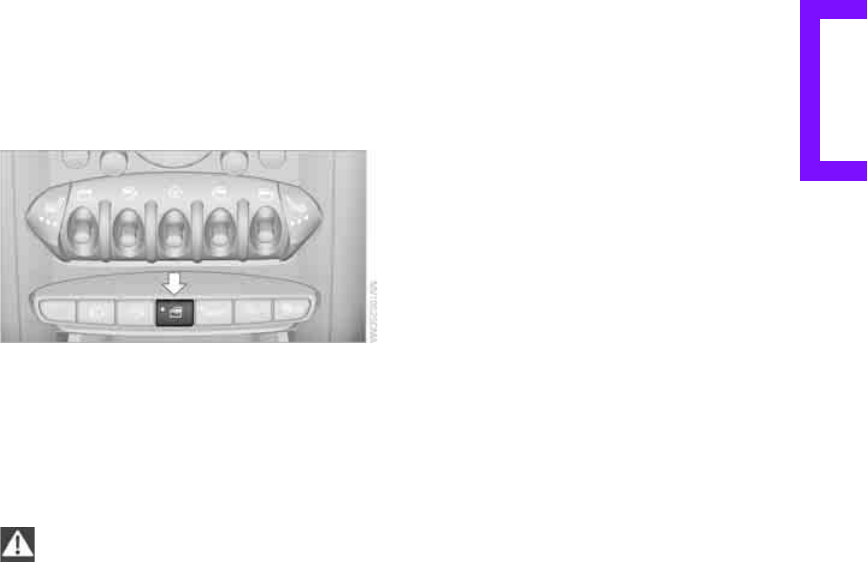

The switch locks or unlocks the doors and lift-

gate when the doors are closed, but the anti-

theft system is not activated. The fuel filler flap

remains unlocked*.

Unlocking and opening

>Either unlock the doors together using the

switch for the central locking system and

then pull the door handle above the armrest

>pull on the door handle of either door twice:

the first time unlocks the door, the second

time opens it.

Locking

>Press the switch or

>press down the safety lock button of a door.

To prevent you from being locked out, the

open driver's door cannot be locked using

the lock button.

Persons or animals in a parked vehicle

could lock the doors from the inside. Take

the key with you when you leave the vehicle so

that the vehicle can be opened from the out-

side.<

Automatic locking*

You can also set the situations in which the car

locks. The setting is stored for the remote con-

trol in use.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

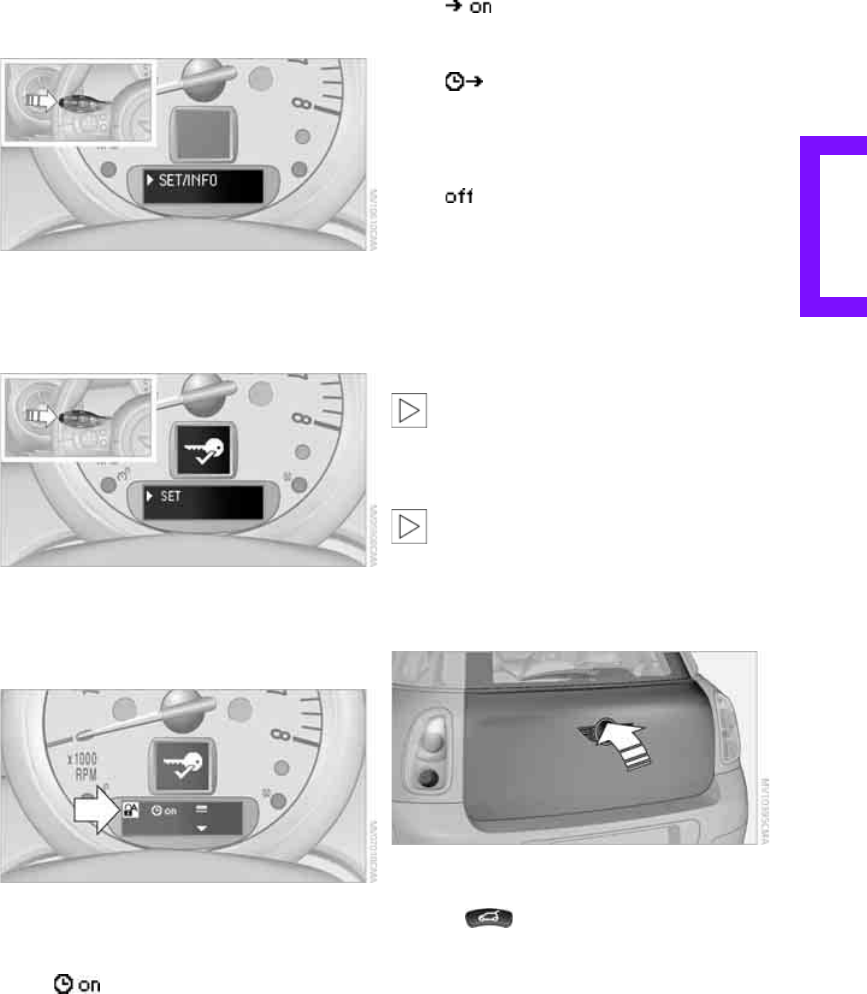

1. Switch on the ignition, refer to page 39.

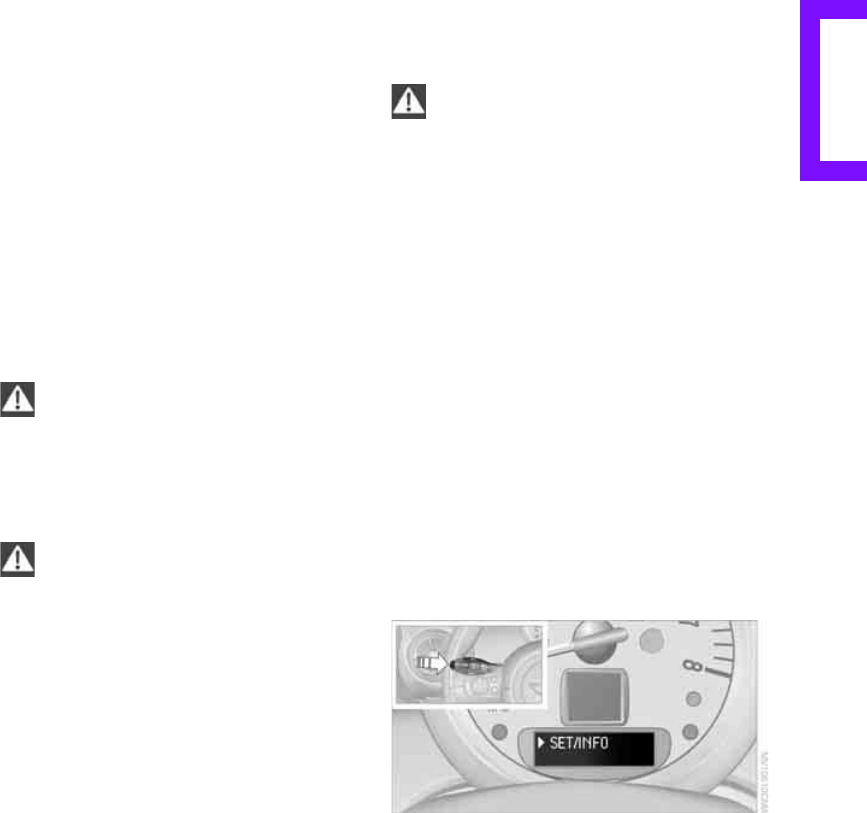

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button repeatedly until the

display shows the illustrated symbol, arrow.

7. Press and hold the button until the display

changes.

8. Briefly press the button to select:

The central locking system automatically

locks the vehicle after some time if no

door has been opened.

The central locking system automatically

locks the vehicle as soon as you drive off.

The central locking system automatically

locks the vehicle after some time if no

door has been opened, or as soon as you

drive off.

The central locking system remains

unlocked.

9. Press and hold the button until the display

changes. The setting is stored.

Liftgate

To avoid damage, make sure there is suf-

ficient clearance before opening the lift-

gate.<

Opening

In some market-specific versions, the lift-

gate cannot be unlocked using the remote

control unless the vehicle is unlocked first.

Only drive with the liftgate fully closed; other-

wise, the tail lamps will be obscured and driving

safety will be compromised.<

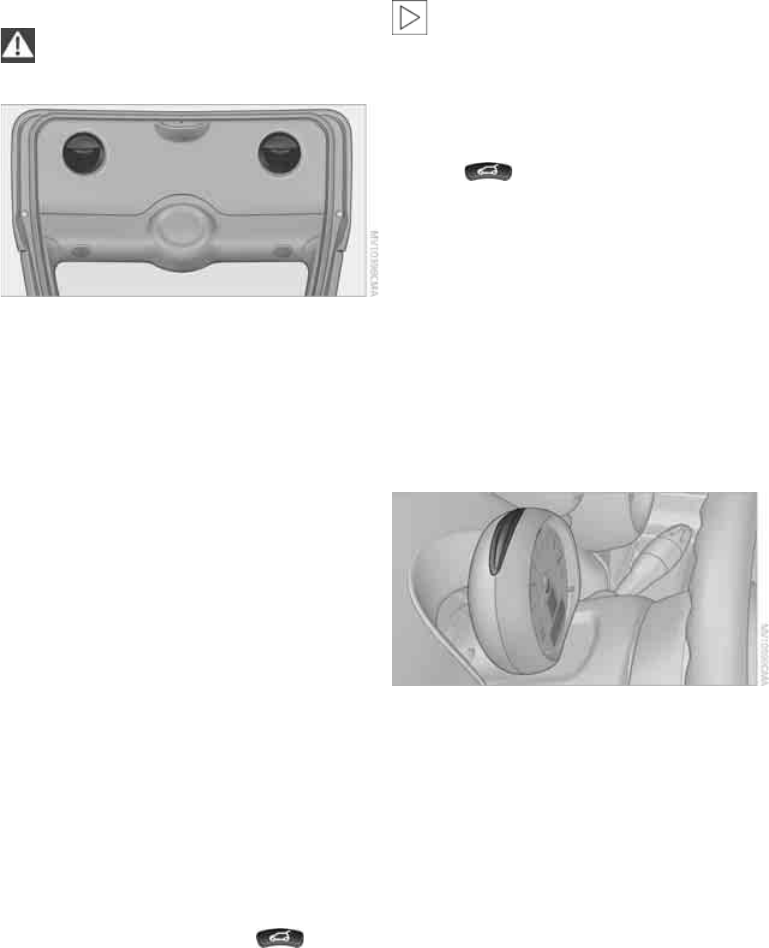

Press the top side of the MINI emblem, arrow,

press the button for approx. 1 second

and then release it. The liftgate is unlocked.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Opening and closing

Closing

Make sure that the closing path of the lift-

gate is clear; otherwise, injuries may

occur.<

The handle recesses on the interior trim panel of

the liftgate make it easier to pull it down.

Alarm system*

The concept

The alarm system, when activated, reacts if:

>A door, the engine compartment lid or the

liftgate is opened

>There is movement inside the car

>The car's inclination changes, for instance if

an attempt is made to jack it up and steal the

wheels or to raise it prior to towing it away

>There is an interruption in the power supply

from the battery

The alarm system briefly indicates unauthorized

entry or tampering by means of:

>An acoustic alarm

>Switching on the hazard warning flashers

Arming and disarming

Whenever the car is locked or unlocked, the

alarm system is armed or disarmed.

Even when the alarm system is armed, you can

open the liftgate by means of the button

on the remote control.

When you subsequently close the liftgate it is

again locked and monitored.

In certain market-specific versions,

unlocking via the door lock triggers the

alarm.<

Panic mode*

You can activate the alarm system if you find

yourself in a dangerous situation.

Press the button for at least two seconds.

Switching off the alarm:

Press any button.

Switching off an alarm

>Unlock the car with the remote control.

>Insert the key fully into the ignition lock.

>In cars with Comfort Access*, press the but-

ton on the door lock.

Display on the revolution counter

When the system is armed, all LEDs pulse. After

approx. 16 minutes one LED flashes.

>LEDs pulse or LED flashes: system is armed.

>One LED flashes at short intervals:

A door, the hood or the liftgate is not prop-

erly closed. Even if these are not closed fully,

the remaining items are deadlocked and the

LEDs pulse after approx. 10 seconds for

approx. 16 minutes. Afterwards, one LED

flashes.

The interior movement detector is not acti-

vated.

>LEDs go out after the vehicle is unlocked:

No attempt was made to tamper with the

car.

>LEDs flash after unlocking until the key is

inserted in the ignition, but for no longer

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

than approx. 5 minutes: an attempt was

made to tamper with the car.

Tilt alarm sensor

The vehicle's inclination is monitored. The alarm

is triggered, for instance, if an attempt is made

to steal the car's wheels or tow it away.

Interior movement detector

Before the interior movement detector can

operate correctly, the windows and glass roof

must be closed.

Avoiding false alarms

The tilt alarm sensor and the interior movement

detector can be switched off together.

This prevents false alarms, e.g. in the following

situations:

>In duplex garages

>When being transported on car-carrying

trains, ferries or trailers

>If pets are to remain inside the car

Switching off the tilt alarm sensor and

interior movement detector

>Press the button on the remote con-

trol twice in succession.

>Lock the vehicle twice with the integrated

key.

LEDs flash in short succession for approx.

2seconds.

The tilt alarm sensor and the interior movement

detector are switched off until the car is next

unlocked and locked.

Comfort Access*

Comfort Access enables you to enter your vehi-

cle without having to hold the remote control in

your hand. All you need to do is wear the remote

control close to your body, e.g. in your jacket

pocket. The vehicle automatically detects the

remote control within the immediate vicinity or

in the passenger compartment.

Functional requirements

>The vehicle or the liftgate can only be locked

when the vehicle detects that the remote

control currently in use is outside of the

vehicle.

>The vehicle cannot be locked or unlocked

again until after approx. 2 seconds.

>The engine can only be started when the

vehicle detects that the remote control is

inside the vehicle.

>The doors and liftgate must be closed to be

able to operate the windows and glass sun-

roof*.

Comfort Access supports the following func-

tions:

>Unlocking/locking the vehicle

>Convenient closing

>Unlocking the liftgate by itself

>Starting the engine

Comparison to standard remote controls

Essentially, it makes no difference whether you

control the above-mentioned functions using

Comfort Access or by pressing the buttons on

the remote control for Comfort Access.

Instructions on opening and closing are found

starting on page 18.

Special features regarding the use of Comfort

Access are described below.

If you notice a brief delay while opening or

closing the windows or glass sunroof, the

system is checking whether a remote control is

inside the vehicle. Repeat the opening or closing

procedure, if necessary.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Opening and closing

Unlocking

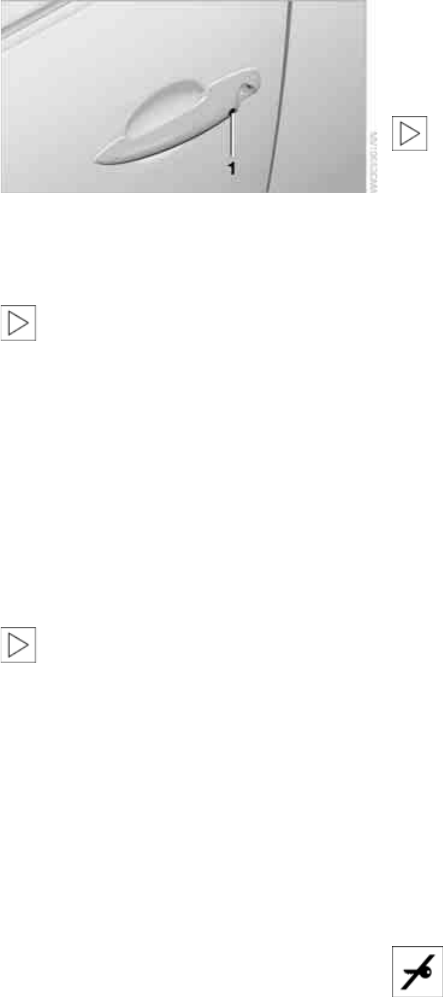

Press button 1.

Depending on the setting, refer to Unlocking

mode on page 19, only the driver's door or the

entire vehicle is unlocked.

Press the button again to lock the vehicle

again.<

Convenient opening with the remote control,

refer to page 20.

Locking

Press button 1.

For convenient closing, press and hold button 1.

In addition, the windows and the glass sunroof*

are closed.

Unlocking the liftgate separately

Press the top side of the MINI emblem.

If the vehicle detects that a remote control

has been accidentally left inside the

locked vehicle's cargo area after the liftgate is

closed, the liftgate will reopen slightly. The haz-

ard warning flashers flash and an acoustic sig-

nal* sounds.<

Windows and glass sunroof, electric*

If the engine is switched off, you can still operate

the windows and glass sunroof so long as a door

or the liftgate has not been opened.

If the doors and liftgate are closed again and the

remote control is located inside the vehicle, the

windows and the glass sunroof can be operated

again.

Insert the remote control into the ignition lock to

be able to operate the windows or glass sunroof

when the engine is switched off and the doors

are open.

Switching on radio readiness

Switch on radio readiness by briefly pressing the

Start/Stop button, page 39.

Do not depress the brake or the clutch;

otherwise, the engine will start.<

Starting the engine

The engine can be started or the ignition can be

switched on when a remote control is inside the

vehicle. It is not necessary to insert a remote

control into the ignition lock, page 39.

Switching off the engine in cars with

automatic transmission

The engine can only be switched off when the

selector lever is in position P, page 40.

To switch the engine off when the selector lever

is in position N, the remote control must be in

the ignition lock.

Before driving a vehicle with automatic

transmission into a car wash

1. Insert remote control into ignition lock.

2. Depress the brake.

3. Move the selector lever to position N.

4. Switch off the engine.

The vehicle can roll.

Malfunction

Comfort Access may malfunction due to local

radio waves.

If this happens, open or close the vehicle via the

buttons on the remote control or using the inte-

grated key.

Insert the remote control into the ignition lock

and start the engine.

Warning lamps

The warning lamp lights up when an

attempt is made to start the engine: the

engine cannot be started. The remote

control is not inside the vehicle or is malfunc-

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

tioning. Take the remote control with you inside

the vehicle or have it checked. If necessary,

insert another remote control into the ignition

lock.

The warning lamp lights up when the

engine is running: the remote control is

no longer inside the vehicle. After the

engine is switched off, the engine can only be

restarted within approx. 10 seconds.

The indicator lamp lights up: replace the

battery in the remote control.

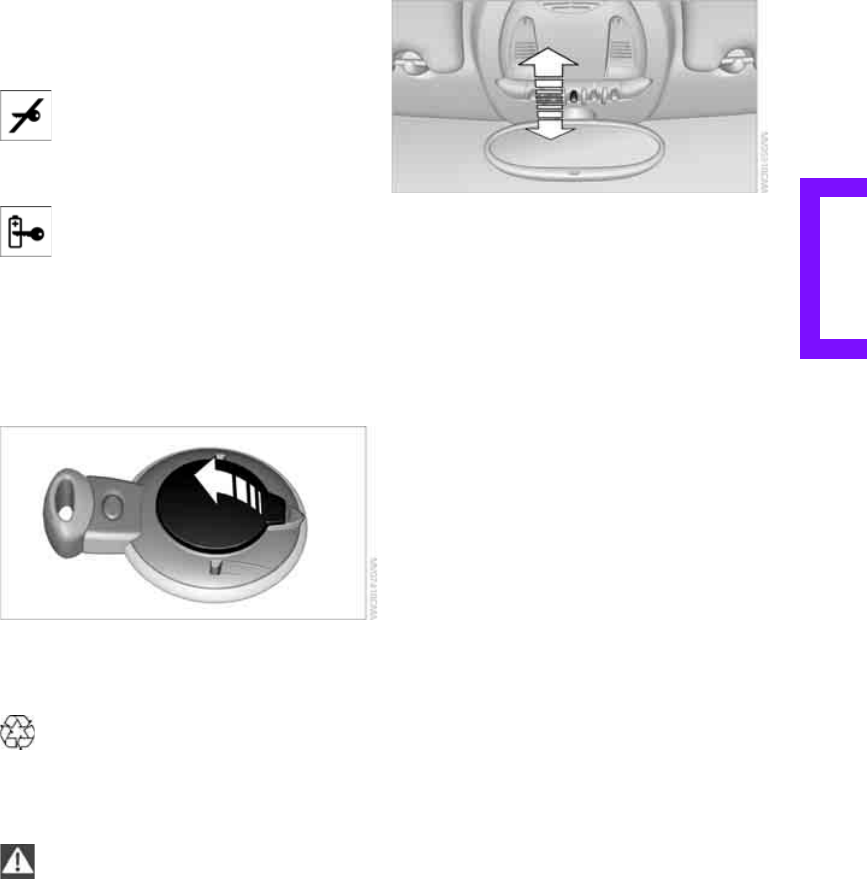

Replacing the battery

The remote control for Comfort Access contains

a battery that will need to be replaced from time

to time.

1. Remove the cover.

2. Insert the new battery with the plus side fac-

ing up.

3. Press the cover on to close.

Take the old battery to a recycling center

or to your MINI dealer.<

Glass sunroof, electric*

To prevent injuries, exercise care when

closing the glass sunroof and keep it in

your field of vision until it is shut.

Take the key with you when you leave the car;

otherwise, children could operate the sunroof

and possibly injure themselves.<

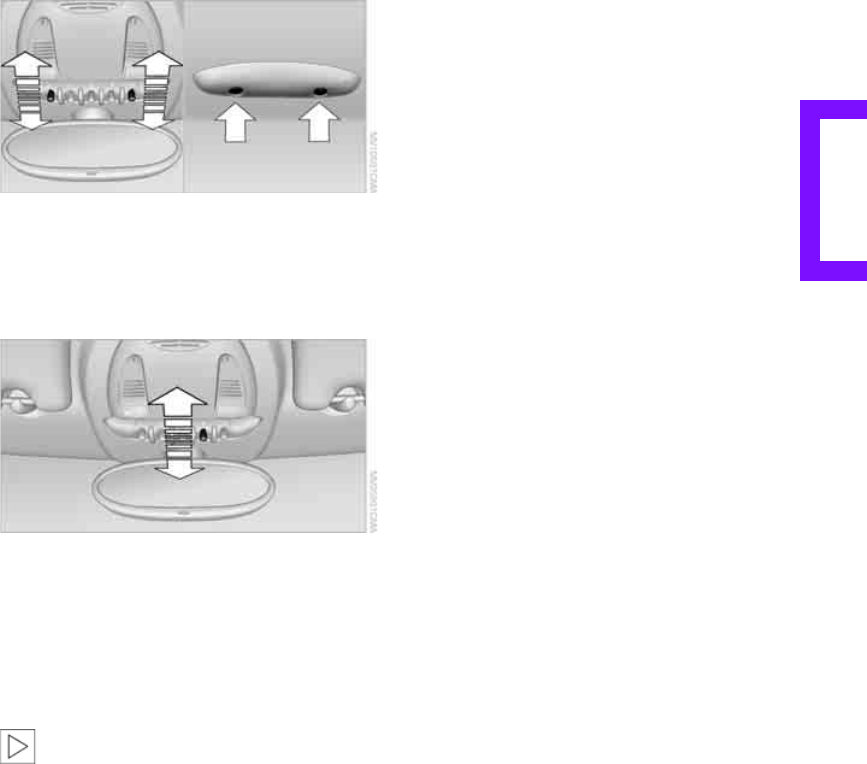

Tilting

>Press the switch backward to the resistance

point and hold it there.

Both glass sunroofs are tilted.

Releasing the switch stops the movement.

>With the ignition switched on, press the

switch backward beyond the resistance

point.

Both closed sunroofs are tilted fully.

Pressing again stops the movement.

Opening, closing

With the ignition switched on and the glass sun-

roof tilted, press the switch backward and hold it

there.

The front glass sunroof opens.

The rear glass sunroof is closed.

Releasing the switch stops the movement.

The glass sunroof can be closed in the same way

by pressing the switch forward.

The front glass sunroof remains in a tilted posi-

tion. The rear glass sunroof is tilted. Pressing on

the switch again closes both sunroofs com-

pletely.

Convenient operation via door lock or Comfort

Access, refer to page 20,22,26.

Roller sun blind

The roller sun blind can be opened and closed

independently of the glass sunroof.

Following interruptions in electrical

power supply

After a power failure, there is a possibility that

the glass sunroof can only be tilted. In this case,

have the system initialized. The manufacturer of

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Opening and closing

your MINI recommends that you have this work

done by your MINI dealer.

Windows

To prevent injuries, exercise care when

closing the windows.

Take the remote control with you when you

leave the car; otherwise, children could operate

the electric windows and possibly injure them-

selves.<

If, after a window is opened and closed

several times in close succession, the win-

dow can only be closed and not opened, the sys-

tem is overheated. Let the system cool for sev-

eral minutes with the ignition switched on or the

engine running.<

Opening, closing

Front window

>Press the switch downward.

The window opens until you release the

switch.

>Tap the switch downward.

As of radio readiness, the windows will open

automatically. Tap the switch again to stop

the opening movement.

The window can be closed in the same way by

pressing the switch up.

Rear window

>Press the switch downward.

The window opens until you release the

switch.

>Tap the switch downward.

As of radio readiness, the windows will open

automatically. Tap the switch again to stop

the opening movement.

The window can be closed in the same way by

pressing the switch up.

After switching off the ignition

When the ignition is switched off, the windows

can still be operated for approx. 1 minute as

long as no door is opened.

Take the key with you when you leave the

car; otherwise, children could operate the

electric windows and possibly injure them-

selves.<

Pinch protection system

If the closing force rises beyond a predefined

threshold during closing, the system will stop

moving the window prior to lowering it again

slightly.

Even though there is the pinch protection

system, always ensure that the window's

travel path is clear; otherwise, the safety system

might fail to detect certain kinds of obstructions,

such as thin objects, and the window would con-

tinue closing.

Do not install any accessories that might inter-

fere with window movement. Otherwise, the

pinch protection system could be impaired.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Closing without pinch protection

If there is an external danger, or if ice on the win-

dows, etc., prevents you from closing the win-

dows normally, the window can be closed man-

ually.

1. Press the switch upward and hold it there.

Pinch protection is limited and the window

reopens slightly if the closing force exceeds

a certain value.

2. Press the switch upward again within

approx. 4 seconds and hold it there. The

window closes without pinch protection.

Safety switch

With the safety switch, you can prevent the rear

windows from being opened or closed via the

switches in the rear passenger area, by children,

for example.

Press the button, arrow.

The LED lights up when this safety feature is acti-

vated.

Always press the safety switch when chil-

dren ride in the rear, otherwise uncon-

trolled closing of the windows could lead to inju-

ries.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Adjustments

Sitting safely

The ideal sitting position can make a vital contri-

bution to relaxed, fatigue-free driving. In con-

junction with the safety belts, the head restraints

and the airbags, the seated position has a major

influence on your safety in the event of an acci-

dent. To ensure that the safety systems operate

with optimal efficiency, we strongly urge you to

observe the instructions contained in the follow-

ing section.

For additional information on transporting chil-

dren safely, refer to page 36.

Airbags

Always maintain an adequate distance

between yourself and the airbags. Always

grip the steering wheel on the rim, with your

hands in the 3 o'clock and 9 o'clock positions, to

minimize the risk of injury to the hands or arms

in the event of the airbag being triggered off.

No one and nothing should come between the

airbags and the seat occupant.

Do not use the cover of the front airbag on the

front passenger side as a storage area. Ensure

that the front passenger is correctly seated, e.g.

that no feet or legs are propped against the

dashboard. Otherwise, leg injury could result if

the front airbag suddenly deployed.

Make sure that passengers keep their heads

away from the side airbag and do not lean

against the cover of the head airbag, otherwise

injuries can occur when the airbags are trig-

gered.<

Even if you follow all the instructions, injuries

resulting from contact with airbags cannot be

fully excluded, depending on the circumstances.

The ignition and inflation noise may provoke a

mild hearing loss in extremely sensitive individ-

uals. This effect is usually only temporary.

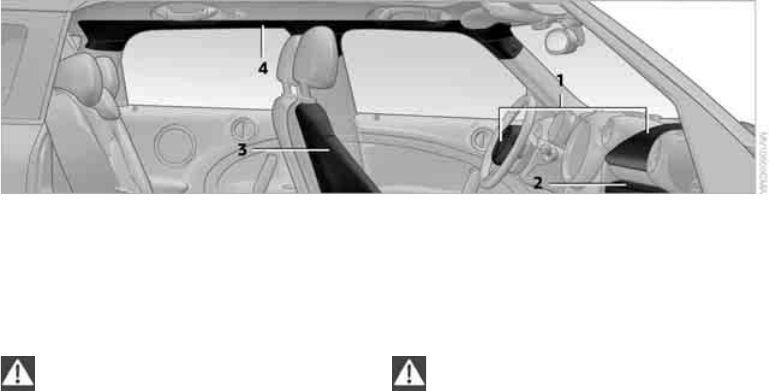

For airbag locations and additional information

on airbags, refer to page 64.

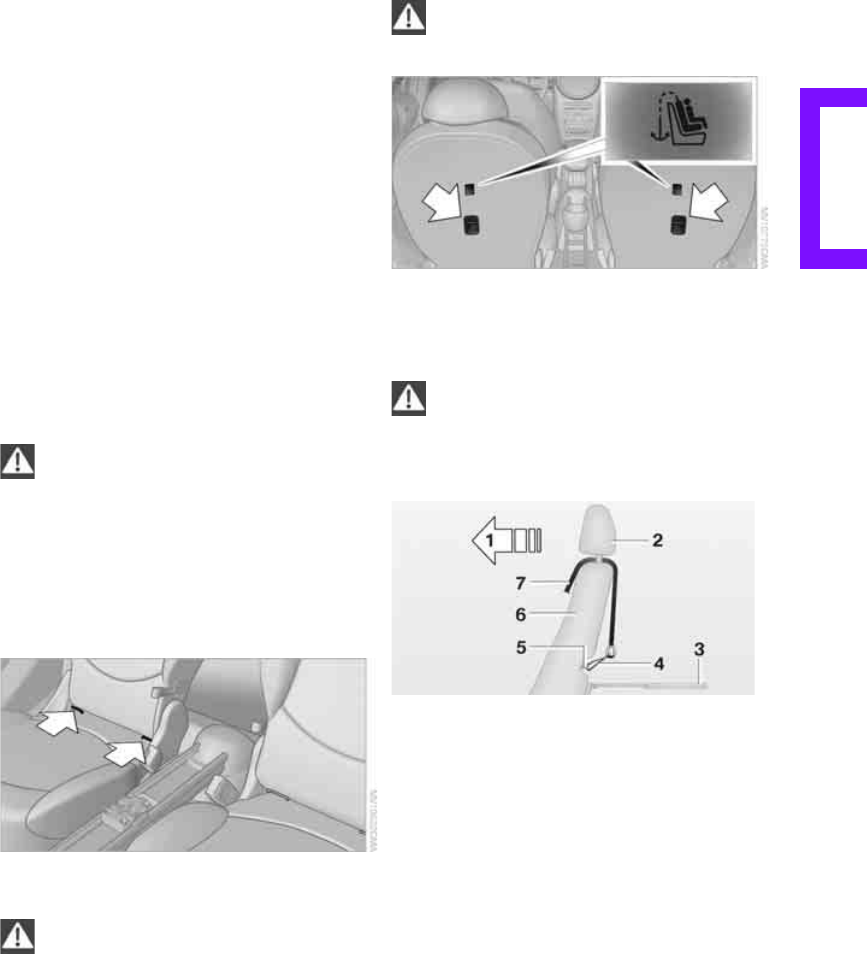

Head restraint

A correctly adjusted head restraint reduces the

risk of neck injury in the event of an accident.

Adjust the head restraint in such a way

that its center is at approx. ear level. Oth-

erwise, there is an increased risk of injury in the

event of an accident.<

Head restraints, refer to page 32.

Safety belt

Before every drive, make sure that all occupants

wear their safety belts. Airbags complement the

safety belt as an additional safety device, but

they do not represent a substitute.

Number of safety belts

Never allow more than one person to

wear a single safety belt. Never allow

infants or small children to ride in a passenger's

lap.

Make sure that the belt in the lap area sits low

across the hips and does not press against the

abdomen. The safety belt must not rest against

the throat, run across sharp edges, pass over

hard or fragile objects or be pinched. Fasten the

safety belt so that it is pulled taut across the lap

and shoulder, fitting the body snugly without

any twists. Otherwise, the belt could slide over

the hips in the event of a frontal collision and

injure the abdomen. Avoid wearing bulky cloth-

ing and regularly pull the belt in the upper-body

area taut; otherwise, its restraining effect could

be impaired.<

Safety belts, refer to page 33.

Seats

Note before adjusting

Never attempt to adjust your seat while

the vehicle is moving. The seat could

respond with unexpected movement, and the

ensuing loss of vehicle control could lead to an

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

accident.

On the front passenger seat as well, do not

incline the backrest too far to the rear while the

vehicle is being driven; otherwise, there is a dan-

ger in the event of an accident of sliding under

the safety belt, eliminating the protection nor-

mally provided by the belt.<

Comply with the instructions on head restraint

height on page 32 and on damaged safety belts

on page 33.

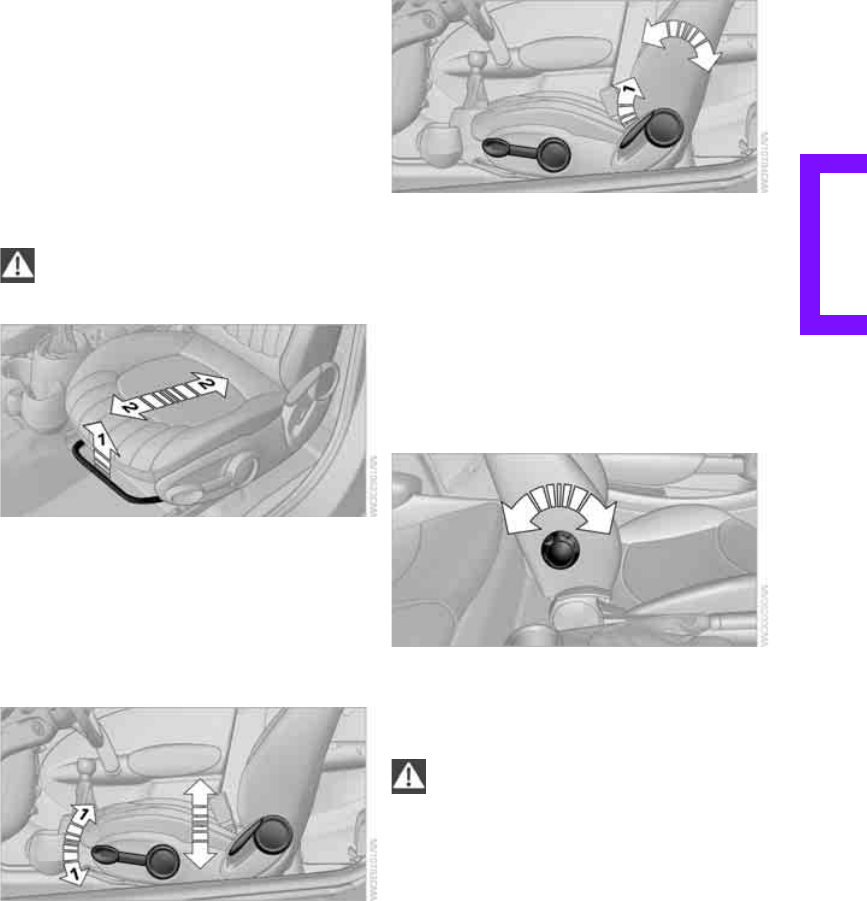

Seat adjustment, front

Observe the instructions on page 30 to

ensure the best possible personal protec-

tion.<

Longitudinal direction

Pull the lever, arrow 1, and slide the seat into the

desired position, arrows 2.

After releasing the lever, move the seat slightly

forward or back so that it engages properly.

Height

Pull up or push down the lever repeatedly,

arrows 1, until the desired height is reached.

Backrest

Pull lever, arrow 1, and apply weight to or

remove weight from the backrest as needed.

Lumbar support*

You can also adjust the contour of the backrest

to obtain additional support in the lumbar

region.

The upper hips and spinal column receive sup-

plementary support to help you maintain a

relaxed, upright sitting position.

Turn the wheel to increase or decrease the cur-

vature.

Seat adjustment, rear

Do not adjust rear seats while the vehicle

is moving; otherwise, passengers could be

injured.

Make sure that the locking devices of the rear

seats engage properly. Otherwise the restrain-

ing effect of the safety belts during an accident

could be reduced.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Adjustments

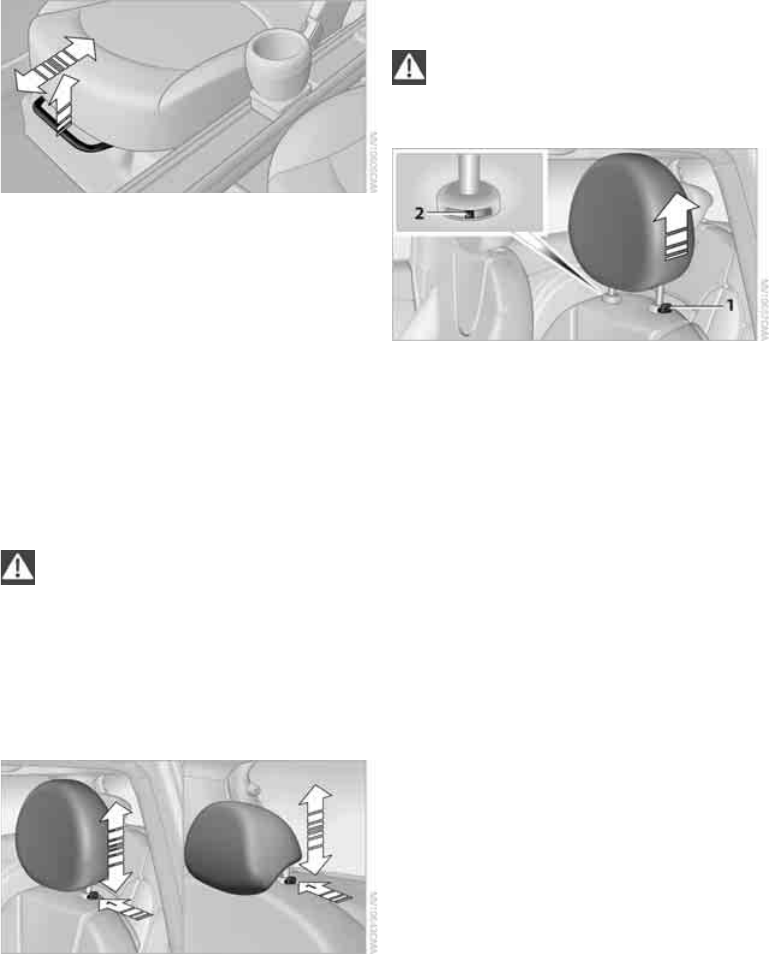

Longitudinal adjustment

1. Pull the lever and slide the seat into the

desired position.

2. Release the lever and move the seat slightly

forward or back so that it engages properly.

Backrest

Adjusting backrest angle, refer to page 88.

Head restraints

Correctly adjusted head restraint

A correctly adjusted head restraint reduces the

risk of neck injury in the event of an accident.

Correctly adjust the head restraints of all

occupied seats; otherwise, there is an

increased risk of injury in an accident.<

Height

Adjust the head restraint so that its center is

approximately at ear level.

Height adjustment

To raise: pull up.

To lower: press the button, arrow 1, and slide

the head restraint down.

Removing

Only remove a head restraint if no one will be

sitting on the seat in question.

Reinstall the head restraint before trans-

porting passengers, as otherwise the head

restraint cannot provide its protective func-

tion.<

Front

1. Pull up as far as it will go.

2. Fold the backrest back slightly.

3. Press button 1 and pull the head restraint

out as far as it will go.

4. Also press button 2 with a suitable tool and

pull the head restraint all the way out.

5. Fold back the backrest.

Rear

1. Pull up as far as it will go.

2. Fold the backrest forward slightly.

3. Press button 1 and pull the head restraint

out completely.

4. Also press button 2 with a suitable tool and

completely remove the head restraint.

5. Fold rear seat backrest back into position.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

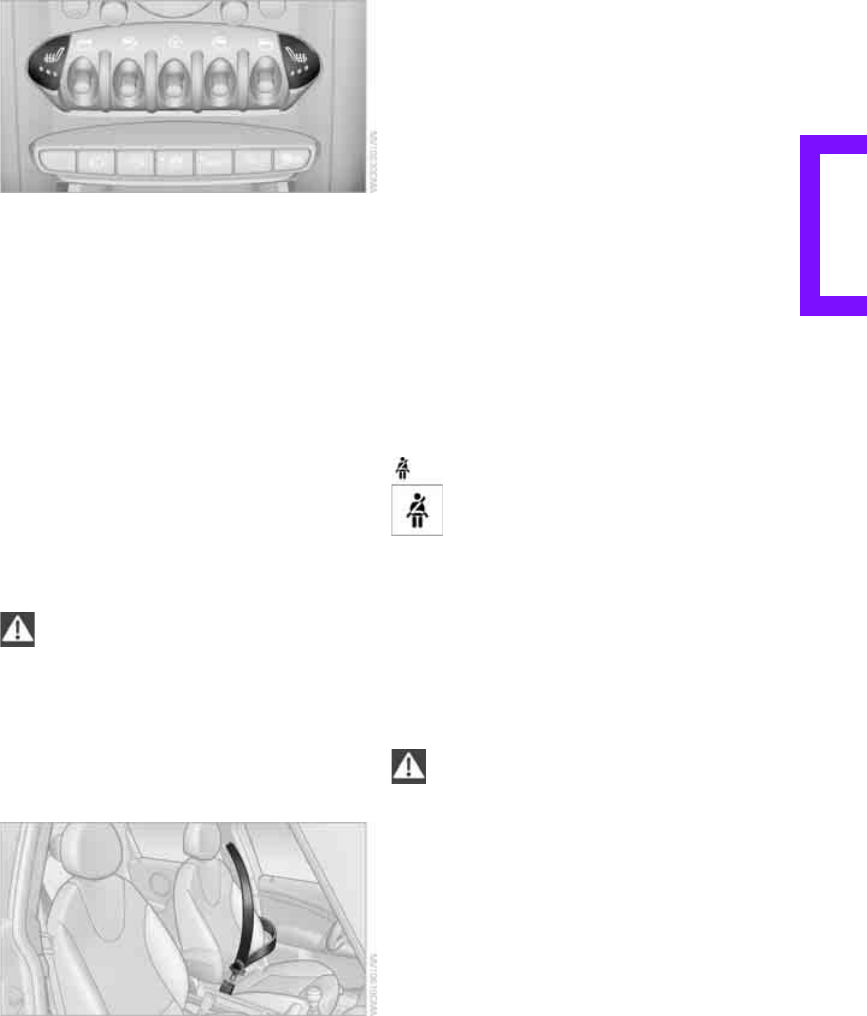

Seat heating*

Switching on

Press once for each temperature level.

Three LEDs indicate the highest temperature.

If you continue driving within the next 15 min-

utes, the seat heating is automatically activated

at the previously set temperature.

The temperature is lowered or the heating is

switched off entirely to reduce the drain on the

battery.

The LEDs stay lit.

Switching off

Press button longer.

Safety belts

Observe the instructions on page 30 to

ensure the best possible personal protec-

tion.<

Before every drive, make sure that all occupants

wear their safety belts. Airbags complement the

safety belt as an additional safety device, but

they do not represent a substitute.

Front and rear seats

Closing

Make sure you hear the lock engage in the belt

buckle.

The upper belt anchor is suitable for adults of

any stature as long as the seat is adjusted prop-

erly, page 30.

Opening

1. Grasp the belt firmly.

2. Press the red button in the buckle.

3. Guide the belt into its reel.

Height adjustment for rear seat belt

tongues

When the outer rear seats are unoccupied, the

seat belt tongues can be slid back to the cargo

area trim panel with a clasp to prevent noise.

Safety belt reminder

Front seats

The indicator lamps come on and an

acoustic signal sounds.Check whether

the safety belt has been fastened cor-

rectly. The 'Fasten safety belts'

reminder is issued when the driver's safety belt

has not been fastened. The 'Fasten safety belts'

reminder is also activated at road speeds above

approx. 5 mph or 8 km/h if the front passenger's

safety belt has not been fastened, if objects are

placed on the front passenger seat, or if driver or

front passenger unfasten their safety belts.

Damage to safety belts

If the safety belts are damaged or stressed

in an accident: have the safety belt system

and its seat-belt tensioners replaced and the

belt anchors checked. Have this work carried out

only by a MINI dealer or by a workshop that has

specially trained personnel working in accor-

dance with the specifications of the MINI manu-

facturer; otherwise, correct operation of these

safety systems is not ensured.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Adjustments

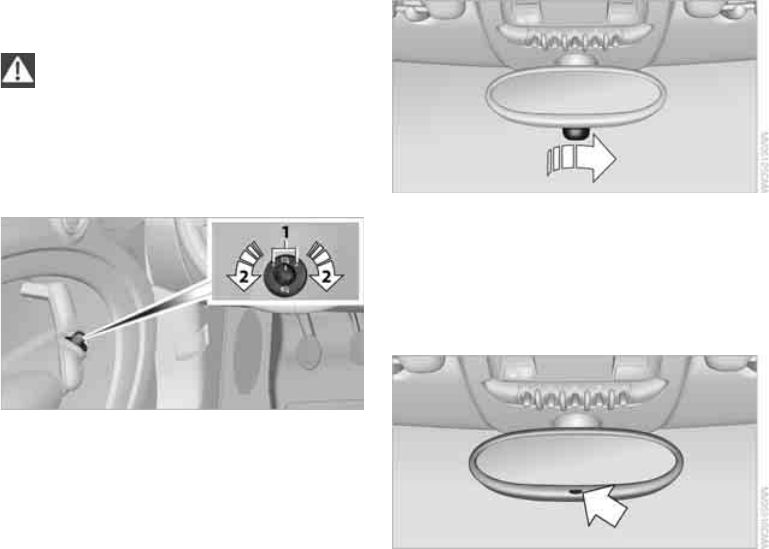

Mirrors

Exterior mirrors

The mirror on the passenger's side is more

curved than the driver's mirror. The

objects seen in the mirror are closer than they

appear. Do not gauge your distance from traffic

behind you on the basis of what you see in the

mirror; otherwise, there is an increased risk of an

accident.<

1Adjusting the left or right exterior mirror

2Folding mirrors in and out*

Manual adjustment

The mirrors can also be adjusted manually: press

the edge of the glass.

Folding mirrors in and out*

Turn the knob beyond the pressure point in

direction 2. The mirrors can be folded in at road

speeds up to approx. 20 mph/30 km/h.

This can be beneficial in narrow streets, for

example, or for moving mirrors that were folded

in by hand back out into their correct positions.

Automatic heating*

At outside temperatures below a certain limit,

both exterior mirrors are automatically heated

while the engine is running or the ignition

switched on.

Interior rearview mirror

To reduce glare from vehicles behind you when

you are driving at night:

Turn the knob.

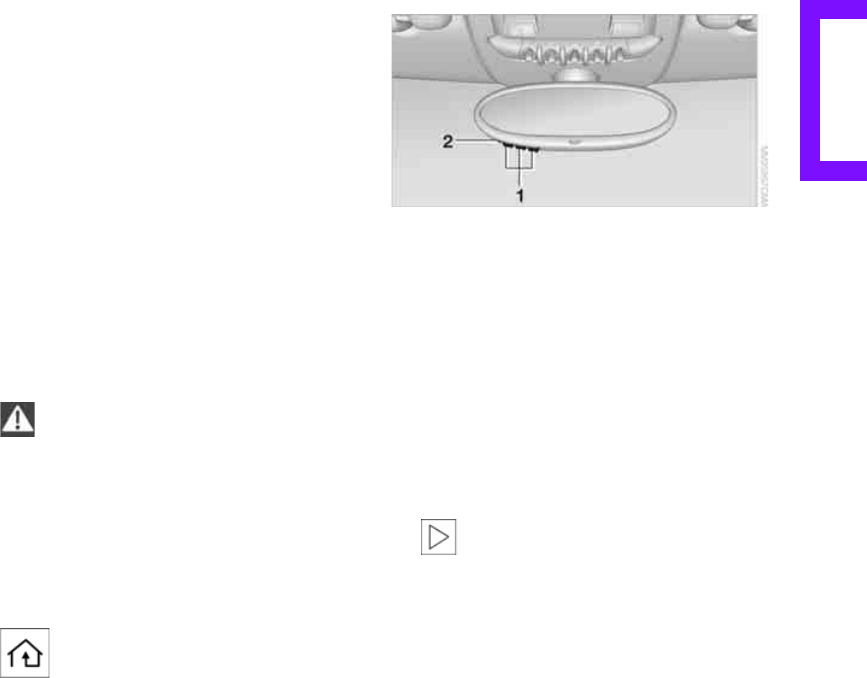

Interior and exterior mirrors,

automatic dimming feature*

It is controlled by two photosensors:

>inside the interior rearview mirror, arrow.

>on the back of the mirror.

For proper function:

>Keep the photosensors clean.

>Do not cover the area between the interior

rearview mirror and the windshield.

>Do not place stickers or decals on the wind-

shield in front of the mirror.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Steering wheel

Adjustments

Do not adjust the steering wheel position

while the car is in motion; otherwise, there

is a risk of accident due to an unexpected move-

ment.<

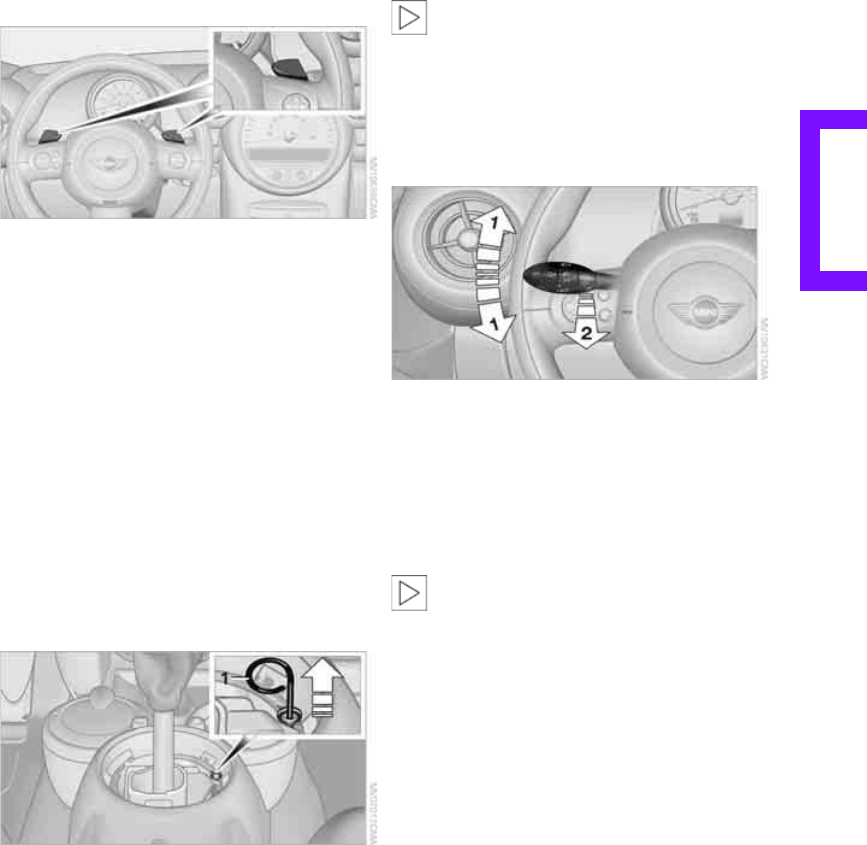

1. Fold the lever down.

2. Move the steering wheel to the preferred

distance and angle to suit your seated posi-

tion.

3. Swing the lever back up.

Do not use force to swing the lever

back up; otherwise, the mechanism

will be damaged.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Transporting children safely

The right place for

children

Do not leave children unattended in the

vehicle; otherwise, they could endanger

themselves and/or other persons by opening the

doors, for example.<

Children should always sit in the rear

Accident research has shown that the safest

place for children is on the rear seat.

Only transport children under the age of

13 or smaller than 5 ft/150 cm in the rear

in a child restraint system suitable for their age,

weight and size. Otherwise, there is an

increased risk of injury in the event of an acci-

dent.<

Children 13 years of age or older must be buck-

led in with a safety belt as soon as there no

longer is any child restraint system that is appro-

priate for their age, size and weight.

Exception for front passenger seat

Front passenger airbags

Should it be necessary to use a child

restraint system on the front passenger

seat, the front and side airbags must be deacti-

vated. Otherwise, there is an increased risk of

injury to the child if the airbags deploy, even if

the child is seated in a child restraint system.<

For more information on automatic deactivation

of the front passenger airbags, refer to page 65.

Child restraint systems,

installation

Before installing a child restraint system on the

rear seats, move the seat as far back as possible.

After the child restraint system has been

installed on the respective rear seat, move the

backrest forward so that the it rests lightly

against the child restraint system, refer to Rear

seat backrests on page 88.

Observe the child restraint system manu-

facturer's instructions when selecting,

installing and using child restraint systems. Oth-

erwise, the protective effect may be dimin-

ished.<

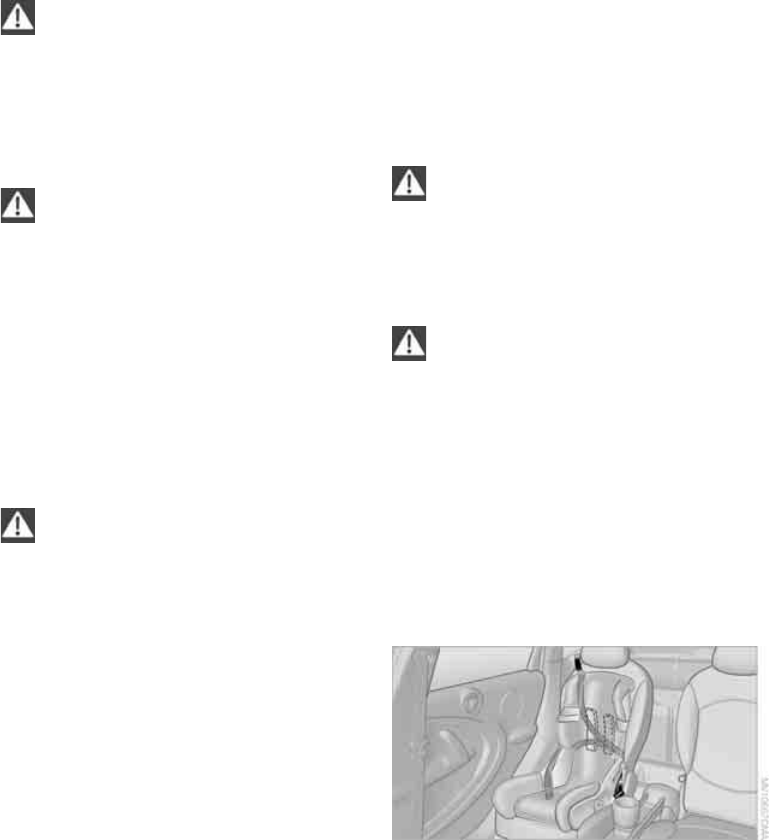

On the front passenger seat

After installing a child restraint system on

the front passenger seat, make sure that

the front, side, and knee airbags for the front

passenger are deactivated; otherwise, there is

an increased risk of injury if the airbags deploy.<

Seat position

Before installing a child restraint system, move

the front passenger seat as far back and up* as

possible to obtain the best possible position for

the belt. Do not change the seat position after

this.

Child seat security

All rear safety belts and the safety belt for the

front passenger can be prevented from being

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

pulled out in order to secure child restraint sys-

tems.

To lock the safety belt

1. Secure the child restraint system with the

belt.

2. Pull the belt strap all the way out.

3. Allow the belt strap to retract and pull it taut

against the child restraint system.

The safety belt is locked.

To unlock the safety belt

1. Open the belt buckle.

2. Remove the child restraint system.

3. Allow the safety belt strap to retract all the

way.

LATCH child restraint

fixing system

LATCH: Lower Anchors and Tethers for CHildren.

To install and use the LATCH child restraint

system, follow the operating and safety

instructions provided by the manufacturer of the

system; otherwise, the protective function of the

seat may be compromised.<

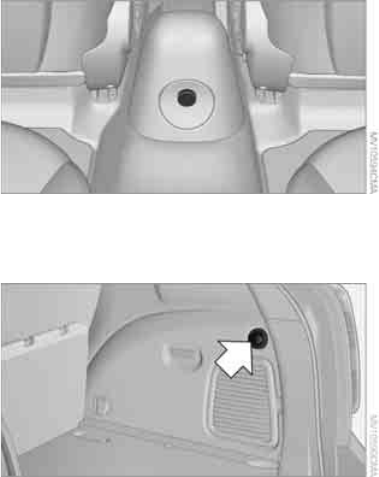

Anchor points for LATCH anchors

Before installing the child seat, pull the belt out

of the area for the child restraint fixing system.

The mounts for the lower LATCH anchors are

located at the points indicated by the arrows.

Make sure that both lower LATCH anchors

are properly engaged and that the child

restraint system rests firmly against the seat

backrest; otherwise, the protective function of

the seat may be compromised.<

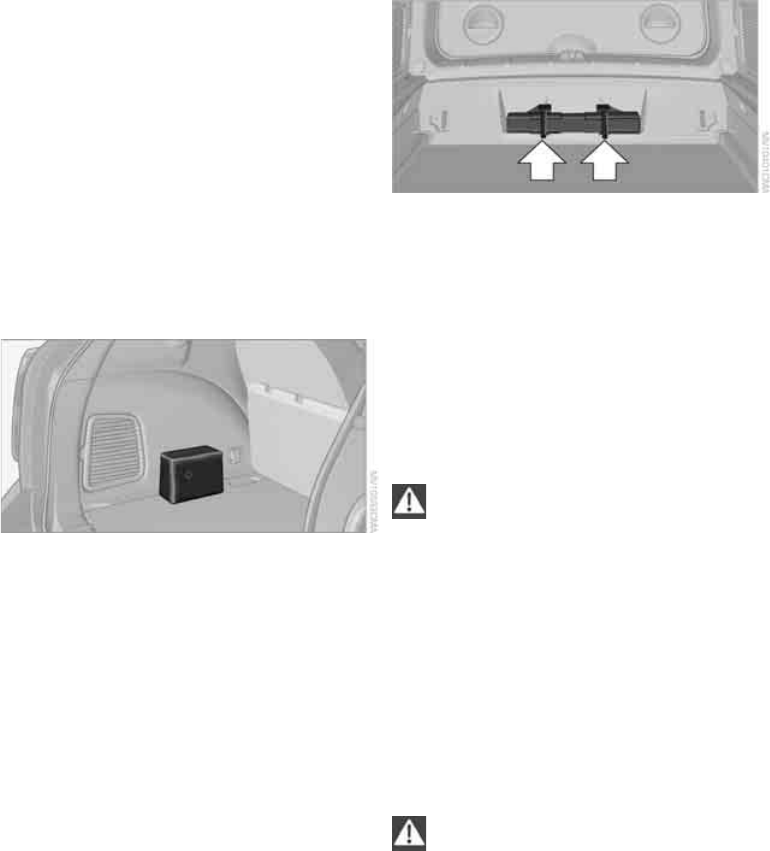

Child restraint system with tether strap

Use the tether strap anchors to secure

child restraint systems only; otherwise, the

anchors could be damaged.<

There are two additional anchors for child

restraint systems with tether straps, arrows.

Placement of the tether strap

Make sure the upper retaining strap does

not run over sharp edges and is not

twisted as it passes to the top anchor. Other-

wise, the strap will not properly secure the child

restraint system in the event of an accident.<

1Direction of travel

2Head restraint

3Rear cargo well

4Tether strap hook

5Anchor

6Seat backrest

7Tether strap of the child restraint system

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Transporting children safely

Attaching upper retaining strap to the

attachment point

1. Slide the head restraint upward.

2. Guide the tether strap between the head

restraint holders.

3. Attach the tether strap to the anchor using

the hook.

4. Push the head restraint into its lowermost

position.

5. Pull the retaining strap tight.

Securing doors and

windows

Rear doors

Slide down the safety lever on the rear doors.

The door can now be opened from the outside

only.

Safety switch for power windows

The rear power windows are blocked and can-

not be operated from the rear. Press the safety

switch, refer to page 29.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Driving

Ignition lock

Inserting the key into the ignition lock

Insert the key all the way into the ignition lock.

Radio readiness

Individual electrical consumers can operate.

Removing the key from the ignition lock

Press in the key briefly. It is ejected slightly.

At the same time:

>The ignition is switched off if it was on

beforehand.

Automatic transmission

The key can only be removed if the selector lever

is in position P: interlock.

Start/Stop button

Press the Start/Stop button to switch radio readi-

ness or the ignition on and off. Do not depress

the brake or clutch while doing so.

If the Start/Stop button is pressed while

the clutch is depressed in the manual

transmission or the brake pedal is depressed in

the automatic transmission, the engine starts.<

Radio readiness

Individual electrical consumers can operate. The

time and outside temperature are displayed in

the tachometer.

Radio readiness is switched off automatically:

>When the key is removed from the ignition

lock

>When using Comfort Access* by pushing the

button on the door handle or the

button on the remote control, refer to

Locking on page 26

>After a certain has elapsed

Ignition on

Most indicator and warning lamps in indicator

area 1, page 13, light up for varying lengths of

time.

When the engine is off, switch off the igni-

tion and any unnecessary electrical con-

sumers in order to preserve the battery.<

Radio readiness and ignition off

All indicator and warning lamps in the displays

go out.

The ignition switches off automatically if the

driver's door is opened. Pressing the Start/Stop

button again switches the ignition back on.

The ignition is not switched off in situations such

as the following:

>The clutch or brake is depressed

>The low beams are switched on

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Driving

Starting the engine

Do not allow the engine to run in enclosed

areas; otherwise, inhalation of the noxious

exhaust gases can lead to loss of consciousness

and death. Exhaust gases contain carbon mon-

oxide, an odorless and colorless, but highly toxic

gas. Never leave an unattended vehicle with the

engine running; otherwise, such a vehicle repre-

sents a potential safety hazard.

Before leaving the car while the engine is run-

ning, place the transmission in neutral or move

the selector lever to position P and forcefully

apply the parking brake to prevent the car from

moving.<

Avoid frequent starting in quick succes-

sion or repeated start attempts in which

the engine does not start. Otherwise, the fuel is

not burned or inadequately burned and there is

a danger of overheating and damaging the cat-

alytic converter.<

Do not let the engine warm up with the vehicle

at a standstill. Move off immediately at a moder-

ate engine speed.

When starting the engine, do not depress the

accelerator pedal.

Manual transmission

Key in ignition lock or inside vehicle with Com-

fort Access, refer to page 25.

1. Depress the brake.

2. Depress the clutch.

3. Press the Start/Stop button.

Automatic transmission*

Key in ignition lock or inside vehicle with Com-

fort Access, refer to page 25.

1. Depress the brake.

2. Shift the selector lever into position P or N.

3. Press the Start/Stop button.

The starter operates automatically for a certain

time, and stops automatically as soon as the

engine has started.

Switching off the engine

Always take the key with you when you

leave the vehicle.

When parking, apply the parking brake force-

fully; otherwise, the vehicle could begin to roll.<

Manual transmission

1. With the car at a standstill, press the Start/

Stop button.

2. Shift into first gear or reverse.

3. Forcefully apply the parking brake.

Automatic transmission*

1. With the car at a stop, move the selector

lever to position P.

2. Press the Start/Stop button.

3. Forcefully apply the parking brake.

Before driving into a car wash

By following these steps, the vehicle is able to

roll:

1. Place the remote control, even with Comfort

Access, in the ignition lock.

2. Depress the brake.

3. Move the selector lever to position N.

4. Switch off the engine.

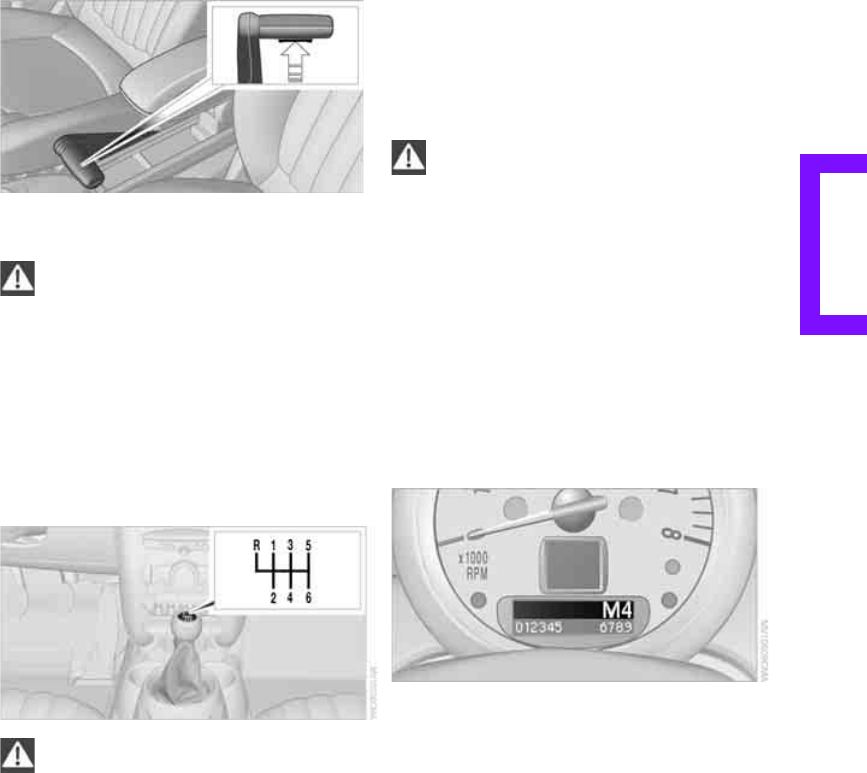

Parking brake

The parking brake is primarily intended to pre-

vent the vehicle from rolling while parked; it

brakes the rear wheels.

Applying

The lever locks in position automatically.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Releasing

Pull upward slightly, press the button, arrow,

and guide the lever down.

In exceptional cases, if the parking brake

has to be used to slow or stop the car, do

not pull the lever up too hard. In doing so, con-

tinuously press the button of the parking brake

lever.

Otherwise, excessive force could lead to over-

braking and loss of traction, i.e. fishtailing, at the

rear axle.<

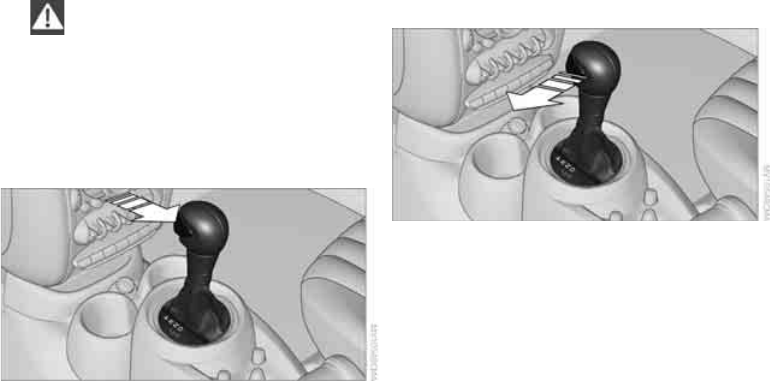

Manual transmission

When shifting into 5th or 6th gear, press

the gearshift lever to the right. Otherwise,

the engine could be damaged if you inadvert-

ently shift into 3rd or 4th gear.<

Reverse gear

Select this only when the vehicle is stationary.

When the gearshift lever is pressed to the left, a

slight resistance has to be overcome.

Automatic transmission*

with Steptronic

In addition to the fully automatic mode, you can

shift gears manually using Steptronic, page 42.

Parking the vehicle

To prevent the vehicle from rolling, always

select position P and apply the parking

brake before leaving the vehicle with the engine

running.<

Removing the key

To remove the key from the ignition lock, first

move the selector lever into position P and then

switch off the engine: interlock. Remove the key

from the ignition lock, refer to page 39.

Selector lever positions

P R N D M/S + –

Displays in the tachometer

P R N D DS M1 to M6

The selector lever position is displayed, or the

current gear in the manual mode.

Changing selector lever positions

>The selector lever can only be moved out of

position P when the ignition is switched on

or the engine is running.

>Before moving the lever away from P or N

with the vehicle stationary, first depress the

brake; otherwise, the selector lever will

refuse to move: shiftlock.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Driving

To prevent the vehicle from creeping

after you select a driving position,

depress the brake until you are ready to

start.<

A lock prevents accidental shifting into selector

lever positions R and P.

Overriding the selector lever lock

Press the button on the front of the selector

lever, arrow.

P Park

Select this only when the vehicle is stationary.

The transmission locks to prevent the drive

wheels from turning.

R Reverse

Select this only when the vehicle is stationary.

N Neutral

Select this when you are in a car wash, for exam-

ple. The vehicle can roll.

D Drive, automatic position

Position for normal vehicle operation. All for-

ward gears are selected automatically.

Under normal operating conditions, the fuel

consumption is lowest when driving in

position D.

Kickdown

Kickdown enables you to achieve maximum

performance.

Depress the accelerator pedal beyond the full-

throttle resistance point.

Sport program and manual mode M/S

Move the selector lever from position D to the

left into the M/S shifting slot:

The Sport program is activated and DS is dis-

played. This position is recommended for a per-

formance-oriented driving style.

To deactivate the Sport program or manual

mode M/S, move the selector lever to the right

into position D.

Shifting with the selector lever

Push the selector lever forward or pull it back to

activate manual operation. Steptronic shifts the

gear.

>Pull the selector lever in the + direction.

Transmission shifts up.

>Push the selector lever in the – direction.

Transmission shifts down.

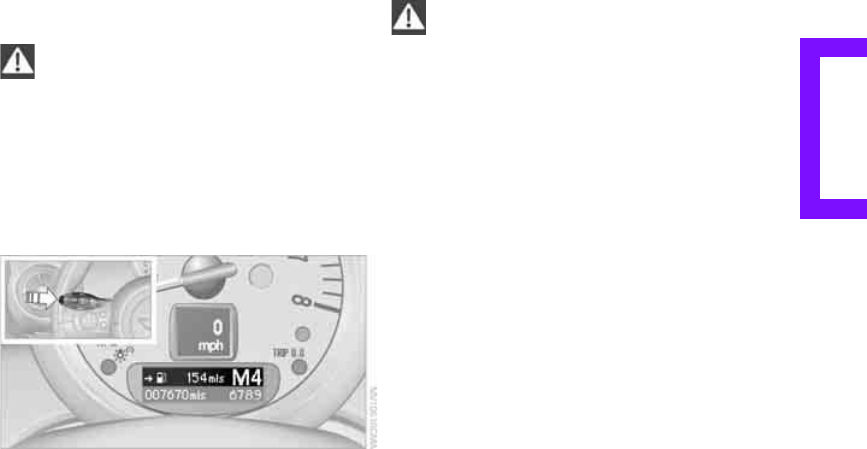

The selected gear is displayed in the tachome-

ter, e.g. M1.

To use the automatic mode again, move the

selector lever to the right into position D.

Upshifts and downshifts are executed only when

they will result in a plausible combination of

engine and vehicle speed; thus, for example, a

downshift that would cause the engine to over-

rev will not be executed by the system. The

selected gear is displayed briefly, followed by

the current gear.

Shifting on the steering wheel*

With the selector lever in position D, automatic

drive, you can shift gears using the shift paddles

on the steering wheel. The transmission auto-

matically switches to manual mode.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

If you do not shift gears with the shift paddles or

accelerate for a certain amount of time, the

transmission automatically returns to D, auto-

matic drive.

>Pull one of the shift paddles.

Transmission shifts up.

>Push one of the shift paddles.

Transmission shifts down.

M1 through M6 are displayed in the tachometer.

Manually releasing the selector lever

lock

Should the selector lever refuse to move out of

position P even though the ignition is switched

on, the brake is depressed and the button on the

selector lever is pressed, the selector lever lock

can be overridden:

1. Unclip the sleeve of the selector lever.

2. Pull the sleeve up over the selector lever

until the sleeve is inside out. Disconnect the

cable connector if necessary.

3. Insert extractor hook 1 into the loop on the

passenger's side.

4. Pull the loop up.

5. Move the selector lever into the desired

position by pressing the button on the front

of the selector lever.

Before manually unlocking the selector

lever lock, firmly set the parking brake to

prevent the vehicle from rolling away.<

Turn signals/

headlamp flasher

1Turn signal

2Headlamp flasher

Using turn signals

Press the lever beyond the resistance point.

To turn off manually, press the lever to the resis-

tance point.

Unusually rapid flashing of the indicator

lamp indicates that an indicator bulb has

failed.<

Indicating a turn briefly

Press the lever as far as the resistance point for

as long as you wish to indicate a turn.

Triple turn signal activation

Press the lever as far as the resistance point.

You can set whether the turn signal flashes once

or three times.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Driving

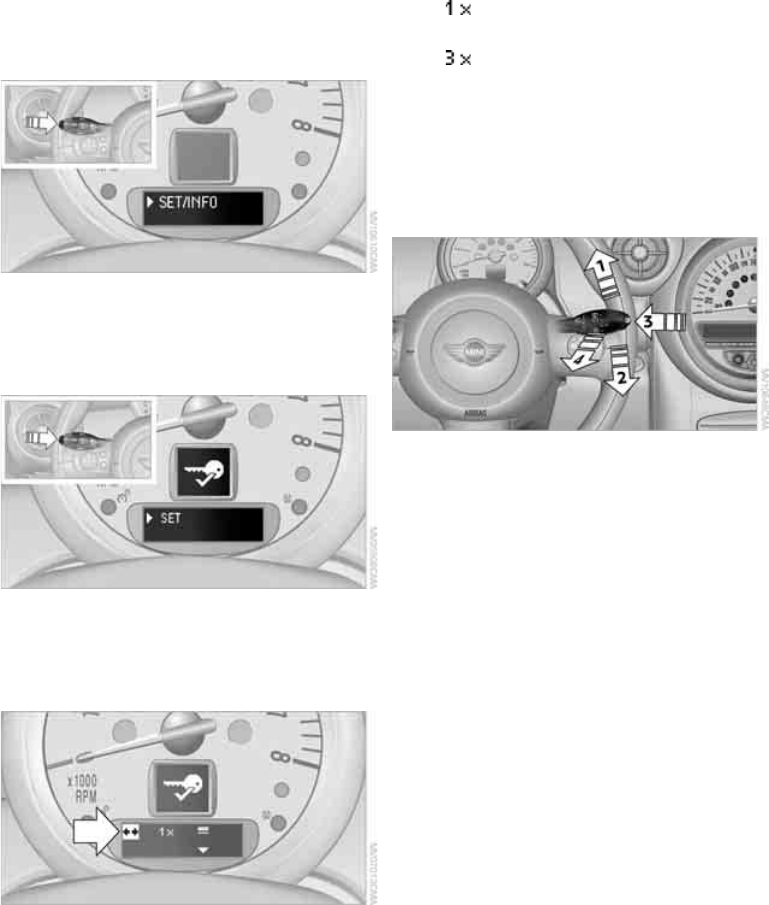

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button repeatedly until the

display shows the illustrated symbol, arrow.

7. Press and hold the button until the display

changes.

8. Briefly press the button to select:

Brief indication of a turn.

Triple turn signal.

9. Press and hold the button until the display

changes. The setting is stored.

Wiper system

1Switching on wipers

2Switching off wipers or brief wipe

3Activating/deactivating intermittent wipe or

rain sensor*

4Cleaning windshield and headlamps*

Switching on wipers

Press the lever upward, arrow 1.

The lever automatically returns to its initial posi-

tion when released.

Normal wiper speed

Press once.

The system switches to intermittent operation

when the vehicle is stationary.

Fast wiper speed

Press twice or press beyond the resistance point.

The system switches to normal speed when the

vehicle is stationary.

Intermittent wipe or rain sensor*

If the car is not equipped with a rain sensor, the

intermittent-wipe time is preset.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

If the car is equipped with a rain sensor, the time

between wipes is controlled automatically and

depends on the intensity of the rainfall. The rain

sensor is mounted on the windshield, directly in

front of the interior rearview mirror.

Activating intermittent wipe or rain

sensor

Press button, arrow 3.

This symbol is displayed in the tachom-

eter.

Deactivate the rain sensor before entering

an automatic car wash. Failure to do so

could result in damage caused by undesired

wiper activation.<

Adjusting the sensitivity of the rain

sensor

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Press the button to select the desired sensi-

tivity.

7. Wait, or press and hold the button until the

display changes.

The settings are stored.

Deactivating intermittent wipe or rain

sensor

Press the button again, arrow 3.

Brief wipe

Press the lever downward once, arrow 2.

Cleaning windshield and headlamps*

Pull the lever, arrow 4.

Washer fluid is sprayed onto the windshield and

the wipers are operated briefly.

When the vehicle lighting system is switched on,

the headlamps are cleaned at regular and

appropriate intervals.

In cars equipped with an alarm system, the

headlamps cannot be cleaned when the hood is

open.

Do not use the washers when the washer

fluid reservoir is empty; otherwise, you will

damage the washer pump.

Only use the washers if the hood has been com-

pletely closed; otherwise, the headlamp washer

system* may be damaged. Do not use the

washers if there is any danger that the fluid will

freeze on the windshield. If you do, your vision

could be obscured. For this reason, use anti-

freeze.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Driving

Window washer nozzles

The window washer nozzles are heated auto-

matically* while the engine is running or the

ignition is switched on.

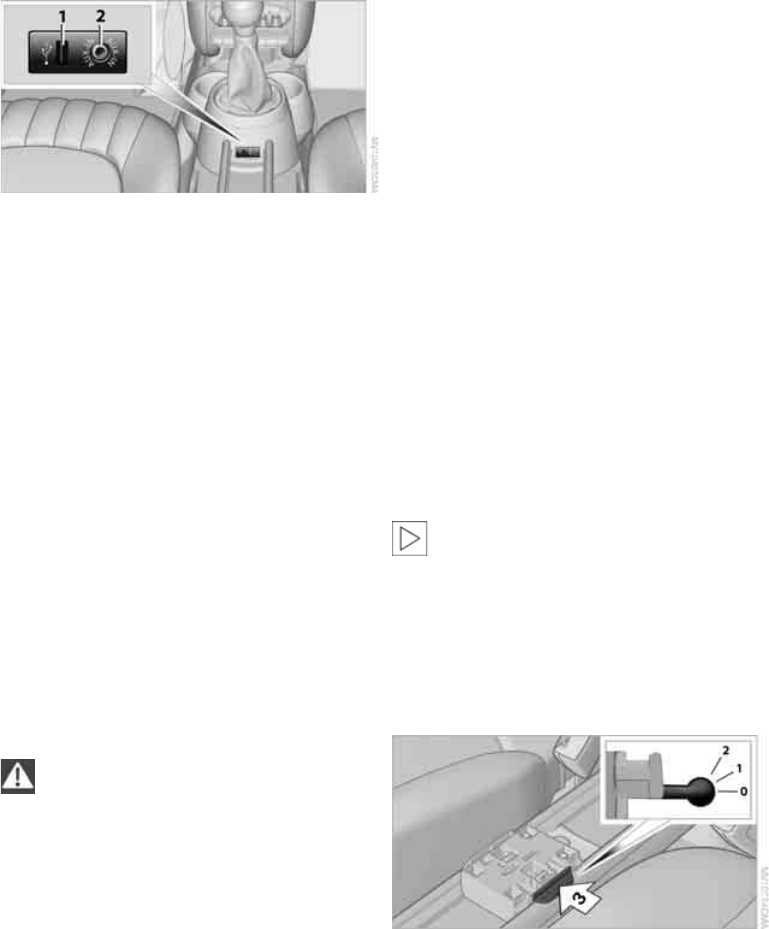

Rear window wiper

0Rear wipers parked

1To switch on intermittent wipe :

Turn the cap to level 1.

Operation is continuous in reverse gear.

The rear wiper does not move if the cap is in

interval stage 1 before the ignition is switched

on.

Cleaning the rear window

2To clean the rear window during intermit-

tent wipe :

Turn the cap further to level 2 and hold it

there.

3To clean the rear window when wipers are

parked :

Turn the cap to level 3 and hold it there.

Do not use the washers when the washer

fluid reservoir is empty; otherwise, you will

damage the washer pump.<

Washer fluid

Washer fluid is flammable. Keep it away

from ignition sources, only store it in the

closed, original container, and keep out of reach

of children; otherwise, there is a danger of

injury. Comply with the instructions on the con-

tainer.<

Washer fluid reservoir

Only refill washer fluid that contains anti-

freeze when the engine is cool, to avoid

contact with hot engine parts. Otherwise, fluid

spills constitute a fire hazard and a risk to per-

sonal safety.<

Fill with water and, if required, with a washer

antifreeze, according to manufacturer's recom-

mendations.

Mix the water and antifreeze before filling

the washer fluid reservoir to make sure

the correct concentration is maintained.<

Capacity

Approx. 4.2USquarts/4liters.

Cruise control*

The concept

Cruise control is available at vehicle speeds of at

least approx. 20 mph or 30 km/h. The car then

stores and maintains the speed that you specify

using the button on the steering wheel.

Do not use cruise control when driving at

constant speed is prevented by adverse

conditions, e.g. winding roads, dense traffic or

poor road conditions due to, e.g., snow, rain, ice

or loose surfaces. Otherwise, you could lose con-

trol of the vehicle and cause an accident as a

result.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Activating

1Resuming cruise control

2Activating/deactivating cruise control

3Maintaining, storing and increasing speed

4Maintaining, storing and decreasing speed

Indicator lamp in the speedometer lights up. The

cruise control system is ready and can be acti-

vated.

Activating/deactivating cruise control

Press button 2.

In addition, the system is automatically deacti-

vated:

>When the brakes are applied

>When the clutch is depressed

>When the automatic transmission is in selec-

tion lever position N

>When the driving stability control system is

active

Cruise control is not deactivated by depressing

the accelerator pedal. Once the accelerator

pedal is released, the stored speed is achieved

again and maintained.

The stored speed is cleared when the ignition is

switched off.

Maintaining current speed

Press button 3.

The system maintains and stores the current

vehicle speed.

If, on a downhill grade, the engine braking effect

is not sufficient, the controlled speed may be

exceeded. On uphill grades vehicle speed may

drop if the engine output is insufficient.

Increasing speed

Press button 3 repeatedly until the desired

speed is reached. Every time you press the but-

ton, the speed increases by approx. 1 mph or

2km/h.

Accelerating using the button

Press and hold button 3.

The vehicle accelerates without pressure on the

accelerator pedal. After the button is released,

the driving speed is maintained and stored.

Decreasing speed

Press button 4 repeatedly until the desired

speed is reached.

The functions here are the same as for increas-

ing the speed or accelerating, except that the

speed will be decreased.

Resuming a speed stored beforehand

Press button 1.

The last speed stored is achieved again and

maintained.

The stored speed is cleared when the ignition is

switched off.

Display in tachometer*

Selected speed is displayed briefly.

If --- mph or --- km/h is displayed briefly in

the tachometer, the conditions necessary

for operation may not be fulfilled.<

Malfunction

The warning lamp in the tachometer

lights up if the system fails.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Controls overview

Tachometer

Never operate the engine with the needle in the

red overspeed zone of the gauge. In this range,

the fuel supply is interrupted to protect the

engine.

Displays in tachometer

1Current vehicle speed

2Odometer, trip odometer, and outside tem-

perature display

3Resetting the trip odometer

Outside temperature warning

When the displayed temperature sinks to

approx. +377/+36, a signal sounds and a

warning lamp lights up. There is an increased

risk of black ice.

Even at temperatures above +377/+36

ice can form. Therefore, drive carefully,

e.g. on bridges and sections of road in the

shade; otherwise, there is an increased accident

risk.<

Odometer and trip odometer

Resetting the trip odometer

With the ignition switched on, press knob 3 in

the tachometer.

Units of measure

Select the respective units of measure, miles or

km for the odometer as well as 7 or 6 for the

outside temperature, page 51.

Coolant temperature

A warning lamp will come on if the coolant, and

therefore the engine, becomes too hot.

Check coolant level, refer to page 123.

Fuel gauge

Fuel tank capacity

Approx. 12.4 US gallons/47 liters.

You will find information on refueling on

page 112.

If the tilt of the vehicle varies for a longer period,

when you are driving in mountainous areas, for

example, the indicator may fluctuate slightly.

The arrow next to the gas pump symbol of the

fuel gauge points toward the side of the vehicle

with the fuel filler flap.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Reserve

Once the fuel level has fallen to the reserve zone

of approx. 2.1 gallons/8 liters, the remaining

LEDs change from orange to red, arrow. The

tachometer displays the remaining cruising

range. An indicator lamp lights up when the

remaining range is less than approx. 30 miles/

50 km.

If the range displayed is less than

30 miles/50 km, be sure to refuel; other-

wise, engine functions are not guaranteed and

damage could occur.<

Computer*

Displays in the tachometer

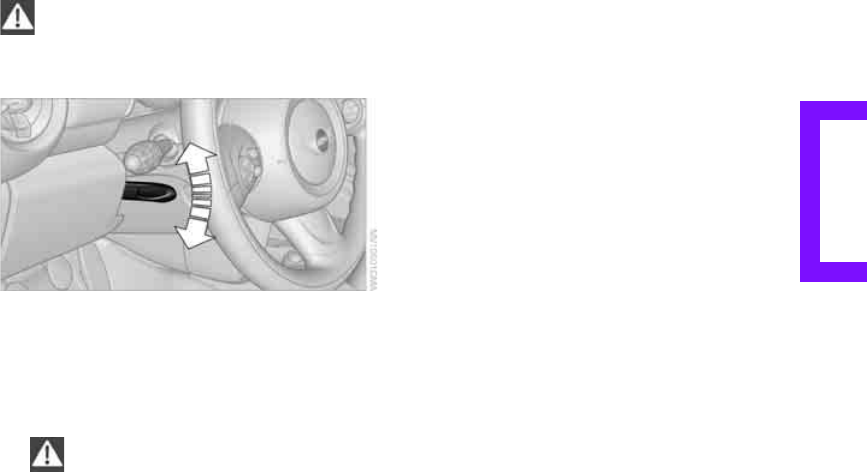

Press the button in the turn signal lever repeat-

edly to call up various items of information.

The following items of information are displayed

in the order listed:

>Cruising range

>Average fuel consumption

>Current fuel consumption

>Average speed

To set the corresponding units of measure, refer

to Formats and units of measure on page 51.

Cruising range

Displays the estimated cruising range available

with the remaining fuel. The range is calculated

on the basis of the way the car has been driven

over the last 18 miles/30 km and the amount of

fuel currently in the tank.

If the range displayed is less than

30 miles/50 km, be sure to refuel; other-

wise, engine functions are not guaranteed and

damage could occur.<

Average fuel consumption

Calculated for the time the engine has been run-

ning.

To reset average fuel consumption: press the

button in the turn signal lever for approx.

2seconds.

Current fuel consumption

Displays the current fuel consumption to allow

you to see whether your current driving style is

conducive to fuel economy with minimum

exhaust emissions.

Average speed

Periods with the vehicle parked and the engine

switched off are not included in the calculations

of average speed.

To reset average speed: press the button in the

turn signal lever for approx. 2 seconds.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Controls overview

Settings and information

Operating principle

Certain settings and information are only avail-

able when the ignition is switched on, the vehi-

cle is at a standstill and the doors are closed.

1Button for:

>Selecting display

>Setting values

>Confirming selected display or set values

>Calling up computer information 49

Exiting displays

1. Briefly press the button in the turn signal

lever repeatedly until "HOME" is displayed.

2. Press the button for a longer period.

Symbol Function

Adjusting rain

sensor*45

Calling up Check

Control 54

Displaying vehicle

check 55

Initializing the Flat Tire

Monitor 59

Resetting the Tire Pres-

sure Monitor 61

Setting formats and units

of measure, resetting to

factory settings 51

Adjusting settings

>Confirmation sig-

nals when locking

and unlocking the

vehicle 20

>Response during

unlocking

procedure 19

>Automatic

locking 22

>Pathway

lighting 67

>Daytime running

lights 68

>Triple turn signal

activation 43

Exiting the menu

Symbol Function

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

The outside temperature is once again dis-

played.

Displays are also exited if no entries are made

for approx. 8 seconds.

Next setting or item of information

1. While in a setting or information item, briefly

press the button in the turn signal lever

repeatedly until "NEXT" is displayed.

2. Press the button for a longer period.

The display changes directly to the next setting

or item of information.

Formats and units of

measure

To set the formats and units of measure. The set-

tings are stored for the remote control currently

in use, refer also to Personal Profile on page 18.

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button repeatedly until the

display shows the illustrated symbol, arrow.

> Fuel consumption: l/100 km, mpg,

km/l*

> Distance covered: mls, km

> Temperature: 7, 6

7. Press and hold the button until the display

changes.

8. Press the button briefly to change the for-

mat or unit of measure.

9. Press and hold the button until the display

changes.

The settings are stored.

Resetting to factory settings

The settings for formats and units of measure

can be reset to the factory settings. The settings

are stored for the remote control currently in

use, refer also to Personal Profile on page 18.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Controls overview

1. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

2. Press and hold the button until the display

changes.

3. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

4. Press and hold the button until the display

changes.

5. Briefly press button repeatedly until "RESET"

is displayed.

6. Press and hold the button until the display

changes to the first setting.

The settings are reset.

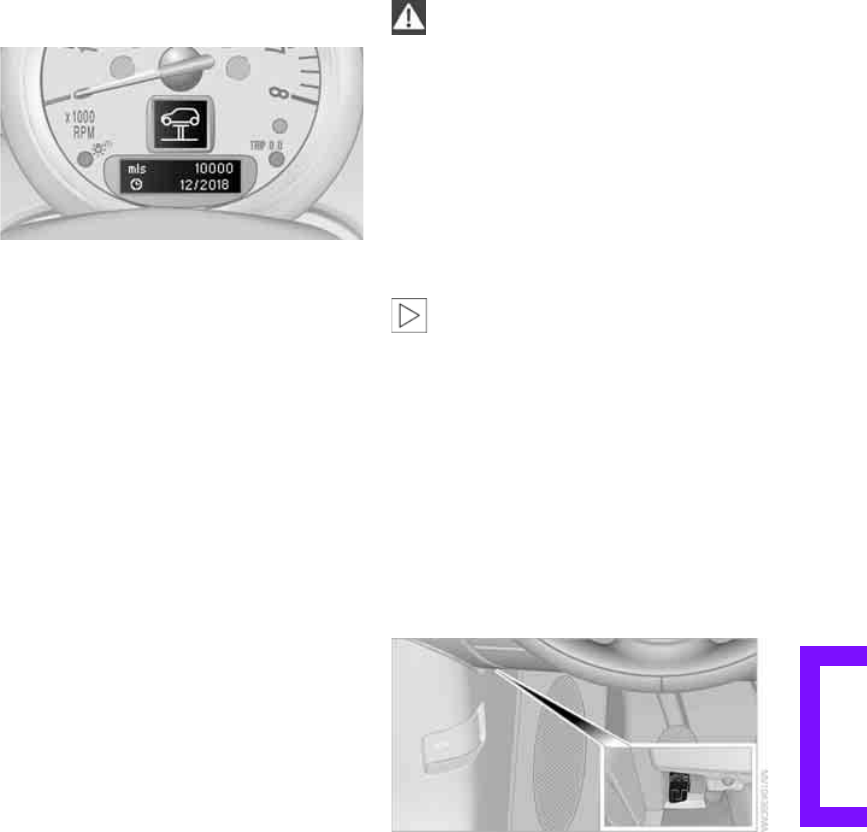

Service requirements

The remaining driving distance and the date of

the next scheduled service are briefly displayed

immediately after you start the engine or switch

on the ignition.

The extent of service work required can be

read out from the remote control by your

MINI dealer.<

Displaying vehicle check

For certain maintenance operations, you can

view the respective distance remaining or due

date individually in the tachometer.

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

4. Briefly press the button repeatedly until the

corresponding symbol and "SERVICE INFO"

are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button to display the indi-

vidual service items, refer to the following

information.

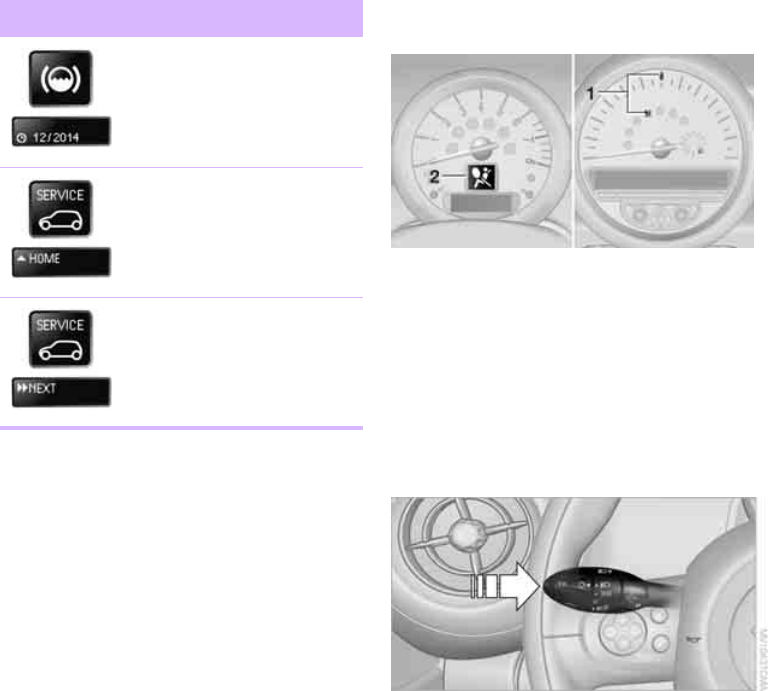

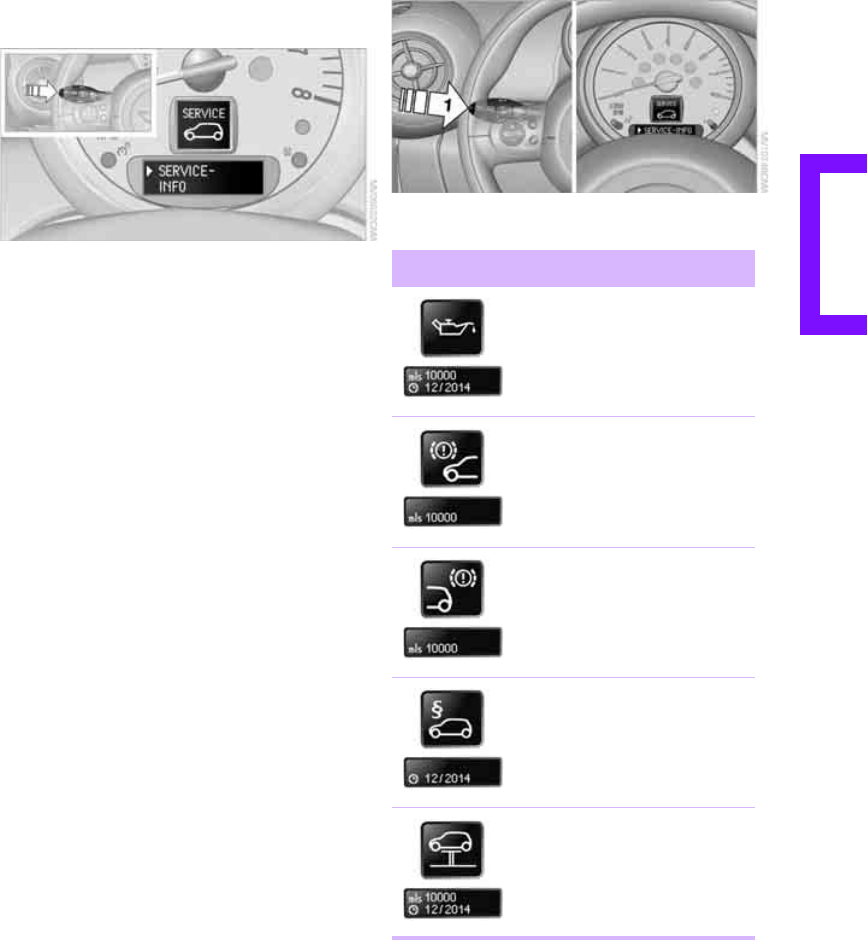

Possible displays

1Button for selecting information

Symbol Function

Engine oil*

Front brakes

Rear brakes

Roadworthiness test

Vehicle check

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Controls overview

More information on the MINI Maintenance Sys-

tem can be found on page 125.

Clock

Setting the time

Setting time, refer to Owner's Manual for Radio

Boost CD.

Date

Setting date

Setting date, refer to Owner's Manual for Radio

Boost CD.

Check Control

The concept

The Check Control monitors vehicle functions

and alerts you to any malfunctions in the sys-

tems monitored. Check Control messages

involve indicator or warning lamps in the dis-

plays and, in some circumstances, an acoustic

signal. To adjust the volume of the signal, refer

to the Owner's Manual for Radio.

Indicator and warning lamps can light up in var-

ious combinations and colors in the indicator

areas 1 and 2.

What to do in case of a malfunction

The meaning of each lamp in the event of a mal-

function and tips on how to respond are listed

starting on page 144.

Hiding Check Control messages

Press the button in the turn signal lever.

>Some Check Control messages are displayed

until the malfunctions have been rectified.

They cannot be hidden. If several malfunc-

tions occur at the same time, they are dis-

played in succession.

>Other Check Control messages are automat-

ically hidden after approx. 20 seconds, but

remain stored.

Brake fluid

Exit display 50

Next setting or item of

information 51

Symbol Function

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

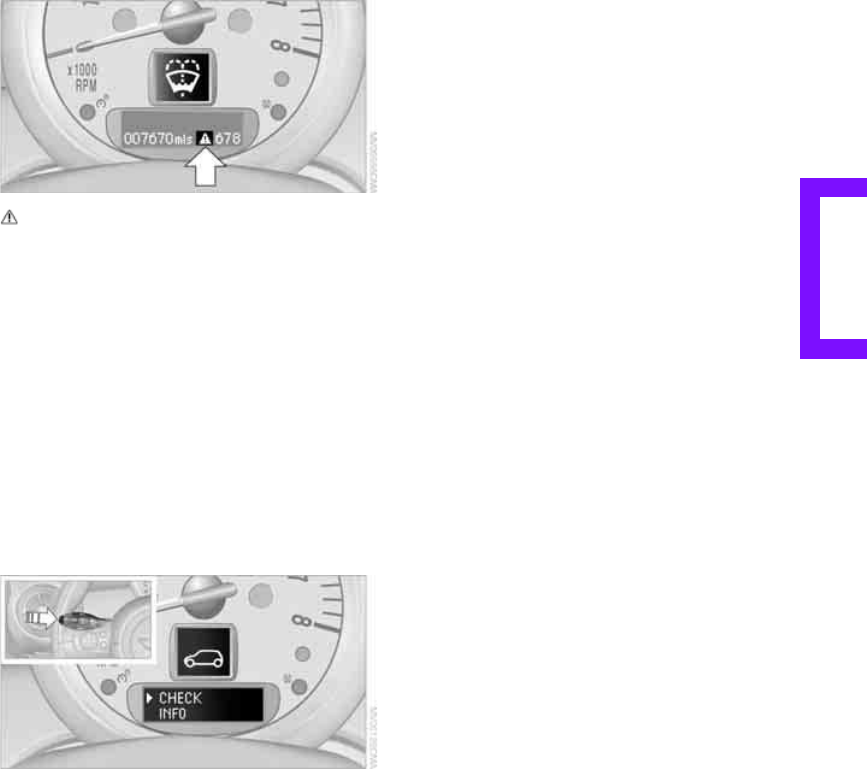

This symbol indicates that Check Control

messages have been stored. Check Control mes-

sages can be viewed whenever it is convenient.

Viewing stored Check Control messages

Stored Check Control messages can only be dis-

played if the driver's door is closed.

1. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

2. Press and hold the button until the display

changes.

3. Briefly press the button repeatedly until the

corresponding symbol and "CHECK INFO"

appear in the display.

4. Hold the button down.

If there are no Check Control messages, then

"CHECK OK" is displayed.

If a Check Control message has been stored,

the corresponding message is displayed.

5. Briefly press the button to display other

messages.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Technology for driving comfort and safety

Technology for driving comfort and

safety

Park Distance Control

PDC*

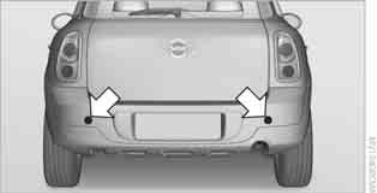

The concept

PDC assists you with parking in reverse. Acoustic

signals warn you of the presence of an object

behind the vehicle. The measurement is carried

out by four ultrasonic sensors in the rear

bumper.

An acoustic warning sounds when an

object is approx. 24 in/60 cm from the

corner sensors or approx. 5 ft/1.50 m from the

center sensors. PDC is a parking aid that can

indicate objects when they are approached

slowly, as is usually the case when parking.

Avoid approaching an object at high speed; oth-

erwise, physical circumstances may lead to the

system warning being issued too late.<

Automatic mode

With the engine running or the ignition switched

on, the system is activated automatically after

approx. 1 second when you engage reverse gear

or move the automatic transmission selector

lever to position R. Wait this short period before

driving.

Acoustic signals

As the distance between vehicle and object

decreases, the intervals between the tones

become shorter. If the distance to the nearest

object falls to below roughly 1 ft/30 cm, then a

continuous tone sounds.

If the distance remains constant, e.g. when driv-

ing parallel to a wall, the acoustic signal stops

after approx. 3 seconds.

Adjustments

The volume of the acoustic signals can be

adjusted, refer to the Owner's Manual for Radio.

Malfunction

Indicator lamp lights up: PDC has failed.

Have the system checked.

To avoid this problem, keep the sensors

clean and free of ice or snow in order to ensure

that they will continue to operate effectively.

When using a high-pressure cleaner, do not

direct the jet toward the sensors for lengthy

periods and only spray from a distance of at least

4in/10cm.

System limitations

Even with PDC, final responsibility for esti-

mating the distance between the vehicle

and any obstructions always remains with the

driver. Sensors, too, have blind spots in which

objects cannot be detected. Moreover, ultra-

sonic detection can reach its physical limits with

objects such as trailer tow bars and couplings,

thin and wedge-shaped objects, etc. Low

objects already indicated, such as curbs, may

enter the sensors' blind spots before or after a

continuous audible signal is given. Higher, pro-

truding objects, such as wall ledges, may not be

detectable. Therefore, always drive cautiously;

otherwise, there is a risk of personal injury or

property damage. Loud sound sources outside

or inside the car can drown out the PDC signal.<

Driving stability control

systems

Your MINI has a number of systems that help to

maintain the vehicle's stability even in adverse

driving conditions.

The laws of physics cannot be repealed,

even with driving stability control systems.

An appropriate driving style always remains the

responsibility of the driver. Therefore do not

reduce the additional safety margin by engaging

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

in hazardous driving thereby running the risk of

an accident.<

Antilock Brake System ABS

ABS prevents locking of the wheels during brak-

ing. Safe steering response is maintained even

during full braking. Active safety is thus

increased.

Braking safely, refer to page 87.

ABS is operational every time you start the

engine.

Cornering Brake Control CBC

Driving stability and steering characteristics are

further enhanced while braking in turns or dur-

ing a lane change.

Electronic brake-force distribution EBV

The system controls the brake pressure in the

rear wheels to ensure stable braking behavior.

Brake Assist

Rapidly depressing the brake causes this system

to automatically develop maximum braking

force. Thus, the system helps keep braking dis-

tance to a minimum. At the same time, all the

benefits provided by ABS are exploited.

Do not reduce the pressure on the brake for the

duration of the full braking application.

Dynamic Stability Control DSC

The concept

DSC prevents the driving wheels from losing

traction when you pull away from rest or accel-

erate.

DSC also detects unstable driving conditions

such as when the vehicle's rear end fishtails or

the vehicle is sliding on its front wheels. In these

cases, DSC helps the vehicle maintain a safe

course within physical limits by reducing engine

output and through braking actions at the indi-

vidual wheels.

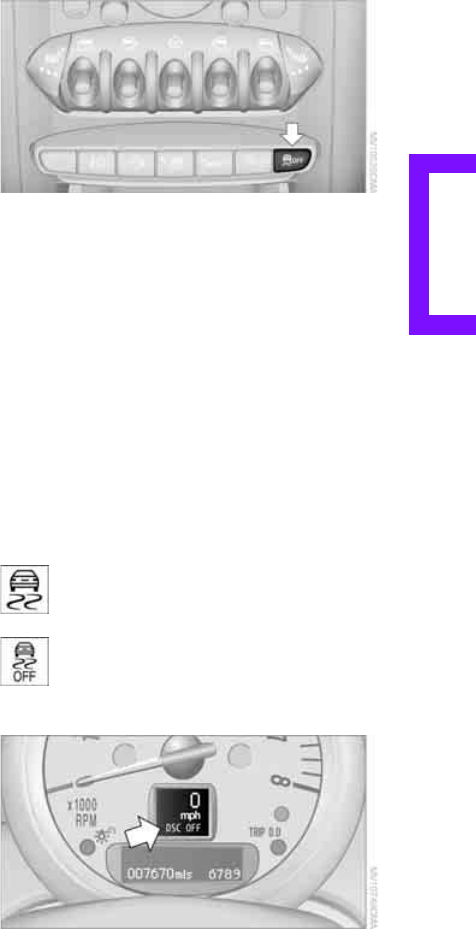

Deactivating DSC

Press the button repeatedly until the DSC indica-

tor lamps come on. DSC is deactivated. Stabiliz-

ing and propulsion promoting actions are no

longer executed.

When driving with snow chains or to 'rock free'

in snow, it can be helpful to switch off DSC for a

brief period.

To increase vehicle stability, activate DSC again

as soon as possible.

Activating DSC

Press the button again: the DSC indicator lamps

go out.

For better control

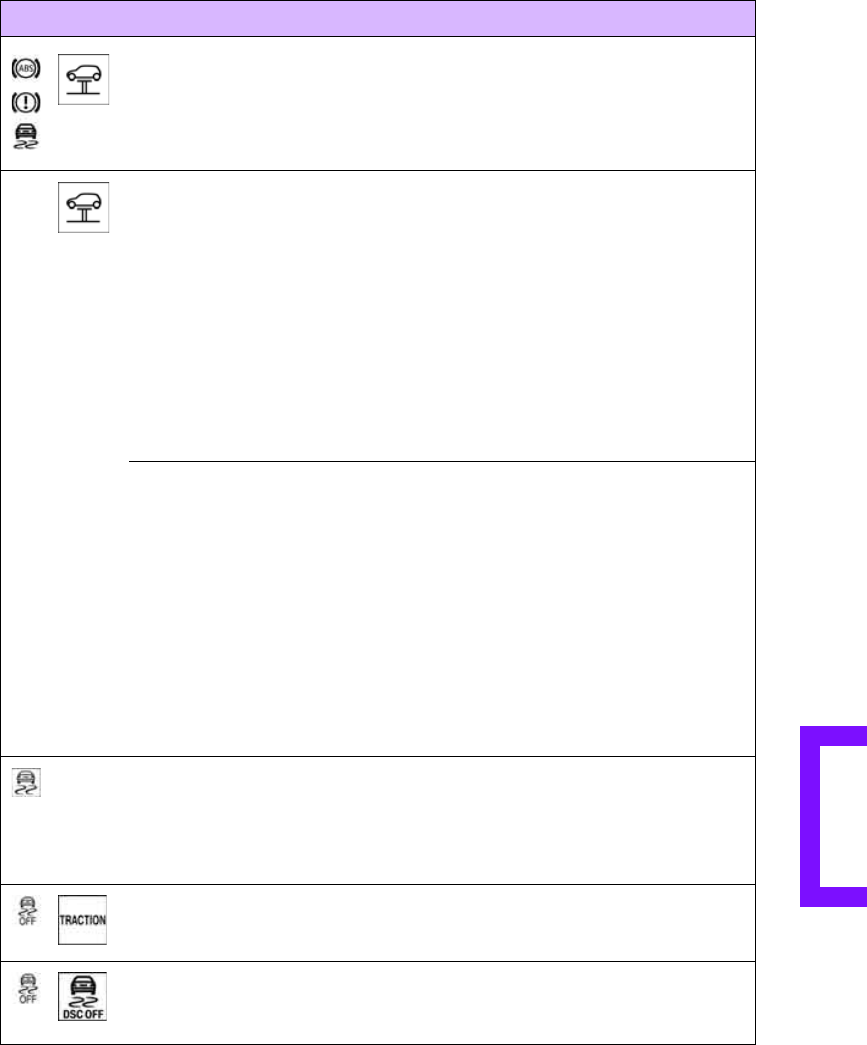

If the indicator lamp flashes:

The DSC controls the driving and break-

ing forces.

The indicator lamp in the display ele-

ments lights up and DSC OFF is dis-

played in the tachometer:

DSC is deactivated.

Dynamic Traction Control DTC*

DTC is a type of DSC that is propulsion optimized

for special road conditions such as uncleared

snowy roads. The system ensures maximum

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Technology for driving comfort and safety

propulsion though with restricted driving stabil-

ity. You therefore need to drive with suitable

caution.

In the following exceptional situations, it can be

useful to briefly activate DTC:

>when driving on snow-covered inclines, in

slush, or on uncleared snowy roads

>when rocking the vehicle free, driving out of

deep snow or on loose surfaces

>when driving with snow chains

Activating DTC

Press the button, the indicator lamp for DTC

lights up in the display elements and TRACTION

is displayed in the tachometer.

For better control

If the indicator lamp flashes:

DTC controls the driving and breaking

forces.

The indicator lamp lights up and

TRACTION is displayed in the tachome-

ter:

DTC is activated.

Deactivating DTC

Press the button again: the DTC indicator lamps

go out.

Deactivating DSC and DTC

Press the button for at least 3 seconds: the DSC

indicator lamps in the display elements come

on. The Dynamic Traction Control DTC and

Dynamic Stability Control DSC are both deacti-

vated. There will be no more stabilizing inter-

ventions.

Interventions (differential lock*) in braking

occur to improve propulsion when drive wheels

are rotating unevenly, even when the DSC is

deactivated.

Activating DSC

Press the button again: the indicator lamps go

out.

Hill Assist

Hill Assist aids you in comfortably driving off on

inclines. It is not necessary to use the parking

brake for this.

1. Hold the MINI with the brake.

2. Release the brake and immediately drive

off.

Hill Assist holds the car in place for approx.

2 seconds after the brake is released.

Depending on the load and gradient, the

vehicle can roll backward slightly during

this period. After you release the brake, immedi-

ately start driving since the Hill Assist only holds

the vehicle for about 2 seconds, and it will start

to roll backward.<

ALL4 all-wheel drive system*

ALL4 is the all-wheel drive system of your MINI.

The combined effects of ALL4 and DSC further

optimize the traction and dynamic driving char-

acteristics. The ALL4 all-wheel drive system vari-

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

ably distributes the drive force to the front and

rear axle depending on the driving situation and

prevailing road conditions.

Sport button*

Pressing the button causes your MINI to respond

even more sportily.

>Engine responds more spontaneously to

movements of the accelerator.

>Steering response is more direct.

>Cooper S: the engine sounds more sporty in

coasting mode.

With automatic transmission:

>More rapid gear shifting in Sport program.

Activating the system

Press the SPORT button.

The LED lights up.

SPORT is briefly displayed in the tachometer.

Deactivating the system

>Press the SPORT button again.

>Switch off the engine.

Flat Tire Monitor FTM

The concept

The system does not measure the actual infla-

tion pressure in the tires.

The system detects a pressure loss in a tire by

comparing the rotational speeds of the individ-

ual wheels while moving.

In the event of a pressure loss, the diameter and

therefore the rotational speed of the corre-

sponding wheel change. This is detected and

reported as a flat tire.

Functional requirement

The system must have been initialized while the

tire inflation pressure was correct; otherwise,

reliable signaling of a flat tire is not ensured.

Initialize the system after every correction of the

tire inflation pressure and after every tire or

wheel change.

System limitations

Sudden serious tire damage caused by

external influences cannot be indicated in

advance.<

A natural, even pressure loss in all four tires can-

not be detected. Therefore, check the tire infla-

tion pressure regularly.

In the following situations, the system could be

delayed or malfunction:

>System has not been initialized

>Driving on snowy or slippery road surface

>Performance-oriented style of driving: slip in

the drive wheels, high lateral acceleration

>Snow chains are attached

Initializing the system

The initialization process adopts the set inflation

tire pressures as reference values for the detec-

tion of a flat tire. Initialization is started by con-

firming the inflation pressures.

Do not initialize the system when driving with

snow chains.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Technology for driving comfort and safety

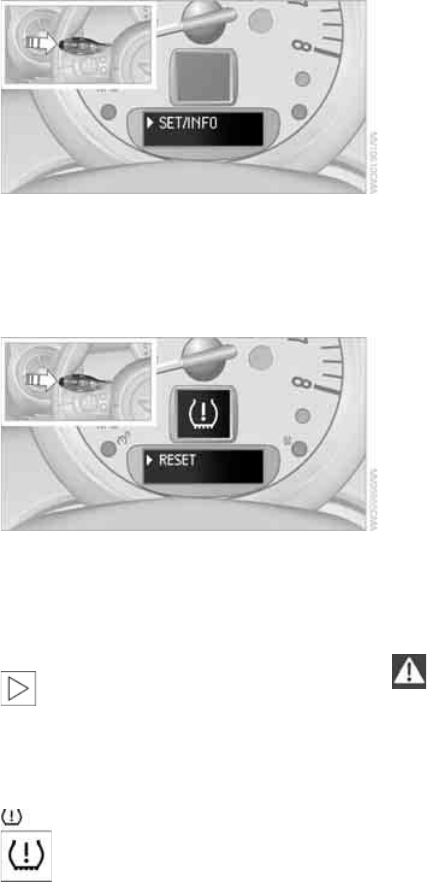

Using the button in the turn signal lever

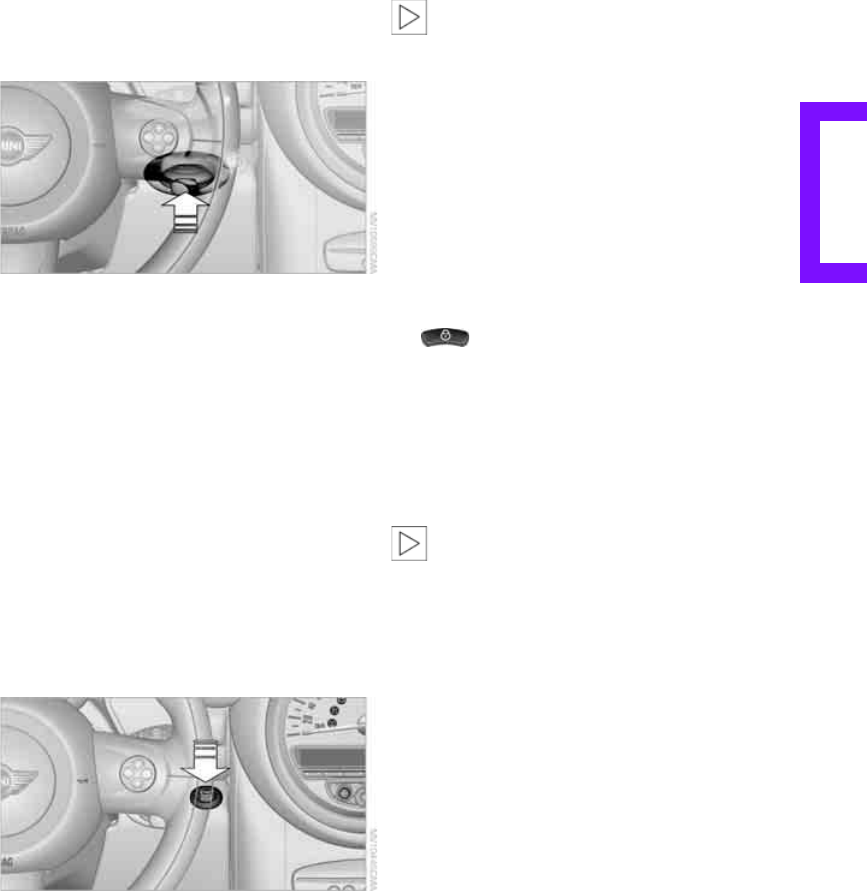

1. Start the engine, but do not start driving.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

corresponding symbol and "RESET" are dis-

played.

5. Press and hold the button until the display

changes.

6. Start driving.

Initialization is completed while the car is on

the move, without any feedback.

The initialization is completed during driv-

ing, which can be interrupted at any time.

When driving resumes, the initialization is con-

tinued automatically.<

Indication of a flat tire

The warning lamps come on in yellow

and red. An acoustic signal also sounds.

There is a flat tire or a major loss in tire

inflation pressure.

1. Reduce speed and stop the vehicle with cau-

tion. Avoid sudden braking and steering

maneuvers.

2. Check whether the vehicle is equipped with

normal tires or with run-flat tires*.

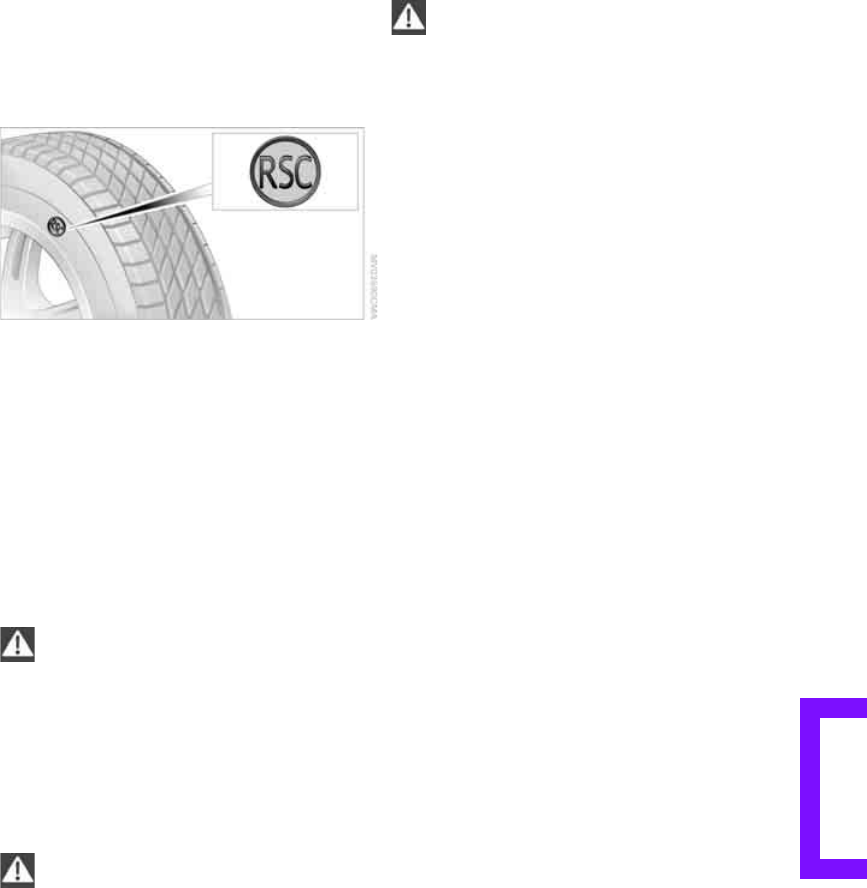

Run-flat tires, refer to page 119, are identi-

fied by a circular symbol containing the let-

ters RSC on the tire sidewall.

When a flat tire is reported, the Dynamic Stability

Control DSC is activated.

Actions in the event of a flat tire

Normal tires*

1. Identify the damaged tire.

To do so, check the inflation pressure in all

four tires.

The inflation pressure display of the Mobility

System, page 135, can be used for this pur-

pose.

If the inflation pressure in all four tires is cor-

rect, the Flat Tire Monitor might not have

been initialized. The system must then be

initialized.

If it is not possible to identify the damaged

tire, contact your MINI dealer.

2. Use the Mobility System to remedy the flat

tire on the damaged wheel, refer to

page 135.

Run-flat tires*

You can continue driving with a damaged tire at

speeds up to 50 mph or 80 km/h.

If the vehicle is not equipped with run-flat

tires, do not continue driving; continuing

to drive can result in serious accidents.<

Continued driving with a flat tire

When driving with a damaged tire:

1. Avoid sudden braking and steering maneu-

vers.

2. Do not exceed a speed of 50 mph or

80 km/h.

3. At the next opportunity, check the air pres-

sure in all four tires.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

If the inflation pressure in all four tires is cor-

rect, the Flat Tire Monitor might not have

been initialized. The system must then be

initialized.

Possible driving distance with complete loss of

tire inflation pressure:

The distance it is possible to drive depends on

the load and the stress on the vehicle while driv-

ing.

With an average load, it may be possible to drive

for approx. 50 miles/80 km.

When driving with damaged tires, the handling

characteristics change, e.g. the vehicle will skid

sooner when braking, braking distances will be

longer, or self-steering response will change.

Adapt your driving style accordingly. Avoid turn-

ing abruptly and driving over obstacles such as

curbs, potholes, etc.

Since the possible driving distance depends to a

considerable degree on the strain exerted on

the vehicle while driving, it can be shorter or,

with a gentle driving style, can also be longer,

depending on the speed, road condition, out-

side temperature, vehicle load, etc.

Drive cautiously and do not exceed a

speed of 50 mph/80 km/h.

A loss of tire inflation pressure results in a

change in the handling characteristics, e.g.

reduced lane stability during braking, a longer

braking distance and altered self-steering prop-

erties.<

Vibrations or loud noises while driving can

indicate final failure of the tire. Reduce

your speed and bring the vehicle to a stop; oth-

erwise, pieces of tire may come off, which could

result in an accident. Do not continue driving

and contact your MINI dealer.<

Tire Pressure Monitor

TPM*

The concept

Measuring the inflation pressure in the four

mounted tires. The system notifies you if there is

a significant loss of pressure in one or more tires.

Functional requirement

The system must have been reset while the

inflation pressure was correct; otherwise, reli-

able signaling of a flat tire is not ensured.

Always use wheels with TPM electronics to

ensure that the system will operate properly.

Reset the system again after each correction of

the tire inflation pressure and after every tire or

wheel change.

System limitations

Sudden, serious tire damage caused by

external influences cannot be indicated in

advance.<

The system does not operate correctly if it has

not been reset. For example, a flat tire may be

indicated despite correct tire inflation pressures.

The system is inactive and cannot indicate a flat

tire:

>If a wheel without TPM electronics is

mounted.

>Interference with TPM by other systems or

devices with the same transmission fre-

quency.

Resetting system

Reset the system again after each correction of

the tire inflation pressure and after every tire or

wheel change.

1. Start the engine, but do not start driving.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Technology for driving comfort and safety

4. Briefly press the button repeatedly until the

symbol for Tire Pressure Monitor and

"ACTIVE" are displayed.

The Tire Pressure Monitor can be reset by

selecting "RESET".

5. Press and hold the button until "RESETTING"

is displayed.

6. Start driving.

After driving a few minutes, the set inflation

pressures in the tires are accepted as the tar-

get values to be monitored. The system

reset is completed during your drive, and

can be interrupted at any time. When driving

resumes, the reset is continued automati-

cally. The indicator lamp goes out after the

system reset is completed.

Message with low tire inflation pressure

The warning lamps come on in yellow

and red. An acoustic signal also sounds.

The position of the faulty tire is dis-

played.

>There is a flat tire or substantial loss of tire

pressure in the indicated wheel.

>The system was not reset after a wheel

change and thus issues a warning based on

the inflation pressures initialized last.

1. Reduce speed and stop the vehicle with cau-

tion. Avoid sudden braking and steering

maneuvers.

2. Check whether the vehicle is equipped with

normal tires or with run-flat tires.

Run-flat tires, refer to page 119, are identi-

fied by a circular symbol containing the let-

ters RSC on the tire sidewall.

When a low inflation pressure is reported, the

Dynamic Stability Control DSC is activated.

Actions in the event of a flat tire

Normal tires

1. Identify the damaged tire.

To do so, check the inflation pressure in all

four tires. The inflation pressure display of

the Mobility System, page 135, can be used

for this purpose.

If the inflation pressure is correct in all four

tires, then the Tire Pressure Monitor may not

have been reset. The system must then be

reset.

If it is not possible to identify the damaged

tire, contact your MINI dealer.

2. Use the Mobility System to remedy the flat

tire on the damaged wheel, refer to

page 135.

The use of tire sealant, e.g. Mobility System,

can damage the TPM wheel electronics. In

this case, have the electronics checked and

replaced if necessary at your earliest oppor-

tunity.

Run-flat tires*

You can continue driving with a damaged tire at

speeds up to 50 mph/80 km/h.

If the vehicle is not equipped with run-flat

tires, do not continue driving; continuing

to drive can result in serious accidents.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Continued driving with a flat tire

When driving with a damaged tire:

1. Avoid sudden braking and steering maneu-

vers.

2. Do not exceed a speed of 50 mph or

80 km/h.

3. At the next opportunity, check the air pres-

sure in all four tires.

If the inflation pressure is correct in all four

tires, then the Tire Pressure Monitor may not

have been reset. The system must then be

reset.

Possible driving distance with complete loss of

tire inflation pressure:

The distance it is possible to drive depends on

the load and the stress on the vehicle while driv-

ing.

With an average load, it may be possible to drive

for approx. 50 miles/80 km.

When driving with damaged tires, the handling

characteristics change, e.g. the vehicle will skid

sooner when braking, braking distances will be

longer, or self-steering response will change.

Adapt your driving style accordingly. Avoid turn-

ing abruptly and driving over obstacles such as

curbs, potholes, etc.

Since the possible driving distance depends to a

considerable degree on the strain exerted on

the vehicle while driving, it can be shorter or,

with a gentle driving style, can also be longer,

depending on the speed, road condition, out-

side temperature, vehicle load, etc.

Drive cautiously and do not exceed a

speed of 50 mph/80 km/h.

A loss of tire inflation pressure results in a

change in the handling characteristics, e.g.

reduced lane stability during braking, a longer

braking distance and altered self-steering prop-

erties.<

Vibrations or loud noises while driving can

indicate complete failure of the tire.

Reduce your speed and bring the vehicle to a

stop; otherwise, pieces of tire may come off,

which could result in an accident. Do not con-

tinue driving and contact your MINI dealer.<

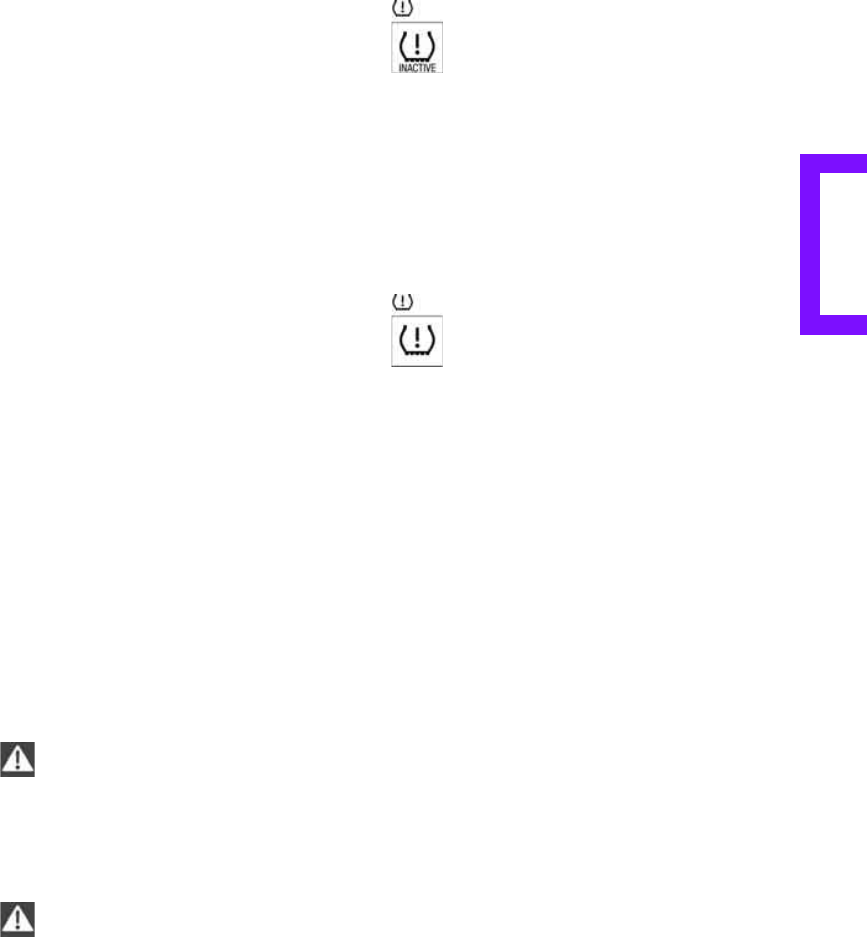

Malfunction

The small warning lamp flashes in yel-

low and then lights up continuously; the

larger warning lamp lights up in yellow.

No flat tire can be detected.

Display in the following situations:

>Wheel without TPM electronics is mounted:

If need be, have it checked by your MINI

dealer.

>Malfunction:

Have the system checked.

>TPM was unable to complete the resetting

procedure; reset the system again.

The small warning lamp flashes in yel-

low and then lights up continuously; the

larger warning lamp lights up in yellow.

No flat tire can be detected.

Display in the following situation:

Interference due to systems or devices that

use the same radio frequency:

The system automatically reactivates once it

is outside of the field of interference.

Declaration according to NHTSA/

FMVSS 138 Tire Pressure Monitoring

Systems

Each tire, including the spare, should be

checked monthly when cold and inflated to the

inflation pressure recommended by the vehicle

manufacturer on the vehicle placard or tire infla-

tion pressure label. If your vehicle has tires of a

different size than the size indicated on the vehi-

cle placard or tire inflation pressure label, you

should determine the proper tire inflation pres-

sure for those tires. As an added safety feature,

your vehicle has been equipped with a tire pres-

sure monitoring system TPMS that illuminates a

low tire pressure telltale when one or more of

your tires are significantly underinflated.

Accordingly, when the low tire pressure telltale

illuminates, you should stop and check your tires

as soon as possible, and inflate them to the

proper pressure. Driving on a significantly

underinflated tire causes the tire to overheat

and can lead to tire failure. Underinflation also

reduces fuel efficiency and tire tread life, and

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Technology for driving comfort and safety

may affect the vehicle's handling and stopping

ability. Please note that the TPMS is not a substi-

tute for proper tire maintenance, and it is the

driver's responsibility to maintain correct tire

pressure, even if underinflation has not reached

the level at which the TPMS low tire pressure tell-

tale illuminates.

The TPMS malfunction indicator is combined

with the low tire pressure telltale. When the sys-

tem detects a malfunction, the telltale will flash

for approximately one minute and then remain

continuously lit. This sequence will continue

upon subsequent vehicle startups as long as the

malfunction exists. When the malfunction indi-

cator is illuminated, the system may not be able

to detect or signal low tire pressure as intended.

TPMS malfunctions may occur for a variety of

reasons, including the installation of replace-

ment or alternate tires or wheels on the vehicle

that prevent the TPMS from functioning prop-

erly. Always check the TPMS malfunction telltale

after replacing one or more tires or wheels on

your vehicle to ensure that the replacement or

alternate tires and wheels allow the TPMS to

continue to function properly.

Airbags

The following airbags are located under the

marked covers:

1Front airbags

2Knee airbag

3Side airbags in backrests

4Head airbags at the front and rear

Protective action

Observe the instructions on page 30 to

ensure the best possible personal protec-

tion.<

The front airbags help protect the driver and

front passenger by responding to frontal

impacts in which safety belts alone cannot pro-

vide adequate restraint. When needed, the head

and side airbags help provide protection in the

event of side impact. The relevant side airbag

supports the side upper body area. The head air

bag supports the head.

The airbags are designed to not be triggered in

every type of collision, e.g. not in minor acci-

dents, certain rollover situations or rear impacts.

Do not apply adhesive materials to the

cover panels of the airbags, cover them or

modify them in any other way.

Keep the dashboard and window on the passen-

ger side free from obstruction, i.e. do not cover it

with adhesive film or coverings, and do not affix

any holders such as for a navigation device or a

mobile phone.

Do not attach seat covers, cushions or other

objects not specifically approved for seats with

integral side airbags to the front seats. Do not

hang items of clothing such as coats or jackets

over the backrests. Do not attempt to remove

the airbag retention system from the vehicle. Do

not modify the individual components of the

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

system or its wiring in any way. This includes the

upholstery in the center of the steering wheel,

on the instrument cluster, the doors, and the

roof pillars as well as the sides of the headliner.

Do not attempt to remove or dismantle the

steering wheel.<

Do not touch the individual components

immediately after the system has been

triggered, because there is a danger of burns.

Have the testing, repair, removal, and disposal

of airbag generators executed only by your MINI

dealer or a workshop that has the required

explosives licenses.

Otherwise, unprofessional attempts to service

the system could lead to failure in an emergency

or undesired airbag activation, either of which

could result in personal injury.<

Warning notices and information about the air-

bags can also be found on the sun visors.

Automatic deactivation of the front

passenger airbags

The presence of a passenger in the front passen-

ger seat is detected by measuring the resistance

of the human body. The system correspondingly

activates or deactivates the front, side, and knee

airbags for the front passenger.

Make sure that the front passenger's feet

remain in the footwell; otherwise, it is not

possible to guarantee the function of the front

passenger airbags.<

The indicator lamp above the interior rearview

mirror shows the current status of the front pas-

senger airbags, deactivated or activated, refer to

Status of front passenger airbags below.

Before transporting a child on the front

passenger seat, read the safety informa-

tion and follow the instructions under Transport-

ing children safely, page 36.<

Malfunction of the automatic

deactivation

When teenagers and adults assume certain sit-

ting positions, this can cause the front, side, and

knee airbags to deactivate. The indicator lamp

for the front passenger airbags lights up when

this occurs. In such cases, the passenger should

change his or her sitting position so that the

front passenger airbags are activated and the

indicator lamp goes out. If the desired airbag

status cannot be achieved by changing the sit-

ting position, transport the relevant passenger

on a rear seat.

>Do not attach covers, cushions, ball mats or

other items to the front passenger seat

unless they are specifically recommended

by the manufacturer of your MINI.

>Do not place items on the front passenger

seat.

>Do not place items under the seat which

could press against the seat from below.

Status of front passenger airbags

The indicator lamp for the front passenger air-

bags shows the functional status of the front

passenger's front, side, and knee airbags in

accordance with whether and how the front

passenger seat is occupied. The indicator lamp

shows whether the front passenger airbags are

activated or deactivated.

>The indicator lamp lights up when a child in

a specially designated child restraint system

is properly detected on the seat or the seat is

unoccupied.

The front, side, and knee airbags for the

front passenger are not activated.

Most child seats are detected by the

system. This particularly applies to

child seats that were required by NHTSA at

the time of manufacture of the vehicle. After

installing a child seat, check that the indica-

tor lamp for the front passenger airbags

lights up. It indicates that the child seat has

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Technology for driving comfort and safety

been detected and that the front passenger

airbags are deactivated.<

>The indicator lamp does not come on as long

as a person of sufficient size and in a correct

sitting position is detected on the seat.

The front, side, and knee airbags for the

front passenger are activated.

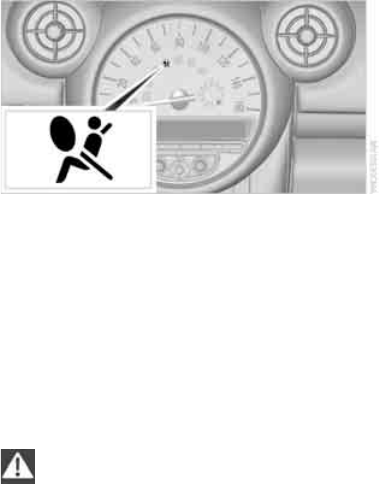

Operational readiness of airbag system

As of radio readiness, page 39, the warning

lamp lights up briefly to indicate that the entire

airbag system and the belt tensioners are oper-

ational.

Airbag system malfunction

>The warning lamp does not come on when

radio readiness or the ignition is switched

on.

>The warning lamp stays lit continuously.

In the event of a fault in the airbag system,

have it checked without delay; otherwise,

there is the risk that the system will not function

as intended even if a severe accident occurs.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Lamps

Parking lamps/low beams

0Lamps off and daytime running lights

1Parking lamps and daytime running lights

2Low-beam headlamps and welcome lamps

3Automatic headlamp control*, daytime run-

ning lights, welcome lamps, and Adaptive

Light Control*

When you open the driver's door with the igni-

tion switched off, the exterior lighting is auto-

matically switched off if the light switch is in

position 0, 2 or 3.

Switch on the parking lamps if necessary, switch

position 1.

Parking lamps

Turn the light switch to position 1.

The front, rear and side vehicle lighting is

switched on.

Activation of lights on one side of the vehicle for

parking, page 69.

The parking lamps will discharge the bat-

tery. Therefore, do not leave them on for

unduly long periods of time; otherwise, the bat-

tery might not have enough power to start the

engine.<

Low beams

Turn the light switch to position 2.

The low beams come on when the ignition is on.

Automatic headlamp control*

When the switch is in position 3, the low beams

are switched on and off automatically depend-

ing on ambient light conditions, e.g. in a tunnel,

in twilight, or if there is precipitation. Adaptive

Light Control* is active.

The headlamps may also come on when the sun

is sitting low on a blue sky.

When driving into tunnels with bright overhead

lights, there may be a delay before the head-

lamps come on.

The low beams remain switched on indepen-

dent of the ambient lighting conditions when

you switch on the fog lamps*.

If the daytime running lights are activated,

page 68, the low beams are always switched on

with the light switch in position 3 and the igni-

tion on. The exterior lamps are automatically

switched off after the vehicle is parked.

The automatic headlamp control cannot

serve as a substitute for your personal

judgment in determining when the lamps

should be switched on in response to ambient

lighting conditions. For example, the system

cannot detect fog or hazy weather. To avoid

safety risks, you should respond to these kinds

of low-visibility situations by switching the head-

lamps on manually.<

Welcome lamps

If you leave the light switch in the low beam or

automatic headlamp control position when you

switch off the ignition, the parking lamps and

interior lamps come on for a certain time as soon

as the vehicle is unlocked.

Pathway lighting

If you activate the headlamp flasher after

switching off the ignition with the lamps

switched off, the low beams come on and

remain on for a certain time.

The setting is stored for the remote control in

use, refer to Personal Profile, page 18.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Lamps

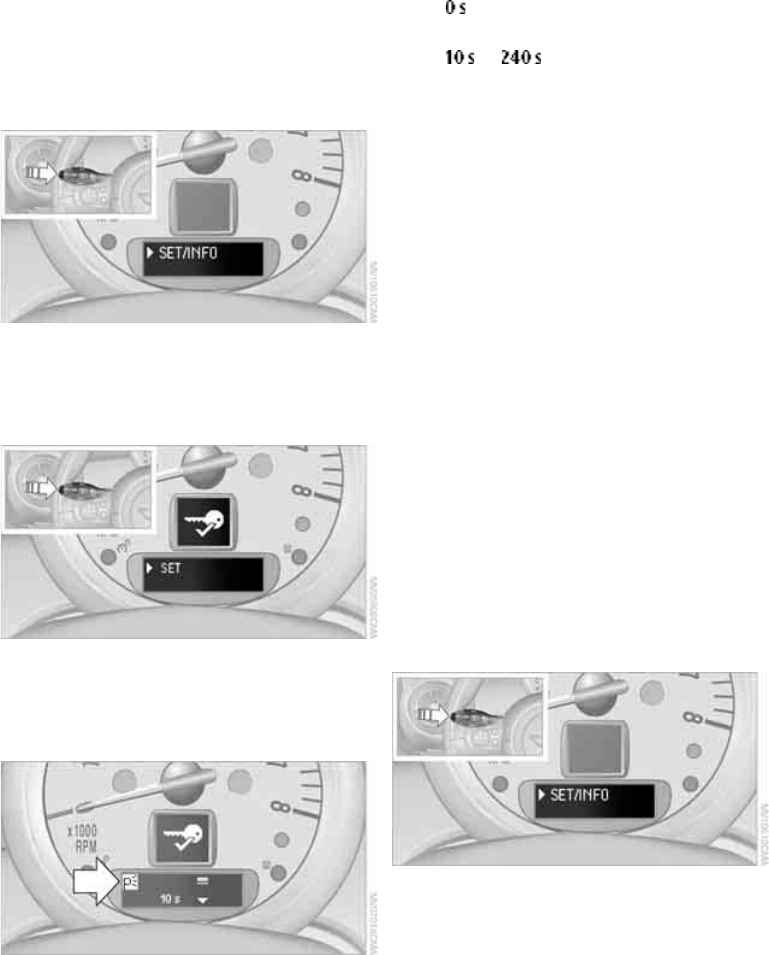

Setting the duration or deactivating the

function

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button repeatedly until the

display shows the illustrated symbol.

7. Press and hold the button until the display

changes.

8. Briefly press the button to select:

The function is deactivated.

>...

Select the appropriate duration, e.g.

40 seconds.

9. Press the button for a longer period.

The setting is stored.

Daytime running lights*

The light switch can remain in the lamps off,

parking lamps or automatic headlamp control*

position.

In the lamps off position, the exterior lighting is

automatically switched off after the vehicle is

parked. In the parking lamps position, the park-

ing lamps will stay on after the ignition is

switched off.

Switch on the parking lamps separately if

needed.

Activating/deactivating daytime

running lights

The setting is stored for the remote control in

use, refer to Personal Profile, page 18.

1. Switch on the ignition, refer to page 39.

2. Briefly press the button in the turn signal

lever repeatedly until "SET/INFO" is dis-

played.

3. Press and hold the button until the display

changes.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

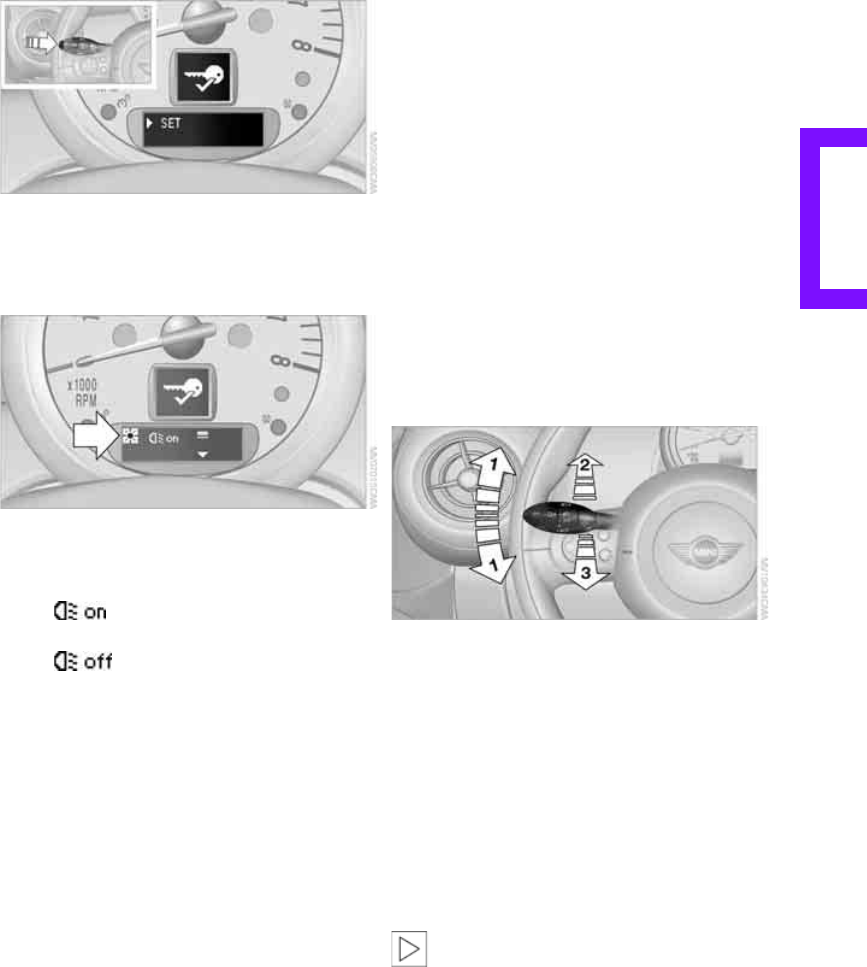

4. Briefly press the button repeatedly until the

symbol and "SET" are displayed.

5. Press and hold the button until the display

changes.

6. Briefly press the button repeatedly until the

display shows the illustrated symbol, arrow.

7. Press and hold the button until the display

changes.

8. Briefly press the button to select:

Daytime running lights activated.

Daytime running lights deactivated.

9. Press the button for a longer period.

The setting is stored.

Adaptive Light Control*

The concept

Adaptive Light Control is a variable headlamp

control system that enables better illumination

of the road surface. Depending on the steering

angle and other parameters, the light from the

headlamp follows the course of the road.

Activating Adaptive Light Control

With the ignition switched on, turn the light

switch to position 3, refer to page 67.

Standstill function*: to avoid blinding oncoming

traffic, the Adaptive Light Control directs light

toward the front passenger side when the vehi-

cle is at a standstill.

In reverse, the Adaptive Light Control is not acti-

vated.

Malfunction

A message is displayed.

The Adaptive Light Control is malfunctioning or

failed. Have the system checked as soon as pos-

sible.

High beams/

roadside parking lamps

1Turn signals/roadside parking lamps*

2Switching on high beams

3Switching off high beams/headlamp flasher

Roadside parking lamps, left or right*

The vehicle can be illuminated on one side for

parking. Comply with local regulations when

doing so.

Switching on

After parking the vehicle, press and hold the

lever up or down, arrow 1.

The roadside parking lamps drain the bat-

tery. Therefore, do not leave them on for

unduly long periods of time; otherwise, the bat-

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Lamps

tery might not have enough power to start the

engine.<

Switching off

Press the lever up or down to the pressure point.

Fog lamps*

Press the button to switch the lamps on and off.

Fog lamps*

The parking lamps or low beams must be

switched on for the fog lamps to operate. The

green indicator lamp lights up when the fog

lamps are switched on.

Depending on your vehicle's equipment, the fog

lamps are switched off when you activate the

headlamp flasher or switch on the high beams.

If the automatic headlamp control is acti-

vated, the low beams will come on auto-

matically when you switch on the fog lamps.<

Guide fog lamps*

When the switch is in position 3, guide fog lamps

are switched on for a wider light distribution up

to a speed of 68 mph/110 km/h.

Instrument lighting

You can adjust the brightness of the instrument

lighting only when the parking lamps or the low

beams are on.

Increasing brightness

Press and hold the button until the desired

brightness is reached.

Reducing brightness

Press the button briefly.

The brightness decreases every time the button

is pressed briefly.

Interior lamps

The interior lamps, the footwell lamps*, the

entry lamps*, and the cargo area lamp are con-

trolled automatically.

To reduce the drain on the battery, a short

while after the ignition is switched off,

refer to Start/Stop button on page 39, all lights in

the vehicle's passenger compartment are

switched off.<

Switching interior lamps on/off manually

To switch the interior lamps on/off.

Press the switch.

To switch off the interior lamps permanently,

press the button for about 3 seconds.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Reading lamps*

Reading lamps are provided in the front and

rear* adjacent to the interior lamps.

To switch the reading lamps on and off.

In the front: press the switch.

In the rear: press the button.

Ambient lighting*

The color and brightness of the ambient lighting

can be changed.

>Press the switch forward.

The color changes in stages.

>Press the switch toward the rear.

The brightness changes in stages.

Intermediate settings and colors are possible.

For a continuous color change in the

ambient lighting, press and hold the

switch toward the front for longer than 10 sec-

onds.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Climate

Equipment versions

Depending on your vehicle's equipment, your

MINI contains an air conditioner or an automatic

climate control*.

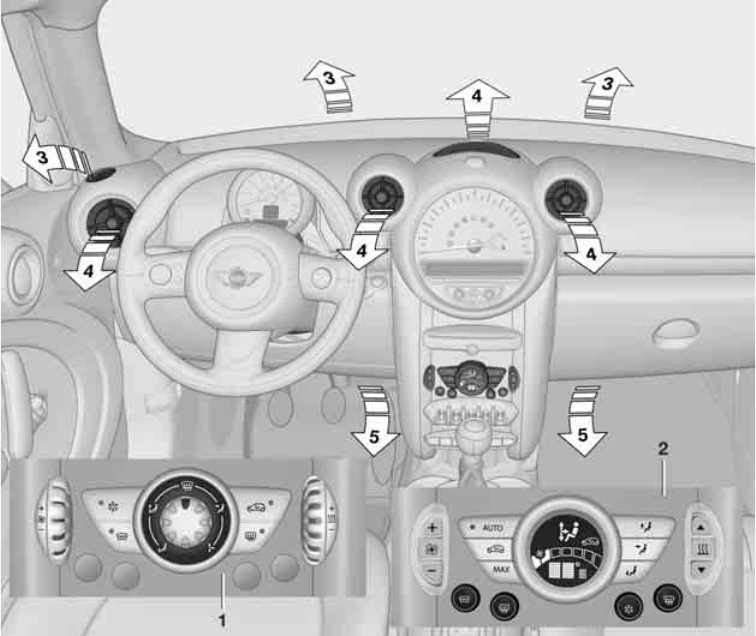

1Air conditioner 73

2Automatic climate control*74

Air vents

3Airflow directed toward the windshield and

side windows

4Air to the upper body area, draft-free venti-

lation

5Air to the footwell

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Air conditioner

1Air flow rate

2Cooling function

3Recirculated-air mode

4Temperature

5Rear window defroster

6Air distribution

7Windshield heating*

Air flow rate

Adjust the air flow rate. The higher the

rate, the more effective the heating or

cooling will be.

The air flow rate is lowered or switched off

entirely to reduce the drain on the battery.

Switching the system on/off

Turn the air flow rate rotary switch to 0. Blower

and air conditioner are completely switched off

and the air supply is cut off.

Set any desired air flow rate to switch on the air

conditioner.

Cooling function

When the cooling function is on,

the air is cooled, dried, then

reheated according to the temper-

ature setting. This function is only available

while the engine is running.

The cooling function helps prevent condensa-

tion on the windows or removes it quickly.

Depending on the weather, the windshield may

fog over briefly when the engine is started.

To cool the air more quickly and intensely

when the outside temperature is high, you

can switch on the recirculated-air mode.<

Recirculated-air mode

If the air outside the car has an

unpleasant odor or contains pollut-

ants, shut off the supply to the inte-

rior of the car temporarily. The system then

recirculates the air currently within the vehicle.

If the windows fog in recirculated-air

mode, switch off the recirculated-air

mode and increase the air volume if necessary.

The recirculated-air mode should not be used

over an extended period of time; otherwise, the

air quality in the passenger compartment will

deteriorate continuously.<

Temperature

Turn upward, red, to increase the temper-

ature.

Turn downward, blue, to decrease the

temperature.

Rear window defroster

The defroster is switched off auto-

matically after a certain time.

The rear window heating is lowered

or switched off entirely to reduce the drain on

the battery.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Climate

Air distribution

Direct the flow of air to the

windows , to the upper body

area or to the footwell .

Intermediate settings are possible.

Windshield heating*

The windshield heating is switched

off automatically after a short time.

The front window heating is low-

ered or switched off entirely to reduce the drain

on the battery.

Defrosting windows and removing

condensation

1. Set air flow rate to the maximum level.

2. Set air distribution to position .

Condensation is removed from the windows

more quickly when the cooling function* is

also activated.

3. Set to the highest temperature, red.

4. Deactivate recirculated-air mode.

5. Turn on windshield heating if necessary.

6. Turn on rear window defroster if necessary.

Microfilter

The microfilter captures dust and pollen. The

microfilter is changed by your MINI dealer dur-

ing routine maintenance work.

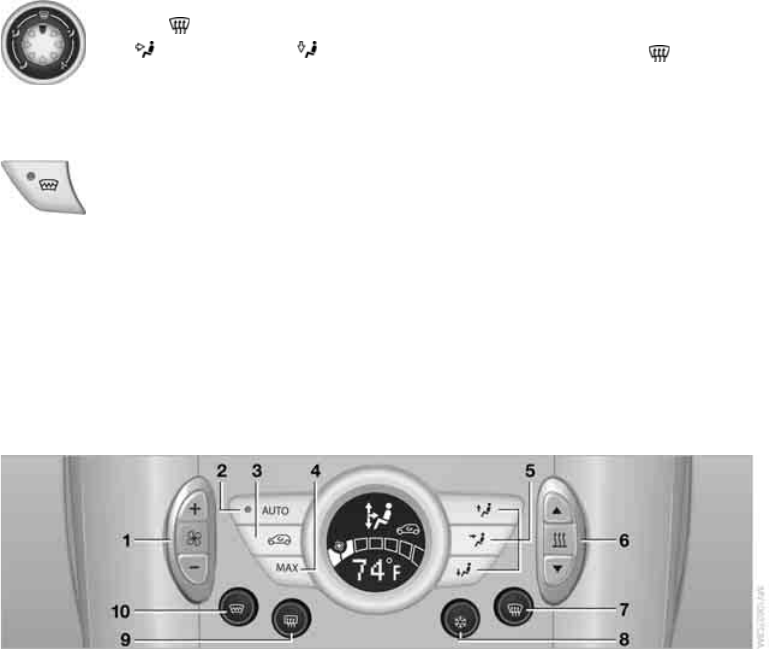

Automatic climate control*

1Air flow rate, manual

2AUTO program

3Recirculated-air mode

4Maximum cooling

5Air distribution, manual

6Temperature

7Defrosting windows and removing conden-

sation

8Cooling function

9Rear window defroster

10 Windshield heating*

Comfortable interior climate

AUTO program 2 offers the ideal air distribution

and air flow rate for almost all conditions, refer

to AUTO program below. All you need to do is

select an interior temperature which is comfort-

able for you.

The following sections inform you in detail about

how to adjust the settings.

Most settings are stored for the remote control

currently in use, refer also to Personal Profile set-

tings on page 18.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Air flow rate, manual

Press the – button to reduce air flow. Press

the + button to increase it.

You can reactivate the automatic mode

for the air flow rate with the AUTO button.

The air flow rate is lowered or switched off

entirely to reduce the drain on the battery. The

display remains the same.

Switching the system on/off

Reduce the air flow by pressing the – button

repeatedly until the system is switched off. All

indicators go out.

Press the AUTO button to switch the automatic

climate control back on.

AUTO program

The AUTO program adjusts the air

distribution to the windshield and

side windows, toward the upper body area and

into the footwell for you. The air flow rate and

your temperature specifications will be adapted

to outside influences in accordance with sea-

sonal changes, e.g. sunlight.

The cooling function is automatically switched

on along with the AUTO program.

Recirculated-air mode

Recirculated-air mode: the supply

of outside air is permanently shut

off. The system then recirculates

the air currently within the vehicle.

If condensation starts to form on the

inside window surfaces, press the AUTO

button or switch off the recirculated-air mode

and, if necessary, increase the air flow rate.

The recirculated-air mode should not be used

over an extended period of time; otherwise, the

air quality in the passenger compartment will

deteriorate continuously.<

Maximum cooling

At outside temperatures above

327/06 and when the engine is

running, you obtain a maximum

cooling effect as soon as possible.

The automatic climate control goes into recircu-

lated-air mode at the lowest temperature. Air

flows at maximum rate from the vents for the

upper body area. You should therefore open

them for maximum cooling.

Air distribution, manual

The flow of air is directed to the

windows, to the upper body area or

to the footwell as selected.

You can switch the automatic air

distribution back on by pressing the AUTO but-

ton.

Temperature

Set the desired temperature individually.

The automatic climate control achieves

this temperature as quickly as possible

regardless of the season, using maximum

cooling or heating power if necessary, and then

maintains it.

If you switch between different tempera-

ture settings in quick succession, the auto-

matic climate control does not have enough

time to achieve the set temperature.<

Rear window defroster

The defroster is switched off auto-

matically after a certain time.

Depending on your vehicle's equip-

ment, the upper wires serve as an

antenna and are not part of the rear window

defroster.

Defrosting windows and removing

condensation

Quickly removes ice and condensa-

tion from the windshield and front

side windows.

For this purpose, also switch on the

cooling function.

The windshield heating* is switched on auto-

matically.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Climate

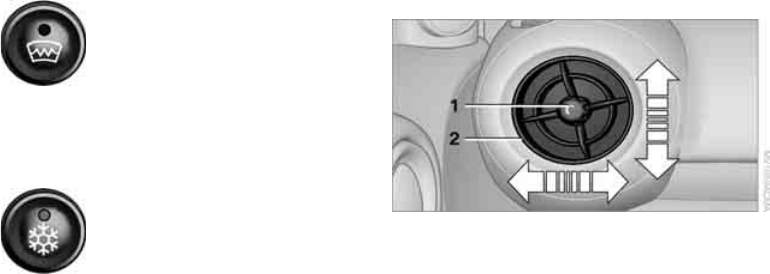

Windshield heating*

The windshield heating is switched

off automatically after a certain

time.

Cooling function

The passenger compartment can only be cooled

while the engine is running.

When the cooling function is on,

the air is cooled, dried, then

reheated according to the temper-

ature setting.

The cooling function helps prevent condensa-

tion on the windows or removes it quickly.

Depending on the weather, the windshield may

fog over briefly when the engine is started. The

recirculated-air mode may be switched on auto-

matically.

When the AUTO button is pressed, the cooling

function switches on automatically.

Microfilter/activated-charcoal filter

The microfilter captures dust and pollen. The

activated-charcoal filter provides additional pro-

tection by filtering gaseous pollutants from the

outside air. Your MINI dealer replaces this com-

bined filter as a standard part of your scheduled

maintenance.

You can call up further information in the service

requirements display, page 52.

Ventilation

1Knob for continuous opening and closing

2Jet for direction of air flow

Opening/closing

Turn the knob.

Direction of air flow

Swivel the entire jet.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Practical interior accessories

Integrated universal

remote control*

The concept

The integrated universal remote control can

replace as many as three hand-held transmitters

for various remote-controlled devices, such as

garage and gate openers and lighting systems.

The integrated universal remote control regis-

ters and stores signals from the original hand-

held transmitters.

The signal of an original hand-held transmitter

can be programmed on one of the three mem-

ory buttons 1. The system in question can then

be operated by means of the programmed

memory button 1. The LED 2 flashes to confirm

transmission of the signal.

If you decide to sell your vehicle one day, in the

interest of your own security, remember to clear

the stored programs before the vehicle leaves

your possession, page 78.

To prevent possible damage or injury,

before programming or using the inte-

grated universal remote control, always inspect

the immediate area to make certain that no

people, animals or objects are within the travel

range of the device. Comply also with the safety

instructions supplied with the original hand-held

transmitter.<

Checking compatibility

If this symbol appears on the package

or in the instructions supplied with the

original hand-held transmitter, you can

assume that the radio remote control device is

compatible with the integrated universal remote

control.

For additional information, please contact your

MINI dealer or call: 1-800-355-3515.

You can also obtain information on the Internet

at:

www.MINI.com or

www.homelink.com

HomeLink is a registered trademark of Johnson

Controls, Inc.

Programming

1Memory buttons

2LED

Fixed-code hand-held transmitters

1. Switch on the ignition, page 39.

2. When starting operation for the first time:

press both outer memory buttons 1 for

approx. 20 seconds until the LED 2 flashes

rapidly. All stored programs are cleared.

3. Hold the original hand-held transmitter at a

distance of approx. 2in/5cm to 12in/30cm

from the memory buttons 1.

The required distance between the

hand-held transmitter and the mem-

ory buttons 1 depends on the system of the

respective original hand-held transmitter

used.<

4. Simultaneously press the transmit key on

the original hand-held transmitter and the

desired memory button 1 on the integrated

universal remote control. The LED 2 flashes

slowly at first. As soon as the LED 2 flashes

rapidly, release both buttons. If the LED 2

does not flash rapidly after approx. 15 sec-

onds, alter the distance.

5. To program other original hand-held trans-

mitters, repeat steps 3 and 4.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Practical interior accessories

The corresponding memory button 1 is now

programmed with the signal of the original

hand-held transmitter.

You can operate the system with the engine

running or with the ignition switched on.

If the system fails to function even after

repeated programming, check whether

the original hand-held transmitter uses an alter-

nating-code system. To do so, either read the

instructions for the original hand-held transmit-

ter or hold down the programmed memory

button 1 of the integrated universal remote con-

trol. If the LED 2 on the integrated universal

remote control flashes rapidly and then remains

lit for about two seconds, the original hand-held

transmitter uses an alternating-code system. If it

uses an alternating-code system, program the

memory buttons 1 as described under Alternat-

ing-code hand-held transmitters.<

Alternating-code hand-held

transmitters

To program the integrated universal remote

control, consult the operating instructions for

the device to be set. You will find information

there on the possibilities for synchronization or

programming of additional hand-held transmit-

ters.

When programming hand-held transmitters that

employ an alternating code, please observe the

following supplementary instructions:

Programming will be easier with the aid of

a second person.<

1. Park your vehicle within the range of the

remote-controlled device.

Do not exceed a distance of 55 yd/

50 m from the radio remote con-

trolled device.<

2. Program the integrated universal remote

control as described above in the section

Fixed-code hand-held transmitters.

3. Locate the button on the receiver of the

device to be set, e.g. on the drive unit.

4. Press the button on the receiver of the

device to be set. After step 4, you have

approx. 30 seconds for the next step 5.

5. Press the programmed memory button 1 of

the integrated universal remote control

three times.

The corresponding memory button 1 is now

programmed with the signal of the original

hand-held transmitter.

Clearing stored programs

Press both outer memory buttons 1 for approx.

20 seconds until the LED 2 flashes: all stored

programs are cleared.

It is not possible to clear individual programs.

Reassigning individual programs

1. Hold the original hand-held transmitter at a

distance of approx. 2 in/5 cm to 12 in/30 cm

from the memory buttons 1.

The required distance between the

hand-held transmitter and the mem-

ory buttons 1 depends on the system of the

respective original hand-held transmitter

used.<

2. Press the desired memory button 1 of the

integrated universal remote control.

3. If the LED 2 flashes slowly after approx.

20 seconds, press the transmit key of the

original hand-held transmitter and release

both buttons as soon as the LED 2 flashes

rapidly.

If the LED 2 does not flash rapidly after

approx. 15 seconds, alter the distance and

repeat this step.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

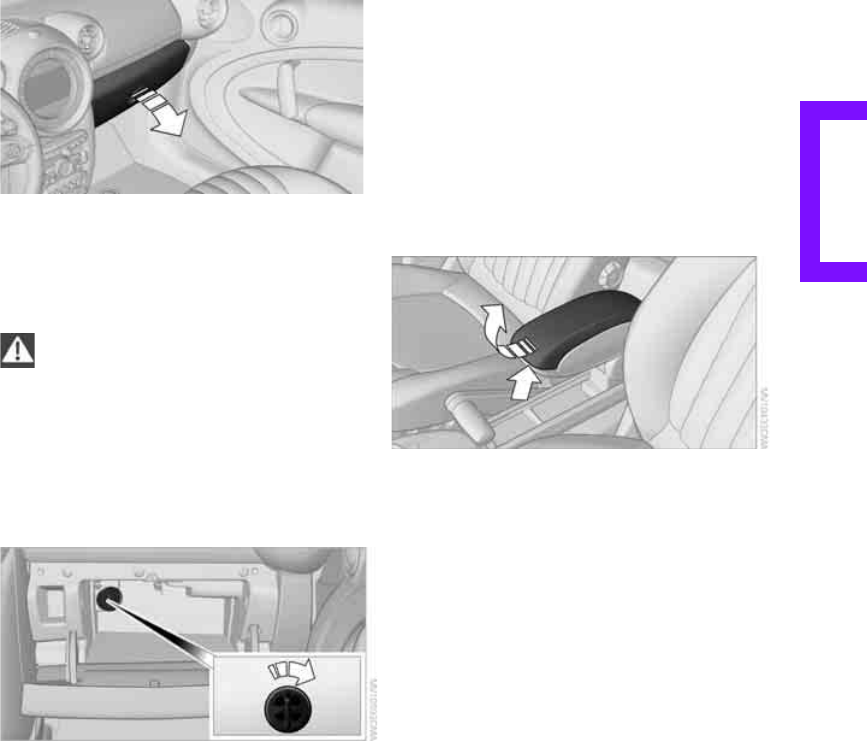

Glove compartment

Opening

Pull the handle to open the cover.

The light in the glove compartment comes on.

Closing

Fold cover up.

To prevent injury in the event of an acci-

dent, close the glove compartment after

use while the vehicle is being driven.<

Ventilation*

Depending on your vehicle's equipment, the

glove compartment can be ventilated and, if the

cooling function* is switched on, can also be

cooled.

Opening

Rotate the switch in the direction of the arrow.

Closing

Rotate the switch in the opposite direction of the

arrow until it is in the vertical position.

Depending on the temperature setting of the air

conditioning or the automatic climate control,

high temperatures may result in the glove com-

partment.

Center armrest*

Storage compartment

The center armrest between the front seats con-

tains either a compartment or the cover for the

mobile phone base plate* or the snap-in

adapter*.

Opening

Press the button, arrow, and lift the cover.

Connection for external

audio device

>iPods/iPhones or USB devices such as MP3

players and USB memory sticks: connect via

the USB audio interface.

>iPhone/mobile phone music players: con-

necting via the snap-in adapter*, refer to

page 109. Playback is only possible if no

device is connected to the USB audio inter-

face.

>When connecting two Apple devices such as

an iPod via the USB audio interface and an

iPhone via the snap-in adapter*, one of the

respective devices will be supported for

audio playback.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Practical interior accessories

Connecting via USB audio interface

1USB interface*

2Connection for audio playback:

TRS connector 1/8"/3.5 mm

Apple iPod/iPhone

Use the special cable adapter for Apple iPods/

iPhones to produce the connection. The cable

adapter is required for a proper connection.

For additional information, contact your MINI

dealer or visit the Internet at www.mini.com/

connectivity.

To play audio tracks over the car's speaker sys-

tem, connect the iPod to ports 1 and 2.

The iPod/iPhone's menu structure is supported

by the USB audio interface.

USB device

To play audio tracks over the car's speaker sys-

tem, connect the USB device to port 2.

To control an external audio device via the radio,

refer to the Owner's Manual for Radio.

Notes

Do not expose the audio device to

extreme environmental conditions, e.g.

very high temperatures, refer to the Owner's

Manual of the audio device. Otherwise, the

audio device may become damaged, which

could compromise safety while driving.<

>The USB audio interface supplies the con-

nected audio devices with power, provided

that this is supported by the audio device.

Therefore, do not connect the USB audio

device to the power socket in the vehicle

during operation.

>Do not forcibly connect the plug to the USB

interface.

>Do not connect devices such as fans or

lamps to the USB audio interface.

>Do not connect USB hard discs.

>Do not use the USB audio interface to charge

external devices.

Storage compartments

In the vehicle interior

Depending on your vehicle's equipment, you

will find storage compartments in the front and

rear doors and in the center console*.

Pockets* are provided on the backrest rear pan-

els of the front seats.

Center Rail

On the Center Rail, a variety of accessories can

be fastened to a special base plate and moved

to various positions, e.g. a cup holder* or a

mobile phone holder*.

Do not attach accessory parts in the vicin-

ity of the parking brake; otherwise, they

can be damaged when the parking brake lever is

actuated.<

Example: cup holder

Inserting base plate

The lever 3 can be locked in three positions.

0Locking

1Sliding along the rail

2Inserting base plate

For inserting, move the lever into position 2.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Sliding and locking

1. Push lever 3 into position 1.

2. Slide the base plate.

3. Push the lever 3 down, into position 0, and

lock the base plate in place.

Lock the base plate in place before driv-

ing; otherwise, injuries may result in the

event of an accident.<

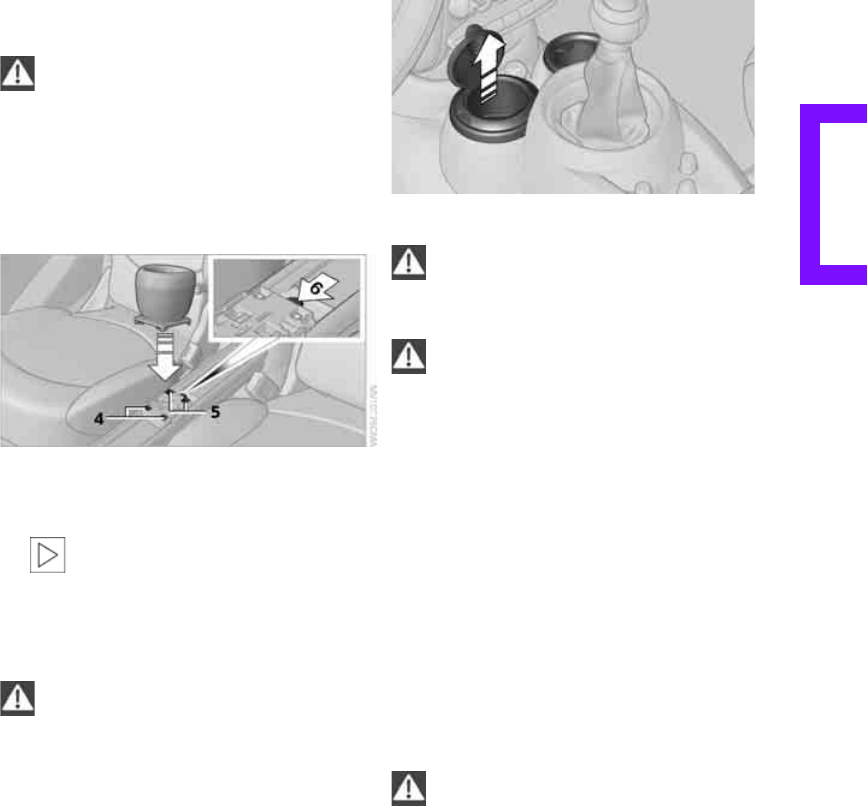

Installing cup holder

1. Lock base plate in place if necessary, refer to

Sliding and locking.

2. Pull the lever 6 up to unlock the mounts.

3. First insert the cup holder into the front

mounts 4 and then snap it into the rear

mounts 5.

Make sure that the lever 6 is situated

opposite the mount 4.<

Clothes hooks

There are clothes hooks on the grab handles in

the rear passenger compartment.

Items of clothing hung from the hooks

must not obstruct the driver's view. Do not

hang heavy objects from the hooks; otherwise,

they could endanger the car's occupants, e.g. in

case of heavy braking or sudden swerving.<

In the cargo area

Depending on your vehicle's equipment, you

have the following storage options:

>Storage compartment under the flat load

floor*

>Bag holder on the support for the cargo area

cover

Cup holders and

ashtray*

Cup holders*

Use lightweight, nonbreakable containers

and do not transport hot beverages. Oth-

erwise, there is an increased risk of injury in the

event of an accident.<

Do not push unsuitable containers forcibly

into the cup holder. Otherwise, you may

damage it.<

Additional cup holders can be attached to the

Center Rail in the rear passenger compartment.

Ashtray*

The ashtray is located in one of the cup holders

in the center console.

Emptying

Remove the entire ashtray.

Lighter

With the engine running or the ignition switched

on, press in the cigarette lighter.

The lighter can be pulled out as soon as it pops

back out.

Hold or touch the hot cigarette lighter by

the knob only. Holding or touching it in

other areas could result in burns.

When leaving the car, always remove the key so

that children cannot operate the cigarette

lighter and burn themselves.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Practical interior accessories

Connecting electrical

appliances

In your MINI, when the engine is running or the

ignition is switched on, you can use electrical

devices such as a flashlight, car vacuum cleaner,

etc., up to approx. 200 watts at 12 volts, as long

as one of the following sockets is available.

Avoid damaging the sockets by attempting to

insert plugs of unsuitable shape or size.

Cigarette lighter socket

Remove the lighter* or cover from the socket.

Sockets*

In the rear passenger compartment

Pull out the cover.

In the cargo area

Pull out the cover.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCE

Controls

Driving tips

Communications

Mobility

Reference

Driving tips

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Things to remember when driving

Break-in period

Moving parts need breaking-in time to adjust to

each other. Please follow the instructions below

in order to achieve the optimal service life and

economy of operation for your vehicle.

Engine and differential

Always obey all official speed limits.

Up to 1,200 miles/2,000 km

Drive at varying engine and road speeds, but do

not exceed the following:

>Gasoline engine

4,500 rpm or 100 mph/160 km/h

Avoid full-throttle operation and use of the

transmission's kickdown mode.

From 1,200 miles/2,000 km

Engine and vehicle speeds can be gradually

increased.

Tires

Due to technical factors associated with their

manufacture, tires do not achieve their full trac-

tion potential until after an initial break-in

period. Therefore, drive cautiously during the

first 200 miles/300 km.

Brake system

Brakes require an initial break-in period of

approx. 300 miles/500 km to achieve optimized

contact and wear patterns between brake pads

and rotors. Drive cautiously during this break-in

period.

Clutch

The function of the clutch reaches its optimal

level only after a distance driven of approx.

300 miles/500 km. During this break-in period,

engage the clutch gently.

Following part replacement

The same break-in procedures should be

observed if any of the components mentioned

above have to be renewed in the course of the

vehicle's operating life.

General driving notes

Closing liftgate

Only drive with the liftgate closed. Failure

to do so may endanger passengers or

other road users or may damage the vehicle in

the event of an accident or a braking and eva-

sive maneuver. In addition, exhaust gas may

flow into the passenger compartment.<

If special circumstances make it absolutely nec-

essary to drive with the liftgate open:

1. Close all windows and the glass sunroof*.

2. Switch off recirculated-air mode and switch

the airflow control of the heating/air-condi-

tioning system or automatic climate control

to high, refer to page 73 or 75.

Hot exhaust system

As in all vehicles, extremely high tempera-

tures are generated on the exhaust sys-

tem. Do not remove the heat shields installed

adjacent to various sections of the exhaust sys-

tem, and never apply undercoating to them.

When driving, standing at idle and while park-

ing, take care to avoid possible contact between

the hot exhaust system and any highly flamma-

ble materials such as hay, leaves, grass, etc. Such

contact could lead to a fire, with the risk of seri-

ous personal injuries and property damage. Do

not touch hot exhaust tail pipes. Otherwise,

there is a risk of burns.<

Hydroplaning

When driving on wet or slushy roads,

reduce road speed. If you do not, a wedge

of water can form between tires and road sur-

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

face. This situation, known as hydroplaning, can

cause partial or complete loss of tire contact

with the road surface, so that the car cannot be

steered or braked properly.<

The risk of hydroplaning increases with declining

tread depth on the tires, refer also to Tread

depth on page 118.

Driving through water

Drive through water on the road only if it is

not deeper than 1 ft/30 cm, and then only

at walking speed at the most. Otherwise, the

vehicle's engine, the electrical systems and the

transmission may be damaged.<

Parking brake on inclines

On inclines, do not hold the vehicle with

the clutch; use the parking brake. Other-

wise, greater clutch wear will result.<

For information on driving off using Hill Assist,

refer to page 58.

Braking safely

Your MINI is equipped with ABS. If you are in a

situation which requires full braking, it is best to

brake using maximum brake pressure. Since the

vehicle maintains steering responsiveness, you

can still avoid possible obstacles with a mini-

mum of steering effort.

The pulsation of the brake pedal, together with

the sound of hydraulic regulation, indicates that

ABS is functioning properly.

Objects in the movement range of the

pedals

Keep floor mats, carpet, and other objects

out of the movement range of the pedals;

otherwise, they may inhibit the function of the

pedals during driving. Do not place additional

floor mats onto an existing one or onto other

objects. Only use floor mats that have been

approved for the vehicle and can be appropri-

ately fastened. Make sure that the floor mats are

securely fastened again after they have been

removed, e.g. for cleaning.<

Driving in wet conditions

When roads are wet or there is heavy rain, briefly

exert gentle pressure on the brake pedal every

few miles. Monitor traffic conditions to ensure

that this maneuver does not endanger other

road users. The heat generated in this process

helps dry the pads and rotors to ensure that

Then full braking force will be immediately avail-

able when it is needed.

Hills

To prevent overheating and the resulting

reduced efficiency of the brake system,

drive long or steep downhill gradients in the

gear in which the least braking is required. Even

light but consistent brake pressure can lead to

high temperatures, brake wear and possibly

even brake failure.<

You can increase the engine's braking effect by

shifting down, all the way to first gear if neces-

sary. This strategy helps you avoid placing

excessive loads on the brake system. Downshift-

ing in manual mode of the automatic transmis-

sion, page 42.

Never drive with the clutch held down,

with the transmission in neutral or with

the engine switched off; otherwise, engine brak-

ing action will not be present or there will be no

power assistance to the brakes or steering.

Never allow floor mats, carpets or any other

objects to protrude into the area around the

pedals; otherwise, pedal function could be

impaired.<

Corrosion on brake rotors

When the vehicle is driven only occasionally,

during extended periods when the vehicle is not

used at all, and in operating conditions where

brake applications are less frequent, there is an

increased tendency for corrosion to form on

rotors, while contaminants accumulate on the

brake pads. This occurs because the minimum

pressure which must be exerted by the pads

during brake applications to clean the rotors is

not reached.

Should corrosion form on the brake rotors, the

brakes will tend to respond with a pulsating

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Things to remember when driving

effect that even extended application will fail to

cure.

When the vehicle is parked

Condensation forms while the automatic climate

control is in operation, and then exits under the

vehicle. Traces of condensed water under the

vehicle are therefore normal.

In the MINI Cooper S, the coolant pump may

continue to run for some time after the engine is

switched off. This will generate noise in the

engine compartment.

Cargo loading

To avoid loading the tires beyond their

approved carrying capacity, never over-

load the vehicle. Overloading can lead to over-

heating and increases the rate at which damage

develops inside the tires. The ultimate result can

assume the form of a sudden blowout.<

Avoid fluid spills in the cargo area as they

could damage the vehicle.<

Expanding cargo area

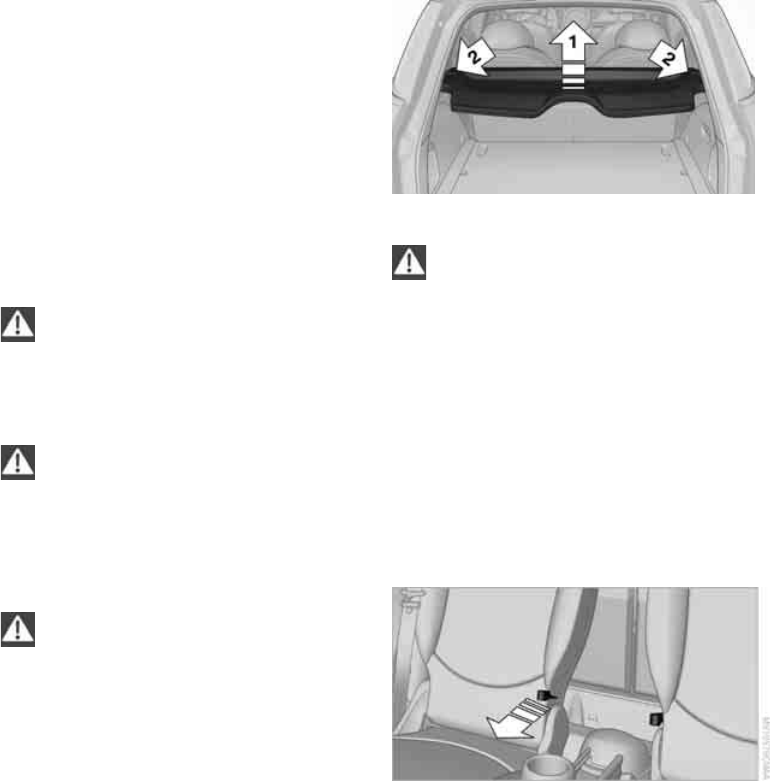

Cargo area cover

Do not place any objects on the cover;

otherwise, they could endanger the car's

occupants, e.g. in the case of braking or sudden

swerving, or they may damage the cover.<

When you open the liftgate, the roll-up cover is

raised.

To load bulky luggage, the cover can be

removed.

1. Unhook the lift straps from the liftgate.

2. Lift the cover slightly, arrow 1, and pull it

rearward out of the bracket, arrow 2.

Rear seat backrest

To ensure that the safety systems con-

tinue to provide optimized protection,

observe the safety belt information on

page 33.<

Expand the cargo area by raising the split rear

seat backrests to a steeper angle.

The backrests can be adjusted as needed in

10 stages between a comfort position and a

transport position or can be folded down.

In the comfort position, the backrests are as far

back as possible; in the transport position, they

are in an approximately vertical position.

Before installing a child restraint system,

observe the instructions starting on page 36.

1. Pull loop, arrow.

2. Lock backrest in the desired position or fold

down.

Folding the backrests back into position

When backrests are folded back from the

folded-down position, they lock in the transport

position.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

To adjust them to the desired backrest angle or

to the comfort position, pull the loop forward.

If the rear seat backrests are positioned at

a steeper angle, do not install child

restraint systems in the rear of the vehicle as

their protective features may be ineffective.<

Cargo area privacy screen

Between the cargo area and the rear seat back-

rest, there is a cargo area privacy screen. It can

be folded down and used as a loading platform.

When the rear seat backrests are folded

down, do not fold the privacy screen

upright. In an accident, cargo could fold down

the privacy screen and damage it.<

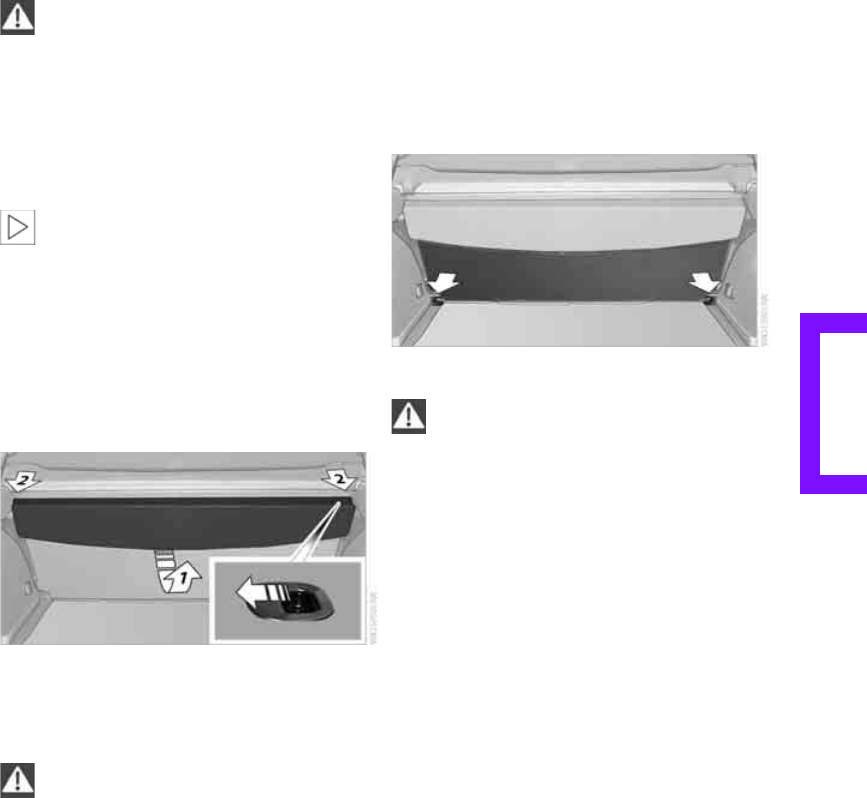

Folding down the privacy screen

1. If necessary, remove the cargo area cover,

refer to page 88.

2. Fold the privacy screen up and to the rear,

arrow 1.

3. Release the locking mechanisms on the left

and right sides, arrows 2.

4. Grasp the outer sides of the privacy screen

and guide it downward.

Do not exceed the maximum load of

330 lbs/150 kg of the privacy screen when

it is in folded down into the loading platform

position; otherwise, damage may occur.<

Folding the privacy screen forward

1. Fold down rear seat backrests.

2. Unlock privacy screen, see above.

3. Grasp the outer sides of the privacy screen

and guide it forward onto the folded-down

rear seat backrests.

Removing

1. Removing cargo area cover, page 88.

2. Fold the privacy screen up and to the rear

and unlock it, refer to Folding the privacy

screen forward.

3. Remove it from the guides on the cargo area

floor, arrows, and remove the privacy

screen.

Partition net*

Ensure that the partition net is firmly

attached; otherwise, injuries may occur.<

Before installing

1. Remove the pouch with the partition net

from the storage compartment under the

pull-out floor panel in the cargo area.

2. Remove the partition net from the pouch,

then unroll and unfold it.

After use, fold the partition net together, roll

it back up in the same way, and place it in

the pouch so that it can be stowed under the

floor panel again. When doing so, make sure

that hooks and tensioning buckles do not

rest against the rod elements.

3. Unfold the partition net until the rod ele-

ments snap into place.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Things to remember when driving

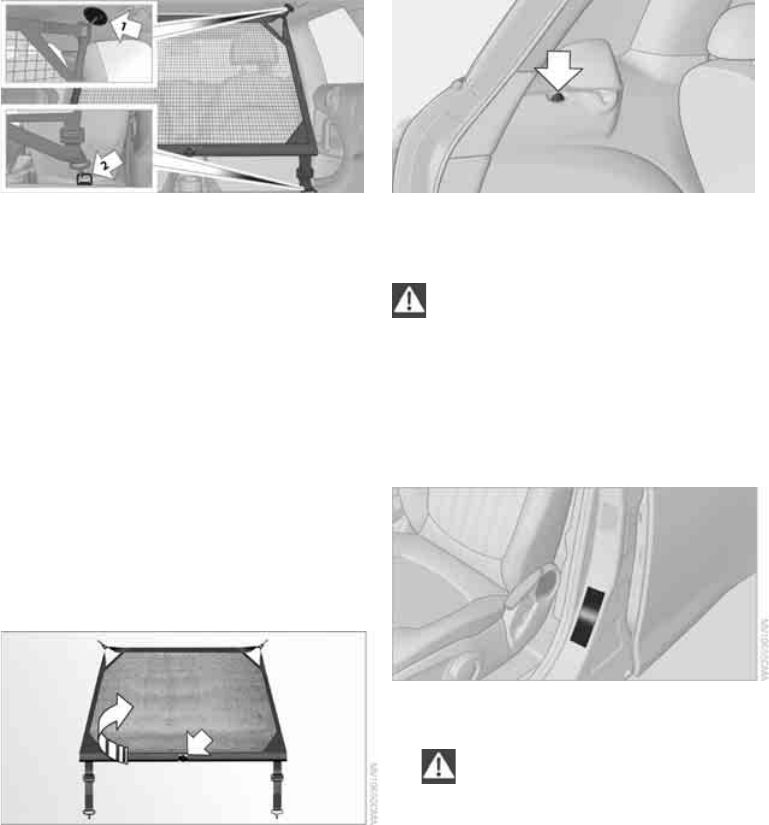

Installing behind the front seats

1. If necessary, remove the cargo area cover.

2. Fold down the rear seat backrests, refer to

Expanding cargo area.

3. Insert each partition net mounting pin all the

way into its respective front mount in the

headliner, arrow 1, and push it forward.

4. Attach the hook, arrow 2, at the bottom of

each retaining strap to the respective eye on

the vehicle floor.

5. Lash the partition net securely. To do so,

tighten the retaining straps at the tensioning

buckles.

Removing

When removing and stowing the partition net,

proceed in the reverse sequence.

To fold closed, press the release button, arrow.

Bag holders*

Holders on the left and right side of the support

for the cargo area cover, arrow, e.g. for hanging

shopping bags or storage bags.

Only hang light shopping bags or suitable

items on the holders. Otherwise, this may

create a hazard due to flying objects, for exam-

ple in the event of braking and evasive maneu-

vers.

Transport heavy luggage only if it is appropri-

ately secured in the cargo area.<

Determining cargo limit

1. Locate the following statement on your

vehicle's placard*:

The combined weight of occupants

and cargo should never exceed

XXX kg or YYY lbs. Otherwise, this could

damage the vehicle and produce unstable

vehicle operating conditions.<

2. Determine the combined weight of the

driver and passengers that will be riding in

your vehicle.

3. Subtract the combined weight of the driver

and passengers from XXX kilograms or YYY

pounds.

4. The resulting figure equals the available

amount of cargo and luggage load capacity.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

For example, if the XXX amount equals

1,400 lbs. and there will be four 150 lbs. pas-

sengers in your vehicle, the amount of avail-

able cargo and luggage load capacity is

650 lbs:

1,400 lbs. minus 750 lbs. = 650 lbs.

5. Determine the combined weight of luggage

and cargo being loaded on the vehicle. That

weight may not safely exceed the available

cargo and luggage load capacity calculated

in step 4.

6. If your vehicle will be towing a trailer, part of

the load from your trailer will be transferred

to your vehicle. Consult the manual for

transporting a trailer to determine how this

may reduce the available cargo and luggage

load capacity of your vehicle.

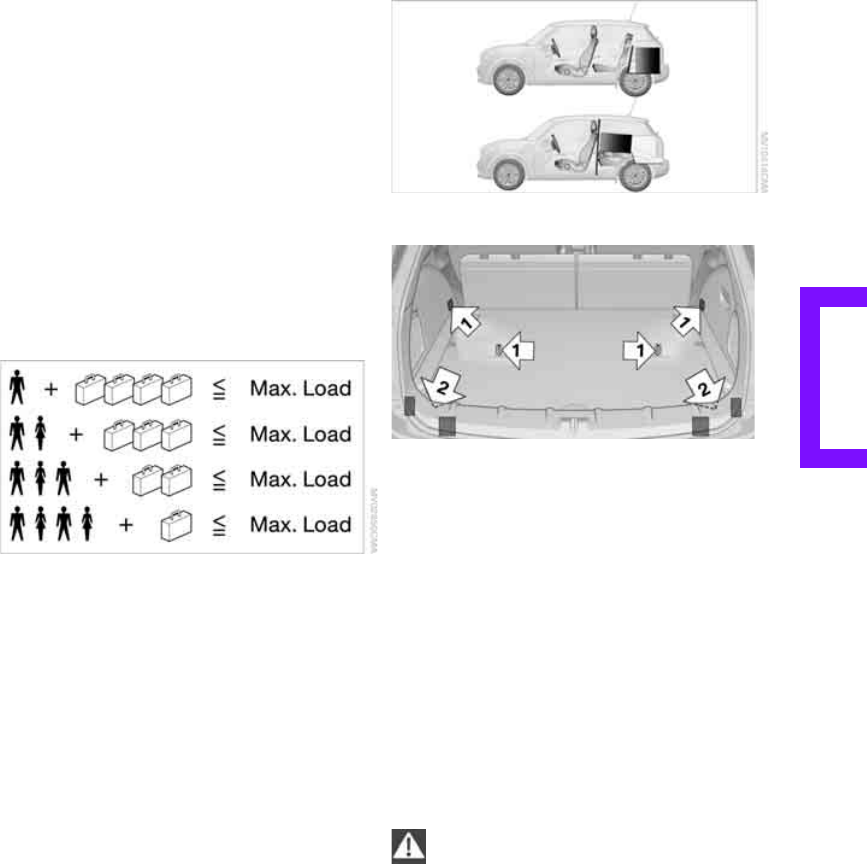

Load

The permissible load is the sum of the occu-

pants' weights and the weight of the cargo. The

greater the weight of the occupants, the less

cargo/luggage can be transported.

Stowing cargo

>Position heavy objects as low and as far for-

ward as possible, ideally directly behind the

rear seat backrests.

>Cover sharp edges and corners.

>For very heavy cargo when the rear seat is

not occupied, secure each safety belt in the

respective opposite buckle.

>Do not stack higher than the top edge of the

backrests.

>Use the partition net, refer to page 89.

Ensure that no objects can penetrate

through the net.

Securing cargo

>Secure smaller and lighter items using

retaining or draw straps*.

>Heavy-duty cargo straps* for securing larger

and heavier objects are available at your

MINI dealer.

>These cargo straps are fastened using eight*

securing eyes.

Two of them are located on the side wall*,

arrows 1, of the cargo area.

Two of them are located on the rear wall,

arrows 2, of the cargo area.

To use the lower lashing eyes, raise or remove

the pull-out floor panel.

Comply with the information enclosed with the

load-securing devices.

Always position and secure the cargo as

described above, so that it cannot endan-

ger the car's occupants, for example if sudden

braking or swerves are necessary.

Do not exceed the approved gross vehicle

weight and axle loads, page 160; otherwise, the

vehicle's operating safety is no longer assured

and the vehicle will not be in compliance with

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Things to remember when driving

the construction and use regulations.

Heavy or hard objects should not be carried

loose inside the car, since they could be thrown

around, for example as a result of heavy braking,

sudden swerves, etc., and endanger the occu-

pants. Do not secure cargo using the fastening

points for the tether strap, page 37; they may

become damaged.<

Roof-mounted luggage

rack*

A special rack system is available as an option for

your MINI. Your MINI dealer will be glad to

advise you. Comply with the installation instruc-

tions supplied with the rack system.

Loading roof-mounted luggage rack

Because roof racks raise the vehicle's center of

gravity when loaded, they have a major effect

on vehicle handling and steering response.

You should therefore always remember not to

exceed the approved roof load capacity, the

approved gross vehicle weight or the axle loads

when loading the rack.

You can find the applicable data under Weights

on page 160.

The roof load must be distributed uniformly and

should not be too large in area. Heavy items

should always be placed at the bottom.

When loading, make sure that there is sufficient

space for the movement of the glass sunroof.

Fasten roof-mounted cargo correctly and

securely to prevent it from shifting or falling off

during the trip.

Drive smoothly. Avoid sudden acceleration and

braking maneuvers, and take corners gently.

Rear luggage rack

A special rear-mounted luggage rack is available

as an optional accessory. It does not require a

trailer hitch.

Please comply with the precautions included

with the installation instructions.

Mounting points

The mounting points are located under the cov-

ers in the bumper.

Remove the covers, refer to page 142.

Loading rear luggage rack

When loading, make sure that you do not

exceed the approved gross vehicle weight and

axle loads.

You can find the applicable data under Weights

on page 160.

Saving fuel

Fuel consumption depends on a number of dif-

ferent factors. The implementation of certain

measures, your driving style and regular mainte-

nance can have an influence on fuel consump-

tion and on the environmental impact.

Remove unnecessary cargo

Additional weight increases fuel consumption.

Remove attached parts no longer in use

Remove auxiliary mirrors, roof- or rear-mounted

luggage racks whenever you are not using

them.

Attached parts on the vehicle affect its aerody-

namics and increase fuel consumption.

Check tire inflation pressure regularly

Check and, if necessary, correct tire inflation

pressure at least twice a month and before start-

ing on a long trip.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Low inflation pressure increases rolling resis-

tance and thus leads to greater fuel consump-

tion and tire wear.

Drive off immediately

Do not wait for the engine to warm up while the

vehicle remains stationary. Start driving right

away, but at moderate engine speeds. This is the

fastest way for the cold engine to reach its oper-

ating temperature.

Think ahead while driving

Avoid unnecessary acceleration and braking by

maintaining a suitable distance to the vehicle

driving ahead.

Driving smoothly and anticipating impending

traffic situations reduces fuel consumption.

Avoid high engine speeds

Use first gear only for driving off. In second and

higher gears, accelerate smoothly to a suitable

engine and road speed. In doing so, avoid high

engine speeds and shift up early.

When you reach your desired traveling speed,

shift to the highest suitable gear and drive at

constant speed.

As a rule: driving at low engine speeds lowers

fuel consumption and reduces wear.

Coasting

When approaching a red traffic light, take your

foot off the accelerator and let the vehicle coast

to a halt in the highest suitable gear.

On a downhill gradient, take your foot off the

accelerator and let the vehicle coast in a suitable

gear.

Fuel supply is shut off automatically when the

vehicle is coasting.

Switch off the engine during lengthy

stops

Switch off the engine when stopping for lengthy

periods, e.g. at traffic lights, railroad crossings or

in traffic jams.

Have the vehicle serviced

Have your vehicle serviced regularly to achieve

good economy and a long vehicle life. The man-

ufacturer of your MINI recommends having the

vehicle serviced by a MINI dealer. Also note the

MINI Maintenance System, page 125.

Driving on poor roads

Your MINI is at home on all roads and surfaces. It

combines an all-wheel drive system* with the

advantages of a normal passenger car.

Do not drive on unpaved terrain, as other-

wise the vehicle may be damaged.<

When you are driving on poor roads, there are a

few points which you should strictly observe for

your own safety, for that of your passengers,

and for the safety of the vehicle:

>Familiarize yourself with the vehicle before

beginning to drive and do not take risks

under any circumstances.

>Adapt your speed to road conditions. The

steeper and rougher the road surface is, the

lower the speed should be.

>When driving on very steep uphill or down-

hill grades, make sure in advance that the

engine oil and coolant levels are close to the

maximum mark, refer to page 122.

>While driving, watch carefully for obstacles

such as rocks or holes. Try to avoid these

obstacles whenever possible.

>Make sure that the undercarriage does not

touch the ground, for example on hilltops

and bumpy roads. The ground clearance of

the vehicle is a maximum of approx. 6.0 in/

15 cm. Please note that the ground clear-

ance can vary depending on loading and the

driving conditions of the vehicle.

>Only drive through road surface water up to

a maximum water depth of 1 ft/30 cm and

only at walking speed; do not remain sta-

tionary.

>After driving through water at low speed,

lightly press the brake pedal several times to

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Things to remember when driving

dry the brakes and to prevent the braking

effect from being reduced by wetness.

>Depending on the condition of the surface, it

may be practical to briefly activate DTC, refer

to DTC Dynamic Traction Control on

page 57.

>If the drive wheels spin on one side, depress

the accelerator pedal sufficiently so that the

driving stability control systems can distrib-

ute the drive forces to the individual wheels.

After driving on poor roads, please observe the

following points to maintain the driving safety of

the vehicle:

>Clean the coarsest dirt from the body.

>Clean mud, snow, ice, etc. from the wheels

and tires and check the tires for damage.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCE

Controls

Communications

Driving tips

Mobility

Reference

Communications

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Telephone

Overview

The concept

Mobile phones or other external devices, e.g.

audio players, can be connected to the vehicle

via Bluetooth.

Your MINI is equipped with a complete mobile

phone preparation. After a suitable mobile

phone is paired with the vehicle once, the

mobile phone can be controlled via the radio,

the buttons* on the steering wheel, and by

voice*.

It may be necessary for some functions to be

activated by the mobile phone provider.

Only make entries when traffic conditions

permit. Do not hold the mobile phone in

your hand while you are driving; use the hands-

free system instead. If you do not observe this

precaution, your being distracted can endanger

vehicle occupants and other road users.<

Snap-in adapter*

The snap-in adapter, refer to page 109, makes it

possible to:

>Accommodate the mobile phone.

>Recharge its battery.

>Connect it to an external antenna of the

vehicle.

This assures a better network connection

and constant sound quality.

A mobile phone that is connected to the vehicle

should not be operated via the mobile phone

keypad; otherwise, malfunctions may occur.

Suitable mobile phones

For precise information about which mobile

phones and external devices can be with a Blue-

tooth interface are supported by the complete

mobile phone preparation, go to

www.mini.com/connectivity.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

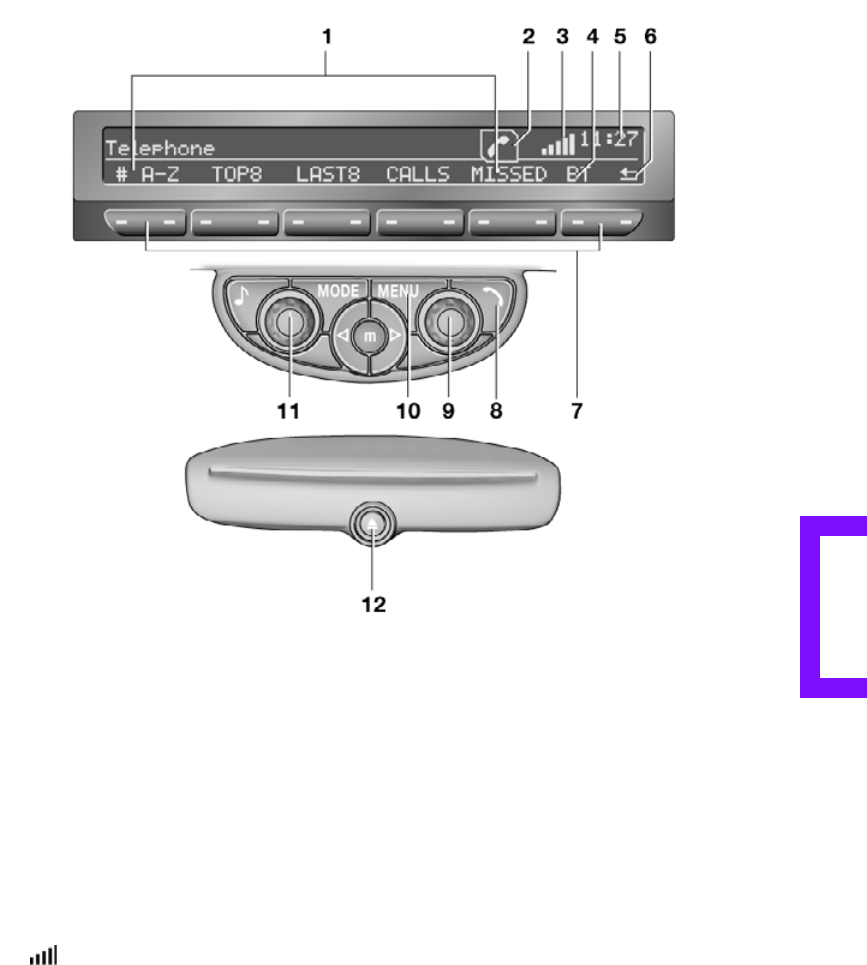

Operating the mobile phone via the radio

To open the menu show above, refer to

page 104.

1Making and receiving phone calls 104

>"#": dial phone number

>"A-Z": phone book

>"TOP8": most frequently dialed phone

numbers

>"LAST8": last phone numbers dialed

>"CALLS": accepted calls

>"MISSED": missed calls

2Marking to select a function

3 Reception of the mobile phone network:

flashes when a call is being made

4Pairing a new mobile phone, delete pairing

data of a mobile phone, or switching Blue-

tooth on/off 100

5Time

6Backspace

7Function buttons for confirming the func-

tions displayed above them

8Redialing, answering a call, starting to dial,

ending a call, and switching to the phone

9Selecting and confirming function 100

>Turn: to select a function or number

>Press: to activate a function or number

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Telephone

100

10 Switching displays 104

>"PHONE": telephone

>"COMP": computer

>"CONFIG": adjusting

11 Radio on/off, volume

>Press: to switch radio on/off

>Turn: adjusting volume 103

12 Ejecting CD, refer to Owner's Manual for

Radio

This symbol appears on the radio display

when a phone call is being made with the

hands-free system.

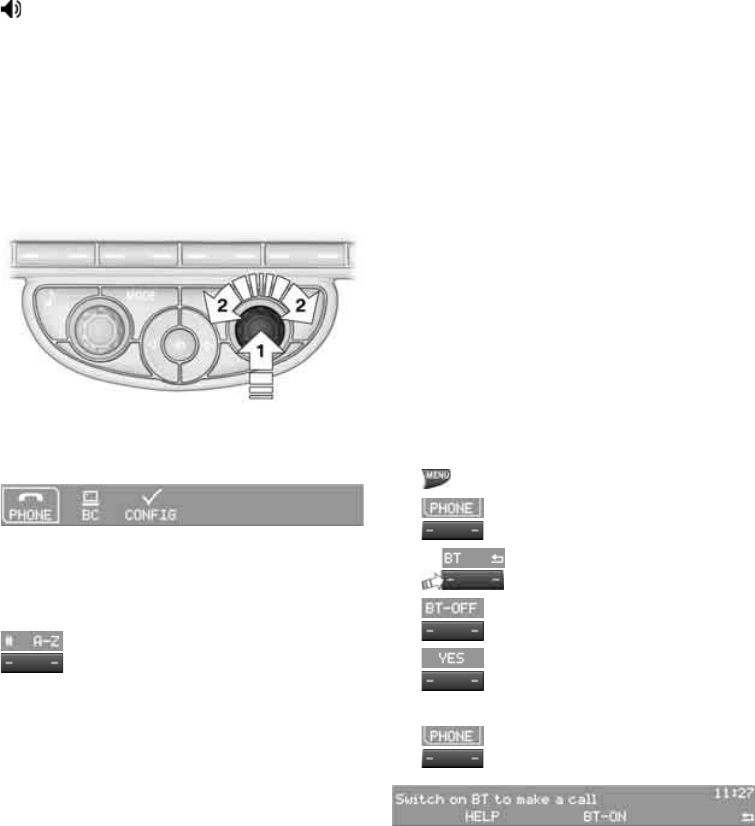

Menu navigation

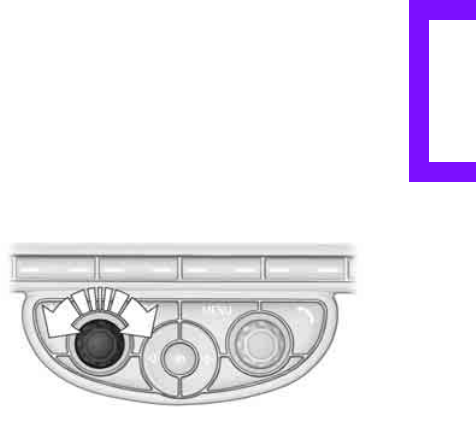

Selecting and confirming function

Functions can be selected by turning the right

rotary knob and confirmed by pressing it.

1. Turn knob, arrow 2, to select a function with

the highlight, e.g. "PHONE".

2. Press the knob, arrow 1, to confirm a high-

lighted function.

Function buttons

Press the button.

To carry out a function, press the button under-

neath it on the right or left side.

If only one function appears on the display, then

press the button anywhere, on the left, on the

right, or in the middle.

Pairing/unpairing mobile

phone

Overview

The pairing data of four mobile phones can be

stored simultaneously in the vehicle. When the

engine is running or the ignition is switched on,

each paired mobile phone is automatically

detected as soon as it is present in the passenger

compartment.

Requirements

>Suitable mobile phone, refer to page 98.

>Mobile phone operational.

>Bluetooth activated in vehicle, refer to

page 100, and in the mobile phone.

>Bluetooth presets in the mobile phone are

required, e.g. connection not confirmed or

visible, refer to Owner's Manual of the

mobile phone.

>A number with at least 4 and at most 16 dig-

its has been established as the Bluetooth

passkey. Only required once for pairing.

>Ignition switched on.

Activating/deactivating Bluetooth link

Bluetooth is not permitted everywhere. Comply

with all safety guidelines and regulations.

To deactivate the Bluetooth connection:

1. Press the button.

Press the button.

To reactivate the Bluetooth connection:

Press the button.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

101

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Press the button.

Pairing and connecting

Only pair the mobile phone when the

vehicle is stopped; otherwise, inattention

may lead to endangerment of passengers or

other road users.<

Switching on ignition

1. Insert the remote control as far as possible

into the ignition lock.

2. Switch on the ignition; to do so, press the

start/stop button without stepping on the

brake or clutch pedal.

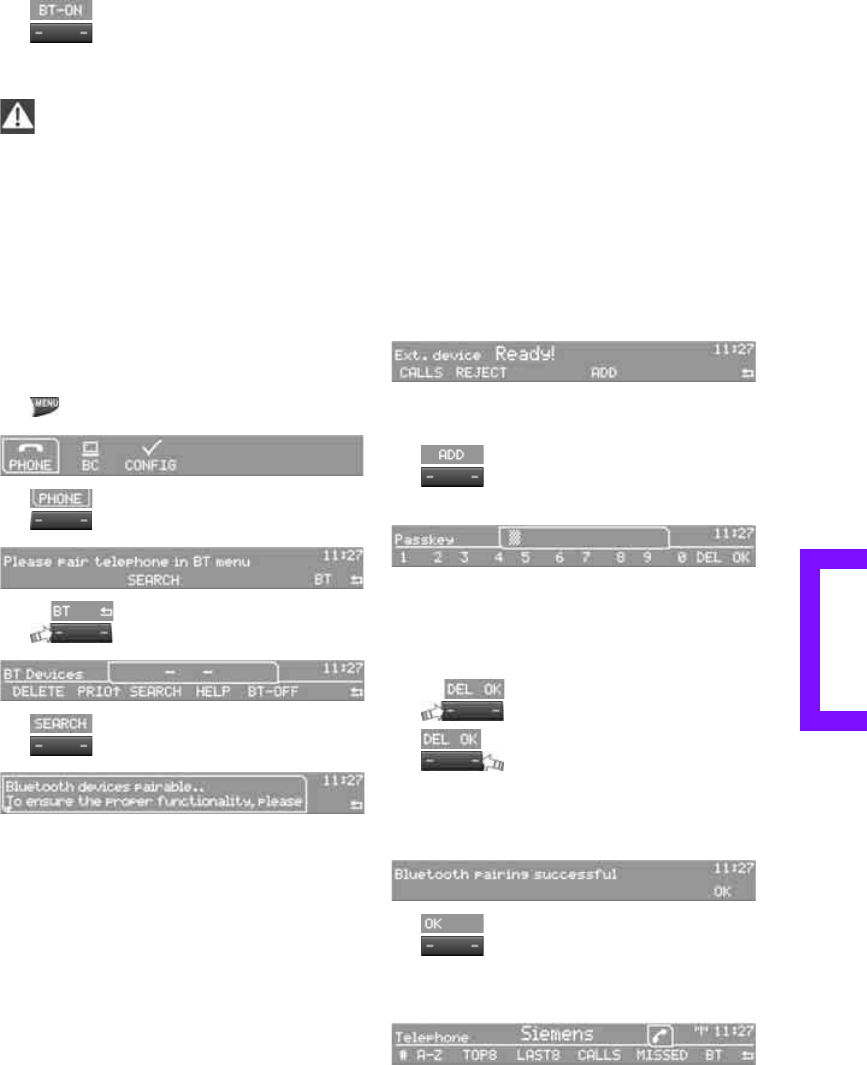

Preparation on the radio display

3. Press the button.

Press the button.

Press the right rotary knob to display the Blue-

tooth name of your vehicle on the display.

Preparation with mobile phone

7. Other operations must be performed on the

mobile phone and differ depending on the

type of mobile phone, refer to Owner's Man-

ual of the mobile phone, e.g. under Con-

necting or pairing Bluetooth device. The

Bluetooth name of the vehicle appears on

the mobile phone display.

8. Select the Bluetooth name of the vehicle on

the mobile phone display.

Pairing

The mobile phone or the radio display will

prompt you to enter the same Bluetooth pass-

key.

Depending on the mobile phone, you have

approx. 30 seconds to enter the Bluetooth pass-

key using the mobile phone and the radio dis-

play.

If the Bluetooth passkey can be entered using

the radio, then the following appears on the dis-

play:

9. Enter the Bluetooth passkey using the num-

ber buttons of the mobile phone.

10.

Press the button to enter the Blue-

tooth passkey using the radio.

11. Using the function buttons 0-9, enter the

same Bluetooth passkey that was entered

into the mobile phone.

To delete the last digit:

Press the button.

12.

Press the button to confirm the

Bluetooth passkey.

The following display will appear after a few

seconds:

13.

Press the button if necessary.

The following display will appear after the

mobile phone is paired:

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Telephone

102

If pairing was successful, the mobile phone

appears at the top of the list of mobile phones.

If the pairing was not successful: What to do if…,

refer to page 102.

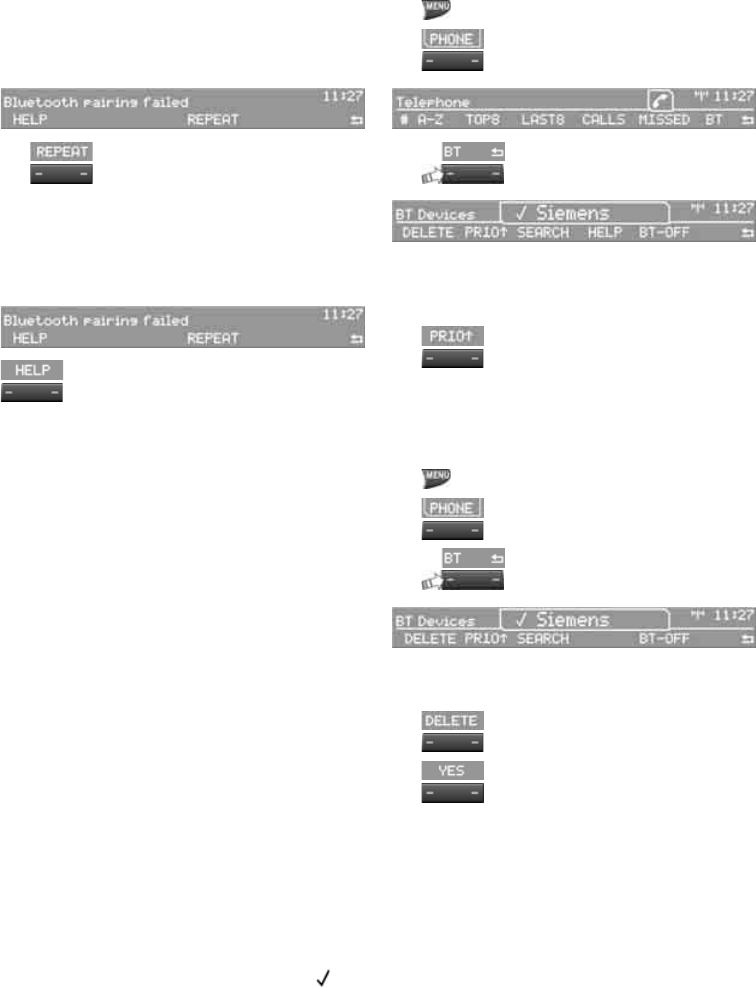

To repeat the pairing procedure:

Press the button.

2. Repeat steps 6 to 13.

If the application has been repeatedly unsuc-

cessful, please contact the Hotline.

To display the Hotline phone number:

Press the button.

Press the right rotary knob to display the Hotline

phone number and to display required pairing

information on the display.

Following the initial pairing

>The mobile phone is detected/connected in

the vehicle within a short period of time

when the engine is running or radio readi-

ness is switched on.

>After identification, phone book entries are

imported from the mobile phone and/or SIM

card* of the telephone, depending on the

telephone.

>Specific settings may be necessary in some

mobile phones, e.g. authorization or a

secure connection, refer to the mobile

phone operating instructions.

Connecting a particular mobile phone

If more than one mobile phone is detected by

the vehicle, the mobile phone at the top of the

list is connected. A different mobile phone can

be connected by selecting it.

The connected mobile phone is identified with

the following symbol in the radio display:

To change the sequence of mobile phones in the

list:

1. Press the button.

Press the button.

4. Turn the right rotary knob until the display

shows the mobile phone whose position in

the list is to be changed.

Press the button the number of

times required to reach the desired position.

Unpairing mobile phone

1. Switch off mobile phone.

2. Press the button.

Press the button.

5. Turn the right rotary knob to show the

desired mobile phone on the radio display.

Press the button.

Press the button to acknowledge

the message displayed.

What to do if…

For information on suitable mobile phones, refer

to page 98.

The mobile phone could not be paired or con-

nected.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

103

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

>Is Bluetooth activated in the vehicle and in

the mobile phone? Activate Bluetooth in the

vehicle and in the mobile phone.

>Do the Bluetooth passkeys on the mobile

phone and the vehicle match? Enter the

same passkey on the mobile phone and via

the radio.

>Is the passkey input taking longer than 30

seconds? Repeat the pairing procedure.

>Are too many Bluetooth devices connected

to the mobile phone? If so, delete the con-

nections with other devices on the mobile

phone.

>Is the mobile phone in power economy

mode or does it only have a small amount of

battery charge remaining? Charge the

mobile phone in the snap-in adapter* or via

a charging cable.

>Depending on the mobile phone, it may only

be possible to connect one device to the

vehicle. Unpair the connected device from

the vehicle and only pair and connect one

device.

>Is the mobile phone no longer responding?

Switch the mobile phone off and back on

again. Repeat the pairing procedure.

Phone book entries are not displayed, not all of

them are displayed, or they are displayed

incompletely.

>The transfer of phone book entries has not

yet completed.

>It is possible that only the phone book

entries of the mobile phone or the SIM card*

are transferred.

>It may not be possible to display phone book

entries with special characters.

>The number of phone book entries to be

stored is too high.

>The data volume of the phone book entry is

too great, e.g. due to additionally stored

information such as notes? Reduce the data

volume.

The telephone connection quality is low.

>Depending on the mobile phone, it is possi-

ble to adjust the strength of the Bluetooth

signal.

>Insert the mobile phone into the snap-in

adapter* or place it in the vicinity of the cen-

ter console.

>Adjust the volume of the microphone and

speaker separately.

If you have gone through all items in the list and

still cannot activate the desired function please

contact the Hotline or your MINI dealer.

Operation

Overview

The following functions can be operated using

the radio:

>Accepting/refusing a call

>Dialing phone numbers

>Dialing a phone number from the phone

book

>Dialing a stored phone number, e.g. from

the list of accepted calls

>Ending a call

When the ignition is switched off and in radio-

ready mode, e.g. after removal of the infrared

remote control, an ongoing conversation can be

continued for a maximum of 25 minutes using

the hands-free system.

Adjusting volume

Turn the knob until the desired volume is

reached.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Telephone

104

The volume for incoming calls and call volume

can be adjusted independently of each other.

The setting is stored for the remote control cur-

rently in use.

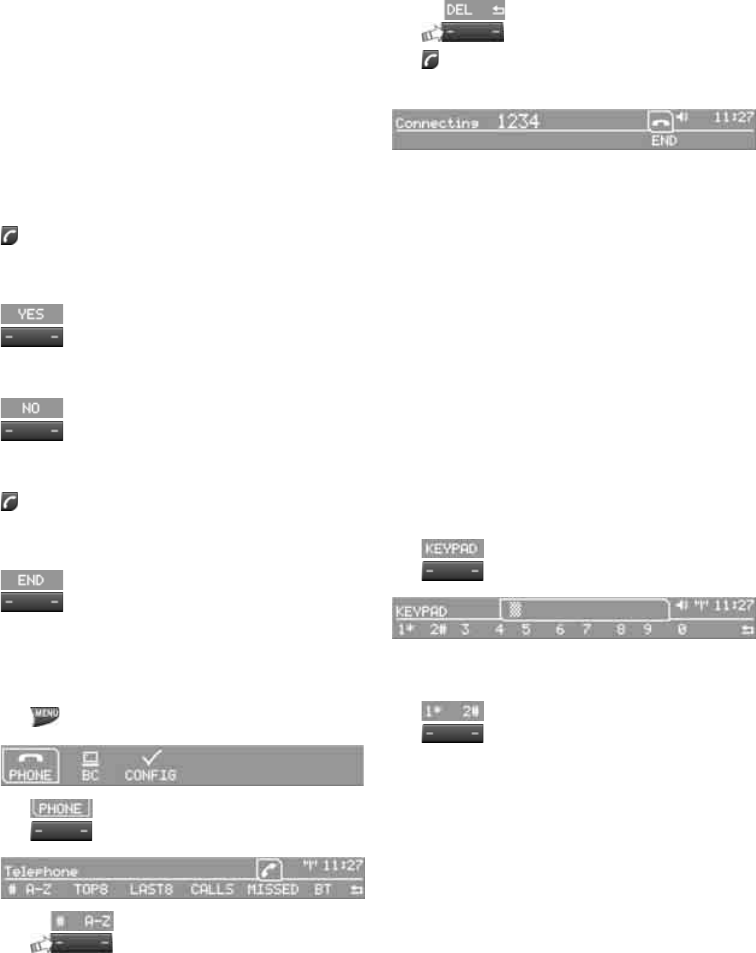

Incoming call

Receiving calls

If the phone number of the caller is stored in the

phone book and the phone number is transmit-

ted, then the name of the entry is displayed.

Accepting a call

Press the button on the radio or steering

wheel.

Alternative:

Press the button.

Rejecting a call

Press the button.

Ending a call

Press the button on the radio or steering

wheel.

Alternative:

Press the button.

Entering phone numbers

Dialing a number

1. Press the button.

Press the button

Press the button.

4. Enter the desired phone number using the

0-9 buttons.

To delete the last digit:

Press the button.

5. Press the button on the radio or on the

steering wheel.

Alternative:

Turn the right rotary knob to dial the phone

number.

For your phone number to be displayed to the

person you are calling, the display of phone

numbers must be enabled by your service pro-

vider.

Keypad dialing

Use keypad dialing to gain access to network

services or to control devices, e.g. to remotely

access an answering machine. This requires the

DTMF code.

This function is available if a connection has

been established and the call is being made

using the hands-free system.

Press the button.

2. Enter the desired code using the 0-9 but-

tons.

If needed, press and hold the but-

ton on the right or left side to enter special

characters.

Dialing a phone number from the phone

book or from phone numbers stored in a

list

Phone numbers dialed, incoming calls, and

phone book entries are stored in lists when the

mobile phone is connected to the vehicle via

Bluetooth. If the caller is entered in the phone

book, then the name of the entry is displayed

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

105

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

instead of the phone number.

Select the desired name from the list and estab-

lish the connection.

There are five available lists:

>"A-Z"

The entries of the phone book, the SIM

card*, or the mobile phone, composed of a

name and phone number, are sorted alpha-

betically.

>"TOP8"

The Top 8 list automatically stores the eight

phone numbers of the phone book that are

dialed the most frequently.

>"LAST8"

The last eight phone numbers you have

dialed are stored automatically. The phone

number dialed last appears at the top of the

list.

>"CALLS"

The phone numbers of the last eight

accepted calls are stored. This requires the

phone number of the caller to have been

transmitted.

>"MISSED"

The phone numbers of the last eight calls

that were not accepted are stored. This

requires the phone number of the caller to

have been transmitted.

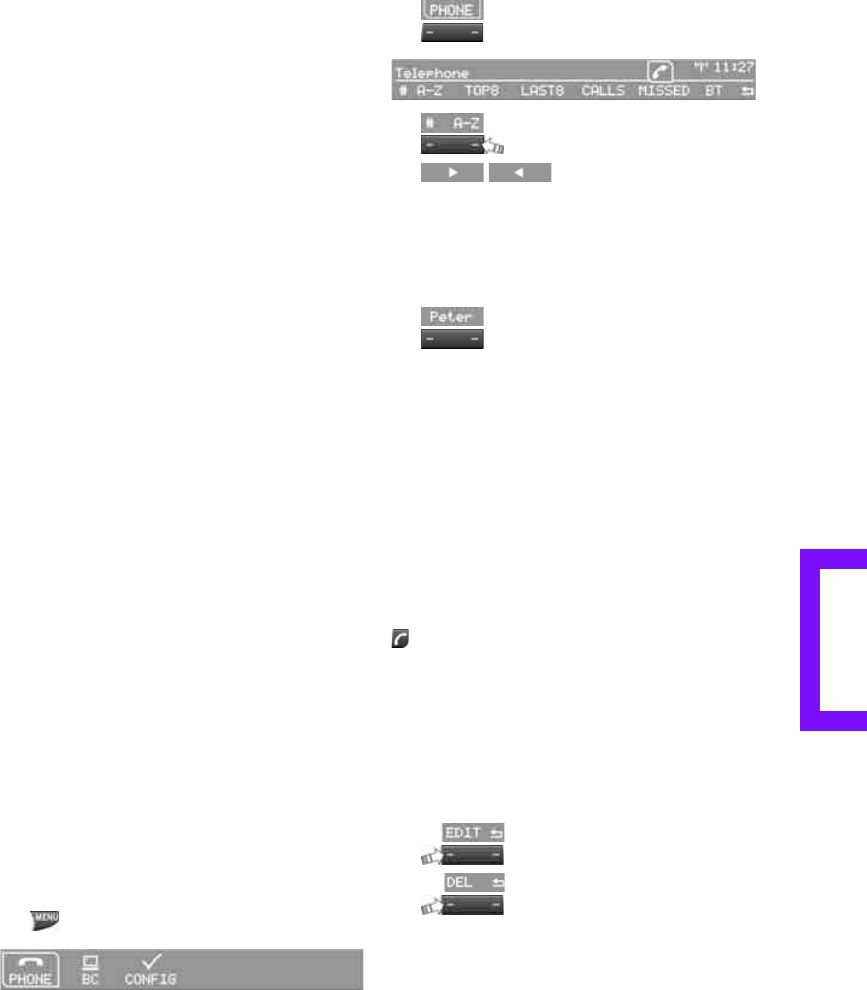

Dialing a phone number from the phone

book

The A-Z list is available for phone book entries. If

entries with different names, but the same

phone number are transferred from the mobile

phone to the vehicle, only one entry is displayed.

The displays of the phone book entries on the

radio display can differ from the displays on the

mobile phone display, e.g. sequence of the first

and last names.

1. Press the button.

Press the button.

The arrows indicate that

additional letters can be displayed.

Turn the right rotary knob to display addi-

tional letters.

4. Turn the right rotary knob to select the first

letters of the desired entry.

Press the button if so desired.

The phone number is dialed.

To display all entries:

1. Turn the right rotary knob to select the first

letters of the desired entry and press the

right rotary knob.

2. Turn the right rotary knob to select the

desired entry and press the right rotary

knob.

The phone number is dialed.

The phone number can also be dialed using the

buttons on the steering wheel or radio:

Press the button.

Editing and dialing a phone number

from the phone book

The phone number of an entry can be edited

before a call. This change is not stored in the

phone book.

1. Select an entry.

Press the button.

Press the button to delete a digit.

4. Enter additional digits using the 0-9 buttons.

5. Turn the right rotary knob to dial the phone

number.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Telephone

106

Dialing a phone number from the phone

book using buttons on the steering

wheel

1. Press and hold the button to display the

telephone menu.

2. Use the arrow buttons on the steering wheel

to scroll through the phone book.

3. Press and hold the button to dial the

phone number.

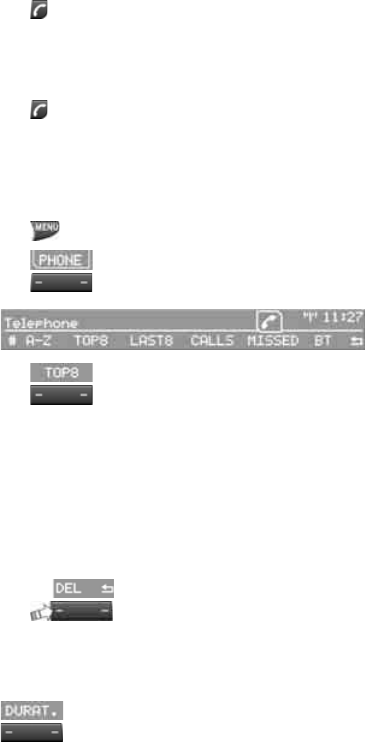

Dialing a phone number stored in a list

To select an entry and establish a connection:

1. Press the button.

Press the button.

Press the desired button to select

one of the four lists.

4. Turn the right rotary knob to select an entry

and press the right rotary knob to dial the

phone number.

Deleting an individual entry

1. Select the desired entry from the list.

Press the button.

Displaying call duration

To display the duration during a call:

Press the button.

Hands-free system

General information

Calls being conducted using the hands-free sys-

tem can be continued using the mobile phone

and vice versa.

From the mobile phone to the hands-

free system

Calls that have been initiated from outside the

Bluetooth range of the vehicle can be continued

using the hands-free system if the ignition is

switched on.

Depending on the mobile phone, the call is

automatically switched to hands-free mode.

If the switch does not occur automatically, then

follow the instructions that appear on the dis-

play of the mobile phone, also refer to the

Owner's Manual of the mobile phone.

From hands-free system to mobile

phone

Calls being conducted using the hands-free sys-

tem can also be continued using the mobile

phone if so desired, depending on the mobile

phone.

At this point, follow the instructions that appear

on the display of the mobile phone, also refer to

the Owner's Manual of the mobile phone.

Operation by voice*

The concept

>The mobile phone can be operated without

removing your hand from the steering

wheel.

>In many cases, the entry process is sup-

ported by means of announcements or

questions.

>{...} Verbal instructions to use with the voice

activation system.

>{{...}} Indicates responses of the voice acti-

vation system.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

107

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Voice commands

Activating voice activation system

1. Briefly press the button on the steering

wheel.

An acoustic signal indicates that commands

can be spoken aloud. Display on the radio:

2. Say the command.

Finishing voice input

Press the button on the steering wheel

briefly

Possible commands

Having possible commands read aloud

The system understands default commands that

must be spoken word for word.

Possible commands are read aloud.

The system recognizes digits from zero to nine.

Each digit can be spoken individually or com-

bined into a sequence to accelerate the entry

process.

Using alternative commands

There are often a number of commands to run a

function, e.g.:

Example: dialing phone numbers

To start the dialog:

Press the button on the steering wheel.

Calling

Dialing phone numbers

The connection to the desired subscriber is

established.

Correcting phone number

Digit sequences can be deleted after the system

has repeated the digits.

The command can be repeated as often as nec-

essary.

Deleting phone number

All digits entered up to this point are deleted.

Redialing

Voice phone book*

Depending on how your vehicle is equipped, it

may be necessary to create your own voice

phone book.

{Cancel}.

{Help}.

{Dial name} or {Name}.

You say The voice control answers

{Dial number}{{Please say the number}}

For example: {123 456 7890}Depending on equipment:

{Dial}{{Dialing number}}

1. {Dial number}.

2. Say the phone number.

3. {Dial}.

{Correct number}.

{Delete}.

{Redial}.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Telephone

108

Depending on the equipment you have, the

entries are imported from the mobile phone's

memory or have to be entered independently of

it. In this case, phone numbers stored in the

mobile phone cannot be accessed by voice or

stored in the mobile phone by voice.

Store the entry

Delete the entry

Delete all entries

Listen to and select the entries

Select an entry

Adjusting volume

Turn knob during announcement.

>The volume remains the same, even if the

volume of other audio sources is changed.

>The volume is stored for the remote control

currently in use.

Notes

Notes on emergency calls

Do not use the voice activation system to initiate

an emergency call. In stressful situations, the

voice and vocal pitch can change. This can

unnecessarily delay the establishment of a tele-

phone connection.

Ambient conditions

>Say the commands, numbers and letters

smoothly and with normal volume, empha-

sis and speed.

>Always say commands in the language of

the voice activation system.

>Keep doors, windows, glass sunroof*/

panorama glass roof*, or convertible top*

closed to avoid noise interference.

>Avoid ambient noise in the vehicle while

speaking.

MINI contact*

Several MINI dealer phone numbers can be dis-

played.

>"Road Assist": Roadside service*, if you

require assistance in the event of a flat tire.

>"Service": MINI dealer, for example if you

need to make a service appointment.

>"Cust Relat": MINI Hotline* for information

about your vehicle.

Displaying phone numbers

1. Press the button.

Press the button.

3. Turn the right rotary knob until the desired

phone number is displayed.

1. {Save name}.

2. Say the name aloud. Do not exceed a

speaking duration of about 2 seconds.

3. Say the phone number after being

prompted to do so by the system.

4. {Save}.

1. {Delete name}.

2. Say the name when prompted.

3. Confirm the query with {Yes}.

1. {Delete phonebook}.

The dialog for deleting phone book is

opened.

2. Confirm the query with {Yes}.

3. Confirm the query again with {Yes}.

1. {Read phonebook}.

The dialog for reading phone book is

opened.

2. Say {Dial number} when the desired

entry is read.

1. {Dial name}.

2. Say the name when prompted.

3. Confirm the query with {Yes}.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

109

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

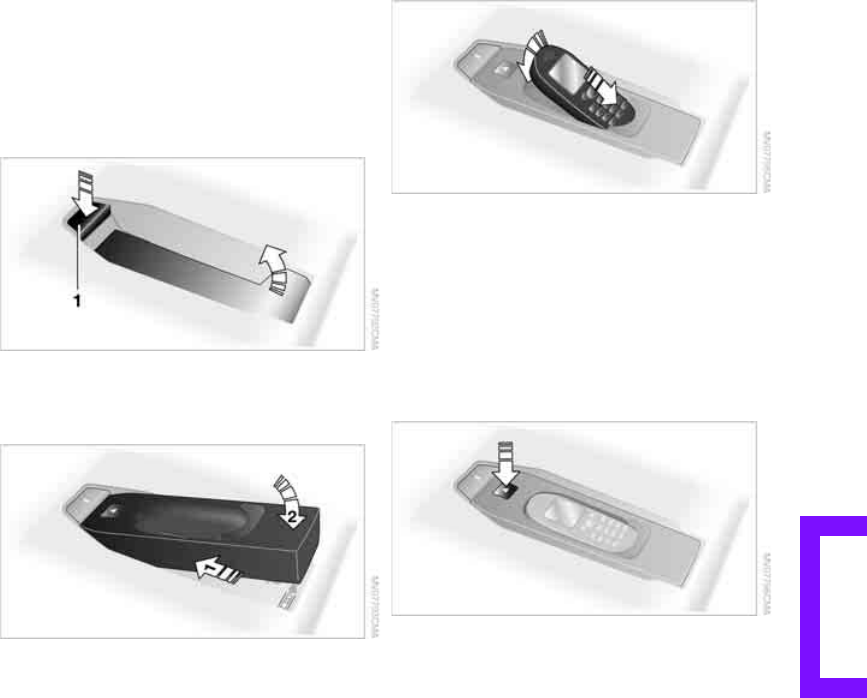

Snap-in adapter*

Installation location

In the center armrest.

Inserting snap-in adapter

1. Press the button and remove the cover.

2. Insert the snap-in adapter at the front,

arrow 1, and press downward, arrow 2, until

it clicks into place.

Inserting mobile phone

1. Depending on the mobile phone, it may be

necessary to remove the protective cap of

the antenna connector and from the USB

connection of the mobile phone.

2. Push the mobile phone with the buttons fac-

ing upward toward the electrical connec-

tions and press down until it engages.

Removing mobile phone

Press the button and remove the mobile phone.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Mobility

Controls

Driving tips

AT A GLANCE

Reference

Communications

Mobility

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Refueling

112

Refueling

Switch off the engine before refueling;

otherwise, fuel cannot be added to the

tank and a message will be displayed.<

Take all precautionary measures and

observe all applicable regulations when

handling fuel. Do not carry any spare fuel con-

tainers in your vehicle. They can develop a leak

and cause an explosion or cause a fire in the

event of an accident.<

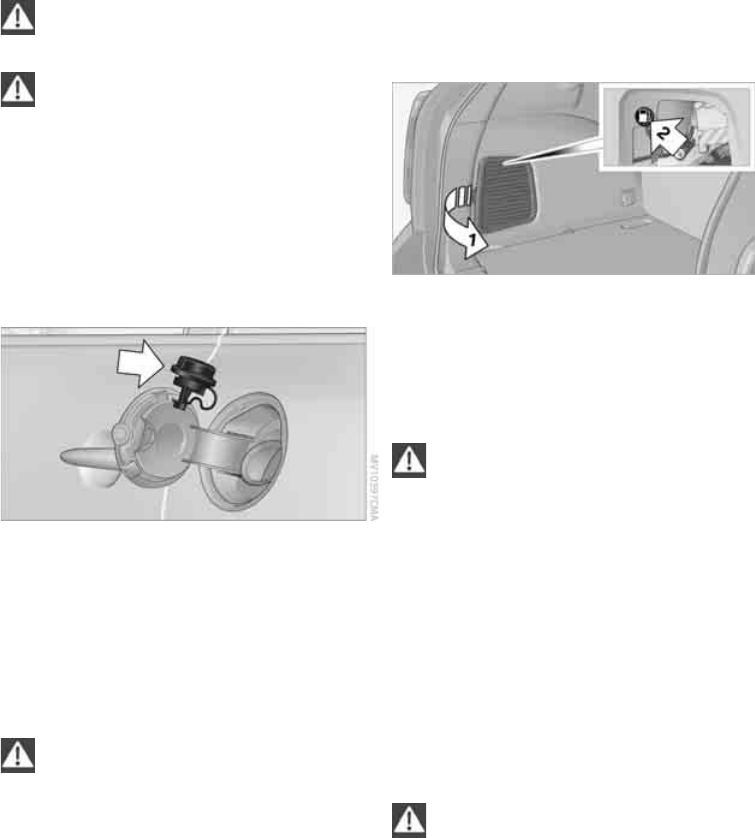

Fuel filler flap

Opening

1. Open the fuel filler flap.

2. Turn the gas cap counterclockwise.

3. Place the gas cap in the bracket attached to

the fuel filler flap.

Closing

Fit the cap and turn it clockwise until you clearly

hear a click.

Do not pinch the band attached to the

cap; otherwise, the cap cannot be closed

properly and fuel vapors can escape. A message

will be displayed if the gas cap is loose or miss-

ing.<

Manually releasing the fuel filler flap

In the event of an electrical malfunction, you can

manually release the fuel filler flap:

1. Open cargo area trim panel, arrow 1.

2. Pull the green knob with the gas pump sym-

bol, arrow 2.

The fuel filler flap opens.

Observe the following when refueling

Take all precautionary measures and

observe all applicable regulations when

handling fuel; otherwise, there is a danger of

personal injury and property damage.<

When refueling, insert the filler nozzle com-

pletely into the filler pipe. Avoid lifting the filler

nozzle while filling the tank, as that would lead

>premature pump shutoff

>reduced efficiency of the fuel-vapor recov-

ery system.

The fuel tank is full when you top off twice after

the first time that the fuel pump nozzle clicks off.

Fuel tank capacity

Refuel as soon as possible once your cruis-

ing range falls below 30 miles/50 km, oth-

erwise engine functions are not ensured and

damage can occur.<

Approx. 12.3 US gallons/47 liters, including the

reserve capacity of 2.1 US gallons/8 liters.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

113

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Fuel specifications

Do not use leaded gasoline; otherwise,

permanent damage to the catalytic con-

verter will result.

Do not fill the tank with E85, i.e. fuel containing

85% ethanol, nor with FlexFuel. Otherwise, the

engine and fuel supply system will be dam-

aged.<

Required fuel

Super Premium gasoline/AKI 91

This gasoline is highly recommended.

However, you may also use gasoline with less

AKI. The minimum AKI Rating is:

>Cooper S: 89

>Cooper: 87

If you use gasoline with this minimum AKI Rat-

ing, the engine may produce knocking sounds

when starting at high outside temperatures. This

has no effect on the engine life.

Do not use any gasoline below the speci-

fied minimum fuel grade. Otherwise, the

engine could be damaged.<

Use high-quality brands

Field experience has indicated significant differ-

ences in fuel quality: volatility, composition,

additives, etc., among gasolines offered for sale

in the United States and Canada. Fuels contain-

ing up to and including 10% ethanol or other

oxygenates with up to 2.8% oxygen by weight,

that is, 15% MTBE or 3% methanol plus an

equivalent amount of cosolvent, will not void

the applicable warranties with respect to defects

in materials or workmanship.

The use of poor-quality fuels may result in

drivability, starting and stalling problems

especially under certain environmental condi-

tions such as high ambient temperature and

high altitude.

Should you encounter drivability problems

which you suspect could be related to the fuel

you are using, we recommend that you respond

by switching to a recognized high-quality brand

such as gasoline that is advertised as Top Tier

Detergent Gasoline.

Failure to comply with these recommendations

may also result in unscheduled maintenance.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Wheels and tires

114

Wheels and tires

Tire inflation pressures

Information for your safety

It is not merely the tires' service life, but also

driving comfort and, to a great extent, driving

safety that depend on the condition of the tires

and the maintenance of the specified tire pres-

sure.

Checking pressure

Check the tire inflation pressure regularly

and correct it, if necessary: at least twice a

month and before starting long trips. If you fail

to observe this precaution you may be driving

on tires with incorrect tire pressures, a condition

that can not only compromise your vehicle's

driving stability, but also lead to tire damage and

the risk of an accident. Do not drive with

deflated, i.e. flat tires, except when using run-

flat tires. A flat tire will seriously impair your

vehicle's handling and braking response.

Attempts to drive on a flat tire can lead to loss of

control over the vehicle.<

Check the tire inflation pressures only on cold

tires. This means after a maximum of 1.25 miles/

2 km driving or when the vehicle has been

parked for at least 2 hours. When tires are warm,

the tire inflation pressure is higher.

After adjusting the tire inflation pressure,

reinitialize the flat tire monitor, page 59,

or reset the Tire Pressure Monitor, page 61.<

Pressure specifications

The tables below provide all the correct inflation

pressures for the specified tire sizes at ambient

temperature.

The tire inflation pressures apply to the

tire sizes approved and the tire brands

recommended by the manufacturer of your

MINI. Your MINI dealer will be glad to advise

you.<

For correct identification of the right tire infla-

tion pressures, observe the following:

>Tire sizes for your vehicle

>Load conditions

>Maximum allowable driving speed

Tire inflation pressures for driving up to

100 mph or 160 km/h

For normal driving up to 100 mph or 160 km/h

and to achieve optimum driving comfort, adjust

pressures to the respective tire inflation pres-

sures listed on the following pages in the col-

umns for traveling speeds up to a maximum of

100 mph or 160 km/h.

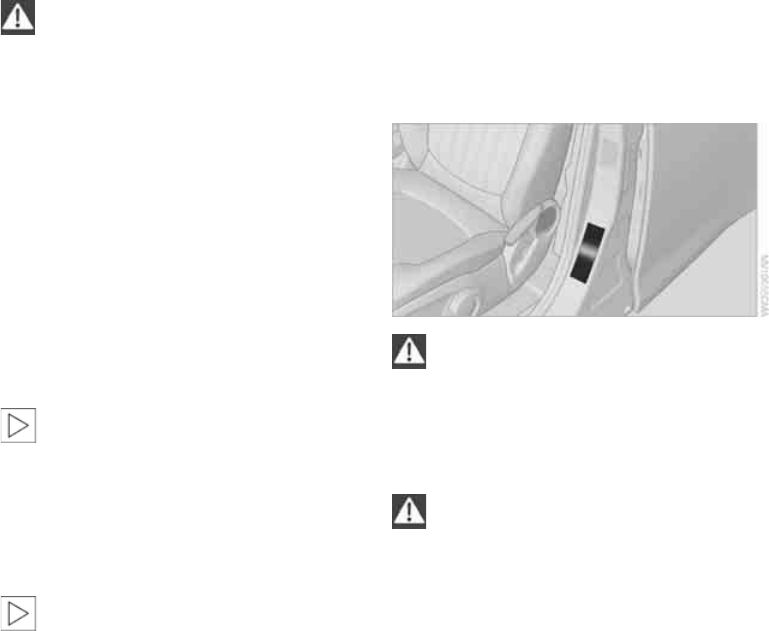

These tire inflation pressures can also be found

on the driver's side door post when the driver's

door is open.

The maximum permitted speed for these

tire inflation pressures is 100 mph or

160 km/h. Do not exceed this speed; otherwise,

tire damage and accidents may occur.<

Tire inflation pressures for driving above

100 mph or 160 km/h

In order to drive at maximum speeds in

excess of 100 mph or 160 km/h, adjust

pressures to the respective tire inflation pres-

sures listed on the following pages in the col-

umns for traveling speeds including those

exceeding 100 mph or 160 km/h. Otherwise,

tire damage and accidents could occur.<

Observe all national and local maximum speed

limits; otherwise, violations of the law could

occur.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

115

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Tire inflation pressures MINI Cooper Countryman

Tire size Pressure specifications in psi/kPa

Speeds up to a

max. of 100 mph /

160 km/h

Speeds including those

exceeding

100 mph /

160 km/h

All pressure specifications in the

table are indicated in psi/kilopas-

cal with cold tires. Cold = ambient

temperature

195/60 R 16 89 H M+S

205/55 R 17 91 H M+S

205/55 R 17 91 H M+S RSC

205/55 R 17 91 V RSC

225/45 R 18 91 V RSC

225/40 R 19 89 V RSC

32/220 32/220 35/240 35/240

More details on the permissible load and weights can be found on page 160.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Wheels and tires

116

Tire inflation pressures MINI Cooper S Countryman / Cooper S ALL4 Countryman

Tire size Pressure specifications in psi/kPa

Speeds up to a

max. of 100 mph /

160 km/h

Speeds including those

exceeding

100 mph /

160 km/h

All pressure specifications in the

table are indicated in psi/kilopas-

cal with cold tires. Cold = ambient

temperature

195/60 R 16 89 H M+S

205/55 R 17 91 H M+S

205/55 R 17 91 H M+S RSC

205/55 R 17 91 V RSC

225/45 R 18 91 V RSC

225/40 R 19 89 V RSC

32/220 32/220 38/260 38/260

More details on the permissible load and weights can be found on page 160.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

117

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Tire identification marks

Knowledge of the labeling on the side of the tire

makes it easier to identify and choose the right

tires.

Tire size

Speed letter

Q = up to 100 mph/160 km/h

T = up to 118 mph/190 km/h

H = up to 131 mph/210 km/h

V = up to 150 mph/240 km/h

W = up to 167 mph/270 km/h

Y = up to 186 mph/300 km/h

Tire Identification Number

Tires with DOT codes meet the guidelines of the

US Department of Transportation.

DOT code:

Uniform Tire Quality Grading

Quality grades can be found where applicable

on the tire sidewall between tread shoulder and

maximum section width. For example:

Tread wear 200 Traction AA

Temperature A

DOT Quality Grades

Tread wear

Traction AA A B C

Temperature A B C

All passenger car tires must conform to

Federal Safety Requirements in addition

to these grades.<

Tread wear

The tread wear grade is a comparative rating

based on the wear rate of the tire when tested

under controlled conditions on a specified gov-

ernment test course. For example, a tire graded

150 would wear one and one-half (1γ) times as

well on the government course as a tire graded

100. The relative performance of tires depends

upon the actual conditions of their use, how-

ever, and may depart significantly from the

norm due to variations in driving habits, service

practices and differences in road characteristics

and climate.

Traction

The traction grades, from highest to lowest, are

AA, A, B, and C.

Those grades represent the tire's ability to stop

on wet pavement as measured under controlled

conditions on specified government test sur-

faces of asphalt and concrete. A tire marked C

may have poor traction performance.

The traction grade assigned to this tire is

based on straight-ahead braking traction

tests, and does not include acceleration, corner-

ing, hydroplaning, or peak traction characteris-

tics.<

Temperature

The temperature grades are A, the highest, B,

and C, representing the tire's resistance to the

generation of heat and its ability to dissipate

heat when tested under controlled conditions

on a specified indoor laboratory test wheel. Sus-

tained high temperature can cause the material

of the tire to degenerate and reduce tire life, and

excessive temperature can lead to sudden tire

failure. The grade C corresponds to a level of

performance which all passenger car tires must

e.g.

Nominal width in mm

Aspect ratio in Ξ

Radial belt construction

Rim diameter in inches

Load rating,

not on ZR tires

Speed code letter, in

front of the R on ZR tires

225/45 R 17 91 V

For instance:

Manufacturer's

code for tire make

Tire size and

tire design

Tire age

DOT xxxx xxx 3610

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Wheels and tires

118

meet under the Federal Motor Vehicle Safety

Standard No. 109. Grades B and A represent lev-

els of performance on the laboratory test wheel

that exceed the minimum required by law.

The temperature grade for this tire is

established for a tire that is properly

inflated and not overloaded. Excessive speed,

underinflation, or excessive loading, either sep-

arately or in combination, can cause heat

buildup and possible tire failure.<

RSC - run-flat tires*

You will recognize run-flat tires by a circular

symbol containing the letters RSC on the side of

the tire, page 119.

M+S

Winter and all-season tires.

These have better winter properties than sum-

mer tires.

Designation for specially reinforced tires.

Tire condition

Inspect your tires regularly for tread wear, signs

of damage and for foreign objects lodged in the

tread. Check the tread depth.

Tread depth

The tread depth should not drop below 0.12 in/

3 mm, although, for example, European legisla-

tion only specifies a minimum tread depth of

0.063 in/1.6 mm. At tread depths below 0.12 in/

3 mm there is an increased risk of high-speed

hydroplaning, even when only small amounts of

water are present on the road surface.

Winter tires

When winter tires wear down past a tread depth

of 0.16 in/4 mm, they become perceptibly less

suitable for winter conditions. In the interest of

safety, new tires should be installed.

Minimum tread depth

Wear indicators in the base of the tread groove

are distributed around the tire's circumference;

the letters TWI, for Tread Wear Indicator, on the

tire's sidewalls identify tires that incorporate

these wear indicators. If the tire tread has been

driven down to the wear indicators, a tread

depth of 0.063 in/1.6 mm has been reached.

Tire damage

Due to low-profile tires, please note that wheels,

tires and suspensions parts are more susceptible

to road hazards and consequential damages.

Unusual vibrations encountered during normal

vehicle operation can indicate tire failure or

some other vehicle defect. This can, for exam-

ple, be caused by driving over curbs. The same

applies to any other abnormal road behavior,

such as pulling severely to the right or left.

In these cases, reduce speed immediately

and have wheels and tires thoroughly

checked. To do so, drive carefully to the nearest

MINI dealer or tire shop that works according to

MINI repair procedures with correspondingly

trained personnel. If necessary, have the vehicle

towed there.

Otherwise, tire damage can be extremely dan-

gerous for vehicle occupants and other road

users.<

Tire age

The manufacturing date of tires is contained in

the tire coding:

DOT ... 3610 means that the tire was manufac-

tured in week 36 of 2010.

For various reasons, such as the development of

brittleness, the manufacturer of your MINI rec-

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

119

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

ommends tire replacement after no more than

6 years, regardless of the actual wear of the

tires.

Run-flat tires*

The symbol identifying run-flat tires is a circle

with the letters RSC on the sidewall.

Run-flat tires comprise a conditionally self-sup-

porting tire and a special rim. The reinforcement

in the sidewalls ensures that the tire can con-

tinue to be used subject to certain restrictions,

even if depressurized.

For information on continuing to drive with a flat

tire, refer to Indication of a flat tire, page 60.

New wheels and tires

Have new wheels and tires mounted only

by your MINI dealer or a specialized tire

shop that has specially trained personnel work-

ing in accordance with the specifications of the

MINI manufacturer. If this work is not carried out

properly, there is a danger of subsequent dam-

age and related safety hazards. Make sure that

the new wheels are balanced.<

Retreaded tires

The manufacturer of your MINI recom-

mends that you avoid using retreaded

tires, as this could impair driving safety. The

causes for this include potentially different tire

casing structures and often wide variations in

tire age, which can result in a limited service

life.<

Correct wheels and tires

The manufacturer of your MINI recom-

mends mounting only wheels and tires

that it has specifically approved for use on your

particular model. Although other wheels and

tires may theoretically have the same dimen-

sions, variations in factors such as manufactur-

ing tolerances can result in contact between tire

and bodywork, ultimately leading to serious

accidents. The manufacturer of your MINI can-

not evaluate non-approved wheels and tires to

determine if they are suited for use, and there-

fore cannot ensure the operating safety of the

vehicle if they are mounted.<

Your MINI dealer will be glad to inform you

about the correct wheel and tire combination for

your vehicle.

The correct combination of wheels and tires is

also necessary to ensure reliable operation of

various vehicle systems such as ABS and DSC.

To maintain good handling and vehicle

response, use only tires of a single brand and

tread configuration. After a tire has been dam-

aged, mount the previous wheel and tire combi-

nation again as soon as possible.

Wheels with Tire Pressure Monitor TPM

electronics

When mounting new tires or changing over from

summer to winter tires, or vice versa, only use

wheels with TPM electronics; otherwise, the Tire

Pressure Monitor may not be able to detect a

puncture, refer to page 62. Your MINI dealer will

be glad to advise you.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Wheels and tires

120

Recommended tire brands

For each tire size, the manufacturer of your MINI

recommends certain tire brands. They are

marked with a clearly visible MINI designation

on the sidewall of the tire.

When properly used, these tires meet the high-

est standards in terms of safety and handling

characteristics.

Run-flat tires*

When mounting new tires or changing over from

summer to winter tires and vice versa, mount

run-flat tires for your own safety. Keep in mind

that no space-saver spare tire is available in the

event of a flat. Your MINI dealer will be glad to

advise you.

Special characteristics of winter tires

The manufacturer of MINI recommends the use

of winter tires on snowy roads or if temperatures

drop below 457/ +76. Although all-season

M+S tires provide better winter traction than

summer tires, they generally fail to provide the

same levels of cold-weather performance as

winter tires.

Pay attention to speed

Always comply with the speed limit for the

winter tires mounted on your car; failure

to do so could result in tire damage and acci-

dents.<

If the car is capable of speeds higher than that

permitted for the winter tires, a label stating the

maximum permitted speed for the mounted

tires must be displayed in your field of view. This

label is available at your tire dealer or MINI

dealer.

Storage

Always store wheels and tires in a cool, dry place

with as little exposure to light as possible.

Always protect tires against all contact with oil,

grease and fuels.

Do not exceed the maximum tire inflation pres-

sure indicated on the side wall of the tire.

Swapping wheels among the axles

Depending on the individual use, front and rear

tires may exhibit different wear and tear.

In order to maintain an even wear and tear, the

wheels may be rotated between the axles. Your

MINI dealer will be glad to advise you.

Always check the inflation pressure after the tire

rotation, if necessary change the pressure.

Snow chains*

Only certain types of fine-link snow chains have

been tested by the manufacturer of your MINI,

classified as road-safe and recommended. Con-

tact your MINI dealer for more details.

Only attach snow chains in pairs to the front

wheels with the following tires.

>195/60 R 16 M+S

Observe the manufacturer's instructions when

mounting snow chains. Do not exceed a speed

of 30 mph or 50 km/h.

Do not initialize the Flat Tire Monitor if

snow chains are mounted; otherwise, the

instrument might issue an incorrect reading.

When driving with snow chains, it can be useful

to briefly deactivate the DSC or activate the DTC,

refer to page 58.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

121

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Under the hood

Never attempt to perform any service or

repair operations on your vehicle without

the required professional technical training. If

you are not familiar with the regulations to be

observed, have the necessary work on your

vehicle carried out only by a MINI dealer or a

workshop that has specially trained personnel

working in accordance with the specifications of

the MINI manufacturer. If this work is not carried

out properly, there is a danger of subsequent

damage and related safety hazards.<

Hood

Releasing

Pull the lever.

Do not clean the windshield and head-

lamps if the hood is unlocked as this may

damage the headlamp washer system*.<

Opening

To avoid damage, make sure that the

wiper arms are against the windshield

before you open the hood.<

Press the release handle and open the hood.

Closing

Close the hood from a height of approx. 16 in/

40 cm with momentum. It must be clearly heard

to engage.

If you notice any signs while driving your

vehicle that the hood is not completely

closed, stop at once and close it securely.

Make sure that the closing path of the hood is

clear; otherwise, injuries may result.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Under the hood

122

Important parts of the engine compartment

1Vehicle identification number*

2Battery, under the cover 141

3Engine oil dipstick 122

4Engine oil filler neck 123

5Coolant expansion tank 123

6Engine compartment fuse box 139

7Reservoir for washer fluid for the headlamp

and window washer system 46

Engine oil

The engine oil consumption is dependent on

driving style and driving conditions.

Check the engine oil level regularly, e.g. when

refueling.

Checking engine oil level

1. With the vehicle's engine at normal operat-

ing temperature, i.e. after uninterrupted

driving for at least 6 miles/10 km, park the

vehicle on a level surface.

2. Switch off the engine.

3. Pull the dipstick out after approx. 5 minutes

and wipe it off with a lint-free cloth, paper

towel or similar material.

4. Carefully push the dipstick all the way into

the guide tube and pull it out again.

The oil level should be between the two

marks on the dipstick.

The oil quantity corresponding to the difference

between the two marks on the dipstick is 1 US

quart/1 liter.

Do not fill beyond the upper mark on the

dipstick. Excess oil will damage the

engine.<

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

123

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Adding engine oil

Do not add the maximum quantity of 1 US

quart/1 liter of engine oil until the oil level has

dropped to just above the lower mark on the

dipstick, page 122.

Add oil within the next 30 miles/50 km;

otherwise, the engine could be dam-

aged.<

Keep oils, greases, etc. out of the reach of

children and comply with the warnings on

the containers. Otherwise, health hazards may

result.<

Oil change

Have the oil changed only by a MINI dealer or a

workshop that has specially trained personnel

working in accordance with the specifications of

the MINI manufacturer.

Oil types

Do not use oil additives as this could result

in engine damage.<

Approved engine oils

Your dealer can advise you on which engine oils

have been approved by the manufacturer of

your MINI.

The engine oil quality is critical for the life of the

engine.

Only use approved High Performance oil.

The approved oils are SAE 0W-40, 0W-30,

5W-40 and 5W-30.<

Alternative oil types

If the approved engine oils are not available, up

to 1 US quart/1 liter of another oil with the fol-

lowing specification may be used:

API SM or higher

Coolant

Do not add coolant to the cooling system

when the engine is hot. Escaping coolant

can cause burns.<

Coolant consists of half water and half additive.

Not all commercially available additives are suit-

able for your MINI. Your MINI dealer knows

which additives are suitable and will be glad to

advise you.

Only use suitable additives; otherwise,

engine damage may result. Because addi-

tives are harmful to your health, it is important

to follow the instructions on the containers.<

Comply with the appropriate environmen-

tal protection regulations when disposing

of coolant additives.<

Checking coolant level

Do not open the hood until the engine has

cooled down.

The coolant level is correct if it is between the

Min and Max markings.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Under the hood

124

Topping off

1. Turn the cap of the expansion tank a little

counterclockwise to allow any accumulated

pressure to escape, then continue turning to

open.

2. Slowly fill to the correct fluid level; do not

overfill.

3. Turn the cap until there is an audible click.

Have the reason for the coolant loss eliminated

as soon as possible.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

125

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Maintenance

MINI Maintenance System

The MINI Maintenance System supports the

preservation of the traffic and operating safety

of your MINI. The objective is to optimize efforts

with respect to minimal vehicle maintenance

costs.

If and when you come to sell your MINI, a com-

prehensive record of servicing will prove a signif-

icant benefit.

Condition Based Service CBS

Sensors and special algorithms take the different

driving conditions of your MINI into account.

Condition Based Service uses this to determine

the current and future service requirements. By

letting you define a service and maintenance

regimen that reflects your own individual

requirements, the system builds the basis for

trouble-free driving.

In the tachometer, you can have the remaining

times or distances for selected maintenance

tasks and any legally prescribed dates displayed,

page 52.

Service data in the remote control

Your vehicle continuously stores service-

requirement information in the remote control

while you are driving. Your MINI dealer can read

out this data from the remote control unit, and

propose an optimized maintenance approach.

Whenever you take your car in for servicing you

should therefore hand your MINI dealer the

remote control unit that you last used.

Make sure that the date in the tachometer

is always set correctly, page 54; otherwise,

the effectiveness of Condition Based Service CBS

is not assured.<

Service and Warranty Information

Booklet for US models and Warranty and

Service Guide Booklet for Canadian

models

Please consult your Service and Warranty Infor-

mation Booklet for US models and Warranty and

Service Guide Booklet for Canadian models for

additional information on service requirements.

The manufacturer of the MINI recom-

mends that you have service and repair

operations performed at your MINI dealer.

Take the time to ensure that these service pro-

cedures are confirmed by entries in your vehi-

cle's Service and Warranty Information Booklet

for US models and Warranty and Service Guide

Booklet for Canadian models. These entries ver-

ify that your vehicle has received the specified

regular maintenance.<

Socket for On-Board

Diagnosis OBD

The primary components that make up the

emissions can be checked by a device via the

OBD socket.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Maintenance

126

Emissions

The warning lamps come on. The vehicle

is producing higher emissions. You can

continue your journey, but moderate

your speed and exercise due caution.

Have the car checked as soon as possible.

Under certain circumstances, one of the lamps

will flash or light up continuously. This indicates

excessive misfiring or a malfunction in the

engine. If this happens, reduce your speed and

visit the nearest MINI dealer as soon as possible.

Severe misfiring can quickly lead to serious dam-

age of emissions-related components, espe-

cially the catalytic converter. In addition,

mechanical engine components can become

damaged.

If the fuel filler cap is not properly tight-

ened, the OBD system may conclude

that fuel vapors are escaping, causing

an indicator to light up. If the filler cap is then

tightened, the indicator should go out within a

few days.

Data memory

Your vehicle displays data about the operation,

malfunctions, and user settings. These data are

stored in the vehicle and can be partly stored in

the remote control; the data can be read by suit-

able devices, in particular at your service center.

The data read out are used for supporting the

service processes and repair or for optimization

and development of vehicle functions.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

127

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Care

Car-care products

Regular cleaning and care helps to maintain the

value of your MINI.

The manufacturer of your MINI recommends

using manufacturer-approved products to clean

and care for your vehicle.

MINI Service would be pleased to advise you on

cleaning and care products and services for your

MINI.

The ingredients of original MINI Care Prod-

ucts have been tested, and the products

have been tested in the laboratory and in prac-

tice. They offer optimum care and protection for

your vehicle.<

Do not use any cleansers containing alco-

hol or solvents as these may cause dam-

age.<

Cleaning agents may contain hazardous

or health-damaging substances. Follow

the warning and hazard instructions on the

packaging. For interior cleaning, always open

the doors or windows of the vehicle.

Do not use any products that are not intended

for cleaning the vehicle.<

External care

Washing your vehicle

Especially during the winter months the

vehicle should be frequently washed. Dirt

and road salt can damage the vehicle.<

After washing the vehicle, apply the

brakes briefly to dry them; otherwise,

water can reduce braking efficiency over the

short term and the brake rotors can corrode.<

Car washes

Preference should be given to cloth car washes.

Do not use automatic high-pressure car

washes; otherwise, water may drip into

the vehicle around the windows.<

Before driving into the car wash, check if the sys-

tem is suitable for your MINI. Observe the fol-

lowing points:

>Vehicle dimensions, page 159

>If necessary: fold in the outside mirrors,

page 34

>Maximum permissible tire width

Avoid car washes with tracks higher than

4in/10cm; otherwise, the chassis could

be damaged.<

Preparations for driving into the car wash:

>Unscrew the rod antenna.

>Deactivate the rain sensor* to prevent unin-

tentional wiping.

>Deactivate rear window wiper and protect it

from damage. Ask the car wash operator

about measures that can be taken to protect

the wipers.

>Remove additional attachments, e.g. spoil-

ers or telephone antennas, if there is a pos-

sibility that they could be damaged.

Automatic transmission

Before driving into the car wash, make sure that

the vehicle can roll:

1. Place the remote control, even with Comfort

Access, in the ignition lock.

2. Move the selector lever to position N.

3. Release the parking brake.

4. Switch off the engine.

5. Insert the remote control in the ignition lock

so that the vehicle can roll.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

Care

128

Steam jets/high-pressure washers

When using steam jets or high-pressure

washers, make sure that you maintain suf-

ficient distance from the vehicle and do not

exceed a maximum temperature of 1407/

606.

If the distance is too close, the pressure too high,

or the temperature too high, parts of the vehicle

can be damaged, or water can penetrate.

Observe the operating instructions for high-

pressure washers.<

Do not spray sensors such as Park Dis-

tance Control with high-pressure washers

for a long time and maintain the greatest possi-

ble distance of approx. 1 ft/30 cm from them.<

Manual washing

Use a great deal of water and, if necessary, car

shampoo when washing your car by hand. Clean

the vehicle with a sponge or a washing brush

applying a slight amount of pressure.

Before cleaning the windshield, deacti-

vate the rain sensor or turn off the ignition

to prevent unintentional wiping.<

Observe local regulations regarding wash-

ing vehicles by hand.<

Headlamps

Do not wipe dry and do not use abrasive or cor-

rosive cleaning agents. Remove dirt and con-

tamination, such as insects, by soaking with

shampoo and then washing with plenty of

water.

Do not remove accumulated ice and snow with

an ice scraper; use window deicers instead.

Windows

Clean the outside and inside of the windows and

mirrors with a window cleaner.

Do not clean the mirrors with cleaners

containing quartz.<

Wiper blades

Clean with soapy water and change regularly to

prevent the formation of streaks.

Wax, preservatives and dirt on the win-

dows cause streaks when the windshield

wipers are on, and can cause premature wear of

the wiper blades and interfere with the rain sen-

sor.<

Paintwork, care

Regular care helps your vehicle retain its value

and protects the paint from the long-term

effects of aggressive substances.

In some regions, environmental factors can

affect the vehicle paintwork and damage it. It is

therefore important to adjust the frequency and

extent of vehicle care correspondingly.

Immediately remove aggressive materials such

as spilled fuel, oil, grease, brake fluid, tree sap or

bird droppings to prevent damage to the paint-

work.

Removing paintwork damage

Depending on the severity of the damage,

immediately repair stone damage or

scratches to prevent rusting.<

The manufacturer of the MINI recommends

repairing paint damage professionally according

to factory specifications with original MINI

paints.

Preservation

Preservation is necessary when water no longer

beads on the clean paint surface. To preserve

the paint, only use preservatives that contain

carnauba or synthetic waxes.

Rubber seals

Only treat with water or rubber care products.

Do not use silicon sprays or other silicon-

containing care products on rubber seals;

otherwise, noise and damage could occur.<

Chrome parts*

Carefully clean vehicle parts such as the radiator

grill and door handles with copious quantities of

water and, if necessary, a shampoo additive,

especially when contaminated with road salt.

For additional treatment, use chrome polish.

Online Edition for Part no. 01 40 2 606 301 - © 10/10 BMW AG

129

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Light-alloy wheels*

The system produces brake dust that collects on

the light alloy wheels. Clean them regularly with

acid-free wheel cleaner.

Do not use aggressive, acid-containing,

highly alkaline, or abrasive cleansers or

steam jets hotter than 1407/606 as they may

cause damage.<

External sensors

Keep the outside sensors on the vehicle

such as the Park Distance Control clean

and ice-free to ensure that they function prop-

erly.<

Internal care

Upholstery/fabrics

Regularly use a vacuum cleaner to remove sur-

face dirt.

In case of serious spots such as liquid stains, use

a soft sponge or lint-free microfiber cloth and

suitable interior cleaners. Observe the instruc-

tions on the packaging.

Clean upholstery up to the seams. Do not

rub forcefully.<

Velcro fasteners on pants or other items of

clothing can damage seat covers. Make

sure that all Velcro fasteners are closed.<

Leather/leather coverings*

The leather processed by the manufac-

turer of your MINI is a high-quality natural

product. Light variations in the grain is one of

the typical properties of natural leather.<

Dust and road grit in the pores and folds of the

leather have an abrasive effect, leading to

increased wear and causing the leather surface

to become brittle prematurely. Use a cloth or

vacuum cleaner to remove dust on a regular

basis.

Especially when the leather has a light color, it

should be cleaned regularly since it tends to get

heavily soiled.

Treat the leather twice a year using a leather

lotion since dirt and grease will gradually attack

the leather's protective layer.

Carpets/floor mats*

Keep floor mats, carpet, and other objects

out of the movement range of the pedals;

otherwise, they may inhibit the function of the

pedals during driving.

Do not place additional floor mats onto an exist-

ing one or onto other objects.

Only use floor mats that have been approved for

the vehicle and can be appropriately fastened.

Make sure that the floor mats are securely fas-

tened again after they have been removed, e.g.

for cleaning.<

Floor mats can be removed to be cleaned.

If the carpets are very dirty, clean with a microfi-

ber cloth and water or an interior cleaner. When

doing so, rub forward and back in the driving

direction; otherwise, the carpet may become

matted.

Interior plastic parts

These include:

>Plastic surfaces

>Lamp glass

>Display panes

>Mat parts

Only clean with water and, if necessary, solvent-

free plastic cleaners.

Do not use solvents such as alcohol, lac-

quer thinner, cold cleaners, fuel, or similar,

as these will damage the surfaces.<

Decorative strips*

Only clean decorative strips with moist cloths.

Wipe dry with a soft cloth.

Safety belts

Dirty belt straps impede the reeling action and

thus have a negative impact on safety.

Do not clean chemically, as this may

destroy the webbing.<

Care

130

Displays

To clean displays such as radios or display ele-

ments, use a display cleaning cloth or a soft,

non-scratching, lint-free cloth.

Avoid pressing too hard when cleaning

the display as this can cause damage.<

Do not use chemical or abrasive house-

hold cleaning agents. Keep fluids of any

kind away from the device. Surfaces or electrical

components may otherwise become corroded

or damaged.<

CD/DVD drives

Do not use cleaning CDs as this could

damage parts of the drive.<

Vehicle storage

If you are not going to drive your car for more

than three months, please ask for advice from

your MINI dealer or a workshop that works

according to MINI manufacturer specifications.

131

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Replacing components

Wiper blades

Changing the front wiper blades

1. Fold out the wiper arm and hold it.

2. Press together the locking spring, arrows 1,

and fold out the wiper blade, arrow 2.

3. Pull the wiper blade forward and out of the

catch mechanism.

4. Press the new wiper blade into the fixture

until it engages audibly.

To avoid damage, make sure that the

wiper arms are against the windshield

before you open the hood.<

Changing the rear wiper blade

1. Fold out the wiper arm and hold it.

2. Rotate the wiper blade toward the back as

far as it will go, arrow.

3. Press the wiper blade against the limit and

thus out of the mounting.

4. Press the new wiper blade into the fixture

until it engages audibly.

Lamps and bulbs

Lamps and bulbs make an essential contribution

to vehicle safety. They should, therefore, be

handled carefully. The manufacturer of your

MINI recommends having your MINI dealer per-

form any work that you do not feel competent to

perform yourself or that is not described here.

Never touch the glass of new bulbs with

your bare fingers, as even minute

amounts of contamination will burn into the

bulb's surface and reduce its service life. Use a

clean tissue, cloth or something similar, or hold

the bulb by its base.<

You can obtain a selection of replacement bulbs

at your MINI dealer.

When working on electrical systems,

always begin by switching off the con-

sumer in question; otherwise, short circuits

could result. To avoid possible injury or equip-

ment damage when replacing bulbs, observe

any instructions provided by the bulb manufac-

turer.<

Caring for headlamps, refer to page 128.

For any bulb replacement not described

below, contact a MINI dealer or a work-

shop that has specially trained personnel work-

ing in accordance with the specifications of the

MINI manufacturer.<

For checking and adjusting headlamp aim,

please contact your MINI dealer.<

Light-emitting diodes LEDs

Light-emitting diodes installed behind translu-

cent lenses serve as the light sources for many of

the controls and displays in your vehicle. These

light-emitting diodes are related to conven-

tional laser diodes, and legislation defines them

as Class 1 light-emitting diodes.

Do not remove the covers or expose the

eyes directly to the unfiltered light source

for several hours; otherwise, this could cause

irritation of the retina.<

Replacing components

132

Headlight glass lens

In cool or humid weather, condensation may

occur on the interior of outside lights. The con-

densation disappears a short time after the light

is switched on. The headlamps do not need to

be changed. If a lot of moisture is present, e.g.

water droplets in the light, have them checked

by your service center.

Xenon lamps*

The service life of these bulbs is very long and

the probability of failure very low, provided that

they are not switched on and off an excessive

number of times. If a xenon lamp fails neverthe-

less, switch on the fog lamps and continue the

journey with great care, provided that local leg-

islation does not prohibit this.

Have any work on the xenon lamp system,

including bulb replacement, carried out

only by a MINI dealer or a workshop that has

specially trained personnel working in accor-

dance with the specifications of the MINI manu-

facturer. Due to high voltage, there is a risk of

fatal injury if work on the xenon lamps is carried

out improperly.<

Halogen low beams and high beams

H13 bulb, 60/55 watts

The H13 bulb is pressurized. Therefore,

wear safety glasses and protective gloves.

Otherwise, there is a risk of injury if the bulb is

damaged.<

Be careful when installing the cover; oth-

erwise, leaks could occur and cause dam-

age to the headlamp system.<

Accessing the lamp from the engine

compartment

The low-beam/high-beam bulb can be changed

from the engine compartment.

Removing the cover:

1. Press the tab.

2. Flip open the cover and take it out of the

holder.

Follow the same steps in reverse order to reat-

tach the cover.

Be careful when installing the cover; oth-

erwise, leaks could occur and cause dam-

age to the headlamp system.<

Replacing the bulb

1. Turn the lamp counterclockwise, arrow 1,

and remove it, arrow 2.

2. Push on the catch, arrow 1, and disconnect

the connector, arrow 2.

3. To insert the new bulb and replace the

cover, proceed in reverse order.

133

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Turn signals, parking lamps, roadside

parking lamps, and fog lamps

Accessing the lamps via the wheel well

1Turn signal

2Parking/roadside parking/fog lamps

Replacing a turn signal bulb

21 watt bulb, P21W, if necessary PY 21 W

1. Turn in the wheel.

2. Remove cover 1.

To do so, turn the cover counterclockwise.

3. Remove the inside cover.

To do so, turn the cover counterclockwise.

4. Unscrew the bulb counterclockwise.

5. To insert the new bulb and replace the cov-

ers, proceed in reverse order.

Replacing a parking/roadside parking

lamp bulb

5 watt bulb, W 5 W

1. Turn in the wheel.

2. Remove cover 2.

To do so, turn the cover counterclockwise.

3. Unscrew the upper bulb counterclockwise.

4. To insert the new bulb and replace the

cover, proceed in reverse order.

Replacing a fog lamp bulb

H8 bulb, 35 watts

1. Turn in the wheel.

2. Remove cover 2.

To do so, turn the cover counterclockwise.

3. Pull the cable connector.

4. Unscrew the lower bulb counterclockwise.

5. To insert the new bulb and replace the

cover, proceed in reverse order.

Replacing components

134

Side turn signals

5 watt bulb, W 5 W

1. Open hood.

2. Squeeze clamping clip, arrows, and remove

bulb holder.

3. Unscrew bulb counterclockwise and

replace.

4. To insert the new bulb and replace the

cover, proceed in reverse order.

Side marker lamps

Have these bulbs replaced by your MINI dealer.

Tail lamps

Bulb P 21 W

1Brake/tail lamp

2Turn signal

3Brake/tail lamp

4Backup lamps

5Backup lamps

Changing

All bulbs are integrated in a central bulb holder.

1. Switch off the light and remove the infrared

remote control from the ignition lock.

2. Push the cover panel out from the rear of the

cargo area side trim panel and remove it.

3. Disengage the bulb holder by pressing down

on the clamping clip, arrow.

4. Remove bulb holder.

5. Apply gentle pressure to the bulb while turn-

ing it to the left for removal and replace-

ment.

6. Re-engage the bulb holder so that it audibly

clicks into place.

7. Replace the cover panel.

135

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

License plate lamps

5 watt bulb, C 5 W

1. Using a screwdriver, push the lamp to the

left in the tab of the lamp housing, arrow 1.

2. Remove the lamp, arrow 2.

3. Replace the bulb.

4. Insert the lamp.

Center brake lamp

This lamp uses LED technology for operation. In

the event of a malfunction, contact your MINI

dealer or a workshop that has specially trained

personnel working in accordance with the spec-

ifications of your MINI manufacturer.

Repairing a flat tire

Safety measures in the event of a break-

down:

Park the vehicle as far as possible from moving

traffic and switch on the hazard warning flash-

ers.

Turn the steering wheel until the front wheels

are in the straight-ahead position and engage

the steering wheel lock. Engage the parking

brake and shift into 1st or reverse gear or place

the selector lever in position P.

All passengers should be outside the vehicle and

in a safe place, e.g. behind a guardrail.

Erect a warning triangle or warning flasher at the

appropriate distance if necessary. Comply with

all safety guidelines and regulations.<

In the event of a flat tire, different procedures

should be followed depending on the equip-

ment included in your vehicle:

>MINI Mobility System, refer to the following

section

>Run-flat tires, page 119

MINI Mobility System*

The Mobility System is located under the left

front seat.

Preparations

Use of the MINI Mobility System may be ineffec-

tive if the tire puncture measures approx.

0.12 in/4 mm or more. Contact the nearest MINI

dealer if the tire cannot be made drivable with

the Mobility System.

Do not remove foreign bodies which have pen-

etrated the tire if possible.

Follow the instructions on using the Mobil-

ity System found on the compressor and

the sealant bottle.<

Remove the adhesive label for the speed limit

from the sealant bottle and affix it to the steer-

ing wheel.

Sealant and compressor

1Sealant bottle and adhesive label with speed

limit

2Filling hose

Note the use-by date on the sealant bot-

tle.<

Replacing components

136

3Holder for the sealant bottle

4Compressor

5Plug and cable for the socket in the vehicle

interior, page 82

6Connection hose to connect the compressor

and sealant bottle or the compressor and

wheel

7On/off switch

8Pressure gauge for indicating the tire infla-

tion pressure

9Release button for reducing the tire inflation

pressure

Connector, cable and connection hose are

stored in the compressor housing.

Using the Mobility System

To repair a tire puncture with the Mobility Sys-

tem, proceed as follows:

>Filling the tire with sealant

>Distributing the sealant

>Correct the tire inflation pressure

Filling the tire with sealant

Proceed in the specified order; otherwise,

sealant may emerge under high pres-

sure.<

1. Shake the sealant bottle.

2. Pull the connecting hose 6 completely out of

the compressor housing and screw it onto

the connector of the sealant bottle. Make

sure that the hose is not kinked.

3. Insert the sealant bottle on the compressor

housing in an upright position.

4. Unscrew the dust cap from the valve of the

defective wheel and screw the filling hose 2

of the sealant bottle onto the valve.

5. Ensure that the compressor is switched off.

6. Insert the plug 5 into the lighter socket/

power socket in the vehicle interior,

page 82.

7. With the engine running:

Switch on the compressor and let it run for

approx. 3 to 8 minutes to fill the tire with

sealant and achieve a tire inflation pressure

of approx. 26 psi/180 kPa.

When filling with the sealant, the infla-

tion pressure can briefly rise to

approx. 73 psi/500 kPa. Do not switch off

the compressor during this phase.<

Do not run the compressor for longer

than 10 minutes; otherwise, the

device will overheat and possibly be dam-

aged.<

8. Switch off the compressor.

If an air pressure of 26 psi/180 kPa is not

reached:

1. Unscrew the filling hose 2 from the wheel

and drive the vehicle forward and backward

approx. 33 ft/10 m to distribute the liquid

sealant in the tire evenly.

2. Inflate the tire again with the compressor.

If an inflation pressure of 26 psi/180 kPa

still cannot be reached, the tire is too

heavily damaged. Please contact the nearest

MINI dealer.<

137

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Stowing Mobility System

1. Unscrew filler hose 2 of the sealant bottle

from the wheel.

2. Unscrew connecting hose of the

compressor 6 from the sealant bottle.

3. Connect the filler hose 2 of the sealant bot-

tle to the unoccupied connection on the

sealant bottle.

This prevents the rest of the sealant from

escaping from the bottle.

4. Wrap the empty sealant bottle in suitable

material to avoid dirtying the cargo area.

5. Stow Mobility System back in the vehicle.

Distributing the sealant

Immediately drive approx. 3.1 miles/5 km to

evenly distribute the sealant.

Do not exceed speeds of 50 mph/

80 km/h.

If possible, do not drop below 10 mph/

20 km/h.<

Correct the tire inflation pressure

1. After driving for approx. 3.1 miles/5 km or

ten minutes, stop at a suitable location.

2. Screw the connection hose 6 of the com-

pressor directly onto the tire valve.

3. Insert the plug 5 into the power socket in the

vehicle interior.

4. Correct inflation pressure to 26 psi/180 kPa.

With the engine running:

>To increase the inflation pressure: switch on

the compressor. To check the current infla-

tion pressure, switch off the compressor.

Do not run the compressor for longer

than 10 minutes; otherwise, the

device will overheat and possibly be dam-

aged.<

>To decrease the inflation pressure: press the

release button 9.

If the tire cannot maintain the inflation

pressure, drive the vehicle again, refer to

Distributing the sealant. Then repeat steps

1to4.

If an inflation pressure of 26 psi/180 kPa still

cannot be reached, the tire is too heavily dam-

aged. Contact the nearest MINI dealer.<

Driving on

Do not exceed the permitted maximum

speed of 50 mph/80 km/h; doing so may

result in an accident.<

Replace the defective tire as soon as possible

and have the new wheel/tire assembly bal-

anced.

Have the Mobility System refilled.

Changing wheels

The pouch with the wheel changing kit* is

stored under the flat load floor. It includes:

>Vehicle jack

>Reversible ratchet

>Wheel stud wrench

>Extractor hook for wheel center cover

>Chock

Preparing for a wheel change

Observe the safety precautions regarding

flat tires on page 135.<

Additional safety measures when chang-

ing tires:

Only change the tire when parked on a surface

that is level, firm and not slippery.

The vehicle or the jack could slip sideways on

soft or slippery support surfaces, such as snow,

ice, flagstones, etc.

Do not use a wooden block or similar object as a

support base for the jack, as this would prevent

it from extending to its full support height and

reduce its load-carrying capacity.

Do not lie under the vehicle or start the engine

when the vehicle is supported by the jack; other-

wise, there is a risk of fatal injury.<

Replacing components

138

1. Place the foldable chock* behind the front

wheel on the other side of the vehicle or in

front of the wheel if the vehicle is on an

incline. If the wheel is changed on a surface

with a more severe slope, take additional

precautions to secure the vehicle from roll-

ing.

2. Uncover the lug bolts if necessary.

3. Loosen the lug bolts by a half turn.

Jacking up the vehicle

The vehicle jack is designed for changing

wheels only. Do not attempt to raise

another vehicle model with it or to raise any load

of any kind. To do so could cause accidents and

personal injury.<

1. Place the jack at the jacking point closest to

the wheel.

The jack base must be perpendicular to the

surface beneath the jacking point.

2. Slide reversible ratchet onto the fixture on

the jack, arrow 1.

3. As you ratchet up the jack, place the jack

head onto the lifting point on the body,

arrow 2.

4. Jack the vehicle up until the wheel you are

changing is raised off the ground.

Mounting the wheel

1. Unscrew the lug bolts and remove the

wheel.

2. Remove accumulations of mud or dirt from

the mounting surfaces of the wheel and

hub. Clean the lug bolts.

3. Lift the new wheel into place.

4. Screw at least two lug bolts finger-tight into

opposite bolt holes.

5. Screw in the remaining bolts.

6. Tighten all the lug bolts firmly in a diagonal

pattern.

7. Lower the vehicle.

8. Remove the jack.

Tightening the lug bolts

Tighten the lug bolts in a diagonal pattern.

Immediately have the wheels checked

with a calibrated torque wrench to ensure

that the lug bolts are firmly seated. Otherwise,

incorrectly tightened lug bolts can present a

safety hazard.<

Tightening torque: 103.3 lb ft or 140 Nm.

Replace the defective tire as soon as possible

and have the new wheel/tire assembly bal-

anced.

Vehicle battery

Maintenance

The battery is 100% maintenance-free, the

electrolyte will last for the life of the battery

when the vehicle is operated in a temperate cli-

mate.

Battery replacement

Only use vehicle batteries that have been

approved for your vehicle by the manu-

facturer; otherwise, the vehicle could be dam-

aged and systems or functions may not be fully

available.<

After a battery replacement, have the battery

registered on the vehicle by your dealer to

139

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

ensure that all comfort functions are fully avail-

able.

Charging the battery

Only charge the battery in the vehicle when the

engine is off. Connections, refer to Jump-start-

ing on page 140.

Disposal

After replacing old batteries, return the

used batteries to your MINI dealer or to a

recycling center. Maintain the battery in an

upright position for transport and storage.

Always secure the battery against tipping over

during transport.<

Power failure

After a temporary power loss, some equipment

may not be fully functional and may require ini-

tialization. Individual settings are also lost and

must be reprogrammed:

>Time and date

These values must be updated, page 54.

>Radio

Stations must be stored again, refer to the

separate Owner's Manual for Radio.

>Glass sunroof*, electric

It may only be possible to raise the sunroof,

if applicable. The system must be initialized.

Contact your nearest MINI dealer.

Fuses

Do not attempt to repair a blown fuse or

replace it with a fuse of a different color or

Ampere rating. To do this could cause a fire in

the vehicle resulting from a circuit overload.

Have the fuse changed only by a MINI dealer or

a workshop that has specially trained personnel

working in accordance with the specifications of

the MINI manufacturer.<

A fuse allocation diagram is located on the inside

of the fuse box cover panels.

In the engine compartment

Opening the cover

Press the latch.

In the vehicle interior

On the right side of the footwell.

Opening the cover

Press out at the recess.

Giving and receiving assistance

140

Giving and receiving assistance

Roadside Assistance

Roadside Assistance is available by phone 24

hours a day in many countries. You can obtain

assistance there in the event of a vehicle break-

down.

Phone numbers for Roadside Assistance are

listed in the Contact brochure.

First aid pouch*

Some of the articles contained in the first aid

pouch have a limited service life. Therefore,

check the expiration dates of the contents regu-

larly and replace any items in good time, if nec-

essary.

The first aid pouch is located on the rear cargo

well by the left side trim panel or under the pull-

out floor panel.

Warning triangle*

In the cargo area under the loading sill.

To remove, open the two clasps.

Jump-starting

If the car's own battery is flat, your MINI's engine

can be started by connecting two jumper cables

to another vehicle's battery. You can also use

the same method to help start another vehicle.

Only use jumper cables with fully-insulated

clamp handles.

Do not touch any electrically live parts

when the engine is running, or a fatal acci-

dent may occur. Carefully adhere to the follow-

ing sequence, both to prevent damage to one or

both vehicles, and to guard against possible per-

sonal injuries.<

Preparation

1. Check whether the battery of the other vehi-

cle has a voltage of 12 volts and approxi-

mately the same capacitance in Ah. This

information can be found on the battery.

2. Switch off the engine of the support vehicle.

3. Switch off any consumers in both vehicles.

There must not be any contact between

the bodies of the two vehicles; otherwise,

there is a danger of shorting.<

141

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Connecting jumper cables

Connect the jumper cables in the correct

order, so that no sparks which could cause

injury occur.<

1. Open the battery cover in the engine com-

partment to access the positive terminal of

your MINI.

2. Release the tabs on the left and right sides of

the positive terminal cover*, arrows 1, and

lift the cover to open, arrow 2.

3. Attach one terminal clamp of the plus/+

jumper cable to the positive terminal of the

battery or to a starting-aid terminal of the

vehicle providing assistance.

4. Attach the second terminal clamp of the

plus/+ jumper cable to the positive terminal

of the battery or a starting-aid terminal of

the vehicle to be started.

5. Attach one terminal clamp of the minus/–

jumper cable to the negative terminal of the

battery or to an engine or body ground of

the assisting vehicle.

Body ground in MINI:

6. Attach the second terminal clamp of the

minus/– jumper cable to the negative termi-

nal of the battery or to the engine or body

ground of the vehicle to be started.

Starting the engine

1. Start the engine of the donor vehicle and

allow it to run for a few minutes at slightly

increased idle speed.

2. Start the engine of the other vehicle in the

usual manner.

If the first start attempt is not successful,

wait a few minutes before another attempt

in order to allow the discharged battery to

recharge.

3. Let the engines run for a few minutes.

4. Disconnect the jumper cables by reversing

the above connecting sequence.

If necessary, have the battery checked and

recharged.

Never use spray fluids to start the

engine.<

Tow-starting, towing

away

Observe applicable laws and regulations

for tow-starting and towing.<

Do not transport any passengers other

than the driver in a vehicle that is being

towed.<

Giving and receiving assistance

142

Using a tow fitting

The screw-in tow fitting must always be carried

in the car. It can be screwed in at the front or at

the right rear.

The tow fitting is stored under the right front

seat.

Use only the tow fitting provided with the

vehicle and screw it all the way in. Use the

tow fitting for towing on paved roads only. Avoid

lateral loading of the tow fitting, e.g. do not lift

the vehicle by the tow fitting. Otherwise, the tow

fitting and the vehicle could be damaged.<

Access to screw thread

Press the lower part of the cover. This will push

out the upper edge of the cover, which can then

be removed.

Front

Rear

Being towed

Make sure that the ignition is switched on,

refer to page 39; otherwise, the low

beams, tail lamps, turn signals, and windshield

wipers may be unavailable. Do not tow the vehi-

cle with just the rear axle raised, as this would

allow the steering to turn.<

There is no power assist while the engine is off.

Thus, braking and steering will require increased

effort.

Switch on the hazard warning flashers, depend-

ing on local regulations.

Manual transmission

Gearshift lever in neutral position.

Automatic transmission

Tow vehicles with automatic transmission

only with a tow truck or with the front

wheels lifted; otherwise, the transmission can be

damaged.<

Towing methods

Do not lift vehicle by tow fitting or body

and chassis parts, otherwise damage may

result.<

With towbar

The towing vehicle must not be lighter

than the towed vehicle; otherwise, it may

be impossible to maintain control.<

The tow fittings used should be on the same side

on both vehicles. Should it prove impossible to

avoid mounting the tow bar at an angle, please

observe the following:

>Clearance and maneuvering capability will

be sharply limited during cornering.

>The tow bar will generate lateral forces if it is

attached offset.

Only attach the tow bar to the tow fittings,

as attachment to other vehicle parts can

lead to damage.<

With tow rope

When starting off in the towing vehicle, make

sure that the tow rope is taut.

To avoid jerking and the associated

stresses on vehicle components when

towing, always use nylon ropes or nylon straps.

Attach the tow rope to the tow fittings only, as

attaching it to other parts of the vehicle could

result in damage.<

143

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

With tow truck: vehicles without ALL4

all-wheel drive

Have the MINI Countryman transported by a tow

truck with a so-called lift bar or on a flat bed.

With tow truck: vehicles with ALL4 all-

wheel drive

Do not have your vehicle with ALL4 all-

wheel drive towed with the front or rear

axle raised individually; otherwise, the wheels

may lock and the transfer case may be dam-

aged.<

Only have your MINI Countryman transported

on a flat bed.

Tow-starting

Avoid tow-starting the vehicle whenever possi-

ble; instead, jump-start the engine, page 140.

Vehicles with a catalytic converter should only

be tow-started when the engine is cold, vehicles

with an automatic transmission cannot be tow-

started at all.

1. Switch on hazard warning flashers, comply

with local regulations.

2. Switch on the ignition, page 39.

3. Shift into 3rd gear.

4. Have the vehicle tow-started with the clutch

completely depressed and then slowly

release the clutch. After the engine starts,

immediately depress the clutch completely

again.

5. Stop at a suitable location, remove the tow

bar or rope and switch off the hazard warn-

ing flashers.

6. Have the vehicle checked.

Indicator and warning lamps

144

Indicator and warning lamps

Indicator and warning lamps can light up in var-

ious combinations and colors in indicator area 1

or 2. See the table for information on causes and

how to react. Note whether a lamp lights up

alone or in combination with another. Some

lamps can light up in different colors. Corre-

sponding distinctions are made in the text.

1 2 Cause What to do

Turn signals

High beams/headlamp flasher

switched on

Fog lamps switched on

Rear fog lamp switched on

Fasten safety belts Fasten your safety belt, refer also to

page 33.

Indication in US models

Parking brake applied Release the parking brake.

Indication in Canadian models

Parking brake applied Release the parking brake.

Outside temperature warning Drive cautiously, refer also to page 48.

145

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Lights up briefly:

The tank still contains approx. 2.1 gal-

lons/8 liters of fuel

Remains on:

The remaining range is at most

30 miles/50 km, page 49

Engine refuses to start Depress the brake or clutch in order to

start the engine, page 39.

Ignition switched on and driver's door

open

Switch off the ignition, page 39, or

close the driver's door.

Lamps still on

Roadside parking lamps on

Door open

Hood open

Gas cap missing or loose Make sure that the gas cap is correctly

positioned and close it until it audibly

clicks. Do not jam the strap between

the gas cap and the vehicle.

Window washer fluid level too low Add washer fluid as soon as possible,

page 46.

1 2 Cause What to do

Indicator and warning lamps

146

Lights up in red:

Service due Arrange a service appointment.

Check service requirements, page,

125.

Lights up in yellow:

The engine will start the next time the

Start/Stop button is briefly pressed,

possibly without the brake or clutch

being depressed

Remote control malfunctioning or, in

cars with Comfort Access, not

detected

The engine cannot be started. Have

the remote control checked, if neces-

sary.

Remote control battery is discharged Use the remote control for a longer

journey or, in cars with Comfort

Access, replace the battery.

Belt tensioners and/or airbag system

failed

Have the system checked immedi-

ately. Fasten the safety belts anyway.

Power steering failed You can continue your journey, but

moderate your speed and exercise

due caution. Steering response will be

markedly different. Have the system

checked without delay.

Lights up in red:

Engine malfunction Stop the car and switch off the

engine. You cannot continue your

journey. Contact your MINI dealer.

Lights up in yellow:

Full engine power no longer available You can continue your journey, but

moderate your speed and exercise

due caution. Have the engine

checked as soon as possible.

1 2 Cause What to do

147

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Indicator lamp 1 flashes:

Engine malfunction under high load.

High engine load will result in dam-

age to the catalytic converter

You can continue your journey, but

moderate your speed and exercise

due caution. Have the vehicle

checked without delay.

Indicator lamp 1 lights up:

Engine malfunction with adverse

effect on exhaust emissions

You can continue your journey, but

moderate your speed and exercise

due caution. Have the car checked as

soon as possible.

Lights up in red:

Engine overheating Carefully bring the car to a stop,

switch off the engine and allow it to

cool down. Do not open the hood;

otherwise, there is a risk of injury from

scalding. Contact your MINI dealer.

Lights up in yellow:

Engine too hot Continue driving at more moderate

speed so that the engine can cool

down. Have the engine checked with-

out delay if the situation reoccurs.

Lights up in red:

Battery is no longer being charged.

Alternator malfunction

Switch off all unnecessary electrical

consumers. Have the battery checked

without delay.

Lights up in yellow:

Battery charge level very low, battery

aged or not securely connected

Have the battery checked as soon as

possible.

Indication in US models

Parking brake applied

Indication in Canadian models

Parking brake applied

1 2 Cause What to do

Indicator and warning lamps

148

Indication in US models

Lights up in red:

Brake fluid level too low Braking action is reduced, stop with

care. Contact the nearest MINI dealer.

Lights up in yellow:

Hill Assist failed. The car will not be

held in place after the brake is

released

Have the system checked as soon as

possible.

Indication in Canadian models

Lights up in red:

Brake fluid level too low Braking action is reduced, stop with

care. Contact the nearest MINI dealer.

Lights up in yellow:

Hill Assist failed. The car will not be

held in place after the brake is

released

Have the system checked as soon as

possible.

Indication in US models

Brake pads worn Have the condition of the brake pads

checked without delay.

Indication in Canadian models

Brake pads worn Have the condition of the brake pads

checked without delay.

Indication in US models

Vehicle electronics failed You cannot continue your journey.

Contact your MINI dealer.

1 2 Cause What to do

149

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Indication* in Canadian models

Vehicle electronics failed You cannot continue your journey.

Contact your MINI dealer.

Lights up in red: Have the system in question checked

without delay.

>Starter failed or The engine cannot be restarted.

>ignition malfunctioning. Engine

restart only possible when brake

is depressed or

>lighting system failed. Low

beams/tail lamps and brake

lamps still operational. All other

lamps failed

Depress the brake to start the engine

again.

Lights up in yellow:

>Control of the brake lamps failed

>fuel supply malfunctioning

You can continue your journey, but

moderate your speed and exercise

due caution. Have the system in ques-

tion checked without delay.

>Drive malfunctioning You can continue your journey, but

moderate your speed and exercise

due caution. Transmission limp-home

program active with restricted range

of gears. Have the system checked

immediately.

Flashing:

Dynamic Stability Control DSC or

Dynamic Traction Control DTC is con-

trolling drive and braking forces, refer

also to page 56

Dynamic Traction Control DTC is acti-

vated, refer also to page 57

The Dynamic Stability Control DSC

and Dynamic Traction Control DTC

are deactivated, refer also to page 56

Driving stability limited during accel-

eration and cornering.

Driving style must be adjusted.

1 2 Cause What to do

Indicator and warning lamps

150

The Dynamic Stability Control DSC

and Dynamic Traction Control DTC

have failed.

Driving stability limited during accel-

eration and cornering.

You can continue your journey, but

moderate your speed and exercise

due caution. Have the system

checked as soon as possible.

Indication in US models

The driving stability control systems,

including ABS and the Tire Pressure

Monitor, have failed, refer also to

page 56

Reduced braking and driving stability.

Drive cautiously and think well ahead.

Avoid braking with full force, driving

on rough tracks, and depressing the

accelerator pedal to full throttle or

kickdown position. Have the system

checked immediately.

Indication in US models

The driving stability control systems,

including ABS, ALL4 all-wheel drive,

and the Tire Pressure Monitor, have

failed, refer also to page 56

Reduced braking and driving stability.

Drive cautiously and think well ahead.

Avoid braking with full force, driving

on rough tracks, and depressing the

accelerator pedal to full throttle or

kickdown position. Have the system

checked immediately.

Indication* in Canadian models

The driving stability control systems,

including ABS and the Flat Tire Moni-

tor or the Tire Pressure Monitor*,

have failed, refer also to page 56

Reduced braking and driving stability.

Drive cautiously and think well ahead.

Avoid braking with full force, driving

on rough tracks, and depressing the

accelerator pedal to full throttle or

kickdown position. Have the system

checked immediately.

Indication* in Canadian models

The driving stability control systems,

including ABS, ALL4 all-wheel drive,

and the Flat Tire Monitor or the Tire

Pressure Monitor*, have failed, refer

also to page 56

Drive cautiously and think well ahead.

Avoid braking with full force, driving

on rough tracks, and depressing the

accelerator pedal to full throttle or

kickdown position. Have the system

checked immediately.

1 2 Cause What to do

151

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

ALL4 all-wheel drive has failed. Continued driving is possible. Drive

cautiously and think well ahead. Avoid

rough track driving, full-throttle oper-

ation, and use of the transmission's

kickdown mode. Have the system

checked immediately.

ALL4 all-wheel drive and DSC have

failed.

Continued driving is possible. Drive

cautiously and think well ahead. Avoid

rough track driving, full-throttle oper-

ation, and use of the transmission's

kickdown mode. Have the system

checked immediately.

Vehicles with Flat Tire Monitor*

Light up in yellow and red:

>Tire damage Carefully bring the car to a stop.

Observe the information starting on

page 59.

>Flat Tire Monitor not initialized Initialize Flat Tire Monitor, page 59.

Light up in yellow:

Flat Tire Monitor failed. Punctures are

not indicated

Have the system checked.

Vehicles with Tire Pressure Monitor*

Light up in yellow and red:

There is a flat tire or significant tire

pressure loss, e.g. in the front right

tire

Carefully bring the car to a stop.

Observe the information starting on

page 61.

1 2 Cause What to do

Indicator and warning lamps

152

Vehicles with Tire Pressure Monitor*

Light up in yellow:

Tire Pressure Monitor not initialized Check the inflation pressure and reset

the system, page 62.

The small lamp flashes yellow and

then stays on, the large lamp lights

up in yellow:

>Wheel mounted without TPM

electronics

Have the system checked.

>The TPM is temporarily malfunc-

tioning due to other systems or

devices using the same radio fre-

quency.

Vehicles with Tire Pressure Monitor*

Light up in yellow:

>Tire Pressure Monitor failed.

Punctures are not indicated

Have the system checked.

1 2 Cause What to do

153

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Lights up in red:

>Transmission limp-home pro-

gram active with restricted range

of gears, possibly with reduced

acceleration

You can continue your journey, but

moderate your speed and exercise

due caution. Have the system

checked without delay.

>Gears can be engaged without

depressing the brake

Always depress the brake to engage a

gear.

>Automatic selector lever locked Manually releasing the selector lever

lock, page 43.

Lights up in yellow: Have the system checked as soon as

possible.

>Automatic selector lever locked:

Selector lever locked in position P

with engine running and brake

depressed or

Manually releasing the selector lever

lock, page 43.

>brake signal malfunctioning: gear

can be engaged without depress-

ing the brake

To engage a gear while the vehicle is

at a standstill, always depress the

brake. Before leaving the vehicle,

move the selector lever to position P

and switch off the engine.

Lights up in red:

Transmission overheating Bring the car to a stop and move the

selector lever to position P. Allow the

transmission to cool down. You can

continue your journey, but moderate

your speed and exercise due caution.

Have the system checked if the situa-

tion reoccurs.

Lights up in yellow:

Transmission too hot Avoid high engine loads. You can con-

tinue your journey, but moderate

your speed and exercise due caution.

Selector lever position P not engaged.

Vehicle not prevented from rolling

1 2 Cause What to do

Indicator and warning lamps

154

Selector lever position P not engaged.

Ignition cannot be switched off

Engage selector lever position P when

you wish to switch off the ignition,

page 39.

Cruise control system failed Have the system checked.

Park Distance Control failed Have the system checked.

Bulb of exterior lighting system failed Have the exterior lighting checked as

soon as possible.

Low-beam headlamp or fog lamp

failed

Have the lamps checked as soon as

possible.

High-beam headlamp failed Have the high-beam headlamps

checked.

Rear fog lamp failed Have the rear fog lamp checked.

Adaptive Light Control has failed

Coolant level too low Add coolant immediately, page 123.

Engine oil pressure too low Stop immediately and switch off the

engine. You cannot continue your

journey. Contact your MINI dealer.

Lights up in red:

Service appointment overdue Arrange a service appointment.

Check service requirements, page 52.

Lights up in yellow:

Service due Arrange a service appointment.

Check service requirements, page 52.

1 2 Cause What to do

155

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

No service due

Set speed limit exceeded

Time and date no longer correct Set the time and date, page 54.

1 2 Cause What to do

Reference

Controls

Driving tips

Communications

AT A GLANCE

Mobility

Reference

Technical data

158

Technical data

Engine data

Cooper Cooper S

Displacement cu in/cmμ97.5/1,598 97.5/1,598

Number of cylinders 4 4

Maximum power output hp 121 181

At engine speed rpm 6,000 5,500

Maximum torque

with overboost

lb ft/Nm 114/155

–

177/240

192/260

At engine speed

with overboost

rpm 4,250

–

1,600-5,000

1,700-4,500

Overboost briefly raises the maximum torque at high rates of acceleration, e.g. when passing.

159

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Dimensions

All dimensions in inches/mm. Minimum turning radius Δ: 38.1 ft/11.6 m.

Information after the semicolon: different values for MINI Cooper S.

Technical data

160

Weights

Never exceed either the approved axle loads or

the gross vehicle weight.

Capacities

Cooper Cooper S Cooper S ALL4

Curb weight, ready for travel, with all optional extras

>Manual transmission lbs/kg 2,954/1,340 3,053/1,385 3,208/1,455

>Automatic transmission lbs/kg 3,020/1,370 3,097/1,405 3,252/1,475

Approved gross weight

>Manual transmission lbs/kg 3,858/1,750 3,990/1,810 4,101/1,860

>Automatic transmission lbs/kg 3,924/1,780 4,034/1,830 4,145/1,880

Approved front axle load

>Manual transmission lbs/kg 2,028/920 2,105/955 2,161/980

>Automatic transmission lbs/kg 2,094/950 2,150/975 2,205/1,000

Approved rear axle load lbs/kg 1,918/870 1,918/870 2,017/915

Approved roof load capacity lbs/kg 165/75 165/75 165/75

Cargo area capacity cu ft/

liters

1.2 - 41.3/

350 - 1,170

1.2 - 41.3/

350 - 1,170

1.2 - 41.3/

350 - 1,170

US gal/US quarts Liters Notes

Fuel tank 12.4/– approx. 47 Fuel grade: page 113

including reserve of 2.1/– approx. 8

Window washer system incl.

headlamp washer system –/4.2 approx. 4 For more details: page 46

161

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Everything from A to Z

162

Everything from A to Z

Index

ABS Antilock Brake System 57

Accessories, refer to Your

individual vehicle 4

Acknowledgment signals for

locking/unlocking vehicle 20

Activated-charcoal filter for

automatic climate control 76

Adaptive Light Control 69

Additives

– coolant 123

– engine oil 123

Adjusting temperature inside

the car, refer to Air

conditioner 73

Adjusting temperature inside

the car, refer to Automatic

climate control 74

Air conditioner 72

Air conditioning mode

– air conditioner 73

– automatic climate control 74

– ventilation 76

Air distribution

– automatic 75

– individual 74

– manual 74

Air flow rate 73,75

– air conditioning system 73

– automatic climate control 75

– heating, ventilation 73

Air outlets, refer to Air vents 72

Air pressure, checking, refer to

Tire inflation pressure 114

Air recirculation, refer to

Recirculated-air

mode 73,75

Air supply

– air conditioner 73

– automatic climate control 74

– ventilation 76

Air vents 72

Airbags 64

– sitting safely 30

– warning lamp 66

Airing, refer to Ventilation 76

AKI, refer to fuel grade 113

Alarm system 24

ALL4 all-wheel drive system 58

All-season tires, refer to Winter

tires 120

All-wheel drive, refer to

ALL4 58

Ambient air, refer to

Recirculated-air

mode 73,75

Ambient lighting 71

Antenna, care 127

Antifreeze

– coolant 123

– washer fluid 46

Antilock Brake System ABS 57

Anti-theft alarm system, refer

to Alarm system 24

Approved axle loads, refer to

Weights 160

Approved engine oils 123

Approved gross vehicle

weight, refer to Weights 160

Armrest, refer to Center

armrest 79

Ashtray 81

Assistant systems, refer to

– Dynamic Stability Control

DSC 57

Audio device, external 79

AUTO program for automatic

climate control 75

Automatic

– air distribution 75

– air flow rate 75

– cruise control 46

– headlamp control 67

Automatic climate control 72

– automatic air distribution 75

Automatic transmission with

Steptronic 41

– interlock 41

– overriding selector lever

lock 43

– shiftlock 41

– sport program 42

AUX-IN, refer to External audio

device 79

Average fuel consumption 49

– setting the units 51

Average speed 49

Axle loads, refer to

Weights 160

Background lighting, refer to

Ambient lighting 71

Backrests, refer to Seats 30

Backup lamps

– replacing bulb 134

Band-aids, refer to First aid

pouch 140

Bar, refer to Tow-starting,

towing away 142

Base plate for telephone or

mobile phone

– refer to Snap-in adapter 109

Battery 138

– charging 139

– disposal 27,139

– jump-starting 140

– temporary power failure 139

Battery renewal

– remote control 27

Being towed 142

Belt tensioner, refer to Safety

belts 33

Belts, refer to Safety belts 33

Beverage holders, refer to Cup

holders 81

163

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Black ice, refer to Outside

temperature warning 48

Blower, refer to Air flow

rate 73,75

Bluetooth, activating/

deactivating 100

Bottle holders, refer to Cup

holders 81

Brake Assist 57

Brake fluid, refer to Service

requirements 52

Brake lamps

– replacing bulbs 134

Brake pads, breaking in 86

Brake rotors 87

– brakes 86

– breaking in 86

Brake system 86

– breaking in 86

– disc brakes 87

– MINI Maintenance

System 125

Brakes

– ABS 57

– breaking in 86

– MINI Maintenance

System 125

– parking brake 40

– service requirements 52

Brakes, refer to Braking

safely 87

Breakdown service, refer to

Roadside Assistance 140

Break-in period 86

Breaking in the clutch 86

Bulb changing, refer to Lamps

and bulbs 131

Button for starting the

engine 39

Buttons on the steering

wheel 11

California Proposition 65

warning 5

Call

– accepting 104

– ending 104

– rejecting 104

Calling, refer to Phone

numbers, dialing 104

Can holders, refer to Cup

holders 81

Capacities 160

Car battery, refer to Vehicle

battery 138

Car care 127

Car key, refer to Keys/remote

controls 18

Car phone

– installation location, refer to

Center armrest 79

Car phone, refer to

Telephone 98

Car wash

– before driving in 40

Car wash, care 127

Car washes 127

Care 127

– car washes 127

– car-care products 127

– CD/DVD drives 130

– external 127

– high-pressure washers 128

– internal 129

– leather 129

– manual washing 128

– upholstery and fabrics 129

– windows 128

– wiper blades 128

Cargo area 88

– capacity 160

– Comfort Access 26

– lamp 70

– opening from outside 23

– trunk lid, refer to Liftgate 23

Cargo area, expanding 88

Cargo area lamp 70

Cargo area lid, refer to

Liftgate 23

Cargo area partition net, refer

to Partition net 89

Cargo loading 90

– securing cargo 91

– stowing cargo 91

– vehicle 88

Cargo, securing 91

Carpets, care 129

Catalytic converter, refer to

Hot exhaust system 86

Center armrest 79

Center brake lamp 135

Center console, refer to

Around the center

console 14

Center Rail 80

Center Rail, refer to Storage

compartments 80

Central locking system 19

– Comfort Access 25

– from inside 22

– from outside 19

– setting unlocking

behavior 19

Changing bulbs 131

Changing wheels 137

Chassis number, refer to

Engine compartment 122

Check Control 54

Child restraint fixing system

LATCH 37

Child restraint systems 36

Child seats 36

Child-safety locks 38

Chrome parts, care 128

Chrome parts, refer to

Care 127

Cigarette lighter 81

Cleaning headlamps 45

– washer fluid 46

Everything from A to Z

164

Clock

– 12h/24h mode 51

– setting time 54

Closing

– from inside 22

– from outside 19

Clothes hooks 81

Cockpit 10

Cold start, refer to Starting the

engine 40

Comfort Access 25

– replacing the battery 27

– what to observe before

entering a car wash 26

Comfort area, refer to Around

the center console 14

Compartment for remote

control, refer to Ignition

lock 39

Computer 49

Condensation, refer to When

the vehicle is parked 88

Condition Based Service

CBS 125

Configuring settings, refer to

Personal Profile 18

Connecting vacuum cleaner,

refer to Connecting electrical

appliances 82

Consumption, refer to Average

fuel consumption 49

Controls and displays 10

Convenient access, refer to

Comfort Access 25

Convenient operation

– windows 20

Convenient start, refer to

Starting the engine 40

Coolant 123

– checking level 123

– filling 123

– temperature 48

Coolant temperature 48

Cooling fluid, refer to

Coolant 123

Cooling, maximum 75

Cornering light, refer to

Adaptive Light Control 69

Cruising range 49

Cup holders 81

Curb weight, refer to

Weights 160

Current fuel consumption 49

Dashboard instruments, refer

to Displays 12

Dashboard lighting, refer to

Instrument lighting 70

Dashboard, refer to Cockpit 10

Data 158

– capacities 160

– dimensions 159

– engine 158

– weights 160

Data memory 126

Date

– setting 54

Daytime running lights 68

DBC Dynamic Brake Control,

refer to Brake Assist 57

Deactivating front passenger

airbags 65

Deadlocking, refer to

Locking 20

Defect

– door lock 22

– fuel filler flap 112

Defogging windows 74,75

Defrost position, refer to

Defrosting windows 74,75

Defrosting windows and

removing condensation

– air conditioner 74

– automatic climate control 75

Defrosting windshield, refer to

Defrosting windows 74,75

Differential, breaking in 86

Dimensions 159

Dipstick, engine oil 122

Directional indicators, refer to

Turn signals 43

Displacement, refer to Engine

data 158

Display lighting, refer to

Instrument lighting 70

Displays 12

– instrument cluster 12

Displays and controls 10

Displays, care 130

Disposal

– of coolant 123

– remote control battery 27

– vehicle battery 139

Distance remaining to service,

refer to Service

requirements 52

Distance warning, refer to Park

Distance Control PDC 56

Door key, refer to Integrated

key/remote control 18

Door lock 21

Door lock, confirmation

signals 20

Doors, manual operation 22

DOT Quality Grades 117

Drinks holders, refer to Cup

holders 81

Drive-off assistant, refer to Hill

Assist 58

Driving dynamics control, refer

to Sport button 59

Driving lamps, refer to Parking

lamps/low beams 67

Driving notes 86

Driving off on inclines, refer to

Hill Assist 58

Driving stability control

systems 56

Driving through water 87

Driving tips, refer to Driving

notes 86

Dry air, refer to Cooling

function 76

DTC Dynamic Traction

Control 57

Dynamic Brake Control DBC,

refer to Brake Assist 57

Dynamic Stability Control

DSC 57

Dynamic Traction Control

DTC 57

165

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Electrical malfunction

– door lock 22

– fuel filler flap 112

Electronic brake-force

distribution 57

Electronic Stability Program

ESP, refer to Dynamic

Stability Control DSC 57

Emergency operation, refer to

Manual operation

– door lock 22

– fuel filler flap 112

– transmission lock, automatic

transmission 43

Emergency services, refer to

Roadside Assistance 140

Engine

– breaking in 86

– data 158

– overheated, refer to Coolant

temperature 48

– speed 158

– starting 40

– starting, Comfort Access 25

– switching off 40

Engine compartment 122

Engine coolant, refer to

Coolant 123

Engine oil

– adding 123

– additives, refer to Approved

engine oils 123

– alternative oil types 123

– approved engine oils 123

– capacity 123

– checking level 122

– dipstick 122

– intervals between changes,

refer to Service

requirements 52

– MINI Maintenance

System 125

Engine oil level, checking 122

Engine output, refer to Engine

data 158

Engine starting, refer to

Starting the engine 40

ESP Electronic Stability

Program, refer to Dynamic

Stability Control DSC 57

Exhaust system, refer to Hot

exhaust system 86

Exterior mirrors 34

– adjusting 34

– automatic dimming

feature 34

– automatic heating 34

– folding in and out 34

External audio device 79

Eyes

– for tow-starting and towing

away 142

– for tying down loads 91

Failure messages, refer to

Check Control 54

Failure of an electrical

consumer 139

Fastening safety belts, refer to

Safety belts 33

Fault messages, refer to Check

Control 54

Faulty

– tire 60

Filter

– microfilter for air

conditioner 74

– microfilter/activated-

charcoal filter for automatic

climate control 76

Fine wood, care 129

First aid pouch 140

Fixture for remote control,

refer to Ignition lock 39

Flash when locking/

unlocking 20

Flat tire

– run-flat tires 119

– Tire Pressure Monitor TPM 61

Flat Tire Monitor FTM 59

– indicating a flat tire 60

– initializing the system 59

– snow chains 59

– system limits 59

Flat tires, refer to Tire

condition 118

Floor mats, care 129

Fog lamps

– replacing bulb 133

Folding rear seat backrest 88

Footbrake, refer to Braking

safely 87

Footwell lamps 70

For your own safety 5

Four-wheel drive, refer to

ALL4 58

Front airbags 64

Front fog lamps 70

– indicator lamp 144

– replacing bulb 133

Front seat adjustment 30

Frost on windows, refer to

Defrosting windows 74,75

FTM, refer to Flat Tire

Monitor 59

Fuel 113

– gauge 48

– high-quality brands 113

– quality 113

– specifications 113

– tank capacity 160

Fuel clock, refer to Fuel

gauge 48

Fuel consumption display

– average fuel consumption 49

Fuel display, refer to Fuel

gauge 48

Fuel filler flap 112

– releasing in the event of

electrical malfunction 112

Fuses 139

Garage door opener, refer to

Integrated universal remote

control 77

Gasoline

– refer to Average fuel

consumption 49

Gasoline display, refer to Fuel

gauge 48

Everything from A to Z

166

Gasoline, refer to Required

fuel 113

Gear indicator

– automatic transmission with

Steptronic 41

Gear shifting

– automatic transmission 41

– manual transmission 41

Gearshift lever

– automatic transmission with

Steptronic 41

– manual transmission 41

General driving notes 86

Glass sunroof, electric 27

– convenient operation 20,22

– opening, closing 27

– remote control 20

– tilting 27

Glove compartment 79

Grills, refer to Air vents 72

Gross vehicle weight, refer to

Weights 160

Halogen lamps

– replacing bulb 132

Handbrake, refer to Parking

brake 40

Hands-free system 14,106

Hazard warning flashers 14

Head airbags 64

Head Light, refer to Adaptive

Light Control 69

Head restraints 32

– sitting safely 30

Headlamp control,

automatic 67

Headlamp flasher 43

– indicator lamp 11,144

Headlamps

– replacing bulb 132

Headlamps, care 128

Headlight glass lens 132

Heated

– mirrors 34

– rear window 73,75

– seats 33

Heating 72

– mirrors 34

– rear window 73,75

– seats 33

Heavy loads, refer to Stowing

cargo 91

Height adjustment

– seats 31

– steering wheel 35

Height, refer to

Dimensions 159

High beams 69

– headlamp flasher 69

– indicator lamp 144

– replacing bulb 132

High water, refer to Driving

through water 87

Hill Assist 58

Hills 87

Holders for cups 81

Homepage 4

Hood 121

Horn 10

Hot exhaust system 86

Hydroplaning 86

Ice warning, refer to Outside

temperature warning 48

Ignition 39

– switched off 39

– switched on 39

Ignition key position 1, refer to

Radio readiness 39

Ignition key position 2, refer to

Ignition on 39

Ignition key, refer to

Integrated key/remote

control 18

Ignition lock 39

Imprint 2

Incoming call 104

Indicator and warning

lamps 13,144

– Tire Pressure Monitor TPM 62

Indicator lighting, refer to

Instrument lighting 70

Individual air distribution 74

Individual settings, refer to

Personal Profile 18

Inflation pressure monitoring,

refer to Tire Pressure Monitor

TPM 61

Initializing

– Flat Tire Monitor FTM 59

– glass sunroof, electric 27

Instrument cluster, refer to

Displays 12

Instrument lighting 70

Instrument panel, refer to

Cockpit 10

Instrument panel, refer to

Displays 12

Integrated key 18

Integrated universal remote

control 77

Interior lamps 70

– remote control 21

Interior rearview mirror 34

– automatic dimming

feature 34

Interlock 41

Intermittent mode of the

wipers 44

Internet page 4

Jacking points 138

Jets, refer to Window washer

nozzles 46

Jumpering, refer to Jump-

starting 140

Jump-starting 140

Key Memory, refer to Personal

Profile 18

Key, refer to Keys/remote

controls 18

Keyless opening and closing,

refer to Comfort Access 25

Keyless-Go, refer to Comfort

Access 25

Keypad dialing 104

167

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Kickdown 42

– automatic transmission with

Steptronic 42

Knock control 113

Lamps and bulbs, replacing

bulbs 131

Lamps, refer to Parking lamps/

low beams 67

Lashing eyes, refer to Securing

cargo 91

LATCH child restraint fixing

system 37

Leather care 129

LEDs light-emitting diodes 131

Length, refer to

Dimensions 159

License plate lamp

– bulb replacement 135

Liftgate 23

– Comfort Access 26

– opening from outside 23

– opening/closing 23

– unlocking with remote

control 21

Light

– automatic headlamp

control 67

Light switch 67

Light-alloy wheels, care 129

Light-emitting diodes

LEDs 131

Lighter 81

– socket 82

Lighting

– lamps and bulbs 131

– of the instruments 70

– of vehicle, refer to Lamps 67

Limit 155

Load 90

Load securing equipment,

refer to Securing cargo 91

Lock buttons of doors, refer to

Locking 22

Locking

– adjusting confirmation

signal 20

– from inside 22

– from outside 20

– without remote control, refer

to Comfort Access 25

Locking and unlocking doors

– confirmation signals 20

– from inside 22

– from outside 19

Low beams 67

– automatic 67

– replacing bulb 132

Lower back support, refer to

Lumbar support 31

Luggage compartment

– doors, refer to Liftgate 23

Luggage compartment

partition net, refer to

Partition net 89

Luggage rack, refer to Roof-

mounted luggage rack 92

Lumbar support 31

M+S tires, refer to Winter

tires 120

Maintenance, refer to Service

Booklet

Maintenance system 125

Malfunction warnings, refer to

Check Control 54

Manual air distribution 74

Manual mode

– automatic transmission with

Steptronic 42

Manual operation

– door lock 22

– fuel filler flap 112

– transmission lock, automatic

transmission 43

Manual transmission 41

Manual washing 128

Master key, refer to Integrated

key/remote control 18

Maximum cooling 75

Maximum speed

– with winter tires 120

Medical assistance, refer to

First aid pouch 140

Microfilter

– for air conditioner 74

– for automatic climate

control 76

– MINI Maintenance

System 125

Microfilter/activated-charcoal

filter

– MINI Maintenance

System 125

Microphone for telephone 14

MINI Internet page 4

MINI Maintenance System 125

Mirror dimming feature 34

Mirrors 34

– exterior mirrors 34

– heating 34

– interior rearview mirror 34

Mobile phone

– adjusting volume 103

– connecting, refer to Mobile

phone, pairing 100

– installation location, refer to

Center armrest 79

– pairing 100

– What to do if… 102

Mobile phone, installation

location, refer to Center

armrest 79

Mobility System 135

Modifications, technical, refer

to For your own safety 5

Monitoring system for tire

pressures, refer to Flat Tire

Monitor 59

Multifunction switch

– refer to Turn signals/

headlamp flasher 43

– refer to Wiper system 44

Multifunctional steering

wheel, refer to Buttons on

the steering wheel 11

Everything from A to Z

168

Neck support, refer to Head

restraints 32

Nets, refer to Storage

compartments 80

New tires 119

Number of cylinders, refer to

Engine data 158

Number of safety belts 30

Nylon rope, refer to Tow

rope 142

OBD socket, refer to Socket for

On-Board Diagnosis 125

Octane ratings, refer to Fuel

specifications 113

Odometer 48

Oil consumption 122

Oil level 122

Oil, refer to Engine oil 122

Oil types 123

Old batteries, refer to

Disposal 139

Opening and closing

– Comfort Access 25

– from inside 22

– from outside 19

– using the door lock 21

– using the remote control 19

Opening and unlocking

– from inside 22

Outlets

– refer to Ventilation 76

Outlets, refer to Air vents 72

Output, refer to Engine

data 158

Outside temperature display

– change units of measure 51

– in the onboard computer 51

Outside temperature

warning 48

Outside-air mode

– automatic climate control 75

Overheated engine, refer to

Coolant temperature 48

Paintwork, care 128

Park Distance Control PDC 56

Parking

– vehicle 40

Parking aid, refer to Park

Distance Control PDC 56

Parking brake 40

Parking lamps, replacing

bulb 133

Parking lamps/low beams 67

Partition net 89

Parts and accessories, refer to

Your individual vehicle 4

Pathway lighting 67

Personal Profile 18

Phone numbers

– dialing 104

Pinch protection system

– windows 28

Plastic parts, care 129

Pollen

– refer to Microfilter for air

conditioner 74

– refer to Microfilter/activated-

charcoal filter for automatic

climate control 76

Power failure 139

Power window

– safety switch 29

Power windows 28

Power windows, refer to

Windows 28

Pressure monitoring of tires,

refer to Tire Pressure Monitor

TPM 61

Pressure monitoring, tires 59

– Flat Tire Monitor 59

Pressure, tires 114

Protective function, refer to

Pinch protection system

– windows 28

Puncture

– Flat Tire Monitor 59

Radio key, refer to Integrated

key/remote control 18

Radio position, refer to Radio

readiness 39

Radio readiness 39

– switched off 39

– switched on 39

Rain sensor 44

Range, refer to Cruising

range 49

Reading lamps 71

Rear fog lamp

– indicator lamp 144

Rear lamps

– bulb replacement 134

Rear lamps, refer to Tail

lamps 134

Rear seat backrest, folding 88

Rear seats

– adjusting 31

– folding down the

backrests 88

Rear window

– windshield wiper 46

Rear window defroster 73,75

Rear window safety switch 29

Rear-mounted luggage

rack 92

Rearview mirror, refer to

Mirrors 34

Recirculated-air mode 73,75

Recirculation of air, refer to

Recirculated-air

mode 73,75

Reclining seat, refer to

Backrest 31

Refueling 112

Releasing

– hood 121

Remote control 18

– battery renewal 27

– Comfort Access 25

– garage door opener 77

– liftgate 21

– malfunctions 21,26

– service data 125

169

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Replacement remote

control 18

Replacing bulbs, refer to

Lamps and bulbs 131

Replacing tires, refer to New

wheels and tires 119

Reporting safety defects 6

Reserve warning, refer to Fuel

gauge 48

Reservoir for washer

systems 46

Restraint systems

– for children 36

– refer to Safety belts 33

Reverse gear

– automatic transmission with

Steptronic 42

– manual transmission 41

Roadside Assistance 140

Roadside parking lamps 69

– replacing bulb 133

Roadworthiness test, refer to

Service requirements 52

Roof load capacity 160

Roof-mounted luggage

rack 92

Rope, refer to Tow-starting,

towing away 142

RSC Run-flat System

Component, refer to Run-flat

tires 119

Rubber parts, care 128

Run-flat System Component

RSC, refer to Run-flat

tires 119

Run-flat tires 119

– flat tire 60

– Flat Tire Monitor 60

– tire inflation pressure 114

– tire replacement 119

– winter tires 120

Safety belt

– number 30

Safety Belt Reminder 33

Safety belts 33

– damage 33

– indicator lamp 33

– reminder 33

– sitting safely 30

Safety belts, care 129

Safety systems

– airbags 64

– Antilock Brake System

ABS 57

– driving stability control

systems 56

– Dynamic Stability Control

DSC 57

– safety belts 33

Safety tires, refer to Run-flat

tires 119

Screw thread for tow

fitting 142

Seat adjustment

– mechanical 31

– rear 31

Seats 30

– adjusting the seats 31

– heating 33

– sitting safely 30

Securing the vehicle

– from inside 22

– from outside 19

Selector lever

– automatic transmission with

Steptronic 41

Selector lever lock

– automatic transmission with

Steptronic, refer to

Shiftlock 41

– overriding manually 43

Selector lever positions

– automatic transmission with

Steptronic 41

Service car, refer to Roadside

Assistance 140

Service data in the remote

control 125

Service Interval Display, refer

to Condition Based Service

CBS 125

Service, refer to Roadside

Assistance 140

Service requirement display,

refer to Condition Based

Service CBS 125

Service requirements 52

Settings

– clock, 12h/24h mode 51

Settings and information 50

Shift paddles 42

Shifting gears

– automatic transmission with

Steptronic 42

– manual transmission 41

Shiftlock

– automatic transmission, refer

to Changing selector lever

positions 41

Side airbags 64

Side marker lamps, replacing

bulbs 134

Side turn signal

– replacing bulb 134

Side windows, refer to

Windows 28

Signal horn, refer to Horn 10

Sitting safely 30

– airbags 30

– safety belts 30

– with head restraint 30

Size, refer to Dimensions 159

Sliding/tilt sunroof

– refer to Glass sunroof,

electric 27

Slot for remote control 39

Smokers' package, refer to

Ashtray 81

Everything from A to Z

170

Snap-in adapter

– inserting/removing 109

– use 98

Snap-in adapter, refer to

Center armrest storage

compartment 79

Snow chains 120

Socket for On-Board Diagnosis

OBD 125

Socket, refer to Connecting

electrical appliances 82

Special oils, refer to Approved

engine oils 123

Speed 158

– with winter tires 120

Speedo, refer to

Speedometer 12

Split rear seat backrest, refer to

Expanding the cargo area 88

Sport button 59

Stability control, refer to

Driving stability control

systems 56

Start/Stop button 39

– starting the engine 40

– switching off the engine 40

Starting assistance, refer to

Jump-starting 140

Starting, refer to Starting the

engine 40

Starting the engine

– Start/Stop button 39

Start-off assistance, refer to

– DSC 57

– Hill Assist 58

Status of this Owner's Manual

at time of printing 4

Steering wheel 35

– adjustment 35

– buttons on steering wheel 11

– lock 39

– shift paddles 42

Steptronic, refer to Automatic

transmission with

Steptronic 41

Storage area

– cargo area 88

Storage compartments 80

Storage space

– storage compartments 80

Storing the vehicle 130

Storing tires 120

Stowage, refer to Storage

compartments 80

Summer tires, refer to Wheels

and tires 114

Switches, refer to Cockpit 10

Switching off

– engine 40

Switching off the engine

– Start/Stop button 39

Switching the cooling function

on and off 76

Symbols 4

Tachometer 48

Tail lamp, refer to Tail

lamps 134

– replacing bulb 134

Tail lamps 134

Tank volume, refer to

Capacities 160

Technical data 158

Technical modifications 5

Telephone 98

– hands-free system 106

– installation location, refer to

Center armrest 79

– voice commands 106

Temperature display

– setting the units 51

Temperature of coolant, refer

to Coolant temperature 48

Temperature setting

– air conditioner 73

– automatic climate control 75

Tempomat, refer to Cruise

control 46

Tensioning straps, refer to

Securing cargo 91

The individual vehicle 4

Third brake lamp, refer to

Center brake lamp 135

Three-point safety belt 33

Tightening the lug bolts

– torque 138

Tightening torque, refer to

Tightening lug bolts 138

Tire failure

– Flat Tire Monitor 60

– indicator/warning lamp 60

– MINI Mobility System 135

– run-flat tires 60

– Tire Pressure Monitor 61

Tire inflation pressure 114

– loss 60

Tire Pressure Monitor TPM 61

– limitations of system 61

– resetting system 61

– warning lamp 62

Tire pressure monitoring, refer

to Flat Tire Monitor 59

Tire Quality Grading 117

Tires

– age 118

– breaking in 86

– changing, refer to Changing

wheels 137

– condition 118

– damage 118

– inflation pressure 114

– inflation pressure loss 62

– minimum tread depth 118

– new tires 119

– pressure monitoring, refer to

Flat Tire Monitor 59

– pressure monitoring, refer to

Tire Pressure Monitor

TPM 61

– puncture 60

– size 117

– wear indicators, refer to

Minimum tread depth 118

– winter tires 120

– with emergency operation

properties 119

Tires with emergency

operation properties, refer to

Run-flat tires 119

Tires with safety features, refer

to Run-flat tires 119

Torque 158

– lug bolts 138

171

AT A GLANCEReference Mobility ControlsDriving tipsCommunications

Tow bar 142

Tow fitting 142

– screw thread 142

Tow fittings for tow-starting

and towing away 142

Tow rope 142

Towing 141

– car with automatic

transmission 142

– methods 142

Tow-starting 141

TPM, refer to Tire Pressure

Monitor 61

Track width, refer to

Dimension 159

Traction control, refer to

– Dynamic Stability Control

DSC 57

Transmission

– automatic transmission with

Steptronic 41

– manual transmission 41

– overriding selector lever lock

for automatic transmission

with Steptronic 43

Transport securing devices,

refer to Securing cargo 91

Transporting children safely 36

Tread depth, refer to Minimum

tire tread 118

Trip odometer 48

Trip-distance counter, refer to

Trip odometer 48

Triple turn signal activation 43

Turn signal 43

– front, replacing bulb 133

– indicator lamp 12

– rear, replacing bulb 134

– side, replacing bulb 134

Turning circle, refer to

Dimensions 159

Tying down loads, refer to

Cargo loading 91

Uniform Tire Quality Grading

UTQR 117

Units

– average fuel consumption 51

– temperature 51

Universal garage-door opener,

refer to Integrated universal

remote control 77

Universal remote control 77

Unlatching, refer to

Unlocking 26

Unlocking

– from inside 22

– from outside 19

– liftgate 26

– setting unlocking

behavior 19

– without remote control, refer

to Comfort Access 25

Upholstery, care 129

USB audio interface 80

Vehicle

– battery 138

– breaking in 86

– cargo loading 88

– dimensions 159

– identification number, refer

to Engine compartment 122

– parking 40

– storage 130

– weight 160

Vehicle jack

– jacking points 138

Ventilation

– air conditioner 76

Ventilation, refer to Climate

control 72

Vents, refer to Air vents 72

Vents, refer to Ventilation 76

Voice commands

– telephone 106

Voice phone book 107

Volume

– mobile phone 103

Volume of cargo area 160

Warning and indicator

lamps 13,144

Warning messages, refer to

Check Control 54

Warning triangle 140

Washer fluid 46

– capacity of reservoir 46

Washer fluid reservoir 46

Washer/wiper system

– washer fluid 46

Waste tray, refer to Ashtray 81

Water on roads, refer to

Driving through water 87

Waterfall lighting, refer to

Ambient lighting 71

Wear indicators in tires, refer to

Minimum tread depth 118

Weights 160

Welcome lamps 67

Wheelbase, refer to

Dimensions 159

Wheels and tires 114

Wheels, new 119

Width, refer to

Dimensions 159

Window washer, refer to

Washer fluid 46

Window washer reservoir,

refer to Washer fluid

– volume, refer to

Capacities 160

Window washer system 44

– washer fluid 46

– washer jets 46

Windows 28

– closing 28

– convenient operation 20

– opening 28

– pinch protection system 28

– safety switch 29

Everything from A to Z

172

Windshield

– cleaning 45

– defrosting and removing

condensation 74,75

Windshield wiper blades,

changing 131

Windshield wipers, refer to

Wiper system 44

Winter tires 120

– storage 120

Wiper blade replacement 131

Wiper system 44

Work in the engine

compartment 121

Xenon lamps

– replacing bulb 132

01 40 2 606 301 ue
