Moov V Series
Hardware Manual
Important safety information
PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous situation
which, if not avoided, may result in property damage.
Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle’s safety or make it illegal to operate
in some jurisdictions.
Follow all product instructions and all instructions in your vehicle owner’s manual regarding accessories or modifications.
Consult your country’s and/or state’s laws regarding operation of a vehicle with any accessories or modifications.
It is your sole responsibility to place, secure and use your Mio in a manner that will not cause accidents, personal injury or property
damage. Always observe safe driving practices.
Do not mount your Mio in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety
equipment.
Do not operate your Mio while driving.
Before you use your Mio for the first time, familiarize yourself with your device and its operation.
On main roads, the distance to an exit calculated by your Mio may be further than the distance shown on road signs. Road signs show
the distance to the start of an exit while your Mio shows the distance to the next intersection, i.e., the end of the exit ramp or road. To
prepare to exit a road, always follow distance information on road signs.
The use of information regarding safety or speed camera locations may be subject to local laws in the country of use. You are
responsible for checking that you can legally use the information in your country or in the country where the information will be used.
Products with FM Transmitter feature may be operated in the following countries:
AT BE BG CH CZ DE DK EE
ES FI GB HU IE IS IT LI
LT LU LV MT NL NO PL PT
RO SE SI SK
The FM transmitter function is not allowed to use in Cyprus, France and Greece. Please turn off the FM Transmitter in those areas.
The TV and video player features MUST NOT be used when driving. Using the features may cause an accident. Please make sure you
comply with this warning. Mio accepts NO liability whatsoever in this regard.
Do not handle your Mio while it is hot. Let the product cool, out of direct sunlight.
At full power, prolonged listening to your Mio via headphones or earphones can damage the ear of the user.
Do not expose your Mio to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.
To discourage theft, do not leave your Mio, mounting bracket or any cables in plain view in an
unattended vehicle.
Warning Notice to Drivers in the United States
State law may prohibit drivers in states such as Arizona, California and Minnesota from mounting objects on their windshields while
driving. Please make sure you research and follow your most current State laws. An alternative mounting option may be provided in the
box with your product; or see our website for additional mounting alternatives. Mio does not take any responsibility for any fines,
penalties, or damages that may be incurred as a result of disregarding this notice.
2
Home charger-specific safety information
To charge your Mio from the mains power, use the home charger supplied by Mio as an accessory (may be sold separately). Using other
home chargers with your Mio could result in serious injury or property damage.
Never use the charger if the plug or cord is damaged.
Do not expose the charger to moisture or water. Do not use the charger in a high moisture environment. Exposure to water may cause
electrical sparks or fires.
Never touch the charger when your hands or feet are wet.
Allow adequate ventilation around the charger when using it to operate your Mio or charge the internal battery. Do not cover the charger
with paper or other objects that will reduce ventilation. Do not use the charger while it is inside a carrying case or
other container.
Ensure that the charger is connected to a power source with the correct fitting and voltage requirements. The voltage requirements can
be found on the home charger casing and/or packaging.
Do not attempt to service the charger as this could result in personal injury. Replace the charger if it is damaged or exposed to
excess moisture.
About charging
Use only the charger supplied with your Mio. Use of another type of charger will result in malfunction and/or danger.
This product is intended to be supplied by a LISTED Power Unit marked with “LPS”, “Limited Power Source” and output rated
+ 5 V dc / 2.0 A”.
Use a specified battery in the equipment.
About the charger
Do not use the charger in a high moisture environment. Never touch the charger when your hands or feet are wet.
Allow adequate ventilation around the charger when using it to operate your Mio or charge the battery. Do not cover the charger
with paper or other objects that will reduce cooling. Do not use the charger while it is inside a carrying case.
Connect the charger to a proper power source. The voltage requirements are found on the product case and/or packaging.
Do not use the charger if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess
moisture.
Internal battery-specific safety information
Your Mio contains a non-replaceable internal lithium-ion battery. The battery may burst or explode if mishandled, releasing hazardous
chemicals. To reduce the risk of fire or burns, do not disassemble, crush or puncture the battery.
Recycle or dispose of the battery safely and properly according to local laws and regulations. Do not dispose of the battery in
fire or water.
Only use the correct home charger (sold separately) or in-car charger supplied by Mio to charge your Mio internal battery.
Only use your Mio internal battery with your Mio unit.
The Mio battery will stop charging when the ambient temperature is less than 0ºC (32ºF) or more than 45ºC (113ºF).
Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Mio disclaims all
liability for installation or use of your Mio that causes or contributes to death, injury or property damage or that violates
any law.
About the battery
Use a specified battery in the equipment.
CAUTION: The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not
disassemble, crush, puncture, or dispose of in fire or water.
Important instructions (for service personnel only)
Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
Replace only with the same or equivalent type recommended by the manufacturer.
The battery must be recycled or disposed of properly.
Use the battery only in the specified equipment.
3
4
Contents
Important safety information...................................................................................................................2
Home charger-specific safety information .........................................................................................3
About charging .............................................................................................................................3
About the charger .........................................................................................................................3
Internal battery-specific safety information ........................................................................................3
About the battery ..........................................................................................................................3
Welcome................................................................................................................................................5
Important information for using the manual .......................................................................................5
Formatting ....................................................................................................................................5
Icons.............................................................................................................................................5
Terms ...........................................................................................................................................5
Mounting your Mio in a vehicle...............................................................................................................6
Mounting on the windshield...............................................................................................................6
V500 Series..................................................................................................................................6
V700 Series..................................................................................................................................7
Mounting on the dashboard ..............................................................................................................8
V700 Series..................................................................................................................................8
Installing the external antenna ..........................................................................................................9
V500 Series..................................................................................................................................9
V700 Series..................................................................................................................................9
Enabling Traffic (TMC) Reception.....................................................................................................9

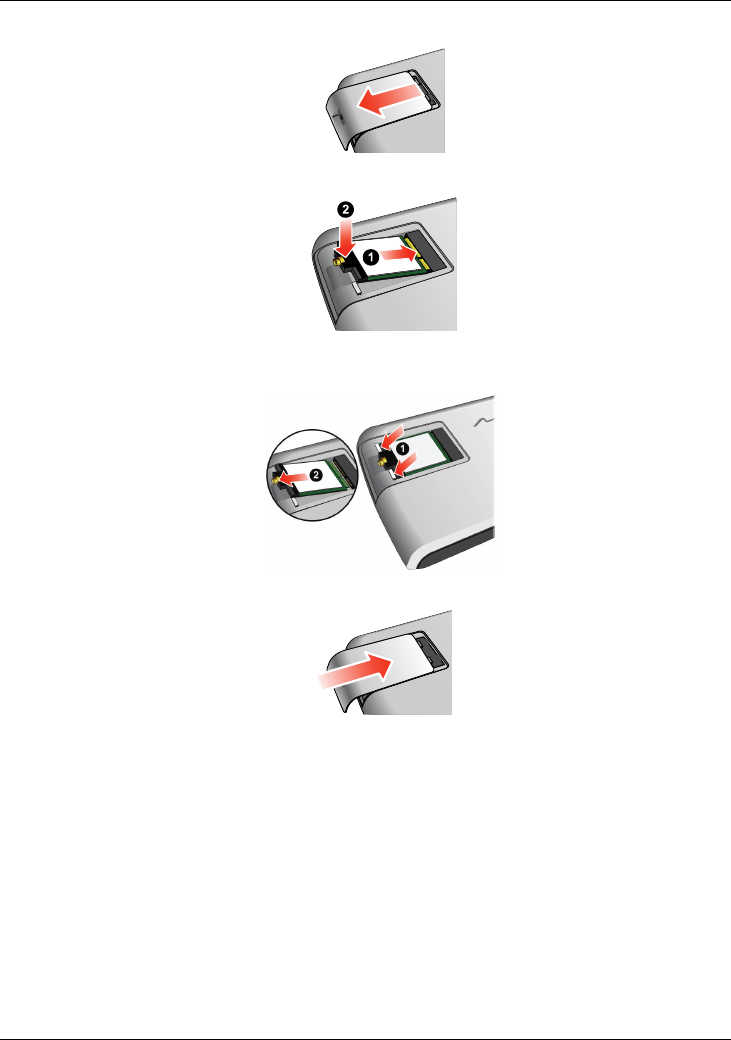

Installing the optional digital TV card....................................................................................................10
Getting to know your Mio .....................................................................................................................11
V500 Series ....................................................................................................................................11
V700 Series ....................................................................................................................................12
How do I turn on my Mio? ....................................................................................................................13

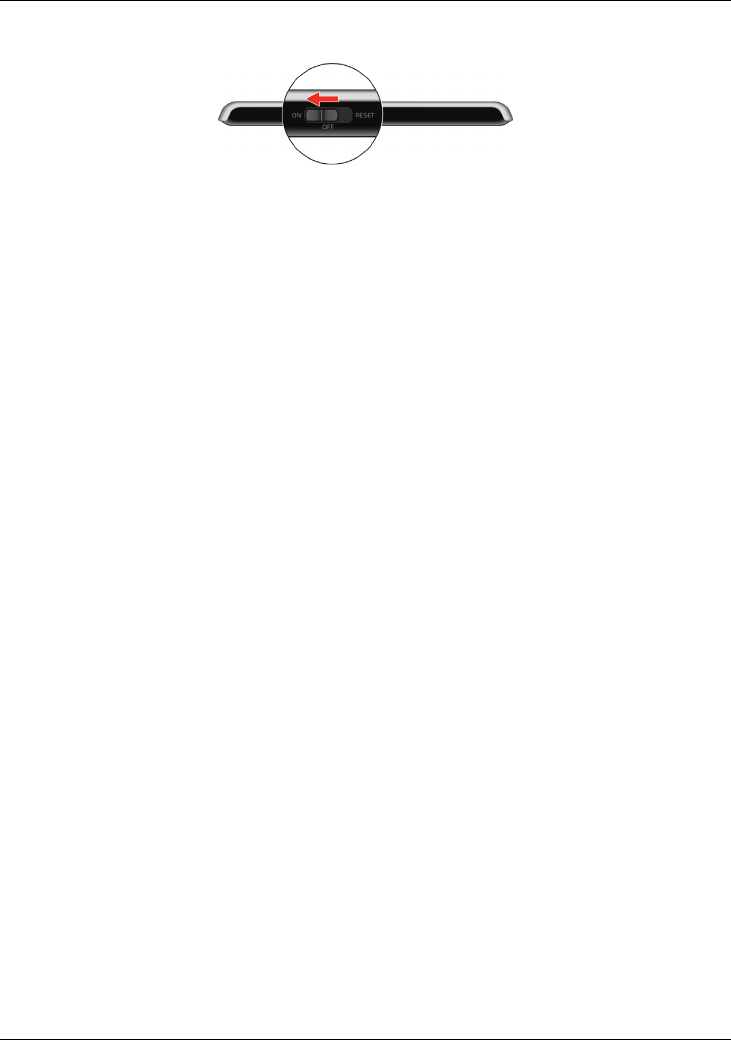

Using the power switch...................................................................................................................13
How do I charge the battery? ...............................................................................................................14
How do I charge the battery in a vehicle? .......................................................................................14
How do I charge the battery via my computer? (V500 Series only) .................................................14
How do I charge the battery at home or work?................................................................................14
How do I insert a memory card? ..........................................................................................................15
How do I use the remote control? ........................................................................................................16
Installing the battery for the remote control .....................................................................................16
Remote control buttons...................................................................................................................16
Other features......................................................................................................................................18
How do I receive current traffic information? ...................................................................................18
How do I play music or video? ........................................................................................................18
How do I receive audio through my vehicle speakers?....................................................................18
Reference ............................................................................................................................................19

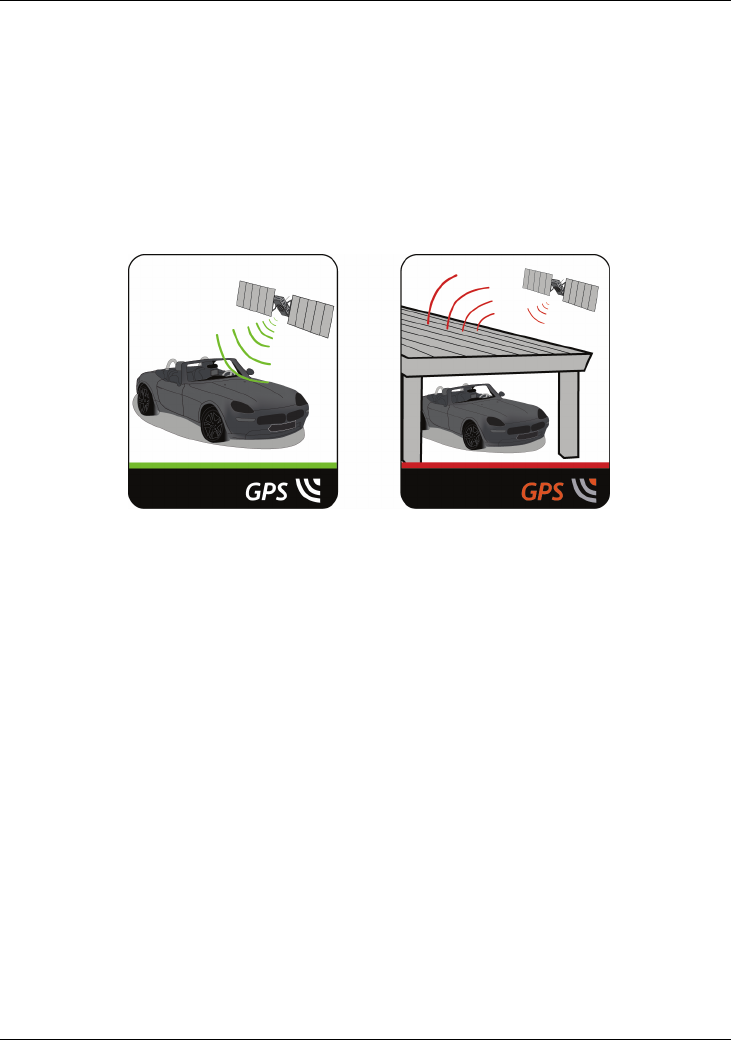

What is GPS? .................................................................................................................................19
How does my Mio receive GPS signals? ....................................................................................19
Caring for your Mio .........................................................................................................................19
Troubleshooting ..............................................................................................................................20
For more information............................................................................................................................21
Online support ................................................................................................................................21
Register your Mio with MioClub.......................................................................................................21
Disclaimer.......................................................................................................................................21
Compliance.....................................................................................................................................21
Copyright ........................................................................................................................................22
Welcome
Thank you for purchasing this Mio. Please read this manual carefully before using your Mio for the first time. Keep
this manual in a safe place and use as your first point of reference.
Important information for using the manual
It is important to understand the terms and typographical conventions used in this manual.
Formatting
The following formatting in the text identifies special information:
Convention Type of Information
Bold Components or items displayed on screen, including buttons, headings, field names and options.
Italics Indicates the name of a screen.
Icons
The following icons are used throughout this manual:
Icon Description
Note
Tip
Warning
Terms
The following terms are used throughout this manual to describe user actions.
Term Description
Press Press and release a button quickly.
Press and hold Press and hold a button for 2-3 seconds.
Tap Press and release an item displayed on the touch screen.
Tap and hold Tap and hold an item displayed on the touch screen for 2-3 seconds.
Select Tap an item in a list or tap a command from a menu.
5
6
Mounting your Mio in a vehicle
CAUTION:
Never mount your Mio where the driver’s field of vision is blocked.
If the windscreen is tinted with a reflective coating, it may be athermic and impact the GPS reception. In this
instance, please mount your Mio where there is a “clear area” - usually just beneath the rear-view mirror.
To protect your Mio against sudden surges in current, connect the in-car charger only after the car engine has
been started.

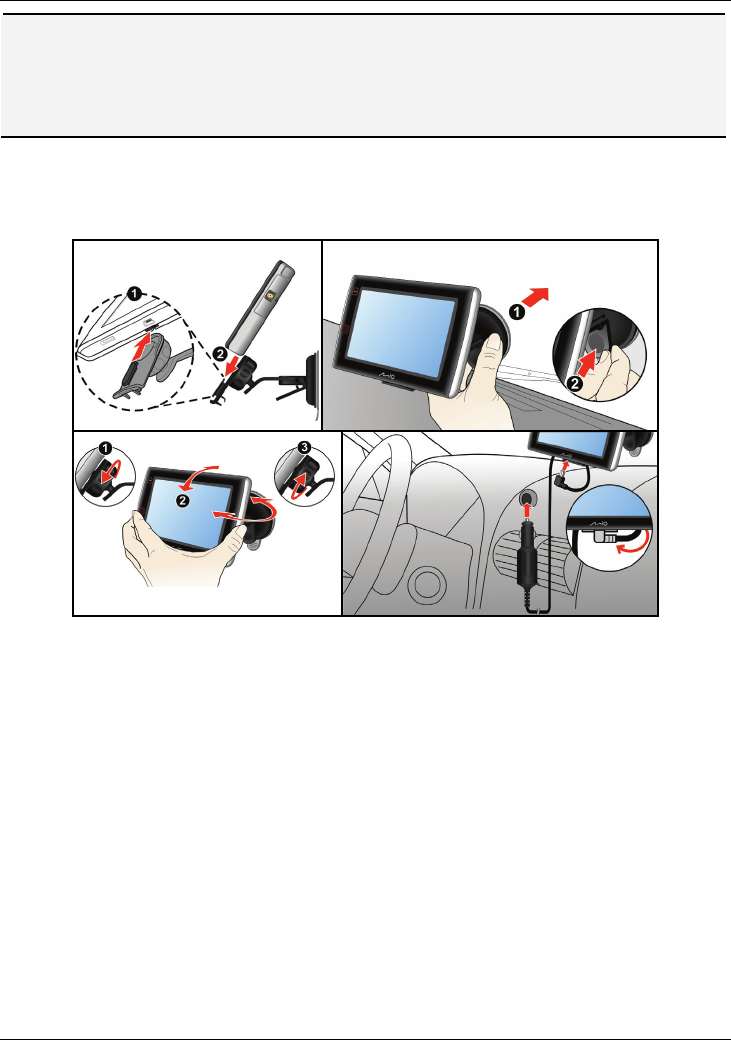

Mounting on the windshield
V500 Series
2
1
4
3
7

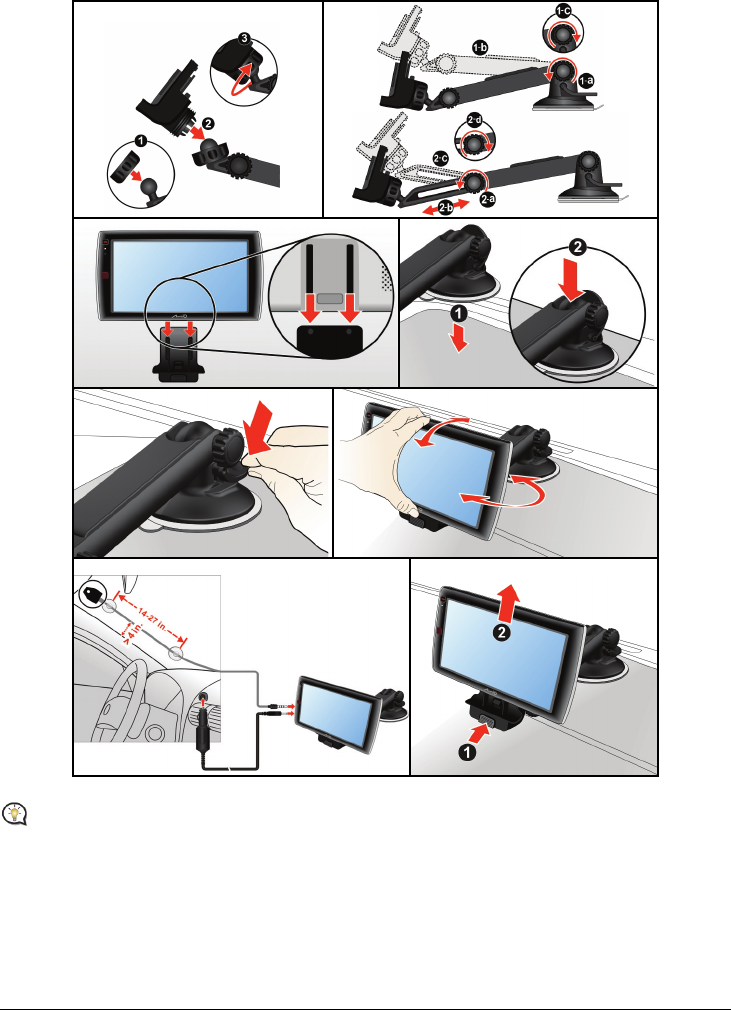

V700 Series
3
2
1
5
4
7
6
8
8
Mounting on the dashboard
V700 Series
2
1
3 4
56
8
7
If you transfer the suction cup between vehicles, the adhesion could be reduced. To restore adhesion, please
clean with water.
9
If you find it difficult to mount the suction cup to the dashboard, you can use the optional mounting plate to help with
the mounting:
1 3
2

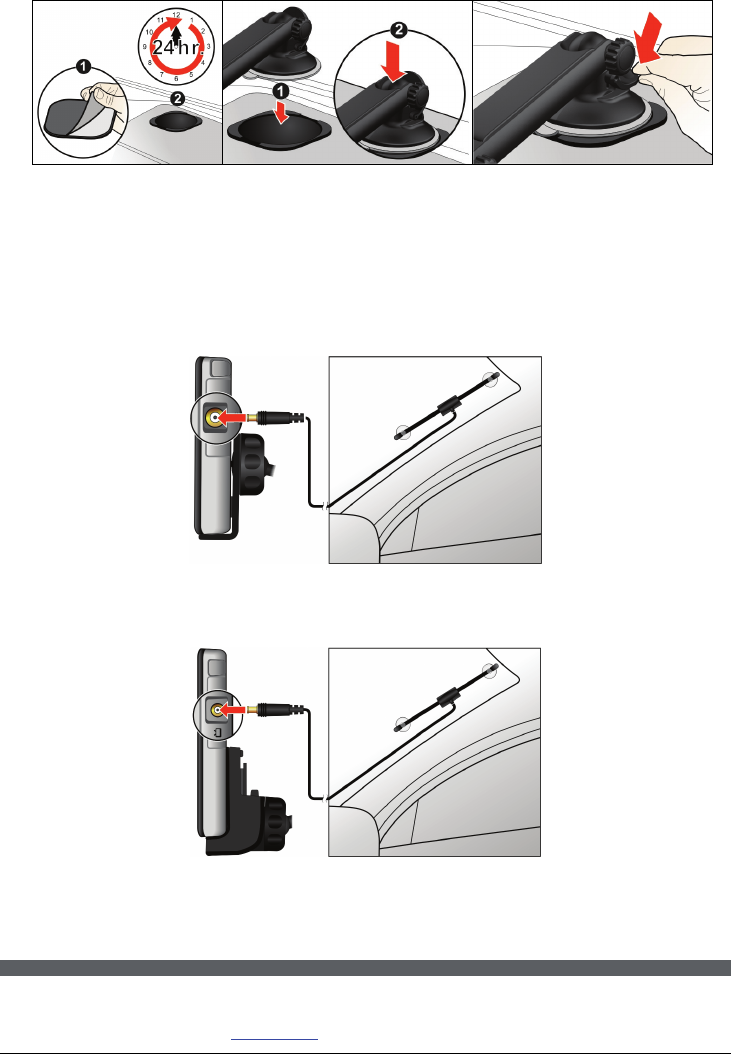

Installing the external antenna
An external antenna may be supplied with your Mio for better signal reception.
Connect the external antenna to the connector for external antenna on your Mio, then attach the antenna to the
windshield (as shown in the diagram).
V500 Series
V700 Series
If you are in an area with very poor signal reception, try placing the antenna outside the car.
Enabling Traffic (TMC) Reception
Traffic information is not available on all models and is only available in selected countries.
Depending on the model of your Mio you can receive live traffic information*.
For information on using traffic information on your Mio, see the Software User Manual.
* Subscription may be required. See www.mio.com for more details.
10
Installing the optional digital TV card
1. Open the TV card compartment cover as shown below.
2. Insert the digital TV card into the socket (), and then press down to lock the card into place ().
If you need to remove the digital TV card, press the locking clips () to release the card and then remove it
().
3. Replace the compartment cover.
11
Getting to know your Mio
V500 Series
Power switch Connector for in-car charger, USB cable, home
charger (sold separately) and TMC accessory kit
(may be sold separately)
Antenna Slot for MicroSD memory card
Slot for digital TV card (may be sold
separately)
Microphone
Cradle slot Remote sensor
Speaker Touch screen
Connector for external antenna Main Menu button
12
V700 Series
Power switch Microphone
Antenna Battery indicator
Slot for digital TV card (may be sold
separately) Main Menu button
Speaker Connector for in-car charger and home charger
(sold separately)
Cradle slot Connector for headphones and TMC accessory
kit (may be sold separately)
Connector for external antenna Slot for MicroSD memory card (underneath
cover)
Touch screen Connector for USB cable (underneath cover)
Remote sensor
13
How do I turn on my Mio?
Using the power switch
To turn on your Mio, slide the power switch to the ON position.
To turn off your Mio, slide the power switch to the OFF position, then tap Sleep. Your Mio will enter a
suspended state. When you next turn it on, your Mio will return to the last screen that you used.
To reset your Mio, slide the power switch to the RESET position. When your Mio has turned off, slide the power
switch to the ON position
To lock the screen, slide the power switch to the OFF position, then tap Lock.
To unlock the screen, slide the power switch to the ON position, then tap Unlock.
14
How do I charge the battery?
Your Mio has an internal battery that when fully charged, should provide power for up to 2 hours. The battery can
take up to 4 hours to fully charge.
The battery may not be fully charged when you use your Mio for the first time.
CAUTION: For optimal performance of the battery, note the following:
Do not charge the battery when the temperature is high (e.g. in direct sunlight).
There is no need to fully discharge the battery before charging.
When leaving your Mio for long periods, slide the power switch to the RESET position to save internal battery
power.
Failure to follow the battery usage instructions could cause damage to your Mio, battery and even bodily injury
or property damage and will void the warranty.
The battery indicator light on your Mio indicates the level of internal battery charge:
Green - battery full
Orange - battery charging
How do I charge the battery in a vehicle?
To charge your Mio in a vehicle:
V500 Series: plug the in-car charger into on the bottom of your Mio and the other end into the vehicle power
socket.
V700 Series: plug the in-car charger into on the left side of your Mio and the other end into the vehicle
power socket.
How do I charge the battery via my computer? (V500 Series
only)
For optimal charging results, ensure that your Mio is turned off while connected to your computer.
1. Turn on your computer.
2. Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug the
small end into on the bottom of your Mio.
CAUTION: When your Mio is turned on and connected to a computer, it is recognized as an external mass-storage
device. Do NOT delete any files that are pre-installed on your Mio. Deleting the files can cause your Mio to crash.
How do I charge the battery at home or work?
You can use an optional home charger to charge the battery.
To charge your Mio using a mains power socket:
V500 Series: plug the home charger cable into on the bottom of your Mio and the mains power charger into
the power socket.
V700 Series: plug the home charger cable into on the left side of your Mio and the mains power charger into
the power socket.
The home charger is not included with all models and may be purchased separately (see www.mio.com for
details).
15
How do I insert a memory card?
CAUTION: Do not apply pressure to the centre of the memory card.
V500 Series V700 Series
Hold the MicroSD card by the edges and gently insert it into the slot as shown in the above diagrams of your Mio.
To remove a card, gently push the top edge of the card inwards to release it, then pull it out of the slot.
Mio Technology does not guarantee the product’s compatibilities with the storage cards from all manufacturers.
16
How do I use the remote control?
Installing the battery for the remote control
1. Remove the plastic film from the remote control.
2. Insert a small rod, such as a straightened paperclip, into the eject hole and push firmly () and pull out the
battery holder ().
3. Place the battery in the battery holder. Be sure to have the + end of the battery face up.
4. Slide the battery holder back into place and make sure it clicks into position.
CAUTION:
Do not heat, open, puncture, mutilate, or dispose of batteries in fire.
Use only the correct type of battery.
When not using the battery for a long period (more than one month), remove to prevent damage from battery
corrosion.
In case the battery leaks, clean the liquid and install a new battery.
Check the regulations of your local government for proper battery disposal.
Remote control buttons
Name Description
GPS button Returns to the Map screen of the navigation program. (The TV feature will be turned off if it
is on.)
TV button Turns on the TV feature.
Numeric
keypad
Enters a channel number.
MODE Switches the display to full screen or 4:3 mode.
17
Name Description
W／X Switches to the previous or next channel.
RETURN Returns to the previous channel.
Mute button Mutes or unmutes the sound.
ENTER Press to confirm channel number choice.
S／T Adjusts the volume.
Main Menu
button
Returns to the Main Manu.
18
Other features
How do I receive current traffic information?
Traffic information is not available on all models and is only available in selected countries.
You can receive current traffic information on your Mio using the Traffic Message Channel (TMC) service. The TMC
service may require a subscription in some countries. See www.mio.com for details. Depending on your Mio model
you may require a TMC accessory kit (may be sold separately).
For more information about Traffic, refer to the Software User Manual.
How do I play music or video?
Media playback is not available on all models and is only available in selected countries.
Using Media you can play music or video files that you have downloaded to your Mio or from your MicroSD card.
WARNING: The TV and video player features MUST NOT be used when driving. Using the features may cause an
accident. Please make sure you comply with this warning. Mio accepts NO liability whatsoever in this regard.
For more information about playing music and video, refer to the Software User Manual.
How do I receive audio through my vehicle speakers?
FM transmitting and MP3 are not available on all models and are only available in selected countries.
Your Mio can be set to transmit sound at a particular FM frequency which you can then receive through your vehicle
radio. This means that you can hear map voice guidance, mp3 files and video files clearly and loudly through your
vehicle speakers.
WARNING: Products with FM Transmitter feature may be operated in the following countries:
AT BE BG CH CZ DE DK EE
ES FI GB HU IE IS IT LI
LT LU LV MT NL NO PL PT
RO SE SI SK
The FM transmitter function is not allowed to use in Cyprus, France and Greece. Please turn off the FM Transmitter
in those areas.
For more information about FM transmitting, refer to the Software User Manual.
19
Reference
What is GPS?
The Global Positioning System (GPS) is available at any time, free of charge, and is accurate to within 5m (15ft).
GPS navigation is made possible by a network of satellites that orbit the Earth at around 20,200km (12,552mi). Each
satellite transmits a range of signals which are utilized by GPS receivers, such as your Mio, to determine an exact
location. Although a GPS receiver can detect signals from up to 12 satellites at any time, only four signals are
required to provide a position or "GPS fix" (latitude and longitude), for vehicle navigation systems.
How does my Mio receive GPS signals?
Your Mio receives GPS signals via the internal GPS antenna. To guarantee the optimum GPS signal strength,
ensure your Mio is outdoors, or in a vehicle outdoors, and has an unobstructed view of the sky. GPS reception is not
usually affected by weather, however, very heavy rain or snow may have a negative effect on your reception.
Caring for your Mio
Taking good care of your Mio will ensure trouble-free operation and reduce the risk of damage to your Mio:
Keep your Mio away from excessive moisture and extreme temperatures.
Avoid exposing your Mio to direct sunlight or strong ultraviolet light for extended periods of time.
Do not place anything on top of your Mio or drop objects on your Mio.
Do not drop your Mio or subject it to severe shock.
Do not subject your Mio to sudden and severe temperature changes. This could cause moisture condensation
inside the unit, which could damage your Mio. In the event of moisture condensation, allow your Mio to dry out
completely before use.
The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen
protectors designed specifically for use on portable devices with LCD panels may be used to help protect the
screen from minor scratches.
Never clean your Mio when it is turned on. Use a soft, lint-free cloth to wipe the screen and the exterior of
your Mio.
Do not use paper towels to clean the screen.
Never attempt to disassemble, repair or make any modifications to your Mio. Disassembly, modification or any
attempt at repair could cause damage to your Mio and even bodily injury or property damage and will void any
warranty.
Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your Mio, its
parts or accessories.
20
Troubleshooting
If you encounter a problem you cannot solve, contact an authorized service centre for assistance.
Problems Solutions
Power does not turn on when using
battery power.
The remaining battery power may be too low to operate your Mio. Charge
the battery using the in-car charger, home charger (sold separately) or
USB cable, then try again.
Screen responds slowly. The remaining battery power may be too low to operate your Mio. If the
problem still persists, reset your Mio.
Screen freezes. Reset your Mio.
Screen is hard to read. Increase the screen brightness.
Cannot establish a connection with a
computer.
Ensure that your Mio and your computer are both turned on before trying
to establish a connection.
Make sure that the cable is securely plugged into the USB port on your
computer and on your Mio. Connect the USB cable directly to your
computer, not a USB hub.
Reset your Mio before connecting the USB cable. Always disconnect your
Mio before you restart your computer.
21
For more information
Online support
For 24/7 help and support with Mio products, visit our Technical Support website at: www.mio.com
Register your Mio with MioClub
If you have a faulty product or you would like to speak to a member of our Technical Support team, register your Mio
on MioClub to obtain the Technical Support phone numbers for your region.
Disclaimer
Mio operates a policy of ongoing development. Mio reserves the right to make changes and improvements to any of the products
described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other
presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such
differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material
respects.
Compliance
WARNING This product, its packaging and its components contain chemicals known to the State of California
to cause cancer, birth defects or reproductive harm. This Notice is being provided in accordance with
California’s Proposition 65.
For regulatory identification purposes:
Moov V500 Series is assigned a model number of N248.
Moov V700 Series is assigned a model number of N236.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment.
Marking labels located on the exterior of your Mio indicate the regulations that your model complies with. Please check the
marking labels on your Mio and refer to the corresponding statements in this chapter. Some notices apply to specific models
only.
Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EC), the
Electromagnetic Compatibility Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) - issued by the Commission of the
European Community. Compliance with these directives implies conformity to the following European Standards:
EN 301 489-1: Electronic compatibility and Radio spectrum Matters (ERM), Electromagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements.
EN 301 489-9: (Bluetooth and FM Transmitter): Electromagnetic compatibility and Radio spectrum Matters (ERM), ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 9: Specific conditions for wireless microphones, similar Radio
Frequency (RF) audio link equipment, cordless audio and in-ear monitoring devices.
EN 301 489-17: Electronic compatibility and Radio spectrum Matters (ERM), Electromagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN
equipment.
EN 300 328 (Bluetooth): Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data
transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN
covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 357-2 (FM Transmitter): Electromagnetic compatibility and Radio spectrum Matters (ERM); Cordless audio devices in the range
25 MHz to 2000 MHz; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive.
L’utilisation de cet appareil n’est pas autorisée en France.
La Fonction de transmission FM n’étant pas autorisée en France, elle doit rester désactivée.
EN55013: Sound and television broadcast receivers and associated equipment. Radio disturbance characteristics. Limits and methods
of measurement.
EN55020: Sound and television broadcast receivers and associated equipment. Immunity characteristics. Limits and methods of
measurement.
EN 55022: Radio disturbance characteristics
EN 55024: Immunity characteristics
EN 50332: Prolonged listening of music in maximum volume can damage the ears.
EN 61000-3-2: Limits for harmonic current emissions
EN 61000-3-3: Limitation of voltage fluctuation and flicker in low-voltage supply system
22
IEC 60950-1:2001: Product Safety
The manufacturer cannot be held responsible for modifications made by the User and the consequences thereof, which may alter the
conformity of the product with the CE Marking.
Declaration of conformity
Hereby, Mio Technology declares that this N236/N248 is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
The FM transmitter function is not allowed to use in Cyprus, France and Greece. Please turn off the function in those areas. (For models
with FM transmitter capabilities only)
This equipment may be operated in:
AT BE BG CH CZ DE DK EE
ES FI GB HU IE IS IT LI
LT LU LV MT NL NO PL PT
RO SE SI SK
The software is based in part on the work of the Independent JPEG Group.
The software application uses modified versions of the Minimal XML Library, Flickr Library and Python Library. The libraries and their
use are covered by the GNU Lesser General Public License (www.gnu.org/licenses/lgpl.html). The modified source code is available
from the following URLs:
Minimal XML Library: http://download.mio.com/opensource/gnu/mxml.zip
Flickr Library:
http://download.mio.com/opensource/gnu/FlickrNet.zip
Python Library:
http://download.mio.com/opensource/gnu/python25.zip
Copyright
© 2009 MiTAC International Corporation. Mio is either a registered trademark or trademark of MiTAC International Corporation and is
used under licence by Mio Technology Limited. All rights reserved.
The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing
restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.
Back-On-Track, Drive-Away, Slide Touch, MioMore Desktop, Mio Spirit, Navman Spirit and Turn-by-Turn are either registered
trademarks or trademarks of MiTAC International Corporation and are used under licence by Mio Technology Limited. All rights
reserved.
MicroSD and the MicroSD logo are trademarks of SD Card Association.
All other trademarks and registrations are the property of their respective owners.
Revision: R04
(8/2009)
Moov V Series
User Manual
Important Safety Information
PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in property damage.
Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle’s safety or make it illegal to operate
in some jurisdictions.
Follow all product instructions and all instructions in your vehicle owner’s manual regarding accessories or modifications.
Consult your country’s and/or state’s laws regarding operation of a vehicle with any accessories or modifications.
It is your sole responsibility to place, secure and use your Mio in a manner that will not cause accidents, personal injury or property
damage. Always observe safe driving practices.
Do not mount your Mio or attach the antenna in a way that may interfere with the safe operation of the vehicle, the deployment of air
bags or other safety equipment.
Do not operate your Mio while driving.
Before you use your Mio for the first time, familiarise yourself with your device and its operation.
On main roads, the distance to an exit calculated by your Mio may be further than the distance shown on road signs. Road signs show
the distance to the start of an exit while your Mio shows the distance to the next intersection, i.e., the end of the exit ramp or road. To
prepare to exit a road, always follow distance information on road signs.
The use of information regarding safety or speed camera locations may be subject to local laws in the country of use. You are
responsible for checking that you can legally use the information in your country or in the country where the information will be used.
Products with FM Transmitter feature may be operated in the following countries: Andorra, Austria, Belgium, Denmark, Finland,
Germany, Ireland, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Portugal, San Marino, Spain, Sweden, Switzerland, Great
Britain and Vatican City. The FM Transmitter is not allowed to be used by law in France, Andorra, San Marino, and Vatican City. Please
turn of the FM Transmitter in those areas.
The TV, video player and AV input features MUST NOT be used when driving. Using this feature may cause an accident. Please make
sure you comply with this warning. Mio accepts NO liability whatsoever in this regard.
Do not handle your Mio while it is hot. Let the product cool, out of direct sunlight.
At full power, prolonged listening to your Mio via headphones or earphones can damage the ear of the user.
Do not expose your Mio to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.
To discourage theft, do not leave your Mio, mounting bracket or any cables in plain view in an unattended
vehicle.
Warning Notice to Drivers in the United States
State law may prohibit drivers in states such as Arizona, California and Minnesota from mounting objects on their
windscreens while driving. Please make sure you research and follow your most current State laws. An alternative
mounting option may be provided in the box with your product; or see mio.com for additional mounting alternatives.
Mio does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of
disregarding this notice.
Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Mio
disclaims all liability for installation or use of your Mio that causes or contributes to death, injury or property
damage or that violates any law.
2
3
Contents
Important Safety Information ..................................................................................................................2
Welcome................................................................................................................................................5
How do I use the touch screen?.............................................................................................................6
How do I get started? .............................................................................................................................7
Main Menu .............................................................................................................................................8
How do I go from A-B?...........................................................................................................................9
What if I miss a turn? ........................................................................................................................9

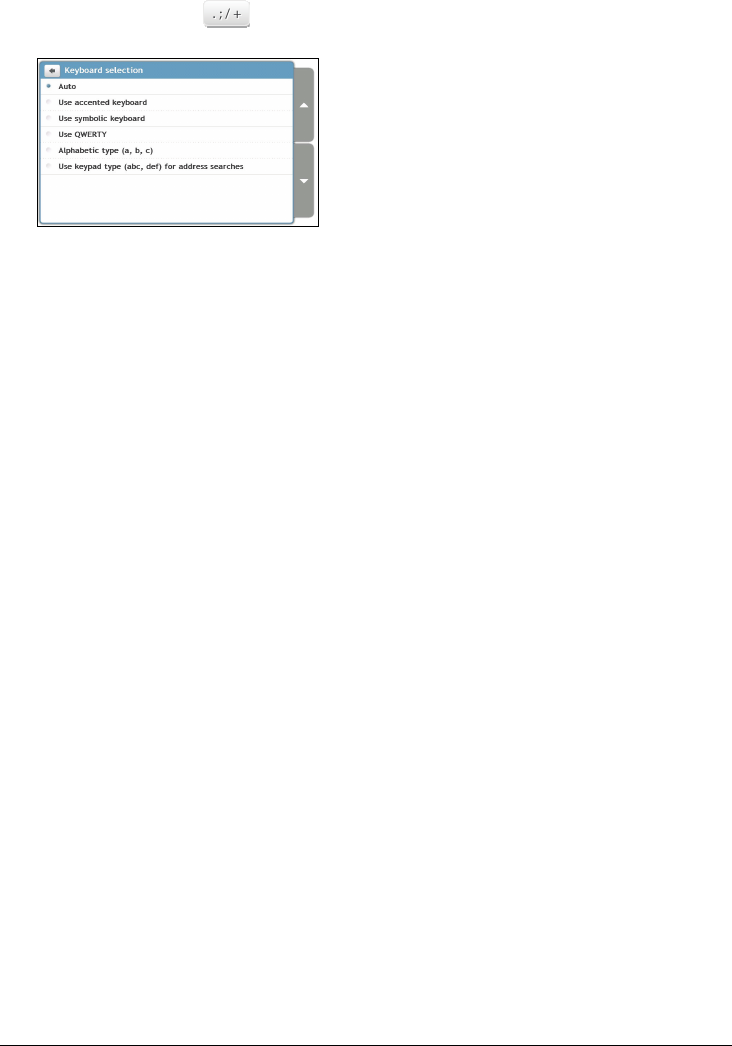

Using the Keyboard screen...............................................................................................................9
How can I set my keyboard preference?.....................................................................................10
How does predictive text (abc, def…) work?...............................................................................10
How do I plan my first trip?..............................................................................................................11
How do I set my route preferences?................................................................................................12
How do I search for a Point of Interest (POI)?.................................................................................13
How do I view my route?.................................................................................................................15
How do I use the Explore map? ......................................................................................................16
How do I find a POI using the POI Cluster? ................................................................................16
How do I find a POI on my route? ...............................................................................................17
How do I set my POI preferences?..................................................................................................18
How do I preview a route?....................................................................................................................19
How do I view my route statistics? .......................................................................................................20
How do I navigate to a recent place? ...................................................................................................21
How do I find the nearest POIs?...........................................................................................................22
My Places ............................................................................................................................................23
How do I save a location as My Place or Home? ............................................................................23
How do I navigate to a location I have saved? ................................................................................24
How do I navigate to Home?...........................................................................................................24
How do I edit the name of a location in My Places? ........................................................................25
How do I delete a saved location?...................................................................................................25
How do I navigate to a NavPixTM?................................................................................................25
How do I navigate to a NavPixTM in an album? ........................................................................26
How do I view a NavPixTM in full-screen?.................................................................................27
How do I save a NavPixTM as a favourite? ...............................................................................28
How do I add or edit a NavPixTM title? .....................................................................................28
How do I delete NavPixTM from an Album? ..............................................................................28
How do I capture a location or a journey? ............................................................................................29
How do I capture the GPS co-ordinates of my location? .............................................................29
How do I capture a location with a voice recording? ...................................................................29
How do I capture a journey? .......................................................................................................30
How do I navigate to a location I have captured?........................................................................30
How to view a journey I have captured? .....................................................................................30
How to share a journey I have captured?....................................................................................30
How do I create a trip with multiple stops? ...........................................................................................31
How do I delete a waypoint from my trip? ...................................................................................33
How do I change the order of the waypoints? .............................................................................33
How do I edit a planned trip title?................................................................................................34
How do I skip a waypoint during a multi-stop trip? ......................................................................34
What is Travel Book? ...........................................................................................................................35
How do I search for a POI in a city I am visiting using Travel Book? ...............................................35
How do I add / remove city guides on my Mio?...........................................................................36
How do I watch digital TV?...................................................................................................................37
Watching TV programs ...................................................................................................................37
4
Changing TV settings......................................................................................................................38
How do I play media?...........................................................................................................................39
Playing audio files ...........................................................................................................................39
How do I listen to a music file on my Mio? ..................................................................................39
Playing video files ...........................................................................................................................40
How do I view a video file on my Mio? ........................................................................................40
How do I view a video file on full screen? ...................................................................................41
How do I receive audio through my vehicle speakers?.........................................................................43
How do I set the audio output channel of my Mio through my car’s FM radio?................................43
How do I receive current traffic information via TMC? ..........................................................................44
How will I know when a Traffic Event occurs?.................................................................................44
Traffic Overview screen ..................................................................................................................45
How do I view a list of all events on my route?............................................................................45
How do I view traffic details?.......................................................................................................46
How do I know if a detour is recommended? ..............................................................................47
How do I avoid an event on my route?........................................................................................47
How do I cancel a detour around an event on my route? ............................................................48
Traffic messages.............................................................................................................................48
Traffic preferences ..........................................................................................................................49
TMC service ...............................................................................................................................49
Traffic Event Notification .............................................................................................................49
Select event sorting type.............................................................................................................49
Walking mode ......................................................................................................................................51
How can I set my navigation mode to walking?...............................................................................51
What can I customise?.........................................................................................................................52
Volume............................................................................................................................................52
Safety options .................................................................................................................................52
Route options..................................................................................................................................53
Map display.....................................................................................................................................54
Screen brightness ...........................................................................................................................54
Language........................................................................................................................................55
Voice...............................................................................................................................................55
Power management ........................................................................................................................55
Units................................................................................................................................................56
Touch audio ....................................................................................................................................56
List scrolling ....................................................................................................................................57
Audio output....................................................................................................................................57
Delete saved information.................................................................................................................57
Reset GPS......................................................................................................................................58
Restore factory defaults ..................................................................................................................58
Shop demo......................................................................................................................................58
Screen saver...................................................................................................................................59
About ..............................................................................................................................................59
Point of Interest categories...................................................................................................................60
Traffic and other TMC Events ..............................................................................................................63
Appendices ..........................................................................................................................................64
For more information.......................................................................................................................64
Speed Limit.................................................................................................................................64
Safety Camera POIs...................................................................................................................64
FM Transmitter ...........................................................................................................................64
Disclaimer...................................................................................................................................64
Copyright ........................................................................................................................................65
5
Welcome
Thank you for purchasing this Mio. This manual has been prepared to guide you through the operation of your Mio
from first set-up through to continuous use. Please read this manual carefully before using your Mio for the first time.
Keep this manual in a safe place and use as your first point of reference.
Important information for using the manual
It is important to understand the terms and typographical conventions used in this manual.
Formatting
The following kinds of formatting in the text identify special information:
Convention Type of Information
Bold Mio components or items displayed on screen, including buttons, headings, field names and
options.
Italics Indicates the name of a screen.
Icons
The following icons are used throughout this manual:
Icon Description
Note
Tip
Warning
Terms
The following terms are used throughout this manual to describe user actions.
Term Description
Tap Press and release an item displayed on the touch screen.
Tap and hold Tap and hold an item displayed on the touch screen for 2-3 seconds.
Select Tap an item in a list or tap a command from a menu.
Drag Hold your fingertip on the screen and drag up/down/left/right or across the screen.
6
How do I use the touch screen?
By default, your Mio starts in button mode, to scroll up or down, or dock/undock use the buttons to the right of the
main page.
You can change to Slide TouchTM mode: tap MY MIO Æ List Scrolling.
In Slide TouchTM mode, your Mio touch screen options change dynamically:
To see all options on a menu, drag the screen up or down.
To display the next screen, tap an icon or select an option.
To dock a menu to the left, tap the left edge of the menu. To dock a menu to the right, tap the right edge of the
menu.
Main Menu options and the order of the options may differ from the above, depending on your region, maps
installed or model of Mio.
7
How do I get started?
The first time you use your Mio it may take several minutes to establish a GPS connection.
How do I turn my Mio on for the first time?
To get started for the first time, complete the following steps:
1. Read the Important Safety Information (see "Important Safety Information" on page ).2
2. Position your Mio in your vehicle.
Follow the instructions in the Hardware User Manual.
CAUTION Ensure that your Mio does not obstruct the driver's view, or interfere with the operation of the
vehicle airbags and safety devices.
3. Turn your Mio on
Your Mio will turn on and display the Language screen.
4. Select your preferred language
From the Select Language screen, tap your preferred language.
You can change your preferred language while using your Mio, see "Language" on page 55.
5. Read the warning message
a) The
Safety Agreement screen will display after you have selected your preferred language.
Read the Safety Agreement message.
b) To confirm that you have read and understood the message, tap Accept.
The Tutorial will display.
6. View the Tutorial
To skip the Tutorial screens, tap Skip.
To move forward through the Tutorial screens, tap Next.
To view the previous screen, tap .
To prevent the Tutorial from displaying on each start-up, tap the Show on start-up option to deselect it.
When you have finished the Tutorial, the Map screen will display. If you have a GPS fix, your current location
will display on the map.
8
Main Menu
The Main Menu is your starting point for searching for a destination. The Main Menu also allows you to customise
your Mio, receive updated traffic information (not available on all models) and make and receive phone calls (not
available on all models).
To display the Main Menu, press on your Mio at any time.
Search for places, areas and streets to
help plan your route.
Access your saved locations, NavPixTM,
journeys, etc.
Explore the area around your current
position or destination.
Search for information and POIs for the city
you are visiting using Travel Book.
Display the map screen.
Record GPS co-ordinates of a location or a
journey.
Allows you to watch digital TV (if an
optional digital TV card is installed on your
Mio).
Configure your Mio to enhance your navigation
experience.
Search for the nearest petrol stations. Add or begin a planned trip with multiple
waypoints
Set or navigate to your home address. Receive live traffic information on your route
and set traffic preferences. (may require
optional TMC kit or subscription, available
separately)
Play stored audio or video files installed on
your Mio or on a memory card.
Search for the nearest emergency services,
including hospitals and police.
Search for the nearest restaurants, cafes,
fast-food premises and other dining
establishments.
Search for the nearest tourist attractions.
Search for the nearest parking places. Search for the nearest banks and ATMs.
Main Menu options and the order of the options may differ from the above, depending on your region, maps
installed or model of Mio.
9
How do I go from A-B?
Your Mio is equipped with maps that provide street-level detail for door-to-door navigation, including Points of Interest
such as accommodation, parking areas, petrol stations, railway stations and airports.
When you ... Then ...
need to search for an address tap FIND then Find a street address to search for the address. If
you know the address you are looking for, use the Map screen to
enter an address
need to find a named site, feature,
landmark or public venue
tap FIND then Find by keyword to search for a Point of Interest.
want to navigate to a recently visited
location
tap MY PLACES then Recent places.
WARNING For your safety, enter destination information before you start a journey. Do not enter a
destination while driving.
What if I miss a turn?
Back-On-Track™ Automatic Rerouting
You will be redirected if you make a wrong turn. A message informing you that your route is being re-calculated will
display at the top of the screen.
To cancel a route re-calculation, tap x. A warning will display asking you to confirm the cancellation. If confirmed,
both the re-calculation and your current route will be cancelled.
Using the Keyboard screen
The Keyboard screen will display when you are required to enter text, such as when searching for a street name.
Search results will be listed in matching order, with the closest matches appearing on the screen. A maximum of 99
results will display.
The Keyboard screen can display with various layouts depending on the information you need to enter, including
alphabet, number, alternate characters and combinations of these.
To select a character, tap the character.
To enter upper case letters, tap .
To delete a character, tap .
Tap and hold to delete the entire text.
To display more characters, tap to select an alternate keyboard screen.
10
How can I set my keyboard preference?
From the Keyboard screen, tap .
The Keyboard preference screen will display.
How does predictive text (abc, def…) work?
Predictive text allows addresses to be searched by a single key-press for each letter, as opposed to the multiple
key-presses. As you enter a letter of an address, your Mio will compare all possible combinations against the maps
you have installed and determine which address you intended to type.
For example:
To enter London, tap JKL MNO MNO DEF.
Your Mio will compare all possible combinations and display London in the list of search results. You can add further
letters to narrow the search.
11
How do I plan my first trip?
Using your Mio to plan your first trip is easy. There are several ways to select your destination. Complete the
following to navigate to a street address that you know using the FIND address wizard.
Æ
Æ Æ
Æ Æ
Complete the following:
If you want to ... Then ...
calculate the route, open the Map
screen and start navigating
tap .
The Map screen will display.
save the location as Home tap
.
The Save screen will display.
tap Save as Home.
save the location as a favourite tap
.
The Save screen will display.
tap Save as My Place.
explore the area near the location tap .
The Explore Map screen will display.
tap the undock button or tap the docked menu in Slide TouchTM
mode to see the menu options.
complete one of the following:
o tap
Streets to explore streets near your location
o tap Areas to explore areas around your location
o tap a POI category to explore POIs near your location
12
How do I set my route preferences?
You can enhance your navigation experience by modifying aspects of your route and route calculations.
1. From the MAP screen, tap the undock button and tap Route options.
The Route options screen will display.
OR
Æ Æ Route options.
The Route options screen will display.
2. Complete the following:
If you want to ... Then ...
set route type options for your route tap
Route type.
The Route type screen will display.
select your route type preference form the list.
Shortest - The route with the shortest physical length
Easiest - The simplest route with the least number of turns and favours
motorways where appropriate
Economical - The route with least number of stops, turns and urban areas
which should save on fuel usage
Fastest - The route that should be the fastest when navigating
Selecting Shortest route type over Fastest route type can
cause a much longer journey time.
set types of road options for your route tap Types of road.
The Types of road screen will display.
select your road preference form the list.
Avoiding ferry routes may prevent you from navigating
between certain countries, even when a bridge or tunnel exists.
set your map screen preference tap the Map option to select between a 3D or 2D view of the
Map screen.
Set the number of turns displayed on your
turn list
tap Displayed turns.
The Displayed turns screen will display.
select your turn preference form the list.
display Junction views on your route tap the Junction views option to turn it On or Off.
set how you want to receive the safety
camera alerts
tap My Places alerts.
The My Places alerts screen will display.
select a safety camera category from the list and select the
desired setting.
record mileage for your route to generate
expense reports
tap the Mileage recorder option to turn it On or Off.
13
If you want to ... Then ...
record a GPS log of your trip tap the GPS logging option to turn it On or Off.
record your journey tap the Capture Journey option to turn it On or Off.
How do I search for a Point of Interest (POI)?
A POI is a named site, feature, landmark or public venue which can be displayed as an icon on the map. POIs are
grouped by category, such as petrol stations, parks, beaches and museums.
Æ
Æ Æ
Æ Æ
Complete the following:
If you want to ... Then ...
calculate the route, open the Map
screen and start navigating
tap .
The Map screen will display.
save the location as a favourite tap
.
The Save screen will display.
tap Save as My Place.
place a phone call to the POI tap
.
This feature is not available on all models.
14
If you want to ... Then ...
explore the area near the location tap
.
The Explore Map screen will display.
tap the undock button or tap the docked menu in Slide TouchTM
mode to see the menu options.
complete one of the following:
o tap Streets to explore streets near your location
o tap Areas to explore areas around your location
o tap a POI category to explore POIs near your location
15
How do I view my route?
When a route has been calculated, the Map screen will display. You will be directed to your destination by spoken
and visual instructions. Tap anywhere on the Map screen to show all options.
n
o
p
q
u
v
w
r
s
t
Item Description
n Direction and distance
of next turn
The direction and distance to your next turn.
Tap to repeat the vocal instruction.
o Current route Your current route is highlighted.
p Current position In Driving mode, your current position is marked with .
In Walking mode, your current position is marked with .
q Add waypoint to trip Adds a location as a waypoint on your trip.
Tap
to remove the waypoint from your trip.
r Detour Detours your route to avoid next 1, 2, 5, 10 or 20 miles.
s Pause route Pauses your current route.
Tap
to unpause your current route.
t Cancel route Cancels your current route.
u Volume Mutes or unmutes the volume.
v Distance and Time
Information
Tap to expand and select the following options:
DTG (Distance to Go)
TTG (Time to Go)
km/h or mph (speed) and compass heading
ETA (Estimated Time of Arrival)
Time
w Zoom To zoom out, tap and hold −.
To zoom in, tap and hold +.
16
How do I use the Explore map?
The Explore map allows you to explore the local area to find Points of Interest (POIs) or navigate to an address. If
you do not have a GPS fix, the map will display your last known position.
Tap and drag the map to explore your desired local area.
Tap the map to display a POI Cluster showing POIs in the surrounding area. Tap a POI icon to show more
information and navigate to the POI.
Æ
Item Description
n +, −To zoom in or out, tap and hold − or +. Zooming in or out will increase or decrease the
area contained within the Explore area.
o Indicates the direction of your current position. Tap to return the map to your current
position.
To display a POI Cluster, tap an area on the Explore map.
Tap an icon or street name in the POI Cluster to view information and options.
p POI Cluster
Increases or decreases the number of POIs displayed on your map, which will affect the
number of results returned. Only visible POIs will be displayed in the POI cluster.*
* Zooming out too far will reduce the number of POIs displayed to zero and hence return no results.
How do I find a POI using the POI Cluster?
Æ
Æ
pn
o
Tapping on the POI selected (in red square) will bring up the Explore menu with the POI destination details.
Complete the following:
If you want to ... Then ...
calculate the route, open the Map tap
.
17
If you want to ... Then ...
screen and start navigating The Map screen will display.
save the location as a favourite tap
.
The Save screen will display.
tap Save as My Place.
place a phone call to the POI tap
.
This feature is not available on all models.
How do I find a POI on my route?
Æ
Æ Æ
Æ
Complete the following:
If you want to ... Then ...
calculate a new route, open the Map
screen and start navigating
tap
.
The Map screen will display.
add the location as a waypoint tap Add as waypoint.
The Map screen will display and your route will be recalculated.
save the location as a favourite tap
.
The Save screen will display.
tap Save as My Place.
place a phone call to the POI tap
.
This feature is not available on all models.
18
How do I set my POI preferences?
Points of Interest (POIs) are grouped into categories. You may choose to either display (or hide) icons of all POI
categories on the map screens, or only display the icons from selected categories.
For example, you may only be interested in entertainment venues and want to disable other categories such as
schools.
1. From the
Explore screen, tap the undock button or tap the docked menu in Slide TouchTM mode and tap Places
settings.
The Places settings screen will display.
2. Complete the following:
If you want to ... Then ...
display all POI icons (i.e. icons from all
categories)
tap Show all.
display no POI icons tap Hide all.
Hiding POIs will stop you from finding them when using
explore mode/cluster search.
select a specific POI category icon for
display on the map screen
tap the required POI category to Show or Hide on the map
screen.
Repeat until all required categories are selected.
Your preferences are automatically saved.
19
How do I preview a route?
Route demonstration allows you to:
Preview a route.
Plan and view a route without a GPS fix, such as when you are inside a building.
The following steps will show you how to preview a route.
1. Select a departure point.
If you have a GPS fix, you do not need to select a departure point unless you want the demonstrated route
to start elsewhere.
a) Æ
The Find screen will display.
b) Tap the undock button or tap the docked menu in Slide TouchTM mode to undock the menu screen.
c) Scroll down and tap Leaving from.
The Leaving from… screen will display.
d) Tap
Find a place, then use the Address Wizard to find your departure point.
2. Select a destination point using the FIND address wizard, the My Places menu or the Explore map.
3. From the
Preview screen, tap .
Your route is calculated and the Map screen will display.
4. Tap the undock button or the edge of the docked menu.
The GO screen will display.
5. Tap
Route simulation.
The Map screen will display the calculated route in route simulation mode.
6. Complete the following:
If you want to ... Then ...
increase the speed of the simulation
tap .
decrease the speed of the simulation
tap .
pause the simulation
tap .
cancel the simulation
tap .
20
How do I view my route statistics?
Your Mio provides information on your:
distance to go
estimated time of arrival
distance travelled
average speed
maximum speed
time taken for trip
stationary time.
To view your route statistics during a planned route:
1. Æ
The Map screen will display.
2. Tap the undock button or tap the docked menu in Slide TouchTM mode to undock the menu screen.
3. Tap.
The Route Statistics screen will display.
21
How do I navigate to a recent place?
To make navigating to an address easier, your Mio will automatically save all your start locations and destinations in
a list of recent places.
4. Æ
The My Places screen will display.
5. Tap the undock button or tap the docked menu in Slide TouchTM mode to undock the menu screen.
6. Tap Recent places.
The Recent Places screen will display.
7. Tap a recent place.
The Preview screen will display.
8. Complete the following:
If you want to ... Then ...
calculate the route, open the Map
screen and start navigating
tap
.
The Map screen will display.
save the location as a favourite tap
.
The Save screen will display.
tap Save as My Place or tap Save as Home.
explore the area near the location tap .
The Explore Map screen will display.
tap the undock button or tap the docked menu in Slide TouchTM
mode to see the menu options.
complete one of the following:
o tap
Streets to explore streets near your location
o tap
Areas to explore areas around your location
o tap a POI category to explore POIs near your location
save it as a waypoint in your
current route Æ
tap Recent places.
select a location from the list.
tap Add as waypoint.
22
How do I find the nearest POIs?
1. Complete the following:
If you want to ... Then ...
search for the nearest petrol stations
Æ
search for the nearest emergency services
Æ
search for the nearest restaurants
Æ
search for the nearest tourist attractions
Æ
search for the nearest parking places
Æ
search for the nearest banks and ATMs
Æ
2. A list of the selected POI category based upon your current location is displayed.
3. Tap the desired item from the list, then tap on the Preview screen.
Æ
If you have a route planned, two distances will display: distance from your current location and detour distance.
Æ
23
My Places
My Places has all your saved and captured locations. It also contains POIs, NavPixTM and albums you have
downloaded onto your Mio via MioMore Desktop.
How do I save a location as My Place or Home?
1. Search for an address until the Preview screen is displayed.
2. Tap
Add to My Places.
The Save screen will display.
3. Tap
Save as My Place.
The Preview screen will display.
4. Complete the following:
If you want to ... Then ...
calculate the route, open the Map
screen and start navigating
tap .
The Map screen will display.
24
If you want to ... Then ...
explore the area near the location tap
.
The Explore Map screen will display.
tap the undock button or tap the docked menu in Slide
TouchTM mode to see the menu options.
complete one of the following:
o tap Streets to explore streets near your location
o tap
Areas to explore areas around your location
o tap a POI category to explore POIs near your location
add or edit location name tap
Rename.
The Keyboard screen will display.
after you have entered a name for the favourite, tap OK.
The My Places preview screen will display.
delete the favourite location tap .
How do I navigate to a location I have saved?
1. Æ
The My Places screen will display.
2. Tap the favourite destination you want to travel to.
The Preview screen will display.
3. Tap .
Your Mio will calculate the route from your current location. The Map screen will display.
How do I navigate to Home?
If you have not set an address as Home, the first time you try to navigate to Home you will be prompted to search for
an address using the address-entry wizard.
1. Æ
The My Places screen will display.
2. Tap Home.
The Preview screen will display.
25
3. Tap .
Your Mio will calculate the route from your current location. The Map screen will display.
How do I edit the name of a location in My Places?
1. Æ
The My Places screen will display.
2. Select a location to edit.
The Preview screen will display.
3. Tap Rename.
The Keyboard screen will display.
4. After you have edited the name, tap OK.
The Preview screen will display.
How do I delete a saved location?
1. Æ
The My Places screen will display.
2. Select the location you would like to delete.
The Preview screen will display.
3. Tap Delete.
The location is deleted. The My Places screen will display.
How do I navigate to a NavPixTM?
NavPixTM is an image or picture, normally of a location, which contains embedded GPS co-ordinates that you can
navigate to.
Sample NavPixTM images may be pre-installed on your Mio. You can search online and download NavPixTM
images from the Flickr™ or NavPixTM website.
To navigate to a NavPixTM location, either a GPS fix must have been available when the NavPixTM was taken, or
GPS co-ordinates have been added using MioMore Desktop. See the MioMore Desktop Manual for more information
on importing NavPixTM to your Mio.
1. Æ
The My Places screen will display.
26
2. Tap the NavPixTM you want to navigate to.
The NavPix Details screen will display.
3. Complete the following:
If you want to ... Then ...
calculate the route, open the Map
screen and start navigating
tap .
The Map screen will display.
view NavPixTM location on the
map
tap Show on map.
The Explore Map screen will display.
explore the area near the
NavPixTM location
tap .
The Explore Map screen will display.
tap the undock button or tap the docked menu in Slide
TouchTM mode to see the menu options.
tap on the map to explore POIs near the location.
edit NavPixTM name tap Rename.
The Keyboard screen will display.
after you have entered a name for the favourite, tap OK.
The NavPix Details screen will display.
delete the NavPixTM from My
Places
tap
.
The My Places screen will display.
NavPixTM can be deleted from an Album on your Mio internal memory or your memory card. When a
NavPixTM has been saved as a Favourite destination, you will not delete the Favourite if you subsequently remove
the NavPixTM.
How do I navigate to a NavPixTM in an album?
The albums contain all your pictures and displays them as thumbnails.
Æ Æ
n
o
p
q
27
Item Description
n Slide Show Displays all images in the album as a full-screen slideshow.
o Album title The title of the album.
p Indicates that the picture is a NavPixTM, with embedded GPS co-ordinates.
q NavPixTM thumbnail A thumbnail of a NavPixTM contained in the album.
To select a NavPixTM, tap the thumbnail.
The NavPix Details screen will display.
How do I view a NavPixTM in full-screen?
1. From the NavPix Details screen, tap the thumbnail of the NavPixTM.
The NavPixTM will appear in full-screen.
OR
From the Album detail screen, tap Slide Show.
The NavPixTM will appear in full-screen
2. Tap the screen to display the control buttons. The buttons disappear after a few seconds.
3. Complete the following:
If you want to ... Then ...
zoom into the NavPixTM
tap .
zoom out of the NavPixTM
tap .
rotate the NavPixTM
tap .
The NavPix
TM will rotate 90 degrees anticlockwise each time
is tapped; the NavPixTM is saved at the new angle.
view parts of the NavPixTM not
displayed on-screen
tap and hold the NavPixTM, then drag across the screen.
return to the NavPix Details screen tap .
28
How do I save a NavPixTM as a favourite?
You cannot save a NavPixTM as a favourite if GPS co-ordinates are not available.
1. From the
Album screen, tap a NavPixTM.
The NavPix Details screen will display.
2. Tap .
The Save screen will display.
3. Complete the following:
If you want to ... Then ...
save the NavPixTM as a Favourite tap Save as My Place.
The NavPixTM is saved and the NavPix Details screen will
display.
save the NavPixTM as Home tap Save as Home.
The NavPixTM is saved and the NavPix Details screen will
display.
How do I add or edit a NavPixTM title?
A title can be added to your NavPixTM or an existing title can be edited. The title can be a maximum of 34
characters.
1. From the
My Places screen, tap a NavPixTM you want to edit.
The Preview screen will display.
2. Tap
Rename.
The Keyboard screen will display.
3. After you have edited the title, tap OK.
The NavPix Details screen will display.
How do I delete NavPixTM from an Album?
1. From the Album screen, tap a NavPixTM.
The NavPix Details screen will display.
2. Tap .
29
How do I capture a location or a
journey?
The capture functionality is not available on all models.
Your Mio has a capture feature which allows you to record GPS co-ordinates of a location, capture a location with a
voice recording and capture a journey and save them so you can navigate back at a later time.
How do I capture the GPS co-ordinates of my location?
1. Æ
The Capture screen will display.
2. Tap
Save.
You will hear a shutter sound to indicate that the GPS co-ordinates have been saved.
The location is saved in My Places.
How do I capture a location with a voice recording?
This feature is not available on all models.
1. Æ
The Capture screen will display.
2. Tap .
The Sound screen will display.
3. Tap Record to start recording your voice.
Tap Stop to stop the recording.
4. Tap Save.
You will hear a shutter sound to indicate that the recording has been saved.
The location is saved is saved in My Places.
30
How do I capture a journey?
To enable capturing of journeys, you must first enable Capture Journey from Æ Route options.
1. At the beginning of the journey you would like to record, tap Clear.
All travel that you have made (i) since midnight, (ii) the previous time you tapped Clear, or (iii) last captured a
journey, will be deleted.
2. Travel on your journey. Your Mio will keep a record of where you travel.
3. At the end of your journey, Æ
The Capture screen will display.
4. Tap .
The Journey screen will display.
5. Tap
Save, then Yes.
The journey is saved is saved in My Places.
How do I navigate to a location I have captured?
1. Æ
The My Places screen will display.
2. Tap the captured destination you want to travel to.
The Preview screen will display.
3. Tap .
Your Mio will calculate the route from your current location. The Map screen will display.
How to view a journey I have captured?
1. Æ
The My Places screen will display.
2. Tap the captured journey you want to view.
The Preview screen will display.
How to share a journey I have captured?
You can share a saved journey via MioMore Desktop. See the MioMore Desktop Manual for more information on
sharing a saved journey.
31
How do I create a trip with multiple
stops?
You can use the Planned Trips screen to set multiple stops or waypoints for your trip. Your route will be calculated to
go via each of these points in the specified order.
1. Æ
The Planned Trips screen will display.
2. Tap
Create New Trip.
The Edit screen will display.
3. Tap the location name.
The Keyboard screen will display.
4. After you have edited the name, tap OK.
The Edit screen will display.
5. Tap
Add.
The Add screen will display.
32
6. Tap Find a place.
The Search screen will display.
You can also add waypoints using Home, My Places and Recent places.
7. Using the Find address wizard, search for a location.
The Preview screen will display.
8. Tap
Add as waypoint.
The waypoint is automatically saved and the Edit screen will display.
9. Complete one or more of the following:
If you want to ... Then ...
add another waypoint
Waypoints added after a multi-stop trip
has commenced will not be included in the
current route.
tap
Add.
The Add screen will display.
return to step 4.
33
If you want to ... Then ...
navigate to your selected destination tap .
The Map screen will display the calculated route.
delete the trip tap .
Have this trip demonstrated tap Simulate.
The Map screen will display your trip in demo mode. ( See
Shop Demo page 58.)
How do I delete a waypoint from my trip?
1. Æ
The Planned Trips screen will display.
2. Tap the trip to edit.
3. Tap a waypoint on Edit screen.
The Preview screen will display.
4. Tap
Delete.
The Edit screen will display.
How do I change the order of the waypoints?
1. Æ
The Planned Trips screen will display.
2. Tap the trip to edit.
3. Tap a waypoint on Edit screen.
The Preview screen will display.
4. Tap
Up or Down.
The Edit screen will display
34
How do I edit a planned trip title?
1. Æ
The Planned Trips screen will display.
2. Tap the trip to edit.
3. Tap the current trip title.
The Keyboard screen will display.
4. After you have edited the name, tap OK.
The Edit screen will display.
How do I skip a waypoint during a multi-stop trip?
1. Tap the map screen.
2. Tap . When the caution dialog box displays, tap Yes.
The next waypoint will be skipped and the route recalculated to the following waypoint.
35
What is Travel Book?
Travel Book is not available on all models and is only available in selected countries.
Travel Book is a collection of city guides that provide detailed Points of Interest maps for major cities in Europe. The
city guides provide information on accommodation, dining, night life, business essentials, shopping, important tourist
spots and practical information such as banks, medical centres, bus stations, etc.
Travel Book information is provided by third party. Mio does not guarantee the accuracy of the data contained
within this database either expressed or implied.
How do I search for a POI in a city I am visiting using Travel
Book?
Æ
1. Select your city from the available cities screen.
The City screen will display.
2. Select a POI category from the list.
The POI category screen will display.
3. Select a POI from the list.
The POI details screen will display.
36
4. Complete the following:
If you want to ... Then ...
calculate the route, open the Map
screen and start navigating
tap .
The Map screen will display.
save the location as a favourite tap
.
The Save screen will display.
tap Save as My Place.
explore the area near the location tap .
The Explore Map screen will display.
tap the undock button or tap the docked menu in Slide
TouchTM mode to see the menu options.
complete one of the following:
o tap Streets to explore streets near your location
o tap
Areas to explore areas around your location
o tap a POI category to explore POIs near your location
place a phone call to the POI tap
.
This feature is not available on all models.
read more information on the
selected POI
tap More information.
The More details screen will display.
How do I add / remove city guides on my Mio?
You can add/remove city guides on your Mio via MioMore Desktop.
For more information on adding/removing city guides, refer to the MioMore Desktop User Manual.
37
How do I watch digital TV?
If an optional digital TV card is installed on your Mio, you can watch the local free-to-air digital TV programs.
WARNING DO NOT watch TV while driving. It may be illegal in your state or country for a display
showing a video to be in view of the driver.
For information on installing the optional TV card and external antenna and using the remote control, refer to the
Hardware User Manual.
Watching TV programs
Æ
1. When you use the TV feature for the first time, you will be prompted to scan the channels available in your area.
Follow the prompts to finish the channel scan.
2. The screen will display the TV program when the signals are available. Tap anywhere on the screen to display
on-screen controls.
3. Complete the following:
If you want to ... Then ...
adjust the volume tap and .
You can also move the slider to the desired volume level.
change the channel tap and .
You can also move the slider to change the channel.
adjust the brightness tap and .
You can also move the slider to the desired brightness level.
view the information of the
current program tap .
change TV settings tap .
exit the TV mode tap .
38
Changing TV settings
Complete the following:
If you want to ... Then ...
check the one-week program guide provided by
the local digital TV program providers
tap Electric Program Guide.
Select a date. The screen will show the program list of the
selected channel. Tap a program to show the program
information.
check the channel list tap Channel List.
Tap to switch to the selected channel.
show the subtitle (if supported by the local digital
TV program providers)
tap Subtitle.
change the screen display tap Aspect Ratio to change to full screen mode or 4:3
mode.
scan the channels available in your area tap Channel Scan.
Follow the prompts to finish the channel scan.
39
How do I play media?
Media is not available for all models and is only available in selected countries.
Media allows users to play stored media files installed on your Mio or on a memory card.
Æ
Playing audio files
Only mp3, wma, wav audio formats are supported for the audio feature.
If your files are on a memory card, insert the card into your Mio. You can play music files that are stored on your Mio
or on a memory card by a random order, artist and albums.
How do I listen to a music file on my Mio?
There are several ways to play audio files on your Mio.
1. Complete one of the following:
If you want to ... Then ...
play music files randomly tap Play Random.
sort music files by an artist tap Artists and select an artist from the Artists screen.
listen to music files in an album tap Albums and select an album from the Albums screen.
play all music files tap Songs and select a song to start with from the Songs screen.
play music files stores in a
playlist
tap Playlists and select a playlist from the Playlists screen.
2. The Songs screen will display.
3. Complete one of the following:
If you want to ... Then ...
play a music file tap a music file from the list
40
If you want to ... Then ...
listen to the previous music file tap .
skip the current music file tap .
pause the music file tap . Tap to starting playing the audio file.
adjust the volume tap .
mute the volume tap .
unmute the volume tap .
set play settings in the Play section, tap < or > to see all options:
select
Random to play music files randomly.
select In Order to play music files in order.
set repeat settings in the Repeat section, tap < or > to see all options:
select Repeat All to repeat all the music files.
select Repeat One and the current music file will be repeated
once.
select Off to play the music files only once.
Playing video files
WARNING DO NOT view videos while driving. It may be illegal in your state or country for a display
showing a video to be in view of the driver.
Only mp4, 3gp, m4v, asf, wmv and avi video formats are supported for the video feature.
If your files are on a memory card, insert the card into your Mio.
How do I view a video file on my Mio?
1. From the Media screen tap Videos.
The Videos screen will display.
2. Complete one of the following:
If you want to ... Then ...
play a video file select a video file from the list
view the previous video file tap .
Tap and hold the icon for more than 1 second to rewind the video.
skip the current video file tap .
Tap and hold the icon for more than 1 second to fast-forward the video.
41
If you want to ... Then ...
pause the video file tap . Tap to start playing the video file.
adjust the volume tap .
mute the volume tap .
unmute the volume tap .
View the video file on full
screen tap .
set play settings in the Play section, tap < or > to see all options:
select Random to play video files randomly.
select In order to play video files in order.
set repeat settings in the Repeat section, tap < or > to see all options:
select
Repeat All to repeat all video files.
select
Repeat One and the current video file will be repeated once.
select No Repeat to play the video files only once.
How do I view a video file on full screen?
1. From the Video screen, select the video file that you would like to view at full screen.
The video file will play at normal view size.
2. Tap the video.
The video file will play at full screen.
The icons will disappear after a few seconds; tap the screen to have them reappear.
3. Complete one of the following:
If you want to ... Then ...
view the previous video file tap .
Tap and hold the icon for more than 1 second to rewind the video.
skip the current video file tap .
Tap and hold the icon for more than 1 second to fast-forward the
video.
pause the video file tap . Tap to start playing the video file.
adjust the volume tap .
mute the volume tap .
unmute the volume tap .
42
If you want to ... Then ...
return to the normal view tap .
set play settings in the Play section, tap < or > to see all options:
select Random to play video files randomly.
select In order to play video files in order.
set repeat settings in the Repeat section, tap < or > to see all options:
select
Repeat All to repeat all video files.
select
Repeat One and the current video file will be repeated
once.
select No Repeat to play the video files only once.
43
How do I receive audio through my
vehicle speakers?
FM transmitting is not available on all models and is only available in selected countries.
Your Mio can be set to transmit sound at a particular FM frequency which you can then receive through your vehicle
radio. This means that you can hear map voice guidance, radio, mp3 files and video voice files clearly and loudly
through your vehicle speakers.
How do I set the audio output channel of my Mio through my
car’s FM radio?
When you first access Audio output, the Internal speaker option is selected by default. If you select FM
transmitter the most recently used FM frequency will be used.
1. From the Settings screen tap Audio output.
The Audio output screen will display.
2. Select the FM transmitter option and then tap Setup to set the frequency.
The Set Frequency screen will display.
3. Tap OK on the guidance message to continue.
4. Tap Set Frequency to set a new output frequency for your Mio.
The Set Frequency screen will display.
You need to tune the car radio to an empty channel. If driving long distances, you may need to retune to a
new empty frequency.
5. Tap - or + to set a frequency.
Tap and hold -/+ to decrease/increase by 1MHz. The fine-tuning frequency unit is 0.1MHz per unit.
6. Tap any of the save options.
The FM screen will display with the saved frequency.
You can only save four FM frequencies on your Mio. Tap Apply Directly to apply current frequency
directly. Apply Directly option allows you to set the audio output channel automatically to FM (current
frequency).
7. Tap and select the frequency you want to use.
To delete a saved frequency, you must set a new frequency and replace the frequency that you no longer
require.
44
How do I receive current traffic
information via TMC?
Traffic information is not available on all models and is only available in selected countries.
Your Mio can receive current traffic information for all main roads and motorways, enabling you to avoid potential
delays on your route. Event messages and traffic icons will display as they occur. If an event message obscures your
current location, the map will adjust to display both the message and your location.
How does my Mio receive traffic information?
Depending on your model, you may receive current traffic information on your Mio using the built-in TMC receiver or
via the Mio traffic accessory kit. The traffic accessory kit may be sold separately.
The Traffic Message Channel (TMC) broadcasts real-time traffic and weather information via the FM Radio Data
System (RDS). FM radio stations transmit TMC data on a cycle of several minutes, with hundreds of events able to
be broadcast to TMC receivers.
You have to pay for TMC service on some models and in some countries.
Traffic status
Your current traffic status is indicated by the colour of the TMC icon.
To view your current traffic status, from the Main Menu, tap .
The following table describes the three traffic status icons:
Traffic Status Description
The TMC status is grey if traffic is currently inactive due to one of the following conditions:
Your Mio or traffic accessory kit is connecting to the TMC service.
Your Mio or traffic accessory kit cannot receive TMC data. This may be due to poor
radio coverage in the local vicinity.
You are in a country that is not supported by Mio traffic.
Tap to display the Traffic Overview screen.
The TMC status is orange if one of the following conditions apply:
You have navigated into a country that is not supported by Mio Traffic, but there are
still traffic events listed on the Event List screen.
You have separated your Mio from the Mio traffic accessory kit, or the Mio traffic
accessory kit is not receiving power but there are still traffic events listed on the
Event List screen.
Tap to display the Traffic Overview screen.
The TMC status is green if your Mio or traffic accessory kit is active and receiving traffic
events.
Tap to display the Traffic Overview screen.
Your traffic status is displayed in more detail on the Traffic System Status screen.
How will I know when a Traffic Event occurs?
Incoming events are handled according to your Traffic preferences.
When travelling through an area in which you can receive traffic updates, your Mio will decode these events and
display them on-screen. An icon will display at the event location on the map screens, and an audible warning is
given if an event is on your route. Where an event spans a specific distance, the road will be highlighted and arrows
will indicate the direction affected.
45
A message will display at the bottom of the screen with the road name, the section of road affected and the type of
event that has occurred. The message remains on screen for 8 seconds and is added to the Event List.
Traffic Overview screen
Depending on your Mio model, traffic information may not be available, may require a subscription, or may require
the Traffic Accessory Kit (may be sold separately).
The Traffic Overview screen displays a general overview of the traffic situation on your route, including all events in
the immediate vicinity.
q
n
o
r
p
Item Description
n State Indicates the number of events on your route.
o Event icon Displays icon to indicate type of event.
p Current position
Your current position is marked with .
q Your current traffic status is indicated by the colour of the TMC icon.
r
To zoom in or out, tap and hold or .
How do I view a list of all events on my route?
Your Mio creates a list of events as they are received, which is displayed on the Event List screen. This screen can
only be viewed if the TMC icon is green or orange.
46
From the Traffic Overview screen, tap and undock the menu.
Item Description
n Tap to return to the previous screen.
o Sort Display the Set sort type screen. Select your traffic event sorting option from
the list.
p Event description Displays details of the Event, including:
Name of road and direction in which Event is taking place.
Location of where Event begins and ends.
> indicates an Event from a location, to a location.
<> indicates an Event between locations.
Type of Event.
q Event icon Displays an icon to indicate type of event.
How do I view traffic details?
There are several ways to view details of an event received by your Mio.
Choose one of the following:
Traffic Status Description
From any of the map screens
used to view your route
Tap the Event message when it appears on the map screen.
The Event Details screen will display.
From the Traffic Overview
screen
Tap and undock the menu.
The Event List screen will display.
Select and tap the event you want to view.
The Event Details screen will display.
OR
Tap and hold the traffic icon, which displays at the location of the event.
The Event Details screen will display.
q
p
o
n
47
n
o
p
q
Item Description
n Tap to return to the previous screen.
o Event icon and
description
Displays details of the Event, including:
Name of road and direction in which Event is taking place.
Location of where Event begins and ends.
> indicates an Event from a location, to a location.
<> indicates an Event between locations.
Type of Event.
p Detour information Displays details of detour recommendation, if any.
q Avoid Tap to initiate a new route to avoid the event.
Only available if a detour or re-route is available.
The Unavoid Area button is displayed when a re-route has been calculated.
How do I know if a detour is recommended?
When a Traffic or Clearance event occurs on your route, a detour will often be recommended. The detour event
message will display in the status bar on map screens.
Detours are only recommended for Traffic or Clearance Events on a calculated route.
How do I avoid an event on my route?
From the Traffic Overview screen, tap and undock the menu.
1. From the Event List screen, tap the event.
The Event Details screen will display.
2. If a detour has been calculated to avoid an event on your route, Avoid is available; tap to accept the new route
and avoid the event.
The Map screen will display.
48
How do I cancel a detour around an event on my route?
If you have chosen to avoid an event and a new route has been calculated, you can cancel the detour around the
event and return to your original route.
1. From the Event List screen, tap the Event you want to un-avoid.
The Event Details screen will display.
2. Re-route information displays at the bottom of the screen.
If a re-route has been calculated, Unavoid is available; tap to accept the new route.
The Map screen will display.
Traffic messages
The Event Details screen displays detour status information.
Detour Not Available messages
If a detour is not available, one of the following messages will display:
Message Description
This Event is not locatable
This clearance is not locatable
A specific location for the Event cannot be identified.
This Event does not affect your route
This clearance does not affect your route
The Event is not on the current leg of your journey, or
is behind your current position.
You are avoiding this Event
You have accepted this clearance
The Event is not on the current leg of your journey.
You are too distant to re-route
You are too distant to accept this clearance
The Event is currently too distant to affect your
journey.
Detour not found
Clearance route not found
A detour / re-route could not be calculated.
Detour Recommended messages
If a detour is recommended, one of the following messages will display:
Message Description
Finding detour....
Recalculating route.....
Your Mio is calculating a new route. During calculation, the % complete will
display.
Exiting this screen before the new route is calculated will cancel the
operation.
Detour distance.....
Clearance change
A detour has been calculated.
The difference between the distance of your current route and the proposed route
is displayed.
49
Traffic preferences
You can view your current traffic system status and change options by customising the traffic preferences.
TMC service
1. From the Traffic Events screen, tap Traffic service.
The Traffic service screen will display.
The TMC service screen displays the frequency of the radio station currently used to receive traffic event information.
A bar shows the strength of the traffic signal being received; the more green bars the stronger the signal.
2. Complete the following:
If you want to… Then…
change your preferred radio
station
select your preferred radio station from the list.
Traffic Event Notification
1. From the Event List screen tap Preferences.
The Preferences screen will display.
2. Complete the following:
If you want to… Then…
turn on/ off traffic event
notification
select the Notify me about nearby traffic events button to receive traffic
event notification.
clear the Notify me about nearby traffic events button to turn off traffic
event notification.
Event icons will still display on the Map screen.
be notified about events that
affect your current route
select the Only notify me about events on my route button.
be notified only when a detour
is recommended
select the Only notify me if a detour is recommended button.
Your preferences are automatically saved.
Select event sorting type
1. From the Traffic events screen tap the Sort field.
The Set sort type screen will display.
2. Complete the following:
If you want to… Then…
sort events by distance select the Distance option.
sort events by road name select the Road name option.
50
If you want to… Then…
sort events by age select the Age option.
view all traffic events select the Show all events option.
view traffic events that appear
only on your route
select the Only show events on my events option.
Your preferences are automatically saved.
51
Walking mode
Walking mode is not available on all models.
Walking mode allows you to navigate to your destination using roads and paths appropriate for a pedestrian,
including non-vehicle segments.
When in Walking mode, you will not be routed onto motorways and their associated slip roads. If your
destination is more than 10 kilometres (6.3 miles) away, a warning message is displayed indicating that the route is a
long way to walk.
Some aspects of walking mode are not available on all models, but the function itself is.
Navigation along paths and non-vehicle segments that require 2D city maps is not available on all models.
How can I set my navigation mode to walking?
1. Plan a route from the Find or Explore screen.
2. In the Mode section, tap < or > to select Walking.
Your route will be calculated and the Map screen will display using the walking icon: .
52
What can I customise?
There are various customisation options available to enhance your navigation experience.
Æ
Volume
Complete the following:
If you want to ... Then ...
increase or decrease the volume tap to move the Volume slider to the right to increase the
volume.
tap to move the Volume slider to the left to decrease the
volume.
Your preferences are automatically saved.
Safety options
You can enhance your navigation experience by modifying aspects of your route and route calculation.
Complete the following:
If you want to ... Then ...
enable/disable a visual warning if the
screen is accessed in a moving vehicle
tap Warn me not to operate my Mio while driving, to turn it On or
Off.
enable/disable speed limit alerts, which
warn you of the speed limit on any given
road
tap Speed limit warnings, to turn it On or Off.
When Speed limit warnings is set to On, the Set manual speed
alert and Speed alert type, options will display.
Your preferences are automatically saved.
53
Route options
Complete the following:
If you want to ... Then ...
set route type options for your route Tap Route type.
The Route type screen will display.
Select your route type preference from the list.
Shortest – The route with the shortest physical length
Easiest – The simplest route with the least number of turns and
favours motorways where appropriate
Economical – The route with least number of stops, turns and urban
areas which should save on fuel usage.
Fastest – The route that should be the fastest when navigating
Selecting Shortest route type over Fastest route type can cause
a much longer journey time.
set types of road options for your route tap Types of road.
The Types of road screen will display.
select your road preference from the list.
Avoiding ferry routes may prevent you from navigating between
certain countries, even when a bridge or tunnel exists.
set your map screen preference tap the Map option to select between a 3D or 2D view of the Map
screen.
set the number of turns displayed on
your turn list
tap Displayed turns.
The Displayed turns screen will display.
select your turn preference from the list.
display junction views on your route tap the Junction views options to turn it On or Off.
This feature is not available on all models.
Set how you want to notified of safety
cameras
tap My Places alerts.
The My Places alerts screen will display.
select an option and then select your preference from the list.
record mileage for your route to
generate expense reports
tap the Mileage recorder option to turn it On or Off.
This feature is not available on all models. See the MioMore
Desktop Manual for more information on exporting mileage reports.
record a GPS log of your trip tap the GPS logging option to turn it On or Off.
record your journey tap the Capture Journey option to turn it On or Off.
Your preferences are automatically saved.
54
Map display
Complete the following:
If you want to ... Then ...
enable/disable automatic zooming
during navigation
tap the Auto-zoom map when navigating option to turn it On or Off.
If selected, the Map screens will automatically zoom in or out,
depending on your speed, to allow optimal viewing of your route.
display North at the top of the 2D Map
screen
tap the Keep North at top of 2D map screen option to turn it On or
Off.
If set to Off, the direction you are travelling in will display at the
top of the 2D Map screen.
display “no entry” icons on “no entry”
roads on the Map screens
tap the Show no-entry road signs option to turn it On or Off. When
turned on, the map display performance can slow down due to the
number of no entry roads in some major cities.
Change the map colour scheme tap the Map scheme, then select a colour scheme from the list.
Your preferences are automatically saved.
Screen brightness
Complete the following:
If you want to ... Then ...
change the screen brightness tap to move the Screen Brightness slider towards right to
increase screen brightness.
tap to move the Screen Brightness slider towards left to
decrease screen brightness.
Warning: Your Mio can heat up when the Brightness scale is set
high, therefore, use lower brightness whenever acceptable.
set the screen contrast to automatically
adjust
select the Automatic day/night option.
improve screen contrast in light or dark
condition
select either Day or the Night option to manually adjust screen
contrast.
55
Your preferences are automatically saved.
Language
Complete the following:
If you want to ... Then ...
change the on-screen language tap your preferred language, then tap Yes.
The voice scheme will also change to the default scheme for the
selected language.
Your preferences are automatically saved.
Voice
Complete the following:
If you want to ... Then ...
change the voice scheme select your preferred voice scheme from the list.
Only voice schemes that are compatible with the chosen language are
displayed.
Your preferences are automatically saved.
Power management
56
The Battery Status bar shows the percentage of power left in the Mio battery. The words External power will
display when the battery is charging from an external power source. Otherwise it will show Internal battery when not
connected to an external power source.
To charge the battery, refer to the Hardware User Manual.
Units
Complete the following:
If you want to ... Then ...
change the time format tap Time format and then select your preferred time format from the
Units screen.
change the distance units tap Distance Units and then select your preferred distance unit type
from the Units screen.
change the date format tap Date Format and then select your preferred date format type from
the Units screen.
Your preferences are automatically saved.
Touch audio
The touch audio option allows you to hear a tone when you tap the touch screen.
Complete the following:
If you want to ... Then ...
hear which letter you have tapped when
you tap the touch screen
tap the Audio option to turn it On or Off.
hear a tone when you use the on-screen
keyboard for text input
tap the Speak keyboard letters option to turn it On or Off.
Your preferences are automatically saved.
57
List scrolling
Complete the following:
If you want to ... Then ...
enable the Slide TouchTM interface and
not use arrows to navigate on a screen
tap the List Scrolling option to select Slide Touch.
disable the Slide TouchTM interface and
use the scroll tabs
tap List scrolling option to select Buttons.
Your preferences are automatically saved.
Audio output
This feature is not available on all models.
Audio output allows you to change the audio output of your Mio.
Complete the following:
If you want to ... Then ...
Receive audio output through your Mio Select the Internal Speaker option.
Receive audio output through the FM
radio in your car
Select FM transmitter and then select your FM frequency. For more
information, see “How do I receive audio through my vehicle
speakers?” on page 53.
Your preferences are automatically saved.
Delete saved information
58
Complete the following:
If you want to ... Then ...
delete My Places tap Delete My Places.
delete recent locations tap Delete recent locations.
clear all settings; for example, for use in
a rental car
complete all of the above.
When the warning dialog box displays, tap Yes.
Reset GPS
Occasionally, the GPS fix may need to be reset. This may occur if the receiver has been transported a long distance
since last being used; for example, to a different country, and is still trying to establish the previous position.
Complete the following:
If you want to ... Then ...
reset the GPS tap Reset GPS.
When the warning dialog box displays, tap Yes.
Restore factory defaults
The restore factory defaults option allows you to restore default factory settings.
Complete the following:
If you want to ... Then ...
restore factory default settings tap Restore Factory Defaults. Your Mio will restart.
The Restore Factory Defaults option does not delete recent
locations or saved My Places destinations.
Your preferences are automatically saved.
Shop demo
Complete the following:
If you want to ... Then ...
enable a shop demonstration of Mio
Spirit to be played
tap Shop demo. Tap Yes and select a demonstration country. Tap
OK. Your Mio will restart.
When your Mio is in Shop demo mode, you will see the navigation
demonstration of the pre-defined route without having to set a
destination.
You cannot operate your Mio properly in Shop demo mode.
stop a shop demonstration of Mio Spirit
in playback
tap Shop demo. Tap Yes, then OK. Your Mio will restart.
59
Screen saver
Complete the following:
If you want to ... Then ...
enable the screen saver feature on your
Mio
tap Screen saver.
When your Mio is idle for 10/30/60 minutes, the screen saver will
display.
The screen saver will only display if your Mio is connected to a
power supply. To stop the screensaver playing, simply tap the screen.
Disable the screen saver feature on
your Mio
tap Screen saver.
Tap Off.
Your preferences are automatically saved.
About
Tap About to display copyright and trademark information.
60
Point of Interest categories
Icon Description Icon Description
Airport Amusement park
Art centre ATM/Cash dispenser
Bank Bar/Pub
Beach Breakdown service/Car repair facility
Bowling centre Business facility or company
Business office Bus station
Camping ground Car dealer/Automobile dealer
Casino Cemetery
Church Cinema
City hall City, town or village
Coffee shop College/University
Community centre Commuter railway station
Courthouse Dentist
Doctor Embassy
Exhibition centre Ferry terminal
Fire Brigade Golf course
Government office Grocery store
Guest house Higher education
Hospital/Polyclinic Hotel
Ice skating Important tourist attraction
Information/Tourist information office Library
Marina/Yacht basin Medical
Monument Motorcycle dealer
61
Icon Description Icon Description
Motoring organisation office Mountain pass
Museum
Music centre
Natural attraction Nightlife
Park and ride Parking
Parking garage Park/Recreation area
Performance art/Theater Petrol station
Pharmacy Place of worship
Police station Post office
Public restroom/Toilet facilities Public sport airport
Railway crossing Rental car agency
Rest area Restaurant
Road accident black spot Scenic/Panoramic views
School School zone
Shop Shopping
Ski resort/Ski lift station Speed check
Sport centre Sports hall
Sports complex Stadium
Tennis court
Travel agency
Transport ferry
Veterinarian
Winery Zoo
Branded Points of Interest
Branded Points of Interest are available on some maps. These include well known restaurants, accommodation
providers, tourist attractions, Petrol stations, etc. The icon will usually display the company logo.
62
Point of Interest categories by subscription
Icon Description
Safety Cameras
Safety Camera (Mobile)
Safety Camera (Average)
Red Light Camera
My Places categories
Icon Description
Album
Home
Saved locations
Captured locations
Captured journey
Captured sound recording
63
Traffic and other TMC Events
Each TMC Event is sorted in to one of nine categories. When an Event is received, one of the following icons will
display:
Event Avoided
Event
Message Type Event Description
Danger There is a dangerous situation on the route; for example,
people are on the road.
Traffic Any event that will cause a delay on a route.
Weather Weather conditions are adversely affecting a route; for
example, there is ice on the road.
Warnings There is a situation of which you should be aware on the
route, but it is not serious enough to be considered a
dangerous situation; for example, a minor accident has
taken place.
Forecast An event is expected to occur on a route.
Restrictions There is a restricted flow of traffic on a route; for example,
a lane has been closed on a motorway.
Clearance A traffic event that has now been cleared.
Information All other events.
Roadworks Roadworks are taking place on a route.
If a Traffic or Clearance event has a recommended detour, the following icons will display:
Event Avoided
Event
Message Type Event Description
Traffic Detour A Traffic Event, for which a detour is recommended.
Clearance Re-route A Clearance Event, for which a re-route is recommended.
Avoided Event icons will only display on the Map screen, at the event location.
64
Appendices
For more information
User Manuals
The latest User Manuals can be downloaded from our website: www.mio.com
Register with MioClub
To report a faulty product or speak to a member of our Technical Support team, register your Mio on MioClub to
obtain the Technical Support phone numbers for your region.
Speed Limit
Mio products are designed to be used as an aid to safer driving. Mio does not condone speeding or any other failure to comply with your
local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts
NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee
the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty
for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In
some countries the data information regarding speed limits may conflict with local law and/or regulations. It is your responsibility to make
sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.
Safety Camera POIs
Mio products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras,
which will enable you to monitor your speed through these areas. Mio does not warrant that all types and locations of safety camera data
are available, as cameras may be removed, relocated or new cameras installed. Mio does not condone speeding or any other failure to
comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful
manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device.
Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a
fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any
damages of any type. In some countries the data information regarding safety or speed cameras may conflict with local law and/or
regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at
your own risk.
FM Transmitter
Products with FM Transmitter feature may be operated in the following countries: Andorra, Austria, Belgium, Denmark, Finland,
Germany, Ireland, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Portugal, San Marino, Spain, Sweden, Switzerland, Great
Britain and Vatican City.
The FM Transmitter feature is not allowed to be used by law in France, Andorra, San Marino, and Vatican City. Please turn of the FM
Transmitter in those areas.
Disclaimer
Mio operates a policy of ongoing development. Mio reserves the right to make changes and improvements to any of the products
described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other
presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such
differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material
respects.
65
Copyright
© 2009 MiTAC International Corporation. Mio is a registered trademark of MiTAC International Corporation and is used under licence by
Mio Technology Ltd. All rights reserved.
The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing
restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.
Back-On-Track, Drive-Away, MioMore Desktop, Mio Spirit, NavPix, Slide Touch and Turn-by-Turn are either registered trademarks or
trademarks of MiTAC International Corporation and are used under licence by Mio Technology Ltd. All rights reserved.
MicroSD and the MicroSD logo are trademarks of SD Card Association.
All other trademarks and registrations are the property of their respective owners.
Revision: R03
(8/2009)
Moov V Series
MioMore Desktop Manual
2
Contents
Welcome................................................................................................................................................4
What is MioMore Desktop? ....................................................................................................................5
How do I install MioMore Desktop onto my computer?......................................................................6
MioMore Desktop Menu ....................................................................................................................8
General Preferences.....................................................................................................................9
My Subscriptions..................................................................................................................................10
How do I purchase a subscription? .................................................................................................10
How do I activate my subscription? .................................................................................................10
How do I update subscriptions on my Mio? .....................................................................................11
My Maps ..............................................................................................................................................12
How do I download and install free map updates? ..........................................................................12
How do I install maps onto my Mio?................................................................................................13
How do I remove maps from my Mio?.........................................................................................14
My Maps Preferences .....................................................................................................................15
Custom POIs........................................................................................................................................16
How do I install custom Points of Interest?......................................................................................16
How do I delete a Custom POI file/category from my Mio? .............................................................17
Photo Album ........................................................................................................................................18
Toolbar............................................................................................................................................19
How do I transfer pictures from Photo Album to my Mio?................................................................19
How can I view and edit pictures or albums on my computer? ........................................................20
What else can I do with pictures and albums on my computer? ......................................................20
Photo Album preferences................................................................................................................21
Image Search.......................................................................................................................................22
How do I download NavPixTM from the internet? ..........................................................................22
How do I import NavPixTM to Photo Album? .................................................................................22
How do I import NavPixTM to My Places?.....................................................................................22
Application Gallery ...............................................................................................................................23
How do I rearrange Main Menu applications on my Mio Main Menu?..............................................23
How do I remove an application from my Mio?................................................................................23
How do I add an application to my Mio?..........................................................................................23
My Places ............................................................................................................................................24
How do I sort My Place locations? ..................................................................................................24
How do I edit a location name or notes in My Places? ....................................................................24
How do I share a location from My Places? ....................................................................................25
How do I play a captured sound file? ..............................................................................................25
How do I upload a NavPixTM from My Places to Flickr™? ............................................................25
How do I delete a location from My Places?....................................................................................25
My Mio .................................................................................................................................................26
Voice transfer..................................................................................................................................26
How do I install a voice file?........................................................................................................26
How do I remove a voice file?.....................................................................................................26
Mileage Reporter ............................................................................................................................27
How do I import my trip data? .....................................................................................................27
How do I export a mileage report? ..............................................................................................28
How do I delete travel logs from my Mio? ...................................................................................28
Mileage Reporter preferences.....................................................................................................28
Backup and Restore........................................................................................................................29
How do I backup my Mio?...........................................................................................................29
How do I restore a backup to my Mio?........................................................................................29
How do I delete a backup? .........................................................................................................29
Language........................................................................................................................................29
Recover keys ..................................................................................................................................30
3
Connect ...............................................................................................................................................31
How do I search for a POI using Connect? .....................................................................................31
My Media .............................................................................................................................................33
Toolbar............................................................................................................................................34
How do I import a music file to my MioMore Desktop library? .........................................................34
How do I transfer a music file from MioMore Desktop to my Mio? ...................................................34
How do I remove a music file from my MioMore Desktop playlist? ..................................................35
How do I remove a music file from my Mio playlist? ........................................................................35
How do I permanently delete a music file from my Mio playlist?......................................................35
What else I can do with My Media?.................................................................................................35
Appendices ..........................................................................................................................................37
For more information.......................................................................................................................37
Compliance.....................................................................................................................................38
Speed Limit.....................................................................................................................................38
Safety Camera POIs .......................................................................................................................38
Disclaimer .......................................................................................................................................38
Copyright ........................................................................................................................................39
4
Welcome
Thank you for purchasing this MioMore Desktop software. Please read this manual carefully before using MioMore
Desktop for the first time. Keep this manual in a safe place and use as your first point of reference.
Important information for using the manual
It is important to understand the terms and typographical conventions used in this manual.
Formatting
The following kinds of formatting in the text identify special information:
Convention Type of Information
Bold Mio components or items displayed on screen, including buttons, headings, field names and
options.
Italics Indicates the name of a screen.
Icons
The following icons are used throughout this manual:
Icon Description
Note
Tip
Warning
Terms
The following terms are used throughout this manual to describe user actions.
Term Description
Click Use the left mouse button to click a button or area on the screen.
Select Click an item in a list or click a command from a menu.
5
What is MioMore Desktop?
MioMore Desktop is a suite of tools you can use to access greater functionality and product information via your
computer.
MioMore Desktop allows you to:
obtain software updates
manage maps
search online for local POIs
manage custom POIs
manage safety camera subscriptions
report trip mileage
transfer pictures to your Mio using Photo Album
browse the Mio website for special offers.
Can I use MioMore Desktop with my computer?
Ensure your computer has the following minimum system requirements before installing MioMore Desktop:
IBM compatible PC
Microsoft® Windows® XP SP2 or Vista x32
Internet Explorer 6 or higher
DVD drive
USB port
Internet connection for activation.
Microsoft .NET 2.0, 3.0 and 3.5 will be installed on your computer as part of the installation of MioMore Desktop.
How do I install a map for the first time?
The most common task performed using MioMore Desktop is the installation of a new map to your Mio internal
memory or memory card. Complete the following procedures:
Step Action
1 Install MioMore Desktop on your computer.
2Check for software updates for Mio Spirit on your Mio.
3Install one or more maps on your Mio.
6
How do I install MioMore Desktop onto my computer?
Before you begin: Ensure that your computer meets the minimum system requirements for MioMore Desktop,
especially:
i. Ensure that Internet Explorer 6 or higher is installed on you computer before you install MioMore Desktop, even if it
is not your default browser.
ii. Windows XP users, ensure that Windows XP Service Pack 2 or higher has been applied before you install
MioMore Desktop.
CAUTION: When your Mio is turned on and connected to a computer, it is recognized as an external
mass-storage device. Do NOT delete any files that are pre-installed on your Mio. Deleting the files can cause your
Mio to crash
1. Close all programs on your computer.
2. Insert the MioMore Desktop Application Installer DVD into your computer DVD drive.
The MioMore Desktop installer will start.
If your computer does not automatically launch the DVD, start the installation manually:
Start Æ Run.
Type D:\Install.exe where “D” is the letter assigned to your DVD drive, then click OK.
3. Select your preferred language for MioMore Desktop.
4. Click
Install Software, then Install MioMore Desktop 2.
5. Follow the screen prompts to install MioMore Desktop:
Review and accept the Licence Agreement for MioMore Desktop when prompted.
Select a destination folder for MioMore Desktop when prompted.
When the installation is complete, click Finish.
MioMore Desktop will open.
6. If prompted to connect your Mio to your computer, complete the following:
Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug
the small end into the USB Socket ( ) on the bottom of your Mio.
Where possible, plug the USB cable into a USB port at the back of your computer.
Slide the Power switch to the ON position, to turn on your Mio.
The following screen will display on your Mio:
7
7. If prompted to update your Mio software, follow the on-screen prompts.
You are now ready to use MioMore Desktop to install maps to your Mio.
From now on, you can access MioMore Desktop via: Start Æ All Programs Æ Mio Æ MioMore Desktop 2
8
MioMore Desktop Menu
Depending on your Mio model, certain MioMore Desktop Menu options may not be available.
n
o
p
q
r
s
t
u
v
w
Component Description
nMio Online Display the Mio website, Mio Store and other online features.
oMy Subscriptions Information on your current subscriptions, including safety camera
subscriptions.
pMy Maps Install and manage maps.
qCustom POIs Application that allows you to import custom POIs.
rPhoto Album Import and edit NavPixTM images.
sImage Search Search online and download NavPixTM which can be added to My Places or
Mio.
This feature is powered by Flickr™.
tApplication Gallery Customise and rearrange applications available on the Main Menu screen of
your Mio.
uMY PLACES View and modify all places including addresses, Points of Interest, NavPixTM,
and others added using MioMore Desktop and stored on your Mio.
vMY MIO A collection of applications that allow you to transfer data to and from your
Mio, including:
Voice transfer
Activation
Mileage reporter
Backup and restore
Langauge
Recover keys
Options
9
Component Description
wCONNECT Search for and add live POIs to My Places.
MY MEDIA Application used to transfer media files from your computer to your Mio.
General Preferences
My Mio Æ Options Æ General
Complete one of the following:
If you want to ... Then ...
keep MioMore Desktop updated select the Auto check for updates checkbox.
When you select this option, every time you open MioMore Desktop,
any available service packs and bug fixes will be downloaded from the
Mio server and applied to your Mio.
Updating software is different from upgrading software. To
upgrade MioMore Desktop, you must first purchase a new version of
MioMore Desktop from a retailer, then install it on your Mio.
change the units of measurement that
MioMore Desktop uses
select or clear the Use metric units check box to change
between imperial and metric units
select or clear the Use decimal degrees check box to change
between decimal degrees and latitude/longitude co-ordinates.
10
My Subscriptions
Subscription information is not available on all models and is only available in selected countries.
Your Mio contains pre-loaded subscriptions, such as safety camera and travel book information.
MioMore Desktop Æ My Subscriptions
For the latest subscription updates, visit: www.mio.com
Safety Camera alerts can be set to enable a warning sound or visual warning when on your route.
How do I purchase a subscription?
1. Select a type of subscription.
A list of regions will display.
2. Select a region.
A list of available subscriptions will display.
3. Select a subscription or offer, then click Purchase an activation key from the Mio store.
The Mio Store website will open.
4. Follow the prompts to purchase your subscription.
A product key will be sent to you via email when you have subscribed. You will need to use this product key to
activate your subscription.
How do I activate my subscription?
MioMore Desktop Æ My Mio Æ Activation
1. Enter your product key.
2. Follow the prompts to activate your subscription.
11
How do I update subscriptions on my Mio?
The My Mio section will display a list of subscriptions already installed on your Mio:
Icon Description
Red Expired subscriptions.
right click to purchase a new subscription.
Yellow Available subscriptions.
right click to update and purchase new subscription.
Green Active subscriptions.
No updates are available for these subscriptions.
12
My Maps
My Maps allows you to install new maps, remove maps from your Mio and purchase new maps.
MioMore Desktop Æ My Maps
Click View Installed Maps.
p
q
n
r
o
Component Description
nMap Source A list of maps on the DVD or available for purchase via the Mio Store website.
oMy Mio A list of maps installed on your Mio.
pContinent A drop down list of continents that have maps available for your Mio.
qZoom In / Zoom Out Click to zoom in or out of the globe.
rGlobe A map of the world or selected continent indicating the maps:
on the current DVD,
installed on your Mio or memory card, or
available from Mio.
How do I download and install free map updates?
Occasionally Mio will offer you free map updates. If a free map update is available and your Mio is connected to your
computer, a message will display when you first start MioMore Desktop.
The message can be disabled from displaying by selecting Suppress Free Map Offer messages from the
message box or from: My Mio
Æ
Options
Æ
My Maps
How do I download a map update immediately?
3. Select the map updates that you would like to download, then click Download.
Your default web browser will open and prompt you to save the map update files.
4. Navigate to your Loadable Maps Location and save the files.
13
The default Loadable Maps Location is the My Maps folder in your Documents folder. You can change the
location from: My Mio
Æ
Options
Æ
My Maps
How do I download a map update at a later time?
5. Click Close to close the Free Map Updates window.
6. When you are ready to download the map update, click My Maps.
A list of available map updates will be displayed under Free to download in the Available Downloads section.
7. Select the map update that you would like to download, then click Yes.
Your default web browser will open and prompt you to save the map update file.
8. Navigate to your Loadable Maps Location and save the files.
The default Loadable Maps Location is the My Maps folder in your Documents folder. You can change the
location from: My Mio
Æ
Options
Æ
My Maps
How do I install a map update that I have downloaded?
1. Click My Maps.
A list of downloaded map updates will be displayed in the Loadable Maps section.
2. Click
Open next to the map update that you would like to install.
The globe will display. The free maps that you downloaded are yellow.
3. Click the map you want to install to your Mio.
The map will change colour to a brighter yellow to indicate it has been selected.
To deselect a map, click the map again.
You may need to install multiple maps to cover the required geographical area.
4. Select the destination media for the selected map, then click Transfer Now.
The selected map will be installed and change colour to green.
5. To use your Mio, disconnect the USB cable.
WARNING: Do not disconnect the USB cable from the Mio USB Socket until the Globe has
refreshed, and the installed map or maps have changed colour to green.
How do I install maps onto my Mio?
Your Mio comes with one or more pre-activated maps.
You can install maps from the DVD that came with your Mio or one that you have purchased separately to a memory
card or your Mio internal memory; however you may need to purchase a Map Product Key to activate maps on the
DVD that came with your Mio.
1. Open MioMore Desktop, if it is not already open:
Start Æ All Programs Æ Mio Æ MioMore Desktop
2. Click
My Maps.
The My Maps application will display.
3. Insert Map DVD into your computer DVD drive.
The maps already installed on your Mio are green.
The maps that are unlocked and ready to be installed to your Mio are yellow.
The maps that require activation before being installed to your Mio are red.
The maps that are available for purchase from Mio are blue.
If your computer opens Windows Explorer when the DVD is inserted, close the Windows Explorer window.
14
4. Complete the following:
If the map to be installed is ... Then ...
yellow go to step 7.
red the map needs to be activated via the Internet before it
can be installed; continue to step 5.
5. If you connect to the Internet via a dial-up connection, connect to the Internet now.
6. Follow the prompts to activate your Map Product Key, including:
Enter the Map Product Key when prompted.
Your computer will connect to the Internet and activate your Map Product Key.
When activation has completed, the map will change colour to yellow; continue to step 7.
7. Click the map you want to install to your Mio.
The map will change colour to a brighter yellow to indicate it has been selected.
To deselect a map, click the map again.
You may need to install multiple maps to cover the required geographical area.
8. Complete the following:
If you want to ... Then ...
install a yellow map go back to step 7.
install a red map the map needs to be activated via the Internet before it can
be installed; go back to step 5.
install the selected maps to your Mio continue to step 9.
9. Select the destination media (Mio internal memory) for the selected maps, then click Transfer Now.
The selected maps will be installed and change colour to green.
10. To use your Mio, disconnect the USB cable. You may need to manually reset your Mio.
WARNING: Do not disconnect the USB cable from the Mio USB Socket until the Globe has refreshed,
and the installed map or maps have changed colour to green.
How do I remove maps from my Mio?
1. Click My Maps.
The My Maps application will display.
2. From the
My Mio panel, select the check box next to the map you want to remove.
3. Click
Remove Maps to remove the selected maps.
4. Confirm that you want to remove the selected map when prompted.
The map is removed from your Mio.
You can reinstall these maps at any time via MioMore Desktop.
15
My Maps Preferences
My Mio Æ Options Æ My Maps
Complete one of the following:
If you want to ... Then ...
change the location of where downloaded
maps and map updates will be saved
click Change.
select a location for your maps.
click
Save or OK.
The warning message will display and you will be prompted
to confirm your action.
Your maps are moved to the new location.
prevent offer messages from displaying select the Suppress Free Map Offer messages check box.
16
Custom POIs
Depending on your Mio model, some Custom POIs features may not be available.
The Custom POIs (Points of Interest) application allows you to create or import your own POI files. These are called
custom POIs. Unlike preinstalled POIs, custom POIs can be removed from your Mio and can have audio as well as
visual alerts associated with them.
MioMore Desktop Æ Custom POIs
How do I install custom Points of Interest?
Various POI files are available for download free or by subscription from third-party websites1. Ensure that
downloaded files are in .csv (Comma Separated Values) format.
1. In the
Add new POIs section, click Browse to select a source file.
The Open dialog box will open.
2. Select the file from your local or network drive, then click Open.
3. From the
POI Category section:
If you want to... Then...
use an existing custom POI category select the Existing category option, then select a type from
the drop down list.
create a new custom POI category select the New category option, then type a name for the
POI category.
1 Mio is not responsible for the content or accuracy of the information or the reliability or availability of these websites. The use of
information regarding safety camera locations may be subject to local laws in the country of use. You are responsible for checking that
you can use the information in your country or in the country where the information will be used.
17
4. Set Alert setting as required:
If you want to... Then...
enable a visual warning when a POI of this
category is in close proximity
select the Visual alert check box.
select an icon to display on the map screens
for POIs of this category
Click Browse to select the icon file from your local or
network drive. When you have located the icon file, select it
and click Open.
The icon file must be a bitmap (.bmp) graphic with a
minimum size of 6x6 pixels and a maximum size of 32x32
pixels.
If you do not select a custom icon, a default icon will
display.
select the distance from a POI of this
category at which the visual warning should
display or the warning chime should sound
select the distance from the Distance box.
To change the units used to measure distance for this
POI category, from the tools menu click on options and from
the general option select Use metric units check box.
enable a warning sound when a POI of this
category is in close proximity
select the Audio alert check box.
select a custom sound alert file to play when
a POI of this category is in close proximity
Either select a sound file from the list, or
Click Add to select a sound file (.WAV format) from
your local or network drive. When you have located the
file, select it and click Open.
If you do not select a custom sound file, a default sound
alert will play.
5. Click Add to device to add the POI to your Mio.
Each file corresponds to a POI category; for example, Hotels.csv will be listed in your Mio as the Hotels
category.
How do I delete a Custom POI file/category from my Mio?
1. In the Installed POIs section, click Delete next to the file name.
The file is removed from the list, but is not yet deleted.
2. Accept the warning message.
The selected file/category is deleted.
18
Photo Album
Depending on your Mio model, certain Photo Album features may not be available.
Photo Album is a MioMore Desktop application which allows you to copy, delete or move pictures or albums between
the NavPixTM library on your Mio and the NavPixTM library on your computer.
MioMore Desktop Æ Photo Album
p
n
q
o
r
s
Component Description
n Desktop albums Displays a list of all albums stored in the NavPixTM library on your
computer.
Click an album to display its contents in the Album display area.
Click View all NavPixTM to display all pictures stored in the
NavPixTM library on your computer.
o My Mio albums Displays a list of albums stored on the Mio internal memory and on the
memory card if one is inserted.
Click an album to display its contents in the Album display area.
p Selected picture When a thumbnail is selected it displays with a blue border.
q Album display area Displays thumbnails of pictures in the selected album.
r Search Type to search for a NavPixTM by name.
s Toolbar When a picture is selected, the icons which can be used will be active.
19
Toolbar
n
o p
q
r s t
u
v
The following options are available on the toolbar:
Button Description
n Create new album Click to create a new album in the NavPixTM library you are viewing.
o Add to My Places Click to transfer NavPixTM to My Places.
p Transfer to your Mio
or
Transfer to your
computer
If you are viewing NavPixTM in the NavPixTM library on your
computer, this will display as Transfer to your Mio.
Click to transfer the selected NavPixTM to your Mio.
If you are viewing NavPixTM in the Mio library this will display as
Transfer to your computer.
Click to transfer the selected photo(s) to the NavPixTM library on your
computer.
q Import NavPixTM Imports NavPixTM from your computer to the NavPixTM library on your
computer.
r Export to disk Click to save NavPixTM to your computer or a network drive.
s View details Click to view the selected NavPixTM and edit NavPixTM details, including:
NavPixTM name
latitude
longitude
description.
t Rotate left Rotates the selected NavPixTM 90° to the left.
u Rotate right Rotates the selected NavPixTM 90° to the right.
v Delete NavPixTM Click to delete the selected NavPixTM.
How do I transfer pictures from Photo Album to my Mio?
You can transfer pictures from your computer to your Mio. You can import any JPEG (.jpg) into Photo Album, add or
edit GPS information, and then copy the picture to your Mio.
1. From the
Toolbar section, select Import NavPixTM.
The Open dialog box will display.
2. Select a
NavPixTM from a folder on your computer and click Open.
Thumbnails of the NavPixTM will display in the Album display area.
You can also drag and drop a NavPixTM from a folder on your computer to an Album on your MioMore
Desktop.
3. Either click and drag the required NavPixTM to an album in the Mio albums section, or click the Transfer to
your Mio icon on the toolbar.
If you have transferred a NavPixTM with GPS coordinates you can then navigate to where the picture
was taken.
20
How can I view and edit pictures or albums on my computer?
If you want to ... Then....
rotate a picture to left select the picture from the Album display area.
click
Rotate left on the toolbar.
rotate a picture to right select the picture from the Album display area.
click Rotate Right on the toolbar.
view the picture details select the picture from the Album display area.
right-click and select
View Details, or click View Details on the toolbar.
edit GPS information select the picture from the Album display area.
double click on the picture or click View Details on the toolbar.
The following information will display:
Name
Latitude and Longitude
Description
Edit the details you want to modify.
Click OK to save the changes.
delete a picture select the picture from the Album display area.
right click and select Delete or click Delete on the toolbar.
What else can I do with pictures and albums on my computer?
From the NavPixTM library on your computer, you can:
add a picture to another album
remove pictures from an album
add a
NavPixTM to My Places
view and edit details of a selected picture
upload pictures to Flickr™
export to disk
export pictures to Google Earth™
search for pictures
view all pictures in the library
If you want to ... Then....
add a picture to another
album
in the Desktop albums section, select the album containing the
NavPixTM you want to include in another album
select the
NavPixTM then drag it to the other album.
The selected NavPixTM is included in the new album, but is not moved,
i.e., one instance of the NavPixTM in the library may be included in multiple
albums.
remove a picture from an
album
in the Desktop albums section, select the album containing the
NavPixTM you want to remove
select the
NavPixTM, right click and select Remove from album.
Click the Delete icon on the toolbar if you want to delete the NavPixTM
from all albums.
add a NavPixTM to My
Places
in the Desktop albums section, select the album containing the
NavPixTM you want to add to My Places.
select the NavPixTM, right click and select Upload to My Places.
view and edit picture details select the picture then click the View Details icon on the toolbar.
edit the fields as required.
21
If you want to ... Then....
upload picture to the Flickr
website
in the
Desktop albums section, select the album containing the
NavPixTM you want to upload to the Flickr website.
select the
NavPixTM, right click and select Upload to Flickr.
You need a Flickr account to upload NavPixTM. To create a Flickr account
visit www.flickr.com.
save a picture to your
computer
select the picture from the Album display area.
right click and select Export to disk or click Export to disk on the toolbar.
navigate to a folder on your computer where you want to save the
NavPixTM.
export to Google Earth™
(only NavPixTM with GPS
coordinates can be exported
to Google Earth)
in the
Desktop albums section, select the album containing the picture you
want to export to Google Earth.
select the NavPixTM, right click and select Export to Google Earth.
navigate to a folder on your computer to save the file and then open it in
Google Earth.
You need to install the Google Earth software on your computer to be able
to view the file you have created. You can download Google Earth from
earth.google.com.
search for other NavPixTM right-click on the desired NavPixTM and select Search for NavPixTM near
this.
view all pictures in the library click View all pictures at the bottom of the Desktop album section.
Photo Album preferences
My Mio Æ Options Æ Photo Album
Complete one of the following:
If you want to ... Then....
change your NavPixTM
location on your computer
click Change.
select a location for your NavPixTM library.
click
Save or OK.
The warning message will display and you will be prompted to confirm
your action.
Your NavPixTM library is moved to the new location.
receive a warning message
before deleting an image from
your device
select Warn me when permanently deleting a NavPixTM from my Mio
check box.
receive a warning message
before deleting an image from
your NavPixTM library
select Warn me when permanently deleting a NavPixTM from my library
check box.
create a new folder every time
you import new photos
select the Import photos to a new album checkbox.
view NavPixTM when on a
route
select the Show NavPixTM on map checkbox.
22
Image Search
Image Search is a MioMore Desktop application powered by Flickr™ allowing you to download photos and import
them to Photo Album. You can then upload the photo to the Flickr website, transfer photos to your Mio, export
pictures to Google Earth or search for other NavPixTM near the longitude and latitude of your NavPixTM.
MioMore Desktop Æ Image Search
How do I download NavPixTM from the internet?
1. In the Description field enter a search description for the image you are looking for.
2. Select one of the Sort by options.
3. Click
Search.
Thumbnails of the NavPixTM will display in the NavPixTM display area.
You can narrow your search by selecting the Advanced search check box and then selecting a city from the
drop down list or by entering latitude and longitude details.
How do I import NavPixTM to Photo Album?
1. Select a picture or group of pictures you want to add to your Photo Album.
2. Click
Import to Photo Album.
A new album is created in the Desktop album section of Photo Album.
How do I import NavPixTM to My Places?
1. Select a picture or group of pictures you want to add to your My Places.
2. Click
Add to My Places.
The selected image is added to My Places.
23
Application Gallery
Application Gallery is a MioMore Desktop application that allows you to add, remove and rearrange applications on
the Main Menu screen of your Mio.
MioMore Desktop Æ Application Gallery
How do I rearrange Main Menu applications on my Mio Main
Menu?
1. Select any application from the Device Main Menu section.
2. Drag the application to the position that you would like it to appear on your Mio.
3. Click
Save to Device.
The order of the Main Menu screen is saved on your Mio.
Click Reset to Default Settings to restore the Main Menu screen to the factory default order.
How do I remove an application from my Mio?
The following applications cannot be removed from your Mio:
1. Select any application from the Device Main Menu section.
2. Drag and drop the application to the Available Settings section.
3. Click
Save to Device.
The application is removed from the Main Menu screen on your Mio and is no longer accessible.
How do I add an application to my Mio?
1. Select any application from the Available Settings section.
2. Drag and drop the application to the Device Main Menu section.
3. Click
Save to Device.
The application is added to the Main Menu screen on your Mio.
24
My Places
My Places is a MioMore Desktop application that allows you to use Google Maps™ to view all places that you have
saved on your Mio.
Make sure you have an active Internet connection for this feature.
My Places includes saved addresses, captured journeys and sound, Points of Interest, NavPixTM, and other
locations. You can select, modify and delete places. You can also add locations from Connect, Photo Album and
Image Search to My Places.
You can install a maximum of 99 locations on your Mio via My Places.
MioMore Desktop Æ My Places
How do I sort My Place locations?
You can sort My Place locations by type and name:
If you want to ... Then ...
sort My Place locations by type click Type on the My Places panel.
sort My Place locations by name click Name on the My Places panel.
How do I edit a location name or notes in My Places?
1. From the My Places panel select the location you want to edit.
2. Click the location icon on the Google map.
The location summary pop-up will display.
3. Complete one of the following:
If you want to ... Then ...
edit the location name click the location name.
enter a new name or edit the existing name.
The location name is changed in both MioMore Desktop and your Mio.
25
If you want to ... Then ...
edit the location notes click
Edit notes.
enter notes.
The location notes is changed in both MioMore Desktop and your Mio.
How do I share a location from My Places?
1. From the My Places panel select a location you want to edit.
2. Click the location icon on the Google map.
The location summary pop-up will display.
3. Click .
An email will open ready to send to your friends.
Your friend will receive the email with links to either save the image or to save the location in My Places in MioMore
Desktop.
If the location is a NavPixTM, your friend will receive the image as an attachment to the email.
If the location is a captured journey, your friend will receive the journey as a .KMZ file attached to the email.
Your friend will need to have Google Earth installed on the computer to view the KMZ file.
If the location is a captured voice recording, your friend will receive the voice recording as a .WAV file attached
to the email.
How do I play a captured sound file?
1. From the My Places panel select a captured sound that you want to listen to.
2. Click the location icon on the Google map.
The location summary pop-up will display.
3. Click .
The captured sound file will play.
How do I upload a NavPixTM from My Places to Flickr™?
1. From the My Places panel select a location you want to edit.
2. Click the location icon on the Google map.
The location summary pop-up will display.
3. Click , then follow the prompts to upload a NavPixTM to Flickr.
You need a Flickr account to upload a NavPixTM. To create a Flickr account, visit www.flickr.com.
How do I delete a location from My Places?
1. From the My Places panel select a location you want to edit.
2. Click the location icon on the Google map.
The location summary pop-up will display.
3. Click , then click Yes to delete the location.
4. The location is deleted from My Places.
You can delete all locations in My Places by clicking on the My Places panel.
26
My Mio
Voice transfer
My Mio Æ Voice Transfer
Voice Transfer is a MioMore Desktop application that allows you to install or remove voice files.
Voice files take up space on your Mio’s internal memory. If you do not use a voice file, you can remove it to free up
space. You can later reinstall it to your Mio if required.
How do I install a voice file?
In the Available voice files section, select the voice file you would like to install, then click Install selected voices.
How do I remove a voice file?
In the Available voice files section, select the voice file you would like to remove, then click Remove selected
voices.
27
Mileage Reporter
Mileage Reporter is not available for all models.
Mileage Reporter is a MioMore Desktop feature that allows you to create expense reports (.csv format) based on the
mileage and estimated fuel usage recorded by your Mio.
My Mio Æ Mileage Reporter
np
o
q
Element Description
n Timeframe specifies the time for which the mileage report will be created.
select Show All to include all recorded mileage.
o Report panel Displays your trip log data.
p Fuel Select to include the amount of fuel (estimate) used for the mileage
recorded. If selected, specify the number of miles travelled per gallon,
or miles/kilometers travelled per litre.
q Report data buttons Import report data from your Mio, clear all report data from your Mio or
export data to a report (.csv).
How do I import my trip data?
1. Select Show All in the Timeframe section.
2. Select the
Calculate fuel at check box, then enter the fuel consumption.
3. Click
Load from your Mio.
The Transfer Log progress bar will display.
All your trip logs can now be viewed in the Report panel section.
28
How do I export a mileage report?
1. Select a trip log from the Report panel section.
2. Click
Export report.
The Open dialog box will open.
3. Select the file from your local or network drive, enter a name for your mileage report, then click Save.
The mileage report is saved in .csv format.
How do I delete travel logs from my Mio?
1. Select a trip log from the Report panel section.
2. Click
Clear from your Mio.
3. Click
Yes to delete all travel logs.
Mileage Reporter preferences
My Mio Æ Options Æ Mileage Reporter
If you want to ... Then ...
receive a warning when mileage logs
are deleted from your Mio
select the Warn me when deleting all log files from my Mio check
box.
calculate fuel economy preference by
distance per volume
select the Distance per volume option.
calculate fuel economy preference by
volume per distance
select the Volume per distance option.
29
Backup and Restore
You can save backups of data from your Mio, and later restore it if required.
My Mio Æ Backup and Restore
How do I backup my Mio?
1. Click Create new backup.
2. Select the data you would like to backup.
IMPORTANT: NavPixTM, sound and video files will not be backed up.
3. Click OK.
The backup will be saved to your computer. The backup will be listed on the Backup & Restore window.
How do I restore a backup to my Mio?
1. Select the backup from the list that you would like to restore.
2. Click
Restore, then click OK.
The backup will be restored to your Mio.
How do I delete a backup?
1. Select the backup from the list that you would like to delete.
2. Click
Delete, then click OK.
The backup will be deleted.
Language
You can change the language for MioMore Desktop.
30
My Mio Æ Language
Simply select your preferred language.
Recover keys
Make sure you have an active Internet connection for this feature.
In case you lose the license files for your Mio, you can recover them using this feature.
Use this feature before you re-install the maps.
My Mio Æ Recover keys
Follow the prompts to complete the process.
31
Connect
Connect is not available for all models.
Connect is a MioMore Desktop application that allows you to search and install local POIs information from your
computer to your Mio. POI locations will be shown in My Places.
Before you begin, ensure your Mio is correctly plugged into your computer: Plug the large end of the USB cable
directly into a USB port on your computer (not a USB hub); plug the small end into − on the bottom of your Mio.
Make sure you have an active Internet connection for this feature.
MioMore Desktop Æ Connect
How do I search for a POI using Connect?
You can either search using the last known location on your Mio, or search for a new location by completing the
following:
1. From the country drop down box, select a Country.
2. From the
Region/State drop down box select a region or state if required.
3. In the
Place name box, enter the first few letters of a city and then select your preference.
4. Click
Continue.
The Available Services page will display.
5. Select your preferred search service.
The selected services page will display.
Depending on the country you are navigating, the available search services may vary.
6. Enter your search criteria, then click Search.
The Select search method page will display.
For some countries you are required to accept the terms of use.
7. Select your preferred search method, then click Search.
A list of search results will display.
32
8. Click next to the POI you want to install to your Mio.
The POI will be added to My Places.
9. Repeat step 8 to install more POIs to your Mio.
33
My Media
My Media is not available for all models.
My Media is a MioMore Desktop application allowing you to import music (.wav, .mp3, .wma) and video files from
your computer to your Mio.
Before you begin, ensure your Mio is correctly plugged into your computer: Plug the large end of the USB cable
directly into a USB port on your computer (not a USB hub); plug the small end into on the side of your Mio.
MioMore Desktop Æ My Media
np
o
q
Element Description
n My Library Displays a list of music files stored in the library on your computer.
Click a field to display its contents in the Music display area.
o My Mio Displays a list of folders containing playlists stored on the Mio internal
memory and memory card.
Click a folder to display its contents in the Music display area.
p Music display area Displays music file from the selected folder
q Toolbar When a music file is selected, the icons that can be used will be
available.
34
Toolbar
n o p q r s
The following options are available on the toolbar:
Button Description
n Import media to
library
Imports the selected music files from your computer to the music library in
MioMore Desktop.
o Transfer to your Mio
or
Transfer to your
computer
If you are viewing the music library in MioMore Desktop on your computer,
this will display as Transfer to your Mio. Click to transfer the selected music
files to your Mio.
If you are viewing the music library on your Mio, this will display as Transfer
to your computer. Click to transfer the selected music files to your
computer.
p Remove marked from
list
Deletes the selected music files from the music library in MioMore Desktop
on your computer.
q Delete Deletes the selected music files from the music library on your Mio.
r Mark all Selects all music files.
s Invert selection Reverse the selected and unselected music files.
How do I import a music file to my MioMore Desktop library?
1. From the Toolbar section select Import media to library.
The Open dialog box will display.
2. Navigate and select a music file you want to transfer.
3. Click Open.
The selected music file is imported and can be viewed in the display area.
4. Repeat steps 1-3 to transfer more music files.
How do I transfer a music file from MioMore Desktop to my
Mio?
1. From the display area select a music file by selecting the checkbox next to it.
2. Click
Transfer to your Mio.
The Select location window will display.
3. Select Mio or the MicroSD card as the destination for the file.
The selected music file is transferred to your Mio.
4. Repeat step 1, 2 and 3 to transfer additional music files to your Mio.
You can also drag and drop the music file to your Mio or the memory card. You can save the music files either
on your Mio’s internal memory or the memory card if one is inserted.
35
How do I remove a music file from my MioMore Desktop
playlist?
1. From the display area select a music file by selecting the checkbox next to it.
2. Click
Remove marked from list.
The selected file is removed from your MioMore Desktop playlist.
You can select multiple files to remove them from the playlist.
3. Repeat steps 1 and 2 to remove additional music files to your Mio.
Removing music files from the playlist will not delete the music files from your computer.
How do I remove a music file from my Mio playlist?
1. From the My Mio section select Albums.
Music files on your Mio are displayed in the display area.
2. Select a music file you want to remove and then click Remove marked from list in the toolbar section.
The selected music file is removed from the play list.
3. Repeat the process to remove additional music files from the playlist.
You can select multiple files to remove them from the playlist. Removing music files from the playlist will not
delete the music flies from your Mio.
How do I permanently delete a music file from my Mio playlist?
1. From the My Mio section select Albums.
Music files on your Mio are displayed in the display area.
2. Select a music file you want to delete, right click and select Delete.
The selected music file is permanently deleted from the play list as well as your Mio.
3. Repeat steps 1 and 2 to delete additional music files from your Mio.
What else I can do with My Media?
From the My Media section you can:
sort music files by ratings, date, artist, album, etc
preview a music file
add your ratings to the music files
If you want to ... Then ...
sort media files from My Library, expand a field and select your field
preference.
You can sort music files by the following fields:
Album name
Artist
Year of release
Rating
Genre
Date Added
36
If you want to ... Then ...
Music display
from the area, select a music file you want to
preview.
preview a media file
to play the music file
to pause the music file
to stop the music file
to forward the music file
to rewind the music file
from Music display area, select a music file you want
to rate.
right click and select Rating to rate the file.
You can rate music files as:
rate a music file
A Bad
AA OK
AAA Good
AAAA Very good
AAAAA Excellent
37
Appendices
For more information
User Manuals
The latest User Manuals can be downloaded from our website: www.mio.com
Register your Mio with MioClub
If you have a faulty product or you would like to speak to a member of our Technical Support team, register your Mio
on MioClub to obtain the Technical Support phone numbers for your Mio and your region.
38
Compliance
The software is based in part on the work of the Independent JPEG Group.
The software application uses a modified version of the Minimal XML Library, Flickr Library and Python Library. The libraries and thier
use are covered by the GNU Lesser General Public License (www.gnu.org/licenses/lgpl.html).
The modified source code is available from the following URLs:
Minimal XML Library: http://download.mio.com/opensource/gnu/mxml.zip
Flickr Library: http://download.mio.com/opensource/gnu/FlickrNet.zip
Python Library: http://download.mio.com/opensource/gnu/python25.zip
Speed Limit
Mio products are designed to be used as an aid to safer driving. Mio does not condone speeding or any other failure to comply with your
local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts
NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee
the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty
for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In
some countries the data information regarding speed limits may conflict with local law and/or regulations. It is your responsibility to make
sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.
Safety Camera POIs
Mio products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras,
which will enable you to monitor your speed through these areas. Mio does not warrant that all types and locations of safety camera data
are available, as cameras may be removed, relocated or new cameras installed. Mio does not condone speeding or any other failure to
comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful
manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device.
Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a
fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any
damages of any type. In some countries the data information regarding safety or speed cameras may conflict with local law and/or
regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at
your own risk.
Disclaimer
Mio operates a policy of ongoing development. Mio reserves the right to make changes and improvements to any of the products
described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other
presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such
differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material
respects.
39
Copyright
© 2009 MiTAC International Corporation. Mio is a registered trademark of MiTAC International Corporation and is used under licence by
Mio Technology NZ Ltd. All rights reserved.
The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing
restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.
Back-On-Track, Drive-Away, MioMore Desktop, Mio Spirit, NavPix, Slide Touch and Turn-by-Turn are either registered trademarks or
trademarks of MiTAC International Corporation and are used under licence by Mio Technology NZ Ltd. All rights reserved.
MicroSD and the MicroSD logo are trademarks of SD Card Association.
This product uses the Flickr API but is not endorsed or certified by Flickr.
All other trademarks and registrations are the property of their respective owners.
Revision: R01
(6/2009)

Navigation menu
