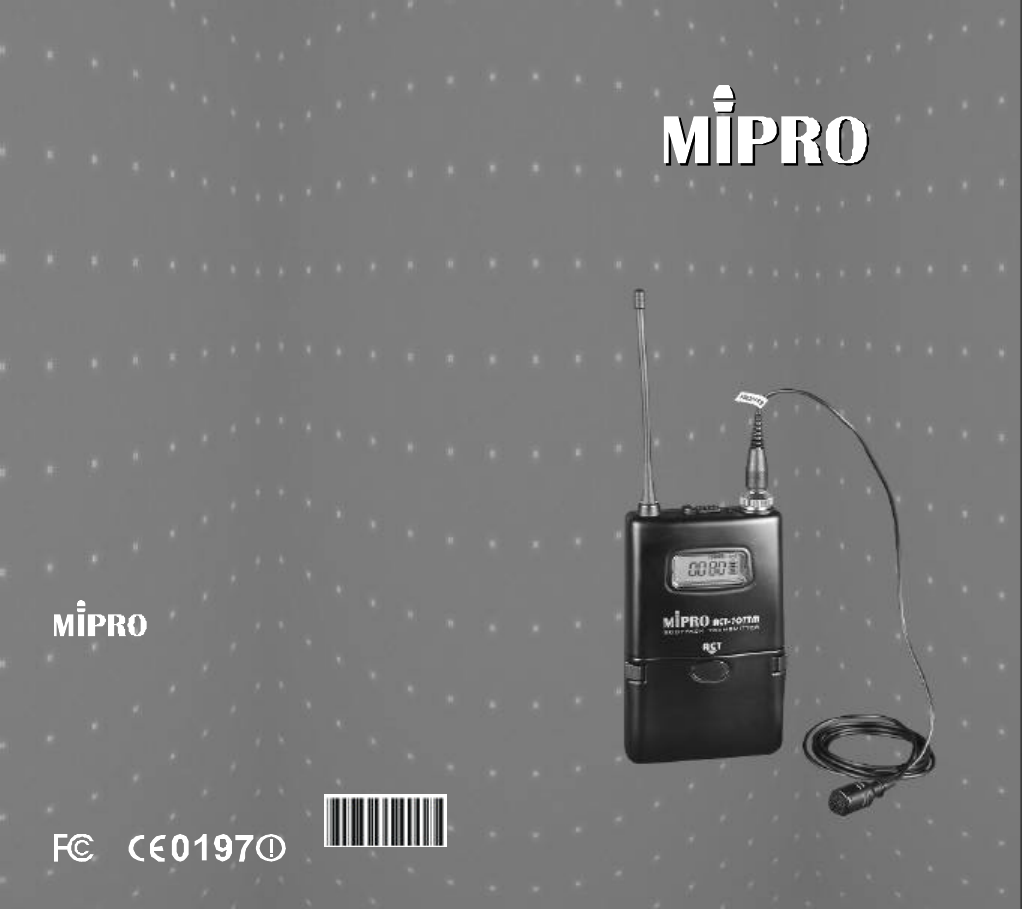

Mipro Electronics Co ACT707TM Wireless Microphone User Manual ACT707TM 2CE160
Mipro Electronics Co Ltd Wireless Microphone ACT707TM 2CE160
User Manual

ACT-707TMWirelessMicrophone
ACT-707TMWirelessMicrophone
2CE160
InstructionManual
ElectronicsCo.,Ltd.
Headoffice:814,Pei-KangRoad,Chiayi,600,Taiwan.
Taipeioffice:5,Lane118,Sung-tehRoad,110,Taipei,Taiwan.
Web-http://www.mipro.com.tw
E-mail:mipro@mipro.com.tw

3.TransmittingAntenna:1/4transmittingantenna.
4.TransmitterHousing:PackagesthePCBandbattery.
5.Multi-FunctionLCDDisplay
6.ACTSignalReceptor:ReceivingACTsignaland
adjustingfrequencyautomatically.
7.GainControl:Adjuststhedesirousinputgain.
8.GT/MTLevelSelector:SwitchtoGTpositionwhen
underusageofelectricguitarorany"LineIn"audio.
Whenconnectstoacondensermicrophoneora
wiredmicrophone,switchtoMTpositionandthe
gaincontrolcanserveasinputsensitivityadjustor.
9.BatteryCompartmentandCover:Accommodates
two1.5V(AA)batteries.
10.DetachableBeltClip:Allows360degreesrotatingto
suittransmittingangles.Todetachsimplyusea
screwdriverata45degreeangletounfasten.see
diagrambelow.
λ
1 2
1.PARTSNAMEANDFUNCTIONS
(Fig.1)
BodypackTransmitter BodypackTransmitter
4
9
8
7
6
5
2
3
10
GROUP
CHANNEL
BAT
1
Finelycraftedandergonomicallydesigned
ACT-707TMadaptsmagnesiumalloyhousing,
LCDpanel,andhigh-efficienttransmitting
circuitdesignwithlowspuriousshowcases
MIPRO'sprofessionalstyle.
1.AFInputJack:Connectstoeitheralavaliereora
headsetmicrophone.(See5waysofconnectionon
AFInputConnections)
2.PowerSwitch:SwitchtoONpositionforoperation.
SwitchtoOFFpositionwhennotinuse.

①×
②×
③×
AATYPEBATTERY2
CARRYINGSTORAGEBAG1
INSTRUCTIONMANUAL1
FURNISHEDACCESSORIES:
Yes
10mW(oraccordingtoregulations)
PLLSynthesizer
<-55dBc
0dBV
Condenser
AATYPE2
145gs
×
1056625××
ITEM SPECIFICATIONS
SPECIFICATION:
3 4
2.OPERATINGINSTRUCTIONS
1 3
4
2
GROUP
CHANNEL
BAT
OFF
Lavalier
Headset
Pleaseaimofthe
fillisterandinsert
theconnector
(Fig.2)
BodypackTransmitter BodypackTransmitter
CapsuleConnector
1.ToadjustGT/MTSwitch(9),andGainControl(7),
simplypushdownbothsnaplocksonthesidesof
batterycoverandflipitbackwardstoexposethe
adjustmentpanel.
2.TheLEDindicatorflashesbrieflywhenpoweron
indicatingnormalbatterystatus.Ifnoflashoccursit
haseithernobattery,thebatteryisdrainedorinstalled
incorrectly.Changeaccordingly.
3.Plugthemicrophoneconnectorintotheinputjackand
tightentheconnectorscrewclockwisedirectionas
shownin(Fig.2). on
ACTFunction
RFOutputPower
OscillationMode
SpuriousEmissions
MaximumInputLevel
MicrophoneCapsule
Battery
Weight(g)
Dimensions(m/m)

AUDIO
SHIELD
4
3
2
1
PIN
SHIELD
AUDIO
BIAS
3
4
PIN1
2
AUDIO
SHIELD 1
4
3
2
PIN
SHIELD
AUDIO
3
2 1 PIN
4
3
2
1
SHIELD
AUDIO
1
3
4
2
PIN
13
4
2
1 3
4
2
13
4
2
1 3
4
2
13
4
2
5 6
3.AFINPUTCONNECTIONS
(1)2-WireElectretcondenser
microphoneCapsule
(2)3-WireElectretcondensermicrophoneCapsule
(3)DynamicMicrophone
(5)Line-in(Impedance8KATT.10dB)Ω
(4)ElectricGuitar
BodypackTransmitter BodypackTransmitter
ERR
GROUP
CHANNEL
BAT
4.FUNCTIONSOFLCDDISPLAY
1.ERRMessage:When"ERR"appears,itmeans
"OperationError".Pleaserefertothefollowingcodes
todiagnosewhicherroryouareexperiencing.
ERRno01EEPROMisnotbeingprogrammedor
internaldataerror.
→
ERRno02Fortestingonly.→
ERRno03Thefrequencyyouareabouttoprograminto
thesystemexceedsmicrophone'supperlimit.
(Atthistime,microphoneisstilloperatable
andthefrequencyremainsunchanged.To
clearthe"ERR"messageinLCDdisplay,
simplyturnoffthepowerandswitchbackon.)
→
ERRno04Thefrequencyyouareabouttoprograminto
thesystemisbelowmicrophone'sfrequency
lowerlimit.(Atthistime,microphoneisstill
operatableandthefrequencyremains
unchanged.Toclearthe"ERR"messagein
LCDdisplay,simplyturnoffthepowerand
switchbackon.)
→
2."Group"&"Channel":Whenbothitemsareshown,
theyindicatethattheuseriscurrentlyusingthepre-
programmedfrequencyinthereceiver.
3."Channel"Only:If"Channel"istheonlyitemshownin
thedisplay,itindicatestheuserisusingthe
personalizedfrequency.(Suchfrequencycanonlybe
programmedviaMIPRO'sACTSoftwareandavailable
onACT-707MConly.)

1.Pushingdownbothsnaplocksonthesidesofbattery
covertoopenbatterycover.Takeoutthebatteries.
Fig.(3).
2.Inserttwo1.5(AA)batteriesintothebattery
compartmentaccordingtothecorrectpolarityas
showninFig.(4).Thenpushuptoclosethebattery
compartmentasshowninFig.(4).
7 8
5.BATTERYINSTALLATION
(Fig.3)
(Fig.4)
100% 80% 40% 10% 0%
4.BatteryStatus:
BatteryStatus:Whenthebatteryhaslessthan10%
powerremaining,batteriesmustbereplaced.If
undervoltagecontinues,LCDwillshow"PoFF"andshut
downthesystemtoavoidbatterybeingover-discharged.
5.SwitchOff:
Whenswitchthepowerknobto"Off"position,LCD
willshow"PoFF"first.Then,thesystemiscompletely
shutdownandnofurthermessagewillbedisplayed.
BodypackTransmitter BodypackTransmitter
PS:Whenthemicrophoneisnotinuse:
Makesurethepowerofthemicrophoneisoff.Ifthe
microphonewillnotbeusedforsometime,please
removethebatteriesfromthebatterycompartmentto
avoidbatteryleakageandresultindamagedbattery
springsandcircuit.Ifarechargeablebatterywas
used,takeitoutandrechargeit.

BodypackTransmitter NOTE:
910
Notice:
Thechangesormodificationsnotexpresslyapproved
bythepartyresponsibleforcompliancecouldvoidthe
user'sauthoritytooperatetheequipment.
IMPORTANTNOTE:
TocomplywiththeFCCRFexposurecompliance
requirements,nochangetotheantennaorthedeviceis
permitted.Anychangetotheantennaorthedevicecould
resultinthedeviceexceedingtheRFexposure
requirementsandvoiduser'sauthoritytooperatethe
device.
