Mipro Electronics Co ACT7TA Transmitter User Manual ACT 7T 2CE243

Mipro Electronics Co Ltd Transmitter ACT 7T 2CE243

Users Manual

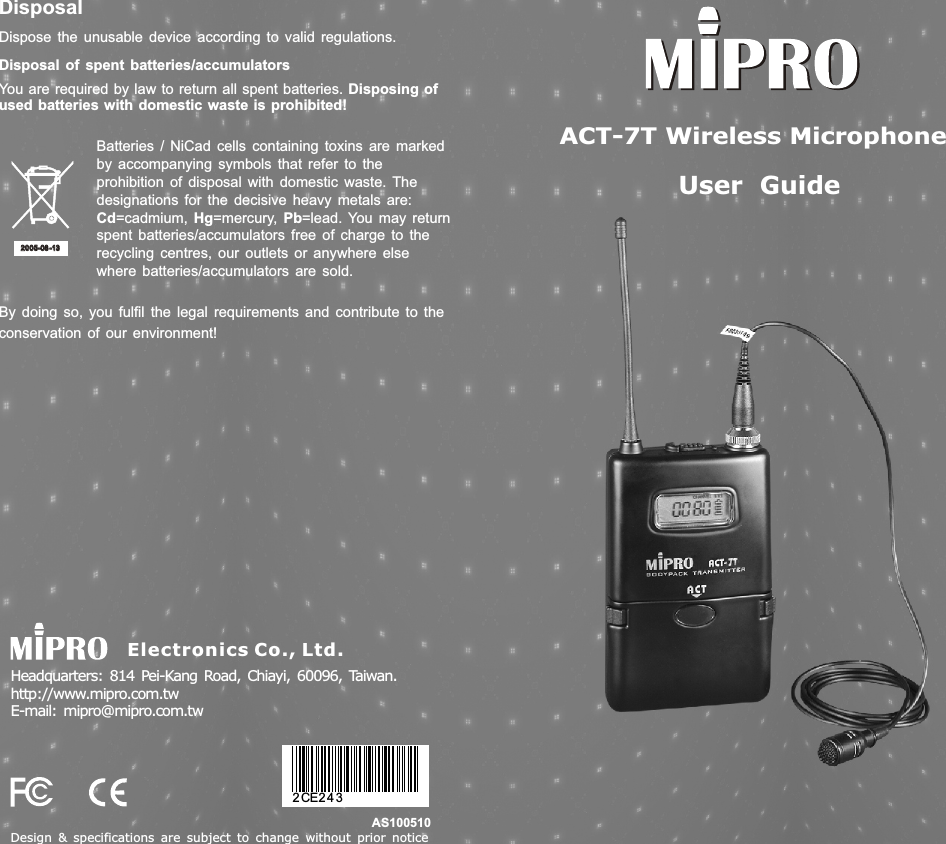

DisposalDispose the unusable device according to valid regulations.Disposal of spent batteries/accumulatorsYou are required by law to return all spent batteries. Disposing of used batteries with domestic waste is prohibited!By doing so, you fulfil the legal requirements and contribute to the conservation of our environment!20 05-08 -1320 05-08 -13Batteries / NiCad cells containing toxins are marked by accompanying symbols that refer to the prohibition of disposal with domestic waste. The designations for the decisive heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead. You may return spent batteries/accumulators free of charge to the recycling centres, our outlets or anywhere else where batteries/accumulators are sold.ACT-7T Wireless MicrophoneUser Guide2 CE2 4 3Design & specifications are subject to change without prior noticeAS100510Electronics Co., Ltd.Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan.http://www.mipro.com.twE-mail: mipro@mipro.com.tw

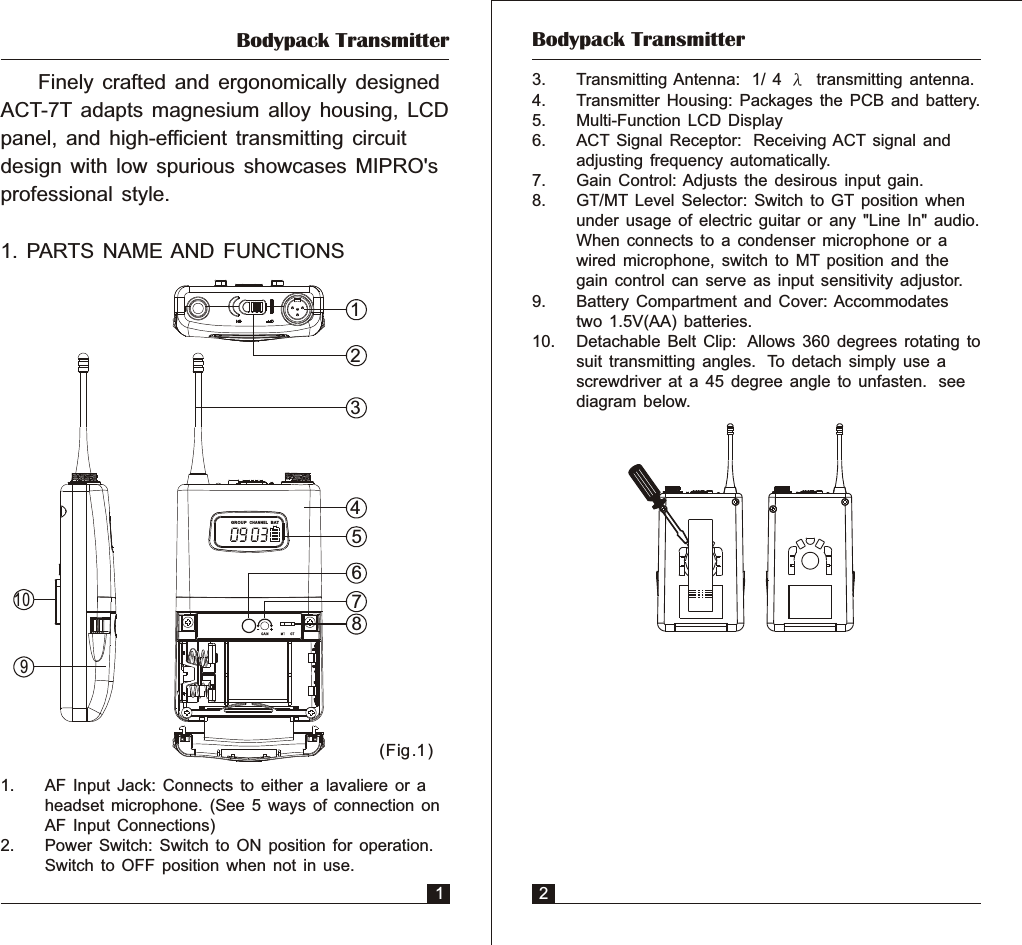

3. Transmitting Antenna: 1/ 4 λ transmitting antenna.4. Transmitter Housing: Packages the PCB and battery.5. Multi-Function LCD Display6. ACT Signal Receptor: Receiving ACT signal and adjusting frequency automatically.7. Gain Control: Adjusts the desirous input gain.8. GT/MT Level Selector: Switch to GT position when under usage of electric guitar or any "Line In" audio. When connects to a condenser microphone or a wired microphone, switch to MT position and the gain control can serve as input sensitivity adjustor.9. Battery Compartment and Cover: Accommodates two 1.5V(AA) batteries.10. Detachable Belt Clip: Allows 360 degrees rotating to suit transmitting angles. To detach simply use a screwdriver at a 45 degree angle to unfasten. see diagram below.1 21. PARTS NAME AND FUNCTIONS(Fig.1)Bodypack Transmitter Bodypack Transmitter4987652310GRO UPCHA NNE LBAT1 Finely crafted and ergonomically designed ACT-7T adapts magnesium alloy housing, LCD panel, and high-efficient transmitting circuit design with low spurious showcases MIPRO's professional style.1. AF Input Jack: Connects to either a lavaliere or a headset microphone. (See 5 ways of connection on AF Input Connections)2. Power Switch: Switch to ON position for operation. Switch to OFF position when not in use.

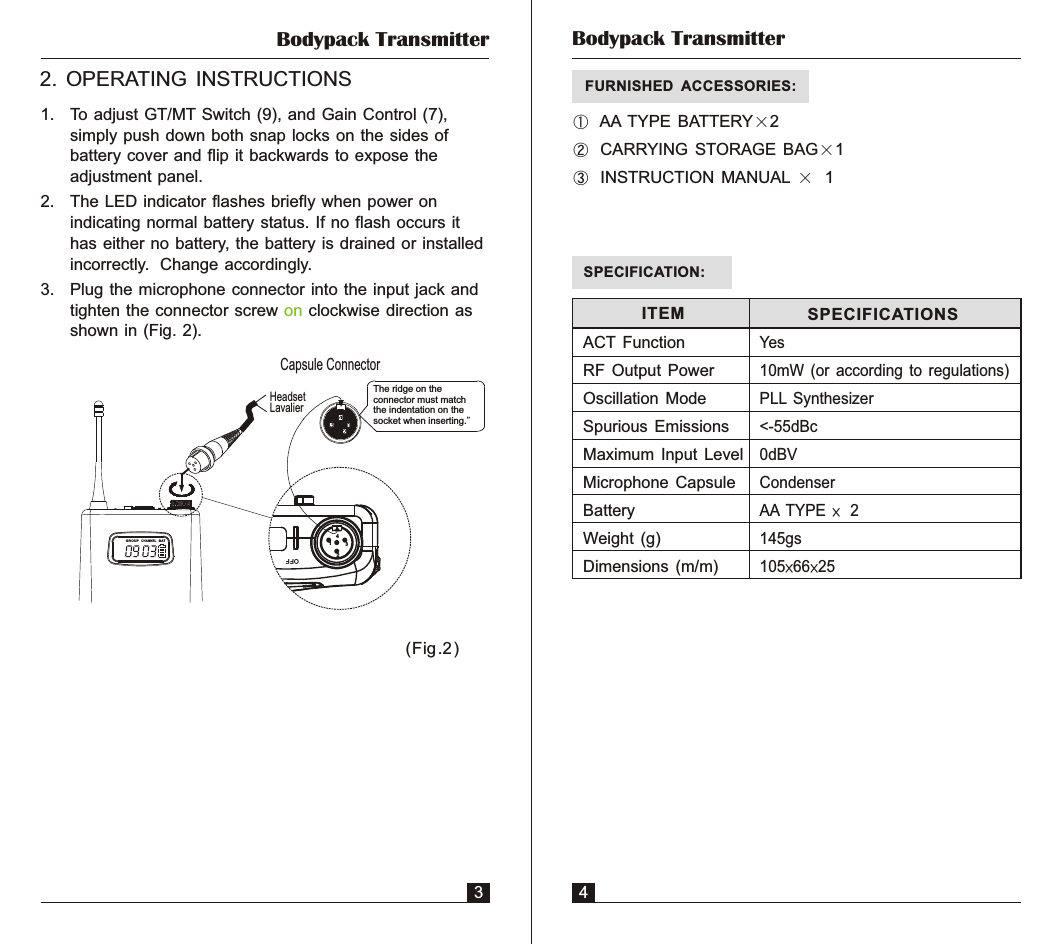

 AA TYPE BATTERY×2  CARRYING STORAGE BAG×1  INSTRUCTION MANUAL × 1FURNISHED ACCESSORIES:Yes10mW (or according to regulations)PLL Synthesizer<-55dBc0dBVCondenserAA TYPE × 2145gs105×66×25ITEM SPECIFICATIONSSPECIFICATION:342. OPERATING INSTRUCTIONS(Fig.2)Bodypack Transmitter Bodypack Transmitter1. To adjust GT/MT Switch (9), and Gain Control (7), simply push down both snap locks on the sides of battery cover and flip it backwards to expose the adjustment panel.2. The LED indicator flashes briefly when power on indicating normal battery status. If no flash occurs it has either no battery, the battery is drained or installed incorrectly. Change accordingly.3. Plug the microphone connector into the input jack and tighten the connector screw clockwise direction as shown in (Fig. 2).onACT FunctionRF Output PowerOscillation ModeSpurious EmissionsMaximum Input LevelMicrophone CapsuleBatteryWeight (g)Dimensions (m/m)LavalierHeadsetCapsule ConnectorThe ridge on the connector must match the indentation on the socket when inserting.” 1342GRO UPCHA NNELBATOFF

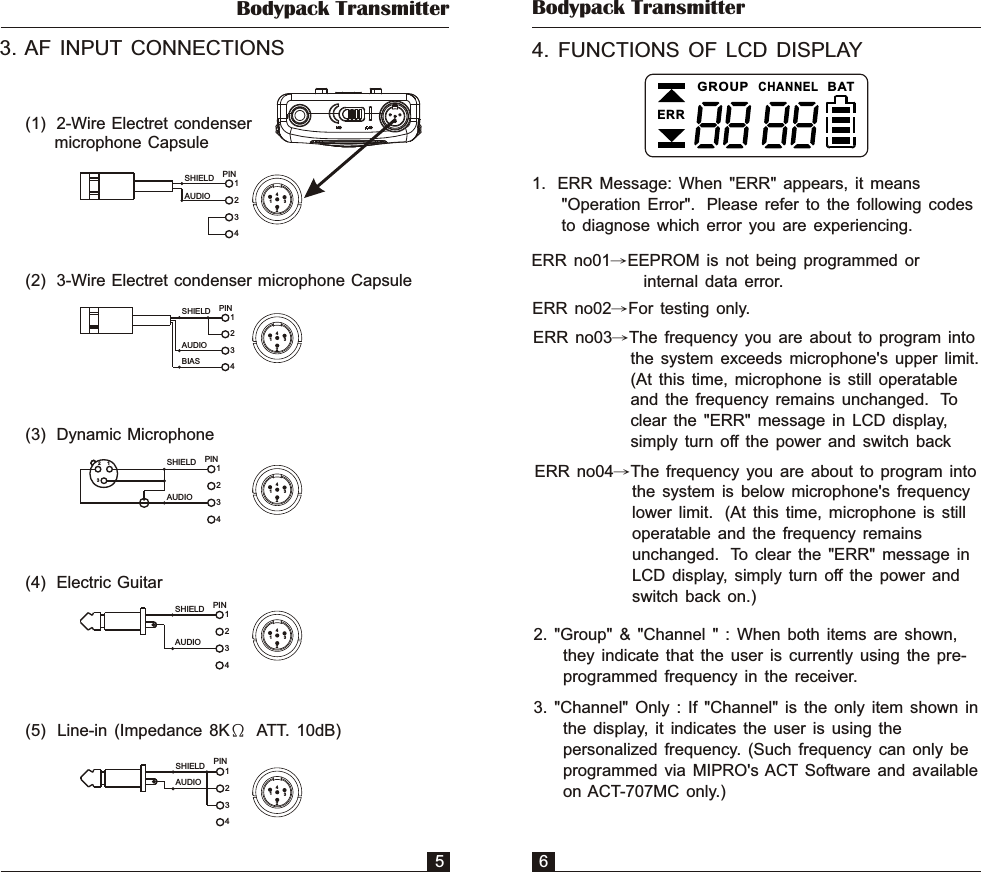

AUDIOSHIELD4321PINSHIELDAUDIOBIAS34PIN12AUDIOSHIELD 1432PINSHIELDAUDIO32 1 PIN4321SHIELDAUDIO1342PIN134213421342134213425 63. AF INPUT CONNECTIONS(1) 2-Wire Electret condenser microphone Capsule(2) 3-Wire Electret condenser microphone Capsule(3) Dynamic Microphone(5) Line-in (Impedance 8KΩ ATT. 10dB) (4) Electric GuitarBodypack Transmitter Bodypack TransmitterERRGROUPCHANNELBAT4. FUNCTIONS OF LCD DISPLAY1. ERR Message: When "ERR" appears, it means "Operation Error". Please refer to the following codes to diagnose which error you are experiencing.ERR no01→EEPROM is not being programmed or internal data error.ERR no02→For testing only.ERR no03→The frequency you are about to program into the system exceeds microphone's upper limit. (At this time, microphone is still operatable and the frequency remains unchanged. To clear the "ERR" message in LCD display, simply turn off the power and switch back ERR no04→The frequency you are about to program into the system is below microphone's frequency lower limit. (At this time, microphone is still operatable and the frequency remains unchanged. To clear the "ERR" message in LCD display, simply turn off the power and switch back on.)2. "Group" & "Channel " : When both items are shown, they indicate that the user is currently using the pre-programmed frequency in the receiver.3. "Channel" Only : If "Channel" is the only item shown in the display, it indicates the user is using the personalized frequency. (Such frequency can only be programmed via MIPRO's ACT Software and available on ACT-707MC only.)

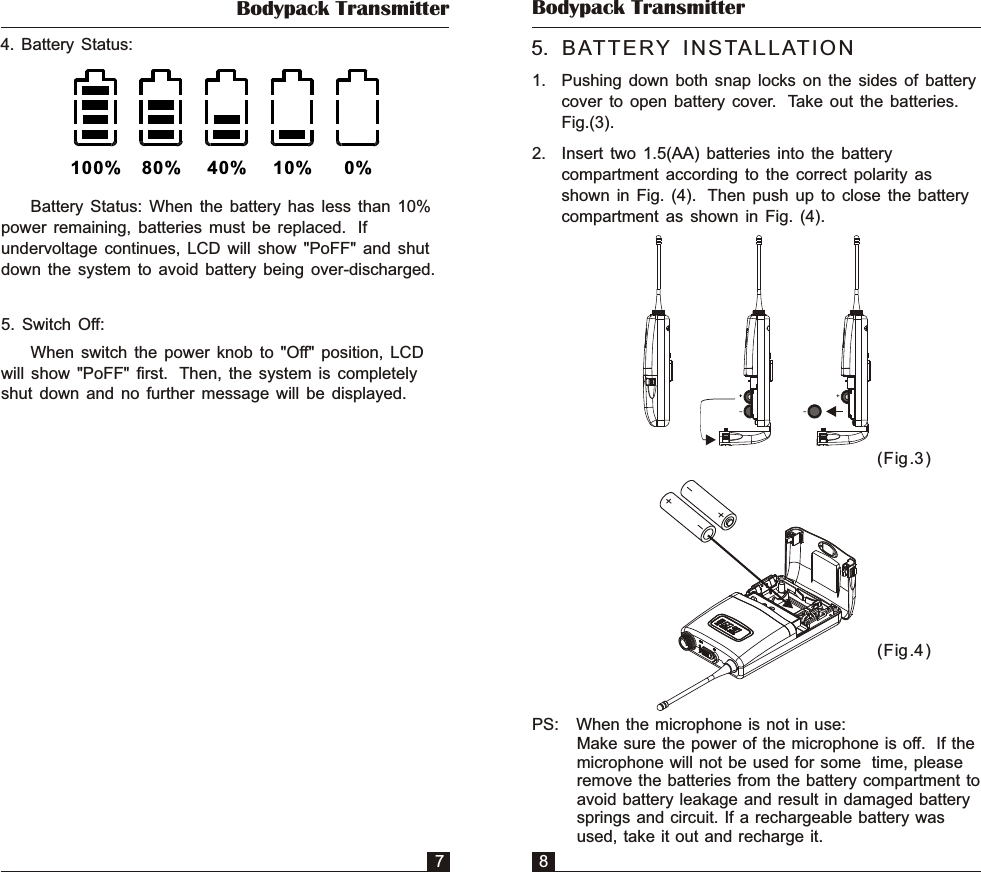

1. Pushing down both snap locks on the sides of battery cover to open battery cover. Take out the batteries. Fig.(3). 2. Insert two 1.5(AA) batteries into the battery compartment according to the correct polarity as shown in Fig. (4). Then push up to close the battery compartment as shown in Fig. (4).7 85. BAT T E RY INS TA LL AT IO N(Fig.3)(Fig.4)100% 80% 40% 10% 0%4. Battery Status: Battery Status: When the battery has less than 10% power remaining, batteries must be replaced. If undervoltage continues, LCD will show "PoFF" and shut down the system to avoid battery being over-discharged.5. Switch Off: When switch the power knob to "Off" position, LCD will show "PoFF" first. Then, the system is completely shut down and no further message will be displayed.Bodypack Transmitter Bodypack TransmitterPS: When the microphone is not in use: Make sure the power of the microphone is off. If the microphone will not be used for some time, please remove the batteries from the battery compartment to avoid battery leakage and result in damaged battery springs and circuit. If a rechargeable battery was used, take it out and recharge it.

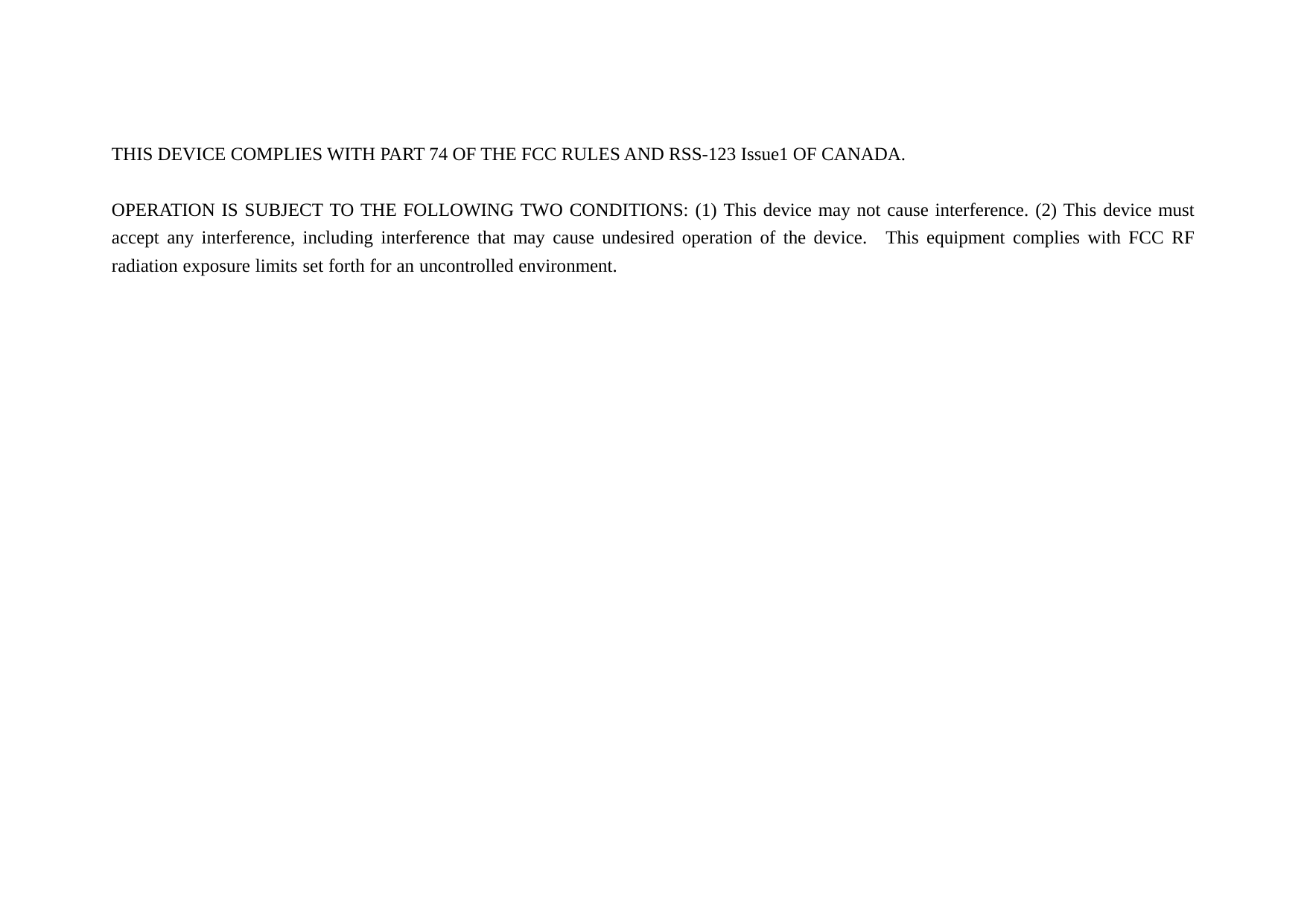

THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES AND RSS-123 Issue1 OF CANADA. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
