Mipro Electronics Co ACT80H18 Wideband Digital Handheld Transmitter User Manual ACT 80H 2CE465A X3 20120815

Mipro Electronics Co Ltd Wideband Digital Handheld Transmitter ACT 80H 2CE465A X3 20120815

Users Manual

MIPRO Electronics Co., Ltd.Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan.Web: www.mipro.com.twE-mail: mipro@mipro.com.twAS120815Design and specifications are subject to change without prior noticeACT-80H Wideband DigitalUser GuideHandheld Transmitter2 CE 4 6 5 A

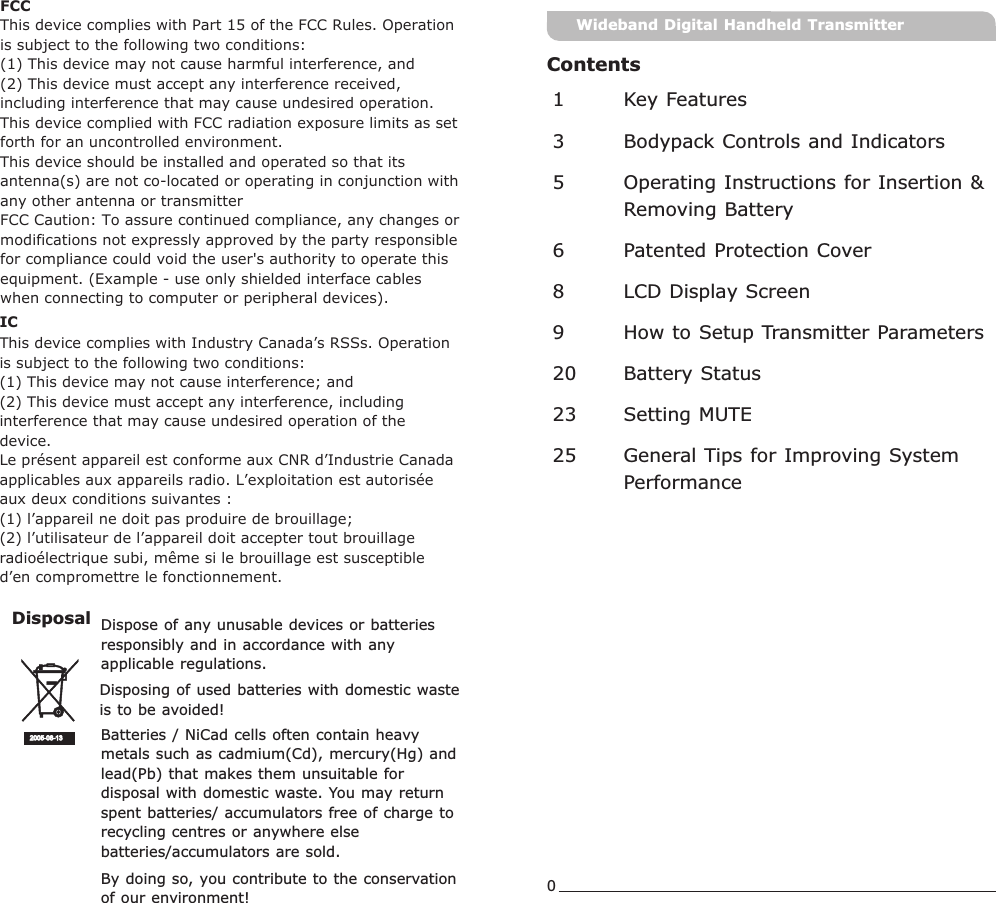

Dispose of any unusable devices or batteries responsibly and in accordance with any applicable regulations.Disposing of used batteries with domestic waste is to be avoided!Batteries / NiCad cells often contain heavy metals such as cadmium(Cd), mercury(Hg) and lead(Pb) that makes them unsuitable for disposal with domestic waste. You may return spent batteries/ accumulators free of charge to recycling centres or anywhere else batteries/accumulators are sold.By doing so, you contribute to the conservation of our environment!Disposal2005-08-13FCCThis device complies with Part 15 of the FCC Rules. Operationis subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received,including interference that may cause undesired operation.This device complied with FCC radiation exposure limits as setforth for an uncontrolled environment.This device should be installed and operated so that itsantenna(s) are not co-located or operating in conjunction withany other antenna or transmitterFCC Caution: To assure continued compliance, any changes ormodifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate thisequipment. (Example - use only shielded interface cableswhen connecting to computer or peripheral devices).1 Key Features3 Bodypack Controls and Indicators5 Operating Instructions for Insertion & Removing Battery6 Patented Protection Cover Display ScreenHow to Setup Transmitter Parameters20 Battery Status23258 LCD9Setting MUTEGeneral Tips for Improving System PerformanceContentsWideband Digital Handheld Transmitter0ICThis device complies with Industry Canada’s RSSs. Operationis subject to the following two conditions:(1) This device may not cause interference; and(2) This device must accept any interference, includinginterference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canadaapplicables aux appareils radio. L’exploitation est autoriséeaux deux conditions suivantes :(1) l’appareil ne doit pas produire de brouillage;(2) l’utilisateur de l’appareil doit accepter tout brouillageradioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

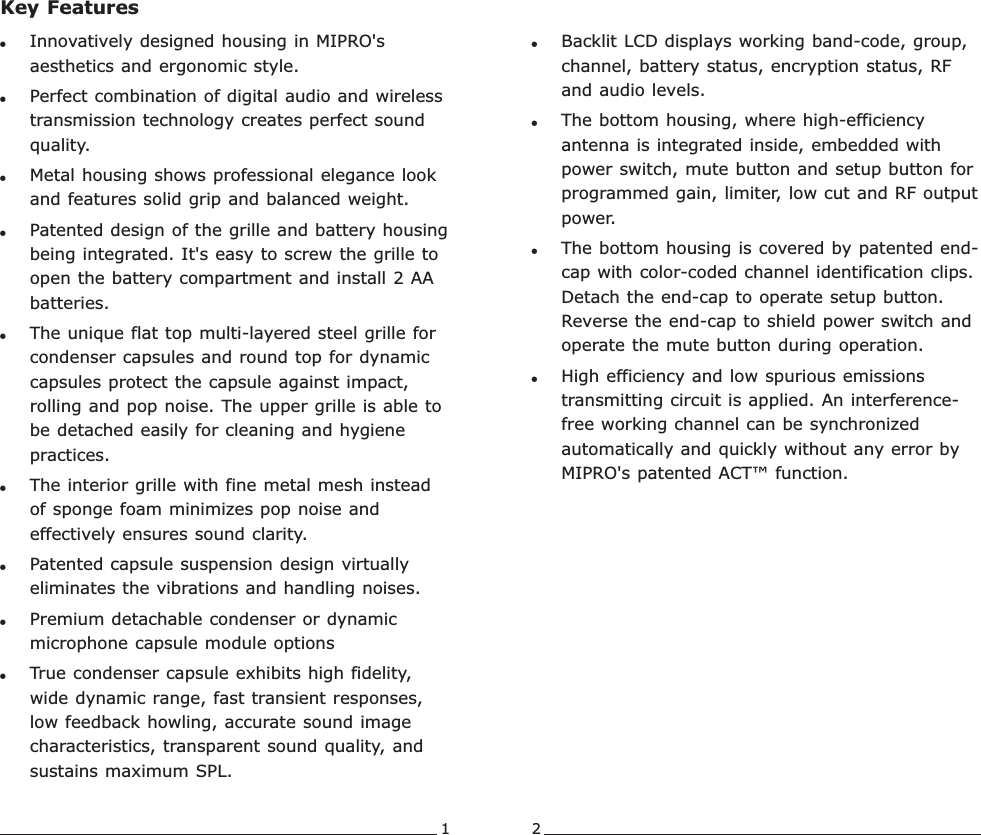

1 2!Innovatively designed housing in MIPRO's aesthetics and ergonomic style.!Perfect combination of digital audio and wireless transmission technology creates perfect sound quality.!Metal housing shows professional elegance look and features solid grip and balanced weight.!Patented design of the grille and battery housing being integrated. It's easy to screw the grille to open the battery compartment and install 2 AA batteries.!The unique flat top multi-layered steel grille for condenser capsules and round top for dynamic capsules protect the capsule against impact, rolling and pop noise. The upper grille is able to be detached easily for cleaning and hygiene practices.!The interior grille with fine metal mesh instead of sponge foam minimizes pop noise and effectively ensures sound clarity.!Patented capsule suspension design virtually eliminates the vibrations and handling noises.!Premium detachable condenser or dynamic microphone capsule module options!True condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, low feedback howling, accurate sound image characteristics, transparent sound quality, and sustains maximum SPL.!Backlit LCD displays working band-code, group, channel, battery status, encryption status, RF and audio levels.!The bottom housing, where high-efficiency antenna is integrated inside, embedded with power switch, mute button and setup button for programmed gain, limiter, low cut and RF output power.!The bottom housing is covered by patented end-cap with color-coded channel identification clips. Detach the end-cap to operate setup button. Reverse the end-cap to shield power switch and operate the mute button during operation.!High efficiency and low spurious emissions transmitting circuit is applied. An interference-free working channel can be synchronized automatically and quickly without any error by MIPRO's patented ACT™ function.Key FeaturesWideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter

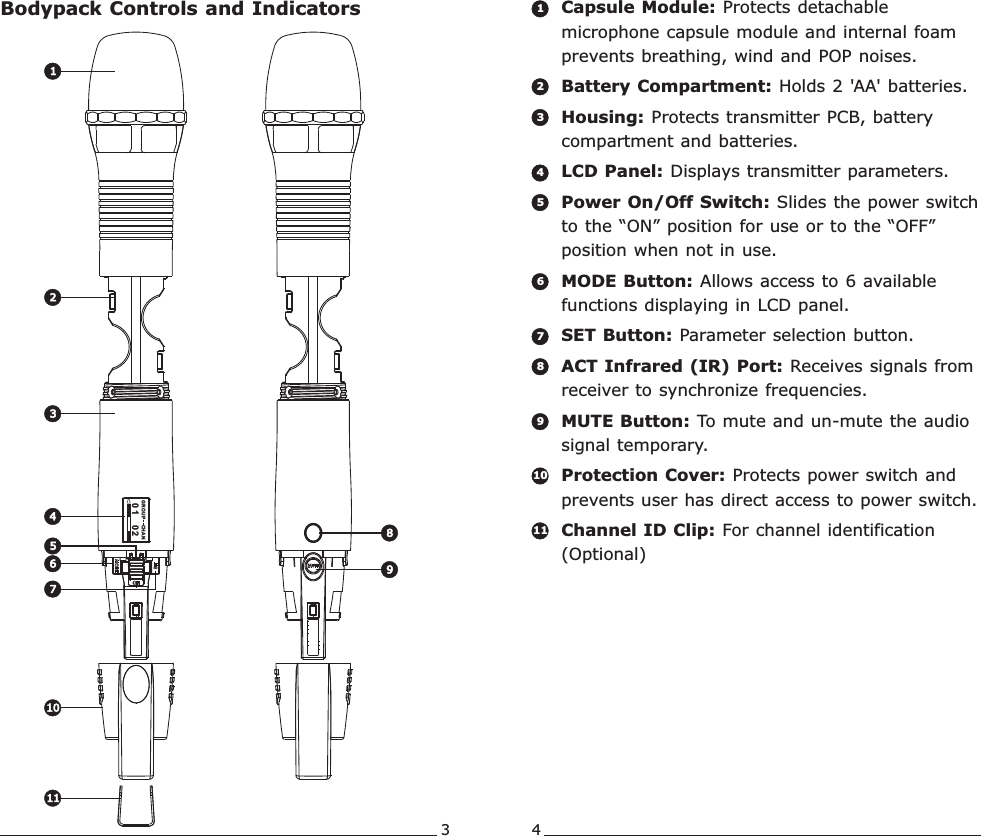

Capsule Module: Protects detachable microphone capsule module and internal foam prevents breathing, wind and POP noises.Battery Compartment: Holds 2 'AA' batteries.Housing: Protects transmitter PCB, battery compartment and batteries.LCD Panel: Displays transmitter parameters.Power On/Off Switch: Slides the power switch to the “ON” position for use or to the “OFF” position when not in use.MODE Button: Allows access to 6 available functions displaying in LCD panel.SET Button: ACT Infrared (IR) Port: Receives signals from receiver to synchronize frequencies.MUTE Button: To mute and un-mute the audio signal temporary.Protection Cover: Protects power switch and prevents user has direct access to power switch.Channel ID Clip: For channel identification (Optional)Parameter selection button.1234567891011Wideband Digital Handheld Transmitter Wideband Digital Handheld TransmitterBodypack Controls and Indicators0 1 0 2GR OUP C HAN123894101167534

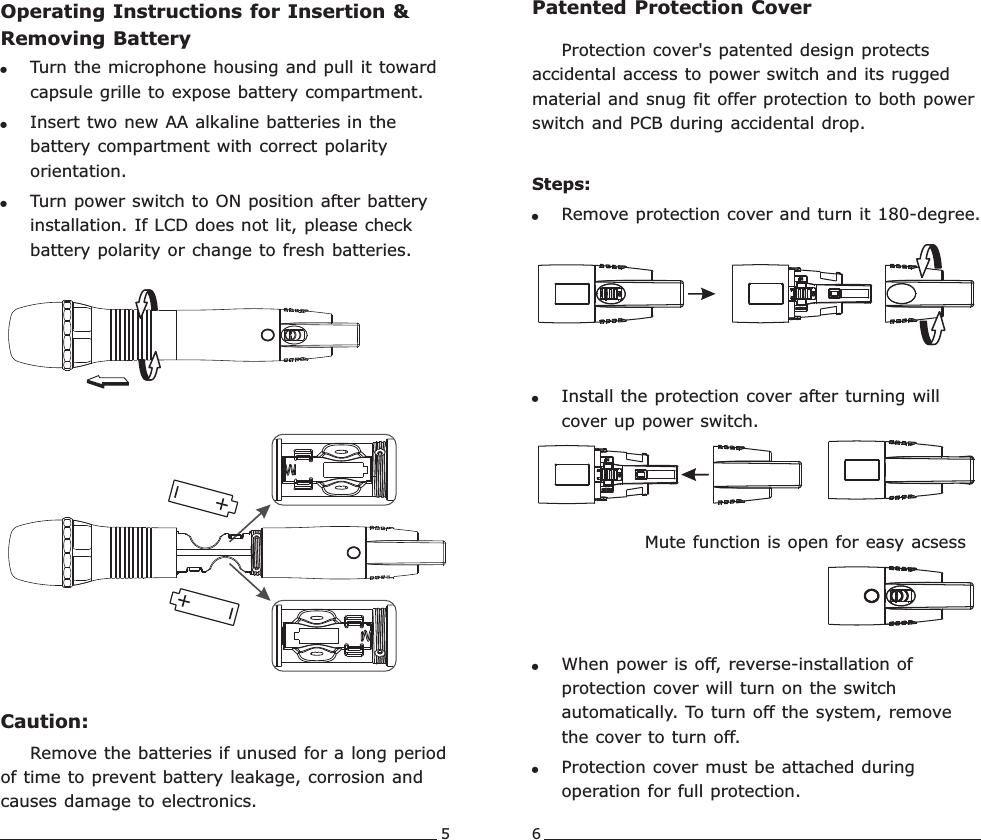

Protection cover's patented design protects accidental access to power switch and its rugged material and snug fit offer protection to both power switch and PCB during accidental drop.Steps:!Remove protection cover and turn it 180-degree.!Install the protection cover after turning will cover up power switch. Mute function is open for easy acsess!When power is off, reverse-installation of protection cover will turn on the switch automatically. To turn off the system, remove the cover to turn off.!Protection cover must be attached during operation for full protection.Patented Protection CoverWideband Digital Handheld Transmitter Wideband Digital Handheld TransmitterOperating Instructions for Insertion & Removing BatteryCaution:Remove the batteries if unused for a long period of time to prevent battery leakage, corrosion and causes damage to electronics.!!!Turn the microphone housing and pull it toward capsule grille to expose battery compartment.Insert two new AA alkaline batteries in the battery compartment with correct polarity orientation.Turn power switch to ON position after battery installation. If LCD does not lit, please check battery polarity or change to fresh batteries.56

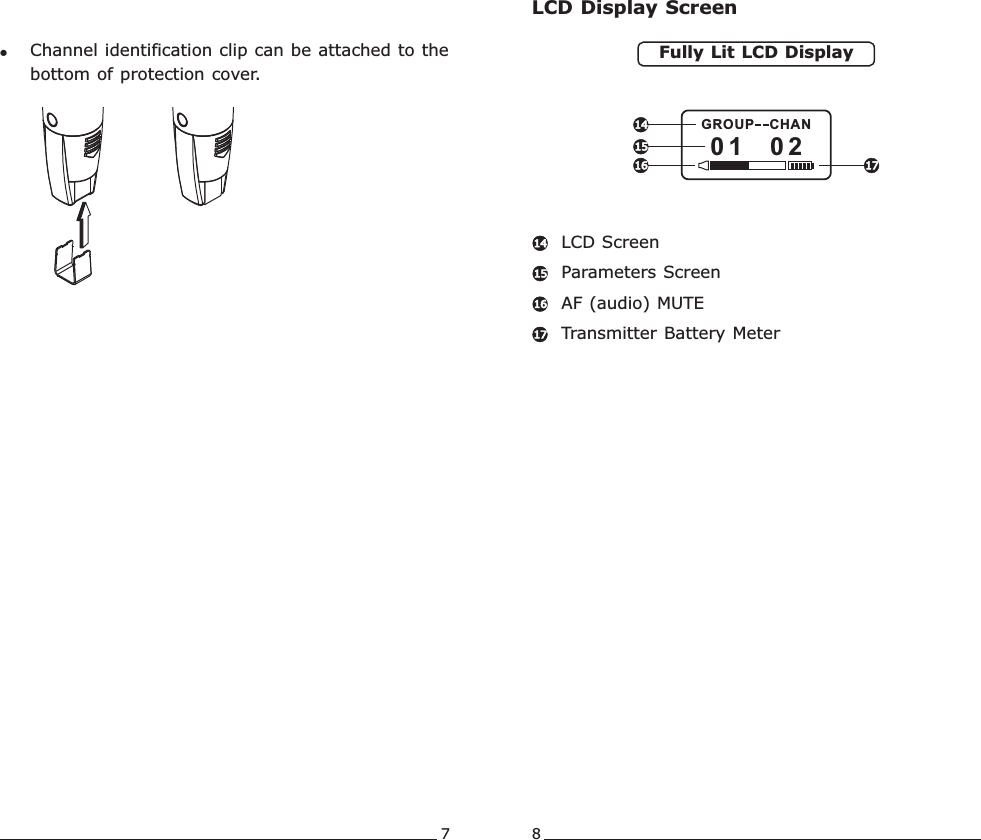

LCD Display ScreenLCD ScreenParameters ScreenAF (audio) MUTETransmitter Battery Meter 141516170 1 0 2GROUP CHAN14171516Fully Lit LCD DisplayWideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter!Channel identification clip can be attached to the bottom of protection cover. 78

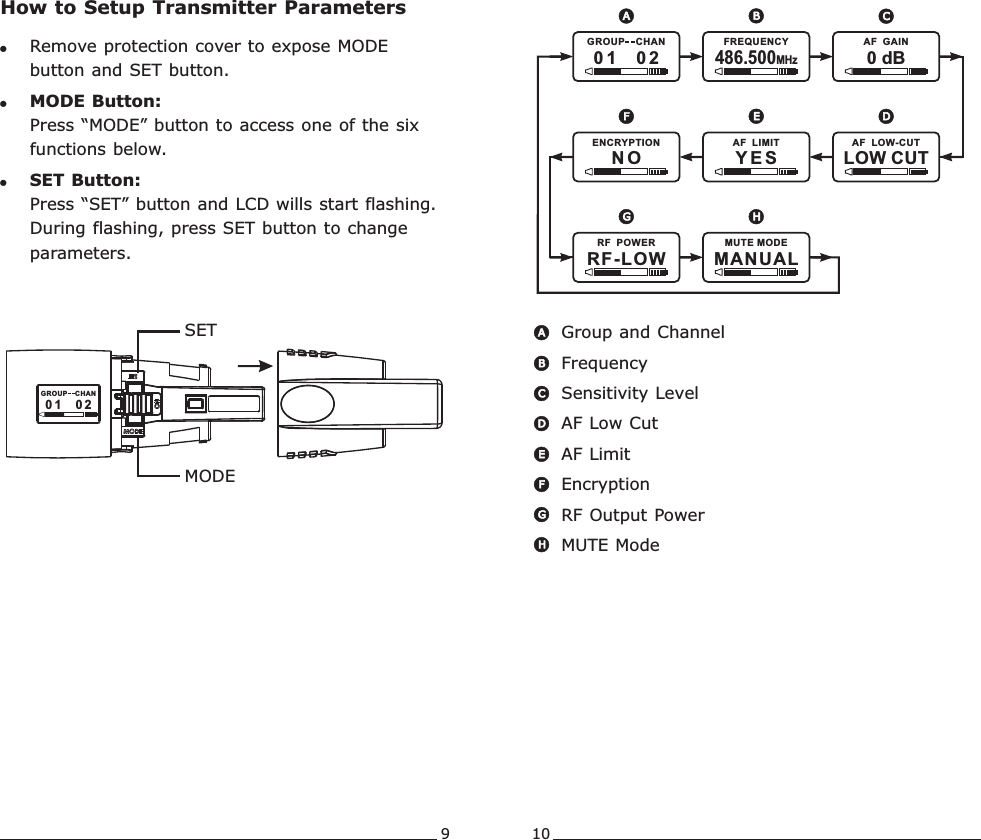

0 1 0 2GROUP CHANN OENCRYPTI ONY E SAF LIMITMA N UALMUTE MODE486.500MHzFREQUENCY0 dBAF GAINLOW CUTAF LOW- CUTRF - LOWRF POWERGroup and ChannelFrequency Sensitivity LevelAF Low CutEncryptionRF Output PowerMUTE ModeAF LimitBACDEFGHAFGBEHCDHow to Setup Transmitter Parameters!Remove protection cover to expose MODE button and SET button.!MODE Button: Press “MODE” button to access one of the six functions below.!SET Button: Press “SET” button and LCD wills start flashing. During flashing, press SET button to change parameters.MODESET0 1 0 2GR OUP CHA N910Wideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter

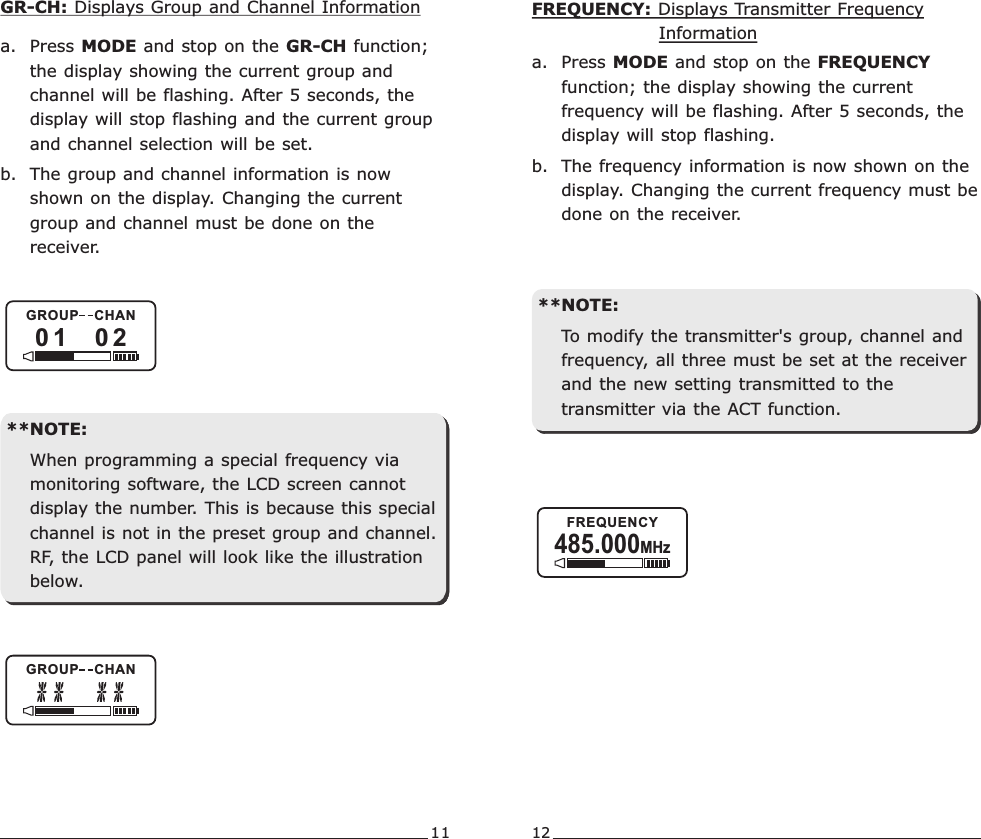

11 12Wideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter**NOTE:When programming a special frequency via monitoring software, the LCD screen cannot display the number. This is because this special channel is not in the preset group and channel. RF, the LCD panel will look like the illustration below.GR-CH: Displays Group and Channel Informationa. Press MODE and stop on the GR-CH function; the display showing the current group and channel will be flashing. After 5 seconds, the display will stop flashing and the current group and channel selection will be set.b. The group and channel information is now shown on the display. Changing the current group and channel must be done on the receiver.0 1 0 2GROUP CHANGROUP CHAN485.000MHzFREQUENCYFREQUENCY: Displays Transmitter Frequency Informationa. Press MODE and stop on the FREQUENCY function; the display showing the current frequency will be flashing. After 5 seconds, the display will stop flashing.b. The frequency information is now shown on the display. Changing the current frequency must be done on the receiver.**NOTE:To modify the transmitter's group, channel and frequency, all three must be set at the receiver and the new setting transmitted to the transmitter via the ACT function.

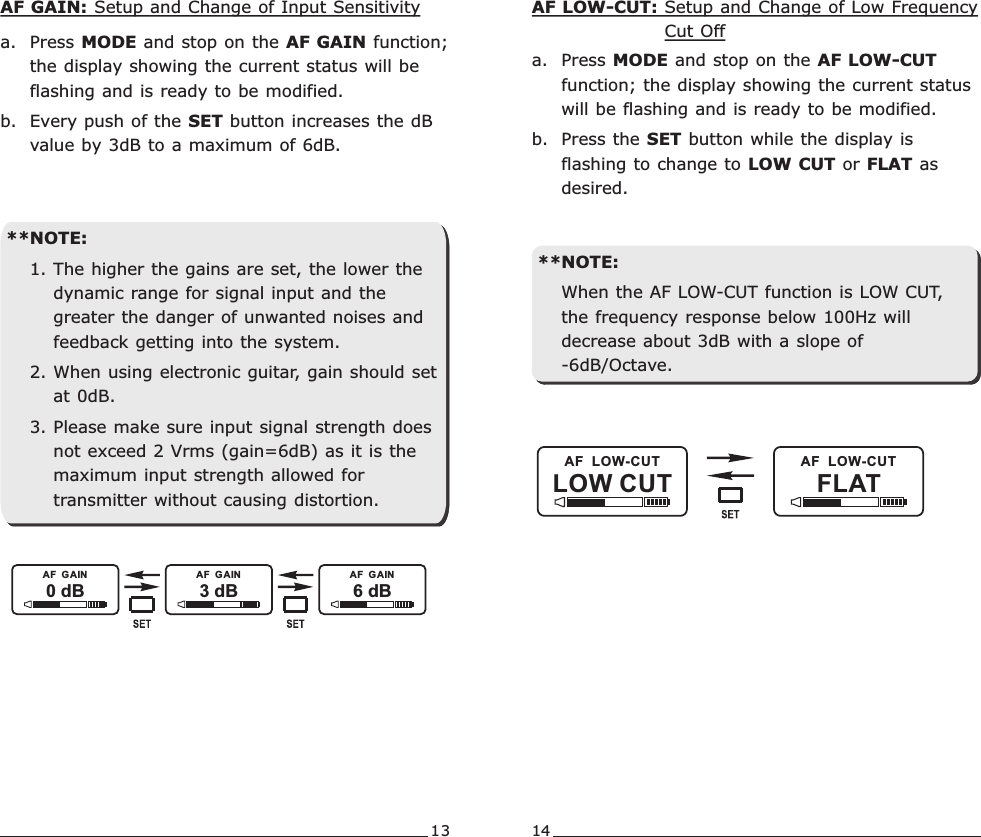

13 14Wideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter**NOTE:1. The higher the gains are set, the lower the dynamic range for signal input and the greater the danger of unwanted noises and feedback getting into the system. 2. When using electronic guitar, gain should set at 0dB.3. Please make sure input signal strength does not exceed 2 Vrms (gain=6dB) as it is the maximum input strength allowed for transmitter without causing distortion.AF GAIN: Setup and Change of Input Sensitivitya. Press MODE and stop on the AF GAIN function; the display showing the current status will be flashing and is ready to be modified.b. Every push of the SET button increases the dB value by 3dB to a maximum of 6dB.AF LOW-CUT: Setup and Change of Low Frequency Cut Offa. Press MODE and stop on the AF LOW-CUT function; the display showing the current status will be flashing and is ready to be modified.b. Press the SET button while the display is flashing to change to LOW CUT or FLAT as desired.LOW CUTAF LOW-CUTFLATAF LOW-CUT**NOTE:When the AF LOW-CUT function is LOW CUT, the frequency response below 100Hz will decrease about 3dB with a slope of -6dB/Octave.6 dBAF GAIN3 dBAF GAIN0 dBAF GAIN

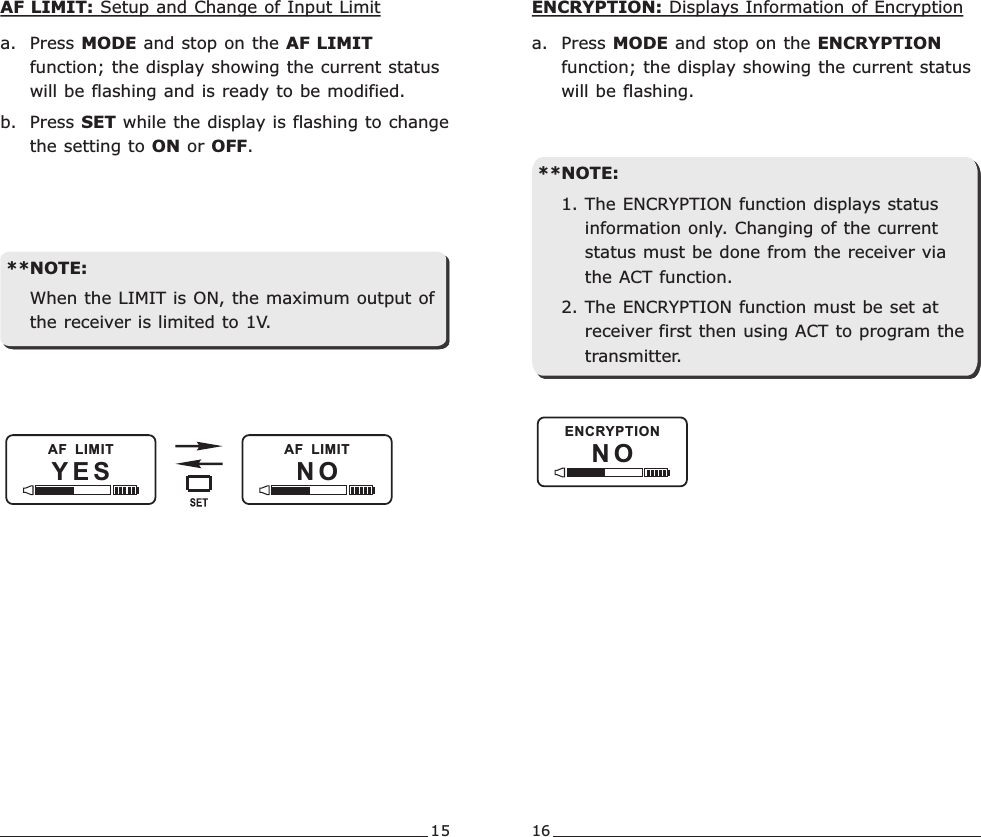

15 16Wideband Digital Handheld Transmitter Wideband Digital Handheld TransmitterY E S N OAF LIMIT AF LIMITAF LIMIT: Setup and Change of Input Limita. Press MODE and stop on the AF LIMIT function; the display showing the current status will be flashing and is ready to be modified.b. Press SET while the display is flashing to change the setting to ON or OFF.**NOTE:When the LIMIT is ON, the maximum output of the receiver is limited to 1V.N OENCRYPTIONENCRYPTION: Displays Information of Encryptiona. Press MODE and stop on the ENCRYPTION function; the display showing the current status will be flashing.**NOTE:1. The ENCRYPTION function displays status information only. Changing of the current status must be done from the receiver via the ACT function.2. The ENCRYPTION function must be set at receiver first then using ACT to program the transmitter.

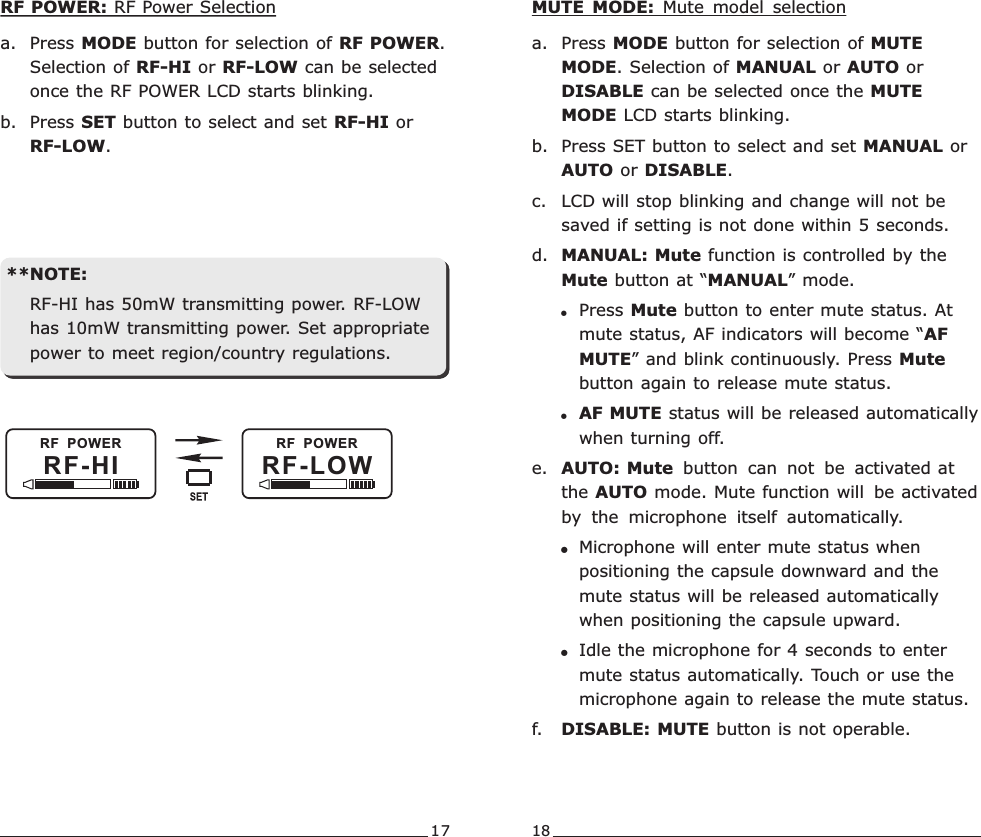

17 18Wideband Digital Handheld Transmitter Wideband Digital Handheld TransmitterRF -HIRF POWERRF -LOWRF POWERRF POWER: RF Power Selectiona. Press MODE button for selection of RF POWER. Selection of RF-HI or RF-LOW can be selected once the RF POWER LCD starts blinking. b. Press SET button to select and set RF-HI or RF-LOW.**NOTE:RF-HI has 50mW transmitting power. RF-LOW has 10mW transmitting power. Set appropriate power to meet region/country regulations.MUTE MODE: Mute model selectiona. Press MODE button for selection of MUTE MODE. Selection of MANUAL or AUTO or DISABLE can be selected once the MUTE MODE LCD starts blinking. b. Press SET button to select and set MANUAL or AUTO or DISABLE.c. LCD will stop blinking and change will not be saved if setting is not done within 5 seconds.d. MANUAL: Mute function is controlled by the Mute button at “MANUAL” mode.!Press Mute button to enter mute status. At mute status, AF indicators will become “AF MUTE” and blink continuously. Press Mute button again to release mute status.!AF MUTE status will be released automatically when turning off.e. AUTO: Mute button can not be activated at the AUTO mode. Mute function will be activated by the microphone itself automatically.!Microphone will enter mute status when positioning the capsule downward and the mute status will be released automatically when positioning the capsule upward.!Idle the microphone for 4 seconds to enter mute status automatically. Touch or use the microphone again to release the mute status.f. DISABLE: MUTE button is not operable.

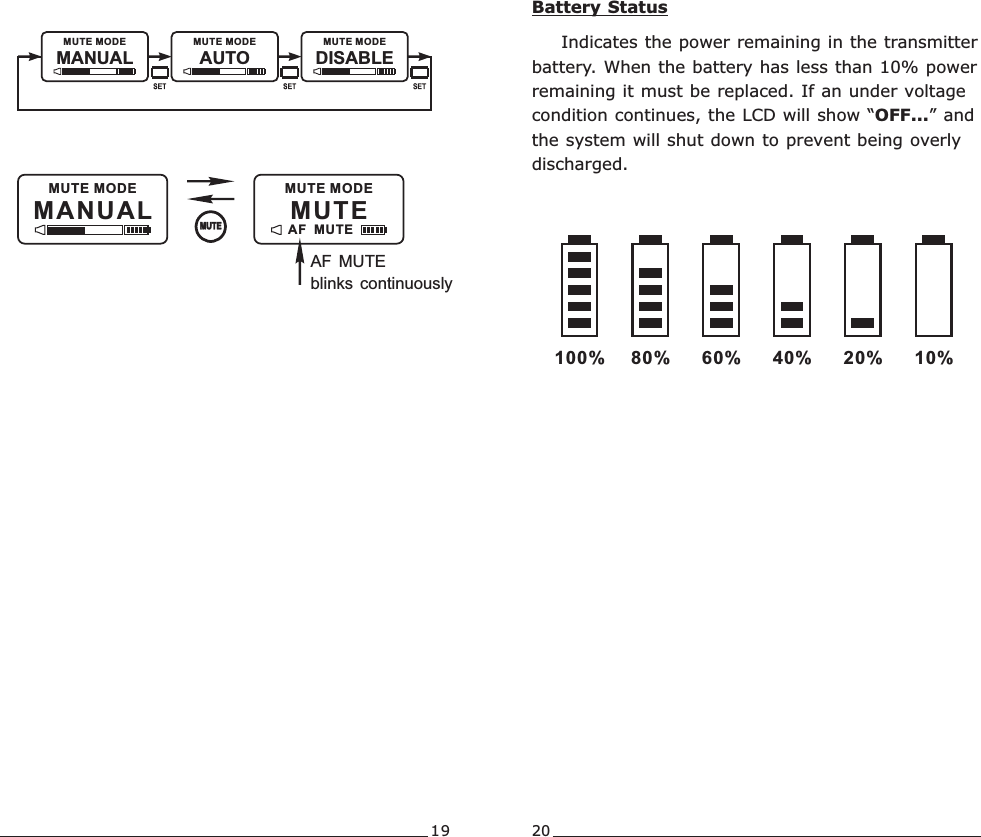

19 20Wideband Digital Handheld Transmitter Wideband Digital Handheld TransmitterBattery Status100% 80% 60% 40% 20% 10%Indicates the power remaining in the transmitter battery. When the battery has less than 10% power remaining it must be replaced. If an under voltage condition continues, the LCD will show “OFF...” and the system will shut down to prevent being overly discharged.MUTE MODEMA NUALAF MUTEMU TEMUTE MODEMUTEAF MUTE blinks continuouslyDISABLEAUTOMANUALMUTE MODEMUTE MODEMUTE MODE

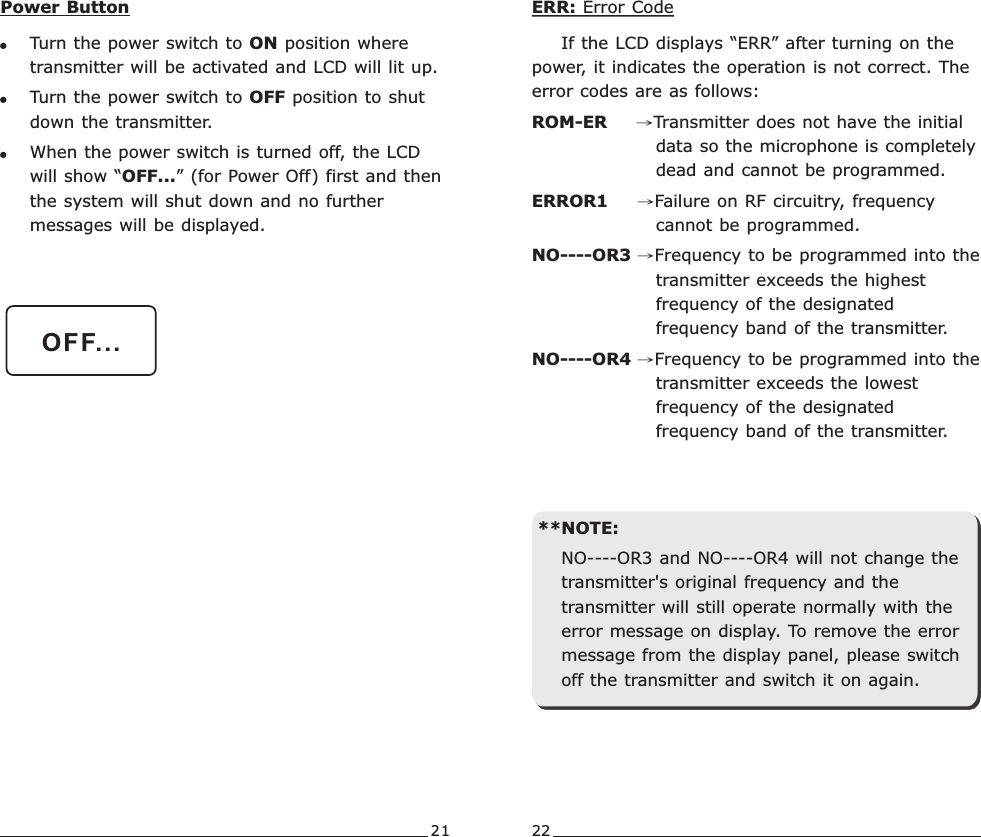

!Turn the power switch to ON position where transmitter will be activated and LCD will lit up.!Turn the power switch to OFF position to shut down the transmitter.!When the power switch is turned off, the LCD will show “OFF...” (for Power Off) first and then the system will shut down and no further messages will be displayed.Power ButtonOF F...ERR: Error CodeIf the LCD displays “ERR” after turning on the power, it indicates the operation is not correct. The error codes are as follows:ROM-ER →Transmitter does not have the initial data so the microphone is completely dead and cannot be programmed.ERROR1 →Failure on RF circuitry, frequency cannot be programmed.NO----OR3 →Frequency to be programmed into the transmitter exceeds the highest frequency of the designated frequency band of the transmitter.NO----OR4 →Frequency to be programmed into the transmitter exceeds the lowest frequency of the designated frequency band of the transmitter.**NOTE:NO----OR3 and NO----OR4 will not change the transmitter's original frequency and the transmitter will still operate normally with the error message on display. To remove the error message from the display panel, please switch off the transmitter and switch it on again.21 22Wideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter

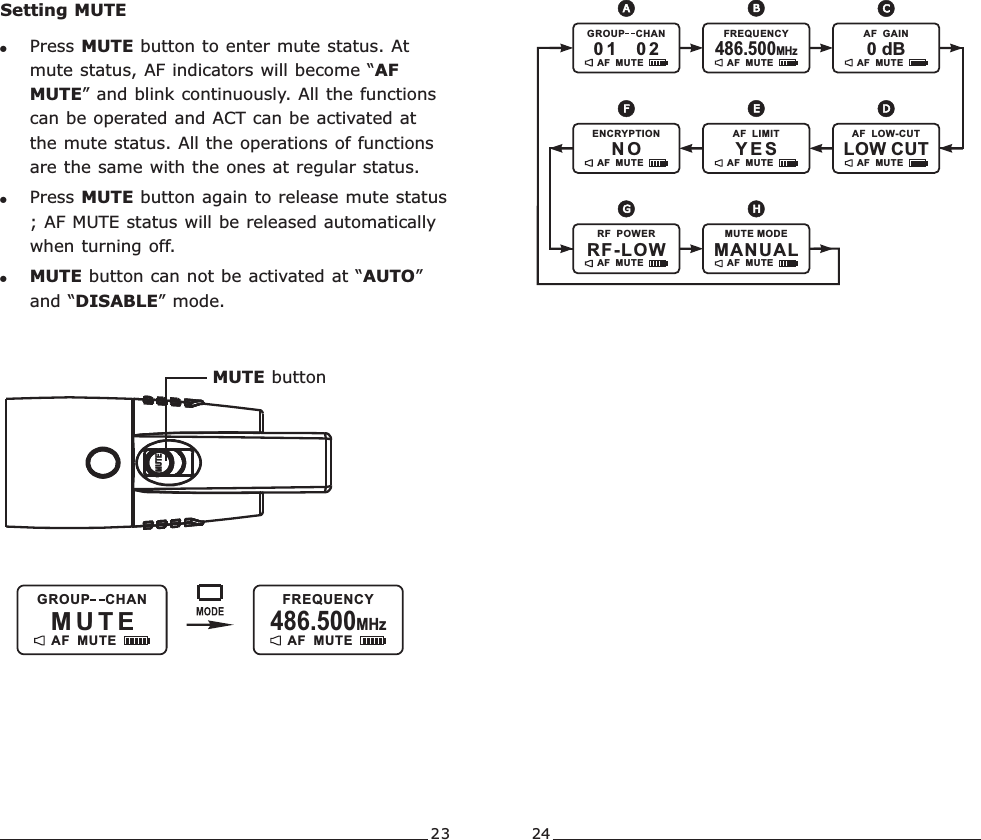

23 24Setting MUTEM U T EGROUP CHANAF MUTE486.500MHzFREQUENCYAF MUTEMUTE buttonMUTE!Press MUTE button to enter mute status. At mute status, AF indicators will become “AF MUTE” and blink continuously. All the functions can be operated and ACT can be activated at the mute status. All the operations of functions are the same with the ones at regular status.!Press MUTE button again to release mute status ; AF MUTE status will be released automatically when turning off.!MUTE button can not be activated at “AUTO” and “DISABLE” mode.EFHDCBA0 1 0 2GROUP CHANAF MUTEN OENCRYPTI ONY E SAF LIMIT486.500MHzFREQUENCY0 dBAF GAINLOW CUTAF LOW- CUTAF MUTEAF MUTEAF MUTEAF MUTEAF MUTEAF MUTERF - LOWRF POWERAF MUTEMA N UALMUTE MODEGWideband Digital Handheld Transmitter Wideband Digital Handheld Transmitter

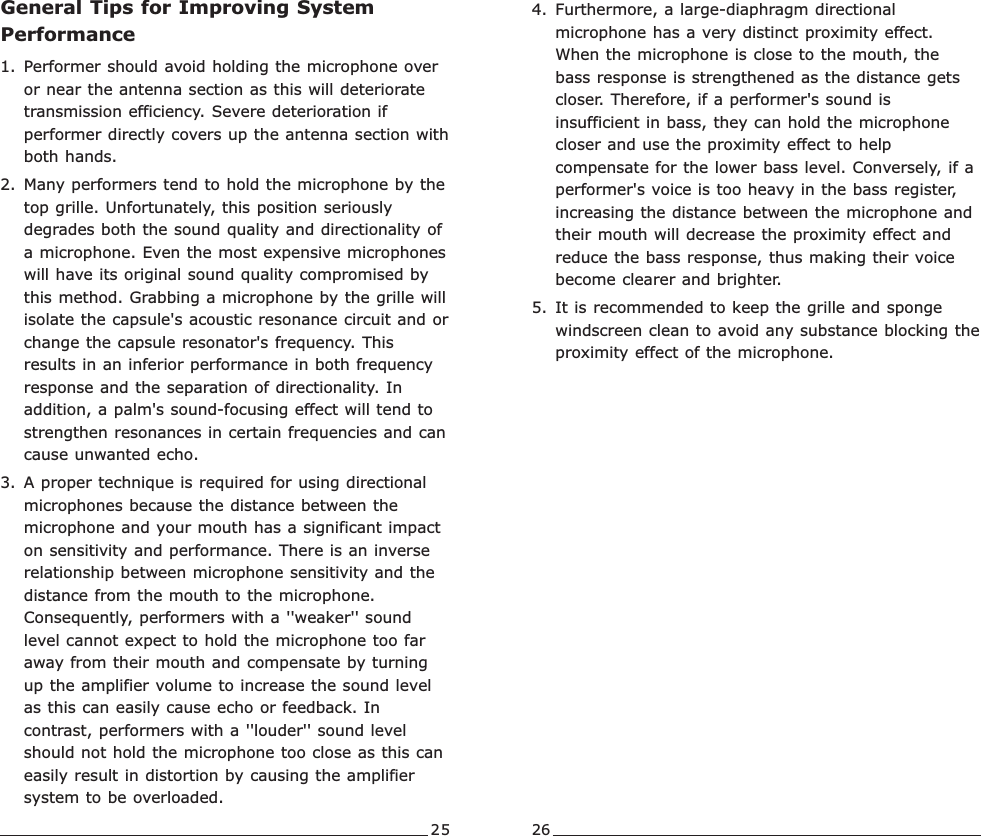

25 264. Furthermore, a large-diaphragm directional microphone has a very distinct proximity effect. When the microphone is close to the mouth, the bass response is strengthened as the distance gets closer. Therefore, if a performer's sound is insufficient in bass, they can hold the microphone closer and use the proximity effect to help compensate for the lower bass level. Conversely, if a performer's voice is too heavy in the bass register, increasing the distance between the microphone and their mouth will decrease the proximity effect and reduce the bass response, thus making their voice become clearer and brighter.5. It is recommended to keep the grille and sponge windscreen clean to avoid any substance blocking the proximity effect of the microphone.Wideband Digital Handheld Transmitter Wideband Digital Handheld TransmitterGeneral Tips for Improving System Performance1. Performer should avoid holding the microphone over or near the antenna section as this will deteriorate transmission efficiency. Severe deterioration if performer directly covers up the antenna section with both hands. 2. Many performers tend to hold the microphone by the top grille. Unfortunately, this position seriously degrades both the sound quality and directionality of a microphone. Even the most expensive microphones will have its original sound quality compromised by this method. Grabbing a microphone by the grille will isolate the capsule's acoustic resonance circuit and or change the capsule resonator's frequency. This results in an inferior performance in both frequency response and the separation of directionality. In addition, a palm's sound-focusing effect will tend to strengthen resonances in certain frequencies and can cause unwanted echo.3. A proper technique is required for using directional microphones because the distance between the microphone and your mouth has a significant impact on sensitivity and performance. There is an inverse relationship between microphone sensitivity and the distance from the mouth to the microphone. Consequently, performers with a ''weaker'' sound level cannot expect to hold the microphone too far away from their mouth and compensate by turning up the amplifier volume to increase the sound level as this can easily cause echo or feedback. In contrast, performers with a ''louder'' sound level should not hold the microphone too close as this can easily result in distortion by causing the amplifier system to be overloaded.
