Mitac Digital Technology MDPNA470T Portable Navigator User Manual
Mitac International Corporation Portable Navigator
User Manual
User’s Manual
Trademarks
All brand and product names are trademarks or registered trademarks of their
respective companies.
Note
The information in this manual is subject to change without notice.
i
Table of Contents
Precautions and Notices .......................................................................iii
1 Getting Started..................................................................................1
1.1 Understanding Hardware Components................................................ 1
Front and Side Components ................................................................ 1
Back Components................................................................................ 2
Right-Side Components....................................................................... 3
Top Components.................................................................................. 3
Bottom Components ............................................................................ 4
1.2 Connecting to AC Power and Charging the Battery............................. 5
1.3 Using Your Device in a Vehicle............................................................ 6
Using the Car Holder............................................................................ 6
Connecting the Car Charger ................................................................ 6
1.4 Operating Basics.................................................................................. 7
Turning On and Off .............................................................................. 7
Operating the Device ........................................................................... 7
1.5 Inserting a SD/MMC Card.................................................................... 8
2 Troubleshooting and Maintenance .................................................9
2.1 Resetting Your System ........................................................................ 9
2.2 Troubleshooting ................................................................................. 10
Power Problems................................................................................. 10
Screen Problems................................................................................ 10
Connection Problems......................................................................... 11
GPS Problems.................................................................................... 11
2.3 Maintaining Your Device .................................................................... 11
3 Regulatory Information ..................................................................13
3.1 Regulations Statements..................................................................... 13
Class B Regulations........................................................................... 13
European Notice ................................................................................ 14
3.2 Safety Precautions ............................................................................. 15
ii
About Charging .................................................................................. 15
About the AC Adapter ........................................................................ 15
About the Battery ............................................................................... 16
iii
Precautions and Notices
z For your own safety, do not operate the controls of the product while driving.
z Use this product prudently. The product is intended to be used only as a
navigation aid. It is not for precise measurement of direction, distance,
location or topography.
z The calculated route is for reference only. It is the user’s responsibility to
follow the traffic signs and local regulations along the roads.
z When you get off the car, do not leave your device on the dashboard that is
subject to direct sunlight. The overheating of the battery can cause
malfunction and/or danger.
z GPS is operated by the United States government, which is solely responsible
for the performance of GPS. Any change to the GPS system can affect the
accuracy of all GPS equipments.
z GPS satellite signals cannot pass through solid materials (except glass). When
you are inside a tunnel or building, GPS positioning is not available.
z A minimum of 4 GPS satellite signals is needed to determine current GPS
position. Signal reception can be affected by situations such as bad weather or
dense overhead obstacles (e.g. trees and tall buildings).
z Other wireless devices in the vehicle might interfere with the reception of
satellite signals and cause the reception to be unstable.
iv

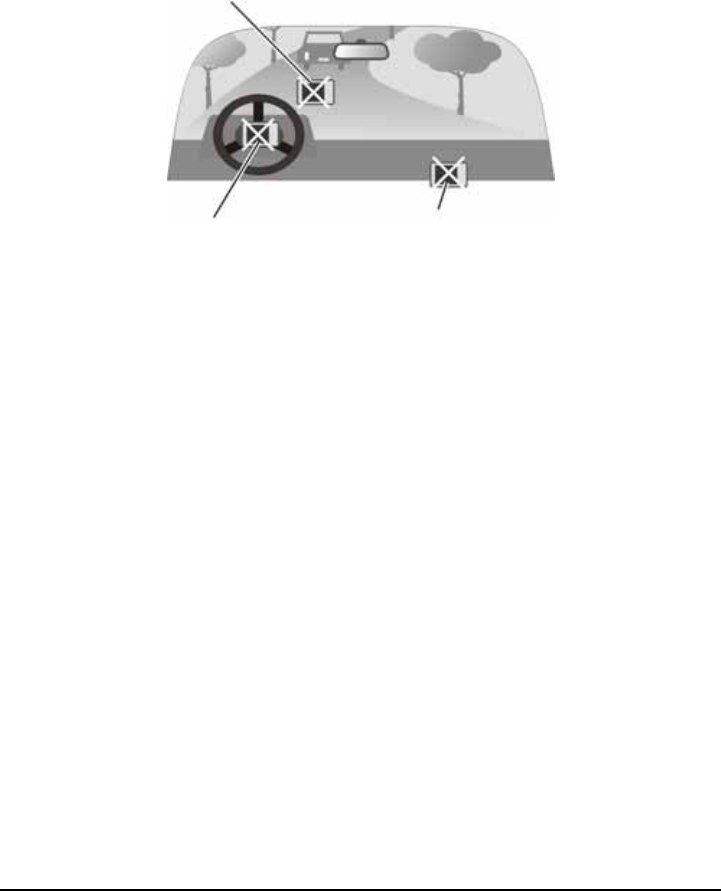

z A car holder is needed when using the device in a car. Be sure to place the
device in an appropriate place, so as not to obstruct the driver’s view, or
deployment of airbags.
Do not mount where the driver’s
field of vision is blocked. Do not place unsecured
on the dashboard.
Do not mount in front of
airbag panels. Do not mount in front of an
airbag field of deployment.
1
1 Getting Started
1.1 Understanding Hardware Components
NOTE: Depending upon the specific model purchased, the color of your device may not
exactly match the device shown in this manual.

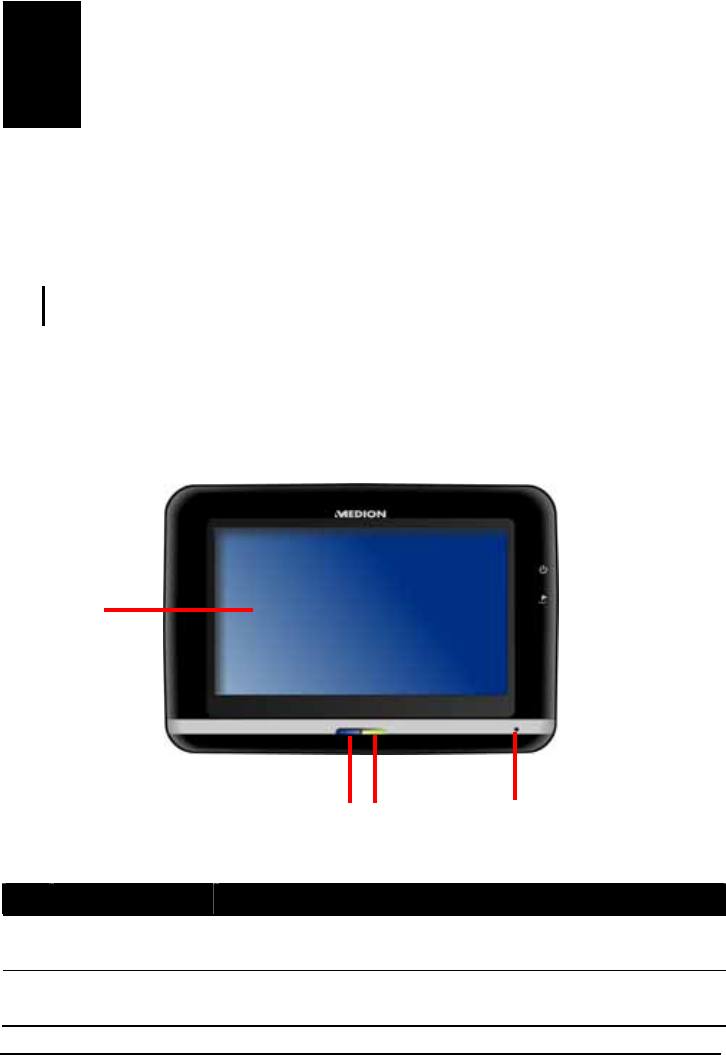

Front and Side Components
Ref Component Description
n Touch Screen Displays the output of your device. Tap the screen with your
stylus to select menu commands or enter information.
o Bluetooth
Indicator Glows blue to indicate that the Bluetooth radio is on.
n
opq
2
p Charge Indicator Glows bright amber to indicate that the battery is charging,
and turns green when the battery is fully charged.
q Microphone Receives voice.

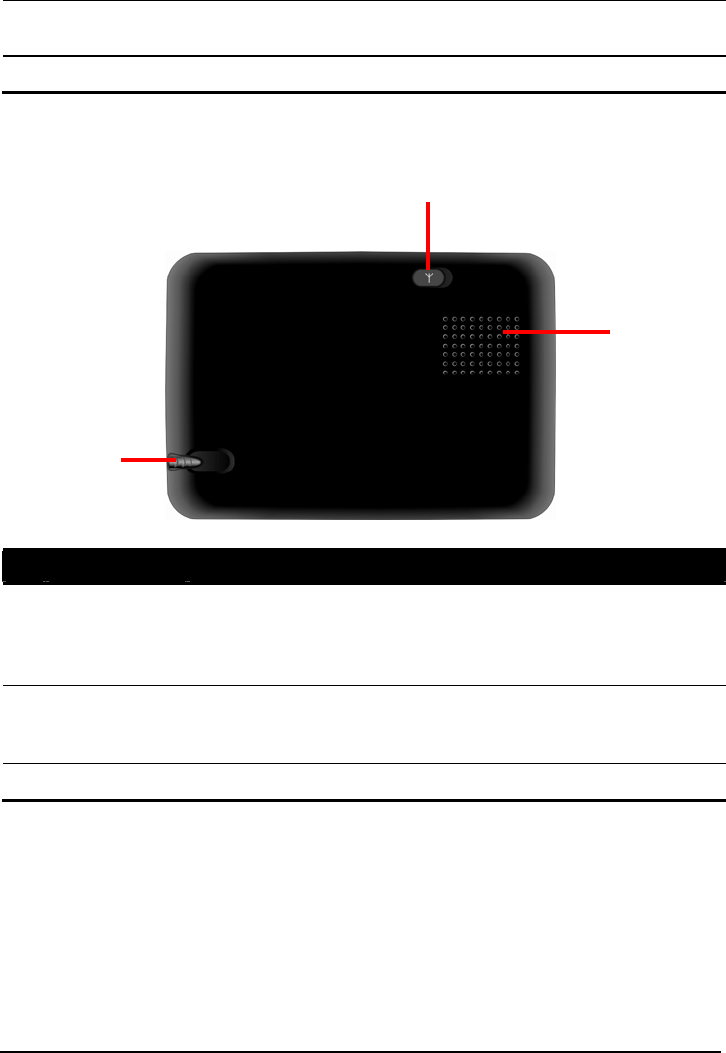

Back Components
Ref Component Description
n External
Antenna
Connector
This connector (under rubber dust cover) allows use of an optional
external antenna with magnetic mount, which may be positioned
on top of the car for better signal reception in areas with poor
reception.
o Stylus Tap the touch screen to make selections and enter information.
Pull the stylus out of its slot to use it, and store it in the slot when
not in use.
p Speaker Sends out music, sounds and voice.
n
o
p
3

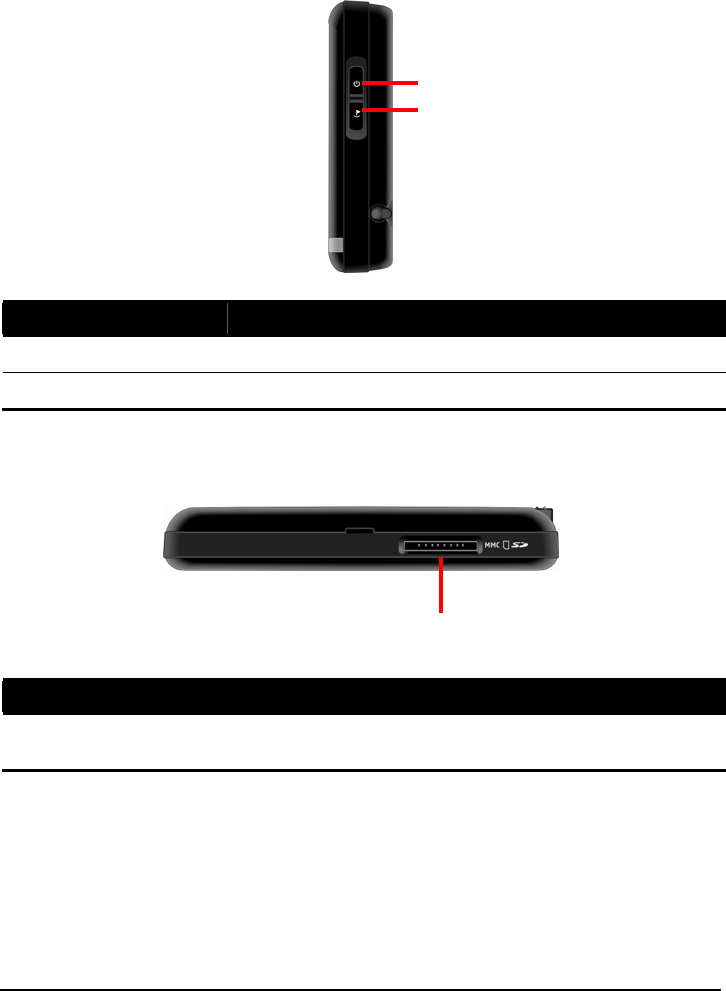

Right-Side Components
Ref Component Description
n Power Button Turns on and off the device.
o Navigation Button Opens the navigation menu.
Top Components
Ref Component Description
n SD/MMC Slot Accepts a SD (Secure Digital) or MMC (MultiMediaCard) card
for accessing data such as MP3 music.
n
o
n
4

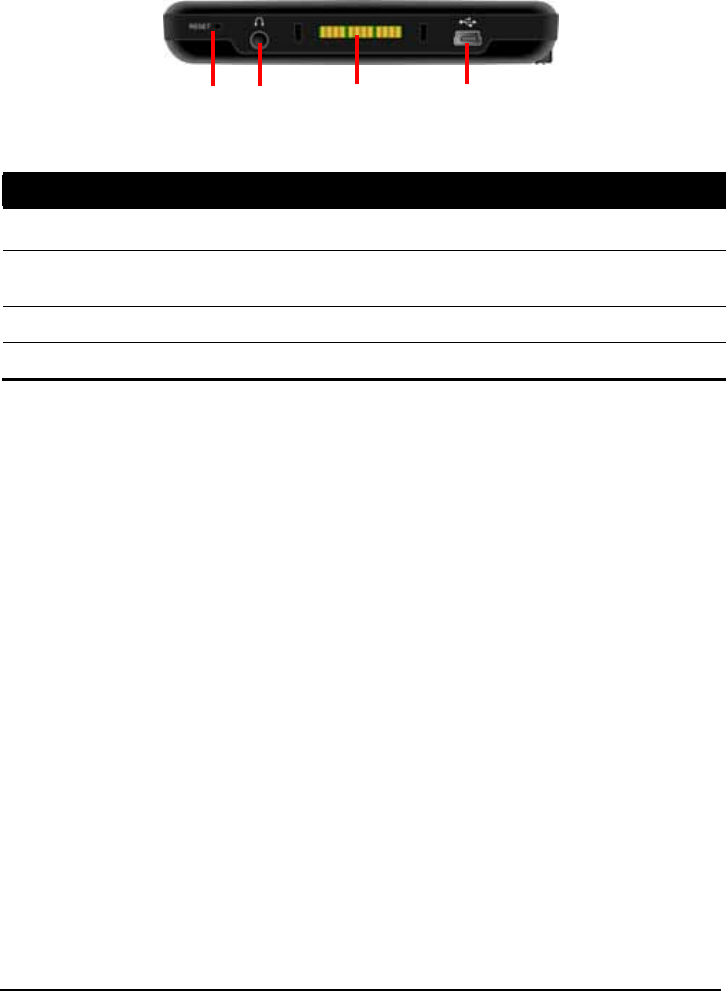

Bottom Components
Ref Component Description
n Reset Button Restarts your device (soft reset).
o Headphone
Connector Connects to stereo headphones.
p Cradle Connector Connects to the cardle.
q Mini-USB Connector Connects to the AC adapter or USB cable.
no p q
5

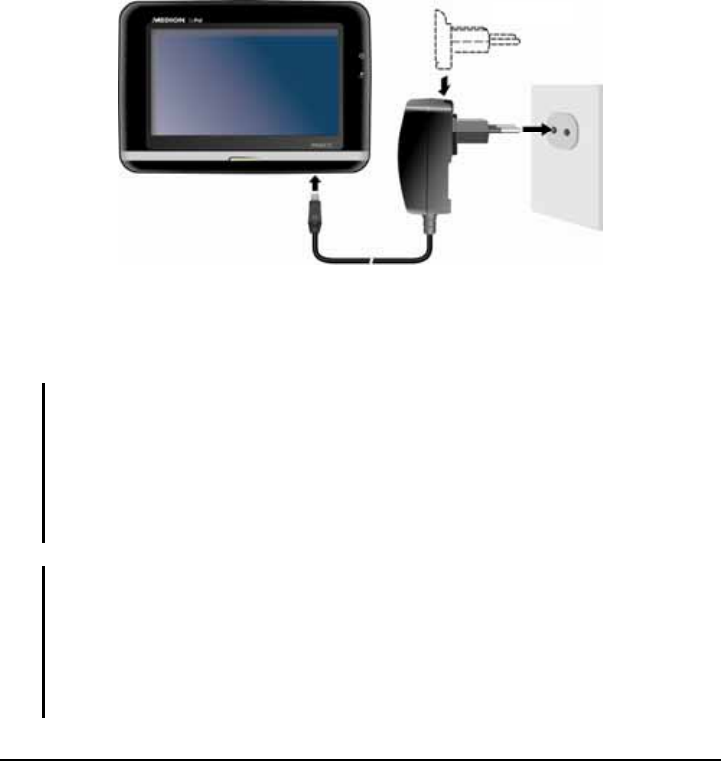

1.2 Connecting to AC Power and Charging the
Battery
When charging the battery for the very first time, you should charge it for at least
8 hours.
1. Slide and click the connector converter onto the AC adapter.
2. Connect the adapter cable to the bottom of your device.
3. Plug the AC adapter into a wall outlet.
The charge indicator glows amber when charging is in progress. Do not
disconnect your device from AC power until the battery is fully charged, when the
charge indicator turns green. This will take a couple of hours.
NOTE:
z Do not immediately turn on your device after connecting the AC adapter to charge a
power-depleted battery. If you need to turn on the device again, wait for at least one
minute.
z Depending on your region of purchase, the connector converter may not look exactly the
same as the picture shown.
z Your device can also be charged when it is connected to a desktop computer via the USB
cable.
CAUTION: For optimal performance of the lithium battery, take note of the following:
z Do not charge the battery where the temperature is high (e.g. in direct sunlight).
z There is no need to fully discharge the battery before charging. You can charge the battery
before it is discharged.
z If you will not use the product for a long period of time, be sure to fully charge the
battery at least once every two weeks. Over discharge of the battery can affect the
charging performance.
Converter
6
1.3 Using Your Device in a Vehicle
A car holder and a car charger are supplied with your device.
Using the Car Holder
CAUTION:
z Select an appropriate location for the car holder. Never place the holder where the driver’s
field of vision is blocked.
z If the car’s windshield is tinted with a reflective coating, an external antenna (optional) may
be needed to route the antenna to the top of the car through a window. When closing the
car window, be careful not to pinch the antenna cable
The car holder consists of a bracket and a stand. Use the car
holder to fix your device in a vehicle. Make sure that the GPS
antenna has a clear view of the sky. (See the document supplied
with the car holder for the installation instruction.)
For initial positioning, remain at the same spot with a clear view
of the sky. The GPS may take a few minutes to find its current
location initially.
NOTE: Depending upon the specific model purchased, the car holder supplied with your
device may not look exactly the same as the picture shown.

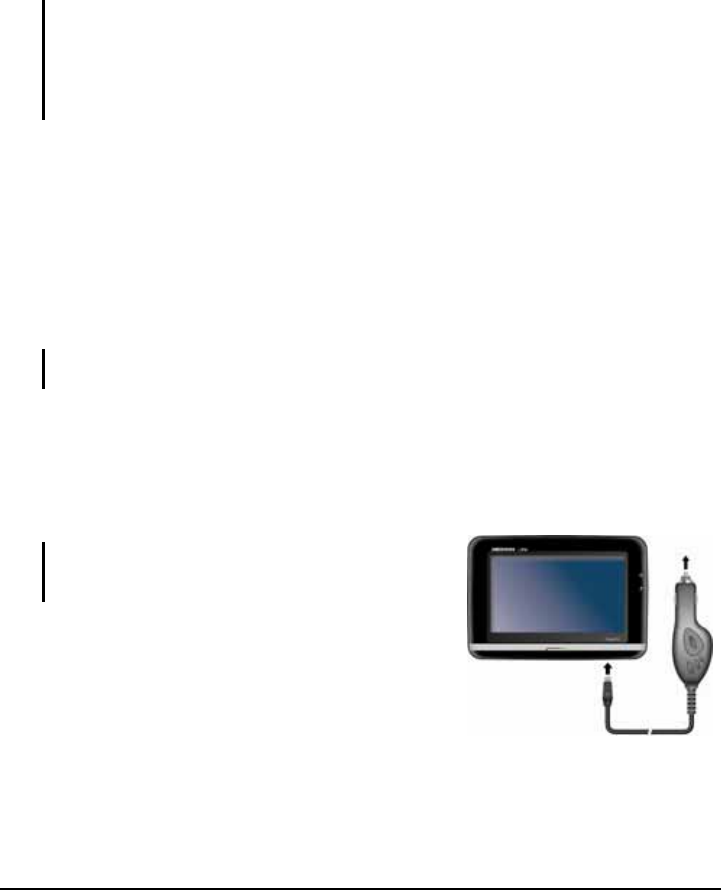

Connecting the Car Charger
The car charger supplies power to your device
when you are using the device in a car.
CAUTION: To protect your device against sudden
surges in current, connect the car charger only after
the car engine has been started.
1. Connect one end of the car charger to the
power connector of your device.
2. Connect the other end to the cigarette lighter in
the car to power and charge your device. The
indicator on the car charger lights in green to
indicate that power is being supplied to your
device.
7
1.4 Operating Basics
Turning On and Off
Use the power button ( ) to turn on and off your device.
When you press the power button to turn off the unit, your device
actually enters a suspend state and the system stops operating. Once you
turn on the system again, it resumes.
Operating the Device
To communicate with your device, touch the screen with your stylus. You can
perform the following actions:
z Tap
Touch the screen once with your stylus to open items or select
onscreen buttons or options.
z Drag
Hold your stylus on the screen and drag up/down/left/right or across
the screen.
z Tap and hold
Tap and hold your stylus until an action is complete, or a result or
menu is shown.
8

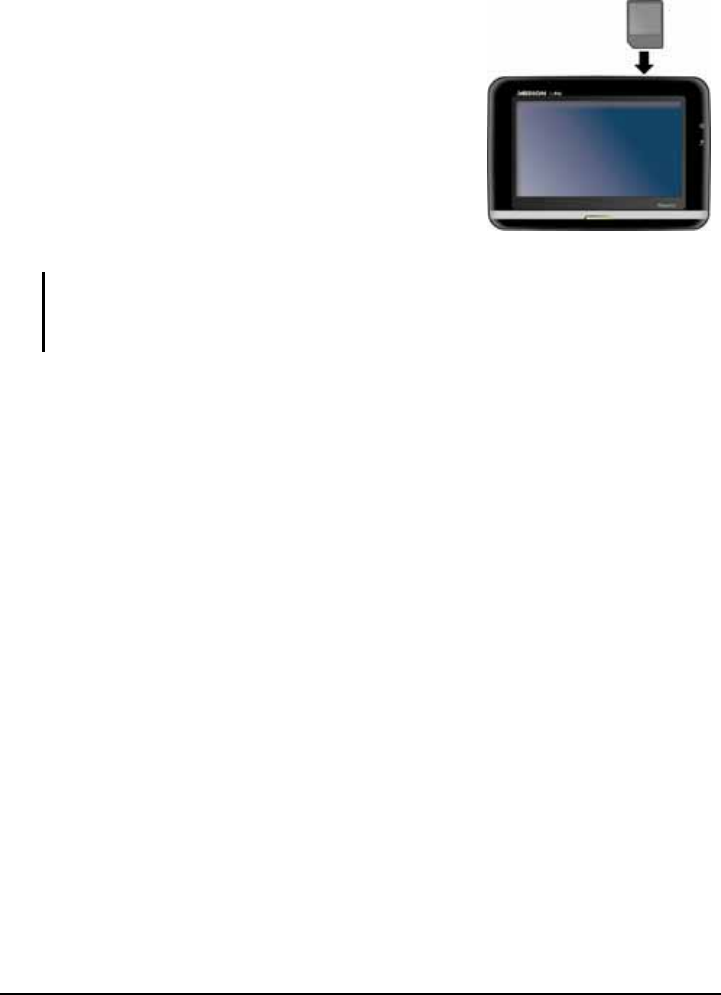

1.5 Inserting a SD/MMC Card
Your device has a SD/MMC slot where you can
insert an optional Secure Digital or MultiMediaCard
storage card.
To use a SD/MMC card, insert it into the slot, with
the connector pointing to the slot and its label facing
the front of the device.
To remove a card, first make sure that no application
is accessing the card, then slightly push the top edge
of the card to release it and pull it out of the slot.
NOTE:
z Make sure that no foreign objects enter the slot.
z Keep a SD or MMC card in a well-protected box to avoid dust and humidity when you are
not using it.
9
2 Troubleshooting and Maintenance
This chapter gives solutions to common problems you may encounter. It also
provides guidelines on taking care of your device.
NOTE: If you encounter a problem you cannot solve, contact an authorized service center for
assistance.
2.1 Resetting Your System
Occasionally, you may need to reset your device. For example, you should reset
your system when it stops responding; or appears to be “frozen” or “locked up.”

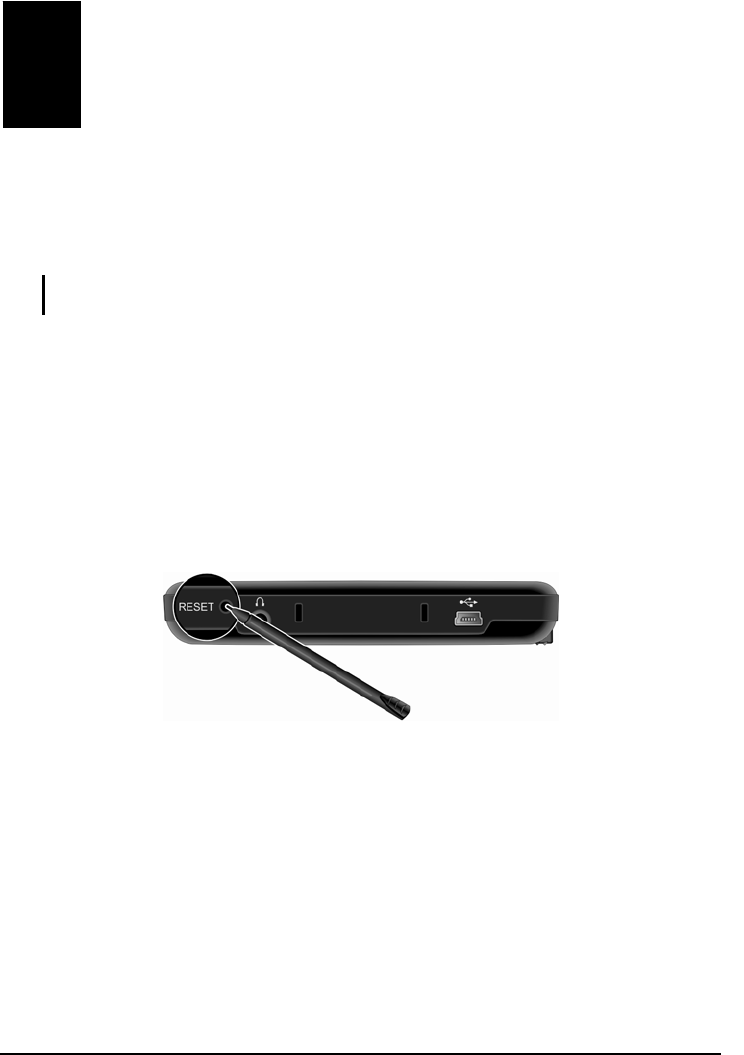

Insert a small rod, such as a straightened paperclip, into the reset button on the
bottom of your device. This is called a “soft reset.” The Home screen should
appear after a soft reset.
Troubleshooting and
Maintenance
10
2.2 Troubleshooting
Power Problems
Power does not turn on when using battery power
z The remaining battery power may be too low to run your device. Connect the
AC adapter to your device and to AC power. Then, turn on your device.
Screen Problems
Screen is off
If the screen does not respond even after you press the power button, try the
following in order until the problem is solved:
z Connect the AC adapter to your device and to external AC power.
z Reset your system.
Screen responds slowly
z Make sure that your device is not running out of battery power. If the problem
still exists, reset your system.
Screen freezes
z Reset your system.
Screen is hard to read
z Make sure that the backlight of the display is on.
z Move to a location with more light.
Inaccurate response to taps
z Recalibrate the touch screen.
11
Connection Problems
Cable Connection Problems
z Make sure that your device and your computer are both turned on before
trying to establish a connection.
z Make sure that the cable is securely plugged into the USB port on your
computer and on the device. Connect the USB cable directly to your
computer—do not run the cable through a USB hub.
z Reset your device before connecting the cable. Always disconnect your
device before you restart your computer.
GPS Problems
When there are no valid signals available, consider the following:
z Make sure that the GPS antenna has a clear view of the sky.
z Note that the GPS reception can be affected by:
9 Bad weather
9 Dense overhead obstacles (e.g. trees and tall buildings)
9 Other wireless device in the car
9 Reflective car window tint
2.3 Maintaining Your Device
Taking good care of your device will ensure trouble-free operation and reduce the
risk of damage to your device.
z Keep your device away from excessive moisture and extreme temperatures.
z Avoid exposing your device to direct sunlight or strong ultraviolet light for
extended periods of time.
z Do not place anything on top of your device or drop objects on your device.
z Do not drop your device or subject it to severe shock.
z Do not subject your device to sudden and severe temperature changes. This
could cause moisture condensation inside the unit, which could damage your
device. In the event of moisture condensation, allow the device to dry out
completely before use.
12
z Take care not to sit on the device. We advise not to carry the device in one’s
back pocket for that reason.
z The screen surface can easily be scratched. Avoid touching it with sharp
objects. Non-adhesive generic screen protectors designed specifically for use
on portable devices with LCD panels may be used to help protect the screen
from minor scratches.
z Never clean your device with it powered on. Use a soft, lint-free cloth
moistened with water to wipe the screen and the exterior of your device.
z Do not use paper towels to clean the screen.
z Never attempt to disassemble, repair or make any modifications to your
device. Disassembly, modification or any attempt at repair could cause
damage to your device and even bodily injury or property damage and will
void any warranty.
z Do not store or carry flammable liquids, gases or explosive materials in the
same compartment as your device, its parts or accessories.
13
3 Regulatory Information
NOTE: Marking labels located on the exterior of your device indicate the regulations that
your model complies with. Please check the marking labels on your device and refer to the
corresponding statements in this chapter. Some notices apply to specific models only.
3.1 Regulations Statements
Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
maycause undesired operation.
Any changes or modifications (including the antennas) made to this device that
are not expressly approved by themanufacturer may void the user’s authority to
operate the equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, avoid direct contact to the transmitting antenna during
transmitting.
14
3. Any changes or modifications (including the antennas) made to this device that
are not expressly approved by the manufacturer may void the user’s authority to
operate the equipment.
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This device
and its antenna must not be co-located or operating in conjunction with any other
antenna or transmitter.
4. This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures: -Reorient
or relocate the receiving antenna. -Increase the separation between the equipment
and receiver. -Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected. -Consult the dealer or an experienced radio/TV
technician for help.
European Notice
Products with the CE marking comply with Radio & Telecommunication
Terminal Equipment Directive (R&TTE) (1999/5/EEC), the Electromagnetic
Compatibility Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) – as amended by Directive 93/68/ECC - issued by the Commission
of the European Community.
Compliance with these directives implies conformity to the following European
Standards:
EN301489-1: Electronic compatibility and Radio spectrum Matters (ERM),
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
EN301489-3: Electronic compatibility and Radio spectrum Matters (ERM),
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 3: Specific conditions for Short-Range Devices (SRD) operating on
frequencies between 9 kHz and 40 GHz
15
EN55022: Radio disturbance characteristics
EN55024: Immunity characteristics
EN6100-3-2: Limits for harmonic current emissions
EN6100-3-3: Limitation of voltage fluctuation and flicker in low-voltage supply
system
EN60950 / IEC 60950: Product Safety
EN300328: Electromagnetic compatibility and Radio spectrum matters (ERM);
Wideband transmission systems; Data transmission equipment operating in the
2.4GHz ISM band and using wide band modulation techniques; Harmonized EN
covering essential requirements under article 3.2 of the R&TTE Directive
The manufacturer cannot be held responsible for modifications made by the User
and the consequences thereof, which may alter the conformity of the product with
the CE Marking.
3.2 Safety Precautions
About Charging
z Use only the AC adapter (PHIHONG, PSC05R-050 PH) supplied with your
device. Use of another type of AC adapter will result in malfunction and/or
danger.
z This product is intended to be supplied by a LISTED Power Unit marked with
“LPS”, “Limited Power Source” and output rated + 5 V dc / 1.0 A”.
z Use a specified battery in the equipment.
About the AC Adapter
z Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
z Allow adequate ventilation around the adapter when using it to operate the
device or charge the battery. Do not cover the AC adapter with paper or other
objects that will reduce cooling. Do not use the AC adapter while it is inside a
carrying case.
z Connect the adapter to a proper power source. The voltage requirements are
found on the product case and/or packaging.
16
z Do not use the adapter if the cord becomes damaged.
z Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
About the Battery
z Use a specified charger approved by the manufacturer.
CAUTION: This unit contains a non-replaceable internal Lithium Ion battery. The battery can
burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not
disassemble, crush, puncture, or dispose of in fire or water.
z Important instructions (for service personnel only)
9 Caution: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
9 Replace only with the same or equivalent type recommended by the
manufacturer.
9 The battery must be recycled or disposed of properly.
9 Use the battery only in the specified equipment.
