Mitac Digital Technology N382 Navigation Device User Manual

Mitac International Corporation Navigation Device

UserManual.wiki >

Mitac Digital Technology >

N382 User Manual HTML Version

Revised user manual

Magellan® RoadMate®

GPS Receiver

User Manual

Navigation Device

Magellan RoadMate Pro 5190T

Magellan RoadMate RC5190T

IMPORTANT SAFETY WARNINGS

The Magellan RoadMate receiver is a vehicle-navigation aid designed to assist

you in arriving at your selected destinations. When using the Magellan

RoadMate receiver, these safety rules must be followed to prevent accidents

that can result in injury or death to yourself or others:

zPlease check the applicable regulations in your state regarding windshield

mounting. Certain states prohibit the mounting of any items on your

windshield. Go to www.magellanGPS.com for alternative mounting

solutions.

zWhen driving, the need to view the display is minimal. Voice prompts will

guide you to your destination. The driver should enter data or program the

Magellan RoadMate receiver only when the vehicle is stationary. Only a

vehicle passenger should enter data or program the Magellan RoadMate

receiver while the vehicle is moving. Do not become distracted by the

receiver while driving, and always be fully aware of all driving conditions.

zIt is your responsibility to comply with all traffic laws and to use the

Magellan RoadMate and mounting options in such a manner that the user

is in compliance with applicable laws.

zRoads, points of interest (POIs), business and service locations may

change over time. As a result the database may contain inaccuracy. Also,

the database does not include, analyse, process, consider, or reflect any

of the following: legal restrictions (such as vehicle type, weight, height,

width, load and speed restrictions); road slope or gradient; bridge height,

width, weight or other limits; population density; neighborhood quality or

safety; availability or proximity of police, emergency rescue, medical or

other assistance; construction work zones or hazards; road or lane

closures; road, traffic or traffic facilities’ safety or condition; weather

conditions; pavement characteristics or conditions; special events; traffic

congestion. It is your responsibility to disregard any unsafe, hazardous or

illegal route suggestions.

zKeep the Magellan RoadMate receiver safe from extreme temperature

conditions. For example, do not leave it exposed to direct sunlight for an

extended period of time.

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡʳ

ʳʳ˪˜˥˘˟˘˦˦

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

iii

zTake care when mounting the Magellan RoadMate receiver in your vehicle,

whether using the windshield mount or other mounts, that it does not

obstruct the driver’s view of the road, interfere with the operation of the

vehicle’s safety devices such as air bags, or present a hazard to

occupants of the vehicle should the receiver be dislodged while driving. It

is your responsibility to assess the risks associated with damage to your

vehicle or vehicle occupants as the result of your choices in mounting the

Magellan RoadMate receiver.

Temperature

zThe maximum operating temperature is 140°F (60°C).

Battery

zThe battery in the Magellan RoadMate receiver is rechargeable and

should not be removed. In the event that it should need to be replaced,

please contact Magellan Technical Support.

Charging the Magellan RoadMate

zAn optional AC adapter is available as an accessory for your Magellan

RoadMate. Use of another type of AC adapter can result in malfunction

and/or possible fire hazard due to battery overheating.

zOnly use the car charger approved for/supplied with your Magellan

RoadMate receiver. Use of another type of car charger will result in fire or

electric shock.

zFor safety reasons, the battery in your Magellan RoadMate receiver will

stop charging when the ambient temperature is less than 32°F (0°C) or

more than 113°F (45°C).

zIt will take approximately 4 hours of charging the Magellan RoadMate

receiver through the vehicle power adapter or optional AC adapter to

obtain a full battery charge. It is recommended that you charge the battery

initially for at least 2 hours.

zUse only the charger approved for your Magellan RoadMate receiver.

zEstimated usage of the Magellan RoadMate on battery power is

approximately 2 hours.

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

NAVMAN WIRELESS

ʳˡ˔˩ˠ˔ˡ

ʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡ

ʳ˪˜˥˘˟˘˦˦

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for class B

digital devices, in accordance with part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the

following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate

this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specific operating

instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

In order to maintain compliance with FCC regulations, shielded cables must be

used with this equipment. Operation with non-approved equipment or

unshielded cables is likely to result in interference to radio and TV reception.

The user is cautioned that changes and modifications made to the equipment

without the approval of manufacturer could void the user’s authority to operate

this equipment.

The Magellan RoadMate receiver must be installed and operated at a distance

no closer then 8 inches (20 cm) from the user.

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

IC statement

This Class B digital apparatus complies with Canada ICES-003.

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may

cause undesired operation of the device.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

Son fonctionnement est soumis aux deux conditions suivantes :

1. Cet appareil ne doit pas causer d'interférences et

2. Cet appareil doit accepter toute interférence, notamment les interférences

qui peuvent affecter son fonctionnement.

The abbreviation, IC, before the registration number signifies that registration

was performed based on a Declaration of Conformity indicating that Industry

Canada technical specifications were met. It does not imply that Industry

Canada approved the equipment.

To prevent radio interference to the licensed service, this device is intended to

be operated indoors and away from windows to provide maximum shielding.

Equipment (or its transmit antenna) that is installed outdoors is subject to

licensing.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits established for

an uncontrolled environment. End users must follow the specific operating

instructions for satisfying RF exposure compliance.

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

This equipment complies with IC radiation exposure limits established for an uncontrolled

environment. End users must follow the specific operating instructions for satisfying RF exposure

compliance.

This transmitter must not be co-located or operated in conjunction with

any other antenna or transmitter.

The information provided in this document is subject to change without notice. Improvements and

enhancements to the product may occur without any formal notification. Check the Magellan website

(www.magellanGPS.com/ support) for product updates and additional information.

IMPORTANT NOTE:

    

vii

Table of Contents

Magellan RoadMate Receiver ............................................................ 1

Magellan RoadMate ..................................................................... 3

Fundamentals ..................................................................................... 4

Powering on the Magellan RoadMate receiver ............................ 4

Checking Battery Level and GPS Status...................................... 4

Volume.......................................................................................... 5

Brightness..................................................................................... 5

Main Menu.................................................................................... 6

Keypad ......................................................................................... 7

Selecting QWERTY or ABC Keyboard ......................................... 9

Notes on Entering Data ................................................................ 9

Smart City Search ........................................................................ 9

QuickSpell................................................................................... 10

WiFi ............................................................................................ 10

Installation Instructions ................................................................... 12

Selecting the Location ................................................................ 12

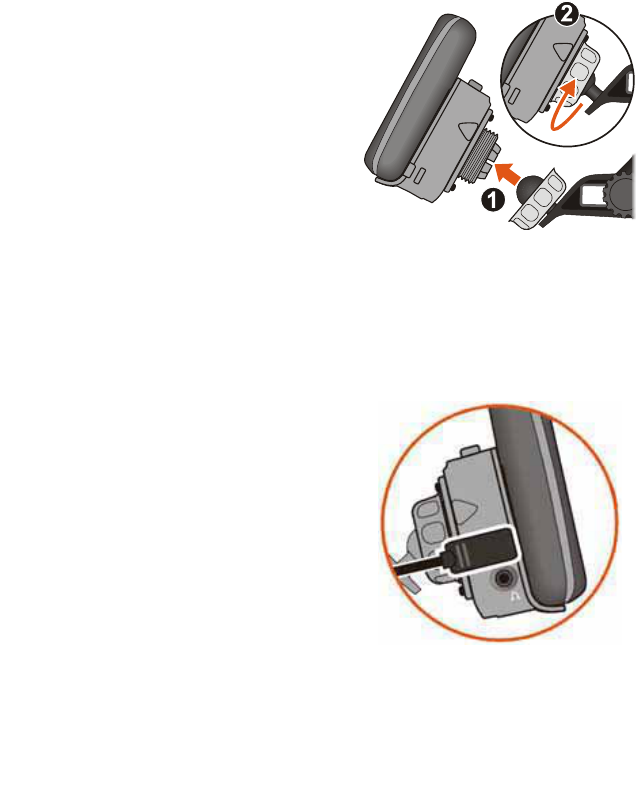

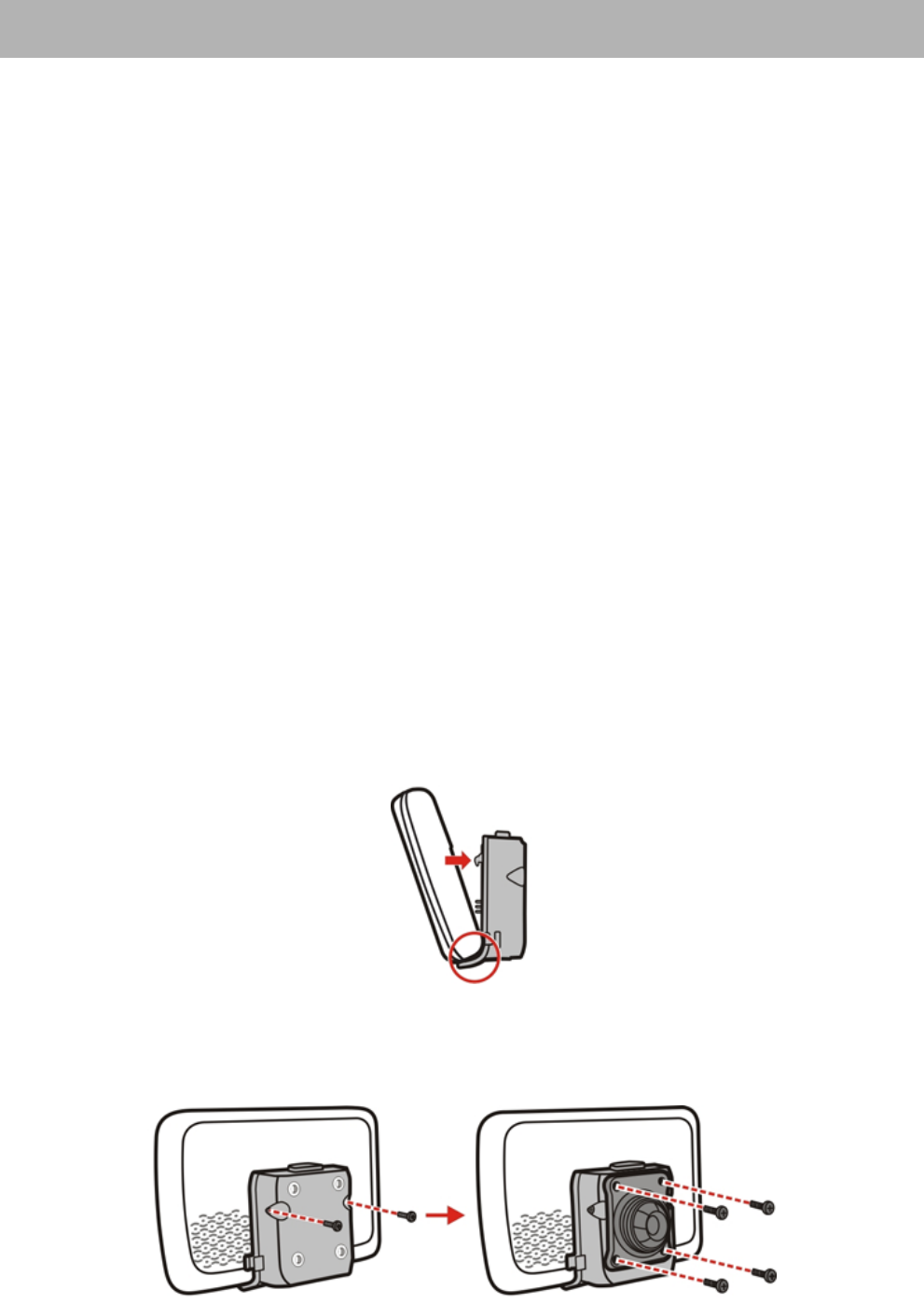

Attaching the Magellan RoadMate receiver to the Car Cradle... 12

Attaching the Car Cradle to the Car Mount ................................ 13

Attaching the Power Cable to the Car Cradle ............................ 13

Securing the Car Cradle............................................................. 13

Adjusting the Mount for Optimum Viewing ................................. 13

Connecting Power ...................................................................... 14

Checking Connection and Final Adjustments............................. 14

Power Button.............................................................................. 14

Security....................................................................................... 14

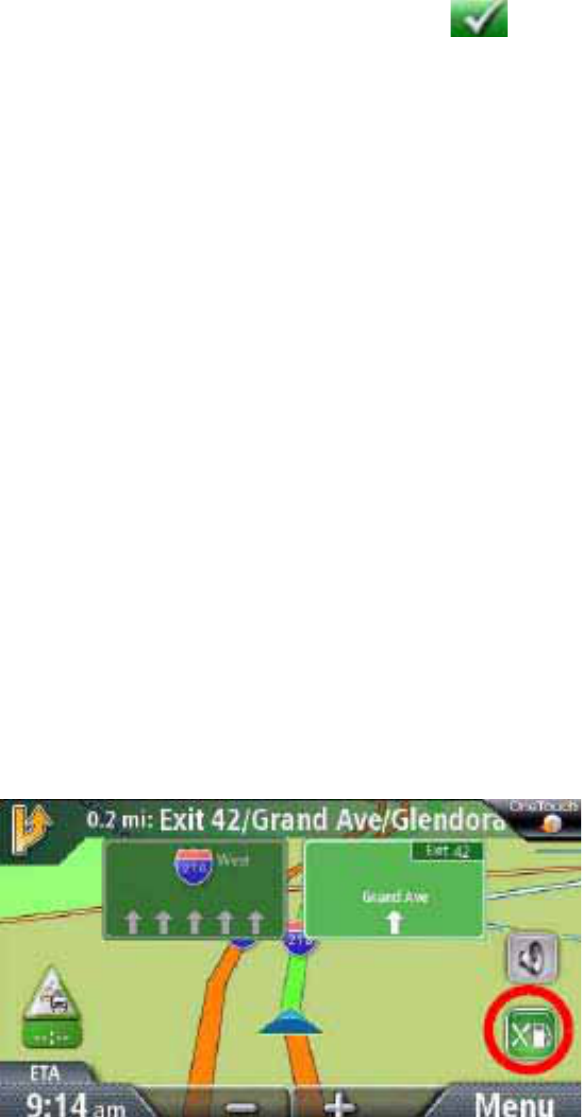

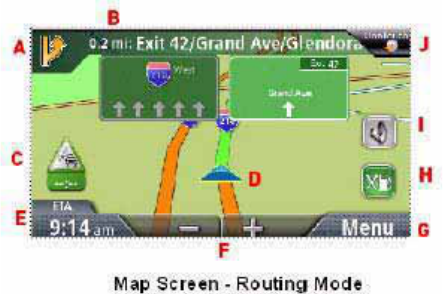

Map Screen........................................................................................ 15

Current Location Screen ............................................................ 18

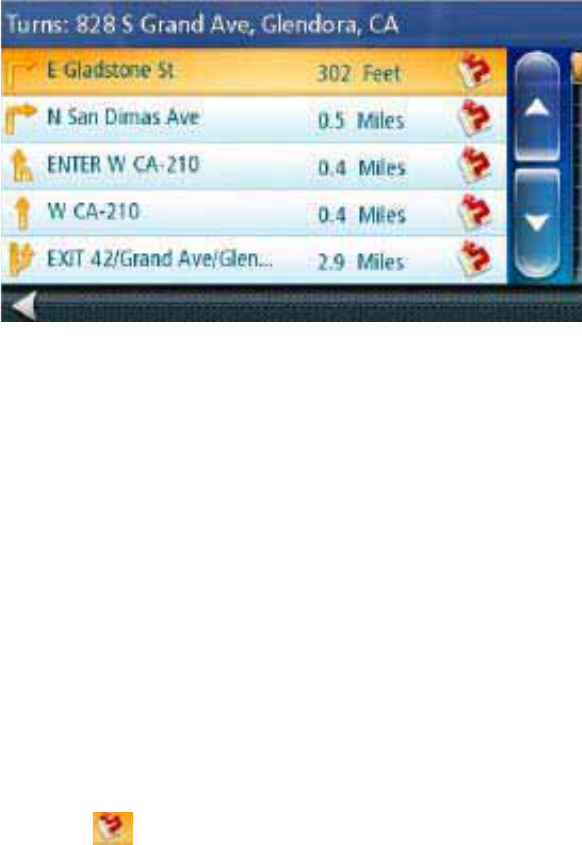

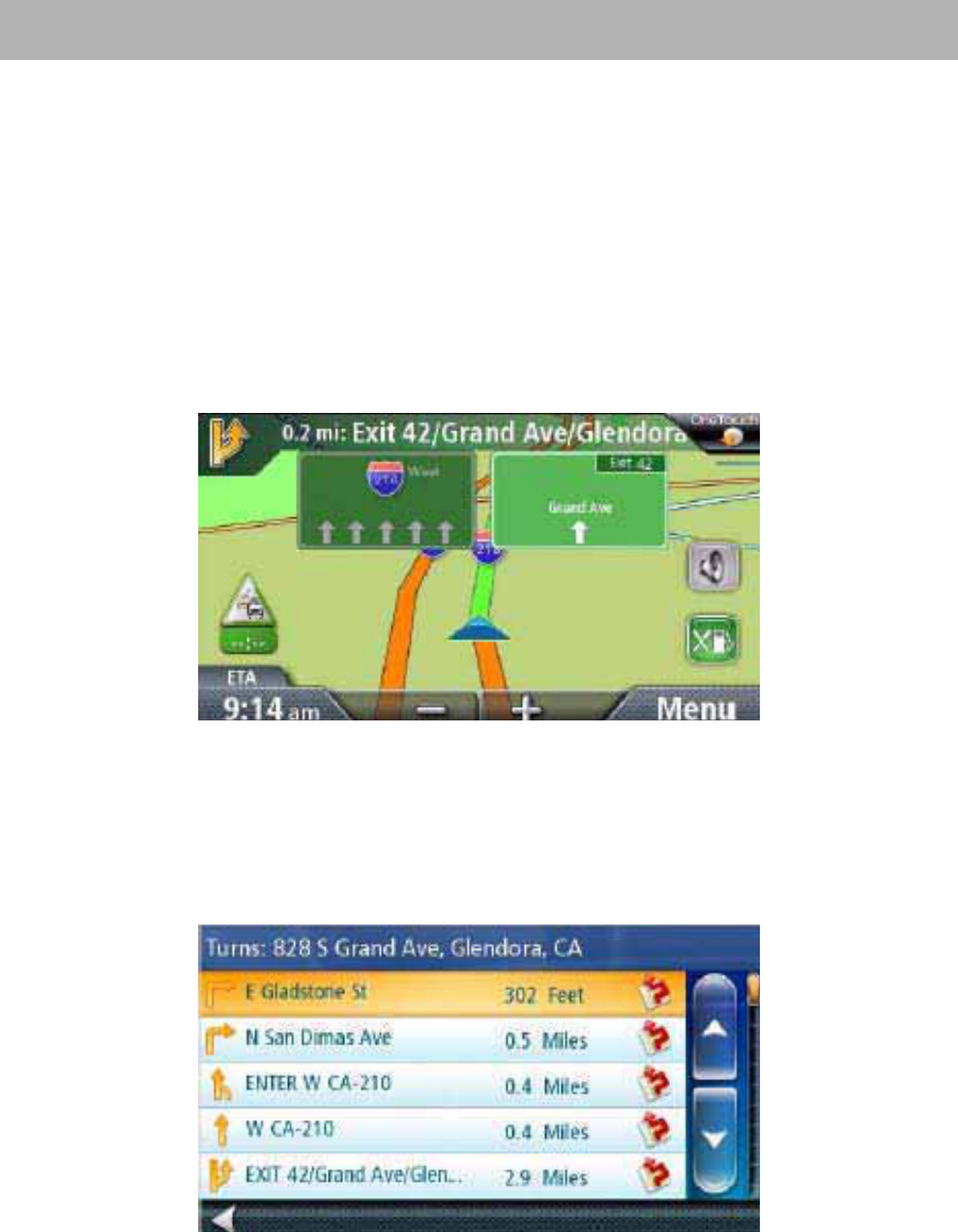

Maneuver List (Itinerary) ............................................................ 19

Volume........................................................................................ 19

Creating a Destination ..................................................................... 21

Creating a Destination to an Address......................................... 21

Creating a Destination to an Intersection ................................... 22

Creating a Destination to a City Center...................................... 23

Previous Destinations................................................................. 24

Address Book ............................................................................. 25

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦ 



ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦ʳˡ˴̉˼˺˴̇˼̂́ʳ˗˸̉˼˶˸

ʳʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

viii

OneTouch Menu ................................................................................27

Saving an Address to a OneTouch Icon ..................................... 27

Changing the Address or Search of a OneTouch Icon ...............27

Saving a POI Search Criteria to a OneTouch Icon..................... 28

Setting a Route to a OneTouch Icon .......................................... 28

Points of Interest (POI)..................................................................... 30

Creating a Route to a POI by Category...................................... 30

Creating a Route to a Special POI (AAA TourBook)...................30

Creating a Route to a POI by Name........................................... 31

Creating a Route to a Highway Exit POI .................................... 32

Home Address...................................................................................34

Saving the Home Address ..........................................................34

Changing the Home Address .....................................................34

Creating a Route to the Home Address......................................34

TourDirector ...................................................................................... 36

Creating a Tour ...........................................................................36

Traveling on a Route ........................................................................38

Map Screen ................................................................................ 38

Special Routing Functions..........................................................39

Multi Destination Routes.................................................................. 41

Creating Additional Destinations with Go To .............................. 41

Editing the Destination List.........................................................42

Saving a Multi Destination Route to Your Address Book............ 43

Traffic ................................................................................................. 44

Glossary......................................................................................44

Traffic Incidents .......................................................................... 44

Coupons and Offers ...................................................................45

Browser.............................................................................................. 47

Establishing a WiFi Connection.................................................. 47

Setting Browser Options.............................................................47

Settings..............................................................................................49

Accessing System Settings ........................................................ 49

Map Options ...............................................................................51

Sound .........................................................................................52

Navigation Preferences .............................................................. 53

Keyboard .................................................................................... 54

Adding Features ......................................................................... 54

Traffic.......................................................................................... 54

GPS Options............................................................................... 55

Default System Settings ............................................................. 55

Viewing Product Information ...................................................... 55

Trip Reporting............................................................................. 56

Speed Warnings ......................................................................... 57

Magellan RoadMate Receiver

The Magellan® RoadMate® receiver is a vehicle navigation product that utilizes

GPS signals from satellites to calculate your precise location and compute

navigational information that can be used to guide you to your destination.

Knowing its position and movement, it can then overlay this information on

detailed maps to provide a visual representation of your location.

With the Magellan RoadMate receiver you can:

zSave searches and addresses under the OneTouch™ menu for fast,

convenient access to favorite destinations.

zStore your home address and quickly get routing details to your home.

zEnter and save addresses in your address book that can be accessed at

any time and get routing information to that address.

zRoute to an address that you enter using the QuickSpell™ and Smart City

search for easy, errorless address entry.

zRoute to any point of interest (POI) that has been preloaded into your

Magellan RoadMate receiver.

zCreate a route with multiple destinations. Handy for business people who

need routing information to many destinations.

zAccess the AAA TourBook® providing ratings and descriptions on

AAA-approved places to stay, play, dine, and save.

zAccess AAA Member Roadside Assistance™ information from the

OneTouch menu.

zView POIs that are near exits ahead of you on the highway. The Highway

Exit POIs function provides you with a list of gas stations, restaurants,

hotels and auto repair shops located nearby exits you are approaching

while travelling on the interstate.

zCustomize your Magellan RoadMate receiver to meet your needs using

the Settings menu.

zReceive traffic information so as to avoid delays in your travel.

The user interface for the Magellan RoadMate receiver is easy and simple to

follow once you understand the basics. You may never need to refer to this

manual, but if you do, we have tried to present it in a form that makes it easy

for you to access the function you are trying to use and follow the steps

provided.

ʳʳʳʳʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦ ˡ˴̉˼˺˴̇˼̂́ʳ˗˸̉˼˶˸

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

The Magellan RoadMate receiver has a built-in battery so, in most cases, you

will be able to follow these instructions while reading them on your computer

screen without plugging the Magellan RoadMate receiver to the AC power

using an optional AC power adapter. You should note that while indoors you

may not get strong enough satellite signals to compute your location, so your

location information may not be updated. However, the power of the GPS

chipset installed in the Magellan RoadMate receiver will pick up satellite

signals in some very demanding locations. You may find that the Magellan

RoadMate receiver is computing a position, even indoors. Even with the

improved GPS chipset, the receiver may not be able to always compute a fix

indoors. This is especially important to note if you are in a garage or other

overhanging structure. If you find you are not getting strong enough satellite

signals while in a garage or other structure, move to a location where there is

a clear view of the sky and you should immediately see an improvement in

signal strength.

The Magellan RoadMate receiver includes Voice Alerts (Text-to-Speech) for

driving instructions.

ʳʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Magellan RoadMate

(A) Power button

(B) Micro SD card slot

adapter

(D) Earphone jack

A B

D C

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡ

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Fundamentals

Powering on the Magellan RoadMate receiver

The Power On/Off switch is located on the top of the Magellan RoadMate

receiver.

Turning the Magellan RoadMate receiver On

1. Press the Power button.

2. After the initial splash screen the Warnings screen is displayed. Read and

tap .

Turning the Magellan RoadMate receiver Off

1. Press the Power button.

Checking Battery Level and GPS Status

The Magellan RoadMate receiver has an internal battery that permits use of

the receiver for brief periods of time while not connected to external power.

The battery is charging whenever the Magellan RoadMate is connected to

external power. Please note that this battery can only be serviced by

authorized Magellan repair facilities.

Viewing the Battery Level Indicator

1. While viewing the Map screen, tap on the Menu button.

2. The battery level indicator is located in the upper right corner of the Menu

screen, just below the satellite signal indicator. Green bars indicate battery

level.

The Magellan RoadMate can normally function for 2 hours on battery when the

battery life is full.

Checking GPS Status

1. While viewing the Map screen, tap on the Menu button.

2. The GPS status indicator is located in the upper right corner of the Menu

screen. Four green bars would indicate optimum satellite signal reception.

NAVMAN WIRELESS

ˡ˔˩ˠ˔ˡ

NAVMAN WIRELESS

Volume

Changing the Volume from the Map Screen

1. Tap the speaker icon . Additional controls appear.

2. Tap the Mute button to mute the volume, or tap the ‘+’ or ‘-’ buttons to raise

or lower the volume.

3. Tap .

Changing the Volume from Settings

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Sound.

4. Tap inside the Master volume adjust bar to change the volume level of the

Magellan RoadMate receiver.

5. Tap to save and exit.

Setting Button Sounds on or off

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Sound.

4. Tap the check box for Button Sounds. Check to have button sounds played,

unchecked to turn them off.

5. Tap to save and exit.

Brightness

Accessing the Brightness Control

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Brightness.

4. Tap inside the brightness adjust bar to set the desired brightness.

5. Tap to save and exit.

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

On the Brightness screen there is a Dim on Battery Power option. When Dim

on Battery Power is checked, the Magellan RoadMate receiver will reduce the

brightness when operating exclusively on battery power and you have not

used the touch screen for a few seconds. This prolongs the battery life

between charges.

Main Menu

The Main Menu contains large, easy to access icons for all the major

functions.

Accessing the Main Menu

When you first turn on the Magellan RoadMate receiver, the Main Menu is

displayed after the splash and warning screens. While in use, you can access

the Main Menu by:

1. From the Map screen tap Menu.

Buttons on the Main Menu Screen

Button Name Description

Address Used to enter an address as a destination

for you route.

Points of

Interest

Select a Point of Interest (POI) from the list

of preloaded locations you may want to go

to.

Previous List of the most resent destinations that you

have gone to before allowing you to quickly

select one to route to again.

Address Book Access the Address Book where you can

save addresses and destinations to have

available when needed.

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Button Name Description

Intersection Used to create a route to the intersection of

two streets.

City When selected, provides a way to select a

city and route to its geographical center.

Settings Displays the Settings menu. This menu can

be used to access functions used to

customize the Magellan RoadMate receiver

to your personal needs.

Current Location Displays information about your position

including the street name, names of streets

forward and behind you as well as the

Lat/Long information for your position.

Browser Access to the web. Requires WiFi signal

and is not available during routing.

TourDirector Quick Access to attractions, shopping and

restaurant destinations.

Updates Check for updates to your receiver.

Requires WiFi signal and is not available

during routing.

Keypad

Understanding the keypad while entering an address is an important part of

using your Magellan RoadMate receiver. The keypad is the most common

method for entering data into the Magellan RoadMate receiver.

Keypad Overview

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Button Name Description

Data Field Top of the display where the characters

entered are shown. Characters you

enter are displayed in black, characters

that are filled in by the Magellan

RoadMate receiver are in green. If the

receiver has been able to estimate the

desired city or street, tap on the data

field to accept the entry.

destination list

(Enter City only) When entering a city,

the previous destinations list displays a

list of cities previously entered. Tap on

a city from the displayed list to accept

that city.

Zip Code (Enter City only) Displays a numeric

keypad to quickly enter a city when the

zip code is known.

Numeric

Keypad

Displays a numeric keypad that can be

used to enter streets or cities that have

numbers in their name. (This is not to

be used for entering an address

number.)

List (Enter City only) While entering a city,

press the List button to bring up a list of

cities beginning with the characters you

have entered.

Accept (Entering City) Accepts the suggested

city that is displayed in the data field.

(Entering street) Brings up a list of

streets beginning with the characters

entered.

Selecting From List

When a list of items found in the database are displayed, use the arrows on

the right to move the list up and down and tap on the desired item in the list to

continue.

ˡ˔˩ˠ˔ˡʳ

ʳʳ˪˜˥˘˟˘˦˦

Selecting QWERTY or ABC Keyboard

1. Access the Main Menu.

2. Tap the Settings icon .

3. Tap Keyboard.

4. Select QWERTY or ABC.

Notes on Entering Data

If you are having trouble getting the results you expected, here are a few

useful tips.

zCheck for apostrophes and hyphens. If you do not see the POI or street

name you are looking for in the list, check to see if the name has an

apostrophe or hyphen.

zThe more characters you enter, the smaller the list of possible options is

from which to choose.

zWhen entering a street or city name it is not necessary to use accented

letters. You can enter city and streets names using only standard

characters.

Smart City Search

The Magellan RoadMate receiver utilizes a feature known as “Smart City

Search”. Smart City Search attempts to predict the city you are looking for.

This prediction is based upon two factors; your position and cities you’ve gone

to before.

In this example I am in Los Angeles and enter “PA”. The receiver looks for

cities I’ve already gone to as well as cities near my location that begin with

“PA” and, in this case comes up with “PASADENA, CA”.

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

In this example “PA” has been entered again but this time the receiver is in

Atlanta, GA. The city displayed now is Palmetto, GA, so location has changed

the predicted city to one closer to your location.

QuickSpell

Another feature the Magellan RoadMate receiver uses to make entering cities

and streets easier is a feature known as QuickSpell. In the example to the right,

“CE” has been entered for a street name in Chicago, IL. The Magellan

RoadMate receiver has predicted that the street name may be Cedar Ave. Also,

it has greyed out any letters that could not be used to spell a street name in

the database. This provides quick and errorfree city and street name entry.

WiFi

To use the WiFi features of the Magellan RoadMate you must first establish a

WiFi connection. When a WiFi connection is established you will then be able

to browse the internet and check for software updates.

1. From the Map screen select MENU.

2. Tap the Settings icon.

3. Tap WiFi

ˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡʳ

ʳ˪˜˥˘˟˘˦˦

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Installation Instructions

Installation of the Magellan RoadMate receiver is simple and easy. The

hardest part will be picking the best location.

Selecting the Location

A few tips on selecting the proper location.

zMount the Magellan RoadMate receiver in a place where it can be easily

seen and will not interfere with your view of the road.

zThe Magellan RoadMate receiver should be mounted in such a way that

the antenna, (located in the top of the receiver), has an unobstructed view

of the sky through the windshield.

zMake sure that the Magellan RoadMate receiver or any cabling will not be

disturbed if the airbags are activated.

zBe sure to check your local and regional laws before mounting to the

windshield. Some states have laws restricting the mounting of any device

on the windshield.

Attaching the Magellan RoadMate receiver to the Car Cradle

Attach the bottom of the Magellan RoadMate receiver to the bottom edge of

the car cradle, and then push to fully mount the receiver io the car cradle.

Use 2 screws (smaller ones) to fasten the car cradle to the Magellan

RoadMate receiver, and then use 4 screws to fasten the cradle adapter to the

car cradle.

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

NAVMAN WIRELESS

NAVMAN

ʳ˪˜˥˘˟˘˦˦

Attaching the Car Cradle to the Car Mount

Attach the car cradle to the car mount as shown.

Attaching the Power Cable to the Car Cradle

Attach the USB connector to the cradle as shown. The USB connector will

‘snap’ in place when it is fully seated in the car cradle.

Securing the Car Cradle

Clean the area on the windshield that has been selected for mounting the

Magellan RoadMate receiver. Let the area dry completely.

Make sure that the lever at the base of the adjustable mount is in the up

position. Place the base of the car cradle firmly over the area where it will be

placed. Push the lever at the base of the swivel mount all the way down until it

snaps in place. Carefully let go of the assembly, making sure that it is securely

mounted.

(The Car Cradle shown here may be different from the Car Cradle supplied

with your Magellan RoadMate receiver, but the installation is the same for all

cradle styles.)

Adjusting the Mount for Optimum Viewing

Loosen the adjustment locking knob and position the Magellan RoadMate

receiver for optimum viewing. Once set, tighten the locking knobs. (Never

attempt to adjust the mount while driving.)

ʳʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Connecting Power

Plug the end of the vehicle power adapter into a 12VDC vehicle power

receptacle. Be sure to avoid routing the power cable over airbags.

Note: Some vehicles apply power to the vehicle power receptacle only when

the ignition is on.

Checking Connection and Final Adjustments

If the power indicator light on the vehicle power adaptor is on, power is being

supplied to the Magellan RoadMate receiver. If it is not on, check the cable

connection to the vehicle power receptacle. If the light is still not on, turn the

vehicle’s ignition on.

Power Button

Press the power button to turn the receiver on or off (suspend mode). Suspend

mode allows the receiver to turn on quickly the next time you use it. However,

if you want to turn the receiver completely off, press the power button and hold

for 3 seconds or more. (Turning the receiver completely off and then back on

[Power Reset] can sometimes solve any problems encountered while using

the receiver.)

Security

It is recommended that the Magellan RoadMate receiver is not left in plain

view while unattended for reasons of theft.

Please note that the Magellan RoadMate receiver is a receiver only and does

not transmit GPS location signals. Neither the receiver nor the vehicle can be

tracked using the Magellan RoadMate receiver.

ˡ˔˩ˠ˔ˡʳʳ˪˜˥˘˟˘˦˦

Map Screen

The most commonly used screen is the Map screen. Whether you are

following a route or just traveling around a city, the chances are that the Map

screen will be displayed. The Map screen can be displayed in two unique

modes: normal and routing.

In normal mode, your position is shown on the map along with the time. As you

travel, your position will be updated, giving you a clear view of your position

and surrounding streets.

(A) Current location.

(B) Traffic Notification Icon.

direction. Tap on the information field to change.

(D) Zoom Out/In.

(E) Access Main Menu.

(F) Access Highway POIs (displayed only while on a highway).

(G) Access volume controls.

(H) Access OneTouch Menu. OneTouch Menu gives you instant access to

your saved search criteria and favorite destinations.

In routing mode additional information is displayed providing detailed

information about the route you have selected.

(A) Turn instructions for next maneuver. Tap to display the maneuver list

(available only when routing).

(B) Distance and road name for the next maneuver. Tap to repeat last voice

instruction.

(D) Current position and heading.

(E) Information display. Displays speed, time of day, elevation, compass

direction. While routing it also can also display distance to destination,

estimated time of arrival (ETA), and time remaining. Tap on the information

field to change.

(F) Zoom in and zoom out controls to change the map scale.

(G) Access Main Menu.

(H) Access the list of nearest Highway Exit POIs (available only when driving

on a highway/freeway/interstate).

(I) Access volume controls.

(J) Access OneTouch menu. The OneTouch menu gives you instant access to

your bookmarked searches and favorite destinations.

Accessing the Map Screen

1. On the Main Menu screen, tap the Back arrow.

Setting the Map Modes (2D or 3D)

The map is normally displayed in 3D mode (perspective view) but you can set

the map to 2D mode (top down view) if so desired. Choose the mode that suits

you best.

1. From the Map screen, tap anywhere on the map. Additional controls

appear.

2. Tap 2D to switch the map to 2D mode from 3D mode, or tap 3D

to switch the map to 3D mode from 2D mode.

3. Tap .

Setting Zoom Levels

Select the zoom level that best suits your needs. Note that zoom levels are

limited in 3D mode. As you zoom out in 3D, the display will switch to 2D at

higher zoom levels.

1. Tap the ‘+’ or ‘-’ zoom level buttons at the bottom of the display to set the

desired zoom level.

Panning on the Map

1. While viewing the Map screen, slide your finger or a stylus across the

map.

2. The map screen changes to Pan mode.

3. When finished, tap and the map returns to your current position.

Routing to a Panned Position

1. Pan the map until the location you wish to route to is displayed.

2. Tap on the map at the point you want to go to. A red push pin will be

displayed along with information about the point chosen at the top of the

screen.

3. Tap the button in the top left corner.

4. If an active route already exists, first you need to define what to do with

this new route point:

zReplace Destination: the next destination is cleared and replaced with

the one selected from the Pan screen.

zGo There Now: the selected location is inserted in the route as an

intermediate destination before the next destination.

zAdd To Trip: the selected destination is added to the end of the current

trip.

5. Tap the large GO button on the right to return to the Map screen and

begin navigating.

Note: if the panned position does not match an existing street address (i.e. the

destination is not along a road or street that is stored in the map database),

the guidance will stop on the road that is closest to your destination. A dashed

line to your final destination will then be displayed on the map.

Current Location Screen

The Current Location screen displays the approximate address of your current

position, the next and previous intersections, your latitude, longitude, heading

and elevation.

Accessing the Current Location Screen

There are two ways to open the Current Location screen. From the Map

screen:

1. From the Map screen tap on the current position icon .

Saving Your Current Location to Your Address Book

1. From the Map screen tap on the current position icon .

2. Tap Save.

3. (optional) If you want to save this location to the OneTouch menu, select

Add to OneTouch.

4. Edit information:

zTap the Name field and use the keypad to enter a name for the

Address Book entry. (See above for details.)

z(optional) Tap <Enter Phone Number> to specify a phone number for

the address book entry.

5. When the details for this address are acceptable, tap . (Note: entering

a Name is required before saving the Address Book entry.)

6. If you have selected to save this point to the OneTouch menu, you need to

select a button for the entry.

Maneuver List (Itinerary)

This screen is accessed from the Map screen and is available only when

routing.

Each line in the Maneuver List provides details about the maneuvers in the

order that they are to be made, with the next maneuver at the top.

The Maneuver List can be modified if you want to exclude one of the

maneuvers should you want to avoid travelling on one of the streets listed.

Instructions to exclude one of the maneuvers is described in this chapter.

Accessing the Maneuver List

1. When actively following a route, tap the maneuver icon in the top left

corner of the Map screen.

Excluding a Maneuver

This is used to modify the route to possibly avoid routing on a particular street.

1. Access the Maneuver List.

2. Tap the Avoid icon for the maneuver you want to avoid.

3. Tap Yes to confirm.

4. The Magellan RoadMate receiver recalculates the route and the Map

screen returns.

Volume

The volume can be adjusted or muted from the Map screen. (The volume can

also be adjusted from Settings > Sound.)

Changing the Volume from the Map Screen

1. Tap the speaker icon . Additional controls appear.

2. Tap on the Mute button to mute the volume, or tap the ‘+’ or ‘-’ icons

to change the volume levels.

3. Tap .

Creating a Destination

Creating a Destination to an Address

When creating an address, the first step is to enter the city.

The city can be specified by entering the name of the city, entering the ZIP

code for the city or by selecting a previously used city.

1. From the Main Menu tap the Address icon.

2. Enter City:

You have three ways to do this:

zTo select the city from the list of previous cities, tap the button.

zTo enter a new city: use the keyboard to enter the first few characters

of any significant word in the city name. If the city you are entering

appears in the top field you can tap on the city name or the . At

any time you can tap on the List button to bring up a list of cities that

begin with the characters you entered. Tap to select the city from the

list.

zTo enter a ZIP code: if needed, tap the Zip Code button to switch to

the numeric keyboard. Enter the ZIP code. Tap to bring up a list

of cities with the zip code entered.

3. Enter Street name:

With the city selected, the keyboard will be displayed prompting you for the

street name.

zUse the keyboard to enter the street name. It is not necessary to enter

accented characters. Enter the first few characters of any significant

word in the street name and tap the or continue entering

characters until the list of streets is displayed.

Tap on the street name from the list.

4. Enter Street number:

Use the keyboard to enter the street number for the address. The range of

acceptable street numbers is displayed before you start typing. Tap the

when the street number is complete.

5. The GO screen appears with the address of the selected location, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fastest Time).

6. (optional) Tap Options if you want to change the routing method.

7. Tap the large GO button on the right to return to the Map screen and begin

routing.

Tip: If you know that you will use a destination later, before tapping the

orange button you can tap Save to save it in your Address Book or in the

OneTouch menu.

Tips on Entering Addresses Quickly

zWhen you are entering the name of a city or a street, Magellan software

only displays those characters that appear in possible search results. The

other characters are grayed out.

zWhen entering city names or street names, tap the List button after a

couple of letters; Magellan software lists the items that contain the

specified characters.

zYou can also search by ZIP codes. This narrows the number of matching

cities to normally less then four.

Creating a Destination to an Intersection

When the street number is not known, an intersecting street can pinpoint the

location.

1. From the Main Menu, tap the Intersection icon.

2. Enter City:

You have three ways to do this:

zTo select the city from the list of previous cities, tap the button.

zTo enter a new city: use the keyboard to enter the first few characters

of any significant word in the city name. If the city you are entering

appears in the top field you can tap on the city name or the . At

any time you can tap on the List button to bring up a list of cities that

begin with the characters you entered. Tap to select the city from the

list.

zTo enter a ZIP code: if needed, tap the Zip Code button to switch to

the numeric keyboard. Enter the ZIP code. Tap to bring up a list

of cities with the zip code entered.

3. Enter Street name:

With the city selected, the keyboard will be displayed prompting you for the

street name.

zUse the keyboard to enter the street name. It is not necessary to enter

accented characters. Enter the first few characters of any significant

word in the street name and tap the or continue entering

characters until the list of streets is displayed.

Tap on the street name from the list.

4. Enter the second street:

Enter the name of the second street as you did the first street.

5. A screen appears with the address of the selected location, the estimated

time of arrival (ETA), the distance to travel, and the routing method (e.g.

Fastest Time).

6. (optional) Tap Options if you want to change the routing method.

7. Tap the large GO button on the right to return to the Map screen and begin

routing.

Creating a Destination to a City Center

City Center allows you to select any city on the map as your destination. This

option is particularly useful when you want to go to a city without having any

specific address to select. (A route to a city center uses the geographical

center of the city as the destination point.)

1. From the Main Menu, tap the City Center icon.

2. Enter City:

zTo select the city from the list of previous cities, tap the button.

zTo enter a new city: use the keyboard to enter the first few characters

of any significant word in the city name. If the city you are entering

appears in the top field you can tap on the city name or the . At

any time you can tap on the List button to bring up a list of cities that

begin with the characters you entered. Tap to select the city from the

list.

zTo enter a ZIP code: if needed, tap the Zip Code button to switch to

the numeric keyboard. Enter the ZIP code. Tap to bring up a list

of cities with the zip code entered.

3. A screen appears with the address of the selected location, the estimated

time of arrival (ETA), the distance to travel, and the routing method (e.g.

Fastest Time).

4. (optional) Tap Options if you want to change the routing method.

5. Tap the large GO button on the right to return to the Map screen and start

navigating.

Previous Destinations

Routing to a Previous Destination

1. From the Main Menu, tap the Previous icon.

2. Select the destination from the list of previous destinations.

3. A screen appears with the address of the selected location, the estimated

time of arrival (ETA), the distance to travel, and the routing method (e.g.

Fastest).

4. (optional) Tap Options if you want to change the routing method.

5. Tap the large GO button on the right to return to the Map screen and start

navigating

Saving a Previous Destination to Your Address Book

1. Access the list of Previous Destinations as described above.

2. Select the desired location from the list of previous destinations.

3. On the Go screen, tap Save.

4. The Edit Information screen is displayed. If you want to save this location

to the OneTouch menu, select Add to OneTouch.

5. Edit information:

zTap the Name field and use the keyboard to enter a name for the

address book entry.

z(optional) Tap <Work, Cell or Home phone> to specify a phone

number for the address book entry.

z(optional) Tap List Categories to bring up a list of categories you have

created for your address book. If the category you want isn’t there, you

can create one by tapping the “+ Add” button at the bottom of the

screen.

6. When the details for this address are acceptable, tap the .

7. If you have selected to save this to the OneTouch menu, you be asked to

select a the OneTouch button you want it assigned too.

Clearing the list of Previous Destinations

1. Access the list of Previous Destinations as described above.

2. Tap Delete All to clear the list.

3. To confirm the deletion, tap Yes.

Address Book

Accessing an Address in Your Address Book

1. From the Main Menu, tap the Address Book icon.

To easily find the desired address you can tap the top left corner of the

screen and narrow the list by the first letter of the address book entries.

Routing to an Address in Your Address Book

1. Access the address record from your address book as described above.

2. Tap the GO icon of the desired address book entry. A screen appears with

the address of the selected location, the estimated time of arrival (ETA),

the distance to travel, and the routing method (e.g. Fast).

3. (optional) Tap Options if you want to change the routing method.

4. Tap the large GO button on the right to return to the Map screen and start

navigating.

Creating a New Entry in Your Address Book by Entering an Address

1. From the Main Menu, tap the Address icon, and enter an address as

described in “Entering an Address”.

2. When the screen appears with the address of the selected location, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fast), tap Save.

3. Edit information:

zTap the Name field and use the keyboard to enter a name for the

address book entry.

z(optional) Tap <Work, Cell or Home Phone Number> to specify a

phone number for the address book entry.

z(optional) Tap Assign to correct the location or to add text information

to the address book entry.

zIf you want to save this location to the OneTouch menu, select Add to

OneTouch.

z(optional) Tap List Categories to bring up a list of categories you have

created for your address book. If the category you want isn’t there, you

can create one by tapping the “+ Add” button at the bottom of the

screen.

4. When the details for this address are acceptable, tap the .

5. If you have selected to save this to the OneTouch menu, you asked to

select a the OneTouch button you want it assigned too.

Creating a New Entry in Your Address Book from a POI

1. From the Main Menu, tap the POI icon, and search for a POI as described

in “Creating a Route to a POI by Category/Name.”

2. When the list of POIs appear, tap on the desired POI, and tap Save from

the Route Method display.

3. Edit information:

zTap the Name field and use the keyboard to enter a name for the

address book entry.

z(optional) Tap <Work, Cell or Home Phone Number> to specify a

phone number for the address book entry.

z(optional) Tap Assign to correct the location or to add text information

to the address book entry.

zIf you want to save this location to the OneTouch menu, select Add to

OneTouch.

z(optional) Tap List Categories to bring up a list of categories you have

created for your address book. If the category you want isn’t there, you

can create one by tapping the “+ Add” button at the bottom of the

screen.

4. When the details for this address are acceptable, tap the .

5. If you have selected to save this to the OneTouch menu, you asked to

select a the OneTouch button you want it assigned too.

OneTouch Menu

In addition to Home Address, there are other icons in the OneTouch Menu.

There are predefined bookmarks as well as user assignable bookmarks for

searches and favorite destinations. They can be used for easy access of

frequent destinations and to get local information when needed. Furthermore,

you can assign POI search criteria to OneTouch icons. The OneTouch menu

now has two tabs at the top of the display; Home and Travel. Each tab can be

used independently of each other to help in categorizing your destinations and

searches.

Saving an Address to a OneTouch Icon

1. Tap the button in the top right corner of the Map screen. The

OneTouch menu appears.

2. Tap one of the Assign icons.

3. Tap Location.

4. Using the keypad, enter the address (city, street and number) for the

OneTouch icon.

5. When the address is complete you are prompted to enter a name for the

button.

6. Using the keypad, enter a name for the button and tap .

7. Verify that the address has been added by going to the Map screen and

accessing the OneTouch menu.

Changing the Address or Search of a OneTouch Icon

1. Tap the button in the top right corner of the Map screen. The

OneTouch menu appears.

2. Tap the Edit button.

3. Tap on the OneTouch button you want to edit.

4. Tap on the Re-assign button.

5. Tap Yes to confirm.

6. Follow the instructions for assigning a OneTouch button.

Saving a POI Search Criteria to a OneTouch Icon

Besides frequently visited destinations, you can also save POI search criteria

to a OneTouch button. For example you may frequently search for coffee

shops near your location or gas stations along your route. You can save these

searches for later use.

1. Tap the button in the top right corner of the Map screen.

2. Tap one of the Assign buttons.

3. Tap Search.

4. Tap one of the POI categories in the list.

5. If the next screen contains a list of subcategories, tap one of the POI

subcategories in the list to further narrow the search, or tap “Any xxx” to

see the list of all nearby POIs from the selected main POI category.

6. Repeat selecting subcategories until the list of POIs appear. (The list of

POIs are shown with the closest POI to your current position on top.)

7. Tap Save.

8. Using the keypad, enter a name for the button and tap .

Setting a Route to a OneTouch Icon

With the OneTouch menu set up you can now go to a saved address or

search.

1. Tap the button in the top right corner of the Map screen.

2. Tap one of the assigned OneTouch buttons.

3. If the assigned button is for a search, the list of POIs is displayed. Tap on

the desired POI.

The “Preview” icon at the bottom of the display allows you to step through

the available POIs while viewing their location on the map.

The “Near...” button allows you to select how the list is sorted (nearest

your current position, nearest a city you define or near an address you

enter).

4. Whether the destination was chosen from a list of POIs or by an address,

the GO screen is displayed (unless you are already on a route -- see

below). Tap on the Go button to begin the route.

Note: if you are already on a route you will be asked if you want to:

zReplace Destination --- this cancels the previous route and replaces it

with a new route to this destination.

zGo There Now --- this inserts the destination in the route as the next

destination and you will begin routing there. Once that destination has

been completed, the receiver will begin routing to the next destination

in the list.

zAdd To Trip --- places the destination at the end of the trip. When the

final destination of the current trip has been arrived at, the receiver will

begin routing to the destination you are inputting now.

The Save button saves the destination, not the trip.

After selecting one of the three options, the Multiple Destination List is

displayed. You can ‘drag n drop’ the displayed destinations to any order

desired. Tap ‘Optimize’ to have the receiver compute the fastest method

for completing the trip when the order of the destinations is not important.

Confirm the trip by tapping the Go button.

Points of Interest (POI)

The Magellan RoadMate receiver has preloaded POIs that can be used as a

destination for a route. Selecting a restaurant or finding a gas station nearby is

at your fingertips.

Creating a Route to a POI by Category

POIs are categorized into unique categories from gas stations to tourist

attractions. Most, but not all categories are further organized into

subcategories. Restaurants have, for example, several subcategories that

provide a way to search for restaurants serving Chinese food, fast food, or

other favorites.

1. From the Main Menu, tap the Points of Interest icon.

2. Tap one of the POI categories in the list.

3. If the next screen contains a list of subcategories, tap one of the POI

subcategories in the list to further narrow the search.

4. POIs near your current position are displayed. You can tap “Near...” for

different search criteria (Near Current Position, Near City, or Near

Address).

5. If you select Near City or Near Address you will need to enter the city or

address information.

6. Select the POI desired from the list of POIs.

7. The ‘Go’ screen appears with the address of the selected location, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fastest Time).

8. (optional) Tap Options if you want to change the routing method. You can

select from Fastest Time, Shortest Distance, Mostly Freeways or Least

Use of Freeways.

9. Tap the large Go button on the right to return to the Map screen and begin

navigating to the POI selected.

Creating a Route to a Special POI (AAA TourBook)

Your Magellan RoadMate receiver is shipped with a built-in database of POIs

from the AAA TourBook. Some of these POIs have been rated by AAA.

ʳʳˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

1. From the Main Menu, tap the Points of Interest icon.

2. Tap the AAA button.

3. Tap TourBook®.

4. Choose the category that best describes your destination POI.

5. POIs near your current position are displayed. You can tap “Near” for

different search criteria (Near Current Position, Near City, or Near

Address).

6. If you select Near City or Near Address you will need to enter the city or

address information.

7. Select the POI desired from the list of POIs.

8. The AAA TourBook screen is displayed with information about the POI

selected.

9. Tap the Go button at the bottom of the screen.

10. The ‘Go’ screen appears with the address of the selected location, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fast).

11. (optional) Tap Options if you want to change the routing method.

12. Tap the large Go button on the right to return to the Map screen and begin

getting directions to the destination you choose.

Creating a Route to a POI by Name

1. From the Main Menu, tap the Points of Interest icon.

2. Tap the Search By Name button.

3. Spell the name of the POI to be used as the destination. You don’t need to

enter the full name, but the more characters you enter, the easier it will be

to find the exact POI you are searching for. Tap .

4. POIs near your current position are displayed. You can tap “Near” for

different search criteria (Near Current Position, Near City, or Near

Address).

5. If you select Near City or Near Address you will need to enter the city or

address information.

6. Select the POI desired from the list of POIs.

7. The ‘Go’ screen appears with the address of the selected location, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fast).

8. (optional) Tap Options if you want to change the routing method.

9. Tap the large Go button on the right to return to the Map screen and start

navigating.

Creating a Route to a Highway Exit POI

The Highway Exit POIs function provides a way of accessing commonly used

POIs that are near an exit you are approaching while travelling on a highway.

Highway Exit POIs include restaurants, gas stations, car repair facilities and

hotels. Freeway Exit POIs can be accessed while on a route or just driving, as

long as you are on a freeway.

1. From the Map screen, tap the Highway Exit POIs button when it appears.

2. The list of the next freeway exits and their distance from your current

position appear.

3. Small symbols represent the following service POIs near the exits:

zRestaurants

zGas Stations

zCar Repair

zAccommodations

4. Tap any of the symbols to get a list of related POIs near the exit.

5. Select one POI from the list, and tap .

6. The ‘Go’ screen appears with the address of the selected POI, the

estimated time of arrival (ETA), the distance to travel, and the routing

method.

7. (optional) Tap Options if you want to change the routing method.

8. Tap the Go button on the right to return to the Map screen and begin

routing to the POI selected.

Home Address

Your most frequent destination can be entered and saved in the Magellan

RoadMate as the Home Address for quick and easy access when you need to

navigate there. This does not need to be your real home address. Choose any

address you visit frequently. You can access it at any time with the first button

of the OneTouch menu.

Saving the Home Address

These instructions only apply if you have never entered a home address.

1. Tap the button in the top right corner of the Map screen. The

OneTouch menu appears.

2. Tap the Home button.

3. Tap Yes to confirm that you want to enter your home address. (Tap ‘Use

My Current Location’ if you want to store your home address using the

GPS location.)

4. Using the keyboard, enter the desired address (city, street and number).

Changing the Home Address

These instructions only apply if a home address has already been entered.

1. Tap the button in the top right corner. The OneTouch menu

appears.

2. Tap Edit to enter editing mode.

3. Tap the Home button.

4. Tap the Re-assign button.

5. Tap Yes to confirm that you want to enter your home address.

6. Using the keyboard, enter the desired address (city, street and number).

Creating a Route to the Home Address

1. Tap the button in the top right corner. The OneTouch menu

appears.

2. Tap the Home button.

3. The display is returned to the Map screen and instructions for travelling to

your home address are supplied. (Note when you are on a route, creating

a route to your home replaces the route automatically.)

TourDirector

The TourDirector helps you discover and plan customized trips to top-rated

attractions. The TourDirector gives you all the information needed, included the

estimated time that will be spent at each attraction to help you get the most out

of your vacation, whether it’s for a day or a week.

Creating a Tour

1. From the Map screen tap on the MENU button.

2. Tap on the TourDirector icon.

3. Select a category to put in your tour (Attraction, Shopping or Restaurant).

4. Tap on an item in the list displayed.

A description of the item is displayed along with it’s address. In the upper

right corner, the average amount of time that is spent while at this

destination.

5. Tap on the Add button to include this destination in your tour.

Tap on the Map icon at the bottom of the display to see the location of the

destination on the map.

Tap on the Back button to return to the list of destinations.

6. Tap on the Back button to select a different category or continue to pick

destinations from the displayed list.

7. When you have added all of the desired destinations, tap on the Green

Check button.

8. An itinerary of your tour is displayed.

Use the up and down arrows to change the order of the destinations.

To remove a destination, highlight it and tap the Remove button in the

upper right corner.

To automatically optimize the tour tap on the Optimize button. The order of

the destinations will change.

To add another destination, tap the +Add button and go back to step 3.

To view a summary of the tour (estimated time and distance) tap

Summary.

9. After you have the order of the destinations in your tour set, tap on the End

At... line.

Select the destination you want to return to after the tour is over.

10. Tap the Green Check button.

Traveling on a Route

Map Screen

When a route has been calculated, it will be displayed on the Map screen in

green with small arrows indicating the direction of travel. The top of the screen

displays the name of the street that comes next in your Turn List together with

its distance. If you are not in the city in which the next street is, the name of

the city is displayed instead.

As the route progresses, voice alerts will be used to prompt you of upcoming

maneuvers.

Maneuver List

The Maneuver List displays all of the maneuvers needed to be made to

complete the route and arrive at the destination. To view the Maneuver List,

tap on the maneuver icon in the top left corner of the Map screen. (The

Maneuver List is described in detail in the Map chapter of this manual.)

Types of Routes

There are a wide variety of methods you can use to create a route. Each

method is discussed in the chapter which is associated with it.

Routing Method

Regardless of which route type has been created, the Magellan RoadMate

needs to know how the route is to be calculated. Routes can be calculated by

the following methods:

zFastest Time (Fast): the fastest possible route provided the vehicle is able

to travel at or near the speed limit.

zShortest Distance (Short): the shortest possible route.

zMost Use of Freeway.

zLeast Use of Freeway.

When a destination is selected, the Magellan RoadMate offers the route with

the default selected routing method first.

1. To change the routing method, tap Options when the ‘Go’ screen is

displayed. The Magellan RoadMate calculates the route with different

methods.

2. Tap on the icon to view the maneuver list for the route method

desired.

3. Tap the desired routing method in the list, and the previous screen returns

with the new calculation.

To permanently change the routing method

1. From the Main Menu, tap the Settings icon.

2. Tap Navigation Preferences.

3. Use the Route Method drop-down menu to select the default routing

method desired.

Special Routing Functions

Cancelling a Route

1. From the Map screen, tap Menu.

2. On the Main Menu, tap the cancel route icon.

3. Confirm that you want to cancel the route. Tap Yes.

1. Tap the OneTouch icon from the Map screen to display the OneTouch

menu.

ʳˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

ʳʳˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

2. Tap the cancel route icon.

3. Confirm that you want to cancel the route. Tap Yes.

Detouring off a Route

1. From the Map screen, tap Menu.

2. Tap the Detour icon.

3. Different detours are calculated using the same routing method that was

used to create the route. The list of alternate routes is displayed.

4. (optional) You can check the Maneuver List of an alternate route if you tap

the button on the right.

5. Tap the desired alternate route.

SmartDetour™ on Freeways

When you slow down under 20% of the speed limit on a freeway, after a few

seconds the Magellan software assumes you are in a traffic jam and displays

the Detour button on the Map screen.

1. Tap Detour.

2. Different detours are calculated using the same routing method that was

used to create the route. The list of alternate routes is displayed.

3. (optional) You can check the Maneuver List of an alternate route if you tap

the button on the right.

4. Tap the desired alternate route.

Multi Destination Routes

With the Magellan RoadMate you can create routes with more than one

destination. Select one destination and create a single route first. Then turn it

to a multi destination route by selecting additional destinations.

Creating Additional Destinations with Go To

Using the search functions of the Magellan RoadMate you can easily create a

route with multiple destinations.

1. From the Main Menu, tap the Go To icon.

2. Tap Address, POI, Previous, Address Book, Intersection, or City Center.

3. Select a new destination as described earlier.

4. If a route already exists, a new screen is displayed with Add Destination

options (Replace Destination, Go There Now, or Add to Trip).

zReplace Destination: the previous route is cleared, and a new route is

calculated with the selected location as the destination.

zGo There Now: the selected location is inserted in the route as the

next destination.

zAdd To Trip: the selected location becomes the new destination with

the previous destination as the last via point to reach.

5. The Multiple Destination List is displayed.

6. Tap on one of the addresses to move it up or down in the list.

7. Tap Optimize to optimize the route.

8. Tap Add to put another destination in the route.

9. When done, tap .

ʳˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

10. A screen appears with the address of the next destination in the trip, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fast).

11. (optional) Tap Options if you want to change the routing method.

12. Tap the large GO button on the right to return to the Map screen and start

navigating.

Editing the Destination List

You can also edit a multi destination route without adding new destinations.

1. From the Map screen, tap Menu.

2. Tap Trip Options.

3. Tap Edit Trip.

4. The Multiple Destination List is displayed.

5. Tap on one of the addresses to move it up or down in the list.

6. Tap Optimize to optimize the route.

7. Tap Add to put another destination in the route.

8. When done, tap .

9. A screen appears with the address of the next destination in the trip, the

estimated time of arrival (ETA), the distance to travel, and the routing

method (e.g. Fastest).

10. (optional) Tap Options if you want to change the routing method or the

vehicle type.

11. Tap the large GO button on the right to return to the Map screen and start

navigating.

Saving a Multi Destination Route to Your Address Book

Multi destination routes can be saved for later use from the address book.

1. From the Map screen, tap Menu.

2. Tap Trip Options.

3. Tap Edit Trip.

4. The Multiple Destination List is displayed.

5. Make changes as needed.

6. Tap .

7. Tap Save.

8. Tap Yes to save the route to your address book.

9. The Add To Address Book screen is displayed. Tap on the Name if you

want to change it.

10. Tap .

Traffic

Glossary

RDS: Radio Data System. Infrastructure that broadcasts digital information on

the FM band.

TMC: Traffic Message Channel, one of the types of information that a Radio

Data System can broadcast.

Public TMC Service: In some countries, there is at least one TMC service

provider that broadcasts Traffic information free of charge. The Magellan

RoadMate automatically receives public TMC services, whichever country you

are in. For the updated list of countries and providers, please, check

www.magellanGPS.com.

Traffic Message: A message received by the Magellan RoadMate that contains

the description of a Traffic event.

Traffic Event: An event liable to disturb the flow of traffic.

Traffic Incidents

When routing, if a traffic incident(s), slow traffic or stopped traffic will delay

your arrival, the traffic icon on the Map screen will display the computed delay

due to traffic in the red box below the traffic icon. Across the top of the display

is the banner for coupons and offers that are available for Traffic Link users.

Avoiding a Traffic Incidents

When the traffic icon indicates a delay, you can select to avoid any or all of the

traffic incidents along your route.

ʳʳˡ˔˩ˠ˔ˡʳ

ʳ˪˜˥˘˟˘˦˦

ˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

1. Tap on the red traffic icon while traveling on a route. A list of traffic

incidents, slow traffic and stopped traffic along your route are displayed.

2. Tap on the checkbox to the left of the traffic delay you want to avoid.

3. Tap Avoid.

4. A comparison list of the time for the current route as well as the newly

computed route are displayed. Tap on Current or New to select which

route you wish to use.

Tapping on the maneuver icon to the right of each line will display the

Maneuver List for each route.

Tapping on the Map icon at the bottom of the display shows a graphical

representation of the current vs. the new route.

5. The Map screen is displayed and routing instructions are provided for the

route you selected.

Coupons and Offers

Along the top of the POI Search Results and the Map display you will see a

banner that displays coupons and offers from various merchants. (If during a

search, the coupon will be pertinent to the category you are searching on.)

Coupons From POI Searches

When you have the Traffic Link installed you can also get a coupon that

applies to the POI search you are performing. For example, while doing a POI

search for a coffee shop you will get special offers from a coffee shop

merchant at the top of the search list results. Tap on the offer displayed to get

additional information on the offer.

Viewing a Coupon Offer

1. Tap on the coupon banner.

2. Information about the coupon is displayed.

Viewing All Coupons

1. When you arrive at your destination you have the option of viewing the

most recent coupons and offers.

2. On the You Have Arrived screen, tap the left and right arrows to step

through the coupons presented.

3. Tap on the coupon name to display additional information about the

coupon.

Settings

With user Settings you can customize the Magellan RoadMate receiver to

better suit your personal needs and preferences.

Tapping the Back arrow from any of the Setting screens saves your

changes.

Accessing System Settings

1. From the Main Menu screen, tap the Settings icon .

2. Tap System.

Setting Languages

1. Access the System Settings menu (above).

2. Tap Languages.

3. Tap on the desired language.

4. Tap the back arrow .

5. The Magellan RoadMate receiver will reboot if you change the language.

Setting Auto Power

Auto power is the duration of time that the Magellan RoadMate receiver

remains idle before turning off automatically.

1. Access the System Settings menu (above).

2. Tap Auto Power.

3. Tap on the desired duration.

4. Tap the back arrow .

ˡ˔˩ˠ˔ˡʳʳ˪˜˥˘˟˘˦˦

ʳˡ˔˩ˠ˔ˡʳʳ˪˜˥˘˟˘˦˦

Setting Brightness

1. Access the System Settings menu (above).

2. Tap Brightness.

3. Tap in the brightness slider to set the brightness of the display.

4. Tap the back arrow .

The Dim on Battery Power option will prolong battery life by dimming the

display while using internal battery power. Check to turn this option on.

Setting the Time Format

1. Access the System Settings menu (above).

2. Tap Time Format.

3. Tap on 24 Hours or 12 hours with am/pm.

4. Tap the back arrow .

Selecting the Time Zone (daylight savings on/off)

1. Access the System Settings menu (above).

2. Tap Time Zone.

3. Check Auto Time Zone or select your time zone from one of the cities in

the list.

4. Tap the back arrow .

Selecting Units of Measure

Auto power is the duration of time that the Magellan RoadMate receiver

remains idle before turning off automatically.

1. Access the System Settings menu (above).

2. Tap Units.

3. Tap on the desired unit of measure.

4. Tap the back arrow .

ˡ˔˩ˠ˔ˡʳʳ˪˜˥˘˟˘˦˦

Map Options

Setting Auto Night Map Display

Normally the map is displayed in vivid colors for daytime use and with dark

tints for night use. You can select whether to always use daytime colors, night

color or let the Magellan RoadMate receiver switch between them

automatically a few minutes before sunrise and a few minutes after sunset.

1. From the Main Menu screen, tap the Settings icon.

2. Tap Map Options.

3. Tap Night Mode to select Automatic for the timed adjustment, on always or

off always.

Setting Heading Up or North Up in 2D Mode

1. From the Main Menu screen, tap the Settings icon.

2. Tap Map Options.

3. Tap 2D Heading Up or 2D North Up to toggle between settings.

Assigning Visible POIs

To avoid cluttering of the map, the POI icons that are displayed on the map

can be turned on or off.

1. From the Main Menu screen, tap Settings.

2. Tap Map Options.

3. Tap POI Visibility.

4. Use the POI Selection screen to check those POIs you want shown and

uncheck those you want hidden.

ˡ˔˩ˠ˔ˡʳʳ˪˜˥˘˟˘˦˦

Setting Auto Zoom on Turns

You can set the map to automatically zoom in to the lowest level when coming

up to a turn.

1. From the Main Menu screen, tap the Settings icon.

2. Tap Map Options.

3. Checking Auto Zoom on Turns enables this function.

Setting Highway Lane Assist

When Highway Lane Assist is checked, the map will display highway signs as

you approach a highway interchange giving you visual indication of which lane

you want to be in.

1. From the Main Menu screen, tap the Settings icon.

2. Tap Map Options.

3. Checking Highway Lane Assist enables this function.

Sound

Setting Volume from Settings

1. From the Main Menu screen, tap the Settings icon.

2. Tap Sound.

3. Tap inside the volume slider bar to set the desired volume level.

Muting the Sound

1. From the Main Menu screen, tap the Settings icon.

2. Tap Sound.

3. Checking Mute will mute all sounds.

Turning off Button Sounds

1. From the Main Menu screen, tap the Settings icon.

2. Tap Sound.

3. Unchecking Button Sounds will turn off the audible indication that a button

is tapped.

Navigation Preferences

Setting The Default Route Method

1. From the Main Menu screen, tap the Settings icon.

2. Tap Navigation Preferences.

3. Use the drop-down menu to select the default routing method.

Setting The Turn Warning Alert Sounds

1. From the Main Menu screen, tap the Settings icon.

2. Tap Navigation Preferences.

3. Use the drop-down menu to select the default sound you want played

when alerting you to a turn.

Enabling U Turn Guidance

1. From the Main Menu screen, tap the Settings icon.

2. Tap Navigation Preferences.

3. Checking Enable U Turns will allow the receiver to use U turns when

necessary to compute your route.

Avoiding Toll Roads

1. From the Main Menu screen, tap the Settings icon.

2. Tap Navigation Preferences.

3. Checking Avoid Toll Roads tells the receiver to avoid toll roads whenever

possible.

Keyboard

Setting the Keyboard Layout.

1. From the Main Menu screen, tap the Settings icon.

2. Tap Keyboard.

3. Select QWERTY (default) or ABC keyboard layouts.

Adding Features

This option is used when purchasing an additional feature for your receiver

that requires a code to authorize it. Check the Magellan web site periodically

for new features, enhancements or even software updates.

1. From the Main Menu screen, tap the Settings icon.

2. Tap Add Feature.

3. Use the keypad to enter in the code you received.

Traffic

Enabling Traffic

This option is used when you want to turn traffic off. (Traffic information is

available only after purchasing and installing the Traffic Link accessory.)

1. From the Main Menu screen, tap the Settings icon.

2. Tap Traffic.

3. Checking Enable Live Traffic allows the receiver to display received traffic

information.

Displaying Traffic Popups

1. From the Main Menu screen, tap the Settings icon.

2. Tap Traffic.

3. Checking Automatic Traffic Popup allows the receiver to display popup

traffic information.

Setting Audible Traffic Warnings

1. From the Main Menu screen, tap the Settings icon.

2. Tap Traffic.

3. Checking Autdible Traffic Warnings allows the receiver to sound a beep

when traffic warnings appear.

GPS Options

Setting the GPS Position

It is useful to set a GPS position if you are not receiving satellite information

quickly due to travelling over 800 km/500 mi with the Magellan RoadMate

receiver turned off. Setting the GPS position will allow the Magellan RoadMate

receiver to compute which satellites are available and calculate the position

more quickly.

1. From the Main Menu screen, tap the Settings icon.

2. Tap GPS Options.

3. Tap Set GPS Position.

4. Enter an address as you were selecting a destination.

Viewing the GPS Status

1. From the Main Menu screen, tap the Settings icon.

2. Tap GPS Options.

3. Tap Status.

(Optionally you can tap on the satellite signal indicator in the upper right

corner of the OneTouch screen to access the GPS Status screen.)

Default System Settings

Restoring All Default System Settings

It is useful to set a GPS position if you are not receiving satellite information

quickly due to travelling over 800 km/500 mi with the Magellan RoadMate

receiver turned off. Setting the GPS position will allow the Magellan RoadMate

receiver to compute which satellites are available and calculate the position

more quickly.

1. From the Main Menu screen, tap the Settings icon.

2. Tap GPS Options.

3. Tap Set GPS Position.

Enter an address as you were selecting a destination.

Viewing Product Information

1. From the Main Menu screen, tap the Settings icon.

2. Tap Product Information.

ˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

(Note: Scroll down the page to view the Serial Number and Software

Version.)

Trip Reporting

The Magellan RoadMate will continuously record your trips and give you a

means of viewing details of the trip, assigning a trip as a business trip and

view a summary of all recorded trips.

Accessing the Trip Report

1. From the Map screen tap Menu.

2. Tap the Settings icon.

3. Scroll down to the second page and tap Trip Report.

Viewing Trip Details

1. Access Trip Report.

2. Tap on a trip from the list displayed.

3. The Trip Details screen is displayed.

4. To assign this trip as a business trip, check the Business box in the upper

right of the screen.

ˡ˔˩ˠ˔ˡʳʳʳ˪˜˥˘˟˘˦˦

ʳʳˡ˔˩ˠ˔ˡʳ˪˜˥˘˟˘˦˦

Viewing the Trip Summary Report

1. Access Trip Report.

2. Tap on the Summary Report button.

3. The Summary Report page is displayed showing total miles, total business

miles and total time spent.

4. Tap on the Select Date Range button to select a start and finish date to

view.

Speed Warnings

The Magellan RoadMate can provide you with audible and/or visual warnings

when you exceed the speed limit by a threshold you set.

Accessing Speed Warning Settings

1. From the Map screen tap Menu.

2. Tap the Settings icon.

3. Tap Speed Warning.

Choosing the Type of Warning

1. From the Map screen tap Menu.

2. Tap the Settings icon.

3. Tap Speed Warning.

4. Set the Audible Warning and Visible Warning check boxes to the desired

state. (Checked is the warning is on, unchecked and it is off.)

Selecting the Speed Limit Sign

1. From the Map screen tap Menu.

2. Tap the Settings icon.

3. Tap Speed Warning.

4. Set the Visible check box to the desired state. (When checked, the speed

limit sign icon will be displayed on the Map screen.)

Setting the Speed Threshold

1. From the Map screen tap Menu.

2. Tap the Settings icon.

3. Tap Speed Warning.

ˡ˔˩ˠ˔ˡʳʳ˪˜˥˘˟˘˦˦

4. Use the Highways and Other Roads slider bar to set the threshold that you

want to be alerted when exceeding the posted speed limit.

Mitac Digital Technology N382 Navigation Device User Manual

Mitac International Corporation Navigation Device

Revised user manual

Navigation menu

Namespaces

Views

Navigation
