Mitac Digital Technology N448 Watch User Manual
Mitac International Corporation Watch Users Manual
Users Manual
Echo Series
User Manual
1
Use only Magellan cables and accessories; the use of non-
Magellan cables and accessories (other than compatible ANT+
wireless accessories) may severely degrade performance or
damage the device, and will void the warranty.
Lithium-ion battery: Never store the device or the battery in a high
temperature location. Do not disassemble, puncture or incinerate
the battery. Do not attempt to remove the battery. Please contact
Magellan Technical Center for issues related to the battery.
Do not use the device outside of the following temperature range:
-4°F to 131°F (-20°C to 55°C).
The information provided in this document is subject to change
without notice. Improvements and enhancements to the product
may occur without any formal notification. Check the Magellan
website (active.magellanGPS.com/start) for product updates and
additional information.
The IEC 60529/IPX7 is a European system of test specification
standards for classifying the degrees of protection provided by the
Safety
It is strongly recommended to consult a doctor before starting
any exercise program. If you have a pacemaker or other
implemented device, consult your doctor before using the
heart rate monitor.
2
enclosures of electrical equipment. An IPX7 designation means
that the unit withstands immersion in one meter (approx 3ft) of
still water for up to 30 minutes. Magellan guarantees this grade
provided the battery door and all jack covers are properly and
securely closed. This device is not IPX8 grade; water-pressure such
as washing the unit with running water may cause damage to the
unit and voids warranty.
Declaration of conformity
Note: For regulatory identification purposes, Echo is assigned a model number of
N448.
CE
Products with the CE marking comply with Radio & Telecommunication Terminal
Equipment Directive (R&TTE) (1999/5/EC), the Electromagnetic Compatibility
Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) - issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following European
Standards:
EN301489-1: Electronic compatibility and Radio spectrum Matters (ERM),
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part
1: Common technical requirements
EN301489-17: Electronic compatibility and Radio spectrum Matters
(ERM),ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and
3
5 GHz high performance RLAN equipment
EN 300 328: Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband Transmission systems; Data transmission equipment operating in the 2,4
GHz ISM band and using spread spectrum modulation techniques; Harmonized EN
covering essential requirements under article 3.2 of the R&TTE Directive
EN55022: Radio disturbance characteristics
EN55024: Immunity characteristics
EN61000-3-2: Limits for harmonic current emissions
EN61000-3-3: Limitation of voltage fluctuation and flicker in low-voltage supply
system
IEC 60950-1:2001: Product Safety
The manufacturer cannot be held responsible for modifications made by the User
and the consequences thereof, which may alter the conformity of the product with
the CE Marking.
Hereby, Masternaut declares that this N382 is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
WEEE
This product must not be disposed of as normal household waste, in accordance
with the EU directive for waste electrical and electronic equipment (WEEE -
2002/96/EC). Instead, it should be disposed of by returning it to the point of sale, or
to a municipal recycling collection point.
4
FCC
Federal Communications Commission (FCC) Statement
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may
cause undesired operation
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
FCC RF Radiation Exposure Statement
5
This transmitter must not be co-location or operating in conjunction with any other
antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
IC
This Class B digital apparatus complies with Canada ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
The abbreviation, IC, before the registration number signifies that registration was
performed based on a Declaration of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that Industry Canada approved
the equipment.
To prevent radio interference to the licensed service, this device is intended to
be operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Canada, avis d’Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003
et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas causer d’interférences et
6
(2) cet appareil doit accepter toute interférence, notamment les interférences qui
peuvent affecter son fonctionnement.
MiTAC Digital Corp.
471 El Camino Real Santa Clara, CA 95050 USA
USA & Canada: 800-707-9971
© 2013 MiTAC International Corporation. The Magellan logo
and Magellan are registered trademarks of MiTAC International
Corporation. All rights reserved. All other trademarks and registered
trademarks are property of their respective owners.
7
Contents
Safety ................................................................................1
Declaration of conformity ........................................................2
Echo Fundamentals .......................................................8
Connecting Your Echo Watch ................................................8
Echo Settings ................................................................................8
Updates ..........................................................................................9
Using the Watch .........................................................................9
Power........................................................................................... 10
Turning Echo On / Off ................................................. 10
Battery ......................................................................................... 10
Warranty ..................................................................................... 12
Addendum A - Resting Heart Rate ........................... 15
Measuring Your Resting Heart Rate ................................... 15
8
Echo Fundamentals
Connecting Your Echo Watch
The Magellan Echo watch can be connected with iOS and Android
devices (smartphones/tablets) which have Bluetooth Smart. Please
visit www.magellangps.com/echo/devices for a list of the latest
compatible devices.
To connect the watch, activate the Bluetooth function on your
device and select the Echo watch from the list of connected devices.
Echo Settings
The settings of the watch can be changed using the Magellan Echo
App.
Please download the Magellan Echo App on your device to change
the settings of the watch and to customize the screens.
The app allows you to:
• Set the time and date notation
• Set the correct time and date
• Add remove specific data fields on the watch
9
Updates
By connecting the watch with the Magellan Echo App, the watch
will automatically set to the correct time and date (depending on
time zone). Software updates will be offered automatically when
available.
It is recommended that you connect the watch to the Magellan
Echo App regularly.
Using the Watch

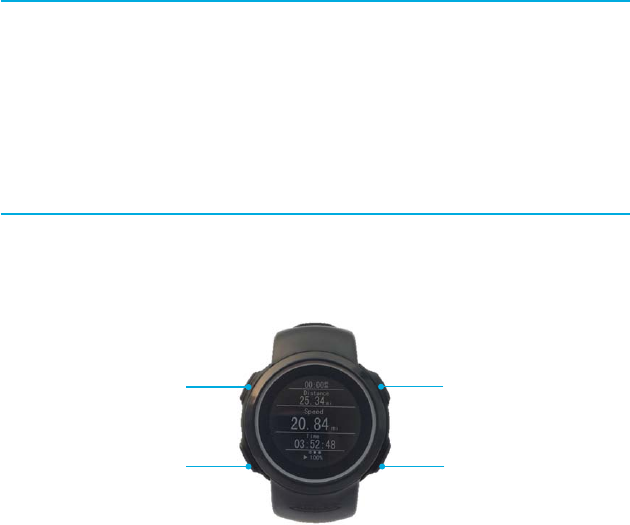

The watch has 4 buttons and a screen tap function that can be
used to control one of the compatible running apps. The functions
of these buttons might vary from app to app. Please consult the
instructions of the compatible app to find out more information.
Record
MusicPower
Lap
10
• Power button: to turn the watch on and off.
• Lap button: to manually start and stop a new lap.
• Music button: to play, pause and switch songs.
• Record button: to start and stop recording an activity.
• Tap screen: to turn the page to show additional data screens.
A list of compatible apps can be found on
www.magellangps.com/echo/apps.
Power
Turning Echo On / Off
Press the Power button briefly to turn Echo on.
Press and hold the Power button to turn Echo off.
Battery
The Echo watch works on a CR2032 battery and with an estimated
battery lifetime of 10 months.
11
Note: The battery lifetime depends on usage of the Echo watch
(calculations have been done on 12h non connected usage + 1h/
day workout).
To replace the CR2032 battery, simply open the battery lid at the
back of the watch.
Replace the battery with the POSITIVE side up and place the battery
lid back in place.
Note: After replacing the battery, make sure that the O-ring is
seated properly into the groove before closing the battery lid.
Note: When closing the battery lid, make sure that the lid fits
properly on all corners and then press to lock the lid in place with a
click sound.
12
Warranty
This Two-Year Limited Warranty applies to Hardware Products
(except USB cable) manufactured or distributed by MiTAC Digital
Corp. (“Magellan”) under the Magellan brand name. Magellan
offers, at no additional charge, to repair or replace defective parts
with new parts during the two-year warranty period in Europe
(excluding United Kingdom and Ireland*), Australia and New
Zealand.
The warranty period for refurbished Hardware Products (except
USB cable) is one year after the date of original purchase.
* One-year limited warranty applies.
Magellan’s obligations with respect to Software distributed by
Magellan under the Magellan brand name are set forth in the
applicable end-user license agreement. Non-Magellan Hardware
and Software Products are provided on an as is basis. However,
non-Magellan manufacturers, suppliers, or publishers may provide
their own warranties.
Terms of the Warranty
Magellan warrants that the Hardware Product you have purchased
from Magellan or from a Magellan authorized reseller is free from
defects in materials or workmanship under normal use during the
warranty period. The warranty period commences on the date of
13
purchase. Your sales receipt is your proof of the date of purchase.
This warranty extends only to you, the original Purchaser. It is
nontransferable. It excludes expendable parts.
During the warranty period, Magellan will, at no additional charge,
repair or replace defective parts with new parts or, at the option of
Magellan, serviceable used parts that are equivalent or superior to
new parts in performance.
All exchanged parts and Products replaced under this warranty will
become the property of Magellan. This Limited Warranty extends
only to Products purchased from Magellan or from a Magellan
authorized reseller.
This Limited Warranty also does not extend to any Product that has
been damaged or rendered defective (a) as a result of accident,
misuse, or abuse; (b) as a result of an act of God; (c) by operation
outside the usage parameters stated in the Product’s User’s Manual;
(d) by the use of parts not manufactured or sold by Magellan; (e) by
modification of the Product; or (f) as a result of service by anyone
other than Magellan, a Magellan authorized reseller, or a Magellan
authorized service provider. Magellan is not responsible for damage
to or loss of any programs or data. Contact your local Magellan
authorized service provider for geographic restrictions, proof-of-
purchase requirements, response time commitments and other
specific on-site service requirements.
14
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, MAGELLAN
MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. MAGELLAN
EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS
LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE
IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS EXPRESS
LIMITED WARRANTY.
Limitation of Remedy
Magellan is not liable for any damages caused by the Product or
the failure of the Product to perform, including any lost profits, lost
savings, incidental damages, or consequential damages. Magellan is
not liable for any claim made by a third party or made by you for a
third party.
This limitation applies whether damages are sought, or a claim
made, under this warranty or as a tort claim (including negligence
and strict product liability), a contract claim, or any other claim.
This limitation cannot be waived or amended by any person.
This limitation of liability will be effective even if Magellan or an
authorized representative of Magellan has been advised by you
of the possibility of any such damages. This limitation of liability,
however, will not apply to claims for personal injury.
15
Addendum A - Resting Heart Rate
Measuring Your Resting Heart Rate
The measurement of resting heart rate or pulse rate (the number of
heart beats per minute) should be taken after a few minutes upon
waking while still lying in bed. Give your body some time to adjust
to the change from sleeping before taking your pulse (2-5 minutes).
If you are not able to take a measurement first thing in the morning,
make sure you lie down for at least 10 minutes before taking a
measurement. Take a radial or carotid measurement.
Carotid Pulse (neck) - To take your heart rate at the neck, place
your first two fingers on either side of the neck. Be careful not too
press to hard, then count the number of beats for a minute.
Radial Pulse (wrist) - place your index and middle fingers together
on the opposite wrist, about 1/2 inch on the inside of the joint, in
line with the index finger. Once you find a pulse, count the number
of beats you feel within a one minute period.
For an adult, a normal resting heart rate ranges from 60 to 100
beats a minute. For a well-trained athlete, a normal resting heart
rate may be closer to 40 beats a minute. For healthy adults, a lower
heart rate at rest generally implies more efficient heart function and
better cardiovascular fitness.
