BY: ZX Xiao

Repair Technology Research Department /EDVD

Jun.2005 / R01

SERVICE MANUAL FOR

8050QMA

SERVICE MANUAL FOR

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Contents

1. Hardware Engineering Specification ………………………………………………………………………

1.1 Introduction ………………………………………………………………………………………………………………..

1.2 System Hardware Parts …………………………………………………………………………………………………...

1.3 Other Functions ……………………………………………………………………………………………………………

1.4 Power Management ……………………………………………………………………………………………………….

1.5 Appendix 1 : Intel ICH6-M GPIO Definitions ………………………………………………………………………….

1.6 Appendix 2 : W83L950D KBC Pins Definitions …………………………………………………………………………

1.7 Appendix 3 : 8050QMA Product Spec ……………………………………………………………………………….. …

2. System View and Disassembly ……………………………………………………………………………...

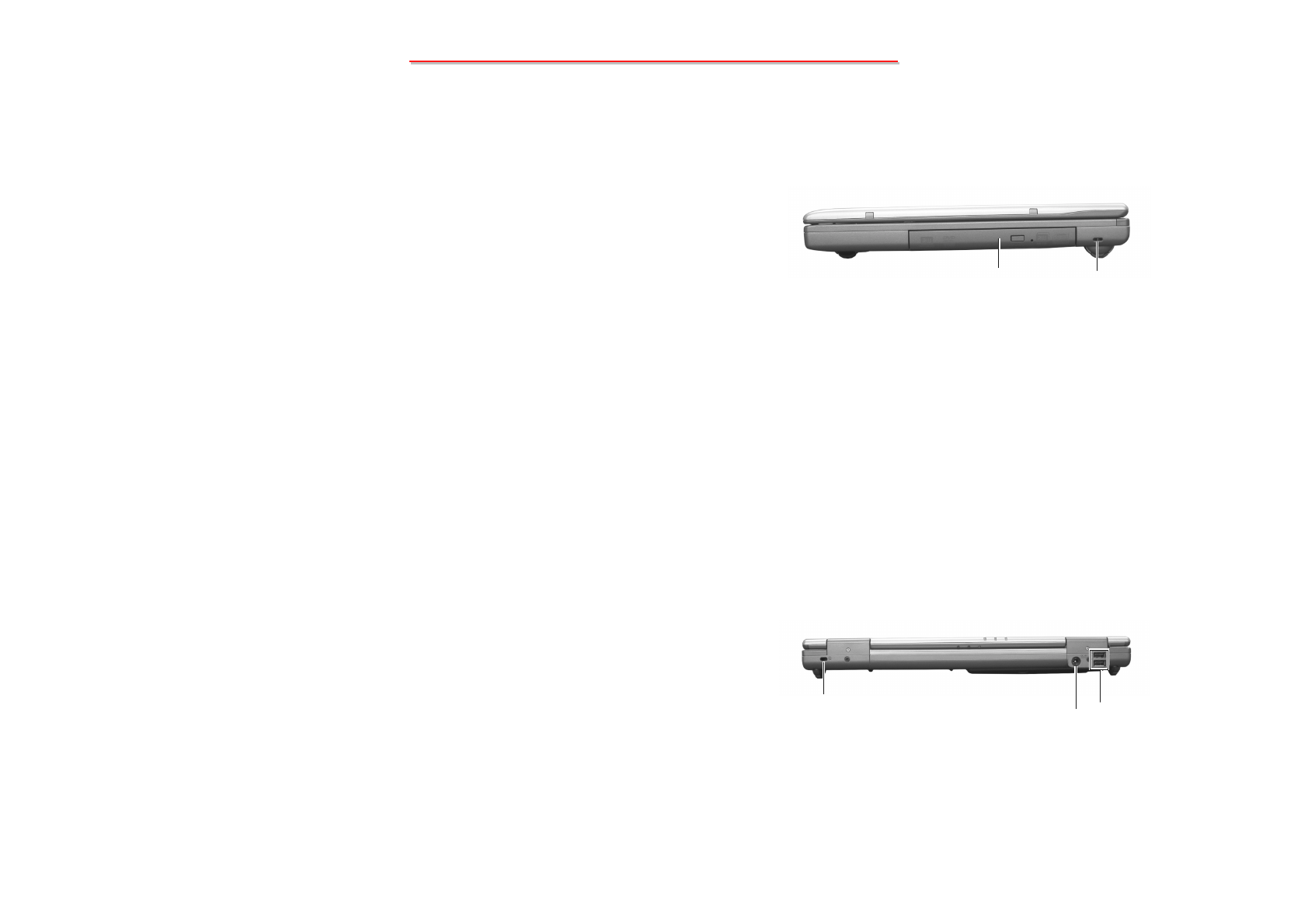

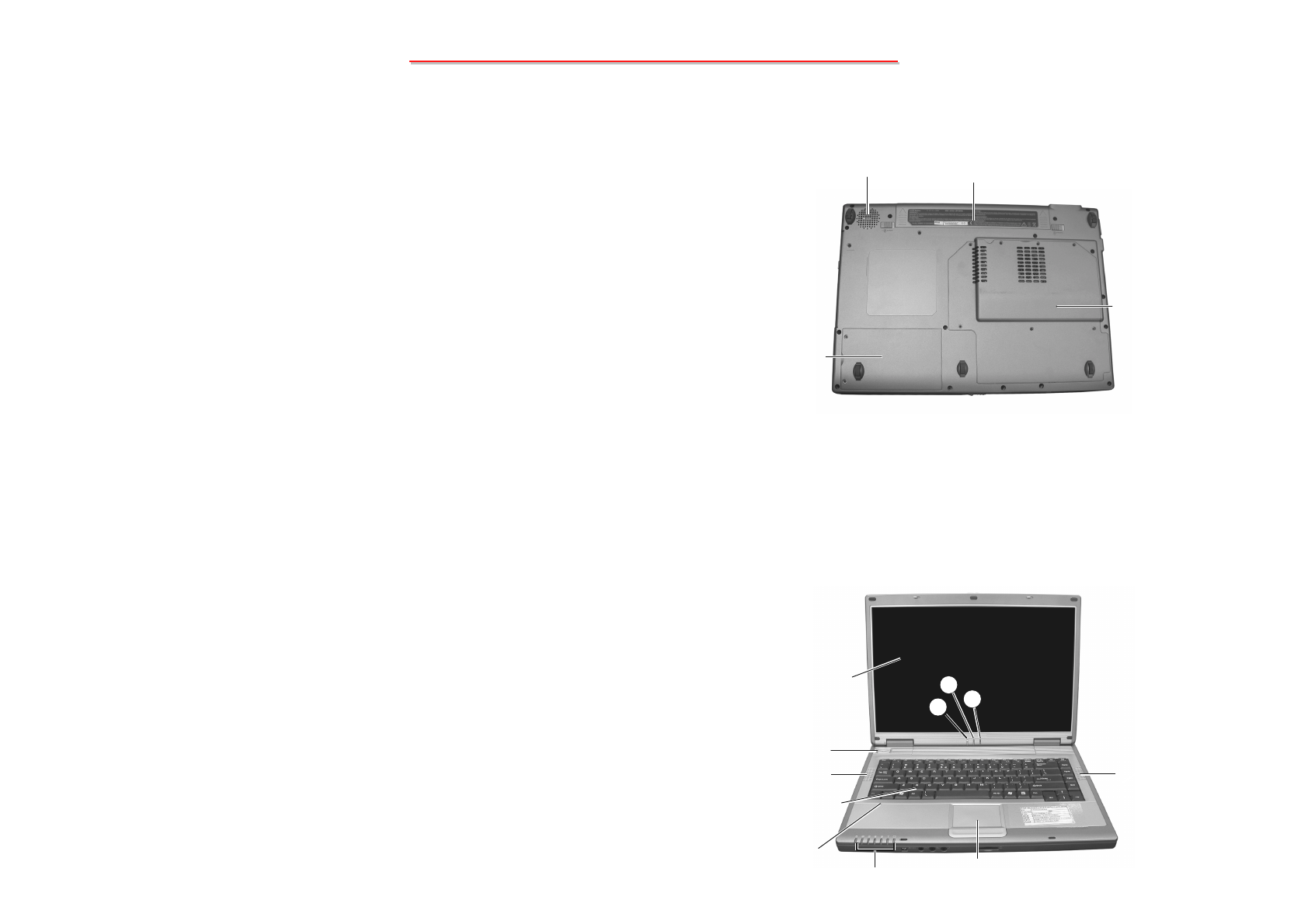

2.1 System View ………………………………………………………………………………………………………………..

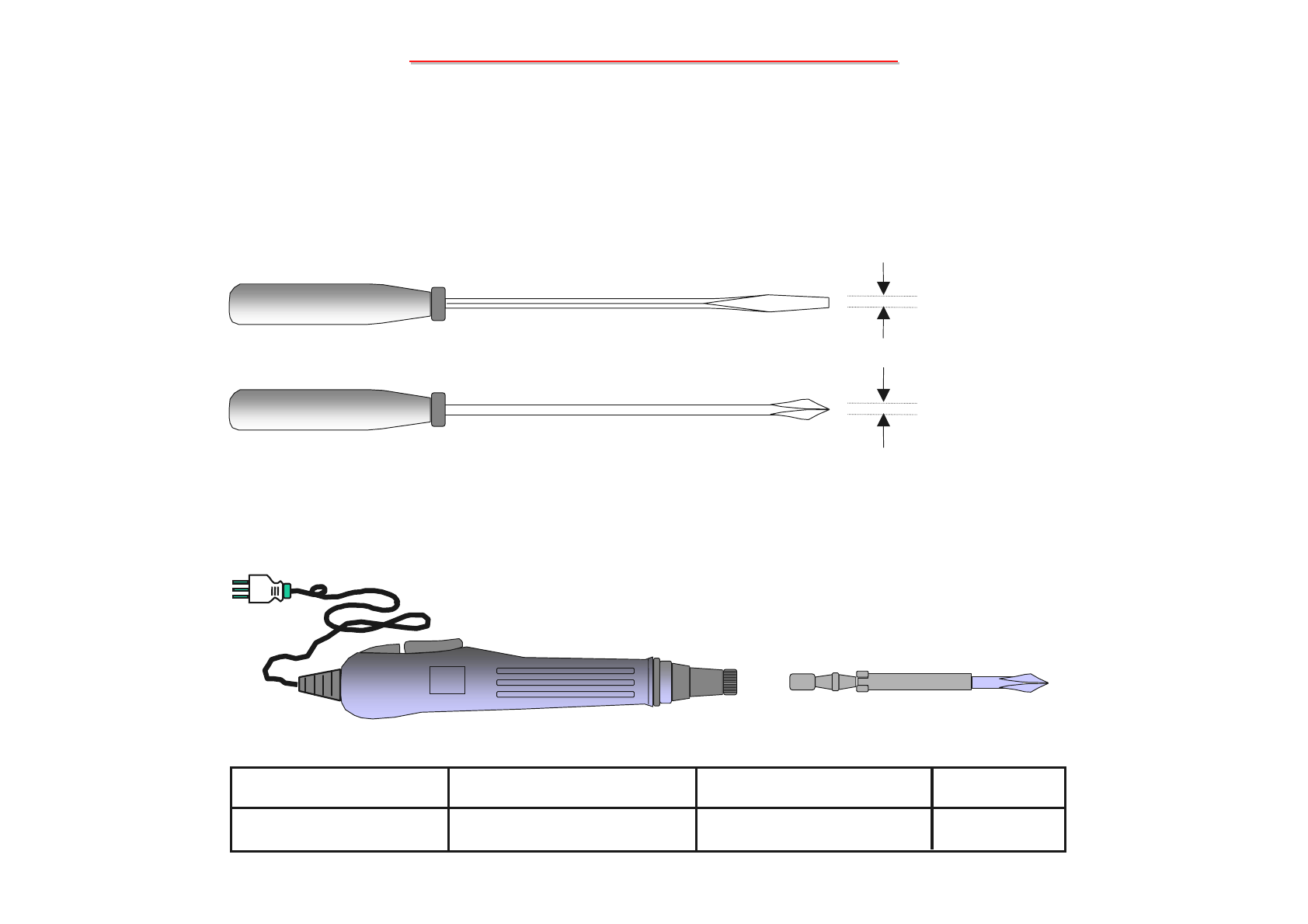

2.2 Tools Introduction …………………………………………………………………………………………………..…….

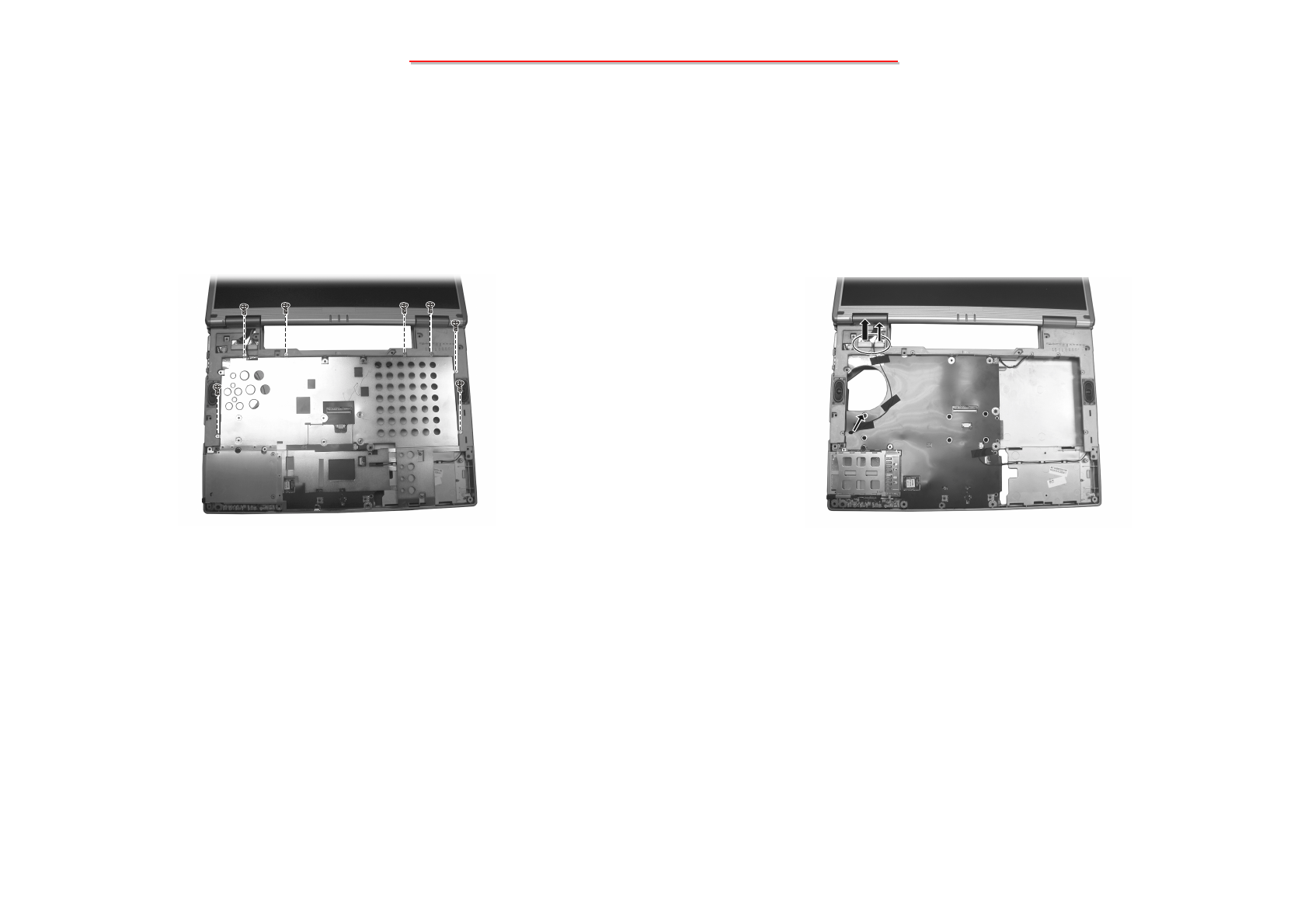

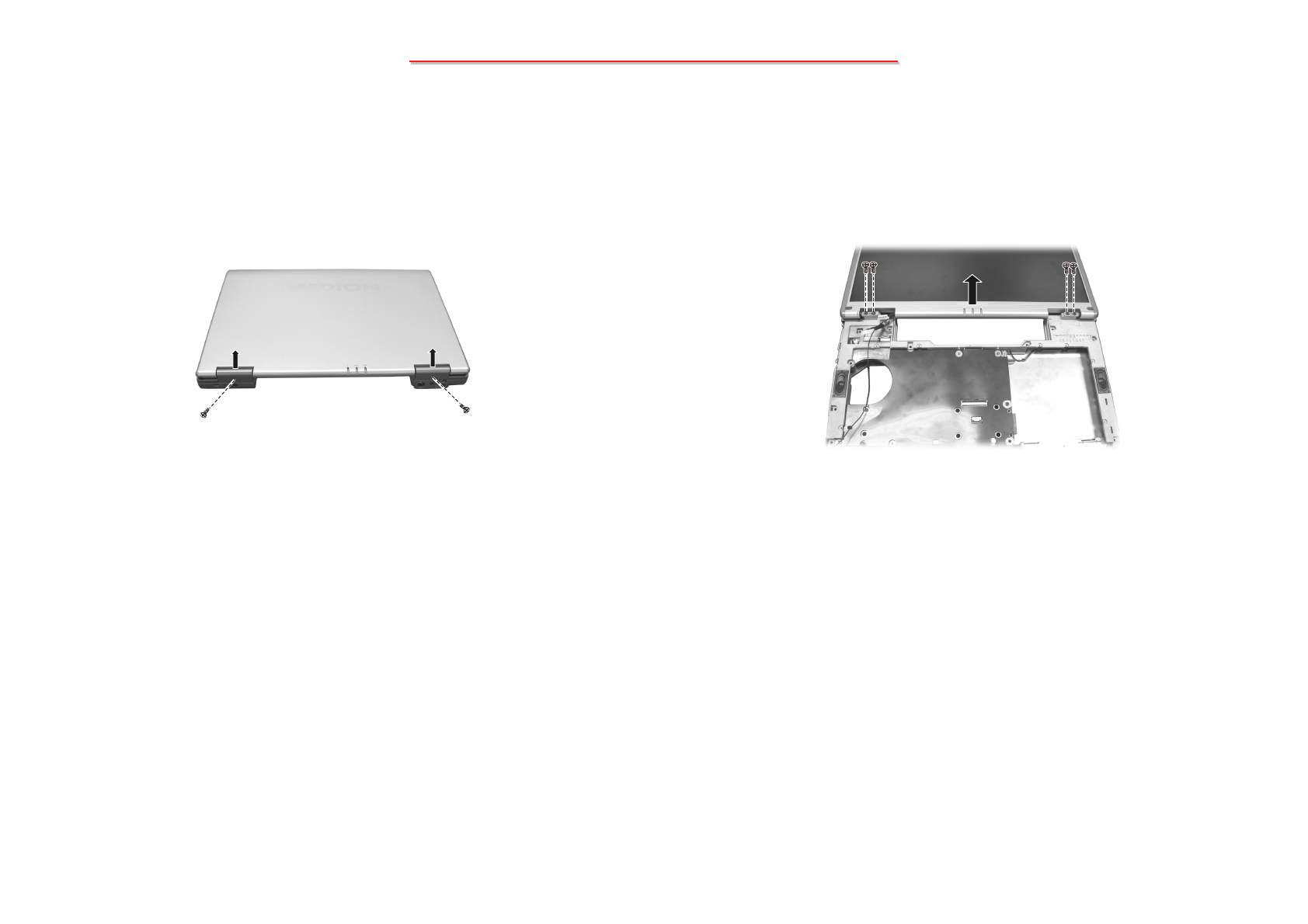

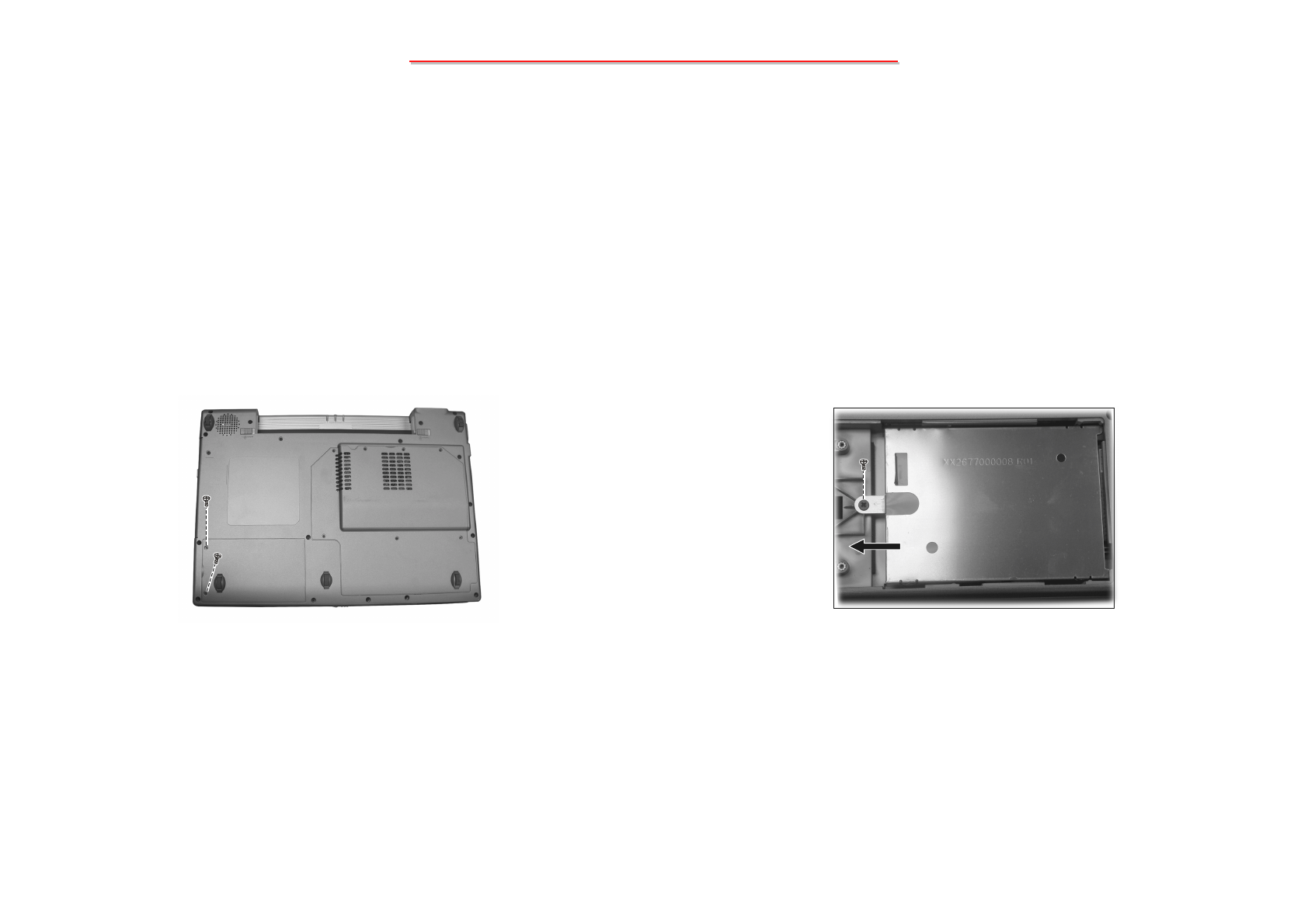

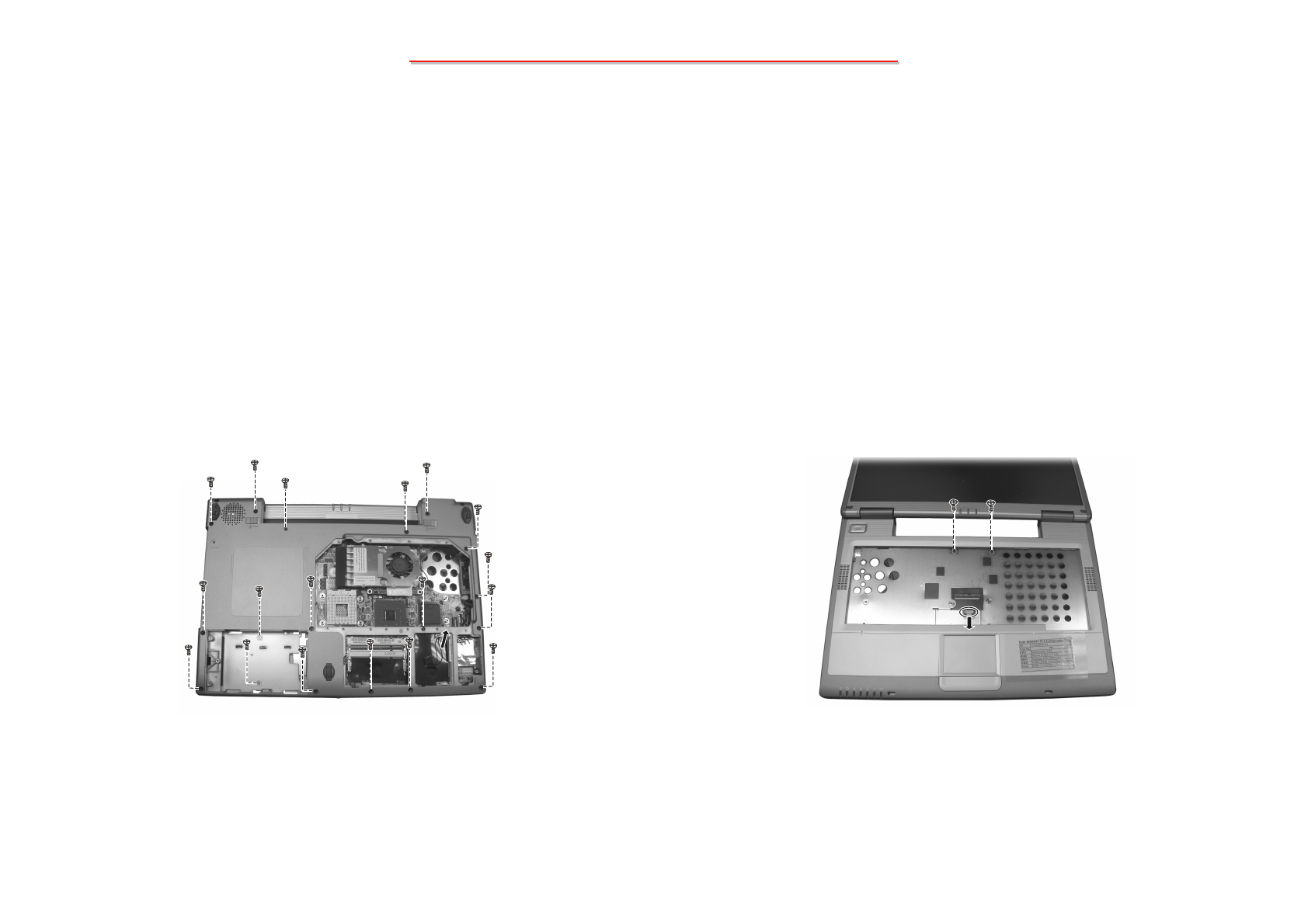

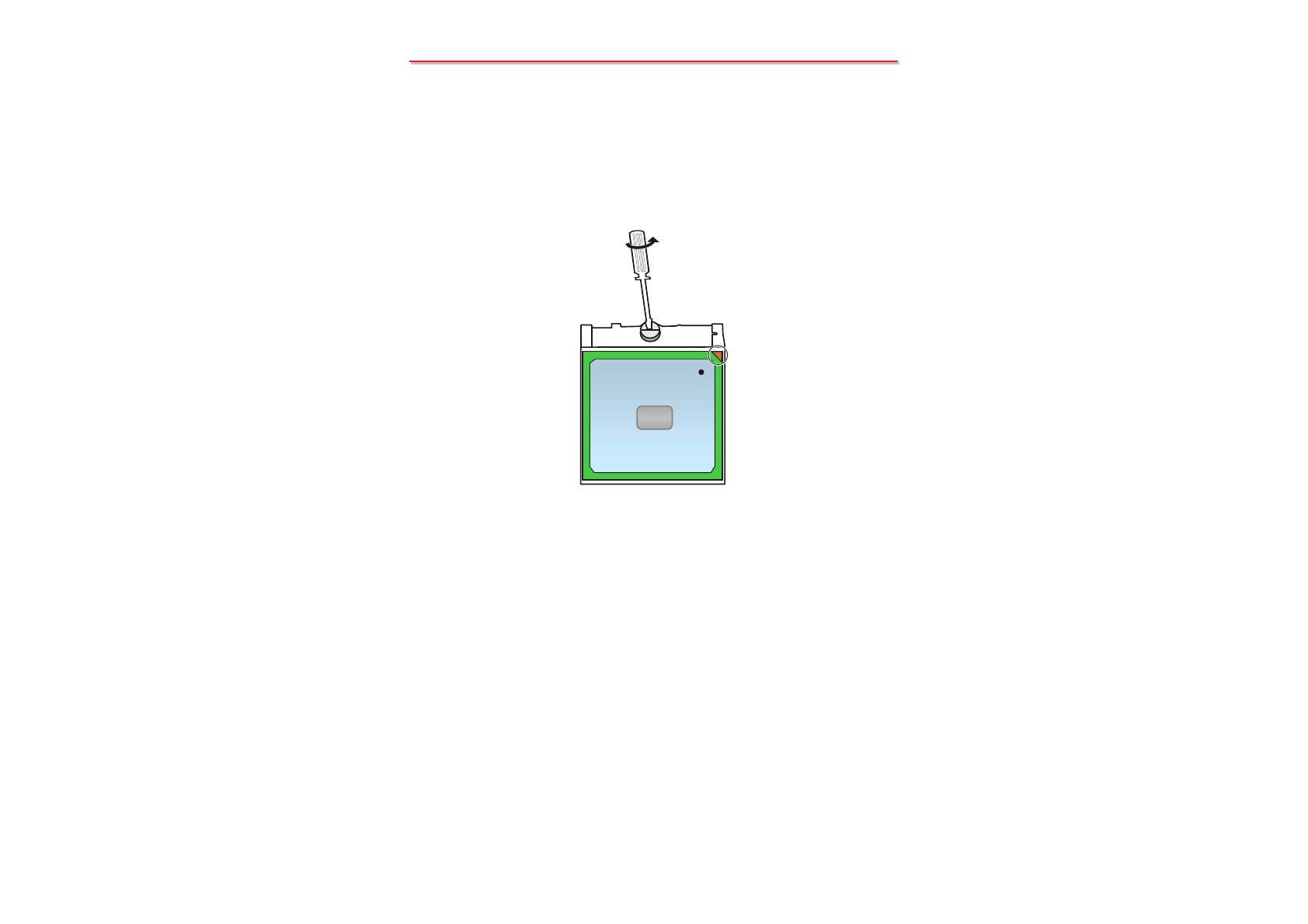

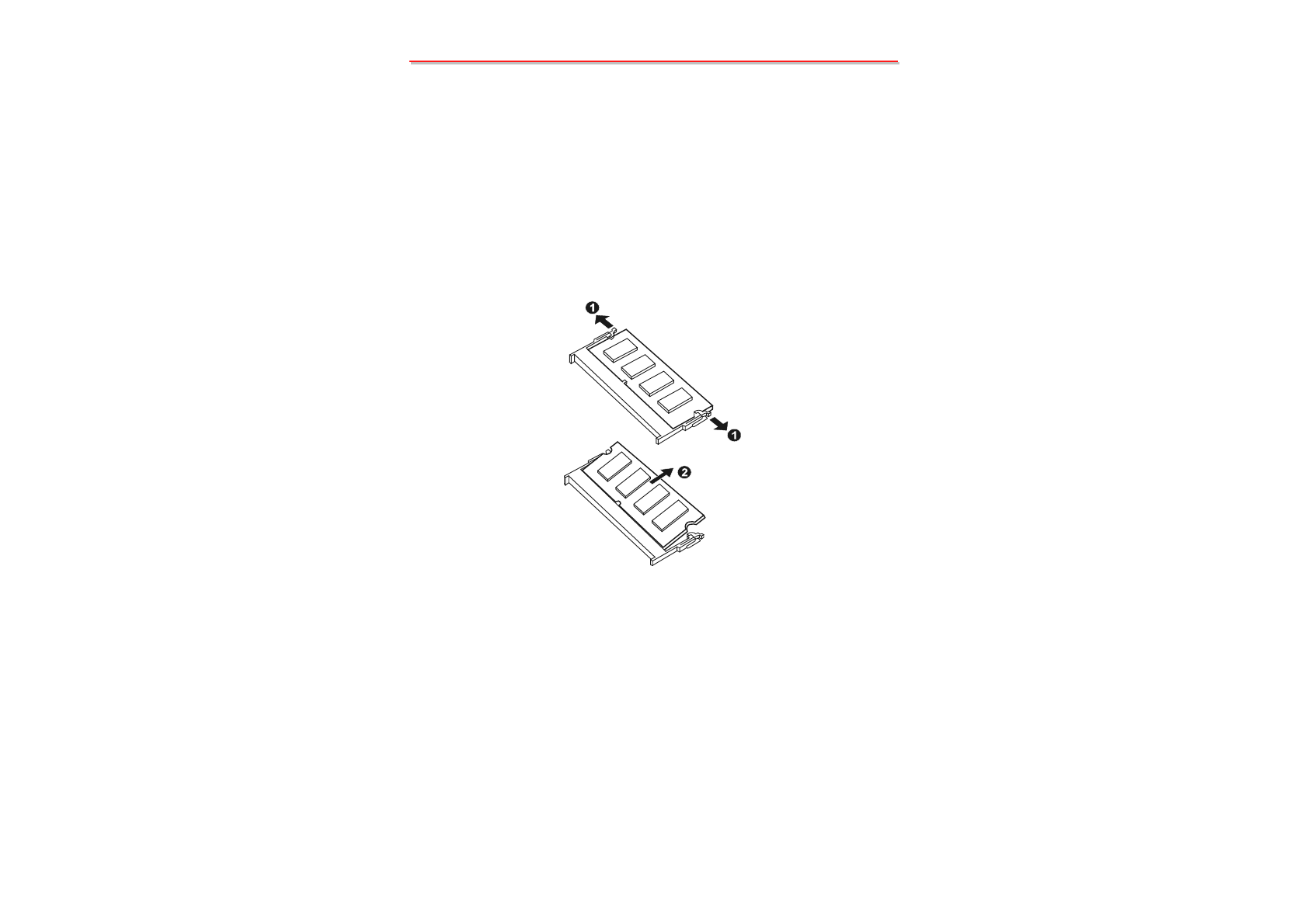

2.3 System Disassembly ………………………………………………………………………………………………………..

3. Definition & Location of Connectors / Switches …………………………………………………………..

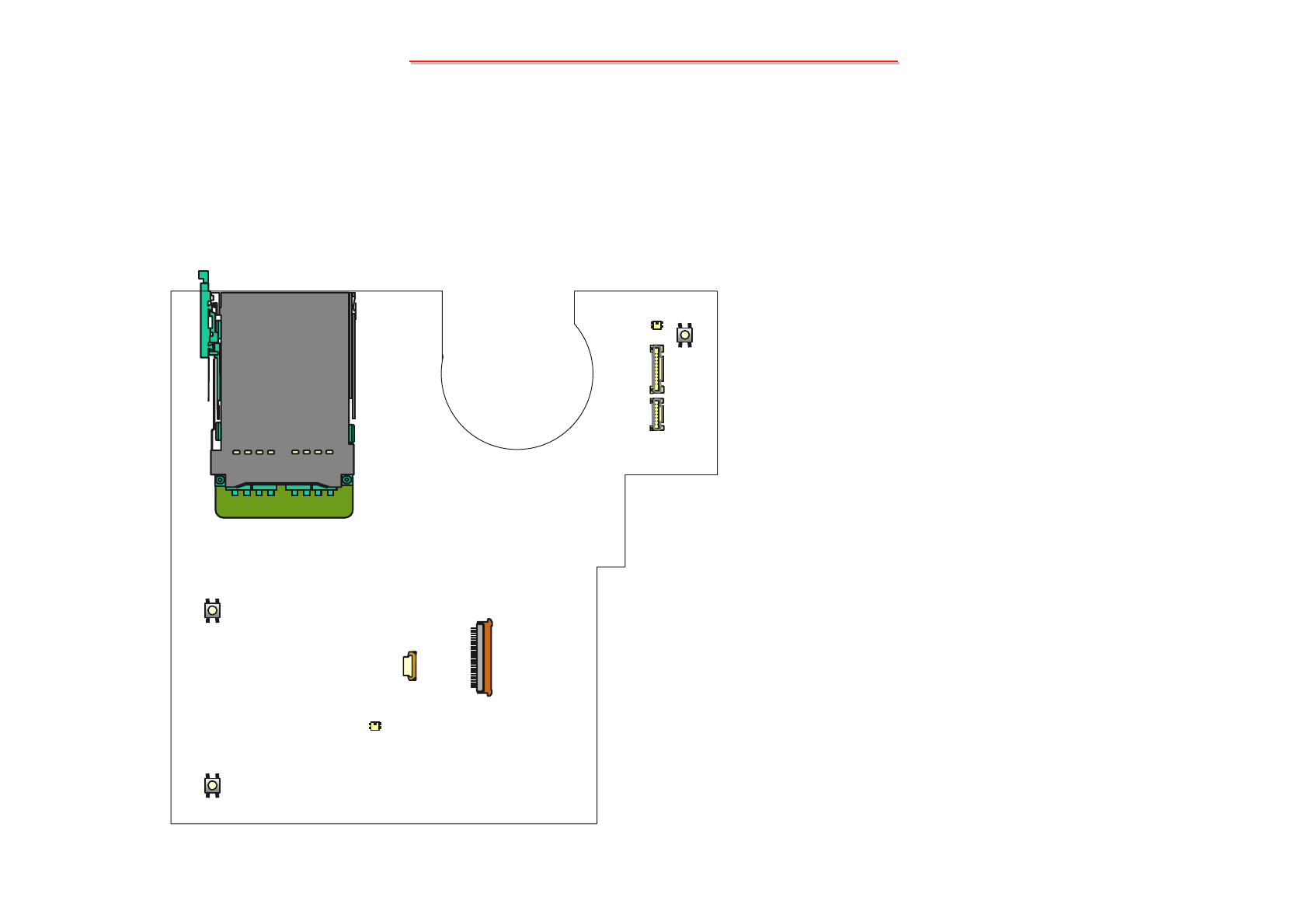

3.1 Mother Board (Side A) ……………………………………………………………………………………………………

3.2 Mother Board (Side B) ……………………………………………………………………………………………………

4. Definition & Location of Major Components ……………………………………………………………..

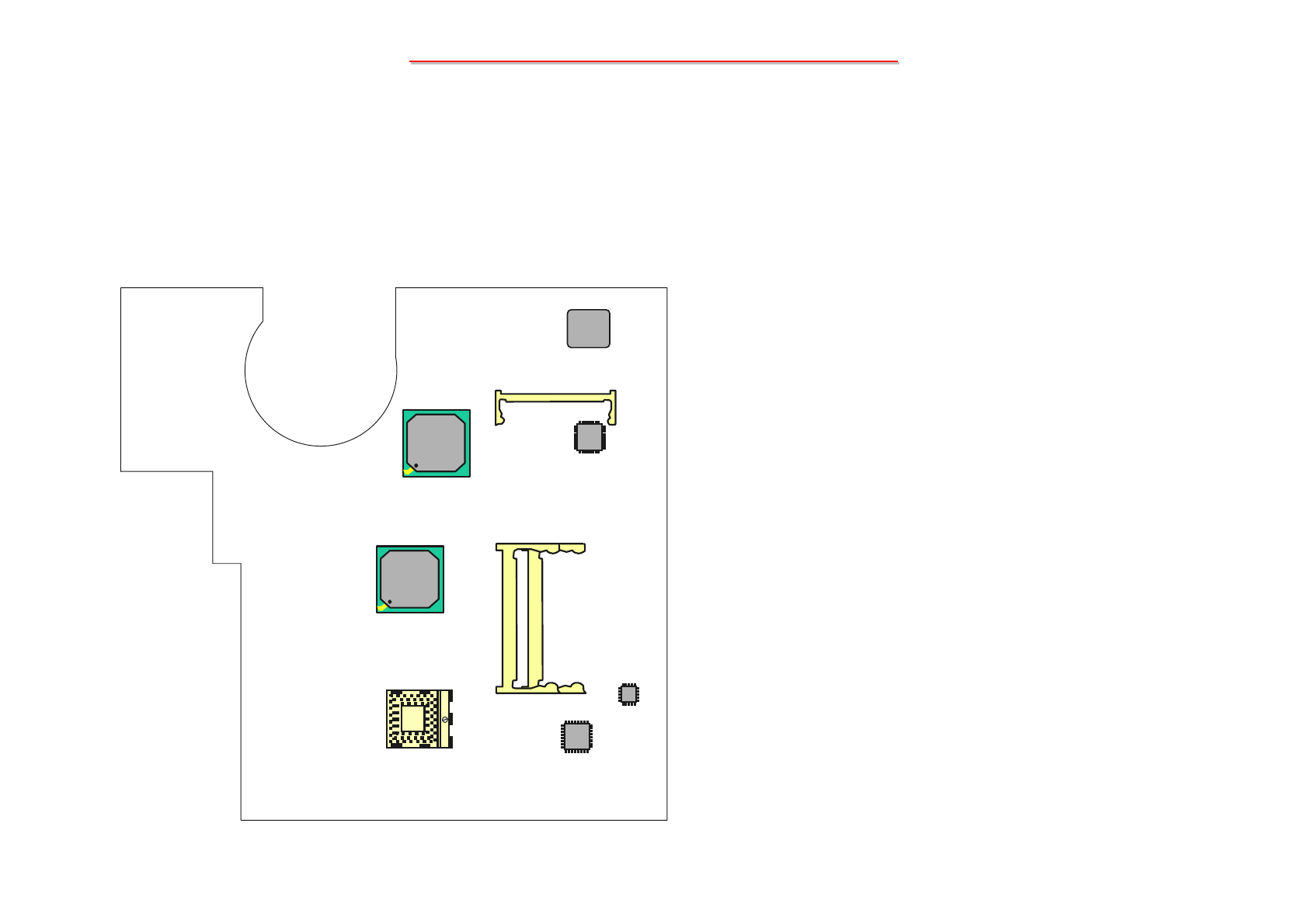

4.1 Mother Board (Side A) ……………………………………………………………………………………………………

4.2 Mother Board (Side B) ……………………………………………………………………………………………………

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Contents

5. Pin Description of Major Component …….……………………………………………………………….

5.1 Intel 915PM North Bridge ……………………………………………………………………………………………….

5.2 Intel ICH6-M South Bridge ………………………………………………………………………………………………

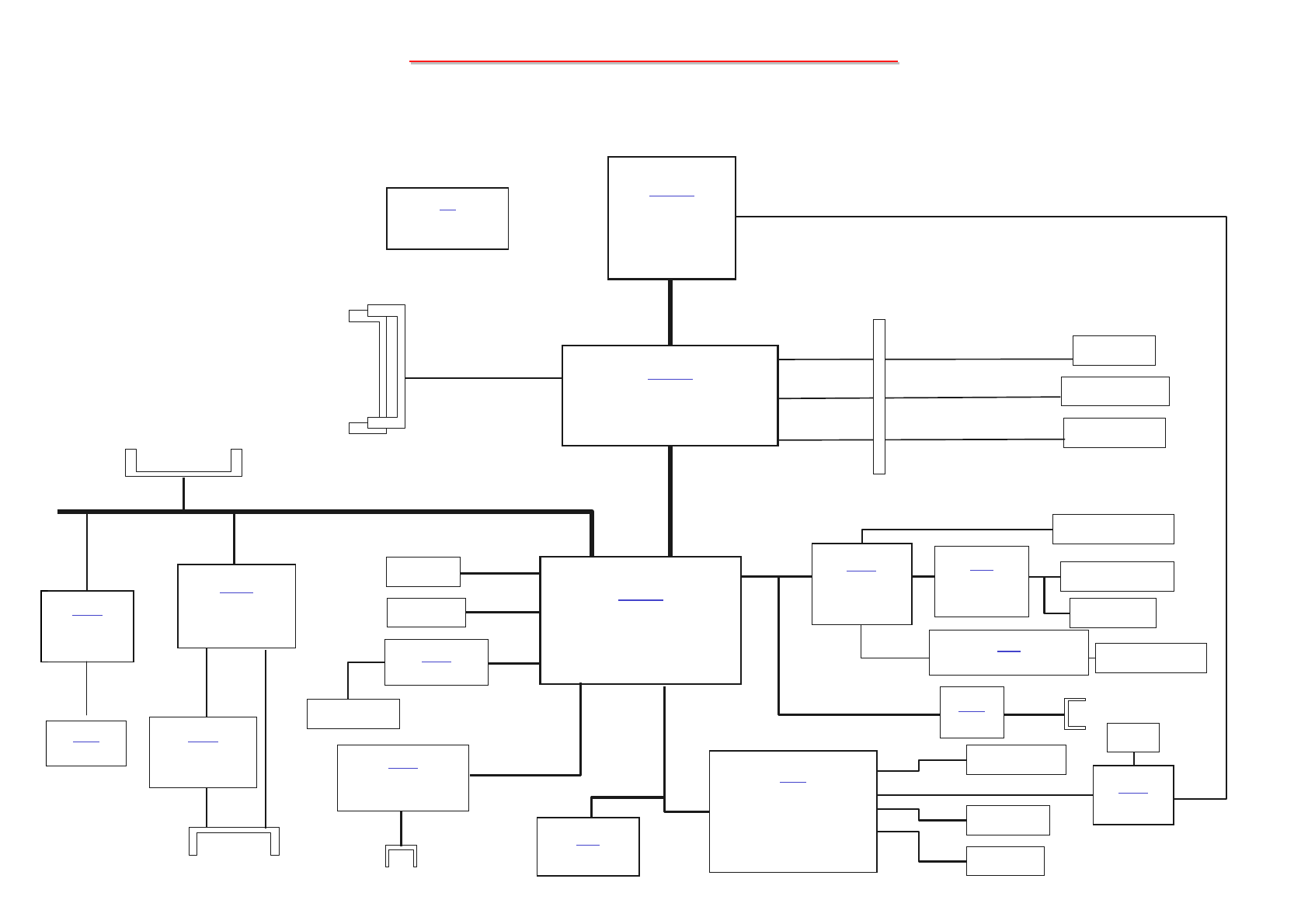

6. System Block Diagram ………………………………………………………………………………………

7. Maintenance Diagnostics ……………………………………………………………………………………

7.1 Introduction ………………………………………………………………………………………………………………..

7.2 Maintenance Diagnostics…………………………………………………………………………………………………..

7.3 Error Codes ………………………………………………………………………………………………………………..

8. Trouble Shooting …………………………………………………………………………………………….

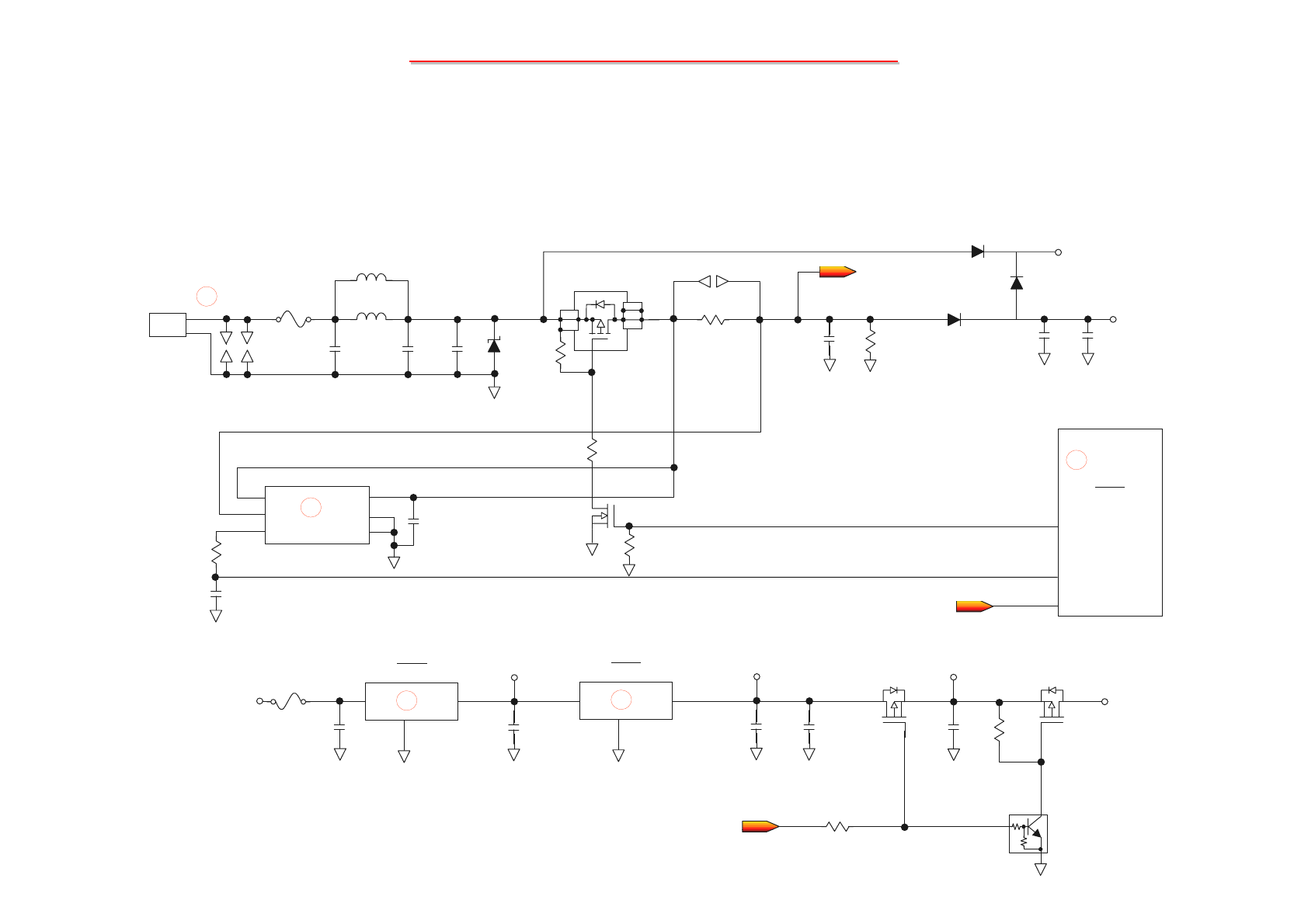

8.1 No Power ……………………………………………………………………………………………………………………

8.2 No Display ………………………………………………………………………………………………………………….

8.3 VGA Controller Failure LCD No Display ………………………………………………………………………………..

8.4 External Monitor No Display ……………………………………………………………………………………………..

8.5 Memory Test Error ………………………………………………………………………………………………………..

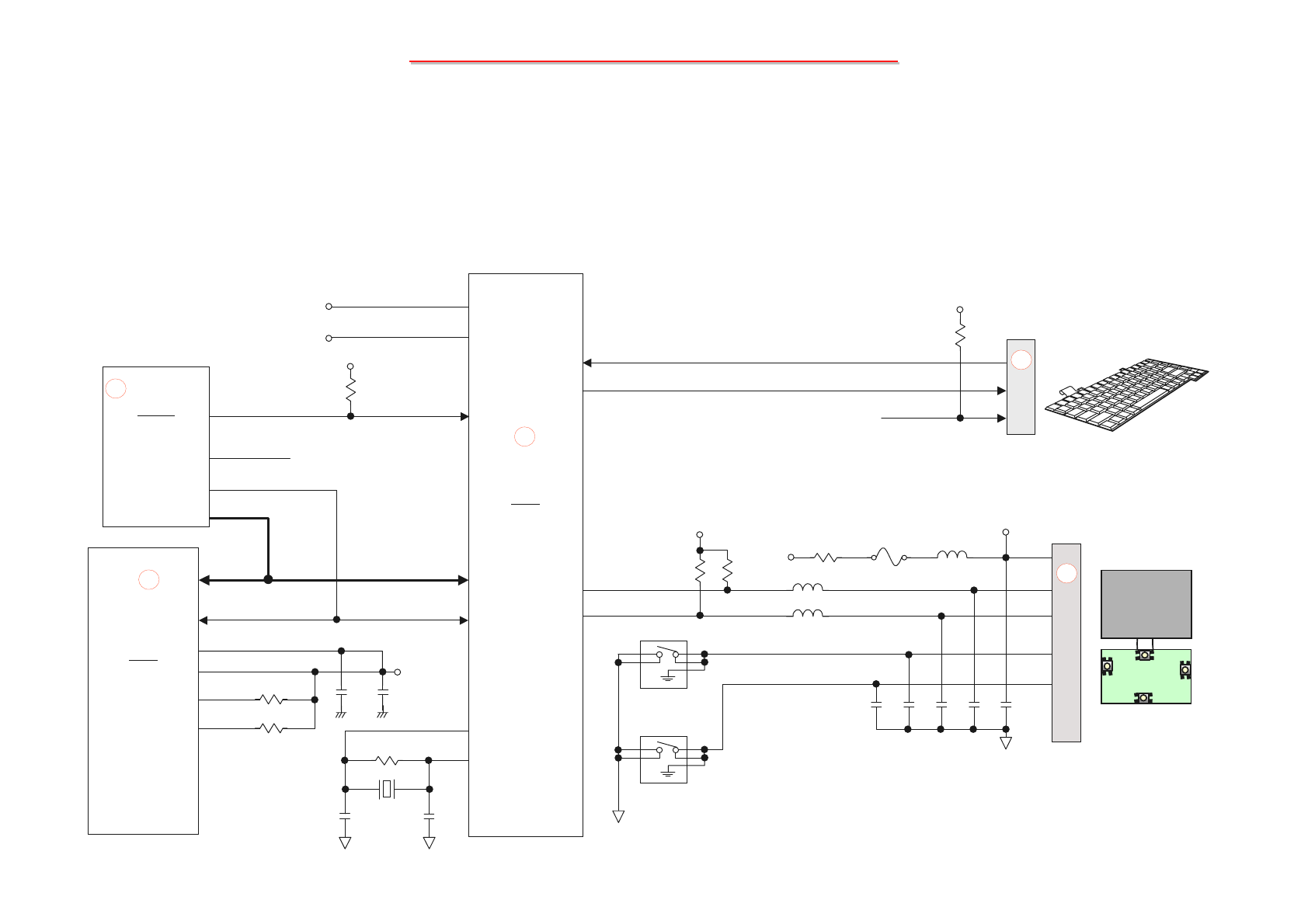

8.6 Keyboard (K/B) Touch-Pad (T/P) Test Error ……………………………………………………………………………

8.7 Hard Drive Test Error ……………………………………………………………………………………………………

8.8 CD-ROM Drive Test Error ………………………………………………………………………………………………

8.9 USB Port Test Error ……………………………………………………………………………………………………….

8.10 Audio Failure ……………………………………………………………………………………………………………..

8.11 LAN Test Error …………………………………………………………………………………………………………..

103

115

121

127

117

119

105

112

123

125

129

132

101

100

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Contents

8.12 PC Card Socket Failure …………………………………………………………………………………………………

9. Spare Parts List ……………………………………………………………………………………………...

10. Reference Material …...……………………………………………………………………………………. 150

136

134

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.1 Introduction

1. Hardware Engineering Specification

This document describes the brief introduction for MiTAC 8050QMA portable notebook computer system.

1.1.1 General Description

1.1.2 System Overview

The MiTAC 8050Q model is designed for Intel Dothan processor with 533MHz FSB with Micro-FCPGA package.

This system is based on PCI architecture and is fully compatible with IBM PC/AT specification, which has

standard hardware peripheral interface. The power management complies with Advanced Configuration and Power

Interface. It also provides easy configuration through CMOS setup, which is built in system BIOS software and can

be pop-up by pressing F2 key at system start up or warm reset. System also provides icon LEDs to display system

status, such as AC Power indicator, Battery Power indicator, Battery status indicator, HDD,CD-ROM, NUM

LOCK, CAP LOCK, SCROLL LOCK, Wireless on/off Card Reader Accessing. It also equipped with LAN, 56K

Fax MODEM, 4 USB port, S-Video and audio line in/out , external microphone function.

The memory subsystem supports DDR or DDR2 SDRAM channels (64-bits wide).

The 915PM MCH Host Memory Controller integrates a high performance host interface for Intel Dothan processor,

a high performance PCI Express interface, a high performance memory controller and Direct Media Interface

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

(DMI) connecting with Intel ICH6-M.

The Intel ICH6-M integrates three Universal Serial Bus 2.0 Host Controllers Interface (UHCI), the Audio

Controller with AC97 interface, the Ethernet includes a 32-bit PCI controller, the IDE Master/Slave controllers, the

SATA controller and Direct Media Interface technology.

The Realtek RTL8100CL is a highly integrated, cost-effective single-chip Fast Ethernet controller that provides 32-

bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-T specifications and

IEEE 802.3x Full Duplex Flow Control. It also supports the Advanced Configuration Power management Interface

(ACPI).

The VT6301S is a single chip PCI Host Controller for IEEE 1394-1995 Release 1.0 and IEEE 1394a P2000. It

implements the Link and PHY layers for IEEE 1394-1995 High Performance Serial Bus specification release 1.0

and 1394a P2000. It is compliant with 1394 Open HCI 1.0 and 1.1 with DMA engine support for high performance

data transfer via a 32-bit bus master PCI host bus interface. The VT6301S supports 100, 200 and 400 Mbit/sec

transmission via an integrated 1-port PHY. The VT6301S services two types of data packets: asynchronous and

isochronous (real time). The 1394 link core performs arbitration requesting, packet generation and checking, and

bus cycle master operations. It also has root node capability and performs retry operations.

The ENE CB712 CardBus/Media Reader controller functions as a single slot PCI to Cardbus bridge and also PCI

interface MS/SD/MMC flash card reader. The CB712 provide one Cardbus slot and all reader interface may

operate simultaneously.

The W83L950D is a high performance microcontroller on-chip supporting functions optimized for embedded

control. These include ROM, RAM, four types of timers, a serial communication interface, optional I²C bus

interface, host interface, A/D converter, D/A converter, I/O ports and other functions needed in control system

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

configurations, so that compact, high performance systems can be implemented easily.

A full set of software drivers and utilities are available to allow advanced operating systems such as Windows ME,

Windows 2000 and Windows XP to take full advantage of the hardware capabilities. Features such as bus mastering

IDE, Plug and Play, Advanced Power Management (APM) with application restart, software-controlled power

shutdown.

Following chapters will have more detail description for each individual sub-systems and functions.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.2 System Hardware Parts

CPU Intel® Pentium® M Processor (Dothan) 90nm, 2M L2, 533 MHz FSB

Intel® Celeron® M processor, 90nm, 512K L2, 400 MHz FSB

Core logic Intel 915PM + ICH6-M chipset

System BIOS SST49LF004A

Memory 0MB DDR2-SDRAM on Board

Expandable with combination of optional 128MB/256MB/512MB/1GB(P) memory

Two 200-pin DDR2 400/533 SDRAM Memory Module

VGA Control Type I MXM Interface (max 25W) with 8 cells Vram

Priority at launch: NV44M + 32MB discrete Vram + Turbo Memory

Clock Generator ICS 954226

IEEE1394 VT6301S

LAN RTL8100CL

PCMCIA + 4 IN 1 CARD ENE CB712

Audio System AC97 CODEC: Advance Logic, Inc, ALC655

Power Amplifier: TI TPA0212

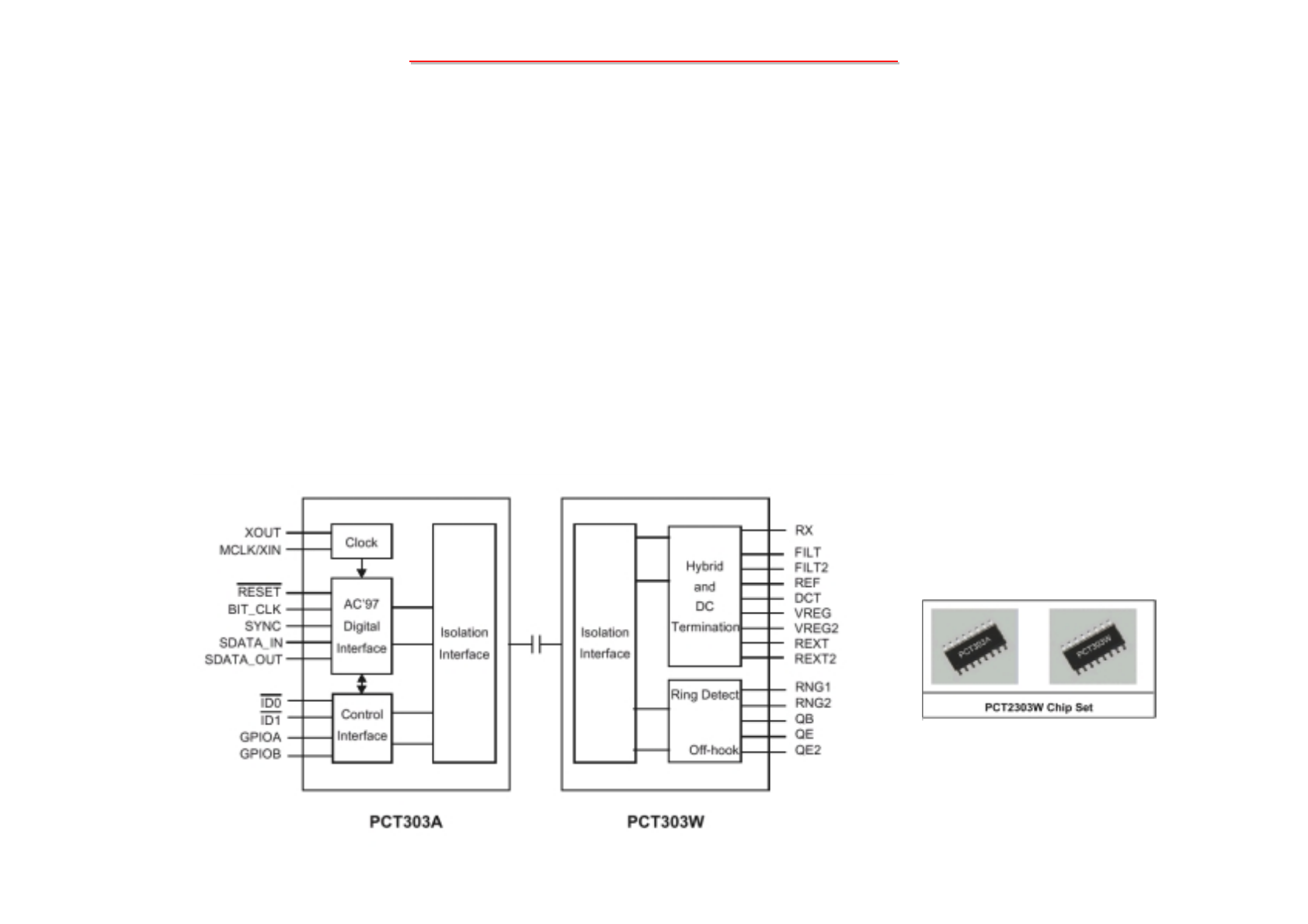

Modem AC97 Link: MDC (Mobile Daughter Card) Askey: V1456VQL-P1(INT)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.2.1 Intel Dothan Processors in Micro-FCBGA Package

Intel Dothan Processors with 479 pins Micro-FCBGA package.

It will be manufactured on Intel’s advanced 90 nanometer process technology with copper interconnect. It’s features

include Intel Architecture with Dynamic Execution, On-die primary 32-kB instruction cache and 32-kB write-back

data cache, on-die 2-MB second level cache with advanced Transfer Cache Architecture, Data Prefetch Logic,

Streaming SIMD Extensions 2 (SSE2), 533-MHz FSB.

The Streaming SIMD Extensions 2 (SSE2) enable break-through levels of performance in multimedia applications

including 3-D graphics, video decoding/encoding, and speech recognition.

Use Source-Synchronous Transfer (SST) of address and data to improve performance by transferring data four times

per bus clock.

Support Enhanced Intel SpeedStep technology, which enables real-time dynamic switching of the voltage and

frequency between two performance modes.

1.2.2 Clock Generator

System frequency synthesizer: ICS954226 is a CK410M Compliant clock synthesizer. It provides a single-chip

solution for mobile systems built with Intel P4-M processors and Intel mobile chipsets. It is driven with a

14.318MHz crystal and generates CPU outputs up to 400MHz. It provides the tight ppm accuracy required by

Serial ATA and PCI-Express.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Supports tight ppm accuracy clocks for Serial-ATA and SRC.

•Supports spread spectrum modulation, 0 to –0.5% down spread.

•Uses external 14.318MHz crystal, external crystal load caps are required for frequency tuning.

•Supports undriven differential CPU, SRC pair in PD# for power management.

1.2.3 The Mobile Intel 915PM Express Chipset

The Mobile Intel 915PM Express Chipset integras a memory controller hub (MCH) designed for use with the

Dothan, Yonah and Intel Celeron M Processor. It is PCI Express based Graphics.

The 915PM MCH integrates a system memory DDR/DDR2 controller with two, 64-bit wide interfaces. Only

Double Data Rate (DDR/DDR2) memory is supported; the buffers support DDR SSTL_2 and DDR2 SSTL_18

signaling interfaces. The memory controller interface is fully configurable through a set of control registers. It

integras a high performance transition interface PCI Express Interface. PCI Express operates at a data rate of 2.5

for 8050QMA project. GB/s. This allows a maximum theoretical bandwidth of 40 GB/s each direction. The 915PM

MCH integrates Direct media interface (DMI) chip-to-chip interconnect between the MCH and ICH6-M. DMI

supports DMI x2 and DMI x4 configuration.

Features:

Processor/FSB Support

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Intel®Dothan processor

•AGTL+ bus driver technology with integrated GTL termination resistors (gated AGTL+ receivers for reduced

power)

•Supports 32-bit AGTL+ host bus addressing

•Supports system bus at 533MT/s (533 MHz) and 400MT/s (400 MHz)

•2X Address, 4X data

•Host bus dynamic bus inversion HDINV support

•12 deep, in-order queue

Memory System

•Directly supports to two DDR or DDR2 SDRAM channels, 64-bts wide.

•Supports SO-DIMMs of the same type (e.g.,all DDR or all DDR2), not mixed.

•Maximum of two, double-sided unbuffered SO-DIMMs (4 rows populated)

•Minimum amount of memory supported is 128 MB (16 MB x 16-b x 4 devices x 1 rows = 128 MB) using

256-MB technology

•Maximum amount of memory supported is 2 GB using 1-GB technology.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•256-MB, 512-MB and 1-GB technology using x8 and x16 devices.

•Three memory channel organizations are supported for DDR / DDR2 :

– Single channel

– Dual channel interleaved

– Dual channel asymmetric

•Supports DDR 333 devices and DDR2 400 /533 devices

– Supports on-die termination (ODT) for DDR2

•Supports Fast Chip Select mode

•Supports partial write to memory using Data Mask signal (DM)

•Supports high-density memory package for DDR or DDR2 type devices

PCI Express Interface

•One x16 (16 lanes) PCI Express port intended for graphics attach

•Maximum theoretical realized bandwidth on interface of 4 GB/s in each direction simultaneously, for an

average of 8 GB/s when x16

•Automatic discovery, negotiation and training of link out of reset

•Supports traditional PCI style traffic (asynchronous snooped, PCI ordering)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Supports only 1.5-V AGP electrics

•32 deep AGP request queue

•Hierarchical PCI-compliant configuration mechanism for downstream devices

•Direct Media Interface (DMI)

– Chip-to-chip interconnect between the GMCH and ICH6-M

– DMI x2 and DMI x4 configuration supported

– Bit swapping is supported

– Lane reversal is not supported

1.2.4 I/O Controller Hub : Intel ICH6-M

The ICH6 provides extensive I/O support. Functions and capabilities include:

•PCI Express Base Specification, Revision 1.0a-compliant

•PCI Local Bus Specification, Revision 2.3-compliant with support for 33 MHz PCI operations(supports up to

seven Req/Gnt pairs)

•ACPI Power Management Logic Support

•Enhanced DMA controller, interrupt controller and timer functions

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Integrated Serial ATA host controller with independent DMA operation on two ports and AHCI support

•Integrated IDE controller supports Ultra ATA100/66/33

•USB host interface with support for three USB ports; three UHCI host controllers; one EHCI high-speed

USB2.0 Host controller

•Integrated LAN controller

•System Management Bus (SMBus) Specification, Version 2.0 with additional support for I2C devices

•Supports Audio Codec ’97, Revision 2.3 Specification (a.k.a.,AC ’97 Component Specification, Revision 2.3)

which provides a link for Audio and Telephony codecs (up to 7 channels)

•Supports Intel High Definition Audio

•Low Pin Count (LPC) interface

•Firmware Hub (FWH) interface support

1.2.5 CardBus: CB712

Features:

3.3V operation with 5V tolerant

LFBGA 169-ball package

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Pin out Compatible with CB1410

•PCI Interface

– Compliant with PCI Local Bus Specification Revision 2.3

– Compliant with PCI Bus Power Management Interface Specification Revision 1.1

– Compliant with PCI Mobile Design Guide Version 1.1

– Compliant with Advanced Configuration and Power Interface Specification Revision 1.0

•CardBus Interface

– Compliant with PC Card Standard 8.0

– Support Standardized Zoomed Video Register Model

– Support SPKROUT CAUDIO and RIOUT#

•Secure Digital Interface

– Compliant with SD Host Controller Standard Specification Version 1.0

– Support SD Suspend/Resume Functionality

– Support DMA Mode to Minimize CPU Overhead

– Support High Speed with the SD Clock Frequency Up to 50Mhz

– Contain two 512-byte buffer to maximize the transfer speed

– Support Traffic LED Light

– Support Over Current Protection

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Memory Stick Interface

– Compliant with Memory Stick PRO Format Specification Version 1.0

– Support 4-bit Parallel Data Transfer Mode

– Memory Stick Clock Frequency Up to 40Mhz

– Support DMA Mode to Minimize CPU Overhead

– Support Traffic LED Light

– Support Over Current Protection

•Interrupt Configuration

– Support Parallel PCI Interrupts

– Support Parallel IRQ and Parallel PCI Interrupts

– Support Serialized IRQ and Parallel PCI Interrupts

– Support Serialized IRQ and PCI Interrupts

•Power Management Control Logic

– Support CLKRUN# protocol

– Support SUSPEND#

– Support PCI PME# from D3, D2, D1 and D0

– Support PCI PME# from D3cold

•Support Zoomed Video port

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Support parallel 4-wire power switch interface

The ALC655 is a 16-bit, full duplex AC'97 2.3 compatible six channels audio CODEC designed for PC multimedia

systems, including host/soft audio and AMR/CNR based designs. The ALC655 incorporates proprietary converter

technology to meet performance requirements on PC99/2001 systems. The ALC655 CODEC provides three pairs of

stereo outputs with 5-Bitvolume controls, a mono output, and multiple stereo and mono inputs, along with flexible

mixing, gain and mute functions to provide a complete integrated audio solution for PCs. The digital interface

circuitry of the ALC655 CODEC operates from a 3.3V power supply for use in notebook and PC applications. The

ALC655 integrates 50mW/20ohm headset audio amplifiers at

Front-Out and Surr-Out, built-in 14.318M 24.576MHz PLL and PCBEEP generator, those can save BOM costs. The

ALC655 also supports the S/PDIF input and output function, which can offer easy connection of PCs to consumer

electronic products, such as AC3 decoder/speaker and mini disk devices. ALC655 supports host/soft audio from Intel

ICH6 chipsets as well as audio controller based VIA/SIS/ALI/AMD/nVIDIA/ATI chipset. Bundled Windows series

drivers (WinXP/ME/2000/98/NT), EAX/

Direct Sound 3D/ I3DL2/ A3D compatible sound effect utilities (supporting Karaoke, 26-kind of environment sound

emulation,10-band equalizer), HRTF 3D positional audio and Sensaura™ 3D (optional) provide an excellent

entertainment package and game experience for PC users. Besides, ALC655 includes Realtek’s impedance sensing

techniques that makes device load on outputs and inputs can be detected.

1.2.6 AC’97 Audio System: Advance Logic, Inc, ALC655

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Meets performance requirements for audio on PC99/2001 systems

•Meets Microsoft WHQL/WLP 2.0 audio requirements

•16-bit Stereo full-duplex CODEC with 48KHz sampling rate

•Compliant with AC’97 2.3 specifications

– 14.318MHz- 24.576MHz PLL to save crystal

– 12.288MHz BITCLK input can be consumed

– Integrated PCBEEP generator to save buzzer

– Interrupt capability

•Three analog line-level stereo inputs with 5-bit volume control: LINE_IN, CD, AUX

•High quality differential CD input

•Two analog line-level mono input: PCBEEP,PHONE-IN

•Two software selectable MIC inputs applications (software selectable)

•Boost preamplifier for MIC input 50mW/20 amplifier

•External Amplifier Power Down (EAPD) capability

•Power management and enhanced power saving features

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Stereo MIC record for AEC/BF application

•Supports Power Off CD function

•Adjustable VREFOUT control Supports double sampling rate (96KHz) of DVD audio playback

•Support 48KHz of S/PDIF output is compliant with AC’97 rev2.3 specification

•Power support: Digital: 3.3V; Analog: 3.3V/5V

1.2.7 MDC: Pctel Modem Daughter Card PCT2303W (Askey V1456VQL-P1)

The PCT2303W chipset is designed to meet the demand of this emerging worldwide AMR/MDC market. The

combination of PC-TEL’s well proven PCT2303W chipset and the HSP56TM MR software modem driver allows

systems manufactures to implement modem functions in PCs at a lower bill of materials (BOM) while maintaining

higher system performance.

PC-TEL has streamlined the traditional modem into the Host Signal Processing (HSP) solution. Operating with the

Pentium class processors, HSP becomes part of the host computer’s system software. It requires less power to

operate and less physical space than standard modem solutions. PC-TEL’s HSP modem is an easily integrated, cost-

effective communications solution that is flexible enough to carry you into the future.

The PCT2303W chip set is an integrated direct access arrangement (DAA) and Codec that provides a programmable

line interface to meet international telephone line requirements. The PCT2303W chip set is available in two 16-pin

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

small outline packages (AC’97 interface on PCT303A and phone-line interface on PCT303W). The chip set

eliminates the need for an AFE, an isolation transformer, relays, opto-isolators, and 2-to 4-wire hybrid. The

PCT2303W chip set dramatically reduces the number of discrete components and cost required to achieve

compliance with international regulatory requirements. The PCT2303W complies with AC’97 Interface specification

Rev. 2.1.

The chip set is fully programmable to meet world-wide telephone line interface requirements including those

described by CTR21, NET4, JATE, FCC, and various country-specific PTT specifications. The programmable

parameters of the PCT2303W chip set include AC termination, DC termination, ringer impedance, and ringer

threshold. The PCT2303W chip set has been designed to meet stringent world-wide requirements for out-of-band

energy, billing-tone immunity, lightning surges, and safety requirements.

Features:

Virtual com port with a DTE throughout up to 460.8Kbps.

G3 Fax compatible

Auto dial and auto answer

Ring detection

•AC97 2.1 compliant

•86dB dynamic range TX/RX paths

Codec/DAA Features

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•2-4-wire hybrid

•Integrated ring detector

•High voltage isolation of 4000V

•Support for “Caller ID”

•Compliant with FCC Part68, CTR21, Net4 and JATE

•Low power standby

•Low profile SOIC package 16 pins 10x3x1.55mm

•Low power consumption

•10mA @ 3.3V operation

•1mA @ 3.3V power down

•Integrated modem codec

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Data

– ITU-T V.90 (56Kbps), V.34 (4.8Kbps TO 33.6 Kbps), V.32 bis (4.8Kbps to 14.4Kbps), V.22 bis (1.2 bps

to 2.4 Kbps), V.21 and Bell 103 and 212A(300 to 1200 bps) modulation protocol

– Data Compression ITU-T V.42bis MNP Class 5

– Error Correction ITU-T V.42 LAPM MNP 2-4

•Fax

– ITU-T V. 17, V.29, V.27ter, V.21, Channel 2, Group 3, EIA Class I

Standard Features

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.2.8 IEEE1394 VT6301S

1.2.8.1 Overview

The VT6301S IEEE 1394 OHCI Host Controller provides high performance serial connectivity. It implements

the Link and Phy layers for IEEE 1394-1995 High Performance Serial Bus specification release 1.0 and 1394a-

2000. It is compliant with 1394 Open HCI 1.0 and 1.1 with DMA engine support for high performance data

transfer via a 32-bit bus master PCI host bus interface. The VT6301S supports 100, 200 and 400 Mbit/sec

transmission via an integrated 1-port PHY. The VT6301S services two types of data packets: asynchronous and

isochronous (real time). The 1394 link core performs arbitration requesting, packet generation and checking,

and bus cycle master operations. It also has root node capability and performs retry operations. The VT6301S is

ready to provide industry-standard IEEE 1394 peripheral connections for desktop and mobile PC platforms.

Support for the VT6301S is built into Microsoft Windows 98, Windows ME, Windows 2000 and Windows XP

1.2.8.2 Features

•32 bit CRC generator and checker for receive and transmit data

•On-chip isochronous and asynchronous receive and transmit FIFOs for packets (2K for general

receive plus 2K for isochronous transmit plus 2K for asynchronous transmit)

•8 isochronous transmit contexts

•4 isochronous receive contexts

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•3-deep physical post-write queue

•2-deep physical response queue

•Dual buffer mode enhancements

•Skip Processing enhancements

•Block Read Request handling

•Ack_tardy processing

Firmware Hub for Intel® 810, 810E, 815, 815E,815EP, 820, 840, 850 Chipsets

Flexible Erase Capability

– Uniform 4 KByte Sectors

– Uniform 16 KByte overlay blocks for SST49LF002A

– Uniform 64 KByte overlay blocks for SST49LF004A

– Top boot block protection

– 16 KByte for SST49LF002A

– 64 KByte for SST49LF004A

1.2.9 System Flash Memory (BIOS)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

– Chip-Erase for PP Mode

Single 3.0-3.6V Read and Write Operations

Superior Reliability

Firmware Hub Hardware Interface Mode Supports Intel High Definition Audio

– 5-signal communication interface supporting byte Read and Write

– 33 MHz clock frequency operation

– WP# and TBL# pins provide hardware write protect for entire chip and/or top Boot Block

– Block Locking Register for all blocks

– Standard SDP Command Set

– Data# Polling and Toggle Bit for End-of-Write detection

– 5 GPI pins for system design flexibility

– 4 ID pins for multi-chip selection

1.2.10 Memory System

1.2.10.1 256MB, 512MB, 1GB (x64) 200-Pin DDR2 SDRAM SODIMMs

•JEDEC-standard 200-pin, small-outline, dual in-line memory module (SODIMM)

•VDD=+1.8V±0.1V, VDDQ=+1.8V±0.1V

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•JEDEC standard 1.8V I/O (SSTL_18-compatible)

•Differential data strobe (DQS,DQS#) option

•Four-bit prefetch architecture

•Differential clock input (CK,CK#)

•Command entered on each rising CK edge

•DQS edge-aligned with data for Reads

•DQS center-aligned with data for Writes

•Duplicate output strobe (RDQS) option for x8 configuration

•DLL to align DQ and DQS transitions with CK

•Four internal banks for concurrent operation

•Data mask (DM) for masking write data

•Programmable CAS Latency (CL) : 2,3,4 and 5

•Posted CAS additive latency (AL) : 0,1,2,3 and 4

•Write latency = Read latency – 1tCK

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Programmable burst lengths : 4 or 8

•Read burst interrupt supported by another READ

•Write burst interrupt supported by another WRITE

•Adjustable data – output drive strength

•Concurrent auto precharge option is supported

•Auto Refresh (CBS) and Self Refresh Mode

•64ms, 8,192-cycle refresh

•Off-chip drive (OCD) impedance calibration

•On-die termination (ODT)

General

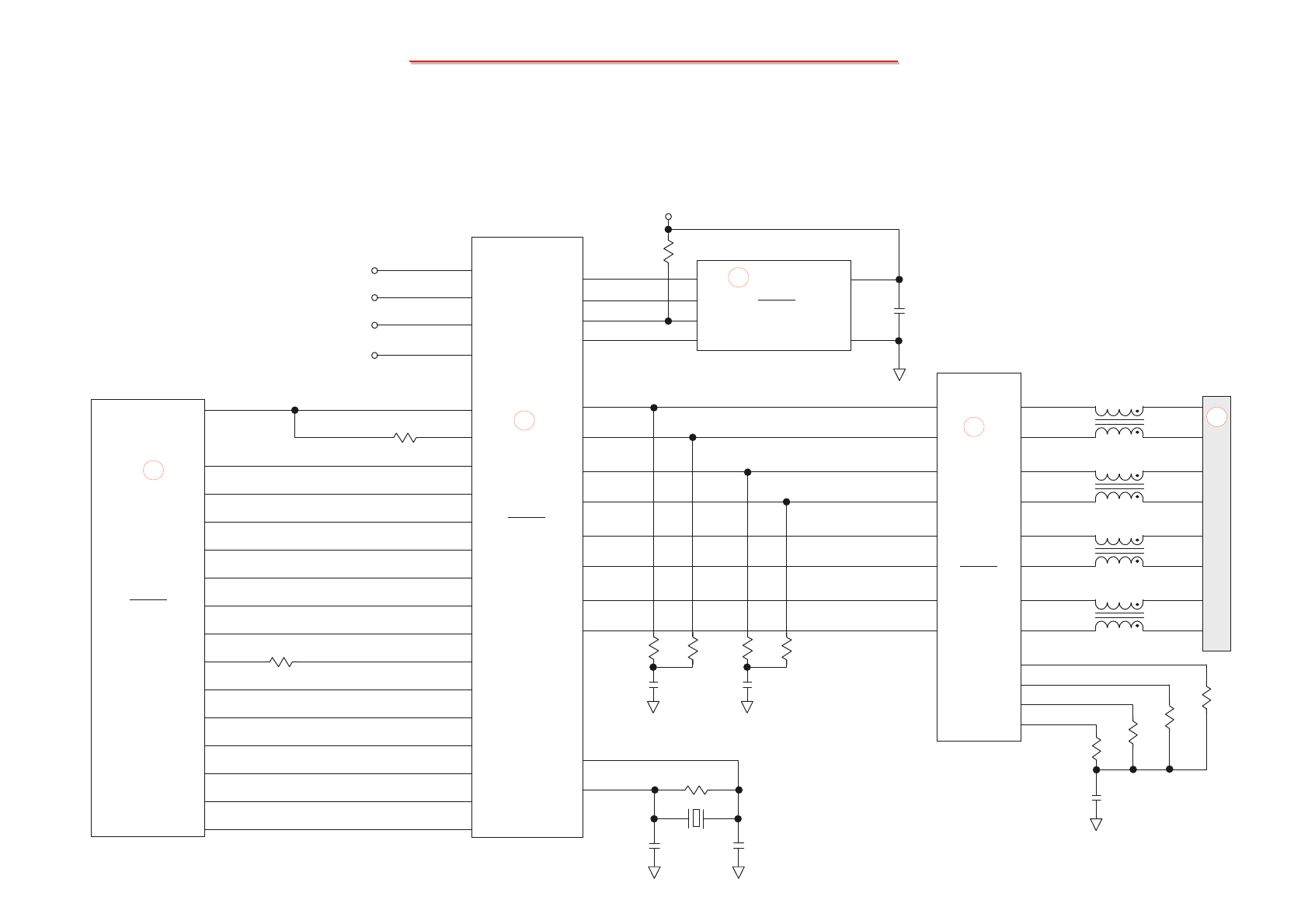

1.2.11 LAN PHY: RTL8100C(L)

The Realtek RTL8100C(L) is a highly integrated, cost-effective single-chip Fast Ethernet controller that provides 32-

bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-T specifications and

IEEE 802.3x Full Duplex Flow Control. It also supports the Advanced Configuration Power management Interface

(ACPI), PCI power management for modern operating systems that are capable of Operating System Directed Power

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Management (OSPM) to achieve the most efficient power management possible. The RTL8100C(L) does not

support CardBus mode as the RTL8139C does. In addition to the ACPI feature, the RTL8100C(L) also supports

remote wake-up (including AMD Magic Packet, LinkChg, and Microsoft® wake-up frame) in both ACPI and APM

environments. The RTL8100C(L) is capable of performing an internal reset through the application of auxiliary

power. When auxiliary power is applied and the main power remains off, the RTL8100C(L) is ready and waiting for

the Magic Packet or Link Change to wake the system up. Also, the LWAKE pin provides 4 different output signals

including active high, active low, positive pulse, and negative pulse. The versatility of the RTL8100C(L) LWAKE

pin provides motherboards with Wake-On-LAN (WOL) functionality. The RTL8100C(L) also supports Analog

Auto-Power-down, that is, the analog part of the RTL8100C(L) can be shut down temporarily according to

user requirements or when the RTL8100C(L) is in a power down state with the wakeup function disabled. In

addition, when the analog part is shut down and the IsolateB pin is low (i.e. the main power is off), then both the

analog and digital parts stop functioning and the power consumption of the RTL8100C(L) will be negligible.

The RTL8100C(L) also supports an auxiliary power auto-detect function and will auto-configure related bits

of their own PCI power management registers in PCI configuration space.

•128 pin QFP/LQFP

•Integrated Fast Ethernet MAC, Physical chip and transceiver in one chip

•10 Mb/s and 100 Mb/s operation

•Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation operation

•PCI local bus single-chip Fast Ethernet controller

1. Compliant to PCI Revision 2.2

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2. Supports PCI clock 16.75MHz-40MHz

3. Supports PCI target fast back-to-back transaction

4. Provides PCI bus master data transfers and PCI memory space or I/O space mapped data transfers of

RTL8100C(L)'s operational registers

5. Supports PCI VPD (Vital Product Data)

6. Supports ACPI, PCI power management

•Supports 25MHz crystal or 25MHz OSC as the internal clock source. The frequency deviation of either crystal

or OSC must be within 50 PPM.

•Compliant to PC99/PC2001 standard

•Supports Wake-On-LAN function and remote wake-up (Magic Packet*, LinkChg and Microsoft® wake-up

frame)

•Supports 4 Wake-On-LAN (WOL) signals (active high, active low, positive pulse and negative pulse)

•Supports auxiliary power-on internal reset, to be ready for remote wake-up when main power still remains off

•Supports auxiliary power auto-detect, and sets the related capability of power management registers in PCI

configuration space

•Includes a programmable, PCI burst size and early Tx/Rx threshold

•Supports a 32-bit general-purpose timer with the external PCI clock as clock source, to generate timer-interrupt

•Contains two large (2Kbyte) independent receive and transmit FIFOs

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Advanced power saving mode when LAN function or wakeup function is not used

•Uses 93C46 (64*16-bit EEPROM) to store resource configuration, ID parameter and VPD data

•Supports LED pins for various network activity indications

•Supports loop back capability

•Half/Full duplex capability

•Supports Full Duplex Flow Control (IEEE 802.3x)

The Winbond Keyboard controller architecture consists of a Turbo 51 core controller surrounded by various registers,

nine general purpose I/O port, 2k+256 bytes of RAM, four timer/counters, dual serial ports, 40K MTP-ROM that is

divided into four banks, two SMBus interface for master and slave, Support 4 PWM channels, 2 D-A and 8 A-D

converters.

1.2.12 Keyboard System: Winbond W83L950D

•8051 uC based

•Keyboard Controller Embedded Controller

•Supply embedded programmable flash memory (internal ROM size: 40KB) and RAM size is 2 KB

•Support 4 Timer (8 bit) signal with 3 prescalers

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Support 2 PWM channels, 2 D-A and 8 A-D converters

•Reduce Firmware burden by Hardware PS/2 decoding

•Support 72 useful GPIOs totally

•Support Flash utility for on board re-flash

•Support ACPI

•Hardware fast Gate A20 with software programmable

IDE HDD

1.2.13 Hard Disk Drive

The ICH6 IDE controller features one set of interface signals that can be enabled, tri-stated or driven low. The IDE

interfaces of the ICH6 can support several types of data transfers:

•Programmed I/O (PIO): processor is in control of the data transfer

•8237 style DMA: DMA protocol that resembles the DMA on the ISA bus, although it does not use the 8237 in

the ICH6. This protocol off loads the processor from moving data. This allows higher transfer rate of up to

16MB/s

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

•Ultra ATA/33/66/100: DMA protocol that redefines signals on the IDE cable to allow both host and target

throttling of data and transfer rates of up to 33/66/100 MB/s

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Keys

Combination Feature Meaning

Fn + F1 Power down Mini PCI power down

Fn + F2 Reserve

Fn + F3 Volume Down

Fn + F4 Volume Up

Fn + F5 LCD/external CRT switching Rotate display mode in LCD only, CRT only, and

simultaneously display.

Fn + F6 Brightness down Decreases the LCD brightness

Fn + F7 Brightness up Increases the LCD brightness

Fn + F10 Battery Low Beep On/Off Battery Low Beep

Fn + F11 Panel Off/On Toggle Panel on/off

Fn + F12 Suspend to DRAM / HDD Force the computer into either Suspend to HDD or

Suspend to DRAM mode depending on BIOS Setup.

1.3 Other Functions

1.3.1 Hot Key Function

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.3.2 Power On/Off/Suspend/Resume Button

1.3.2.1 APM Mode

At APM mode, Power button is on/off system power.

At ACPI mode. Windows power management control panel set power button behavior.

You could set “standby”, “power off” or “hibernate”(must enable hibernate function in power Management) to

power button function.

Continue pushing power button over 4 seconds will force system off at ACPI mode.

1.3.2.2 ACPI Mode

1.3.3 Cover Switch

System automatically provides power saving by monitoring Cover Switch. It will save battery power and prolong

the usage time when user closes the notebook cover.

At ACPI mode there are four functions to be chosen at windows power management control panel.

1. None

2. Standby

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.3.4 LED Indicators

1.3.4.1 Three LED Indicators at Front Side:

From left to right that indicate BATTERY POWER, BATTERY STATUS and AC POWER

-- AC POWER:

This LED lights green when the notebook was powered by AC power line, Flashes (on 1 second, off 1

second) when entered suspend to RAM state with AC powered. The LED is off when the notebook is in

power off state or powered by battery.

-- BATTERY POWER

This LED lights green when the notebook is being powered by Battery, and flashes (on 1 second, off 1

second) when entered suspend to RAM state with AC powered. The LED is off when the notebook is in

power off state or powered by AC adapter.

-- BATTERY STATUS:

During normal operation, this LED stays off as long as the battery is charged. When the battery charge

drops to 10% of capacity, the LED lights red, flashes per 1 second and beeps per 2 second. When AC is

3. Off

4. Hibernate (must enable hibernate function in power management)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

connected, this indicator glows green if the battery pack is fully charged or orange (amber) if the battery is

being charged.

AC POWER:This LED lights green when AC is powering the notebook, and flash (on 1 second, off 1 second)

when Suspend to RAM no matter using AC power or Battery power. The LED is off when the

notebook is off or powered by battery.

BATTERY POWER: This LED lights green when the notebook is being powered by Battery, and flash (on 1

second, off 1 second) when Battery is low. The LED is off when the notebook is off or

1.3.4.2 Seven LED Indicators:

System has seven status LED indicators at front side which to display system activity. From left to right that

indicate HARD DISK, CD-ROM, NUM LOCK, CAPS LOCK, SCROLL LOCK, Wireless on/off, Card Reader

Accessing Blue-Tooth.

1.3.5 Battery Status

1.3.5.1 Battery Warning

-- System also provides Battery capacity monitoring and gives users a warning signal to alarm they to

store data before battery dead. This function also protects system from mal-function while battery

capacity is low.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

-- Battery Warning: Capacity below 10%, Battery Capacity LED flashes , and system beeps per 2 seconds.

-- System will Suspend to HDD after 2 Minutes to protect users data.

1.3.5.2 Battery Low State

After Battery Warning State, and battery capacity is below 5%, system will generate beep sound for twice per

second.

1.3.5.3 Battery Dead State

When the battery voltage level reaches 11.5 volts, system will shut down automatically in order to extend the

battery packs' life.

FAN is controlled by W83L950D embedded controller-using ADT7460 to sense CPU and VGA temperature and

PWM control fan speed. Fan speed is depended on CPU and VGA temperature. Higher CPU or VGA temperature

faster Fan Speed.

1.3.6 Fan Power On/Off Management

1.3.7 CMOS Battery

CR2032 3V 220mAh lithium battery

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

When AC in or system main battery inside, CMOS battery will consume no power.

AC or main battery not exists, CMOS battery life at less (220mAh/5.8uA) 4 years.

One Power Supply Jack

One External DVI-I Connector For DVI Display

Supports four USB port for all USB devices.

One MODEM RJ-11 phone jack for PSTN line

One RJ-45 for LAN.

One IEEE1394 port

One TV-Out port

Reserve 1 connector on board for USB 2.0 Device

Headphone Out Jack.

Microphone Input Jack.

1.3.8 I/O Port

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Implanted H/W current limit and battery learning circuit to enhance protection of battery.

1.3.9 Battery Current Limit and Learning

Line in Jack

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.4 Power Management

The 8050MB system has built in several power saving modes to prolong the battery usage for mobile purpose. User

can enable and configure different degrees of power management modes via ROM CMOS setup (booting by pressing

F2 key). Following are the descriptions of the power management modes supported.

1.4.1 System Management Mode

1.4.1.1 Full on Mode

In this mode, each device is running with the maximal speed. CPU clock is up to its maximum.

1.4.1.2 Doze Mode

In this mode, CPU will be toggling between on & stop grant mode either. The technology is clock throttling. This

can save battery power without loosing much computing capability.

The CPU power consumption and temperature is lower in this mode.

1.4.1.3 Standby Mode

For more power saving, it turns of the peripheral components. In this mode, the following is the status of each

device:

-- CPU: Stop grant

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

-- LCD: backlight off

-- HDD: spin down

1.4.1.4 Suspend to DRAM

The most chipset of the system is entering power down mode for more power saving. In this mode, the following

is the status of each device:

Suspend to DRAM

-- CPU: off

-- Intel 915GM: Partial off

-- VGA: Suspend

-- PCMCIA: Suspend

-- Audio: off

-- SDRAM: self refresh

Suspend to HDD

-- All devices are stopped clock and power-down

-- System status is saved in HDD

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

-- All system status will be restored when powered on again

Implanted H/W current limit and battery learning circuit to enhance protection of battery.

1.4.2 Other Power Management Functions

1.4.2.1 HDD & Video Access

System has the ability to monitor video and hard disk activity. User can enable monitoring function for video

and/or hard disk individually. When there is no video and/or hard disk activity, system will enter next PMU state

depending on the application. When the VGA activity monitoring is enabled, the performance of the system will

have some impact.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.5 Appendix 1: Intel ICH6-M GPIO Definitions (1)

Pin name Current Define Power plane

GPIO0 PCI_REQ6# I MAIN

GPIO1 MINIPCI_ACT# I MAIN

GPIO2 PCI_INTE# I MAIN

GPIO3 PCI_INTF# I MAIN

GPIO4 PCI_INTG# I MAIN

GPIO5 PCI_INTH# I MAIN

GPIO6 PM_BMBUSY# I MAIN

GPIO9 X I RESUME

GPIO10 X I RESUME

GPIO11 SMBALERT# I RESUME

GPIO12 KBD_US/JP# I MAIN

GPIO13 WAKE_UP# I RESUME

GPIO14 X I RESUME

GPIO15 X I RESUME

GPIO16 SB_BY_ON# O MAIN

GPIO17 SCI# I MAIN

GPIO18 STOP_PCI# O MAIN

GPIO20 STOP_CPU# O MAIN

GPIO23 WIRELESS_PD# O MAIN

GPIO24 SPK_OFF I/O RESUME

GPIO25 I/O RESUME

GPIO26 PANEL_ID0 I MAIN

GPIO27 X I/O RESUME

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Pin name Current Define Power plane

GPIO28 X I/O RESUME

GPIO29 PANEL_ID1 I MAIN

GPIO30 PANEL_ID2 I MAIN

GPIO31 PANEL_ID3 I MAIN

GPIO32 PCLKRUN# I/O MAIN

GPIO33 MB_ID0 I/O MAIN

GPIO34 MB_ID1 I/O MAIN

GPIO40 MXM_DETECT# I MAIN

GPIO41 CRT_IN# I MAIN

GPIO48 X O MAIN

GPIO49 HPWRGD OD O MAIN

1.5 Appendix 1: Intel ICH6-M GPIO Definitions (2)

Continue to previous page

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.6 Appendix 2: W83L950D KBC Pins Definitions (1)

Port Pin Function Implement

P0 0-7 KO[0..7]

P1 0-7 KO[8..15]

P3 0-7 KI[0..7]

0 LPC enable H8_THRM#

1GPIO x1 H8_WAKE_UP#

2 BATT_G#

3 BATT_R#

4EXTSMI#

5CAP#

6 NUM#

7 SCROLL#

0H8_ENABKL

1CHARGING

2LEARING

3 H8_SUSB

4 KBRST H8_HRCIN#

5 A20 A20GATE

6H8_SCI

7H8_PWRON

0GPIO x1 SW_VDD3

1H8_LIDSW#

2 BATT_DEAD#

3H8_ADEN#

4 BATT_LED#

5 KBC_PWRON_VDD3S

6BLADJ

7H8_I_CTR

Scan matrix

SMBUS1 or UART

GPIO x4

Xcin/cout or PWM 2,3

GPIO x2 (INT1)

GPIO x2

GPIO x3 (INT20,30,40)

GPIO x2

D/A, PWM 2,3

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Port Pin Function Implement

0 PWRBTN#

1 KBC_RI#

2 AC_ POWER#

3 BATT_V

4 BATT_T

5H8_I_LIMIT

6H8_PROCHOT#

7 +BC_CPUCORE

0T_DATA

1H8_RSMRST

2 ICH_PWRBTN

3T_CLK

4 H8_PWRON_SUSB#

5SUSC#

6 BAT_DATA

7BAT_CLK

0 PCICLK_KBC

1SERIRQ

2LAD3

3LAD2

4LAD1

5LAD0

6 KBC_PCIRST#

7LFRAME#

P8 LPC interface

P6 A/D (INT5-12)

PS/2 port x3

SMBUS

1.6 Appendix 2: W83L950D KBC Pins Definitions (2)

Continue to previous page

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1.7 Appendix 3: 8050QMA Product Spec (1)

Item Description

CPU

Intel® Pentium® M Processor (Dothan) 90nm, 2M L2, 533 MHz FSB

Intel® Celeron® M processor, 90nm, 512K L2, 400 MHz FSB

- CPU Thermal ceiling: 27W

Core logic

Intel 915PM + ICH6M

- Dual Channel Memory Support

- DDR2 400/533

Expandable to 2048MB(P)

System BIOS

Inside 512KB Flash EPROM

Include System BIOS, VGA BIOS

ACPI2.0; 2.31 compliants

Boot from USB mass storage device

Memory

- 200-pin SO-DIMM DDR2 Memory Slot x2

- Support DDR2 400/533

- 0MB Memory onboard ; Expandable to 2.0GB(P)

VGA Controller - Type I MXM Interface (max 25W) with 8 cells Vram

- Priority at launch: NV44M + 32MB discrete Vram + Turbo Memory

ROM Drive

12.7mm Optical Drive

- Combo Drive

- DVD Dual

- DVD Super Multi drive

HDD

One 2.5" 9.5 mm height HDD;

- 5400/7200 RPM Serial PATA HDD

- 40/60/80 GB Capacity

Display 15.4" Wide WXGA TFTLCD

- Resolution: 1280 x 800

Keyboard

- Key pitch: 19mm, Key travel: 3.0mm

- Windows Logo Key x 2

- W/z Hot Key Functions

Touch Pad - Intelligence Glide pad without scroll button

- 2 touch pad buttons

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Continue to previous page

1.7 Appendix 3: 8050QMA Product Spec (2)

Item Description

Audio/AV Function

- AC97, support S/PDIF output

- 5.1 channel analog output

- 2.1 channel system speaker. two full range speakers(1W*2 Front), one subwoofer(3W)

- Build in microphone

Multi Card reader - 4 in 1 Card Reader (SD/MMC/MS/MS Pro)

Indicator on board

- 3 LEDs for Power/Battery status (AC In status/Battery status/Reserved Power

- System Status) (on inverter board)

- 2 LEDs for HDD Access, ODD Access

- 3 LEDs for Number lock, Caps lock, Scroll lock

- 1 LED for Wireless on/off

- 1 LED for Card Reader Accessing

PC CARD 1x Type II PCMCIA Interface without Zoom Video

Support Support 3.3V, 5V device

I/O Ports

I/O:

USB (support USB 1.1 and USB 2.0) port x 4

Reserve 1 connector on board for USB 2.0 Device

RJ-11 port x 1 (4Pin)

RJ-45 port x 1

DC input (2.5 * 5.5 * 11mm) x 1

IEEE1394 x 1(4 pin).

Type III B MiniPCI x 1 (For wireless LAN)

Audio(Normal /5.1Analog output):

Line - out/SPDIF x 1 (5.1 mode: Front 2 channels)

Mic - in x 1 (5.1 mode: LBF/Middle channels)

Line - in x 1 (5.1 mode: Rear 2 channels)

Video

DVI- I x 1

TV-Out x 1 (7 Pin S-Video connector NTSC/PAL)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Item Description

Communication PCI 10/100 LAN MDC 56K, V.90 Modem

802.11g wireless LAN (Mini PCI optional) with built-in Antenna

Power Supply 6 cell Li-ion (2400mAH/3.7V) Battery pack

Battery Life > 3HRs

AC adapter Universal AC adapter 2 Pin 2.5*5.5*11 65W 19V DC output, Input: 100-240V, 50/60Hz AC

Dimensions 35mm x 250mm x 25 ~ 38mm(Max)(P)

Weight 2.8KG (TBD)

Manuals EN, GR , Pan-EU

Accessories

AC Adapter,

Power Cord,

RJ-11 cable, (Option)

SAFETY LOCK Security Lock hole (Kensington Lock)

Architecture - Support PC2001 specifications;

- WHQL-certified for Windows XP Professional/Home edition SP2

Sales Region Europe

USA

Agency FCC, CE, CB,

Retailer Option Summary

CPU

Memory

Wireless Card

HDD

Battery

ODD

MDC

1.7 Appendix 3: 8050QMA Product Spec (3)

Continue to previous page

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.1 System View

2.1.1 Front View

2.1.2 Left-side View

2. System View and Disassembly

















Line In Connector

MS/SD/MMC Card Slot

1394 Port

MIC In Connector











Line Out Connector

Top Cover Latch

S-Video Port

RJ-11 Connector

DVI Port

Ventilation Openings











USB Ports *2

RJ-45 Connector

PCMCIA Card Socket

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.1.3 Right-side View

2.1.4 Rear View





Lock

AC Power Connector

USB Ports *2









CD/DVD-ROM Drive

Kensington Lock





MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.1.5 Bottom View

2.1.6 Top-open View

Hard Disk Drive

CPU



Battery Park



Stereo Speaker Set





























LCD Screen



Internal MIC In

Keyboard





Stereo Speaker Set



Power Button







Device LED Indicators

Touch Pad

AC Power Indicator

Battery Charge Indicator

Battery Power Indicator

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.2 Tools Introduction

2mm

Bit Size

Screw Size Tooling Tor. Bit Size

1. M2.0 Auto-Screw driver 2.0-2.5 kg/cm2 #0

2. Auto screw driver for notebook assembly & disassembly.

1. Minus screw driver with bit size 2mm for notebook assembly & disassembly.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3 System Disassembly

The section discusses at length each major component for disassembly/reassembly and show corresponding

illustrations.Use the chart below to determine the disassembly sequence for removing components from the

notebook.

NOTE: Before you start to install/replace these modules, disconnect all peripheral devices and make sure the

notebook is not turned on or connected to AC power.

Modular Components

LCD Assembly Components

Base Unit Components

NOTEBOOK

2.3.1 Battery Pack

2.3.2 Keyboard

2.3.3 CPU

2.3.4 HDD Module

2.3.5 CD/DVD-ROM Drive

2.3.6 DDR-SDRAM

2.3.7 Modem Card

2.3.8 LCD Assembly

2.3.9 LCD Panel

2.3.10 Inverter Board

2.3.11 System Board

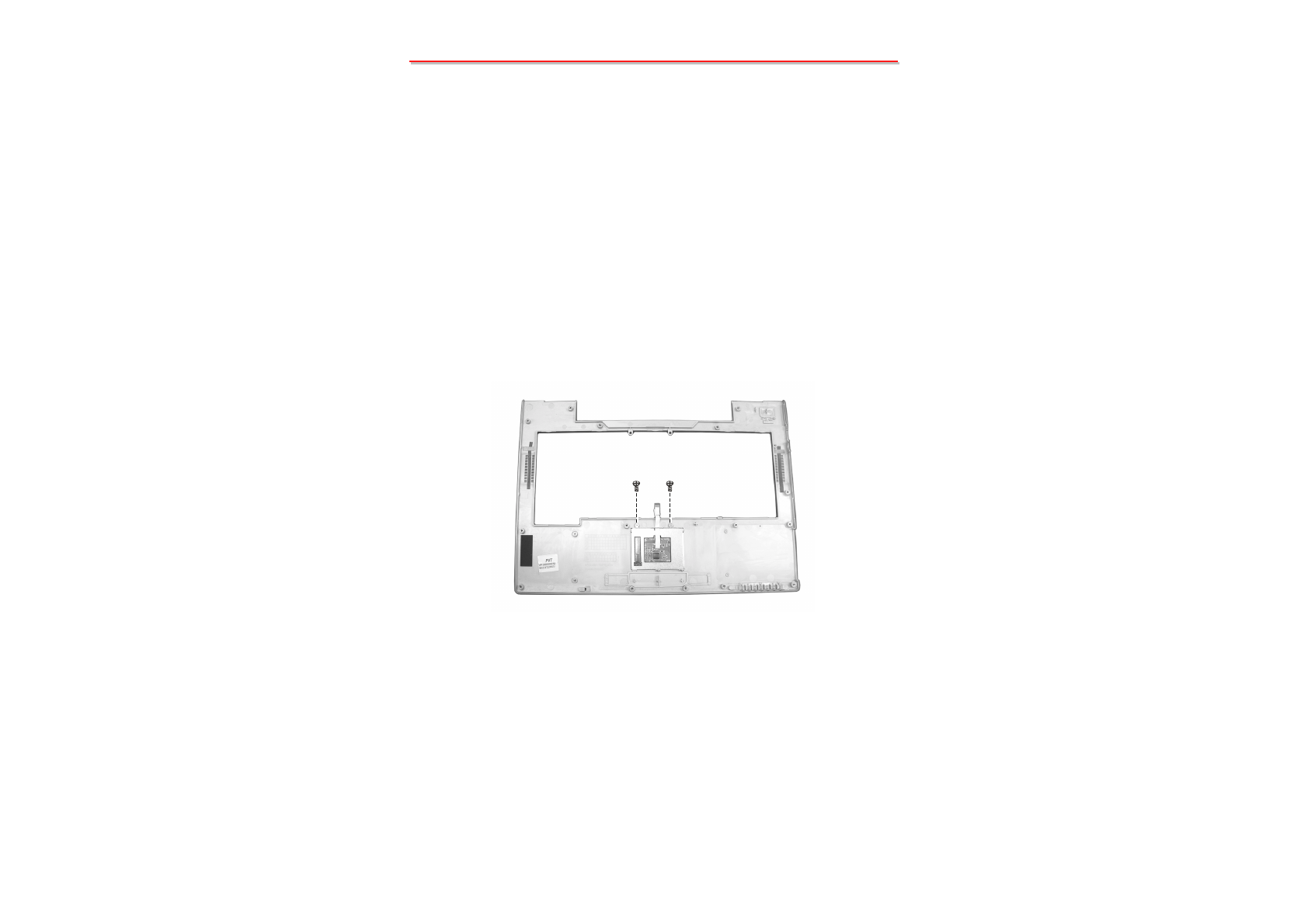

2.3.12 Touch Pad

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1. Carefully put the notebook upside down.

2. Slide the two release lever outwards to the “unlock” position (), while take the battery pack out of the

compartment (). (Figure 2-1)

1. Replace the battery pack into the compartment. The battery pack should be correctly connected when you hear a

clicking sound.

2. Slide the release lever to the “lock” ( ) position.

2.3.1 Battery Pack

Disassembly

Figure 2-1 Remove the battery pack

Reassembly





MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.2 Keyboard

1. Remove the battery pack. (Refer to section 2.3.1 Disassembly)

2. Open the top cover.

3. Loosen the five latches locking the keyboard. (Figure 2-2)

Figure 2-2 Loose the five latches

Disassembly

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Figure 2-3 Free the keyboard

Reassembly

1. Reconnect the keyboard cable and fit the keyboard back into place.

2. Replace the keyboard fasten the five latches.

3. Replace the battery pack. (Refer to section 2.3.1 Reassembly)

4. Slightly lift up the keyboard and disconnect the cable from the system board, then separate the keyboard.

(Figure 2-3)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.3 CPU

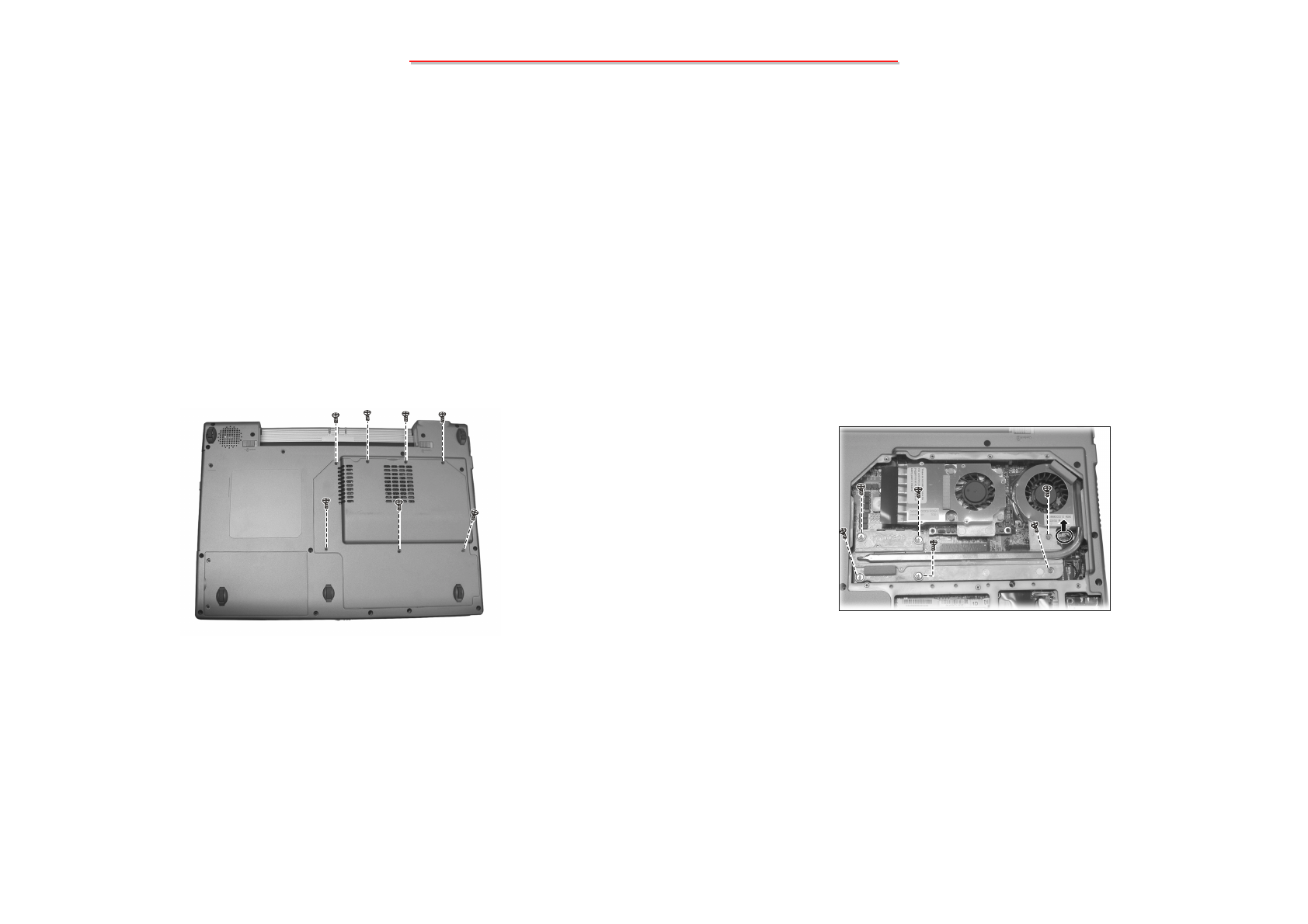

Figure 2-4 Remove the seven screws Figure 2-5 Free the heatsink

Disassembly

1. Remove the battery pack. (Refer to section 2.3.1 Disassembly)

2. Remove the seven screws fastening the CPU cover. (Figure 2-4)

3. Remove the four spring screws and two screws that secure the heatsink upon the CPU and disconnect the fan’s

power cord from the system board. (Figure 2-5)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Reassembly

1. Carefully, align the arrowhead corner of the CPU with the beveled corner of the socket, then insert CPU pins

into the holes. Tighten the screw by a flat screwdriver to locking the CPU.

2. Connect the fan’s power cord to the system board, fit the heatsink upon the CPU, then secure with four spring

screws and two screws.

3. Replace the CPU cover and secure with seven screws.

4. Replace the battery pack. (Refer to section 2.3.1 Reassembly)

4. To remove the existing CPU, loosen the screw by a flat screwdriver, upraise the CPU socket to unlock the CPU.

(Figure 2-6)

Figure 2-6 Remove the CPU

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.4 HDD Module

Figure 2-8 Remove HDD moduleFigure 2-7 Remove the HDD compartment

cover

Disassembly

1. Carefully put the notebook upside down. Remove the battery pack. (Refer to section 2.3.1 Disassembly)

2. Remove the two screws fastening the HDD compartment cover. (Figure 2-7)

3. Remove the one screw and slide the HDD module out of the compartment. (Figure 2-8)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

4. Remove the four screws to separate the hard disk drive from the bracket, remove the hard disk drive. (Figure 2-9)

Reassembly

1. Attach the bracket to hard disk drive and secure with four screws.

2. Slide the HDD module into the compartment and secure with one screw.

3. Place the HDD compartment cover and secure with two screws.

4. Replace the battery pack. (Refer to section 2.3.1 Reassembly)

Figure 2-9 Remove hard disk drive

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1. Push the CD/DVD-ROM drive into the compartment and secure with one screw.

2. Replace the battery pack. (See section 2.3.1 Reassembly)

Disassembly

1. Carefully put the notebook upside down. Remove the battery pack. (See section 2.3.1 Disassembly)

2. Remove the one screw fastening the CD/DVD-ROM drive. (Figure 2-10)

3. Insert a small rod, such as a straightened paper clip, into CD/DVD-ROM drive’s manual eject hole () and

push firmly to release the tray. Then gently pull out the CD/DVD-ROM drive by holding the tray that pops

out ().

2.3.5 CD/DVD-ROM Drive

Reassembly

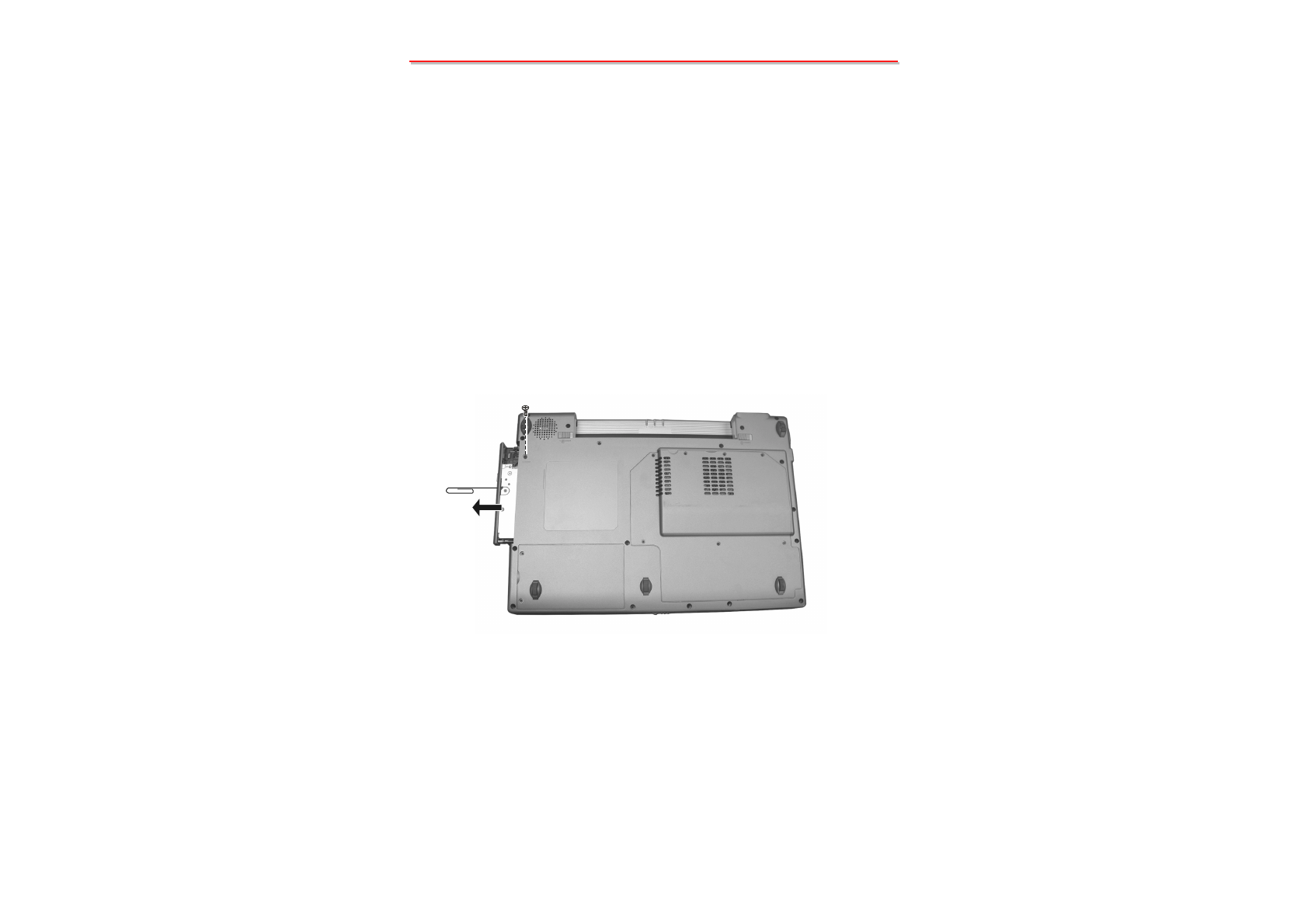

Figure 2-10 Remove the CD/DVD-ROM drive





MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

1. To install the DDR, match the DDR's notched part with the socket's projected part and firmly insert the

SO-DIMM into the socket at 20-degree angle. Then push down until the retaining clips lock the DDR into

position.

2. Replace the CPU cover and secure with seven screws. (Refer to the step 3 of section 2.3.3 Reassembly)

3. Replace the battery pack. (See section 2.3.1 Reassembly)

Disassembly

1. Carefully put the notebook upside down. Remove the battery pack. (See section 2.3.1 Disassembly)

2. Remove the seven screws fastening the CPU cover. (Refer to the step 2 of section 2.3.3 Disassembly)

2.3.6 DDR-SDRAM

3. Pull the retaining clips outwards () and remove the SO-DIMM (). (Figure 2-11)

Reassembly

Figure 2-11 Remove the SO-DIMM

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.7 Modem Card

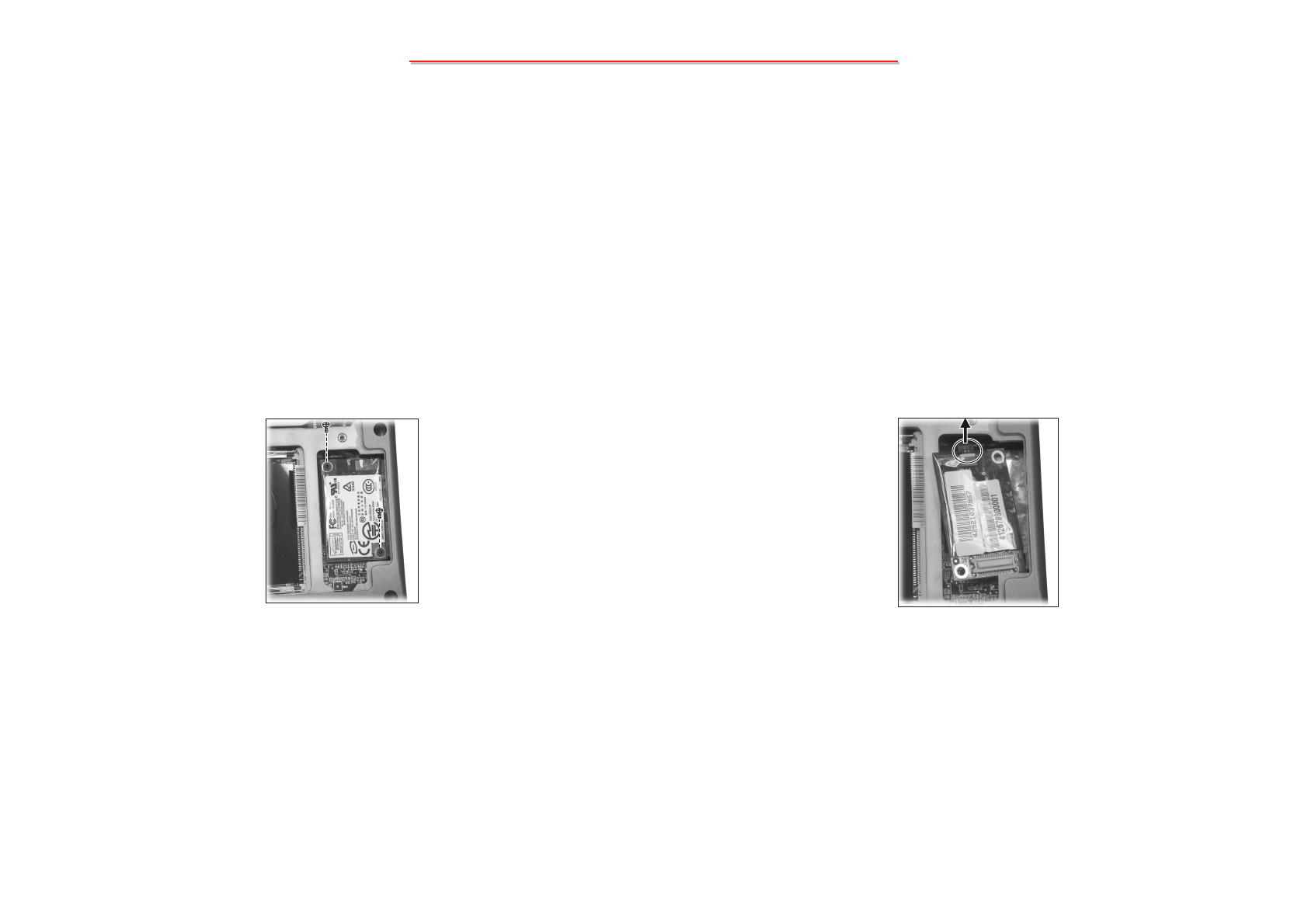

Figure 2-12 Remove two screws Figure 2-13 Disconnect the cord

1. Reconnect the cord and fit the modem card.

2. Fasten the modem card by two screws.

3. Replace the CPU cover by seven screws. (Refer to step 3 of section 2.3.3 Reassembly).

4. Replace the battery pack. (Refer to section 2.3.1 Reassembly)

Disassembly

1. Carefully put the notebook upside down. Remove the battery pack. (Refer to section 2.3.1 Disassembly)

2. Remove seven screws fastening CPU cover. (Refer to step 2 of section 2.3.3 Disassembly)

3. Remove two screws fastening the modem card. (Figure 2-12)

4. Lift up the modem card and disconnect the cord. (Figure 2-13)

Reassembly

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.8 LCD ASSY

Figure 2-14 Remove the eighteen screws

and separate the antenna

Figure 2-15 Free the top cover

Disassembly

1. Remove the battery pack, keyboard, CPU, hard disk drive, CD/DVD-ROM drive, DDR and modem card.

(See sections 2.3.1, 2.3.2, 2.3.3, 2.3.4, 2.3.5, 2.3.6 and 2.3.7 Disassembly)

2. Remove the eighteen screws fastening the housing and separate the antenna from the Mini PCI compartment.

(Figure 2-14)

3. Disconnect the touch pad’s cable from the system board and remove the two screws, then free the top cover.

(Figure 2-15)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

4. Remove the seven screws and lift the top shielding up, then free the top shielding. (Figure 2-16)

5. Separate the antenna and disconnect the two cables from the system board. (Figure 2-17)

Figure 2-16 Remove the seven screws Figure 2-17 Disconnect the two cables

and separate the antenna

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

6. Remove the two screws and lift the two hinge covers up, then free the two hinge covers. (Figure 2-18)

7. Remove the four screws, then free the LCD assembly. (Figure 2-19)

Figure 2-18 Free the two hinge covers Figure 2-19 Free the LCD assembly

1. Attach the LCD assembly to the base unit and secure with four screws.

2. Replace the antenna back into Mini PCI compartment.

3. Reconnect the two cables to the system board.

4. Replace the two hinge covers and secure with two screws.

5. Replace the top shielding and secure with seven screws.

6. Replace the top cover and secure with two screws, then reconnect the touch pad’s cable into the system board.

7. Secure with eighteen screws fasten the housing.

8. Replace the modem card, DDR, CD/DVD-ROM drive, hard disk drive, CPU, keyboard and battery pack.

(Refer to previous section reassembly)

Reassembly

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.9 LCD Panel

Disassembly

1. Remove the battery, keyboard, CPU, hard disk drive, CD/DVD-ROM drive, DDR, modem card and LCD

assembly. (Refer to section 2.3.1, 2.3.2, 2.3.3, 2.3.4, 2.3.5, 2.3.6, 2.3.7 and 2.3.8 Disassembly)

2. Remove the two rubber pads and two screws on the corners of the panel. (Figure 2-20)

3. Insert a flat screwdriver to the lower part of the LCD cover and gently pry the frame out. Repeat the process

until the cover is completely separated from the housing.

4. Remove the ten screws and disconnect the cable. (Figure 2-21)

Figure 2-21 Remove the ten screws and

disconnect the cable

Figure 2-20 Remove LCD cover

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Reassembly

1. Replace the cable to the LCD panel.

2. Attach the LCD panel’s brackets back to LCD panel and secure with four screws.

3. Replace the LCD panel into LCD housing and secure with ten screws.

4. Reconnect one cable to inverter board.

5. Fit the LCD cover and secure with two screws and rubber pads.

6. Replace the LCD assembly, modem card, DDR, CD/DVD-ROM drive, hard disk drive, CPU, keyboard and

battery pack. (Refer to previous section reassembly)

Figure 2-23 Free the LCD panel

5. Remove the four screws that secure the LCD brackets. (Figure 2-22)

6. Disconnect the cable to free the LCD panel. (Figure 2-23)

Figure 2-22 Remove the four screws

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.10 Inverter Board

Disassembly

1. Remove the battery, keyboard, CPU, hard disk drive, CD/DVD-ROM drive, DDR, modem card, LCD

assembly and LCD panel. (Refer to section 2.3.1, 2.3.2, 2.3.3, 2.3.4, 2.3.5, 2.3.6, 2.3.7, 2.3.8 and 2.3.9

Disassembly)

2. Remove the one screw fastening the inverter board, then free the inverter board. (Figure 2-24)

Figure 2-24 Free the inverter board

Reassembly

1. Fit the inverter board back into place and secure with one screw.

2. Replace the LCD panel, LCD assembly, modem card, DDR, CD/DVD-ROM drive, hard disk drive, CPU

keyboard and battery pack. (Refer to previous section reassembly)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.11 System Board

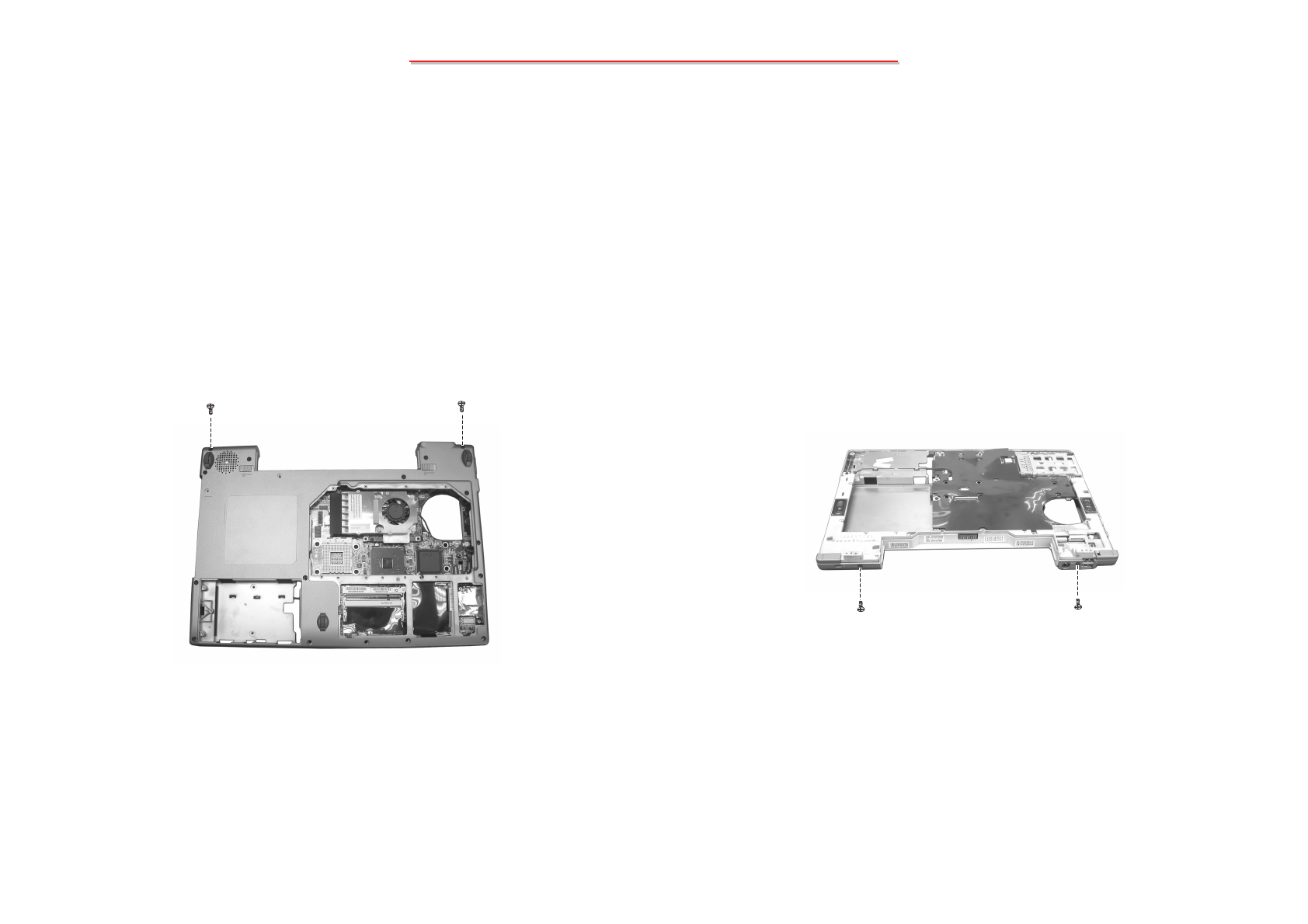

Figure 2-25 Remove the two screws Figure 2-26 Remove the two screws

Disassembly

1. Remove the battery, keyboard, CPU, hard disk drive, CD/DVD-ROM drive, DDR, modem card and LCD

assembly. (Refer to sections 2.3.1, 2.3.2, 2.3.3, 2.3.4, 2.3.5, 2.3.6, 2.3.7 and 2.3.8 Disassembly)

2. Remove the two screws fastening the housing. (Figure 2-25)

3. Remove the two screws fastening the housing. (Figure 2-26)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

4. Disconnect the three speakers’ cables from the system board and separate the (R&L) rear covers. (Figure 2-27)

5. Remove the four screws and lift the system board from the housing. (Figure 2-28)

Figure 2-27 Disconnect the cables and

separate the rear covers

Figure 2-28 Remove the four screws

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Reassembly

1. Fit the system board into the I/O bracket and secure with two screws.

2. Replace the system board into the housing and secure with four screws.

3. Reconnect the three speakers’ cables into the system board and replace the (R&L) rear covers.

4. Secure with four screws fasten the housing.

5. Replace the LCD assembly, modem card, DDR, CD/DVD-ROM drive, hard disk drive, CPU, keyboard and

battery pack. (Refer to the section 2.3.8, 2.3.7, 2.3.6, 2.3.5, 2.3.4, 2.3.3, 2.3.2 and 2.3.1 Reassembly)

6. Remove the two screws and separate the I/O bracket from the system board, then free the system board.

(Figure 2-29)

Figure 2-29 Free the system board

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

2.3.12 Touch Pad

1. Remove the battery pack, keyboard, CPU, hard disk drive, CD/DVD-ROM drive, DDR and modem card.

(See sections 2.3.1, 2.3.2, 2.3.3, 2.3.4, 2.3.5, 2.3.6 and 2.3.7 Disassembly)

2. Remove the top cover. (Refer to the steps 1-3 of 2.3.8 section Disassembly)

3. Remove the four screws and lift the shielding, then free the touch pad. (Figure 2-30)

Disassembly

Figure 2-30 Free the touch pad

Reassembly

1. Replace the touch pad, then fit the shielding and secure with two screws.

2. Replace the top cover. (Refer to the step 6 of section 2.3.8 Disassembly)

3. Replace the modem card, DDR, CD/DVD-ROM drive, hard disk drive, CPU, keyboard and battery pack.

(See sections 2.3.8, 2.3.7, 2.3.6, 2.3.5, 2.3.4, 2.3.3, 2.3.2 and 2.3.1 Reassembly)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

3. Definition & Location of Connectors / Switches

3.1 Mother Board (Side A)

SW3

SW4

SW2

J1 : Inverter Board Connector

J2 : LCD Panel Connector

J3 : Internal Left Speaker Connector

J4 : Touch-pad Module Connector

J5 : Internal Key-board Connector

J7 : Internal Right Speaker Connector

J8 : PCMCIA Card Connector

SW2 : Power Button

SW3 : Left Button Switch of Touch-pad

SW4 : Right Button Switch of Touch-pad

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

3. Definition & Location of Connectors / Switches

3.2 Mother Board (Side B)

J706

PJ701

J701 J716

J713

J714

J501

J703

J710 J715

J702

J502

J709

J507

J704 J503

J504

J720

J721

J508

J509

J719

J723

PJ701 : AC Adaptor Connector

J701&J706 : USB Port Connector

J702 : DVI Connector

J703 : Battery Connector

J704 : S-video Connector

J709 : RJ45 & RJ11 Connector

J710 : CD-ROM IDE Connector

J713&J714 : DDR SO-DIMM Module Socket

J715 : Hard Disk Driver Connector

J716 : Mini-PCI Connector

J723 : MXM_Connector

J501 : Internal Subwoofer Speaker

J502 : FAN Connector

J504 : FAN Connector

J508 : MS/SD/MMC Connector

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

4. Definition & Location of Major Components

4.1 Mother Board (Side A)

PU2

PU12

U13

U19

U14

PU5

PU6

PU3

U18

PU2 : +3VS/+5VS Voltage Generator

PU3 : Charging Voltage Controller

PU5 : CPU_Core Voltage Generator

PU6 : +1.5VS/+1.05VS Voltage Generator

PU12 : +1.8V_P/0.9VS_P Voltage Generate

U7 : CLOCK SYNTHERIZER

U13 : WINBOND KBC Controller

U14 : SYSTEM BIOS

U18 : SUBWOOFER AMP Controller

U19 : AUDIO AMPLIFIER

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

4. Definition & Location of Major Components

4.2 Mother Board (Side B)

U710

U711

U717

U722

U724

U709

U517

U709 : Intel ICH6-M South Bridge

U710 : Intel 915PM North Bridge

U711 : Intel Dothan CPU

U717 : LAN-RTL8100CL Controller

U722 : IEEE1394 Controller

U724 : Serial ATA Bridge 88SA8040

U517 : Audio CODEC(ALC655)

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(1)

Host Interface Signals

Signal Name Type Description

HADS# I/O

AGTL+ Host Address Strobe:

The system bus owner asserts HADS# to indicate the first of two

cycles of a request phase. The GMCH can also assert this signal for

snoop cycles and interrupt messages.

HBNR# I/O

AGTL+ Host Block Next Request:

Used to block the current request bus owner from issuing a new

request. This signal is used to dynamically control the CPU bus

pipeline depth.

HBPRI# O

AGTL+ Host Bus Priority Request:

The GMCH is the only Priority Agent on the system bus. It asserts

this signal to obtain the ownership of the address bus. This signal has

priority over symmetric bus requests and will cause the current

symmetric owner to stop issuing new transactions unless the

HLOCK# signal was asserted.

HBREQ0# I/O

AGTL+ Host Bus Request 0#:

The GMCH pulls the processor bus HBREQ0# signal low during

HCPURST#. The signal is sampled by the processor on the

active-to-inactive transition of HCPURST#.

HBREQ0# should be tri-stated after the hold time requirement has

been satisfied.

HCPURST# O

AGTL+ Host CPU Reset:

The CPURST# pin is an output from the GMCH. The GMCH asserts

HCPURST# while RSTIN# is asserted and for approximately 1 ms

after RSTIN# is deasserted. HCPURST# allows the processor to

begin execution in a known state.

HDBSY# I/O

AGTL+ Host Data Bus Busy:

Used by the data bus owner to hold the data bus for transfers

requiring more than one cycle.

HDEFER# O

AGTL+ Host Defer:

Signals that the GMCH will terminate the transaction currently being

snooped with either a deferred response or with a retry response.

HDINV[3:0]# I/O

AGTL+ Host Dynamic Bus Inversion:

Driven along with the HFD[63:0]# signals. Indicates if the associated

signals are inverted or not. HDINVF[3:0]# are asserted such that the

number of data bits driven electrically low (low voltage) within the

corresponding 16-bit group never exceeds 8.

HDINV# Data Bits

HDINV[3]# HD[63:48]#

HDINV[2]# HD[47:32]#

HDINV[1]# HD[31:16]#

HDINV[0]# HD[15:0]#

Host Interface Signals (Continued)

Signal Name Type Description

HDRDY# I/O

AGTL+ Host Data Ready:

Asserted for each cycle that data is transferred.

HA[31:3]# I/O

AGTL+

Host Address Bus:

HA[31:3]# connects to the CPU address bus. During processor cycles

the HA[31:3]# are inputs. The GMCH drives HA[31:3]# during

snoop cycles on behalf of DMI.

HA[31:3]# are transferred at 2x rate.

Note that the address is inverted on the CPU bus.

HADSTB[1:0]# I/O

AGTL+

Host Address Strobe:

HA[31:3]# connects to the CPU address bus. During CPU cycles, the

source synchronous strobes are used to transfer HA[31:3]# and

HREQ[4:0]# at the 2x transfer rate.

Strobe Address Bits

HADSTB[0]# HA[16:3]#, HREQ[4:0]#

HADSTB[1]# HA[31:17]#

HD[63:0]# I/O

AGTL+

Host Data:

These signals are connected to the CPU data bus. HD[63:0]# are

transferred at 4x rate.

Note that the data signals are inverted on the CPU bus depending on

the HDINV[3:0]# signals.

HDSTBP[3:0]#

HDSTBN[3:0]#

I/O

AGTL+

Host Differential Host Data Strobes:

The differential source synchronous strobes are used to transfer

HD[63:0]# and HDINV[3:0]# at the 4x transfer rate.

Strobe Data Bits

HDSTBP[3]#, HDSTBN[3]# HD[63:48]#, HDINV[3]#

HDSTBP[2]#, HDSTBN[2]# HD[47:32]#, HDINV[2]#

HDSTBP[1]#, HDSTBN[1]# HD[31:16]#, HDINV[1]#

HDSTBP[0]#, HDSTBN[0]# HD[15:00]#, HDINV[0]#

HHIT# I/O

AGTL+ Host Hit:

Indicates that a caching agent holds an unmodified version of the

requested line.

Also, driven in conjunction with HITM# by the target to extend the

snoop window.

HHITM# I/O

AGTL+ Host Hit Modified:

Indicates that a caching agent holds a modified version of the

requested line and that this agent assumes responsibility for providing

the line.

Also, driven in conjunction with HIT# to extend the snoop window.

5. Pin Descriptions of Major Components

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(2)

Host Interface Signals (Continued)

Signal Name Type Description

HLOCK# I

AGTL+ Host Lock:

All CPU bus cycles sampled with the assertion of HLOCK# and

HADS#, until the negation of HLOCK# must be atomic, i.e. PCI

Express graphics access to System Memory is allowed when

HLOCK# is asserted by the CPU.

HREQ[4:0]# I/O

AGTL+

Host Request Command:

Defines the attributes of the request. HREQ[4:0]# are transferred at

2x rate.

Asserted by the requesting agent during both halves of the Request

Phase. In the first half the signals define the transaction type to a level

of detail that is sufficient to begin a snoop request. In the second half

the signals carry additional information to define the complete

transaction type.

HTRDY# O

AGTL+ Host Target Ready:

Indicates that the target of the processor transaction is able to enter

the data transfer phase.

HRS[2:0]# O

AGTL+ Host Response Status:

Indicates the type of response according to the following the table:

HRS[2:0]# Response type

000 Idle state

001 Retry response

010 Deferred response

011 Reserved (not driven by GMCH)

100 Hard Failure (not driven by GMCH)

101 No data response

110 Implicit Write back

111 Normal data response

HDPWR# O

AGTL+ Host Data Power:

Used by GMCH to indicate that a data return cycle is pending within

2 HCLK cycles or more. CPU use’s this signal during a read-cycle to

activate the data input buffers in preparation for HDRDY# and the

related data.

HCPUSLP# O

CMOS Host CPU Sleep:

When asserted in the Stop-Grant state, causes the processor to enter

the Sleep state. During Sleep state, the processor stops providing

internal clock signals to all units, leaving only the Phase-Locked

Loop (PLL) still operating. Processors in this state will not recognize

snoops or interrupts.

Host Interface Reference and Compensation

Signal Name Type Description

HVREF I

A Host Reference Voltage:

Reference voltage input for the Data, Address, and Common clock

signals of the Host AGTL+ interface.

HXRCOMP I/O

A Host X RCOMP:

Used to calibrate the Host AGTL+ I/O buffers.

This signal is powered by the Host Interface termination rail (VCCP).

HXSCOMP I/O

A Host X SCOMP:

Slew Rate Compensation for the Host Interface

HXSWING I

A Host X Voltage Swing:

These signals provide reference voltages used by the HXRCOMP

circuits.

HYRCOMP I/O

A Host Y RCOMP:

Used to calibrate the Host AGTL+ I/O buffers.

HYSCOMP I/O

A Host Y SCOMP:

Slew Rate Compensation for the Host Interface

HYSWING I

A Host Y Voltage Swing:

These signals provide reference voltages used by the HYRCOMP

circuitry.

DMI

Signal Name Type Description

DMI_RXP[1:0]

DMI_RXN[1:0]

PCIE DMI input from ICH6-M:

Direct Media Interface receive differential pair

DMI_TXP[1:0]

DMI_TXN[1:0]

PCIE DMI output to ICH6-M:

Direct Media Interface transmit differential pair

DMI x2 is supported for Intel 915GMS chipset

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(3)

DDR / DDR2 SDRAM Channel A Interface

Signal Name Type Description

SA_DQ[63:0] I/O

SSTL1.8/2

Data Bus:

DDR / DDR2 Channel A data signal interface to the SDRAM data

bus.

Single channel mode: Route to SO-DIMM 0 & SO-DIMM1

Dual channel mode: Route to SO-DIMM A

SA_DM[7:0] I/O

SSTL1.8/2

Data Mask:

These signals are used to mask individual bytes of data in the case of

a partial write, and to interrupt burst writes.

When activated during writes, the corresponding data groups in the

SDRAM are masked. There is one SA_DM[7:0] for every data byte

lane.

Single channel mode: Route to SO-DIMM 0 & SO-DIMM1

Dual channel mode: Route to SO-DIMM A

SA_DQS[7:0] I/O

SSTL1.8

Data Strobes:

DDR: The rising and falling edges of SA_DQS[7:0] are used for

capturing data during read and write transactions.

DDR2: SA_DQS[7:0] and its complement signal group make up a

differential strobe pair. The data is captured at the crossing point of

SA_DQS[7:0] and its SA_DQS[7:0]# during read and write

transactions.

Single channel mode: Route to SO-DIMM 0 & SO-DIMM1

Dual channel mode: Route to SO-DIMM A

SA_DQS[7:0]# I/O

SSTL1.8

Data Strobe Complements

DDR1: No Connect. These signals are not used for DDR devices

DDR2 : These are the complementary DDR2 strobe signals.

Single channel mode: Route to SO-DIMM 0 & SO-DIMM1

Dual channel mode: Route to SO-DIMM A

SA_MA[13:0] O

SSTL1.8/2 Memory Address:

These signals are used to provide the multiplexed row and column

address to the SDRAM.

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

Note: SA_MA13 is for support of 1 Gb devices.

SA_BS[2:0] O

SSTL1.8/2 Bank Select:

These signals define which banks are selected within each SDRAM

rank.

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

Note: SA_BS2 is for support for DDR2 only for 8 bank devices.

DDR / DDR2 SDRAM Channel A Interface (Continued)

Signal Name Type Description

SA_RAS# O

SSTL1.8/2 RAS Control signal:

Used with SA_CAS# and SA_WE# (along with SM_CS#) to define

the SDRAM commands.

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

SA_CAS# O

SSTL1.8/2 CAS Control signal:

Used with SA_RAS# and SA_WE# (along with SM_CS#) to define

the SDRAM commands.

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

SA_WE# O

SSTL1.8/2 Write Enable Control signal:

Used with SA_RAS# and SA_CAS# (along with SM_CS#) to define

the SDRAM commands.

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

SA_RCVENIN# O

SSTL1.8/2 Clock Input:

Used to emulate source-synch clocking for reads. Connects internally

to SA_RCVENOUT#.

Leave as No Connect.

SA_RCVENOUT

SSTL1.8/2 Clock Output:

Used to emulate source-synch clocking for reads. Connects internally

to SA_RCVENIN#.

Leave as No Connect.

PCI Express Based Graphics Interface Signals

Signal Name Type Description

EXP_RXN[15:0]

EXP_RXP[15:0]

PCIE

PCI Express Receive Differential Pair

EXP_TXN[15:0]

EXP_TXP[15:0]

PCIE

PCI Express Transmit Differential Pair

EXP_ICOMPO I

PCI Express Output Current and Resistance Compensation

EXP_COMPI I

PCI Express Input Current Compensation

PCI Express Based Graphics is supported for Intel 915GM and Intel 915PM chipsets.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(4)

DDR / DDR2 SDRAM Channel B Interface

Signal Name Type Description

SB_DQ[63:0] I/O

SSTL1.8/2

Data Lines:

DDR / DDR2 Channel B data signal interface to the SDRAM data

bus.

Single Channel mode: No connect.

Dual channel mode: Route to SO-DIMM B

NOTE: Signals do not exist in Intel 915GMS.

SB_DM[7:0] O

SSTL1.8/2

Data Mask:

When activated during writes, the corresponding data groups in the

SDRAM are masked. There is one SB_DM[7:0] for every data byte

lane. These signals are used to mask individual bytes of data in the

case of a partial write, and to interrupt burst writes.

Single Channel mode: No connect.

Dual channel mode: Route to SO-DIMM B

NOTE: Signals do not exist in Intel 915GMS.

SB_DQS[7:0] I/O

SSTL1.8/2

Data Strobes:

DDR: The rising and falling edges of SB_DQS[7:0] are used for

capturing data during read and write transactions.

DDR2: SB_DQS[7:0] and its complement signal group make up a

differential strobe pair. The data is captured at the crossing point of

SB_DQS[7:0] and its SB_DQS[7:0]# during read and write

transactions.

Single Channel mode: No connect.

Dual channel mode: Route to SO-DIMM B

NOTE: Signals do not exist in Intel 915GMS.

SB_DQS[7:0]# I/O

SSTL1.8

Data Strobe Complements (DDR2 only):

DDR1: No Connect. These signals are not used for DDR devices

DDR2 : These are the complementary DDR2 strobe signals.

Single Channel mode: No connect.

Dual channel mode: Route to SO-DIMM B

NOTE: Signals do not exist in Intel 915GMS.

SB_MA[13:0] O

SSTL1.8/2 Memory Address:

These signals are used to provide the multiplexed row and column

address to the SDRAM.

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

NOTE: SB_MA13 is for support of 1 Gb devices.

SB_BS[2:0] O

SSTL1.8/2 Bank Select:

These signals define which banks are selected within each

SDRAM rank.

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

NOTE: SB_BS2 is for DDR2 support only.

DDR / DDR2 SDRAM Channel B Interface (Continued)

Signal Name Type Description

SB_RAS# O

SSTL1.8/2 RAS Control signal:

Used with SB_CAS# and SB_WE# (along with SM_CS#) to define

the SDRAM commands.

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

SB_CAS# O

SSTL1.8/2 CAS Control signal:

Used with SB_RAS# and SB_WE# (along with SM_CS#) to define

the SDRAM commands.

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

SB_WE# O

SSTL1.8/2 Write Enable Control signal:

Used with SB_RAS# and SB_CAS# (along with SM_CS#) to define

the SDRAM commands.

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

SB_RCVENIN# I

SSTL1.8/2 Clock Input:

Used to emulate source-synch clocking for reads.

Leave as No Connect.

NOTE: Signals do not exist in Intel 915GMS.

SB_RCVENOUT

# O

SSTL1.8/2 Clock Output:

Used to emulate source-synch clocking for reads.

Leave as No Connect.

NOTE: Signals do not exist in Intel 915GMS.

DMI

Signal Name Type Description

DMI_RXP[3:0]

DMI_RXN[3:0]

PCIE DMI input from ICH6-M:

Direct Media Interface receive differential pair

DMI_TXP[3:0]

DMI_TXN[3:0]

PCIE DMI output to ICH6-M:

Direct Media Interface transmit differential pair

DMI x2 or x4 is supported for Intel 915GM, Intel 915PM and Intel 910GML chipsets.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(5)

DDR / DDR2 Common Signals

Signal Name Type Description

SM_CK[1:0],

SM_CK[4:3] O

SSTL1.8/2 SDRAM Differential Clock:

The crossing of the positive edge of SM_CKx and the negative edge

of its complement SM_CKx# are used to sample the command and

control signals on the SDRAM.

SM_CK[0:1] and its complement SM_CK[1:0]# signal make a

differential clock pair output.

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

SM_CK[4:3] and its complement SM_CK[4:3]# signal make a

differential clock pair output.

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

NOTE: SM_CK2 and SM_CK5 are reserved and not supported.

SM_CK[1:0]#,

SM_CK[4:3]# O

SSTL1.8/2 SDRAM Inverted Differential Clock:

These are the complementary Differential DDR2 Clock signals.

NOTE: SM_CK2# and SM_CK5# are reserved and not supported.

SM_CS[3:0]# O

SSTL1.8/2 Chip Select: (1 per Rank):

These signals select particular SDRAM components during the active

state. There is one Chip Select for each SDRAM rank

SM_CS[1:0]# :

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

SM_CS[3:2]# :

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

SM_CKE[3:0] O

SSTL1.8/2 Clock Enable: (1 per Rank):

SM_CKE[3:0] is used:

.To initialize the SDRAMs during power-up

.To power-down SDRAM ranks

. To place all SDRAM ranks into and out of self-refresh during STR.

SM_CKE[1:0]:

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

SM_CKE[3:2]:

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

DDR / DDR2 Common Signals (Continued)

Signal Name Type Description

SM_ODT[3:0] O

SSTL1.8/2 On Die Termination: Active Termination Control. (DDR2 only)

SM_ODT[1:0]:

Single channel mode: Route to SO-DIMM 0

Dual channel mode: Route to SO-DIMM A

Signal Description

The crossing of the positive edge of SM_CKx and the negative edge

of its

complement SM_CKx# are used to sample the command and control

SM_CK[0:1] and its complement SM_CK[1:0]# signal make a

differential

SM_CK[4:3] and its complement SM_CK[4:3]# signal make a

differential

NOTE: SM_CK2 and SM_CK5 are reserved and not supported.

These are the complementary Differential DDR2 Clock signals.

NOTE: SM_CK2# and SM_CK5# are reserved and not supported.

These signals select particular SDRAM components during the active

To place all SDRAM ranks into and out of self-refresh during STR.

On Die Termination: Active Termination Control. (DDR2 only)

SM_ODT[3:2]:

Single channel mode: Route to SO-DIMM 1

Dual channel mode: Route to SO-DIMM B

DDR: Leave as no connects. Not used for DDR devices.

DDR2: On-die termination for DDR2 devices.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(6)

CRT DAC Signals

Signal Name Type Description

RED O

A RED Analog Video Output:

This signal is a CRT Analog video output from the internal color

palette DAC.

RED# O

A RED# Analog Output:

This signal is an analog video output from the internal color palette

DAC. This signal is used to provide noise immunity.

GREEN O

A GREEN Analog Video Output:

This signal is a CRT Analog video output from the internal color

palette DAC.

GREEN# O

A GREEN# Analog Output:

This signal is an analog video output from the internal color palette

DAC. This signal is used to provide noise immunity.

BLUE O

A BLUE Analog Video Output:

This signal is a CRT Analog video output from the internal color

palette DAC.

BLUE# O

A BLUE# Analog Output:

This signal is an analog video output from the internal color palette

DAC. This signal is used to provide noise immunity.

REFSET O

A Resistor Set:

Set point resistor for the internal color palette DAC. A 256-Ω ± 1%

resistor is required between REFSET and motherboard ground.

HSYNC O

HVCMOS CRT Horizontal Synchronization:

This signal is used as the horizontal sync (polarity is programmable)

or “sync interval”.

VSYNC O

HVCMOS CRT Vertical Synchronization:

This signal is used as the vertical sync (polarity is programmable).

Analog TV-out Signals

Signal Name Type Description

TVDAC_A O

A TVDAC Channel A Output:

TVDAC_A supports the following:

Composite: CVBS signal

Component: Chrominance (Pb) analog signal

TVDAC_B O

A TVDAC Channel B Output:

TVDAC_B supports the following:

S-Video: Luminance analog signal

Component: Luminance (Y) analog signal

TVDAC_C O

A TVDAC Channel C Output:

TVDAC_C supports the following:

S-Video: Chrominance analog signal

Component: Chrominance (Pr) analog signal

TV_IRTNA O

A Current Return for TVDAC Channel A:

Connect to ground on board

TV_IRTNB O

A Current Return for TVDAC Channel B:

Connect to ground on board

TV_IRTNC O

A Current Return for TVDAC Channel C:

Connect to ground on board

TV_REFSET O

A TV Resistor set:

TV Reference Current uses an external resistor to set internal

reference voltage levels. A 5-k §Ù ± 0.5% resistor is required

between REFSET and motherboard ground.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(7)

LVDS Signals

Signal Name Type Description

LDVS Channel A

LADATAP[2:0] I/O

LVDS

Channel A differential data output - positive

LADATAN[2:0] I/O

LVDS

Channel A differential data output –negative

LACLKP I/O

LVDS

Channel A differential clock output – positive

LACLKN I/O

LVDS

Channel A differential clock output – negative

LDVS Channel B

LBDATAP[2:0] I/O

LVDS

Channel B differential data output – positive

NOTE: Signals do not exist in Intel 915GMS.

LBDATAN[2:0] I/O

LVDS

Channel B differential data output –negative

NOTE: Signals do not exist in Intel 915GMS.

LBCLKP I/O

LVDS

Channel B differential clock output – positive

NOTE: Signals do not exist in Intel 915GMS.

LBCLKN I/O

LVDS

Channel B differential clock output – negative

NOTE: Signals do not exist in Intel 915GMS.

LFP Panel power and backlight control

LVDD_EN O

HVCMOS

LVDS panel power enable: Panel power control enable control.

This signal is also called VDD_DBL in the CPIS specification and is

used to control the VDC source to the panel logic.

LBKLT_EN O

HVCMOS

LVDS backlight enable: Panel backlight enable control.

This signal is also called ENA_BL in the CPIS specification and is

used to gate power into the backlight circuitry.

LBKLT_CRTL O

HVCMOS

Panel backlight brightness control: Panel brightness control.

This signal is also called VARY_BL in the CPIS specification and is

used as the PWM Clock input signal.

LVDS Reference signals

LIBG I/O

Ref

LVDS Reference Current. –

1.5 kΩ Pull down resistor needed

LVREFH I

Ref

Reserved. - No connect.

LVREFL I

Ref

Reserved. - No connect.

LVBG O

Reserve. - No connect

Note: LVDS Channel B interface is not supported and do not exist for Intel 915GMS

DDR SDRAM Reference and Compensation

Signal Name Type Description

SMRCOMPN I/O

A System Memory RCOMP N:

Buffer compensation

This signal is powered by the System Memory rail (2.5 V for DDR,

1.8 V for DDR2).

SMRCOMPP I/O

A System Memory RCOMP P:

Buffer compensation

This signal is powered by the System Memory rail

SMXSLEWIN I

A X Buffer Slew Rate Input control.

SMXSLEWOUT O

A X Buffer Slew Rate Output control.

SMYSLEWIN I

A Y Buffer Slew Rate Input control.

SMYSLEWOUT O

A Y Buffer Slew Rate Output control.

SMVREF[1:0] I

A SDRAM Reference Voltage:

Reference voltage inputs for each DQ, DQS, & RCVENIN#.

Also used during ODT RCOMP.

SMOCDCOMP[1

:0] I

A On-Die DRAM OCD driver compensation

OCD compensation

Display Data Channel (DDC) and GMBUS Support

Signal Name Type Description

LCTLA_CLK I/O

COD

I2C Based control signal (Clock) for External SSC clock chip

control –

LCTLB_DATA I/O

COD

I2C Based control signal (Data) for External SSC clock chip control –

DDCCLK I/O

COD

CRT DDC clock monitor control support

DDCDATA I/O

COD

CRT DDC Data monitor control support

LDDC_CLK I/O

COD

EDID support for flat panel display

LDDC_DATA I/O

COD

EDID support for flat panel display

SDVOCTRL_CL

K I/O

COD

I2C Based control signal (Clock) for SDVO device

SDVOCTRL_DA

TA I/O

COD

I2C Based control signal (Data) for SDVO device

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(8)

Serial DVO Interface.

Signal Name Type Description

SDVO B Interface

SDVOB_CLKP O

PCIE

Serial Digital Video B Clock.

Multiplexed with EXP_TXP_3.

SDVOB_CLKN O

PCIE

Serial Digital Video B Clock Complement.

Multiplexed with EXP_TXN_3.

SDVOB_RED O

PCIE

Serial Digital Video B Red Data.

Multiplexed with EXP_TXP_0.

SDVOB_RED# O

PCIE

Serial Digital Video B Red Data Complement.

Multiplexed with EXP_TXN_0.

SDVOB_GREEN O

PCIE

Serial Digital Video B Green Data.

Multiplexed with EXP_TXP_1.

SDVOB_GREEN

# O

PCIE

Serial Digital Video B Green Data Complement.

Multiplexed with EXP_TXN_1.

SDVOB_BLUE O

PCIE

Serial Digital Video B Blue Data.

Multiplexed with EXP_TXP_2.

SDVOB_BLUE# O

PCIE

Serial Digital Video B Blue Data Complement.

Multiplexed with EXP_TXN_2.

SDVO C Interface

SDVOC_RED O

PCIE

Serial Digital Video C Red Data / SDVO B Alpha.

Multiplexed with EXP_TXP_4.

NOTE: Signals do not exist in Intel 915GMS..

SDVOC_RED# O

PCIE

Serial Digital Video C Red Complement / Alpha Complement.

Multiplexed with EXP_TXN_4.

NOTE: Signals do not exist in Intel 915GMS.

SDVOC_GREEN O

PCIE

Serial Digital Video C Green.

Multiplexed with EXP_TXP_5.

NOTE: Signals do not exist in Intel 915GMS.

SDVOC_GREEN

PCIE

Serial Digital Video C Green Complement.

Multiplexed with EXP_TXN_5.

NOTE: Signals do not exist in Intel 915GMS.

SDVOC_BLUE O

PCIE

Serial Digital Video Channel C Blue.

Multiplexed with EXP_TXP_6.

NOTE: Signals do not exist in Intel 915GMS.

SDVOC_BLUE# O

PCIE

Serial Digital Video C Blue Complement.

Multiplexed with EXP_TXN_6.

NOTE: Signals do not exist in Intel 915GMS.

Serial DVO Interface (Continued)

Signal Name Type Description

SDVO C Interface

SDVOC_CLKP O

PCIE

Serial Digital Video C Clock.

Multiplexed with EXP_TXP_7.

NOTE: Signals do not exist in Intel 915GMS.

SDVOC_CLKN O

PCIE

Serial Digital Video C Clock Complement.

Multiplexed with EXP_TXN_7.

NOTE: Signals do not exist in Intel 915GMS.

SDVO Common Signals

SDVO_TVCLKI

PCIE

Serial Digital Video TVOUT Synchronization Clock.

Multiplexed with EXP_RXP_0.

SDVO_TVCLKI

PCIE

Serial Digital Video TV-out Synchronization Clock Complement.

Multiplexed with EXP_RXN_0.

SDVO_FLDSTA

PCIE

Serial Digital Video Field Stall.

Multiplexed with EXP_RXP_2.

SDVO_FLDSTA

LL#

PCIE

Serial Digital Video Field Stall Complement.

Multiplexed with EXP_RXN_2.

SDVOB_INT I

PCIE

Serial Digital Video Input Interrupt.

Multiplexed with EXP_RXP_1.

SDVOB_INT# I

PCIE

Serial Digital Video Input Interrupt Complement.

Multiplexed with EXP_RXN_1.

SDVOC_INT I

PCIE

Serial Digital Video Input Interrupt.

Multiplexed with EXP_RXP_5.

SDVOC_INT# I

PCIE

Serial Digital Video Input Interrupt Complement.

Multiplexed with EXP_RXN_5.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(9)

PLL Signals

Signal Name Type Description

HCLKP I

Diff Clk Differential Host Clock In:

Differential clock input for the Host PLL. Used for phase cancellation

for FSB transactions. This clock is used by all of the GMCH logic

that is in the Host clock domain. Also used to generate core and

system memory internal clocks. This is a low voltage differential

signal and runs at ¼ the FSB data rate.

HCLKN I

Diff Clk Differential Host Clock Input Complement:

GCLKP I

Diff Clk Differential PCI Express based Graphics / DMI Clock In:

These pins receive a differential 100 MHz Serial Reference clock

from the external clock synthesizer. This clock is used to generate the

clocks necessary for the support of PCI Express.

GCLKN I

Diff Clk Differential PCI Express based Graphics / DMI Clock In

complement

DREF_CLKP I

Diff Clk Display PLLA Differential Clock In –

Display PLL Differential Clock In, no SSC support –

DREF_CLKN I

Diff Clk Display PLLA Differential Clock In Complement –

Display PLL Differential Clock In Complement - no SSC support

DREF_SSCLKP I

Diff Clk Display PLLB Differential Clock In –

Optional Display PLL Differential Clock In for SSC support –

NOTE: Differential Clock input for optional SSC support for LVDS

display.

DREF_SSCLKN I

Diff Clk Display PLLB Differential Clock In complement –

Optional Display PLL Differential Clock In Complement for SSC

support

NOTE: Differential Clock input for optional SSC support for LVDS

display.

Note: PLL interfaces signal group are supported the Mobile Intel 915GM/PM/GMS and Intel

910GML Express chipsets, unless otherwise noted.

Reset and Miscellaneous Signals

Signal Name Type Description

RSTIN# I

HVCMOS Reset In:

When asserted this signal will asynchronously reset the GMCH logic.

This signal is connected to the PLT_RST# output of the ICH6-M.

This input has a Schmitt trigger to avoid spurious resets. This input

buffer is 3.3-V tolerant.

PWROK I

HVCMOS Power OK:

When asserted, PWROK is an indication to the GMCH that core

power has been stable for at least 10 µs.

This input buffer is 3.3-V tolerant.

H_BSEL [2:0]

(CFG[2:0]) I

HVCMOS Host Bus Speed Select:

At the deassertion of RSTIN#, the value sampled on these pins

determines the expected frequency of the bus.

External pull-ups are required.

CFG[17:3] I

AGTL+ HW straps:

CFG [17:3] has internal pull up.

NOTE: Not all CFG Balls are supported for Intel 915GMS.

CFG[20:18] I

HVCMOS HW straps:

CFG [20:18] has internal pull down

NOTE: Not all CFG Balls are supported for Intel 915GMS.

BM_BUSY# O

HVCMOS GMCH Integrated Graphics Busy:

Indicates to the ICH that the integrated graphics engine within the

MCH is busy and transitions to low power states should not be

attempted until that is no longer the case.

THRMTRIP# O

COD GMCH Thermal Trip:

Assertion of THERMTRIP# (Thermal Trip) indicates the GMCH

junction temperature has reached a level beyond which damage may

occur. Upon assertion of THERMTRIP#, the GMCH will shut off its

internal clocks (thus halting program execution) in an attempt to

reduce the GMCH core junction temperature. To protect GMCH, its

core voltage (Vcc) must be removed following the assertion of

THERMTRIP#. Once activated, THERMTRIP# remains latched

until RSTIN# is asserted. While the assertion of the RSTIN# signal

will deassert THERMTRIP#, if the GMCH’s junction temperature

remains at or above the trip level, THERMTRIP# will again be

asserted.

EXT_TS[1:0]# I

HVCMOS External Thermal Sensor Input:

If the system temperature reaches a dangerously high value then this

signal can be used to trigger the start of system memory throttling.

NOTE: EXT_TS1# functionality is not supported in 915GMS. A pull

up is required on this pin

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.1 Intel 915PM North Bridge(10)

Power and Ground

Interface Ball Name Description

Host VTT (VCCP) FSB power supply (1.05 V) - (VCCP)

VCCA_SM VCCASM is the Analog power supply for SM data buffers used for

DLL & other logic (1.5 V)

DRAM

VCCSM System memory power supply (DDR=2.5 V; DDR2=1.8 V)

VCC3G PCI Express / DMI Analog power supply (1.5 V)

VCCA_3GBG PCI Express / DMI band gap power supply (2.5 V)

PCI Express

Based

Graphics /DMI VSSA_3GBG PCI Express / DMI band gap ground

VCCA_HPLL Power supply for the Host VCO in the host/mem/core PLL (1.5 V)

VCCA_MPLL Power supply for the mem VCO in the host/mem/core PLL (1.5 V)

VCCD_HMPL

Power Supply for the digital dividers in the HMPLL (1.5 V)

VCCA_3GPLL Power supply for the 3GIO PLL (1.5 V)

VCCA_DPLL

Display A PLL power supply (1.5 V)

PLL Analog

VCCA_DPLL

Display B PLL power supply (1.5 V)

High Voltage

Interfaces VCCHV Power supply for the HV buffers (2.5 V)

VCCA_CRTD

Analog power supply for the DAC (2.5 V)

VSSA_CRTD

Analog ground for the DAC

CRT DAC

VCC_SYNC Power supply for HSYNC/ VSYNC (2.5 V)

VCCD_LVDS Digital power supply (1.5 V)

VCCTX_LVD

Data/Clk Tx power supply (2.5 V)

VCCA_LVDS LVDS analog power supply (2.5 V)

LVDS

VSSALVDS LVDS analog VSS

Power and Ground (Continued)

Interface Ball Name Description

VCCA_TVBG TV DAC Band Gap Power (3.3 V)

VSSA_TVBG TV DAC Band Gap VSS

VCCD_TVDA

Dedicated Power Supply for TVDAC (1.5 V)

VCCDQ_TVD

Power Supply for Digital Quiet TVDAC (1.5 V)

VCCA_TVDA

Power Supply for TV Out Channel A (3.3 V)

VCCA_TVDA

Power Supply for TV Out Channel B (3.3 V)

TVDAC

VCCA_TVDA

Power Supply for TV Out Channel C (3.3 V)

Core VCC Core VCC – (1.05 V or 1.5 V)

Ground VSS Ground

Non-Critical To Function power signals:

“NCTF” (Non-Critical To Function) have been designed into the package footprint

to enhance the Solder Joint Reliability of our products by absorbing some of the

stress introduced by the Characteristic Thermal Expansion (CTE) mismatch of the

Die to package interface. It is expected that in some cases, these balls may crack

partially or completely, however, this will have no impact to our product

performance or reliability. Intel has added these balls primarily to serve as sacrificial

stress absorbers.

NOTE: Signals do not exist in Intel 915GMS.

VTT_NCTF NCTF FSB power supply (1.05 V or 1.2 V)

VCC_NCTF NTCF Core VCC – (1.05 V or 1.5 V)

VCCSM_NCT

NTCF System memory power supply (DDR=2.5 V; DDR2=1.8 V)

NCTF

VSS_NCTF NTCF Ground

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(1)

PCI Interface Signals

Name Type Description

AD[31:0] I/O PCI Address/Data: AD[31:0] is a multiplexed address and data bus.

During the first clock of a transaction, AD[31:0] contain a physical

address (32 bits). During subsequent clocks, AD[31:0] contain data.

The Intel® ICH6 will drive all 0s on AD[31:0] during the address

phase of all PCI Special Cycles.

C/BE[3:0]# I/O Bus Command and Byte Enables: The command and byte enable

signals are multiplexed on the same PCI pins. During the address

phase of a transaction,

C/BE[3:0]# define the bus command. During the data phase

C/BE[3:0]# define the Byte Enables.

C/BE[3:0]# Command Type

0000b Interrupt Acknowledge

0001b Special Cycle

0010b I/O Read

0011b I/O Write

0110b Memory Read

0111b Memory Write

1010b Configuration Read

1011b Configuration Write

1100b Memory Read Multiple

1110b Memory Read Line

1111b Memory Write and Invalidate

All command encodings not shown are reserved. The ICH6 does not

decode reserved values, and therefore will not respond if a PCI master

generates a cycle using one of the reserved values.

DEVSEL# I/O Device Select: The ICH6 asserts DEVSEL# to claim a PCI

transaction. As an output, the ICH6 asserts DEVSEL# when a PCI

master peripheral attempts an access to an internal ICH6 address or an

address destined DMI (main memory or graphics). As an input,

DEVSEL# indicates the response to an ICH6-initiated transaction on

the PCI bus. DEVSEL# is tri-stated from the leading edge of

PLTRST#. DEVSEL# remains tri-stated by the ICH6 until driven by

a target device.

FRAME# I/O Cycle Frame: The current initiator drives FRAME# to indicate the

beginning and duration of a PCI transaction. While the initiator

asserts FRAME#, data transfers continue. When the initiator negates

FRAME#, the transaction is in the final data phase. FRAME# is an

input to the ICH6 when the ICH6 is the target, and FRAME# is an

output from the ICH6 when the ICH6 is the initiator. FRAME#

remains tri-stated by the ICH6 until driven by an initiator.

PCI Interface Signals (Continued)

Name Type Description

IRDY# I/O Initiator Ready: IRDY# indicates the ICH6's ability, as an initiator,

to complete the current data phase of the transaction. It is used in

conjunction with TRDY#. A data phase is completed on any clock

both IRDY# and TRDY# are sampled asserted. During a write,

IRDY# indicates the ICH6 has valid data present on AD[31:0].

During a read, it indicates the ICH6 is prepared to latch data. IRDY#

is an input to the ICH6 when the ICH6 is the target and an output

from the ICH6 when the ICH6 is an initiator. IRDY# remains

tri-stated by the ICH6 until driven by an initiator.

TRDY# I/O Target Ready: TRDY# indicates the ICH6's ability as a target to

complete the current data phase of the transaction. TRDY# is used in

conjunction with IRDY#. A data phase is completed when both

TRDY# and IRDY# are sampled asserted.

During a read, TRDY# indicates that the ICH6, as a target, has placed

valid data on AD[31:0]. During a write, TRDY# indicates the ICH6,

as a target is prepared to latch data. TRDY# is an input to the ICH6

when the ICH6 is the initiator and an output from the ICH6 when the

ICH6 is a target. TRDY# is tri-stated from the leading edge of

PLTRST#. TRDY# remains tri-stated by the ICH6 until driven by a

target.

STOP# I/O Stop: STOP# indicates that the ICH6, as a target, is requesting the

initiator to stop the current transaction. STOP# causes the ICH6, as an

initiator, to stop the current transaction. STOP# is an output when the

ICH6 is a target and an input when the ICH6 is an initiator.

PAR I/O Calculated/Checked Parity: PAR uses “even” parity calculated on

36 bits, AD[31:0] plus C/BE[3:0]#. “Even” parity means that the

ICH6 counts the number of one within the 36 bits plus PAR and the

sum is always even. The ICH6 always calculates PAR on 36 bits

regardless of the valid byte enables. The ICH6 generates PAR for

address and data phases and only guarantees PAR to be valid one PCI

clock after the corresponding address or data phase. The ICH6 drives

and tri-states PAR identically to the AD[31:0] lines except that the

ICH6 delays PAR by exactly one PCI clock. PAR is an output during

the address phase (delayed one clock) for all ICH6 initiated

transactions. PAR is an output during the data phase (delayed one

clock) when the ICH6 is the initiator of a PCI write transaction, and

when it is the target of a read transaction. ICH6 checks parity when it

is the target of a PCI write transaction. If a parity error is detected, the

ICH6 will set the appropriate internal status bits, and has the option to

generate an NMI# or SMI#.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(2)

PCI Interface Signals (Continued)

Name Type Description

PERR# I/O Parity Error: An external PCI device drives PERR# when it receives

data that has a parity error. The ICH6 drives PERR# when it detects a

parity error. The ICH6 can either generate an NMI# or SMI# upon

detecting a parity error (either detected internally or reported via the

PERR# signal).

REQ[0:3]#

REQ[4]# / GPI[40]

REQ[5]# / GPI[1]

REQ[6]# / GPI[0]

I PCI Requests: The ICH6 supports up to 7 masters on the PCI bus.

The REQ[4]#, REQ[5]#, and REQ[6]# pins can instead be used as a

GPI.

GNT[0:3]#

GNT[4]# /

GPO[48]

GNT[5]# /

GPO[17]#

GNT[6]# /

GPO[16]#

O PCI Grants: The ICH6 supports up to 7 masters on the PCI bus. The

GNT[4]# pin can instead be used as a GPO.

Pull-up resistors are not required on these signals. If pull-ups are

used, they should be tied to the Vcc3_3 power rail.

GNT[5]#/GPO[17] and GNT[6]#/GPO[17] both have an internal

pull-up.

NOTE: GNT[6] is sampled at the rising edge of PWROK as a

functional strap. See Section 2.22.1 for more details. There is a weak,

integrated pull-up resistor on the GNT[6] pin.

PCICLK I PCI Clock: This is a 33 MHz clock. PCICLK provides timing for all

transactions on the PCI Bus.

PCIRST# O PCI Reset: This is the Secondary PCI Bus reset signal. It is a logical

OR of the primary interface PLTRST# signal and the state of the

Secondary Bus Reset bit of the Bridge Control register (D30:F0:3Eh,

bit 6).

NOTE: PCIRST# is in the VccSus3_3 well.

PLOCK# I/O PCI Lock: This signal indicates an exclusive bus operation and may

require multiple transactions to complete. ICH6 asserts PLOCK#

when it performs non-exclusive transactions on the PCI bus.

PLOCK# is ignored when PCI masters are granted the bus.

SERR# OD I/O System Error: SERR# can be pulsed active by any PCI device that

detects a system error condition. Upon sampling SERR# active, the

ICH6 has the ability to generate an NMI, SMI#, or interrupt.

PME# OD I PCI Power Management Event: PCI peripherals drive PME# to

wake the system from low-power states S1–S5. PME# assertion can

also be enabled to generate an SCI from the S0 state. In some cases

the ICH6 may drive PME# active due to an internal wake event. The

ICH6 will not drive PME# high, but it will be pulled up to VccSus3_3

by an internal pull-up resistor.

Serial ATA Interface Signals

Name Type Description

SATA[0]TXP

SATA[0]TXN

O Serial ATA 0 Differential Transmit Pair: These are outbound

high-speed differential signals to Port 0.

SATA[0]RXP

SATA[0]RXN

I Serial ATA 0 Differential Receive Pair: These are inbound

high-speed differential signals from Port 0.

SATA[1]TXP

SATA[1]TXN

O Serial ATA 1 Differential Transmit Pair: These are outbound

high-speed differential signals to Port 1.

SATA[1]RXP

SATA[1]RXN

I Serial ATA 1 Differential Receive Pair: These are inbound

high-speed differential signals from Port 1.

SATA[2]TXP

SATA[2]TXN

O Serial ATA 2 Differential Transmit Pair: These are outbound

high-speed differential signals to Port 2.

SATA[2]RXP

SATA[2]RXN

I Serial ATA 2 Differential Receive Pair: These are inbound

high-speed differential signals from Port 2.

SATA[3]TXP

SATA[3]TXN

O Serial ATA 3 Differential Transmit Pair: These are outbound

high-speed differential signals to Port 3.

SATA[3]RXP

SATA[3]RXN

I Serial ATA 3 Differential Receive Pair: These are inbound

high-speed differential signals from Port 3.

SATARBIAS O Serial ATA Resistor Bias: These are analog connection points for an

external resistor to ground.

SATARBIAS# I Serial ATA Resistor Bias Complement: These are analog

connection points for an external resistor to ground.

SATA[0]GP /

GPI[26] I Serial ATA 0 General Purpose: This is an input pin which can be

configured as an interlock switch corresponding to SATA Port 0.

When used as an interlock switch status indication, this signal should

be drive to ‘0’ to indicate that the switch is closed and to ‘1’ to

indicate that the switch is open.

If interlock switches are not required, this pin can be configured as

GPI[26].

NOTE: All SATAxGP pins must be configured with the same

function: as either SATAxGP pins or GPI pins.

SATA[1]GP /

GPI[29] I Serial ATA 1 General Purpose: Same function as SATA[0]GP,

except for SATA Port 1.

If interlock switches are not required, this pin can be configured as

GPI[29].

SATA[2]GP /

GPI[30] I Serial ATA 2 General Purpose: Same function as SATA[0]GP,

except for SATA Port 2.

If interlock switches are not required, this pin can be configured as

GPI[30].

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(3)

Serial ATA Interface Signals (Continued)

Name Type Description

SATA[3]GP /

GPI[31] I Serial ATA 3 General Purpose: Same function as SATA[0]GP,

except for SATA Port 3.

If interlock switches are not required, this pin can be configured as

GPI[31].

SATALED# OC O Serial ATA LED: This is an open-collector output pin driven during

SATA command activity. It is to be connected to external circuitry

that can provide the current to drive a platform LED. When active,

the LED is on. When tri-stated, the LED is off. An external pull-up

resistor to Vcc3_3 is required.

NOTE: An internal pull-up is enabled only during PLTRST#

assertion.

LAN Connect Interface Signals

Name Type Description

LAN_CLK I LAN I/F Clock: This signal is driven by the LAN Connect

component. The frequency range is 5 MHz to 50 MHz.

LAN_RXD[2:0] I Received Data: The LAN Connect component uses these signals to

transfer data and control information to the integrated LAN

controller. These signals have integrated weak pull-up resistors.

LAN_TXD[2:0] O Transmit Data: The integrated LAN controller uses these signals to

transfer data and control information to the LAN Connect component.

LAN_RSTSYNC O LAN Reset/Sync: The LAN Connect component’s Reset and Sync

signals are multiplexed onto this pin.

Other Clocks

Name Type Description

CLK14 I Oscillator Clock: This clock is used for 8254 timers. It runs at

14.31818 MHz. This clock is permitted to stop during S3 (or lower)

states.

CLK48 I 48 MHz Clock: This clock is used to run the USB controller. IT runs

at 48.000 MHz.

This clock is permitted to stop during S3 (or lower) states.

SATA_CLKP

SATA_CLKN

I 100 MHz Differential Clock: These signals are used to run the

SATA controller. Runs at 100 MHz. This clock is permitted to stop

during S3 (or lower) states.

DMI_CLKP,

DMI_CLKN

I 100 MHz Differential Clock: These signals are used to run the

Direct Media Interface. Runs at 100 MHz.

Interrupt Signals

Name Type Description

SERIRQ I/O Serial Interrupt Request: This pin implements the serial interrupt

protocol.

PIRQ[D:A]# OD I PCI Interrupt Requests: In non-APIC mode the PIRQx# signals can

be routed to interrupts 3, 4, 5, 6, 7, 9, 10, 11, 12, 14 or 15 as described

in the Interrupt Steering section. Each PIRQx# line has a separate

Route Control register.

In APIC mode, these signals are connected to the internal I/O APIC in

the following fashion: PIRQA# is connected to IRQ16, PIRQB# to

IRQ17, PIRQC# to IRQ18, and PIRQD# to IRQ19. This frees the

legacy interrupts.

PIRQ[H:E]# /

GPI[5:2]

OD I PCI Interrupt Requests: In non-APIC mode the PIRQx# signals can

be routed to interrupts 3, 4, 5, 6, 7, 9, 10, 11, 12, 14 or 15 as described

in the Interrupt Steering section. Each PIRQx# line has a separate

Route Control register.

In APIC mode, these signals are connected to the internal I/O APIC in

the following fashion: PIRQE# is connected to IRQ20, PIRQF# to

IRQ21, PIRQG# to IRQ22, and PIRQH# to IRQ23. This frees the

legacy interrupts. If not needed for interrupts, these signals can be

used as GPI.

IDEIRQ I IDE Interrupt Request: This interrupt input is connected to the IDE

drive.

LPC Interface Signals

Name Type Description

LAD[3:0] /

FWH[3:0]

I/O LPC Multiplexed Command, Address, Data: For LAD[3:0],

internal pull-ups are provided.

LFRAME# /

FWH[4]

O LPC Frame: LFRAME# indicates the start of an LPC cycle, or an

abort.

LDRQ[0]#

LDRQ[1]# /

GPI[41]

I LPC Serial DMA/Master Request Inputs: LDRQ[1:0]# are used to

request DMA or bus master access. These signals are typically

connected to external Super I/O device. An internal pull-up resistor is

provided on these signals.

LDRQ[1]# may optionally be used as GPI.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(4)

IDE Interface Signals

Name Type Description

DCS1# O IDE Device Chip Selects for 100 Range: For ATA command

signal on the IDE connector.

DCS3# O IDE Device Chip Select for 300 Range: For ATA control register

block. This output signal is connected to the corresponding signal on

the IDE connector.

DA[2:0] O IDE Device Address: These output signals are connected to the

corresponding signals on the IDE connector. They are used to indicate

which byte in either the ATA command block or control block is

being addressed.

DD[15:0] I/O IDE Device Data: These signals directly drive the corresponding

signals on the IDE connector. There is a weak internal pull-down

resistor on DD7.

DDREQ I IDE Device DMA Request: This input signal is directly driven from

the DRQ signal on the IDE connector. It is asserted by the IDE device

to request a data transfer, and used in conjunction with the PCI bus

master IDE function and are not associated with any AT compatible

DMA channel. There is a weak internal pull-down resistor on this

signal.

DDACK# O IDE Device DMA Acknowledge: This signal directly drives the

DAK# signal on the IDE connector. DDACK# is asserted by the Intel

ICH6 to indicate to IDE DMA slave devices that a given data transfer

cycle (assertion of DIOR# or DIOW#) is a DMA data transfer cycle.

This signal is used in conjunction with the PCI bus master IDE

function and are not associated with any AT-compatible DMA

channel.

DIOR# / (DWSTB

/ RDMARDY#)

O DIOR# /

Disk I/O Read (PIO and Non-Ultra DMA): This is the command to

the IDE device that it may drive data onto the DD lines. Data is

latched by the ICH6 on the de-assertion edge of DIOR#. The IDE

device is selected either by the ATA register file

chip selects (DCS1# or DCS3#) and the DA lines, or the IDE DMA

acknowledge (DDAK#)

Disk Write Strobe (Ultra DMA Writes to Disk): This is the data write

strobe for writes to disk. When writing to disk, ICH6 drives valid data

on rising and falling edges of DWSTB.

Disk DMA Ready (Ultra DMA Reads from Disk): This is the DMA

ready for reads from disk. When reading from disk, ICH6 de-asserts

RDMARDY# to pause burst data transfers.

IDE Interface Signals (Continued)

Name Type Description

DIOW# / (DSTOP) O Disk I/O Write (PIO and Non-Ultra DMA): This is the command to

the IDE device that it may latch data from the DD lines. Data is

latched by the IDE device on the de-assertion edge of DIOW#. The

IDE device is selected either by the ATA register file chip selects

(DCS1# or DCS3#) and the DA lines, or the IDE DMA acknowledge

(DDAK#).

Disk Stop (Ultra DMA): ICH6 asserts this signal to terminate a burst.

IORDY / (DRSTB

/ WDMARDY#)

I I/O Channel Ready (PIO): This signal will keep the strobe active

(DIOR# on reads, DIOW# on writes) longer than the minimum width.

It adds wait-states to PIO transfers.

Disk Read Strobe (Ultra DMA Reads from Disk): When reading from

disk, ICH6 latches data on rising and falling edges of this signal from

the disk.

Disk DMA Ready (Ultra DMA Writes to Disk): When writing to

disk, this is de-asserted by the disk to pause burst data transfers.

System Management Interface Signals

Name Type Description

INTRUDER# I Intruder Detect: This signal can be set to disable system if box

detected open.

This signal’s status is readable, so it can be used like a GPI if the

Intruder Detection is not needed.

SMLINK[1:0] OD I/O System Management Link: SMBus link to optional external system

management ASIC or LAN controller. External pull-ups are required.

Note that SMLINK0 corresponds to an SMBus Clock signal, and

SMLINK1 corresponds to an SMBus Data signal.

LINKALERT# OD I/O SMLink Alert: Output of the integrated LAN and input to either the

integrated ASF or an external management controller in order for the

LAN’s SMLINK slave to be serviced.

SM Bus Interface Signals

Name Type Description

SMBDATA OD I/O SMBus Data: External pull-up resistor is required.

SMBCLK OD I/O SMBus Clock: External pull-up resistor is required.

SMBALERT#/

GPI[11]

I SMBus Alert: This signal is used to wake the system or generate

SMI#. If not used for SMBALERT#, it can be used as a GPI.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(5)

USB Interface Signals

Name Type Description

USBP[0]P,

USBP[0]N,

USBP[1]P,

USBP[1]N

I/O Universal Serial Bus Port [1:0] Differential: These differential pairs

are used to transmit Data/Address/Command signals for ports 0 and 1.

These ports can be routed to UHCI controller #1 or the EHCI

controller.

NOTE: No external resistors are required on these signals. The ICH6

integrates 15 KΩ?pull-downs and provides an output driver

impedance of 45Ωwhich requires no external series resistor

USBP[2]P,

USBP[2]N,

USBP[3]P,

USBP[3]N

I/O Universal Serial Bus Port [3:2] Differential: These differential pairs

are used to transmit data/address/command signals for ports 2 and 3.

These ports can be routed to UHCI controller #2 or the EHCI

controller.

NOTE: No external resistors are required on these signals. The ICH6

integrates 15 KΩ?pull-downs and provides an output driver

impedance of 45Ωwhich requires no external series resistor

USBP[4]P,

USBP[4]N,

USBP[5]P,

USBP[5]N

I/O Universal Serial Bus Port [5:4] Differential: These differential pairs

are used to transmit Data/Address/Command signals for ports 4 and 5.

These ports can be routed to UHCI controller #3 or the EHCI

controller.

NOTE: No external resistors are required on these signals. The ICH6

integrates 15 KΩ?pull-downs and provides an output driver

impedance of 45Ωwhich requires no external series resistor

USBP[6]P,

USBP[6]N,

USBP[7]P,

USBP[7]N

I/O Universal Serial Bus Port [7:6] Differential: These differential pairs

are used to transmit Data/Address/Command signals for ports 6 and 7.

These ports can be routed to UHCI controller #4 or the EHCI

controller.

NOTE: No external resistors are required on these signals. The ICH6

integrates 15 KΩ?pull-downs and provides an output driver

impedance of 45Ωwhich requires no external series resistor

OC[3:0]#

OC[4]# / GPI[9]

OC[5]# / GPI[10]

OC[6]# / GPI[14]

OC[7]# / GPI[15]

I Overcurrent Indicators: These signals set corresponding bits in the

USB controllers to indicate that an overcurrent condition has

occurred.

OC[7:4]# may optionally be used as GPIs.

NOTE: OC[7:0]# are not 5 V tolerant.

USBRBIAS O USB Resistor Bias: Analog connection point for an external resistor.

Used to set transmit currents and internal load resistors.

USBRBIAS# I USB Resistor Bias Complement: Analog connection point for an

external resistor. Used to set transmit currents and internal load

resistors.

Miscellaneous Signals

Name Type Description

INTVRMEN I Internal Voltage Regulator Enable: This signal enables the internal

1.5 V Suspend regulator when connected to VccRTC. When

connected to Vss, the internal regulator is disabled

SPKR O Speaker: The SPKR signal is the output of counter 2 and is internally

“ANDed” with Port 61h bit 1 to provide Speaker Data Enable. This

signal drives an external speaker driver device that in turn drives the

system speaker. Upon PLTRST#, its output state is 0.

NOTE: SPKR is sampled at the rising edge of PWROK as a

functional strap. See Section 2.22.1 for more details. There is a weak

integrated pull-down resistor on SPKR pin.

RTCRST# I RTC Reset: When asserted, this signal resets register bits in the RTC

well.

NOTES:

1. Unless CMOS is being cleared (only to be done in the G3 power

state), the RTCRST# input must always be high when all other

RTC power planes are on.

2. In the case where the RTC battery is dead or missing on the

platform, the RTCRST# pin must rise before the RSMRST# pin.

TP[0] I Test Point 0: This signal must have an external pull-up to

VccSus3_3.

TP[1] O Test Point 1: Route signal to a test point.

TP[2] O Test Point 2: Route signal to a test point.

TP[3] I Test Point 3: Route signal to a test point.

TP[4] O Test Point 4: Route signal to a test point.

EEPROM Interface Signals

Name Type Description

EE_SHCLK O EEPROM Shift Clock: This signal is the serial shift clock output to

the EEPROM.

EE_DIN I EEPROM Data In: This signal transfers data from the EEPROM to

the Intel ® ICH6. This signal has an integrated pull-up resistor.

EE_DOUT O EEPROM Data Out: This signal transfers data from the ICH6 to the

EEPROM.

EE_CS O EEPROM Chip Select: This is the chip select signal to the

EEPROM.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(6)

Power Management Interface Signals

Name Type Description

PWRBTN# I Power Button: The Power Button will cause SMI# or SCI to indicate

a system request to go to a sleep state. If the system is already in a

sleep state, this signal will cause a wake event. If PWRBTN# is

pressed for more than 4 seconds, this will cause an unconditional

transition (power button override) to the S5 state. Override will occur

even if the system is in the S1-S4 states. This signal has an internal

pull-up resistor and has an internal 16 ms de-bounce on the input.

RI# I Ring Indicate: This signal is an input from a modem. It can be

enabled as a wake event, and this is preserved across power failures.

SYS_RESET# I System Reset: This pin forces an internal reset after being debounced.

The ICH6 will reset immediately if the SMBus is idle; otherwise, it

will wait up to 25 ms ± 2 ms for the SMBus to idle before forcing a

reset on the system.

RSMRST# I Resume Well Reset: This signal is used for resetting the resume

power plane logic.

LAN_RST# I LAN Reset: When asserted, the internal LAN controller will be put

into reset. This signal must be asserted for at least 10 ms after the

resume well power (VccSus3_3 and VccSus1_5) is valid. When

de-asserted, this signal is an indication that the resume well power is

stable.

NOTE: LAN_RST# must de-assert at some point to complete ICH6

power up sequencing.

WAKE# I PCI Express* Wake Event: Sideband wake signal on PCI Express

asserted by components requesting wakeup.

MCH_SYNC# I MCH SYNC: This input is internally ANDed with the PWROK

input.

Connected to the ICH_SYNC# output of (G)MCH.

SUS_STAT# /

LPCPD# O Suspend Status: This signal is asserted by the ICH6 to indicate that

the system will be entering a low power state soon. This can be

monitored by devices with memory that need to switch from normal

refresh to suspend refresh mode. It can also be used by other

peripherals as an indication that they should isolate their outputs that

may be going to powered-off planes. This signal is called LPCPD# on

the LPC I/F.

SUSCLK O Suspend Clock: This clock is an output of the RTC generator circuit

to use by other chips for refresh clock.

VRMPWRGD I VRM Power Good: This should be connected to be the processor’s

VRM Power Good signifying the VRM is stable. This signal is

internally ANDed with the PWROK input.

Power Management Interface Signals (Continued)

Name Type Description

PLTRST# O Platform Reset: The ICH6 asserts PLTRST# to reset devices on the

platform (e.g., SIO, FWH, LAN, (G)MCH, IDE, TPM, etc.). The

ICH6 asserts PLTRST# during power-up and when S/W initiates a

hard reset sequence through the Reset Control register (I/O Register

CF9h). The ICH6 drives PLTRST# inactive a minimum of 1 ms after

both PWROK and VRMPWRGD are driven high. The ICH6 drives

PLTRST# active a minimum of 1 ms when initiated through the Reset

Control register (I/O Register CF9h).

NOTE: PLTRST# is in the VccSus3_3 well.

THRM# I Thermal Alarm: This is an active low signal generated by external

hardware to generate an SMI# or SCI.

THRMTRIP# I Thermal Trip: When low, this signal indicates that a thermal trip

from the processor occurred, and the ICH6 will immediately

transition to a S5 state. The ICH6 will not wait for the processor stop

grant cycle since the processor has overheated.

SLP_S3# O S3 Sleep Control: SLP_S3# is for power plane control. This signal

shuts off power to all non-critical systems when in S3 (Suspend To

RAM), S4 (Suspend to Disk), or S5 (Soft Off) states.

SLP_S4# O S4 Sleep Control: SLP_S4# is for power plane control. This signal

shuts power to all non-critical systems when in the S4 (Suspend to

Disk) or S5 (Soft Off) state.

NOTE: This pin must be used to control the DRAM power in order

to use the ICH6’s DRAM power-cycling feature. Refer to Chapter

5.14.10.2 for details.

SLP_S5# O S5 Sleep Control: SLP_S5# is for

ower plane control. This signal is

used to shut power off to all non-critical systems when in the S5 (Soft

Off) states.

PWROK I Power OK: When asserted, PWROK is an indication to the ICH6

that core power has been stable for at least 99 ms and PCICLK has

been stable for at least 1 mS. An exception to this rule is if the system

is in S3 HOT , in which PWROK may or may notstay asserted even

though PCICLK may be inactive. PWROK can be driven

asynchronously. When PWROK is negated, the ICH6 asserts

PLTRST#.

NOTE: PWROK must de-assert for a minimum of three RTC clock

periods in order for the ICH6 to fully reset the power and properly

generate the PLTRST# output

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(7)

Processor Interface Signals

Name Type Description

A20M# O Mask A20: A20M# will go active based on either setting the

appropriate bit in the Port 92h register, or based on the A20GATE

input being active.

CPUSLP# O Processor Sleep: This signal puts the processor into a state that saves

substantial power compared to Stop-Grant state. However, during that

time, no snoops occur.

The Intel® ICH6 can optionally assert the CPUSLP# signal when

going to the S1 state, and will always assert it when going to C3 or

C4.

FERR# I Numeric Coprocessor Error: This signal is tied to the coprocessor

error signal on the processor. FERR# is only used if the ICH6

coprocessor error reporting function is enabled in the OIC.CEN

FERR# is asserted, the ICH6 generates an internal IRQ13 to its

interrupt controller unit. It is also used to gate the IGNNE# signal to

ensure that IGNNE# is not asserted to the processor unless FERR# is

active. FERR# requires an external weak pull-up to ensure a high

level when the coprocessor error function is disabled.

NOTE: FERR# can be used in some states for notification by the

processor of pending interrupt events. This functionality is

independent of the OIC register bit setting.

IGNNE# O Ignore Numeric Error: This signal is connected to the ignore error

pin on the processor. IGNNE# is only used if the ICH6 coprocessor

error reporting function is enabled in the OIC.CEN register (Chipset

Configuration Registers:Offset 31FFh: bit 1). If FERR# is active,

indicating a coprocessor error, a write to the Coprocessor Error

IGNNE# remains asserted until FERR# is negated. If FERR# is not

asserted when the Coprocessor Error register is written, the IGNNE#

signal is not asserted.

INIT# O Initialization: INIT# is asserted by the ICH6 for 16 PCI clocks to

reset the processor.

ICH6 can be configured to support processor Built In Self Test

(BIST).

INIT3_3V# O Initialization 3.3 V: This is the identical 3.3 V copy of INIT#

intended for Firmware Hub.

INTR O Processor Interrupt: INTR is asserted by the ICH6 to signal the

processor that an interrupt request is pending and needs to be

serviced. It is an asynchronous output and normally driven low.

Processor Interface Signals (Continued)

Name Type Description

NMI O Non-Maskable Interrupt: NMI is used to force a non-Maskable

interrupt to the processor. The ICH6 can generate an NMI when

either SERR# is asserted or IOCHK# goes active via the SERIRQ#

stream. The processor detects an NMI when it detects a rising edge on

NMI. NMI is reset by setting the corresponding NMI source

enable/disable bit in the NMI Status and Control register (I/O

SMI# O System Management Interrupt: SMI# is an active low output

synchronous to PCICLK. It is asserted by the ICH6 in response to one

of many enabled hardware or software events.

STPCLK# O Stop Clock Request: STPCLK# is an active low output synchronous

to PCICLK. It is asserted by the ICH6 in response to one of many

hardware or software events.

When the processor samples STPCLK# asserted, it responds by

stopping its internal clock.

RCIN# I Keyboard Controller Reset CPU: The keyboard controller can

generate INIT# to the processor. This saves the external OR gate with

the ICH6’s other sources of INIT#. When the ICH6 detects the

assertion of this signal, INIT# is generated for 16 PCI clocks.

NOTE: The ICH6 will ignore RCIN# assertion during transitions to

the S1, S3, S4, and S5 states.

A20GATE I A20 Gate: A20GATE is from the keyboard controller. The signal

acts as an alternative method to force the A20M# signal active. It

saves the external OR gate needed with various other chipsets.

CPUPWRGD /

GPO[49]

O Processor Power Good: This signal should be connected to the

processor’s PWRGOOD input to indicate when the processor power

is valid. This is an open- drain output signal (external pull-up resistor

required) that represents a logical AND of the ICH6’s PWROK and

VRMPWRGD signals.

This signal may optionally be configured as a GPO.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(8)

General Purpose I/O Signals 1,2

Name Type Tolerance Power Well Description

GPO[49] OD O V_CPU_I

`Core This signal is fixed as output only and can

instead be used as CPUPWRGD.

GPO[48] O 3.3 V Core This signal is fixed as output only and can

instead be used as GNT4#.

GPIO[47:42] N/A N/A N/A This signal is not implemented.

GPI[41] I 3.3 V Core This signal is fixed as input only and can be used

instead as LDRQ1#.

GPI[40] I 5 V Core This signal is fixed as input only and can be used

instead as REQ4#.

GPIO[39:35] N/A N/A N/A This signal is not implemented.

GPIO[34:33] I/O 3.3 V Core This signal can be input or output and is

unmultiplexed

GPIO[32] I/O 3.3 V Core This signal can be input or output.

GPI[31] I 3.3 V Core This signal is fixed as input only and can instead

be used for SATA[3]GP.

GPI[30] I 3.3 V Core This signal is fixed as input only and can instead

be used for SATA[2]GP.

GPI[29] I 3.3 V Core This signal is fixed as input only and can instead

be used for SATA[1]GP.

GPIO[28:27] I/O 3.3 V Resume This signal can be input or output and is

unmultiplexed.

GPI[26] I 3.3 V Core This signal is fixed as input only and can instead

be used for SATA[0]GP.

GPIO[25] I/O 3.3 V Resume This signal can be input or output and is

unmultiplexed. It is a strap for internal Vcc2_5

regulator. See Section 2.22.1.

GPIO[24] I/O 3.3 V Resume This signal can be input or output and is

unmultiplexed.

GPO[23] O 3.3 V Core This signal is fixed as output only.

GPIO[22] N/A N/A N/A This signal is not Implemented

GPO[21] O 3.3 V Core This signal is fixed as output only and is

unmultiplexed

GPO[20] O 3.3 V Core This signal is fixed as output only.

GPO[19] O 3.3 V Core This signal is fixed as output only.

NOTE: GPO[19] may be programmed to blink

(controllable by GPO_BLINK (D31:F0:Offset

GPIOBASE+18h:bit 19)).

General Purpose I/O Signals 1,2 (Continued)

Name Type Tolerance Power Well Description

GPO[18] O 3.3 V Core This signal is fixed as output only.

NOTE: GPO[18] will blink by default

immediately after reset (controllable by

GPO_BLINK (D31:F0:Offset

GPIOBASE+18h:bit 18)).

GPO[17] O 3.3 V Core This signal is fixed as output only and can be

used instead as PCI GNT[5]#.

GPO[16] O 3.3 V Core This signal is fixed as output only and can be

used instead as PCI GNT[6]#.

GPI[15:14]3 I 3.3 V Resume This signal is fixed as input only and can be used

instead as OC[7:6]#

GPI[13]3 I 3.3 V Resume This signal is fixed as input only and is

unmultiplexed.

GPI[12]3 I 3.3 V Core This signal is fixed as input only and is

unmultiplexed.

GPI[11]3 I 3.3 V Resume This signal is fixed as input only and can be used

instead as SMBALERT#.

GPI[10:9]3 I 3.3 V Resume This signal is fixed as input only and can be used

instead as OC[5:4]#.

GPI[8]3 I 3.3 V Resume This signal is fixed as input only and is

unmultiplexed.

GPI[7]3 I 3.3 V Core This signal is fixed as input only and is

unmultiplexed.

GPI[6]3 I 3.3 V Core This signal is fixed as input only.

GPI[5:2]3 I 5 V Core This signal is fixed as input only and can be used

instead as PIRQ[H:E]#.

GPI[1:0]3 I 5 V Core This signal is fixed as input only and can be used

instead as PCI REQ[6:5]#.

NOTES:

1.All inputs are sticky. The status bit remains set as long as the input was asserted for two

clocks.GPIs are sampled on PCI clocks in S0/S1. GPIs are sampled on RTC clocks in S3/S4/S5.

2.Some GPIOs exist in the VccSus3_3 power plane. Care must be taken to make sure GPIO

signals are not driven high into powered-down planes. Some ICH6 GPIOs may be connected to

pins on devices that exist in the core well. If these GPIOs are outputs, there is a danger that a

loss of core power (PWROK low) or a Power Button Override event will result in the Intel

ICH6 driving a pin to a logic 1 to another device that is powered down.

3.GPI[15:0] can be configured to cause a SMI# or SCI. Note that a GPI can be routed to either

an SMI# or an SCI, but not both.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(9)

Power and Ground Signals

Name Description

Vcc3_3 3.3 V supply for core well I/O buffers (22 pins). This power may be shut off in S3,

S4, S5 or G3 states.

Vcc1_5_A 1.5 V supply for core well logic, group A (52 pins). This power may be shut off in

S3, S4, S5 or G3 states.

Vcc1_5_B 1.5 V supply for core well logic, group B (45 pins). This power may be shut off in

S3, S4, S5 or G3 states.

Vcc2_5 2.5V supply for internal logic (2 pins). This power may be shut off in S3, S4, S5 or

G3 states.

NOTE: This voltage may be generated internally (see Section 2.22.1 for strapping

option). If generated internally, these pins should not be connected to an external

supply.

V5REF Reference for 5 V tolerance on core well inputs (2 pins). This power may be shut

off in S3, S4, S5 or G3 states.

VccSus3_3 3.3 V supply for resume well I/O buffers (20 pins). This power is not expected to

be shut off unless the system is unplugged.

VccSus1_5 1.5 V supply for resume well logic (3 pin). This power is not expected to be shut

off unless the system is unplugged.

This voltage may be generated internally (see Section 2.22.1 for strapping option).

If generated internally, these pins should not be connected to an external supply.

V5REF_Sus Reference for 5 V tolerance on resume well inputs (1 pin). This power is not

expected to be shut off unless the system is unplugged.

VccRTC 3.3 V (can drop to 2.0 V min. in G3 state) supply for the RTC well (1 pin). This

power is not expected to be shut off unless the RTC battery is removed or

completely drained.

NOTE: Implementations should not attempt to clear CMOS by using a jumper to

pull VccRTC low. Clearing CMOS in an ICH6-based platform can be done by

using a jumper on RTCRST# or GPI.

VccUSBPLL 1.5 V supply for core well logic (1 pin). This signal is used for the USB PLL. This

power may be shut off in S3, S4, S5 or G3 states. This signal must be powered

even if USB not used.

VccDMIPLL 1.5 V supply for core well logic (1 pins). This signal is used for the DMI PLL. This

power may be shut off in S3, S4, S5 or G3 states.

VccSATAPLL 1.5 V supply for core well logic (1 pins). This signal is used for the SATA PLL.

This power may be shut off in S3, S4, S5 or G3 states. This signal must be

powered even if SATA not used.

V_CPU_IO Powered by the same supply as the processor I/O voltage (3 pins). This supply is

used to drive the processor interface signals listed in Table 2-13.

Vss Grounds (172 pins).

AC ’97/Intel ® High Definition Audio Link Signals

NOTES:

1. Some signals have integrated pull-ups or pull-downs. Consult table in Section 3.1 for

details.

2. Intel High Definition Audio mode is selected through D30:F1:40h, bit 0: AZ/AC97#. This

bit selects the mode of the shared Intel High Definition Audio/AC ‘97 signals. When set to 0

AC ’97 mode is selected. When set to 1 Intel High Definition Audio mode is selected. The bit

defaults to 0 (AC ‘97 mode).

Name Type Description

ACZ_RST# O AC ’97/Intel ® High Definition Audio Reset: Master hardware reset

to external codec(s).

ACZ_SYNC O AC ’97/Intel High Definition Audio Sync: 48 kHz fixed rate sample

sync to the codec(s). Also used to encode the stream number.

ACZ_BIT_CLK I/O AC ’97 Bit Clock Input: 12.288 MHz serial data clock generated by

the external codec(s). This signal has an integrated pull-down resistor

(see Note below).

Intel High Definition Audio Bit Clock Output: 24.000 MHz serial

data clock generated by the Intel® High Definition Audio controller

(the Intel ICH6). Thissignal has an integrated pull-down resistor so

that ACZ_BIT_CLK does not float when an

Intel High Definition Audio codec (or no codec) is connected but the

signals are temporarily configured as AC ’97.

ACZ_SDOUT O AC ’97/Intel High Definition Audio Serial Data Out: Serial TDM

data output to the codec(s). This serial output is double-pumped for a

bit rate of 48 Mb/s for Intel High Definition Audio.

NOTE: ACZ_SDOUT is sampled at the rising edge of PWROK as a

functional strap. See Section 2.22.1 for more details. There is a weak

integrated pull-down resistor on the ACZ_SDOUT pin.

ACZ_SDIN[2:0] I AC ’97/Intel High Definition Audio Serial Data In [2:0]: Serial

TDM data inputs from the three codecs. The serial input is

single-pumped for a bit rate of 24 Mb/s for Intel High Definition

Audio. These signals have integrated pull-down resistors, which are

always enabled.

Firmware Hub Interface Signals

Name Type Description

FWH[3:0] /

LAD[3:0]

I/O Firmware Hub Signals. These signals are multiplexed with the LPC

address signals.

FWH[4] /

LFRAME#

O Firmware Hub Signals. This signal is multiplexed with the LPC

LFRAME# signal.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

5.2 Intel ICH6-M South Bridge(10)

Functional Strap Definitions 1

Signal Usage When Sampled Description

GNT[6]#/

GPO[16]

Top-Block Swa

Override

Rising Edge of

PWROK

The signal has a weak internal pull-up. If the

signal is sampled low, this indicates that the

system is strapped to the “top-block swap” mode

(ICH6 inverts A16 for all cycles targeting FWH

BIOS space). The status of this strap is readable

via the Top Swap bit (Chipset Configuration

Registers:Offset 3414h:bit 0). Note that software

will not be able to clear the Top-Swap bit until

the system is rebooted without GNT6# being

pulled down.

LINKALERT

Reserved This signal requires an external pull-up resistor.

SPKR No Reboot Rising Edge

ofPWROK

The signal has a weak internal pull-down. If the

signal is.sampled high, this indicates that the

system is strapped to.the “No Reboot” mode

(ICH6 will disable the TCO Timer. system

reboot feature). The status of this strap is

readable. via the NO REBOOT bit (Chipset

Configuration. Registers:Offset 3410h:bit 5).

INTVRMEN IntegratedVccS

1_5VRM

Enable/Disabl

Always This signal enables integrated VccSus1_5 VRM

when.sampled high.

GPIO[25] Integrated

Vcc2_5 VRM

Enable/ Disabl

Rising Edge of

RSMRST#

This signal enables integrated Vcc2_5 VRM

when sampled low. This signal has a weak

internal pull-up during RSMRST# and is

disabled within 100 ms after RSMRST#

de-asserts.

EE_CS Reserved This signal has a weak internal pull-down.

NOTE: This signal should not be pulled high.

GNT[5]#/

GPO[17]

Boot BIOS

Destination

Selection

Rising Edge of

PWROK

This signal has a weak internal pull-up. Allows

for select memory ranges to be forwarded out the

PCI Interface as opposed to the Firmware Hub.

When sampled high, destination is LPC. Also

controllable via Boot BIOS Destination bit

(Chipset Configuration Registers:Offset

3410h:bit 3).

NOTE: This functionality intended for

debug/testing only.

Functional Strap Definitions 1 (Continued)

Signal Usage When Sampled Description

EE_DOUT Reserved This signal has a weak internal pull-up.

NOTE: This signal should not be pulled low.

ACZ_SDOU

XOR Chain

Entrance / PCI

Express* Port

Configu-ratio

bit 1

Rising Edge of

PWROK

Allows entrance to XOR Chain testing when

TP[3] pulled low at rising edge of PWROK. See

Chapter 24 for XOR Chain functionality

information.

When TP[3] not pulled low at rising edge of

PWROK, sets bit 1 of RPC.PC (Chipset

Configuration Registers:Offset 224h). See

Section 7.1.30 for details.

This signal has a weak internal pull-down.

ACZ_SYNC PCI Express Po

Configu-ratio

bit 0

Rising Edge of

PWROK

This signal has a weak internal pull-down.

Sets bit 0 of RPC.PC (Chipset Configuration

Registers: Off set 224h). See Section 7.1.30 for

details.

TP[1] Reserved This signal has a weak internal pull-down.

NOTE: This signal should not be pulled high.

SATALED# Reserved This signal has a weak internal pull-up enabled

only when PLTRST# is asserted.

NOTE: This signal should not be pulled low.

REQ[4:1]# XOR Chain

Selection

Rising Edge of

PWROK

See Chapter 24 for functionality information.

TP[3] XOR Chain

Entrance

Rising Edge of

PWROK

See Chapter 24 for functionality information.

This signal has a weak internal pull-up.

NOTE: This signal should not be pulled low

unless using XOR Chain testing.

Real Time Clock Interface

Name Type Description

RTCX1 Special Crystal Input 1: This signal is connected to the 32.768 kHz crystal.

If no external crystal is used, then RTCX1 can be driven with the

desired clock rate.

RTCX2 Special Crystal Input 2: This signal is connected to the 32.768 kHz crystal.

If no external crystal is used, then RTCX2 should be left floating.

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

6. System Block Diagram

DVI Connector

RGB Signal

Flat Panel

LVDS Signal

200 Pins DDR2 SO-DIMM Socket * 2

USB * 4

FSB

U711

Intel CPU

Dothan

U710

North Bridge

915PM

U715

Card Bus

CB712

U509

Power Switch

CP2211A

U19

Amplifier

TPA0212

J507

M.D.C RJ-11 Jack

U517

Audio Codec

ALC655

Mic-in Connector

Internal Speaker

Headphone

CD-ROM

U724

SATA Bridge

U709

South Bridge

ICH6-M

U717

LAN Controller

RTL8110SBL

RJ-45 Jack

DMI

PCMCIA

Slot

U722

IEEE1394

VT6301T

PCI Bus

FAN

Power Button

Keyboard

Touch Pad

U13

Keyboard BIOS

Winbond

W83L950D

LPC BUS

IDE

Clock Generator

ICS954226

U14

System BIOS

MINI PCI Slot

PCI-E_LAN

FWH BUS U505

ADT7460

SMBUS

THRMDA/THRMDC

TV Connector

TV Signal

PATA HDD

MXM_Connector

U18

SUBWOOFER AMP Subwoofer Jack

J719

1394 port

MiTac Secret

Confidential Document

8050QMA

50QMA N/B Maintenance

N/B Maintenance

7. Maintenance Diagnostics

7.1 Introduction

Each time the computer is turned on, the system BIOS runs a series of internal checks on the hardware. This power-

on self test (post) allows the computer to detect problems as early as the power-on stage. Error messages of post can

alert you to the problems of your computer.

If an error is detected during these tests, you will see an error message displayed on the screen. If the error occurs

before the display is initialized, then the screen cannot display the error message. Error codes or system beeps are

used to identify a post error that occurs when the screen is not available.

The value for the diagnostic port is written at the beginning of the test. Therefore, if the test failed, the user can

determine where the problem occurred by reading the last value written to the port-80H by the debug card plug at

MINI PCI slot.

MiTac Secret

Confidential Document

100

8050QMA

50QMA N/B Maintenance

N/B Maintenance

7.2 Maintenance Diagnostics

7.2.1 Diagnostic Tool for Mini PCI Slot :

P/N:411906900001

Description: PWA; PWA-MPDOG/MINI PCI DOGKILLER CARD

Note: Order it from MIC/TSSC

MiTac Secret

Confidential Document

101

8050QMA

50QMA N/B Maintenance

N/B Maintenance

7.3 Error Codes-1

Following is a list of error codes in sequent display on the MINI PCI debug board.

Test 8237A Page Registers1Fh

Initialize Monochrome Adapter1Eh

Initialize Color Adapter1Dh

Initialize Video (6845Regs)1Ch

Initialize Video Adapter(s)1Bh

Reset PIC’s1Ah

Check sum the ROM19h

Dispatch to RAM Test18h

Size Memory17h

User Register Config through CMOS16h

Reset Counter / Timer 115h

Search for ISA Bus VGA Adapter14h

Initialize the Chipset13h

Signal Power On Reset12h

Turn off FAST A20 for Post11h

Some Type of Lone Reset10h

POST Routine DescriptionCode

Sign on Messages Displayed2Fh

Search for Color Adapter2Eh

Search for Monochrome Adapter2Dh

Going to Initialize Video2Ch

Setup Shadow2Bh

Protected Mode Exit Successful2Ah

RAM Test Completed29h

Protected Mode Entered Safely28h

RAM Quick Sizing27h

Initialize Int Vectors26h

Initialize 8237A Controller25h

Test the DMA Controller24h

Test Battery Fail & CMOS X-SUM23h

Check if CMOS RAM valid22h

Test Keyboard Controller21h

Test Keyboard20h

POST Routine DescriptionCode

MiTac Secret

Confidential Document

102

8050QMA

50QMA N/B Maintenance

N/B Maintenance

7.3 Error Codes-2

Following is a list of error codes in sequent display on the MINI PCI debug board.

Special Init of COMM and LPT Ports3Fh

Update NUMLOCK status3Eh

Search and Init the Mouse3Dh

Initialize the Hardware Vectors3Ch

Test for RTC ticking3Bh

Test if 18.2Hz Periodic Working3Ah

Setup Cache Controller39h

Update Output Port38h

Protected Mode Exit Successful37h

RAM Test Complete36h

Protected Mode Entered Safely(2)35h

Test, Blank and Count all RAM34h

Test Keyboard Command Byte33h

Test Keyboard Interrupt32h

Test if Keyboard Present31h

Special Init of Keyboard Controller30h

POST Routine DescriptionCode

Jump into Bootstrap Code49h

Dispatch to Operate System Boot48h

OEM functions before Boot47h

Test for Coprocessor Installed46h

Update NUMLOCK Status45h

OEM’s Init of Power Management44h

Initialize Option ROMs43h

Initialize the Hard Disk42h

Initialize the Floppies41h

Configure the COMM and LPT ports40h

POST Routine DescriptionCode

MiTac Secret

Confidential Document

103

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8. Trouble Shooting

8.1 No Power(*1)

8.2 No Display(*2)

8.3 VGA Controller Test Error LCD No Display

8.4 External Monitor No Display

8.5 Memory Test Error

8.6 Keyboard (K/B) Touch-Pad (T/P) Test Error

8.7 Hard Drive Test Error

8.8 CD-ROM Drive Test Error

8.9 USB Port Test Error

8.10 Audio Test Error

8.11 LAN Test Error

8.12 PC Card Socket Test Error

MiTac Secret

Confidential Document

104

8050QMA

50QMA N/B Maintenance

N/B Maintenance

*1: No Power Definition

Base on ACPI Spec. We define the no power as while we press the power button, the system can’t leave S5 status

or none the PG signal send out from power supply.

*2: No Display Definition

Base on the digital IC three basic working conditions: working power, reset, Clock. We define the no display as

while system leave S5 status but can’t get into S0 status.

Judge condition:

Check whether there are any voltage feedback control to turn off the power.

Check whether no CPU power will cause system can’t leave S5 status.

If there are not any diagram match these condition, we should stop analyzing the schematic in power supply sending

out the PG signal. If yes, we should add the effected analysis into no power chapter.

Judge condition:

Check which power will cause no display.

Check which reset signal will cause no display.

Check which Clock signal will cause no display

Base on these three conditions to analyze the schematic and edit the no display chapter.

S5: Soft Off

S0: Working

Keyword:

For detail please refer the ACPI specification

MiTac Secret

Confidential Document

105

8050QMA

50QMA N/B Maintenance

N/B Maintenance

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

Power

Battery

BATT

BAT_T

BAT_V

BAT_CLK

BAT_DATA

PU3

PL507

PF501

PQ506

PD505

PL508

PD507

PQ503

Where from

power source problem

(first use AC to

power it)?

Check following parts and signals:

Parts: Signals:

Board-level

Troubleshooting

Replace

Motherboard

No Power

Try another known good

battery or AC adapter.

Is the

notebook connected

to power (either AC adaptor

or battery)?

Connect AC adaptor

or battery.

Replace the faulty AC

adaptor or battery.

Power

OK?

Yes

8.1 No Power-1

Parts

PJ701

PL1

PF1

PQ501

PD502

U513

U515

Signals

ADINP

LEARNING

H8_I_LIMIT

SW_VDD3

Parts

Q37

Q50

U11

Signals

+PWR_VDDIN

+DVMAIN

ADINP

LEARNING

I_LIMIT

Main Board

MiTac Secret

Confidential Document

106

8050QMA

50QMA N/B Maintenance

N/B Maintenance

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

Main Voltage Map

+DVMAINADINPPOWER IN

PWR_VDDIN

PJ701

PF1 PL1

PL2

PD505

Discharge

PD502

PD503

BATT

PF501,PL506,PQ503

PU3,PL507,PL508,PD507

PQ506

Charge

Discharge

F4,U513

PQ501

P32

P28P32

P31

P32

8.1 No Power-2

J703

P32

+VDD5

Q50

+3V

+VDD3

U515 +VDD1.5+VDD3S

Q49 U11

+VDD3_RTC

D34,

P26

P26 P26 P26

P11

+VDD3_AVREF

P26 Q37

PF502,PL512

PL506,PU5

PU503,PU504

PU506,PU511

PU512 +CPU_CORE

P30

+KBC_CPUCORE

R711 P23

PU502,PL503

PR508 +3VS_P

P27

PU2

+3V

P25

JS505~

JS507 +3VS

U504,L509

L501 P26

+3VS_HDD_ANALOG

L564 P14

L562 P14

+1.8VS_HDD

+3VS_HDD

P14

+1394_AVCC

P19

+3VS_CLK

+1.8VS

P26

+3VS_TVDAC[A,B,C]

+3VS_ATVBG

L563

L531

L31

L32

L40,L33

L41

L42

PU501,PL502

PR527 +5VS_P +5V

JS501~

JS504 P25P27

+5VS

L503,U502

L504 P26

L49 +5VS_CDROM

P14

AMPVDD

L73 P22

+5VS_HDD

L64 P14

+2.5V

P26

+AVDDL

P15

L531

+2.5VS_CRTDAC

L39 P6

+2.5VS_ALVDS

+2.5VS_TXLVDS

L37

+2.5VS_HV

L44

L35

+2.5VS

P26

Q12

+DVDD

P15

L533

PR42

PU12

PU509,PU510

PL516 +1.8V_P +1.8V

JS6,

JS515 P25P29

+DDR2_VREF

R606

R242 P8

+0.9VS_P +0.9VS

JS517~

JS518 P25P29

MiTac Secret

Confidential Document

107

8050QMA

50QMA N/B Maintenance

N/B Maintenance

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

Main Voltage Map

8.1 No Power-3

PL514,PL515

PU6

PU507,PL514 +1.05VS_P +VCCP

JS508~

JS510 P25P28

+VCC_GMCH

L50 P6

+1.5VS_P +1.5VS

JS511~

JS513

P28

+1.5VS_DPLLA

L34

+DVMAIN

P28

PU508,PL515

+1.5VS_DPLLB

L46

+1.5VS_HPLL

L519

+1.5VS_MPLL

L518

+1.5VS_3GPLL

L51

+1.5VS_QTVDAC

L43

+1.5VS_DLVDS

L38

+1.5VS_DDRDLL

L63

+1.5VS_PCIE

L516

+1.5VS_TVDAC

L36

P25

: Page 25 on M/B Board circuit diagram.

NOTE :

P25

MiTac Secret

Confidential Document

108

8050QMA

50QMA N/B Maintenance

N/B Maintenance

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

8.1 No Power-4

+DVMAIN

ADINP

PC532

1000P

PC528

0.01µ

PR503

100K

PR502

470K

PQ501

AQ4407

LEARNING

PR505

+PWR_VDDIN

PD504

SBM1040

PQ502

2N7002

U13

Keyboard

BIOS

W83L950D

P23

SW_VDD3 17

PJ701

POWER IN

PL2

120Z/100M

PC2

0.01U

PL1

120Z/100M

2~4

PD501

RLZ24D

PC501

PF1

7A/24VDC

P31

JO2,JO1

SPARKGAP_6

PR1

RS+

OUT

RS-

PU1

PC3

PC1

0.01U

VCC

GND0

GND1

MAX4173FEUT-T

JO502

OPEN-SMT4

PR501

.01

P31

H8_I_LIMIT 76

I_LIMIT

PC502

0.01U

PR506

4.7K

PC520

0.01µ

PD502

SCS140P

LEARNING

+3V

+VDD3

C389

4.7µ

+PWR_VDDIN 



+VDD3

+3V



+VDD3

Q50

AO3413

Q47

DDTC144WCA

SW_VDD3

C327

0.1µ

R397

100K

Q37

AO3413

U513

NTC78L05

3216FF-1

+PWR_VDDIN 3IN OUT 1

P26

C767

1µ

C324

10µ

+VDD5

R340

U515

AMS3107

INPUT OUTPUT 3

P26

2,4 C689

10µ

+VDD3_AVREF

PD505

SCS140P

MiTac Secret

Confidential Document

109

8050QMA

50QMA N/B Maintenance

N/B Maintenance

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

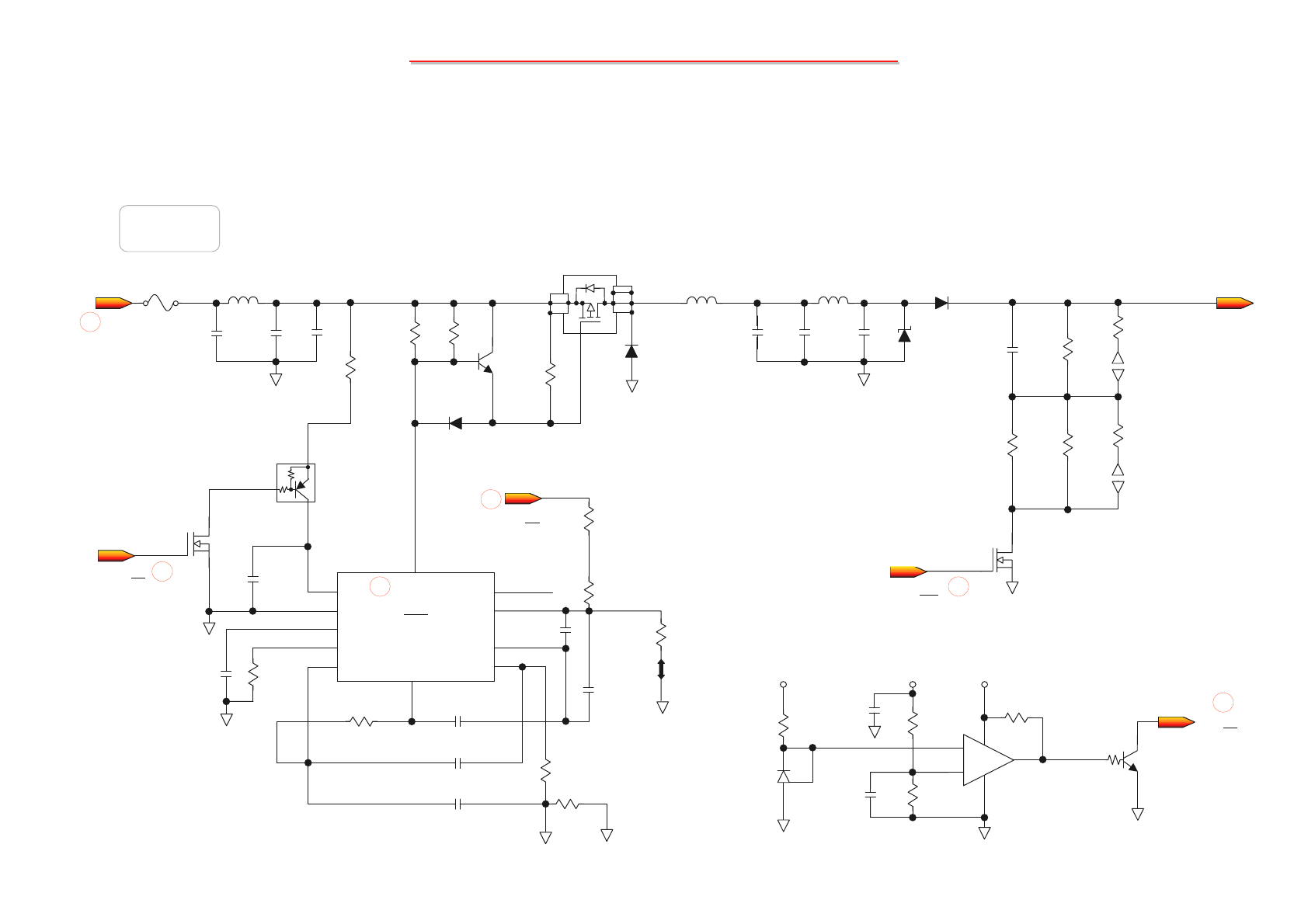

Charge

ADINP

PD507

SSA34

P32

PL508

33µH

PQ8

2N7002

PQ7

DTA144WK

PC29

0.01µ VCC

OUTPUTCTRL

REF 2IN- DTC 4

FEEDBACK

PR32

100K

1IN-

2IN+ 16

PU3

PWM

TL594C

C1,C2

PD4

BAS32L

PR45

4.7K

PR46

4.7K

PQ11

MMBT2222A

8,11

PR59

100K

PD506

SSA34

PQ503

AO4407

CHARGING

From H8 U13

2IN+

PR34

7.5K

PC21

1000P

PC22

0.01µ

PC30

1µ

PC23

0.1µ

P32

PR35

10K

PC25

0.1µ

REF

PR25

124K

PJS1

SHORT-SMT3

P23

GND GNDB

PR11

.02

GND

H8_I_CTRL

From U13

P23

PR36

590K

PR37

100K

1.25V

PR33

80.6K

PC24

0.1µ

+VDD3

PU4B

LMV393M

+DVMAIN

PR38

PQ6

SCK431CSK-5

+VDD3

PC33

0.01µ BATT_DEAD#

To H8 U13

P23

8.1 No Power-5

PF501

TR/3216FF-3A

PL506

BEAD_120Z/100M

PC525

0.01µ

PC524

0.01µ

PC533

10µ

BATT

PD509

BZV55C15V

PC534

10µ

Q43

DDTC144TCA

PR47

PL507

3.0µH

PC535

10µ

PC536

0.01µ

PR28

287K

PQ5

2N7002

CHARGING

From H8 U510 P23

PR27

20K

PC17

0.1µ

PR24

13.7K

PR136

976K

PR135

PJOL1

OPEN-SMT4

PJOH1

OPEN-SMT4

2IN+

12.65V

PR26

PR12

2.49K

BATT_DEAD

PC18

0.01µ

MiTac Secret

Confidential Document

110

8050QMA

50QMA N/B Maintenance

N/B Maintenance

+VDD3_AVREF

C332

0.1µ

C333

0.1µ

D16

BAV70LT1

PC19

0.1µ

PR29

100K

PR510

499K

PL505

120Z/100M

PF701

TR/SFT-10A

PL504

120Z/100M

PC514

0.01µ

1,2

PC523

0.01µ

+VDD3_AVREF

PR134

4.99K

PR8

20K

PC10

0.1µ

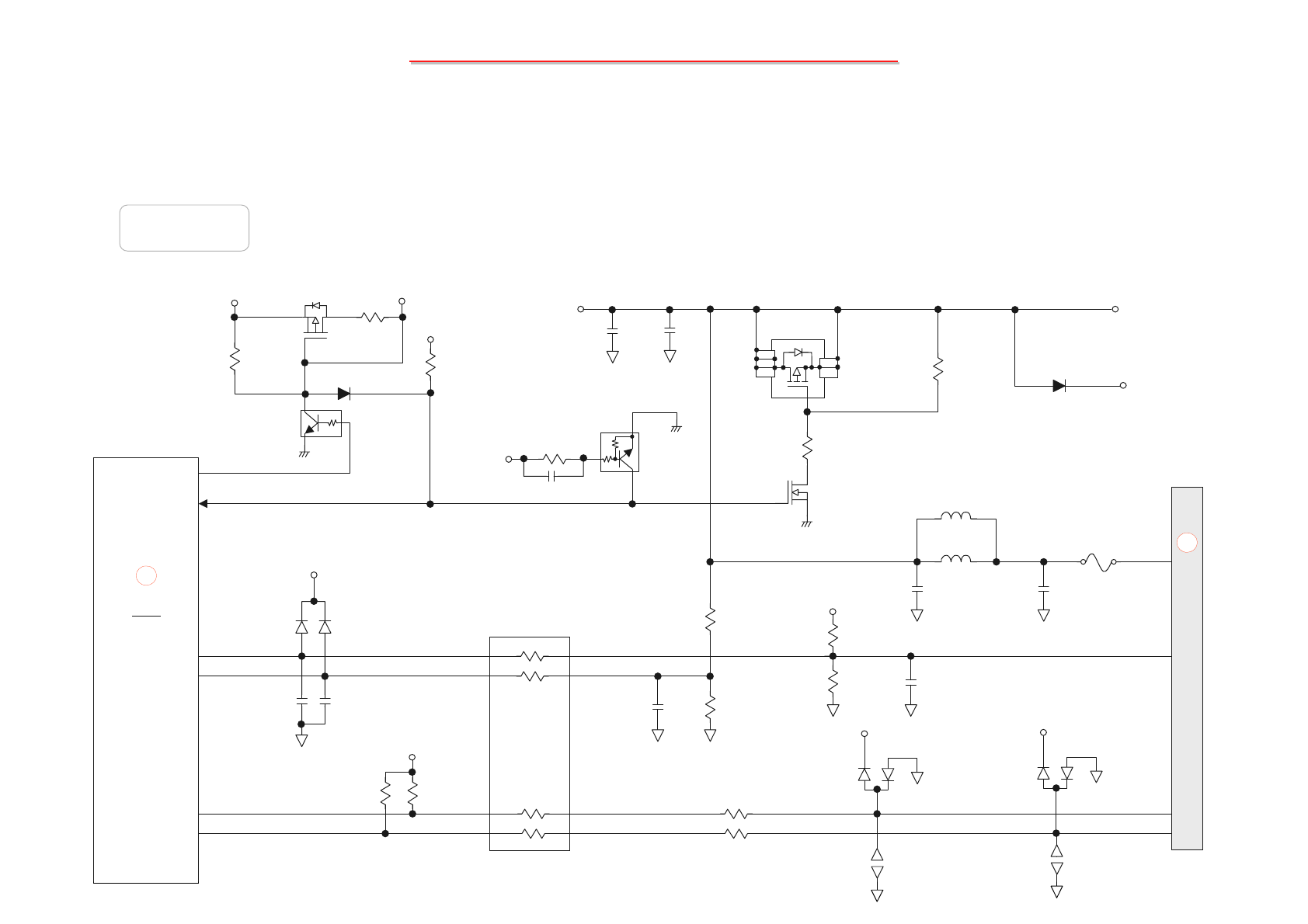

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

Discharge

BAT_T

BAT_V

BAT_C

BAT_D

U13

Keyboard

BIOS

W83L950D

BAT_CLK

BAT_DATA

J703

Battery Connector

P31

R344

2.7K

+VDD3

R385

2.7K

P23

+VDD3

PD2

BAV99

+VDD3

PD3

BAV99

PR13

PR14

PQ504

2N7002

PR511

33K

ADEN#14

+DVMAIN

PR512

100K

BATT

PQ506

AO4407

JO10

SPARKGAP-6

PC526

1000P

PC527

0.01µ

JP1

SPARKGAP-6

8.1 No Power-6

+VDD3

+VDD3S

R378

100K

Q49

SI2301DS

D20

BAS32L

Q40

DDTC144TCA

RP502

10K

L81

120Z/100M +VDD3

12 KBC_PWRON_VDD3S

ADEN#

PQ507

DTC144WCA

PR509

226K

ADINP

PD505

SCS140P

AK +PWR_VDDIN

RP4

22*4

PC617

1000P

MiTac Secret

Confidential Document

111

8050QMA

50QMA N/B Maintenance

N/B Maintenance

U709

South

Bridge

ICH6-M

P11

ICH_PWRBTN 7

ICH_PWRBTN#

R347

Q45

FDV301N

RSMRST#

8H8_RSMRST

When the power button is pressed, nothing happens, no fan activity is heard and power indicator is not light up.

Power Controller

8.1 No Power-7

1PWRBTN#

R12

SW2

TCD010-PSS11CET

1000P

U13

Keyboard

BIOS

W83L950D

P23

+VDD3_AVREF

+VDD3

+KBC_CPUCORE

C325

10µ

PU12

SC486

P29

+DVMAIN

+1.8V_P

+0.9VS_P

H8_PWRON

PU2

LTC3728L

P27

+DVMAIN +5VS_P

H8_PWRON

+VDD3

R435

10K

C388

0.01µ R396

100K

H8_RESET#

VCC

RESET

GND

U21

IMP811

P26

8MHz

C326

22P

C330

22P

KBC_X-

KBC_X+

R328

+3VS_P

H8_PWRON

U726

AHC1G08DCK

+VDD3

H8_RESET#

5H8_PWRON_SUSB#

+VDD3S

R358

10K

U6C

74AHC14_V

+VDD3

147

PWRON_SUSB#

PWRON_SUSB6#

R69

0U504

AO4419

P26

+3V +3VS

PWRON_SUSB5#

R43

+5V +5VS

U502

AO4419

P26

+DVMAIN +1.5VS_P

PU6

ISL6227

P28

U6A

74AHC14_V

+VDD3

147

PWRON_SUSB1# +1.05VS_P

+2.5V

+2.5VS

Q12

AO3413

P26

U6D

74AHC14_V

+VDD3

147

PWRON_SUSB3#

+DVMAIN +1.8V_P

PU12

SC486

P29

U6E

74AHC14_V

+VDD3

11 10

147

PWRON_SUSB4# +0.9VS_P

+DVMAIN

+CPU_CORE

PU5

ISL6218

P30

U6B

74AHC14_V

+VDD3

147

PWRON_SUSB2#

MiTac Secret

Confidential Document

112

8050QMA

50QMA N/B Maintenance

N/B Maintenance

There is no display on both LCD and VGA monitor after power on although the LCD and monitor is known-good.

8.2 No Display-1

No Display

Monitor

or LCD module

OK?

Replace monitor

or LCD.

Board-level

Troubleshooting

System

BIOS writes

error code to port

378H?

Yes

Refer to port 378H

error code description

section to find out

which part is causing

the problem.

Make sure that CPU module,

DIMM memory are installed

Properly.

Display

OK?

Yes

Correct it.

To be continued

Clock,reset and power checking

Check system clock,

reset circuit and

reference power

Replace

Motherboard

1.Try another known good CPU module,

DIMM module and BIOS.

2.Remove all of I/O device ( HDD,

CD-ROM…….) from motherboard

except LCD or monitor.

Display

OK?

1. Replace faulty part.

2. Connect the I/O device to the M/B

one at a time to find out which part

is causing the problem.

Yes

MiTac Secret

Confidential Document

113

8050QMA

50QMA N/B Maintenance

N/B Maintenance

U13

W83L950D

P23

56PCICLK_KBC70

R114

U709

South Bridge

ICH6-M

P11

SMBCLK SMB_CLK

PCICLK_ICH

R207

2.2K

R206

2.2K

+VDD3S

To J714,J713

47 SMBDATA SMB_DATA

33R93

R131 12.1

52 14M_ICH

12 CLK_USB48

STOP_PCI#

STOP_CPU#

CLK_ICH

33R98

R80 33

R97 33

R96 33

CLK_ICH#

CLK_SATA

CLK_SATA#

33R95

Q13

2N7002

Q14

2N7002

+3VS

R144

10K

R142

10K

PCICLK_F0

R103

10K

+3VS

FS_A

R76

10K

CLK_PCI_STOP#

CLK_CPU_STOP#

R127 33

R126 33

HCLK_CPU

HCLK_CPU#

R123 33

R122 33

CLK_ITP_CPU

CLK_ITP_CPU#

R111 33

R113 33

R125 33

R124 33

HCLK_MCH

HCLK_MCH#

CLK_GMCH

CLK_GMCH#

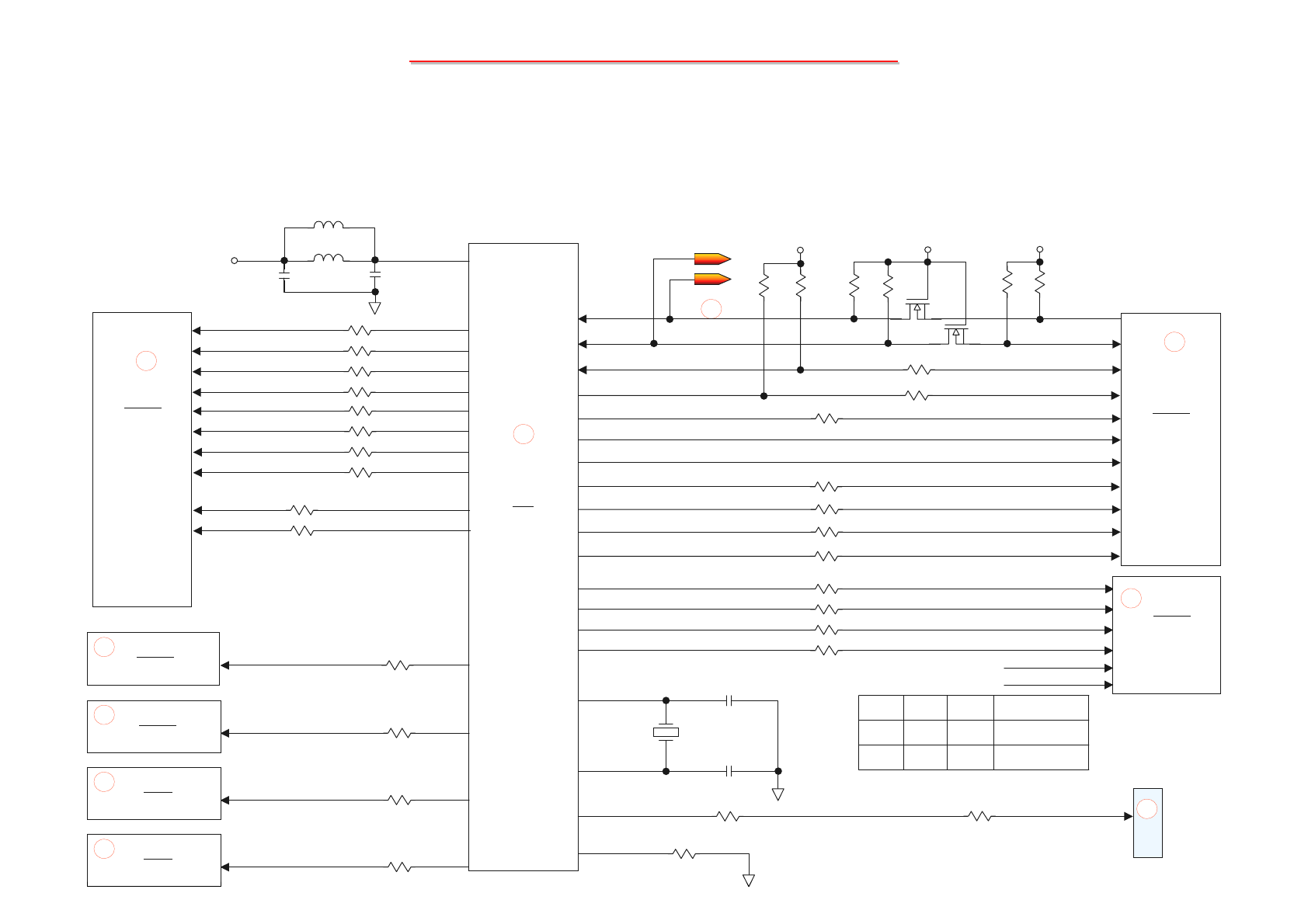

****** System Clock Check ******

8.2 No Display-2

U711

CPU

DOTHAN

14.318MHz

C97

56P

C98

56P

Clock

Generator

ICS954226

U710

North Bridge

GMCH

39 R136 475

U715

CB712

P18

R94 33 5

PCICLK_CARD

J716

P20

PCICLK_MINIPCI 25

R92 33 R710 0

U717

RTL8100CL

P15

4PCICLK_LAN28

R104

L32

120Z/100M

+3VS C80

2.2µ C78

2.2µ

L31

120Z/100M +3VS_CLK

U14

SST49LF004A

P24

3PCICLK_FWH31

R105

R99 33

R87 33

R101 33

R100 33

DREFSSCLK

DREFSSCLK#

DREFCLK

DREFCLK#

133 MHzHLL

100 MHz (Default)HLH

BCLK FrequencyFS_AFS_BFS_C

R71 1K

R72 1K

CFG1

CFG2

FS_B

FS_C

HBSEL0

HBSEL1

MiTac Secret

Confidential Document

114

8050QMA

50QMA N/B Maintenance

N/B Maintenance

PLT_RST# 4

+3VS

FWH_PCIRST#

U14

System

BIOS

P24

JL20

JP_NET10 2

U10B

74AHC08_V

GMCH_RST#

JL21

JP_NET10

To North Bridge U710

LAN_RST#

JL26

JP_NET10

J710

CDROM

Connector

P145RSTDRV#

+5VS

R311

10K

Q18

DDTC144TCA

+3VS

KBC_PCIRST# U13

W83L950D

P23

JL19

JP_NET10 64

U10A

74AHC08_V R319

U724

88SA8040

P14

JL18

JP_NET10

IDE_RST#

+5VS

R293

10K

Q17

DDTC144TCA

IDE_RST#

PCIRST#

U10C

74AHC08_V

+3VS

PCI_PCIRST#

U715

Card Bus

CB712

P18

CARD_GRST#

U717

LAN Controller

P15

27LAN_PCIRST#

26MINIPCI_PCIRST# J716

MINI-PCI Slot

P20

JL22

JP_NET10

JL23

JP_NET10

JL25

JP_NET10

****** Power Good & Reset Circuit Check ******

8.2 No Display-3

U709

South

Bridge

ICH6-M

VRMPWRGD 12

+3VS

U10D

74AHC08_V

From PU5

P30

U711

CPU

Dothan

U710

North Bridge

Intel 915PM

PWROK

+3VS

C374

0.1µ

R392

10K

VCC

RESET

GND

U20

MAX809

P26

J507

MDC

U517

Audio Codec

ALC655

P21

11 ACRST#

P21

HPWRGD

+VCCP

R169

200

HCPURST#

PWROK

R548

22 ICH_VGATE

PWROK

JL17

JP_NET10 J723

MXM

Connector

MXM_RST# P5

MiTac Secret

Confidential Document

115

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Display

OK?

Replace faulty

LCD or monitor.

Display

OK?

VGA Controller Failure

LCD No Display

1. Confirm LCD panel or monitor is good

and check the cable are connected

properly.

2. Try another known good monitor or

LCD module.

Remove all the I/O device & cable from

motherboard except LCD panel or

extended monitor.

Connect the I/O device & cable to

the M/B one at a time to find out

which part is causing the problem.

Yes

Re-soldering.

One of the following parts on the mother-board may be

defective, use an oscilloscope to check the following signal or

replace the parts one at a time and test after each replacement.

Board-level

Troubleshooting

Replace

Motherboard

Yes

8.3 VGA Controller Test Error LCD No Display-1

There is no display or picture abnormal on LCD although power-on-self-test is passed.

Check if

J1, J2 are cold

solder?

Parts

U710

U709

U13

J506

J723

Signals

+3VS

LVDS_TX[0..2]+

LVDS_TX[0..2]-

LVDS_CLK+

LVDS_CLK-

LVDS_ENBKL

H8_ENABKL

Parts

L10~L13

SW1

Signals

ENABKL

BLADJ

COVER_SW

Daughter BoardMain Board

MiTac Secret

Confidential Document

116

8050QMA

50QMA N/B Maintenance

N/B Maintenance

L19

120Z/100M

+3VS

R31

AO4419

R28

1,2

C10

1µ

LVDS_ENVDD C15

0.22µ

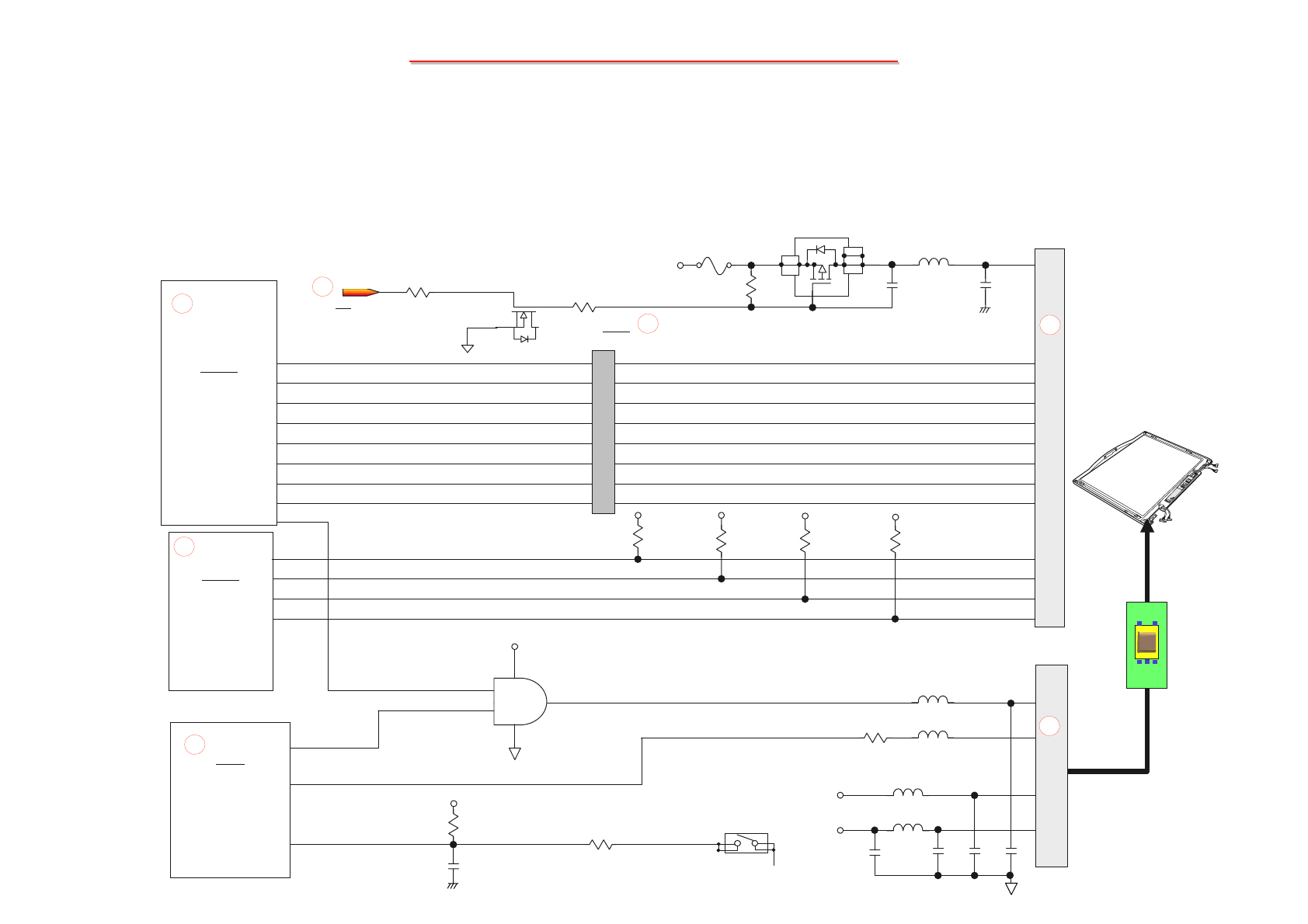

8.3 VGA Controller Test Error LCD No Display-2

There is no display or picture abnormal on LCD although power-on-self-test is passed.

U710

North Bridge

Intel 915PM

PANEL_ID0

PANEL_ID1

PANEL_ID2

LCD Connector

P10

LVDS_CLK

LVDS_CLK#

EDID_CLK

EDID_DATA

LVDS_TX2

LVDS_TX2#

LVDS_TX1

LVDS_TX1#

U709

South Bridge

ICH6-M

LCD

Inverter Board

+3VS

R13

20K

+3VS

R14

20K

+3VS

R15

20K

Inverter

P10

L23

120Z/100M

+VDD3S 9

ENABKL_VGA

U13

Keyboard BIOS

W83L950D

P23

L25

120Z/100M

+DVMAIN 1,2

L22

130Z/100M

L21

130Z/100M 4

C22

0.01µ

C11

1000P

C13

0.1µ

C12

0.1µ

+3VS

LVDS_ENBKL

H8_ENABKL

BLADJ

H8_LIDSW#16

470K

+3V

R511

Cover Switch

SW1

30V/0.1A

0.1µ

LVDS_ENBKL 1

PANEL_ID3

+3VS

R25

20K

R33

10K

2N7002 J723

MXM_Connector

IGP_LVDS_CLK

IGP_LVDS_CLK#

IGP_EDID_CLK

IGP_EDID_DATA

IGP_LVDS_TX2

IGP_LVDS_TX2#

IGP_LVDS_TX1

IGP_LVDS_TX1#

From J723

MiTac Secret

Confidential Document

117

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.4 External Monitor No Display-1

There is no display or picture abnormal on CRT monitor, but it is OK for LCD.

Yes Re-soldering.

One of the following parts on the mother-board may be

defective, use an oscilloscope to check the following signal or

replace the parts one at a time and test after each replacement.

Parts:

U710

J702

J723

L11

L10

L30

Signals:

+3VS

CRT_DDDA

CRT_HSYNC

CRT_VSYNC

CRT_DDCK

CRT_RED

CRT_GREEN

CRG_BLUE

Check if

J702

are cold solder?

Display

OK?

External Monitor No Display

1. Confirm monitor is good and check

the cable are connected properly.

2. Try another known good monitor.

Remove all the I/O device & cable from

motherboard except monitor.

Display

OK?

Replace faulty monitor.

Connect the I/O device & cable

to the M/B one at a time to find

out which part is causing the

problem.

Yes

Board-level

Troubleshooting

Replace

Motherboard

MiTac Secret

Confidential Document

118

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.4 External Monitor No Display-2

There is no display or picture abnormal on CRT monitor, but it is OK for LCD.

IGP_CRT_RED

IGP_CRT_GREEN

IGP_CRT_BLUE

CON_RED

CON_GREEN

CON_BLUE

130OHM/100M

L11

130OHM/100M

L10

130OHM/100M

JO52JO53 JO51

IGP_CRT_DDDA

IGP_CRT_HSYNC

IGP_CRT_VSYNC

IGP_CRT_DDCK

CP1

47P*4

U710

North Bridge

Intel 915PM

GMCH

J702

P10

External DVI Connector

CON_DDDA

13CON_HSYNC

CON_VSYNC

15CON_DDCK

L568

130Z/100M

L569

130Z/100M

L15

130Z/100M

L14

130Z/100M

SN74LVC2G125

P10

VCC 6

JO48

JO47 JO49

JO50

J723

MXM_Connector

139

141

220

218

R216

R219

DVI_DDDA

CRT_HSYNC

CRT_VSYNC

DVI_DDCK

CRT_RED

CRT_GREEN

CRT_BLUE

144

140

136

+DVMAIN

L30

120Z/100M

+3VS

MiTac Secret

Confidential Document

119

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.5 Memory Test Error-1

Extend DDRAM is failure or system hangs up.

Memory Test Error

One of the following components or signals on the motherboard

may be defective ,Use an oscilloscope to check the signals or

replace the parts one at a time and test after each replacement.

Test

OK? Correct it.

Yes

Parts:

U710

J713

J714

R691

R692

R606

R242

C285

C604

Signals:

1. Check if on board SDRAM chips are no cold

solder.

2. Check the extend SDRAM module is installed

properly. ( J713,J714)

3. Confirm the SDRAM socket (J713,J714) is

ok,no band pins.

If your system host bus clock running at

266MHZ then make sure that SO-DIMM

module meet require of PC 266.

Test

OK?

Yes

+1.8V

+3VS

S[A..B]_MA[0..13]

CKE#[0..3]

CS#[0..3]

ODT[0..3]

S[A..B]_BS#[0..2]

S[A..B]_CAS#

S[A..B]_RAS#

S[A..B]_WE#

S[A..B]_DQS#[0..7]

S[A..B]_DQS[0..7]

S[A..B]_DM[0..7]

S[A..B]_DQ[0..63]

Board-level

Troubleshooting

Replace

Motherboard

Replace the faulty

DDRAM module.

SMBDATA

SMBCLK

NB_CLK _DDR[0,1,3,4]

NB_CLK _DDR[0,1,3,4]#

MiTac Secret

Confidential Document

120

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.5 Memory Test Error-2

Extend DDRAM is failure or system hangs up.

R243,R263….

+0.9VS

SMBDATA

SMBCLK

J713

DDR SODIMM

+DDR2_VREF

R606

+1.8V

R242

C304

0.1µ

C604

2.2µ

C295

2.2µ

S[A..B]_DQS#[0..7], S[A..B]_DQS[0..7]

S[A..B]_A[0..13], CKE#[0..3], CS#[0..3], ODT[0..3]

S[A..B]_BS#[0..2], S[A..B]_CAS#, S[A..B]_RAS#, S[A..B]_WE#

S[A..B]_DM[0..7], S[A..B]_DQ[0..63]

NB_CLK_DDR[0,1,3,4], NB_CLK_DDR[0,1,3,4]#

Clock

Generator

ICS954226

SMBDATA

SMBCLK

R692

10K

R691

10K

+3VS

SA_DQS#[0..7], SA_DQS[0..7]

SA_MA[0..13], CKE#[0..1], CS#[0..1], ODT[0..1]

SA_BS#[0..2], SA_CAS#, SA_RAS#, SA_WE#

SA_DM[0..7], SA_DQ[0..63]

NB_CLK_DDR[0,1], NB_CLK_DDR[0,1]#

J714

DDR SODIMM

SB_DQS#[0..7], SB_DQS[0..7]

SB_MA[0..13], CKE#[2..3], CS#[2..3], ODT[2..3]

SB_BS#[0..2], SB_CAS#, SB_RAS#, SB_WE#

SB_DM[0..7], SB_DQ[0..63]

NB_CLK_DDR[3,4], NB_CLK_DDR[3,4]#

C285

0.1µ

U710

North Bridge

915PM

GMCH

P4P7

SMBDATA

SMBCLK

MiTac Secret

Confidential Document

121

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.6 Keyboard (K/B) Touch-Pad (T/P) Test Error-1

Error message of keyboard or touch-pad failure is shown or any key does not work.

Keyboard or Touch-Pad

Test Error

Try another known good Keyboard

or Touch-pad.

Test

Ok?

Replace the faulty

Keyboard or Touch-Pad.

Check

J4, J5

for cold solder?

Yes

One of the following parts or signals on the motherboard

may be defective, use an oscilloscope to check the signals

or replace the parts one at a time and test after each

replacement.

Yes

Re-soldering.

Parts

U13

U14

U709

SW3

SW4

L48

Signals

+3VS

+VDD3

+KBC_CPUCORE

KI[0..7]

KO[0..15]

T_CLK

T_DATA

Is K/B or T/P

cable connected to notebook

properly?

Yes

No Correct it.

Board-level

Troubleshooting

Replace

Motherboard

MiTac Secret

Confidential Document

122

8050QMA

50QMA N/B Maintenance

N/B Maintenance

C330

22P

C326

22P

8MHZ

R328

T_CLK

T_DATA

L47 130Z/100M 11,12

9,10

TP_CLK

TP_DATA

U709

South Bridge

ICH6-M

+VDD3 71

U13

Keyboard

BIOS

W83L950D

8.6 Keyboard (K/B) Touch-Pad (T/P) Test Error-2

Error message of keyboard or touch-pad failure is shown or any key does not work.

U14

SYSTEM

BIOS

SST49LF004A

P24

P11

SERIRQ 69

13~15,17 LAD[0..3] 65~68

+5V

L48

120Z/100MHZ

C537

0.1µ

Touch-Pad

P24

0.5A/POLYSW

1,2

SW_RIGHT 5,6

7,8

SW_LEFT

R346

10K

R348

10K

+5VS

+KBC_CPUCORE

R704

10K

+3VS

LAD[0..3]

P23

KI[0..7]

KO[0..15]

17~24

1~16

Internal

Keyboard Connector

P23

55~62

39~54

KBD_US/JP# 25

R146

10K

+3VS

LFRAME#

23 63

+3VS

32,1

C694

0.1µ

25,27

R317 4.7K

R315 4.7K C709

4.7µ

KBD_US/JP#

R168

C541

47P

C542

47P

C539

47P

C540

47P

L72 130Z/100M

SW3

SW4

+5V

MiTac Secret

Confidential Document

123

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Hard Disk Drive

Test Error

One of the following parts or signals on the motherboard may

be defective, use an oscilloscope to check the signals or replace

the parts one at a time and test after each replacement.

Yes

Re-boot

OK? Replace the faulty parts.

1. Check if BIOS setup is OK?.

2. Try another working drive.

Check the system driver for proper

installation.

Re - Test

OK? End

Yes

Board-level

Troubleshooting

8.7 Hard Disk Drive Test Error-1

Either an error message is shown, or the drive motor spins non-stop, while reading data from or writing

data to hard disk.

Parts: Signals:

U709

U724

J715

L64

D26

C294

C303

C309

C575

C577

C580

C582

+5VS

+5VS_HDD

SATA_RXN0

SATA_RXP0

SATA_TXN0

SATA_TXP0

DDRQ

DIORDY

DIRQ

DD[0..15]

DA[0..2]

DCS[0..1]#

Replace

Motherboard

MiTac Secret

Confidential Document

124

8050QMA

50QMA N/B Maintenance

N/B Maintenance

+1.8VS_HDD 41,56

C126

12P

C125

12P

25MHZ

R225

+5VS

R422

D26

CL-190G

R439

470

SATA_TXP

SATA_TXN

SATA_RXP

SATA_RXN

C582

3900P

C580

3900P

C577

3900P

C575

3900P

SATA_TXP0

SATA_TXN0

SATA_RXP0

SATA_RXN0

DDRQ 2460

DIORDY 1855

DIRQ 1453

DD[0..15] 27~421~3,5~7…

DA[0..2] 9,10,1249~51

DCS[0..1]# 7,847,48

DACK#,DIOR#,DIOW#,DRST# 16,20,22,4454,58,59,16

R824

10k 11

R825

470 17

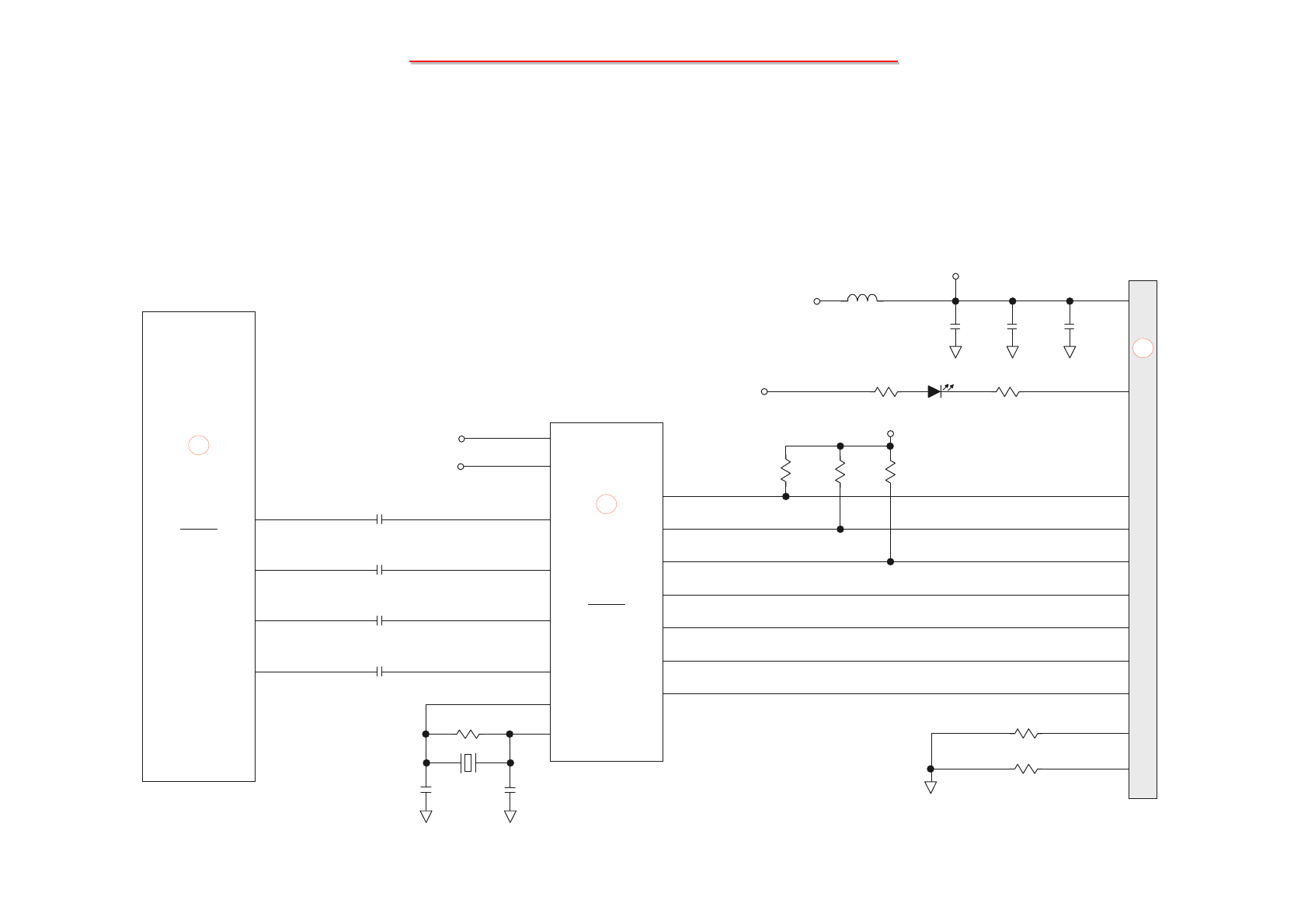

8.7 Hard Disk Drive Test Error-2

Either an error message is shown, or the drive motor spins non-stop, while reading data from or writing

data to hard disk.

U709

South Bridge

ICH6-M

P11

J715

P14

PATA HDD Connector

U724

88SA8040

P14

+3VS

R819

8.2K

R818

4.7K

R817

5.6K

+5VS

C303

0.1µ

C309

0.1µ

L64

120Z/100MHZ

3,4

+5VS_HDD

C294

22µ

HDD_LED# 6

+3VS_HDD 44

MiTac Secret

Confidential Document

125

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.8 CD-ROM Drive Test Error-1

An error message is shown when reading data from CD-ROM drive.

CD-ROM Driver

Test Error

One of the following parts or signals on the motherboard may

be defective, use an oscilloscope to check the signals or replace

the parts one at a time and test after each replacement.

Yes

Parts: Signals:

Test

OK? Replace the faulty parts.

1. Try another known good compact disk.

2. Check install for correctly.

Check the CD-ROM drive for

proper installation.

Re - Test

OK?

U709

J710

L49

D27

C198

C208

C209

R198

R414

R441

R558

Yes

Board-level

Troubleshooting

+5VS

+5VS_CDROM

SD_D[0..15]

SDA1

IDEIRQ

SDDACK#

SIORDY

SDIOW#

SDDREQ

SDIOR#

SDA0

SDCS1#

SDCS3#

SDA2

End

Replace

Motherboard

MiTac Secret

Confidential Document

126

8050QMA

50QMA N/B Maintenance

N/B Maintenance

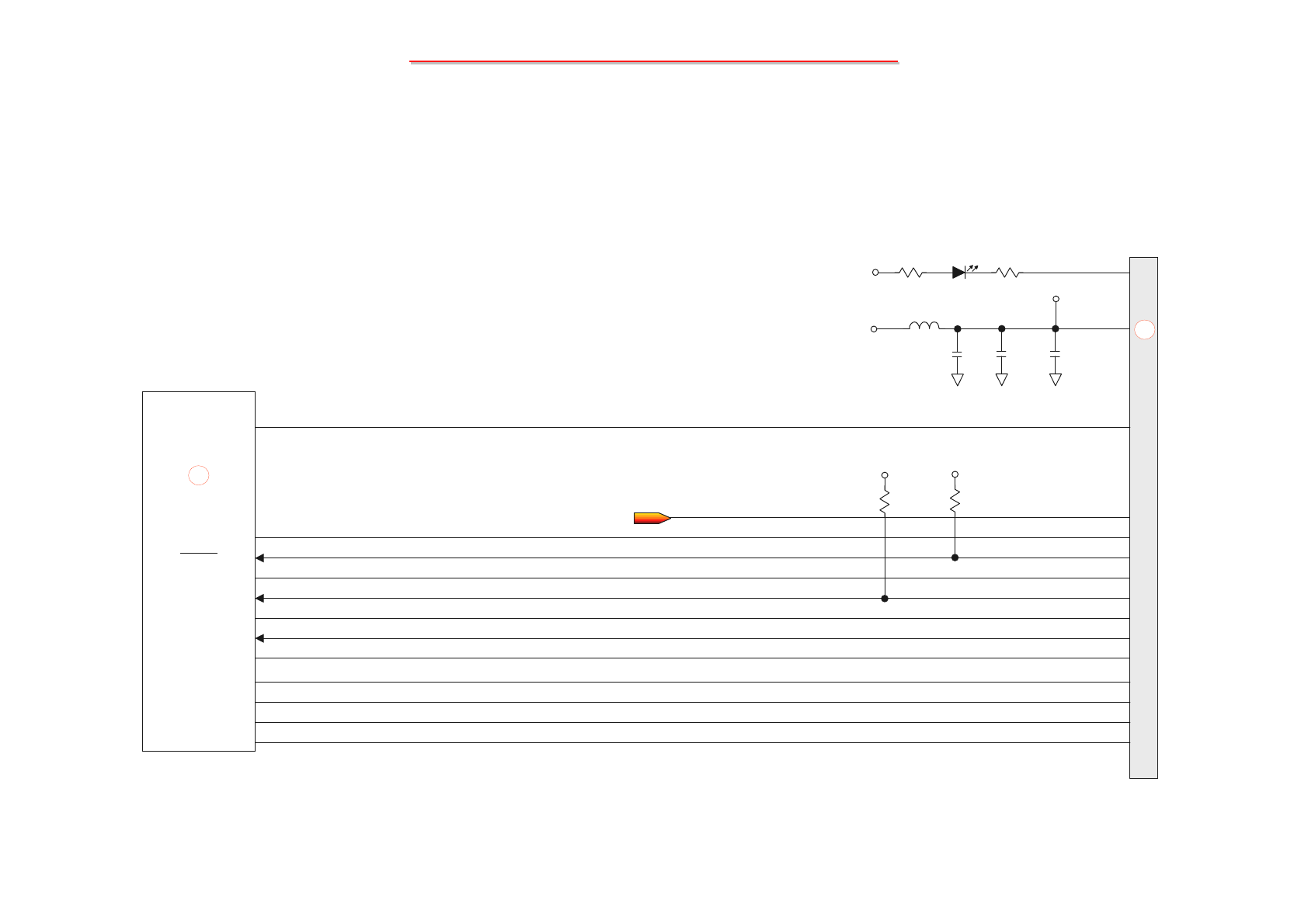

8.8 CD-ROM Drive Test Error-2

An error message is shown when reading data from CD-ROM drive.

J710

P14

CD-ROM Connector

R441

470

D27

CL-190G CD_LED#

+5VS

+3VS

R558

4.7K 5

6~21

38~42

+5VS

C198

10µ

C209

0.1µ

L49

120Z/100MHZ

IDEIRQ

SIORDY

SDIOW#

SDDREQ

SDDACK#

SDIOR#

SDA1

RSTDRV#

SD_D[0..15]

SDA0

SDCS1#

SDCS3#

SDA2

RSTDRV#

Refer Section 8.2(No display-3)

+5VS_CDROM

R414

IDEIRQ

SIORDY

SDIOW#

SDDREQ

SDDACK#

SDIOR#

SDA1

SDA0

SDCS1S#

SDCS3S#

SDA2

+3VS

R198

8.2K

U709

South Bridge

ICH6-M

P11

SD_D[0..15]

C208

0.1µ

MiTac Secret

Confidential Document

127

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.9 USB Test Error-1

An error occurs when a USB I/O device is installed.

Re-test

OK?

Test

OK?

USB Test Error

Check if the USB device is installed

properly.

Yes

Check the following parts for cold solder or one of the following

parts on the mother-board may be defective, use an oscilloscope

to check the following signal or replace the parts one at a time

and test after each replacement.

Replace another known good USB

device.

Board-level

Troubleshooting

Correct it.

Replace

Motherboard

Signals:

USB_OC0#

USB_OC1#

USBP[0..3]+

USBP[0..3]-

+VCC_USB_0

+VCC_USB_1

+VCC_USB_2

+VCC_USB_3

+5V

SW_VDD3

Parts:

U709

U501

U503

J701

J706

L10

L13

F503

F504

C501

MiTac Secret

Confidential Document

128

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.9 USB Test Error-2

An error occurs when a USB I/O device is installed.

U709

South Bridge

ICH6-M

P11

U501

RT9701-CB

P14

USB Port

J701

90Z/100M

+VCC_USB_1

90Z/100M

P14

R502

33K

C505

1000P

VIN

+5V

C172

1µ

VOUT0,1 1,5

C504

150µ

R503

47K +VCC_USB_0

R791

22 4CE C503

0.1µ

L502

120Z/100M

C502

0.1µ

L501

120Z/100M

SW_VDD3

From U13

P23

USB_OC0#

USBP0+

USBP0-

USBP1-

USBP1+

GND 2

R179

R180

R192

R186

F503

1.1A

U503

RT9701-CB

P14

USB Port

J706

L10

90Z/100M

+VCC_USB_3

L13

90Z/100M

P14

R10

33K

C163

1000P

VIN

+5V

C178

1µ

VOUT0,1 1,5

150µ

R159

47K +VCC_USB_2

R792

22 4CE C4

0.1µ

120Z/100M

C769

0.1µ

L552

120Z/100M

SW_VDD3

From U13

P23

USB_OC1#

USBP2+

USBP2-

USBP3-

USBP3+

GND 2

R191

R190

R786

R787

F504

1.1A

MiTac Secret

Confidential Document

129

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.10 Audio Test Error-1

No sound from speaker after audio driver is installed.

Re-test

OK?

Test

OK?

Audio Failure

1. Check if speaker cables are

connected properly.

2. Make sure all the drivers are

installed properly.

Try another known good

speaker, CD-ROM.

Board-level

Troubleshooting

Yes

Check the following parts for cold solder or one of the following parts on the

motherboard may be defective,use an oscilloscope to check the following signal

or replace parts one at a time and test after each replacement.

1.If no sound cause

of line out, check

the following

parts & signals:

2. If no sound cause

of MIC, check

the following

parts & signals:

3. If no sound cause

of CD-ROM, check

the following

parts & signals:

No Parts:

U517

U19

U709

J509

L60

L61

Q48

L20

L18

L73

Q510

Signals:

AMP_RIGHT

AMP_LEFT

DEVICE_DECT

DECT_HP#OPT

SPDIFOUT

SPK_OFF

EAPD

OPTIN#

Parts:

U517

U709

U16

U17

MIC1

J720

J721

L71

L74

L554

L543

L548

Signals:

+5VS

+3VS

+VA

MIC_VREF

MIC1

MIC2

MIC_EXT

Parts:

U709

U517

J710

R420

R407

R438

R419

R406

R434

Signals:

CDROM_LEFT

CDROM_RIGHT

CDROM_COMM

Correct it.

Replace

Motherboard

MiTac Secret

Confidential Document

130

8050QMA

50QMA N/B Maintenance

N/B Maintenance

AGND

R406

6.8K

R419

6.8K

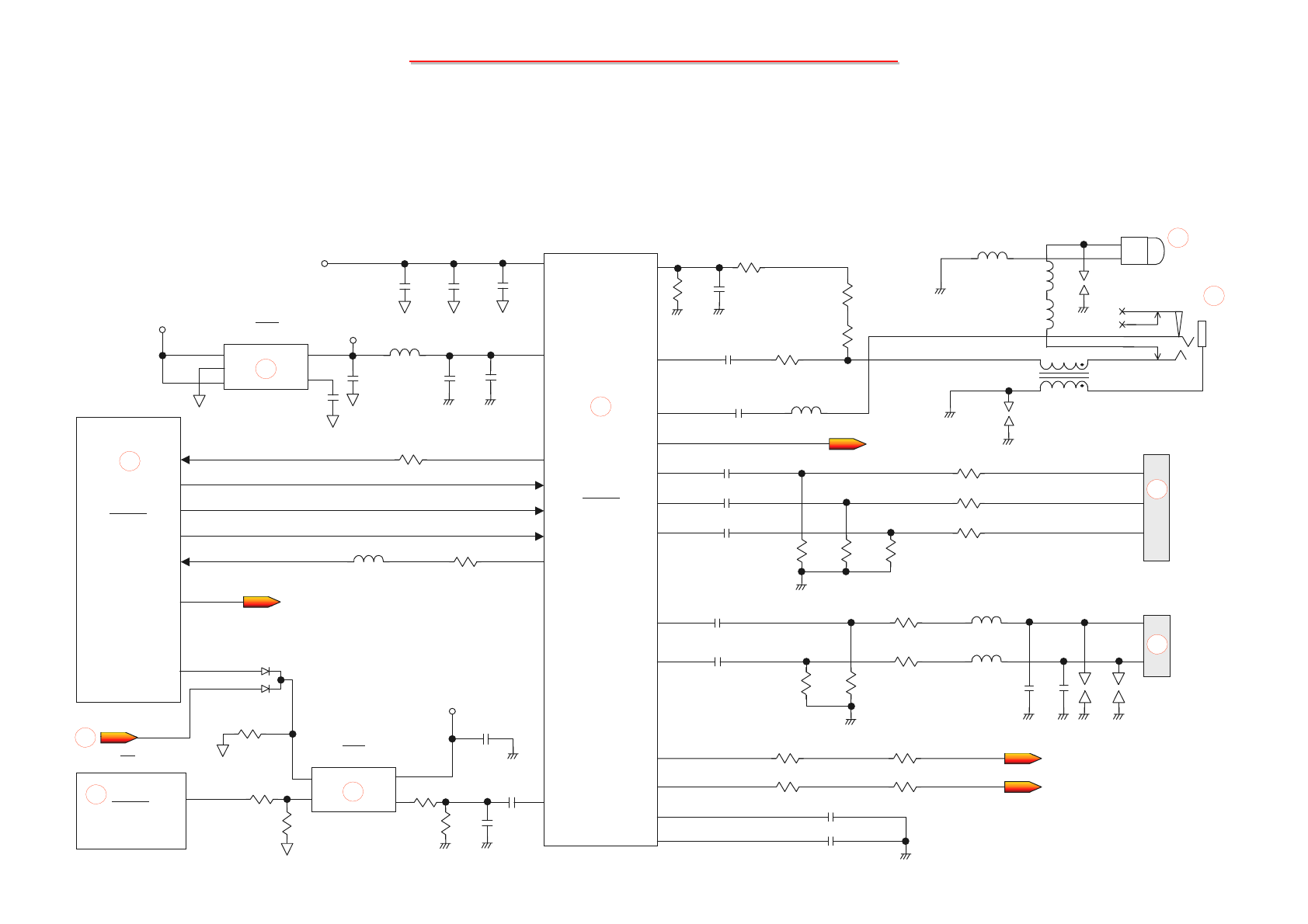

8.10 Audio Test Error-2 (Audio In)

U517

Audio Codec

ALC655

U709

South Bridge

ICH6-M

U715

PC14510GHK

C335

1µ

C339

0.1µ

SBSPKR

R336

10K

CARDSPK 12 PC_BEEP

SPK_OFF

To next page

+VA

DVDD1,2

AVDD1,2

25,38

P21

P18

R337

47K

R338

47K

+VA

L71

120Z/100M

C755

0.1µ

+3VS 1,9

C380

1µ CDROM_RIGHT

J710

CDROM

Connector

P14

R420

6.8K

C377

1µ CDROM_LEFT 1

R407

6.8K

19 C385

0.22µ CDROM_COMM 3

R438

AGND

+5VS

C581

10µ

C351

10µ

C725

0.1µ

ACSYNC

ACRST#

ACSDOUT

ACSDIN0

ACBITCLK

R391 22

6R390 22

P11

No sound from speaker after audio driver is installed.

C741

0.1µ

C748 1µ

C746 1µ

AGND

VIN

1OUT

U17

RT9167-47CB

P19

3CE ADJ 4

GND

C364

0.01µ

C763

1µ

C756

1µ

LINE_IN/L

LINE_IN/R

R436

R417

AGND

R418

22K

R437

22K

J721

Line In Jack

3,5 P21

L79

BEAD_600Z/100M

L78

BEAD_600Z/100M

C578

0.1µ

L74 220

R205

D31

BAV70LT1

KBC_DEEP

From U13

P23

AVCC

U16

NC7S32

P21 Y

R335

C334

100P

External MIC

J720

P21

R784

4.7K

R783

C764

1µ

21 MIC

22 MIC2

C757

1µ

CAGND

MIC1

28 MIC_VREF

R405

R412

5.6K

C751

1µ

R785

0MIC_EXT

CAGND

C381

100P

L554

BEAD_600Z/100M

JO518

MIC1 P21

L520

BEAD_600Z/100M JO517

AGND

L62

BEAD_600Z/100M

AGND

To next page

AOUT_R

AOUT_L

AMP_RIGHT

AMP_LEFT

R758

R767

R756

R771

R434

CAGND

C378

100P

CAGNDCAGND

J10 J9

SPDIFOUT

To next page

L543

BEAD_600Z/100M

AGND

CAGND

L548

120OHM/100MHZ

MiTac Secret

Confidential Document

131

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.10 Audio Test Error-3 (Audio Out)

U19

Audio

Amplifier

TPA0212

R343

C345

100P

R380

C365

100P

C354

100µ

R379

P22

ROUT+

ROUT-

2RInternal Speaker

Connector

C341

100µ

R404

L83

BEAD_600Z/100M

L76

BEAD_600Z/100M

C356

1µ

C347

1µ

AMP_RIGHT 20

From previous page RLINEIN

RHPIN

+5VS

7,18 PVDD0/PVDD1

AGND

C342

100µ

L73

120Z/100M

C734

0.1µ

C735

0.1µ

22SPK_OFF#

GAIN1 3

R362

100K

R741

100K

GAIN0 2

LOUT+

LOUT-

2LInternal Speaker

Connector

15,17 DEVICE_DECT

+5VS

Q31

DDTC144TCA

R729

4.7K

GND

LLINEIN

AMP_LEFT

6LHPIN

From previous page

C360

1µ

C355

1µ

19 VDD

+AMPVDD

R61 BEAD_600Z/100M

J509 P22

No sound from speaker after audio driver is installed.

P22

AGND

+5VS

R365

1.3M

SPK_OFF

From previous page

R73

D514

BAW56

OPTIN#

GND

R208

R60 BEAD_600Z/100M

R18 BEAD_600Z/100M

R20 BEAD_600Z/100M

Drive

LED

L539

BEAD_600Z/100M

SPDIFOUT 7

LINE OUT

From previous page

+VA

R400

10K

Q48

DDTC144TCA

DEVICE_DECT#

L547

BEAD_600Z/100M

L546 0

AGND

+VA

R775

10K

R381

4.7K

DECT_HP#OPT

+3VS

R754

10K

Q509

AM2301P

Q510

DDTC144TCA

OPTIN#

L538

BEAD

600Z/100M

DECT_HP#OPT

DEVICE_DECT#

L77 BEAD_600Z/100M

MiTac Secret

Confidential Document

132

8050QMA

50QMA N/B Maintenance

N/B Maintenance

8.11 LAN Test Error-1

An error occurs when a LAN device is installed.

LAN Test Error

Yes

Test

OK?

Check if BIOS setup is ok.

Re-test

OK?

Board-level

Troubleshooting

Check the following parts for cold solder or one of the following

parts on the mother-board may be defective, use an oscilloscope

to check the following signal or replace the parts one at a time and

test after each replacement.

Parts: Signals:

1.Check if the driver is installed properly.

2.Check if the notebook connect with the

LAN properly.

Yes

U717

U709

U511

J506

U507

X503

L508

L510

L511

L512

R682

R683

R667

R670

+3V

ICH_PME#

PCI_C/BE#[0..3]

PCIKRUN#

PCI_DEVESEL#

PMDI[0..3]+

PMDI[0..3]-

EECS

EECK

EEDI

EEDO

PCI_SERR#

Correct it.

Replace

Motherboard

MiTac Secret

Confidential Document

133

8050QMA

50QMA N/B Maintenance

N/B Maintenance

PCI_AD[0..31] 33…

PCI_AD20 46

ICH_PME# 31

PCI_C/BE[0..3] 44…

PCLKRUN# 65

PCI_DEVSEL# 68

PCI_FRAME# 61

PCI_GNT3# 29

PCI_REQ3# 30

PCI_INTE# 25

PCI_IRDY# 63

PCI_TRDY# 67

PCI_PAR 76

PCI_PERR# 70

PCI_SERR# 75

PCI_STOP# 69

MCT1

MCT3

MCT2

MCT4

R227

GND_45

R20

R204

R202

C263

1000P

MDI0+

MDI0-

MDI1+

MDI1-

MDI2+

MDI2-

MDI3+

MDI3-

L512

90Z/100M

L63

90Z/100M

L68

90Z/100M

L67

90Z/100M

PJTX0+

PJTX0-

PJRX1+

PJRX1-

MDO2+

MDO2-

MDO3+

MDO3-

U507

NS692408

P15 P15

J506

RJ45 LAN Connector

R670

49.9

R667

49.9

C651

0.01µ

GND

R683

49.9

R682

49.9

C668

0.01µ

GND

PMDI0+

PMDI0-

PMDI1+

PMDI1-

PMDI2+

PMDI2-

PMDI3+

PMDI3-

8.11 LAN Test Error-2

An error occurs when a LAN device is installed.

U717

LAN

Controller

RTL8100CL

P15

+3V

U709

South Bridge

ICH6-M

P11

LAN_XTAL1

LAN_XTAL2

C682

27P

121

122

C681

27P

X503

25MHZ

R686

U511

93C46

P15

C660

1µ

GND

VCC

109

108

111

106

EEDI

EEDO

EECK

EECS

+3V

R696

3.6K

R508

100

R213

+AVDDL

+AVDDH

+DVDD

MiTac Secret

Confidential Document

134

8050QMA

50QMA N/B Maintenance

N/B Maintenance

Re-test

OK?

Test

OK?

PC Card Socket Failure

1. Check if the PC Card device is installed

properly.

2. Confirm PC Card driver is installed ok.

Yes

Change the faulty

part then end.

Check the following parts for cold solder or one of the following

parts on the mother-board may be defective, use an oscilloscope

to check the following signal or replace the parts one at a time and

test after each replacement.

Parts:

U715

U709

U509

R625

R604

R240

Try another known good PC

Card or device.

Correct it

Board-level

Troubleshooting

Signals

PCI_REQ0#

PCI_SERR#

PCI_PERR#

PCI_DEVSEL#

PCI_FRAME#

PCI_IRDY#

PCI_TRDY#

PCI_STOP#

PCLKRUN#

PCI_PME#

PCI_GNT0#

PIC_PAR

PCI_AD[0..31]

PCI_C/BE#[0..3]

VCC5_EN#

VCC3_EN#

VPPD0

VPPD1

8.12 PC Card Socket Test Error-1

An error occurs when a PC card device is installed.

Replace

Motherboard

MiTac Secret

Confidential Document

135

8050QMA

50QMA N/B Maintenance

N/B Maintenance

PCI_C/BE#[0..3]

PCI_PAR, PCI_STOP#

PCI_SERR#, PCI_PERR#

PCI_AD[0..31]

PCI_TRDY#, PCI_IRDY#

PCI_DEVSEL#

PCLKRUN#

PCI_GNT0#, PCI_REQ0#

IDSEL

PCI_FRAME#

R240

43.2

R2_D2, R2_D14, R2_A18

CAUDIO, CSTSCHG

8.12 PC Card Socket Test Error-2

An error occurs when a PC card device is installed.

CRST#, CCD[1,2]#,CVS[1,2]#

CAD[0..31], CC/BE[0..3]#

CFRAME#, CIRDY#, CTRDY#,

CREQ#, CGNT#, CINT#

CBLOCK#, CSTOP#, CDEVSEL#

U715

CardBus

Controller

CB712

P18

+3VS

C650

0.1µ

+CARD_VCC J8

Card Bus Socket

P16

C657

0.1µ

C662

0.1µ

+VPPOUT

VPPD0

VPPD1

VCC5_EN#

VCC3_EN#

3.3VA,B

AVCCC,B,A

AVPP

VCCD1

VCCD0

VDDP0

VDDP1

U509

CP2211A

P16

SHDN

5,6 5VA,B

C603

0.1µ

+5VS

+3VS

3,4

11-13

C610

0.1µ

CARD_VCC

VCC[1..10]

C628

0.1µ

VCCA1/2

U709

South Bridge

ICH6-M

P11

CARD_PCIRST#

Refer Section 7.2(No display-3)

OC 8

R604

10K

R625

10K

PCI_PME#

+3VS

CPAR, CPERR#, CSERR#

MiTac Secret

Confidential Document

Reference Material

Intel Pentium-M Processor Intel, INC

Intel 915PM North Bridge Data Sheet Intel, INC

Intel ICH6 South Bridge Data Sheet Intel, INC

System Explode View Technology.Corp./MiTAC

8050QMA Hardware Engineering Specification Technology.Corp./MiTAC

SERVICE MANUAL FOR 8050QMA

Sponsoring Editor : Jesse Jan

Author : ZX.Xiao

Assistant Editor : Ping Xie

Publisher : MiTAC International Corp.

Address : 1, R&D Road 2, Hsinchu Science-Based Industrial, Hsinchu, Taiwan, R.O.C.

Tel : 886-3-5779250 Fax : 886-3-5781245

First Edition : Jun. 2005

E-mail : Willy.Chen @ mic.com.tw

Web : http: //www.mitac.com http: //www.mitacservice.com

Mitac 8050Qma Users Manual

8050QMA to the manual 137a2d8d-7614-42d1-9e13-933b7ed7a390

Navigation menu

Versions of this User Manual:

Views

Navigation
