Magellan® eXplorist® Pro 10
Touch Pro 10 UM.indd 1 1/13/2011 2:08:02 PM
The Magellan eXplorist Pro 10 is a navigation aid designed to assist you in
arriving at your selected destination. When using the Magellan eXplorist receiver,
these safety rules must be followed to prevent accidents that can result in injury
or death to yourself or others.
Please do not try and change any settings on the Magellan eXplorist receiver
while driving. Come to a complete stop or ask a passenger to make any changes.
This product is an excellent navigation aid, but does not replace the need for
careful orienteering and good judgement. Never rely solely on one device for
navigating.
The Global Positioning System (GPS) is operated by the U.S. Government,
which is solely responsible for the accuracy and maintenance of the GPS
network. The accuracy of position xes can be affected by the periodic
adjustments to GPS satellites made by the U.S. government and is subject to
change in accordance with the Department of Defence civil GPS user policy and
the Federal Radionavigation Plan. Accuracy can also be affected by poor satellite
geometry and obstructions, like buildings and large trees.
Use only Magellan cables and accessories; the use of non-Magellan cables and
accessories may severely degrade performance or damage the receiver, and will
void the warranty.
The information provided in this document is subject to change without notice.
Improvements and enhancements to the product may occur without any formal
notication. Check the Magellan website (www.magellanGPS.com) for product
updates and additional information.
Maximum normal use temperature is 60°C.
Safety Notice
Touch Pro 10 UM.indd 2 1/13/2011 2:08:02 PM
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for class B digital
devices, in accordance with part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specic operating instructions for
satisfying RF exposure compliance.
Touch Pro 10 UM.indd 3 1/13/2011 2:08:02 PM
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables
is likely to result in interference to radio and TV reception. The user is cautioned
that changes and modications made to the equipment without the approval of
manufacturer could void the user’s authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.IC statement
Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits established for an
uncontrolled environment. End users must follow the specic operating instructions for
satisfying RF exposure compliance.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
Touch Pro 10 UM.indd 4 1/13/2011 2:08:02 PM
Bluetooth Interoperability and Compliance Statement
This equipment has been tested by a qualied test facility and found to comply with
the requirements of the Bluetooth Qualication Body (BQB) for radio-frequency
emissions and Bluetooth interoperability.
Bluetooth® Pairing
The eXplorist Touch Pro 10 will need to be paired with a Bluetooth-capable device
before they can communicate with each other. Each Bluetooth device comes with
manufacturer instructions specifying how place it into “Discover Mode” and you will
need to refer to those instructions when pairing the eXplorist Touch Pro 10 and the
other device.
1. Place the eXplorist and the other Bluetooth-capable device within a few meters
of each other.
2. Place the Bluetooth-capable device in “Discover Mode”.
3. Turn on the eXplorist Touch Pro 10.
4. Access the Menu and tap on the Settings icon.
5. Tap on the Bluetooth icon.
6. Tap on “Add” in the lower right corner.
7. A list of Bluetooth devices will be displayed. Tap on the name of the device to be
paired with.
8. On the eXplorist Touch Pro, enter the Passkey for the device you are pairing with.
(The Passkey or how to assign a Passkey can be found in the documentation for
the Bluetooth-capable device.)
9. Once the Passkey is accepted, a trusted pair is created and both devices can
communicate to each other via Bluetooth.
Touch Pro 10 UM.indd 5 1/13/2011 2:08:02 PM

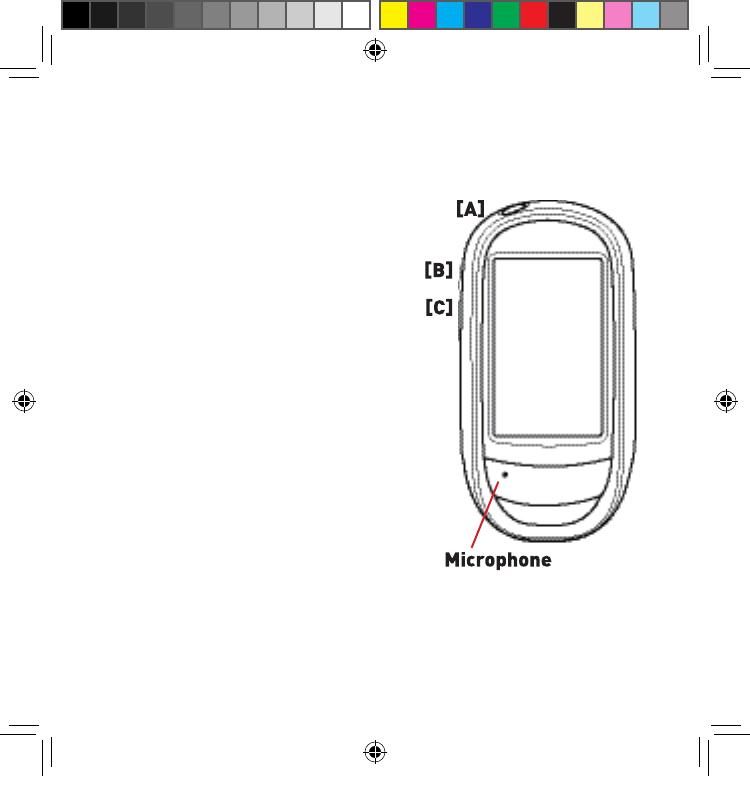

Magellan eXplorist Pro 10
[A] Power Button: Press and hold for 2
seconds to turn the receiver on. Press
again to bring up the Power Options
menu.
Pressing and holding the power button
down for 5 seconds will reset the receiver.
Suspend turns the display off but your
track will still be recorded. This reduces
battery life consumption but does not
eliminate it entirely.
[B] Back Button. Steps back to the
previous screen.
[C] Camera Button. Accesses the
camera function and is used as the shutter
button to take photograph.
Touch Pro 10 UM.indd 6 1/13/2011 2:08:02 PM
The Magellan eXplorist Pro 10 is powered by two AA batteries. Alkaline, lithium
or rechargeable batteries may be used but both batteries must be of the same
type.

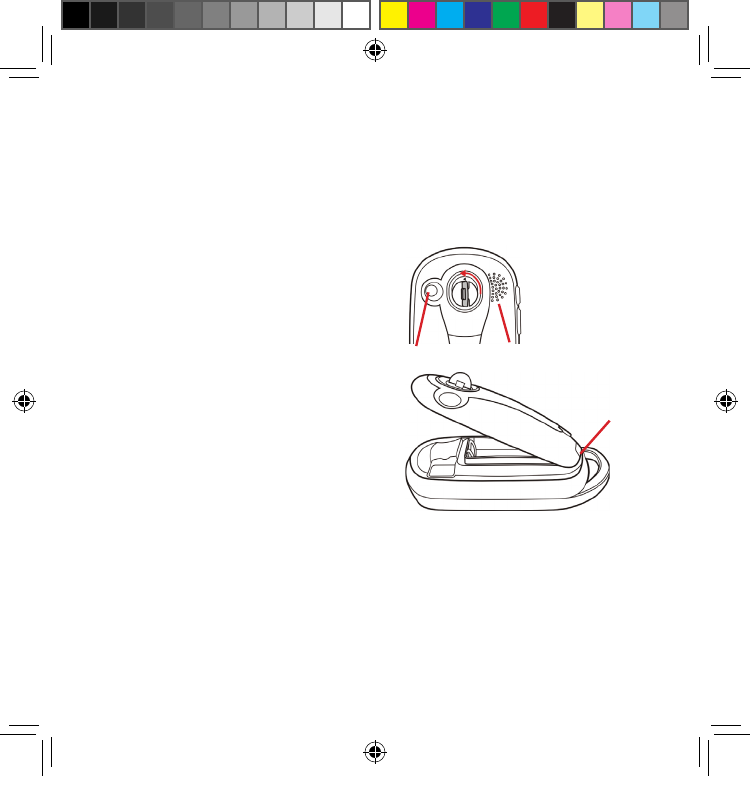

Battery Door Removal
Raise the arm [A].
Turn the battery door lock counter
clockwise a quarter turn.
Lift the top of the battery door
until the pivot point at the bottom
releases, allowing the door to
become free from the receiver.
Install two AA batteries observing
the polarity as shown in the battery
tray.
When reinstalling the battery door be sure to rst insert the hinge point at the
base of the door. Pivot the battery door down and lock it in place by turning
the battery door lock clockwise for a quarter of a turn.

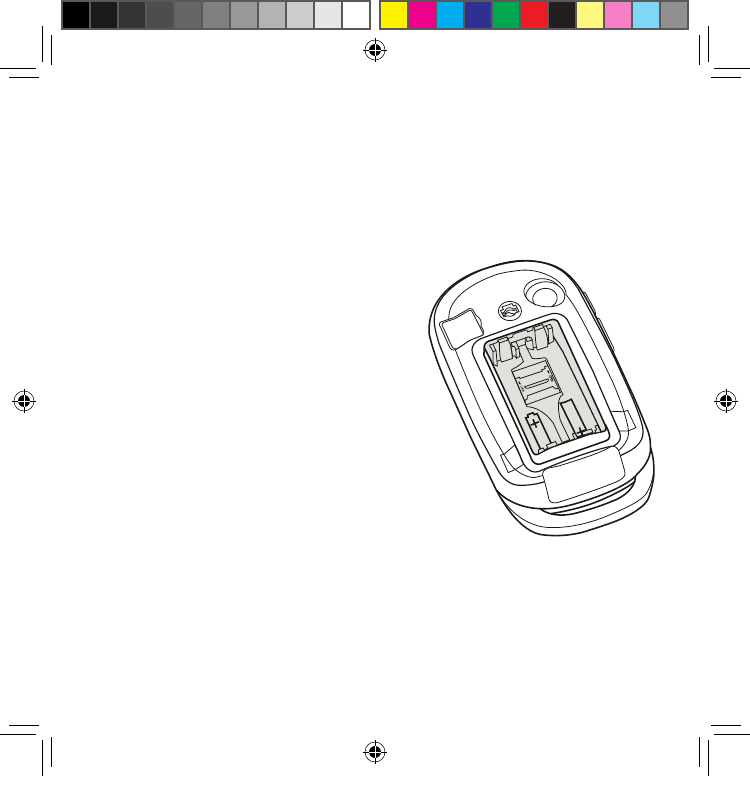

Installing Batteries
Camera Speaker
A
Pivot Point
Touch Pro 10 UM.indd 7 1/13/2011 2:08:04 PM
The Magellan eXplorist Pro 10 can be connected to a personal computer or
external power using the USB connector located at the bottom of the receiver in
the back. It has a rubber cover to protect the connector from water or dirt and
should always be closed rmly when not being used to connect the receiver to a
remote device.

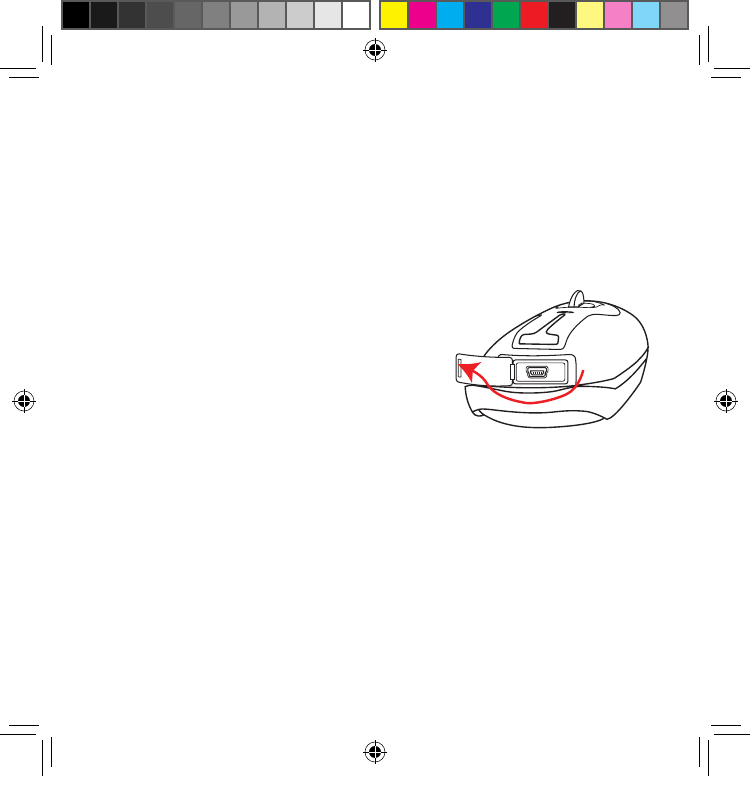

Accessing the USB Connector
Using your ngernail at [B], open the USB
Port cover. When done, be sure to close
the cover rmly to prevent water or dirt from
entering the USB port. (Note that the USB
connector is angled up slightly.)
Applying External Power
The receiver can be powered from an external 12 VDC source using a
Magellan-approved VPA (Vehicle Power Adapter) or by connecting it to a
personal computer using a standard USB cable. If connecting to a vehicle
receptacle, connect the VPA to the USB connector on the receiver and the other
end to a vehicle 12 VDC power receptacle. (Note: Some power receptacle’s
apply 12 VDC only when the vehicle ignition is on.)
Connecting to the USB Port
B
Touch Pro 10 UM.indd 8 1/13/2011 2:08:05 PM
A micro SD card can be installed in the Magellan eXplorist Pro 10 to store and
retrieve data. Please see your application instructions for details on how to save
to or access data from the micro SD card.
Installing the SD Card
Remove the battery door and batteries.
Slide the silver micro SD card retaining
plate towards the top of the receiver.
Lift the retaining plate up with your
ngernail.
Insert a micro SD card with the
contacts down, pointing towards the
top of the receiver.
Close the retaining plate and slide
towards the bottom of the receiver,
locking the micro SD card in place.
Reinstall the batteries and replace the
battery door..
Installing a micro SD Card
Touch Pro 10 UM.indd 9 1/13/2011 2:08:05 PM
The Magellan eXplorist Pro 10 has a built-in camera that can be used to take
photographs as an internal function of the applications installed. See the user
manual for the application installed for information as how the camera functions
with the application. However, the camera can also be used when an application
is not running by pressing the bottom button on the left side of the eXplorist.

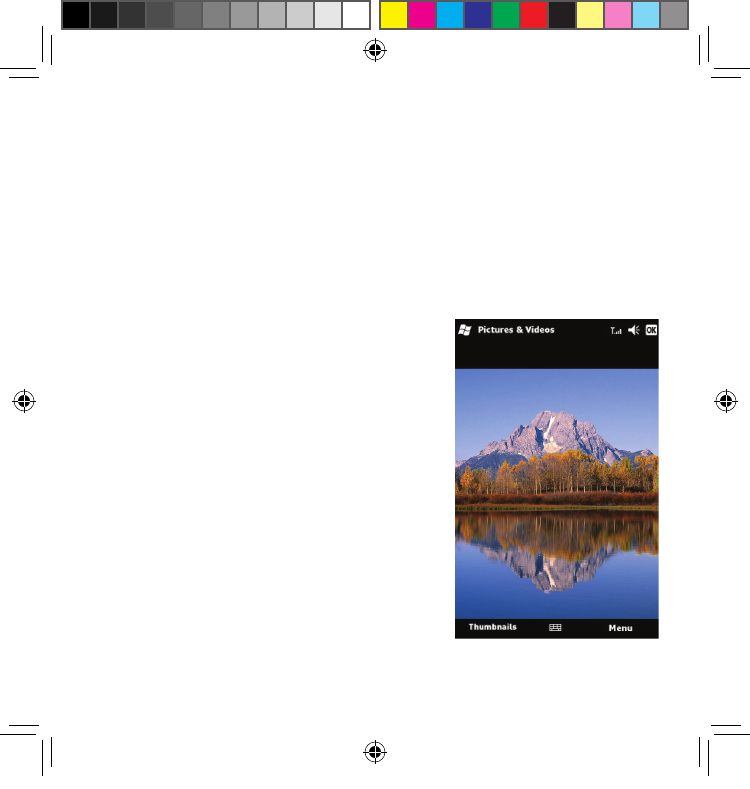

After pressing the bottom button the “Pictures & Video” application built-in to
Windows Mobile® opens. Use the display as the viewnder and point the camera
towards the area you want to photograph. Press
the bottom button again to take the picture (or
begin taking a video if in video operation).
Use the Mode button in the lower right corner
to access a pop-up menu where you can set
the mode, brightness, resolution, zoom and
white balance. The images are saved to your
Magellan eXplorist internal memory and can
be viewed by accessing the “Pictures & Video”
application.
Using the Camera
Touch Pro 10 UM.indd 10 1/13/2011 2:08:05 PM
Notice: You can synchronize your e-mail, calendar, songs, pictures and internet
