MitraStar Technology HGW500SN2A4Q Base Port2 , Adaptador Wifi+ Dual User Manual
MitraStar Technology Corporation Base Port2 , Adaptador Wifi+ Dual Users Manual
Users Manual
Firmware Version 1.00
Edition 1, 4/2017
Default Login Details
http://192.168.1.90
Password: See device bottom label
HGW-500SN2A4-Q
Adaptador Wifi+ Dual
User’s Guide
IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP THIS GUIDE FOR FUTURE REFERENCE.
Graphics in this book may differ slightly from the product due to differences in operating systems,
operating system versions, or if you installed updated firmware/software for your device. Every
effort has been made to ensure that the information in this manual is accurate.
1
Chapter
Chapter 1 Configuration 4
CHAPTER 1
Chapter 1Configuration
1.1 Access the Adaptador Wifi + Dual

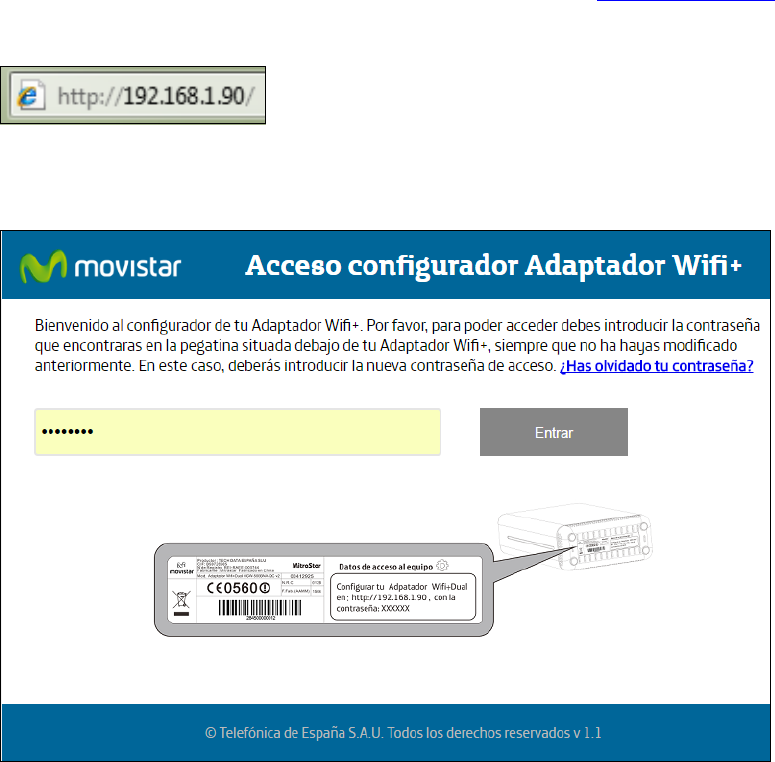

Adaptador Wifi + Dual In your Internet browser go to IP address http://192.168.1.90 to connect to
the Adaptador Wifi + Dual’s web configuration screens.
The login screen displays. The default password is on the sticker on the bottom of your device. Enter
the password and click Entrar.
Use t
Chapter 1 Configuration 5

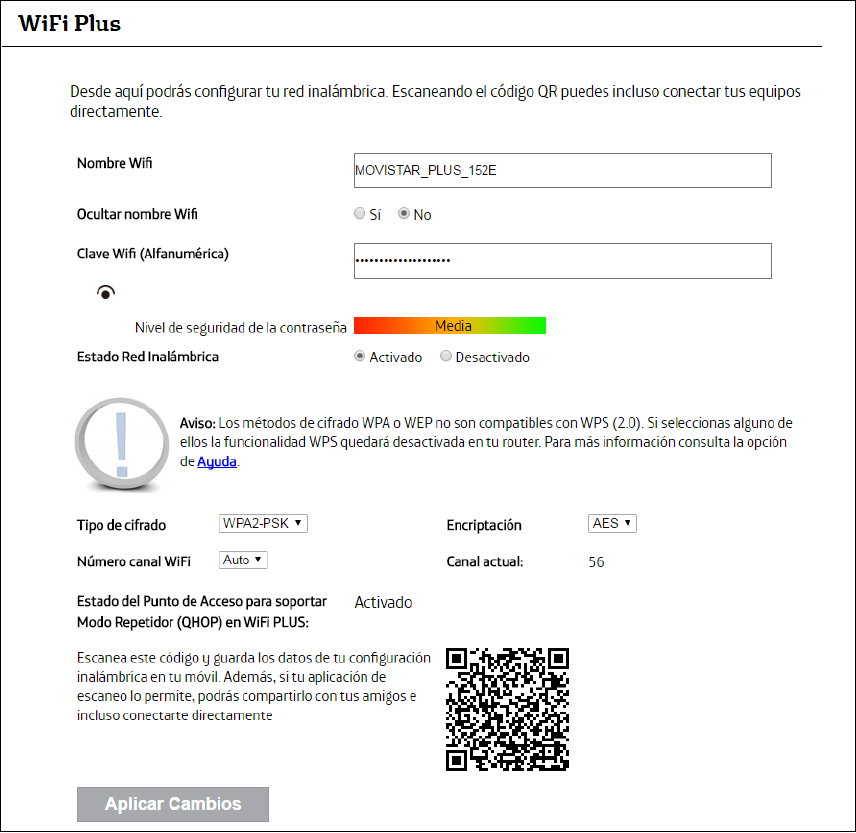

1.2 5 GHz Wireless Configuration
The first screen displays. Use the Wifi Plus section to configure the Adaptador Wifi + Dual’s 5 GHz
wireless network settings.
1Use Nombre Wifi to set the network name.
2Set Ocultar nombre Wifi to Sí if you want to hide the network name from SSID scans.
3Use Clave Wifi (Alfanumérica) to set the Wifi key (network password). Nivel de seguridad de la
contraseña shows the password strength.
45 GHz wireless is enabled by default. If you want to disable it, switch the Estado Red Inalámbrica
button to Desactivado.
Chapter 1 Configuration 6
5 The basic wireless security mode is WPA2-PSK (recommended). You can change it in the Tipo de
cifrado field.
6The Adaptador Wifi + Dual uses AES encryption by default. Use the Encriptación field if you want
to change it to AES+TKIP.
7Use Número canal WiFi to select a specific WiFi channel or use Auto to have the Adaptador Wifi +
Dual automatically select one. Canal actual shows the current channel.
8If your smartphone or tablet has a QR code reader application, you can scan the QR code to quickly
get the 5 GHz wireless network settings to connect to the Adaptador Wifi+ Dual.
9Click Aplicar Cambios to save and apply your 5 GHz settings.

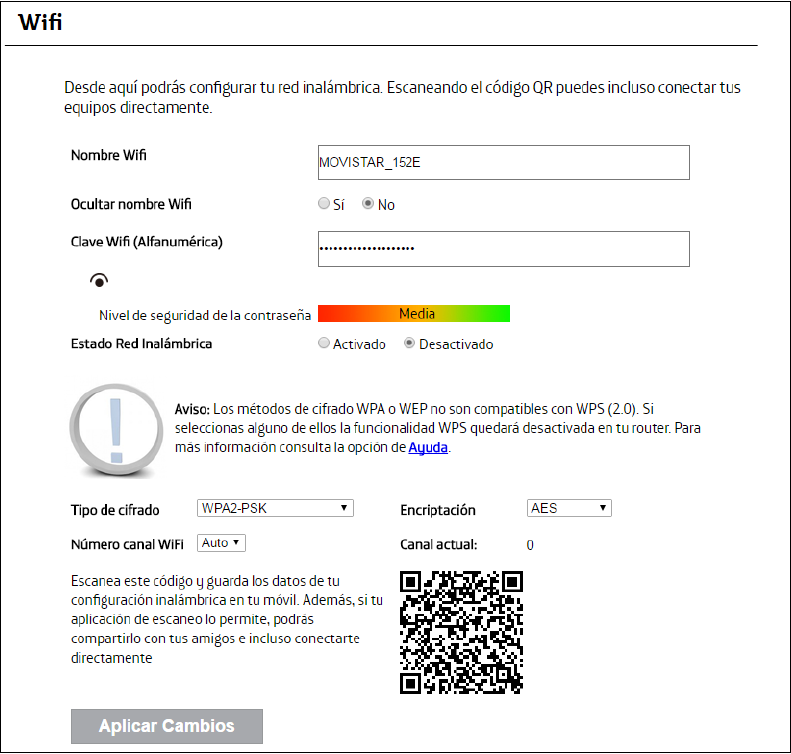

1.3 2.4 GHz Wireless Configuration
Click Asistente de Configuración in the menu and use the Wifi section to configure the Adaptador
Wifi + Dual’s 2.4 GHz wireless network settings.
Chapter 1 Configuration 7
1Use Nombre Wifi to set the network name.
2Set Ocultar nombre Wifi to Sí if you want to hide the network name from SSID scans.
3Use Clave Wifi (Alfanumérica) to set the Wifi key (network password). Nivel de seguridad de la
contraseña shows the password strength.
42.4 GHz wireless is enabled by default. If you want to disable it, switch the Estado Red Inalámbrica
button to Desactivado.
5 The basic wireless security mode is WPA2-PSK (recommended). You can change it in the Tipo de
cifrado field.
6The Adaptador Wifi + Dual uses AES encryption by default. Use the Encriptación field if you want
to change it to AES+TKIP.
7Use Número canal WiFi to select a specific WiFi channel or use Auto to have the Adaptador Wifi +
Dual automatically select one. Canal actual shows the current channel.
8If your smartphone or tablet has a QR code reader application, you can scan the QR code to quickly
get the 2.4 GHz wireless network settings to connect to the Adaptador Wifi+ Dual.
9Click Aplicar Cambios to save and apply your 2.4 GHz settings.
2
Chapter
Chapter 2 Legal 8
CHAPTER 2
Chapter 2 Legal
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Chapter 2 Legal 9
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
DECLARACIÓN DE CONFORMIDAD
Nombre o razón social:
MitraStar Technology Corporation,
Dirección: No. 6, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Contact:+886-3-5777998
Declaramos bajo nuestra exclusiva responsabilidad que el producto:
Equipo:
Base Port2
Modelo:
HGW-500SN2A4-Q
Versión de SW:
GL_s00.00_g001_100WZA0b3
País de fabricación
China
Fabricante
MitraStar Technology Corporation
Es conforme con las especificaciones técnicas que le son de aplicación en el día de la fecha según las Directiva sobre
Equipos Radioeléctricos 2014/53/EU, la Directiva sobre Seguridad en Equipos Eléctricos 2014/35/EU y la Directiva
sobre Compatibilidad Electromagnética 2014/30/EU del Parlamento Europeo, transpuestas a la legislación española
mediante los Reales Decretos RD 188/2016, RD 187/2016 y RD 186/2016.
Radio: EN 300 328 V2.1.1
EN 301 893 V1.8.1
Final Draft EN 301 893 V2.1.0
EMC: EN 301 489 -1 V2.1.1
EN 301 489 -17 V3.1.
Seguridad: EN 50385: 2002
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013
Así mismo es conforme con la Directiva de Eficiencia Energética ErP 2009/125/CE sobre requisitos de diseño
ecológico para los productos relacionados con la energía.
Igualmente es conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo, de 8 de junio de 2011,
sobre restricciones a la utilización de determinadas sustancias peligrosas en aparatos eléctricos y electrónicos,
transpuesta a la legislación española mediante el Real Decreto 219/2013, de 22 de marzo.
Igualmente es conforme con la Directiva 2012/19/UE del Parlamento Europeo y del Consejo del 4 de julio, sobre
aparatos eléctricos y electrónicos y la gestión de los residuos, transpuesta a la legislación española mediante el Real
Decreto 110/2015, de 20 de febrero.
The frequency and maximum transmitted power in EU are listed as belows,
2412 - 2472 MHz: XX.XX dBm
5180 - 5240 MHz: XX.XX dBm
5260 - 5230 MHz: XX.XX dBm
5500 - 5700 MHz: XX.XX dBm
- WLAN 5GHz:
Operations in the 5.15-5.35GHz band are restricted to indoor usage only.
Madrid, 8 de marzo de 2017
