Users Manual
9362 Enterprise Cell V2.2
WCDMA B2/B5
Getting Started Guide
WELCOME
The Alcatel-Lucent 9362
Enterprise Cell provides
enhanced mobile voice and
data service within the
building. It delivers high
quality voice calls and faster,
more reliable mobile data
service.
The Alcatel-Lucent 9362
Enterprise Cell connects to
your broadband Internet
service to deliver extended
indoor mobile network
coverage. The in-building
mobile phone connectivity,
signal quality, and data
bandwidth will greatly
improve, especially if the
building is in a remote area or
out of adequate mobile phone
tower range.
Inside this packaging you will
find - the 9362 Enterprise Cell
and an Ethernet cable. The
9362 Enterprise Cell has a
zero touch set-up process.
Just install as detailed in this
guide and it connects to your
mobile phone automatically
whenever your phone is
within range.
Before you begin you need to
make sure you have the
following:
High Speed Internet
service and an available
Ethernet LAN port on your
router.
An available power socket
or electrical outlet.
A 3G phone registered for
3G service with your
service provider
9362 Enterprise Cell – Getting Started Guide
3

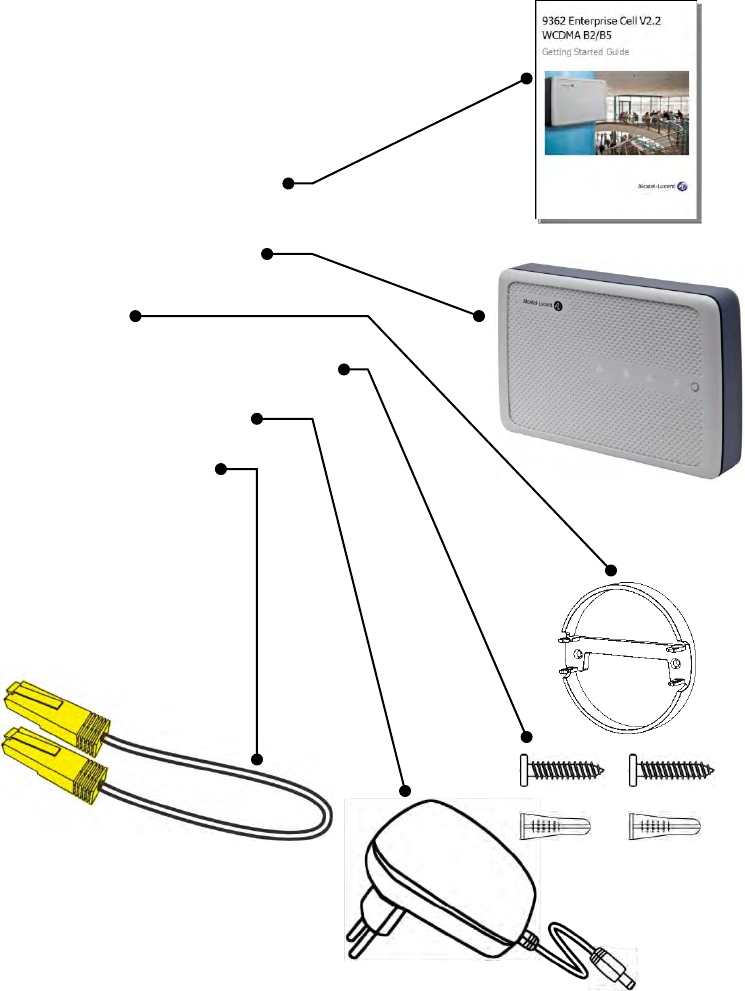

BOX CONTENTS
Getting Started Guide
9362 Enterprise Cell V2.2
WCDMA B2/B5
Stand
Wall & Ceiling Mounting Kit
AC Power Adapter
Ethernet Cable

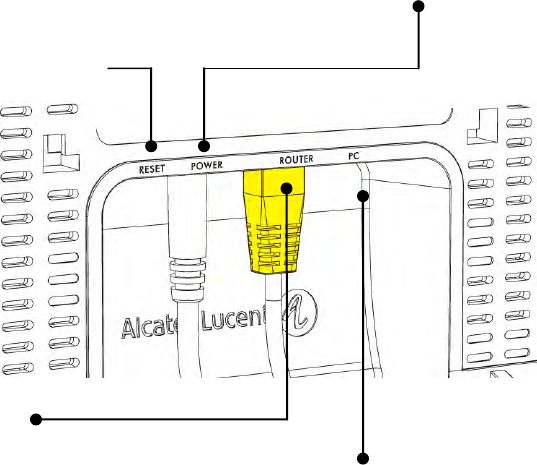

CONNECTION
OVERVIEW
RESET
Press 4 - 15 seconds to reset
Press longer than 15 seconds
to factory reset
ROUTER
1 Gigabit Ethernet connector
for backhaul connection
If PoE+ is used to supply
power then connect this to a
PoE+ capable router or PoE+
injector (supplied AC/DC
power adaptor is not used)
POWER
Connect the supplied AC/DC
power adaptor. If you are
using PoE+, power comes
from the PoE+ device and you
do not use the AC/DC power
adaptor.
PC
1 Gigabit Ethernet pass-
through connector can be
connected to other devices
such as a PC or a router
9362 Enterprise Cell – Getting Started Guide
5
QUICK SETUP
1.
Find a suitable location
To get the best results from
the Enterprise Cell it should
be placed high up and as
centrally as possible, since it
emits a radio signal similar to
a Wi-Fi router.
Avoid placing it near metallic
objects, windows or other
radio transmitters.
2.
Install unit
The unit can stand on a flat
surface or be mounted on a
wall or ceiling
3.
Connect Ethernet cable
Plug one end of the included
Ethernet cable into a port on
your router. Plug the other
end of the Ethernet cable into
the Router port of the
Enterprise Cell.
4.
Connect power cable
Connect one end of the power
adaptor into a power socket
and the other into the
Enterprise Cell. The unit
should start up automatically
and begin the auto-
configuration process.
5.
Auto-configuration
The auto-configuration
process takes about 15
minutes and involves the
Enterprise Cell connecting to
your Internet Service
Provider, updating its software
and rebooting. During this
time the Internet icon will
be white and pulsing. When
the Internet icon and the
Service icon are steady and
white the process is complete.

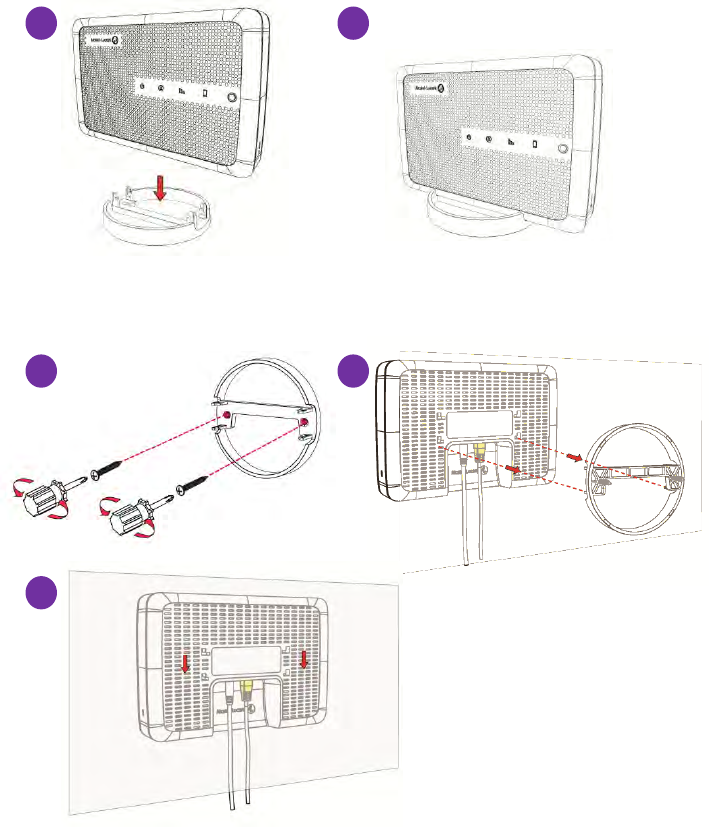

INSTALLATION
DESK
WALL & CEILING
1
2
1
2
3
For wall or ceiling
mounting connect the
cables to the Enterprise
Cell before mounting
the Enterprise Cell on
the stand
9362 Enterprise Cell – Getting Started Guide
7

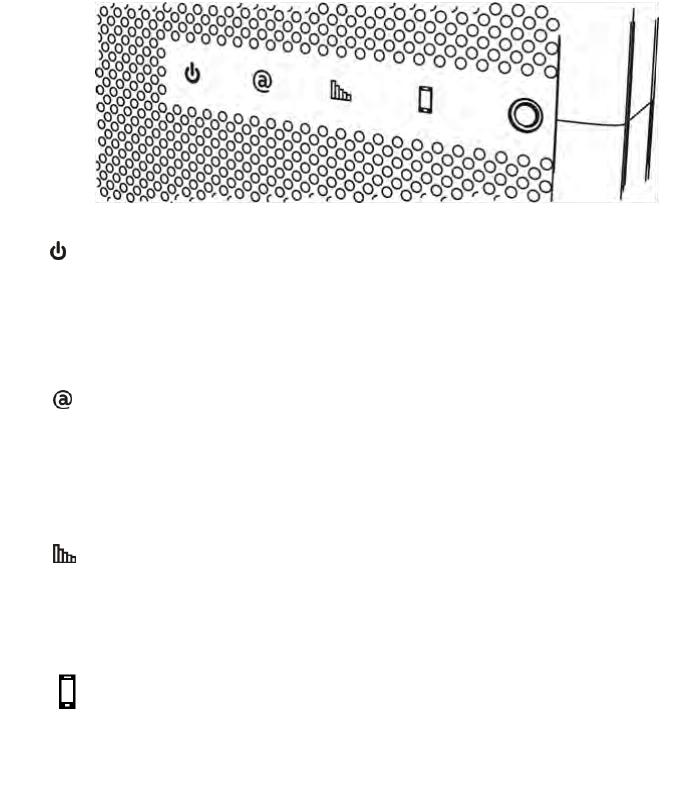

STATUS ICONS
Power: Red – the Enterprise Cell is powered on
Flashing red – a problem has been
detected, please contact your service
provider
Internet: White – an Internet connection has been
established
Pulsing white – connection in progress
Orange – slow network connection
Service: White – the Enterprise Cell is ready for use
Orange – the Enterprise Cell is ready for
use but there problems that might affect
performance
Users: White – the Enterprise Cell is ready for use
Orange – the Enterprise Cell is ready for use
but there are problems that might affect
performance
FAQS
How do I know that I am
using my Enterprise Cell
service?
Your mobile phone display will
automatically indicate if you
are within Femtozone signal
range. If registered and
configured properly your
mobile phone should display a
Femtozone service message
and an associated signal
indicator.
Will my call drop if I leave
Enterprise in the middle of
a call?
If you move out of range of
the Enterprise Cell your call
will be automatically
transferred to the next
available network service
offered by your mobile service
provider (carrier), without
disconnecting your call. If no
other mobile network is
available your call will be
disconnected.
What happens if my
broadband connection
fails?
If you lose your broadband
connection the user status will
turn orange and your
Enterprise Cell coverage will
stop. The Enterprise Cell
service will return when the
broadband connection is
recovered.
What happens if my
Enterprise Cell stops
operating – can I still
place a call?
If your Enterprise Cell stops
operating (e.g. if you have
lost your broadband
connection) then you will no
longer be able to place calls
through the Enterprise Cell.
However if you have coverage
from the mobile network of
your mobile service provider
you can still place calls
normally.
9362 Enterprise Cell – Getting Started Guide
9
Safety Notes
GENERAL: Please read this Getting
Started Guide carefully before using the
9362 Enterprise Cell. The 9362 Enterprise
Cell’s purpose is to provide improved
mobile signal coverage inside a building.
Do not use this device for any other
purpose, as doing so may be dangerous.
POWER: This product is intended to be
supplied by a Listed Limited Power
Source. This can be performed by a
power adapter output rated 12 VDC,
minimum 2.0 A or a PoE rated 48-56
VDC, minimum 0.6 A. These units shall be
“LPS” marked and rated for a minimum
ambient temperature of 45°C.
CONDITIONS OF USE: The 9362
Enterprise Cell and all its components
(including cables and power adaptor)
should be placed in a dry, indoor area, at
elevated heights such as on top of
shelves, cabinets, etc. It should be kept
away from any wet or damp
environments; such as kitchens,
bathrooms, laundry rooms or any other
areas with exposure to moisture, sprays,
drips, or running water. For the safety of
stored data, it should not be placed near
magnetic devices such as audio or video
tapes, diskettes or credit cards. While in
service, the antenna should not be
collocated with any another antenna or
transmitting device. Altitude 2000 m max.
Ambient temperature 45°C max.
MEDICAL DEVICES: The 9362
Enterprise Cell contains a radio
transmitter similar to other residential
radio transmitters. Medical devices such
as pacemakers and hearing aids may be
affected, unless precautions are taken,
when using this device. Please contact
your General Practitioner for additional
safety guidelines.
COMPLIANCE WITH APPLICABLE
EXPOSURE LIMITS: The 9362
Enterprise Cell has a radio emission level
well below regulatory limits for public
exposure to radiofrequency emissions. It
thus complies with the European
Recommendation 1999/519/EC of 12 July
1999.
The European standard EN 50385
specifies the conditions for compliance
with regulatory limits for public exposure;
in particular in the limiting case where the
user would be located at less than 20 cm
of the unit in operation, the Specific
Absorption Rate (SAR) must be less than
2 W / kg.
The 9362 Enterprise Cell, having a
maximum radio output power of 0.25 W,
is consistent with EN 50385 even when it
is in this maximum power and in the
immediate vicinity of the human body.
EMERGENCY: The 9362 Enterprise Cell
does not operate during instances of
power loss. To make emergency calls,
please use a mobile or land line phones.
POWER SUPPLY: Ensure that the
voltage specified corresponds to the
power socket to which you connect it. In
case of power loss (and therefore loss of
service), all mobile calls, including
emergency calls, will be redirected
automatically to the default mobile
(carrier) network. If you have no mobile
network coverage and need to make an
emergency call, please use a land line. In
case of a thunderstorm, please
disconnect the device to avoid damaging
it. For safety reasons, only service
technician’s skills can open the device.
DISPOSAL & RECYCLING: To facilitate
disposal and/or recycling, please respect
the sorting rules of your country or region
for this kind of device. European
regulations require the disposal of this
device at sales points or at designated
collection points such as drop-off centers,
etc.
Copyright © 2012 Alcatel-Lucent. All
rights reserved.
The information presented is subject to
change without notice. Alcatel-Lucent
assumes no responsibility for inaccuracies
contained herein.
NOTICE OF LIABILITY: Every effort has
been made to ensure that this guide
contains accurate and current
information. However Alcatel-Lucent and
the author shall not be liable for any loss
or damage suffered by readers as a result
of any information contained herein.
TRADEMARKS: Alcatel-Lucent and the
Alcatel-lucent logo are registered
trademarks of Alcatel-Lucent. All other
trademarks are the property of their
respective owners.
FCC Statement: This device complies
with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
9362 Enterprise Cell – Getting Started Guide
11
— Reorient or relocate the receiving
antenna.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
— Consult the dealer or an
experienced radio/TV technician for
help.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
This device and its antennas(s) must not
be co-located or operating in conjunction
with any other antenna or transmitter
except in accordance with FCC multi-
transmitter product procedures.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC RF
radiation exposure limits set forth for an
uncontrolled environment. This
equipment should be installed and
operated with minimum distance 20cm
between the radiator and your body.
