Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio service. It can also play
USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface*.
1About Your Audio System
SiriusXM® Radio is available on a subscription basis
only. For more information on SiriusXM® Radio,
contact a dealer.
2General Information on the Audio System
P. 299
SiriusXM® Radio is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.
SiriusXM® is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.
Place your phone where you can get good reception.
Remote Controls
iPod
USB Flash
Drive
* Not available on all models
203
uuAudio SystemuUSB Port(s)
Features
USB Port(s)
Install the iPod USB connector or the USB flash
drive to the USB port.
uThe USB port (1.0 A) is for playing sound
files on a USB flash drive and connecting
cellular phone.
uThe USB port (1.5 A) is for playing sound
files and connecting with Apple CarPlay
and Android Auto through cellular
phone and charging devices.
■In the console compartment*
The USB port (1.0 A) is for playing sound files
on the USB flash drive and connecting cellular
phone.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an extension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard disk
drive, as the device or your files may be damaged.
•We recommend keeping your data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufacturer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5 A of power. It does
not output 1.5 A unless the device requests.
For amperage details, read the operating manual of
the device that needs to be charged.
Turn the ignition switch to ACCESSORY (q or ON
(w*1 first.
Under certain conditions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge (1.5 A)
Models with color audio system
Models with display audio system
In the console compartment
* Not available on all models
205
uuAudio SystemuAudio Remote Controls
Continued
Features

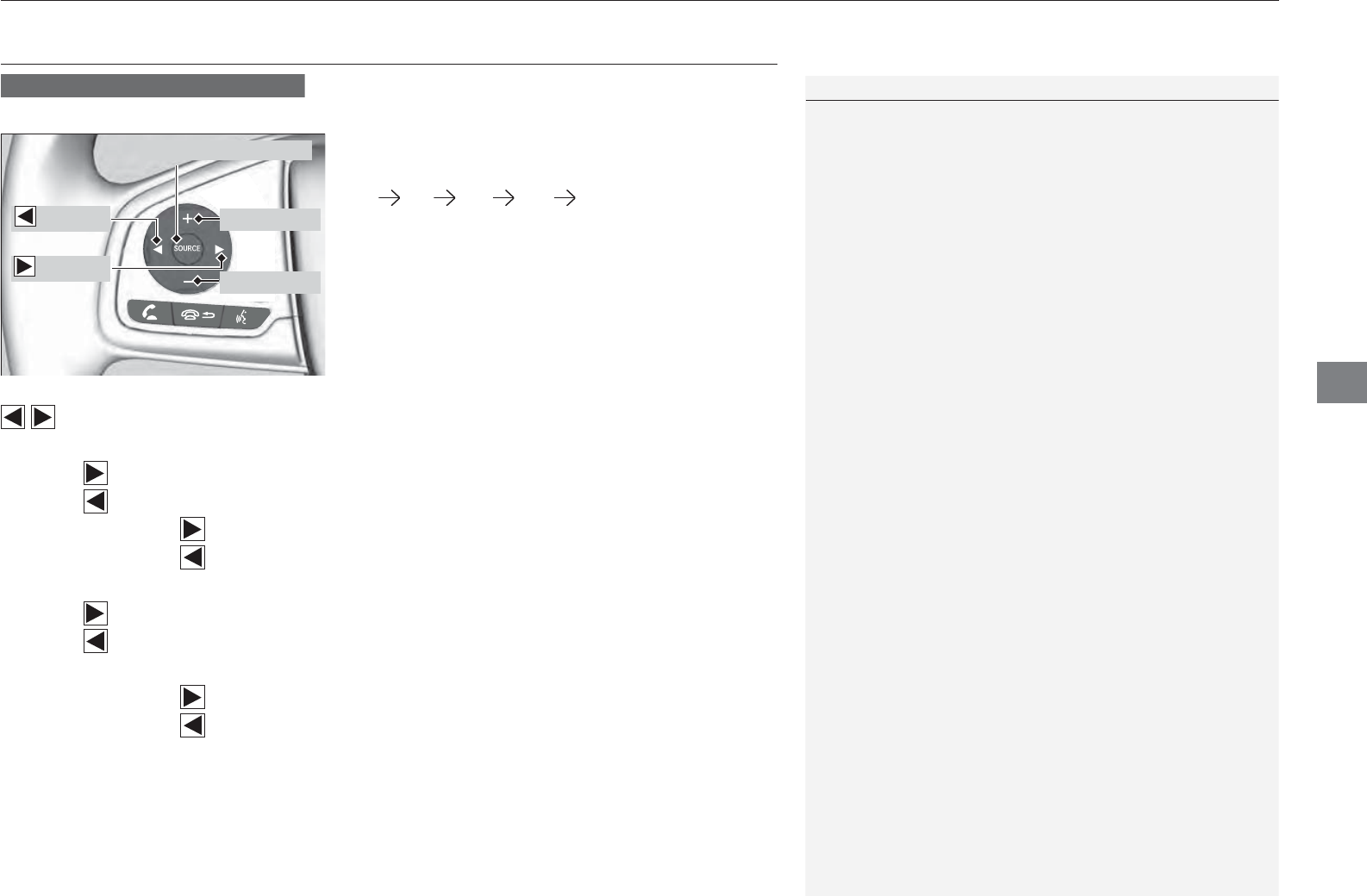

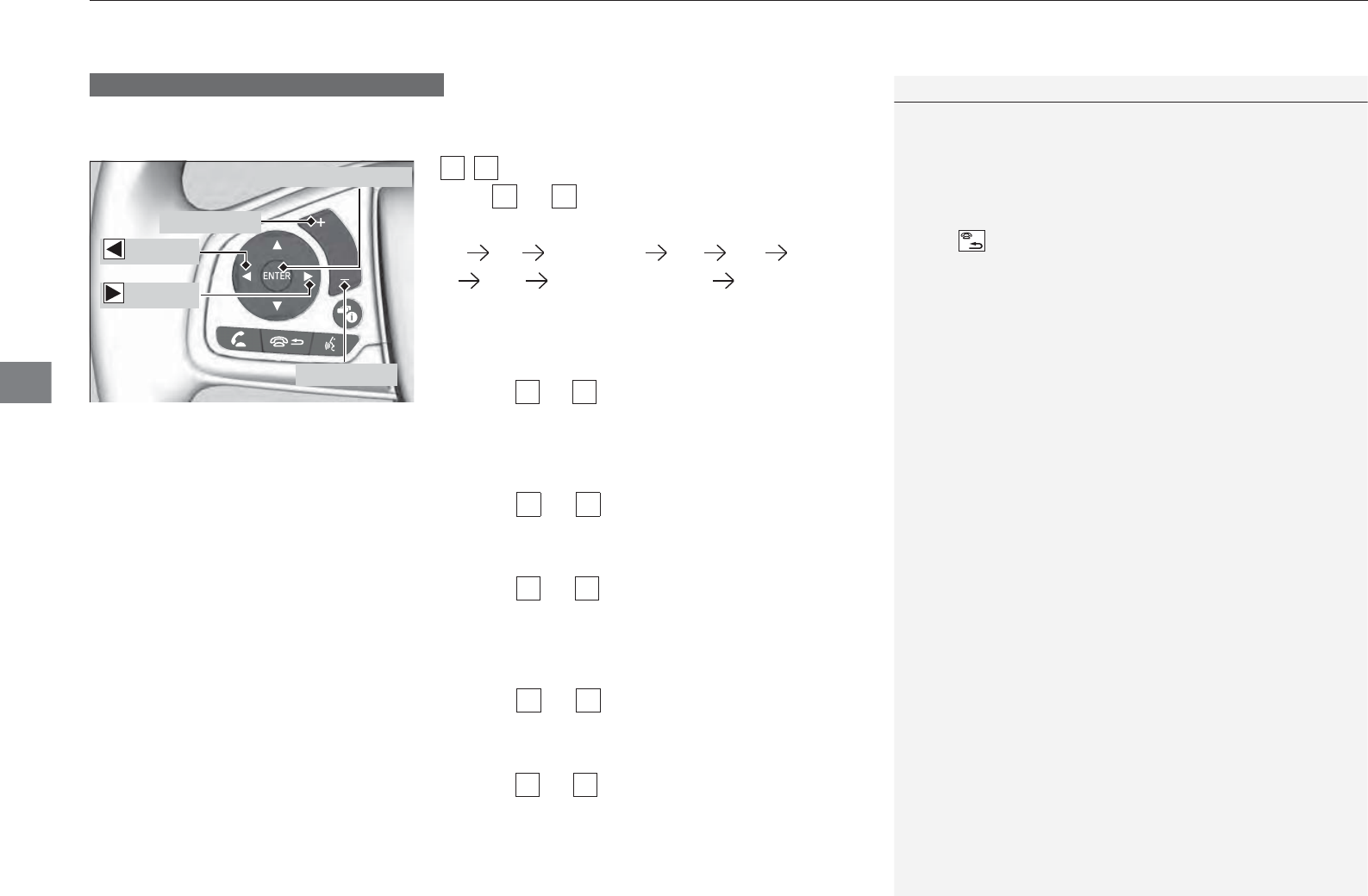

Audio Remote Controls
Allow you to operate the audio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM AM USB iPod Bluetooth® Audio
(+ (- (Volume) Buttons
Press (+: To increase the volume.
Press (-: To decrease the volume.
Buttons
•When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
•When listening to an iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
•When listening to an USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
1Audio Remote Controls
Some mode appears only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be operated.
Models with information display
Button
SOURCE Button
Button
(+ Button
(- Button
uuAudio SystemuAudio Remote Controls
206
Features
Allow you to operate the audio system while driving. The information is shown on
the i-MID.
Buttons
Press or to cycles through the audio
mode as follow:
FM AM SiriusXM®*USB iPod Pandora
®*Aha*Bluetooth® Audio Audio Apps*
•When listening to the radio and SeriusXM®*
1. Press ENTER to switch the display to a
preset list you stored in the preset buttons.
2. Press or to select a preset, then press
ENTER.
•When listening to an USB flash drive
1. Press ENTER to display the folder list.
2. Press or to select a folder.
3. Press ENTER to display a list of tracks in that
folder.
4. Press or to select a track, then press
ENTER.
•When listening to an iPod
1. Press ENTER to display the iPod music list.
2. Press or to select a category.
3. Press ENTER to display a list of items in the
category.
4. Press or to select an item, then press
ENTER.
1Audio Remote Controls
Some mode appears only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be operated.
Press (Hang-up/back) button to go back to the
previous command or cancel a command.
Press button to switch display.
2Switching the Display P. 210
Models with multi-information display
Button
ENTER Button
Button
(+ Button
(- Button
3
4
3
4
3
4
3
4
3
4
3
4
3
4
* Not available on all models
207
uuAudio SystemuAudio Remote Controls
Continued
Features
uPress ENTER and press or
repeatedly until a desired item you want
to listen is displayed.
•When listening to a Pandora®*
1. Press ENTER to display the station list.
2. Press or to select an item, then press
ENTER.
•When listening to a Bluetooth® audio
1. Press ENTER to display the track list.
2. Press or to select a track, then press
ENTER.
(+ (- (Volume) Bar
Press (+: To increase the volume.
Press (-: To decrease the volume.
Slide up or down also increase or decrease the
volume.
3
4
3
4
3
4
Models with display audio system
* Not available on all models
227
Features
Audio System Basic Operation
To use the audio system function, the ignition switch must be in ACCESSORY (q or
ON (w*1.
: Select to go to the home screen.
2Switching the Display P. 228
: Select to display any mode.
The available mode includes Sound, View
Radio Text, Music Search, and play modes.
: Select to go back to the previous display
when it is displayed.
: Select to change the audio/information
screen brightness.
Select once and select (- or (+ to make
an adjustment.
uEach time you select , the mode
switches among the daytime mode,
nighttime mode and off mode.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Audio System Basic Operation
Audio Menu Items
2Station List P. 256, 258
2Music Search List P. 269, 269, 279
2Scan P. 257, 259, 267, 259, 280
2Play Mode P. 270, 270, 280
Models with Display Audio
VOL
HOME
MENU
BACK
AUDIO
232
uuAudio System Basic OperationuAudio/Information Screen
Features
1. Select .
2. Select and hold an icon.
uThe screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select OK.
uThe screen will return to the home
screen.

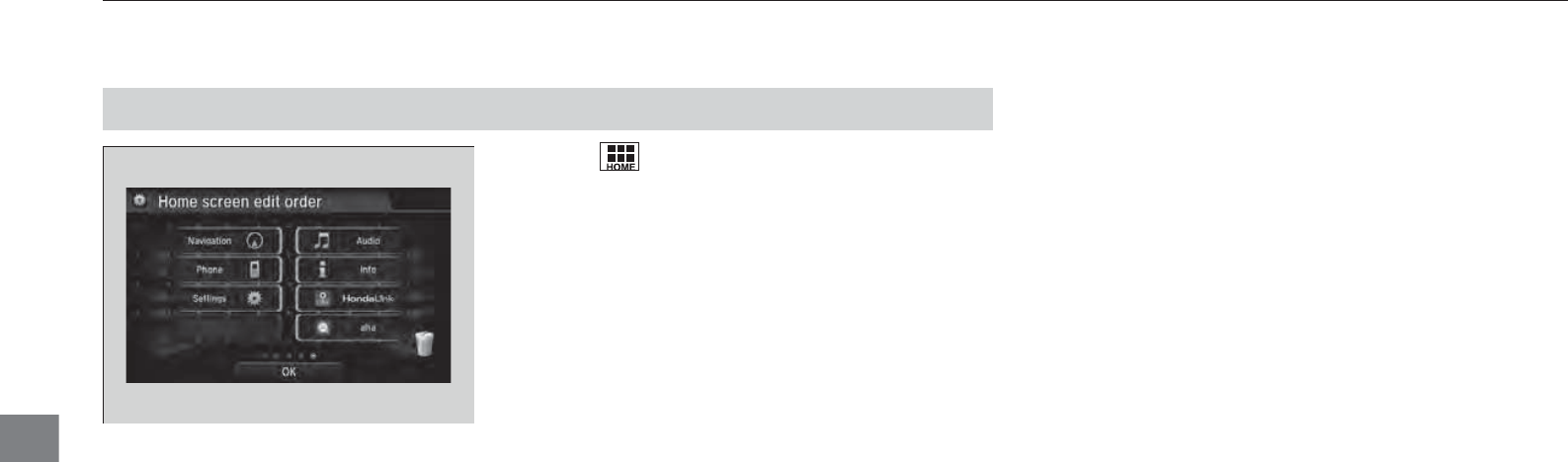

■Changing the Home Screen Icon Layout
Continued 239
uuAudio System Basic OperationuAudio/Information Screen
Features
■To change to a next screen
Selecting or , or swiping the screen left or right changes to the next screen.
■Home Screen
1Home Screen
The home screen has 5 pages (fixed). You cannot add
any more pages.
Selecting to go back to the first page of the
home screen quickly from any pages.
Swipe
Icon Icon Current page position
uuAudio System Basic OperationuAudio/Information Screen
240
Features

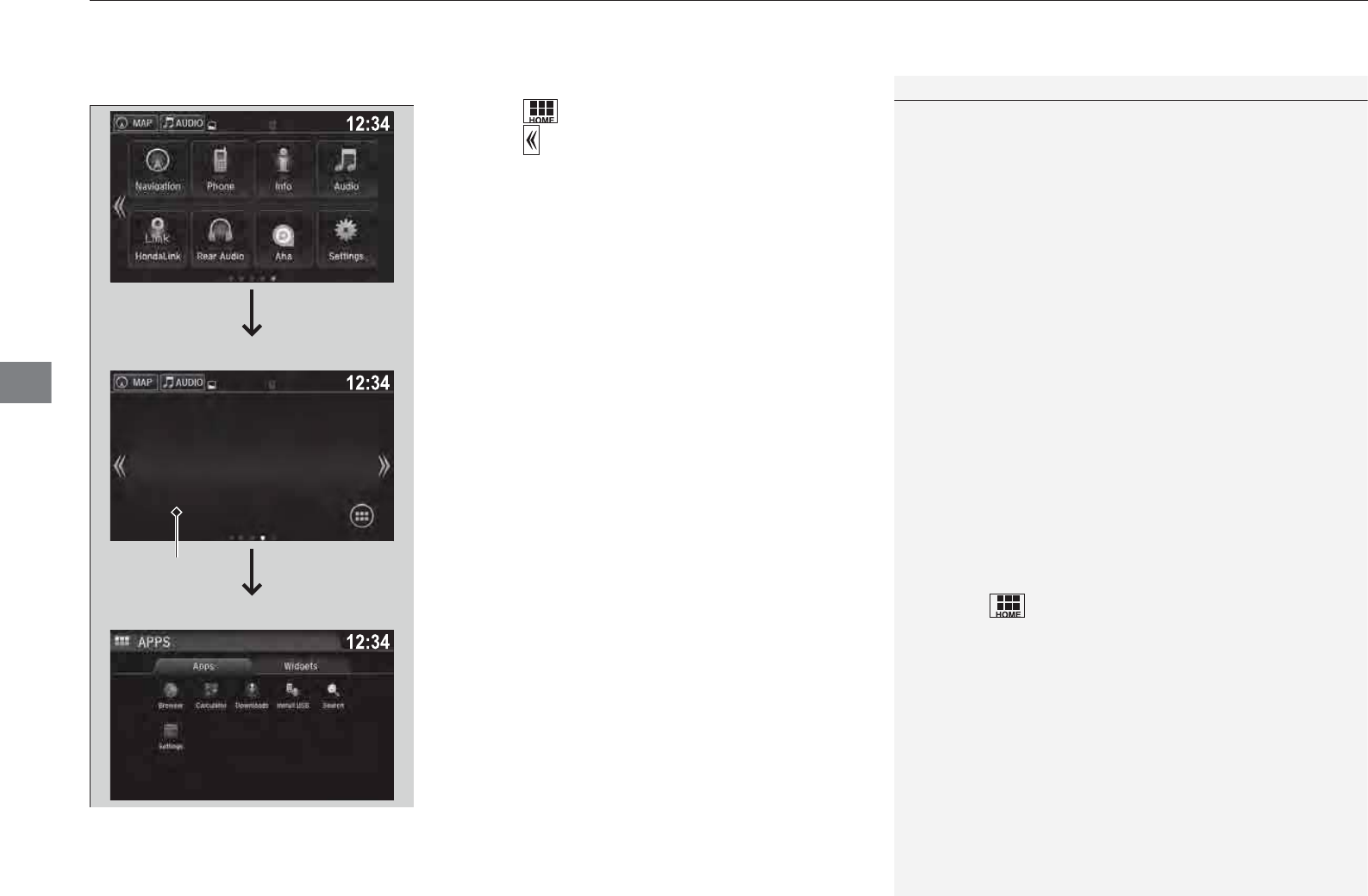

■To use apps or widgets
1. Select .
2. Select .
3. Select App List.
uThe Apps screen appears.
4. Select the app or widget you want to use.
Preinstall app list:
•Browser: Displays the web browser utilized
by smartphone and Wi-Fi connection.
•Calculator: Displays Calculator.
•Downloads: Displays the data downloaded
from the web browser and so on.
•Install USB: Installs and updates app
stored in the USB flash drive.
•Search: Displays various retrieval screens.
•Settings: Displays the Android setting
screen.
•Aha Radio:
•AndroidAuto:
•AvPlayer:
•Calendar: Displays calendar.
•CarPlay:
•Clock: Displays clock.
•DaSettings:
•DealerDiagActivity:
•EcoTripComputer:
•ETC:
•FileManager:
1To use apps or widgets
Select and hold a selected app or widget to add that
app's or widget's shortcut on the home screen.
Pre-installed apps may not start up normally. If this
occurs, you need to reset the system.
2Defaulting All the Settings P. 329
If you perform Factory Data Reset, it may reset all
the settings to their factory default.
2Defaulting All the Settings P. 329
In case those apps still do not startup normally even
after Factory Data Reset, contact your dealer.
There is a possibility that a browser is shut down in
the situation of the use. In that situation, the screen
will return to before the browser startup.
You can delete user installed apps by the following
procedure.
1. Select .
2. Select Settings.
3. Select System.
4. Select the Others tab.
5. Select Detail Information.
6. Select an App that you want to delete.
7. Select Delete.
Pre-installed apps cannot be deleted.
App List Icon
241
uuAudio System Basic OperationuAudio/Information Screen
Continued
Features
•Gallery:
•Garmin Navigator:
•Info:
•Phone:
•TaskManager:
•TelemaSettings:
•TelematicsAPP:
•WavPlayer:
247
uuAudio System Basic OperationuAudio/Information Screen
Features
You can close specific apps running in the background on the system.
1. Select and hold .
2. Select an app you want to close.
3. Select Clear.
uThe display will return to the app list.
■Closing Apps
1Closing Apps
If you leave the apps used open in the background,
some apps may stop operating properly next time
using them.
If this happens close unused apps.
To close all apps on the system, select Clear All, then
Yes.
You cannot close the apps of HondaLink®, AhaTM and
Garmin*.
* Not available on all models
248
uuAudio System Basic OperationuAdjusting the Sound
Features
Adjusting the Sound
1. Select .
2. Select Audio.
3. Select .
4. Select Sound.
Select a tab from the following choices:
BASS, MIDDLE, TREBLE, FADER, BALANCE,
SUBW, Speed Volume Compensation
(SVC), DTS Neural Surround
1Adjusting the Sound
The SVC has four modes: Off, Low, Mid, and High.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audio volume decreases.
You can also adjust the sound the following
procedure.
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sound.
uuAudio System Basic OperationuDisplay Setup
250
Features
Select the current source icon, then select an icon on the source list to switch the
audio source.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■Selecting an Audio Source
1Selecting an Audio Source
If you startup preinstalled audio apps, is
displayed on the lower right of the screen.
These preinstalled apps cannot be displayed on the
source select screen.
You can startup those audio apps from .
When you are using the AhaTM screen and you want
to select another source, select AUDIO on the upper
left of the screen. The source select screen will
appear. Select the source you want.
■Limitations for Manual Operation
Select the source icon. Source Select Screen
Source List Icons
255
uuAudio System Basic OperationuPlaying AM/FM Radio
Continued
Features

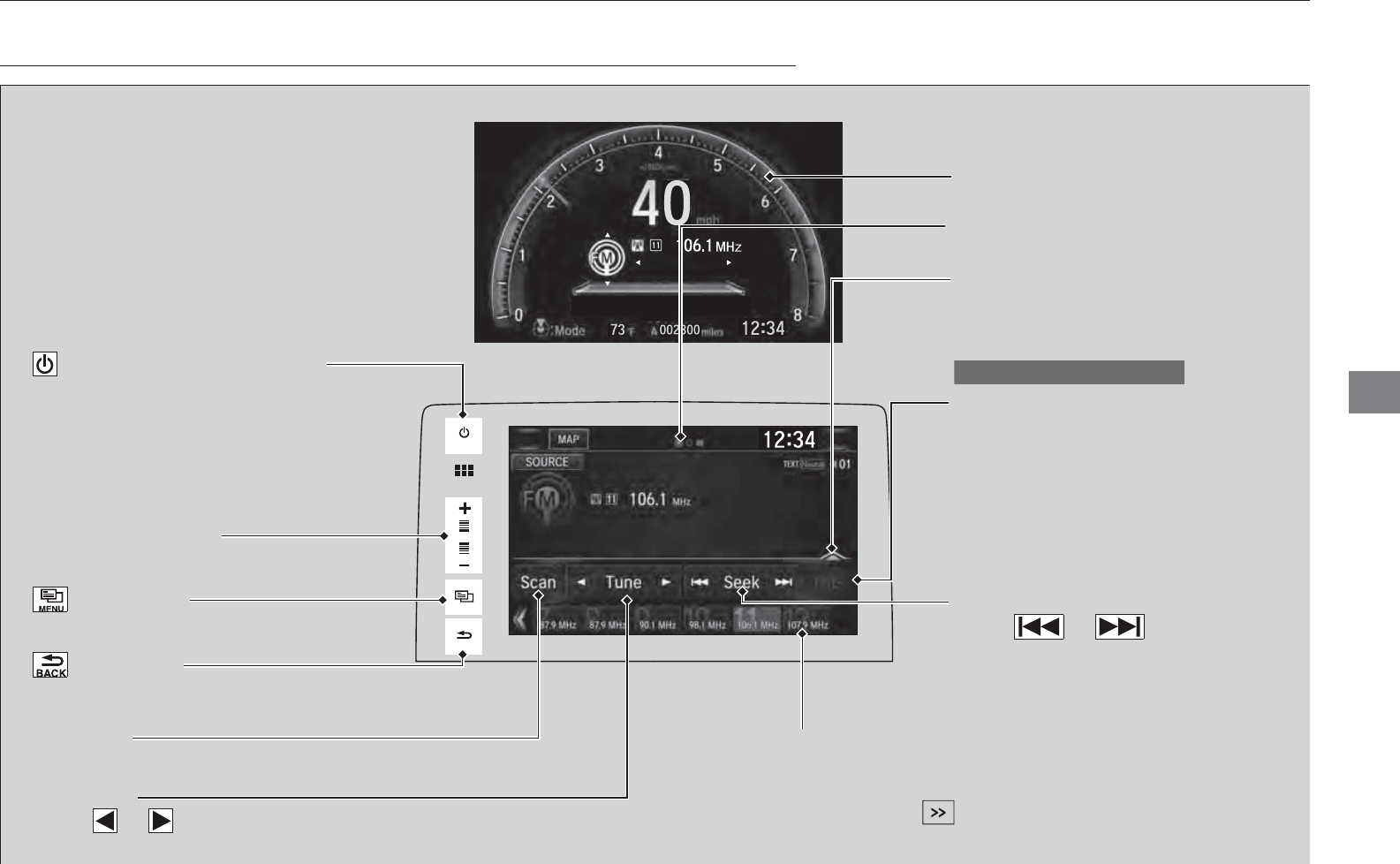

Playing AM/FM Radio

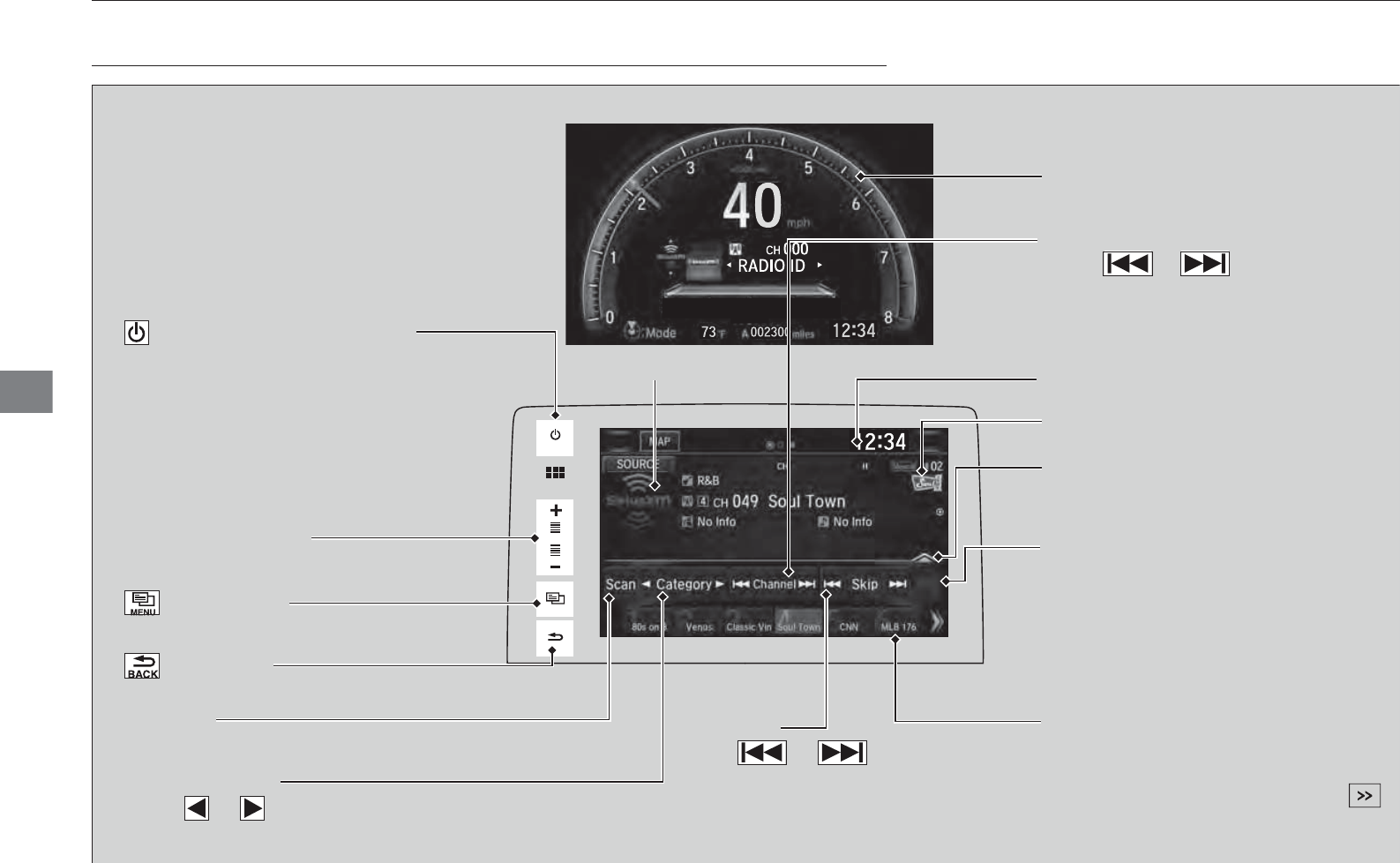

*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display.
Seek Icons
Select or to search up
and down the selected band for a
station with a strong signal.
/AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
TAG
Select to tag the song if it is played
on an HD RadioTM station. The iPod/
iPhone should be connected to the
audio system to store the tagged
song information on your device.
Models with HD RadioTM
Tune Icons
Select or to tune the radio
frequency.
Audio/Information Screen
Scan Icon
Select to scan each station with a strong signal.
Preset Icons
Tune the radio frequency for preset memory.
Select and hold the preset icon to store that
station. Select to display preset 7 onwards.
Multi-Information Display
uuAudio System Basic OperationuPlaying AM/FM Radio
256
Features
To store a station:
1. Tune to the selected station.
2. Select and hold the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
Lists the strongest stations on the selected band.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select the station.
■Manual update
Updates your available station list at any time.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select Refresh.
■Preset Memory
■Station List
1Playing AM/FM Radio
If the audio system has the memory capacity, the
tagged song information can be stored in it.
Models with HD RadioTM
1Preset Memory
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2Audio Remote Controls P. 205
You can store 6 AM stations and 12 FM stations into
preset memory.
HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD RadioTM and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
3
4
257
uuAudio System Basic OperationuPlaying AM/FM Radio
Continued
Features
Samples each of the strongest stations on the selected band for 10 seconds. To turn
off scan, select Cancel or .
If your iPod/iPhone is connected to the USB port, you can store the TAG information.
If the iPod/iPhone is not connected to the audio system, the information is stored in
the audio system temporarily, then once the device is connected to the system, data
is transferred to the iPod/iPhone.
To store the TAG information to the iPod/iPhone or the audio system, select TAG.
Displays the TAG information saved to the audio system.
1. Select .
2. Select Song Tag List.
■Scan
■Tag Song to Device
■Tagged Song List
Models with HD RadioTM
Models with HD RadioTM
uuAudio System Basic OperationuPlaying AM/FM Radio
258
Features
Displays the subchannel list when an HD RadioTM station is selected while listening to
an FM station.
1. Select .
2. Select HD Subchannel.
3. Select the channel number.
Provides text data information related to your selected RDS-capable FM station.
■To find an RDS station from Station List
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select the station.
■Manual update
Updates your available station list at any time.
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select Refresh.
■HD Subchannel
■Radio Data System (RDS)
Models with HD RadioTM
1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.
259
uuAudio System Basic OperationuPlaying AM/FM Radio
Features
■Radio text
Displays the radio text information of the selected RDS station.
1. Select .
2. Select View Radio Text.
■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
To turn off scan, select Cancel or .
260
uuAudio System Basic OperationuPlaying SiriusXM® Radio
Features
Playing SiriusXM® Radio
*1:Some or all of the lists may not be displayed.
VOL
HOME
MENU
BACK
AUDIO
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display.
Channel Icons
Select or to the previous
or next channel.
Select and hold to rapidly skip 10
channels at a time.
/AUDIO (Power/Audio) Icon
Press to turn the audio system
on and off.
Open/Close Icon*1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
TAG
Select to tag a song played at a
SiriusXM® Radio channel. The iPod/
iPhone should be connected to the
audio system to store the tagged
song information on your device.
Category Icons
Select or to display and select a
SiriusXM® Radio category.
Audio/Information Screen
Scan Icon
Select to scan each channel.
Preset Icons
Tune the radio frequency for preset
memory. Select and hold the preset
icon to store that station. Select
to display preset 7 onwards.
Skip Icons
Select or to change
section in the channel.
Select and hold to move rapidly
within the section.
Multi-Information Display
Album Art
Station Art
Continued 261
uuAudio System Basic OperationuPlaying SiriusXM® Radio
Features

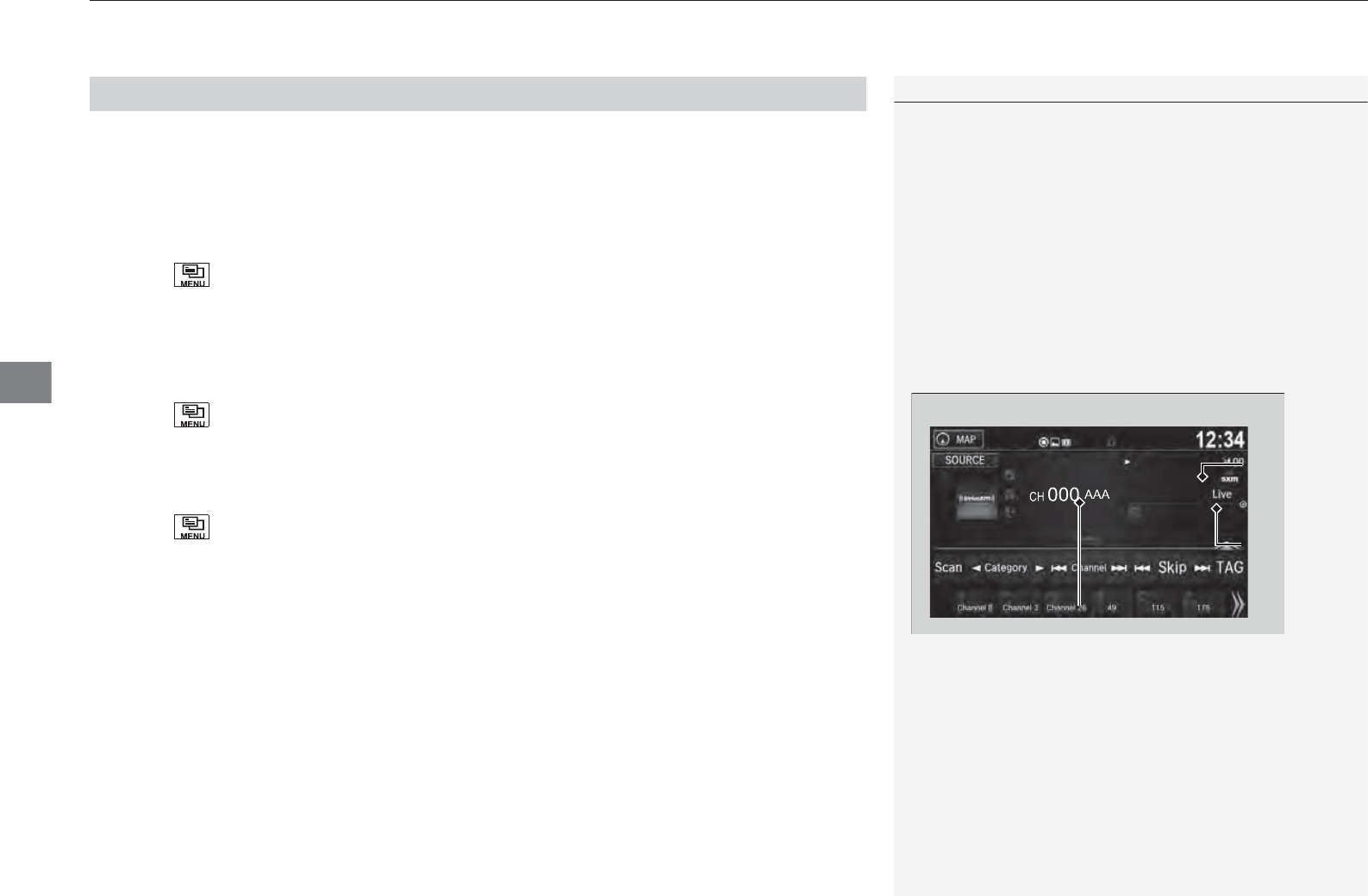

1. Select .
2. Select Tune Mode.
3. Select Channel Mode or Category Mode.
■To Change the Tune Mode
1Playing SiriusXM® Radio
In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM® Radio does
not broadcast all the data fields (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the screen.
2Audio Remote Controls P. 205
Tune Start:
When you change to a preset channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio settings screen.
2Customized Features P. 302
uuAudio System Basic OperationuPlaying SiriusXM® Radio
262
Features
To store a channel:
1. Tune to the selected channel.
2. Select to hold the preset number for the station you want to store.
3. Select Replace.
You can also store a channel by the following procedure.
1. Tune to the selected channel.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
■Multi-channel preset (for music channels only)
You can store up to four of your preferred music channels per preset.
1. Tune a station.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number you
want to add a music channel.
uA message appears if there are no
available presets.
5. Select Combine.
■Preset Memory
1Playing SiriusXM® Radio
You can store 12 SiriusXM® channels into the preset
memory.
Continued 263
uuAudio System Basic OperationuPlaying SiriusXM® Radio
Features

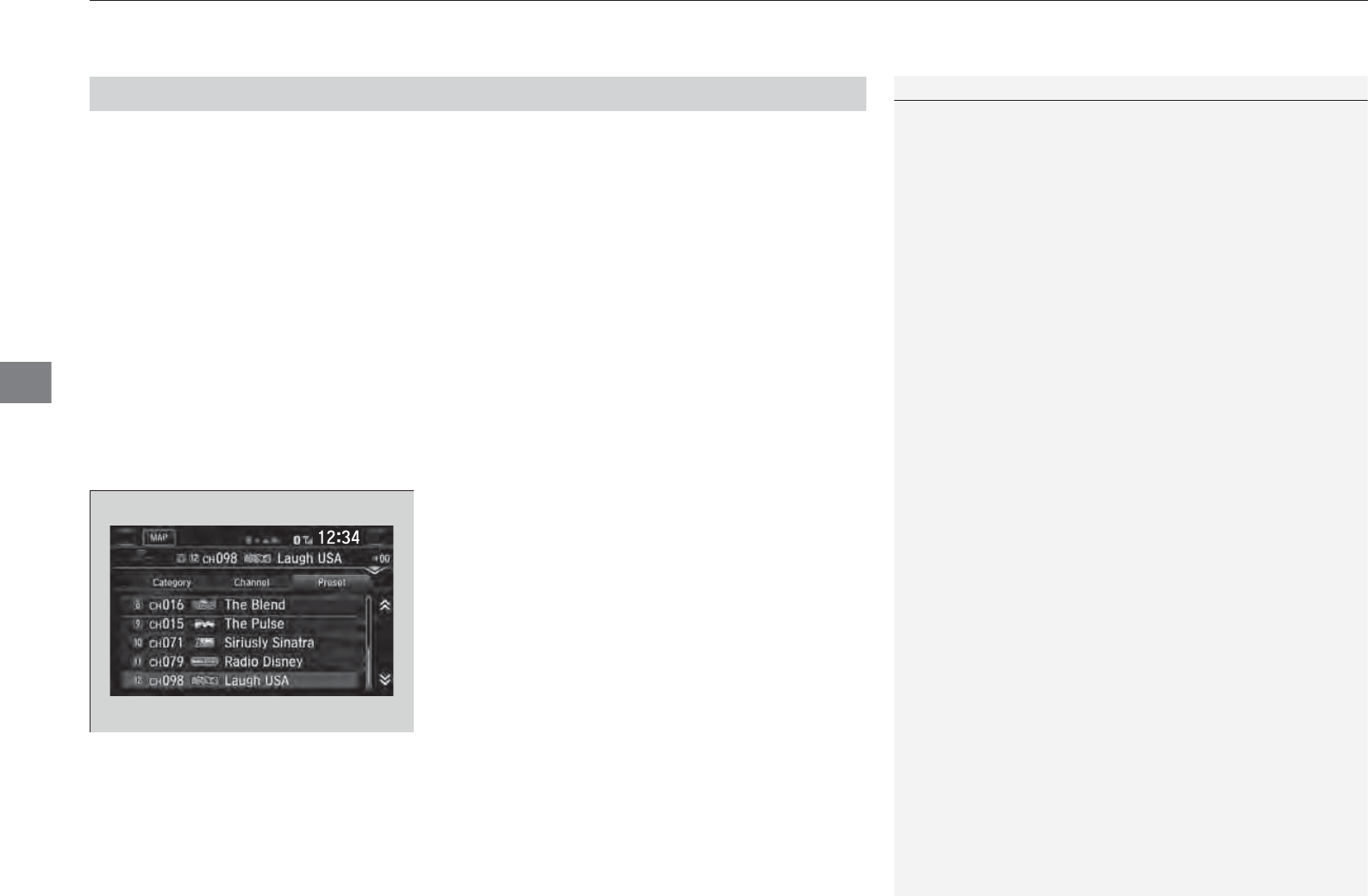

Suggested channel listing received from SiriusXM® can be displayed and selected.
1. Select the open/close icon to display a channel list.
2. Select the Channel List tab.
3. Select the featured channel list title you want to listen to.
uThe selected channel list of the title is displayed.
4. Select the channel.
■Listening to Featured Channels
1Listening to Featured Channels
Up to three featured channels by SiriusXM® can be
displayed.
Featured channel lists are at the top of the channel
list.
uuAudio System Basic OperationuPlaying SiriusXM® Radio
264
Features
The system can record up to the last 60 minutes broadcast of your currently tuned
channel as well as the last 30 minutes broadcast of preset channels, starting from
the moment you turn the vehicle on. If you tuned to preset channel, the system
records up to 60 minutes of a broadcast instead of up to 30 minutes. You can
rewind and replay the last 30 or 60 minutes of a broadcast.
1. Select .
2. Select Playback Position.
3. Move the gauge to the position you want to replay.
To play or pause on playback mode:
1. Select .
2. Select Play/Pause.
■Returning to real-time broadcast
1. Select .
2. Select Play Live Broadcast.
■Replay Function
1Replay Function
The system starts storing broadcast in memory when
the power mode is turned ON. You can go back to
the program from that point.
You can no longer replay any program once the
power mode is turned off as it erases memory.
You can check how long the program has been
stored in memory from the audio/information screen.
After 30 or 60 minutes of recording the system will
automatically start deleting the oldest data.
(A): Shows how much time the replayed segment is
behind the real-time broadcast
(B): Replayed segment
(C): Length stored in memory
Audio/Information Screen
(C)
(B)
(A)
Continued 265
uuAudio System Basic OperationuPlaying SiriusXM® Radio
Features
While listening to other channel, you can receive sports alerts such as scores from
your favorite teams.

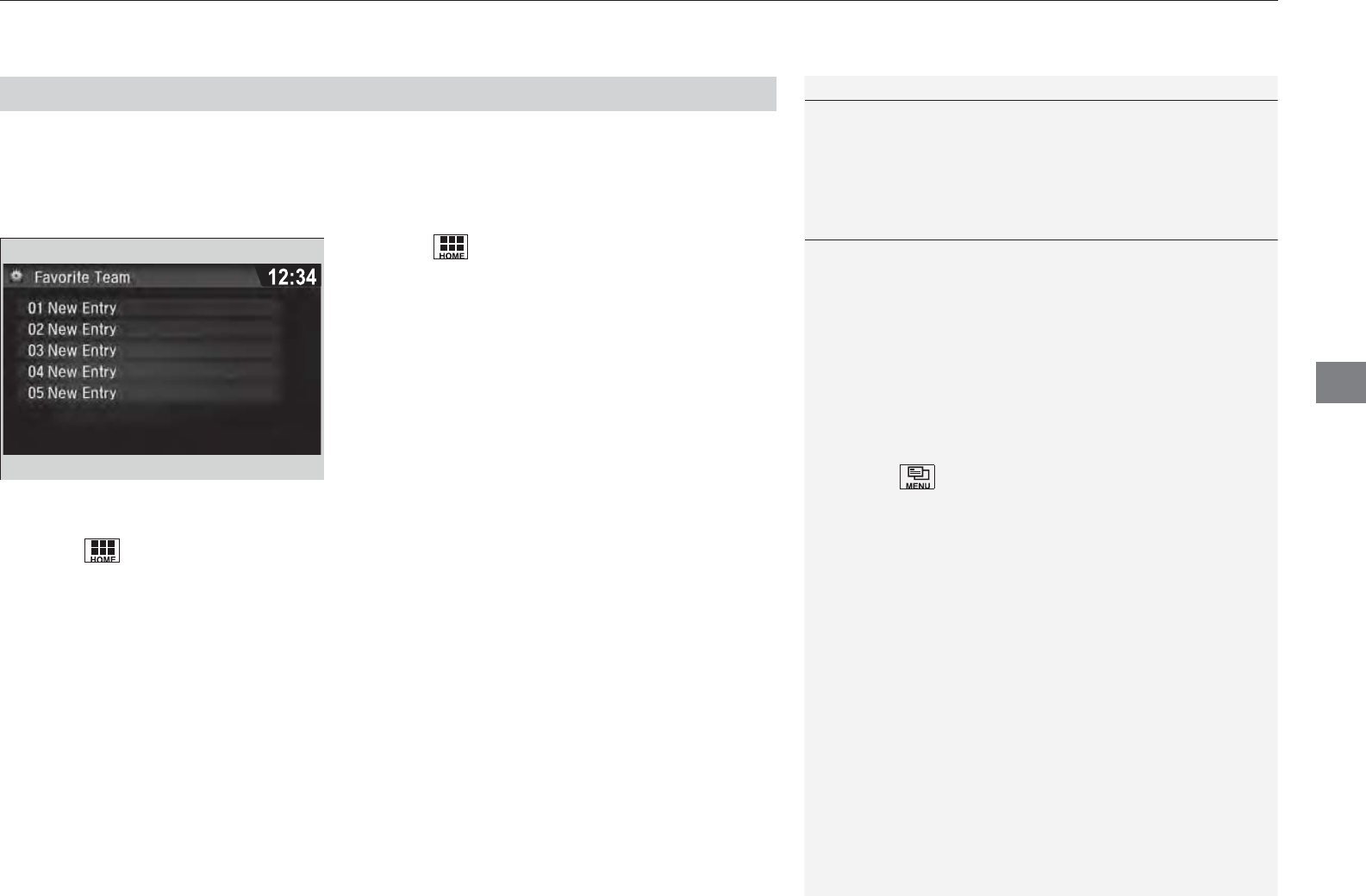

■To set up a favorite team
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sports Flash Setup.
5. Select Favorite Team.
6. Select a team.
■To set up a alert message
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sports Flash Setup.
5. Select Interrupt.
6. Select On(one time) or On(continue).
■Live Sports Alert
1Live Sports Alert
The sports alert function at SiriusXM® mode only.
1To set up a favorite team
Sports alerts cut in only when SiriusXM® mode is on.
Selecting On(one time) from the customize settings
disables the alert feature next time you turn the
power mode to ON.
2Customized Features P. 302
You can also set up a favorite team by the following
procedure.
1. Select Audio.
2. Select .
3. Select Setting.
4. Select Sports Flash Setup.
uuAudio System Basic OperationuPlaying SiriusXM® Radio
266
Features
■To set up a alert beep
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sports Flash Setup.
5. Select Interrupt Beep.
6. Select On.
■Traffic and Weather Information
You can receive traffic and weather information.
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Traffic & Weather Setup.
5. Select the region.
uWhen you do not want to receive the information, select Unset.
1To set up a alert beep
You can also set up a alert beep by the following
procedure.
1. Select Audio.
2. Select .
3. Select Settings.
4. Select Sports Flash Setup.
1Traffic and Weather Information
The traffic and weather information function at
SiriusXM® mode only.
You can also set up the traffic and weather
information by the following procedure.
1. Select Audio.
2. Select .
3. Select Settings.
4. Select Sports Flash Setup.
267
uuAudio System Basic OperationuPlaying SiriusXM® Radio
Features
Sample each channel on the selected mode for 10 seconds.
1. Select Scan.
2. Select Scan Channels.
uYou can select the desired channel by songs using Scan Songs in Presets.
To turn off scan, select Cancel Scan.
If your iPhone/iPod is connected to the USB port, you can store the TAG information.
If the iPod/iPhone is not connected to the audio system, the information is stored in
the audio system temporarily. Once the device is connected to the system, data is
transferred to the iPod/iPhone.
To store the TAG information to the iPod/iPhone, or the audio system, select TAG.
Displays the TAG information saved to the audio system.
1. Select .
2. Select Tagged Song List.
■Scan
■Tag Song to Device
■Tagged Song List
1Scan
The “Scan Songs in Presets” function is based on
TuneScanTM technology of SiriusXM®.
The “Featured Channels” function is based on
Featured FavoritesTM technology of SiriusXM®.
TuneScanTM and Featured FavoritesTM are registered
trademarks of SiriusXM® Radio, Inc.
275
uuAudio System Basic OperationuPlaying Pandora®*
Continued
Features
Playing Pandora®*
Your audio system allows you to listen to music from the Pandora® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port.
2Phone Setup P. 336
2USB Port(s) P. 203
*1:Some or all of the lists may not be displayed.
U.S. models
1Playing Pandora®*
Pandora®, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com, or call
1-888-528-7876.
To use this service in your vehicle, the Pandora® app
must first be installed on your phone. Visit
www.pandora.com. for more information.
Pandora® is free, personalized radio that plays music
and comedy you’ll love. Just start with the name of
one of your favorite artists, songs, comedians or
composers and Pandora® will create a custom station
that plays similar tracks. Pandora® also features
hundreds of genre stations ranging from Dubstep to
Smooth Jazz to Power Workout.
If you cannot operate Pandora® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora® mode on your audio
system is selected.
Audio/Information Screen
Cover Art
VOL (Volume) Icons
Select to adjust the
volume.
(Back) Icon
Select to go back to the
previous display.
/AUDIO (Power/
Audio) Icon
Select to turn the audio
system on and off.
(Menu) Icon
Select to display
the menu items.
Play/Pause Icon
Select to resume or play a song.
Station Up/Down Icons
Select to change a station.
Skip Icon
Select to skip a song.
Like/Dislike Icons
Select to evaluate a song.
Multi-Information Display
* Not available on all models
uuAudio System Basic OperationuPlaying Pandora®*
276
Features
You can operate some of the Pandora® menu items from your vehicle’s audio
system. The available items are:
•Bookmark
•Station List
•New Station
•Sound
•Setting
■Operating a menu item
1. Select .
2. Select an item.
■Pandora® Menu
1Pandora® Menu
Available operating functions vary on software
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2Pandora®* P. 297
Pandora® may limit the total number of skips allowed
on the service. If you dislike a track after the skip limit
has been reached, your feedback will be saved but
the current track will continue to play.
To change stations, activate the Pandora® menu,
select Station List, and then select a new station. It
also changes stations on the main Pandora® screen.
* Not available on all models
277
uuAudio System Basic OperationuPlaying AhaTM
Features
Playing AhaTM
AhaTM can be displayed and operated on the audio/information screen when your
smartphone is connected to the audio system by Wi-Fi or through Bluetooth® with
the HondaLink® app downloaded to your smartphone.
2Wi-Fi Connection P. 288
2HondaLink® P. 283
1Playing AhaTM
AhaTM by Harman is a cloud-based service that
organizes your favorite web content into live radio
stations. You can access podcasts, internet radio,
location-based services, and audio updates from
social media sites.
Available operating functions vary on software
versions. Some functions may not be available on the
vehicle’s audio system.
The menu items vary depending on the station you
selected.
You must have a previously set up AhaTM account
prior to using the service in your vehicle. Visit
www.aharadio.com for more information.
You want to select another source, select AUDIO on
the upper left of the screen. The source select screen
will appear. Select the source you want.
Audio/Information Screen
VOL (Volume) Icons
Select to adjust the
volume.
(Back) Icon
Select to go back to the
previous display.
/AUDIO (Power/
Audio) Icon
Select to turn the audio
system on and off.
Multi-Information Display
278
uuAudio System Basic OperationuPlaying a USB Flash Drive
Features
Playing a USB Flash Drive
Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA, or AAC*1 format.
Connect your USB flash drive to the USB port, then select the USB mode.
2USB Port(s) P. 203
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed.
VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous
display.
Track Icons
Select or to change files.
Select and hold to move rapidly
within a track.
/AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon*2
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Folder Icons
Select to skip to the next folder, and to skip
to the beginning of the previous folder.

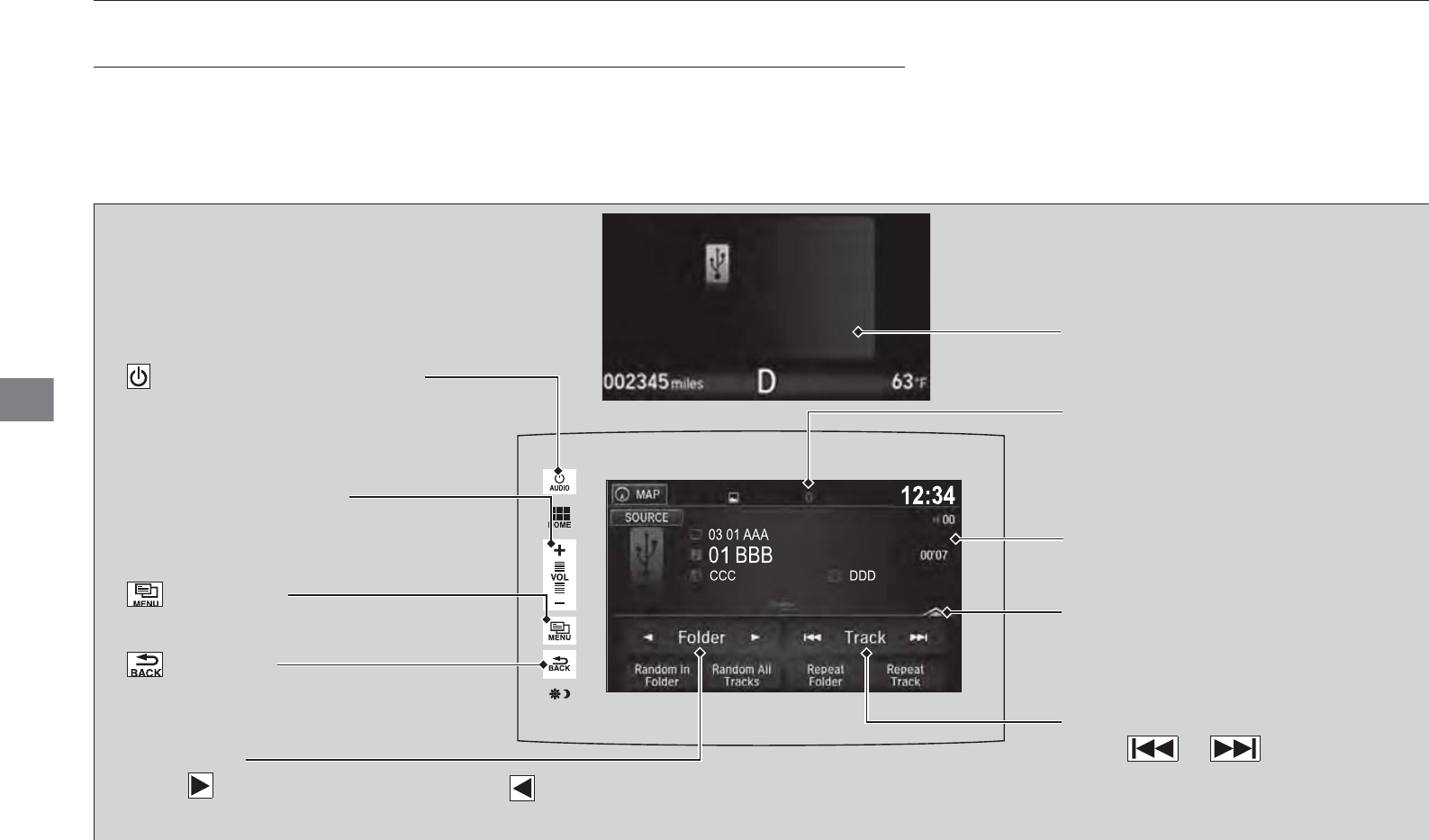

Audio/Information Screen
USB Indicator
Appears when a USB flash drive is
connected.
Multi-Information Display
Continued 279
uuAudio System Basic OperationuPlaying a USB Flash Drive
Features

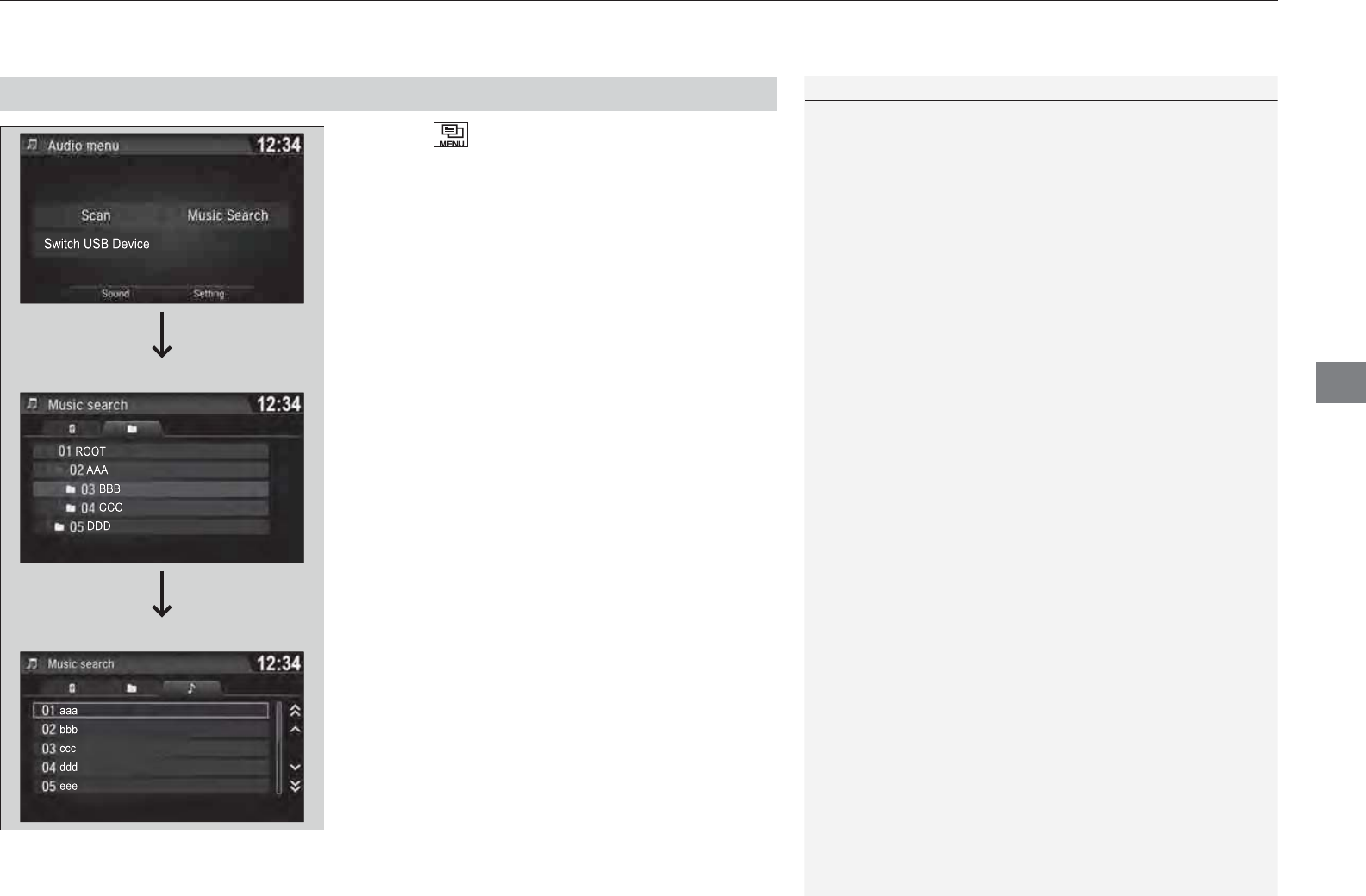

1. Select and select Music Search.
2. Select Music.
3. Select a folder.
4. Select a track.
■How to Select a File from the Music Search List
1Playing a USB Flash Drive
Use the recommended USB flash drives.
2General Information on the Audio System
P. 299
WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2iPod/USB Flash Drive P. 296
Select Switch USB Device in the Audio menu
screen to switch to another USB device.
Folder Selection
Track Selection
uuAudio System Basic OperationuPlaying a USB Flash Drive
280
Features

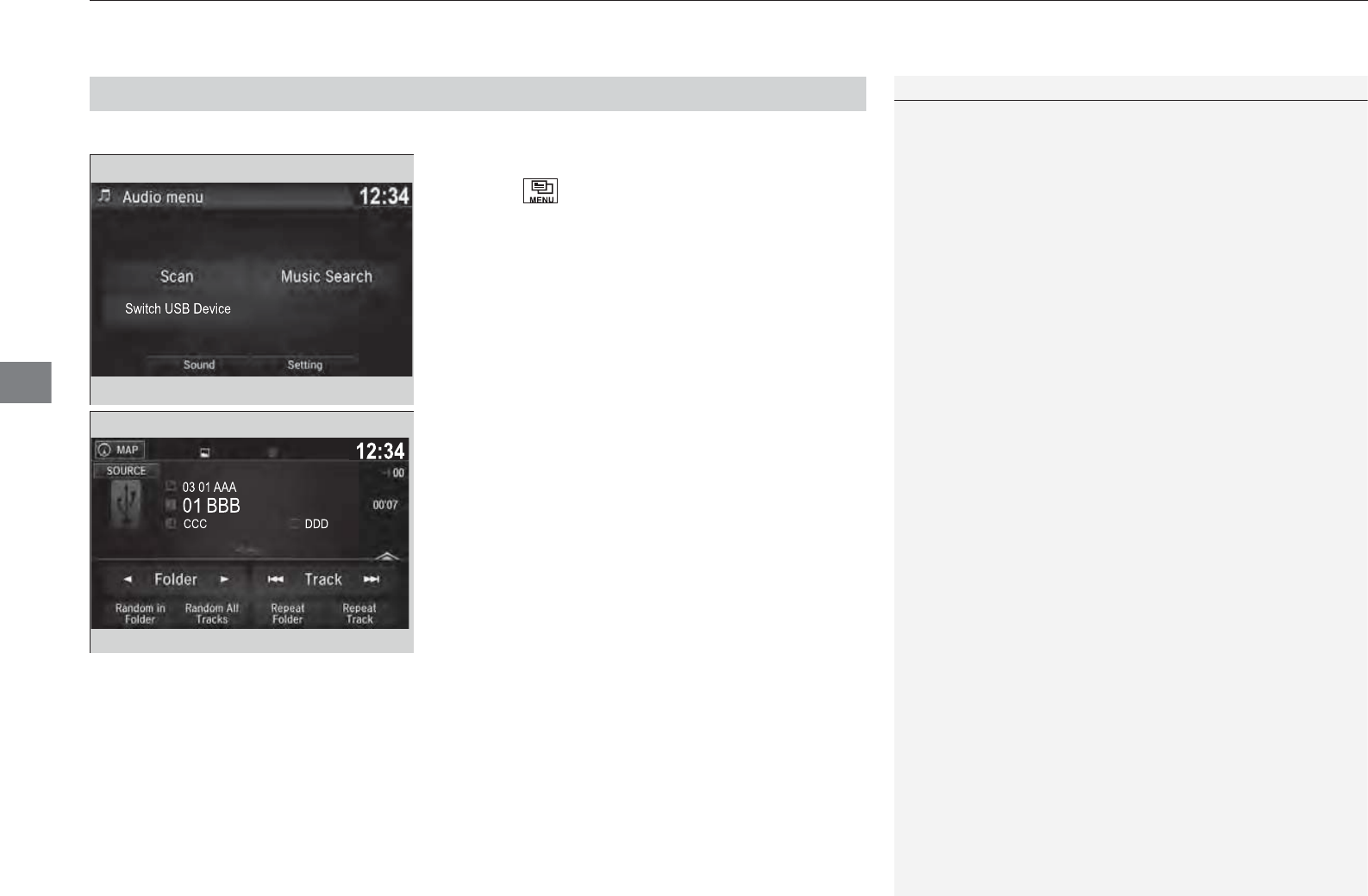

You can select scan, repeat, and random modes when playing a file.
■Scan
1. Select .
2. Select Scan.
3. Select a play mode.
■Random/Repeat
Select a play mode.
■To turn off a play mode
Select the mode you want to turn off.
■How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders: Provides 10-second sampling of the
first file in each of the main folders.
Scan Tracks: Provides 10-second sampling of all files
in the current folder.
Random/Repeat
Random in Folder: Plays all files in the current
folder in random order.
Random All Tracks: Plays all files in random order.
Repeat Folder: Repeats all files in the current folder.
Repeat Track: Repeats the current file.
281
uuAudio System Basic OperationuPlaying Bluetooth® Audio
Continued
Features
Playing Bluetooth® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system.
2Phone Setup P. 361
*1:Depending on the Bluetooth® device you connect, some or all of the lists may not
be displayed.
1Playing Bluetooth® Audio
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible.
To check if your phone is compatible, visit
http://www.handsfreelink.com/Honda/.
It may be illegal to perform some data device
functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.
The connected phone for Bluetooth® Audio can be
different.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.

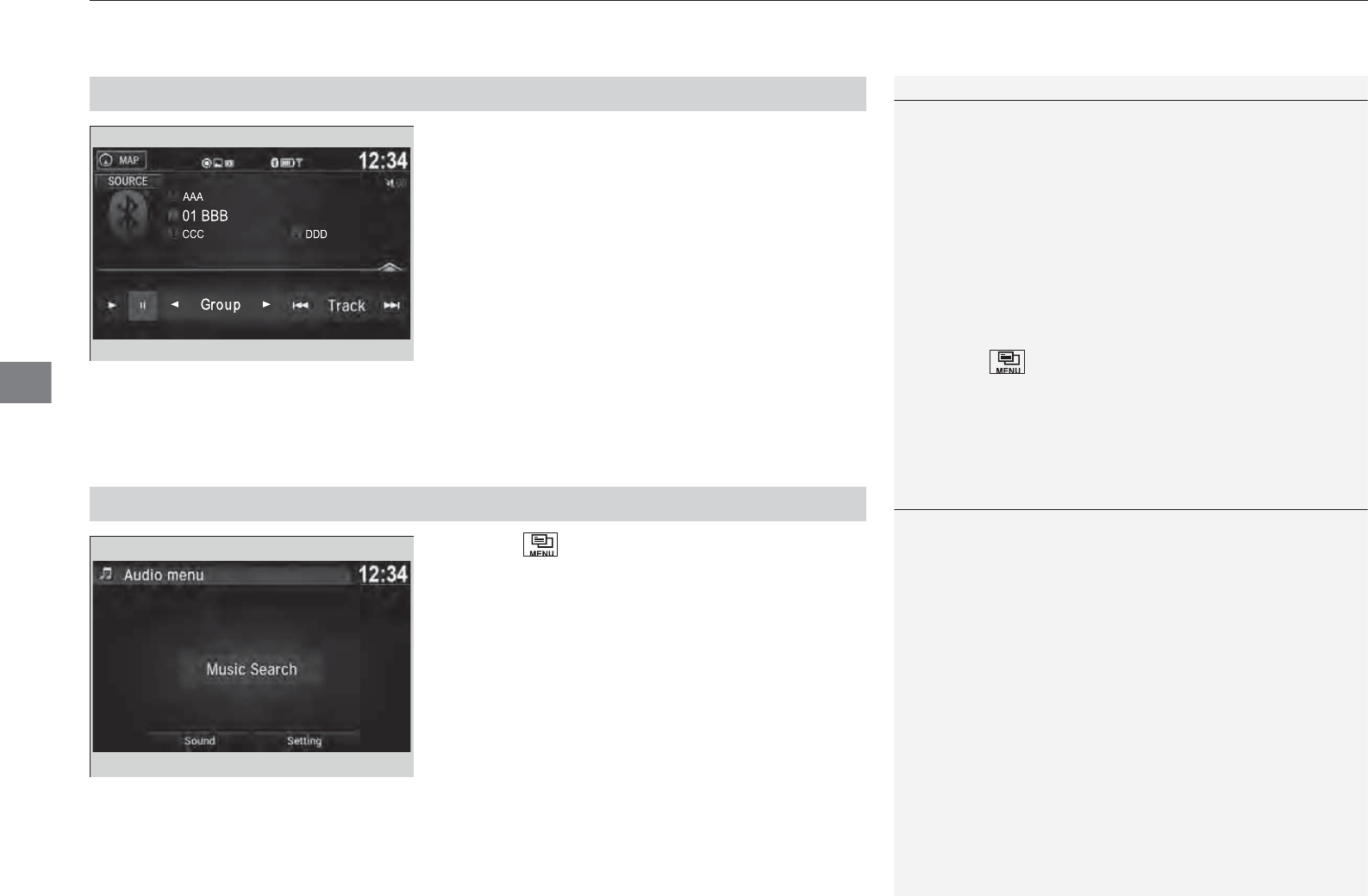

Audio/Information
Screen
VOL (Volume)
Icons
Select to adjust
the volume.
(Back) Icon
Select to go back to
the previous
display.
/AUDIO (Power/
Audio) Icon
Select to turn the
audio system on
and off.
(Menu) Icon
Select to display the
menu items.
Group Icons
Select or to
change group.
Pause Icon
Play Icon
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
Track Icons
Select or
to change tracks.
Open/Close Icon*1
Displays/hides the
detailed
information.
Multi-Information
Display
uuAudio System Basic OperationuPlaying Bluetooth® Audio
282
Features
1. Make sure that your phone is paired and
connected to the system.
2Phone Setup P. 361
2. Select the Bluetooth® Audio mode.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth® Audio, may already be
connected.
■To pause or resume a file
Select the play icon or pause icon.
1. Select .
2. Select Music Search.
3. Select a search category (e.g., Albums).
4. Select an item.
uThe selection begins playing.
■To Play Bluetooth® Audio Files
1To Play Bluetooth® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.
Switching to another mode pauses the music playing
from your phone.
You can change the connected phone in the
Bluetooth® settings on the Audio menu screen by
the following procedure.
1. Select .
2. Select Settings.
■Searching for Music
1Searching for Music
Depending on the Bluetooth® device you connect,
some or all of the lists may not be displayed.
288
uuAudio System Basic OperationuWi-Fi Connection
Features
Wi-Fi Connection
You can connect the display audio to the Internet using Wi-Fi and browse websites
or use online services on the audio/information screen. If your phone has cell
hotspot capabilities, the system can be tethered to the phone. Use the following
steps to setup.
1. Select .
2. Select Settings.
3. Select Bluetooth/Wi-Fi.
4. Select the Wi-Fi tab.
5. Select Wi-Fi On/Off Status, then On.
6. Select Wi-Fi Network List.
uMake sure your phone’s Wi-Fi setting is
in access point (tethering) mode.
uSelect the phone you want to connect to
the system.
uIf you do not find the phone you want to
connect in the list, select Scan.
7. Select Connect.
uEnter a password for your phone, and
select OK.
uWhen the connection is successful, the
icon is displayed on the list.
8. Select to go back to the home screen.
■Wi-Fi mode (setting for the first time)
1Wi-Fi mode (setting for the first time)
You cannot go through the setting procedure while a
vehicle is moving. Park in a safe place to setup the
Wi-Fi connection.
Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.
Check your phone manual to find out if the phone
has Wi-Fi connectivity.
You can confirm whether Wi-Fi connection is on or
off with the icon on Wi-Fi Network List.
Transmission speed and others will not be displayed
on this screen.
289
uuAudio System Basic OperationuWi-Fi Connection
Features
Make sure your phone's Wi-Fi setting is in access point (tethering) mode.
■Wi-Fi mode (after the initial setting has been made)
1Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi-
Fi connection again after you boot your phone.
iPhone users
Continued 361
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
■To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone.
2. Select Yes.
3. Make sure your phone is search or
discoverable mode, then select Continue.
uHFL automatically searches for a
Bluetooth® device.
4. Select your phone when it appears on the
list.
uIf your phone does not appear, you can
select Refresh to search again.
uIf your phone still does not appear, select
Phone Not Found and search for
Bluetooth® devices using your phone.
From your phone, search for
HandsFreeLink.
5. The system gives you a pairing code on the
audio/information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
■Phone Setup
1Phone Setup
Your Bluetooth-compatible phone must be paired to
the system before you can make and receive hands-
free calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone's battery may drain faster when it is
paired to the system.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
uuBluetooth® HandsFreeLink®*uHFL Menus
362
Features
■To change the currently paired phone
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Bluetooth Device List.
3. Select a phone to connect.
uHFL disconnects the connected phone
and starts searching for another paired
phone.
4. Select Connect Phone/Audio, Connect
Phone, or Connect Audio.

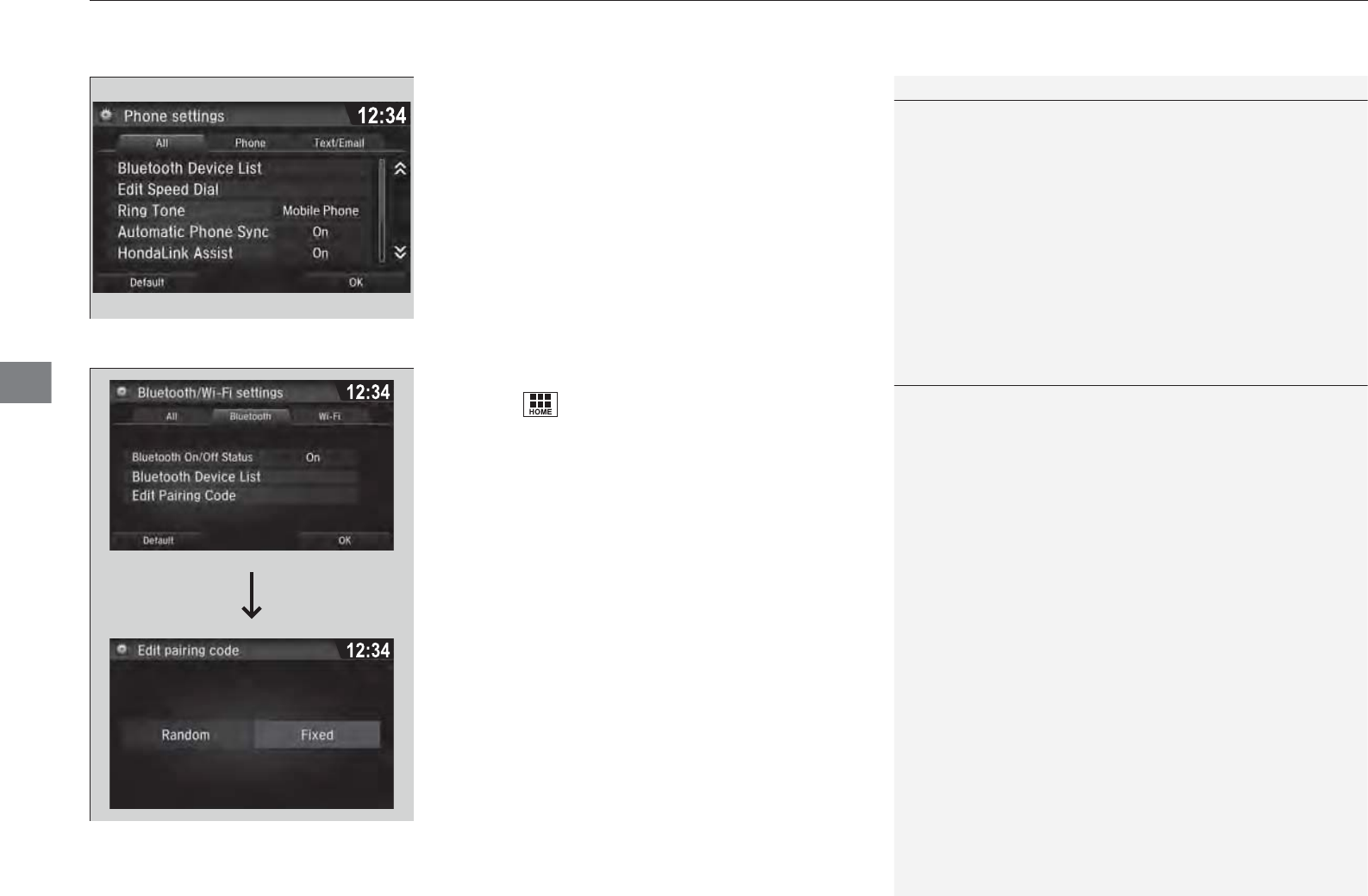

■To change the pairing code setting
1. Select .
2. Select Settings.
3. Select Bluetooth/Wi-Fi.
4. Select the Bluetooth tab.
5. Select Edit Pairing Code.
6. Select Random or Fixed.
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HFL will inform you that the
original phone is connected again.
To pair other phones, select Add Bluetooth Device
from the Bluetooth device list screen.
1To change the pairing code setting
The default pairing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pairing code each time you
pair a phone, select Random.
363
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features
■To delete a paired phone
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Bluetooth Device List.
3. Select a phone you want to delete.
4. Select Delete.
5. A confirmation message appears on the
screen. Select Yes.
uuBluetooth® HandsFreeLink®*uHFL Menus
364
Features

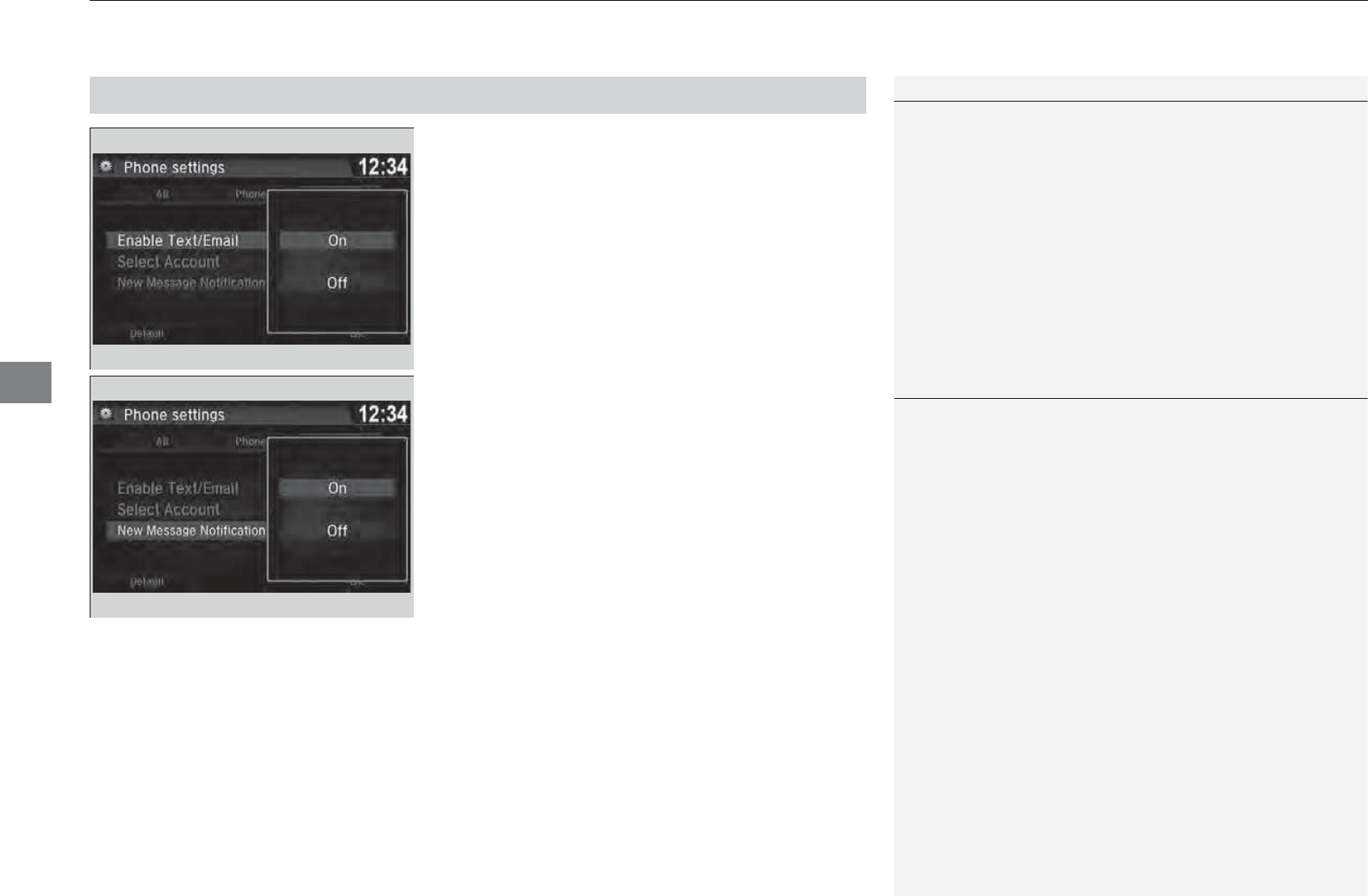

■To turn on or off the text/e-mail
function
1. Go to the Phone settings screen.
2Phone settings screen P. 356
2. Select the Text/Email tab, then Enable
Text/Email.
uA pop-up menu appears on the screen.
3. Select On or Off.
■To turn on or off the text/e-mail notice
1. Go to the Phone settings screen.
2Phone settings screen P. 356
2. Select the Text/Email tab, then New
Message Notification.
uA pop-up menu appears on the screen.
3. Select On or Off.
■To Set Up a Text Message/E-mail Options
1To Set Up a Text Message/E-mail Options
To use the text message/e-mail function, it may be
necessary to set up on your phone.
1To turn on or off the text/e-mail notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without notification.
Continued 365
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
You can change the ring tone setting.
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Ring Tone.
3. Select Fixed or Mobile Phone.
■Ring Tone
1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone: The ring tone stored in the
connected cell phone sounds from the speakers.
uuBluetooth® HandsFreeLink®*uHFL Menus
366
Features
■When Automatic Phone Sync is set to
On:
When your phone is paired, the contents of its
phonebook and call history are automatically
imported to the system.
■Changing the Automatic Phone Sync
setting
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Automatic Phone Sync.
3. Select On or Off.
■Automatic Import of Cellular Phonebook and Call History
1Automatic Import of Cellular Phonebook and Call History
When you select a name from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
On some phones, it may not be possible to import the
category icons to the system.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Home
Mobile
Work
Pager
Fax
Car
Other
Voice
Pref
Blank
Continued 367
uuBluetooth® HandsFreeLink®*uHFL Menus
Features

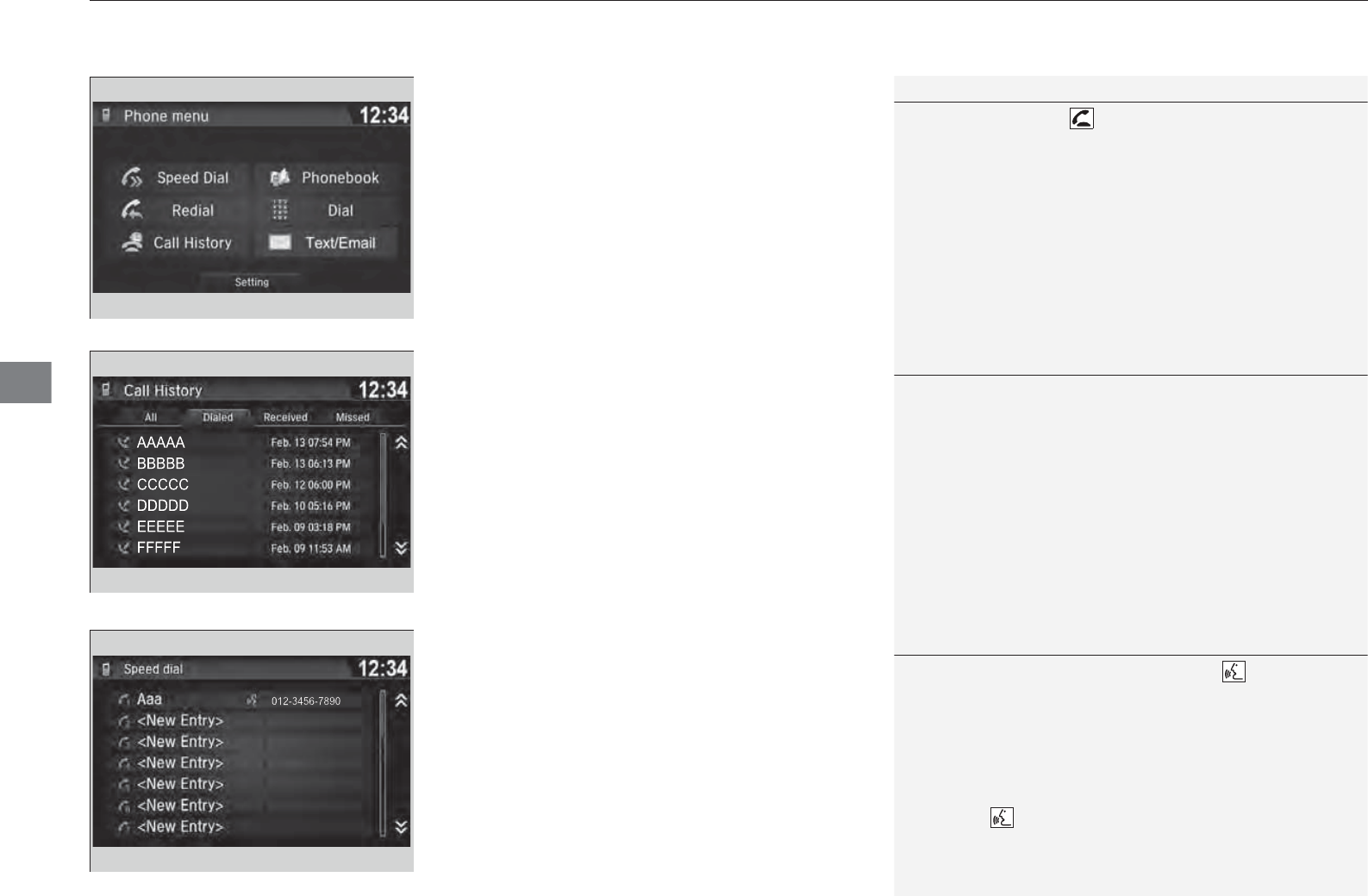

Up to 20 speed dial numbers can be stored per phone.
To store a speed dial number:
1. Go to the Phone menu screen.
2Phone menu screen P. 359
2. Select Speed Dial.
3. Select New Entry.
From Import from Call History:
uSelect a number from the call history.
From Manual Input:
uInput the number manually.
From Import from Phonebook:
uSelect a number from the connected cell
phone’s imported phonebook.
4. When the speed dial is successfully stored,
you are asked to create a voice tag for the
number. Select Yes or No.
5. Select Record to store a voice tag for the
speed dial entry.
uUsing the button, follow the prompts
to store a voice tag for the speed dial
entry.
■Speed Dial
1Speed Dial
When a voice tag is stored, press the button to
call the number using the voice tag. Say the voice tag
name.
uuBluetooth® HandsFreeLink®*uHFL Menus
368
Features

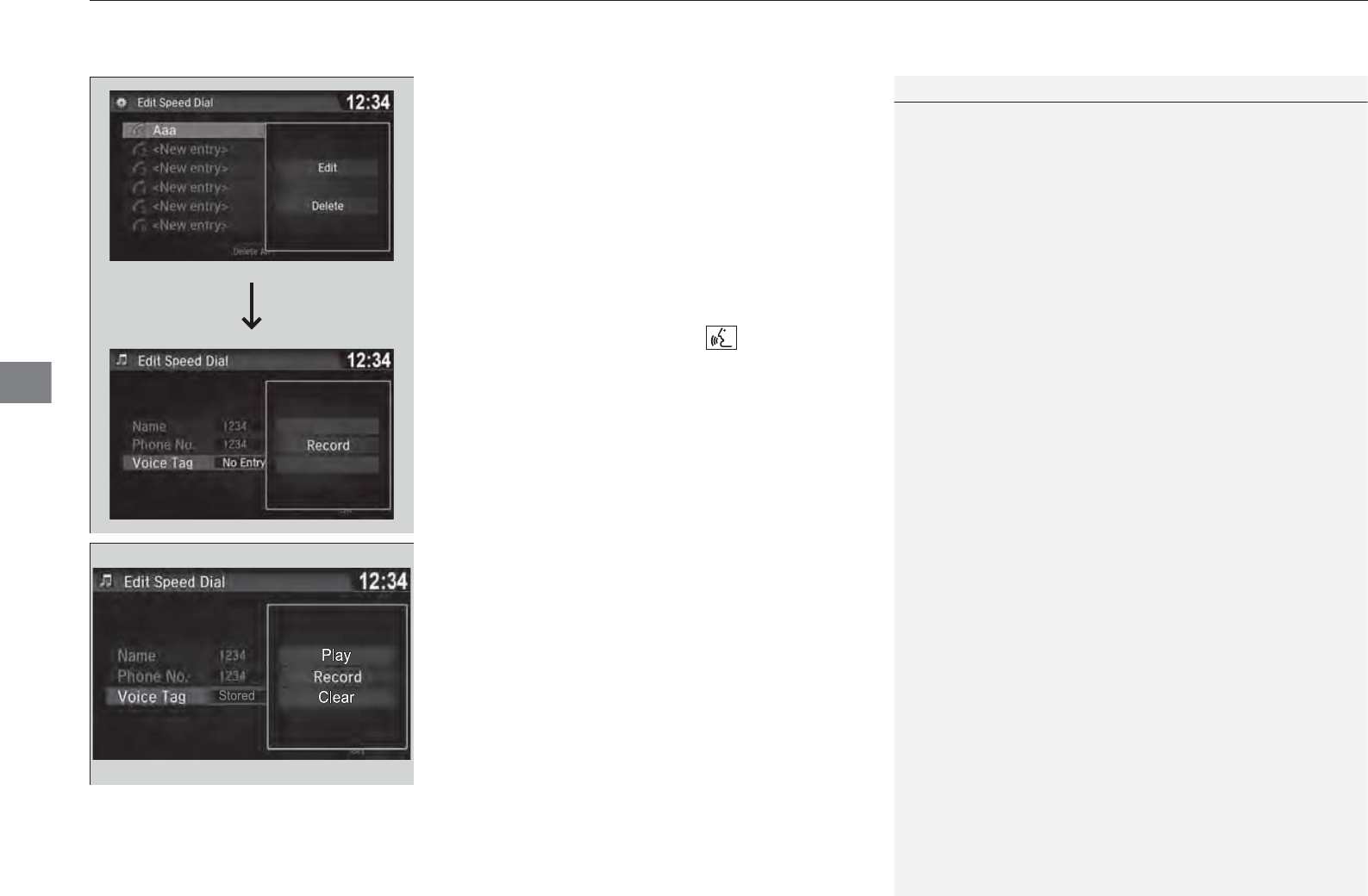

■To add a voice tag to a stored speed
dial number
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Edit.
4. Select Voice Tag.
uFrom the pop-up menu, select Record.
5. Select Record, or use the button and
follow the prompts to complete the voice
tag.
■To delete a voice tag
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Edit.
4. Select Voice Tag.
uFrom the pop-up menu, select Clear.
5. A confirmation message appears on the
screen. Select Yes.
1Speed Dial
Avoid using duplicate voice tags.
Avoid using “home” as a voice tag.
It is easier for the system to recognize a longer name.
For example, use “John Smith” instead of “John.”
369
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features
■To edit a speed dial
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Edit.
4. Select a setting you want.
■To delete a speed dial
1. Go to the phone settings screen.
2Phone settings screen P. 356
2. Select Edit Speed Dial.
3. Select an existing speed dial entry.
uFrom the pop-up menu, select Delete.
4. A confirmation message appears on the
screen. Select Yes.
uuBluetooth® HandsFreeLink®*uHFL Menus
370
Features

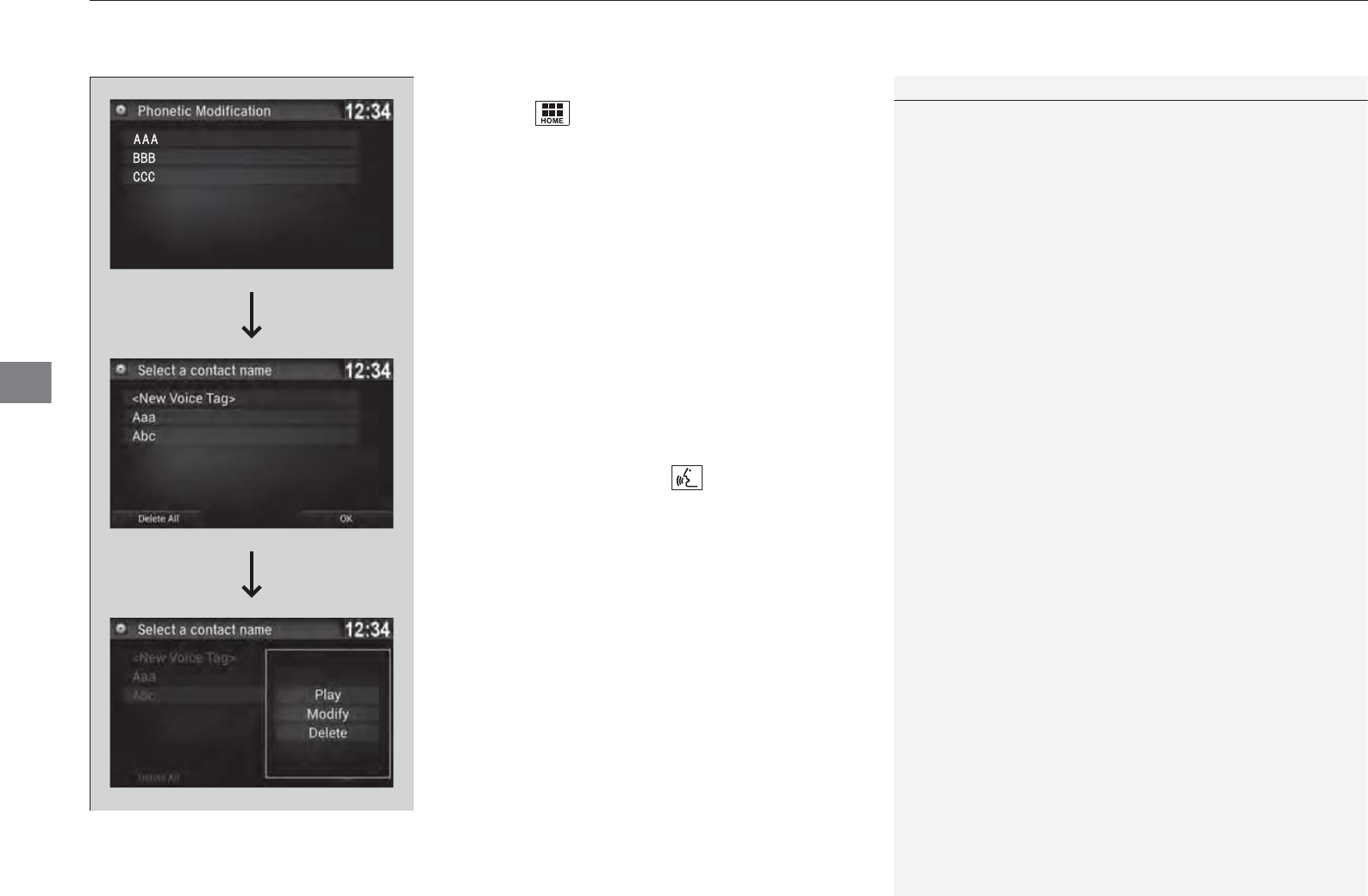

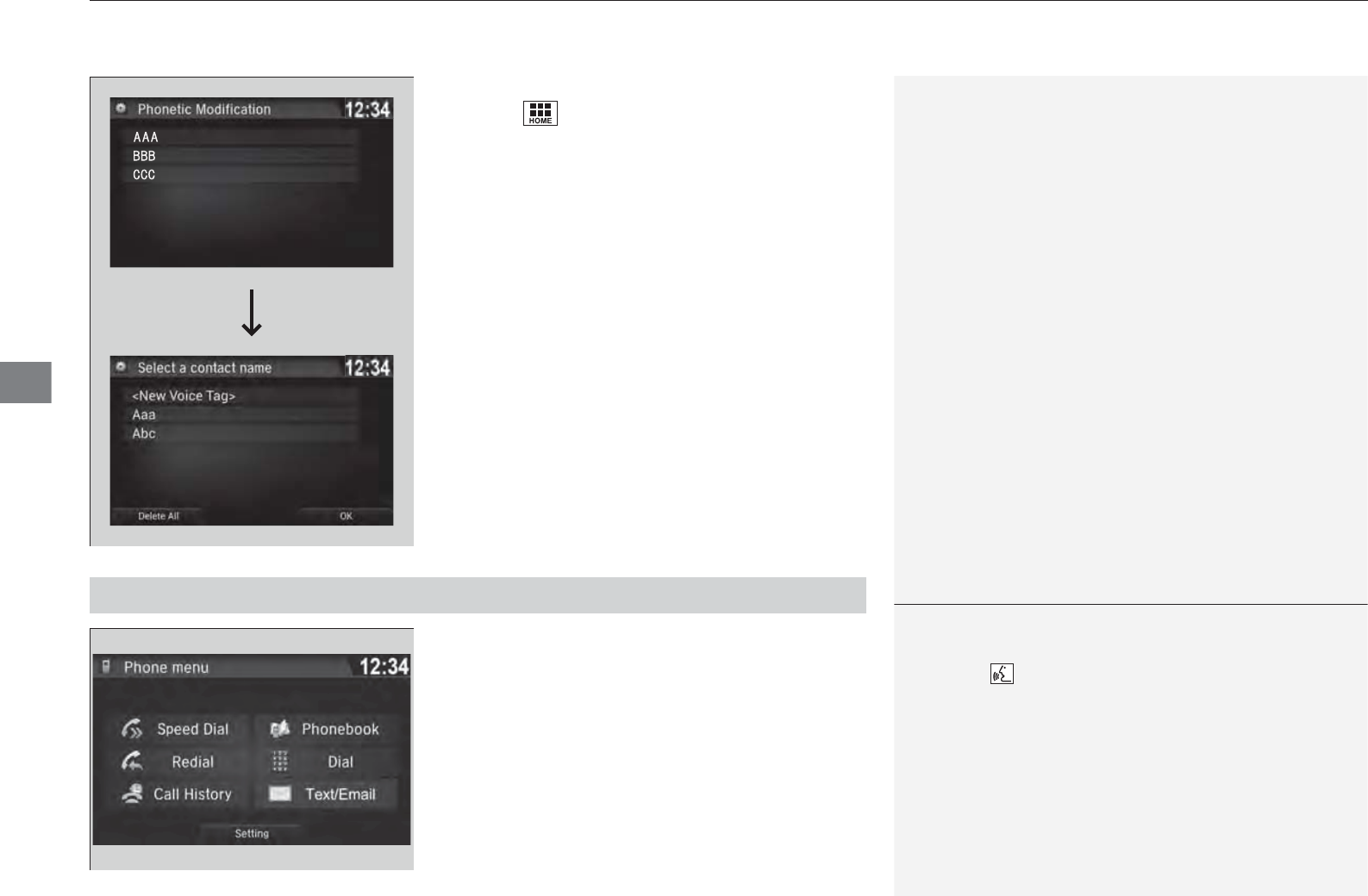

Add phonetic modifications or a new voice tag to the phone’s contact name so that
it is easier for HFL to recognize voice commands.
■To add a new voice tag
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to add
phonetic modification to.
■Phonebook Phonetic Modification
1Phonebook Phonetic Modification
You can store up to 20 phonetic modification items.
371
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features
7. Select New Voice Tag.
8. Select a contact name you want to add to.
uThe pop-up menu appears on the
screen.
9. Select Modify.
10. Using Record or the button, follow
the prompts to complete the voice tag.
11. You will receive a confirmation message
on the screen, then select OK.
uuBluetooth® HandsFreeLink®*uHFL Menus
372
Features
■To modify a voice tag
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to modify
phonetic modification.
7. Select a contact name you want to
modify.
uThe pop-up menu appears on the
screen.
8. Select Modify.
9. Using Record or the button, follow
the prompts to complete the voice tag.
10. You will receive a confirmation message
on the screen, then select OK.
1Phonebook Phonetic Modification
You can only modify or delete contact names for the
currently connected phone.
373
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features
■To delete a modified voice tag
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to delete
phonetic modification.
7. Select a contact name you want to delete.
uThe pop-up menu appears on the screen.
8. Select Delete.
uThe selected contact name has been
selected.
9. Select OK.
uuBluetooth® HandsFreeLink®*uHFL Menus
374
Features
■To delete all modified voice tags
1. Select .
2. Select Settings.
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification.
6. Select the phone you want to delete
phonetic modification.
uThe contact name list appears.
7. Select Delete All.
8. You will receive a confirmation message on
the screen, then select Yes.
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call
1Making a Call
Any voice-tagged speed dial entry can be dialed by
voice from most screens.
Press the button and say the voice tag name.
Once a call is connected, you can hear the voice of
the person you are calling through the audio
speakers.
375
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features
■To make a call using the imported
phonebook
1. Go to the Phone menu screen.
2Phone menu screen P. 359
2. Select Phonebook.
3. Select a name.
uYou can also search by letter. Select
Search.
uUse the keyboard on the touch screen for
entering name, if multiple numbers exist
select a number.
4. Select a number.
uDialing starts automatically.
■To make a call using a phone number
1. Go to the Phone menu screen.
2Phone menu screen P. 359
2. Select Dial.
3. Select a number.
uUse the keyboard on the touch screen for
entering numbers.
4. Select Dial.
uDialing starts automatically.
AAA
AAA
BBB
BBB
CCC
CCC
AAA
BBB
CCC
uuBluetooth® HandsFreeLink®*uHFL Menus
376
Features
■To make a call using redial
1. Go to the Phone menu screen.
2Phone menu screen P. 359
2. Select Redial.
uDialing starts automatically.
■To make a call using the Call History
Call history is stored by All, Dialed,
Received, and Missed.
1. Go to the Phone menu screen.
2Phone menu screen P. 359
2. Select Call History.
3. Select All, Dialed, Received, or Missed.
4. Select a number.
uDialing starts automatically.
■To make a call using a Speed Dial entry
1. Go to the Phone menu screen.
2Phone menu screen P. 359
2. Select Speed Dial.
3. Select a number.
uDialing starts automatically.
1To make a call using redial
Press and hold the button to redial the last
number dialed.
1To make a call using the Call History
The call history displays the last 20 all, dialed,
received, or missed calls.
(Appears only when a phone is connected to the
system.)
1To make a call using a Speed Dial entry
When a voice tag is stored, press the button to
call the number using the voice tag.
2Speed Dial P. 367
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
Continued 377
uuBluetooth® HandsFreeLink®*uHFL Menus
Features
When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
The following options are available during a call.
Mute: Mute your voice.
Transfer: Transfer a call from the system to your phone.
Touch Tones: Send numbers during a call. This is useful when you call a menu-
driven phone system.
The available options are shown on the lower
half of the screen.
Select the option.
uThe mute icon appears when Mute is
selected. Select Mute again to turn it off.
■Receiving a Call
1Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons.
■Options During a Call
1Options During a Call
Touch Tones: Available on some phones.
You can select the icons on the audio/information
screen.
Mute Icon
569
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/251/310.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
Collision Mitigation Braking SystemTM
Immobilizer System
Remote Transmitter
Charging Cable Interactive Remote Control
&,9,&'7%$ERRN࣮࣌ࢪ㸰㸮㸯㸳ᖺ㸳᭶㸰㸵᪥ࠉỈ᭙᪥ࠉ༗ᚋ㸶㸳㸳ศ
This device complies with part 15 of FCC Rules and Industry Canada’s licence-exempt RSSs. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency
(RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated
keeping the radiator at least 20cm or more away from person’s body.
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les
règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de
l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain.
licence-exempt
