AMScreen
The screen is replaced by each other buttons.
Screen Change
PERMANENT VACATION
USB
Storage
Menu
Source 1
Reproduction Screen
PERMANENT VACATION
USB
Storage
Menu
FM
AM or MW
iPod
Bluetooth Audio
USB Video
DAB or SiriusXM
HDMI
USB Audio
AUX
Audio OFF
Apple Carplay
orAndroidAuto
orAPPS
Source Reshuffling telop
FM Screnn
Press [FM]
Press [AM]
Press [Source]
Press [X]

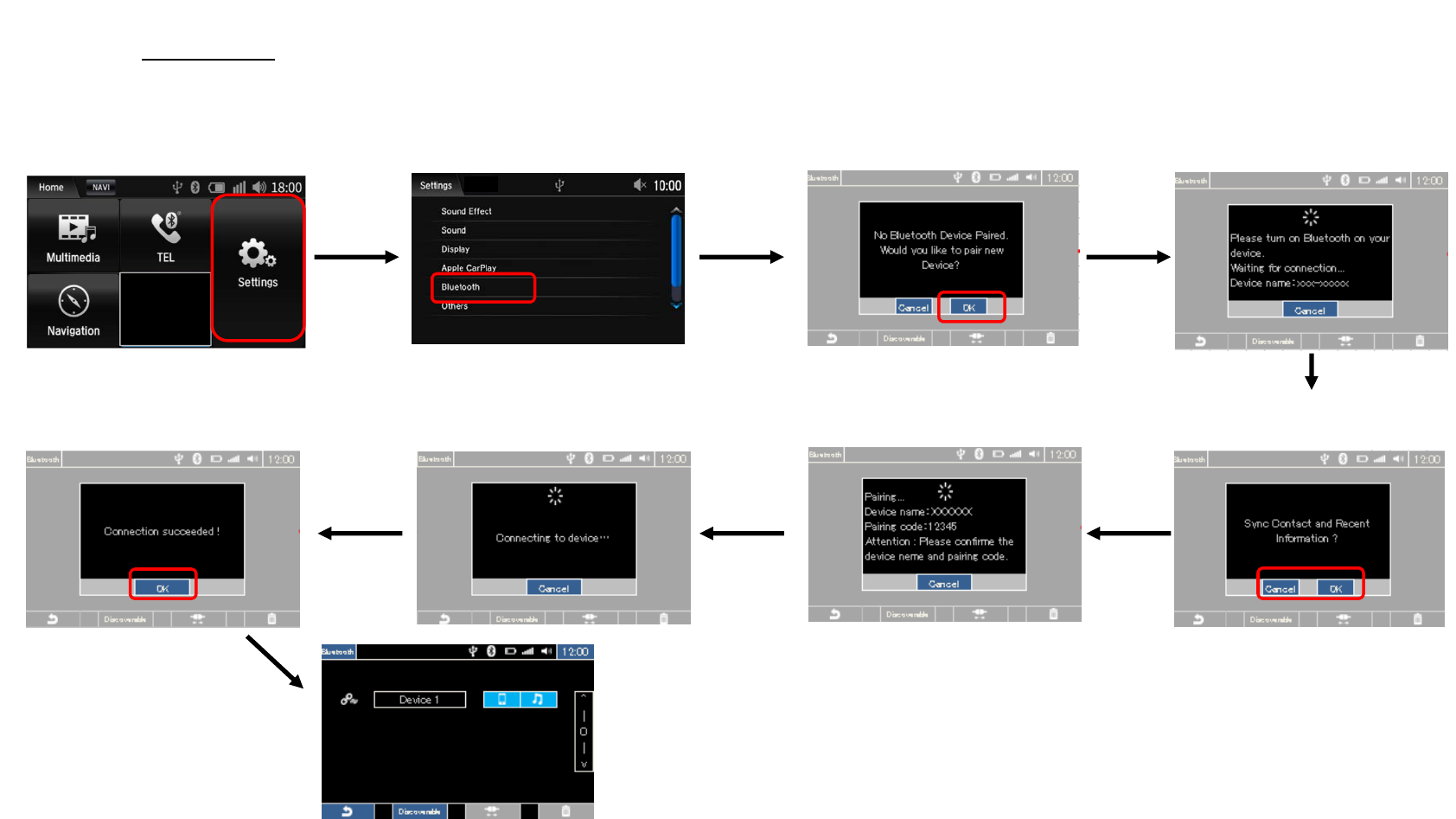

BT Pairing
APPS
Press [Settings] Press [Bluetooth] Press [OK]
Selected by a partner device
Connection is
admitted by a
partner device
When you connect Bluetooth apparatus to HU for the first time, It is necessary for pairing to connect to HU.
The pairing procedures are as follows.
HOME Screen System Setting HOME Screen Pairing Connection Confirmation Screen Pairing Wait Screen
Device Pairing Screen
Synchronization confirmation screen
of a telephone book and the incoming
and outgoing calls history
Press [OK] or
[Cancel]
Screen during Bluetooth ConnectionBluetooth Connection Success Screen
Press [OK]
Device Management Screen
Connection Success

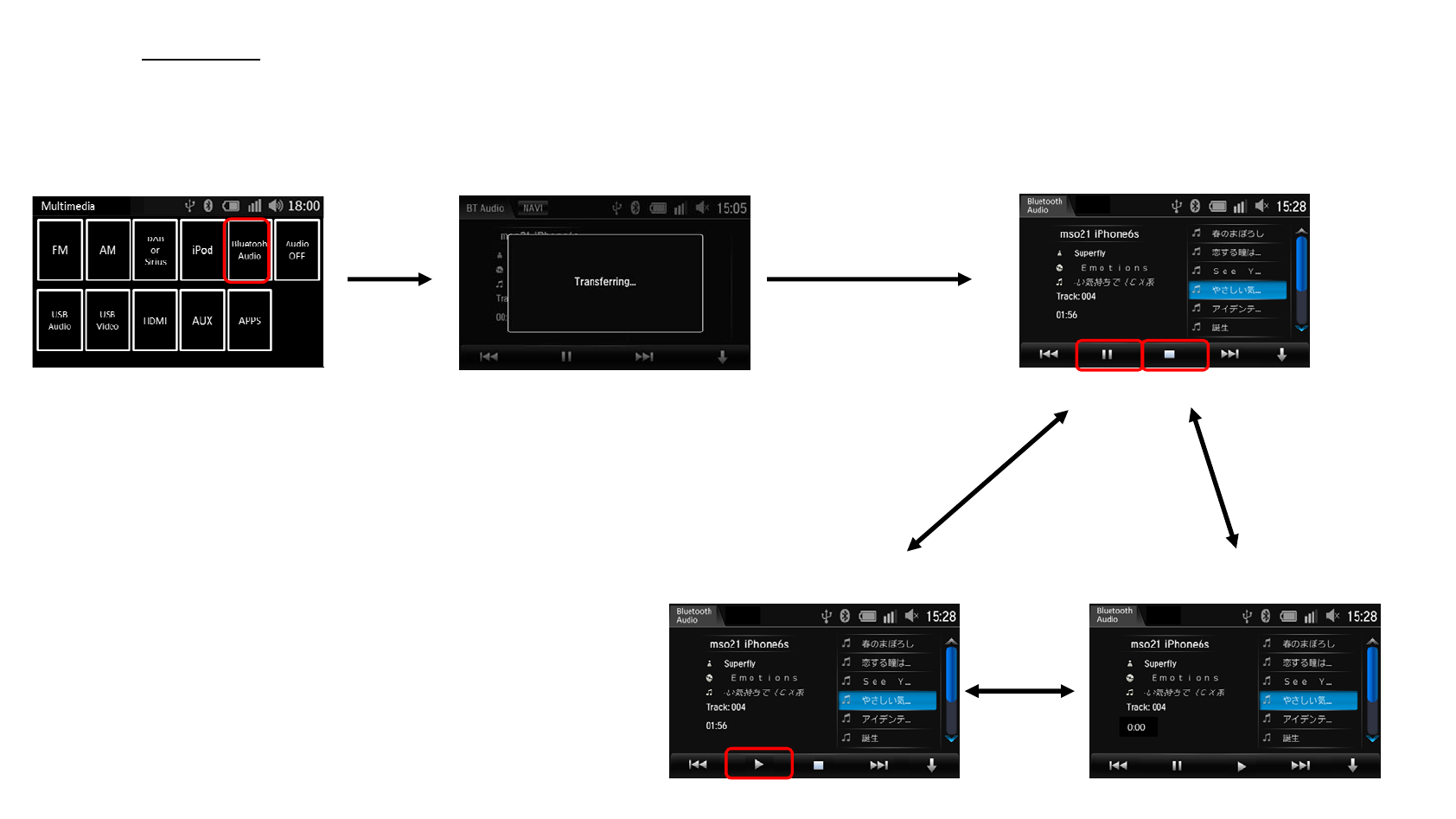

BT Audio
Press [Bluetooth
Audio]
Please connect Bluetooth apparatus to reproduce to HU.
After connection, HU plays an Audio File.
Multimedia Screen During Transfer Screen Reproduction Screen
Transfer is completed, and
there is the Audio File which
can reproduce, and it is
succeeded by reading of the
play list.
Pause button
Pause Screen Stop Screen
Reproduction button
Stop button
A screen changes by pushing
Down each button
Radio (AM/FM)

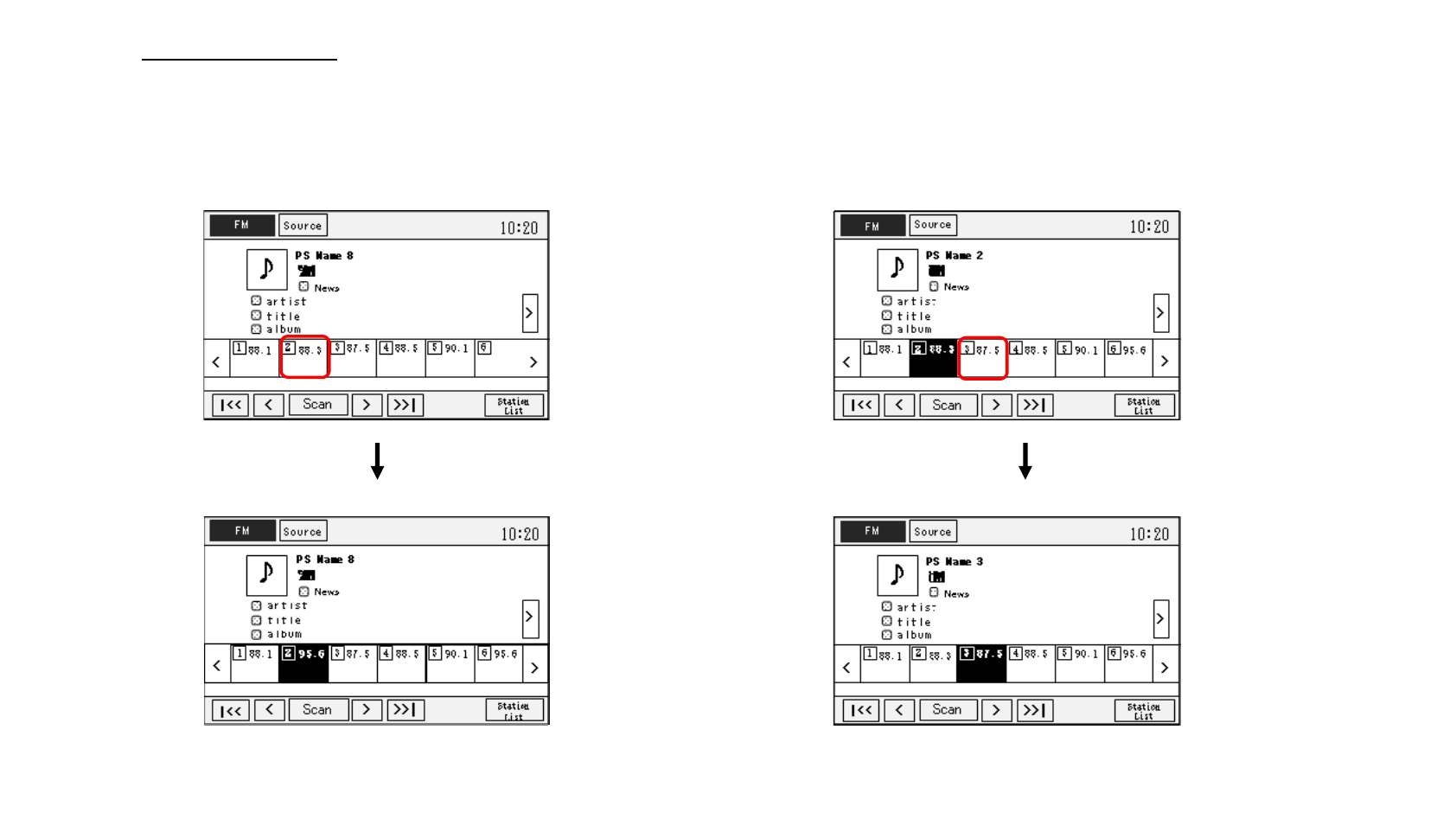

Pre-Set Method
Long press the [Pre-set2]
More than 1.5 seconds
press the [Pre-set3]
Select Pre-set 3Pre-set registration
Radio (AM/FM)

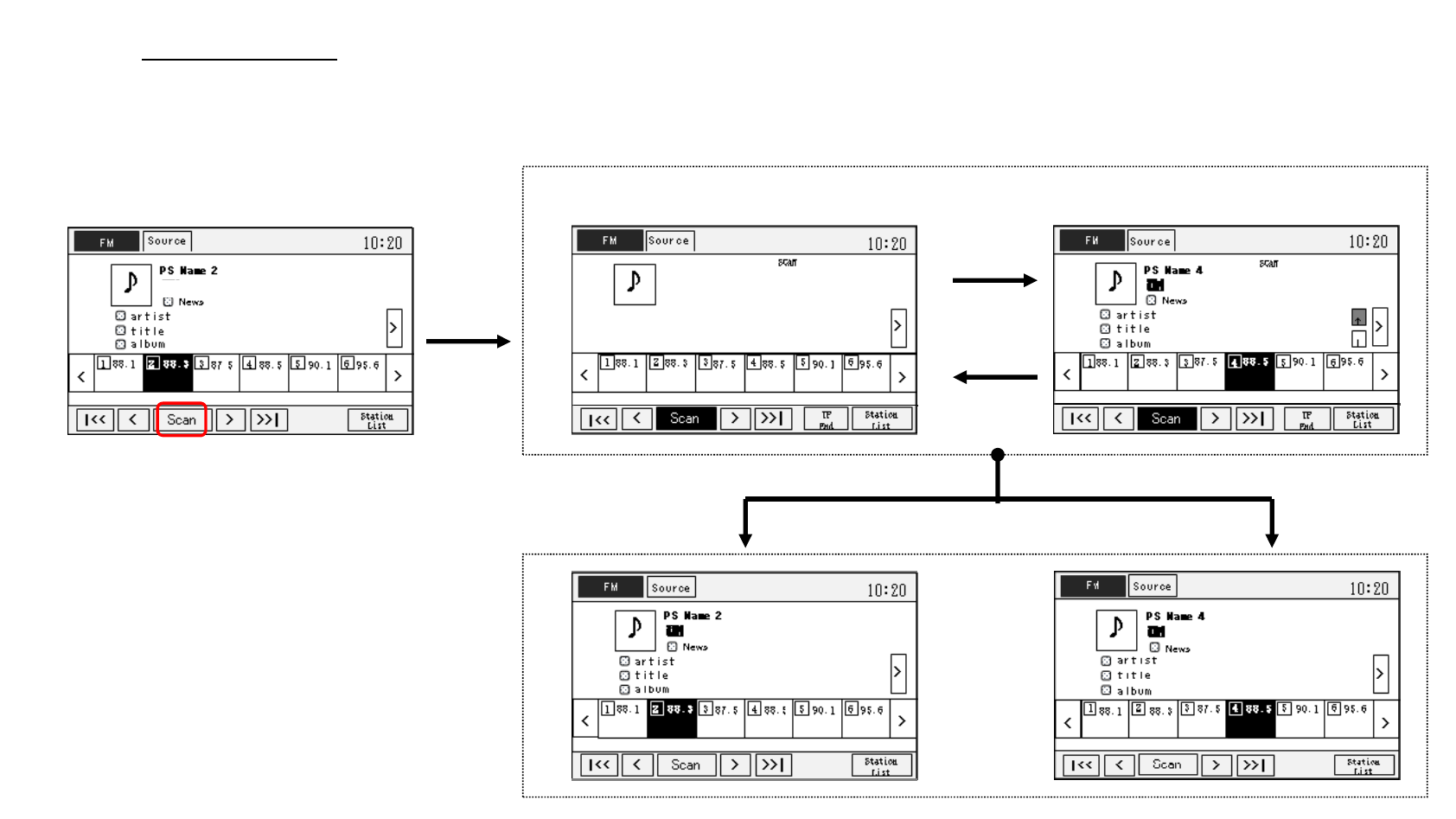

Scan
Press [Scan]
Scan Search Screen Scan Hold Screen
Timeout
HU discovers the
frequency that HU
can receive
Normal Reception mode
88.3MHz
When it becomes the hold stateWhen it never becomes the hold state
Radio (DAB)
DAB Radio Screen
AV TOP Screen
Press [DAB]
Press [Source]
Press [Station List]
Press [Preset]
