Mitsubishi Electric CP-D70DW Digital Color Printer User Manual CP D70DW 1 English

Mitsubishi Electric Corp Digital Color Printer CP D70DW 1 English

User manual

DIGITAL COLOR PRINTER
MODEL
CP-D70DW
CP-D707DW
OPERATION MANUAL
THIS OPERATION MANUAL IS IMPORTANT
TO YOU.
PLEASE READ IT BEFORE USING YOUR
DIGITAL COLOR PRINTER.
CP-D70D CP-D707D
Hereby, Mitsubishi Electric Corporation, declares that this digital color printer is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
WARNING:
Use the included AC power cord so as not to interfere with radio and television reception.
If you use other cables, it may cause interference with radio and television reception.
WARNING :
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
INFORMATION
This Class A digital apparatus complies with Canadian ICES-003.
CAUTION :
TO REDUCE THE RISK OF ELECTRIC
SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

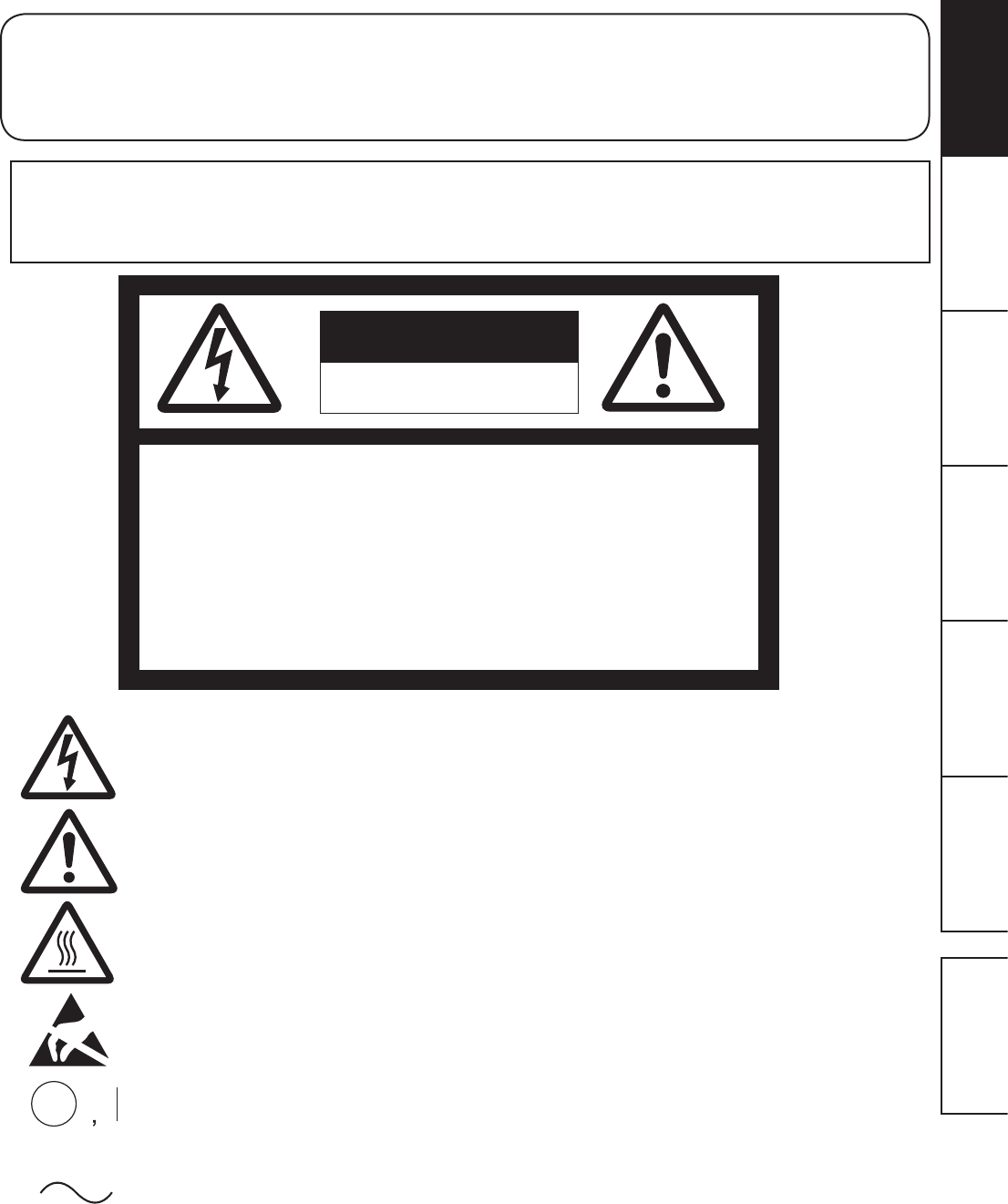

RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufcient magnitude to constitute
the risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The “Caution, hot surface” symbol indicates that the marked item may be hot and
should not be touched.
The “Electro Static Discharge (ESD) warning” symbol indicates that trouble
(including equipment malfunction) due to static electricity may occur in certain
conditions.
The “OFF/ON” symbol indicates connection to or disconnection from the mains,
at least for mains switches.
The “Alternating current” symbol indicates that the equipment is suitable for alter-
nating current only.
CAUTION
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
CAUTION:
Changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his or her own expense.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.

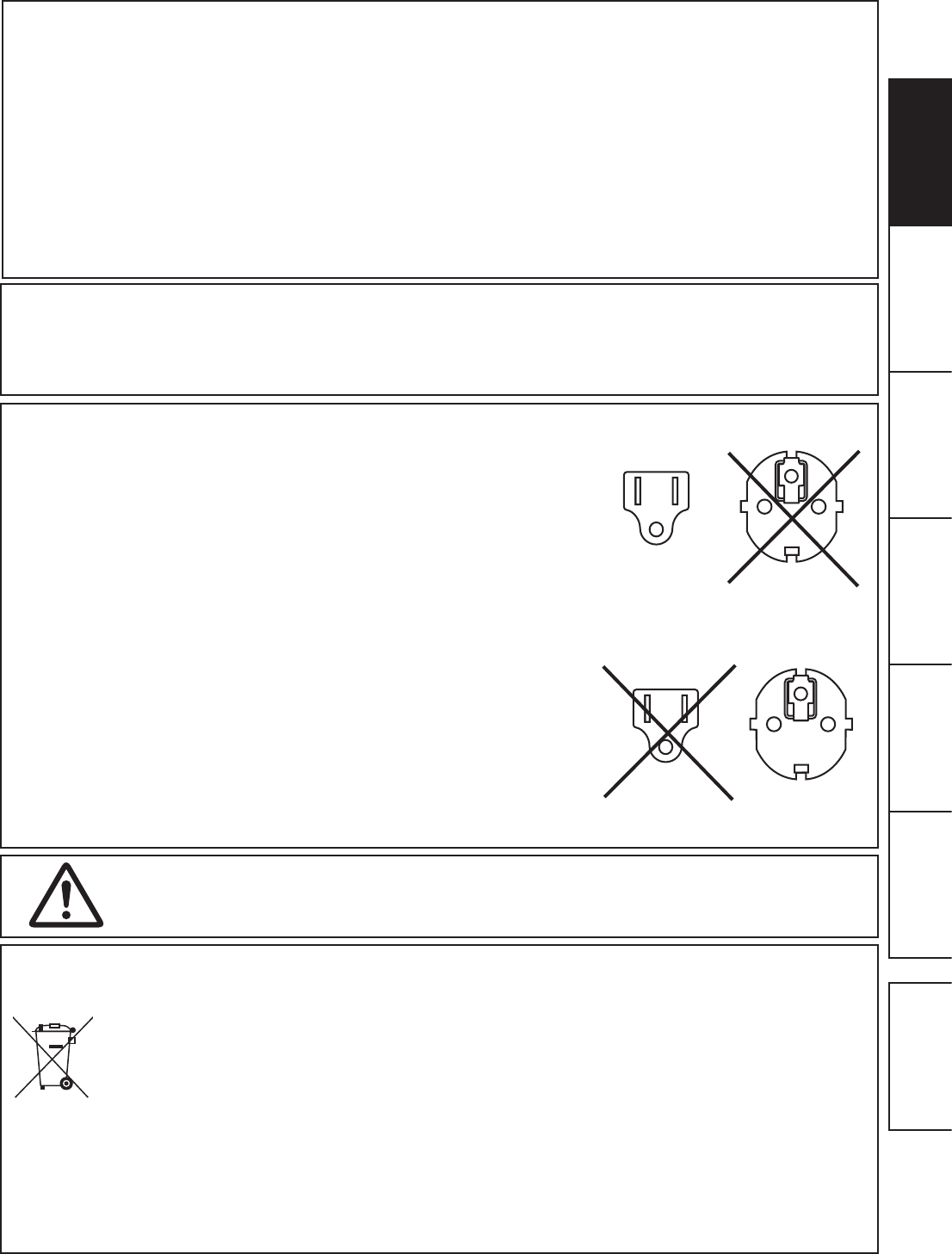

WARNING:
In the USA or Canada, use the AC power cord according to the recommendations as
below, in order to comply with UL60950-1 and CAN/CSA C22.2 No. 60950-1-03.
Connect to the 120 V receptacle of the room or the host equipment.
The AC power cord should be UL or CSA approved and consist of type SVT, size
16 or 18AWG, length 2 m or shorter cord with IEC60320-1/C13 type, 125 V 10 A or
higher rating connector and NEMA 5-15 type, 125 V 10 A or higher rating plug.
Use the AC power cord as specied above, so as not to interfere with radio and
television reception.
If you use other cables, it may cause interference with radio and television reception.
WARNING:
In Europe, use the AC power cord according to the recommendations as below, in
order to comply with EN60950-1.
Connect to the 230 V receptacle of the room or the host equipment.
The AC power cord should be VDE approved and consist of core size 1 mm2 or big-
ger, length 2 m or shorter cord with IEC60320-1/C13 type, 250 V 10 A or higher rating
connector and CEE(7)VII type, 250 V 10 A or higher rating plug.
Use the AC power cord as specied above, so as not to interfere with radio and
television reception.
If you use other cables, it may cause interference with radio and television reception.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and
components which can be recycled and/or reused.
This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life,
should be disposed of separately from your household waste.
If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery
or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:
Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%)
In the European Union there are separate collection systems for used electrical and electronic products,
batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at your local community waste
collection/recycling centre.
Please, help us to conserve the environment we live in!
Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and Annex IV, and/
or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.
WARNING:
The socket outlet shall be installed near the equipment and shall be easily accessible.
1
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
CONTENTS
Contents .................................................................................................1
Safety precautions ..................................................................................2-4
Special features ......................................................................................5

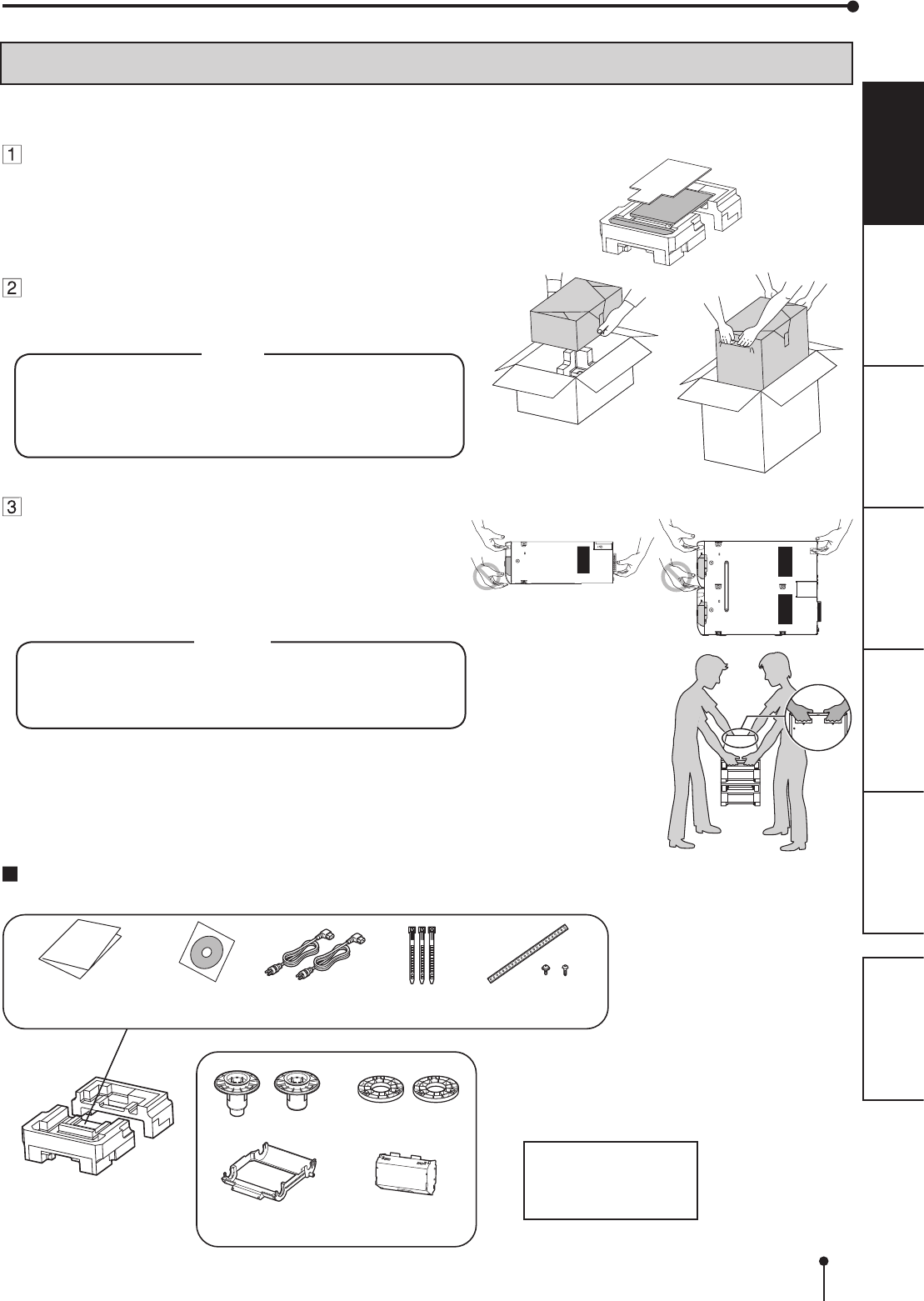

Unpacking...............................................................................................6
Features and functions ...........................................................................7-8

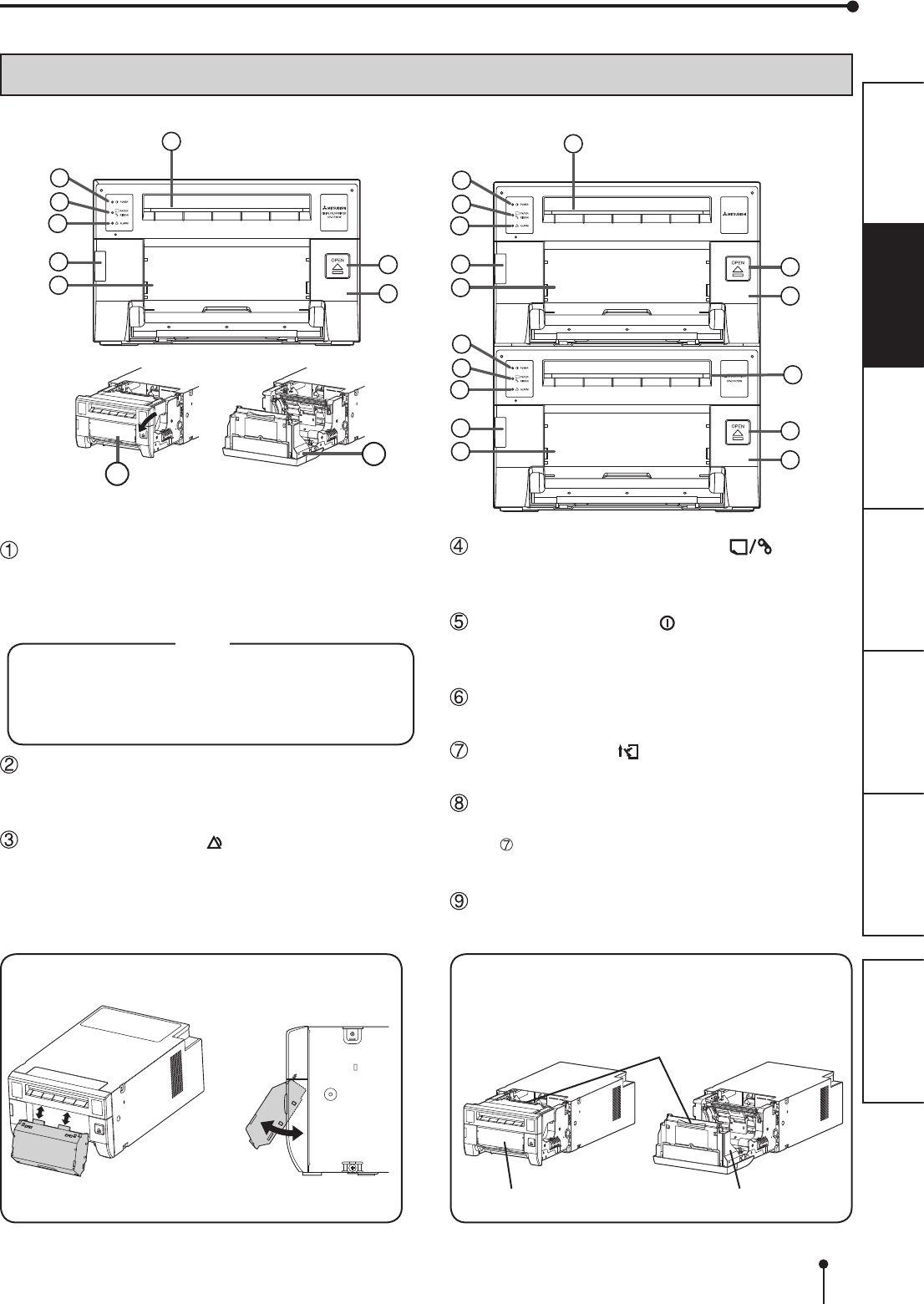

Front panel ..............................................................................................7

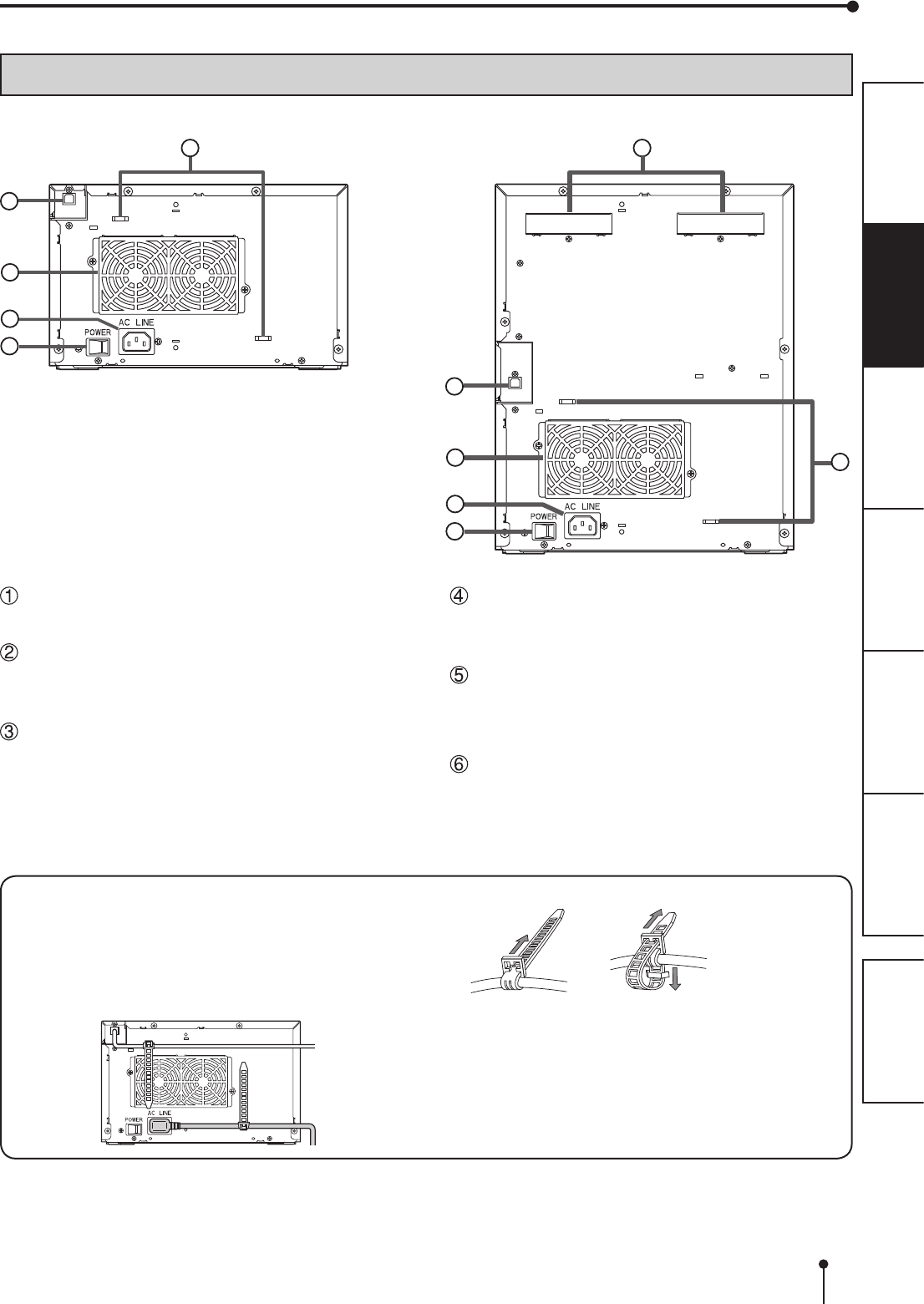

Side and rear panel .................................................................................8
Connections............................................................................................9-10

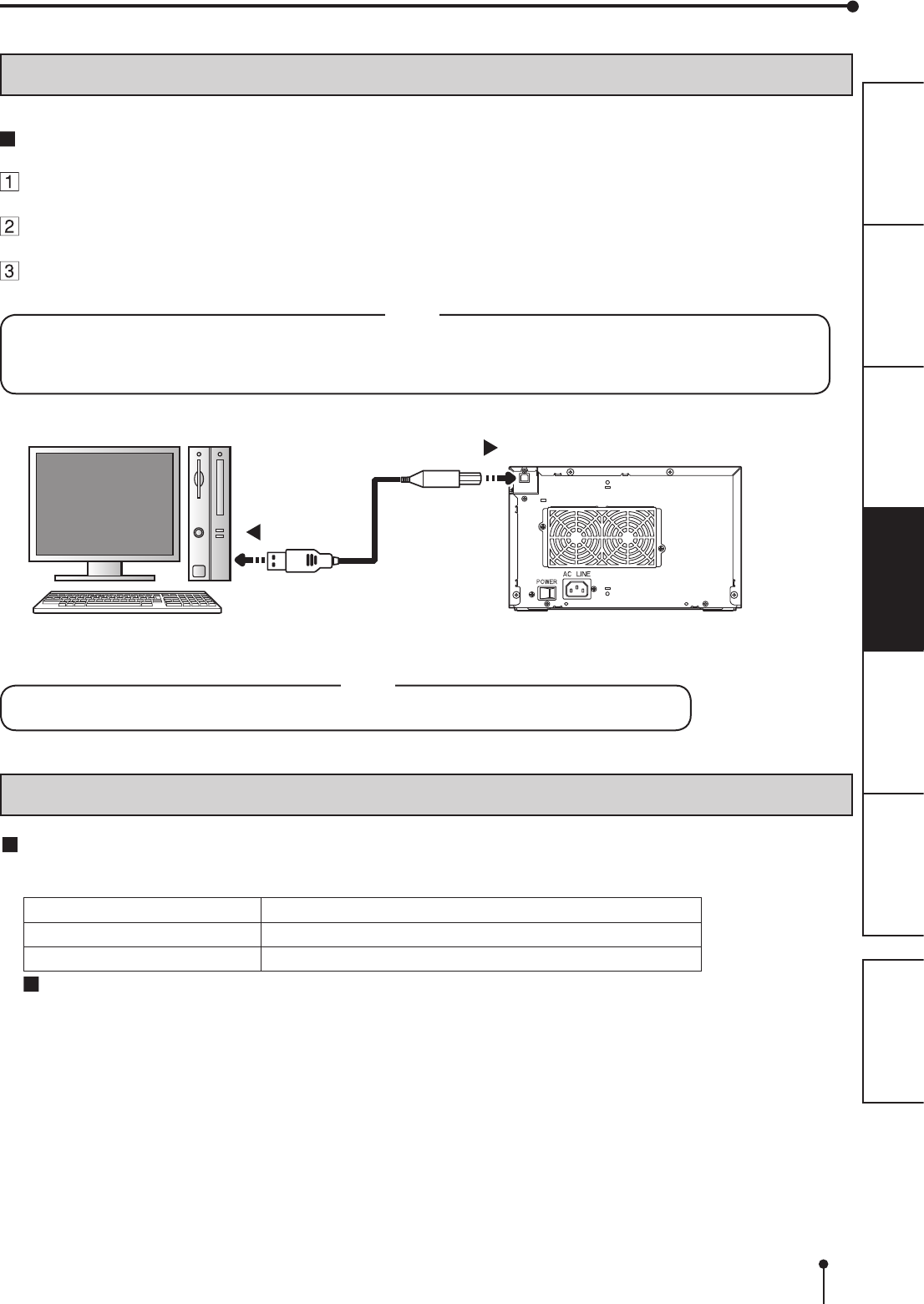

Connection with USB data signal equipment ..........................................9
Setting of DIP switches ............................................................................10
Before operation .....................................................................................11-17

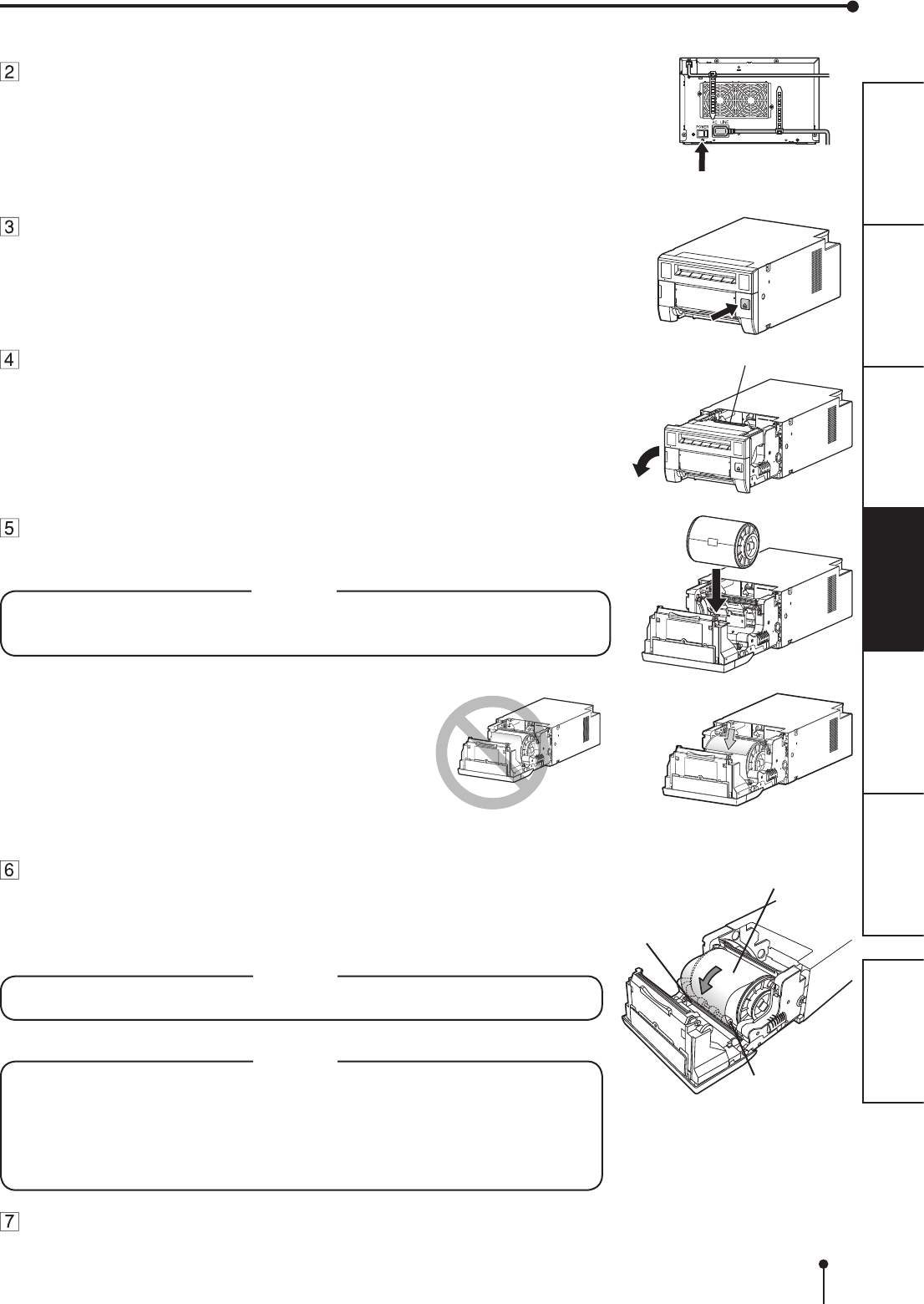

Installation of print paper .........................................................................11-12

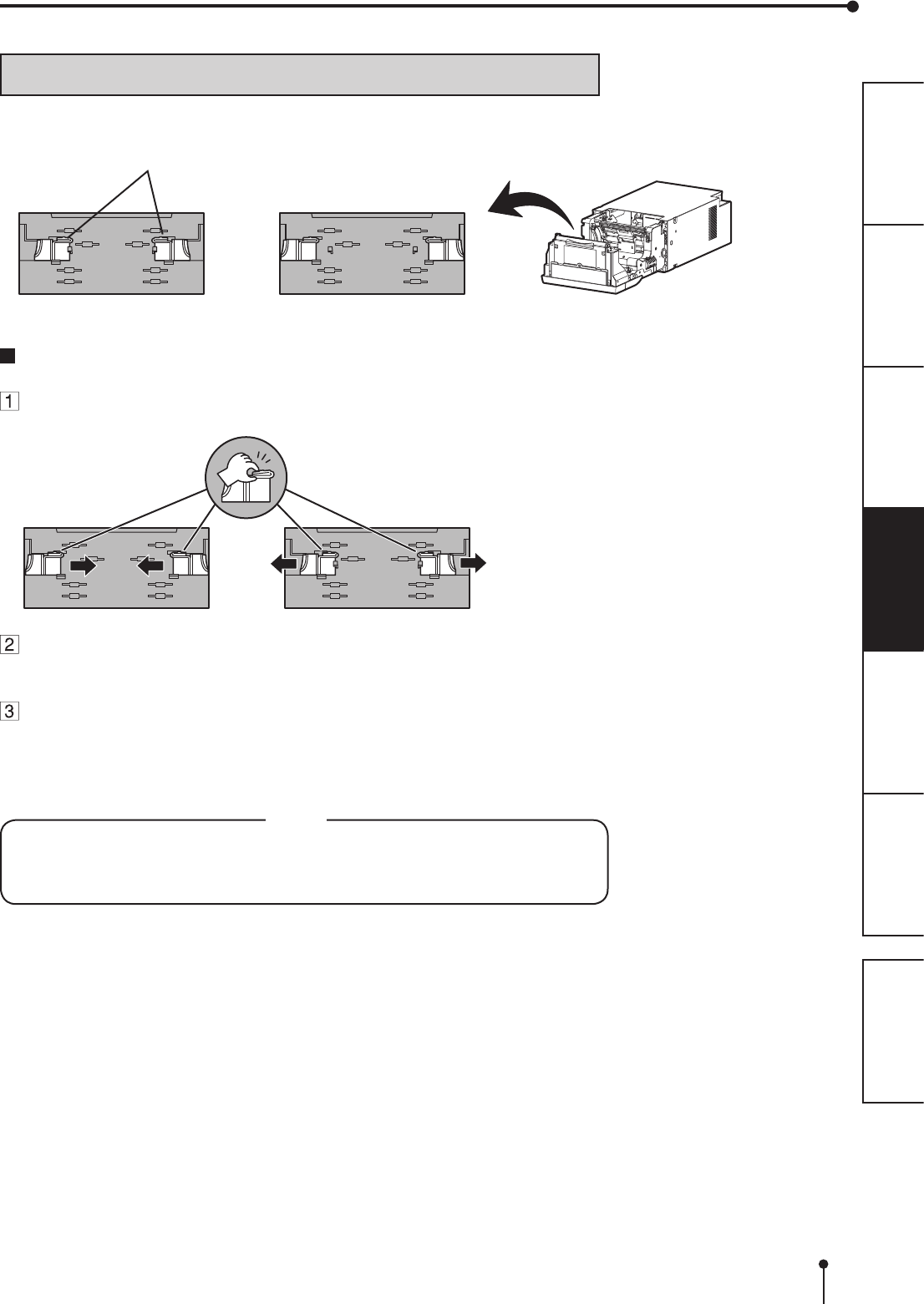

Positioning of adjustable paper guide .....................................................13

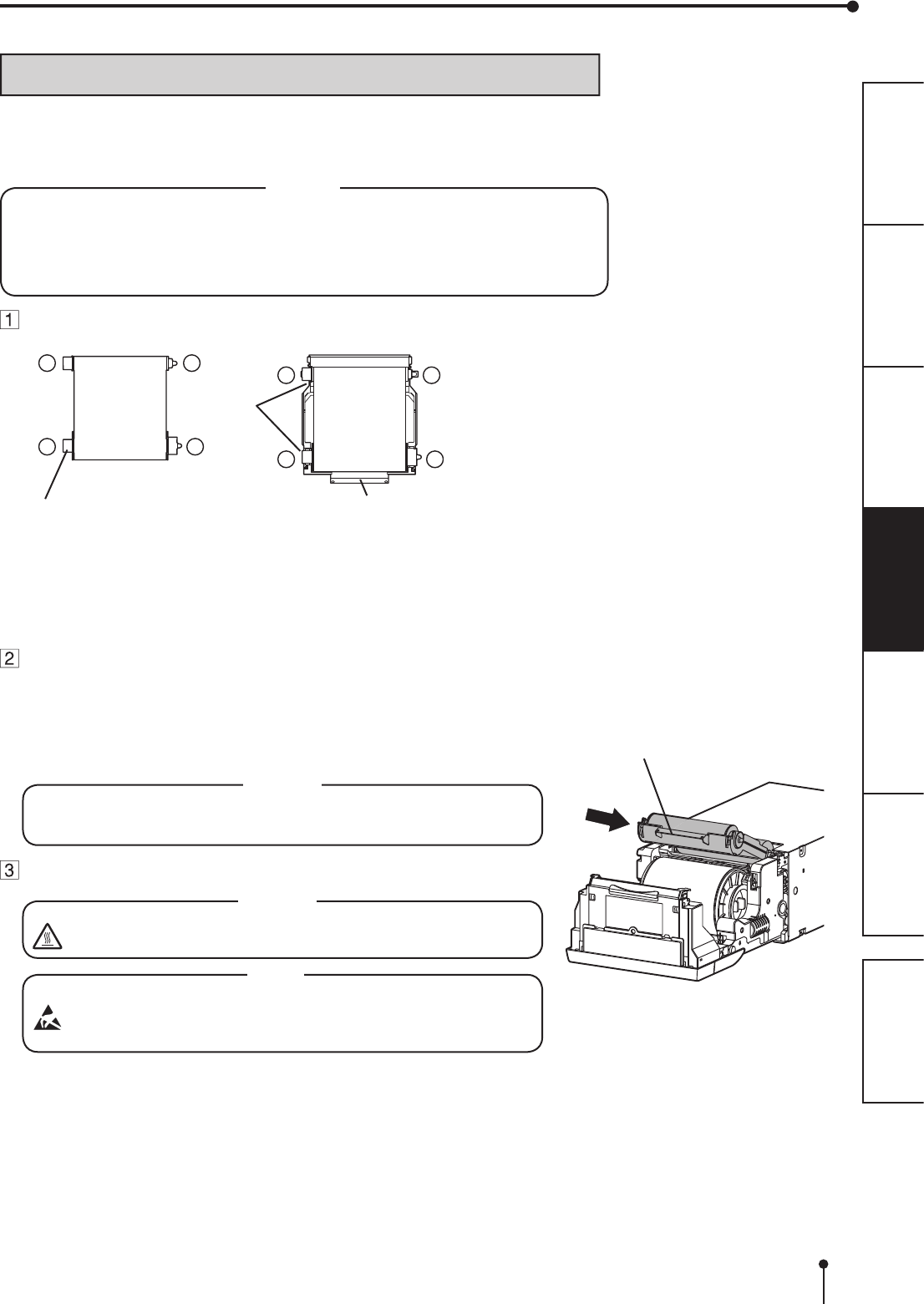

Installation of ink ribbon ..........................................................................14-15
Handling of paper / ink ribbon set ........................................................... 16
Installation of printer driver ......................................................................17
Error messages and countermeasures ..................................................18-20

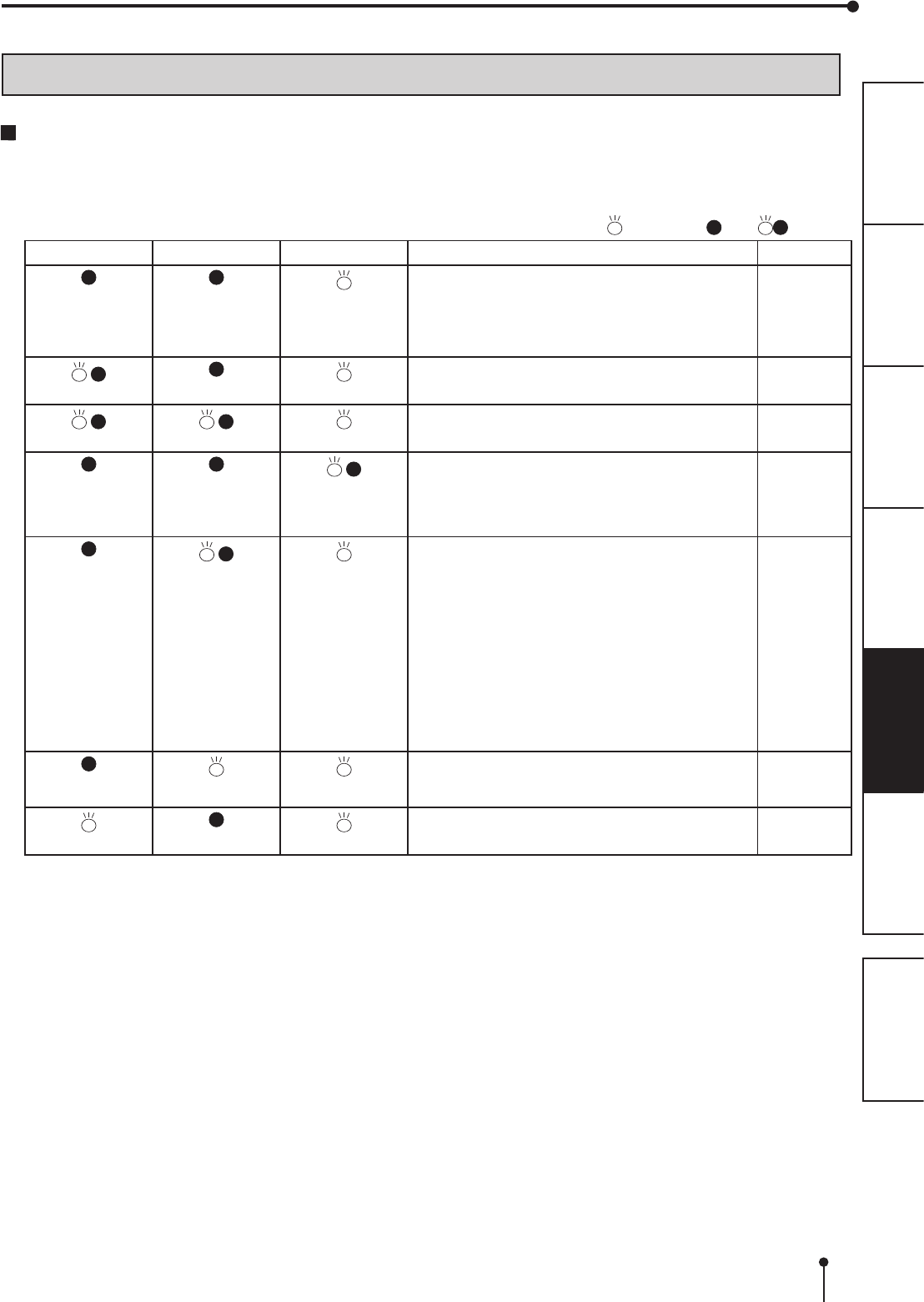

Indications on the front panel and countermeasures ..............................18
Overcoming paper jams ..........................................................................19
Before calling for service .........................................................................20
Instructions for transportation ..................................................................20
Cleaning .................................................................................................21-22
Specications .........................................................................................23
CONTENTS
2
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
In the interest of safety, please observe the following precautions:
POWER REQUIREMENT
This Digital Color Printer is designed to operate on 120 V AC 50/60 Hz in the U.S.A. and Canada, and 220 V - 240 V AC
50/60 Hz in Europe. Never connect to any outlet or power supply having a different voltage or frequency.
WARNING : THIS APPARATUS MUST BE EARTHED.
PROTECTIVE MEASURES
IF ABNORMALITIES ARISE, .....
Use of the unit during emission of smoke or abnormal sounds (without adopting countermeasures) is dangerous. In such a
case, unplug the power cord from the source outlet immediately, and request maintenance service from the sales dealer.
NEVER INSERT ANY OBJECT INTO THE UNIT
Foreign objects of any kind inserted into this unit constitute a safety hazard and can cause extensive damage.
DO NOT PLACE ANYTHING ON THE DIGITAL COLOR PRINTER
Heavy objects placed on the Digital Color Printer can cause damage or obstruct proper ventilation.
PROTECT THE POWER CORD
Damage to the power cord may cause re or shock hazard. When unplugging, hold by the plug only and remove carefully.
DO NOT PLACE WATER CONTAINERS ON THE UNIT
Do not place ower vases, and other water-holding containers on the device. If, for some reason, water seeps to the inside of
the unit, unplug the power cord from the source outlet, and contact the sales dealer. If used without corrective measures, the
unit may be damaged.
“In the interest of safety, avoid handling of liquids near the unit.”
DO NOT REMOVE THE CABINET
Touching internal parts is dangerous, besides, it may lead to malfunction. Contact the sales dealer to carry out internal checks
and adjustments. Before opening the cover for eliminating a jammed paper, etc., be sure to disconnect the power cord plug.
UNPLUG THE POWER CORD DURING A LONG ABSENCE
Turn off the main power switch and unplug the power cord during a long absence.
WHEN TRANSPORTING THE UNIT
When transporting the unit, remove the ink ribbon and print paper from the unit. See “INSTRUCTIONS FOR
TRANSPORTATION” on page 20.
BE CAREFUL AROUND PRINT PAPER EXIT SLOT
Don’t insert your hand or any material into the paper exit slot during printing.
Do not touch the cutter blade inside the paper exit slot.
Otherwise, your nger will be injured.
DO NOT TOUCH THE THERMAL HEAD
Do not touch the thermal head (located inside the unit).
They are heated to high temperature and may cause burns or injury when touched.
Also, malfunction caused by static electricity may occur.
WHEN PLACING THE PRINT PAPER, KEEP THE PRINT PAPER UPRIGHT
When you put the print paper sideways on a table, etc., it may roll and fall. This may cause injury.
CONNECTION CABLES
Use the provided power cord.
SAFETY PRECAUTIONS
3
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
REMOVE THE PAPER STRIP BIN WHEN OPENING OR CLOSING THE DOOR
When you open or close the door with the paper strip bin installed, the bin may be removed and fall. This may cause injury or
damage. Also, the chips generated by margin cut may jam at the paper exit slot.
DO NOT LEAVE THE PRINTING UNIT OPEN
When the printer is moved with the printing unit open, it may cause injury or damage.
CLOSE THE PRINTNIG UNIT FIRMLY
Take care not to pinch your hand when closing the printing unit. When the printing unit is not closed rmly, it may open during
transportation and it may cause injury or damage.
DO NOT PUSH DOWN ON THE PRINTING UNIT OR THE DOOR
If you push down on the printing unit or the door when they are open, this unit may fall and it can cause damage or injury.
INSTALLATION LOCATIONS
MAINTAIN GOOD VENTILATION
Ventilation slots and holes are provided on the rear and both sides of this unit. Place the unit on a hard and level surface and
keep a space between the unit and the walls to ensure proper ventilation. When putting the unit on the system rack, take a
space between the unit and the back and sides of the rack.
SUITABLE LOCATIONS
Avoid shaky places or hot-springs areas where hydrogen sulde and acidic ions are likely to be generated.
AVOID PLACES WITH HIGH HUMIDITY AND DUST
Do not place the unit at a high humidity and dusty locations. They can cause extensive damage to this unit. Avoid places where
the unit is likely to be exposed to oily fumes and vapors.
AVOID PLACES LIKELY TO BE EXTREMELY HOT
Places exposed to direct sunlight, or near heating appliances can attain extremely high temperatures, which may deform the
cabinet, or can become a prime cause of damage.
PLACES THE UNIT ON A HORIZONTAL LEVEL
The unit is likely to be affected if it is placed in slanted conditions or in an unstable places.
PROTECT AGAINST DEW FORMATION
In extremely cold regions, if the unit is moved quickly from an extremely cold place to warmer one, dew is likely to be formed. If
dew is formed, printing is not possible.
OPERATING AMBIENT TEMPERATURE RANGE
The operating ambient temperature range is 5°C - 40°C (41°F - 104°F) and the humidity of 30% - 80% RH. When using the unit
on the system rack, be sure to keep this ambient temperature inside the rack.
When the printer is used in a low temperature, it may take some time to start printing.
FOR LONG OPERATING LIFE
UNSUITABLE MATERIALS FOR THE DIGITAL COLOR PRINTER
Coat aking and deformation are likely to occur if the unit is wiped with chemical dusters, benzine, thinner or any other solvent, if
rubber or PVC items are left in contact with the unit for extended duration, or if the unit is sprayed with insecticide.
CARE OF THE CABINET
Unplug and clean with a soft cloth slightly moistened with a mild soap and water solution. Allow to dry completely before
operating. Never use petroleum base solutions or abrasive cleaners.
HEAD ABRASION
The thermal head, like the video head, wears out. When it is abraded, it becomes hard to print out ne details of the picture. In
such a case, it is necessary to replace the thermal head. Consult with the sales dealer for replacing the head.
CONNECTING DEVICES
Read thoroughly “Operating Precautions” of the instruction booklets for the devices connected with the Digital Color Printer. The
power cord must be disconnected after printing is over.
CAUTION ON RELOCATING
When transporting this unit, make sure it is not likely to be subjected to impacts. They can be a prime cause for damage.
Further, make sure to disconnect the power cord from the power outlet, and the cables from the connected devices.
SAFETY PRECAUTIONS
4
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
OTHER CAUTIONS
Do not pull out nor touch the print paper until printing is completed. It may degrade the print quality or cause an error.
Dust or other foreign matter adhering to the print paper or the ink cassette, or deformation resulting from exposure to
extremely low or high temperatures could cause loss of color, uneven color or lines, or wrinkles in the print images.
Depending on the intermal temperature, the printer may stop printing temporarily during printing. (The POWER indicator
blinks green.) Please wait for the printer to resume printing.
Do not touch the print paper.
Each time printing is completed, remove the prints. If the prints are not removed, a paper jam may occur.
NOTE:
YOUR UNDERSTANDING IS REQUESTED FOR THE LOSS OF IMAGES IN MEMORY DUE TO THE SUDDEN
OCCURRENCE OF A MALFUNCTION.
SAFETY PRECAUTIONS
Securing band
(supplied)
Cautions to prevent the printer from falling
CAUTION
Falling this printer due to shock or other reasons may
cause injury.
For your safety, make sure to secure the printer by
the following procedure when you decide the location
of installation of the printer.
1. Secure the securing band (supplied) to the printer
with the screw (supplied).
2. Secure the other side of the securing band to
the installation location with the at-head screw
(supplied).
Screw (supplied) Flat-head screw (supplied)
5
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
SPECIAL FEATURES
SPECIAL FEATURES
4 PRINT SIZES ARE AVAILABLE DEPENDING ON THE PURPOSE
4 printing sizes, 9x13 (3.5x5”) (max. 89 x 127 mm), 10x15 (4x6”) (max. 102 x 152 mm), 13x18 (5x7”) (max. 127 x 178 mm) and
15x20 (6x8”) (max. 152 x 203 mm), are selectable.
300 DPI HIGH RESOLUTION
CP-D70DW and CP-D707DW have a high resolution of 300 dpi for precise illustrations and sharp photographic images.
LARGE CAPACITY PRINTING
Maximum of 450 prints per roll for 9x13 (3.5x5”) is offered (CP-D70DW). Large economical print capacity per roll reduces
frequency of exchanging paper and ink ribbon.
HIGH QUALITY PRINTING
CP-D70DW and CP-D707DW are dye sublimation thermal transfer color printers, which produce superior high quality images.
They also produce a continuous tone at 256 gradient for each of Y, M, and C and 16.7 million colors.
HIGH SPEED PRINTING
Normal printing speed is approx. 8 seconds (in 9x13 (3.5x5”) CP-D70DW). Use of roll paper shortens the time for installing and
removing.
DOUBLE-DECK SYSTEM (CP-D707DW)
When you print 9x13 (3.5x5”)-size paper with both of the upper and lower decks at a time, this printer is capable of high-speed
printing at XX seconds for 900 prints.
HI-SPEED USB (VER. 2.0) INTERFACE SUPPORTING
6
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
UNPACKING
UNPACKING
Take the printer out of the box by the following procedures. Make sure to check the accessories.
CONTENTS
The accessories are contained in the upper cushions. Check the contents.
Quick setup
guide
Paper strip bin
CD-ROM
Paper anges Spacers
Power cords
Ink cassette
These are contained in the printer.
Make sure to remove
the protective materials
from the ink cassette
and paper anges.
Open the top of the box and remove the
accessories together with the cushion.
Remove the protective cardboard and then take the accessories
out of the cushion.
Pull the printer up carefully to take it out of the
box.
Pull the printer straight up as shown in the gure.
NOTE
This printer is about 12 kg (CP-D70DW) or about 22 kg (CP-
D707DW) in weight. Handle them with care.
When pulling out or transporting CP-D707DW, make sure to do
with two persons.
Unwrap the packing.
When moving this printer, remove the paper strip bin and then
hold the upper front part and the handle on the rear side.
Remove the protective materials for transportation such as
protective sheet.
CAUTION
Do not transport the printer by holding the part under the paper
strip bin. The paper strip bin may be removed and fall. It may
cause injury or damage.
CP-D70DW CP-D707DW
Banding bands Securing band
Screws
7
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
FEATURES AND FUNCTIONS
FRONT PANEL
PAPER STRIP BIN
Holds the paper chips generated by margin cut. To
prevent jamming the chips at the print outlet, throw away
the chips frequently.
NOTE
Remove the bin before opening the door. If the door is
opened with this bin attached, the printer or this bin may
be damaged. Do not remove the bin during printing. It
may cause a malfunction.
CONNECTOR COVER FOR OPTIONAL
PARTS
Do not open the cover for normal use.
ALARM INDICATOR ( )
This indicator illuminates or blinks when a paper jam
occurs or the door is open. See page 18.
1
5
3
4
2
6
7
8
PAPER STRIP BIN
Hook the paper strip bin by its latches.
CP-D70DW CP-D707DW
1
5
3
4
27
8
1
5
3
4
2
6
7
8
6
PAPER RIBBON INDICATOR ( )
When an error concerning the ink ribbon or print paper
occurs, this indicator illuminates or blinks. See page 18.
POWER INDICATOR ( )
When the power is turned on, the indicator illuminates.
xXXXX. See page 18.
PRINT OUTLET
The printed paper comes out here.
OPEN BUTTON ( )
Press this button to pull out the printing unit.
PRINTING UNIT
Open this unit to mount print paper or ink ribbon. Press
the OPEN button to open the printing unit. See page
18.
DOOR
Open the door to mount print paper.
8
9
OPENING THE DOOR
Pull out the printing unit by pressing the OPEN button
and then pull the knob to open the door.
Printing unit Door
Knob
8
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
POWER SWITCH
Use to switch the power ON and OFF.
POWER SOCKET (AC LINE)
Use to connect the provided power cord. Insert the cord
rmly.
FAN COVER /
HANDLE FOR TRANSPORTING
(CP-D70DW)
When transporting this unit, hold this handle and the
upper front part of this unit.
REAR PANEL
FEATURES AND FUNCTIONS
USB TERMINAL
Use to connect the USB cable.
See page 9.
SECURING HOLES FOR THE BANDING
BAND
Use to secure the power cord or USB calbe by using the
banding bands (supplied).
HANDLE FOR TRANSPORTING
(CP-D707DW)
When transporting this unit, hold this handle and the
upper front part of this unit.
CP-D70DW CP-D707DW
4
2
1
3
5
4
6
2
1
35

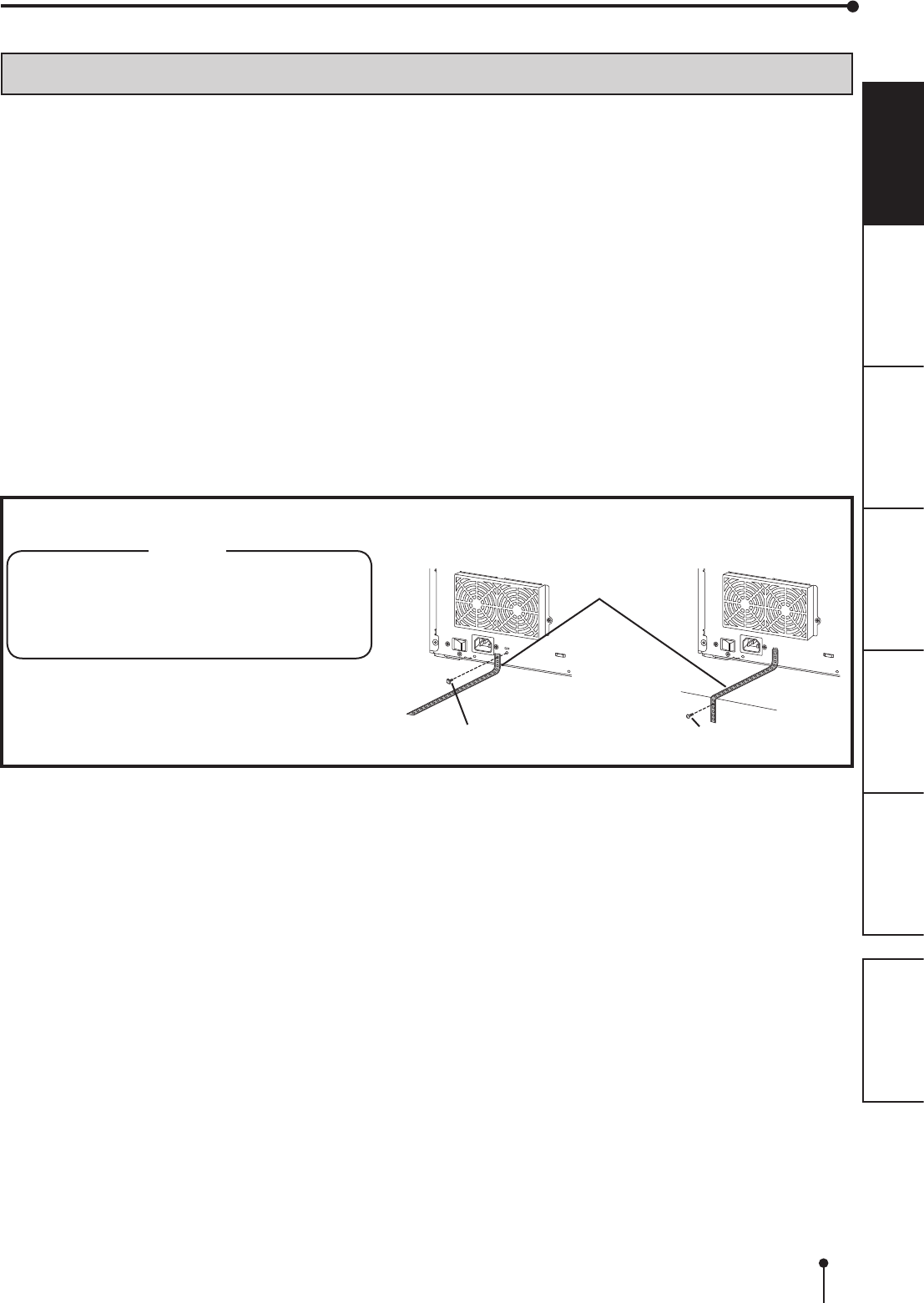

SECURING THE POWER CORD AND USB CABLE
1. Wrap a banding band (supplied) around the power cord or
the USB cable.
2. Draw the band through the securing hole on the rear panel
and secure it.
(Example)
9
CONNECTIONS OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
BEFORE OPERATION
PREPARARION PROCEDUER
Before printing, make a preparation of the printer by the following procedure.
1. Position the adjustable paper guides. (See page 10.)
2. Install the print paper to this printer. (See pages 11 to 12.)
3. Install the ink ribbon to this printer. (See pages 13 to 14.)
4. Connect this printer with a personal computer. (See page 15.)
10
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
BEFORE OPERATION
POSITIONING OF ADJUSTABLE PAPER GUIDE
Adjust the paper guides according to the size of print paper to be used.
Adjustable paper guides
HOW TO SHIFT THE ADJUSTABLE PAPER GUIDES
Pinch the tab on the adjustable paper guide and slide it right or
left.
Slide the paper guide until it stops. The paper guide is xed to the
appropriate position.
Slide other paper guide in the similar way.
For 9x13(3x5”) or 13x18(5x7”)
size paper (5”-width)
For 10x15(4x6”) or 15x20(6x8”)
size paper (6”-width)
NOTE
Make sure to adjust the adjustable paper guides according to the size of print
paper to be used. When they are not positioned properly, a malfunction such as
paper jam and misaligned printing position may occur.
Tab
11
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS

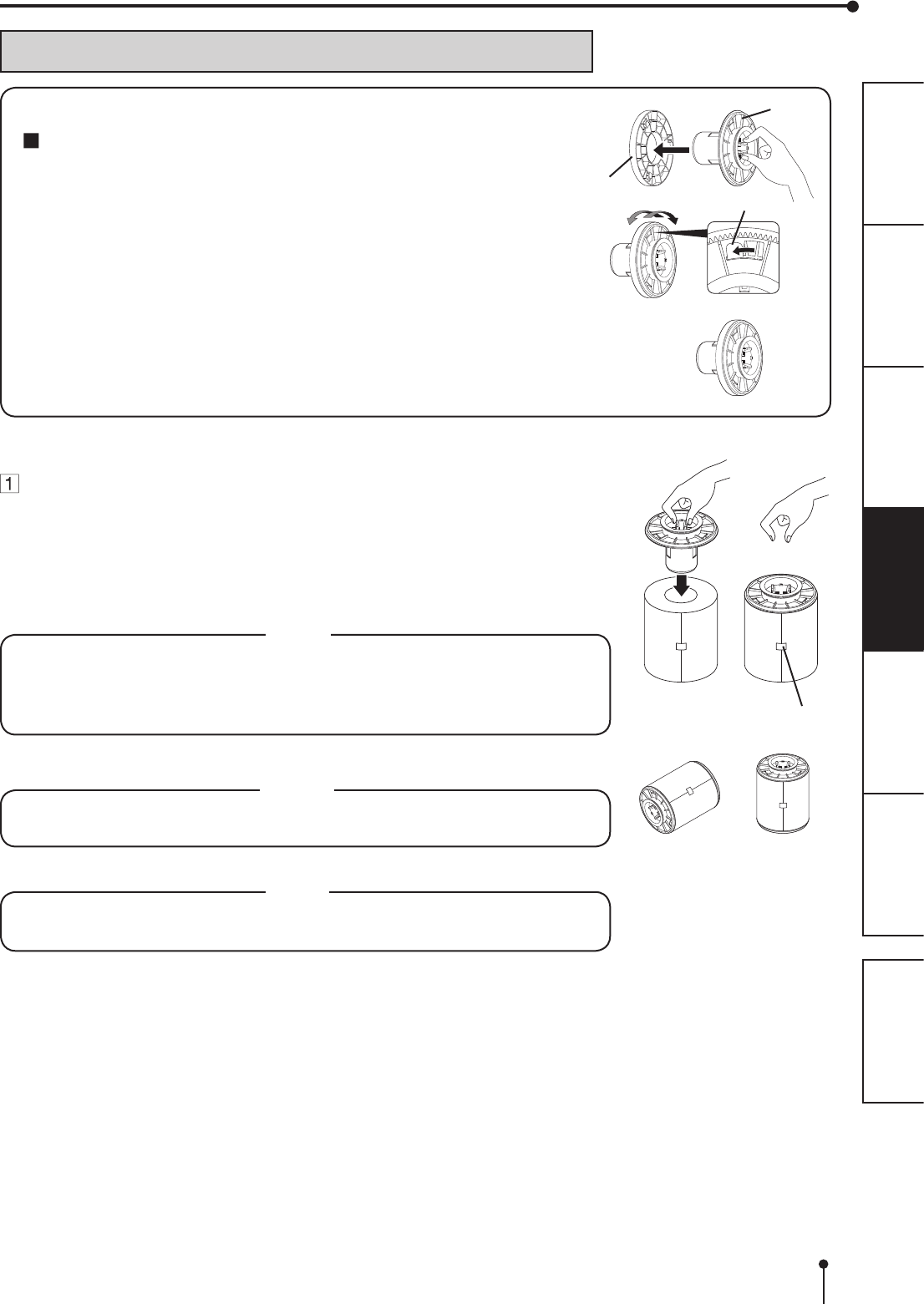

INSTALLATION OF PRINT PAPER
Spacers
For the usage of the spacers, see the Quick Setup Guide.
How to attach the spacers
1. Attach the spacer with the paper ange’s stoppers retracted.
2. Turn the spacer until the latches are locked.
When you remove the spacers from the paper anges, follow the
above procedure in reverse.
Spacer Latch
Paper
ange
Attach the supplied paper flanges to both sides of the print
paper.
When you pinch the latches on the paper ange, the stoppers retract into the shaft.
Attach the anges to the print paper with the stoppers retracted.
Make sure that the anges are attached to the print paper securely, and release the
latches.
NOTE
Take care not to pinch your ngers.
Do not remove the sticker on the print paper yet.
Do not slacken the paper. Any slack in the print paper may degrade the print
quality.
CAUTION
When placing the print paper, keep the print paper upright.
When you put the print paper sideways, it may roll and fall. This may cause injury.
NOTE
Fingerprints or dust on the paper’s surface may degrade print quality and cause
paper jams.
Sticker
INCORRECT CORRECT
BEFORE OPERATION
12
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
Install the print paper into the unit.
Make sure to install the print paper rmly.
NOTE
Install the print paper into the unit slowly. If it is dropped along the ditches, the unit
or accessories may be damaged.
Roller
Print paper
Remove the sticker, insert the print paper between the roller and
guide as shown right, and feed the print paper until the buzzer
sounds.
Remove the sticker before inserting the print paper between roller and guide.
Make sure to insert the paper straight.
NOTE
Keep the roller clean. Dirt on the roller may degrade the print quality.
NOTE
When taking the print paper out, pull it up toward you by holding the paper
anges.
Make sure to turn on the power before replacing the print paper.
Make sure to eliminate any slack from the print paper. If you carry out the
following steps without eliminating the slack, the print paper may be damaged.

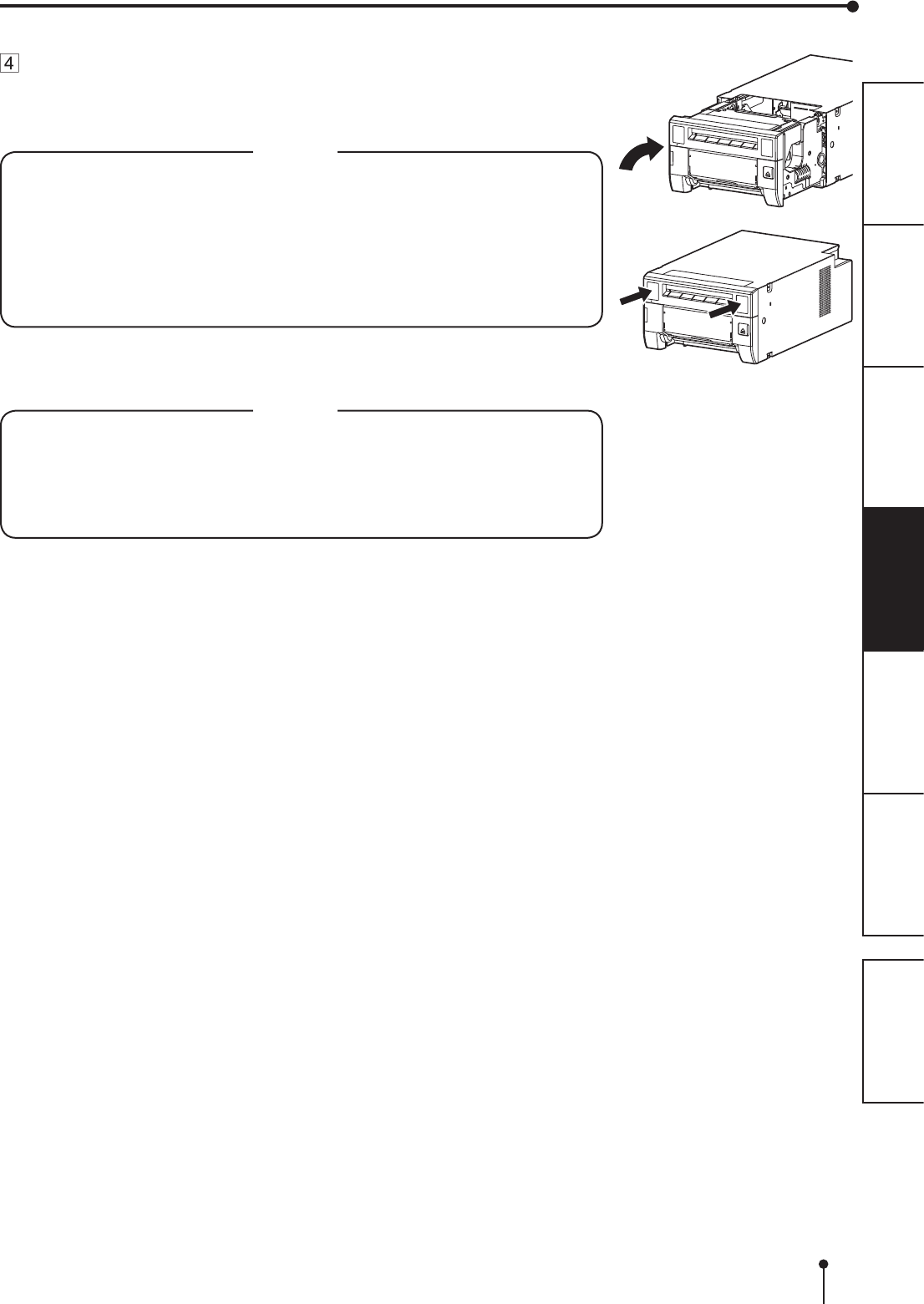

Close the door.
Guide
Press the POWER switch on the rear panel to turn on the power.
After the mechanical initialization is completed, press the OPEN
button to pull out the printing unit.
Pull the knob to open the door.
Direction of paper insertion
BEFORE OPERATION
POWER switch
Knob
13
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
BEFORE OPERATION
INSTALLATION OF INK RIBBON
Place the ink cassette containing the ink ribbon in the position
as shown right.
Mount the ink cassette by holding the handle.
Make sure to set the ink cassette to the printer rmly.
After installing the print paper, install the ink cassette into this unit.
Before installing the ink cassette into this unit, load the ink ribbon in the ink cassette.
NOTE
Place the ink cassette on a at surface, when loading the ink ribbon.
Select a place that is free of dust when loading the ink ribbon. Dust or dirt settling
on the ink ribbon results in poor print quality.
Make sure that the shafts of the ink ribbon t into the ink cassette rmly.
Load the ink ribbon in the ink cassette as shown below.
Make sure to load it in the correct position.
Make sure to set the ink ribbon roller to the ditches rmly.
Turn the gears to eliminate any slack.
34
1 2
34
1 2
Ink ribbon
Gear
Ink cassette
Handle
Ditch
CAUTION
Do not touch the thermal head.
Fingerprints or dust on the thermal head will degrade the print quality.
CAUTION
Do not touch the thermal head right after printing because it is
extremely hot. Otherwise you may get burned or injured.
NOTE
Note that the thermal head is quite sensitive to static electricity.
When you touch the thermal head while carrying static electricity
on your body, the thermal head may be damaged.
Handle
Close the door.
14
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
Installation of the print paper and the ink ribbon is completed.
NOTE
Make sure to replace the print paper and the ink ribbon simultaneously.
When replacing them, throw away the paper chips in the paper strip bin.
Whenever you replace the print paper and the ink ribbon, clean the thermal head
and the platen roller. For the cleaning procedures, see “CLEANING” (on pages 21
and 22).
BEFORE OPERATION
Push the printing unit to close.
When new print paper is mounted and the printing unit is closed with the power
turned on, the paper is automatically fed and cut.
NOTE
When closing the door, push it until a click is heard.
If the PAPER RIBBON indicator illuminates when the printing unit is closed, the
print paper may have not been installed correctly.
In this case, open the printing unit to make sure that the print paper has been
installed correctly. Then close the printing unit again.
When the print paper is installed more than three times, the print paper may be
used up earlier than the ink ribbon.
15
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
BEFORE OPERATION
HANDLING OF PAPER / INK RIBBON SET
BEFORE PRINTING
Fingerprints or dust on the paper’s printing surface may degrade the print quality and
cause paper jams.
When the print paper or ink ribbon is abruptly transferred from a cool place to a hot
place, vapor or dew is generated on the surface, which causes paper jams or degraded
print quality. Leave the print paper in the room to stabilize its temperature before use.
If you repeat the installation of print paper procedure more than the designated number
of times, the indicated number of prints may not be made. In addition, if you replace the
print paper before it is used up, the indicated number of prints may not be made.
AFTER PRINTING
If the paper absorbs nonvolatile organic solvents (alcohol, ester, ketone, etc.) the print may
be discolored.
Discoloration of prints is accelerated if the print paper comes into contact with soft vinyl
chloride such as transparent tape.
Avoid storing prints in direct sunlight or places with high humidity.
STORAGE OF PAPER / INK RIBBON SET
Do not store the print paper and ink ribbon in the container made of soft polyvinyl chloride.
They may be discolored because of chemical reaction.
Store the print paper and ink ribbon out of direct sunlight and away from heating appliances
in a cool, dark place where the temperature is 5˚C to 30˚C and the humidity is 20% to 60%
RH.
16
CONNECTIONS
OTHERSPRECAUTIONS FEATURES PREPARATION TROUBLE-
SHOOTING CONTENTS
INSTALLATION OF PRINTER DRIVER
The printer driver is required to print the data from the personal computer connected with this unit.
The printer driver for Windows® is supplied with this unit.
Product name Required operating system
CPD70X Applies for Microsoft Windows® XP operation system
CPD70V Applies for Windows Vista® and Windows 7™ operation system
Refer to the PRINTER DRIVER GUIDE in the CD-ROM for installing the printer driver.
Microsoft, Windows, Windows XP, Windows Vista and Windows 7 are the trademarks or the registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
BEFORE OPERATION
CONNECTION WITH USB DATA SIGNAL EQUIPMENT
To USB port
Personal computer Digital color printer
To USB port
NOTE
A USB cable is not supplied with this unit. Use the USB 2.0 certied cable of 2 m or less in length.
CONNECTING TO PERSONAL COMPUTER (EXAMPLE)
Turn on the power of a personal computer.
Turn on the power of the printer.
Connect the printer and a personal computer with a USB cable.
Connect the printer to a personal computer as shown below.
NOTE
Do not connect the printer and the personal computer at this step when you use Windows 7 as the operation
system.
Refer to the PRINTER DRIVER GUIDE in the CD-ROM for details.
17
CONNECTIONS
PREPARATION TROUBLE-
SHOOTING
FEATURES
PRECAUTIONS OTHERS CONTENTS
ERROR MESSAGES AND COUNTERMEASURES
INDICATIONS ON THE FRONT PANEL AND COUNTERMEASURES
If, for some reason, printing is not possible or an error occurs during printing, the indicators on the front panel will
illuminate or blink. In this case, follow the procedure described below.
In case of an error during printing, unless you turn off the unit, the unit resumes printing automatically when the error is
corrected.
: Steady on : Off : Blinking
ALARM PAPER RIBBON POWER Causes and Countermeasures Page
(Orange)
This printer is in standby mode.
Connect a USB cable to the printer when not
connected.
It may take time that the printer is ready to print
images after the image data is sent.
7
(Green)
The printing unit is open.
• Close the printing unit.
7
(Green)
A paper jam occurs.
• Refer to “Overcoming paper jams.”
19
(Green)
The temperature of the thermal head is too high or
too low.
• Wait until the indication goes off. When blinking
stops, the printer resumes printing automatically.
7
(Green)
The ink ribbon which is not available to this printer
is installed.
• Replace the ink ribbon with a new one.
The actual combination of ink ribbon and print
paper is inconsistent with the setting made by the
personal computer.
• Open the printing unit and conrm that the actual
combination of ink ribbon and print paper is
consistent with the setting made by the personal
computer. After checking, close the printing unit.
14-15
(Green)
The print paper or ink ribbon is not installed.
The print paper or ink ribbon is used up.
• Install new print paper or ink ribbon.
11-12
(Green)
Other errors 20
When the ALARM or the PAPER RIBBON indicator illuminates or blinks, open the door and carry out the above
countermeasures.
18
CONNECTIONS
PREPARATION TROUBLE-
SHOOTING
FEATURES
PRECAUTIONS OTHERS CONTENTS

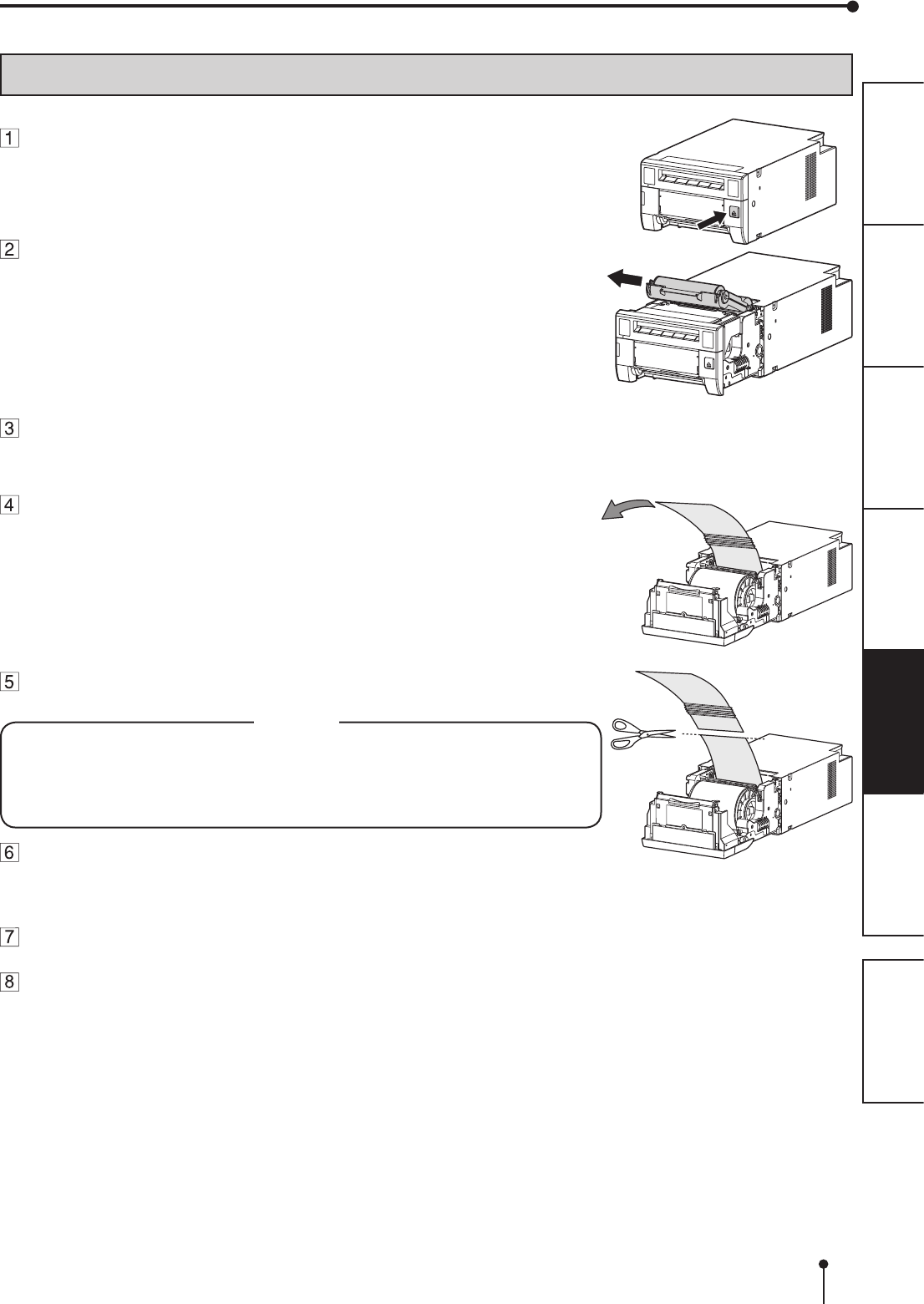

OVERCOMING PAPER JAMS
Press the OPEN button to open the printing unit.
Make sure that the power is turned on before opening the printing unit.
Remove the ink cassette.
Open the door.
Pull out the defective part of the print paper to the direction of an
arrow.
Cut off the defective part of the print paper with scissors.
NOTE
Make sure to cut off the printed part of the print paper. Failure to do this may
result in the ink ribbon sticking to the print paper and being torn.
Make sure to clean the thermal head and the platen roller. Refer to “CLEANING” (on
pages 21 and 22).
Install the print paper and the ink cassette with the ink ribbon.
(Refer to pages 11-15.)
Close the door.
Close the printing unit by pushing it.
ERROR MESSAGES AND COUNTERMEASURES
19
CONNECTIONS
PREPARATION TROUBLE-
SHOOTING
FEATURES
PRECAUTIONS OTHERS CONTENTS
INSTRUCTIONS FOR TRANSPORTATION
When transporting this unit for some reason such as repair, follow the instructions below.
1. Use the original packaging.
The genuine package unit may not endure more than one round trip. If the unit is transported with the package unit more
than one round trip, it may not be guaranteed.
Purchase another package unit when transporting this unit again.
Pack the unit with the accessories (ink ribbon and print paper) removed.
2. Close the printing unit rmly.
When closing the printing unit, push it until a click is heard.
3. If the ink ribbon, print paper, or ink cassette can not be taken out, consult with your dealer.
ERROR MESSAGES AND COUNTERMEASURES

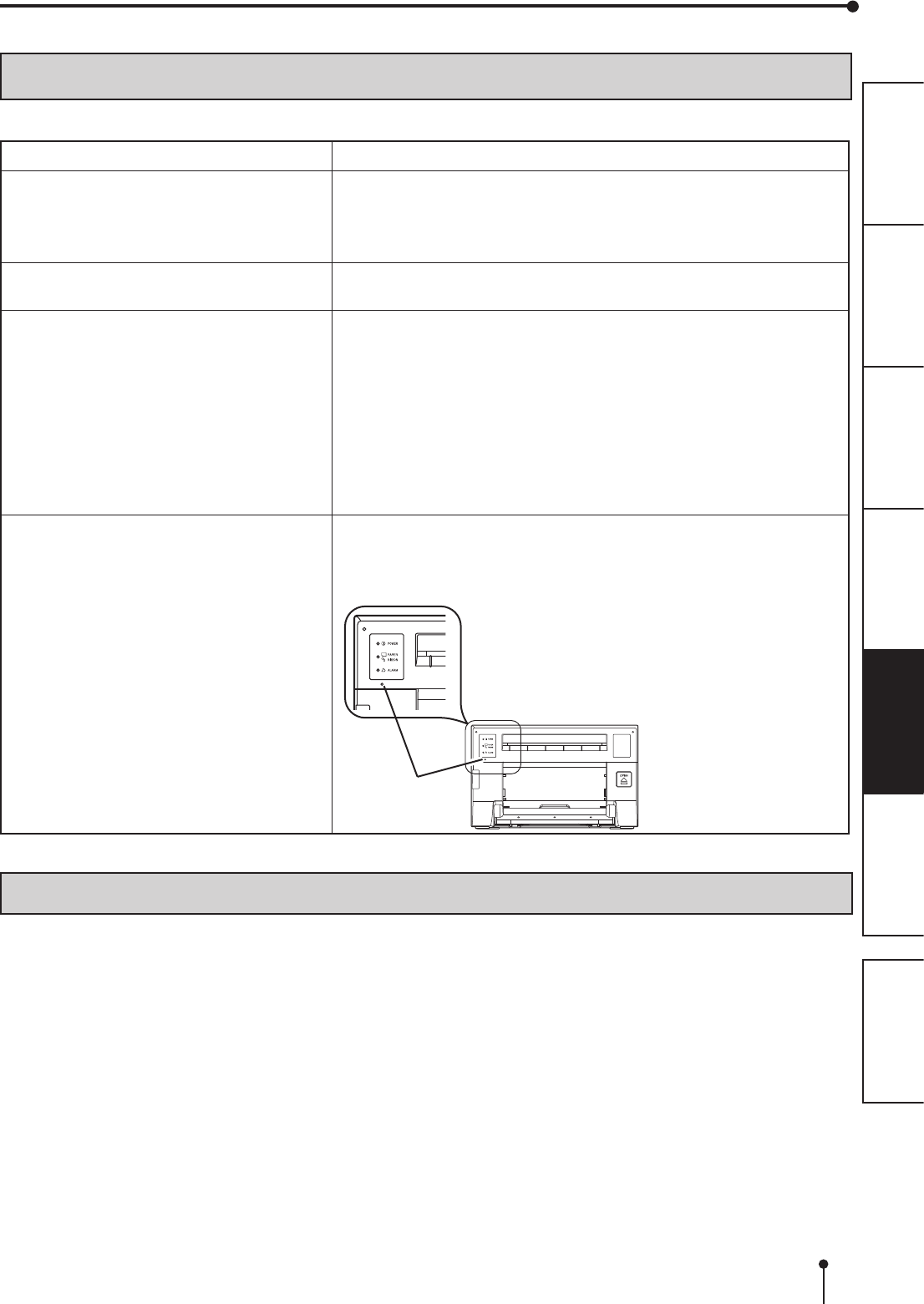

BEFORE CALLING FOR SERVICE
For the following symptoms, check the unit again before calling for service.
Symptom Check & Remedy
The power is not turned on. Is the power cord plug disconnected from the outlet?
Connect the power cord plug to the outlet rmly.
The protective circuit may be working. Turn off the power and wait for
about two minutes. Then turn on the power again.
The printing unit doesn’t open. Are you turning off the power during printing procedure?
Turn on the power and then open the printing unit.
The image is not printed. Is the PAPER RIBBON indicator or the ALARM indicator illuminating or
blinking?
Refer to “Overcoming paper jams.”
Is the appropriate size of data sent to this unit?
Make sure that the appropriate size of image data is sent to this unit.
Is the print paper or the ink ribbon used up?
Check them.
Is the printing unit set rmly?
Set the printing unit rmly.
An error can not be resolved. Turn off and on the power of the printer with the printing unit set rmly.
This printer starts initialization.
Press the switch inside of the hole of the front panel with a thin stick or
the like for one second or more.
Switch
20
CONNECTIONS
PREPARATION TROUBLE-
SHOOTING
FEATURES
PRECAUTIONS OTHERS CONTENTS
Cleaning as indicated below will help maintain stable printer operation and extend the printer’s life.
Make sure to turn off the power before cleaning.
CLEANING
Cleaner pen
Cleaning part of thermal head
Outside
Inside
Printing
surface
about 12 mm about 12 mm
lines
152 mm
FILTER CLEANING
Clean the lter part with a vacuum as shown right.
THERMAL HEAD CLEANING
Press the OPEN button to open the printing unit.
Take the ink cassette out of the printer.
Preparations
Alcohol (isopropyl alcohol)
Soft and claen cloth
Other : Cleaner pen (option)*, Cleaning ribbon (option)*
* Please ask the dealer about options.
When lines appear on the printed images, clean the thermal head.
Wipe the head cleaning part (as shown right) carefully with cloth dampened with a
small amount of alcohol.
NOTE
Do not damage the thermal head.
When the poor print quality is not corrected even if the head has been cleaned,
replacement of the thermal head may be required. Contact your dealer.
CAUTION
Thermal head is hot right after printing. Wait until the head cools before cleaning
the thermal head.
NOTE
The thermal head may be damaged if you touch it while static electricity builds
up on your body.
Filter (inside)
21
CONNECTIONS
PREPARATION TROUBLE-
SHOOTING
FEATURES
PRECAUTIONS OTHERS CONTENTS
CLEANING
PLATEN ROLLER CLEANING
Preparations
Alcohol (isopropyl alcohol)
Soft and clean cloth
Clean the black part of the roller.
Wipe the black part carefully with cloth dampened with a small amount of alcohol.
Wipe the whole roller by turning it.
Cleaning part
PAPER FLANGE CLEANING
Clean the parts that contact the print paper sides as shown right.
Wipe the parts carefully with cloth dampened with a small amount of alcohol.
Platen roller
22
CONNECTIONS
PREPARATION TROUBLE-
SHOOTING
FEATURES
PRECAUTIONS OTHERS CONTENTS
SPECIFICATIONS
SPECIFICATIONS
Class Digital Color Printer
Model CP-D70DW CP-D707DW
Printing method Sublimation Dye Thermal Transfer line print
3-color faces progressive printing (yellow, magenta, and cyan) and surface lamination
Prints resolution 300 x 300 dpi (dpi : dots per inch)
Dot resolution 9x13 (3.5x5”)
10x15 (4x6)
13x18 (5x7”)
15x20 (6x8)
1076 x 1568 dots
1228 x 1864 dots
1568 x 2128 dots
1864 x 2422 dots
Print size 9x13 (3.5x5”)
10x15 (4x6)
13x18 (5x7”)
15x20 (6x8)
89 x 127mm (without frame)
102 x 152mm (without frame)
127 x 178mm (without frame)
152 x 203mm (without frame)
Gradations 256 (8 bits) for each color (About 16.7 million colors)
Printing time 9x13 (3.5x5”)
10x15 (4x6)
13x18 (5x7”)
15x20 (6x8)
Approx. 8 sec./sheet
Approx. 8 sec./sheet
Approx. 16 sec./sheet
Approx. 18 sec./sheet
Supply method Automatic
Interface Hi-Speed USB (Ver.2.0)
Power supply 220 - 240 V AC 50/60 Hz, 120 V AC 50/60 Hz
Power consumption 2.5 A (220 - 240 V AC, 50/60 Hz), 4.7 A (120 V AC, 50/60 Hz) during printing
0.4 A (220 - 240 V AC, 50/60 Hz), 0.4 A (120 V AC, 50/60 Hz) when not printing
Operating conditions Temperature : 5°C - 40°C
Humidity : 30% - 80% RH (no dewing)
Installation conditions Operating attitude : Horizontal ±5°
Outside dimensions 275(W) x 446(D) x 170(H) mm 275(W) x 446(D) x 340(H) mm
Weight Approx. 12 kg (excluding accessories) Approx. 22 kg (excluding accessories)
Standard accessories
Power cords (for 120 V and 230 V),
Ink cassette (1), CD-ROM (1),
Paper ange (1 set), Spacers (2), Quick setup
guide (1), Paper strip bin (1), Banding band (3),
Securing band (1), Screw for securing band (2)
Power cords (for 120 V and 230 V),
Ink cassette (2), CD-ROM (1),
Paper ange (2 sets), Spacers (4), Quick
setup guide (1), Paper strip bin (2),
Banding band (3), Securing band (1),
Screw for securing band (2)
Design and specications are subject to change without notice.
Contents of CD-ROM
• Operation manual
• Printer driver
• PRINTER DRIVER GUIDE
MITSUBISHI ELECTRIC EUROPE B.V.
UK Branch
Travellers Lane, Hateld, Herts. AL10 8XB, England, U.K.
Phone +44 (0) 1707 276100 FAX +44 (0) 1707 278755
German Branch
Gothaer Strasse 8, 40880 Ratingen ; Postfach 1548, 40835 Ratingen ; Germany
Phone +49 (2102) 486-9250 FAX +49 (2102) 486-7320
French Branch
25, Boulevard des Bouvets - 92741 NANTERRE cedex, France
Phone +33 (1) 55 68 55 00 FAX +33 (1) 55 68 57 31
Italian Branch
Centro Direzionale Colleoni, Palazzo Sirio, ingresso n.1
Viale Colleoni, 7, 20041 Agrate Brianza, (Milano) Italy
Phone +39 03960531 FAX +39 0396053214
Benelux Branch
Nijverheidsweg 23a,
3641 RP Mijdrecht, The Netherlands
Phone +31 (0) 297-282461 FAX +31 (0) 297-283936
Spanish Branch (Barcelona)
Ctra. de Rubí, 76-80 - Apdo. 420
08190-Sant Cugat del Vallés - (Barcelona) Spain
Phone +34 93 565 3154 FAX +34 93 589 4388
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Road, Irvine, CA 92618, U.S.A.
Phone 949-465-6000
Manufactured by Mitsubishi Electric (Malaysia) Sdn. Bhd.
PLO 32, Kawasan Perindustrian Senai II, 81400 Senai, Johor Darul Takzim, Malaysia
Please contact the nearest Mitsubishi sales branch to get DOC (Declaration of Conformity) of the EC Directive
1999/5/EC.
WE919C176A1

Navigation menu
