CAUTION:

Before servicing this chassis, it is important that the service person read the "SAFETY PRECAUTIONS" and

"PRODUCT SAFETY NOTICE" contained in this manual.

• Design specifications are subject to change without notice.

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road, Irvine, CA 92618-1904

MITSUBISHI ELECTRIC

Service

Manual

2003

PROJECTION TELEVISION

V23 / V23+ / V23++ / V23+++ CHASSIS

SPECIFICATIONS

• Power Input : AC 120V, 60Hz

•Power Usage : 275W

300W [WS-65813/ WS-73513/

WS-73713 only]

• Frequency Range : VHF 54 ~ 470MHz

UHF 470 ~ 806MHz

•Antenna Input : VHF/UHF 75Ω unbalanced

2 - NTSC

1 - ATV/QAM

•CRT Size : [7 inches]

: [9 inches] WS-65813/ WS-73513/

WS-73713 only

•High Voltage : 32.0kV (at 0A)

• Cabinet Weight and Dimensions (Refer to page 5)

•Speakers (8 Ohms 10W)

: 2-5" full range [WS-48513 / WS-48613]

: 2-6" full range [WS-55513 / WS-65513 / WS-73513]

: 2-6" coaxials [WS-55613 / WS-65613]

: 2-6" woofers/ [WS-65713 / WS-73713]

2-1.5" tweeters

: 2-5"x7" coaxial [WS-55813 / WS-65813]

• Input Level : VIDEO IN JACK (RCA Type)

1.0Vp-p 75Ω unbalanced

: AUDIO IN JACK (RCA Type)

-4.7dBm 43kΩ unbalanced

: S-VIDEO IN JACK

(Y/C separate type)

Y:1.0 Vp-p C:0.286Vp-p(BURST)

75Ω unbalanced

: COMP / Y, Cr, Cb (RCA Type)

Y: 1.0 Vp-p Cr, Cb: 700mVp-p

: ATV / Y(G), Pr(R), Pb(B), H, V

Y: 1.0Vp-p with sync 75Ω (BNC)

Pr, Pb: 700mV 75Ω

H, V: 3.0Vp-p 75Ω

:VGA / R,G,B,V,H (15 pin D)

• Output Level : VIDEO OUT JACK (RCA Type)

1.0Vp-p 75Ω unbalanced

: AUDIO OUT JACK (RCA Type)

-4.7dBm 4.7kΩ unbalanced

• Digital : IEEE-1394 I/O Jacks

Interface : AC-3 Digtal Audio Output

: MonitorLinkTM/DVI

: MonitorLinkTM Control/RS-232C

: 4 Memory Card Reader Inputs

V23 MODELS

WS-48513

WS-55513

WS-65513

WS-73513

V23+ MODELS

WS-48613

WS-55613

WS-65613

WS-48613

V23++ MODELS

WS-65713

WS-73713

V23+++ MODELS

WS-55813

WS-65813

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 3

INTRODUCTION .................................................................................................................................. 5

CABINET WEIGHT & DIMENSIONS ................................................................................................... 5

PRODUCT SAFETY NOTICE ............................................................................................................... 5

DISASSEMBLY PROCEDURES .......................................................................................................... 7

WS-48513 / WS-48613

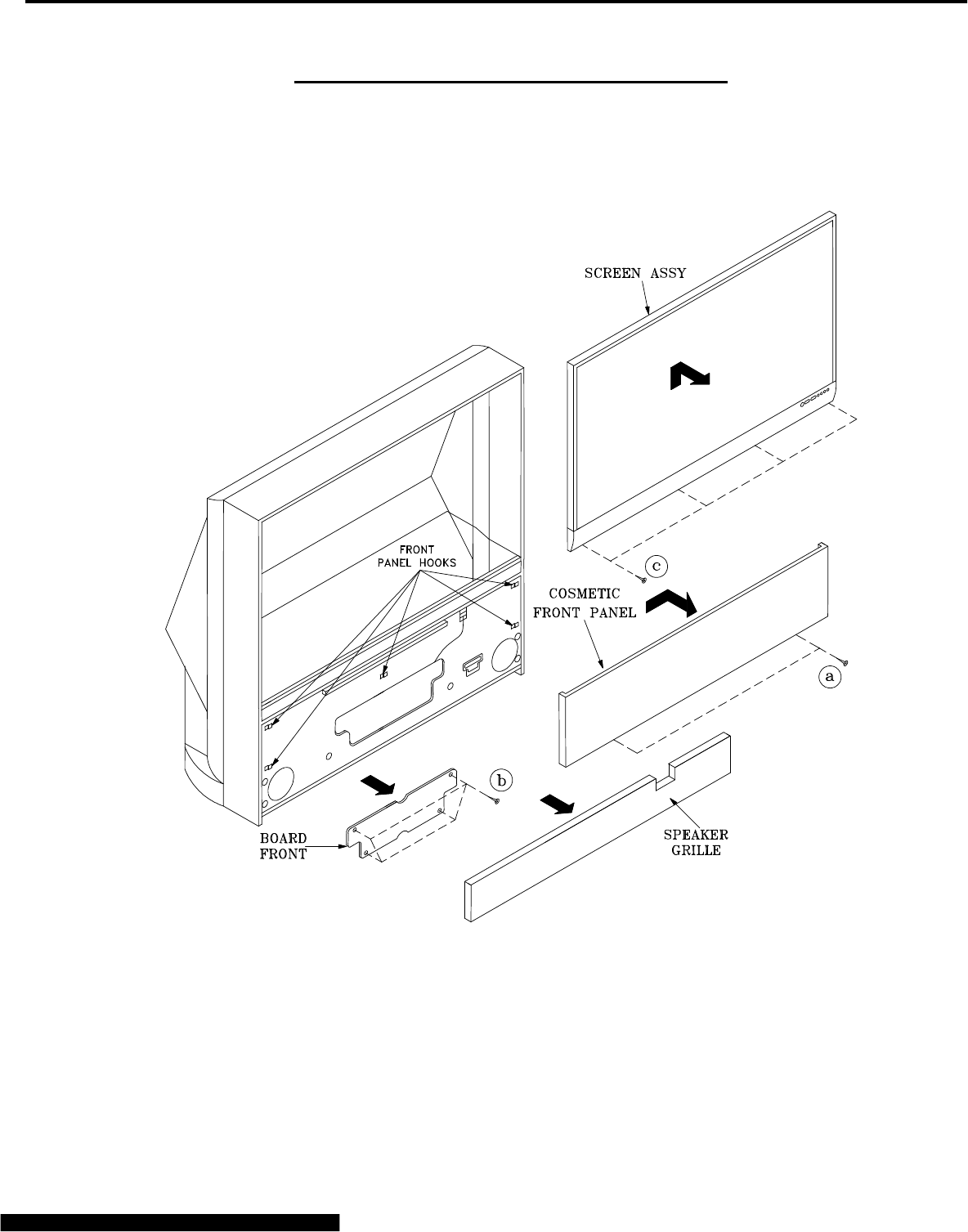

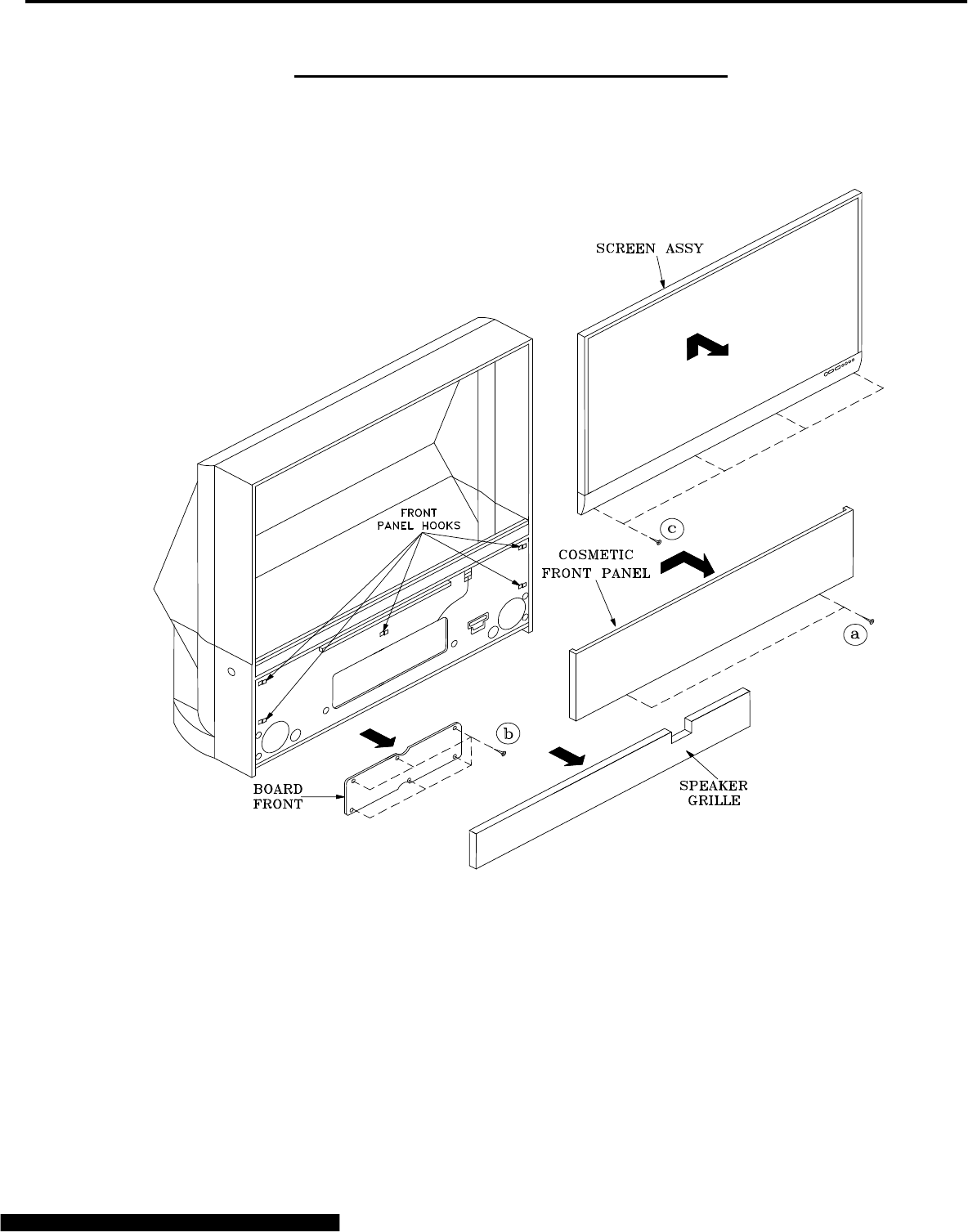

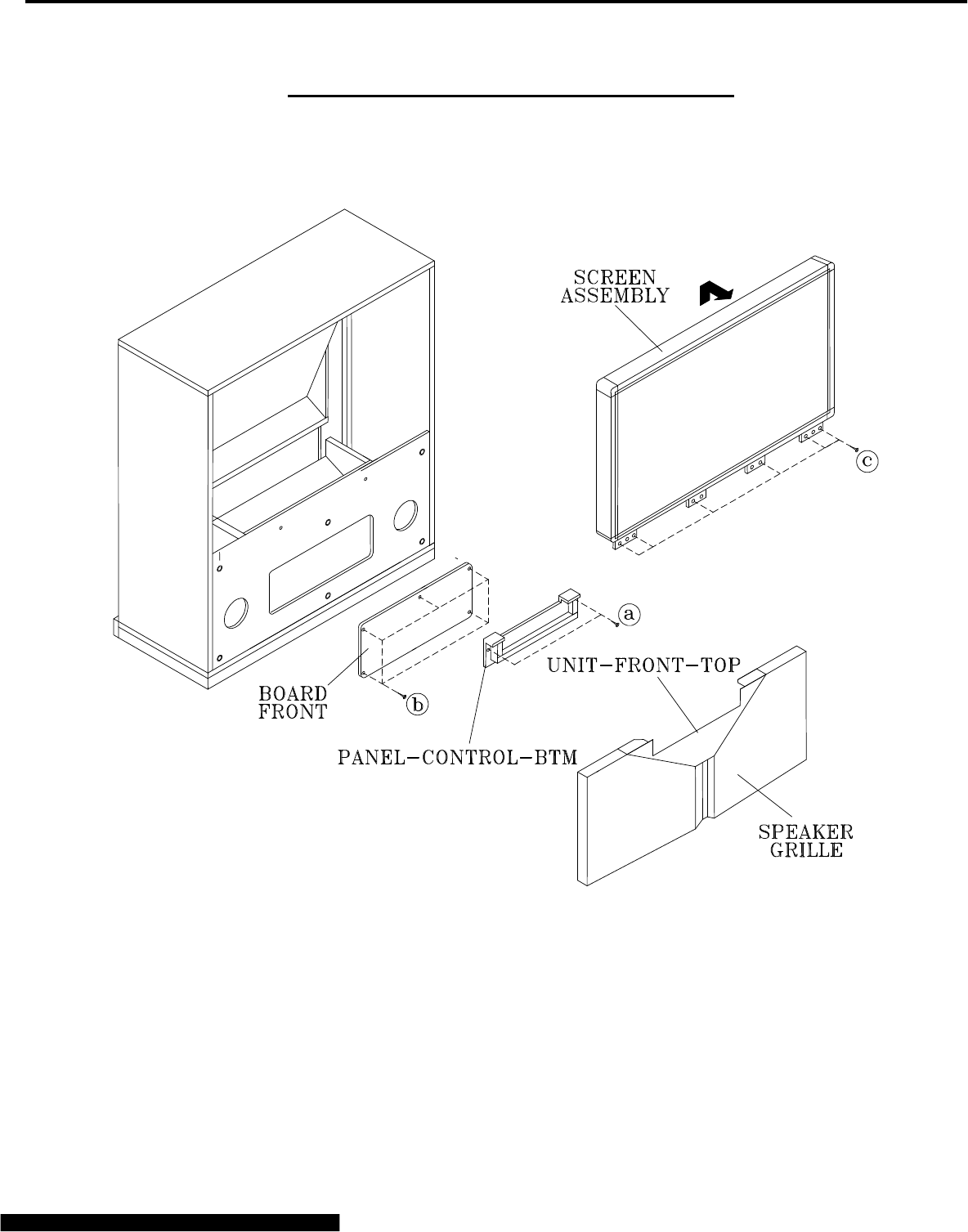

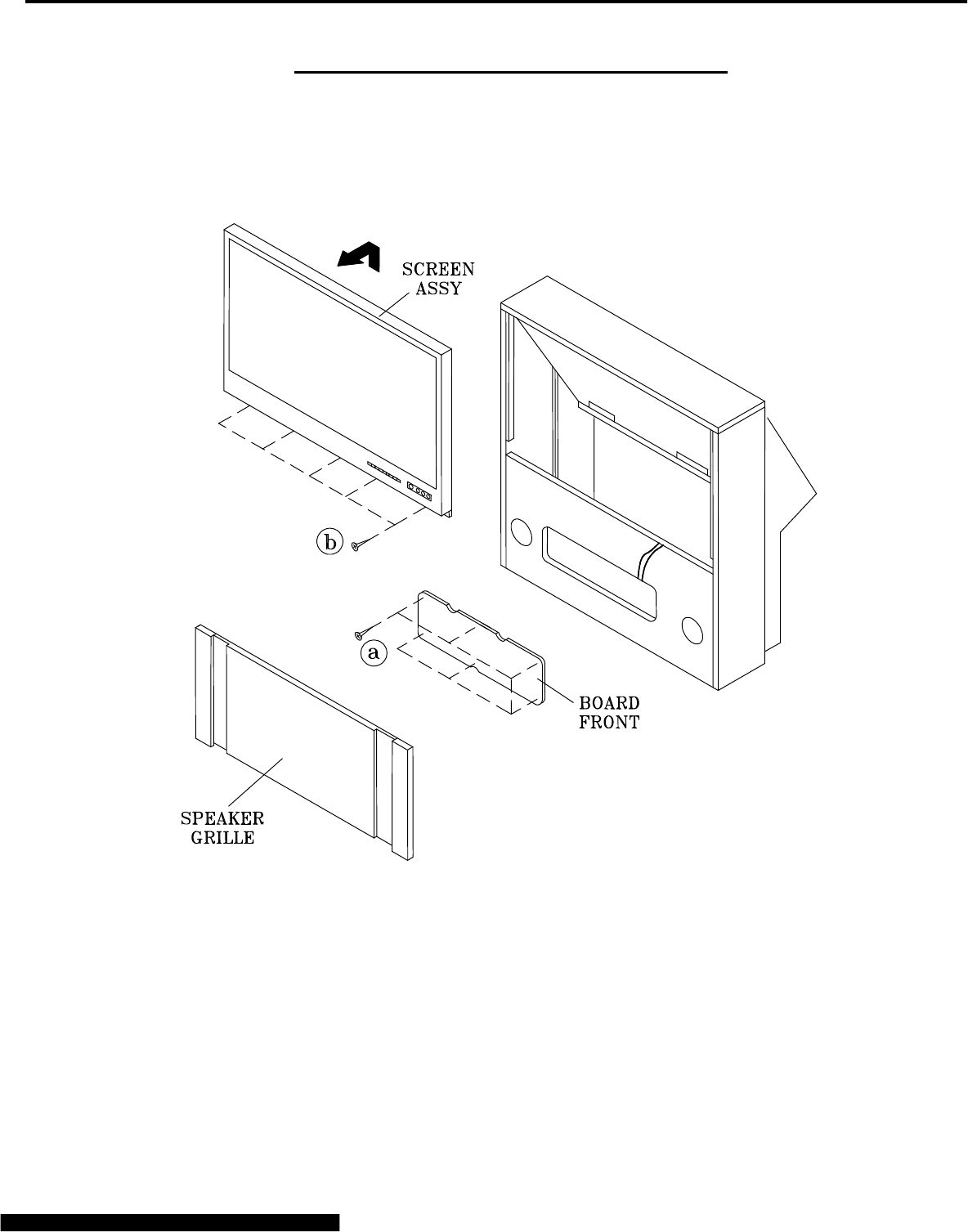

Front Cabinet Components ..................................................................................................... 7

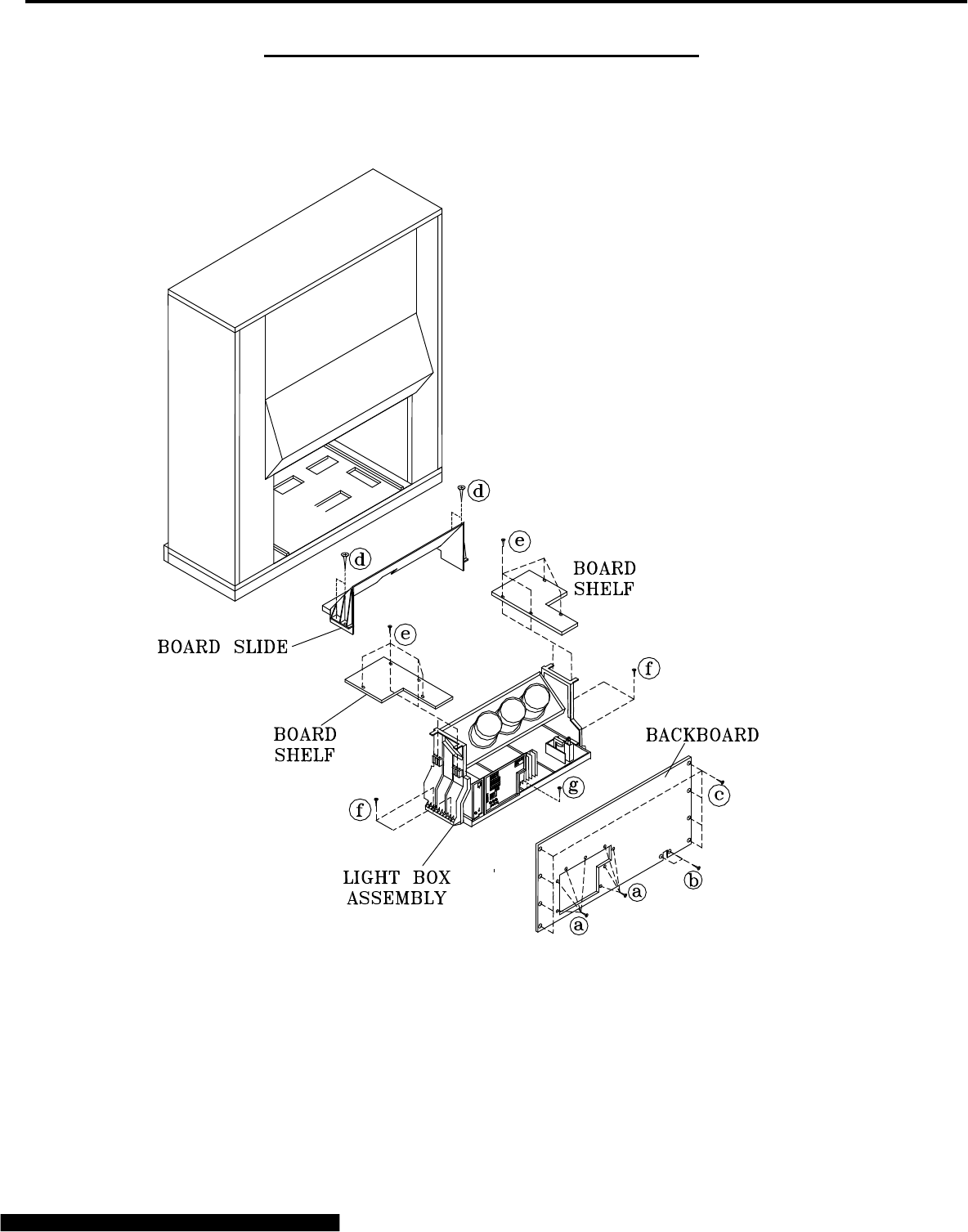

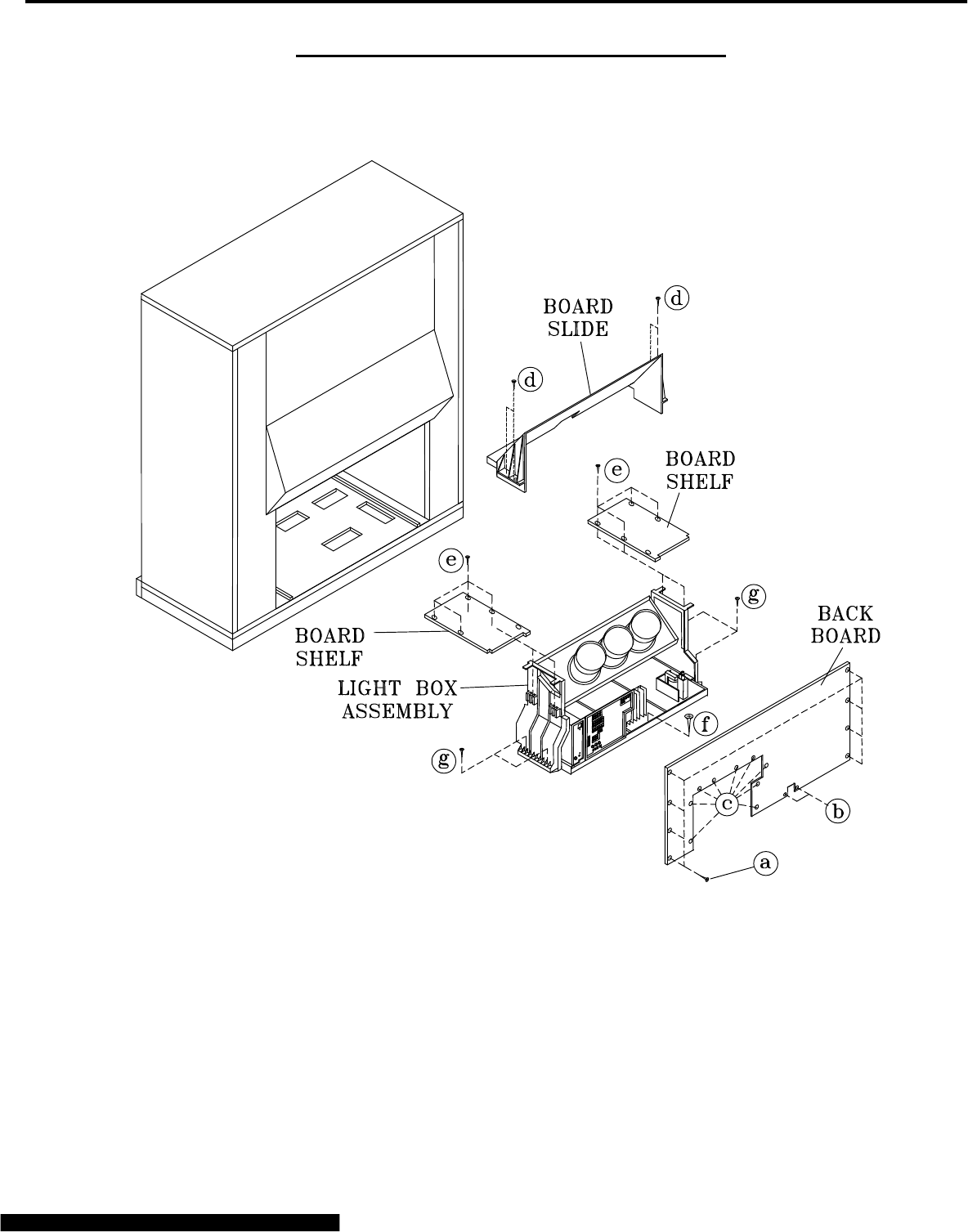

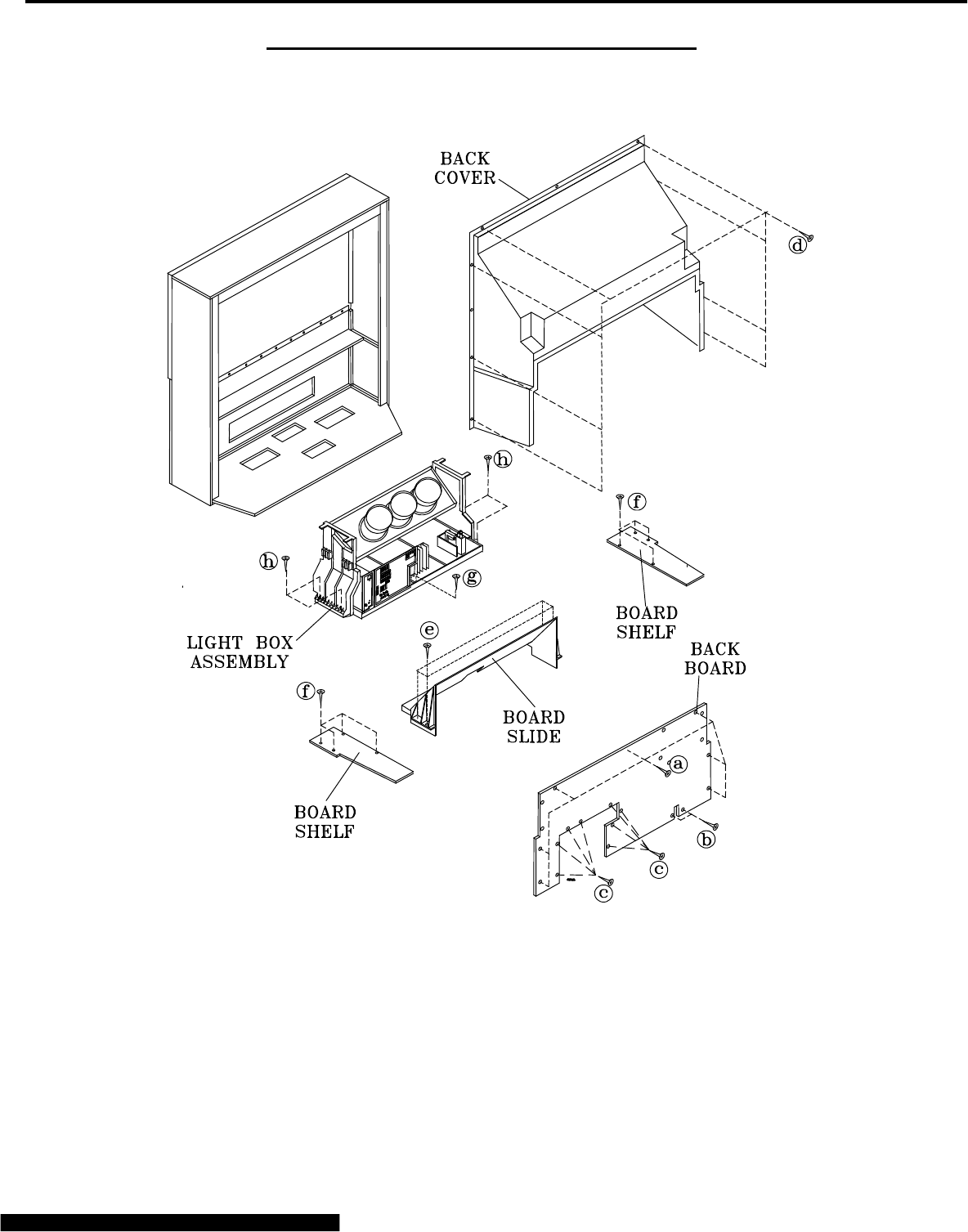

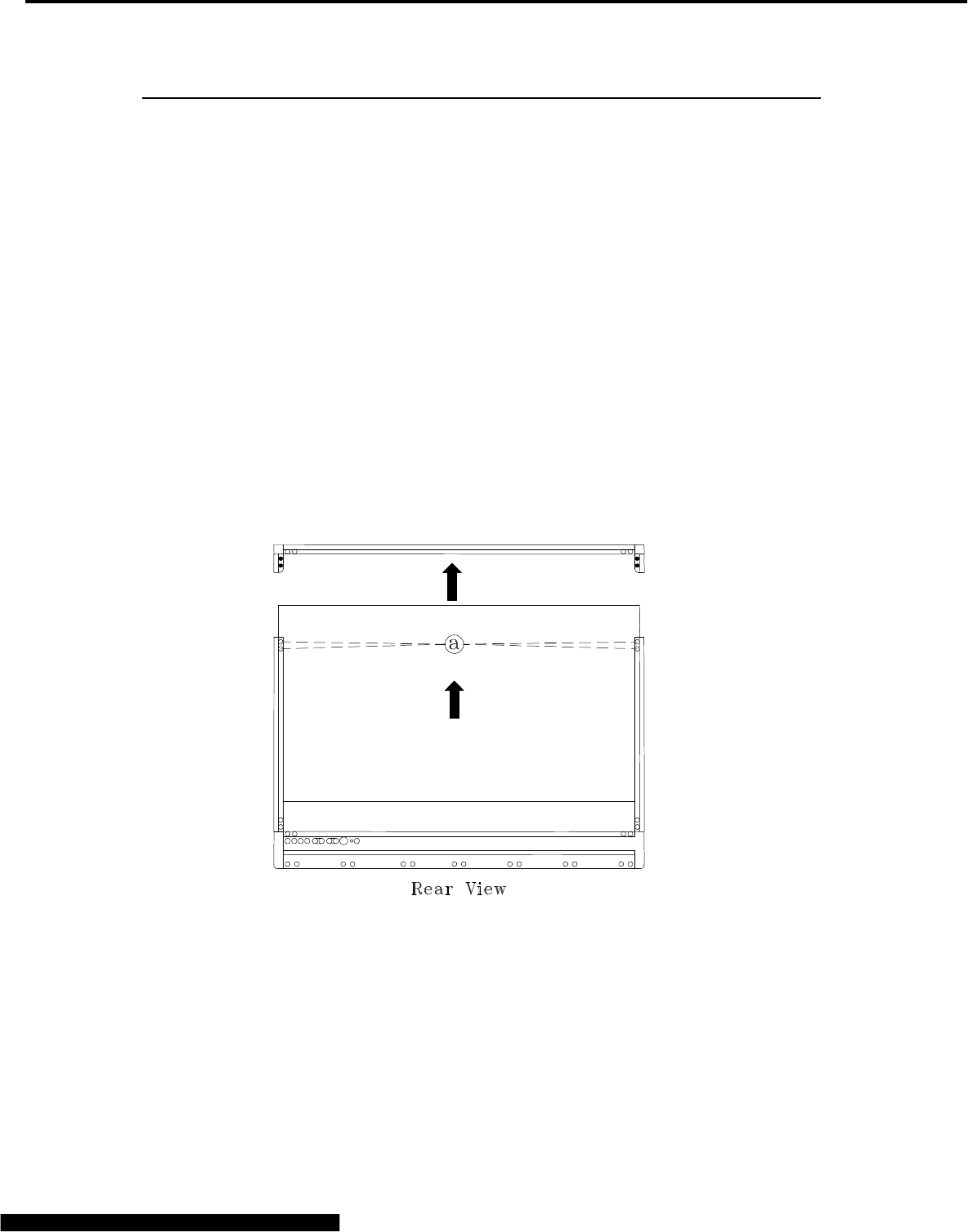

Rear Cabinet Components ...................................................................................................... 8

WS-55513 / WS-55613 / WS-65513 / WS-65613

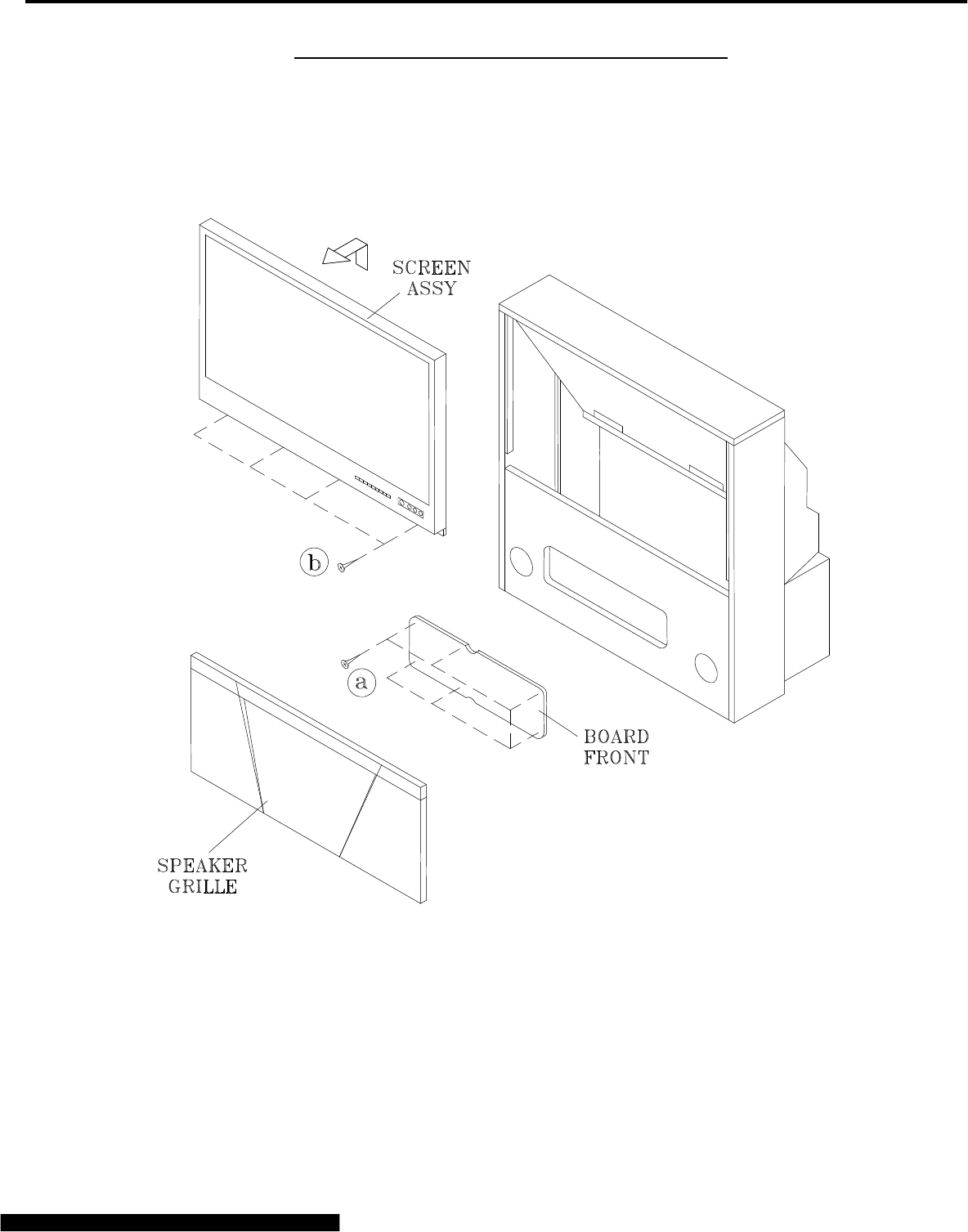

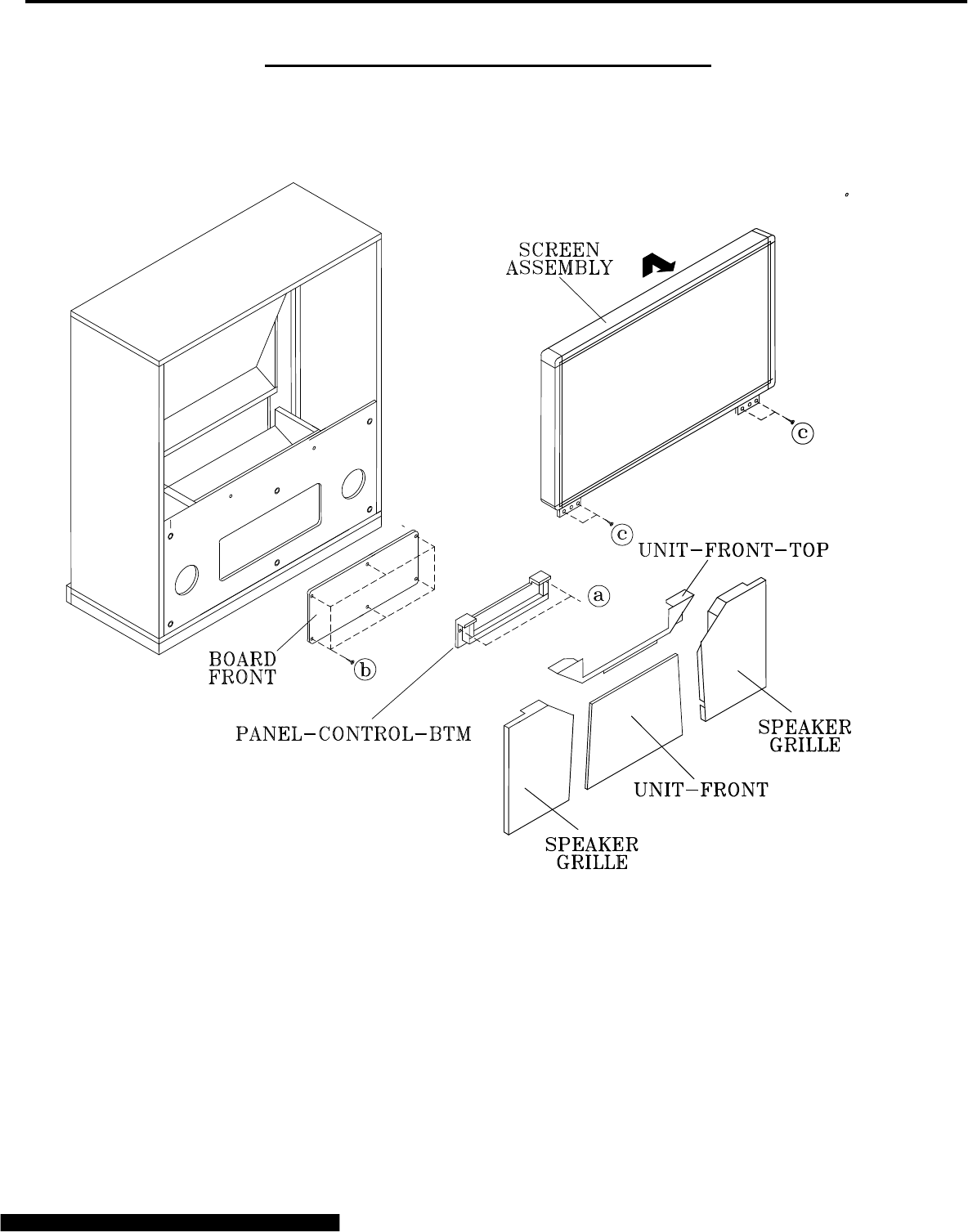

Front Cabinet Components ..................................................................................................... 9

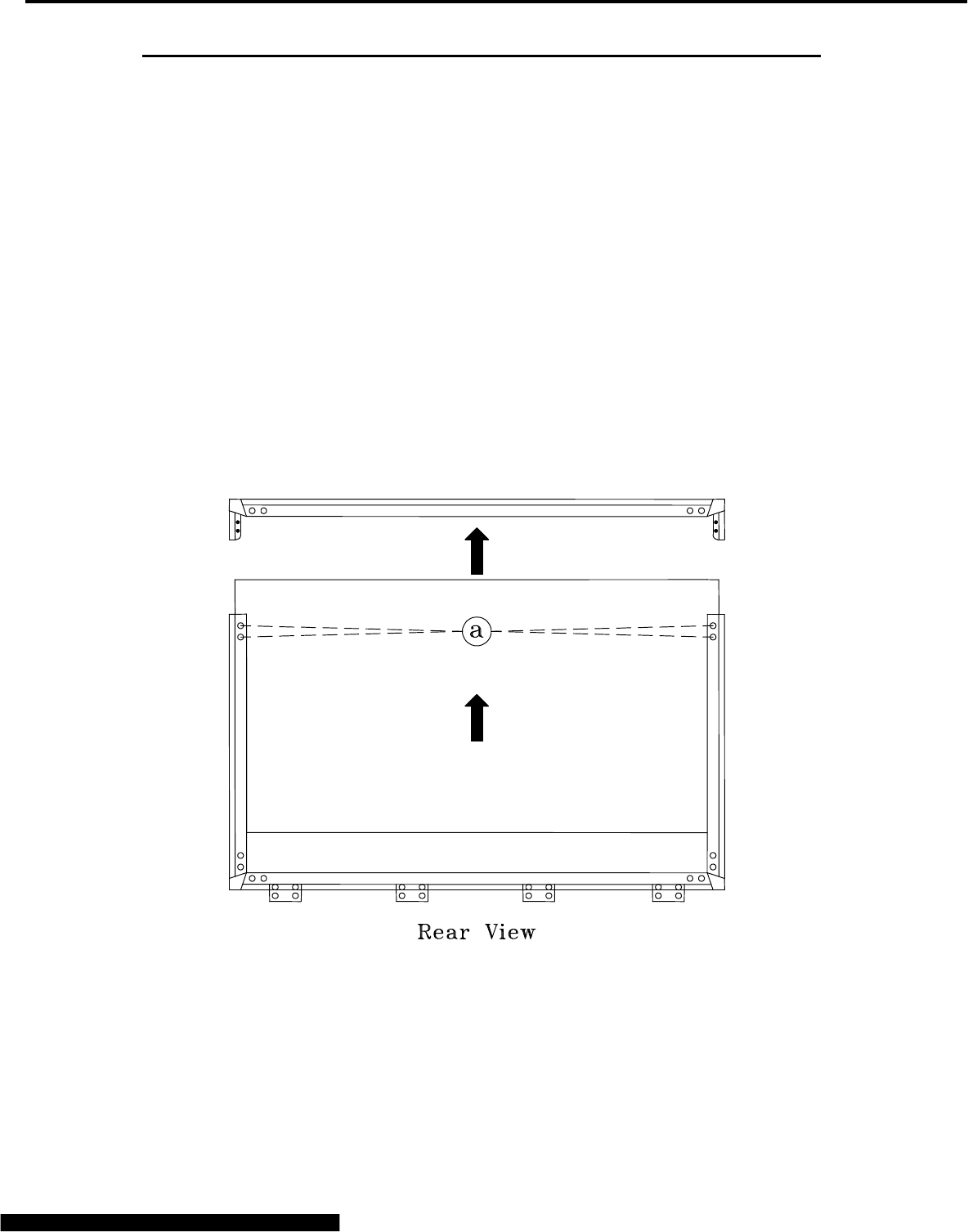

Rear Cabinet Components .................................................................................................... 10

WS-55813

Front Cabinet Components .................................................................................................... 11

Rear Cabinet Components .................................................................................................... 12

WS-65813

Front Cabinet Components ................................................................................................... 13

Rear Cabinet Components .................................................................................................... 14

WS-73513

Front Cabinet Components ................................................................................................... 15

WS-65713 / WS-73713

Front Cabinet Components ................................................................................................... 16

WS-65713 / WS-73513 / WS-73713

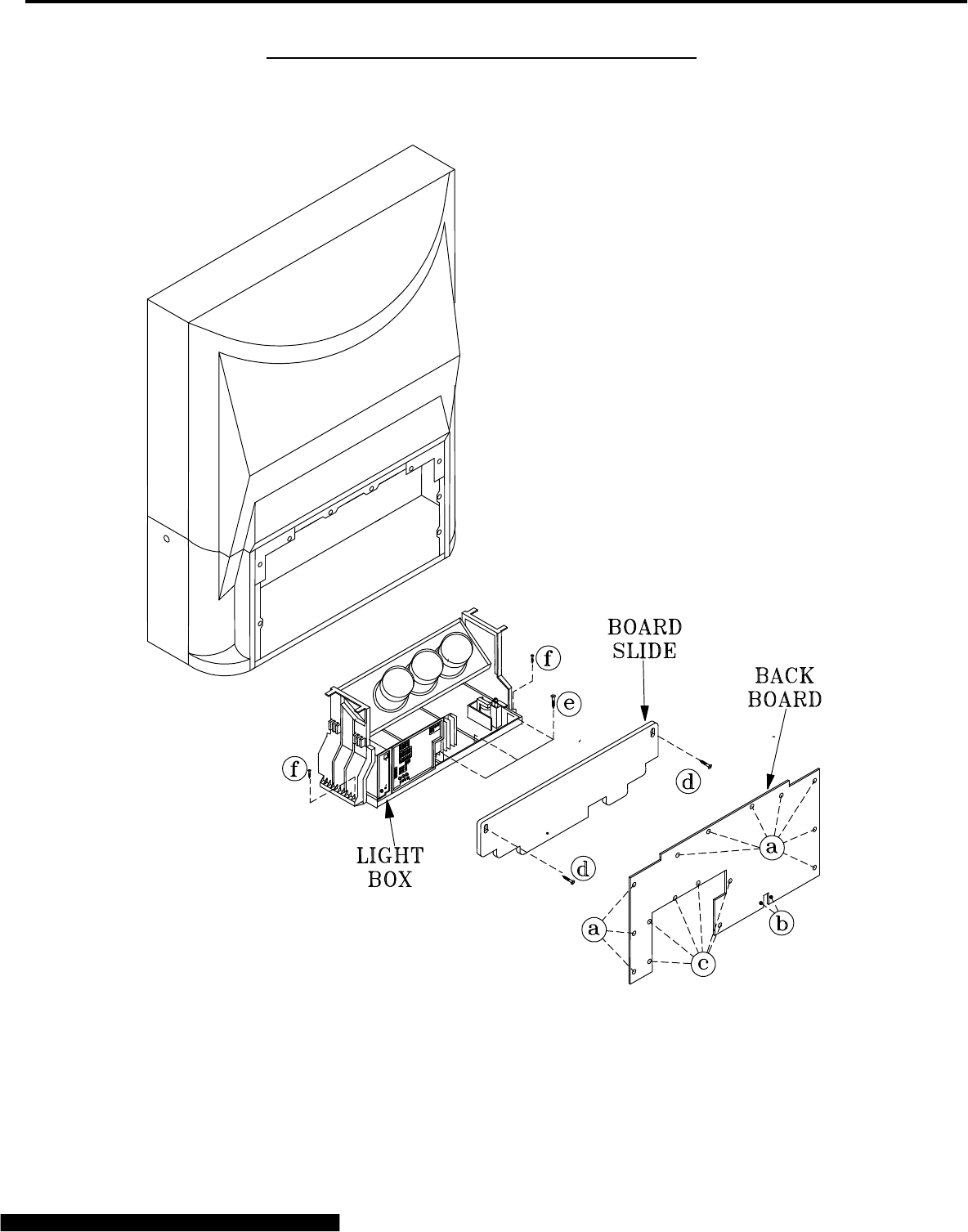

Rear Cabinet Components .................................................................................................... 17

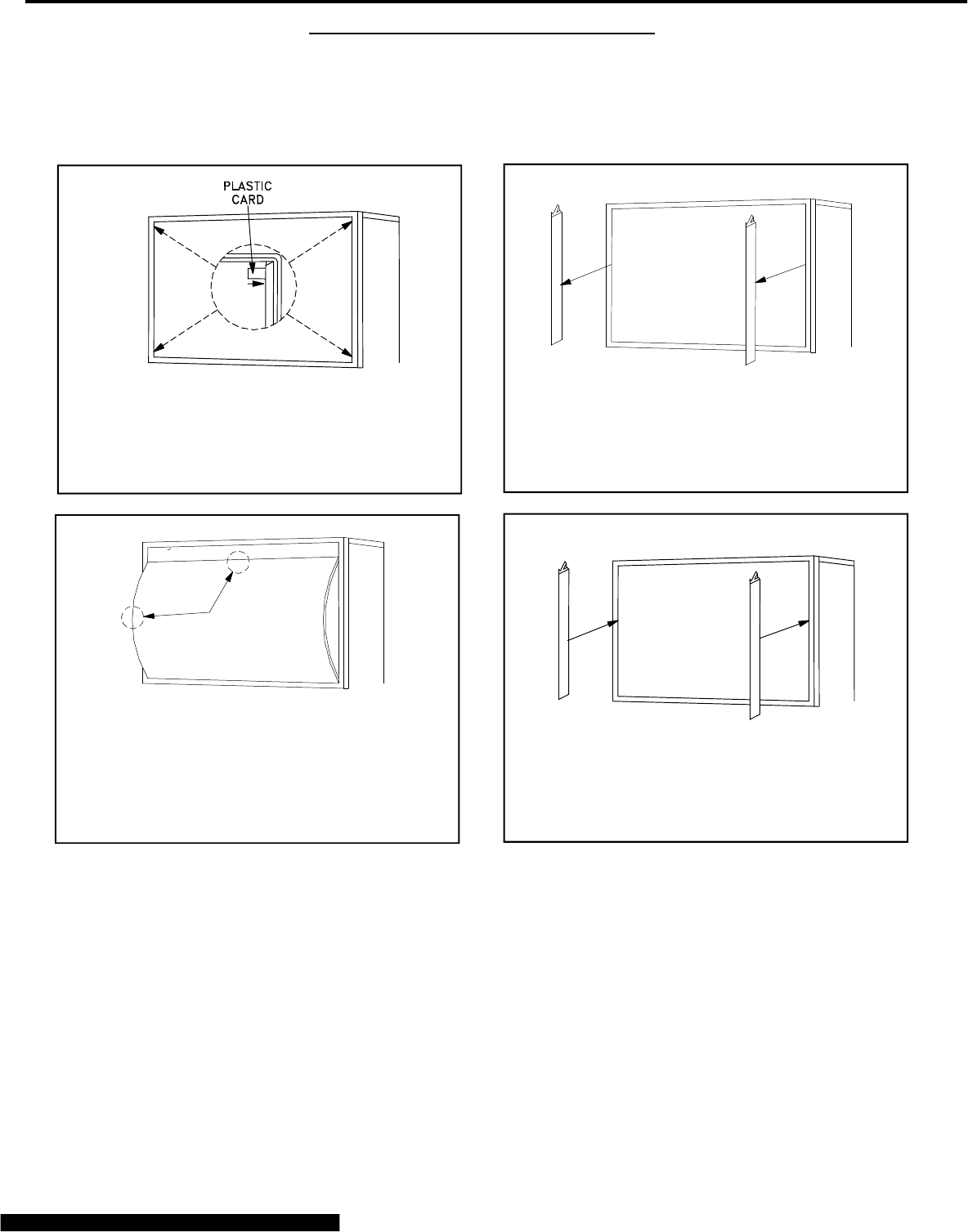

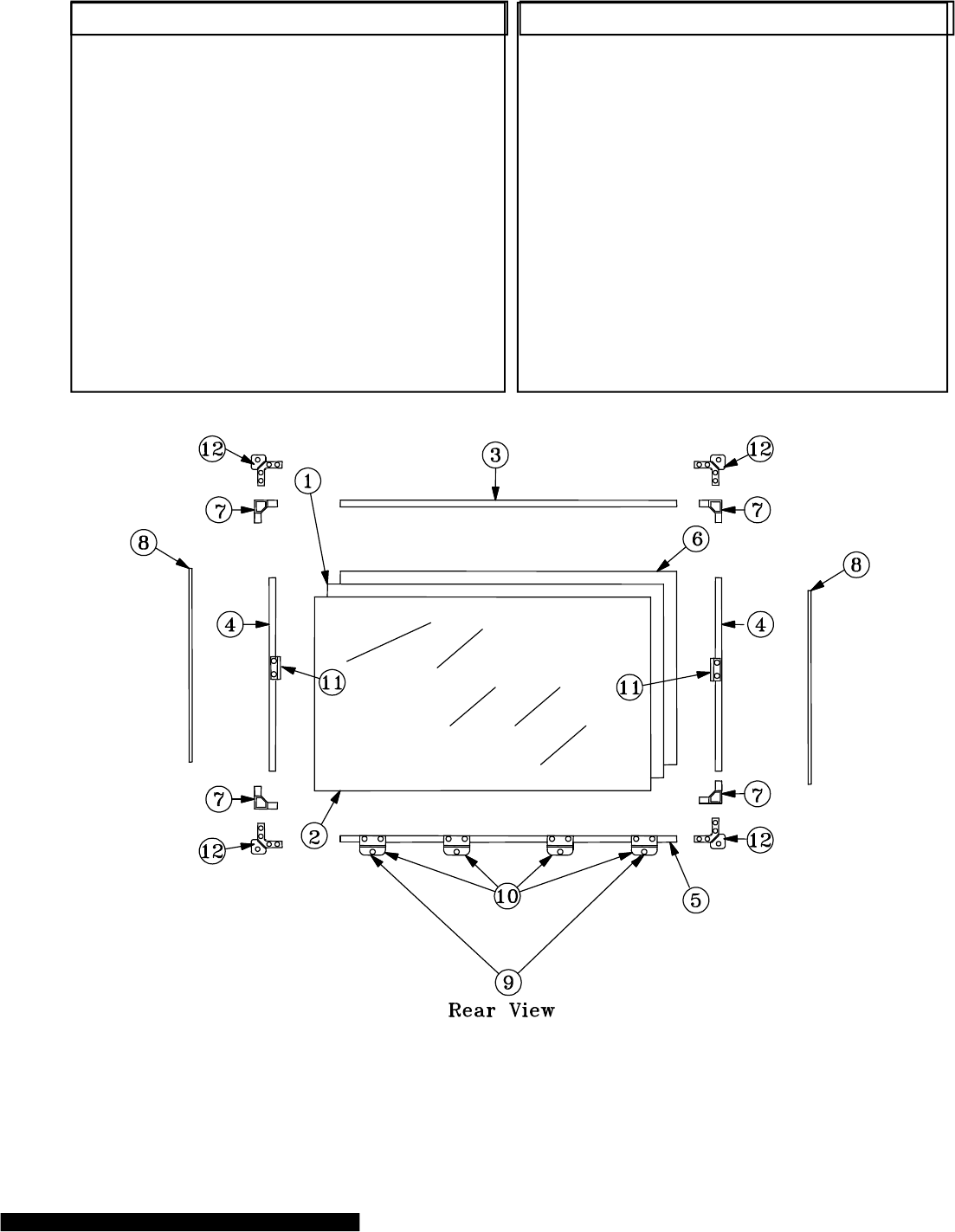

SERVICING THE LENTICULAR LENS AND FRESNEL SCREEN ..................................................... 18

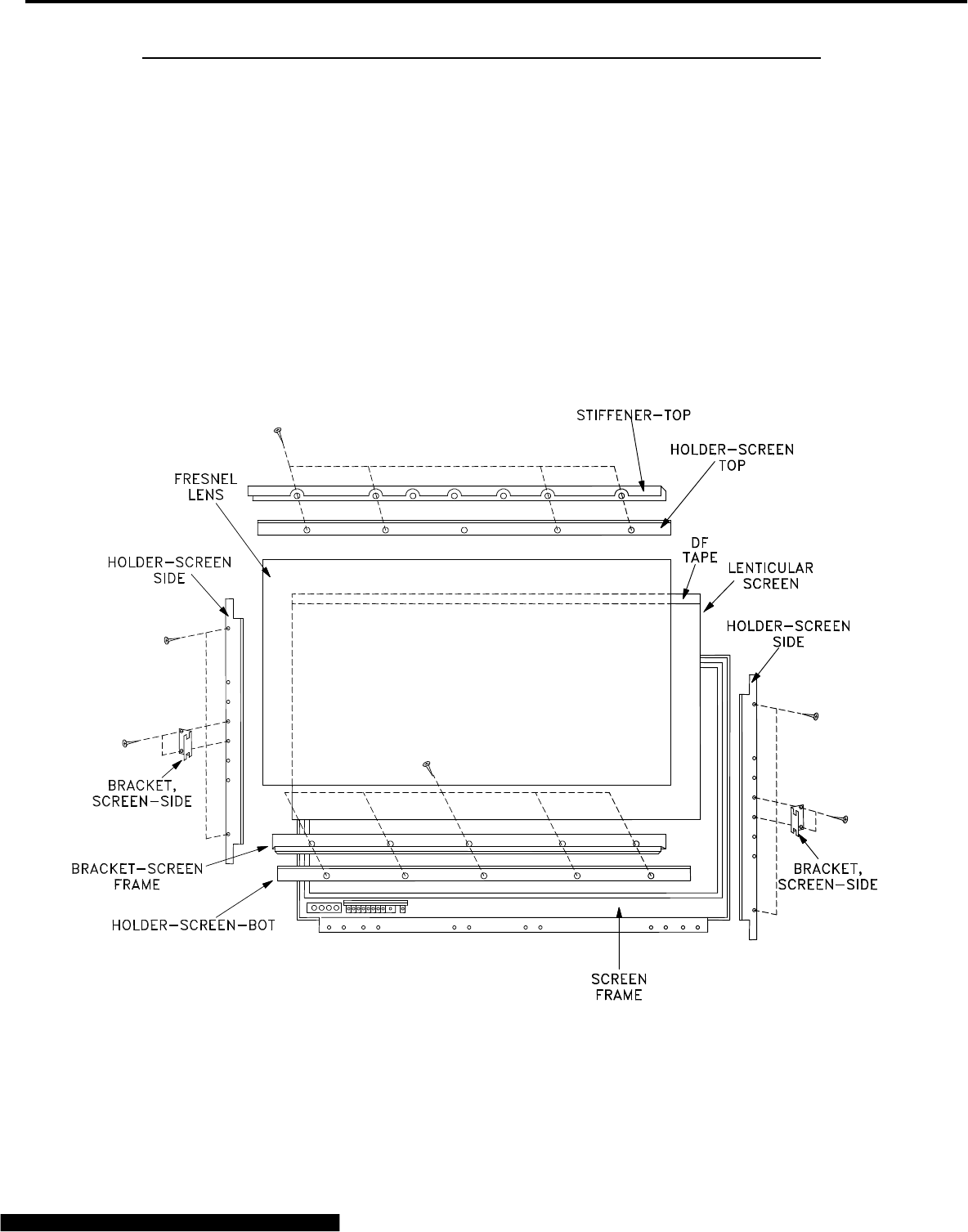

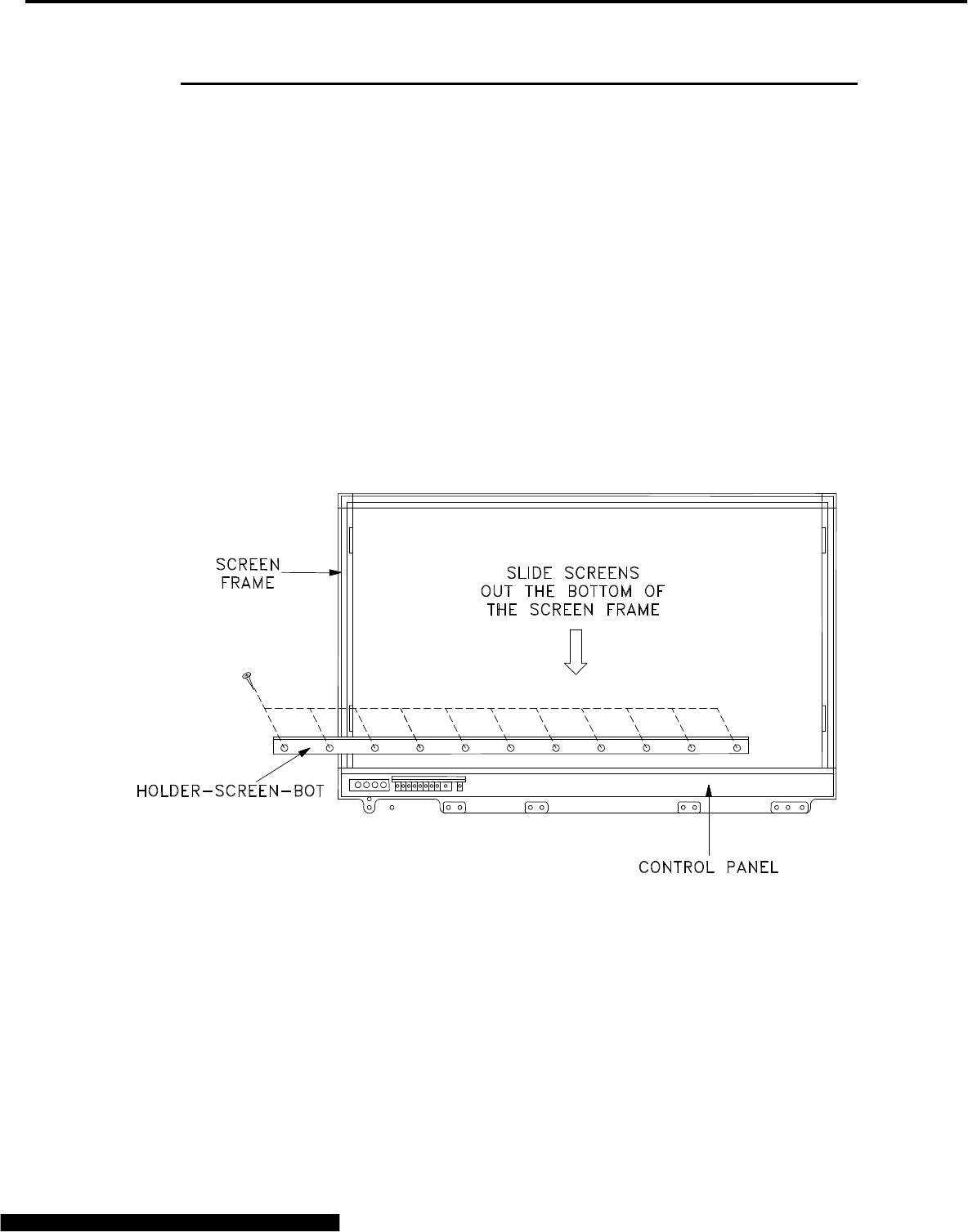

Removal of the Lenticular Screen and Fresnel Lens

WS-48513 / WS-48613 ......................................................................................................... 18

WS-55513 / WS-55613 / WS-65513 / WS-65613 ................................................................. 19

WS-55813 / WS-65813 ......................................................................................................... 20

WS-65713 / WS-73713 ......................................................................................................... 21

WS-73513 ............................................................................................................................. 22

All Models

Installation of the Lenticular Screen and Fresnel Lens .......................................................... 23

DIAMONDSHIELDTM Removal and Installation .............................................................................. 24

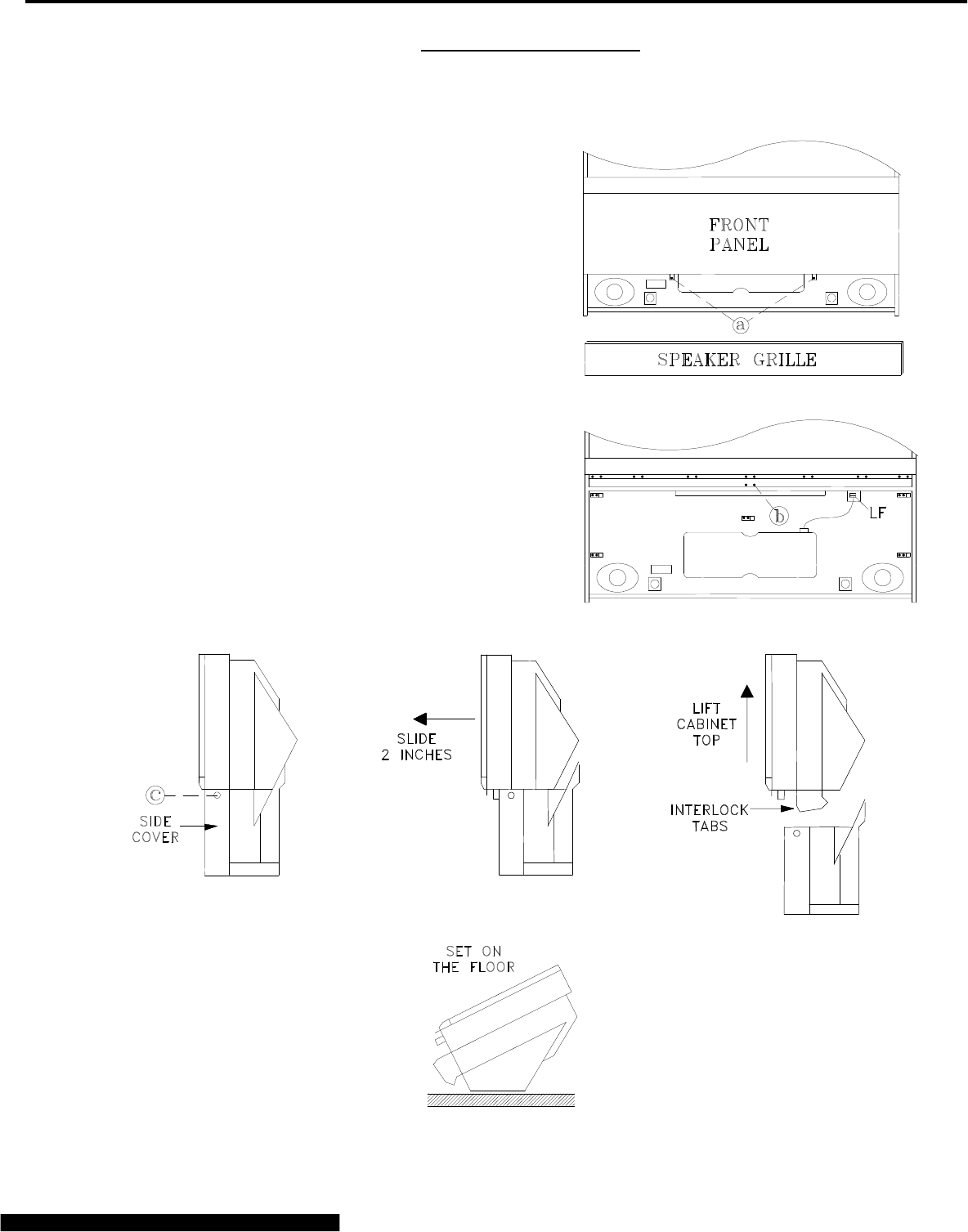

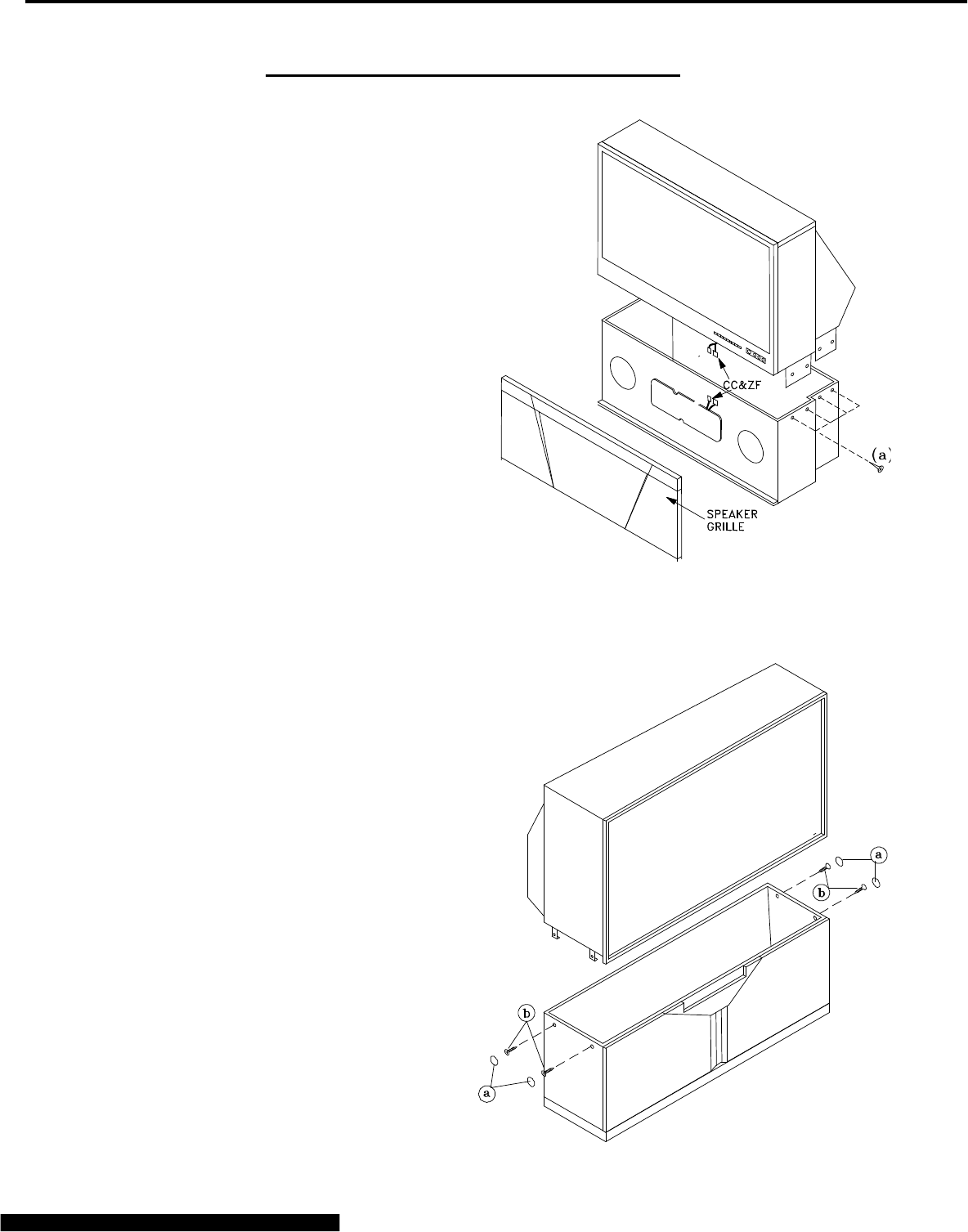

CABINET SEPARATION PROCEDURES

WS-65813 ...................................................................................................................................... 25

WS-65513 / WS-65613 and WS-65713 / WS-73513 ...................................................................... 26

SERVICING PCBs ............................................................................................................................. 27

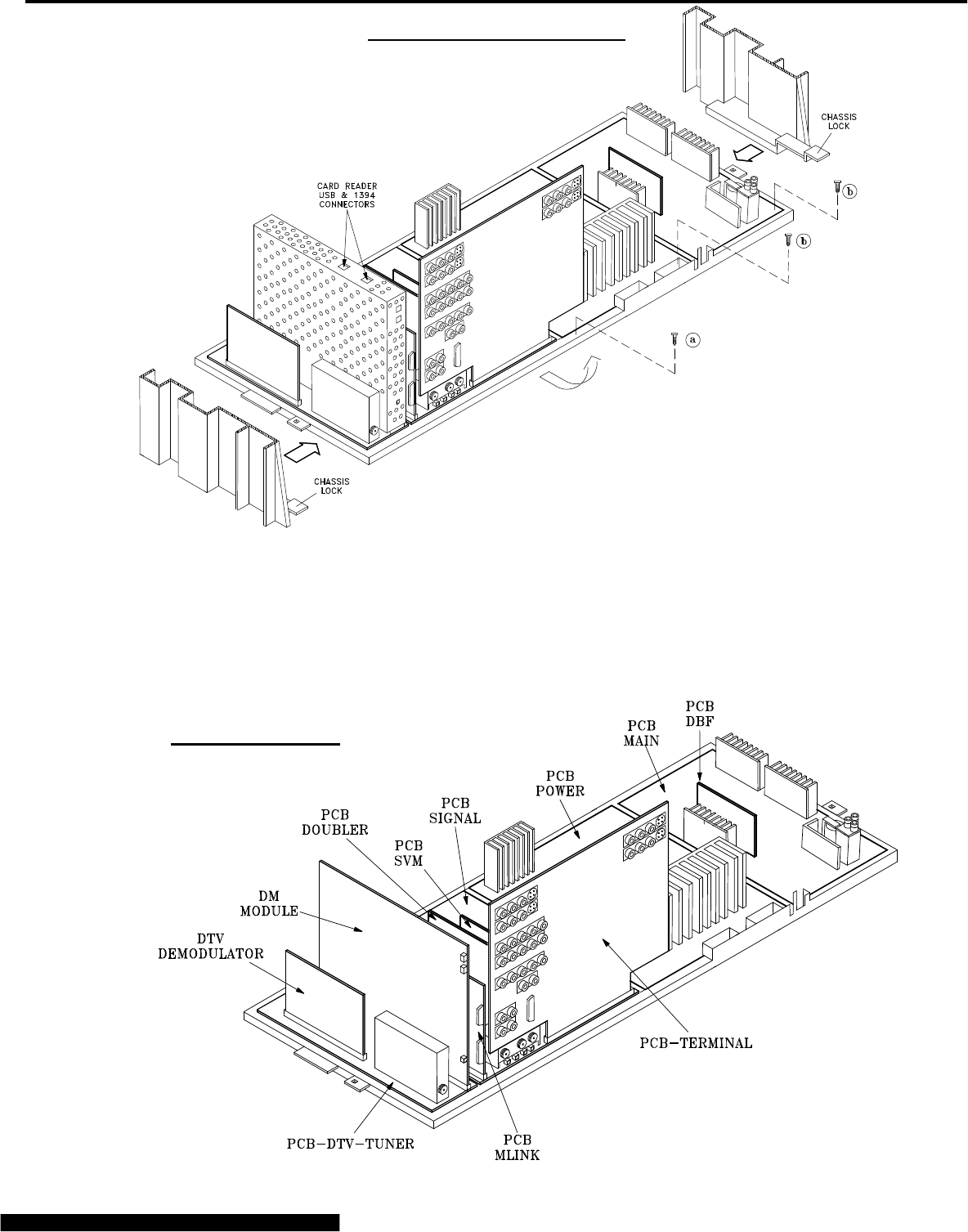

Chassis Removal ........................................................................................................................... 27

PCB Locations ............................................................................................................................... 27

Major Parts Locations .................................................................................................................... 28

DM Module Replacement ............................................................................................................... 28

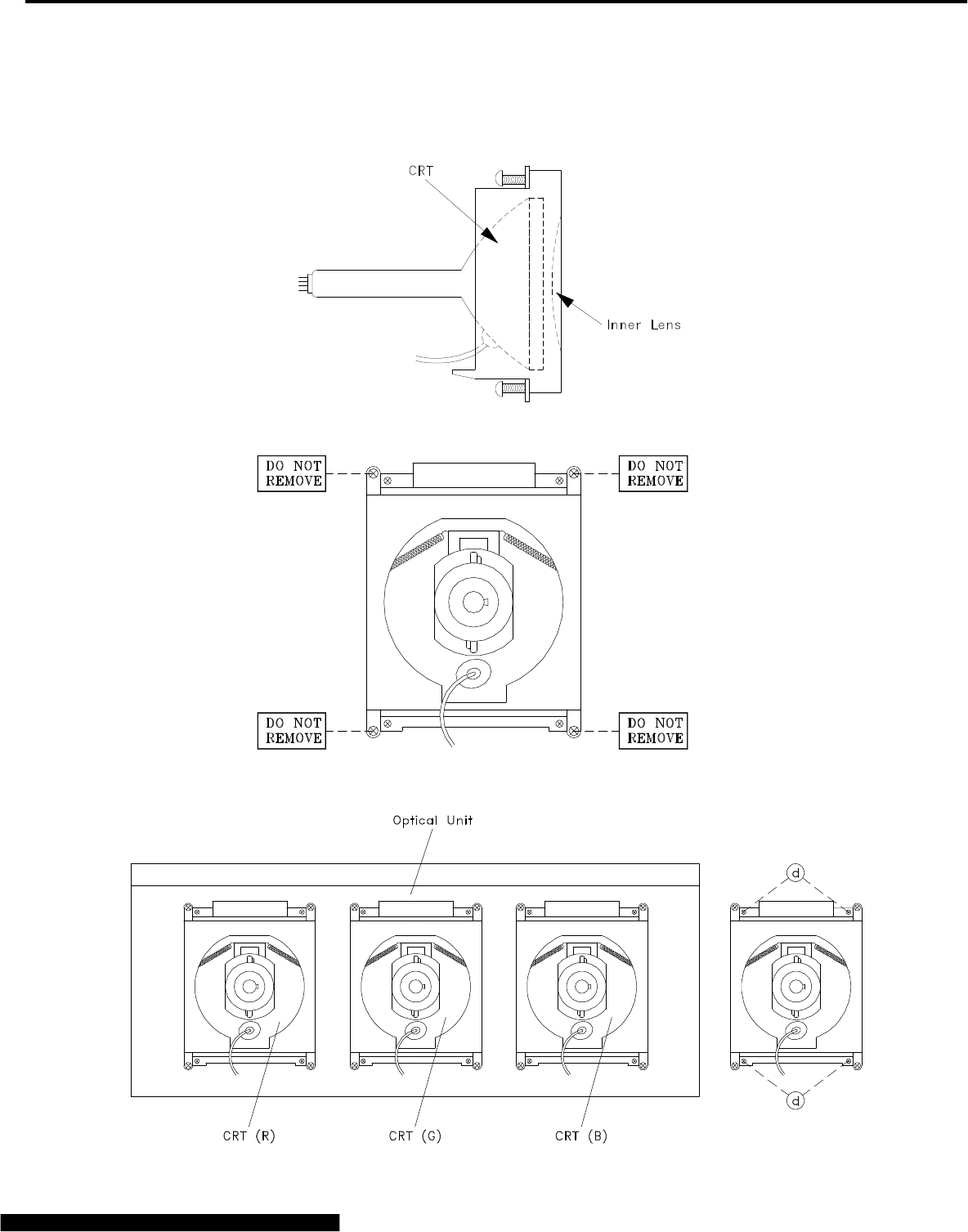

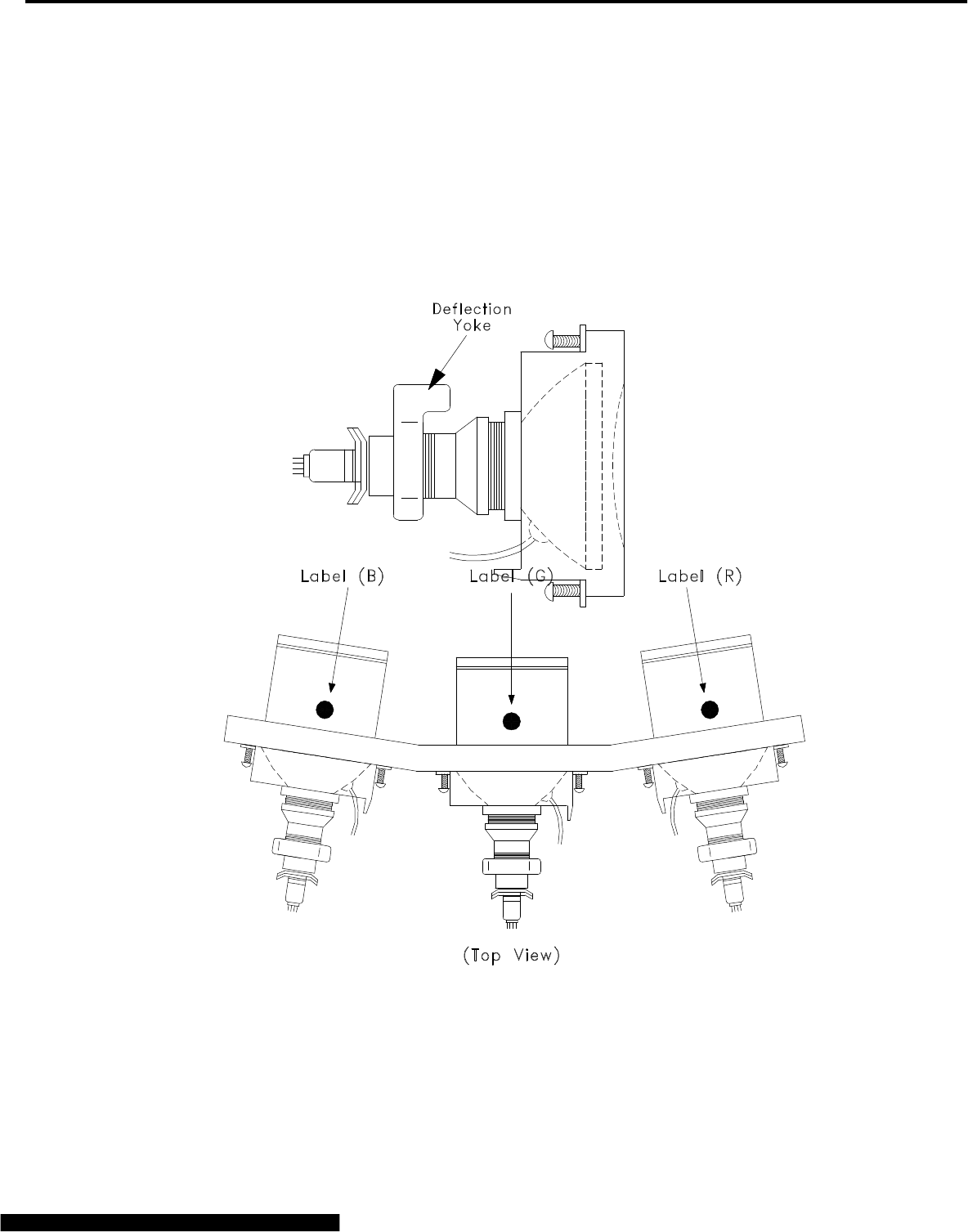

CRT REPLACEMENT ........................................................................................................................ 29

CRT Removal ................................................................................................................................. 29

CRT Installation .............................................................................................................................. 28

ELECTRICAL ADJUSTMENTS .......................................................................................................... 32

Equipment and Initial Setup ........................................................................................................... 32

CONTENTS

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 4

LED Indicator Diagnostics .............................................................................................................. 34

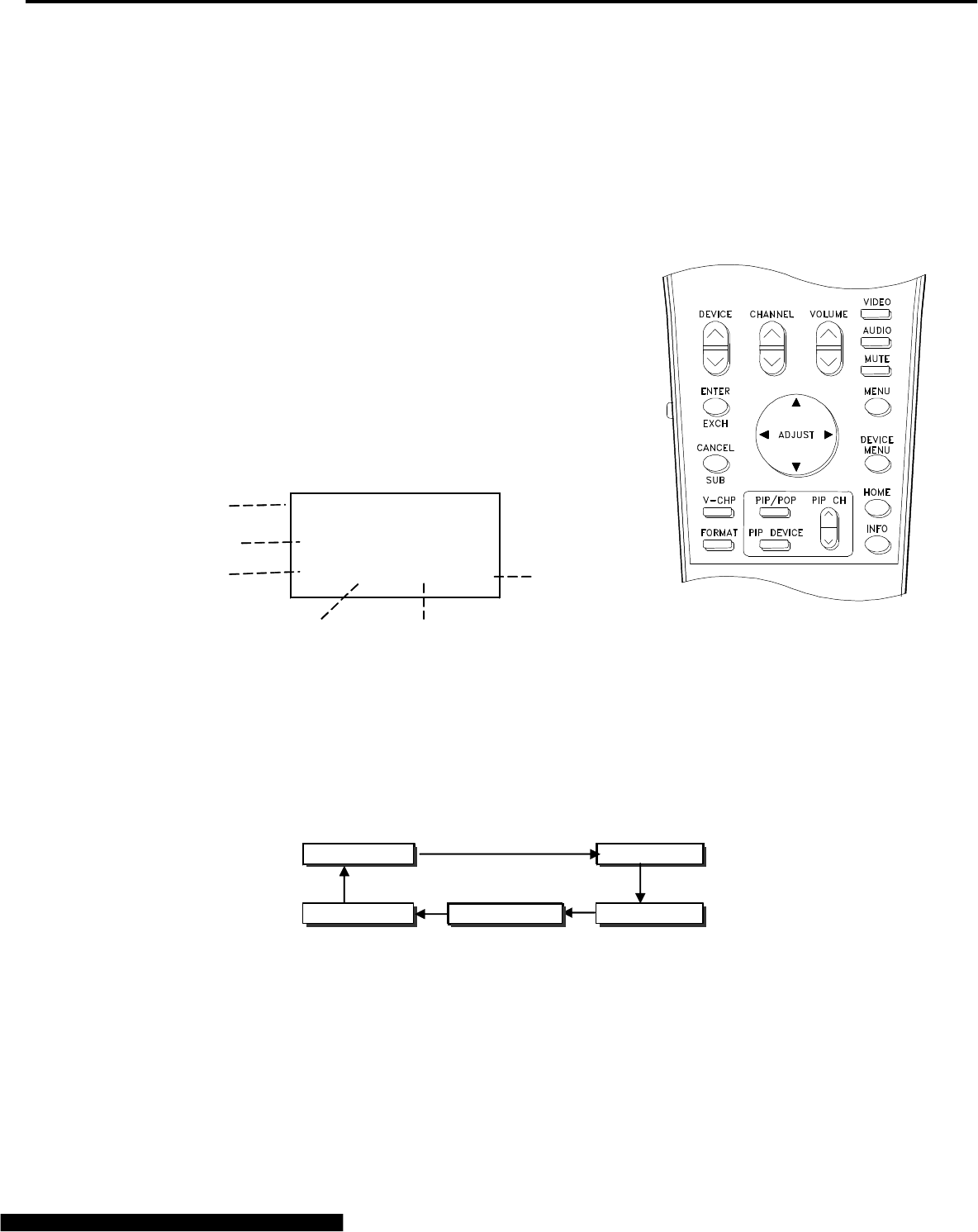

Remote Control Operational Mode ................................................................................................. 34

Circuit Adjustment Mode ................................................................................................................ 35

Service Mode Reset ....................................................................................................................... 36

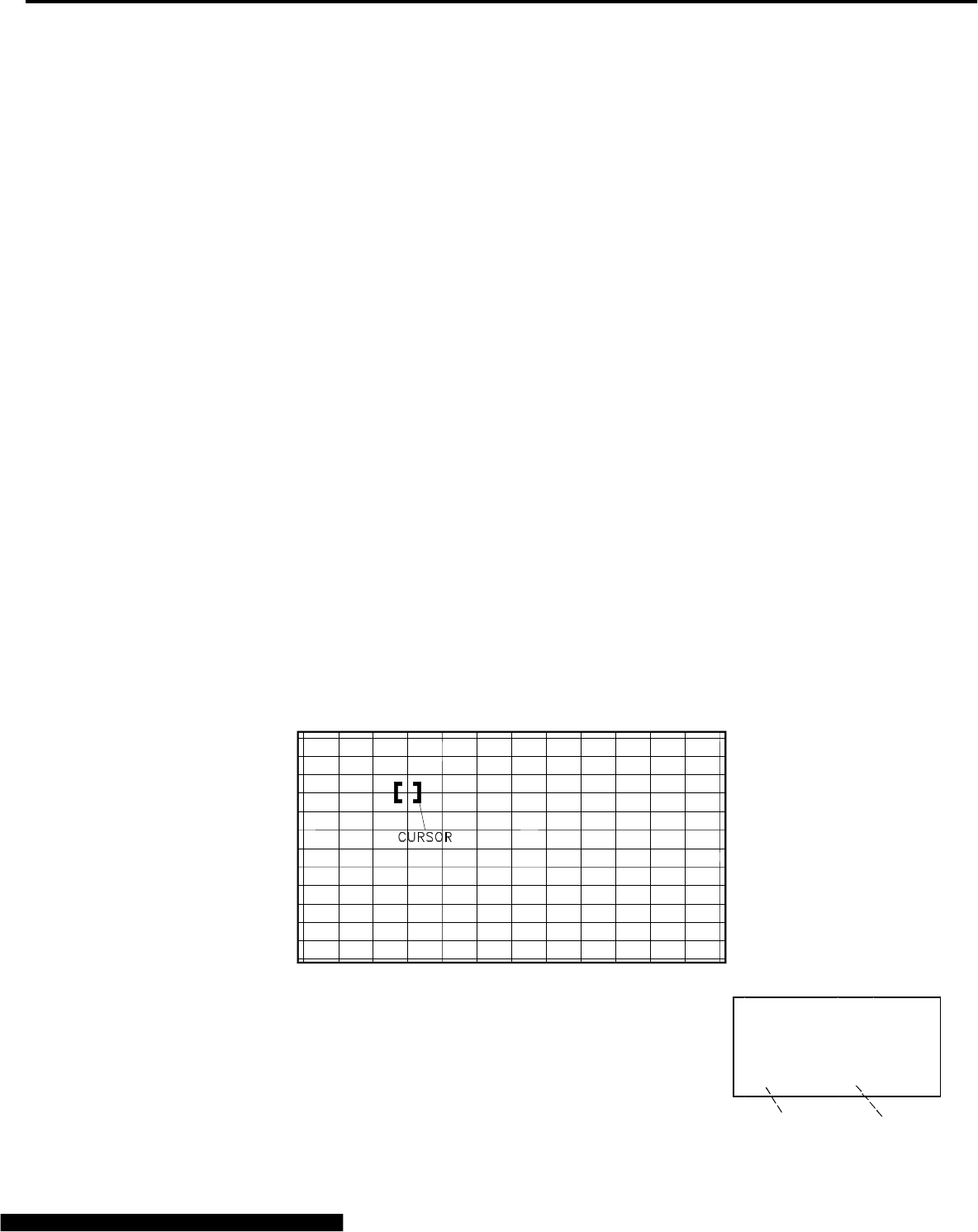

Convergence Adjustment Mode ...................................................................................................... 36

Adjustment Items List .................................................................................................................... 38

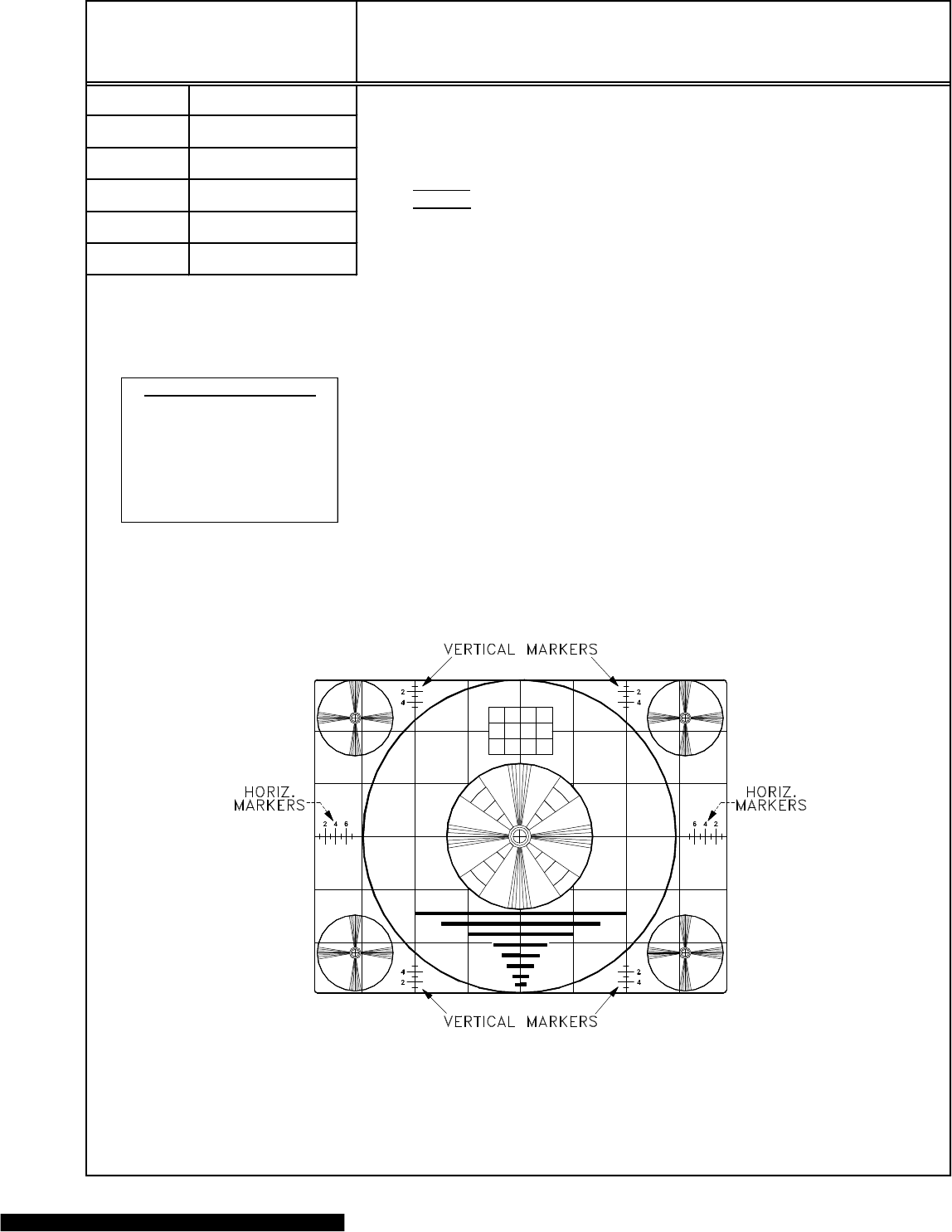

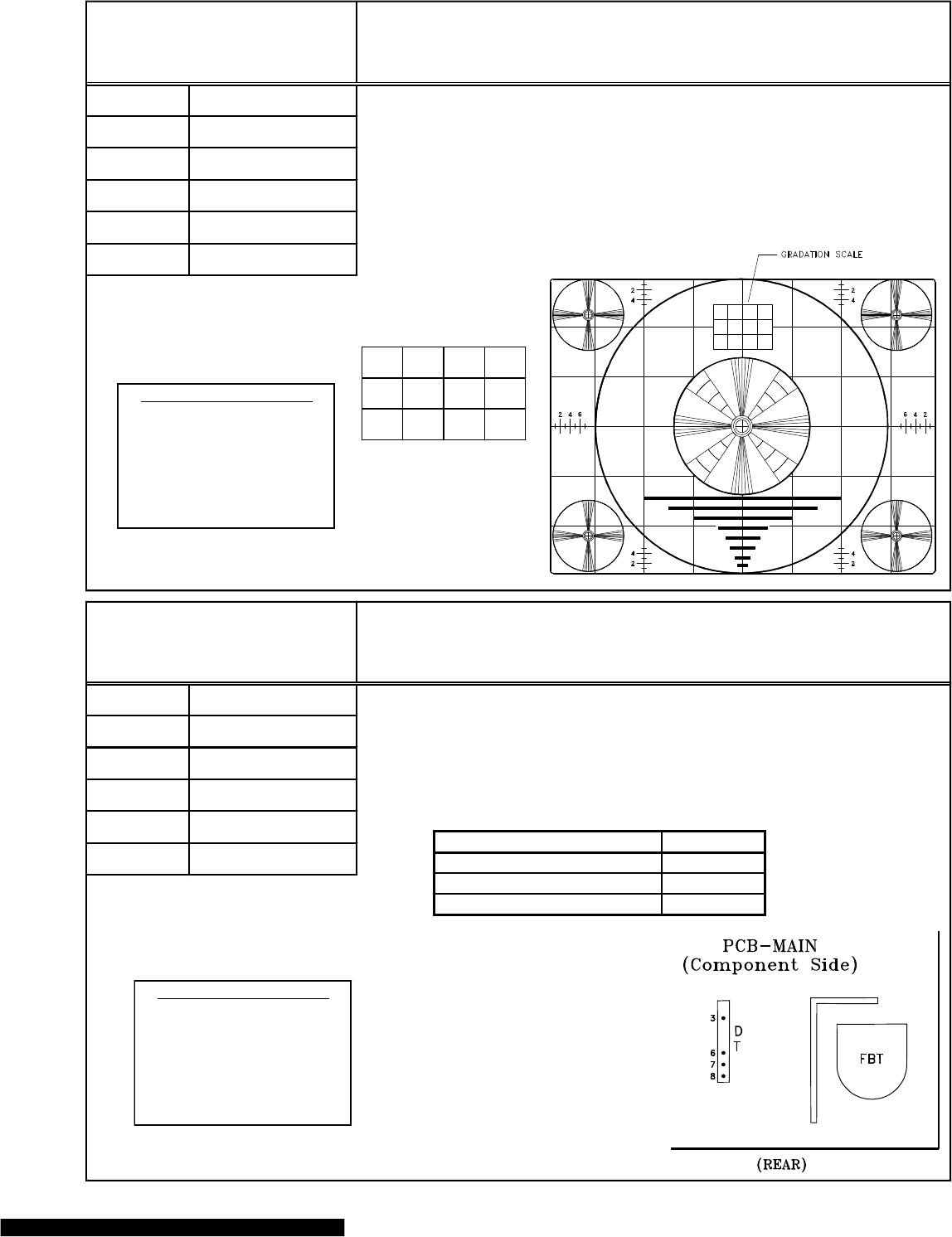

Adjustment Procedures .................................................................................................................. 41

Test Point Locations ............................................................................................................. 41

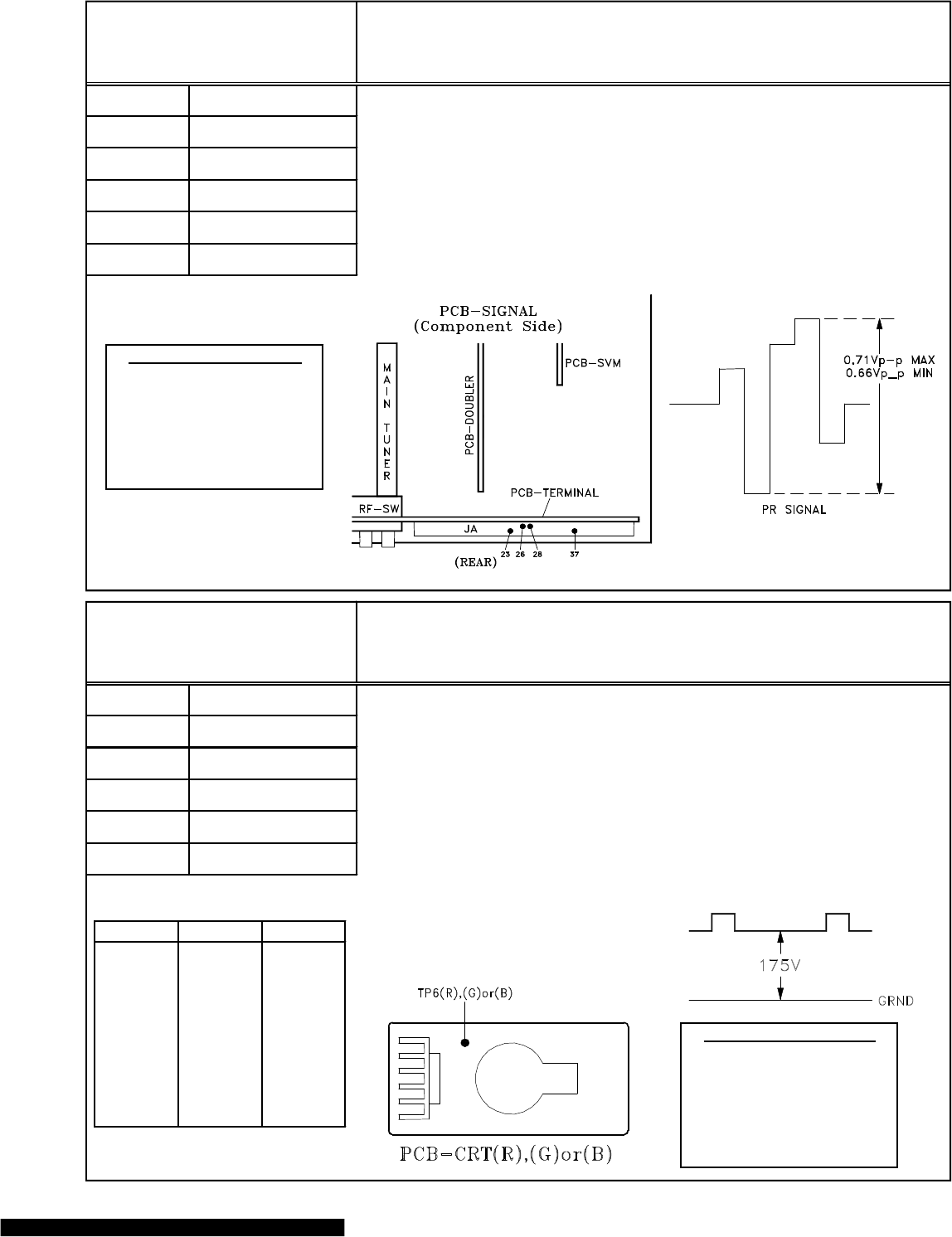

Main / Sub Y Level & & HV Regulation ................................................................................. 42

Main / Sub Color Level & CRT Cutoff ..................................................................................... 43

White Balance (NTSC) & White Balance (HD) ...................................................................... 44

Black Level & Sub Contrast .................................................................................................. 45

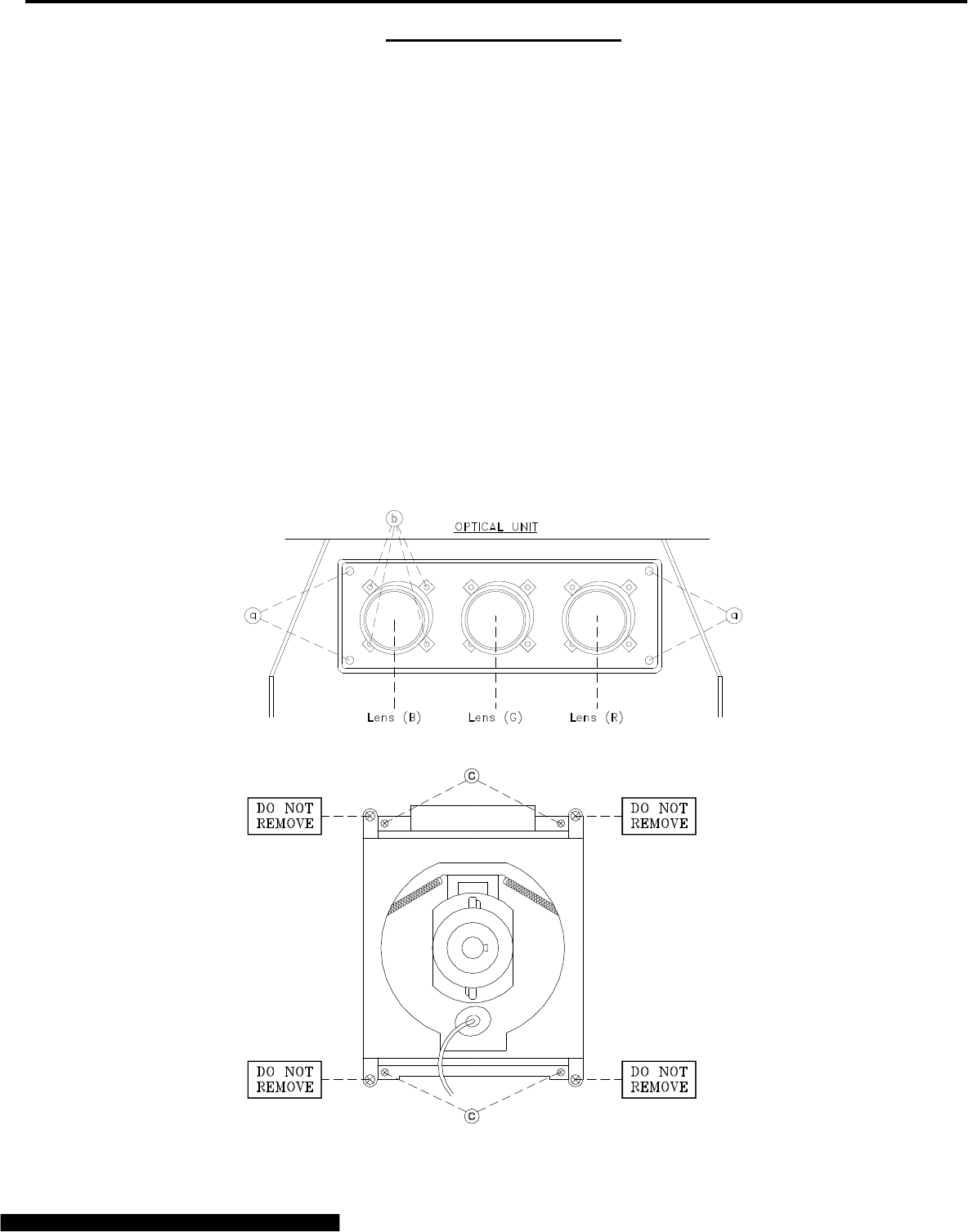

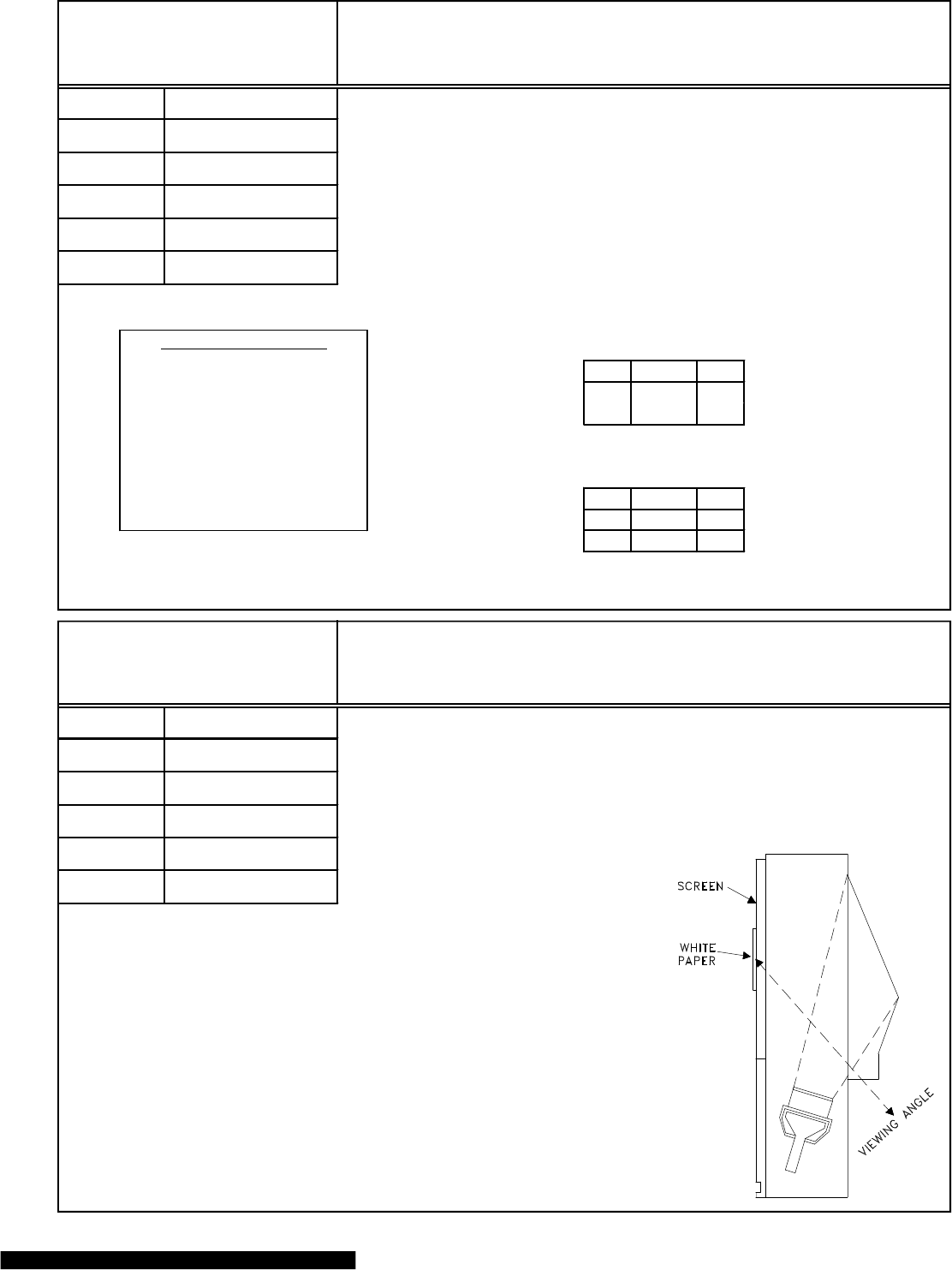

Dynamic Focus Presets & Lens Focus ................................................................................ 46

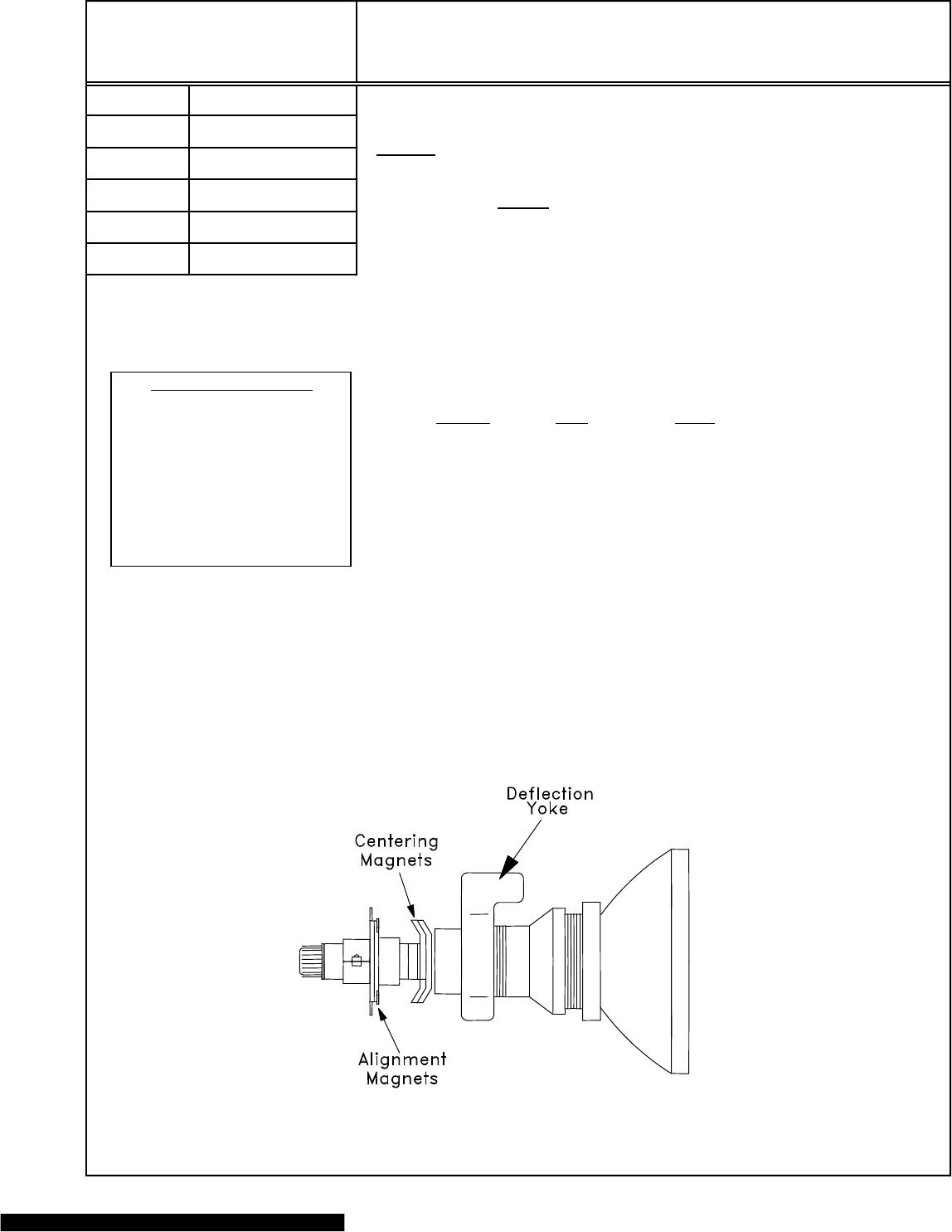

Alignment Magnet / Electrostatic Focus & Charactrer Position ............................................ 47

Geometry Presets ................................................................................................................. 48

Deflection Geometry Adjustments ......................................................................................... 49

Convergence Geometry Adjustments .................................................................................... 50

Centering & Static Convergence ............................................................................................ 51

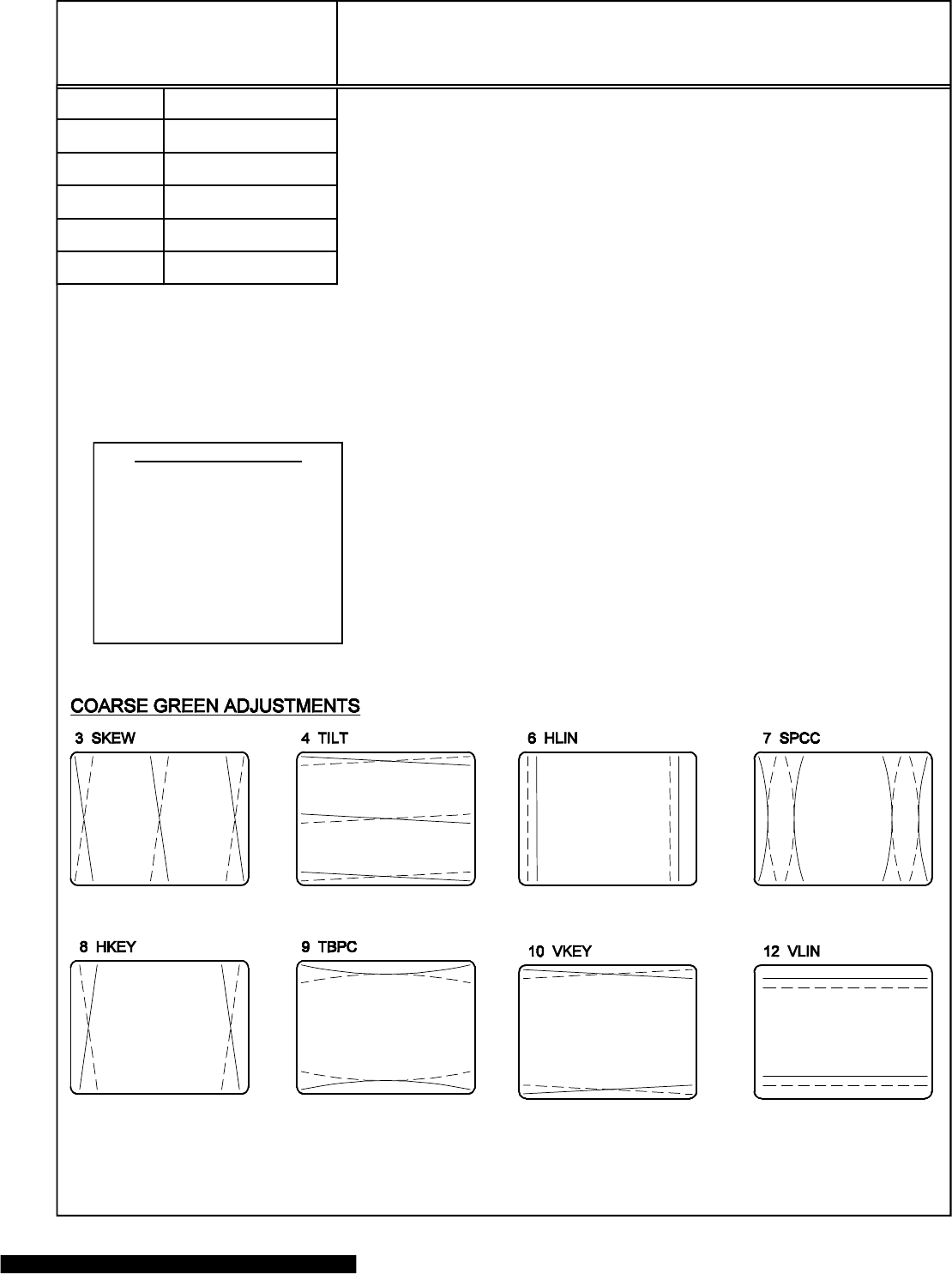

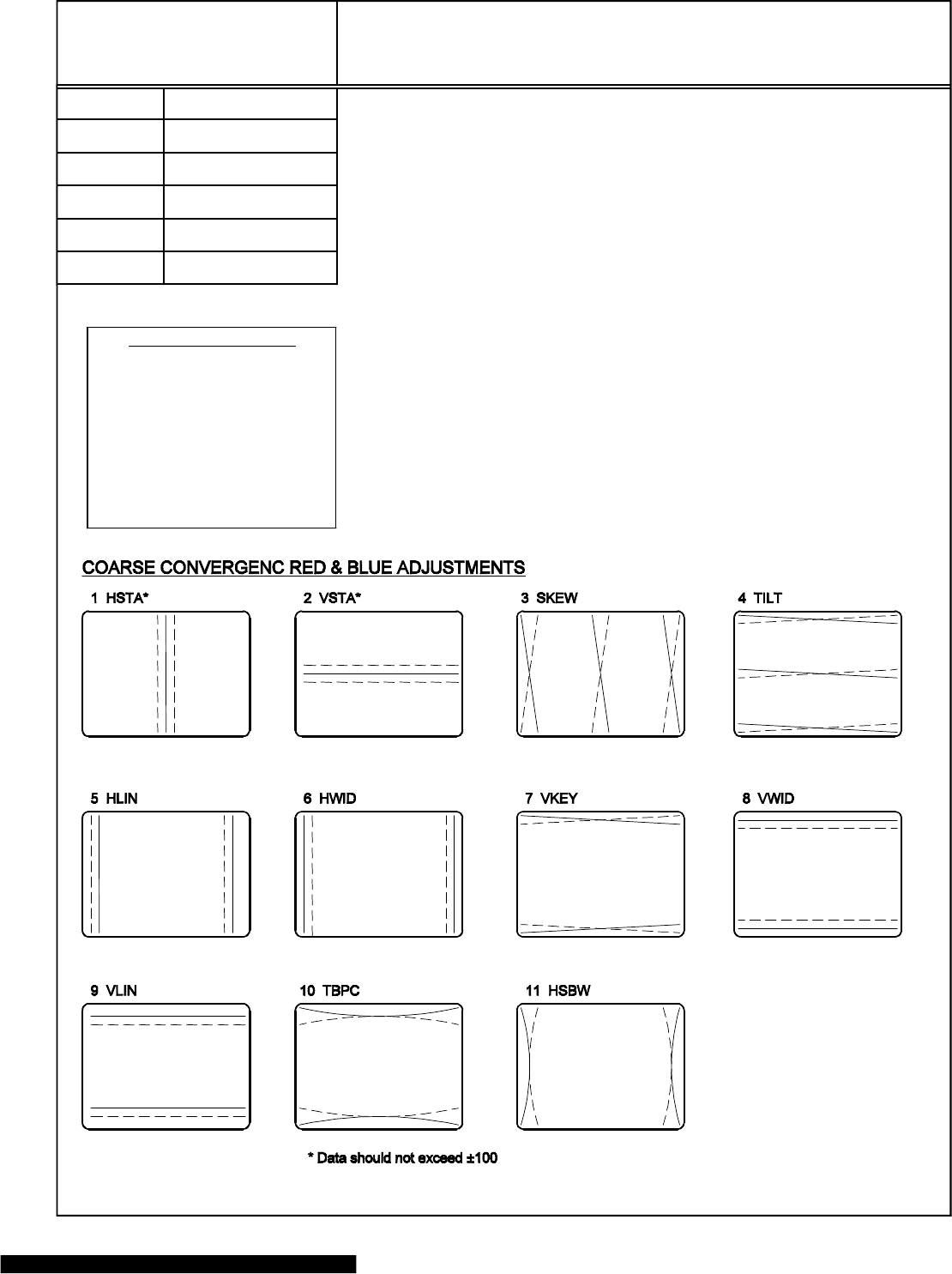

Coarse Convergence Adjustments ........................................................................................ 52

Fine Convergence Adjustments ............................................................................................. 52

CHIP PARTS REPLACEMENT .......................................................................................................... 54

REPLACEMENT PARTS .................................................................................................................... 55

Parts Ordering ................................................................................................................................ 55

Critical and Warranty Parts Designation ........................................................................................ 55

Parts Tolerance Codes ................................................................................................................... 55

Quick Reference List ...................................................................................................................... 56

SERVICE PARTS LIST ..................................................................................................................... 57

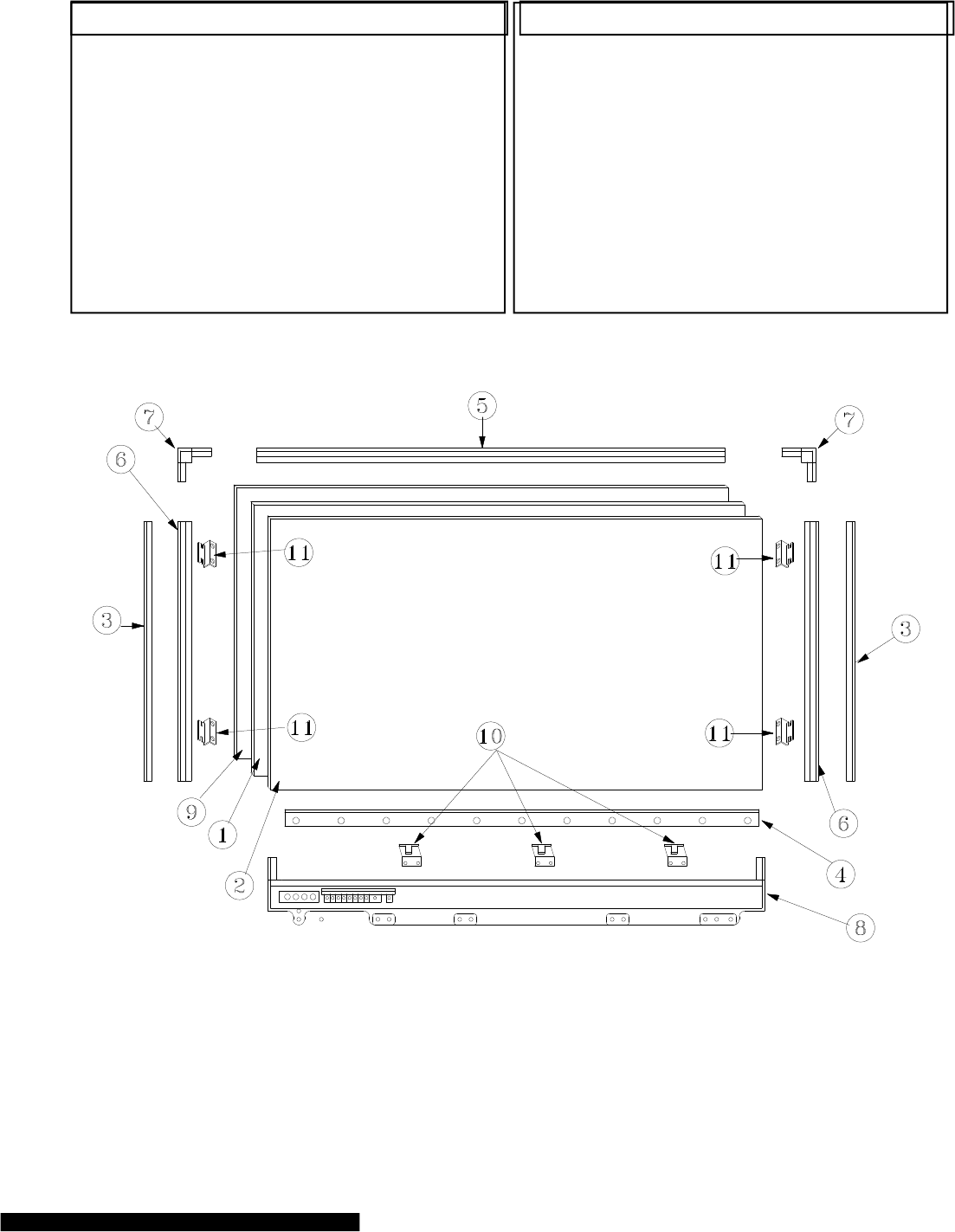

SCREEN ASSEMBLY PARTS LIST ................................................................................................... 73

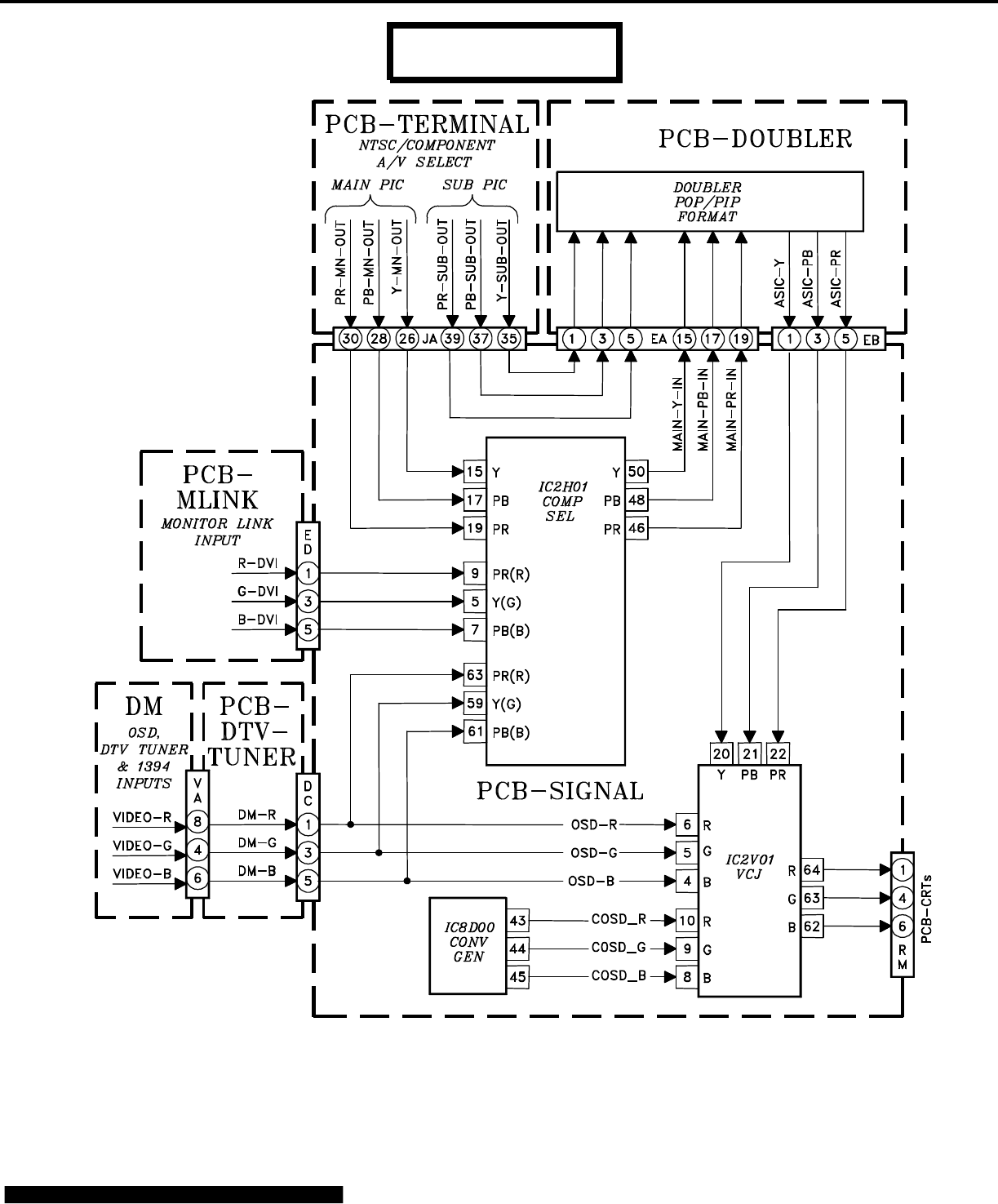

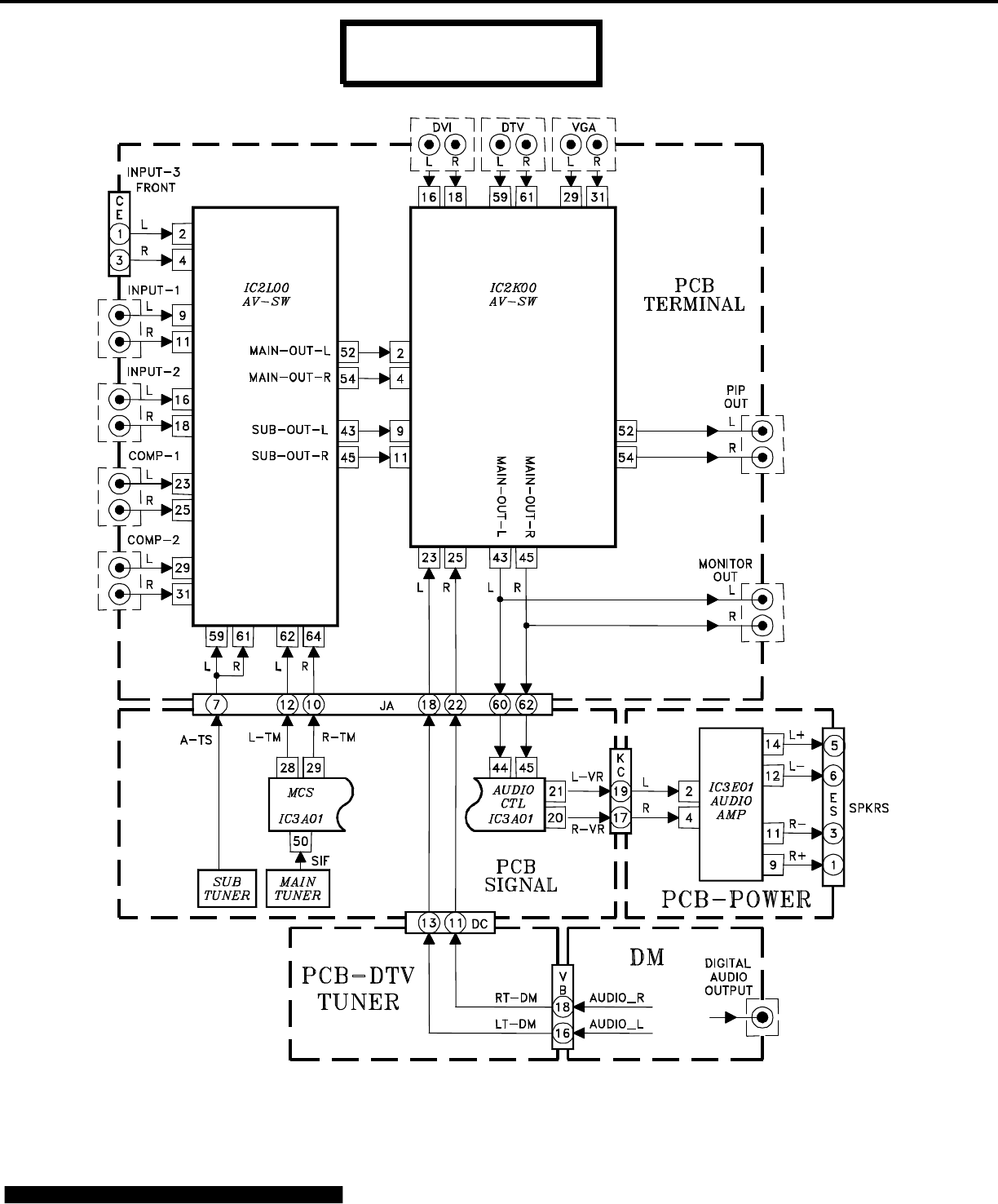

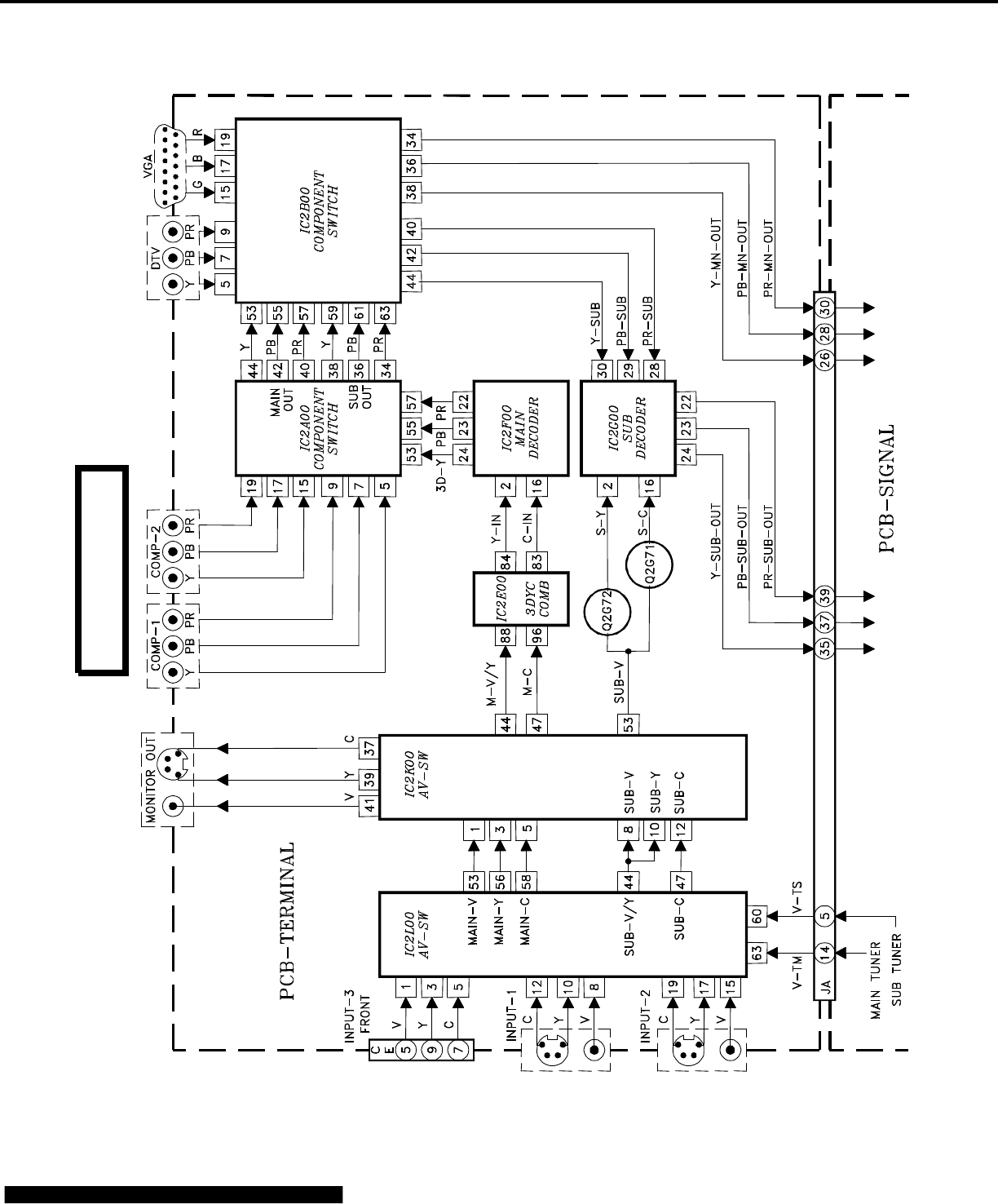

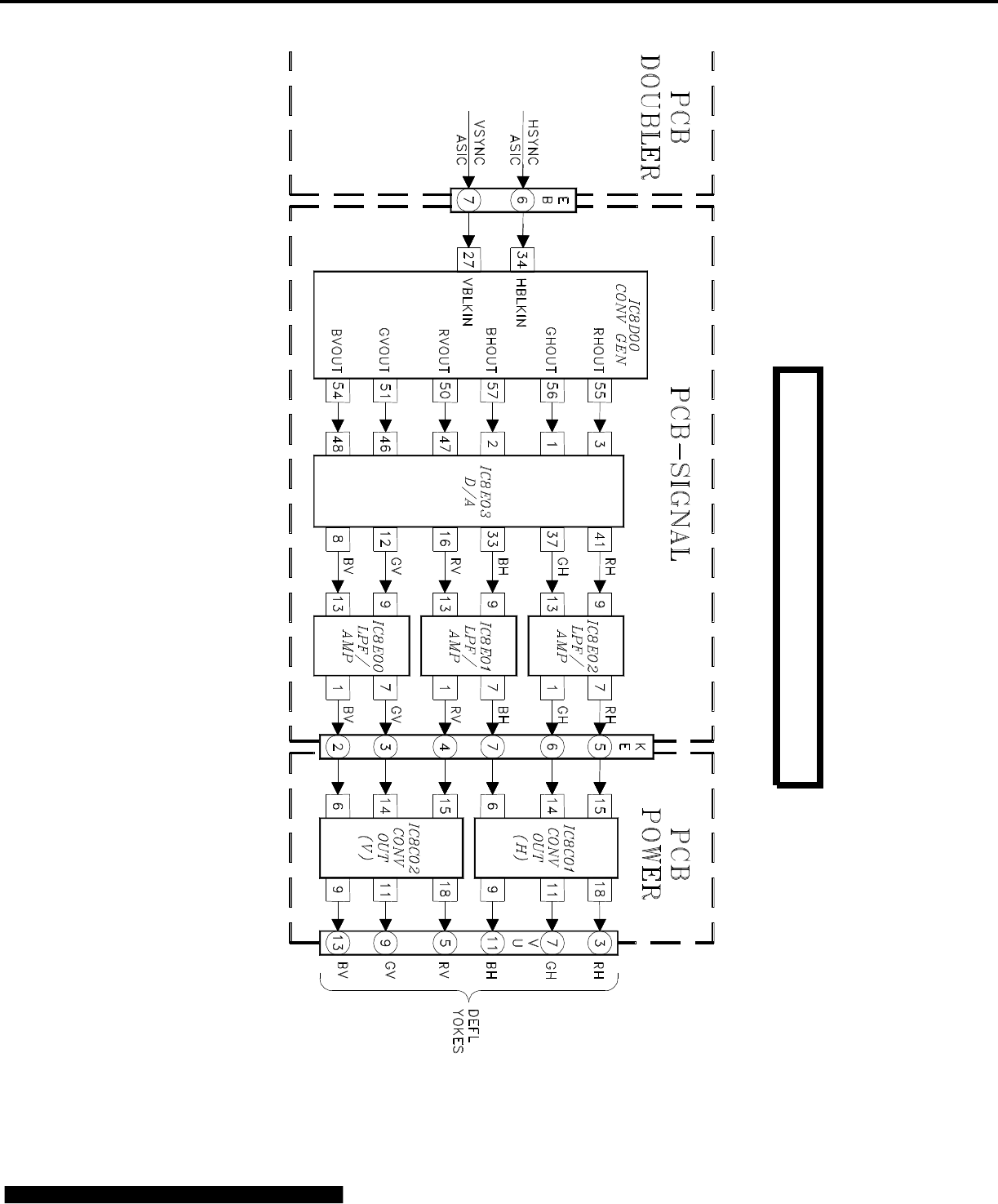

CIRCUITRY BLOCK DIAGRAMS ...................................................................................................... 77

Page 5

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

INTRODUCTION

This service manual provides service instructions for the V23, V23+, v23++ and V23+++ PTV chassis types. The

specific models for each chassis type are listed below. Service personnel should read this manual thoroughly before

servicing these chassis.

This service manual includes:

1. Assembly and disassembly instructions for the front and rear cabinet components.

2. Servicing of the Lenticular Screen and Fresnel Lens.

3. Servicing printed circuit boards (PCBs).

4. CRT replacement procedure.

5. Electrical adjustments.

6. Chip parts replacement procedures.

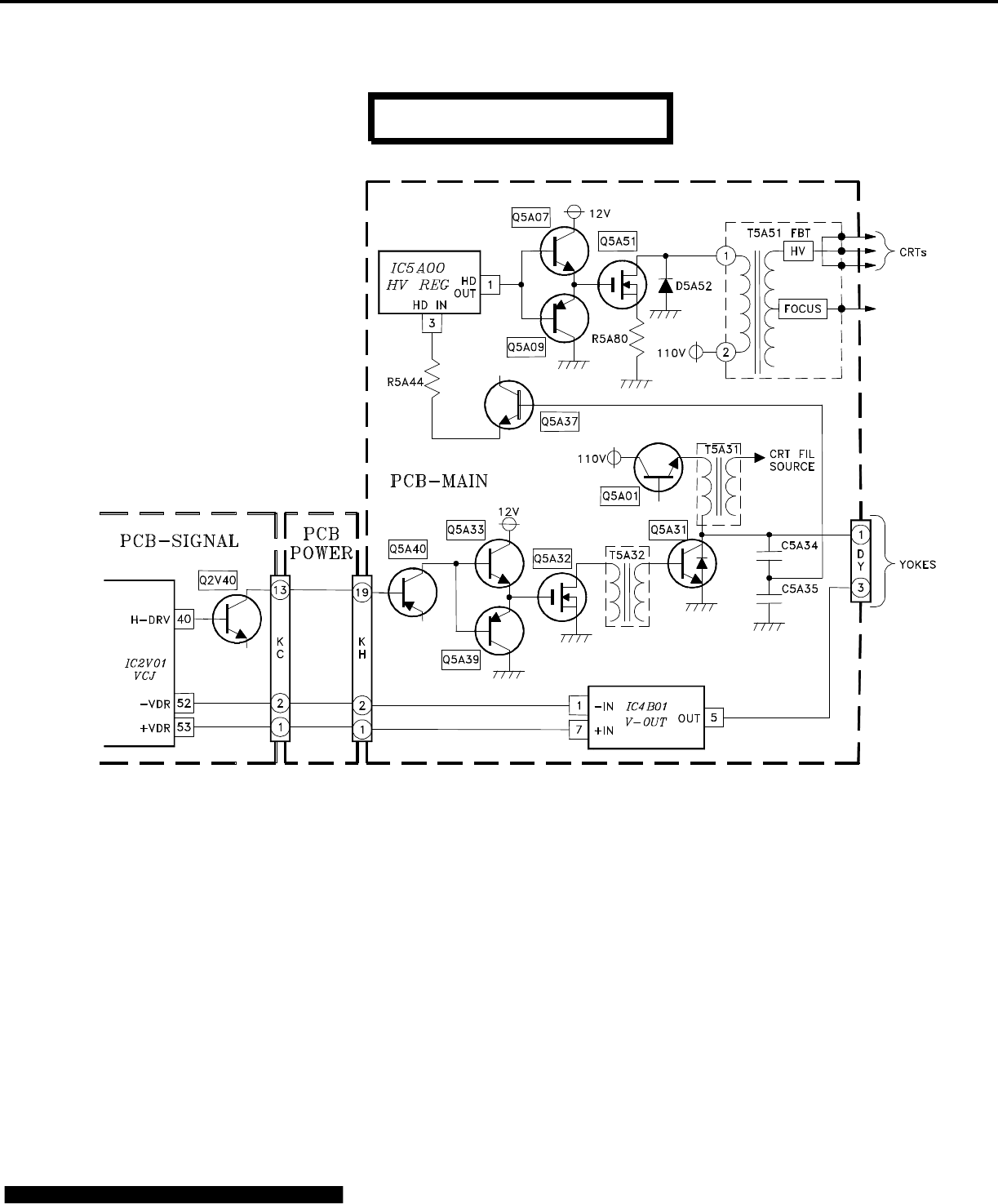

7. Circuit path diagrams.

The parts list section of this service manual includes:

1. Cabinet and screen parts.

2. Electrical parts.

Schematic and block diagrams of the above listed models are included in this service manual for better under-

standing of the circuitry. PCB drawings are also included for easy location of parts and test points.

Cabinet Weight and Dimensions

• Weight and Dimensions ar approximate

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety related characteristics. These

characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be

obtained by using replacement components rated for higher voltage, wattage, etc.

Replacement parts which have special safety characteristics are identified in this service manual.

Electrical components having such features are identified in the parts data base and by bold

type in the parts list of this service manual. The replacement for any safety part should be identical in value

and characteristics.

V23 Chassis

V23+ Chassis

V23++ Chassis

V23+++ Chassis

WS-48513

WS-48613

WS-65713

WS-55813

WS-55513

WS-55613

WS-73713

WS-65813

WS-65513

WS-65613

WS-73513

Model Weight Height Width Depth Spkrs

WS-48513 175 lbs 49 in 44.5 in. 24 in. 5" 10W

WS-48613 180.5 lbs 49 in 45 in 24.1 in 5" 10W

WS-55513 230 lbs 50.3 in 50.5 in 25.4 in 6" 10W

WS-55613 250 lbs 50.5 in 50.5 in 28 in 6" 10W

WS-55813 200 lbs 50.5 in 50.5 in 28 in 5"&7"

WS-65513 333 lbs 62 in 59 in 28 in 6" 10W

WS-65613 333 lbs 62 in 59 in 28 in 6" 10W

WS-65713 350 lbs 61.5 in 58 in 28.5 in 6"&1.5"

WS-65813

251 lbs 62 in 59 in 28 in 6" 10W

WS-73513

374 lbs 66 in 66 in 30 in 6" 10W

WS-73713

410 lbs 66 in 65 in 30 in 6"&1.5"

Page 6

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SAFETY PRECAUTIONS

NOTICE: Observe all cautions and safety related notes located inside the receiver cabinet and on the

receiver chassis.

WARNING:

1. Operation of this receiver outside the cabinet or with the cover removed presents a shock hazard

from the receiver's power supplies. Work on the receiver should not be attempted by anyone who is

not thoroughly familiar with the precautions necessary when working on high voltage equipment.

2. Do not install, remove or handle the picture tubes in any manner unless shatterproof goggles are

worn. People not so equipped should be kept away while the picture tube is being handled. Keep

the picture tube away from the body while handling.

3. When service is required, observe the original lead dress. Extra precaution should be taken to

assure correct lead dress in the high voltage area. Where a short-circuit has occurred, replace those

components that indicate evidence of overheating.

X-Radiation warning

The surface of the cathode ray tubes (CRTs) may generate X-Radiation, so take proper precautions when servic-

ing. It is recommended that a lead apron be used for shielding while handling the CRT. Use this method if

possible.

When replacing the CRTs, use only the designated replacement part since it is a critical component with regard to

X-Radiation. High voltage must be set as prescribed under the section titled Electrical Adjustments.

Leakage current check

Before returning the receiver to the customer, it is recommended that leakage current be measured according to

the following methods.

1. Cold Check

With the alternating current (AC) plug removed from the AC source, place a jumper across the two AC plug

prongs. Connect one lead of an ohm meter to the AC plug and touch the other lead to each exposed metal

part (i.e. antennas, handle bracket, metal cabinet, screw heads, metal overlay, control shafts, etc.), particu-

larly any exposed metal part that has a return path to the chassis. The resistance of the exposed metal parts

having a return path to the chassis should be a minimum of 1Mega Ohm. Any resistance below this value

indicates an abnormal condition and requires corrective action.

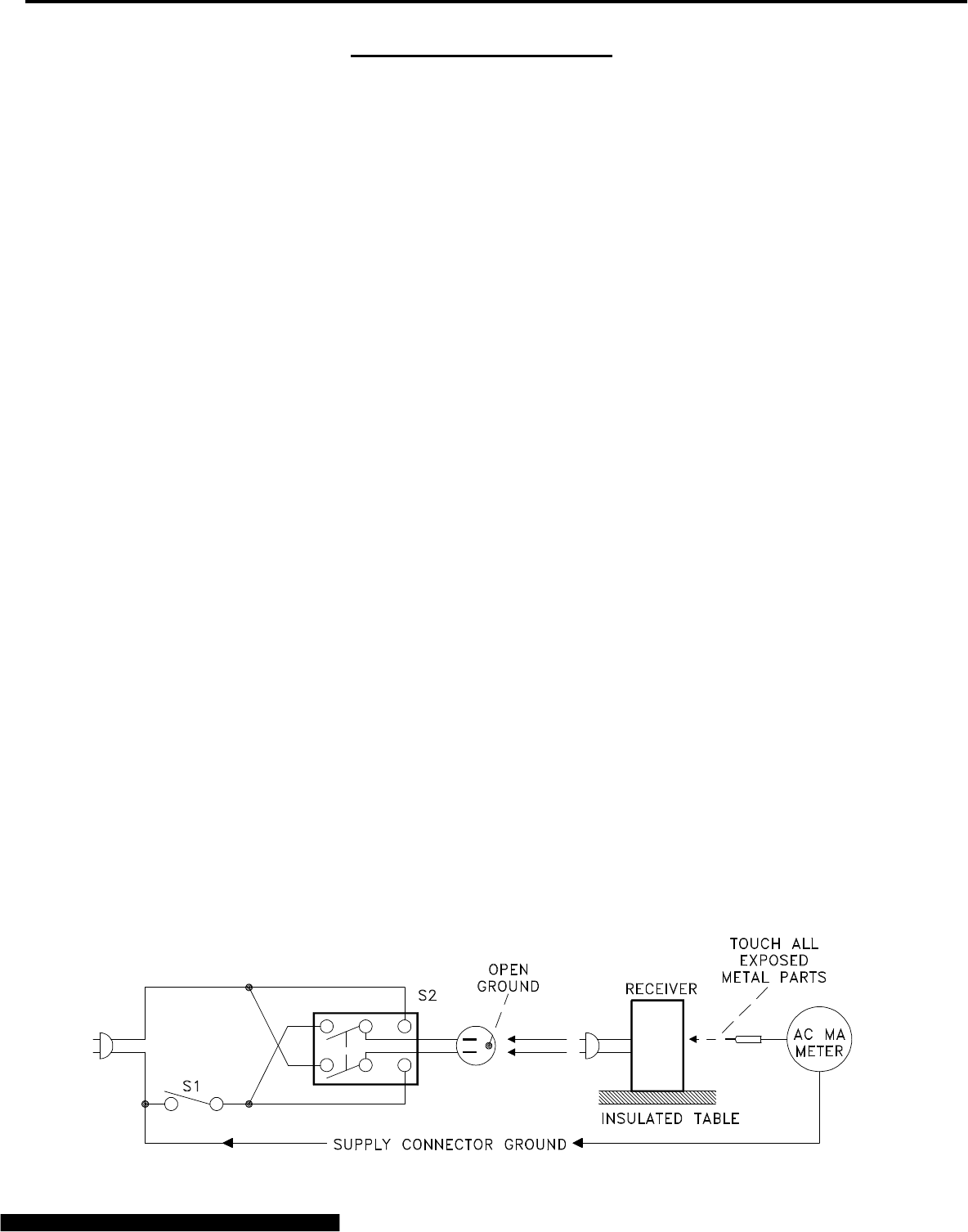

2. Hot Check ...Use the circuit shown below to perform the hot check test.

1. Keep switch S1 open and connect the receiver to the measuring circuit. Immediately after

connection, and with the switching devices of the receiver in their operating positions, measure

the leakage current for both positions of switch S2.

2. Close switch S1, energizing the receiver. Immediately after closing switch S1, and with the

switching devices of the receiver in their operating positions, measure the leakage current for both

positions of switch S2. Repeat the current measurements of items 1 and 2 after the receiver has

reached thermal stabilization. The leakage current must not exceed 0.5 milliampere (mA).

Page 7

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (FRONT VIEW)

WS-48513 / WS-48613

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove the Board Front by removing 6 screws (a).

3. Remove 4 screws (b) holding the Screen Assembly.

4. Lift the Screen Assembly up and away from the cabinet.

Page 8

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (REAR VIEW)

WS-48513 / WS-48613

*Refer to the Parts List for Part Numbers

Rear Cabinet Disassembly

1. Remove the Back Board by removing 7 screws (a), 2 screws (b) and 8 screws (c).

2. Remove the Back Cover by removing 8 screw (d).

3Remove 4 screws (e) to remove the Board Slide.

4. Remove screws (f) to remove the Board Shelves.

5. Remove screw (g) holding the chassis.

6. Remove 4 screws (h) securing the Light Box Assembly.

7. Be certain that all cables and connectors between the Light Box Assembly and external items are

disconnected (e.g. speaker plugs, etc.), including the USB and 1394 connectors from the Card Reader to

the DM Module.

8. Slide the Light Box Assembly from the cabinet.

Page 9

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (FRONT VIEW)

WS-55513 / WS-65513 / WS-55613 / WS-65613

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove the Board Front by removing 6 screws (a).

3. Remove the 5 screws (b) holding the Screen Assembly.

4. Unplug the cables to the Control Panel and the Front Panel Inputs.

4. Lift the Screen Assembly up and away from the cabinet.

Page 10

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (REAR VIEW)

WS-55513 / WS-65513 / WS-55613 / WS-65613

*Refer to the Parts List for Part Numbers

Rear Cabinet Disassembly

1. Remove screws (a), (b) and (c) holding the Back Board.

2. Remove 4 screws (d) holding the Board Slide

3. Remove the 4 screws (e) holding each Board Shelf.

4. Remove screw (g) holding the chassis.

5. Remove 4 screws (f) securing the Light Box Assembly.

6. Be certain that all cables and connectors between the Light Box Assembly and external items are

disconnected (e.g. speaker plugs, etc.), including the USB and 1394 cables from the Card Reader.

7. Slide the Light Box out the rear of the Cabinet.

Page 11

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (FRONT VIEW)

WS-55813

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove 2 screws (a) securing the Front Panel.

3. Slide the Front Panel 1/2 inch to the right, then pull away from the TV.

4. Remove 4 screws (b) to remove the Board Front.

5. Unplug the the connectors to the Control Panel.

6. Remove the 4 screws (c) securing the Screen Assembly.

7. Lift the Screen Assembly up and away from the cabinet.

Page 12

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (REAR VIEW)

WS-55813

*Refer to the Parts List for Part Numbers

Rear Cabinet Disassembly

1. Remove screws (a), (b) and (c) holding the Back Board.

2. Remove 4 screws (d) holding the Board Slide

3. Remove the 5 screws (e) holding each Board Shelf.

4. Remove screw (f) and 3 screws (g) securing the Light Box Assembly.

5. Be certain that all cables and connectors between the Light Box Assembly and external items are

disconnected (e.g. speaker plugs, etc.), including the USB and 1394 cables from the Card Reader..

6. Slide the Light Box out the rear of the Cabinet.

Page 13

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (FRONT VIEW)

WS-65813

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove 2 screws (a) securing the Front Panel.

3. Slide the Front Panel 1/2 inch to the right, then pull away from the TV.

4. Remove 6 screws (b) to remove the Board Front.

5. Unplug the connectors to the Screen Assembly.

6. Remove the 4 screws (c) securing the Screen Assembly.

7. Lift the Screen Assembly up and away from the cabinet.

Page 14

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (REAR VIEW)

WS-65813

*Refer to the Parts List for Part Numbers

Rear Cabinet Disassembly

1. Remove screws (a), (b) and (c) holding the Back Board.

2. Remove the 2 screws (d) holding the Board Slide.

3. Remove the 3 screws (e) and 2 screws (f) securing the Light Box Assembly.

4. Disconnect cabling to the front panel (Control Panel, Speakers, Inputs, etc.), including the USB and 1394

cables from the Card Reader to the DM Module.

4. Slide the Light Box out the rear of the Cabinet.

Page 15

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (FRONT VIEW)

WS-73513

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove 2 screws (a) securing the PENEL-CONTROL-BTM

3. Remove 5 screws (b) to remove the Board Front.

4. Remove the 6 screws (c) securing the Screen Assembly.

5. Lift the Screen Assembly up and away from the cabinet.

Page 16

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (FRONT VIEW)

WS-65713 / WS-73713

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the 2 Speaker Grilles and the Unit Front by pulling forward.

2. Remove 6 screws (b) securing the Board Front.

3. Remove two screws (a) to remove the Control Panel

4. Remove the 4 screws (c) securing the Screen Assembly.

7. Lift the Screen Assembly up and away from the cabinet.

Page 17

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET DISASSEMBLY (REAR VIEW)

WS-65713 / WS-73513 / WS-73713

*Refer to the Parts List for Part Numbers

Rear Cabinet Disassembly

1. Remove 8 screws (a), 2 screws(b) and 9 screws (c) holding the Back Board.

2. Remove the 4 screws (d) holding the Board Slide.

3. Rmove 4 screws (e) securing each Board Shelf.

3. Remove the 4 screws (g) and a screw (f) securing the Light Box Assembly.

4. Disconnect cabling to the front panel (Control Panel, Speakers, Inputs, etc.), including the USB and 1394

cables from the Card Reader.

4. Slide the Light Box out the rear of the Cabinet.

Page 18

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun.

This may cause fire and heat related injuries.

WS-48513 / 48613

Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the Top, Bottom and Side Screen Holders.

3. Carefully lift the Lenticular Screen and Fresnel Lens combination from the Screen Frame assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and

remove the pressure sensitive double sided tape.

Page 19

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

WS-55513 / WS-55613 / WS-65513 / WS-65613

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun.

This may cause fire and heat related injuries.

1b. Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly as shown in the Cabinet Disassembly procedure.

2. Remove the HOLDER-SCREEN-BOTTOM.

3. Carefully slide the Lenticular Screen and Fresnel Lens combination from the upper Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and

remove the pressure sensitive double sided tape.

1b. Installing the Fresnel Lens and Lenticular Screen

1. Insert the Lenticular Screen and Fresnel Lens combination into the upper Screen Frame.

2. Install the HOLDER-SCREEN-BOTTOM, install the end screws first. .

Page 20

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun.

This may cause fire and heat related injuries.

WS-55813 / WS-65813

Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the Screen Frame top section by removing 4 screws (a).

3. Carefully grasp the Lenticular Screen and Fresnel Lens combination and pull upward and out

of the Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and

remove the pressure sensitive double sided tape.

Page 21

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun.

This may cause fire and heat related injuries.

WS-65713 / WS-73713

Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the Screen Frame bottom section by removing 4 screws (a).

3. Carefully grasp the Lenticular Screen and Fresnel Lens combination and pull downward and out

of the Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and

remove the pressure sensitive double sided tape.

Page 22

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun.

This may cause fire and heat related injuries.

WS-73513

Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the Screen Frame top section by removing 4 screws (a).

3. Carefully grasp the Lenticular Screen and Fresnel Lens combination and pull upward and out

of the Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and

remove the pressure sensitive double sided tape.

Page 23

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

2. Lenticular Screen and Fresnel Lens Installation.

Note: Store the Lenticular Screen and Fresnel Lens in a cool dry place. High humidity may

deform the Lenticular Screen and Fresnel Lens.

1. Apply double coated tape (Part # LENS-TAPE) along the top front edge of the Fresnel Lens

as shown below. Refer to the Table below for proper tape length.

2. Place the Fresnel Lens on top of the Lenticular Screen and apply pressure at the top edge

to bond them together as shown below.

Model

Screen

Size

Tape

Length

WS-48513 48" 41,8"

WS-48613 " "

WS-55513 55" 47.8"

WS-55613 " "

WS-55813 " "

WS-65513 65" 56.5"

WS-65613 " "

WS-65713 " "

WS-65813 " "

WS-73513 73" 63.5"

WS-73713 " "

Page 24

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

1. Gently insert a small plastic card (such as a

credit card or a plastic putty knfe) between the

DiamondShield™ and one end of the clip to pry

the clip loose.

2. Remove both clips by pulling them toward you.

3. Carefully insert the small plastic card (or plastic

putty knife) into the gap at the side/center point

of the Shield and pull the Shield slightly away

from the unit. Place your hands at the points

shown and gently bow the Shield toward you

and remove from the unit.

2. DiamondShield™ Installation Procedure

*(See the Parts List for DiamondShield™ part numbers)

To install the DiamondShieldTM, reverse the above Removal Procedure.

SERVICING THE DIAMONDSHIELD™

1. DiamondShield™ Removal Procedure

The appropriate disassembly procedure given below.

Note:Wear gloves when handling the DiamondShield™ to prevent finger prints.

4. Reinstall the two clips

Page 25

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET SEPARATION

Mitsubishi 65 and 73 inch Projection TVs have been assembled in two pieces. These pieces may be separated for

easier delivery and setup. The cabinet separation procedure requires two persons and varies between models.

WS-65813 Cabinet Separation Procedure

Figure 1

1. Remove the Speaker Grille by pulling forward.

2. Remove the two Front Cover screws (a).

3. To remove the Front Cover, slide to the right

approximately 1/2”, then pull away from the TV.

Figure 2

4. Remove Screw (b) from the front board.

5. Disconnect the LF connector.

Figure 3

6. Remove screw (c) on each side of the cabinet.

7. Remove the plastic cover on each side.

Figure 4

8. Slide the top of the cabinet top forward.

Figure 5

9. Carefully lift the cabinet top until the interlock

tabs clear the cabinet bottom

Figure 6

10. Carefully place the cabinet top on the floor

as shown.

Figure 1

Figure 2

Figure 3 Figure 4

Figure 5

Figure 6

Page 26

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CABINET SEPARATION PROCEDURE

(WS-65513 / WS-65613 and WS-65713 / WS-73513 / WS-73713)

WS-65513 / WS-65613

Cabinet Separation Precedure

1. Pull the Speaker Grill from the cabinet.

2. Unplug the CC and ZF connectore

3. Remove 4 plastic covers and screws (a) from

each side of the cabinet.

4. Carefully lift the cabinet top and place it on

the floor.

5. Place the cabinet bottom in the desired loca-

tion.

6. Reverse the procedure and mount the cabinet

top on the cabinet bottom.

WS-65713

WS-73513

WS-73713

WS-65713 / WS-73513 / WS-73713

Cabinet Separation Precedure

1. Remove the 4 screw covers (a).

2. Remove 4 screws (b) securing the top and

bottom cabinet sections .

3. Carefully lift the cabinet top and place it on

the floor.

4. Place the cabinet bottom in the desired loca-

tion.

5. Reverse the procedure and mount the cabinet

top on the cabinet bottom.

WS-65513

WS-65613

Page 27

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Main Chassis Removal

Chassis Removal

1. Undo the cable wire ties to the Front Panel, Speakers, CRTs, etc.

2. Unplug the Card Reader USB and 1394 cables from the DM module.

2. Remove screw (a) securing the Main Chassis [and screws (b) in models WS-55813 and WS-65813] .

3. Release the Chassis Locks on each side of the chassis.

4. Slide the Chassis out the rear of the unit.

5. Tilt upward to access the bottom of the main chassis.

PCB Locations

Page 28

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Main Components Location (Top View)

DM Module Replacement

1. Unplug the Card Reader USB and 1394 cables from the DM module, and refer to the Chassis Removal

Procedure to slide the chassis towards the rear of the set.

2. Remove screws (a), to remove the DM Rear Panel, Figure 1.

3. Remove screws (a) and (b) to remove the DM Module Cover, Figure 2.

3. Remove the E2P module from the original DM and plug it into the replacement DM.

5. Plug the DM module securely into the PCB-DTV-TUNER.

6. Check operation before installing the DM Cover, Figure 3.

• Insert insulation (cardboard) between the Demodulator Ground Spring and the DM.

• Plug the set in and check the operation.

• If O.K., uplug the set and install the DM Cover.

Figure 1: DM Rear Panel Figure 2: DM Module Cover Figure 3: Checking new DM Operation

Page 29

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CRT REPLACEMENT

1. Removal of the CRT

Caution! High voltage should be completely discharged prior to CRT removal.

Since The CRTs receive high voltage from the HV Block, discharge

by shorting the open end of the respective high voltage cable to

chassis ground.

Note: Refer to the Cabinet Disassembly Procedures when performing steps 1 through 4.

1. Remove the Speaker Grille, Front Board, and Screen Assy.

2. Remove the Back Board.

3. Remove the Anode Lead Wire from the CR Block.

4. Remove the PCB-CRT.

5. Remove 4 hex-screws "a" retaining the Optical Unit. [Figure 5-1]

6. Remove 4 screws "b" retaining the Lens.

Note: DO NOT loosen the RED screws. Doing so will break the seal between the

C-Element and the # 6 Lens, causing leakage of the CRT Coolant.

7. Remove 4 screws "c" retaining the CRT. [Figure 5-2]

8. Remove the Deflection Yoke from the neck of the CRT. [Figure 5-7]

Figure 5-2

Figure 5-1

Note: The 4 spring-loaded screws shown

in Fig 5-2 and labeled as "DO NOT

REMOVE", should not be loosened

under any circumstance. Doing so

will break the seal between the

CRT and the CRT-Spacer, causing

leakage of the CRT Coolant.

Page 30

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

2. Installation of the CRT

Note: The replacement CRT is supplied as an assembly comprised of the CRT and the

Inner Lens with the space between them filled with ethylene glycol. Care should

be taken during handling and installation to prevent shock from disrupting the seal

or alignment between the CRT and Inner Lens. [Figure 5-3]

Note: The CRT fixing screws should not be loosened nor should they be removed. [Figure 5-4]

1. Carefully position the replacement CRT and fasten in place using 4 screws "d". [Figure 5-6]

Figure 5-6

Figure 5-5

Figure 5-4

Figure 5-3

Page 31

MODELS:

WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

2. Install the Deflection Yoke on the CRT neck. [Figure 5-7]

3. Install the Lens that was removed in step 6 of Removal Of The CRT. [ Figures 5-1 and 5-2 ]

a) Position the Lens so that the Label faces the direction shown in Figure 5-8.

b) Install the mounting screws. [Figure 5-1]

4. Connect the PCB-CRT.

5. Insert the Optical Unit into the Light Box Assembly.

6. Insert the Anode Lead Wire into the Flyback Transformer.

7. Re-clamp the Lead Wire in its original position.

Adjustment procedures after replacing the CRT(s)

• CRT Cut Off / White Balance Adjustment

• Static Convergence Adjustment

• Dynamic Convergence Adjustment

Figure 5-7

Figure 5-8

Page 32

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Monoscope Signal

Split-Field Color Bars (100% window)

ELECTRICAL ADJUSTMENTS

Note: Perform only the adjustments required.

Do not attempt an alignment if proper equipment is not available.

Test Equipment

•Oscilloscope (Unless otherwise specified, use 10:1 probes)

•Signal Generator (both SD and HD capable)

•Frequency Counter

•Direct Current Voltmeter

•Direct Current Power Supply

•Multiplex Audio Signal Generator

•Direct Current Ampere Meter

Test Signal

A. Monoscope Signal

Note:If you do not have

a monoscope signal source,

connect the unit to a VCR

and play a Monoscope

*alignment tape.

(* Part Number: 859C568060)

B. Color Bar Signal

Use the color bar signal shown

below, unless otherwise specified

in this manual.

Page 33

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Initial Setup

A. Option Menu Setup

Follow the steps below for the initial set-up:

1. Select the "MENU" display by pressing the "MENU" button once.

2. Press the number buttons "0", "3", "7", "0" in sequence to select

the "OPTION MENU" display.

3. Press the "ADJUST" button to select "INITIAL."

4. Press "ENTER."

NOTE: At this time channel 3 is automatically selected.

B. Default Settings

(MENU-0-3-7-0)

OPTION MENU

Initial

Power restore :OFF

DTV Port :Auto

Audio

Edit Setup

Clock Setting Manual Volume 30%

Review

Time 12:00 AM Bass 50%

Antenna A

(

)

Enabled

Day Monday Treble 50%

Antenna B

(

)

Enabled

Balance 50%

Input DTV

(

)

Enabled

Analog Captions With Mute Surround Off

Input 1

(

)

Enabled

Background Gray Listen to Stereo

Input 2

(

)

Enabled

Digital Captions With Mute Level Sound On

Input 3

(

)

Enabled

Digital Settings TV Speakers On

Component 1 (3

) Enabled Appearance Default Audio 2 Out Main

Component 2

(

)

Enabled

Digital Channel Guide Off

Video

Antenna DTV

(

)

Enabled

Contrast 100%

VGA

(

)

Enabled

V-CHIP Off Brightness 50%

MonLink

(

)

Enabled

TV Rating TV-PG Sharpness 50%

Card 1

(

)

Enabled

FV-Fantasy Violence

(

)

Enabled

Color 50%

Card 2

(

)

Enabled

D-Sexual Dialog

(

)

Enabled

Tint 50%

Card 3 (3

) Enabled L-Adult Language (3

) Enabled Color Temp. High

Card 4

(

)

Enabled

S-Sexual Situation

(

)

Enabled

Video Noise Standard

Icon Position

As above V-Violence

(

)

Enabled

Image Type Video

Ant-A, Ant-B, Ant-DTV, ComFlash Program not Rated

(

)

Enabled

VSM Sharpness On

MemStick, SmartMed, MMC& SD Movie Rating PG Video Mute On

Input-1, Input-2, Input-3, Comp-1, V-Chip Time Black Enhancement On

Comp-2, Input DTV, VGA, Start Time 12:00 AM

MonLink, Cards 1…4 Stop Time 12:00 AM Color Balance Manual

Transport Menu

On PerfectColor™

Energy Mode

Standard Lock by Time Off A/V Memory for Ant-A All Centered

Language

English Lock Time NA

Unlock Time NA Source Ant A Ch 3

Antenna ANT A Front Button Lock Off PIP Position Lower Right

Memorize Channels Air POP Position Right Half

Channel Ch-3 A/V Memory Reset Ant-A PIP/POP Format

Dble. Window

Memory Deleted

Format

Stretched

MAIN MENU DEFAULT SETTINGS

SETUP

AUDIO/VIDEO SETTINGS

V-CHIP LOCK

Advanced

PIP/POP

TIME

CAPTIONS

ANTENNA

Lock By Time

A/V Memory Ant A/B Ant DTV Inp-DTV INPUTS

1/2/3

Compon.

1/2

VGA 1394

1/2/3

MonLink Card

1~4

Contrast Max. Max. Max. Max. Max. Max. Max. Max. Max.

Brightness Center Center Center Center Center Center Center Center Center

Sharpness Center Center Center Center Center N/A Center Center Center

Color Center Center Center Center Center Center Center Center Center

Tint Center Center Center Center Center Center Center Center Center

Color Temp. High High High High High High High High High

Video Noise Standard N/A Standard Standard Standard N/A N/A Standard N/A

Image Type Video N/A Video Video Video N/A N/A Video N/A

VSM Sharpness On On On On On On On On On

Bass

Center

Treble Center Center Center Center Center Center Center Center Center

Balance Center Center Center Center Center Center Center Center Center

Surround OFF OFF OFF OFF OFF OFF OFF OFF OFF

Listen To Stereo English N/A N/A N/A N/A N/A N/A N/A

Level Sound

A/V RESET DEFAULT SETTINGS (By Input)

Page 34

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

C. A/V Memory

Each of the external inputs has its’ own Audio/Video Memory. A change in an A/V setting at a specific input is

stored in memory for that specific input.

A/V Reset

1. The front panel AV Reset button initializes all A/V Memories.

2. The AV Reset in the user’s menu initializes only the selected input’s A/V Memory.

LED Indicator Diagnostics

The “Power ON LED” provides an indication of the sets operation, and the possible cause of a malfunction.

1. Initial Control Circuitry Check

Immediately after the TV is connected to an AC power source:

2. Error Code Operational Check

Note: The TV must be in “Shut Down” and not heve been switched Off, to perform the Error Code Opera-

tional Check. When the TV is switched Off, the code automatically resets to “12” No Error.

Pressing the front panel “INPUT” and “MENU” buttons at the same time, and holding for 5 seconds,

activates the Error Code Mode. The LED flashes denoting a two digit Error Code, or indicating no problem

has occured since the last Initalization.

Note: The front panel buttons must used, NOT those on the Remote Control.

•The number of flashes indicates the value of the MSD (tens digit) of the Error Code.

•The flashing then pauses for approximately 1/2 second.

•The LED then flashes indicating the value of the LSD (ones digit) of the Error Code.

•The Error Code is repeated a total of 5 times.

Example: If the Error Code is “23”, the LED will flash two times, pause, and then flash three

times.

3. Error Codes

The Error Code designations indicating malfunction, or no malfunction, are listed below:

Remote Control Operational Modes

There are two Remote Hand Unit Operational Modes, “Standard” and “NetCommandTM”. The Remote is initially

in the “Standard” mode. The “NetCommandTM” mode is used when controlling Home Theater devices using

NetCommandTM. To change the Remote Operational Mode:

•Set the Remote to the TV Layer

•Point the Remote away from the TV.

•To change to “NetcommandTM” ... Hold the “Power” button and press “9-3-5” in sequence.

Error Code

Probable Cause

12 No error detected

21 X-Ray Protect

22 Short Protect

23 Loss of Deflection

LED Indications

Conditions

Probable Cause

Off After AC is applied No Standby Power or TV µPC not running

Fast Blink for 70 sec. After AC is applied Normal - DM µPC is booting up.

Fast Blink for 70 sec. Each time TV is switched On Power Save Mode is activated

Fast Blink (Doesn't stop) After AC is applied TV µPC is running, but DM failed to boot up

Slow Blink Set is Off Normal - Timer is set for Auto Trun On

Page 35

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

•To change to “Standard” ... Hold the “Power” button and press “0-0-0” in sequence.

Circuit Adjustment Mode

Most of the adjustments can only be performed using the remote hand unit. Many of the adjustments must be

performed in both the 480i and 1080i modes. Video/Color adjustments must be performed in the 480i and

1080i modes, and data must be preset in the 480P (DVD) and VGA modes.

Note: Set the Remote Operational Mode to “NetCommandTM”. (Hold the “Power” button and press

“9-3-5” in sequence.) This slows the remote’s response and makes adjustments easier. When

adjustments are complete, set the Remote to its’ original Operational Mode.

(Hold the “Power” button and press “0-0-0” in sequence)

A. Activating the Circuit Adjustment Mode

The current signal source determines if the

activated Adjustment Mode is 480i or 1080i.

1. Select the signal source (480i or 1080i).

2. Press the "MENU" button on a remote hand unit.

3. Press the number buttons "0", "3", "5", "7" in sequence. The

screen will change to the Adjustment Mode.

Note: Repeat steps 1 and 2 if the circuit

adjustment mode does not appear

on screen.

B. Selection of adjustment Functions and

Adjustment Items

To select an adjustment item in the circuit adjustment mode, first select the adjustment function that includes

the specific adjustment item to be selected. Then select the adjustment item. Refer to the following pages for

the listing of adjustment functions and adjustment items.

1. Press the "AUDIO" button on a remote hand unit to select an adjustment function. Each time the button

is pressed, the Function changes in the following sequence:

2. Press the “VIDEO” button to select a specific Adjustment Item. The Item number increases each time the

“VIDEO” button is pressed.

C. Changing Data

After selecting an adjustment Item, use the “ADJUST UP/DOWN” buttons to change data.

CHASSIS V23

FUNCTION DECODER 1

ADJ ITEM 22 SCNT 16 480i SIGNAL

ABBREV.

DATA

CRT-VC

CRT-JNGL

DECODER 2

DECODER 1

DOUBLER

Adjustment Functions

Page 36

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

•Press “ADJUST DOWN” to decrease the data value.

•Press “ADJUST UP” to increase the data value.

D. Saving Adjustment Data

Press “ENTER” to save adjustment data in memory. The character display turns red for approximately one

second in this step.

Note: If the circuit adjustment mode is terminated without pressing “ENTER”, changes in adjustment data

are not saved.

E. Terminating the Circuit Adjustment Mode

Press the “MENU” button on the remote hand unit twice to terminate the adjustment mode.

Note: The circuit adjustment mode can also be terminated by turning power OFF.

F. Toggle Between Reception Modes

Pressing “3” when in the Adjustment Mode CRT-VC Function toggles between 480i, 480p, 1080i and VGA.

However data changes are not automatically saved. Press “ENTER” to save data before pressing “3”.

G. Service Mode Reset

To reset items in the Service Mode to their factory values:

1. Press MENU-0-3-5-7 to enter the Service Mode.

2. Press the “0,1,2,3,” insequence to Reset to the Factory

settings.

On Screen Display Position Adjustment Mode

Activation

1. Select 480i or 1080i source.

2. Press MENU-0-3-8-8

Convergence Adjustment Mode

The Convergence mode is used to perform raster geometry correction, and convergence adjustments. These

adjustments must be made in both the SD (NTSC) and HD modes.

Note: Before activating the Convergence mode, turn “Video Mute” Off. The internal crosshatch pattern

will not be displayed with “Video Mute” On, only a blue background is displayed.

A. Convergence Mode Activation

1. Press MENU-0-3-5-9

2. When the Convergence Mode is activated, this display appears on a Green Crosshatch.

B. Selecting the HD or SD Mode

1. Select the Signal Source before entering the

Convergence Mode, either an NTSC or HD source.

2. Enter the Convergence Mode

•If the signal source is NTSC, the SD mode is activated.

•If the signal source is HD, the HD mode is activated.

3. Activating the HD mode when no HD signal is available

•Press the “DEVICE” button.

•Use the “UP-DOWN-RIGHT-LEFT” direction buttons to select the ANT-DTV, then press “ENTER”.

•Press “MENU-0-3-9-5” in sequence to activate the Coarse Green HD Convergence mode.

C. Convergence Mode Functions

In the Convergence Mode there are three main Functions (Categories).

•Pressing “6” activates CONV MISC

•Pressing “5” activates COARSE CONV

•Pressing “4” activates FINE CONV

Page 37

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

D. CONV MISC (Press 6)

This mode is used to preset data values controlling the Convergence Generator, and to perform the HV

Regulation adjustment.

1. Use the VIDEO button to select an item.

2. Use the ADJUST buttons to change data.

NOTE: When Item “1 HVOL” is selected the screen goes black except for the data display. This occurs

since a black screen is required when making the HV Regulation adjustment.

E. COARSE CONV (Press 5)

There are four Sub Functions in the Coarse mode, COARSE GREEN, COARSE RED, COARSE BLUE and

DF.

•COARSE GREEN .... used to make Coarse Raster Geometry Adjustments.

•COARSE RED ... used to make Coarse Red Convergence Adjustments.

•COARSE BLUE ... used to make Coarse Blue Convergence Adjustments.

•DF ... used to preset data values controlling the Dynamic Beam Focus circuit drive signal.

1. Use AUDIO button to select a Sub Function

2. Use the VIDEO button to select an Adjustment Item.

3. Use the ADJUST buttons to change data.

F. FINE CONV (Press 4)

Sub Functions

This mode is used to perform Fine Raster Correction, and Fine Red and Blue Convergence Adjustments.

There are three Sub Adjustment Functions, selected with the AUDIO button:

•FINE GREEN .... a Green Crosshatch is displayed, to make Fine Raster Corrections.

•FINE RED .... a White Crosshatch is displayed, to make Fine Red Convergence Adjustments.

•FINE BLUE .... a White Crosshatch is displayed, to make Fine Blue Convergence Adjustments.

Cursor

In the Fine mode a Cursor is added to the Crosshatch. The ENTER button toggles the Cursor between two

modes:

•MOVE (blinking Cursor) .... use the ADJUST buttons to select any of 64 points on the Crosshatch.

•ADJUST (Non blinking Cursor) .... the ADJUST buttons adjust the active color at the current Cursor

position, horizontally or vertically.

Display

The on-screen display changes in the Fine mode, as shown at the right.

The display shows the vertical and horizontal data for the current Cursor

Position, and the horizontal and vertical coordinates for that position.

G. Saving Data and Exiting the Convergence Mode

Press MENU twice to exit the Convergence mode, data is automatically saved.

V23

CONV FINE GREEN

V13 H-4 SD

VERTICAL

DATA

HORIZ.

DATA

Page 38

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

E2PROM Replacement

Data accessed in the Convergence Adjustment Mode is stored in IC8D01on the PCB-SIGNAL. Replacement

PCB’s are supplied pre-aligned so that only fine adjustments should be necessary after replacement. All other

service data is stored on the PCB-E2P located on the DM assembly. When replacing the DM assembly,

retaining the original PCB-E2P will eliminate the need for any realignment. The following tables are provided as

a guide in case of total data loss.

List of Adjustment Items.

VC Function (Video Color) IC2V01

Function Display

Adjustment

Data

Initial Data

Notes

NO.

Abbrev.

Description

Range

480i

480p

1080i

VGA

1SBRT Sub Brightness Adjust 0~63 20 20 20 20 Black Level

2SCT Picture Gain Adjust 0~63 42 42 42 42 Sub Contrast

3SCON Sub Contrast Adjust 0~15 9 9 9 9 Preset

4RDRH R-Drive (high) 0~15 31 31 31 31 White Balance

5GDRH G-Drive (high) 0~15 42 42 42 42 "

6BDRH B-Drive (high) 0~63 40 40 40 40 White Balance

7CTRH R-Cutoff (high) 0~63 31 31 31 31 "

8CTGH G-Cutoff (high) 0~63 43 43 43 43 "

9CTBH B-Cutoff (high) 0~63 25 25 25 25 "

10 RDRL R-Drive (low) 0~63 31 31 31 31 "

11 GDRL G-Drive (low) 0~63 37 37 37 37 "

12 BDRL B-Drive (low) 0~63 20 20 20 20 "

13 CTRL R-Cutoff (low) 0~63 25 25 25 25 "

14 CTGL G-Cutoff (low) 0~63 35 35 35 35 "

15 CTBL B-Cutoff (low) 0~63 20 20 20 20 "

16 GMMA RGB Gamma correction 0~3 2 2 2 2 "

17 GAML Gamma Differ. Sw. 0~1 1 1 1 0 Preset

18 BRT Brightness Control 0~63 21 21 21 21 User

19 COL Color Control 0~63 36 40 36 30 User

20 TNT Hue Control 0~63 32 31 31 31 User

22 CBOF Cb sub signal DC cancel 0~63 31 31 31 31 Preset

23 CR0F Cr sub signal DC cancel 0~63 31 31 31 31 "

38 DCTR Y DC trans. Ration 0~3 2 2 2 2 "

56 ASBL S-ABL gain setting 0~3 0 0 0 0 "

Adjustment

Description

Data

Range

No.

Item

1HWID Horizontal Width 0~63 32 31 21 21 25 25 21 21 28 28 28 28

2HKEY Horizontal Keystone 0~63 43 37 44 40 41 37 25 24 25 24 25 24

7VHGT Vertical Height 0~63 27 30 21 25 28 31 33 38 38 41 33 41

8VLIN Vertical Linearity 0~15 6 6 6 6 6 6 6 6 6 6 6 6

9VSCN Vertical S-Correction 0~15 3 3 3 3 3 3 3 3 3 3 3 3

13 H-POS Horizontal Position 0~63 38 23 38 23 38 23 38 23 38 23 38 23

V-POS

Vertical Position

0~63

CRT-JNGL Function (Jungle)

WS-73513

WS-73713

WS-55613

WS-55813 WS-65813Display WS-48513

WS-48613 WS-55513

WS-65513

WS-65613

WS-65713

Page 39

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

DECODER-2 Function (Sub Decoder)

Adjustment

Data

3DYC

No.

Abbrev.

Description

Range

480i

480p

1080i

480i

22 SCNT Sub Y Out amplitude 0~31 12 12 12 12

SCLR

Sub CbCr amplitude

0~31

Display YPbPr

DECODER-1 Function (Main Decoder)

Adjustment

Data

3DYC

No.

Abbrev.

Description

Range

480i

480p

1080i

480i

22 SCNT Main Y Out amplitude 0~31 16 16 16 14

SCLR

Main CbCr amplitude

0~31

YPbPrDisplay

DYNAMIC FOCUS (MENU-0-3-5-9-5)

Item

Number

Abbrev.

Name

Data

SD&HD

1DFH Dynamic Focus Horizontal -300

2DFV Dynamic Focus Vertical -50

Description

CONV MISC (MENU-0-3-5-9-6)

Item

Abbrev.

Data

Notes

Number

Name

1HVOL HV Adj.

STLN

11 TPHS 40 38

12 TPVD 23 42

* Do not change "1 HVOL" if it has been

previously set.

160

DOUBLER

Item

Abbrev.

Data

474 OFFT 31

475

OFF2

OSD Horizontal Centering (MENU-O-3-8-8)

Abbrev.

Name

Description Data

HR Display horiz. Centering (NTSC) 120

NOTE: These two adjustments position the picture on

the screen when a MonitorLinkTM source is used.

Page 40

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CONV GREEN Items

(MENU-0-3-5-9-5)

No. Abbrev. Description

Name

1HSTA* Horizontal Position 0 0 0 0 0 0 0 0 0 0 0 0

2VSTA* Vertical Position 0 0 0 0 0 0 0 0 0 0 0 0

3SKEW Skew (Y axis rotation) 0 0 0 0 0 0 0 0 0 0 0 0

4TILT Tilt (X axis rotation) 0 0 0 0 0 0 0 0 0 0 0 0

5HWID Horisontal Width 20 20 20 20 20 20 20 20 20 20 20 20

6HLIN Horizontal Linearity 12 12 12 12 12 12 12 12 12 12 12 12

7SPCC Side Pin Cushion Correction 0 0 0 0 0 0 0 0 0 0 0 0

8HKEY Horizontal Keystone 0 0 0 0 0 0 0 0 0 0 0 0

9TBPC Top/Bottom PC Correction -180 -150 -130 -150 -195 -180 -200 -170 -210 -180 -210 -180

10 VKEY Vertical Keystone 0 0 0 0 0 0 0 0 0 0 0 0

11 VWID Vertical Height 0 0 0 0 0 0 0 0 0 0 0 0

VLIN

Vertical Linearity.

*HSTA and VSTA must not exceed ±200

CONV RED Items

(MENU-0-3-5-9-5)

No. Abbrev. Description

Name

1HSTA Horizontal Position 50 50 50 50 50 50 50 50 100 100 10 100

2VSTA Vertical Position 0 0 0 0 0 0 0 0 0 0 0 0

3SKEW Skew (Y axis rotation) 0 0 0 0 0 0 0 0 0 0 0 0

4TILT Tilt (X axix rotation) 0 0 0 0 0 0 0 0 0 0 0 0

5HLIN Horixontal Linearity -210 -190 -200 -170 -210 -150 -180 -160 -230 -210 -230 -210

6HWID Horizontal Width 0 0 0 0 10 10 0 0 0 0 0 0

7VKEY Vertical Keystone Correction -140 -125 -115 -110 -100 -100 -100 -90 -170 -140 -140 -110

8VWID Vertical Height 0 0 0 0 0 0 0 0 0 0 0 0

9VLIN Vertical Linearity 0 0 0 0 0 0 0 0 0 0 0 0

10 TPPC Top/Bottom PC Correction 20 20 20 20 20 20 20 20 20 20 20 20

SDBW

Horizontal Side Bow

*HSTA and VSTA must not exceed ±200

CONV BLUE Items

(MENU-0-3-5-9-5)

No. Abbrev. Description

Name

1HSTA Horizontal Position -50 -50 -50 -50 -50 -50 -50 -50 -100 -100 -100 -100

2VSTA Vertical Position 0 0 0 0 0 0 0 0 0 0 0 0

3SKEW Skew (Y axis rotation) 0 0 0 0 0 0 0 0 0 0 0 0

4TILT Tilt (X axix rotation) 0 0 0 0 0 0 0 0 0 0 0 0

5HLIN Horixontal Linearity 210 190 180 180 180 180 180 160 250 220 230 200

6HWID Horizontal Width 0 0 0 0 0 0 0 0 0 0 0 0

7VKEY Vertical Keystone Correction 110 100 120 100 100 100 100 70 70 90 70 90

8VWID Vertical Height 0 0 0 0 0 0 0 0 0 0 0 0

9VLIN Vertical Linearity 0 0 0 0 0 0 0 0 0 0 0 0

TPPC

Top/Bottom PC Correction

-20

HSBW

Horizontal Side Bow

-30

*HSTA and VSTA must not exceed ±200

WS-48513

WS-48613

WS-48513

WS-48613

WS-65513

WS-65613

WS-65713

WS-65513

WS-65613

WS-65713

WS-48513

WS-48613

WS-65513

WS-65613

WS-65713

WS-55513 WS-55613

WS-55613WS-55513 WS-73513

WS-73713

WS-65813

WS-65813 WS-73513

WS-73713

WS-65813 WS-73513

WS-73713

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 41

Adjustment Test Point Location

Test Points

DT pin 3 - HV Adjust

DT pin 6 - Ground

DT pin 7 - 12 Volts

DT pin 8 - ACL

JA pin 26 - Main Picture (Y)

JA pin 28 - Main Picture (Cr)

JA pin 35 - Sub Picture (Y)

JA pin 37 - Sub Pictur (Cr)

TP6(R, G or B) - CRT Cathode

Page 42

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

Purpose

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

DT connector pins 3 & 6

------

-------

Video Signal

Monoscope

Video Input

To set the CRT Anode voltage.

Dark Picture

Note: This adjustment must be rechecked following Adjustment 9 CRT Cutoff.

1. Supply a video monoscope signal.

2. Sent Contrast to maximum, and Brightness to mid position.

3. Connect a DC volt meter between pins 3 and 6 of the DT connector.

(Positive lead to pin 3)

4. Activate the Conv-Misc Mode.

5. Select Item “1 HVOL” (screen goes black).

6. Adjust Item “1 HVOL” for 15.4V ±0.2V on the meter.

7. Save data and exit the Conv-Misc mode.

8. Confirm that the voltage does not change more than 0.15V.

Note: This adjustment must be performed if E2RESET or Convergence E2RESET

are activated.

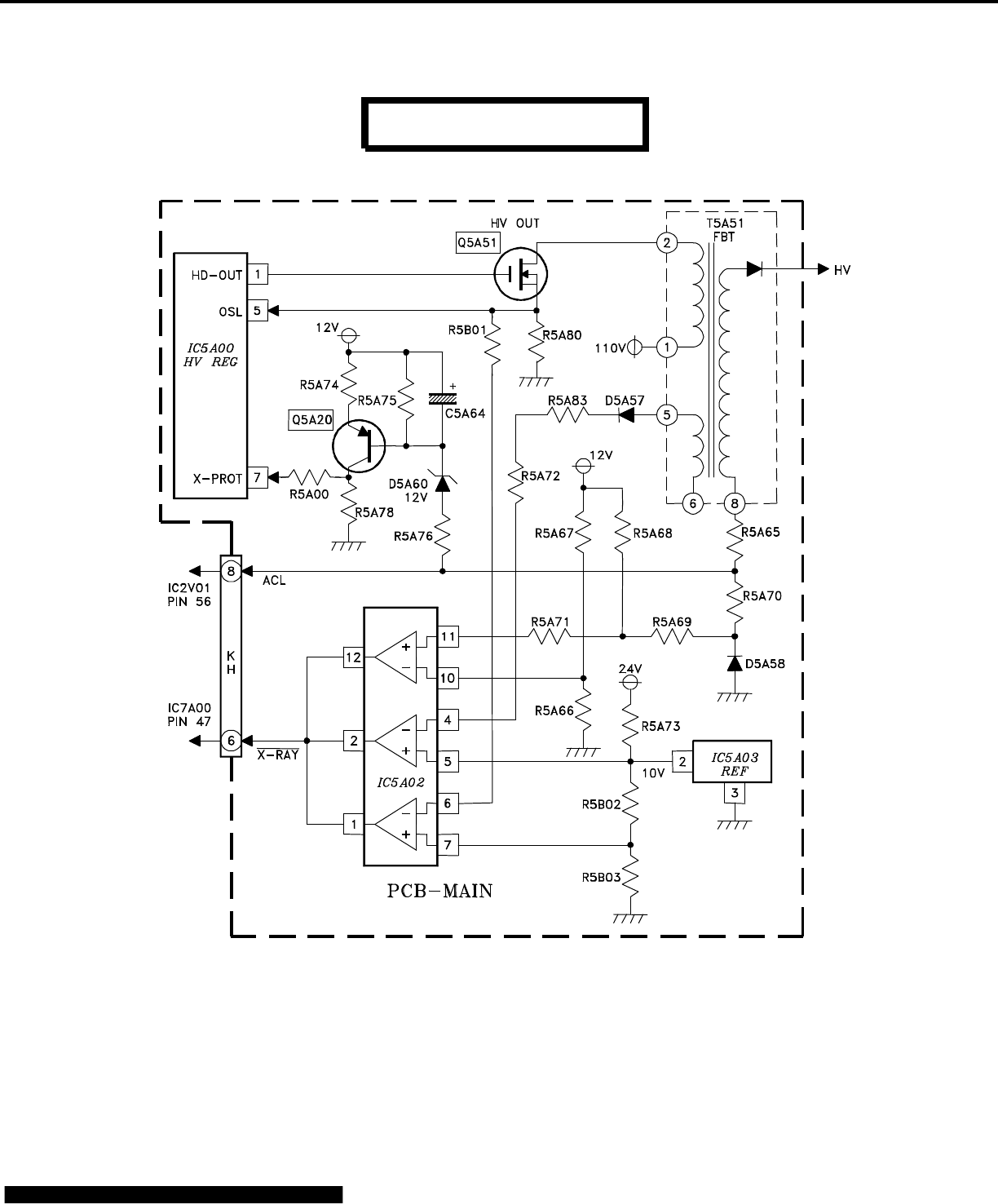

[HV Circuit]

1. HV Regulation

Oscilloscope

JA connector pins 26 &35

------

Color Bars

Video Input

[Video Circuit]

2. Main/Sub Y Level

To set picture luminance

Excess or insufficient brightness.

1. Supply a color bar signal to a Video Input (not an RF input).

2. Select the color bar signal for both the main and sub pictures.

3. Connect the oscilloscope to connector JA pin 26.

4. Activate the Adjustment Mode

5. Select Item “22 SCNT” in the MAIN MTRX function.

6. Adjust the data for 0.71 Vp-p max. - 0.66 Vp-p min. at EA pin 15.

(If it cannot be adjusted within this range, set to the lower value)

7. Move the oscilloscope to JA pin 35.

8. Select Item “22 SCNT” in the SUB MTRX function.

9. Adjust the data to equal the MAIN-Y Gain (+0.0V -0.05V).

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse………………..…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

DC Voltmeter

Page 43

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

Purpose

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[Video Circuit]

Oscilloscope

JA pin 28 & JA pin 37

JB pin 5

------

Color Bars

Video

To match the sub picture color to that of the main picture.

Main and sub pictures colors differ.

1. Supply an NTSC signal to an External Video Input.

2. Select the NTSC signal as the source for both the main and sub pictures.

3. Connect an oscilloscope to connector JA pin 28 (Main Pr).

4. Activate the Adjustment mode.

5. Select Item “24 SCLR” in the Main Matrix Function.

6. Adjust data so the PR signal is 0.71 Vp-p max. - 0.66 Vp-p min

(If it cannot be adjusted within this range, set to the lower value)

7. Connect an oscilloscope to connector JA pin 37 (Sub PR).

8. Select item “24 SCLR” in the Sub Matrix Function.

9. Adjust so Sub PR = Main PR.

3. Main/Sub Color Level

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

To set the cutoff point for all three CRTs.

Monochrome has a color tint, or incorrect brightness.

[CRT Circuit]

4. CRT Cutoff

Oscilloscope

TP6R, TP6G, TP6B

------

50V/Div. 2msec/Div.

None

Video Input

Note: Use the Expand mode (full screen)

1. Select an External Input with no signal.

2. Enter the Adjustment Mode, VC Function.

3. Press “1”, automatically blanks the screen and sets COL to 0.

Note: If the screen goes blue, turn off Video Mute.

4. Set the data to the values given in the table below.

5. Connect the oscilloscope to TP6R.

6. Adjust the Red Screen VR so the black level is 175V, as shown below, or

178V ±1VDC using an DC Voltmeter.

7. Repeat Steps 4 and 5 to set the Blue and Green Screen VRs, using

TP6G and TP6B.

Note: White Balance must be performed

after this adjustment.

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

VC Function

Item

Abbr.

Setting

1SBRT 24

2SCT 42

3SCON 9

4RDRH 31

5GDR 42

6BDRH 40

7CTRH 31

8CTGH 43

9CTBH 25

Page 44

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

Purpose

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

DC ma meter

------

NTSC White Raster

RF or Video

[CRT Circuit]

5. White Balance (NTSC)

To set the CRTs white level in the NTSC mode.

Monochrome has a color tint.

Note: Use the “FORMAT” button to activate the Expand mode (full screen).

1. Supply a full White Raster Signal

2. Activate the Service Mode, VC function.

3. Adjust Items “4 RDRH” and “6 BDRH” for optimum white at the center of

the screen.

4. Reduce the input luminance level to 25%.

5. Adjust Items “7 CTRH” and “9 CTBH” for optimum white.

6. Insert a Milliammeter in series with each CRT Cathode. The maximum

allowable current for each CRT is given in the table below.

7. Set the white raster to 100% and adjust Items “10 RDRL” and “12 BDRL” for

optimum white at the center of the screen.

8. Reduce the luminance level to 25%.

9. Adjust Item “13 CTRL” and “15 CTBL” for optimum white.

10. Set the data for Item “19 COL” back to 31.

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

To set the CRTs white level in the HD mode.

Monchrome pictures have a color tint.

[CRT Circuit]

6. White Balance (HD)

-----

------

-----

HD White Raster

DTV Inputs

1. Supply an HD Full White Raster signal to the DTV Inputs.

2. Select the DTV Inputs (Input button)

3. Activate the Adjustment mode, VC Function.

4. Set Item “19 COL” to 0.

5. Adjust Items “4 RDRH” and “6 BDRH” for optimum white at the center of the

screen.

6. Reduce the input signal luminance to 25%.

7. Adjust Items “7 CTRH” and “9 CTBH” for optimum white.

8. Set the data for Item “19 COL” back to 31.

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

Maximum CRT Current

CRT

WS-48513 WS-55613 WS-65613

WS-48613 WS-55813 WS-65713

WS-55513 WS-65513

WS-65813

WS-73513

WS-73713

RED

580ua 900ua

GREEN

580ua 900ua

BLUE

580ua 900ua

Page 45

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

Purpose

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

-----

------

Monoscope

Video Input

[Video Circuit]

7. Black Level

To set the black level of the picture.

Excess or insufficient brightness.

1. Supply a Monoscope signal to a Video Input.

2. Activate the Adjust Mode, VC Function.

3. Adjust Item “2 SBRT” so the 0% and 10% black levels on the gradation scale

are the same.

4. Press ENTER to save data.

7. Exit the Service Mode.

40% 30% 20% 10%

50% 0% 0% 0%

60% 70% 80% 90%

GRADATION SCALE

DC ma meter

DT connector pins 7 & 8

------

-----

Grayscale

RF Input

To set overall beam current to its’ optimum level.

Excess or insufficient contrast.

Note: Activate the Expand mode (full screen).

1. Supply a Grayscale signal to a RF Input.

2. Activate the Adjust Mode, VC Function.

3. Select Item “1 SCT”, signal level automatically reduces.

4. Connect a 3ma DC meter between DT connector pins 7 and 8. Positive lead to

pin 7.

5. Adjust Item “1 SCT” to the values given in the Table below.

6. Remove the meter.

7. Save data and Exit the Service Mode.

[Video Circuit]

8. Sub Contrast

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

MODEL

CURRENT

48 inch models 525 ±5ua

55 inch and 65 inch models 575 ±5ua

73 inch models

575 ±5ua

Page 46

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

Purpose

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

To improve edge focus.

Poor focus at the edges of the screen.

[Focus Circuit]

9. Dynamic Focus Preset

-----

------

-----

Monoscope

Video Input

1. Supply a Monoscope signal to a Video Input

2. Activate the Convergence Mode.

3. Select the DF Function under the Conv. Coarse Mode.

4. Set Items “0 DFH” and “1 DFV” to the data values given in the DF Table.

5. Press “6” to activate CONV-MISC

6. Set “0 FPHS” and “1 DPHS” to data values given in the CONV-MISC Table.

5. Exit the Conv. Mode.

-----

------

-----

Monoscope

Video Input

Poor focus

Note: This adjustment must be done before Electrostatic Focus. Perform this

adjustment for RED, GREEN, and BLUE monochrome pictures.

1. Supply a VIDEO signal (Monoscope).

2. Cover the Red and Blue Lens (producing a green raster).

3. Adjust the Green Lens for best focus at the center of the Monoscope pattern.

Note: Attach a white paper to the

screen center. During adjustment,

observe the picture on the screen

from inside for easier adjustment.

4. Repeat Steps 2 and 3 for the Red

and Blue monochrome pictures.

[Video Circuit]

10. Lens Focus

To set the Lens position for optimum focus.

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse………………..…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

(MENU-0-3-5-9-5)

Item

Abbr.

Data

1DFH -300

2DFV -50

CONV MISC

(MENU-0-3-5-9-6)

Item

Abbr.

Data

9DPHS 0

10 DOFS 21

Page 47

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

Purpose

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

-----

------

Video Signal (NTSC)

ANT-A

[On Screen Display]

12.Character Position

To position the character display horizontally.

Incorrect display position

1. Supply an NTSC signal to Ant-A and select Ant-A as the source.

2. Enter the OSD Position Mode, press “MENU-0-3-8-8”.

3. Adjust “OSDSD” to center the OSD horizontally.

4. Press “MENU” to save data and exit the mode.

-----

------

Monscope & Crosshatch

Video Input

[CRT Circuit]

11. Electrostatic Focus &

(Alignment Magnet)

To set electrostatic focus to the optimum point.

Poor focus.

Note: This adjustment must be performed after the Sub Contrast adjustment.

Alignment Magnet Adjustment

(WS-48613 / 55613 / 55813 /65613 / 65713 / 65813 / 73713 Only)

This adjustment must be performed before Static Focus Adjustment

1. Supply a Crosshatch with Center Dot signal to a Video Input.

2. Set the display format to Standard (Format button)

3. Select a Green raster using the table below.

4. Roughly adjust Green Focus VR.

5. Rotate Green Focus VR CCW so the center dot is about 10mm diameter.

6. Adjust the Green 4 Pole Magnet for the roundest center dot.

7. Set the Green Focus VR for optimum focus.

8. Repeat the procedure with a Red raster and adjust the Red 4 Pole Magnet.

9. Use silicon to lock the magnets in place.

Static Focus Adjustment (All Models)

1. Supply a Monoscope signal to a Video Input

2. Activate A/V Reset

3. Select Red, Green or Blue rasters using the table below.

3. Set the Red, Green and Blue Focus VRs for optimum focus in the center of

the picture.

Raster Color Selection

Color Raster Activation Code

Red MENU-0-3-5-9-1

Green MENU-0-3-5-9-2

Blue MENU-0-3-5-9-3

Page 48

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

-----

------

-----

Video & DTV Inputs

To preset data controlling raster geometry

Raster distortion.

Procedure

In the Circuit Adjustment and Coarse Convergence Modes pre-set the data to the

values given in the Tables below.

[Conv/Defl]

13. Geometry Preset

NTSC & HD

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse………………..…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

MENU-0-3-5-7

No.

Item

1HWID 32 31 21 21 25 25 21 21 28 28 28 28

2HKEY 43 37 44 40 41 37 25 24 25 24 25 24

7VHGT 27 31 21 25 28 31 33 38 38 41 33 41

8VLIN 666666666666

9VSCN 333333333333

13 H-POS 38 23 38 23 38 23 38 23 38 23 38 23

V-POS

CRT-JUNGLE Function

WS-73513

WS-73713

WS-55613

WS-55813 WS-65813Display WS-48513

WS-48613 WS-55513

WS-65513

WS-65613

WS-65713

CONV GREEN Items

(MENU-0-3-5-9-5)

No. Abbrev.

Name

1HSTA* 0 0 0 0 0 0 0 0 0 0 0 0

2VSTA* 0 0 0 0 0 0 0 0 0 0 0 0

3SKEW 0 0 0 0 0 0 0 0 0 0 0 0

4TILT 0 0 0 0 0 0 0 0 0 0 0 0

5HWID 20 20 20 20 20 20 20 20 20 20 20 20

6HLIN 12 12 12 12 12 12 12 12 12 12 12 12

7SPCC 0 0 0 0 0 0 0 0 0 0 0 0

8HKEY 0 0 0 0 0 0 0 0 0 0 0 0

9TBPC -180 -150 -180 -150 -195 -180 -200 -170 -210 -180 -210 -180

10 VKEY 0 0 0 0 0 0 0 0 0 0 0 0

11 VWID 0 0 0 0 0 0 0 0 0 0 0 0

VLIN

CONV RED Items

(MENU-0-3-5-9-5)

No. Abbrev.

Name SD HD SD HD SD HD SD HD SD HD SD HD

1HSTA 50 50 50 50 50 50 50 50 100 100 10 100

2VSTA 0 0 0 0 0 0 0 0 0 0 0 0

3SKEW 0 0 0 0 0 0 0 0 0 0 0 0

4TILT 0 0 0 0 0 0 0 0 0 0 0 0

5HLIN -210 -190 -200 -170 -210 -150 -180 -160 -230 -210 -230 -210

6HWID 0 0 0 0 10 10 0 0 0 0 0 0

7VKEY -140 -125 -115 -110 -100 -100 -100 -90 -170 -140 -140 -110

8VWID 0 0 0 0 0 0 0 0 0 0 0 0

9VLIN 0 0 0 0 0 0 0 0 0 0 0 0

10 TPPC 20 20 20 20 20 20 20 20 20 20 20 20

SDBW

CONV BLUE Items

(MENU-0-3-5-9-5)

No. Abbrev.

Name

1HSTA -50 -50 -50 -50 -50 -50 -50 -50 -100 -100 -100 -100

2VSTA 0 0 0 0 0 0 0 0 0 0 0 0

3SKEW 0 0 0 0 0 0 0 0 0 0 0 0

4TILT 0 0 0 0 0 0 0 0 0 0 0 0

5HLIN 210 190 180 180 180 180 180 160 250 220 230 200

6HWID 0 0 0 0 0 0 0 0 0 0 0 0

7VKEY 110 100 120 100 100 100 100 70 70 90 70 90

8VWID 0 0 0 0 0 0 0 0 0 0 0 0

9VLIN 0 0 0 0 0 0 0 0 0 0 0 0

TPPC

-20

HSBW

-30

WS-48513

WS-48613

WS-48513

WS-48613

WS-65513

WS-65613

WS-65713

WS-65513

WS-65613

WS-65713

WS-48513

WS-48613

WS-65513

WS-65613

WS-65713

WS-55513 WS-55613

WS-55813

WS-55513 WS-55613

WS-55813

WS-55613

WS-55813

WS-55513 WS-73513

WS-73713

WS-65813

WS-65813 WS-73513

WS-73713

WS-65813 WS-73513

WS-73713

Page 49

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

-----

------

-----

Monoscope (NTSC & HD)

Video & DTV Inputs

To set the height, width and linearity of the raster.

Incorrect height, width and/or linearity.

Note:

Always use the Standard Format when aligning Geometry and Convergence.

Preliminary:

1. DO NOT change the initial values for “#8 VLIN” in the Defl. Jungle Function.

2. DO NOT exceed the following VHGT adjustment ranges:

NTSC ... from -4 to +10

HD ... from -10 TO +5

NTSC Mode

1. Supply an NTSC Monoscope signal to a Video Input.

2. Select the Monoscope as the signal source.

3. Activate the Adjustment Mode, JNGL Function.

4. Select and adjust each of the following items.

• “7 VHGT” ... so the vertical marker sum = 4

• “1 HWD” ... so the horizontal marker sum = 7

5. Save data and Exit the Service Mode.

HD Mode

1. Supply an HD Monoscope signal to the DTV HD Inputs.

2. Select the DTV Inputs as the signal source (Input button)

3. Activate the Service Mode, Defl. Jungle Function.

4. Select and adjust each of the following items.

• “7 VHGT” ... so the vertical marker sum = 2

• “1 HWD” ... so the horizontal marker sum = 5

5. Save data and Exit the Service Mode.

[Deflection Circuit]

14: Deflection Geometry

Height & Width Adjustment

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7

Function …...………..AUDIO

Item No. ……….…….VIDEO

Adjust Data ….…….ADJUST

Save Data …. ………ENTER

Exit …………..MENU (twice)

Page 50

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

-----

------

-----

NTSC -- None

HD -- HD sync

Video & DTV Inputs

To set the Convergence circuit geometry adjustments.

Raster distortion at the top, bottom or sides of the picture.

Note: Deflection Circuit Geometry must be performed before this adjustment.

Note:

Always use the Standard Format when aligning Geometry and Convergence.

NTSC mode

1. Select a Video Input with no signal.

2. Activate the Convergence Mode, Coarse Green.

3. Adjust the Coarse Green Items shown below for straight crosshatch lines.

4. Select the Fine Green Mode, a Cursor is displayed on the crosshatch.

5. Use the Cursor to adjust for straight crosshatch lines.

6. Exit the Convergence Mode.

HD mode

1. Supply horizontal and vertical HD sync to the DTV Inputs and select the DTV

Inputs as the source.

Note: If an HD signal is not available, select Ant-DTV, with no signal, as the

source.

2. Enter the Convergence Mode, Coarse Green.

3. Repeat NTSC Steps 3 through 6 in the HD mode.

[Convergence Circuit]

15. Convergence Geometry

Adjustment

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse………………..…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

Page 51

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

-----

------

-----

To converge red, green and blue at the center of the screen

Color edging over the entire picture.

Preliminary

Degauss the shield cover and bracket unit of the CRT assembly and chassis.

DO NOT degauss the CPM Assemblies.

CAUTION: On models WS-48613, WS-55613, WS-65613, WS-65713, WS-65813

and WS-73713, Do Not adjust the Alignment Magnets instead of the Centering

Magnets.

NOTE: Confirm that Item #13 HPOS, in the CRT-DEFL function of the MENU-0-3-5-7

Adjustment mode is set to the following values:

HD=38

SD=23

HD mode (The following steps must be performed in the HD mode)

1. Supply an HD Monoscope signal to the DTV Inputs.

2. Select the DTV Inputs as the signal source (Input button).

3. Enter the Convergence Coarse mode.

4. Set the data for the “HSTA” and “VSTA” items to:

GREEN RED BLUE

HSTS = 0 HSTA = 50 HSTA = -50

VSTA = 0 VSTA = 0 VSTA = 0

5. In the Coarse Green mode:

• Center the Green Raster using the Green Centering Magnet.

• Rotate the Green Deflection Yoke to correct any tilt.

6. In the Coarse Red mode, use the Red Centering Magnet to converge

red on the green at the center of screen. Correct any red tilt with the Red

Deflection Yoke.

7. In the Coarse Blue mode, repeat Step 6 using the Blue Centering magnet and

the Blue Deflection Yoke.

8. Exit the Convergence mode.

SD mode

1. Supply an NTSC Monoscope signal to a Video Input.

2. Select the Monoscope as the signal source (Input button).

3. Enter the Convergence Coarse Green mode.

4. Confirm that the Green Raster is centered.

[Convergence Circuit]

16. Centering and Static

Convergence

NTSC -- Monoscope

HD -- Monoscope

Video & DTV Inputs

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse………………..…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

Page 52

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

-----

------

-----

NTSC -- None

HD -- HD sync

Video & HD Inputs

To converge red and blue on green at the edges of the

screen.

Color edging at the top, bottom and sides of the screen.

Note:

Always use the Standard Format when aligning Geometry and Convergence.

SD mode

1. Select an External Input with no signal.

2. Activate the Convergence Mode, Coarse Red.

3. Adjust the Items shown below to converge the red on the green.

4. Select Coarse Blue mode.

5. Adjust the Items shown below to converge the blue on the green.

Note: If center convergence shifts, use red and blue Items “0 HSTA” and

“1 VSTA” to correct the shift.

6. Exit the Convergence Mode.

HD mode

1. Supply horizontal and vertical HD sync to the DTV Inputs and select the DTV

Inputs as the source.

Note: If an HD signal is not available, select Ant-DTV, with no signal, as the

source.

2. Repeat SD Steps 2 through 5 in the HD mode.

3. Exit the Convergence mode.

[Convergence Circuit]

17. Coarse Convergence

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse………………..…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

Page 53

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Purpose:

Measuring

Instrument

Test Point

Measuring

Range

Input Signal

Ext. Trigger

Input Terminal

Symptom:

-----

------

-----

To converge red, green and blue at the edges of the screen

Color edging at the edges of the picture.

Note:

Always use the Standard Format when aligning Geometry and Convergence.

SD Fine Adjustment

1. Select an External Input, no signal.

2. Activate the Convergence Mode, Fine Red.

3. Use the Cursor to converge red on the green.

4. Select the Fine Blue mode.

5. Use the Cursor to converge blue on the green.

6. Exit the Convergence mode.

HD Fine Adjustment

1. Supply an HD signal (sync only) to the DTV inputs and select DTV with the

“Audio” button.

Note: If an HD signal is not available, select Ant-DTV, with no signal, as the

source.

2. Repeat SD Fine Adjustment Steps 2 through 6, in the HD mode.

[Convergence Circuit]

18. Fine Convergence

NTSC -- None

HD -- HD sync

Video & DTV Inputs

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9

Misc. ……………….……"6"

Coarse……………….…."5"

Fine ……………………..."4"

Color (R,G or B)……AUDIO

Item No………….…..VIDEO

Adjust/Move……….ADJUST

Cursor Toggle….…..ENTER

Save & Exit…..MENU (twice)

PAGE 54

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

CHIP PARTS REPLACEMENT

Some resistors, shorting jumpers (0 Ohm resistors),

ceramic capacitors, transistors and diodes are chip parts.

The following precautions should be taken when replacing

these parts.

Cautions:

1. Use a fine tipped, well insulated soldering iron

(approximately 30 watts), and tweezers.

2. Melt the solder and remove the chip parts

carefully so as not to tear the copper foil from

the printed circuit board.

3. Discard removed chips; do not reuse them.

4. Do not apply heat for more than 3 (three)

seconds to new chip parts.

5. Avoid using a rubbing stroke when soldering.

6. Take care not to scratch, or damage the chip

parts when soldering.

7. Supplementary cementing is not required.

Chip Parts Removal (Resistors, Capacitors, etc.)

1. Grasp the part with tweezers. Melt the solder

at both sides alternately, and remove one side

of the part with a twisting motion.

2. Melt the solder at the other side and remove

the part.

Chip Parts Removal (Transistors)

1. Melt the solder of one lead and lift the side of

that lead upward.

2. Simultaneously melt the solder of the other

two leads and lift the part from the PCB.

Replacement

1. Presolder the contact points on the circuit

pattern.

2. Press the part downward with tweezers and

apply the soldering iron as shown.

PAGE 55

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Parts Ordering

To expedite delivery of replacement parts orders, specify the following:

1. Model Number/Serial Number

2. Part Number and description

3. Quantity

Note: Unless complete information is supplied, delay in processing of orders will result.

Critical and Warranty Parts Designation

Critical Electrical Components are indicated by Bold Type in the Parts List, and in the parts

data base.

Warranty Return Parts are indicated in the Parts List with an (*).

Parts Tolerance Codes

Refer to the following chart for tolerance characteristics of electrical components.

MARK BCDFGJK

Tolerance % ± 0.1 ± 0.25 ± 0.5 ± 1 ± 2 ± 5 ± 10

MARK MNV X ZPQ

Tolerance % ± 20 ± 30 ± 10 + 40 + 80 + 100 + 30

-20 -20 - 0 -10

MARK MNV X Z

Tolerance (pF) ± 0.1 ± 0.25 ± 0.5 ± 1 ± 2

REPLACEMENT PARTS

PAGE 56

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

QUICK REFERENCE FOR COMMON REPLACEMENT PARTS

REMOTE CONTROL

290P117010 REMOTE CONTROL

HIGH VOLTAGE / DEFLECTION COMPONENTS

Q5A31 261P071010 HORIZ-OUT 2SC5778

Q5A51 261P082010 HV-OUT 2SK2771-O1R

T5A51 334P281010 TRANS-FLYBACK

129P059050 VR-FOCUS

338P054030 SVM COIL WS-48513 / WS-55515 / WS-65513

338P054040 SVM COIL WS-48613 / WS-55613 / WS-55813 / WS-65613

WS-65713 / WS-65813 / WS-73513 / WS-73713

330P294010 DEFL-YOKE WS-48513 WS-48613 / WS-55513

330P294020 DEFL-YOKE WS-55613 / WS-55813 / WS-65513 / WS-65613

WS-65713 / WS-65813 / WS-73513 / WS-73713

453B036010 CAP-ANODE-LONG-RED WS-48513 / WS-48613 / WS-55513 / WS-55613 /

WS-55813 / WS-65513 / WS-65613 / WS-65713

453B036020 CAP ANODE-LONG-G&B “ “ “ “ “ “

453B036070 CAP-ANODE-SHORT-RED WS-65813 / WS-73513 / WS-73713

453B036080 CAP ANODE-LONG-G&B “ “ “ “

MODEL

ASSY-CRT-RED

ASSY-CRT-GREEN

ASSY-CRT-BLUE

WS-48513

251C224010

251C224020

251C224030

WS-48613

WS-55513

251C224040

251C224050

251C224060

WS-55613

251C224070

251C224080

251C224090

WS-55813

251C225010

251C225020

251C225030

WS-65513

251C225040

251C225050

251C225060

WS-65613

WS-65713

251C225070

251C225080

251C225090

WS-65813

251C226010

251C226020

251C226030

WS-73513

251C226040

251C226050

251C226060

WS-73713

CRT ASSEMBLIES

MODEL MIRROR

LENTICULAR

SCREEN

FRESNEL

LENS

WS-48512

767D072040

491P138020

491P139020

WS-48613

WS-55513

767D072050

491P125030

491P126020

WS-55613

767D072030

WS-55813

767D072060

491P162010

491P163010

WS-65513

767D048090

491P145020

491P146020

WS-65613

WS-65713

WS-65813

491P164010

491P165010

WS-73513

767C031020

491P085030

491P086030

WS-73713

MISCELLANEOUS

PAGE 57

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

TUBES

251C224010 ASSY-CRT-RED ab

251C224020 ASSY-CRT-GREEN ab

251C224030 ASSY-CRT-BLUE ab

251C224040 ASSY-CRT-RED c

251C224050 ASSY-CRT-GREEN c

251C224060 ASSY-CRT-BLUE c

251C224070 ASSY-CRT-RED d

251C224080 ASSY-CRT-GREEN d

251C224090 ASSY-CRT-BLUE d

251C225010 ASSY-CRT-RED e

251C225020 ASSY-CRT-GREEN e

251C225030 ASSY-CRT-BLUE e

251C225040 ASSY-CRT-RED fg

251C225050 ASSY-CRT-GREEN fg

251C225060 ASSY-CRT-BLUE fg

251C225070 ASSY-CRT-RED h

251C225080 ASSY-CRT-GREEN h

251C225090 ASSY-CRT-BLUE h

251C226010 ASSY-CRT-RED i

251C226020 ASSY-CRT-GREEN i

251C226030 ASSY-CRT-BLUE i

251C226040 ASSY-CRT-RED jk

251C226050 ASSY-CRT-GREEN jk

251C226060 ASSY-CRT-BLUE jk

INTEGRATED CIRCUITS

IC2A00 275P937010 IC-C-MOS - MM1519XQ

IC2A95 270P994010 IC - MAX4550CAI

IC2B00 275P937010 IC-C-MOS - MM1519XQ

IC2C00 275P989010 IC-C-MOS - MAX3223ECAP

IC2D00 270P974010 IC-C-MOS - SII907B

IC2D01 275P981010 IC-C-MOS - 24LCS22AT/SN

IC2D02 261P135010 FET-HEX - IRF7313

IC2D03 270P677010 IC - BA033FP

IC2E00 275P947010 IC-C-MOS - UPD64083

IC2E20 272P379020 IC - LM1881MX (NSC)

IC2E65 270P992020 IC - BA25BC0FP

IC2F00 276P021010 IC-C-MOS - TA1340AF

IC2F10 270P677020 IC - BA05FP

IC2G00 276P021010 IC-C-MOS - TA1340AF

IC2H01 275P937010 IC-C-MOS - MM1519XQ

IC2K00 270P623010 IC - CXA2069Q

IC2L00 270P623010 IC - CXA2069Q

IC2S01 271P004010 IC - CM1208-08MS

IC2V01 275P733010 IC-C-MOS - CXA2150AQ

IC2V02 275P419010 IC-C-MOS - SN74AHCT1G126DBV

IC2V03 275P419010 IC-C-MOS - SN74AHCT1G126DBV

IC2X10 275P419010 IC-C-MOS - SN74AHCT1G126DBV

IC2X11 275P419010 IC-C-MOS - SN74AHCT1G126DBV

IC2X15 276P020010 IC-C-MOS - SN74LVC2G14DBVR

IC3A01 275P731020 IC-C-MOS - MSP3445G-QI-B8-V3

IC3E01 270P750010 IC - LA4663

IC4B01 270P261020 IC - TDA8177

IC5103 275P679010 IC-C-MOS - TC74LCX74FT

IC5200 270P677030 IC - BAO9FP

IC5251 270P988010 IC-OP AMP - LM358M

IC5252 270P877010 IC - UPC3217GV

IC5253 270P877010 IC - UPC3217GV

IC52A0 275P715020 IC-C-MOS - BCM3510KPF P22

IC52A1 275P662020 IC-C-MOS - CY7C1019CV33-15VC

IC52A2 270P806030 IC - SI-3018LSA

IC53A0 275P888010 IC-C-MOS - MT48LC16M16A2TG-75 ehik

IC53A1 275P888010 IC-C-MOS - MT48LC16M16A2TG-75 ehik

IC53A3 275P888010 IC-C-MOS - MT48LC16M16A2TG-75

IC5409 275P464010 IC-C-MOS - TC7WH14FK

IC54K2 270P880010 IC - 24LC64I/SN

IC54K3 270P880010 IC - 24LC64I/SN

IC54K7 270P880010 IC - 24LC64I/SN

IC54Z1 275P657050 IC-C-MOS - 24LC256T-I/SN

IC54Z3 275P657050 IC-C-MOS - 24LC256T-I/SN

IC54Z4 270P880010 IC - 24LC64I/SN

IC55A6 275P741020 IC-C-MOS - MT48LC8M16A2TG-75

IC55A7 275P741020 IC-C-MOS - MT48LC8M16A2TG-75

IC55A8 275P741020 IC-C-MOS - MT48LC8M16A2TG-75

IC55E1 275P464010 IC-C-MOS - TC7WH14FK

IC5602 279P069030 IC - SN74LVTH244APW

IC5A00 267P163010 HIC - MSPAD401

IC5A01 272P237010 IC - LA6324N

IC5A02 266P727040 IC - UPC339C/LM339N

IC5A03 270P704010 IC - LM4040BIZ-10.0

C6B01 270P667010 IC - TDA6120Q

IC6G01 270P667010 IC - TDA6120Q

IC6R01 270P667010 IC - TDA6120Q

IC7000 275P943060 IC-C-MOS - PIC18F252

IC7001 271P023010 IC - SN74CBTD1G125DBVR

IC7002 271P023010 IC - SN74CBTD1G125DBVR

IC7003 271P023010 IC - SN74CBTD1G125DBVR

IC7A00 275P942020 IC-C-MOS - M306V3MG-803FP

IC7B00 271P023010 IC - SN74CBTD1G125DBVR

IC7B01 271P023010 IC - SN74CBTD1G125DBVR

IC7B02 271P023010 IC - SN74CBTD1G125DBVR

IC7B03 271P023010 IC - SN74CBTD1G125DBVR

IC7B20 275P533010 IC-C-MOS - M24C64WM6T

IC7C00 263P479010 IC-C-MOS - TC74HC123AF

IC7C30 263P154010 IC-C-MOS - SN74HC132DB

IC7C50 275P419010 IC-C-MOS - SN74AHCT1G126DBV

IC7C70 270P706020 IC - MAX823REUK

IC7C71 275P419010 IC-C-MOS - SN74AHCT1G126DBV

IC7C80 270P677010 IC - BA033FP

IC7C85 270P677020 IC - BA05FP

IC7D01 275P278010 IC-C-MOS - TC74LVX14FT

IC7D02 270P818020 IC - CXA3506R

IC7D03 267P172010 HIC - AF-9395A

IC7E00 275P451010 IC-C-MOS - TC74HC4066AFN-ELP

IC7E01 275P560010 IC-C-MOS - ADS931E

IC7E02 275P560010 IC-C-MOS - ADS931E

IC7E03 275P560010 IC-C-MOS - ADS931E

IC7H00 275P963010 IC-C-MOS - DPM5

IC7H07 270P992010 IC - BA18BC0FP

IC7K21 270P831010 IC-C-MOS - OPA2350PA

IC7M00 275P982010 IC - MT48LC2M32B2-7

IC7N01 270P348010 IC - TLC2932IPW

IC7N11 275P236020 IC-C-MOS - TC74LVX244FT

PAGE 58

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

IC7N21 275P769010 IC-C-MOS - TC74AC157FT

IC7N31 275P769010 IC-C-MOS - TC74AC157FT

IC7N41 274P901010 IC-C-MOS - TC74HCT7007AF

IC7N61 274P901010 IC-C-MOS - TC74HCT7007AF

IC8C01 267P173010 HIC - STK394-250

IC8C02 267P173010 HIC - STK394-250

IC8D00 275P595010 IC-C-MOS - CM0022AF

IC8D01 275P222020 IC-C-MOS - M24C32MN6T

IC8D02 272P603010 IC - LM78L05ACZ/NJM78L05A

IC8E00 270P751010 IC - TL084CD

IC8E01 270P751010 IC - TL084CD

IC8E02 270P751010 IC - TL084CD

IC8E03 275P721010 IC-C-MOS - CD0031AM

IC9A10 267P164010 HIC - TNY264P

IC9A20 267P159010 HIC - STR-G6623

IC9A21 270P816010 IC - NJM431L

IC9A22 267P076030 HIC - SI-3050C

IC9A50 267P161010 HIC - STR-F6428S

IC9A51 267P062050 HIC - SE110N

IC9B03 270P879010 IC - SC1566IM-2.5

IC9C21 270P928010 IC - BA17809FP

IC9C22 270P677010 IC - BA033FP

IC9C23 270P677020 IC - BA05FP

IC9C24 270P677010 IC - BA033FP

IC9C25 270P677030 IC - BAO9FP

TRANSISTORS

CHIP Type Transistors (Listed by Part No.)

Part No. Description

260P807030 DTC124EKAT146

260P817010 2SA1037K-Q

260P817030 2SA1037K-S

260P817050 2SA1037K-R,S/2SB709AI-R,S

260P817080 2SA1037K-R,S

260P818030 2SC2412K-S

260P818050 2SC2412K-R,S/2SD601AI-R,S

260P818080 2SC2412K-R,S

260P835030 2SC2413K-Q

260P836090 2SC3326-A,B

260P846030 DTC143ZKAT146

261P801010 2SA1252-5,6

Conventional Transistors (By Ref #)

Ref #Part #Part Name & Description [#]

Q4B01 260C004020 TR - 2SC1740S-S/2SC3311A-S

Q5250 261P026010 TR - 2SC3356

Q5A01 261P126010 TR - 2SD2052

Q5A02 260P561020 TR - 2SA1371-E

Q5A03 260P386010 TR - 2SC2230-GR

Q5A04 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A05 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A06 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A07 260C416030 TR - 2SC2274-F/2SC2274K-F

Q5A08 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A09 260C255040 TR - 2SA950-Y

Q5A10 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A11 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A12 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A20 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A31 261P122010 TR - 2SC5778

Q5A32 261P127010 TR - 2SK2774-01

Q5A33 260C004020 TR - 2SC1740S-S/2SC3311A-S

Q5A34 260P561020 TR - 2SA1371-E

Q5A35 260P386010 TR - 2SC2230-GR

Q5A37 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A38 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A39 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A40 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A51 261P082010 TR - 2SK2771-01R

Q5B10 260P325010 TR - 2SC2655-O,Y

Q5B30 260P630010 TR - 2SD2012

Q5H05 260C001030 TR - 2SC2603-F,G/2SC1740S-S,E

Q5H06 260C001060 TR - 2SA1115-F/2SA933S-S

Q5H08 260C001040 TR - 2SC2603-G/2SC1740S-E

Q5H09 260C001030 TR - 2SC2603-F,G/2SC1740S-S,E

Q5H10 260C001060 TR - 2SA1115-F/2SA933S-S

Q5H11 260P644040 TR - 2SA1535-R

Q5H12 260P647040 TR - 2SC3944-R

Q5K00 260P664030 TR - 2SC4636

Q5K01 260P664030 TR - 2SC4636

Q5K02 260C001040 TR - 2SC2603-G/2SC1740S-E

Q5K03 260C001060 TR - 2SA1115-F/2SA933S-S

Q6B01 260C001050 TR - 2SA1115-E,F/2SA933S-R,S

Q6B02 260C001050 TR - 2SA1115-E,F/2SA933S-R,S

Q6G01 260C001050 TR - 2SA1115-E,F/2SA933S-R,S

Q6R01 260C001050 TR - 2SA1115-E,F/2SA933S-R,S

Q7C51 261P114010 TR - 2SA1585STPR

Q7C66 261P114010 TR - 2SA1585STPR

Q7K21 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A09 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A10 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A11 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A12 260C416030 TR - 2SC2274-F/2SC2274K-F

Q9A20 261P101010 TR - PHP21N06T

Q9A21 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A22 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A50 260C416030 TR - 2SC2274-F/2SC2274K-F

Q9A51 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A53 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

DIODES

D2D28 262P805050 D-CHIP - UDZS5.1B

D2J91 262P075010 DIODE - RSB6.8S

D2L80 262P075010 DIODE - RSB6.8S

D2L81 262P075010 DIODE - RSB6.8S

D2W01 264P828010 D-CHIP - DAN202U/MA142WK

D2W02 264P828010 D-CHIP - DAN202U/MA142WK

D2W05 264P828010 D-CHIP - DAN202U/MA142WK

D2W06 264P828010 D-CHIP - DAN202U/MA142WK

D4B01 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK

D4B04 264P045080 DIODE - 1S2076A/1S2471OM

D5280 262P089010 DIODE - MA2S728

D52A0 262P071070 DIODE-LE - SML-210FT

D5404 262P802010 D-CHIP - 1SS302

D5A01 264P045080 DIODE - 1S2076A/1S2471OM

D5A02 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK

PAGE 59

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

D5A03 264P045080 DIODE - 1S2076A/1S2471OM

D5A12 264P045080 DIODE - 1S2076A/1S2471OM

D5A13 264P045080 DIODE - 1S2076A/1S2471OM

D5A14 264P045080 DIODE - 1S2076A/1S2471OM

D5A33 264P669020 DIODE - S3L20U

D5A34 264P460060 DIODE - EQA02-05C/RD5.1EB1

D5A35 264P045080 DIODE - 1S2076A/1S2471OM

D5A36 264P045080 DIODE - 1S2076A/1S2471OM

D5A51 262P039010 DIODE - BYW96E/20

D5A52 264P899010 DIODE - BYV26E

D5A53 264P466040 DIODE - EQA02-15AB/RD16EB1

D5A54 262P085010 DIODE - 11EFS2N-TA2B5

D5A55 262P085010 DIODE - 11EFS2N-TA2B5

D5A56 264P045080 DIODE - 1S2076A/1S2471OM

D5A57 264P521010 DIODE - EU 1Z

D5A58 264P045080 DIODE - 1S2076A/1S2471OM

D5A60 264P463040 DIODE - RD9.1EB1 ijk

D5A60 264P465060 DIODE - EQA02-12B/RD13EB2 abcdefgh

D5B30 264P521010 DIODE - EU 1Z

D5H01 264P045080 DIODE - 1S2076A/1S2471OM

D5H02 264P045080 DIODE - 1S2076A/1S2471OM

D5H03 264P045080 DIODE - 1S2076A/1S2471OM

D5H04 264P045080 DIODE - 1S2076A/1S2471OM

D5K01 264P528030 DIODE - RP 1H

D5K02 264P543010 DIODE - EG01

D5K03 264P543010 DIODE - EG01

D5K10 264P528030 DIODE - RP 1H

D5K11 264P528030 DIODE - RP 1H

D6B01 262P063010 DIODE - 1SS244

D6B07 262P063010 DIODE - 1SS244

D6B08 262P063010 DIODE - 1SS244

D6B11 262P085010 DIODE - 11EFS2N-TA2B5

D6G01 262P063010 DIODE - 1SS244

D6G03 264P457070 DIODE - RD3.3EB

D6G07 262P063010 DIODE - 1SS244

D6G08 262P063010 DIODE - 1SS244

D6G11 262P085010 DIODE - 11EFS2N-TA2B5

D6R01 262P063010 DIODE - 1SS244

D6R05 264P045080 DIODE - 1S2076A/1S2471OM

D6R06 264P045080 DIODE - 1S2076A/1S2471OM

D6R07 262P063010 DIODE - 1SS244

D6R08 262P063010 DIODE - 1SS244

D6R10 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK

D6R11 262P085010 DIODE - 11EFS2N-TA2B5

D7513 264P826010 DIODE-CHIP - DA204K

D7C10 264P828010 D-CHIP - DAN202U/MA142WK

D7C11 264P828010 D-CHIP - DAN202U/MA142WK

D7C12 264P828010 D-CHIP - DAN202U/MA142WK

D7K21 268P100010 DIODE-PHOTO - SFH235FA

D7K22 264P045080 DIODE - 1S2076A/1S2471OM

D7L20 262P075010 DIODE - RSB6.8S

D7L21 264P212020 D-LED - LN31GPH

D8C03 264P486060 DIODE - RD9.1FB3

D8C04 264P486060 DIODE - RD9.1FB3

D9A01 262P031010 DIODE - D6SB80

D9A10 264P825040 DIODE - ERA15-08

D9A11 264P825040 DIODE - ERA15-08

D9A12 264P045080 DIODE - 1S2076A/1S2471OM

D9A13 264P724010 DIODE - STF14

D9A14 264P463030 DIODE - RD8.2EB

D9A15 264P045080 DIODE - 1S2076A/1S2471OM

D9A16 264P045080 DIODE - 1S2076A/1S2471OM

D9A17 264P461050 DIODE - EQA02-06B/RD5.6EB3

D9A18 264P045080 DIODE - 1S2076A/1S2471OM

D9A19 264P467080 DIODE - EQA02-20A/RD20EB3

D9A20 264P358050 DIODE - RU4A

D9A21 264P899010 DIODE - BYV26E

D9A22 264P045080 DIODE - 1S2076A/1S2471OM

D9A23 264P045080 DIODE - 1S2076A/1S2471OM

D9A24 264P045080 DIODE - 1S2076A/1S2471OM

D9A25 264P045080 DIODE - 1S2076A/1S2471OM

D9A26 264P045080 DIODE - 1S2076A/1S2471OM

D9A27 264P045080 DIODE - 1S2076A/1S2471OM

D9A30 262P066010 DIODE - FMB-26L

D9A31 264P045080 DIODE - 1S2076A/1S2471OM

D9A32 264P045080 DIODE - 1S2076A/1S2471OM

D9A33 264P628010 DIODE - FMB-G14L

D9A34 264P470070 DIODE - EQA02-32B/RD33EB3

D9A35 264P469090 DIODE - EQA02-28C/RD30EB2

D9A50 264P045080 DIODE - 1S2076A/1S2471OM

D9A52 264P527020 DIODE - AK04

D9A53 264P045080 DIODE - 1S2076A/1S2471OM

D9A54 264P045080 DIODE - 1S2076A/1S2471OM

D9A55 264P045080 DIODE - 1S2076A/1S2471OM

D9A56 264P566010 DIODE - FMP-G12S

D9A57 264P899010 DIODE - BYV26E

D9A58 264P588010 DIODE - FML-G16S

D9A60 264P669030 DIODE - S3L20U

D9A61 264P669030 DIODE - S3L20U

D9A64 264P045080 DIODE - 1S2076A/1S2471OM

D9A65 264P045080 DIODE - 1S2076A/1S2471OM

D9A95 264P045080 DIODE - 1S2076A/1S2471OM

D9B00 264P828010 D-CHIP - DAN202U/MA142WK

COILS

L1A09 409P923060 EMI-F-CHIP - BLM21B272S

L1A20 325C141030 COIL-CHIP - 10MH-K

L1A30 321C114010 COIL-RF - 2200MH-J

L1A31 409P923060 EMI-F-CHIP - BLM21B272S

L1B09 409P923060 EMI-F-CHIP - BLM21B272S

L1B30 321C114010 COIL-RF - 2200MH-J

L1B31 409P923060 EMI-F-CHIP - BLM21B272S

L2A14 409P777080 EMI-F-CHIP - BLM21P221S

L2A28 409P777080 EMI-F-CHIP - BLM21P221S

L2A80 409P777080 EMI-F-CHIP - BLM21P221S

L2A90 409P777080 EMI-F-CHIP - BLM21P221S

L2A95 409P777080 EMI-F-CHIP - BLM21P221S

L2B04 409P777080 EMI-F-CHIP - BLM21P221S

L2B28 409P777080 EMI-F-CHIP - BLM21P221S

L2C03 325C146090 COIL-CHIP - 33MH-J

L2D07 409P777080 EMI-F-CHIP - BLM21P221S

L2D08 409P777080 EMI-F-CHIP - BLM21P221S

L2D09 409P777080 EMI-F-CHIP - BLM21P221S

L2D13 409P777080 EMI-F-CHIP - BLM21P221S

L2D17 409P777080 EMI-F-CHIP - BLM21P221S

L2D18 409P777080 EMI-F-CHIP - BLM21P221S

PAGE 60

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

L2D19 409P777080 EMI-F-CHIP - BLM21P221S

L2D23 409P777080 EMI-F-CHIP - BLM21P221S

L2D24 409P777080 EMI-F-CHIP - BLM21P221S

L2D26 409P777080 EMI-F-CHIP - BLM21P221S

L2D27 409P777080 EMI-F-CHIP - BLM21P221S

L2D31 409P777080 EMI-F-CHIP - BLM21P221S

L2D32 409P777080 EMI-F-CHIP - BLM21P221S

L2D37 409P777080 EMI-F-CHIP - BLM21P221S

L2D70 409P777080 EMI-F-CHIP - BLM21P221S

L2E00 409P777080 EMI-F-CHIP - BLM21P221S

L2E10 325C146000 COIL-CHIP - 5.6MH-J

L2E20 409P777080 EMI-F-CHIP - BLM21P221S

L2E31 409P777080 EMI-F-CHIP - BLM21P221S

L2E38 409P777080 EMI-F-CHIP - BLM21P221S

L2E46 409P777080 EMI-F-CHIP - BLM21P221S

L2F01 409P777080 EMI-F-CHIP - BLM21P221S

L2F25 409P777080 EMI-F-CHIP - BLM21P221S

L2F40 325C146030 COIL-CHIP - 10MH-J

L2F60 325C146030 COIL-CHIP - 10MH-J

L2F80 325C146030 COIL-CHIP - 10MH-J

L2G01 409P777080 EMI-F-CHIP - BLM21P221S

L2G25 409P777080 EMI-F-CHIP - BLM21P221S

L2G50 325C146030 COIL-CHIP - 10MH-J

L2G70 409P777080 EMI-F-CHIP - BLM21P221S

L2G71 325C462020 COIL-PEAKING - 56MH-K

L2G72 325C462020 COIL-PEAKING - 56MH-K

L2H01 409P923060 EMI-F-CHIP - BLM21B272S

L2H04 409P923060 EMI-F-CHIP - BLM21B272S

L2H28 409P923060 EMI-F-CHIP - BLM21B272S

L2H51 409P923060 EMI-F-CHIP - BLM21B272S

L2J70 325C146030 COIL-CHIP - 10MH-J

L2K42 409P777080 EMI-F-CHIP - BLM21P221S

L2L42 409P777080 EMI-F-CHIP - BLM21P221S

L2L80 409P923060 EMI-F-CHIP - BLM21B272S

L2L81 409P923060 EMI-F-CHIP - BLM21B272S

L2L82 409P923060 EMI-F-CHIP - BLM21B272S

L2L83 409P923060 EMI-F-CHIP - BLM21B272S

L2L84 409P923060 EMI-F-CHIP - BLM21B272S

L2L85 409P923060 EMI-F-CHIP - BLM21B272S

L2V19 409P923060 EMI-F-CHIP - BLM21B272S

L2W01 409P923060 EMI-F-CHIP - BLM21B272S

L2W02 409P923060 EMI-F-CHIP - BLM21B272S

L2W03 409P923060 EMI-F-CHIP - BLM21B272S

L2W04 409P923060 EMI-F-CHIP - BLM21B272S

L2W06 409P923060 EMI-F-CHIP - BLM21B272S

L2W14 409P923060 EMI-F-CHIP - BLM21B272S

L2X01 409P923060 EMI-F-CHIP - BLM21B272S

L2X10 409P923060 EMI-F-CHIP - BLM21B272S

L2X15 409P923060 EMI-F-CHIP - BLM21B272S

L3A10 409P923060 EMI-F-CHIP - BLM21B272S

L3A49 409P923060 EMI-F-CHIP - BLM21B272S

L4B01 321C130010 COIL-RF - 2MH

L4B02 321C130090 COIL-RF - 10MH-K

L5105 351P216010 COIL-CH-CHIP - 857CM-0009

L5115 351P216010 COIL-CH-CHIP - 857CM-0009

L51P3 409P777080 EMI-F-CHIP - BLM21P221S

L51P4 409P777080 EMI-F-CHIP - BLM21P221S

L5200 325C142050 COIL-CHIP - 100MH-K/J

L5201 325C240050 COIL-CHIP - 2.2MH-M

L5202 325C240050 COIL-CHIP - 2.2MH-M

L5203 325C240050 COIL-CHIP - 2.2MH-M

L5204 325C240050 COIL-CHIP - 2.2MH-M

L5250 325C144090 COIL-CHIP - 0.68MH-M -OR-K

L5253 325C140040 COIL-CHIP - 1.8MH-M -OR-K-OR-J

L5256 409P956010 EMI-F-CHIP - BLM18PG121S

L52A0 409P777080 EMI-F-CHIP - BLM21P221S

L52A1 409P777080 EMI-F-CHIP - BLM21P221S

L52A2 409P956010 EMI-F-CHIP - BLM18PG121S

L52A3 409P956010 EMI-F-CHIP - BLM18PG121S

L52A4 325C240050 COIL-CHIP - 2.2MH-M

L5301 409P777080 EMI-F-CHIP - BLM21P221S

L5302 409P777080 EMI-F-CHIP - BLM21P221S

L5400 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5401 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5402 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5403 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5404 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5405 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5406 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5407 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5470 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5471 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5472 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5473 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5474 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5475 409P955020 EMI-F-CHIP - BLM18BB220SN1

L54A0 409P777080 EMI-F-CHIP - BLM21P221S

L54A1 409P777080 EMI-F-CHIP - BLM21P221S

L54A4 409P777080 EMI-F-CHIP - BLM21P221S

L54A5 409P777080 EMI-F-CHIP - BLM21P221S

L54A6 409P777080 EMI-F-CHIP - BLM21P221S

L54D0 409P955020 EMI-F-CHIP - BLM18BB220SN1

L54D1 409P955020 EMI-F-CHIP - BLM18BB220SN1

L54D2 409P955010 EMI-F-CHIP - BLM18BB221SN1

L55A0 409P777080 EMI-F-CHIP - BLM21P221S

L55A1 409P777080 EMI-F-CHIP - BLM21P221S

L55A2 409P777080 EMI-F-CHIP - BLM21P221S

L55A3 409P777080 EMI-F-CHIP - BLM21P221S

L55A4 409P777080 EMI-F-CHIP - BLM21P221S

L55C0 409P777080 EMI-F-CHIP - BLM21P221S

L55E3 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55E4 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55E5 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55E6 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55E7 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F1 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F2 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F3 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F5 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F6 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F7 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F8 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55F9 409P955020 EMI-F-CHIP - BLM18BB220SN1

L55G1 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5601 325C141030 COIL-CHIP - 10MH-K

L5602 325C141030 COIL-CHIP - 10MH-K

PAGE 61

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

L56C0 325C141030 COIL-CHIP - 10MH-K

L56D0 409P955020 EMI-F-CHIP - BLM18BB220SN1

L56D1 409P955020 EMI-F-CHIP - BLM18BB220SN1

L5901 325C241050 COIL-CHIP - 15MH-K

L5903 409P777080 EMI-F-CHIP - BLM21P221S

L5905 325C141030 COIL-CHIP - 10MH-K

L5907 409P777080 EMI-F-CHIP - BLM21P221S

L5908 409P777080 EMI-F-CHIP - BLM21P221S

L5910 409P777080 EMI-F-CHIP - BLM21P221S

L5911 409P777080 EMI-F-CHIP - BLM21P221S

L5912 409P777080 EMI-F-CHIP - BLM21P221S

L5913 409P777080 EMI-F-CHIP - BLM21P221S

L59A0 409P777080 EMI-F-CHIP - BLM21P221S

L59A1 409P777080 EMI-F-CHIP - BLM21P221S

L59E0 409P777080 EMI-F-CHIP - BLM21P221S

L59L0 409P923060 EMI-F-CHIP - BLM21B272S

L59M0 325C140050 COIL-CHIP - 2.2MH-M/K/J

L59M1 325C141090 COIL-CHIP - 33MH-K

L59R0 325C141030 COIL-CHIP - 10MH-K

L59R2 325C141030 COIL-CHIP - 10MH-K

L59R3 325C141030 COIL-CHIP - 10MH-K

L59T0 409P777080 EMI-F-CHIP - BLM21P221S

L59T1 409P777080 EMI-F-CHIP - BLM21P221S

L59T2 409P777080 EMI-F-CHIP - BLM21P221S

L5A22 333P059020 COIL-HORIZ-LIN defghijk

L5A31 411P001010 FERRITE-LEAD

L5A51 321C151040 COIL-RF - 12MH-K

L5A54 411D009020 FERRITE-CORE

L5B30 321C130010 COIL-RF - 2MH

L5H41 325C110090 COIL-PEAKING - 4.7MH-K

L6B01 411P012010 FERRITE-BEAD

L6B02 411P012010 FERRITE-BEAD

L6G01 411P012010 FERRITE-BEAD

L6G02 411P012010 FERRITE-BEAD

L6R01 411P012010 FERRITE-BEAD

L6R02 411P012010 FERRITE-BEAD

L6R04 321C141010 COIL-RF - 6.8MH-M

L7000 325C240050 COIL-CHIP - 2.2MH-M

L7005 325C140010 COIL-CHIP - 1MH-M

L7006 325C140010 COIL-CHIP - 1MH-M

L7502 325C142050 COIL-CHIP - 100MH-K/J

L7A90 409P777050 EMI-F-CHIP - BLM21B201S

L7A99 409P923060 EMI-F-CHIP - BLM21B272S

L7B20 409P777080 EMI-F-CHIP - BLM21P221S

L7B91 409P777050 EMI-F-CHIP - BLM21B201S

L7C00 409P923060 EMI-F-CHIP - BLM21B272S

L7C63 409P876040 EMI-F-CHIP - CNF20C221S/CKD510JB1H221S

L7C64 409P876040 EMI-F-CHIP - CNF20C221S/CKD510JB1H221S

L7C65 409P876040 EMI-F-CHIP - CNF20C221S/CKD510JB1H221S

L7C66 409P876040 EMI-F-CHIP - CNF20C221S/CKD510JB1H221S

L7C70 409P923060 EMI-F-CHIP - BLM21B272S

L7C80 409P777050 EMI-F-CHIP - BLM21B201S

L7C81 409P923060 EMI-F-CHIP - BLM21B272S

L7C82 409P923060 EMI-F-CHIP - BLM21B272S

L7D30 325C241030 COIL-CHIP - 10MH-K

L7D31 325C241030 COIL-CHIP - 10MH-K

L7D41 325C241030 COIL-CHIP - 10MH-K

L7D42 409P777080 EMI-F-CHIP - BLM21P221S

L7D90 409P777080 EMI-F-CHIP - BLM21P221S

L7E00 409P777080 EMI-F-CHIP - BLM21P221S

L7E11 325C241030 COIL-CHIP - 10MH-K

L7E12 409P777080 EMI-F-CHIP - BLM21P221S

L7E13 325C241030 COIL-CHIP - 10MH-K

L7E14 409P777080 EMI-F-CHIP - BLM21P221S

L7E15 325C241030 COIL-CHIP - 10MH-K

L7G51 325C241030 COIL-CHIP - 10MH-K

L7G66 325C241030 COIL-CHIP - 10MH-K

L7G81 325C241030 COIL-CHIP - 10MH-K

L7H01 409P777080 EMI-F-CHIP - BLM21P221S

L7H04 409P777080 EMI-F-CHIP - BLM21P221S

L7H29 409P777080 EMI-F-CHIP - BLM21P221S

L7H49 409P777080 EMI-F-CHIP - BLM21P221S

L7H73 409P777080 EMI-F-CHIP - BLM21P221S

L7H76 409P777080 EMI-F-CHIP - BLM21P221S

L7J13 409P777080 EMI-F-CHIP - BLM21P221S

L7J23 325C241030 COIL-CHIP - 10MH-K

L7J38 409P777080 EMI-F-CHIP - BLM21P221S

L7J44 409P777080 EMI-F-CHIP - BLM21P221S

L7K01 325C121030 COIL-PEAKING - 10MH-K

L7M90 409P777080 EMI-F-CHIP - BLM21P221S

L7N01 325C241030 COIL-CHIP - 10MH-K

L7N02 409P777080 EMI-F-CHIP - BLM21P221S

L7N11 409P777080 EMI-F-CHIP - BLM21P221S

L7N21 409P777080 EMI-F-CHIP - BLM21P221S

L7N31 409P777080 EMI-F-CHIP - BLM21P221S

L7N41 409P777080 EMI-F-CHIP - BLM21P221S

L7N61 409P777080 EMI-F-CHIP - BLM21P221S

L8C01 321C141070 COIL-RF - 22MH-K

L8C02 321C141070 COIL-RF - 22MH-K

L8C03 321C141070 COIL-RF - 22MH-K

L8C04 321C141070 COIL-RF - 22MH-K

L8D01 409P777080 EMI-F-CHIP - BLM21P221S

L8D02 409P777080 EMI-F-CHIP - BLM21P221S

L8D03 409P777080 EMI-F-CHIP - BLM21P221S

L8D04 409P777080 EMI-F-CHIP - BLM21P221S

L8D05 409P777080 EMI-F-CHIP - BLM21P221S

L8D06 409P777080 EMI-F-CHIP - BLM21P221S

L8D07 409P777080 EMI-F-CHIP - BLM21P221S

L8G00 409P777080 EMI-F-CHIP - BLM21P221S

L8G01 409P777080 EMI-F-CHIP - BLM21P221S

L9A10 321C141070 COIL-RF - 22MH-K

L9A20 411D009020 FERRITE-CORE

L9A21 411D009020 FERRITE-CORE

L9A22 321C141020 COIL-RF - 8.2MH

L9A23 321C141020 COIL-RF - 8.2MH

L9A24 321C141070 COIL-RF - 22MH-K

L9A50 411D009020 FERRITE-CORE

L9A52 411D009020 FERRITE-CORE

L9A53 321C141010 COIL-RF - 6.8MH-M

L9A54 411D009020 FERRITE-CORE

L9A55 321C142030 COIL-RF - 68MH-K

L9A56 411D009020 FERRITE-CORE

L9A57 321C141070 COIL-RF - 22MH-K

L9A58 321C141070 COIL-RF - 22MH-K

L9A59 321C141070 COIL-RF - 22MH-K

L9A60 321C141070 COIL-RF - 22MH-K

PAGE 62

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

L9A62 321C141010 COIL-RF - 6.8MH-M

L9A63 321C141010 COIL-RF - 6.8MH-M

L9A64 321C130090 COIL-RF - 10MH-K

L9A66 321C141070 COIL-RF - 22MH-K

L9A67 321C130090 COIL-RF - 10MH-K

L9A68 321C130010 COIL-RF - 2MH

L9A69 321C130010 COIL-RF - 2MH

L9B02 321C140060 COIL-RF - 2.7MH-M

L9B03 321C140060 COIL-RF - 2.7MH-M

L9B05 409P777080 EMI-F-CHIP - BLM21P221S

L9B06 409P777080 EMI-F-CHIP - BLM21P221S

L9B07 409P777080 EMI-F-CHIP - BLM21P221S

L9B09 409P777080 EMI-F-CHIP - BLM21P221S

L9B10 409P777080 EMI-F-CHIP - BLM21P221S

L9B11 409P777080 EMI-F-CHIP - BLM21P221S

L9B13 409P777080 EMI-F-CHIP - BLM21P221S

L9B14 409P777080 EMI-F-CHIP - BLM21P221S

L9B15 409P777080 EMI-F-CHIP - BLM21P221S

L9D00 351P222010 LINE FILTER - ELF24V050A

L9D01 351P222010 LINE FILTER - ELF24V050A

L9D02 351P223010 FILTER-LINE - SLF15N0601

LC2C02 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC2C03 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC2C07 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC2J40 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S

LC2J41 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S

LC2J42 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S

LC2J43 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S

LC2J44 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S

LC7D02 409P875090 EMI-F-CHIP - ELKE103FA

LC7D05 409P875090 EMI-F-CHIP - ELKE103FA

LC7D10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7D11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7D12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7D13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7D14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7E10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7E11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7E12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7E13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7E14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G01 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G02 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G03 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G04 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G05 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G06 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G07 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G08 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G09 409P875090 EMI-F-CHIP - ELKE103FA

LC7G10 409P875090 EMI-F-CHIP - ELKE103FA

LC7G11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G15 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G16 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

LC7G17 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

TRANSFORMERS

T5A31 349P216010 TRANS-HORIZ

T5A32 336P040010 TRANS-HORIZ-DRIVE

T5A51 334P281010 TRANS-FLYBACK

T9A10 350P796010 TRANS-PWR - ETS19AB1M3AG

T9A20 350P766020 TRANS-PWR - ETS35AASJ3ND

T9A50 350P800010 TRANS-PWR - ZTS7484

VARIABLE RESISTORS

RV9D00 265P100020 VAR - ERZV10D271CS

129P059050 VR-FOCUS

RESISTORS

CHIP Type Resistors (Listed by Value)

Part No. Value Part No. Value

103P509050 1/16W 0OHM 103P402070 1/8W 1.5K-J

103P488000 1/4W 1-J 103P502080 1/16W 1.8K-J

103P509000 1/16W 6.8-J 103P493020 1/16W 2K-F

103P500010 1/16W 10-J 103P493030 1/16W 2.2K-F

103P793030 1/16W 22-F 103P502090 1/16W 2.2K-J

103P500050 1/16W 22-J 103P493050 1/16W 2.7K-F

103P400050 1/8W 22-J 103P503000 1/16W 2.7K-J

103P793040 1/16W 24-F 103P493060 1/16W 3K-F

103P500060 1/16W 27-J 103P493070 1/16W 3.3K-F

103P500070 1/16W 33-J 103P503010 1/16W 3.3K-J

103P500080 1/16W 39-J 103P493090 1/16W 3.9K-F

103P500090 1/16W 47-J 103P503020 1/16W 3.9K-J

103P401000 1/8W 56-J 103P494010 1/16W 4.7K-F

103P844030 1/16W 56-D 103P503030 1/16W 4.7K-J

103P501000 1/16W 56-J 103P494020 1/16W 5.1K-F

103P501010 1/16W 68-J 103P494030 1/16W 5.6K-F

103P794060 1/16W 75-F 103P503040 1/16W 5.6K-J

103P501020 1/16W 82-J 103P494050 1/16W 6.8K-F

103P501030 1/16W 100-J 103P503050 1/16W 6.8K-J

103P401030 1/8W 100-J 103P503060 1/16W 8.2K-J

103P501040 1/16W 120-J 103P494090 1/16W 10K-F

103P490050 1/16W 150-F 103P503070 1/16W 10K-J

103P401050 1/8W 150-J 103P495010 1/16W 12K-F

103P490070 1/16W 180-F 103P503080 1/16W 12K-J

103P501060 1/16W 180-J 103P503090 1/16W 15K-J

103P490090 1/16W 220-F 103P495040 1/16W 16K-F

103P501070 1/16W 220-J 103P504000 1/16W 18K-J

103P491000 1/16W 240-F 103P504010 1/16W 22K-J

103P401080 1/8W 270-J 103P504020 1/16W 27K-J

103P501080 1/16W 270-J 103P496000 1/16W 30K-F

103P491020 1/16W 300-F 103P496010 1/16W 33K-F

103P501090 1/16W 330-J 103P504030 1/16W 33K-J

103P401090 1/8W 330-J 103P504040 1/16W 39K-J

103P491040 1/16W 360-F 103P504050 1/16W 47K-J

103P491050 1/16W 390-F 103P496070 1/16W 56K-F

103P502010 1/16W 470-J 103P504060 1/16W 56K-J

103P491080 1/16W 510-F 103P496080 1/16W 62K-F

103P491090 1/16W 560-F 103P496090 1/16W 68K-F

103P502020 1/16W 560-J 103P504070 1/16W 68K-J

103P492000 1/16W 620-F 103P509090 1/16W 75K-J

103P492010 1/16W 680-F 103P504080 1/16W 82K-J

103P502030 1/16W 680-J 103P497030 1/16W 100K-F

PAGE 63

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

103P492030 1/16W 820-F 103P504090 1/16W 100K-J

103P502040 1/16W 820-J 103P497050 1/16W 120K-F

103P492050 1/16W 1K-F 103P505000 1/16W 120K-J

103P502050 1/16W 1K-J 103P505090 1/16W 680K-J

103P492060 1/16W 1.1K-F 103P506000 1/16W 820K-J

103P502060 1/16W 1.2K-J 103P506010 1/16W 1M-J

103P492090 1/16W 1.5K-F 103P506070 1/16W 3.3M-J

103P502070 1/16W 1.5K-J

Conventional Resistors (By Ref #)

Ref #Part #Part Name & Description

[#]

R3E02 103P712080 R-CARBON - 1/4W 1.8K-J

R3E04 103P712080 R-CARBON - 1/4W 1.8K-J

R3E05 103P713010 R-CARBON - 1/4W 3.3K-J

R3E06 103P713070 R-CARBON - 1/4W 10K-J

R3E09 109D151010 R-CARBON - 1/4W 2.2-J

R3E11 109D151010 R-CARBON - 1/4W 2.2-J

R3E12 109D151010 R-CARBON - 1/4W 2.2-J

R3E14 109D151010 R-CARBON - 1/4W 2.2-J

R3E15 103P713050 R-CARBON - 1/4W 6.8K-J

R3E16 103P713050 R-CARBON - 1/4W 6.8K-J

R4B01 103P465040 R-METAL - 1/4W 16K-F

R4B02 103P465040 R-METAL - 1/4W 16K-F

R4B03 103P713090 R-CARBON - 1/4W 15K-J

R4B10 103C188040 R-METAL - 2W 2.2-J defghijk

R4B12 103C188040 R-METAL - 2W 2.2-J

R4B13 103P466000 R-METAL - 1/4W 2.4K-F

R4B14 103P466000 R-METAL - 1/4W 2.4K-F

R4B16 109P095010 R-METAL-LIN - 1/4W 5.1K-J

R4B17 103P711090 R-CARBON - 1/4W 330-J

R4B18 103P338020 R-CARBON-25 - 1/4W 1.5-J

R4B20 103P711090 R-CARBON - 1/4W 330-J

R4B23 103P411070 R-CARBON - 1/4W 220-J

R4B24 103P712050 R-CARBON - 1/4W 1K-J

R4B25 103P712050 R-CARBON - 1/4W 1K-J

R4B26 103P713030 R-CARBON - 1/4W 4.7K-J

R4B27 103P465040 R-METAL - 1/4W 16K-F

R5A00 103P711030 R-CARBON - 1/4W 100-J

R5A01 103P713010 R-CARBON - 1/4W 3.3K-J

R5A02 103P711030 R-CARBON - 1/4W 100-J

R5A03 103P713010 R-CARBON - 1/4W 3.3K-J

R5A04 103P462040 R-METAL - 1/4W 910-F

R5A05 103P713010 R-CARBON - 1/4W 3.3K-J

R5A06 103P712050 R-CARBON - 1/4W 1K-J

R5A07 103P714080 R-CARBON - 1/4W 82K-J

R5A08 103P714050 R-CARBON - 1/4W 47K-J

R5A09 103P714040 R-CARBON - 1/4W 39K-J

R5A10 103P714040 R-CARBON - 1/4W 39K-J

R5A11 103P713070 R-CARBON - 1/4W 10K-J

R5A12 103P712050 R-CARBON - 1/4W 1K-J

R5A13 103P464020 R-METAL - 1/4W 2.4K-F

R5A14 103P464030 R-METAL - 1/4W 5.6K-F

R5A15 103P713030 R-CARBON - 1/4W 4.7K-J

R5A16 103P714010 R-CARBON - 1/4W 22K-J

R5A17 103P712050 R-CARBON - 1/4W 1K-J

R5A18 103P712050 R-CARBON - 1/4W 1K-J

R5A19 103P712010 R-CARBON - 1/4W 470-J

R5A20 103P714050 R-CARBON - 1/4W 47K-J

R5A21 103P713030 R-CARBON - 1/4W 4.7K-J

R5A22 103P714010 R-CARBON - 1/4W 22K-J

R5A23 103P713070 R-CARBON - 1/4W 10K-J

R5A24 103P714070 R-CARBON - 1/4W 68K-J

R5A25 103P464030 R-METAL - 1/4W 5.6K-F

R5A26 103P464030 R-METAL - 1/4W 5.6K-F

R5A27 103P713070 R-CARBON - 1/4W 10K-J

R5A28 103P715010 R-CARBON - 1/4W 150K-J

R5A29 103P714040 R-CARBON - 1/4W 39K-J

R5A30 103P714040 R-CARBON - 1/4W 39K-J

R5A31 103P712080 R-CARBON - 1/4W 1.8K-J

R5A32 103P713070 R-CARBON - 1/4W 10K-J

R5A33 103P463060 R-METAL - 1/4W 3K-F

R5A34 103P711000 R-CARBON - 1/4W 56-J

R5A35 103P142010 R-CARBON - 1/2W 470-J

R5A36 103C393020 R-METAL-P - 3W 3.9K-J defghijk

R5A36 103C393030 R-METAL-P - 3W 4.7K-J abc

R5A37 103C393020 R-METAL-P - 3W 3.9K-J defghijk

R5A37 103C393030 R-METAL-P - 3W 4.7K-J abc

R5A38 103C197040 R-METAL - 3W 0.33-J

R5A39 103P140090 R-CARBON - 1/2W 47-J

R5A40 103P714090 R-CARBON - 1/4W 100K-J

R5A41 103P715020 R-CARBON - 1/4W 180K-J

R5A42 103P713070 R-CARBON - 1/4W 10K-J

R5A43 103P714010 R-CARBON - 1/4W 22K-J

R5A44 103P712080 R-CARBON - 1/4W 1.8K-J

R5A45 103P143050 R-CARBON - 1/2W 6.8K-J

R5A46 103C391050 R-METAL-P - 3W 150-J

R5A47 103P714080 R-CARBON - 1/4W 82K-J

R5A48 103P714050 R-CARBON - 1/4W 47K-J

R5A49 103P711030 R-CARBON - 1/4W 100-J

R5A50 103P714050 R-CARBON - 1/4W 47K-J

R5A51 103P712050 R-CARBON - 1/4W 1K-J

R5A52 103P713010 R-CARBON - 1/4W 3.3K-J

R5A53 103P713070 R-CARBON - 1/4W 10K-J

R5A54 103P713090 R-CARBON - 1/4W 15K-J

R5A55 103P143050 R-CARBON - 1/2W 6.8K-J

R5A56 103P715060 R-CARBON - 1/4W 390K-J

R5A57 103P711030 R-CARBON - 1/4W 100-J

R5A58 103P464080 R-METAL - 1/4W 9.1K-F

R5A59 103P461070 R-METAL - 1/4W 470-F

R5A60 103P464000 R-METAL - 1/4W 4.3K-F

R5A61 103P465010 R-METAL - 1/4W 12K-F

R5A62 103P711070 R-CARBON - 1/4W 220-J

R5A63 103P466080 R-METAL - 1/4W 62K-F

R5A64 103P710090 R-CARBON - 1/4W 47-J

R5A65 103P141030 R-CARBON - 1/2W 100-J

R5A66 103P466010 R-METAL - 1/4W 33K-F

R5A67 103P465080 R-METAL - 1/4W 24K-F

R5A68 103P463020 R-METAL - 1/4W 2K-F ijk

R5A68 103P463050 R-METAL - 1/4W 2.7K-F abcdefgh

R5A69 103P461090 R-METAL - 1/4W 560-F ijk

R5A69 103P462010 R-METAL - 1/4W 680-F abcdefgh

R5A70 103P463040 R-METAL - 1/4W 2.4K-F ijk

R5A70 103P463070 R-METAL - 1/4W 3.3K-F abcdefgh

R5A71 103P713070 R-CARBON - 1/4W 10K-J

R5A72 103P463050 R-METAL - 1/4W 2.7K-F

R5A73 103P714010 R-CARBON - 1/4W 22K-J

PAGE 64

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

R5A74 103P713070 R-CARBON - 1/4W 10K-J

R5A75 103P713070 R-CARBON - 1/4W 10K-J

R5A76 103P713070 R-CARBON - 1/4W 10K-J

R5A77 103P711090 R-CARBON - 1/4W 330-J

R5A78 103P714010 R-CARBON - 1/4W 22K-J

R5A79 103P713030 R-CARBON - 1/4W 4.7K-J

R5A80 109P175010 R-WIRE - 2W 0.12-J

R5A81 103P711030 R-CARBON - 1/4W 100-J

R5A82 103P370090 R-FUSE - 1/4W 47-J

R5A83 103P464070 R-METAL - 1/4W 8.2K-F

R5A84 103P464070 R-METAL - 1/4W 8.2K-F

R5A85 103P710070 R-CARBON - 1/4W 33-J

R5A86 103P466030 R-METAL - 1/4W 39K-F

R5A87 103P142060 R-CARBON - 1/2W 1.2K-J

R5A88 103P714010 R-CARBON - 1/4W 22K-J

R5A89 103P466090 R-METAL - 1/4W 68K-F

R5A90 103P711060 R-CARBON - 1/4W 180-J

R5A91 103P467030 R-METAL - 1/4W 100K-F

R5A92 103P465070 R-METAL - 1/4W 22K-F

R5A93 103P140090 R-CARBON - 1/2W 47-J

R5A94 103C390070 R-METAL-P - 3W 33-J

R5A95 103P714030 R-CARBON - 1/4W 33K-J

R5A96 103P466080 R-METAL - 1/4W 62K-F

R5A97 103P712010 R-CARBON - 1/4W 470-J

R5A99 103P714090 R-CARBON - 1/4W 100K-J

R5B01 103P714030 R-CARBON - 1/4W 33K-J

R5B02 103P714090 R-CARBON - 1/4W 100K-J

R5B03 103P712060 R-CARBON - 1/4W 1.2K-J

R5B04 103P711030 R-CARBON - 1/4W 100-J

R5B05 103P711030 R-CARBON - 1/4W 100-J

R5B09 103P712090 R-CARBON - 1/4W 2.2K-J

R5B10 103C181060 R-METAL - 2W 180-J

R5B11 103P463030 R-METAL - 1/4W 2.2K-F

R5B12 103P465000 R-METAL - 1/4W 2.4K-F

R5B13 103P714010 R-CARBON - 1/4W 22K-J

R5B20 103P711030 R-CARBON - 1/4W 100-J

R5B30 103C198010 R-METAL - 3W 1.2-J

R5H02 103P750010 R-FUSE - 1/4W 10-J

R5H03 103P715000 R-CARBON - 1/4W 120K-J

R5H04 103P712010 R-CARBON - 1/4W 470-J

R5H05 103P712060 R-CARBON - 1/4W 1.2K-J

R5H06 103P712060 R-CARBON - 1/4W 1.2K-J

R5H07 103P418080 R-CARBON - 1/4W 4.7-J

R5H08 103P418080 R-CARBON - 1/4W 4.7-J

R5H22 103P712010 R-CARBON - 1/4W 470-J

R5H40 103P712020 R-CARBON - 1/4W 560-J

R5H41 103P712060 R-CARBON - 1/4W 1.2K-J

R5H42 103P711050 R-CARBON - 1/4W 150-J

R5H47 103C280090 R-METAL-CP - 2W 47-J

R5H48 103P712060 R-CARBON - 1/4W 1.2K-J

R5H49 103P714070 R-CARBON - 1/4W 68K-J

R5H50 103P714070 R-CARBON - 1/4W 68K-J

R5H51 103P712060 R-CARBON - 1/4W 1.2K-J

R5H53 103P715000 R-CARBON - 1/4W 120K-J

R5H55 103P141000 R-CARBON - 1/2W 56-J

R5H56 103P141000 R-CARBON - 1/2W 56-J

R5H58 103P418030 R-CARBON - 1/4W 1.8-J

R5H59 103C181030 R-METAL - 2W 100-J

R5H60 103C178080 R-METAL - 1W 4.7-J

R5H67 103P418030 R-CARBON - 1/4W 1.8-J

R5H83 103P466000 R-METAL - 1/4W 2.4K-F

R5H84 103P713040 R-CARBON - 1/4W 5.6K-J

R5K01 109D031070 R-COMP - 1/2W 10K-K

R5K02 103P412050 R-CARBON - 1/4W 1K-J

R5K03 103P145000 R-CARBON - 1/2W 120K-J

R5K04 103P144090 R-CARBON - 1/2W 100K-J

R5K05 103P145000 R-CARBON - 1/2W 120K-J

R5K06 103P144090 R-CARBON - 1/2W 100K-J

R5K07 103P145000 R-CARBON - 1/2W 120K-J

R5K08 103P144090 R-CARBON - 1/2W 100K-J

R5K09 103P762020 R-FUSE - 1/2W 560-J

R5K10 103P711010 R-CARBON - 1/4W 68-J

R5K11 103P718060 R-CARBON - 1/4W 3.3-J

R5K12 103P760060 R-FUSE - 1/2W 27-J

R5K13 103P145000 R-CARBON - 1/2W 120K-J

R5K14 103P144090 R-CARBON - 1/2W 100K-J

R5K15 103P145000 R-CARBON - 1/2W 120K-J

R5K16 103P144090 R-CARBON - 1/2W 100K-J

R5K17 103P145000 R-CARBON - 1/2W 120K-J

R5K18 103P144090 R-CARBON - 1/2W 100K-J

R5K19 103P464000 R-METAL - 1/4W 4.3K-F

R5K20 103P712060 R-CARBON - 1/4W 1.2K-J

R5K21 103P713070 R-CARBON - 1/4W 10K-J

R5K22 103P145050 R-CARBON - 1/2W 330K-J

R5K23 103P145050 R-CARBON - 1/2W 330K-J

R5K24 103P145050 R-CARBON - 1/2W 330K-J

R5K25 103P713040 R-CARBON - 1/4W 5.6K-J

R5K31 103P711030 R-CARBON - 1/4W 100-J

R5K32 103P466020 R-METAL - 1/4W 2.4K-F

R5K33 103P465060 R-METAL - 1/4W 20K-F

R5K34 103P760060 R-FUSE - 1/2W 27-J

R5K46 103P712010 R-CARBON - 1/4W 470-J

R5K50 103P762050 R-FUSE - 1/2W 1K-J

R6B01 103P711030 R-CARBON - 1/4W 100-J

R6B02 103P714010 R-CARBON - 1/4W 22K-J

R6B03 103P714010 R-CARBON - 1/4W 22K-J

R6B04 103P465070 R-METAL - 1/4W 22K-F

R6B05 103P411010 R-CARBON - 1/4W 68-J

R6B06 103P462050 R-METAL - 1/4W 1K-F

R6B07 103P711030 R-CARBON - 1/4W 100-J

R6B08 103P710010 R-CARBON - 1/4W 10-J

R6B09 103P711030 R-CARBON - 1/4W 100-J

R6B10 103P711030 R-CARBON - 1/4W 100-J

R6B11 103C194010 R-METAL - 3W 22K-J

R6B13 103P331030 R-CARBON - 1/4W 100-J

R6B14 103P413050 R-CARBON - 1/4W 6.8K-J

R6B15 103P711030 R-CARBON - 1/4W 100-J

R6B16 103P411000 R-CARBON - 1/4W 56-J

R6B17 101P221030 R-COMP - 1/2W 220-K

R6B18 103P711030 R-CARBON - 1/4W 100-J

R6B20 101P221030 R-COMP - 1/2W 220-K

R6B21 103P712060 R-CARBON - 1/4W 1.2K-J

R6B22 103P711030 R-CARBON - 1/4W 100-J

R6G01 103P711030 R-CARBON - 1/4W 100-J

R6G02 103P714010 R-CARBON - 1/4W 22K-J

R6G03 103P714010 R-CARBON - 1/4W 22K-J

PAGE 65

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

R6G04 103P465050 R-METAL - 1/4W 18K-F

R6G05 103P411010 R-CARBON - 1/4W 68-J

R6G06 103P462030 R-METAL - 1/4W 820-F

R6G07 103P711030 R-CARBON - 1/4W 100-J

R6G08 103P710010 R-CARBON - 1/4W 10-J

R6G09 103P711030 R-CARBON - 1/4W 100-J

R6G10 103P711030 R-CARBON - 1/4W 100-J

R6G11 103C194010 R-METAL - 3W 22K-J

R6G13 103P331030 R-CARBON - 1/4W 100-J

R6G16 103P411000 R-CARBON - 1/4W 56-J

R6G17 101P221030 R-COMP - 1/2W 220-K

R6G20 101P221030 R-COMP - 1/2W 220-K

R6G21 103P712060 R-CARBON - 1/4W 1.2K-J

R6G22 103P711030 R-CARBON - 1/4W 100-J

R6R01 103P711030 R-CARBON - 1/4W 100-J

R6R02 103P714010 R-CARBON - 1/4W 22K-J

R6R03 103P714010 R-CARBON - 1/4W 22K-J

R6R04 103P465070 R-METAL - 1/4W 22K-F

R6R05 103P411010 R-CARBON - 1/4W 68-J

R6R06 103P462050 R-METAL - 1/4W 1K-F

R6R07 103P711030 R-CARBON - 1/4W 100-J

R6R08 103P710010 R-CARBON - 1/4W 10-J

R6R09 103P711030 R-CARBON - 1/4W 100-J

R6R10 103P711030 R-CARBON - 1/4W 100-J

R6R11 103C194010 R-METAL - 3W 22K-J

R6R13 103P331030 R-CARBON - 1/4W 100-J

R6R16 103P411000 R-CARBON - 1/4W 56-J

R6R17 101P221030 R-COMP - 1/2W 220-K

R6R19 103P464030 R-METAL - 1/4W 5.6K-F

R6R20 101P221030 R-COMP - 1/2W 220-K

R6R22 103P711030 R-CARBON - 1/4W 100-J

R7044 103C288040 R-METAL-CP - 2W 2.2-J

R7C55 103C178010 R-METAL - 1W 1.2-J

R7C68 103C178010 R-METAL - 1W 1.2-J

R7K01 103P712050 R-CARBON - 1/4W 1K-J

R7K02 103P713010 R-CARBON - 1/4W 3.3K-J

R7K05 103P713050 R-CARBON - 1/4W 6.8K-J

R7K21 103P711080 R-CARBON - 1/4W 270-J

R7K22 103P714050 R-CARBON - 1/4W 47K-J

R7K23 103P713080 R-CARBON - 1/4W 12K-J

R7K24 103P713080 R-CARBON - 1/4W 12K-J

R7K25 103P713080 R-CARBON - 1/4W 12K-J

R7K26 103P715030 R-CARBON - 1/4W 220K-J

R7K27 103P713070 R-CARBON - 1/4W 10K-J

R7K28 103P711050 R-CARBON - 1/4W 150-J

R7K29 103P712060 R-CARBON - 1/4W 1.2K-J

R7K30 103P713070 R-CARBON - 1/4W 10K-J

R7K31 103P715030 R-CARBON - 1/4W 220K-J

R7K32 103P713030 R-CARBON - 1/4W 4.7K-J

R7K34 103P713000 R-CARBON - 1/4W 2.7K-J

R7K35 103P711030 R-CARBON - 1/4W 100-J

R7K36 103P710090 R-CARBON - 1/4W 47-J

R8C02 103P713010 R-CARBON - 1/4W 3.3K-J

R8C03 103P711090 R-CARBON - 1/4W 330-J

R8C05 103C288070 R-METAL-CP - 2W 3.9-J

R8C06 103C288070 R-METAL-CP - 2W 3.9-J

R8C07 103C391050 R-METAL-P - 3W 150-J

R8C10 103P713010 R-CARBON - 1/4W 3.3K-J

R8C11 103P711090 R-CARBON - 1/4W 330-J

R8C13 103C288070 R-METAL-CP - 2W 3.9-J

R8C14 103C288070 R-METAL-CP - 2W 3.9-J

R8C15 103C391050 R-METAL-P - 3W 150-J

R8C18 103P713010 R-CARBON - 1/4W 3.3K-J

R8C19 103P711090 R-CARBON - 1/4W 330-J

R8C21 103C288070 R-METAL-CP - 2W 3.9-J

R8C22 103C288070 R-METAL-CP - 2W 3.9-J

R8C23 103C391050 R-METAL-P - 3W 150-J

R8C26 103P713010 R-CARBON - 1/4W 3.3K-J

R8C27 103P711090 R-CARBON - 1/4W 330-J

R8C29 103C288070 R-METAL-CP - 2W 3.9-J

R8C30 103C288070 R-METAL-CP - 2W 3.9-J

R8C31 103C391050 R-METAL-P - 3W 150-J

R8C34 103P713010 R-CARBON - 1/4W 3.3K-J

R8C35 103P711090 R-CARBON - 1/4W 330-J

R8C37 103C288070 R-METAL-CP - 2W 3.9-J

R8C38 103C288070 R-METAL-CP - 2W 3.9-J

R8C39 103C391050 R-METAL-P - 3W 150-J

R8C42 103P713010 R-CARBON - 1/4W 3.3K-J

R8C43 103P711090 R-CARBON - 1/4W 330-J

R8C45 103C288070 R-METAL-CP - 2W 3.9-J

R8C46 103C288070 R-METAL-CP - 2W 3.9-J

R8C47 103C391050 R-METAL-P - 3W 150-J

R8C60 103C191090 R-METAL - 3W 330-J

R8C61 103C191090 R-METAL - 3W 330-J

R8C62 103P713010 R-CARBON - 1/4W 3.3K-J

R8C63 103P713010 R-CARBON - 1/4W 3.3K-J

R8C64 103P713010 R-CARBON - 1/4W 3.3K-J

R8C65 103P713010 R-CARBON - 1/4W 3.3K-J

R8C66 103P713010 R-CARBON - 1/4W 3.3K-J

R8C67 103P713010 R-CARBON - 1/4W 3.3K-J

R8P03 103P711070 R-CARBON - 1/4W 220-J defgh

R8P03 103P712010 R-CARBON - 1/4W 470-J abc

R8P03 103P712080 R-CARBON - 1/4W 1.8K-J ijk

R8P04 103P711070 R-CARBON - 1/4W 220-J

R8P05 103P711070 R-CARBON - 1/4W 220-J abcdefgij

R8P05 103P712010 R-CARBON - 1/4W 470-J hk

R8P06 103P711070 R-CARBON - 1/4W 220-J

R9A02 102P338040 R-CEMENT-WIRE - 15W 2.2-K

R9A03 109C010010 R-COMP - 1/2W 1M-K

R9A04 103P145020 R-CARBON - 1/2W 180K-J

R9A05 109C010010 R-COMP - 1/2W 1M-K

R9A06 109C010010 R-COMP - 1/2W 1M-K

R9A10 103P713020 R-CARBON - 1/4W 3.9K-J

R9A11 103P712070 R-CARBON - 1/4W 1.5K-J

R9A12 103P713070 R-CARBON - 1/4W 10K-J

R9A13 103C181020 R-METAL - 2W 82-J

R9A14 103P710090 R-CARBON - 1/4W 47-J

R9A15 103P142070 R-CARBON - 1/2W 1.5K-J

R9A16 103P712050 R-CARBON - 1/4W 1K-J

R9A17 103P713070 R-CARBON - 1/4W 10K-J

R9A18 103P713000 R-CARBON - 1/4W 2.7K-J

R9A19 103P713070 R-CARBON - 1/4W 10K-J

R9A20 103P713010 R-CARBON - 1/4W 3.3K-J

R9A21 103C393090 R-METAL-P - 3W 15K-J

R9A22 103P710010 R-CARBON - 1/4W 10-J

R9A23 103P710070 R-CARBON - 1/4W 33-J

PAGE 66

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

R9A24 103P713040 R-CARBON - 1/4W 5.6K-J

R9A25 103P713010 R-CARBON - 1/4W 3.3K-J

R9A26 103P712030 R-CARBON - 1/4W 680-J

R9A27 103C187050 R-METAL - 2W 0.39-J

R9A28 103P712020 R-CARBON - 1/4W 560-J

R9A29 103C187050 R-METAL - 2W 0.39-J

R9A30 103P712090 R-CARBON - 1/4W 2.2K-J

R9A31 103P712050 R-CARBON - 1/4W 1K-J

R9A32 103P713070 R-CARBON - 1/4W 10K-J

R9A33 103P711030 R-CARBON - 1/4W 100-J

R9A34 103P710050 R-CARBON - 1/4W 22-J

R9A35 103P715010 R-CARBON - 1/4W 150K-J

R9A36 103P714090 R-CARBON - 1/4W 100K-J

R9A37 103P712090 R-CARBON - 1/4W 2.2K-J

R9A38 103P713000 R-CARBON - 1/4W 2.7K-J

R9A39 103P711030 R-CARBON - 1/4W 100-J

R9A40 103P712010 R-CARBON - 1/4W 470-J

R9A41 103P712050 R-CARBON - 1/4W 1K-J

R9A42 103P712020 R-CARBON - 1/4W 560-J

R9A43 103P464090 R-METAL - 1/4W 10K-F

R9A44 103P463040 R-METAL - 1/4W 2.4K-F

R9A45 103P713070 R-CARBON - 1/4W 10K-J

R9A46 103P710090 R-CARBON - 1/4W 47-J

R9A47 103P715050 R-CARBON - 1/4W 330K-J

R9A48 103P332050 R-CARBON - 1/4W 33-J

R9A49 103P145020 R-CARBON - 1/2W 180K-J

R9A50 103P413070 R-CARBON - 1/4W 10K-J

R9A51 103P715050 R-CARBON - 1/4W 330K-J

R9A52 103P710090 R-CARBON - 1/4W 47-J

R9A53 103P712030 R-CARBON - 1/4W 680-J

R9A54 109P175020 R-WIRE - 2W 0.15-J

R9A55 109P175010 R-WIRE - 2W 0.12-J

R9A57 103P712090 R-CARBON - 1/4W 2.2K-J

R9A58 103P710010 R-CARBON - 1/4W 10-J

R9A59 103P710020 R-CARBON - 1/4W 12-J

R9A60 103P714050 R-CARBON - 1/4W 47K-J

R9A61 103P713040 R-CARBON - 1/4W 5.6K-J

R9A62 103P713070 R-CARBON - 1/4W 10K-J

R9A63 103P713020 R-CARBON - 1/4W 3.9K-J

R9A66 103P713070 R-CARBON - 1/4W 10K-J

R9A67 103P710050 R-CARBON - 1/4W 22-J

R9A68 103C180050 R-METAL - 2W 22-J

R9A69 103C180050 R-METAL - 2W 22-J

R9A70 103P330070 R-CARBON - 1/4W 33-J

R9A71 103P145030 R-CARBON - 1/2W 220K-J

R9A73 103P412050 R-CARBON - 1/4W 1K-J

R9A74 103P144020 R-CARBON - 1/2W 27K-J

R9A75 103P714090 R-CARBON - 1/4W 100K-J

R9A77 103P714090 R-CARBON - 1/4W 100K-J

R9A78 103P711030 R-CARBON - 1/4W 100-J

R9A79 103P711030 R-CARBON - 1/4W 100-J

R9A80 103P713020 R-CARBON - 1/4W 3.9K-J

R9A81 103P713070 R-CARBON - 1/4W 10K-J

R9A84 103P713080 R-CARBON - 1/4W 12K-J

R9A85 103P712090 R-CARBON - 1/4W 2.2K-J

R9A90 103P145050 R-CARBON - 1/2W 330K-J

R9A91 103P145050 R-CARBON - 1/2W 330K-J

R9A92 103P714020 R-CARBON - 1/4W 27K-J

R9C22 103C398050 R-METAL-P - 3W 2.7-K

R9C25 103C398020 R-METAL-P - 3W 1.5-K

R9C26 103C398010 R-METAL-P - 3W 1.2-K

R9D00 109D036020 R-COMP - 1/2W 4.7M-K

CAPACITORS

CHIP Type Capacitors (Listed by Value)

Part No. Value Part No. Value

154P340010 CK50V 1P-C 141P141010 B50V 1500P-K

154P340030 CK50V 2P-C 141P141030 B50V 2200P-K

154P340040 50V 3P-C 141P141070 B50V 4700P-K

154P351020 SL50V 10P-J 172P391030 16V 0.01M-J

154P341010 CH50V 10P-C 141P142010 B50V 0.01M-K

154P341030 CH50V 12P-J 141P142090 B25V 0.047M-K

154P321040 SL50V 12P-J 141P143010 B25V 0.068M-K

154P341050 CH50V 15P-J 141P143020 B16V 0.082M-K

154P341090 CH50V 22P-J 141P143030 B16V 0.1M-K

154P342010 CH50V 27P-J 141P139030 B25V 0.1M-K

154P342030 CH50V 33P-J 141P139070 B16V 0.22M-K

154P342050 CH50V 39P-J 141P138080 B25V 0.33M-K

154P345010 CH50V 470P-J 141P139090 B16V 0.47M-K

154P342070 CH50V 47P-J 141P146080 B10V 0.47M-K

154P342090 CH50V 56P-J 141P134070 B16V 1M-K

154P353000 SL50V 56P-J 141P147020 B10V/6.3V 1M-K

154P343030 CH50V 82P-J 181P526010 50V 1M-M

154P343050 CH50V 100P-J 181P526020 50V 2.2M-M

154P343070 CH50V 120P-J 141P133010 B10V 3.3M-M

154P343090 CH50V 150P-J 181P532030 16V 10M-M

154P344010 CH50V 180P-J 181P522030 16V 10M-M 105C

154P344030 CH50V 220P-J 181P515000 35V 10M-M

141P140010 B50V 220P-K 181P525000 35V 10M-M 105C

141P130010 B50V 220P-K 181P525010 35V 22M-M 105C

154P344050 CH50V 270P-J 181P500030 6.3V 47M-M

154P355000 SL50V 390P-J 181P520030 6.3V 47M-M

154P355020 SL50V 470P-J 181P522060 6V 47M-M

141P140050 B50V 470P-K 181P530030 6.3V 47M-M

154P345030 CH25V 560P-J 181P502070 16V 100M-M

154P345070 CH25V 820P-J 181P520040 6.3V 100M-M

141P140090 B50V 1000P-K 181P528010 4V 220M-M 105C

154P345090 CH25V 1000P-J 181P520050 6.3V 220M-M 105C

141P143050 F50V 1000P-Z/B50V 1000P-K

CAPACITORS AND TRIMMERS

Conventional Capacitors (By Ref #)

Ref #Part #Part Name & Description [#]

C1A10 181P352040 C-ELEC - 16V 100M-M

C1A12 181P124040 C-ELEC-NP - 50V 10M-M

C1A23 172P262010 C-M-POLY - 50V 0.047M-J

C1A24 181P210040 C-ELEC - 04W 6.3V 100M-M

C1B10 181P352040 C-ELEC - 16V 100M-M

C1B12 181P124040 C-ELEC-NP - 50V 10M-M

C1B23 172P262010 C-M-POLY - 50V 0.047M-J

C1B24 181P210040 C-ELEC - 04W 6.3V 100M-M

C2A06 181P352040 C-ELEC - 16V 100M-M

C2A24 181P352040 C-ELEC - 16V 100M-M

C2A66 181P352040 C-ELEC - 16V 100M-M

C2A68 181P352040 C-ELEC - 16V 100M-M

PAGE 67

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

C2A95 181P352040 C-ELEC - 16V 100M-M

C2B01 181P352040 C-ELEC - 16V 100M-M

C2B24 181P352040 C-ELEC - 16V 100M-M

C2B70 181P352040 C-ELEC - 16V 100M-M

C2B90 181P352040 C-ELEC - 16V 100M-M

C2E01 181P352030 C-ELEC - 16V 47M-M

C2E02 181P355050 C-ELEC - 50V 10M-M

C2E21 181P355050 C-ELEC - 50V 10M-M

C2E22 181P355050 C-ELEC - 50V 10M-M

C2E23 181P352040 C-ELEC - 16V 100M-M

C2E39 181P352030 C-ELEC - 16V 47M-M

C2E49 181P355050 C-ELEC - 50V 10M-M

C2E65 181P352040 C-ELEC - 16V 100M-M

C2E67 181P352040 C-ELEC - 16V 100M-M

C2E92 181P355050 C-ELEC - 50V 10M-M

C2F00 181P352070 C-ELEC - 16V 470M-M

C2F10 181P352040 C-ELEC - 16V 100M-M

C2F11 181P351040 C-ELEC - 10V 100M-M

C2F32 181P352040 C-ELEC - 16V 100M-M

C2F60 181P352030 C-ELEC - 16V 47M-M

C2F64 181P352010 C-ELEC - 16V 22M-M

C2F80 181P355080 C-ELEC - 50V 47M-M

C2F92 181P352030 C-ELEC - 16V 47M-M

C2G00 181P352070 C-ELEC - 16V 470M-M

C2G32 181P352040 C-ELEC - 16V 100M-M

C2G40 181P352030 C-ELEC - 16V 47M-M

C2G50 181P352030 C-ELEC - 16V 47M-M

C2G70 181P352030 C-ELEC - 16V 47M-M

C2G72 181P352030 C-ELEC - 16V 47M-M

C2H01 181P352050 C-ELEC - 16V 220M-M

C2H03 181P352050 C-ELEC - 16V 220M-M

C2H29 181P352040 C-ELEC - 16V 100M-M

C2H49 181P352050 C-ELEC - 16V 220M-M

C2J70 181P351050 C-ELEC - 10V 220M-M

C2J71 181P351070 C-ELEC - 10V 470M-M

C2J72 181P351070 C-ELEC - 10V 470M-M

C2J73 181P352040 C-ELEC - 16V 100M-M

C2J75 181P122090 C-ELEC-NP - 25V 22M-M

C2J76 181P122090 C-ELEC-NP - 25V 22M-M

C2J77 181P355060 C-ELEC - 50V 22M-M

C2J78 181P355060 C-ELEC - 50V 22M-M

C2K01 181P219010 C-ELEC - 16V 10M-M

C2K03 181P219010 C-ELEC - 16V 10M-M

C2K08 181P219010 C-ELEC - 16V 10M-M

C2K10 181P219010 C-ELEC - 16V 10M-M

C2K24 181P219010 C-ELEC - 16V 10M-M

C2K32 181P352040 C-ELEC - 16V 100M-M

C2K50 181P219010 C-ELEC - 16V 10M-M

C2K52 181P122070 C-ELEC-NP - 25V 10M-M

C2K54 181P122070 C-ELEC-NP - 25V 10M-M

C2K80 181P352030 C-ELEC - 16V 47M-M

C2L01 181P219010 C-ELEC - 16V 10M-M

C2L03 181P219010 C-ELEC - 16V 10M-M

C2L08 181P219010 C-ELEC - 16V 10M-M

C2L10 181P219010 C-ELEC - 16V 10M-M

C2L15 181P219010 C-ELEC - 16V 10M-M

C2L17 181P219010 C-ELEC - 16V 10M-M

C2L35 181P352040 C-ELEC - 16V 100M-M

C2L49 181P122070 C-ELEC-NP - 25V 10M-M

C2L50 181P219010 C-ELEC - 16V 10M-M

C2L60 181P122070 C-ELEC-NP - 25V 10M-M

C2L63 181P122070 C-ELEC-NP - 25V 10M-M

C2V17 181P355040 C-ELEC - 50V 4.7M-M

C2V19 181P351070 C-ELEC - 10V 470M-M

C2V29 181P352040 C-ELEC - 16V 100M-M

C2V48 172P166030 C-TF - 50V 0.1M-J

C2V49 172P166030 C-TF - 50V 0.1M-J

C2V57 181P352030 C-ELEC - 16V 47M-M

C2W02 181P352080 C-ELEC - 16V 1000M-M

C2W04 181P352050 C-ELEC - 16V 220M-M

C2W05 181P352050 C-ELEC - 16V 220M-M

C2W08 181P352050 C-ELEC - 16V 220M-M

C2W09 181P352050 C-ELEC - 16V 220M-M

C2W16 181P219010 C-ELEC - 16V 10M-M

C2W17 181P352050 C-ELEC - 16V 220M-M

C2X03 181P352030 C-ELEC - 16V 47M-M

C2X10 181P352030 C-ELEC - 16V 47M-M

C3A13 181P352030 C-ELEC - 16V 47M-M

C3A22 181P352030 C-ELEC - 16V 47M-M

C3A29 181P352030 C-ELEC - 16V 47M-M

C3A30 181P352030 C-ELEC - 16V 47M-M

C3A32 181P219010 C-ELEC - 16V 10M-M

C3A34 181P355030 C-ELEC - 50V 3.3M-M

C3A47 181P219010 C-ELEC - 16V 10M-M

C3A52 181P352030 C-ELEC - 16V 47M-M

C3E01 181P354050 C-ELEC - 35V 47M-M

C3E02 181P355010 C-ELEC - 50V 1M-M

C3E03 172P331010 C-POLY - 50V 6800P-J

C3E04 181P355010 C-ELEC - 50V 1M-M

C3E05 172P331010 C-POLY - 50V 6800P-J

C3E06 181P355050 C-ELEC - 50V 10M-M

C3E07 181P353090 C-ELEC - 5V 2200M-M

C3E08 141P197080 C-CER - F50V 0.1M-Z

C3E09 172P262050 C-M-POLY - 50V 0.1M-J

C3E11 172P262050 C-M-POLY - 50V 0.1M-J

C3E12 172P262050 C-M-POLY - 50V 0.1M-J

C3E14 172P262050 C-M-POLY - 50V 0.1M-J

C3E20 189D180010 C-ELEC-NP - 50V 6.8M-K hk

C3E21 189D180010 C-ELEC-NP - 50V 6.8M-K hk

C4B01 172P261030 C-M-POLY - 50V 0.01M-J

C4B02 181P358000 C-ELEC - 35V 1000M-M

C4B03 172P383030 C-M-POLY - 100V 0.47M-K

C4B04 181P354060 C-ELEC - 35V 100M-M

C4B06 172P330090 C-POLY - 50V 4700P-J ijk

C4B06 172P331070 C-POLY - 50V 0.022M-J abcdefgh

C4B07 172P383030 C-M-POLY - 100V 0.47M-K

C4B08 172P263070 C-M-POLY - 50V 1.0M-J

C4B09 181P355060 C-ELEC - 50V 22M-M

C4B10 181P354050 C-ELEC - 35V 47M-M

C4B11 181P353090 C-ELEC - 5V 2200M-M

C5200 181P184020 C-ELEC - 35V 100M-M

C5203 181P352060 C-ELEC - 16V 330M-M

C5205 181P352060 C-ELEC - 16V 330M-M

C5207 181P352060 C-ELEC - 16V 330M-M

C5209 181P352060 C-ELEC - 16V 330M-M

C5213 181P353060 C-ELEC - 25V 330M-M

PAGE 68

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

C5215 181P353060 C-ELEC - 25V 330M-M

C5218 181P350060 C-ELEC - 3V 1000M-M

C5301 141P143030 C-CER-CHIP - B16V 0.1M-K

C5A01 181P354050 C-ELEC - 35V 47M-M

C5A02 181P355050 C-ELEC - 50V 10M-M

C5A03 142P020090 C-CER - B50V 1000P-K

C5A04 172P263010 C-M-POLY - 50V 0.33M-J

C5A05 172P262010 C-M-POLY - 50V 0.047M-J

C5A10 189D186010 C-ELEC - 160V 22M-M/Q

C5A12 181P354090 C-ELEC - 35V 470M-M

C5A15 181P354060 C-ELEC - 35V 100M-M

C5A16 142P023080 C-CER - BF50V 0.01M-Z

C5A17 142P020090 C-CER - B50V 1000P-K

C5A18 142P024060 C-CER - BF50V 0.1M-Z

C5A19 142P020090 C-CER - B50V 1000P-K

C5A21 172P262050 C-M-POLY - 50V 0.1M-J

C5A22 181P355050 C-ELEC - 50V 10M-M

C5A23 181P355050 C-ELEC - 50V 10M-M

C5A31 172P581020 C-M-PLA-PP - 1800VHP 3000P-J-OR-H abc

C5A31 172P581030 C-M-PLA-PP - 1800V 3300P-J defghijk

C5A32 172P581010 C-M-PLA-PP - 1800VHP 2700P-J abc

C5A32 172P581030 C-M-PLA-PP - 1800V 3300P-J defghijk

C5A34 154P262050 C-CER - R2KV 560P-K

C5A35 142P012010 C-CER - B500V 4700P-K

C5A36 172P524010 C-M-POLY - 250V 2.2M-J

C5A37 172P436050 C-M-PLA-PP - 250V 0.47M-J abc

C5A37 172P436070 C-M-PLA-PP - 250V 0.56M-J defghijk

C5A39 142P011030 C-CER - B500V 1000P-K

C5A40 142P011000 C-CER - B500V 560P-K

C5A41 181P182030 C-ELEC - 16V 1000M-M 105C

C5A43 181P190050 C-ELEC - 160V 1M-M/Q

C5A51 154P260010 C-CER - R1KV 220P-K

C5A52 172P580090 C-M-PLA-PP - 1800V 2200P-J

C5A54 189D186010 C-ELEC - 160V 22M-M/Q

C5A55 172P088060 C-PLA-PP - 630V 6800P-J

C5A56 181P352030 C-ELEC - 16V 47M-M

C5A58 142P024060 C-CER - BF50V 0.1M-Z

C5A59 142P023080 C-CER - BF50V 0.01M-Z

C5A60 172P262050 C-M-POLY - 50V 0.1M-J

C5A61 181P355040 C-ELEC - 50V 4.7M-M

C5A62 142P023080 C-CER - BF50V 0.01M-Z

C5A63 142P023080 C-CER - BF50V 0.01M-Z

C5A64 181P352010 C-ELEC - 16V 22M-M

C5A65 181P355050 C-ELEC - 50V 10M-M

C5A66 142P024060 C-CER - BF50V 0.1M-Z

C5A67 142P023080 C-CER - BF50V 0.01M-Z

C5A68 181P123070 C-ELEC-NP - 50V 0.47M-M

C5A69 142P024060 C-CER - BF50V 0.1M-Z

C5A70 172P264010 C-M-POLY - 50V 2.2M-J

C5A71 172P262060 C-M-POLY - 50V 0.12M-J

C5A72 181P355010 C-ELEC - 50V 1M-M

C5B10 181P354060 C-ELEC - 35V 100M-M

C5B11 142P026010 C-CER - BB16V 0.01M-M

C5B20 189D186010 C-ELEC - 160V 22M-M/Q

C5B30 181P352070 C-ELEC - 16V 470M-M

C5B31 181P352030 C-ELEC - 16V 47M-M

C5C50 142P024060 C-CER - BF50V 0.1M-Z

C5C57 172P262070 C-M-POLY - 50V 0.15M-J

C5H01 181P352060 C-ELEC - 16V 330M-M

C5H02 142P023090 C-CERAMIC - BF50V 0.022M-Z

C5H04 155P232070 C-CER - CH50V 47P-J

C5H12 142P023080 C-CER - BF50V 0.01M-Z

C5H16 172P186030 C-PLA-PP - 200V 0.01M-K

C5H17 172P261030 C-M-POLY - 50V 0.01M-J

C5H19 181P183010 C-ELEC - 25V 100M-M

C5H20 181P352040 C-ELEC - 16V 100M-M

C5H21 181P780080 C-ELEC - 160V 33M-M 105C

C5H24 181P192060 C-ELEC - 200V 22M-M/Q

C5K00 189P203010 C-M-PLA-PP - 1500VHP 0.015M-J

C5K01 189P203010 C-M-PLA-PP - 1500VHP 0.015M-J

C5K02 181P198040 C-ELEC - 450V 4.7M-M/Q

C5K03 181P352040 C-ELEC - 16V 100M-M

C5K04 181P355080 C-ELEC - 50V 47M-M

C5K05 181P354060 C-ELEC - 35V 100M-M

C5K12 181P352040 C-ELEC - 16V 100M-M

C5K14 181P352030 C-ELEC - 16V 47M-M

C5K15 181P191000 C-ELEC - 160V 22M-M/Q

C5K16 172P331010 C-POLY - 50V 6800P-J

C6B01 155P231050 C-CER - CH50V 15P-J

C6B02 181P195050 C-ELEC - 350V 10M-M/Q

C6B03 155P231090 C-CER - CH50V 22P-J

C6B04 142P023080 C-CER - BF50V 0.01M-Z

C6B05 181P352030 C-ELEC - 16V 47M-M

C6B06 142P024060 C-CER - BF50V 0.1M-Z

C6B09 142P023080 C-CER - BF50V 0.01M-Z

C6B10 172P532050 C-M-POLY - 400V 0.1M-J

C6B12 154P405000 C-CER - B3KV 1000P-K

C6B13 142P012010 C-CER - B500V 4700P-K

C6B14 154P405000 C-CER - B3KV 1000P-K

C6B15 142P023080 C-CER - BF50V 0.01M-Z

C6B16 154P260050 C-CER - R1KV 1000P-K

C6B18 154P260050 C-CER - R1KV 1000P-K

C6B20 181P355050 C-ELEC - 50V 10M-M

C6B22 154P405000 C-CER - B3KV 1000P-K

C6G01 155P231050 C-CER - CH50V 15P-J

C6G02 181P195050 C-ELEC - 350V 10M-M/Q

C6G03 155P232010 C-CER - CH50V 27P-J

C6G04 142P023080 C-CER - BF50V 0.01M-Z

C6G05 181P352030 C-ELEC - 16V 47M-M

C6G06 142P024060 C-CER - BF50V 0.1M-Z

C6G08 155P232050 C-CER - CH50V 39P-J

C6G09 142P023080 C-CER - BF50V 0.01M-Z

C6G10 172P532050 C-M-POLY - 400V 0.1M-J

C6G12 154P405000 C-CER - B3KV 1000P-K

C6G13 142P012010 C-CER - B500V 4700P-K

C6G14 154P405000 C-CER - B3KV 1000P-K

C6G15 142P023080 C-CER - BF50V 0.01M-Z

C6G16 154P260050 C-CER - R1KV 1000P-K

C6G18 154P260050 C-CER - R1KV 1000P-K

C6G20 181P355050 C-ELEC - 50V 10M-M

C6G22 154P405000 C-CER - B3KV 1000P-K

C6R01 155P231050 C-CER - CH50V 15P-J

C6R02 181P195050 C-ELEC - 350V 10M-M/Q

C6R03 155P231090 C-CER - CH50V 22P-J

C6R04 142P023080 C-CER - BF50V 0.01M-Z

C6R05 181P352030 C-ELEC - 16V 47M-M

PAGE 69

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

C6R06 142P024060 C-CER - BF50V 0.1M-Z

C6R09 142P023080 C-CER - BF50V 0.01M-Z

C6R10 172P532050 C-M-POLY - 400V 0.1M-J

C6R12 154P405000 C-CER - B3KV 1000P-K

C6R13 142P012010 C-CER - B500V 4700P-K

C6R14 154P405000 C-CER - B3KV 1000P-K

C6R15 142P023080 C-CER - BF50V 0.01M-Z

C6R18 154P260050 C-CER - R1KV 1000P-K

C6R20 181P355050 C-ELEC - 50V 10M-M

C6R22 154P405000 C-CER - B3KV 1000P-K

C7004 181P182020 C-ELEC - 16V 470M-M 105C

C7047 181P351070 C-ELEC - 10V 470M-M

C7049 181P355090 C-ELEC - 50V 100M-M

C7A00 141P140090 C-CER-CHIP - B50V 1000P-K

C7B99 181P352030 C-ELEC - 16V 47M-M

C7C00 181P351040 C-ELEC - 10V 100M-M

C7C10 181P355090 C-ELEC - 50V 100M-M

C7C51 181P352050 C-ELEC - 16V 220M-M

C7C65 181P352050 C-ELEC - 16V 220M-M

C7C71 181P351040 C-ELEC - 10V 100M-M

C7C81 181P351040 C-ELEC - 10V 100M-M

C7C82 181P351040 C-ELEC - 10V 100M-M

C7C85 181P351040 C-ELEC - 10V 100M-M

C7C86 181P351040 C-ELEC - 10V 100M-M

C7C88 181P352030 C-ELEC - 16V 47M-M

C7C89 181P351040 C-ELEC - 10V 100M-M

C7K01 181P352030 C-ELEC - 16V 47M-M

C7K20 155P314040 C-CER - SL50V 220P-J

C7K21 181P355050 C-ELEC - 50V 10M-M

C7K23 181P352030 C-ELEC - 16V 47M-M

C7K25 172P262050 C-M-POLY - 50V 0.1M-J

C7K26 172P262050 C-M-POLY - 50V 0.1M-J

C7K27 181P355010 C-ELEC - 50V 1M-M

C7K28 181P352030 C-ELEC - 16V 47M-M

C7K30 142P026010 C-CER - BB16V 0.01M-M

C8C03 181P358000 C-ELEC - 35V 1000M-M

C8C04 142P024060 C-CER - BF50V 0.1M-Z

C8C05 181P358000 C-ELEC - 35V 1000M-M

C8C06 142P024060 C-CER - BF50V 0.1M-Z

C8C09 155P233090 C-CER - CH50V 150P-J

C8C11 155P233090 C-CER - CH50V 150P-J

C8C14 155P233090 C-CER - CH50V 150P-J

C8C18 181P358000 C-ELEC - 35V 1000M-M

C8C19 142P024060 C-CER - BF50V 0.1M-Z

C8C20 181P358000 C-ELEC - 35V 1000M-M

C8C21 142P024060 C-CER - BF50V 0.1M-Z

C8C23 155P233090 C-CER - CH50V 150P-J

C8C26 155P233090 C-CER - CH50V 150P-J

C8C29 155P233090 C-CER - CH50V 150P-J

C8C43 142P020080 C-CER - B50V 820P-K

C8C44 142P020080 C-CER - B50V 820P-K

C8C45 142P020080 C-CER - B50V 820P-K

C8C46 142P020080 C-CER - B50V 820P-K

C8C47 142P020080 C-CER - B50V 820P-K

C8C48 142P020080 C-CER - B50V 820P-K

C8D16 181P352030 C-ELEC - 16V 47M-M

C8D19 181P352030 C-ELEC - 16V 47M-M

C8D20 181P352030 C-ELEC - 16V 47M-M

C8D21 181P352030 C-ELEC - 16V 47M-M

C8D22 181P352030 C-ELEC - 16V 47M-M

C8D29 181P355010 C-ELEC - 50V 1M-M

C8D30 181P352030 C-ELEC - 16V 47M-M

C8D31 181P352030 C-ELEC - 16V 47M-M

C8D33 181P352030 C-ELEC - 16V 47M-M

C8D39 181P352030 C-ELEC - 16V 47M-M

C8D40 181P352030 C-ELEC - 16V 47M-M

C8E01 181P352030 C-ELEC - 16V 47M-M

C8E03 181P352030 C-ELEC - 16V 47M-M

C8E05 181P352030 C-ELEC - 16V 47M-M

C8E07 181P352030 C-ELEC - 16V 47M-M

C8E09 181P352030 C-ELEC - 16V 47M-M

C8E12 181P352030 C-ELEC - 16V 47M-M

C8E14 181P352030 C-ELEC - 16V 47M-M

C8E16 181P352030 C-ELEC - 16V 47M-M

C8G00 181P352030 C-ELEC - 16V 47M-M

C8G03 181P352020 C-ELEC - 16V 33M-M

C8G05 181P352030 C-ELEC - 16V 47M-M

C8G06 181P352030 C-ELEC - 16V 47M-M

C8G09 181P352030 C-ELEC - 16V 47M-M

C8G55 181P352030 C-ELEC - 16V 47M-M

C8G60 172P263070 C-M-POLY - 50V 1.0M-J

C9A05 189P185070 C-CER - AC250V E1000P-M

C9A06 189P185070 C-CER - AC250V E1000P-M

C9A07 189P153040 C-M-POLY - 250VAC 0.1M-M

C9A08 189P185090 C-CER - AC250V E2200P-M

C9A09 189P185090 C-CER - AC250V E2200P-M

C9A10 189P185090 C-CER - AC250V E2200P-M

C9A11 189P185090 C-CER - AC250V E2200P-M

C9A12 185D122050 C-ELEC - H200V 1000M-M 105C

C9A13 189P152070 C-M-POLY - 250VAC 0.01M-M

C9A14 189P152070 C-M-POLY - 250VAC 0.01M-M

C9A15 189P185090 C-CER - AC250V E2200P-M

C9A20 189P152070 C-M-POLY - 250VAC 0.01M-M

C9A21 181P355080 C-ELEC - 50V 47M-M

C9A22 154P260050 C-CER - R1KV 1000P-K

C9A23 181P354050 C-ELEC - 35V 47M-M

C9A24 142P020050 C-CER - B50V 470P-K

C9A25 155P239000 C-CER - CH50V 180P-J

C9A26 142P023080 C-CER - BF50V 0.01M-Z

C9A27 181P355050 C-ELEC - 50V 10M-M

C9A28 181P355050 C-ELEC - 50V 10M-M

C9A29 142P010090 C-CER - B500V 470P-K

C9A30 181P734000 C-ELEC - 16V 2200M-M 105C

C9A31 181P734000 C-ELEC - 16V 2200M-M 105C

C9A32 142P024060 C-CER - BF50V 0.1M-Z

C9A33 181P743070 C-ELEC - 16V 1000M-M

C9A34 142P023080 C-CER - BF50V 0.01M-Z

C9A35 181P352040 C-ELEC - 16V 100M-M

C9A36 142P010090 C-CER - B500V 470P-K

C9A37 181P732000 C-ELEC - 10V 680M-M 105C

C9A38 181P732000 C-ELEC - 10V 680M-M 105C

C9A40 181P352040 C-ELEC - 16V 100M-M

C9A41 142P026010 C-CER - BB16V 0.01M-M

C9A42 181P352040 C-ELEC - 16V 100M-M

C9A43 172P261030 C-M-POLY - 50V 0.01M-J

PAGE 70

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

C9A44 142P023080 C-CER - BF50V 0.01M-Z

C9A50 142P020050 C-CER - B50V 470P-K

C9A51 181P355090 C-ELEC - 50V 100M-M

C9A52 154P400070 C-CER - B1KV 2200P-K

C9A53 185D122050 C-ELEC - H200V 1000M-M 105C

C9A54 154P260080 C-CER - R1KV 3300P-K

C9A55 172P339070 C-POLY - 50V 560P-J

C9A56 181P355080 C-ELEC - 50V 47M-M

C9A57 142P010090 C-CER - B500V 470P-K

C9A58 185D163020 C-ELEC - H50V 4700M-M 105C

C9A59 185D122050 C-ELEC - H200V 1000M-M 105C

C9A60 154P400030 C-CER - B1KV 470P-K

C9A61 142P010090 C-CER - B500V 470P-K

C9A62 189D183010 C-ELEC - 400V 100M-KC

C9A63 185D121020 C-ELEC - H180V 470M-M 105C

C9A64 181P190090 C-ELEC - 160V 10M-M/Q

C9A65 181P194000 C-ELEC - 250V 10M-M/Q

C9A66 142P012050 C-CER - B500V 0.01M-K

C9A67 142P012050 C-CER - B500V 0.01M-K

C9A68 142P010090 C-CER - B500V 470P-K

C9A69 181P737000 C-ELEC - 35V 1000M-M 105C

C9A70 142P023080 C-CER - BF50V 0.01M-Z

C9A71 142P023080 C-CER - BF50V 0.01M-Z

C9A73 181P737000 C-ELEC - 35V 1000M-M 105C

C9A74 142P010090 C-CER - B500V 470P-K

C9A75 181P355050 C-ELEC - 50V 10M-M

C9A76 142P023080 C-CER - BF50V 0.01M-Z

C9A79 142P026010 C-CER - BB16V 0.01M-M

C9A80 142P026010 C-CER - BB16V 0.01M-M

C9A81 172P181030 C-PLA-PP - 200V 0.01M-J

C9A82 142P024060 C-CER - BF50V 0.1M-Z

C9A85 181P199080 C-ELEC - 200V 47M-M/Q

C9A86 154P270050 C-CER - SL1KV 22P-J

C9A87 172P262050 C-M-POLY - 50V 0.1M-J

C9A88 172P262050 C-M-POLY - 50V 0.1M-J

C9A89 142P010090 C-CER - B500V 470P-K

C9A90 181P743060 C-ELEC - 16V 680M-M

C9A91 181P352040 C-ELEC - 16V 100M-M

C9A93 181P355010 C-ELEC - 50V 1M-M

C9A95 181P352070 C-DELE - 16V 470M-M

C9B01 181P182030 C-ELEC - 16V 1000M-M 105C

C9B10 181P182030 C-ELEC - 16V 1000M-M 105C

C9B11 181P182030 C-ELEC - 16V 1000M-M 105C

C9C25 181P352030 C-ELEC - 16V 47M-M

C9C27 181P352050 C-ELEC - 16V 220M-M

C9C30 181P352030 C-ELEC - 16V 47M-M

C9C32 181P352030 C-ELEC - 16V 47M-M

C9C35 181P351080 C-ELEC - 10V 1000M-M

C9C37 181P352030 C-ELEC - 16V 47M-M

C9C40 181P351070 C-ELEC - 10V 470M-M

C9C42 181P351070 C-ELEC - 10V 470M-M

C9C51 181P352030 C-ELEC - 16V 47M-M

C9C53 181P352030 C-ELEC - 16V 47M-M

C9D00 189P153040 C-M-POLY - 250VAC 0.1M-M

C9D01 189P153040 C-M-POLY - 250VAC 0.1M-M

C9D03 189P185090 C-CER - AC250V E2200P-M

C9D04 189P185090 C-CER - AC250V E2200P-M

CF2V01 299P259010 OSC-CERAMIC - CSALA2M69G4ZF01-B0 2.69MHZ

SWITCHES

S7L20 432P109010 SW-KEY BOARD - KSHS611BT

S7L21 432P109010 SW-KEY BOARD - KSHS611BT

S7L22 432P109010 SW-KEY BOARD - KSHS611BT

S7L23 432P109010 SW-KEY BOARD - KSHS611BT

S7L24 432P109010 SW-KEY BOARD - KSHS611BT

S7L25 432P109010 SW-KEY BOARD - KSHS611BT

S7L26 432P109010 SW-KEY BOARD - KSHS611BT

S7L27 432P109010 SW-KEY BOARD - KSHS611BT

S7L28 432P109010 SW-KEY BOARD - KSHS611BT

S7L29 432P109010 SW-KEY BOARD - KSHS611BT

SF5200 296P171010 SAW-FILTER - X6892D

SF5201 296P170010 SAW-FILTER - X6941D

MISCELLANEOUS

096Z465030 TAPE-ADHESIVE cdefghj

AG5K00 224D019040 AIR GAP - 2.0+-0.5KV

AG9D00 224D019040 AIR GAP - 2.0+-0.5KV

AG6B01 224D019090 AIR GAP - 1.5+-0.5KV

AG6G01 224D019090 AIR GAP - 1.5+-0.5KV

AG6R01 224D019090 AIR GAP - 1.5+-0.5KV

246C351030 CORD-AC - POWER

PC9A10 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R

PC9A20 268P106010 PHOTO-COUPLER - CNZ3133

PC9A50 268P106020 PHOTO-COUPLER - CNZ3132

F9D00 283D131040 FUSE - S10A 125A

F9B00 283P128050 FUSE-CHIP - AC125/100V 4A

F9B02 283P128050 FUSE-CHIP - AC125/100V 4A

F9A07 283P144060 FUSE - 125V 7A (20N 7000)

F5A00 283P144070 FUSE - 125V 3A (20N 3000)

F9A08 283P144070 FUSE - 125V 3A (20N 3000)

F9A03 283P144080 FUSE - 125V 5A (20N 5000)

F9A04 283P144080 FUSE - 125V 5A (20N 5000)

F9A05 283P144080 FUSE - 125V 5A (20N 5000)

F9A06 283P144080 FUSE - 125V 5A (20N 5000)

F9A01 283P144090 FUSE - 125V 10A (20N 10K)

F9A02 283P144090 FUSE - 125V 10A (20N 10K)

X7J10 285P335050 QTZ-CRYST - 80.000MHZ

X3A01 285P413010 QTZ-CRYST - 18.432MHZ

X2F21 285P426010 QTZ-CRYST - 3.579545MHZ

X2G21 285P426010 QTZ-CRYST - 3.579545MHZ

X2E47 285P426040 QTZ-CRYST - 20.000MHZ

X7000 285P434010 QTZ-CRYST - 8.000MHZ

X7A15 285P434020 QTZ-CRYST - 16.000MHZ

X52A0 285P441010 QTZ-CRYST - 26.800MHZ

K9A50 287P100010 RELAY-PWR - DG9D1-0(M)-II-0.25W

292C955010 CLIP-RADIATOR ik

TU5200 295P490040 TUNER-TV - ENA46914P4A

TU1A01 295P516010 TUNER-TV - 115-V-F045AP

TU1B01 295P516010 TUNER-TV - 115-V-F045AP

299P254020 IR-EMITTER, 4-HEAD - T-IR-02 W/FERRITE CO

X2F10 299P267010 RESONATOR-CERAMIC - CSBLA503KECZF30-B0

X2G10 299P267010 RESONATOR-CERAMIC - CSBLA503KECZF30-B0

299P271010 MEMORY-CARD-READER (PCB)

305P702020 SW-RF - YAA41-0126G

PAGE 71

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Ref #Part #Part Name & Description [#]

330P294010 YOKE-DEFL - 840UH abc

330P294020 YOKE-DEFL - 720UH defghijk

338P054030 ASSY-SVM acf

338P054040 ASSY-SVM bdeghijk

411D033010 CORE-FERRITE - R15 L18 ehijk

411D044010 CORE-FERRITE - R19.5 L32 ehijk

411D044020 CORE-FERRITE - R19.5 L32 abcdfg

411D062010 CORE-FERRITE - R15 L18 abcdfg

PJ2J11 440C231010 PIN-JACK-BOARD-3P abcdfgj

PJ2J11 440C384010 PIN-JACK-BOARD-3P ehik

PJ2J00 440C407010 PIN-JACK-BOARD-6P abcdfgj

PJ2J00 440C407050 PIN-JACK-BOARD-6P-2S ehik

PJ2J31 440C409010 PIN-JACK-BOARD-2P abcdfgj

PJ2J31 440C409050 PIN-JACK-BOARD-2P ehik

PJ2J10 440C410010 PIN-JACK-BOARD-5P abcdfgj

PJ2J20 440C410010 PIN-JACK-BOARD-5P abcdfgj

PJ2J30 440C410010 PIN-JACK-BOARD-5P abcdfgj

PJ2J10 440C410050 PIN-JACK-BOARD-5P ehik

PJ2J20 440C410050 PIN-JACK-BOARD-5P ehik

PJ2J30 440C410050 PIN-JACK-BOARD-5P ehik

PJ2J70 440C412010 PIN-JACK-BOARD-3P abcdfgj

PJ2J70 440C412050 PIN-JACK-BOARD-3P-1S ehik

PJ2J41 440C421010 PIN-JACK-BOARD-2P abcdfgj

PJ2J50 440C421010 PIN-JACK-BOARD-2P abcdfgj

PJ2J60 440C421010 PIN-JACK-BOARD-2P abcdfgj

PJ2J41 440C421050 PIN-JACK-BOARD-2P ehik

PJ2J50 440C421050 PIN-JACK-BOARD-2P ehik

PJ2J60 440C421050 PIN-JACK-BOARD-2P ehik

449C141030 SOCKET-CRT

PJ7C00 451C129010 JACK-MINI - AV NET/IR BLAST

PJ7C01 451C129010 JACK-MINI - AV NET/IR BLAST

PJ7C02 451C129010 JACK-MINI - AV NET/IR BLAST

PJ7C03 451C129010 JACK-MINI - AV NET/IR BLAST

J2C01 452C388010 CONNECTOR-9P SUB

J5100 451P246010 JACK-1394 - MINI

J5110 451P246010 JACK-1394 - MINI

PJ2J40 452C315010 CONNECTOR-VGA

J2D01 452C371020 CONNECTOR-DVI

453B036010 CAP-ANODE - LONG [R] abcdefgh

453B036020 CAP-ANODE - LONG [GB] abcdefgh

453B036070 CAP-ANODE - [R] ijk

453B036080 CAP-ANODE - [BG] ijk

480P053010 SPEAKER - 5" ab

480P057010 SPEAKER - 6.5" hk

480P058010 SPEAKER - 3" hk

480P063010 SPEAKER - 6" cfj

480P066010 SPEAKER - 6" dg

480P074010 SPEAKER - 5"x 7" ei

490P154010 LENS-BARREL - RED ab

490P154020 LENS-BARREL - BLUE/GREEN ab

490P174070 LENS-BARREL - RED dfg

490P174080 LENS-BARREL - GREEN dfg

490P174090 LENS-BARREL - BLUE defgh

490P212010 LENS-BARREL - RED eh

490P212020 LENS-BARREL - GREEN eh

490P220010 LENS-BARREL - BLUE c

490P220040 LENS-BARREL - RED/GREEN c

490P226010 LENS-BARREL - ALL ijk

589C063010 CASTOR - DUAL WHEEL

594C932010 SHEILD-CRT - TRAY ijk

597D843010 STIFFENER-MIRROR - 3/4"X3/4" TUBING fgh

598D417010 PLATE-RF SWITCH

598D456010 BRACKET-MIRROR - TOP ab

622B009020 SHIELD-CRT - TRAY abcdefgh

622C085020 BOARD TOP - PVC i

622C086010 CLIP-MIRROR - TOP ab

622D928010 PIN-PUSH - SP GRILLE hk

622D967010 BAND-KM abcdefgijk

642C340010 BOARD-MIRROR - TOP fgh

642C352010 CLIP-MIRROR - TOP cd

703B044010 PANEL-CARD READER - FRONT ei

750A449010 COVER-BACK - TOP ab

761C725010 COVER-BTM - CARD READER ehijk

761C725020 COVER-BTM - CARD READER abcdfg

761C726010 COVER-TOP - CARD READER

761C730010 PANEL-CARD READER - FRONT acf

761C731010 PANEL-CARD READER - FRONT bdg

762B377010 BACK-BOARD cd

762B379010 BACK-BOARD ab

762B381010 BACK-BOARD fg

762B383010 BACK-BOARD h

762B373020 BACK-BOARD i

762B383020 BACK-BOARD j

762B383030 BACK-BOARD k

762B385010 BACK-BOARD e

767C031020 MIRROR - 73" jk

767D048090 MIRROR - 65" fghi

767D072030 MIRROR - 55" d

767D072040 MIRROR - 48" ab

767D072050 MIRROR - 55" c

767D072060 MIRROR - 55" e

Z7K01 939P617010 UNIT-PREAMP - GP1U283Q

975B164006 ASSY-PANEL-CONTROL hk

PRINTED CIRCUIT BOARDS

930B903001 ASSY-PWB-MAIN defgh

930B903002 ASSY-PWB-MAIN abc

930B903004 ASSY-PWB-MAIN ijk

930B904001 ASSY-PWB-POWER abcdefgij

930B904002 ASSY-PWB-POWER hk

930B905001-48 ASSY-PWB-SIGNAL ab

930B905001-55 ASSY-PWB-SIGNAL cd

930B905002-55 ASSY-PWB-SIGNAL e

930B905001-65 ASSY-PWB-SIGNAL fg

930B905002-65 ASSY-PWB-SIGNAL hi

930B905001-73 ASSY-PWB-SIGNAL j

930B905002-73 ASSY-PWB-SIGNAL k

930D059001 ASSY-PWB-MLINK

934C059001 ASSY-PWB-CRT

934C060001 ASSY-PWB-TERMINAL abcdfgj

934C060002 ASSY-PWB-TERMINAL ehik

934C061001 ASSY-PWB-E2P

934C063001 ASSY-PWB-DOUBLER

934C066001 ASSY-PWB-DEMOD

934C067001 ASSY-PWB-DM abcdfgj

934C067002 ASSY-PWB-DM ehik

PAGE 72

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Ref #Part #Part Name & Description [#]

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

934C068001 ASSY-PWB-DTV-TUNER

935D733001 ASSY-PWB-PREAMP

935D734001 ASSY-PWB-DBF

935D736001 ASSY-PWB-CONTROL

935D737001 ASSY-PWB-FRONT abcdfgj

935D737002 ASSY-PWB-FRONT ehik

935D747001 ASSY-PWB-SVM

COSMETIC PARTS

702A432010 PANEL-TERMINAL - AC

702A433010 PANEL-TERMINAL - DM

703B042010 DOOR-CONTROL - A/V hjk

703B043010 DOOR-CONTROL - A/V ei

704B192010 BUTTON-CONTROL PANEL hk

704B198010 BUTTON-CONTROL PANEL ei

705C011020 DOOR-CONTROL - A/V abcdfg

702A443010 PANEL-CONTROL - BTM FRAME hk

702A444010 PANEL-CONTROL - BTM FRAME J

716C032010 BADGE-BRAND - SILVER hk

716C041010 BADGE-BRAND - ALUMINUM ei

720C188050 COVER-FRONT abhi

720C250020 COVER-FRONT fg

720C254020 COVER-FRONT cd

720C257010 COVER-FRONT e

752A003020 GRILLE-SPEAKER - TOP h

752A003040 GRILLE-SPEAKER - TOP k

760A011010 INLAY TERMINAL - AC

760A012010 INLAY TERMINAL - DM

761A175010 GRILLE-SP-LEFT - 65" h

761A175020 GRILLE-SP-RIGHT hk

761A186010 GRILLE-SP-LEFT - 73" k

761A196020 GRILLE-SPEAKER - 73" j

761A199020 GRILLE-SPEAKER - 65" i

761A209020 GRILLE-SPEAKER - 48" b

761A210020 GRILLE-SPEAKER - 55" d

761A211020 GRILLE-SPEAKER - 65" g

761A212020 GRILLE-SPEAKER - 55" c

761A213020 GRILLE-SPEAKER - 65" f

761A215020 GRILLE-SPEAKER - 48" a

761A223010 GRILLE-SPEAKER - 55" e

762B358020 UNIT-FRONT h

762B358030 UNIT-FRONT k

762B375020 PANEL-FRONT - WOOD i

762B384010 PANEL-FRONT - WOOD e

ACCESSORIES

955C238001 ASSY-MEMORY-CARD-READER ehijk

955C238002 ASSY-MEMORY-CARD-READER abcdfg

242D525010 CABLE-AUDIO CABLE

242D527010 CABLE-IR

242D535010 CABLE-EXTENSION-1394

242D536010 CABLE-MEMORY-USB/5P-JS

290P117010 REMOTE CONTROL - V22+/V23

I/NET WS48513 NET COMMAND GUIDE - PAPER ab

I/QR WS48513 GUIDE - QUICK REF

856D073010 WARRANTY SEAL

I/B WS48513 GUIDE - OWNERS

PAGE 73

Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

WS-48513/48613 Screen Parts

(Figure 1)

(1) 491P138020 SCREEN-LENTICULAR - 48" ab

(2) 491P139020 LENS-FRESNEL - 48" ab

(3) 597C027010 BRACKET-SCREEN FRAME ab

(4) 598D339010 BRACKET-SCREEN-SIDE ab

(5) 622B010010 HOLDER-SCREEN - TOP ab

(6) 622B011010 HOLDER-SCREEN - BOTTOM ab

(7) 622B012010 HOLDER-SCREEN - SIDE ab

(8) 622B013020 CLIP-DIAMOND SHIELD - 48" ab

(9) 635B109010 STIFFENER-SCREEN - TOP ab

(10) 751A005040 BEZEL, FRONT (WS-48513) a

(10) 751A005050 BEZEL, FRONT (WS-48613) b

(11) 760D628090 DIAMOND SHIELD-48" ab

Figure 1: WS-48513 / WS-48613

PAGE 74

Ref #Part #Part Name & Description [#] Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Figure 2: WS-55513 / WS-55613 / WS-65513 / WS-65613

(WS-65513 / WS-65613 (Figure 2)

(1) 491P145020 SCREEN-LENTICULAR - 65" fgh

(2) 491P146020 LENS-FRESNEL - 65" fgh

(10) 594C988010 BRACKET-SCREEN FRAME fg

(11) 598D491010 BRACKET-SCREEN SIDE cdfg

(3) 622B016020 CLIP-DIAMOND SHIELD - 65" fg

(4) 622C104020 HOLDER-SCREEN fg

(5) 701B481020 FRAME-SCREEN-TOP fg

(6) 701B482020 FRAME-SCREEN-SIDE fg

(7) 702A435010 CAP-CORNER - TOP cdfg

(8) 702A437030 PANEL-CONTROL - BTM FRAME f

(8) 702A437040 PANEL-CONTROL - BTM FRAME g

(9) 760D627070 DIAMOND SHIELD - 65" fg

WS-55513 / WS-55613 (Figure 2)

(1) 491P125030 SCREEN-LENTICULAR - 55" cd

(2) 491P126020 LENS-FRESNEL - 55" cd

(11) 598D491010 BRACKET-SCREEN SIDE cdfg

(3) 622B016010 CLIP-DIAMOND SHIELD - 55" cd

(4) 622C104010 HOLDER-SCREEN cd

(5) 701B481010 FRAME-SCREEN-TOP cd

(6) 701B482010 FRAME-SCREEN-SIDE cd

(7) 702A435010 CAP-CORNER - TOP cdfg

(8) 702A436030 PANEL-CONTROL - BTM FRAME c

(8) 702A436040 PANEL-CONTROL - BTM FRAME d

(9) 760D628080 DIAMOND SHIELD - 55" cd

PAGE 75

Ref #Part #Part Name & Description [#] Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Figure 3: WS-55813 / WS-65813

WS-55813 (Figure 3)

(1) 491P162010 SCREEN-LENTICULAR - 55" AR e

(2) 491P163010 SCREEN-FRESNEL - 55" AR e

(3) 622C090020 CLIP-DIAMOND SHIELD - 55" e

(8) 701B466020 FRAME-SCREEN-SIDE e

(9) 701B467020 FRAME-SCREEN-TOP e

(10) 701B468020 FRAME-SCREEN-BTM e

(4) 702A408010 CAP-CORNER - TOP ei

(11) 702A409010 CAP-CORNER-BOTTOM - RIGHT ei

(6) 702A409020 CAP-CORNER-BOTTOM - LEFT ei

(7) 760D646010 DIAMOND SHIELD - 55" AR e

WS-65813 (Figure 3)

(1) 491P164010 SCREEN-LENTICULAR - 65" AR i

(2) 491P165010 SCREEN-FRESNEL - 65" AR i

(3) 622C090010 CLIP-DIAMOND SHIELD - 65" i

(8) 701B466030 FRAME-SCREEN-SIDE i

(9) 701B467030 FRAME-SCREEN-TOP i

(10) 701B468030 FRAME-SCREEN-BTM i

(4) 702A408010 CAP-CORNER - TOP ei

(11) 702A409010 CAP-CORNER-BOTTOM - RIGHT ei

(6) 702A409020 CAP-CORNER-BOTTOM - LEFT ei

(7) 760D644020 DIAMOND SHIELD - 65" AR i

PAGE 76

Ref #Part #Part Name & Description [#] Ref #Part #Part Name & Description [#]

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

[#] Model Legend:

(a) WS-48513, (b) WS-48613, (c) WS-55513, (d) WS-55613, (e) WS-55813, (f) WS-65513, (g) WS-65613, (h) WS-65713, (i) WS-65813,

(j) WS-73513, (k) WS-73713

Figure 4: WS-65713 / WS-73713 / WS-73513

WS-WS-65713 (Figure 4)

(1) 491P145020 SCREEN-LENTICULAR - 65" fgh

(2) 491P146020 LENS-FRESNEL - 65" fgh

(3) 701B492010 FRAME-SCREEN-TOP h

(4) 701B492030 FRAME-SCREEN-SIDE h

(5) 701B492020 FRAME-SCREEN-BTM h

(6) 760D628020 DIAMOND SHIELD - 65" h

(7) 768C065010 CAP-CORNER hk

(8) 622D746020 CLIP-DIAMOND SHIELD - 65" h

(9) 597D803010 BRACKET-SCREEN hk

WS-73713 (Figure-4)

(1) 491P085030 SCREEN-LENTICULAR - 73" Jk

(2) 491P086030 LENS-FRESNEL - 73" Jk

(3) 711C029070 FRAME-SCREEN-TOP k

(4) 711C029080 FRAME-SCREEN-SIDE k

(5) 711C029090 FRAME-SCREEN-BTM k

(6) 760D628030 DIAMOND SHIELD - 73" k

(7) 768C065010 CAP-CORNER hk

(8) 622D746010 CLIP-DIAMOND SHIELD - 73" k

(9) 597D803010 BRACKET-SCREEN hk

WS-73513 (Figure-4)

(1) 491P085030 SCREEN-LENTICULAR - 73" Jk

(2) 491P086030 LENS-FRESNEL - 73" Jk

(3) 701B496010 FRAME-SCREEN-TOP J

(4) 701B430050 FRAME-SCREEN-SIDE J

(5) 701B496020 FRAME-SCREEN-BTM J

(6) 760D638010 DIAMOND SHIELD - 73" J

(7) 702A396030 CAP-CORNER - 73" J

(8) 622C071060 CLIP-DIAMOND SHIELD - 73" J

(10) 598D086010 BRACKET-SCREEN-MOUNT J

(11) 598D092010 BRACKET-SCREEN-SIDE J

(12) 598D087010 BRACKET--SCREEN-CORNER J

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 77

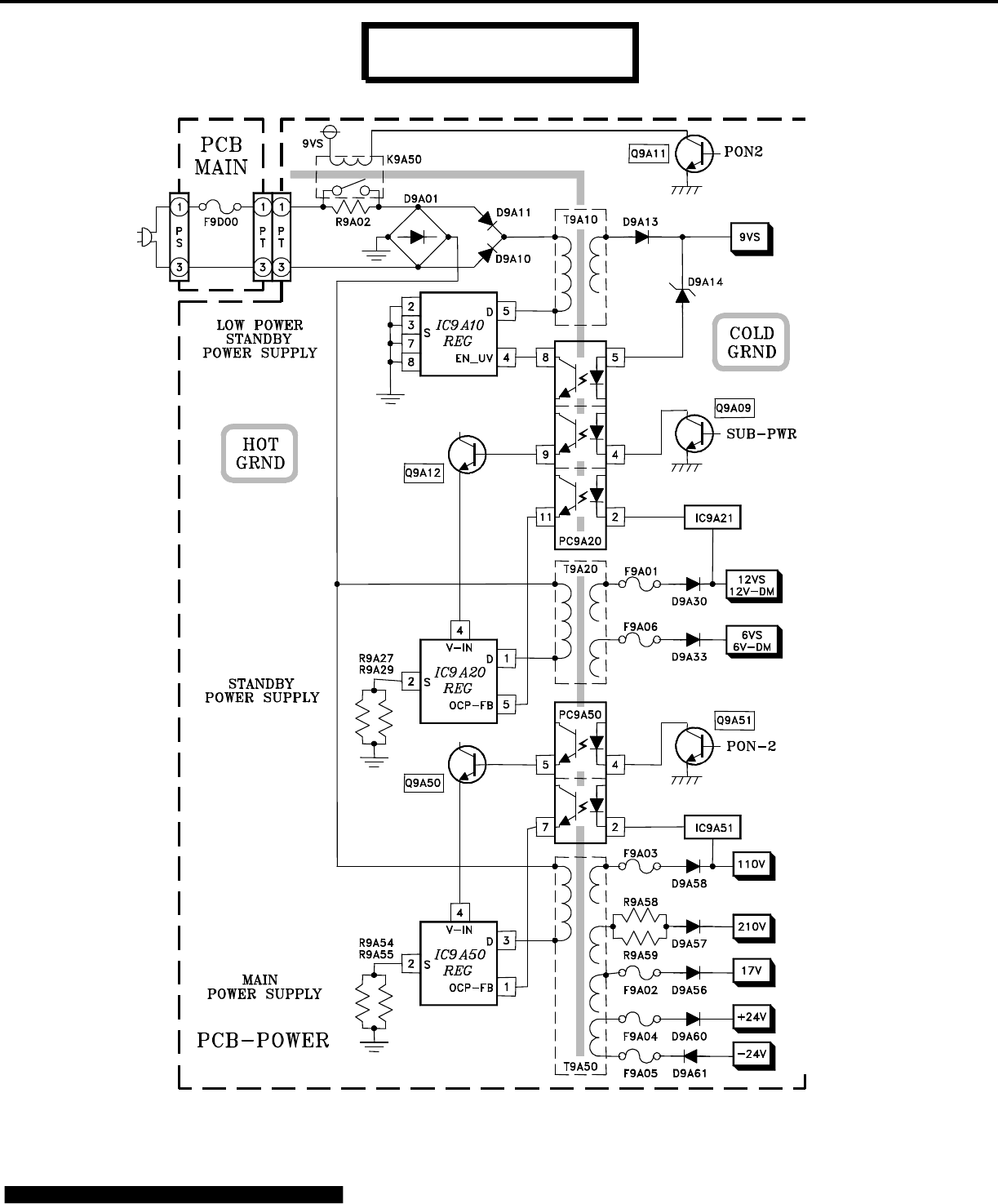

POWER SUPPLY

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 78

AV-SWITCH

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 79

VIDEO/COLOR

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 80

SYNC SIGNAL PATH

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 81

DEFLECTION / HV

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 82

X-RAY PROTECT

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 83

CONVERGENCE CIRCUIT

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 84

SOUND CIRCUIT

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 85

CONTROL CIRCUITRY

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 /

WS-65813 / WS-73513 / WS-73713

Page 86

Mitsubishi Electric Ws 73513 Service Manual 1003407 ManualsLib Makes It Easy To Find Manuals Online! User

Navigation menu

Versions of this User Manual:

Views

Navigation
