XL7000

This User Manual is important to you.

Please read it before using your projector.

LCD PROJECTOR

MODEL

XL7000U

User Manual

EN-2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert

the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufﬁcient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE

EXPOSURE.

NOTE:

SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR

THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

WARNING

Use the attached speciﬁed power supply cord. If

you use another power supply cord, it may cause

interference with radio and television reception.

This apparatus must be grounded.

DO NOT LOOK DIRECTLY INTO THE LENS WHEN

THE PROJECTOR IS IN THE POWER ON MODE.

CAUTION

Not for use in a computer room as deﬁned in the

Standard for the Protection of Electronic Computer/

Data Processing Equipment, ANSI/NFPA 75.

EN-3

Contents

Important safeguards ........................................................................................................................4

Preparing your projector ....................................................................................................................6

Using the remote control ...................................................................................................................9

Setting up your projector .................................................................................................................11

Viewing computer images ...............................................................................................................18

Viewing video images ......................................................................................................................24

Menu operation ...............................................................................................................................30

Adjusting projected images .............................................................................................................39

Initial network settings .....................................................................................................................44

Advanced features ..........................................................................................................................48

Replacing the lamp .........................................................................................................................53

Maintenance ....................................................................................................................................56

Replacing the lens ...........................................................................................................................57

Troubleshooting ...............................................................................................................................58

Indicators .........................................................................................................................................62

Speciﬁcations ..................................................................................................................................63

Trademark, Registered trademark

t )%.*UIF)%.*MPHPBOE)JHI%FmOJUJPO.VMUJNFEJB*OUFSGBDFBSFUSBEFNBSLTPSSFHJTUFSFEUSBEFNBSLTPG)%.*

Licensing LLC.

t .JDSPTPGU8JOEPXTBOE8JOEPXT7JTUBBSFFJUIFSSFHJTUFSFEUSBEFNBSLTPSUSBEFNBSLTPG.JDSPTPGU$PSQPSBUJPO

in the United States and/or other countries.

t .BDJTBSFHJTUFSFEUSBEFNBSLPG"QQMF*OD

t 5IFUSBEFNBSLPG1+-JOLJTUSBEFNBSLBQQMJFEGPSSFHJTUSBUJPOPSSFHJTUFSFEUSBEFNBSLJO+BQBOUIF6OJUFE4UBUFT

and other countries and areas.

t $SFTUSPO3PPN7JFX$POOFDUFEJTBUSBEFNBSLPG$SFTUSPO&MFDUSPOJDT*OD

t 0UIFSCSBOEPSQSPEVDUOBNFTBSFUSBEFNBSLTPSSFHJTUFSFEUSBEFNBSLTPGUIFJSSFTQFDUJWFIPMEFST

EN-4

Important safeguards

Please read all these instructions regarding your

projector and retain them for future reference. Follow

all warnings and instructions marked on the projector.

1. Read instructions

All the safety and operating instructions should be

read before the appliance is operated.

2. Retain instructions

The safety and operating instructions should be

retained for future reference.

3. Warnings

All warnings on the appliance and in the operating

instructions should be adhered to.

4. Instructions

All operating instructions must be followed.

5. Cleaning

Unplug this projector from the wall outlet before

cleaning it. Do not use liquid aerosol cleaners. Use

a damp soft cloth for cleaning.

6. Attachments and equipment

Never add any attachments and/or equipment

without the approval of the manufacturer as such

additions may result in the risk of ﬁre, electric

shock or other personal injury.

7. Water and moisture

Do not use this projector near water or in contact

with water.

8. Accessories

Do not place this projector on an unstable cart,

stand, tripod, bracket or table. Use only with a

cart, stand, tripod bracket, or table recommended

by the manufacturer or sold with the projector.

Any mounting of the appliance should follow

the manufacturer’s instructions and should use

a mounting accessory recommended by the

manufacturer.

10. Power sources

This projector should be operated only from the

type of power source indicated on the marking

label. If you are not sure of the type of power,

please consult your appliance dealer or local

power company.

11. Power-cord protection

Power-supply cords should be routed so that

they are not likely to be walked on or pinched

by items placed upon or against them. Pay

particular attention to cords at plugs, convenience

receptacles, and points where they exit from the

appliance. Do not put the power cord under a

carpet.

12. Overloading

Do not overload wall outlets and extension cords

as this can result in a ﬁre or electric shock.

13. Objects and liquids

Never push objects of any kind through openings

of this projector as they may touch dangerous

voltage points or short-out parts that could result

in a ﬁre or electric shock. Never spill liquid of any

kind on the projector.

14. Servicing

Do not attempt to service this projector by yourself.

Refer all servicing to qualiﬁed service personnel.

15. Damage requiring service

Unplug this projector from the wall outlet and refer

servicing to qualiﬁed service personnel under the

following conditions:

(a) If the power-supply cord or plug is damaged.

(b) If liquid has been spilled, or objects have fallen

into the projector.

you follow the operating instructions. Adjust

only those controls that are covered by the

operating instructions. An improper adjustment

of other controls may result in damage and

may often require extensive work by a qualiﬁed

technician to restore the projector to its normal

operation.

(d) If the projector has been exposed to rain or

water.

(e) If the projector has been dropped or the

cabinet has been damaged.

(f)

If the projector exhibits a distinct change in

performance - this indicates a need for service.

16. Replacement parts

When replacement parts are required, be sure

that the service technician has used replacement

parts speciﬁed by the manufacturer or parts

having the same characteristics as the original

part. Unauthorized substitutions may result in ﬁre,

electric shock or other hazards.

17. Safety check

Upon completion of any service or repair to this

projector, ask the service technician to perform

safety checks determining that the projector is in a

safe operating condition.

An appliance and cart combination should be

moved with care. Quick stops, excessive force and

uneven surfaces may cause the appliance and cart

combination to overturn.

9. Ventilation

Slots and openings in the cabinet are provided

for ventilation, ensuring reliable operation of the

projector and to protect it from overheating. Do

not block these openings or allow them to be

blocked by placing the projector on a bed, sofa,

rug, or bookcase. Ensure that there is adequate

ventilation and that the manufacturer’s instructions

have been adhered to.

EN-5

Important safeguards (continued)

WARNING:

Unplug immediately if there is something

wrong with your projector.

Do not operate if smoke, strange noise or odor comes out

of your projector. It might cause ﬁre or electric shock. In this

case, unplug immediately and contact your dealer.

Never remove the cabinet.

This projector contains high voltage circuitry. An inadvertent

contact may result in an electric shock. Except as

speciﬁcally explained in the User Manual do not attempt to

service this product by yourself. Please contact your dealer

when you want to ﬁx, adjust or inspect the projector.

Do not modify this equipment.

It can lead to ﬁre or electric shock.

Do not keep using the damaged projector.

If the projector is dropped and the cabinet is damaged,

unplug the projector and contact your dealer for inspection.

It may lead to ﬁre if you keep using the damaged projector.

Be sure to unplug the power cord from the wall

outlet if the projector is fractured or deformed.

Otherwise, it may result in ﬁre or electric shock. Ask your

dealer for repair.

Do not face the projector lens to the sun.

It can lead to ﬁre.

Use correct voltage.

If you use incorrect voltage, it can lead to ﬁre.

Do not connect multiple electrical appliances

to a single wall outlet.

It can lead to ﬁre.

Do not extend the power cord.

It can lead to ﬁre.

Do not place the projector on uneven surface.

Place the projection on a leveled and stable surface only.

Please do not place equipment on unstable surfaces.

Do not look into the lens when it is operating.

It may hurt your eyes. Never let children look into the lens

when it is on.

Do not touch the air outlet grille and bottom

plate, which become hot.

Do not touch them or put other equipment in front of the

air outlet grille. The air outlet grille and bottom plate, when

heated, may cause injury or damage to other equipment.

Also, do not set the projector on the desk which is easily

affected by heat.

Do not look into the air outlet grille when

projector is operating.

Heat, dust, etc. may blow out of it and hurt your eyes.

Do not insert your ﬁngers in the space

between the lens and the cabinet.

The lens may shift causing injury or damage to the projector.

Do not block the air inlet and outlet grilles.

If they are blocked, heat may be generated inside the

projector, causing deterioration in the projector quality and ﬁre.

Do not use ﬂammable solvents (benzene, thinner,

etc.) and ﬂammable aerosols near the projector.

Flammable substances may ignite causing ﬁre or breakdown

because the temperature inside the projector rises very high

while the lamp is illuminating.

Do not use the projector with condensation on it.

It can lead to breakdown or other failure.

Place of installation

For safety’s sake, refrain from setting the projector at any

place subjected to high temperature and high humidity.

Please maintain an operating temperature, humidity, and

altitude as speciﬁed below.

t 0QFSBUJOHUFNQFSBUVSF

For use in the STANDARD mode, the allowable operating

temperature is +41°F (+5°C) to +104°F (+40°C).

For use in the HIGH ALTITUDE mode (see page 13),

the allowable operating temperature is +41°F (+5°C) to

+86°F (+30°C), which allows ﬂoor installation or ceiling

installation only.

t 0QFSBUJOHIVNJEJUZCFUXFFOBOE

t /FWFSQVUBOZIFBUQSPEVDJOHEFWJDFVOEFSUIFQSPKFDUPS

so that the projector does not overheat.

t %POPUBUUBDIUIFQSPKFDUPSUPBQMBDFUIBUJTVOTUBCMFPS

subjected to vibration.

t %POPUJOTUBMMUIFQSPKFDUPSOFBSBOZFRVJQNFOUUIBU

produces a strong magnetic ﬁeld. Also refrain from

installing near the projector any cable carrying a large

current.

t 1MBDFUIFQSPKFDUPSPOBTPMJEWJCSBUJPOGSFFTVSGBDF

otherwise it may fall, causing serious injury to a child or

adult, and serious damage to the product.

t %POPUTUBOEUIFQSPKFDUPSJUNBZGBMMDBVTJOHTFSJPVT

injury and damage to the projector.

t 4MBOUJOHUIFQSPKFDUPSNPSFUIBO¡SJHIUBOEMFGUNBZ

cause trouble or explosion of the lamp.

t %POPUQMBDFUIFQSPKFDUPSOFBSBJSDPOEJUJPOJOHVOJU

heater, or humidiﬁer to avoid hot or moist air to the

exhaust and ventilation hole of the projector.

t

Do not place the projector in the following places.

Otherwise, a short circuit, heat generation, or melting of

the power cord coating may occur, causing ﬁre, electric

shock, product failure, or deformation.

t 0VUEPPSTPSOPOBJSDPOEJUJPOFEQMBDF

t 1MBDFXIFSFBHBTTVDIBTBIZESPHFOTVMmEFJT

generated (i.e. hot spring)

t 1MBDFXIFSFUIFSFJTUPPNVDITBMUTVDIBTOFBSUIF

coast

t 8FEPOUSFDPNNFOEVTJOHUIFQSPKFDUPSBUBOBMUJUVEF

of 2700 meters or higher (When using the product at an

altitude of 1500 to 2700 meters above the sea level, set

the HIGH ALTITUDE MODE to HIGH ALTITUDE.). Use

at an altitude of 2700 meters or higher may affect the

projector’s life.

Do not place a container containing water or

other liquid on the projector.

If water spills on or enters the projector, it may result in ﬁre or

electric shock.

Do not put any object that is heavy or larger

than the outer frame on the projector.

Otherwise, the object may fall losing its balance and cause

injury.

Do not subject the projector to strong shocks or

vibrations. Do not handle the projector roughly.

The projector may be damaged, resulting in ﬁre or electric

shock.

EN-6

Preparing your projector

Checking accessories

The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in

the package.

Cables

Remote control parts

Remote control

(290P188-10)

RS-232C cable

(J2552-0114-00)

R6 (size-AA)

battery (two)

Computer cable

(J2552-0072-05)

Others

9Lens cap (attached to the projector)

9Lens ring

9Terminal cover

9Lamp replacement tray

9CD-ROM

9Safety Manual/Quick Start up

Mini D-SUB

15-pin

Mini D-SUB

15-pin D-SUB

9-pin

Power supply part

9 Used for projector control

by computer.

D-SUB

9-pin

Power cord for US (J2552-0063-00)

Power cord for EU/South Korea (J2552-0066-00)

Power cord for UK (J2552-0065-00)

Power cord for Australia (02552-0306-00)

Inserting the batteries into the remote control

1. Remove the rear lid of the remote control.

2. Check the polarity (+), (-) of the batteries, and set them

correctly, inserting their (-) side ﬁrst.

t *GUIFCBUUFSZJTJOTFSUFEGSPNUIFTJEFmSTUJOTFSUJOH

the (-) side is difﬁcult because the coil spring end hits

on the battery side. If the battery is forced to insert in

this way, the outer label of the battery may get ripped

and it may cause a short-circuit and heating.

3. Attach the rear lid.

Important:

t 6TFUXPTJ[F""CBUUFSJFT3

t 3FQMBDFUIFCBUUFSJFTXJUIOFXPOFTXIFOUIFSFNPUF

control is slow to operate.

Removing the batteries from the remote control

Remove the back lid of the remote control and take out the

batteries.

Caution:

t 6TFPGBCBUUFSZPGXSPOHUZQFNBZDBVTFFYQMPTJPO

t 0OMZ$BSCPO;JODPS"MLBMJOF.BOHBOFTF%JPYJEFUZQFCBUUFSJFTTIPVMECFVTFE

t %JTQPTFPGVTFECBUUFSJFTBDDPSEJOHUPZPVSMPDBMSFHVMBUJPOT

t #FGPSFZPVEJTQPTFPGUIFCBUUFSJFTJOTVMBUFUIFNCZQMBDJOHJOTVMBUJPOUBQFPOUIFQPTJUJWFBOEOFHBUJWF

terminals. If you dispose of the batteries together with other conductive objects such as a metal piece, they may short

out, resulting in ﬁre or explosion.

t

Batteries may explode if misused. Do not recharge, disassemble, or heat the batteries, or put them into ﬁre or water.

t #FTVSFUPIBOEMFUIFCBUUFSJFTBDDPSEJOHUPUIFJOTUSVDUJPOT

t -PBEUIFCBUUFSJFTXJUIJUTQPTJUJWFBOEOFHBUJWFTJEFTDPSSFDUMZPSJFOUFEBTJOEJDBUFEPOUIFSFNPUFDPOUSPM

t ,FFQCBUUFSJFTPVUPGSFBDIPGDIJMESFOBOEQFUT*GDIJMESFOTXBMMPXUIFCBUUFSZTFFBEPDUPSJNNFEJBUFMZ

t 3FNPWFUIFCBUUFSJFTJGUIFSFNPUFDPOUSPMJTOPUVTFEGPSBMPOHUJNF

t %POPUDPNCJOFBOFXCBUUFSZXJUIBOPMEPOF

t *GUIFTPMVUJPOPGCBUUFSJFTDPNFTJODPOUBDUXJUIZPVSTLJOPSDMPUIFTSJOTFXJUIXBUFS*GUIFTPMVUJPODPNFTJODPOUBDU

with your eyes, rinse them with water and then consult your doctor.

t %POPUDBSSZPSTUPSFUIFCBUUFSJFTUPHFUIFSXJUINFUBMMJDCBMMQPJOUQFOTOFDLMBDFTDPJOTPSIBJSQJOT0UIFSXJTFUIFZ

may short out, causing explosion or liquid leakage and resulting in ﬁre or injury.

t %POPUTUPSFUIFCBUUFSJFTXIFSFUIFZBSFFYQPTFEUPEJSFDUTVOMJHIUPSTVCKFDUFEUPIJHIUFNQFSBUVSFBOEIJHIIVNJEJUZ

High temperature and high humidity may cause corrosion or liquid leakage.

Important:

t 5IFBUUBDIFEQPXFSDPSEJTUPCFVTFEFYDMVTJWFMZGPSUIJTQSPEVDU/FWFSVTFJUGPSPUIFSQSPEVDUT

EN-7

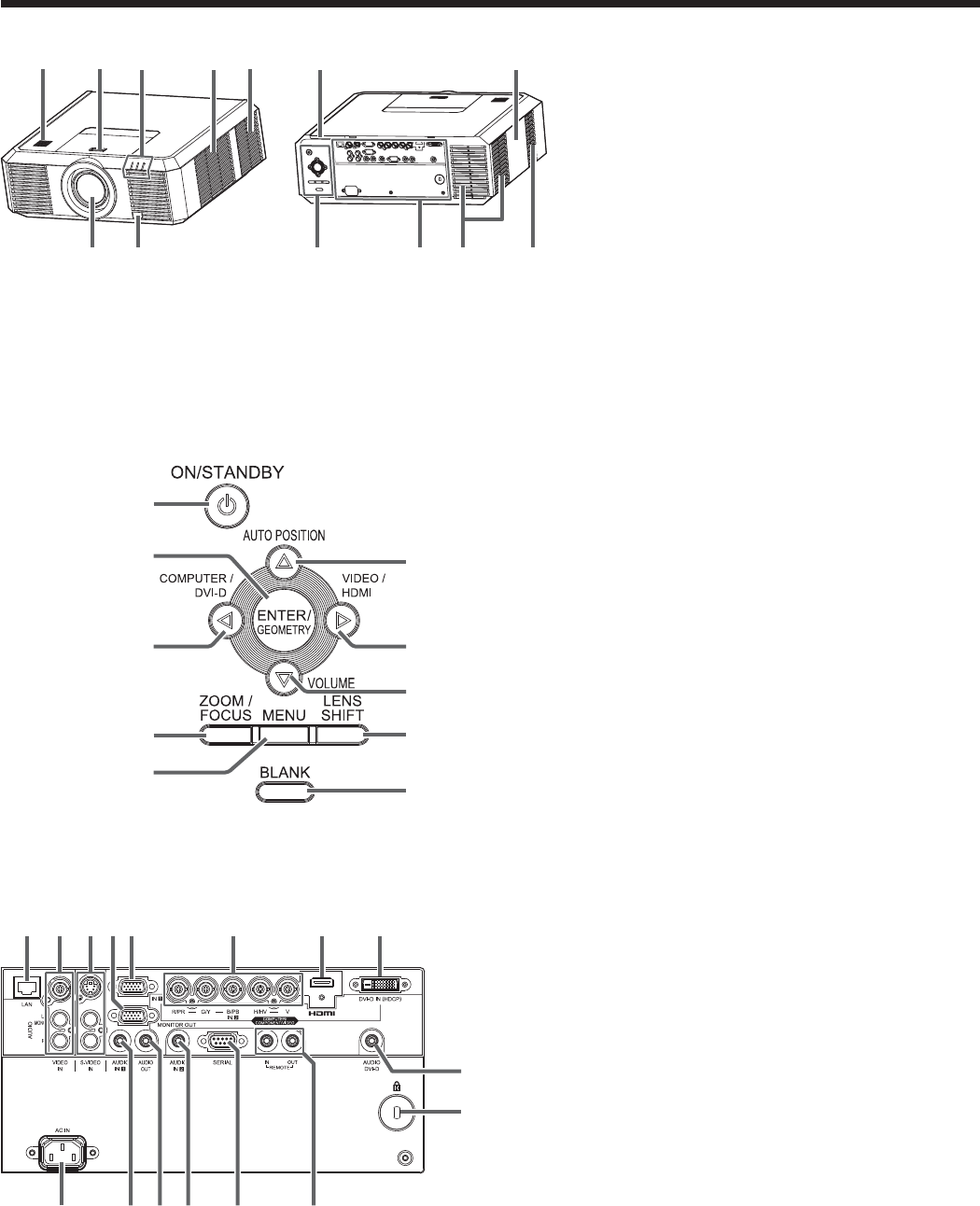

Overview

6 7 11 12

9 10

321 4 5 138

1 Speaker

2 Lens release button

3 Indicators

4 Air inlet grille/Filter cover

5 Air inlet grille

6 Lens

7 Remote control sensor (front)

8 Remote control sensor (rear)

9 Control area

10 Terminal panel

11 Air outlet grille

12 Air inlet grille

13 Lamp cover

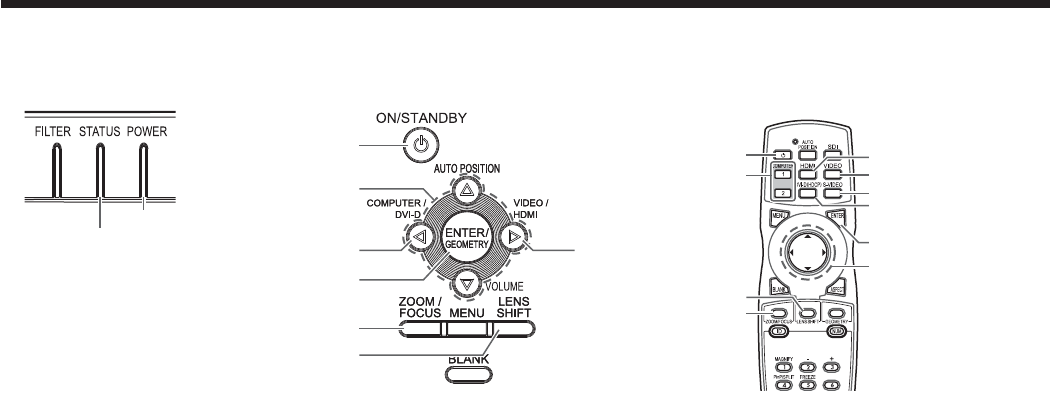

Control area

1 POWER button (ON/STANDBY)

The status is changed between ON and

STANDBY.

2 ENTER/GEOMETRY button

3 COMPUTER/DVI-D/ button

4 ZOOM/FOCUS button

5 MENU button

6 AUTO POSITION/ button

7 VIDEO/HDMI/ button

8 VOLUME/ button

9 LENS SHIFT button

10 BLANK button

123 5 6 7 8

11 14 15 161312

41 LAN terminal

2 VIDEO IN (BNC) and audio input terminals

3 S-VIDEO IN and audio input terminals

4 MONITOR OUT terminal (mini D-SUB 15-pin)

5 COMPUTER/COMPONENT/VIDEO IN 1 terminal

(mini D-SUB 15-pin)

6 COMPUTER/COMPONENT/VIDEO IN 2 terminals

(R/PR, G/Y, B/PB, H/HV, V) (BNC)

7 HDMI IN terminal (HDMI 19-pin)

8 COMPUTER/COMPONENT/VIDEO DVI-D IN

(HDCP) terminal (DVI-D 24-pin)

9 AUDIO DVI-D terminal (mini jack)

10 Kensington Security Lock Standard connector

11 Power jack

12 AUDIO IN 1 terminal (mini jack)

13 AUDIO OUT terminal (mini jack)

14 AUDIO IN 2 terminal (mini jack)

15 SERIAL terminal (D-SUB 9-pin male)

16 REMOTE IN and OUT terminals

Terminal panel

Preparing your projector (continued)

Caution:

Do not replace the lamp immediately after using the projector

because the lamp would be extremely hot and it may cause

burns.

EN-8

123

Preparing your projector (continued)

Bottom side

Indicators

1 Lock bar (SECURITY ANCHOR)

t "UUBDIBDIBJOFUDUPUIJTMPDLCBSUPBODIPS

the projector.

2 Adjustment feet

1 FILTER indicator

2 STATUS indicator

3 POWER indicator

Remote control

1 Indicator

2 POWER button (ON/STANDBY)

The status is changed between ON and STANDBY.

3 COMPUTER 1, 2 buttons

4 MENU button

5 BLANK button

6 ZOOM/FOCUS button

7 ID button

8 MAGNIFY button

9 PinP/SPLIT button*1

10 CE (Color Enhancer) button

11 TEST PATTERN button

12 AUTO POSITION button

13 SDI button*2

14 HDMI button

15 VIDEO button

16 S-VIDEO button

17 DVI-D(HDCP) button

18 ENTER button

19 , , ,  buttons

20 ASPECT button

21 LENS SHIFT button

22 GEOMETRY button

23 NUM button

24 + , - buttons*3

25 FREEZE button

26 SUPER RESOLUTION button

27 ALL button

28 Number (0 to 9) buttons*4

29 Wired remote control jack

*1: The PinP/SPLIT button functions as the PinP button for this projector. (It doesn’t function as the SPLIT button.)

*2: The SDI button doesn’t work with this projector.

*3: The +, - buttons also function as the VOLUME button.

*4: To use the number buttons (0 to 9), press them while holding down the ID button or the NUM button.

EN-9

Using the remote control

Using the wired remote control

Attached remote control for this projector can be used as a wired remote control with remote control cable. Wired

remote control is useful for operating in a distance or outside of the operating area.

REMOTE IN

REMOTE OUT

REMOTE IN

t 'PSDPOOFDUJPOVTFUIFQJOQJODBCMFPGTUFSFPUZQF

which is commercially available. However, some cable may

not work correctly.

t 8IFO3&.05&065UFSNJOBMPOUIJTQSPKFDUPSJT

connected to the REMOTE IN terminal on the other

projector, the two projectors can be controlled together by

using the remote control.

t 8IFOUIFSFNPUFDPOUSPMJTDPOOFDUFEXJUISFNPUFDPOUSPM

cable, it does not work as a wireless remote control.

t 8IFOVTJOHUIFSFNPUFDPOUSPMBTXJSFEGPSBMPOHUJNF

period, remove the batteries from it. (Dispose of the

removed batteries according to the cautions on page 6.)

You can control the projector by the

remote control signals reﬂected on the

screen. However, the remote control

distance may be restricted by the

light reﬂection loss due to the screen

characteristics.

Operate the remote control

within a distance of 30 m

(98.4 feet) from the projector,

pointing the light beam at the

remote control photo-sensor

(front or rear) of the projector.

Rear of projector

Front of projector

Vertical directions (ceiling mount)

Reception angle

Vertical directions

t ,FFQUIFSFNPUFDPOUSPMTFOTPSPVUPGEJSFDUTVOMJHIUPS

ﬂuorescent lamp light.

t ,FFQUIFSFNPUFDPOUSPMTFOTPSBUMFBTUNGFFU

away from ﬂuorescent lamps. Otherwise, the remote

control may malfunction.

t *GUIFSFJTBOJOWFSUFSPQFSBUFEnVPSFTDFOUMBNQOFBS

the remote control, the remote control operation may

become unstable.

t 8IFOZPVVTFUIFSFNPUFDPOUSPMUPPDMPTFUPUIF

remote control sensor, the remote control may not work

correctly.

t 8IFOUIFUFSNJOBMDPWFSJTBUUBDIFESFNPUFDPOUSPM

may not work properly from behind the projector.

Operational range of the remote control

About 30°

About 30° About 30°

About 30°

About 20°

About 30°

About 5°

About 30°

About 20°

EN-10

Using the remote control (continued)

Setting the ID number of the remote

control

You can control multiple projectors collectively or

individually using one remote control by setting the ID

number (CONTROLLER ID) of the remote control.

To control multiple projectors using the remote

control, you need to select the projector’s ID number

(PROJECTOR ID) with the remote control in advance.

ID numbers should be two-digit numbers “01” to “63”

or “ALL.” Other numbers cannot be used.

ID button

Number (0 to 9)

buttons

ALL button

Setting by the remote control alone

1. While holding down the ID button on the remote

control, press the number buttons (0 to 9) to set a

two-digit ID number.

Or, while holding down the ID button on the remote

control, press the ALL button.

t :PVDBOOPUTFUUIF*%OVNCFSCZQSFTTJOHUIF

number buttons (0 to 9) or the ALL button unless

pressing them while holding down the ID button

on the remote control.

t :PVDBOTFUUIF$0/530--&3*%VTJOHUIF

remote control alone. When you set the ID with

the remote control directed to the projector, you

can see the setting status on the screen.

Setting by using the projector

1. Carry out the procedure described in “Setting by

the remote control alone” with the remote control

directed to the projector.

t 5IF*%TFUUJOHEJBMPHCPYJTEJTQMBZFEPOUIF

upper right area of the screen.

PROJECTOR ID XX

CONTROLLER ID

(01 - 63/ALL)

YY  ZZ

XX: Shows the ID number of the projector.

(When the PROJECTOR ID is “ALL,” “ALL”

is displayed.)

YY: Shows the current CONTROLLER ID. (When

the CONTROLLER ID is “ALL,” “ALL” is

displayed.)

ZZ: Shows the CONTROLLER ID to be changed.

(When the CONTROLLER ID is “ALL,” “ALL”

is displayed.)

t

Before a CONTROLLER ID is entered, ** is

displayed. When you press a number button (0 to

9), the left digit of the ID number is entered ﬁrst.

When the CONTROLLER ID setting has succeeded:

PROJECTOR ID XX

CONTROLLER ID

(01 - 63/ALL)

YY  ZZ

COMPLETE

“COMPLETE” is displayed under the

CONTROLLER ID number you entered.

t 5IF*%TFUUJOHEJBMPHCPYBVUPNBUJDBMMZ

disappears after it is displayed for about 5

seconds.

t #ZQSFTTJOHBOZCVUUPOPUIFSUIBOUIF*%CVUUPO

number buttons (0 to 9), and ALL button while

the ID setting dialog box is being displayed, you

can cancel the dialog box.

When the CONTROLLER ID setting has failed:

PROJECTOR ID XX

CONTROLLER ID

(01 - 63/ALL)

YY  ZZ

ERROR

“ERROR” is displayed under the CONTROLLER ID

number you entered.

t 5IF*%TFUUJOHEJBMPHCPYBVUPNBUJDBMMZ

disappears after it is displayed for about 5

seconds.

t #ZQSFTTJOHBOZCVUUPOPUIFSUIBOUIF*%CVUUPO

number buttons (0 to 9), and ALL button while

the ID setting dialog box is being displayed, you

can cancel the dialog box.

Setting PROJECTOR IDs

You can monitor and control multiple projectors

individually.

PROJECTOR IDs should be two-digit numbers “01” to

“63” or “ALL.” The other numbers cannot be used.

t 5IFEFGBVMU130+&$503*%JT"--

t #ZBTTJHOJOHUIFTBNF130+&$503*%UPNVMUJQMF

projectors, you can monitor and control those

projectors collectively.

(See page 31 for menu setting.)

1. Display the FEATURE menu.

2. Select PROJECTOR ID by pressing the  or 

button.

PROJECTOR ID ALL

3. Set the PROJECTOR ID by pressing the  or 

button.

Important:

t To monitor and control the projectors individually,

assign different PROJECTOR IDs to them.

t By assigning ALL, you can monitor and control the

projectors regardless of the ID numbers.

Important:

t *%OVNCFSTTIPVMECFUXPEJHJUOVNCFSTiwUP

“63.” The other numbers are invalid.

t 8IFOUIF130+&$503*%OVNCFSJTBOZPG

“01” to “63,” you can control the projector

by matching the CONTROLLER ID with the

PROJECTOR ID number or setting it to “ALL.”

t

When the PROJECTOR ID number is “ALL,” you

can control the projector using the remote control

regardless of the CONTROLLER ID number.

t 8IFOUIF130+&$503*%OVNCFSJTVODFSUBJO

you can control the projector regardless of the

ID number by setting the CONTROLLER ID to

“ALL.”

EN-11

Setting up your projector

Before setting up

Before setting up the projector, check the operating environment.

If the environmental requirements are not satisﬁed, the projector may break down or fail.

Setup environment

The allowable operating temperature varies depending on the HIGH ALTITUDE MODE setting.

For use in the STANDARD mode, the allowable operating temperature is

+41°F (+5°C) to +104°F (+40°C).

For use in the HIGH ALTITUDE mode (see page 13), the allowable operating temperature is +41°F (+5°C) to +86°F

(+30°C), which allows ﬂoor installation or ceiling installation only.

Setting up the screen

Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the

projection angle of the projector. (See page 13.)

t *OTUBMMUIFTDSFFOBOEQSPKFDUPSTPUIBUUIFQSPKFDUPSTMFOTJTQMBDFEBUUIFTBNFIFJHIUBOEIPSJ[POUBMQPTJUJPOPG

the screen center.

t %POPUJOTUBMMUIFTDSFFOXIFSFJUJTFYQPTFEUPEJSFDUTVOMJHIUPSMJHIUJOH-JHIUEJSFDUMZSFnFDUJOHPOUIFTDSFFO

makes the projected images whitish and hard to view.

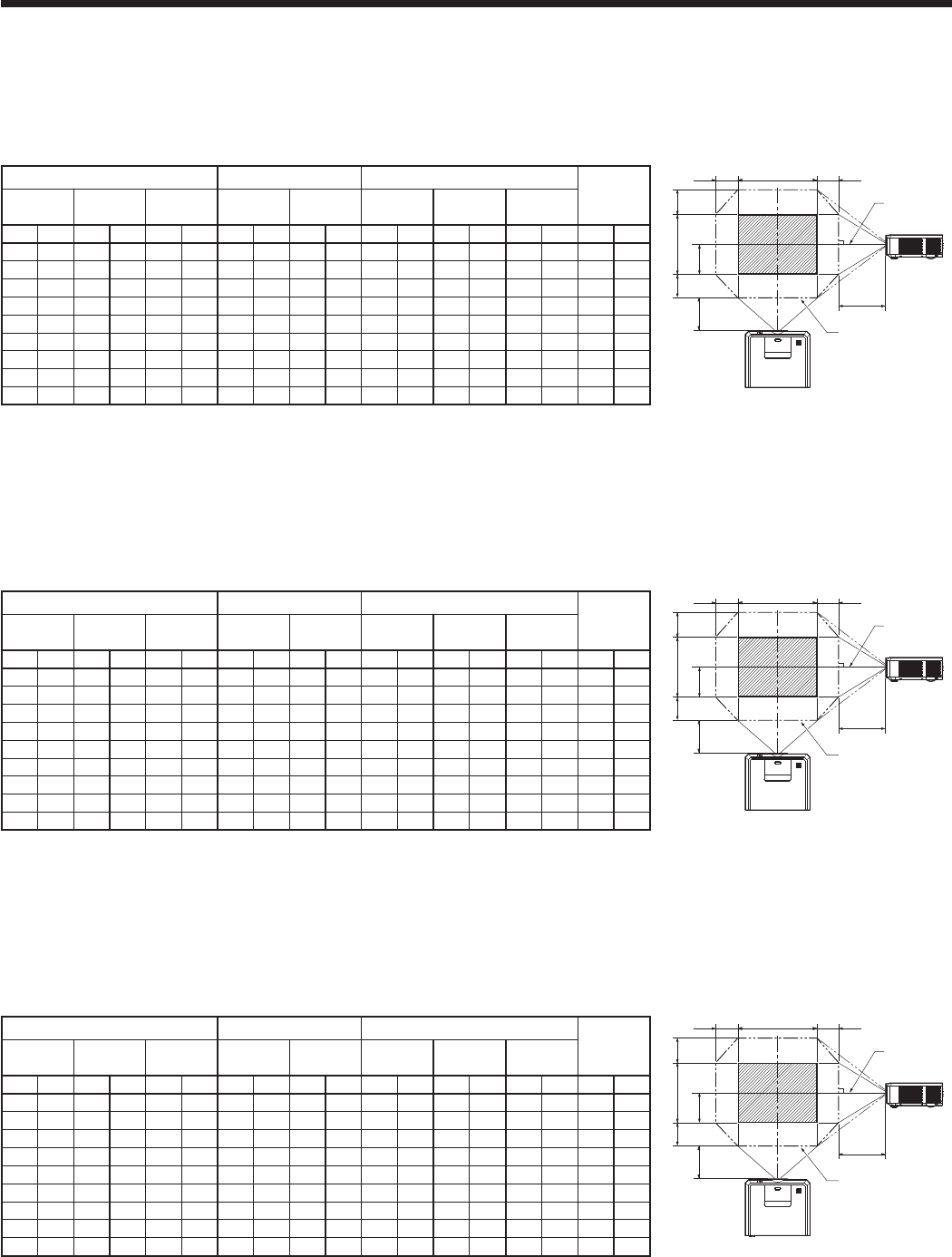

Screen size and projection distance

Refer to the following table to determine the screen size and projection distance.

LH0

W1W1

H1 H2

LH0

W1W1

H2 H1

Center of the lens Center of the lens

Maximum projection area Maximum projection area

Front projection Front projection, ceiling mounting

Correlation table of the lens shift

Lens shift up-down       

Lens shift right-left       

* The values of the up-down and right-left can not set to maximum simultaneously.

Screen size Projection distance (L) Lens shift height Lens shift

width

(W1)

Diagonal size Width

(W)

Height

(H)

Shortest

(Wide)

Longest

(Tele)

Standard (H0) H1 H2

inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm inch cm

40 102 32 81 24 61 46 1.2 85 2.1 -12 -30 14 37 14 37 10 24

60 152 48 122 36 91 70 1.8 128 3.2 -18 -46 22 55 22 55 14 37

80 203 64 163 48 122 94 2.4 171 4.3 -24 -61 29 73 29 73 19 49

100 254 80 203 60 152 118 3.0 214 5.4 -30 -76 36 91 36 91 24 61

120 305 96 244 72 183 141 3.6 257 6.5 -36 -91 43 110 43 110 29 73

150 381 120 305 90 229 177 4.5 322 8.2 -45 -114 54 137 54 137 36 91

200 508 160 406 120 305 237 6.0 430 10.9 -60 -152 72 183 72 183 48 122

250 635 200 508 150 381 297 7.5 538 13.7 -75 -191 90 229 90 229 60 152

300 762 240 610 180 457 357 9.1 646 16.4 -90 -229 108 274 108 274 72 183

t 5IFBCPWFmHVSFTBSFBQQSPYJNBUFBOENBZCFTMJHIUMZEJGGFSFOUGSPNUIFBDUVBMNFBTVSFNFOUT

t 5IFMFOTTIJGUIFJHIUBOEXJEUITIPXEJTUBODFTGSPNUIFGBDUPSZEFGBVMUQPTJUJPO

t 'PSUIFQSPKFDUJPOEJTUBODFPGUIFPQUJPOMFOTFTTFFUIFUBCMFTPOQBHFTUP

t %FQFOEJOHPOUIFJOTUBMMBUJPODPOEJUJPOTXBSNBJSUIBUJTFNJUUFEGSPNUIFFYIBVTUWFOUTNBZnPXJOUPUIFJOUBLF

vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.

EN-12

Setting up your projector (continued)

Setup adjustment

How to turn on the projector

When you have to turn on the projector for setup

adjustment, see the following pages:

t 1MVHHJOHUIFQPXFSDPSEQBHF

t 5VSOJOHPOUIFQPXFSQBHF

t 5VSOJOHPGGUIFQPXFSQBHF

Adjusting the position of the

projected image

Adjust the focus.

If the projected image is out of the screen after the

adjustment, adjust the projector position or the lens

position using the lens shift function.

1. Press the ZOOM/FOCUS button to display the

ZOOM/FOCUS menu.

ZOOM

FOCUS

FAST

SELECT:ENTER

2. Adjust with the  or  button to get a ﬁne picture.

t 8IFOUIF&/5&3CVUUPOJTQSFTTFEXIJMF

the ZOOM/FOCUS menu is displayed, the

adjustment mode is switched between FAST

and STEP. When FAST is selected, the speed of

focus controlled by the  or  button becomes

fast, and it becomes slow when STEP is

selected.

3. Press the LENS SHIFT button.

t 5IF-&/44)*'5NFOVBQQFBSTBUUIFDFOUFSPG

the screen.

LENS

SHIFT

FAST

SELECT:ENTER

4. Press the , ,  or  button to move the image

position.

t 8IFOUIF button is pressed, the image

moves down.

t 8IFOUIF button is pressed, the image

moves up.

t 8IFOUIF button is pressed, the image moves

to the right.

t 8IFOUIF button is pressed, the image moves

to the left.

t 8IFOUIF&/5&3CVUUPOJTQSFTTFEXIJMFUIF-&/4

SHIFT menu is displayed, the shift mode can be

switched between FAST and STEP. When FAST

is selected, the lens shifts in a large amount with

the , ,  or  button, and it shifts in a small

amount when STEP is selected.

t 8IFOUIF;00.'0$64NFOVPSUIF-&/44)*'5

menu is displayed while no video signal is input to

the projector, a crosshatch appears on the entire

screen.

t #FDBSFGVMOPUUPCFDBVHIUJOUIFPQFOJOHJOUIF

lens while the lens is moving.

t 8IJMFUIFMFOTTIJGUJTXPSLJOHUIFTDSFFONBZ

ﬂicker.

t 8IFOUIF5&451"55&3/CVUUPOPOUIFSFNPUF

control is pressed, the test pattern is displayed.

Each time you press the TEST PATTERN button,

the display switches in the order of “cross hatch

(green)”



“cross hatch (red)”



“cross hatch

(blue)”



“vertical color bars”



“normal screen”



… When you press the ZOOM/FOCUS button

or LENS SHIFT button at this time, you can adjust

the zoom, focus, or lens shift with the test pattern

displayed.

t 8IFOZPVBEKVTUUIFJNBHFQPTJUJPOCFZPOEUIF

movable range of the lens shift, the triangle mark in

the dialog box blinks. You cannot adjust the image

position any further in the direction of the blinking

triangle mark.

Changing the AUTO POWER OFF

setting

The AUTO POWER OFF function of this projector is

enabled by default.

Change the AUTO POWER OFF setting as necessary.

(See page 33.)

To change the AUTO POWER OFF setting:

(See page 31 for menu setting.)

1. Display the INSTALLATION menu.

2. Select AUTO POWER OFF by pressing the  or 

button.

AUTO POWER OFF 5min

3. Select your desired item by pressing the  or 

button.

EN-13

Setting HIGH ALTITUDE MODE

t 4FU)*()"-5*56%&.0%&JOUIF'&"563&NFOV

according to the altitude at which you use the

projector. The default setting is STANDARD.

t 4FMFDU45"/%"3%XIFOVTJOHUIFQSPKFDUPSBUBO

altitude from 0 to 1500 meters.

t 4FMFDU)*()"-5*56%&XIFOVTJOHUIFQSPKFDUPSBU

an altitude from 1500 to 2700 meters.

Important:

t *GZPVTFMFDU45"/%"3%XIFOVTJOHUIFQSPKFDUPS

at an altitude higher than 1500 meters, the

projector may break down or fail.

t 8IFOZPVVTFUIFQSPKFDUPSJOUIF)*()"-5*56%&

mode, only ﬂoor installation and ceiling installation

are allowed.

t 8IFOZPVTFMFDU)*()"-5*56%&JO)*()

ALTITUDE MODE, LAMP MODE setting

automatically changes to LOW.

(See page 31 for menu setting.)

1. Display the FEATURE menu.

2. Select HIGH ALTITUDE MODE by pressing the 

or  button.

HIGH ALTITUDE MODE STANDARD

3. Press the ENTER button.

HIGH ALTITUDE MODE

HIGH ALTITUDE MODE STANDARD

4. Select STANDARD or HIGH ALTITUDE by

pressing the  or  button.

5. Press the ENTER button.

Setting IMAGE REVERSE

Set IMAGE REVERSE in the INSTALLATION menu

according to the orientation of the projector. The

default setting is OFF.

t 4FMFDU0''GPSUIFDPNCJOBUJPOPGnPPSJOTUBMMBUJPO

and front projection.

t 4FMFDU.*3303*/7&35GPSUIFDPNCJOBUJPOPG

ceiling installation and front projection.

t 4FMFDU.*3303GPSUIFDPNCJOBUJPOPGnPPS

installation and rear projection.

t 4FMFDU*/7&35GPSUIFDPNCJOBUJPOPGDFJMJOH

installation and rear projection.

(See page 31 for menu setting.)

1. Display the INSTALLATION menu.

2. Select IMAGE REVERSE by pressing the  or 

button.

OFF

IMAGE REVERSE

3. Select OFF, MIRROR, INVERT or MIRROR INVERT

by pressing the  or  button.

Correcting skewed or distorted


For the best projection, project images on a ﬂat screen

installed at 90 degrees to the ﬂoor. If necessary, tilt the

projector using the two adjustment feet on the bottom

of the projector.

Adjustment feet

Screen

1. Tilt up the projector to the appropriate angle.

2. Rotate the adjustment feet for ﬁne adjustment.

Important:

t %POUUSBOTQPSUUIFQSPKFDUPSXJUIJUTBEKVTUNFOU

feet extended. Otherwise the adjustment feet may

be damaged.

When ﬁne streaks are seen on

projected images

This is due to interference with the screen surface and

is not a malfunction. Replace the screen or displace

the focus a little. (See page 12 for focus adjustment.)

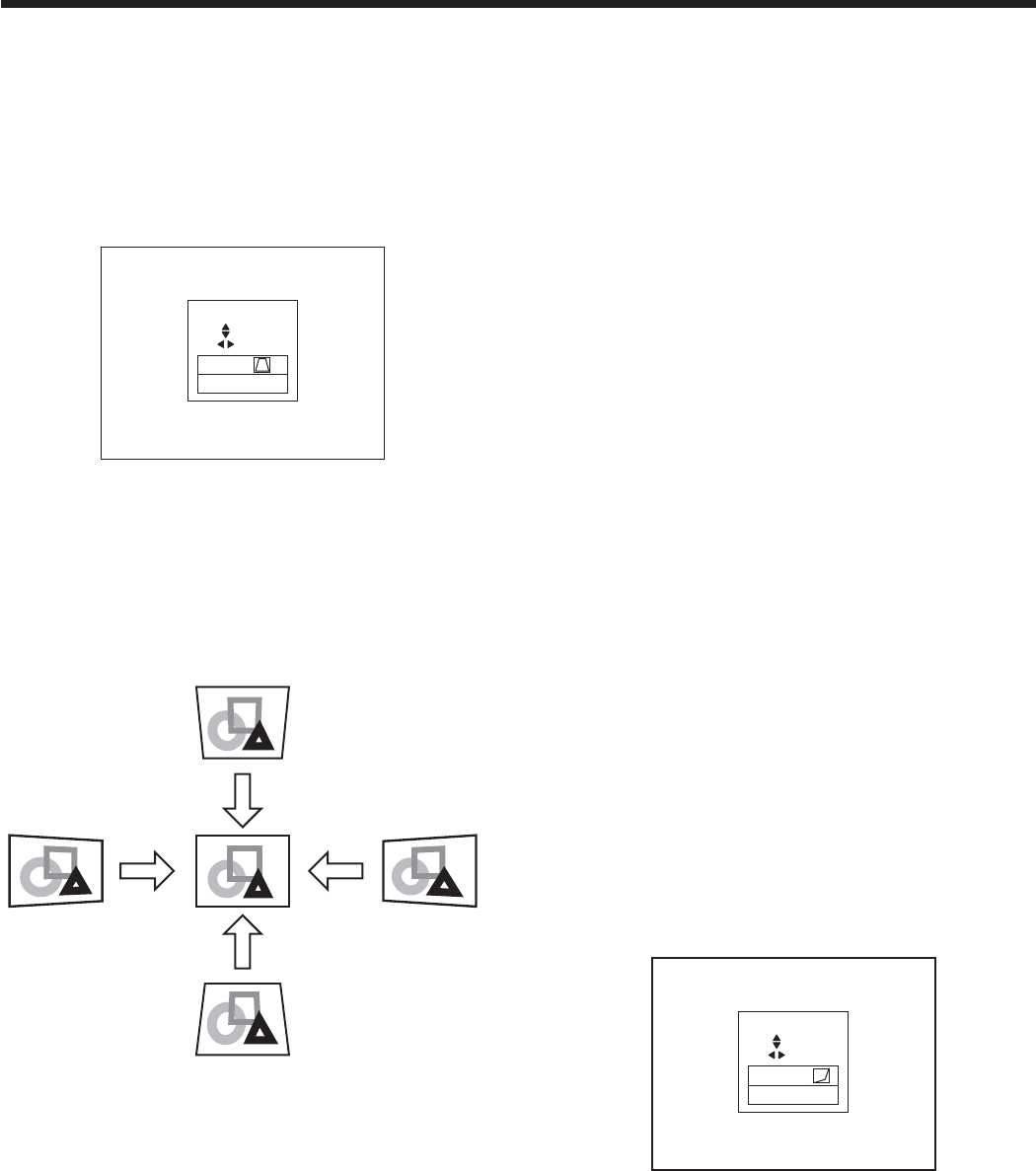

When the projected image is

distorted:

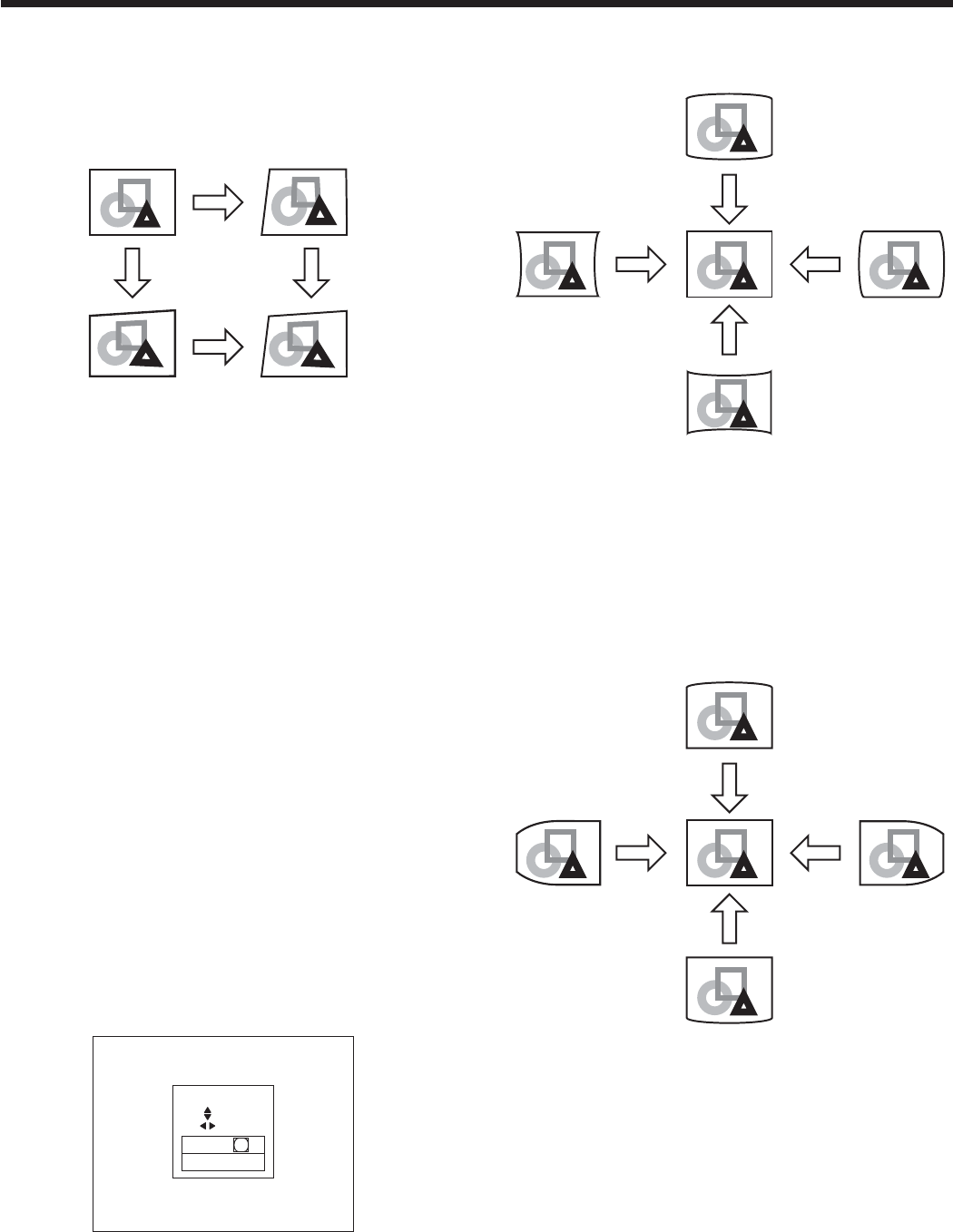

When the projected image is distorted, carry out any

of the KEYSTONE, CORNERSTONE, and CURVED-

mode adjustments to correct the distortion.

When the image distorts in a trapezoid shape, use the

KEYSTONE-mode adjustment. For ﬁne adjustment

of the image shape, use the CORNERSTONE-mode

adjustment. To adjust the image projected on a curved

surface, use the CURVED-mode adjustment.

When you press the ENTER/GEOMETRY button on

the projector or the GEOMETRY button on the remote

control, the menu switches in the order of KEYSTONE,

CORNERSTONE, CURVED, regular display, KEYSTONE...

Setting up your projector (continued)

EN-14

Setting up your projector (continued)

Adjustment using the KEYSTONE mode:

When the screen and the projector are not placed

perpendicularly to each other, projected images

become trapezoidal. If you cannot place them

perpendicularly to each other, press the ENTER/

GEOMETRY button on the projector or the

GEOMETRY button on the remote control to display

the KEYSTONE mode and then press the , ,  or

 button to correct the distortion.

KEYSTONE

SELECT : BLANK

: 0

Every time you press the BLANK button, the

adjustment menu changes as follows:

KEYSTONE



RESET



KEYSTONE ...

KEYSTONE menu

You can correct the distortion vertically or horizontally

focusing on the screen center.

In the following cases (for front projection):

Press the 

button.

Press the 

button.

Press the 

button.

Press the 

button.

When you press the  or  button in the RESET

mode, the distortion correction is reset.

Important:

t 5IFCFTUBEKVTUNFOUSFTVMUDBOCFPCUBJOFEXIFO

the lens is positioned at the center of the lateral

direction at the top in the longitudinal direction

(when the projector is installed on the ﬂoor, or

at the bottom when it is installed on the ceiling).

Before performing the keystone adjustment, reset

the lens position to the default position by using

LENS SHIFT RESET (see page 33) and then move it

to the top using LENS SHIFT (see page 12).

t 8IFOUIF,&:450/&NPEFBEKVTUNFOUJTDBSSJFE

out, the adjustment value is indicated. Note that

this value doesn’t mean a projection angle.

t 8IFOUIF,&:450/&NPEFBEKVTUNFOUUBLFT

effect, the resolution decreases. In addition, stripes

may appear or straight lines may bend in images

with complicated patterns. They are not due to

product malfunctions.

t 8IFOUIF,&:450/&NPEFBEKVTUNFOUJT

performed, the displayed image may be distorted.

t %FQFOEJOHPOUIFJOTUBMMBUJPODPOEJUJPOTPGUIF

projector and the screen, a perfect rectangular

image and the proper aspect ratio may not be

obtained. Slight distortion can be corrected by the

CORNERSTONE-mode adjustment.

t /PJTFNBZBQQFBSPOUIFTDSFFOEVSJOHUIF

KEYSTONE-mode adjustment because of the type

of the video signal being projected and the setting

values of the KEYSTONE-mode adjustment. In

such cases, set the KEYSTONE-mode adjustment

values in the range where the image is displayed

without noise.

t 8IFOZPVDBSSZPVUUIF,&:450/&NPEF

adjustment and the CURVED-mode adjustment

in combination, the adjustment range becomes

narrower than that in the case where you carry out

these adjustments individually. When setting the

KEYSTONE-mode adjustment value to 11 or larger,

you cannot use the CURVED-mode adjustment.

t 8IFODBSSZJOHPVUUIF,&:450/&NPEF

adjustment while the option lens is in use, you

may not be able to obtain a perfectly rectangular

image or the correct aspect ratio. Slight distortion

can be corrected by the CORNERSTONE-mode

adjustment.

Adjustment using the CORNERSTONE mode:

Use this adjustment for ﬁne adjustment of the image

shape. For adjustment, press the ENTER/GEOMETRY

button on the projector or the GEOMETRY button on

the remote control to display the CORNERSTONE

mode and then press the , ,  or  button.

CORNERSTONE

LOWER RIGHT

SELECT : BLANK

: 0

Every time you press the BLANK button, the

adjustment menu changes as follows:

LOWER RIGHT



LOWER LEFT



UPPER RIGHT



UPPER LEFT



RESET



LOWER RIGHT ...

EN-15

Setting up your projector (continued)

LOWER RIGHT, LOWER LEFT, UPPER RIGHT, or

UPPER LEFT menu

You can adjust the horizontal or vertical position of the

selected corner.

Example: Adjustment of the upper left corner position

(UPPER LEFT)

Press the 

button.

Press the 

button.

Press the 

button.

Press the 

button.

When you press the  or  button in the RESET

mode, the distortion correction is reset.

Important:

t 8IFOUIF$03/&3450/&NPEFBEKVTUNFOUUBLFT

effect, the resolution decreases. In addition, stripes

may appear or straight lines may bend in images

with complicated patterns. They are not due to

product malfunctions.

t 8IFOUIF$03/&3450/&NPEFBEKVTUNFOUJT

performed, the displayed image may be distorted.

t /PJTFNBZBQQFBSPOUIFTDSFFOEVSJOHUIF

CORNERSTONE-mode adjustment because

of the type of the video signal being projected

and the setting values of the CORNERSTONE-

mode adjustment. In such cases, set the

CORNERSTONE-mode adjustment values in the

range where the image is displayed without noise.

t -BSHFEJTUPSUJPOPGUIFJNBHFTIBQFPSBTQFDUSBUJP

may not be corrected by the CORNERSTONE

-mode adjustment.

Adjustment using the CURVED mode

To adjust images projected on a curved surface, press

the ENTER/GEOMETRY button on the projector or the

GEOMETRY button on the remote control to display

the CURVED mode, and then press the , ,  or 

button to correct the distortion.

CURVED

ARC

SELECT : BLANK

: 0

Every time you press the BLANK button, the

adjustment menu changes as follows:

ARC



HORIZ. ORIGIN



VERT. ORIGIN



RESET



ARC...

ARC menu

You can correct the arc vertically or horizontally

focusing on the screen center.

Press the 

button.

Press the 

button. Press the 

button.

Press the 

button.

HORIZ. ORIGIN or VERT. ORIGIN menu

When the CURVED-mode adjustment has excessive

effect on either top or bottom or either right or left side

of the screen, adjust the horizontal or vertical position

of the origin to the horizontal or vertical arc. Without

the arc adjustment, the image shape won’t change.

Adjusting the origin to the horizontal arc

t 8IFOUIFIPSJ[POUBMBSDBEKVTUNFOUJTOFHBUJWF

(or the ARC is adjusted in the  direction)

Press the 

button.

Press the 

button. Press the 

button.

Press the 

button.

EN-16

Setting up your projector (continued)

t 8IFOUIFIPSJ[POUBMBSDBEKVTUNFOUJTQPTJUJWF

(or the ARC is adjusted in the  direction)

Press the 

button.

Press the 

button.

Press the 

button.

Press the 

button.

Adjusting the origin to the vertical arc

t 8IFOUIFWFSUJDBMBSDBEKVTUNFOUJTOFHBUJWFPS

the ARC is adjusted in the  direction)

Press the 

button.

Press the 

button. Press the 

button.

Press the 

button.

t 8IFOUIFWFSUJDBMBSDBEKVTUNFOUJTQPTJUJWFPS

the ARC is adjusted in the  direction)

Press the 

button.

Press the 

button. Press the 

button.

Press the 

button.

When you press the  or  button in the RESET

mode, the distortion correction is reset.

Important:

t 8IFOUIF$637&%NPEFBEKVTUNFOUUBLFTFGGFDU

the resolution decreases. In addition, stripes may

appear or straight lines may bend in images with

complicated patterns. They are not due to product

malfunctions.

t 8IFOUIF$637&%NPEFBEKVTUNFOUJTQFSGPSNFE

the displayed image may be distorted.

t %FQFOEJOHPOUIFJOTUBMMBUJPODPOEJUJPOTPGUIF

projector and the screen or the correction amount

of the CURVED-mode adjustment, you may not

obtain a complete rectangular screen or the correct

aspect ratio. Slight distortion can be corrected by

the CORNERSTONE-mode adjustment.

t /PJTFNBZBQQFBSPOUIFTDSFFOEVSJOHUIF

CURVED-mode adjustment because of the type

of the video signal being projected and the setting

values of the CURVED-mode adjustment. In such

cases, set the CURVED-mode adjustment values

in the range where the image is displayed without

noise.

t 8IFOZPVDBSSZPVUUIF,&:450/&NPEF

adjustment and the CURVED-mode adjustment

in combination, the adjustment range becomes

narrower than that in the case where you carry out

these adjustments individually. When setting the

arc setting value of the CURVED-mode adjustment

to 16 or larger, you cannot use the KEYSTONE-

mode adjustment.

t 8IFODBSSZJOHPVUUIF$637&%NPEFBEKVTUNFOU

while the option lens is in use, you may not be

able to obtain a perfectly rectangular image or

the correct aspect ratio. Slight distortion can

be corrected by the CORNERSTONE-mode

adjustment.

EN-17

Setting up your projector (continued)

Front projection, ceiling mounting

For ceiling mounting, you need the ceiling mount

kit designed for this projector. Ask a specialist for

installation. For details, consult your dealer.

t 5IFXBSSBOUZPOUIJTQSPKFDUPSEPFTOPUDPWFSBOZ

damage caused by use of any non-recommended

ceiling mount kit or installation of the ceiling mount

kit in an improper location.

t 8IFOVTJOHUIFQSPKFDUPSNPVOUFEPOUIFDFJMJOH

set IMAGE REVERSE in the INSTALLATION menu

to MIRROR INVERT. See page 33.

t 8IFOUIFQSPKFDUPSJTNPVOUFEPOUIFDFJMJOH

images may appear darker than those projected in

the case of tabletop mounting. This isn’t a product

malfunction.

t "TLZPVSJOTUBMMBUJPOTQFDJBMJTUUPQSPWJEFBCSFBLFS

When you do not use the projector, be sure to shut

down the main power by the breaker.

t %POPUJOTUBMMUIFQSPKFDUPSXIFSFUIFFYIBVTUWFOUT

are exposed to air emitted by an air conditioning.

Such installation may cause a breakdown.

t %POPUJOTUBMMUIFQSPKFDUPSOFBSBmSFBMBSN

because it emits hot air from its exhaust vents.

Caution:

t *OTUBMMBUJPONVTUCFEPOFCZBRVBMJmFE

professional.

When the projector is installed on the ceiling using

the ceiling mount kit, it is recommended to hold

the mount kit and the projector using metal bars

or wires in addition to the mount kit ﬁxing screws

to prevent the projector from falling due to an

earthquake or other cause. For that purpose, use

metal bars, wires, or screws that bear a load of at

least 140 kgf. When using metal wires, secure one

end to the adjustment foot of the projector and the

other end to the mount kit. In this case, make sure

that no electrical current is ﬂowing in the mount kit

due to current leakage or other cause.

Rear projection

Ask a specialist for installation. For details, consult

your dealer.

t 'PSSFBSQSPKFDUJPOTFU*."(&3&7&34&JOUIF

INSTALLATION menu to MIRROR. See page 33.

Caution:

t 1MBDJOHUIFQSPKFDUPSEJSFDUMZPOBDBSQFUJNQBJST

ventilation by the fans, causing damage or failure.

Put a hard board under the projector to facilitate

ventilation.

t 1MBDFUIFQSPKFDUPSBUMFBTUDNPSJODIFT

away from the wall to prevent the air inlet grille and

the air outlet grilles that emit hot air from being

blocked.

t %POPUVTFUIFQSPKFDUPSJOUIFGPMMPXJOHMPDBUJPOT

and manners, which may cause ﬁre or electric

shock.

t *OBEVTUZPSIVNJEQMBDF

t *OBTJEFXBZTQPTJUJPOPSXJUIUIFMFOTGBDJOH

down.

t /FBSBIFBUFS

t *OBOPJMZTNPLZPSEBNQQMBDFTVDIBTBLJUDIFO

t *OEJSFDUTVOMJHIU

t 8IFSFUIFUFNQFSBUVSFSJTFTIJHITVDIBTJOB

closed car.

t 8IFSFUIFUFNQFSBUVSFJTMPXFSUIBO'PS

$PSIJHIFSUIBO'PS$

t 'PSVTFJOUIF)*()"-5*56%&NPEF

r 8IFSFUIFUFNQFSBUVSFJTMPXFSUIBO'

PS$PSIJHIFSUIBO'PS$

· For use in other than ﬂoor installation and

ceiling installation.

t ,FFQGPMJBHFQMBOUTBOEQFUTBXBZGSPNUIF

projector. The temperature around the exhaust

vents and that of the cabinet on the top of the

exhaust vents become high. Take special care for

small children.

Important:

t 8FEPOUSFDPNNFOEVTJOHUIFQSPKFDUPSBUBO

altitude of 2700 meters or higher (When using

the product at an altitude of 1500 to 2700 meters

above the sea level, set the HIGH ALTITUDE MODE

to HIGH ALTITUDE.). Use at an altitude of 2700

meters or higher may affect the projector’s life.

EN-18

AUDIO OUT

Viewing computer images

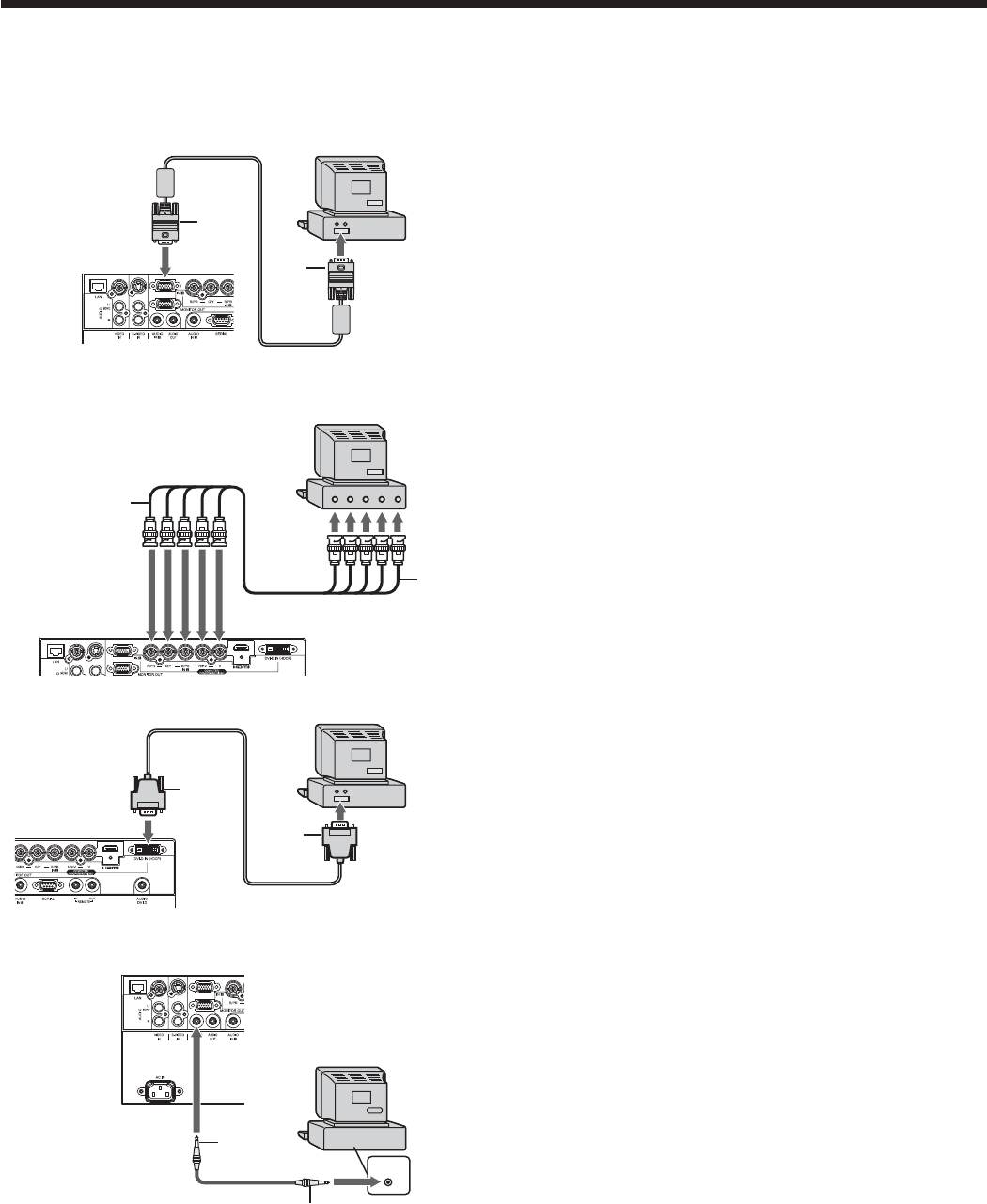

A. Connecting the projector to a computer

Preparation:

t .BLFTVSFUIBUUIFQPXFSPGUIFQSPKFDUPSBOEUIBUPGUIFDPNQVUFSBSFUVSOFEPGG

t 8IFODPOOFDUJOHUIFQSPKFDUPSUPBEFTLUPQDPNQVUFSEJTDPOOFDUUIFDPNQVUFSDBCMFUIBUJTDPOOFDUFEUPUIF

monitor.

For analog connection:

(For using the COMPUTER/COMPONENT/VIDEO IN 1

terminal.)

1. Connect one end of the supplied computer cable to the

COMPUTER/COMPONENT/VIDEO IN 1 terminal of the

projector.

2. Connect the other end of the computer cable to the

monitor port of the computer.

t 8IFOWJFXJOHJNBHFTTVQQMJFEGSPNBOBOBMPHDPOOFDUFE

computer, press the COMPUTER 1 button on the remote

control.

For analog connection:

(For using the COMPUTER/COMPONENT/VIDEO IN 2

terminal.)

1. Connect one end of a commercially available BNC cable to

the COMPUTER/COMPONENT/VIDEO IN 2 terminal of the

projector.

2. Connect the other end of the BNC cable to the 5 BNC

terminals of the monitor port of the computer.

t 8IFOWJFXJOHJNBHFTTVQQMJFEGSPNBOBOBMPHDPOOFDUFE

computer, press the COMPUTER 2 button on the remote

control.

For digital connection:

1. Connect one end of a commercially available DVI cable to

the COMPUTER/COMPONENT/VIDEO DVI-D IN (HDCP)

terminal of the projector.

2. Connect the other end of the DVI cable to the DVI terminal

of the computer.

t 8IFOWJFXJOHJNBHFTTVQQMJFEGSPNBEJHJUBMDPOOFDUFE

computer, press the DVI-D (HDCP) button on the remote

control.

t Turn on the power of the projector before starting the

computer.

For audio connection:

1. Connect one end of a commercially available PC audio

cable to the AUDIO IN 1/2 terminal of the projector.

2. Connect the other end of the PC audio cable to the audio

output terminal of the computer.

t 5IJTQSPKFDUPSVTFTTUFSFPQJOKBDLGPSJUTBVEJPJOQVU$IFDL

the type of the audio output terminal of the connected

computer and prepare a proper cable for connection. Some

computers don’t have the audio output terminal.

t 4QFBLFSPVUQVUJTNPOP

t 0OMZXIFO45"%/#:.0%&JTTFUUP45"/%"3%BVEJP

is output from the AUDIO OUT terminal during power

standby.

COMPUTER/

COMPONENT/

VIDEO IN 1

COMPUTER/

COMPONENT/

VIDEO DVI-D IN

(HDCP)

To monitor port

Computer cable

DVI cable (option)

To DVI

R/P

G/Y B/P

H/HV V

V H/HV B/P

G/Y R/P

COMPUTER/

COMPONENT/

VIDEO IN 2

t "EEJUJPOBMEFWJDFTTVDIBTBDPOWFSTJPODPOOFDUPSBOEBOBOBMPH3(#PVUQVUBEBQUFSBSFSFRVJSFEEFQFOEJOH

on the type of the computer to be connected.

t 6TFPGBMPOHDBCMFNBZEFDSFBTFUIFRVBMJUZPGQSPKFDUFEJNBHFT

t *NBHFTNBZOPUCFQSPKFDUFEDPSSFDUMZEFQFOEJOHPOUIFUZQFPGUIFDPOOFDUFEDPNQVUFS

t 8IFO%7*%TJHOBMJTJOQVUTPNFTJHOBMTFUUJOHNFOVTBSFVOBWBJMBCMF

t "MTPSFBEUIFJOTUSVDUJPONBOVBMPGUIFFRVJQNFOUUPCFDPOOFDUFE

t $POUBDUZPVSEFBMFSGPSEFUBJMTPGDPOOFDUJPO

To monitor

port (5 BNC)

Computer

To audio output

terminal

AUDIO IN 1/2

Computer

BNC cable (option)

PC audio cable

(option)

EN-19

Viewing computer images (continued)

1. Plug the attached power cord into the power cord inlet of

this projector.

2. Plug the other end of the power cord into a power outlet.

t 0OFPGQPXFSDPSETGPSUIF64&VSPQF6,"VTUSBMJBBOE4PVUI,PSFBJTQSPWJEFEBQQSPQSJBUFMZ

t 5IJTQSPKFDUPSVTFTUIFQPXFSQMVHPGQJOHSPVOEJOHUZQF%POPUUBLFBXBZUIFHSPVOEJOHQJOGSPNUIFQPXFS

plug. If the power plug doesn’t ﬁt your wall outlet, ask an electrician to change the wall outlet.

t *ODBTFUIBUUIFQPXFSDPSEGPSUIF64JTQSPWJEFEXJUIUIJTQSPKFDUPSOFWFSDPOOFDUUIJTDPSEUPBOZPVUMFU

or power supply using other voltages or frequencies than rated. If you want to use a power supply using other

voltage than rated, prepare an appropriate power cord separately.

t Use 100-240 V AC 50/60 Hz to prevent ﬁre or electric shock.

t Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to

the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause

ﬁre or electric shock.

t Do not modify or alter the power cord. If the power cord is modiﬁed or altered, it may cause ﬁre or electric shock.

Power cord (example)

About DDC

The COMPUTER/COMPONENT/VIDEO IN 1 terminal of this projector complies with the DDC1/2B standard and the

COMPUTER/COMPONENT/VIDEO DVI-D IN (HDCP) terminal complies with the DDC2B standard. When a computer

supporting this standard is connected to this terminal, the computer will automatically load the information from this

projector and prepare for output of appropriate images.

t "GUFSDPOOFDUJOHBDPNQVUFSTVQQPSUJOHUIJTTUBOEBSEUPUIJTUFSNJOBMQMVHUIFQPXFSDPSEPGUIFQSPKFDUPSJOUIF

wall outlet ﬁrst, and then boot up the computer.

Earthing

terminal

B. Plugging the power cord

t *OPSEFSUPFOTVSFUIFTBGFUZJODBTFPGUSPVCMFXJUIUIFQSPKFDUPSVTFBOFMFDUSJDBMPVUMFUIBWJOHBOFBSUIMFBLBHF

breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it.

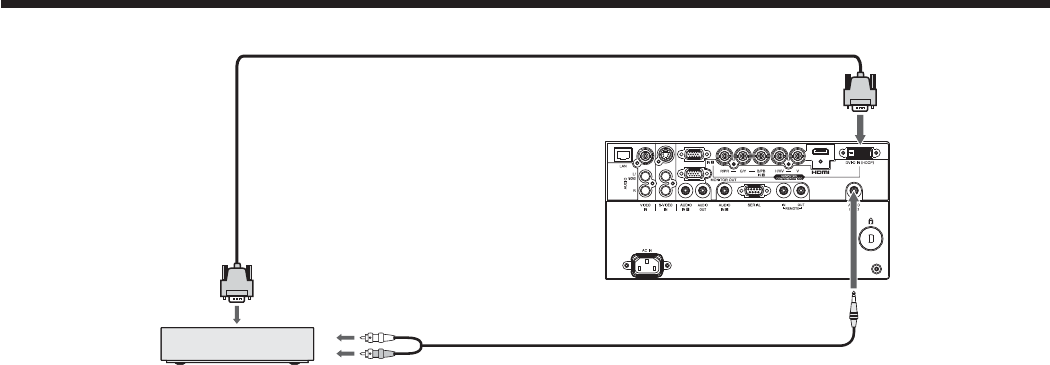

Monitor For monitor connection:

1. Connect the computer cable from the monitor to the

MONITOR OUT terminal of the projector.

t 0OMZXIFO45"/%#:.0%&JTTFUUP45"/%"3%WJEFP

signal is output from the MONITOR OUT terminal during

power standby.

For audio output connection:

1. Connect one end of a commercially available audio cable

to the AUDIO OUT terminal of the projector.

2. Connect the other end (white and red) of the audio cable to

the audio input terminals (L, R) of the audio equipment.

t 8IFOUIFBVEJPDBCMFJTDPOOFDUFEUPUIF"6%*0065

terminal, the speaker output is muted.

Audio cable (option)

To audio input

terminals

MONITOR OUT

Computer cable

1AUDIO OUT

EN-20

C. Installing the terminal cover

This projector includes a terminal cover. If necessary, install the terminal cover to the projector.

1. Fit two hooks of the terminal cover into the projector.

(a)

Viewing computer images (continued)

Important:

t Don’t carry the projector by the terminal cover.

t 8IFOUIFUFSNJOBMDPWFSJTBUUBDIFESFNPUFDPOUSPMNBZ

not work properly from behind the projector.

2. Tighten the attachment screws (a) ﬁrmly.

Caution:

t Plug in the power cord ﬁrmly. When unplugging, hold and pull the power plug, not the power cord.

t Do not plug in or out the power cord with your hand wet. It may cause electric shock.

t %POPUUVSOPOUIFQPXFSCFGPSFBUUBDIJOHUIFMFOT5IFDBCJOFUNBZCFFYQPTFEUPUIFMJHIUGSPNUIFMBNQ

directly and heated to a high temperature, resulting in deformation.

t 8IFOZPVNPWFUIFQSPKFDUPSUVSOPGGUIFQPXFSVOQMVHUIFQPXFSDPSEGSPNUIFXBMMPVUMFUBOEUIFOSFNPWFUIF

connected cords. Otherwise, the power cord may be damaged, resulting in ﬁre or electric shock.

t *GEVTUPSNFUBMMJDTVCTUBODFJTPOPSBSPVOEUIFQJOTPGUIFQPXFSQMVHVOQMVHUIFQPXFSDPSEBOEDMFBOJUVTJOH

a dry cloth. If you continue to use the projector without cleaning, it may result in ﬁre or electric shock. Clean the

power plug periodically at least once a year.

t #FTVSFUPVOQMVHUIFQPXFSDPSEGSPNUIFXBMMPVUMFUJGUIFQSPKFDUPSXJMMOPUCFVTFEGPSBMPOHQFSJPEPGUJNF

Otherwise, it may cause ﬁre.

EN-21

Viewing computer images (continued)

D. Projecting images

Preparation:

t 3FNPWFUIFMFOTDBQ

COMPUTER 1, 2 buttons

POWER indicator

STATUS indicator

DVI-D(HDCP)

button

ENTER button

, , ,  buttons

POWER button

(ON/STANDBY)

, , ,  buttons

COMPUTER/DVI-D button

ENTER button

ZOOM/FOCUS button

LENS SHIFT button

POWER button

(ON/STANDBY)

LENS SHIFT button

ZOOM/FOCUS button

1. Conﬁrm the POWER indicator lights up red.

t *GUIFQSPKFDUPSXBTUVSOFEPGGCFGPSFUIFMBNQXBTDPPMFEEPXOTVGmDJFOUMZMBTUUJNFUIFGBONBZTUBSUSPUBUJOH

and the POWER button may not work after the power cord is plugged. (The STATUS indicator blinks green.)

After the fan stops rotating, press the POWER button to turn back on the POWER indicator.

2. Turn on the power of the connected computer.

3. Press the POWER button.

t *UNBZUBLFBCPVUNJOVUFGPSUIFMBNQUPMJHIUVQ

t 5IFMBNQGBJMTUPMJHIUVQPOSBSFPDDBTJPOT*OTVDIBDBTFXBJUGPSBGFXNJOVUFTBOEUIFOUSZBHBJO

t %POPUDPWFSUIFMFOTXJUIUIFMFOTDBQXIJMFUIFMBNQJTPO

t "GUFSUIF108&3CVUUPOJTQSFTTFEUIFJNBHFNBZnJDLFSCFGPSFUIFMBNQCFDPNFTTUBCMF5IJTJTOPUB

product malfunction.

t 3FHBSEMFTTPGUIFTFUUJOHPG-".1.0%&UIF-08MBNQNPEFJTBDUJWBUFECZEFGBVMUXIFOFWFSUIFQSPKFDUPS

is turned on. When LAMP MODE has been set to STANDARD, the lamp mode changes from LOW to

STANDARD about 2 minutes after turn-on.

t 5IFQSPKFDUPSTUBSUTXBSNJOHVQXIFOUIF108&3CVUUPOJTQSFTTFE%VSJOHUIFXBSNVQQSPDFTTJNBHFT

may appear dark and no commands are accepted.

t #ZCMJOLJOHSFEUIF45"564JOEJDBUPSJOEJDBUFTUIBUUIFMBNQTIPVMECFSFQMBDFETPPO3FQMBDFUIFMBNQXIFO

the STATUS indicator blinks red. (See page 62.)

4. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.

5. Adjust with the  or  button to get a ﬁne picture.

t 8IFOUIF&/5&3CVUUPOJTQSFTTFEXIJMFUIF;00.'0$64NFOVJTEJTQMBZFEUIFBEKVTUNFOUNPEFJT

switched between FAST and STEP. When FAST is selected, the speed of focus controlled by the  or  button

becomes fast, and it becomes slow when STEP is selected.

6. Select an input source.

t 1SFTTUIF$0.165&3%7*%CVUUPOPOUIFQSPKFDUPSPSUIF$0.165&3$0.165&3PS%7*%)%$1

button on the remote control that is corresponding to the terminal in use.

t 5IFJOQVUTPVSDFJTTXJUDIFEGSPN$0.165&3UP$0.165&3UP%7*BUFWFSZQSFTTPGUIF$0.165&3

DVI-D button on the projector.

t 5IFQSPKFDUPSBVUPNBUJDBMMZTFMFDUTUIFBQQSPQSJBUFTJHOBMGPSNBU5IFTFMFDUFETJHOBMGPSNBUJTEJTQMBZFEPO

the screen.

t :PVDBOOPUDIBOHFUIFJOQVUTPVSDFXIJMFUIFNFOVJTCFJOHEJTQMBZFE

t 5IPVHIJUNBZUBLFTPNFUJNFCFGPSFBOJNBHFJTEJTQMBZFEPOUIFTDSFFOEFQFOEJOHPOUIFUZQFPGUIFJOQVU

signal, such symptom is not a malfunction.

t *NBHFTNBZOPUCFQSPKFDUFEJOUIFDPSSFDUQPTJUJPOEFQFOEJOHPOUIFUZQFPGUIFJOQVUTJHOBM*OTVDIBDBTF

press the AUTO POSITION button. (See page 23.)

t 8IFO$0.165&3PS$0.165&3JTDIPTFOBTUIFTPVSDFJNBHFTTVQQMJFEGSPNUIFDPNQVUFSNBZ

ﬂicker. Press the  or  button on the remote control to reduce ﬂicker, if it occurs. (Fine adjustment)

7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in

their speciﬁed sizes.

Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page 11.)

t

When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 13.)

EN-22

Viewing computer images (continued)

9. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.

10. Adjust with the  or  button to get an approximate size.

t 8IFOUIF&/5&3CVUUPOJTQSFTTFEXIJMFUIF;00.'0$64NFOVJTEJTQMBZFEUIFBEKVTUNFOUNPEFJT

switched between FAST and STEP. When FAST is selected, the speed of zoom controlled by the  or 

button becomes fast, and it becomes slow when STEP is selected.

11. Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen.

12.Press the  or  button to adjust the vertical position and  or  button to adjust the horizontal position of the

displayed image.

t 8IFOUIFJNBHFJTOPUEJTQMBZFEXJUIJOUIFTDSFFOBEKVTUUIFQSPKFDUJPOBOHMF*OBEEJUJPOQFSGPSNUIF

keystone adjustment, if necessary. (See page 14.)

Repeat steps 4, 5 and 9 to 12, if necessary.

Important:

t 'PDVT[PPNBOEMFOTTIJGUBEKVTUNFOUJTQPTTJCMFJOUIFOPSNBMQJDUVSFNPEFPOMZ

t 8IFOBJNBHFJTLFQUEJTQMBZFEGPSBMPOHUJNFCFGPSFEJTQMBZJOHJNBHFUIFBGUFSJNBHFTPGUIFCMBDLCBST

may appear on the 4:3 image screen. (See page 59.)

To stop projecting:

13. Press the POWER button.

t "DPOmSNBUJPONFTTBHFJTEJTQMBZFE

t 5PDBODFMUIFQSPDFEVSFMFBWFUIFQSPKFDUPSGPSBXIJMFPSQSFTTBOZCVUUPOFYDFQUUIF108&3CVUUPO

14. Press the POWER button again.

t 5IFMBNQHPFTPVUBOEUIFQSPKFDUPSHPFTJOUPBTUBOECZNPEF*OUIJTTUBOECZNPEFUIF45"564JOEJDBUPS

blinks green.

15. Wait about 2 and a half minutes for the STATUS indicator to be turned off.

t %VSJOHUIJTQFSJPEPGBOEBIBMGNJOVUFTJOUIFTUBOECZNPEFUIFJOUBLFGBOBOEFYIBVTUGBOSPUBUFUPDPPM

the lamp.

t 5IFBJSPVUMFUGBOTSPUBUFGBTUFSBTUIFUFNQFSBUVSFBSPVOEUIFQSPKFDUPSSJTFT

t 5IPVHIUIFGBOTNBLFMPVETPVOETEVSJOHDPPMJOHTVDITZNQUPNJTOPUBNBMGVODUJPO

16. Unplug the power cord from the outlet.

t 5IF108&3JOEJDBUPSXJMMHPPVU

t *GUIFQPXFSDPSETIPVMECFVOQMVHHFEBDDJEFOUBMMZXIJMFFJUIFSUIFBJSJOMFUGBOPSUIFBJSPVUMFUGBOTBSF

operating or the lamp is on, allow the projector to cool down for 10 minutes with the power off. To light the

lamp again, press the POWER button. If the lamp doesn’t light up immediately, press the POWER button a few

minutes later. If it should still fail to light up, replace the lamp.

t $PWFSUIFMFOTXJUIUIFMFOTDBQUPQSPUFDUJUGSPNEVTU

t *GOFDFTTBSZEJTDPOOFDUUIFDBCMFTGSPNUIFDPNQVUFSBGUFSVOQMVHHJOHUIFQPXFSDPSE

Direct Power OFF

You can turn off this projector just by unplugging the power cord without pressing the POWER button.

t %POUTIVUEPXOUIFQSPKFDUPSXIJMFUIF45"564JOEJDBUPSJTCMJOLJOHBGUFSUIFMBNQMJHIUTVQCFDBVTFUIFMBNQT

life may be shortened.

t %POUUVSOUIFQSPKFDUPSCBDLPOSJHIUBGUFSTIVUUJOHJUEPXOCFDBVTFUIFMBNQTMJGFNBZCFTIPSUFOFE8BJUBCPVU

10 minutes before turning the projector back on.)

t #FGPSFTIVUUJOHEPXOUIFQSPKFDUPSCFTVSFUPDMPTFUIFNFOVTDSFFO*GZPVTIVUEPXOUIFQSPKFDUPSXJUIPVU

closing the menu, the setting data of the menu may not be saved.

t *GZPVTIVUEPXOUIFQSPKFDUPSXIJMFDPOUSPMMJOHUIFQSPKFDUPSVTJOHUIFOFUXPSLGVODUJPOUIFBQQMJDBUJPOTPGUXBSF

such as ProjectorView may fail. The data such as the operating time and temperature display may not be

changed. In such a case, close the browser and then start up again.

EN-23

Blanking the screen temporarily (BLANK)

The video and audio signals are temporarily muted when the BLANK button is pressed. You will hear an operating

sound inside the projector. To cancel muting, press the BLANK button again.

t :PVDBOBMUFSUIFTQMBTITDSFFOPQUJPOBMMZ4FFQBHF

t 5IFBVEJPGSPNUIF"6%*0065UFSNJOBMJTBMTPNVUFECZQSFTTJOHUIF#-"/,CVUUPO

AUTO POSITION button

When the image supplied from the computer is displaced, carry out the following procedure.

1. Project a bright image containing as many texts and characters as possible.

2. When the screen saver has been enabled, disable it.

3. Press the AUTO POSITION button.

The projector automatically makes optimum positional settings for the input signal.

t *GUIFQSPKFDUFEJNBHFJTTUJMMEJTQMBDFEFWFOBGUFSQSFTTJOHUIF"650104*5*0/CVUUPOTFWFSBMUJNFTSFGFSUP

the procedure to adjust computer images. (See pages 42 and 43.)

t 8IFOZPVDBSSZPVUUIJTQSPDFEVSFXJUIBEBSLJNBHFUIFJNBHFNBZCFEJTQMBDFE

When connecting to a notebook computer:

When the projector is connected to a notebook computer, images may not be projected in some cases. In such

cases, set the computer so that it can output signals externally. The setting procedure varies depending on the type

of the computer. See the instruction manual of your computer.

Example of the setting procedure for external output

Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of

the computer you use.)

Setting of the resolution

If the resolution of the computer doesn’t match with that of the projector, projected images may be obscured. Ensure

that their resolutions are the same (see page 64). For the method to change the output resolution of the computer,

contact the manufacturer of the computer.

Viewing computer images (continued)

EN-24

Viewing video images

Connecting to a video player, etc.

1. Connect one end of a commercially available BNC cable to

the VIDEO IN terminal of the projector.

2. Connect the other end of the BNC cable to the video

output terminal of the video equipment.

3. Connect one end of a commercially available audio cable

to the audio input terminals (L/MONO, R) of the projector.

4. Connect the other end of the audio cable to the audio

output terminals (L, R) of the video equipment.

When the video equipment is equipped with the S-video

output terminal, make the connection as follows:

1. Connect one end of a commercially available S-video cable

to the S-VIDEO IN terminal of the projector.

2. Connect the other end of the S-video cable to the S-video

output terminal of the video equipment.

3. Connect one end of a commercially available audio cable

to the audio input terminals (L/MONO, R) of the projector.

4. Connect the other end of the audio cable to the audio

output terminals (L, R) of the video equipment.

t 8IFODPOOFDUJOHBNPOPQIPOJDWJEFPEFWJDFVTFUIFXIJUF-UFSNJOBMUPDPOOFDUUIFBVEJPDBCMF5IFTBNF

audio signal is output from the channels L and R of the AUDIO OUT terminal.)

t "MTPSFBEUIFJOTUSVDUJPONBOVBMPGUIFFRVJQNFOUUPCFDPOOFDUFE

t $POUBDUZPVSEFBMFSGPSEFUBJMTPGDPOOFDUJPO

When a TV tuner or VCR is connected:

When you use this projector with a TV tuner or VCR connected, no image may appear or a message of “NO SIGNAL”

may appear on the screen when you change the channel via any channel that is not being received. In such a case,

set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip

function (that is a function not to display channels that are not being received) enabled.

A. Connecting the projector to video equipment

Preparation:

t Make sure that the power of the projector and that of the video equipment are turned off.

To S-VIDEO

IN terminal

S-video cable (option)

To S-video

output

terminal

Video player, or the like

To VIDEO IN

terminal (BNC)

BNC cable (option)

To video output

terminal

Video player, or the like

BNC-RCA

connector (option)

Audio cable

(option)

To audio

input

terminals

To audio

output

terminals

To audio

input

terminals Audio cable

(option)

To audio

output

terminals

EN-25

Viewing video images (continued)

Projector + DVD player or HDTV decoder

Some DVD players have an output connector for 3-line ﬁtting (Y, CB, CR). When connecting such DVD player with this

projector, use the COMPUTER/COMPONENT/VIDEO IN 2 terminals.

)Y C

)

B G R

AUDIO IN 2

DVD player or HDTV decoder

COMPUTER/COMPONENT/

VIDEO IN 2

BNC-RCA connector (option)

BNC cable (option)

Audio cable (option)

To audio output

terminals

t 5IFUFSNJOBMTOBNFT:1B, and PR are given as examples of when a HDTV decoder is connected.

t 5IFUFSNJOBMTOBNFTWBSZEFQFOEJOHPOUIFDPOOFDUFEEFWJDFT

t 6TF#/$DBCMFTGPSDPOOFDUJPO

t *NBHFNBZOPUCFQSPKFDUFEDPSSFDUMZXJUITPNF%7%QMBZFST

t *GDPMPSTBSFOUEJTQMBZFEDPSSFDUMZXIFOUIFQSPKFDUPSJTDPOOFDUFEUPBIJHIEFmOJUJPOWJEFPEFWJDFIBWJOH3(

and B output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu. (See page 36.)

Connecting to video equipment having a HDMI terminal or DVI-D terminal

You can project high-quality images by connecting the COMPUTER/COMPONENT/VIDEO DVI-D IN (HDCP) terminal

of this projector to video equipment having a HDMI output terminal or DVI-D terminal. In addition, this projector

supports HDCP and is able to receive encrypted digital video data that are output from DVD players.

t HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital

video data for the purpose of copy protection.

t HDMI (High-Deﬁnition Multimedia Interface) is fully backward compatible with computers, displays and consumer

electronics devices incorporating the DVI standards.

t This projector can be linked with video devices equipped with HDMI output terminal or DVI-D output terminal.

However, with some of them, this projector may not display any image or not operate correctly.

t If this projector doesn’t display any image or not operate correctly, see the operation manual of the video device

for its connection.

t Use of a long cable may decrease the quality of projected images.

Connection (for video equipment having an HDMI terminal)

t Use a commercially available HDMI (with HDMI logo) cable.

t :PVEPOUIBWFUPDPOOFDUBOZDBCMFGPSBVEJPJOQVU:PVDBOJOQVUWJEFPBOEBVEJPVTJOHBO)%.*DBCMFPOMZ

t 8IFO)%.*BVEJPJTOUPVUQVUJUNBZCFPVUQVUCZUVSOJOHPGGUIFQPXFSPGUIFWJEFPFRVJQNFOUXJUIUIFQSPKFDUPS

and the video equipment connected to each other and then turning back on the power.

t 4PNFDBCMFTNBZOPUCFDPOOFDUFEDPSSFDUMZEFQFOEJOHPOUIFTJ[FBOETIBQFPGUIFJSDPOOFDUPST

t 8IFO)%.*JTTFMFDUFEBTUIFJOQVUTPVSDFTFUUJOHTPG'*/&4:/$53"$,*/()0-%FUDBSFVOBWBJMBCMF

t %VSJOHQPXFSTUBOECZ)%.*BVEJPJTOUPVUQVUGSPNUIFTQFBLFSBOEUIF"6%*0065UFSNJOBMPOUIFQSPKFDUPS

Equipment having an

HDMI terminal

To HDMI terminal

HDMI IN

HDMI (with HDMI logo) cable (option)

EN-26

Connection (for video equipment having a DVI-D terminal)

Equipment having a

DVI-D terminal

To DVI-D terminal

DVI cable (option)

COMPUTER/COMPONENT/

VIDEO DVI-D IN (HDCP)

Audio cable (option)

To audio output

terminals

AUDIO DVI-D

t 'PSDPOOFDUJPOUPUIF%7*%UFSNJOBMVTFBDPNNFSDJBMMZBWBJMBCMF%7*DBCMF

t 6TF"6%*0%7*%UFSNJOBMGPSBVEJPJOQVU

t 4PNFDBCMFTNBZOPUCFDPOOFDUFEDPSSFDUMZEFQFOEJOHPOUIFTJ[FBOETIBQFPGUIFJSDPOOFDUPST

t 8IFO%7*JTTFMFDUFEBTUIFJOQVUTPVSDFTFUUJOHTPG'*/&4:/$53"$,*/()0-%FUDBSFVOBWBJMBCMF

When you connect this projector and a digital device (such as a DVD player) via the HDMI IN or COMPUTER/

COMPONENT/VIDEO DVI-D IN (HDCP) terminal, black color may appear dark and deep, depending on the

type of the connected device.

t 5IJTEFQFOETPOUIFCMBDLMFWFMTFUUJOHPGUIFDPOOFDUFEEFWJDF5IFSFBSFLJOETPGNFUIPETUPEJHJUBMMZUSBOTGFS

image data, in which different black level settings are employed respectively. Therefore, the speciﬁcations of the

signals output from DVD players differ, depending on the type of the digital data transfer method they use.

t 4PNF%7%QMBZFSTBSFQSPWJEFEXJUIBGVODUJPOUPTXJUDIUIFNFUIPETUPPVUQVUEJHJUBMTJHOBMT8IFOZPVS%7%

player is provided with such function, set it as follows.

EXPAND or ENHANCED  NORMAL

t 4FFUIFVTFSTHVJEFPGZPVS%7%QMBZFSGPSEFUBJMT

t 8IFOZPVSEJHJUBMEFWJDFEPFTOPUIBWFTVDIGVODUJPOTFU*/165-&7&-UP&/)"/$&%JOUIF"%7"/$&%

MENU of the IMAGE menu of this projector, or adjust the black color by viewing the image.

B. Plugging in the power cord

Plug the power cord in the same way as in the case of “Viewing computer images.” (See page 19.)

C. Installing the terminal cover

If necessary, install the terminal cover to the projector in the same way as in the case of “Viewing computer images.”

(See page 20.)

Viewing video images (continued)

EN-27

Viewing video images (continued)

D. Projecting images

Preparation:

t 3FNPWFUIFMFOTDBQ

COMPUTER 1, 2 buttons

POWER indicator

STATUS indicator

DVI-D(HDCP) button

S-VIDEO button

VIDEO button

VIDEO/HDMI button

HDMI button

ENTER button

, , , 

buttons

POWER button

(ON/STANDBY)

, , ,  buttons

COMPUTER/DVI-D button

ENTER button

ZOOM/FOCUS button

LENS SHIFT button

POWER button

(ON/STANDBY)

LENS SHIFT button

ZOOM/FOCUS button

1. Conﬁrm the POWER indicator lights up red.

t *GUIFQSPKFDUPSXBTUVSOFEPGGCFGPSFUIFMBNQXBTDPPMFEEPXOTVGmDJFOUMZMBTUUJNFUIFGBONBZTUBSUSPUBUJOH

and the POWER button may not work after the power cord is plugged. (The STATUS indicator blinks green.)

After the fan stops rotating, press the POWER button to turn back on the POWER indicator.

2. Turn on the power of the connected video equipment.

3. Press the POWER button.

t *UNBZUBLFBCPVUNJOVUFGPSUIFMBNQUPMJHIUVQ

t 5IFMBNQGBJMTUPMJHIUVQPOSBSFPDDBTJPOT*OTVDIBDBTFXBJUGPSBGFXNJOVUFTBOEUIFOUSZBHBJO

t %POPUDPWFSUIFMFOTXJUIUIFMFOTDBQXIJMFUIFMBNQJTPO

t "GUFSUIF108&3CVUUPOJTQSFTTFEUIFJNBHFNBZnJDLFSCFGPSFUIFMBNQCFDPNFTTUBCMF5IJTJTOPUB

product malfunction.

t 3FHBSEMFTTPGUIFTFUUJOHPG-".1.0%&UIF-08MBNQNPEFJTBDUJWBUFECZEFGBVMUXIFOFWFSUIFQSPKFDUPS

is turned on. When LAMP MODE has been set to STANDARD, the lamp mode changes from LOW to

STANDARD about 2 minutes after turn-on.

t 5IFQSPKFDUPSTUBSUTXBSNJOHVQXIFOUIF108&3CVUUPOJTQSFTTFE%VSJOHUIFXBSNVQQSPDFTTJNBHFT

may appear dark and no commands are accepted.

t #ZCMJOLJOHSFEUIF45"564JOEJDBUPSJOEJDBUFTUIBUUIFMBNQTIPVMECFSFQMBDFETPPO3FQMBDFUIFMBNQXIFO

the STATUS indicator blinks red. (See page 62.)

4. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.

5. Adjust with the  or  button to get a ﬁne picture.

t 8IFOUIF&/5&3CVUUPOJTQSFTTFEXIJMFUIF;00.'0$64NFOVJTEJTQMBZFEUIFBEKVTUNFOUNPEFJT

switched between FAST and STEP. When FAST is selected, the speed of focus controlled by the  or  button

becomes fast, and it becomes slow when STEP is selected.

6. Select an input source.

t 1SFTTUIF7*%&0)%.*CVUUPOPOUIFQSPKFDUPSPSUIF7*%&047*%&0PS)%.*CVUUPOPOUIFSFNPUFDPOUSPM

that is corresponding to the terminal in use.

t 5IFJOQVUTPVSDFJTTXJUDIFECFUXFFO7*%&047*%&0BOE)%.*BUFWFSZQSFTTPGUIF7*%&0)%.*CVUUPOPO

the projector.

t :PVDBOOPUDIBOHFUIFJOQVUTPVSDFXIJMFUIFNFOVJTCFJOHEJTQMBZFE

t 5IPVHIJUNBZUBLFTPNFUJNFCFGPSFBOJNBHFJTEJTQMBZFEPOUIFTDSFFOEFQFOEJOHPOUIFUZQFPGUIFJOQVU

signal, such symptom is not a malfunction.

t 4PNFJNBHFTCFDPNFFBTJFSUPWJFXXIFOUIFTFUUJOHPGBTQFDUSBUJPJTDIBOHFE4FFQBHF

t 8IFOQSPKFDUJOHJNBHFTGSPNB%7%QMBZFSUIBUJTDPOOFDUFEUPUIF$0.165&3$0.10/&/57*%&0%7*%

IN (HDCP) terminal, press the COMPUTER/DVI-D button on the projector to select DVI or press the DVI-D

(HDCP) button on the remote control.

t 8IFOQSPKFDUJOHJNBHFTGSPNB%7%QMBZFSUIBUJTDPOOFDUFEUPUIF$0.165&3$0.10/&/57*%&0*/PS

COMPUTER/COMPONENT/VIDEO IN 2 terminal, press the COMPUTER/DVI-D button on the projector or the

COMPUTER 1 or COMPUTER 2 button on the remote control.

7. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in

their speciﬁed sizes.

Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page 11.)

t

When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page 13.)

9. Press the ZOOM/FOCUS button to display the ZOOM/FOCUS menu.

10. Adjust with the  or  button to get an approximate size.

t When the ENTER button is pressed while the ZOOM/FOCUS menu is displayed, the adjustment mode is

switched between FAST and STEP. When FAST is selected, the speed of zoom controlled by the  or 

button becomes fast, and it becomes slow when STEP is selected.

EN-28

11. Press the LENS SHIFT button. The LENS SHIFT menu appears at the center of the screen.

12. Press the  or  button to adjust the vertical position and  or  button to adjust the horizontal position of the

displayed image.

t 8IFOUIFJNBHFJTOPUEJTQMBZFEXJUIJOUIFTDSFFOBEKVTUUIFQSPKFDUJPOBOHMF*OBEEJUJPOQFSGPSNUIF

keystone adjustment, if necessary. (See page 14.)

Repeat steps 4, 5 and 9 to 12, if necessary.

Important:

t 'PDVT[PPNBOEMFOTTIJGUBEKVTUNFOUJTQPTTJCMFJOUIFOPSNBMQJDUVSFNPEFPOMZ

To stop projecting:

13. Press the POWER button.

t "DPOmSNBUJPONFTTBHFJTEJTQMBZFE

t 5PDBODFMUIFQSPDFEVSFMFBWFUIFQSPKFDUPSGPSBXIJMFPSQSFTTBOZCVUUPOFYDFQUUIF108&3CVUUPO

14. Press the POWER button again.

t 5IFMBNQHPFTPVUBOEUIFQSPKFDUPSHPFTJOUPBTUBOECZNPEF*OUIJTTUBOECZNPEFUIF45"564JOEJDBUPS

blinks green.

15. Wait about 2 and a half minutes for the STATUS indicator to be turned off.

t %VSJOHUIJTQFSJPEPGBOEBIBMGNJOVUFTJOUIFTUBOECZNPEFUIFJOUBLFGBOBOEFYIBVTUGBOSPUBUFUPDPPM

the lamp.

t 5IFBJSPVUMFUGBOTSPUBUFGBTUFSBTUIFUFNQFSBUVSFBSPVOEUIFQSPKFDUPSSJTFT

t 5IPVHIUIFGBOTNBLFMPVETPVOETEVSJOHDPPMJOHTVDITZNQUPNJTOPUBNBMGVODUJPO

16. Unplug the power cord from the outlet.

t 5IF108&3JOEJDBUPSXJMMHPPVU

t *GUIFQPXFSDPSETIPVMECFVOQMVHHFEBDDJEFOUBMMZXIJMFFJUIFSUIFBJSJOMFUGBOPSUIFBJSPVUMFUGBOTBSF

operating or the lamp is on, allow the projector to cool down for 10 minutes with the power off. To light the

lamp again, press the POWER button. If the lamp doesn’t light up immediately, press the POWER button a few

minutes later. If it should still fail to light up, replace the lamp.

t $PWFSUIFMFOTXJUIUIFMFOTDBQUPQSPUFDUJUGSPNEVTU

t *GOFDFTTBSZEJTDPOOFDUUIFDBCMFTGSPNUIFDPNQVUFSBGUFSVOQMVHHJOHUIFQPXFSDPSE

Direct Power OFF

You can turn off this projector just by unplugging the power cord without pressing the POWER button.

t %POUTIVUEPXOUIFQSPKFDUPSXIJMFUIF45"564JOEJDBUPSJTCMJOLJOHBGUFSUIFMBNQMJHIUTVQCFDBVTFUIFMBNQT

life may be shortened.

t %POUUVSOUIFQSPKFDUPSCBDLPOSJHIUBGUFSTIVUUJOHJUEPXOCFDBVTFUIFMBNQTMJGFNBZCFTIPSUFOFE8BJUBCPVU

10 minutes before turning the projector back on.)

t #FGPSFTIVUUJOHEPXOUIFQSPKFDUPSCFTVSFUPDMPTFUIFNFOVTDSFFO*GZPVTIVUEPXOUIFQSPKFDUPSXJUIPVU

closing the menu, the setting data of the menu may not be saved.

t *GZPVTIVUEPXOUIFQSPKFDUPSXIJMFDPOUSPMMJOHUIFQSPKFDUPSVTJOHUIFOFUXPSLGVODUJPOUIFBQQMJDBUJPOTPGUXBSF

such as ProjectorView may fail. The data such as the operating time and temperature display may not be

changed. In such a case, close the browser and then start up again.

Volume from the speaker

Press the VOLUME + or - button to change the volume from the speaker.

The volume control bar will appear on the screen.

VOLUME 15

t 5IFWPMVNFDPOUSPMCBSXJMMEJTBQQFBSBCPVUTFDPOETBGUFSUIF70-6.&CVUUPOJTSFMFBTFE

t 5IF70-6.&CVUUPOTEPOUGVODUJPOXIJMFUIFNFOVTFMFDUJPOCBSPSUIFNFOVJTCFJOHEJTQMBZFE

t 8IFOBIJHIMFWFMBVEJPTJHOBMTVDIBTB%7%BVEJPTJHOBMJTTVQQMJFEUPUIF"6%*0*/UFSNJOBMTUIFPVUQVU

from the speaker may be distorted.

t 8IFOUIFBVEJPDBCMFJTDPOOFDUFEUPUIF"6%*0065UFSNJOBMUIFTQFBLFSPVUQVUJTNVUFE

t 5IFWPMVNFPGUIFBVEJPGSPNUIF"6%*0065UFSNJOBMJTBMTPDIBOHFECZQSFTTJOHUIF70-6.&CVUUPOT

t 5IFWPMVNFPGUIFBVEJPGSPNUIF"6%*0065UFSNJOBMWBSJFTXJUIJOUIFSBOHFCFUXFFOBOE

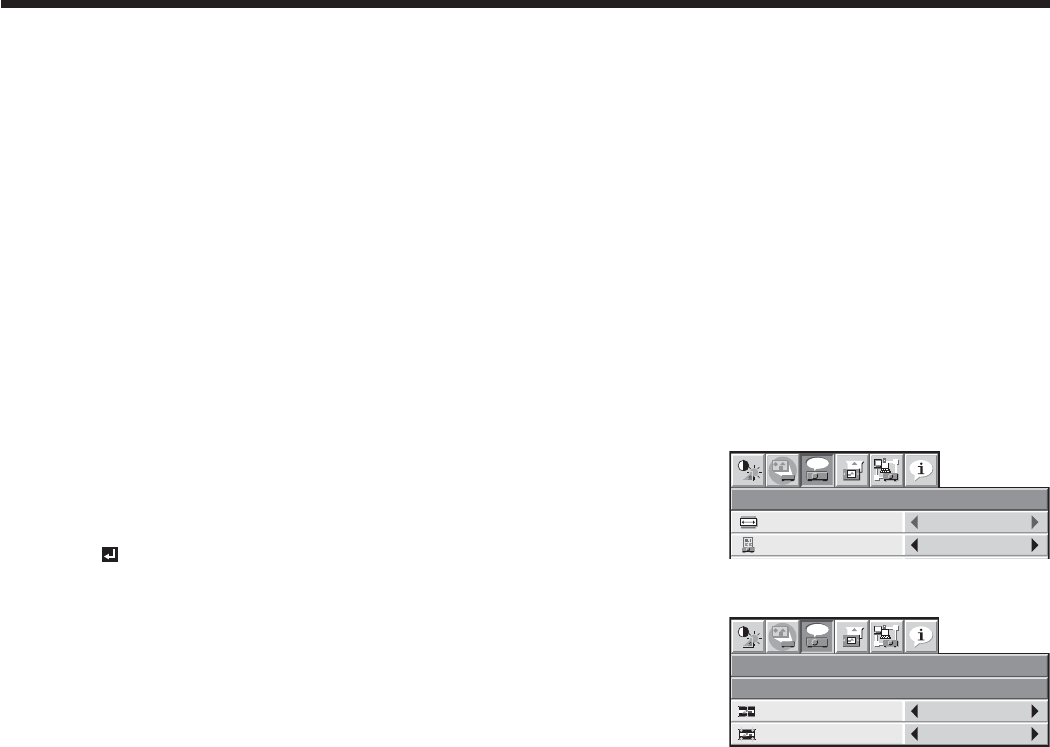

Setting the aspect ratio

You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the

setting according to the type of the input video signal. (See page 29.)

Viewing video images (continued)

EN-29

Setting the aspect ratio

You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the

setting according to the type of the input video signal.

How to change the settings:

With the remote control:

1. Press the ASPECT button.

t &WFSZUJNFUIF"41&$5CVUUPOJTQSFTTFEUIFBTQFDUNPEFDIBOHFTGSPN/03."-UPUP'6--BOE

back to NORMAL.

- NORMAL:

Select to change the aspect ratio automatically depending on the input signal. (Select this option for

normal use.)

- 16:9:

Select to expand squeezed (or horizontally compressed) images such as DVD images to 16:9.

- FULL:

Select to project images in full size (1024 x 768 pixels) irrespective of type of input signal.

With the FEATURE menu:

(See page 31 for menu setting.)

1. Display the FEATURE menu.

2. Select ASPECT by pressing the  or  button.

3. Select your desired aspect ratio by pressing the  or  button.

When 16:9 is selected with the FEATURE menu, you can make further

settings using the following procedures.

4. Press the ENTER button.

5. Select an item you want to set by pressing the  or  button and select a

setting by pressing the  or  button.

t 104*5*0/

You can select the image display position within the screen from

UPPER, CENTER, and LOWER.

t .0%&

You can select whether or not to display signals at 16:9 depending on their type.

- ALL SIGNALS:

All signals are always displayed at 16:9 irrespective of their type.

- VIDEO ONLY:

Signals supplied from video devices only are displayed at 16:9.

To cancel the menu:

6. Press the MENU button.

Important:

t 8IFOBJNBHFJTLFQUEJTQMBZFEGPSBMPOHUJNFCFGPSFEJTQMBZJOHJNBHFUIFBGUFSJNBHFTPGUIFCMBDLCBST

may appear on the 4:3 image screen. (See page 59.)

FEATURE

ASPECT

PROJECTOR ID

NORMAL

ALL

opt.

Viewing video images (continued)

FEATURE

ASPECT – 16:9

opt.

POSITION

MODE

CENTER

ALL SIGNALS

EN-30

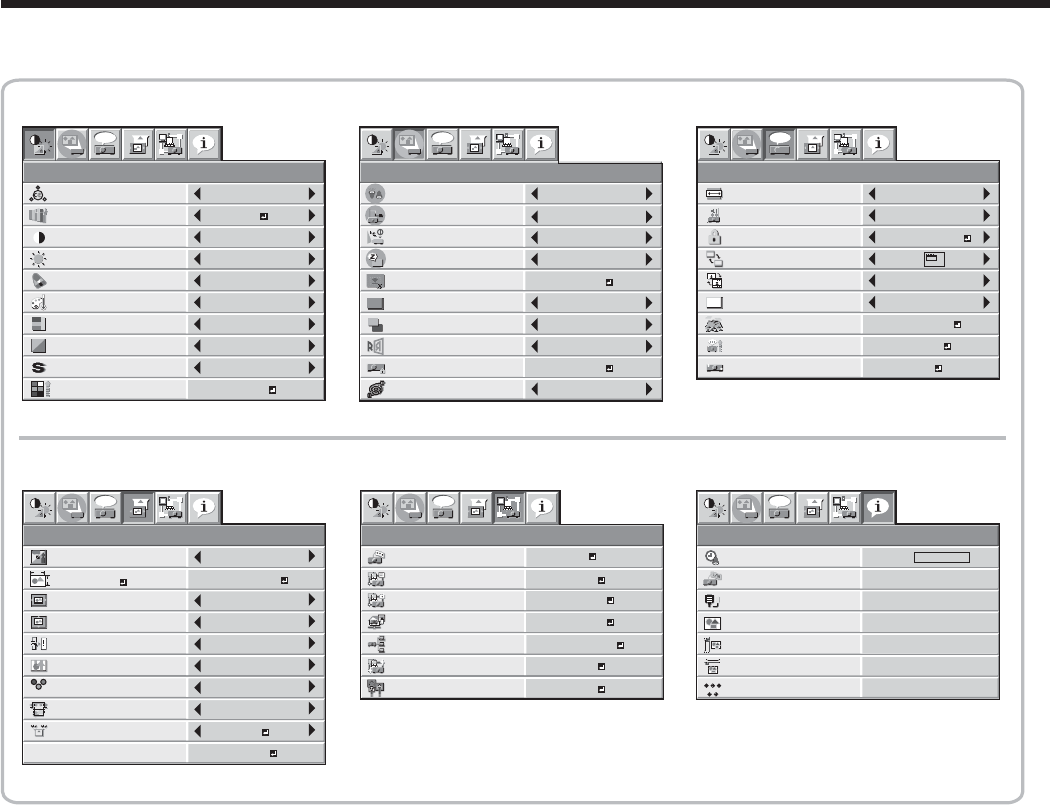

Menu operation

You can make various settings using the displayed menus.

Following 6 menus are displayed.

IMAGE menu (page 32) INSTALLATION menu (page 33) FEATURE menu (page 34)

INFORMATION menu (page 38)

COMPUTER

COLOR 0

TINT

0SHARPNESS

ADVANCED MENU

NCM

SUPER RESOLUTION


BRIGHTNESS 0

COLOR ENHANCER AUTO

CONTRAST

STANDARDCOLOR TEMP.

ENTER

LANGUAGE

ADVANCED MENU

FEATURE

ASPECT

PROJECTOR ID

NORMAL

AUTO

English

ALL

DISPLAY INPUT

ENTER

CINEMA MODE

PASSWORD FUNCTION

MENU POSITION

opt.

AË

RESET ALL OK

SIGNAL menu (page 36)

R G B

100%

COMPUTER INPUT AUTO

OVER SCAN

HOLD

USER

FINE SYNC.

SIGNAL

VERT. POSITION 0

MEMORY CALL

RESOLUTION

(MEMORIZE )

AUTO

HORIZ. POSITION

0TRACKING

opt.

ENTER

1024 x 768

60.00 Hz

RESOLUTION 1024 x 768

VERTICAL

FREQUENCY

48.36 kHz

5WIRE

HORIZONTAL

FREQUENCY

SYNC. TYPE

SERIAL NUMBER

INFORMATION

********...

COMPUTER1INPUT

opt.

LAMP TIME (LOW)

INSTALLATION

LAMP MODE STANDARD

LOW

OFF

STANDBY MODE

IMAGE REVERSE

LENS LOCK

opt.

ENTER

****H

opt.

AUTO POWER ON

AUTO POWER OFF

OFF

BLUE

5min

IMAGE CAPTURE

SPLASH SCREEN

BACK COLOR

SETUP

AUTODVI LONG CABLE

NETWORK menu (page 37)

CONTROL SYSTEM

NETWORK

PASSWORD

NETWORK

CERTIFICATION

PROJECTOR NAME

IP CONFIG

NETWORK RESET

opt.

STANDARD

ENTER

NETWORK RESTART OK

STANDARD

HIGH ALTITUDE MODE

EN-31

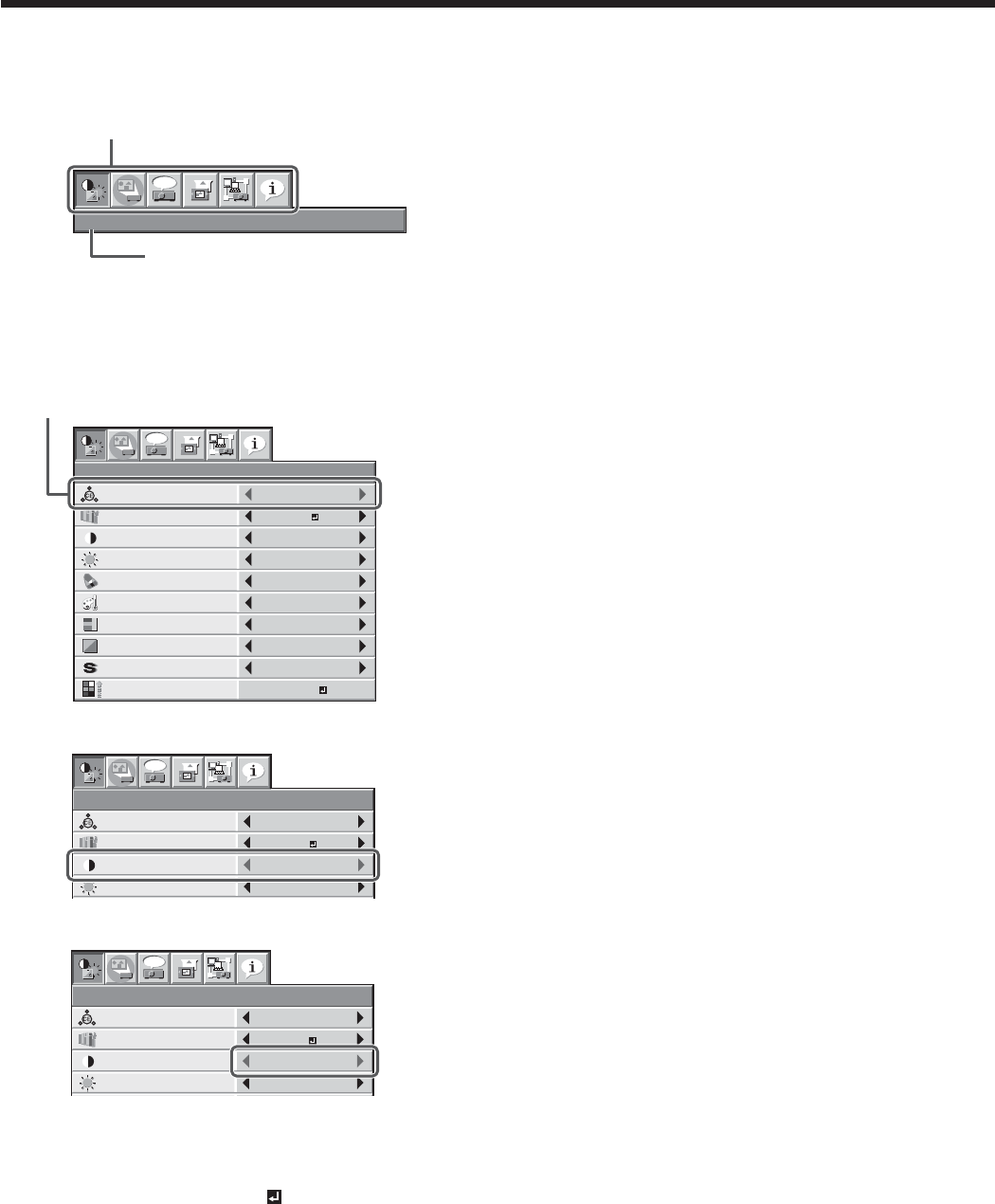

How to set the menus

1. Press the MENU button.

t 5IFNFOVTFMFDUJPOCBSJTEJTQMBZFE


opt.

Selectable menus are displayed by icons. (The menu

icon being selected is displayed on a blue background.)

The name of the menu being

selected is displayed.

2. Press the  or  button to select a menu to use.

3. Press the ENTER button (or  button).

t 5IFTFMFDUFENFOVJTEJTQMBZFE

COMPUTER

COLOR 0

TINT

0SHARPNESS

ADVANCED MENU

NCM

SUPER RESOLUTION


BRIGHTNESS 0

COLOR ENHANCER AUTO

CONTRAST

STANDARDCOLOR TEMP.

opt.

ENTER

The item being selected is

displayed in red letters.

4. Press the  or  button to select an item to adjust.

SUPER RESOLUTION


BRIGHTNESS 0

COLOR ENHANCER AUTO

CONTRAST

opt.

5. Set the selected item by pressing the  or  button.


BRIGHTNESS 0

COLOR ENHANCER AUTO

CONTRAST

opt.

SUPER RESOLUTION ON

6. To cancel the menu, press the MENU button

several times.

Important:

t When an item marked with “ ” is selected,

pressing the ENTER button makes its value

effective or displays another screen for further

setting.

t When the MENU button doesn’t function, unplug

the power cord from the wall outlet. Wait about 10

minutes, plug the power cord in, and try again.

t The menus and screens shown in this manual may

be different from those of the actual projector.

Menu operation (continued)

EN-32

IMAGE menu

COMPUTER

COLOR 0

TINT

0SHARPNESS

ADVANCED MENU

NCM

SUPER RESOLUTION


BRIGHTNESS 0

COLOR ENHANCER AUTO

CONTRAST

STANDARDCOLOR TEMP.

opt.


ADVANCED MENU

opt.

AUTO IRIS

NOISE REDUCTION

CTI

INPUT LEVEL

OFF

CLOSED CAPTION

OFF

ENTER

ITEM SETTING FUNCTION

COLOR ENHANCER AUTO Select to optimize the settings automatically depending on the input signal.

(Select this option for normal use.)

PRESENTATION Select to make the displayed image look bright and crisp.

STANDARD Select to make the displayed image look natural.

THEATER This option, suitable for viewing movies, makes the displayed image look soft

and smooth.

sRGB Select to give priority to the color reproducibility.

USER Select to set the gamma curve. (See page 40.)

CLEAR BASE Select to obtain the color close to that of the X-ray ﬁlm (clear base).

BLUE BASE Select to obtain the color close to that of the X-ray ﬁlm (blue base).

SUPER RESOLUTION ON / OFF Use to emphasize the ﬁneness of the image. (See page 41.)

CONTRAST  Use to adjust the contrast of the projected image. (See page 39.)

BRIGHTNESS  Use to adjust the brightness of the projected image. (See page 39.)

NCM COMPUTER / VIDEO Use to adjust the predetermined tone of each color.

USER Use to emphasize only certain colors or to correct the tonal deviation of only

certain colors. (See page 41.)

OFF NCM doesn’t work.

COLOR TEMP. STANDARD / LOW /

HIGH Select from the predetermined color temperatures.

USER Use to adjust the color temperature to a desired value. (See page 39.)

COLOR  Use to adjust the color thickness of the projected image. (See page 39.)

TINT  Use to adjust the color tint of the projected image. (See page 39.)

SHARPNESS  Use to adjust the sharpness of the projected image. (See page 39.)

ADVANCED MENU ENTER The ADVANCED MENU is displayed for the following settings.

AUTO IRIS ON / OFF

Select the operation mode of the auto iris.

When ON is chosen, the iris is automatically adjusted depending on the image

being displayed. When OFF is chosen, the iris is kept fully opened.

NOISE REDUCTION ON / OFF

Use to reduce noise and roughness in the image when noisy video signal is input.

CTI ON / OFF Use to correct smeared color boundaries.

INPUT LEVEL  For analog signal input:

The input level of video signal differs among devices to be connected. High

input level causes solid white in displayed image and low input level causes

displayed image to get dark. Use this menu to adjust the input level of analog

video signal.

AUTO /

ENHANCED /

NORMAL

For digital signal input:

AUTO: The proper setting is automatically selected. (Selectable only

when HDMI signal is input.)

ENHANCED: Select when solid black occurs.

NORMAL: Select when grayish black occurs.

(See page 26.)

CLOSED CAPTION OFF Does not display captions.

CC1 / CC2 Displays captions.

t 8IFO$0-03&/)"/$&3JTT3(#$-&"3#"4&PS#-6&#"4&$0-035&.1$0-035*/5/$.BOE"650*3*4DBOU

be adjusted.

t 8IFOUIFTFUUJOHPG$0-03&/)"/$&3JTDIBOHFEUIFEJTQMBZFEJNBHFNBZCFEJTUVSCFE

t 5IJTQSPEVDUJTOPUJODPNQMJBODFXJUI%*$0.1BSU%POPUVTFUIJTQSPEVDUGPSBDUVBMNFEJDBMEJBHOPTJT

t 5IFFGGFDUPCUBJOFEXIFO461&33&40-65*0/JT0/WBSJFTEFQFOEJOHPOUIFUZQFBOESFTPMVUJPOPGUIFJOQVUJNBHF

t 8IFOUIF$0.165&3$0.165&3%7*PS)%.*JTTFMFDUFEBTUIFJOQVUTPVSDF$0-03BOE5*/5DBOUCFBEKVTUFE

t 5*/5JTBWBJMBCMFPOMZXIFOUIF/54$TJHOBMJTJOQVU

t */165-&7&-JTVOBWBJMBCMFXIFOUIFEJHJUBMTJHOBMJTTVQQMJFEGSPNUIF:$BCR/YPBPR terminal of the connected device.

t $BQUJPOTBSFOPUEJTQMBZFEXIJMFJOGPSNBUJPOBCPVUUIFNFOVPSJOQVUTJHOBMTFMFDUJPOJTCFJOHEJTQMBZFEPOUIFTDSFFO

t 5IFDMPTFEDBQUJPOGVODUJPOEJTQMBZTUFYUJOGPSNBUJPOJODMVEFEJOUIF/54$TJHOBMXIJDIJTNBJOMZVTFEGPS57CSPBEDBTUJOHJO

North America.

Menu operation (continued)

EN-33

INSTALLATION menu

INSTALLATION

LENS LOCK

LENS SHIFT LOCK

ZOOM/FOCUS LOCK

LENS SHIFT RESET

OFF

opt.

INSTALLATION

LAMP MODE STANDARD

LOW

OFF

STANDBY MODE

IMAGE REVERSE

LENS LOCK

opt.

ENTER

AUTO POWER ON

AUTO POWER OFF

OFF

BLUE

5min

IMAGE CAPTURE

SPLASH SCREEN

BACK COLOR

SETUP

AUTODVI LONG CABLE

ITEM SETTING FUNCTION

LAMP MODE STANDARD Select this option when you want to view images in a well-lit room.

LOW Select to moderate the intensity of the lamp. The operating sound is reduced

and the lamp lifetime becomes longer.

STANDBY MODE STANDARD Select this option when you control the projector via the LAN terminal during

power standby. Audio is output from the AUDIO OUT terminal. Video signal is

output from the MONITOR OUT terminal.

LAN Select this option when you control the projector via the LAN terminal during

power standby.

LOW Select this option when you don’t control the projector via the LAN terminal

during power standby. This option disables the LAN terminal and reduces the

power consumption during the power standby.

AUTO POWER ON ON / OFF When ON is chosen, the projector is automatically turn on when the power

cord is plugged in the wall outlet. Choose ON when using the projector

mounted on the ceiling.

t 5IFQSPKFDUPSJTJOUIFTUBOECZNPEFXIFOUIFMBNQJTPGG6TFUIF

remote control to turn on the lamp.

AUTO POWER OFF OFF / 5min-8hour When no video signal is input and no operation is made, the projector

automatically turns off after the selected time period. A dialog is displayed 5

minutes before the projector turns off.

IMAGE CAPTURE SETUP Use to capture the screen for the splash screen. (See page 48.)

SPLASH SCREEN ON / OFF Choose ON to display the splash screen when the power is turned on.

t 5IFTQMBTITDSFFODBOCFDIBOHFE4FFQBHF

BACK COLOR BLUE / BLACK /

IMAGE Use to select the background from among BLUE, BLACK and IMAGE, which

will be displayed when there is no signal input from the source. When IMAGE

is selected, the splash screen will be displayed.

IMAGE REVERSE OFF Select when viewing images from the front with the projector installed on the

ﬂoor.

MIRROR Select when viewing images projected from the behind of the screen with the

projector installed on the ﬂoor.

INVERT Select when viewing images projected from the behind of the screen with the

projector installed on the ceiling.

MIRROR INVERT Select when viewing images from the front with the projector installed on the

ceiling.

LENS LOCK ENTER The LENS LOCK menu is displayed for the following settings.

ZOOM/FOCUS LOCK

ON / OFF Use to enable or cancel the FOCUS LOCK and ZOOM LOCK.

LENS SHIFT LOCK ON / OFF Use to enable or cancel the LENS SHIFT LOCK.

LENS SHIFT RESET OK Use to reset the position of the lens to the factory setting.

DVI LONG CABLE AUTO Select this option for normal use.

MANUAL Use to adjust the amount of transmission signal correction when a long DVI

cable is used.

t 3FHBSEMFTTPGUIFTFUUJOHPG-".1.0%&UIF-08MBNQNPEFJTBDUJWBUFECZEFGBVMUXIFOFWFSUIFQSPKFDUPSJTUVSOFEPO8IFO

LAMP MODE has been set to STANDARD, the lamp mode changes from LOW to STANDARD about 2 minutes after turn-on.

t 8IFOUIFBNCJFOUPQFSBUJOHUFNQFSBUVSFJTIJHIUIFCSJHIUOFTTPGUIFMBNQJTOUDIBOHFECZTXJUDIJOHUIFMBNQNPEF

t 8IFOUIFMBNQNPEFJTTXJUDIFEUIFQSPKFDUFEJNBHFNBZnJDLFS

t "OJDPO is displayed to the right of the menu bar while the projector is warmed up. While the icon is being displayed, you

cannot change the lamp mode. And an icon is displayed while the operating ambient temperature is high. While the icon

is being displayed, the lamp may not brighten even when you change the LAMP MODE to STANDARD.

t 'SFRVFOUTXJUDIJOHPGUIFMBNQNPEFNBZEBNBHFUIFMBNQ

t :PVDBOUTFU*."(&$"1563&BOE41-"4)4$3&&/XIFO1"44803%'6/$5*0/JOUIF'&"563&NFOVIBTCFFOTFUUP

SPLASH ID SCREEN to enable the password lock.

t 8IFOZPVTFU#"$,$0-03UP*."(&BOEEJTQMBZUIFTQMBTITDSFFOTUBSUVQTDSFFOGPSBMPOHUJNFPGQFSJPEUIFBGUFSJNBHF

may remain on the screen. Consult your dealer in this case.

t %POUBEKVTUUIFMFOTGSFRVFOUMZXJUI#"$,$0-03TFUUP*."(&

t 5IFQPXFSDBOCFTBWFEVTJOHUIFGVODUJPOTNBSLFEXJUI on the icon.

Menu operation (continued)

EN-34

FEATURE menu

FEATURE

ADVANCED MENU

SETUP

SCART INPUT

AUTO

OFF

STANDARD

OFF

VIDEO SIGNAL

LAMP WARNING

HIDE OSD

opt.

LANGUAGE

ADVANCED MENU

FEATURE

ASPECT

PROJECTOR ID

NORMAL

AUTO

English

ALL

DISPLAY INPUT

ENTER

CINEMA MODE

PASSWORD FUNCTION

MENU POSITION

opt.

AË

RESET ALL OK

STANDARD

HIGH ALTITUDE MODE

ITEM SETTING FUNCTION

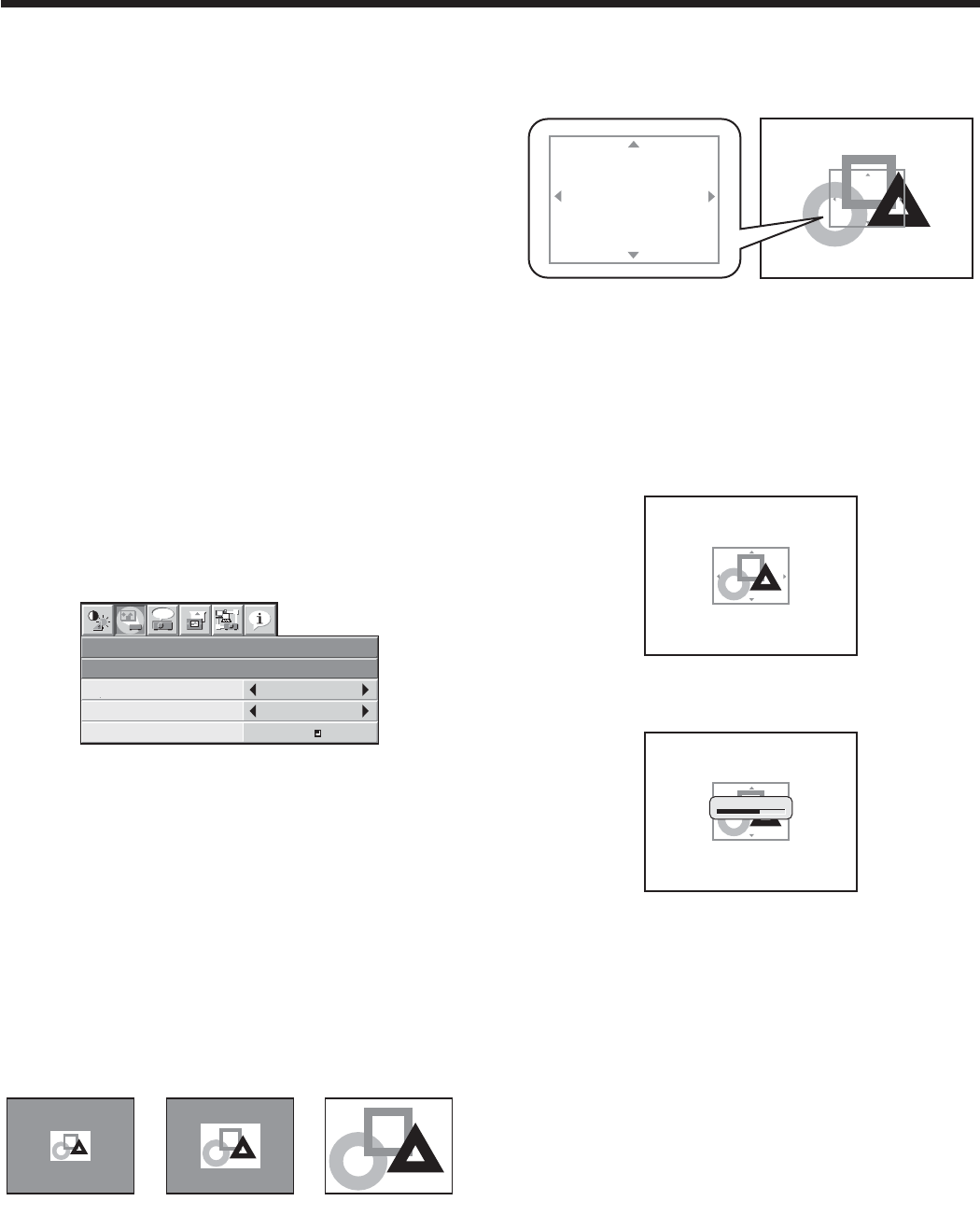

ASPECT NORMAL Select to change the aspect ratio automatically depending on the

input signal. (Select this option for normal use.)

16:9 Select to expand squeezed (or horizontally compressed) images

such as DVD images to 16:9. Press the ENTER button to make

further settings such as positioning of the displayed image and

selection of signals expanded by this function. (See page 29.)

FULL Select to project images in full size (1024 x 768 pixels) irrespective

of type of input signal.

PROJECTOR ID ALL Select this option to control the projector regardless of the ID

number. (See page 10.)

01 to 63 Use to set the ID number (two-digit number). (See page 10.)

PASSWORD FUNCTION DISPLAY INPUT /

MENU ACCESS /

SPLASH ID SCREEN

Use to enable or cancel the password lock. See page 49 for details.

MENU POSITION 1 (upper left) / 2 (lower right) Use to change the position of the menu.

CINEMA MODE AUTO The ﬁlm mode will be automatically activated when a ﬁlm source

signal is input.

Select AUTO for normal use.

When ﬂicker occurs on the screen, frame dropping or other incorrect

display occurs, or jaggies on slanting lines are remarkable, select

either FILM or VIDEO, which improves the symptom better.

FILM Fixed to the ﬁlm mode.

VIDEO The ﬁlm mode will not be activated.

LANGUAGE / English / Español /

Deutsch / Français / Italiano /

/ / /

PORTUGUÊS / SVENSKA /

POLSKI / Nederlands/ Norsk /

/ Türkçe / ѓѥќѥѳъѕ /

Bahasa Indonesia / Melayu /

Use to select the language used in the menus.

HIGH ALTITUDE MODE STANDARD Select this option for normal use.

HIGH ALTITUDE Select this option for use at an altitude of 1500 to 2700 meters

above the sea level.

Menu operation (continued)

EN-35

ITEM SETTING FUNCTION

ADVANCED MENU ENTER The ADVANCED MENU is displayed for the following settings.

VIDEO SIGNAL AUTO / NTSC / PAL / SECAM

/ 4.43NTSC / PAL-M / PAL-N /

PAL-60

When AUTO is selected, the appropriate video format is

automatically selected depending on the input signal. If the image

isn’t displayed correctly, select the desired video format manually.

SETUP AUTO Select to change the SETUP mode automatically.

OFF Select to make black lighter.

 Select to make black thicker.

t 8IFOJTDIPTFOUIFCSJHIUOFTTJTEFDSFBTFECZUIFTFU

up cancel function for the U.S. Choose OFF when the image is

dark.

SCART INPUT ON / OFF Choose ON when connecting the projector with a device equipped

with the SCART terminal that can output RGB signal. SCART

terminal is used mainly in Europe. Choose OFF normally. (Available

only for the input signal from the COMPUTER/COMPONENT/VIDEO

IN 1 terminal.)

LAMP WARNING STANDARD When the lamp operating time exceeds 3000 hours with LAMP

MODE set to LOW, a warning dialog is displayed.

SHORT TERM When the lamp operating time exceeds 3800 hours with LAMP

MODE set to LOW, a warning dialog is displayed.

HIDE OSD OFF Select this option for normal use.

ON The no-signal dialog, input dialog, SCART warning dialog, auto

power-off dialog, lamp warning dialog, and abnormal temperature

dialog aren’t displayed.

RESET ALL OK The menu settings are reset to the factory defaults (except the

LANGUAGE, PASSWORD FUNCTION, IMAGE CAPTURE, and

NETWORK settings).

t $*/&.".0%&DBOCFBEKVTUFEPOMZXIFOB5757JJPSJTJHOBMJTCFJOHEJTQMBZFE

t 8IFO4$"35*/165JTTFUUP0/OPSNBMDPNQVUFSTJHOBMTBSFO’t projected.

t 6TFBDPNNFSDJBMMZBWBJMBCMF4$"35.JOJ%46#QJODBCMFXIFODPOOFDUJOHUIJTQSPKFDUPSXJUIBO"7EFWJDFFRVJQQFE

with the SCART terminal.

t 4PNF"7EFWJDFTFRVJQQFEXJUIUIF4$"35UFSNJOBMBSFO’t compatible with this projector.

t 5IF3&4&5"--QSPDFTTNBZUBLFTPNFUJNFUPDPNQMFUF

FEATURE menu (continued)

Menu operation (continued)

EN-36

SIGNAL menu

R G B

100%

COMPUTER INPUT AUTO

OVER SCAN

HOLD

USER

FINE SYNC.

SIGNAL

VERT. POSITION 0

MEMORY CALL

RESOLUTION

(MEMORIZE )

AUTO

HORIZ. POSITION

0TRACKING

opt. opt.

SIGNAL

RESOLUTION (MEMORIZE)

VERTICAL

FREQUENCY

HORIZONTAL

FREQUENCY

HORIZ. PIXELS

VERT. LINES

EXECUTE

CANCEL

60.00 Hz 1

48.36 KHz

1024

768

ENTER

1024 x 768

OFF

SHUTTER(L)

SHUTTER(LS)

SHUTTER(RS)

LPF

SIGNAL

USER

VERT. SYNC. AUTO

CLAMP WIDTH

SHUTTER(U)

opt.

CLAMP POSITION

ITEM SETTING FUNCTION

MEMORY CALL AUTO /

MEMORY 1 /

MEMORY 2

Use to select the setting of RESOLUTION (MEMORIZE) already saved.

Impossible to select if no setting has been saved. AUTO is selected by

default. It optimizes the signal format automatically depending on the type of

video signal supplied from the computer. Press the ENTER button to clear the

setting already saved.

RESOLUTION (MEMORIZE

)

The current resolution is displayed. To change the current setting, press the

ENTER button to display the RESOLUTION (MEMORIZE) menu. The new

setting can be saved to MEMORY 1 or MEMORY 2.

VERTICAL FREQUENCY

- The vertical frequency of the currently projected video signal is displayed.

HORIZONTAL FREQUENCY

- The horizontal frequency of the currently projected video signal is displayed.

HORIZ. PIXELS 640-1920 The number of horizontal pixels of the currently projected video signal is

displayed. When you change the current setting, select EXECUTE, and then

press the ENTER button, the image is automatically adjusted according to

the resolution you set. The adjustment result can be saved to MEMORY 1 or

MEMORY 2.

VERT. LINES 350-1200 The number of vertical lines of the currently projected video signal is

displayed. When you change the current setting, select EXECUTE, and then

press the ENTER button, the image is automatically adjusted according to

the resolution you set. The adjustment result can be saved to MEMORY 1 or

MEMORY 2.

EXECUTE OK Press the ENTER button to start the automatic adjustment. At the completion

of the automatic adjustment, a message is displayed and you can save the

adjustment result to MEMORY 1 or MEMORY 2.

CANCEL OK The process to change the current resolution is canceled and the SIGNAL

menu is displayed.

HORIZ. POSITION 0-999 Use to adjust the horizontal position of the projected image.

VERT. POSITION 0-999 Use to adjust the vertical position of the projected image.

FINE SYNC. 0-31 Use to eliminate ﬂickering or blur, if appears, viewing the projected image.

TRACKING 0-9999

Use to eliminate vertical wide stripes, if appears, viewing the projected image

COMPUTER INPUT AUTO The proper setting is automatically selected.

RGB Select this option when connecting the projector to high deﬁnition video

equipment having R, G, and B output terminals.

YCBCR/YPBPR

Select this option when connecting the projector to a DVD player or other device

having Y, CB, and CR (or Y, PB, and PR) component video output terminals.

OVER SCAN  Use to adjust the display area of projected image.

HOLD OFF / ON Use to adjust the image when ﬂagging occurs near the top of the screen.

USER ENTER The USER menu is displayed for the following adjustments.

CLAMP POSITION 1-255 Use to correct solid white or solid black in the projected image.

CLAMP WIDTH 1-63 Use to correct solid black in the projected image.

VERT. SYNC. AUTO / OFF Use to adjust the image when its motion doesn’t run smoothly. Select AUTO

for normal use.

LPF ON / OFF Use to select whether or not to enable the LPF. (See page 43.)

SHUTTER(U) 0-38 Use to adjust the image when noise appears on the top part of the image.

SHUTTER(L) 0-38 Use to adjust the image when noise appears on the bottom part of the image.

SHUTTER(LS) 0-63 Use to adjust the image when noise appears on the left half of the image.

SHUTTER(RS) 0-63 Use to adjust the image when noise appears on the right half of the image.

t 5IPVHIIPSJ[POUBMTUSJQTNBZBQQFBSPOUIFFOMBSHFEQSPKFDUFEJNBHFTVDITZNQUPNJTOPUBNBMGVODUJPO

t 8IFOZPVDIBOHFUIFIPSJ[POUBMPSWFSUJDBMQPTJUJPOUPBMBSHFFYUFOUOPJTFNBZBQQFBS

t 5IFBEKVTUBCMFSBOHFPGUIFWFSUJDBMQPTJUJPOWBSJFTEFQFOEJOHPOUIFUZQFPGUIFJOQVUTJHOBM5IPVHIUIFJNBHFNBZTUBZJOUIFTBNF

position even when the setting value is changed, such symptom is not a malfunction.

t 4)655&3XJMMOPUXPSLDPSSFDUMZEVSJOHLFZTUPOFBEKVTUNFOU

t 8IFOZPVJODSFBTFUIFTFUUJOHWBMVFPG07&34$"/OPJTFNBZBQQFBSPOUIFTDSFFO

t 4FFQBHFTBOEGPSUIFEFUBJMFETFUUJOHQSPDFEVSF

Important:

t :PVDBOTFUUIF*."(&NFOVBOEUIF4*(/"-NFOVPOMZXIFOUIFTJHOBMJTTVQQMJFE

Menu operation (continued)

EN-37

NETWORK menu

NETWORK

IP CONFIG

opt.

DHCP

IP ADDRESS

SUBNET MASK

DEFAULT GATEWAY

0. 0. 0. 0

MAC ADDRESS

SAVE SETTINGS

0. 0. 0. 0

CONTROL SYSTEM

NETWORK

PASSWORD

NETWORK

CERTIFICATION

PROJECTOR NAME

IP CONFIG

NETWORK RESET

opt.

STANDARD

ENTER

NETWORK RESTART OK

0. 0. 0. 0

ITEM SETTING FUNCTION

PROJECTOR NAME *****... Set the name to identify the projector. Enter up to 15 characters

(alphabets or numeric characters). (See page 44.)

NETWORK CERTIFICATION ON / OFF Select whether to enable the network certiﬁcation or not. Select ON

for normal use. (See page 44.)

NETWORK PASSWORD ENTER Set the password for Web control or PJLink™ certiﬁcation. (See page

44.)

IP CONFIG ENTER Select this setting for IP Conﬁguration. (See page 45.)

DHCP ON Select this setting when you obtain IP CONFIG automatically by

DHCP server.

OFF Select this setting when you set IP CONFIG manually.

IP ADDRESS ***.***.***.*** Press the ENTER button to set IP ADDRESS. When DHCP is set to

ON, you cannot change this setting.

SUBNET MASK ***.***.***.*** Press the ENTER button to set SUBNET MASK. When DHCP is set to

ON, you cannot change this setting.

DEFAULT GATEWAY ***.***.***.*** Press the ENTER button to set DEFAULT GATEWAY. When DHCP is

set to ON, you cannot change this setting.

MAC ADDRESS xx-xx-xx-xx-xx-xx Displays MAC ADDRESS.

SAVE SETTINGS OK Saves the IP CONFIG settings. When the IP CONFIG is not changed,

you cannot select SAVE SETTINGS.

CONTROL SYSTEM STANDARD Select this setting when using ProjectorView Global+ or ProjectorView.

(See pages 46 and 51.)

AMX Select when using a controller made by AMX. (See pages 46 and 51.)

CRESTRON Select this setting when using the controller or software of Crestron

Electronics, Inc. (See pages 46 and 51.)

NETWORK RESET OK Resets the Network Setting. (See page 47.)

NETWORK RESTART OK Press the ENTER button to restart the network function.

Menu operation (continued)

EN-38

INFORMATION menu

60.00 Hz

RESOLUTION 1024 x 768

VERTICAL

FREQUENCY

48.36 kHz

5WIRE

HORIZONTAL

FREQUENCY

SYNC. TYPE

SERIAL NUMBER

INFORMATION

********...

COMPUTER1INPUT

opt.

LAMP TIME (LOW) ****H

ITEM DESCRIPTION

LAMP TIME (LOW) This item shows the lamp operation time calculated based on that the LAMP MODE of LAMP is

LOW.

t 8IFOUIF-".1.0%&JT45"/%"3%UIJTJUFNTIPXTBMPOHFSMBNQPQFSBUJOHUJNFUIBO

the actual time.

t 8IFOUIFMBNQPQFSBUJOHUJNFJTUPIPVSTi)wJTEJTQMBZFE5IFMBNQPQFSBUJOHUJNF

exceeding 10 hours is indicated by the actual hours.

t 8IFOUIFMBNQPQFSBUJOHUJNFSFBDIFTIPVSTUIFCBSUVSOTUPZFMMPX8IFOJU

reaches 3800 hours, the bar turns to red.

SERIAL NUMBER The serial number of the projector is displayed.

INPUT Indicates the name of the terminal to which the currently projected video signal is being input.

RESOLUTION Indicates the resolution of the currently projected video signal.

VERTICAL FREQUENCY Indicates the vertical frequency of the currently projected video signal.

HORIZONTAL FREQUENCY Indicates the horizontal frequency of the currently projected video signal.

SYNC. TYPE Indicates the type of the sync signal for the currently projected video signal.

Menu operation (continued)

EN-39

Adjusting projected images

To adjust the brightness (CONTRAST and BRIGHTNESS):

You can make adjustments for the brightness of the projected image using the menu.

(See page 31 for menu setting.)

1. Display the IMAGE menu.

2. Select CONTRAST or BRIGHTNESS by pressing the  or  button.

3. Adjust the selected item by pressing the  or  button.

To cancel the menu:

4. Press the MENU button.

CONTRAST

Select to adjust the contrast of the image. Every time the  button is pressed, the image becomes brighter and more

deﬁned. Every time the  button is pressed, the image becomes darker and less deﬁned.

BRIGHTNESS

Every time the  button is pressed, the image becomes brighter. Every time the  button is pressed, the image

becomes darker.

To adjust the color (COLOR and TINT):

You can adjust the color of the projected image using the menu.

(See page 31 for menu setting.)

1. Display the IMAGE menu.

2. Select COLOR or TINT by pressing the  or  button.

t $0-03PS5*/5JTVOBWBJMBCMFXIFO$0.165&3$0.165&3%7*PS)%.*JTTFMFDUFEBTUIFJOQVUTPVSDF

t 5*/5JTBWBJMBCMFPOMZXIFOUIF/54$TJHOBMJTJOQVU

3. Adjust the selected item by pressing the  or  button.

To cancel the menu:

4. Press the MENU button.

COLOR

Use to adjust the color thickness of the projected image. Every time the  button is pressed, the color becomes

thicker. Every time the  button is pressed, the color becomes lighter.

TINT

Use to adjust the tint of the projected image. Every time the  button is pressed, the image appears more greenish.

Every time the  button is pressed, the image appears more reddish.

To sharpen or soften the projected image (SHARPNESS):

You can adjust the sharpness of the projected image using the menu.

(See page 31 for menu setting.)

1. Display the IMAGE menu.

2. Select SHARPNESS by pressing the  or  button.

3. Adjust the selected item by pressing the  or  button.

To cancel the menu:

4. Press the MENU button.

To adjust the tone of white (COLOR TEMP.):

You can select a preset color temperature (white tone) using the menu.

(See page 31 for menu setting.)

1. Display the IMAGE menu.

2. Select COLOR TEMP. by pressing the  or  button.

3. Select your desired color temperature by pressing the  or  button.

To cancel the menu:

4. Press the MENU button.

To adjust the tone of white (To customize the color temperature):

To customize (and store) the color temperature to your preference, carry out the following procedure.

(See page 31 for menu setting.)

1. Select COLOR TEMP. in the IMAGE menu.

2. Press the  or  button to select USER .

3. Press the ENTER button.

4. Press the  or  button to select the desired item.

5. Press the  or  button to adjust the selected item.

6. Repeat steps 4 and 5 for optimum adjustment results.

COLOR TEMP.–USER

CONTRAST R

CONTRAST G

CONTRAST B

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

EN-40

To cancel the menu:

7. Press the MENU button.

To enable the stored color temperature:

1. Set COLOR TEMP. to USER in the IMAGE menu.

About color temperature

Color temperature is a way to show the differences in white. White of which temperature is low appears reddish.

When the color temperature rises, white appears bluish. For example, you can change the color temperature using

the following procedures.

To raise the color temperature: Increase the CONTRAST B (blue) and decrease the CONTRAST R (red).

To reduce the color temperature: Decrease the CONTRAST B (blue) and increase the CONTRAST R (red).

t *GZPVTFUBMMPG$0/53"453(BOE#UPOFHBUJWFWBMVFTUIFPSJHJOBMCSJHIUOFTTPGUIFJNBHFDBOUCF

obtained even when you maximize CONTRAST in the IMAGE menu.

Color Enhancer

You can set the user-deﬁned balance between the brightness and hue using the menu.

(See page 31 for menu setting.)

With the IMAGE menu:

1. Display the IMAGE menu.

2. Select COLOR ENHANCER by pressing the  or  button.

3. Select USER by pressing the  or  button.

4. Press the ENTER button.

t The detailed menu for the color enhancer is displayed.

5. Select an item you want to set by pressing the  or  button.

GAMMA mode

Use this item to set the gamma optimally.

DYNAMIC ……Select when viewing images supplied from the computer.

NATURAL ……Select when viewing images supplied from the video device.

DETAIL ………Select when viewing images of which brightness should be kept relatively low, such as movies and

music performance.

Important:

t :PVDBOBEKVTU$PMPS&OIBODFSBMTPCZQSFTTJOHUIF$&CVUUPOPOUIFSFNPUFDPOUSPM

With the remote control:

1. Press the CE button on the remote control.

A window for color enhancer adjustment appears on the upper right of the screen.

2. Press the  or  button to select USER .

3. Press the ENTER button.

4. Press the  or  button to adjust the selected item.

COLOR ENHANCER AUTO

Adjusting projected images (continued)

COLOR ENHANCER–USER

GAMMA MODE DYNAMIC

When USER is selected:

EN-41

Adjusting the ﬁneness of the image (SUPER RESOLUTION):

You can adjust the ﬁneness of the image using the menu.

(See page 31 for menu setting.)

With the IMAGE menu:

1. Display the IMAGE menu.

2. Select SUPER RESOLUTION by pressing the  or  button.

3. Press the  or  button to select ON .

4. Press the ENTER button.

5. Make adjustment using the  or  button.

Important:

t When you make SUPER RESOLUTION adjustment, the colors of the menu may be obscured, but this is not a

failure.

t You can adjust SUPER RESOLUTION also by pressing the SUPER RESOLUTION button on the remote control.

With the remote control:

1. Press the SUPER RESOLUTION button on the remote control.

A window for SUPER RESOLUTION adjustment appears on the upper right of the screen.

2. Press the  or  button to select ON .

3. Press the ENTER button.

4. Make adjustment using the  or  button.

Adjusting the tone of each color (NCM):

You can adjust the tone of each color using the menu.

(See page 31 for menu setting.)

1. Display the IMAGE menu.

2. Select NCM by pressing the  or  button.

3. Press the  or  button to select USER .

4. Press the ENTER button.

5. Select an item you want to set using the  or  button.

t *GZPVXBOUUPBEKVTUUIFTBUVSBUJPOPGBMMDPMPSTPGUIFJNBHFTFMFDU

SATURATION.

t *GZPVXBOUUPBEKVTUUIFCBMBODFPGBMMDPMPSTPGUIFJNBHFTFMFDU3(#5*/5

6. Press the  or  button to adjust the color balance of the selected color.

7. Repeat steps 5 and 6 for optimum adjustment results.

t When the input signal is VIDEO or COMPUTER, the items in the NCM-USER menu are automatically set to the

predetermined values. You can change these values manually.

t To cancel the NCM-USER menu, select OFF in step 2.

t When you make NCM adjustment, the colors of the menu will change, but this is not a failure.

Adjusting projected images (continued)

SUPER RESOLUTION ON

SUPER RESOLUTION

LEVEL 1

NCM COMPUTER

NCM−USER

RED

YELLOW

GREEN

CYAN

BLUE

MAGENTA

SATURATION

RGB-TINT 0

EN-42

Adjusting projected images (continued)

How to adjust the computer image

This projector automatically selects a proper signal format according to the type of video signal supplied from the

computer. However, video signals from the computer may not be projected correctly depending on the types of the

computer and images to be projected. In such a case, make adjustment according to the ﬂowchart below.

Adjustment is completed.

When the size and position of

the computer image are not correct.

Project a bright computer image containing as many texts and characters as possible.

Note) Disable the screen saver if it is active.

Press the AUTO POSITION button.

Settings are automatically and optimally adjusted for the input signal.

Image is projected

correctly.

YES

Display the screen resolution setting menu of your computer.

(Example: In the case of Windows® PC, right-click on the desktop, select Properties, and click the

Settings tab to display the screen resolution setting.)

The screen

resolution setting of your computer

is different from the setting of RESOLUTION

(MEMORIZE ) in the SIGNAL menu

of the projector.

Select RESOLUTION (MEMORIZE ) in the SIGNAL menu

and press the ENTER button.

Set HORIZ. PIXELS and VERT. LINES to the values of the screen resolution of your computer.

(Example: When the screen resolution of the computer is 1280x800, set HORIZ. PIXELS to 1280 and

VERT. LINES to 800.)

Select EXECUTE and press the ENTER button.

Automatic adjustment starts according to the selected resolution.

Image is projected

correctly.

Perform manual

adjustment.

After the memory saving

massage is displayed,

select MEMORY 1 or

MEMORY 2 and press the

ENTER button.

After the memory saving

massage is displayed,

select MEMORY 1 or

MEMORY 2 and press the

ENTER button.

When you don’t save

the adjustment result,

press the MENU button.

Adjustment is canceled.

Adjust HORIZ. POSITION, VERT. POSITION, and TRACKING

in the SIGNAL menu. For details, see “Simple method to

adjust the image position.” (See page 43.)

YES

EN-43

How to adjust the image supplied from the computer using the menu:

Carry out the following procedures according to the symptoms.

Wide strips appear. ……………………………………… Adjust TRACKING in the SIGNAL menu.

The projected image ﬂickers.

The projected image is blurred. ......................................Adjust FINE SYNC. in the SIGNAL menu.

The projected image is displaced horizontally. ..............Adjust HORIZ.POSITION in the SIGNAL menu. Every time the

 button is pressed, the image moves to the right. Every time

the  button is pressed, the image moves to the left.

The projected image is displaced vertically....................Adjust VERT.POSITION in the SIGNAL menu. Every time the 

button is pressed, the image moves down. Every time the 

button is pressed, the image moves up.

The top part of the image ﬂags. ..................................... Change the setting of HOLD in the SIGNAL menu. Select ON ,

press the ENTER button, and adjust BEGIN or END to minimize

the ﬂagging.

A solid black or solid white appears in the image. ........ Adjust CLAMP POSITION or CLAMP WIDTH in the SIGNAL

- USER menu.

The motion doesn’t run smoothly. ..................................Adjust VERT. SYNC. in the SIGNAL - USER menu. Select

AUTO for normal use.

Noise appears on the right or left half of the image. ......Adjust SHUTTER(LS) or SHUTTER(RS) in the SIGNAL - USER

menu.

Noise appears on the top or bottom part of the image.

.......

Adjust SHUTTER(U) or SHUTTER(L) in the SIGNAL - USER

menu.

1. Display the SIGNAL menu.

2. Press the  or  button to select an item to adjust.

3. Adjust the selected item by pressing the  or  button.

To cancel the menu:

4. Press the MENU button.

t %POPUDIBOHFUIFTFUUJOHTPGUIF4*(/"-NFOVJOOPSNBMVTF

Simple method to adjust the image position

To adjust the horizontal position:

1. Align the left edge of the image with the left side of the screen by adjusting HORIZ.POSITION. Then, align the

right edge of the image with the right side of the screen by adjusting TRACKING.

2. Repeat step 1 above to complete the adjustment of the horizontal position.

To adjust the vertical position:

3. Align the upper edge of the image with the upper side of the screen by adjusting VERT.POSITION.

LPF (Progressive ﬁlter)

You can select whether or not to enable the LPF.

Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player or

game console you use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected

images become softened slightly.

Adjusting projected images (continued)

EN-44

Initial network settings

You can set the network of the projector using the

menu.

CONTROL SYSTEM

NETWORK

PASSWORD

NETWORK

CERTIFICATION

PROJECTOR NAME

IP CONFIG

NETWORK RESET

opt.

STANDARD

ENTER

NETWORK RESTART OK

Setting Projector Name

(See page 31 for menu setting.)

1. Display the NETWORK menu.

2. Press the  or  button to select PROJECTOR

NAME.

PROJECTOR NAME

3. Press the ENTER button.

t 130+&$503/".&TDSFFOBQQFBST

PROJECTOR NAME

CODE : XXXXX V Z $ %

caps

SPACE

CLEAR

DEL

CANCEL

B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

0 1 2 3 4 5 6 7 8 9 – . _

! ” # $ % ’ ( ) *+ , /

 

4. Press the direction buttons to move the key cursor,

select the characters or marks to enter, and press

the ENTER button.

t 1SPKFDUPS/BNFDBOCFTFUVTJOHVQUP

characters including alphabets (capital/small),

numeric characters, or marks.

 key: ............. Shifting the position of enter

cursor to the left for each

character.

 key: ............. Shifting the position of enter

cursor to the right for each

character.

DEL key: .......... Deleting the character in the

position of enter cursor for each

character.

caps/CAPS key:

Switching an alphabet character

to CAPITAL or small.

NEXT/PREV key:

Switching the marks listed on

the fourth line.

SPACE key: ..... Inserting a space in the position

of enter cursor.

CLEAR key: ..... Deleting all the entered

characters.

t :PVDBOFOUFSOVNCFSTCZQSFTTJOHUIFOVNCFS

buttons (0 to 9) while holding down the NUM

button on the remote control.

5. When selecting OK, the setting is completed as the

name stored. However, when selecting CANCEL,

the setting is completed without storing.

t 5IFEJTQMBZSFUVSOTUIF/&5803,NFOVBGUFS

selecting OK or CANCEL.

t *UNBZUBLFTPNFUJNFUPSFnFDUUIFTFUUJOHT

Enabling or disabling the network

certiﬁcation

You can select whether or not to certify the network

communication using the network password.

t 'PSEFUBJMTDPOUBDUZPVSEFBMFS

(See page 31 for menu setting.)

1. Display the NETWORK menu.

2. Press the  or  button to select NETWORK

CERTIFICATION.

NETWORK

CERTIFICATION ON

3. Press the ENTER button.

t $POmSNBUJPOEJBMPHBQQFBST

NETWORK CERTIFICATION :

OK : ENTER CANCEL : MENU

4. Press the or  button to select ON or OFF .

5. Press the ENTER button.

t 5PDBODFMUIFTFUUJOHQSFTTUIF.&/6CVUUPO

t *UNBZUBLFTPNFUJNFUPSFnFDUUIFTFUUJOHT

Network Password Settings

(See page 31 for menu setting.)

1. Display the NETWORK menu.

2. Press the  or button to select NETWORK

PASSWORD.

NETWORK

PASSWORD ENTER

3. Press the ENTER button.

t$633&/5/&5803,1"44803%TDSFFO

appears.

CURRENT NETWORK PASSWORD

caps

CLEAR

DEL

CANCEL

B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

0 1 2 3 4 5 6 7 8 9

 



4. Press the direction buttons to move the key cursor,

select the characters or marks to enter, and press

the ENTER button.

t 1BTTXPSEDBOCFTFUVTJOHVQUPDIBSBDUFST

including alphabets (capital/small) or numeric

characters.

 key: ............. Shifting the position of enter

cursor to the left for each

character.

 key: ............. Shifting the position of enter

cursor to the right for each

character.

DEL key: .......... Deleting the character in the

position of enter cursor for each

character.

caps/CAPS key:

Switching an alphabet character

to CAPITAL or small.

EN-45

CLEAR key: ..... Deleting all the entered

characters.

t :PVDBOFOUFSOVNCFSTCZQSFTTJOHUIFOVNCFS

buttons (0 to 9) while holding down the NUM

button on the remote control.

t 5IFEFGBVMUQBTTXPSEJTiBENJOw

5. Select OK, and NEW NETWORK PASSWORD

screen appears if the entered password is correct.

t *GUIFFOUFSFEQBTTXPSEJTOPUDPSSFDU

CURRENT NETWORK PASSWORD screen

appears again.

CONFIRM NETWORK PASSWORD

caps

CLEAR

DEL

CANCEL

B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

0123456789

 





NEW NETWORK PASSWORD



6. Enter the NEW NETWORK PASSWORD and

CONFIRM NETWORK PASSWORD.

t 1BTTXPSEDBOCFTFUVTJOHVQUPDIBSBDUFST

including alphabets (capital/small) or numeric

characters.

 key: ............. Shifting the position of enter

cursor to the left for each

character.

 key: ............. Shifting the position of enter

cursor to the right for each

character.

key: ............... Shifting the position of

enter cursor between NEW

NETWORK PASSWORD

and CONFIRM NETWORK

PASSWORD.

DEL key: .......... Deleting the character in the

position of enter cursor for each

character.

caps/CAPS key:

Switching an alphabet character

to CAPITAL or small.

CLEAR key: ..... Deleting all the entered

characters.

t :PVDBOFOUFSOVNCFSTCZQSFTTJOHUIFOVNCFS

buttons (0 to 9) while holding down the NUM

button on the remote control.

7. When NEW NETWORK PASSWORD and CONFIRM

NETWORK PASSWORD are matched, the setting

is completed after changing the NETWORK

PASSWORD.

t 8IFOZPVTFMFDU0,BOEUIFQBTTXPSETZPV

entered are matched, the setting change dialog

is displayed. After the dialog disappears, the

NETWORK menu is displayed.

t 8IFOZPVTFMFDU$"/$&-UIF/&5803,NFOV

is displayed without changing the password.

t *GUIFFOUFSFEDPOUFOUJTOPUNBUDIFE/&8

NETWORK PASSWORD screen appears again

after an error dialog is displayed.

t 5IFQBTTXPSEGPSUIFXFCDPOUSPMTPGUXBSF

of CRESTRON cannot be changed with this

setting.

t *UNBZUBLFTPNFUJNFUPSFnFDUUIFTFUUJOHT

Initial network settings (continued)

IP Settings

(See page 31 for menu setting.)

1. Display the NETWORK menu.

2. Press the  or  button to select IP CONFIG.

IP CONFIG ENTER

3. Press the ENTER button.

t *1$0/'*(NFOVBQQFBST

IP CONFIG

DHCP

IP ADDRESS

SUBNET MASK

DEFAULT GATEWAY

0. 0. 0. 0

MAC ADDRESS

SAVE SETTINGS

0. 0. 0. 0

Setting or Clearing DHCP

1. Display the IP CONFIG menu.

2. Press the  or  button to select DHCP.

DHCP ON

3. Press the  or  button to select ON or OFF.

t 8IFOTFUUJOH%)$1UP0/*1"%%3&44

SUBNET MASK, and DEFAULT GATEWAY

cannot be set. If you set those settings, set

DHCP to OFF and perform the IP settings as the

following procedures.

t 6OUJMUIFFYFDVUJPOPG4"7&4&55*/(4UIF

change is not saved.

IP Address Settings

1. Display the IP CONFIG menu.

2. Press the  or  button to select IP ADDRESS.

IP ADDRESS 0. 0. 0. 0

3. Press the ENTER button.

t *1"%%3&44TDSFFOBQQFBST

IP ADDRESS

192 . 168 . 0 . 10

CLEAR

DEL

CANCEL

12345678 9

 

4. Press the direction buttons to move the key cursor,

select the numbers to enter, and press the ENTER

button.

t 4FUUIFOVNFSJDWBMVFXJUIJOUIFSBOHFGSPNUP

255. However, set the numeric value for the ﬁnal

octet within the range from 1 to 254.

 key: Shifting the position of enter cursor to

the left.

 key: Shifting the position of enter cursor to

the right.

DEL key: Deleting the character in the position

of enter cursor for each character.

CLEAR key: Deleting all the entered

characters.

EN-46

t :PVDBOFOUFSOVNCFSTCZQSFTTJOHUIFOVNCFS

buttons (0 to 9) while holding down the NUM

button on the remote control.

5. When selecting OK, the setting is completed as

the IP ADDRESS stored temporarily. However,

when selecting CANCEL, the setting is completed

without storing.

t 8IFOUIFTFUUJOHZPVFOUFSFEJTDPSSFDUUIF

IP CONFIG menu is displayed. If the entered

content is not correct, the IP CONFIG menu is

displayed after an error dialog is displayed.

t 6OUJMUIFFYFDVUJPOPG4"7&4&55*/(4UIF

change is not saved.

Subnet Mask Settings

1. Display the IP CONFIG menu.

2. Press the  or  button to select SUBNET MASK.

SUBNET MASK 0. 0. 0. 0

3. Press the ENTER button.

t 46#/&5."4,TDSFFOBQQFBST

SUBNET MASK

255 . 255 . 255 . 0

CLEAR

DEL

CANCEL

12345678 9

 

4. Enter the Subnet Mask.

t 3FGFSUP*1"EESFTT4FUUJOHTGPSUIFEFUBJMPG

entering.

5. When selecting OK, the setting is completed as

the Subnet Mask stored temporarily. However,

when selecting CANCEL, the setting is completed

without storing.

t 8IFOUIFTFUUJOHZPVFOUFSFEJTDPSSFDUUIF

IP CONFIG menu is displayed. If the entered

content is not correct, the IP CONFIG menu is

displayed after an error dialog is displayed.

t 6OUJMUIFFYFDVUJPOPG4"7&4&55*/(4UIF

change is not saved.

Default Gateway Settings

1. Display the IP CONFIG menu.

2. Press the  or  button to select DEFAULT

GATEWAY.

DEFAULT GATEWAY 0. 0. 0. 0

3. Press the ENTER button.

t %&'"6-5("5&8":TDSFFOBQQFBST

DEFAULT GATEWAY

192 . 168 . 0 . 1

CLEAR

DEL

CANCEL

12345678 9

 

4. Enter the Default Gateway.

t 3FGFSUP*1"EESFTT4FUUJOHTGPSUIFEFUBJMPG

entering.

5. When selecting OK, the setting is completed as

the Default Gateway stored temporarily. However,

when selecting CANCEL, the setting is completed

without storing.

t 8IFOUIFTFUUJOHZPVFOUFSFEJTDPSSFDUUIF

IP CONFIG menu is displayed. If the entered

content is not correct, the IP CONFIG menu is

displayed after an error dialog is displayed.

t 6OUJMUIFFYFDVUJPOPG4"7&4&55*/(4UIF

change is not saved.

Saving IP CONFIG Settings

1. Display the IP CONFIG menu.

2. Press the  button to select SAVE SETTINGS.

SAVE SETTINGS OK

3. Press the ENTER button.

t 5IFTFUUJOHDIBOHFEJBMPHJTEJTQMBZFE"GUFS

the dialog disappears, the NETWORK menu is

displayed.

t *UNBZUBLFTPNFUJNFUPSFnFDUUIFTFUUJOHT

Setting the control system

Set the control system.

(See page 31 for menu setting.)

1. Display the NETWORK menu.

2. Press the  or  button to select CONTROL

SYSTEM.

CONTROL SYSTEM STANDARD

3. Press the ENTER button.

CONTROL SYSTEM :

OK : ENTER CANCEL : MENU

STANDARD

4. Press the or  button to select STANDARD ,

AMX , or CRESTRON .

STANDARD

Select this setting when using ProjectorView

Global+ or ProjectorView (see page 51), or RS-

232C commands via LAN terminal.

AMX

Select this setting when using the controller of

AMX. (See page 51.)

CRESTRON

Select this setting when using the controller or

software of Crestron Electronics, Inc. (See page 51.)

Important:

t PJLink™ works regardless of the setting of

CONTROL SYSTEM.

5. Press the ENTER button.

t *UNBZUBLFTPNFUJNFUPSFnFDUUIFTFUUJOHT

Initial network settings (continued)

EN-47

Initialization of Network Settings

(See page 31 for menu setting.)

1. Display the NETWORK menu.

2. Press the  or  button to select NETWORK

RESET.

NETWORK RESET OK

3. Press the ENTER button.

t $POmSNBUJPOEJBMPHBQQFBST

4. Press the ENTER button again, and the Network

Settings can be initialized (except for IP CONFIG).

t 5PDBODFMUIFJOJUJBMJ[BUJPOQSFTTUIF.&/6

button.

t "MFSU&NBJMTFUUJOHJTBMTPSFTFU'PSEFUBJMT

about Alert E-mail function, see “LAN control

UTILITY operation manual” in the CD-ROM.

t *UNBZUBLFTPNFUJNFUPSFnFDUUIFTFUUJOHT

How to Use Network Function

t 8IFODPOOFDUJOHBDPNQVUFSBOEQSPKFDUPSXJUI

LAN, conﬁgure the both IP Addresses in the

same network group.

If connecting in different network group, be sure

to use a router. As for the settings of a router, ask

the network administrator.

t $POmHVSFUIF*1$0/'*(DPSSFDUMZ*GUIFTFUUJOHT

are not correct, the communication may be

unavailable. For the detail, consult the network

administrator.

t %FQFOEJOHPOUIFTFUUJOHTPGTUBOECZNPEFPG

the projector, LAN function may be unavailable.

See page 33 for the detail of standby mode.

Initial network settings (continued)

Glossary

For more detail of the glossary below, refer to the

technical book that is commercially available.

Term Description

DHCP

Abbreviation for Dynamic Host

Conﬁguration Protocol. This

protocol automatically assigns IP

Address to networked devices.

IP Address Numerical address to identify

networked computers.

Subnet Mask

A numeric value to deﬁne the

number of bits used for a network

address of a divided network (or

subnet) in an IP Address.

Default Gateway

A server (or router) to communicate

across networks (subnets) that are

divided by Subnet Mask.

MAC Address

Abbreviation for Media Access

Control Address. MAC Address is a

unique ID number assigned to each

network adapter. And this is based

on which data are sent and received

between network adapters.

EN-48

t 5IFJNBHFXJUIJOUIFPVUFSFEHFTPGUIFSFE

frame is captured.

t 5IFDBQUVSFEJNBHFJTEJTQMBZFEJOUIF3&"-

mode automatically.

CAPTURE : ENTER + ENTER

CANCEL : MENU

CAPTURE : ENTER X2

CANCEL : MENU

12.Adjust the size of the image to be captured so that

such image stays within the red frame.

t Press the , ,  or  button to move the red

frame.

t You can’t move the red frame outside the

screen.

t Press the MENU button to cancel the

procedure.

CAPTURE : ENTER X2

CANCEL : MENU

13. Press the ENTER button twice.

t Image capture will start.

CAPTURE : ENTER X2

CANCEL : MENU

CAPTURING IMAGE !

t When the image capture completes, the

captured image will be displayed for 1 second.

Important:

t You can’t change the new startup screen back to

the original startup screen. (Even when you select

RESET ALL in the FEATURE menu, the factory

default screen isn’t available any longer.) When you

want to change the startup screen again, capture

another image.

t The captured image will be displayed from the

next startup. If the captured image isn’t displayed,

make sure that the setting of SPLASH SCREEN in

the INSTALLATION menu isn’t OFF. (See page 33.)

t When BACK COLOR in the INSTALLATION menu is

set to IMAGE, the captured image will be displayed

while no signal is supplied.

t 8IFOOPWJEFPTJHOBMJTTVQQMJFEUIFQSPKFDUPS

takes some time to display the captured image.

t Some images can’t be captured correctly because

of their signal type.

Advanced features

Changing the image displayed at the

startup

You can display your desired image as the startup

screen (or splash screen). By setting the menu, you

can use such image instead of the background image

that is displayed when no video signal is supplied.

Important:

t You can’t set IMAGE CAPTURE when PASSWORD

FUNCTION in the FEATURE menu has been set to

SPLASH ID SCREEN to enable the password lock.

t You can’t set IMAGE CAPTURE when the

component video signal is inputted.

Setting procedure

(See page 31 for menu setting.)

1. Press the COMPUTER button to select the image

supplied to the COMPUTER/COMPONENT/VIDEO

IN terminal.

2. Display your desired image.

3. Display the INSTALLATION menu.

4. Select IMAGE CAPTURE by pressing the  or 

button.

5. Press the ENTER button.

t The setting menu will be displayed.

INSTALLATION

CUSTOM IMAGE CAPTURE

SIZE

BACK COLOR

CAPTURE

GRAY

opt.

Set the background color

(Set the background color only when you set the

image size to x1 or x2.)

6. Select BACK COLOR by pressing the  or 

button.

7. Select your desired color for the background

(GRAY, RED, GREEN, BLUE, BLACK, WHITE,

3&%(3&&/PS#-6&CZQSFTTJOH

the  or  button.

Set the image size

8. Select SIZE by pressing the  or  button.

9. Select x1, x2, or FULL by pressing the  or 

button.

x1 x2 FULL

Capture the image

10. Select CAPTURE by pressing the  or  button.

11.Press the ENTER button.

t A red frame appears. (The size of the red frame

is 320 x 240 pixels.)

EN-49

Password function

This projector is equipped with the password function

that is designed for prevention of wrong operation by

children and restriction on operation by other than

speciﬁed users. The password function has 3 modes

as follows.

DISPLAY INPUT .......... When the projector is turned

on, the startup screen (or splash screen) will appear

and stay on the screen until the password is

entered. When the password is entered, the startup

screen will switch to the regular operation screen.

MENU ACCESS ........... All the buttons except for the

POWER button on the projector are disabled. (The

buttons on the remote control are enabled.) You

can use this mode as a measure of prevention

of wrong operation by children and restriction on

operation by other than speciﬁed users.

SPLASH ID SCREEN ... IMAGE CAPTURE and

SPLASH SCREEN in the INSTALLATION menu

become unavailable. SPLASH SCREEN will be set

to ON automatically.

To enable the password function:

1. Display the FEATURE menu.

2. Press the  or  button to select PASSWORD

FUNCTION.

3. Press the  or  button to change the mode

among DISPLAY INPUT , MENU ACCESS and

SPLASH ID SCREEN .

t When the password has already been set, the

mode won’t be changed. In such cases, press

the ENTER button to cancel the password

function and try again.

4. Press the ENTER button.

t The screen for setting the password function will

appear.

FEATURE

DISPLAY INPUT

opt.

LOCK

UNLOCK

ENTER

5. Press the ENTER button.

t The screen for entering a password will appear.

PASSWORD

CONFIRM

O K : ENTER CANCEL : MENU

6. Enter a 4 - 8 digit password using the , ,  and

 buttons.

(

=1, =2, =3, =4)

t You can enter the value by pressing the number

buttons (1 to 4) while holding down the NUM

button on the remote control.

Advanced features (continued)

7. Press the ENTER button.

t To cancel the procedure, press the MENU

button.

8. Enter the password again for conﬁrmation using the

same steps.

9. Press the ENTER button.

t If the entered passwords don’t match, an error

message will appear.

t To cancel the procedure, press the MENU

button.

To cancel the password function:

1. Display the FEATURE menu.

2. Press the  or  button to select PASSWORD

FUNCTION.

3. Press the ENTER button.

t The screen for canceling the password function

will appear.

FEATURE

DISPLAY INPUT

opt.

LOCK

UNLOCK

ENTER

4. Press the ENTER button.

t The screen for entering the password will

appear.

PASSWORD

2 4 O K : ENTER CANCEL : MENU

5. Enter a 4 - 8 digit password using the , ,  and

 buttons.

(

=1, =2, =3, =4)

t You can enter the value by pressing the number

buttons (1 to 4) while holding down the NUM

button on the remote control.

6. Press the ENTER button.

t If you enter a wrong password, an error

message will appear.

t To cancel the procedure, press the MENU

button.

Important:

t Disable the password by pressing the MENU and

ENTER buttons on the projector at the same time

about 3 seconds.

EN-50

Picture in Picture (PinP)

One of the special features of this projector is the

picture-in-picture (PinP) mode. The PinP mode allows

you to view the images from different sources at the

same time.

t 8IJMFWJFXJOHUIFJNBHFGSPNUIF$0.165&3

COMPUTER2, DVI, or HDMI input source, you can

display the image from the VIDEO or S-VIDEO input

source as a sub image.

Sub image

To use the PinP mode

1. Press the PinP button on the remote control.

2. If necessary, select the desired external input

source of the sub image by using the VIDEO or

S-VIDEO button on the remote control.

3. Press the PinP button again to exit the PinP mode.

To change the position of the sub image:

Press the  or  button on the remote control.

Important:

t 5IF1JO1NPEFJTBWBJMBCMFPOMZXIFOUIF"41&$5

ratio is set to NORMAL.

t The PinP mode isn’t available with some input

signals. For further information, see page 64.

t 8IFOUIFNBJOJNBHFTJHOBMJTMPTUEVSJOHUIF1JO1

mode, the PinP mode is disabled.

t When the COMPUTER 1, COMPUTER 2, DVI-D

(HDCP) or HDMI button on the remote control is

pressed, the PinP mode will be canceled.

t 8IFOUIFSFJTOPWJEFPTJHOBMGPSTVCJNBHFZPV

can’t change the display position.

t The motion may not run smoothly in the PinP

mode.

t 5IFTJ[FPGUIFTVCJNBHFWBSJFTEFQFOEJOHPOUIF

input signal and the settings.

Advanced features (continued)

Magnifying the displayed image

By pressing the MAGNIFY button on the remote

control, you can magnify the image to view the details.

t 8IJMFWJFXJOHUIFJNBHFGSPNUIF$0.165&3

COMPUTER2, DVI, or HDMI input source, you can

magnify the image.

Magniﬁed image

To use the MAGNIFY mode:

1. Press the MAGNIFY button on the remote control.

t You can select the area to be magniﬁed by

pressing the , ,  or  button on the

remote control.

t You can change the magniﬁcation of the

selected area by pressing the + or - button.

2. Press the MAGNIFY button again to exit the

MAGNIFY mode.

t The regular operation screen will appear.

Important:

t The MAGNIFY mode doesn’t function with some

input signals. For details, see page 64.

t In the MAGNIFY mode, you can’t adjust the

volume.

Freeze

To stop the motion in the image temporarily (or to

display a still image):

Press the FREEZE button on the remote control.

t The image will freeze temporarily.

To resume the motion in the image:

Press the FREEZE button on the remote control again.

Important:

t %POPUEJTQMBZBTUJMMQJDUVSFGPSBMPOHUJNF

because the afterimages may persist on the screen.

(See page 59.)

EN-51

Important:

t 8IFOZPVTFU$0/530-4:45&.UP$3&4530/

in the NETWORK menu, the web control for

Crestron is enabled. For such control, Adobe Flash

Player should be installed in advance. You can

download Adobe Flash Player from the website of

Adobe Systems Incorporated.

t 8IFOZPVTFU$0/530-4:45&.UP$3&4530/

in the NETWORK menu, you cannot use the control

by ProjectorView Global+, which is the software

supplied with the projector.

About PJLink™

t 5PVTF1+-JOLGVODUJPOUIF1+-JOL

application software is required.

t 5PVTFUIJTGVODUJPOTFUUIFOFUXPSLDFSUJmDBUJPO

properly according to the setting of the network

application to be used. (See page 44.)

t 'PSUIFTQFDJmDBUJPOTPG1+-JOLBDDFTTUP

the Web site of Japan Business Machine and

Information System Industries Association

(JBMIA). (http://pjlink.jbmia.or.jp/english)

t 5IJTQSPKFDUPSJTGVMMZDPNQMJBOUUPUIF

speciﬁcations of JBMIA PJLink™ Class 1. It

supports all the commands deﬁned by PJLink™

Class 1, and the compliance has been veriﬁed

with the PJLink™ standard speciﬁcations

Version 1.0.

Important:

t 'PSUIFDPNNBOETGPS1+-JOL™, see the table on

the next page.

t The control may not be performed correctly or the

monitoring data may not be obtained correctly in

the following conditions:

· During standby

· During zoom/focus adjustment

· During lens shift adjustment

· During input source switching

· During auto position execution

· During BLANK

· During command processing

· Before the splash screen disappears after the

power is turned on.

t During zoom/focus adjustment, lens shift

adjustment, BLANK, etc., it may take approx. 5

seconds to receive a response to a command.

t Use 1 controller to control/monitor 1 projector.

t For how to control/monitor using PJLink™, see the

operation manual of the PJLink™ application you

use.

t 8IFOZPVNPOJUPSUIFQSPKFDUPSTPQFSBUJOHTUBUF

using this function by issuing inquiry commands

successively, issue an inquiry command after

receiving the response to the previous inquiry

command from the projector.

Supervising and controlling by computer

You can supervise and control the projector’s operation

using a personal computer via a LAN.

Major functions

ProjectorView Global+

Batch projector controlling / supervising application

software

t #BUDIPQFSBUJPOPGTUBOEBMPOFQSPKFDUPSNVMUJQMF

projectors

t 4DIFEVMJOHGVODUJPOUPUVSO0/0''GPSFBDIEBZPG

the week

t $IFDLJOHFBDIDPOEJUJPOPGUIFQSPKFDUPSBOE

detecting a theft

t 4FUUJOHPGUIFQSPKFDUPST*1$0/'*(

t 4UBSUVQPGUIFDPOUSPMMJOHTVQFSWJTJOHUPPM

(ProjectorView) using the Web browser

t "DUJWBUJOH7JTVBM1"UPEJTQMBZUIFTQFDJmFE

characters on the projector’s screen

t 1SPKFDUPST5FYU4QFFDIGVODUJPOUPSFBEBMPVE

messages displayed on the Visual PA2 window

ProjectorView

The controlling /supervising tool using the Web

browser

t $POUSPMMJOHBOETVQFSWJTJOHBTJOHMFQSPKFDUPS

t 4FUUJOHPGUIFQSPKFDUPSTOFUXPSLGVODUJPO

t 4FUUJOHPGUIF"MFSU&NBJMTFSWJDFPGUIFQSPKFDUPS

AMX Device Discovery

The projector is monitored and controlled by the

control system of AMX.

Crestron RoomView Connected™

The projector is monitored and controlled by the control

system and software of Crestron Electronics, Inc.

PJLink™

This projector supports standard protocol PJLink™

for projector control and you can control and monitor

projector’s operations using the same application

among projectors of different models and different

manufacturers.

About ProjectorView Global+ and ProjectorView

t 'PSEFUBJMTTFFi-"/DPOUSPM65*-*5:PQFSBUJPO

manual” in the CD-ROM.

About AMX Device Discovery

t 5IJTJTBUFDIOPMPHZTVHHFTUFECZ".9UP

facilitate conﬁguration of the control system

of AMX and its target devices. To use this

technology, it is necessary to set CONTROL

SYSTEM in the NETWORK menu. (See pages 37

and 46.)

For details, see the website of AMX.

URL http://www.amx.com/

About Crestron RoomView Connected™

t 5IJTJTBUFDIOPMPHZTVHHFTUFECZ$SFTUSPO

Electronics, Inc. to facilitate conﬁguration of the

control system of Crestron and its target devices.

To use this technology, it is necessary to set

CONTROL SYSTEM in the NETWORK menu.

(See pages 37 and 46.)

For details, see the website of Crestron

Electronics, Inc.

URL http://www.crestron.com

URL http://www.crestron.com/getroomview/

Advanced features (continued)

EN-52

Connection

For details of the connection, see “LAN control UTILITY operation manual” in the CD-ROM.

When STANDBY MODE of the INSTALLATION menu of the projector is set to LOW, the network function is

disabled. To enable the network function, set STANDBY MODE to STANDARD or LAN. (See page 33.)

Conﬁgure the initial network settings ﬁrst.

You can conﬁgure the initial settings using the projector menu (see pages 44 to 47) or ProjectorView Global+ or

ProjectorView. For details of ProjectorView Global+ and ProjectorView, see “LAN control UTILITY operation manual” in

the CD-ROM.

Using the User Manual

The User Manual for LAN Control Utility is prepared in the Portable Document Format (PDF) in the CD-ROM.

Opening the User Manual:

1. Load the CD-ROM into the CD-ROM drive.

2. Open CD-ROM “PROJECTOR.”

3. Double-click on “MANUAL_LAN.HTML” within the CD-ROM. A language selection list for the User Manual will be

displayed.

4. Move the mouse pointer to the desired language and click.

PJLink™ supported commands

The table below shows commands to control the projector using the PJLink™ protocol.

Command Description Remark (Parameter)

POWR Power control 0 = Standby

1 = Power on

POWR? Inquiry about the power state 0 = Standby

1 = Power on

2 = Cooling down

3 = Warming up

INPT Input switching 11 = COMPUTER1 12 = COMPUTER2

21 = VIDEO 22 = S-VIDEO

31 = HDMI 32 = DVI

INPT? Inquiry about input switching

AVMT Mute control 30 = Video and audio mute disable

31 = Video and audio mute enable

AVMT? Inquiry about the mute state

ERST? Inquiry about the error state 1st byte: Fan error, 0 or 2

2nd byte: Lamp error, 0 to 2

3rd byte: Temperature error, 0 or 2

4th byte: Cover open error, 0 or 2

5th byte: Filter error, 0 or 2

6th byte: Other error, 0 or 2

0 to 2 mean as follows:

0 = No error detected, 1 = Warning, 2 = Error

LAMP? Inquiry about the lamp state

1st value (1 to 5 digits): Cumulative LAMP operating time (This item shows

a lamp operating time (hour) calculated based on

that LAMP MODE is LOW.)

2nd value: 0 = Lamp off, 1 = Lamp on

INST? Inquiry about the available inputs The following value is returned.

“11 12 21 22 31 32”

NAME? Inquiry about the projector name The projector name set on the NETWORK menu or the ProjectorView

Setup window is returned.

INF1? Inquiry about the manufacturer name “MITSUBISHI” is returned.

INF2? Inquiry about the model name “XL7000U” is returned.

INF0? Inquiry about other information No other information is available. No parameter is returned.

CLSS? Inquiry about the class information “1” is returned.

t This projector is fully compliant to the speciﬁcations of JBMIA PJLink™ Class 1. It supports all the commands deﬁned by

PJLink™ Class 1, and the compliance has been veriﬁed with the PJLink™ standard speciﬁcations Version 1.0.

Advanced features (continued)

EN-53

Replacing the lamp

This projector is equipped with a lamp to project

images. This lamp is a consumable. It may burn out

or its brightness may decrease during use. In such

cases, replace the lamp with a new one as soon as

possible. Be sure to replace the lamp with a new lamp

separately sold that is exclusive to this projector.

Contact your dealer for purchase of the lamp.

Spare lamp VLT-XL7100LP

Warning:

t #FDBSFGVMOPUUPESPQUIFMBNQmYJOHTDSFXTJOUP

the inside of the projector. Don’t put a metal piece

or ﬂammable object into the projector. Using the

projector with any foreign object present inside

may result in electric shock or ﬁre. When you can’t

remove the foreign object from the inside, contact

your dealer for removal.

t %POPUUPVDIUIFMBNQXJUICBSFIBOETPSHJWF

a shock to the lamp. Attach the lamp properly.

Improper handling may cause explosion.

t #FTVSFUPJOTUBMMUIFMBNQTFDVSFMZ8IFOUIFMBNQ

isn’t installed properly, it won’t illuminate. Improper

installation may also result in ﬁre.

t %POUTIBLFUIFSFNPWFEMBNQPSEPOUMJGUJUBCPWF

your face. You may be injured in your eye by ﬂying

or falling glass fragments.

t %POUSFQMBDFUIFMBNQJNNFEJBUFMZBGUFSVTF

because the lamp cover is very hot. You may get

burned. Turn off the power using the POWER

button. After the lamp goes out, wait about 2 and

a half minutes until the intake and exhaust fans for

cooling the lamp stop rotating. Then unplug the

power cord, and wait at least 1 hour to allow the

lamp to cool down enough to the touch.

Interval of lamp replacement

The recommended interval of lamp replacement is

about 4000 hours*1*2 of consecutive use. Such interval

differs depending on the operating environment

and may be shorter than 4000 hours*1*2. Decrease

in luminescence and/or color brightness indicates

that the lamp needs to be replaced. When the lamp

operation time exceeds 3000 hours*1, the indicator

will blink alternately between green and red (while the

MBNQJTMJUXIFOUIFMBNQJTOPUMJUUIFJOEJDBUPSXJMM

be lit red only) and the lamp replacement message

will appear on the screen for 1 minute everytime the

lamp is turned on. When the lamp has been used

for about 3800 hours*1, the replacement message

(LAMP REPLACEMENT) will appear on the screen for

1 minute every 20 hours*1 thereafter. When the lamp

operation time exceeds 4000 hours*1*2, the projector

automatically shuts off.

*1: Duration when LAMP MODE of the INSTALLATION menu

is set to LOW. When it is set to STANDARD, this duration

will be shorted.

*2: When LAMP MODE is set to STANDARD, this duration

will be shorted to 3000 hours.

Caution:

t %POUSFNPWFUIFMBNQGPSBOZQVSQPTFPUIFSUIBO

replacement. Unnecessary removal of the lamp

may result in a breakdown.

t 5IJTQSPKFDUPSVTFTBIJHIQSFTTVSFNFSDVSZMBNQ

as the light source. The high-pressure mercury

lamp may explode or fail to illuminate permanently

because of an impact, scratch, or deterioration

through use. The period of time until explosion or

permanent failure to illuminate varies considerably

from lamp to lamp, depending on operation

conditions. Therefore, the lamp may explode soon

after the start of use.

t 5IFQPTTJCJMJUZPGFYQMPTJPOPGUIFMBNQJODSFBTFTJG

you use it beyond its replacement period. When the

instruction of lamp replacement appears, replace it

with a new one immediately even if the lamp is still

lighting normally.

t 8IFOUIFIJHIQSFTTVSFNFSDVSZMBNQFYQMPEFT

glass fragments will scatter inside or outside the

lamp box and the gas charged inside the lamp

will diffuse inside or outside the projector. The gas

inside the lamp contains mercury. Be careful not

to breathe it or avoid it from entering your eye or

mouth. If you should breathe it or if it should enter

your eye or mouth, see a doctor immediately.

t *OUIFFWFOUUIBUUIFIJHIQSFTTVSFNFSDVSZ

lamp exploded, glass fragments may have been

scattered inside the projector. Ask your dealer to

replace the lamp and to inspect the inside of the

projector. When you clean or replace the lamp by

yourself, be sure to hold the handle of the lamp.

You may get injured by glass fragments.

t 8IFOSFNPWJOHUIFMBNQGSPNUIFDFJMJOHNPVOUFE

projector, use the lamp replacement tray packed

with the projector or option lamp to prevent glass

fragments from scattering.

t #FTVSFUPVTFUIFMBNQFYDMVTJWFUPUIJTQSPKFDUPS

VLT-XL7100LP. Use of other lamps may cause a

failure of the projector.

EN-54

Replacing the lamp (continued)

To replace the lamp:

1. Unplug the power cord from the outlet or appliance

inlet.

2. Loosen two screws (a) that are securing the lamp

cover using a Phillips screwdriver and remove the

lamp cover (b) from the projector.

(b)

(a)

3. Loosen two screws (c) that are securing the lamp

box to be removed using a Phillips screwdriver.

(c)

4. Pull out the lamp box by the handle while holding

the projector.

t 1VMMUIFMBNQCPYPVUPGUIFQSPKFDUPSTMPXMZ

When the lamp is broken, glass fragments may

be scattering by quickly pulling out the lamp

box.

t %POPUTQJMMMJRVJEPOUIFSFNPWFEMBNQCPYPS

do not place it near any ﬂammable object or

where children can reach to prevent injury or

ﬁre.

5. Load a new lamp box securely into the projector in

the right orientation.

6. Tighten two screws (c) of the new lamp box tightly

using a Phillips screwdriver.

(c)

t .BLFTVSFUIBUUIFTDSFXTBSFUJHIUFOFEmSNMZ

7. Insert the lamp cover (b) into the projector and

tighten two screws (a) on the lamp cover ﬁrmly

using a Phillips screwdriver.

(b)

(a)

t :PVDBOOPUUVSOPOUIFQSPKFDUPSXJUIPVU

attaching the lamp cover.

Reset of the lamp operation time

Plug in the power cord and reset the lamp operation

time by holding down the , , and POWER buttons

on the control panel at the same time about 3

seconds.

Important:

t Unless these 3 buttons are pressed at the same

time, the lamp operation time isn’t reset.

t Make sure that the STATUS indicator blinks twice

and the lamp operation time is reset successfully.

t The projector doesn’t turn on if the lamp cover isn’t

attached securely.

t Be sure to reset the lamp operation time whenever

you replace the lamp.

t Do not reset the lamp operation time unless you

replace the lamp.

t The lamp is fragile. If it is broken, be careful not to

cut yourself with glass fragments.

Caution:

t This projector uses a lamp that

contains mercury. Disposal of the lamp

or the projector with the lamp may

be regulated due to environmental

considerations. For disposal or

recycling information, please contact

your local authorities or the Electronic

Industries Alliance: www.eiae.org. (For

the U.S. only.)

EN-55

When removing the lamp from the ceiling-mounted projector

When removing the lamp from the ceiling-mounted projector, use the lamp replacement tray packed with the

projector or option lamp to prevent glass fragments from scattering.

t "TTFNCMFUIFMBNQSFQMBDFNFOUUSBZBDDPSEJOHUPUIFQSPDFEVSFTIPXOPOJU

1. Follow steps 1 to 3 on page 54.

2. Attach the lamp replacement tray to the projector as shown in the

ﬁgure.

3. Secure the lamp replacement tray on the projector using the tape

packed with the tray.

4. Pull out the lamp box by the handle while holding the projector.

t Hold the lamp replacement tray to prevent glass fragments

from scattering.

t Don’t put the lamp directly on the lamp replacement tray

because it may fall.

5. Detach the lamp replacement tray together with the removed

lamp.

6. Follow steps 5 to 7 on page 54.

Important:

t When the projector is installed at other setting angles, replace the

lamp referring to “To replace the lamp.”

Replacing the lamp (continued)

Tape

EN-56

Maintenance

Cleaning of the ﬁlter

Clean dust from the ﬁlter.

Before cleaning the ﬁlter, be sure to turn off the power

of the projector and unplug the power cord from the

outlet.

Clean the ﬁlter frequently (at least once a month).

Dust settling on the ﬁlter causes the temperature

inside the projector to increase abnormally, damaging

the internal parts and components and affecting the

panel’s lifetime, resulting in a breakdown.

t When the temperature inside the projector is

abnormally high, the projector may automatically

turn off and go into the standby mode where the

light source lamp is off to protect the internal parts

and components.

1. Unplug the power cord.

2. Loosen two screws (a) that is securing the ﬁlter

cover using a Phillips screwdriver and remove the

ﬁlter cover (b) from the projector.

(a)

(b)

3. Remove the ﬁlter cartridge.

Filter cartridge

4. Suck dirt and dust from the ﬁlter and projector

using a vacuum cleaner.

5. Attach the ﬁlter cartridge.

6. Insert the ﬁlter cover (b) into the projector and

tighten two screws (a) on the ﬁlter cover ﬁrmly

using a Phillips screwdriver.

(b)

(a)

Important:

t The projector doesn’t turn on if the ﬁlter cover isn’t

attached securely.

Warning:

t Do not use ﬂammable solvents (benzene, thinner,

etc.) and ﬂammable aerosols when cleaning the

projector body and lens. Flammable substances

may ignite causing ﬁre or breakdown while the

lamp is illuminating.

Caution:

t Be sure to turn off the lamp and unplug the power

cord from the wall outlet before you perform any

maintenance on the projector.

t "TLZPVSEFBMFSGPSBOOVBMDMFBOJOHPGUIFJOTJEFPG

the projector. If you continue to use the projector

with dust inside, it may result in ﬁre or malfunction.

t %POPUQVUBOZGPSFJHOPCKFDUJOUPUIFmMUFSVOJU*U

may cause malfunction.

Cleaning of the projector and the

ventilation slots

Use a soft cloth to clean the projector and the

ventilation grilles. When the grilles become dirty, wipe

them with a soft cloth dampened with diluted mild

detergent, and then wipe them with a dry cloth.

t Clean the inside of the terminal cover frequently as

dust is apt to be collected.

To protect the surface of the projector from fading or

deteriorating:

t Do not spray insecticide on or inside the projector.

t Do not use benzine or thinner to clean it.

t Do not let rubber or plastic materials contact with

projector.

Cleaning of the lens

Use a standard lens-cleaning brush or a piece of lens

tissue dampened with lens cleaning ﬂuid. The lens

surface is fragile. Use only recommended, nonabrasive

lens-cleaning materials. Do not touch the lens with

your ﬁngers.

EN-57

You can replace the lens on this projector. The lens

can be replaced with the separately sold option lens

according to the usage environment of the projector.

For details of the speciﬁcation of the option lens,

contact your local dealer.

t #FGPSFZPVSFQMBDFUIFMFOTCFTVSFUPUVSOPGGUIF

projector and unplug the power cord from the wall

outlet.

t #FGPSFZPVSFQMBDFUIFMFOTCFTVSFUPSFTFUUIF

lens position to the center (the factory default

position).

When the lens position is moved from the center,

reset to the center position (the factory default

position) using the lens shift reset (see page 33).

The lens replacement may fail when the lens

position is moved from the center.

t 5IFQSPKFDUPSBOEMFOTBSFDPNQPTFEPGQSFDJTJPO

parts. Do not subject them to shock or excessive

force.

t %VSJOHSFQMBDFNFOUEPOPUUPVDIUIFMFOTTVSGBDF

with your hands.

t 5BLFTVGmDJFOUDBSFOPUUPBUUBDIBOZEJSUPSPJM

on the lens surface, and not to scratch the lens

surface.

t %POPUSFQMBDFUIFMFOTJOBEVTUZQMBDF%JSUPS

dust entering the projector causes a degradation of

an image quality.

t %POPUMFBWFUIFMFOTSFNPWFEGSPNUIFQSPKFDUPS

for a long period of time. Dirt or dust entering the

projector causes a degradation of an image quality.

t %POPUUPVDIUIFTJHOBMDPOUBDUPGUIFMFOTXJUI

your ﬁnger. When dirt or dust adheres, it may cause

a contact failure.

Removing the lens

1. Remove the lens ring by turning it counterclockwise

slightly.

Lens ring

2. Turn the lens counterclockwise until it stops while

pressing the lens release button on the top of the

cabinet as far as it will go, and then remove the

lens by pulling it out slowly.

t%POPUESPQUIFMFOTXIFOSFNPWJOHJU

Lens release button

Lens

Mounting the lens (option lens)

1. Remove the lens protective cap from the lens.

Lens

Protective cap

t %POUBUUBDIUIFQSPUFDUJWFDBQUPUIFMFOTBGUFS

mounting the lens to the projector.

2. Insert the lens slowly as far as it will go with the red

mark on the lens pointed upward in the center.

Red mark

3. Turn the lens clockwise slowly until you hear it

click.

t %POPUQSFTTUIFMFOTSFMFBTFCVUUPOXIFO

mounting the lens.

t "GUFSZPVNPVOUUIFMFOTUVSOJUDPVOUFSDMPDLXJTF

and check that it isn’t removed.

4. Insert the lens ring with the part A pointed up and

then turn it clockwise.

Lens ring

Part A

Important:

t %POPUUSBOTQPSUUIFQSPKFDUPSXJUIUIFPQUJPOMFOT

mounted. The projector may be damaged.

t 8JUIUIFPQUJPOMFOTNPVOUFEUIFCSJHIUOFTT

resolution, and color uniformity in the projected

image may differ from those with the standard lens.

t 8JUIUIFPQUJPOMFOTNPVOUFEUIFBEKVTUBCMFBOHMF

in the keystone adjustment differs from that with

the standard lens.

t *OUIFLFZTUPOFBEKVTUNFOUXJUIUIFPQUJPOMFOT

mounted, the proper aspect ratio may not be

obtained.

t 8IFOUIFPQUJPOMFOTJTNPVOUFEQSPKFDUFEJNBHFT

may become distorted, have decreased resolution,

or have shadows at their corners if the projection

screen is set close to the top or bottom edge or

right or left edge of the effective projection area.

Replacing the lens

EN-58

Troubleshooting

Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be

sure to unplug the power plug, and then contact your dealer.

No image appears on the screen.

Problem Solution

Power can not be

turned on.

t $IFDLXIFUIFSUIFJOEJDBUPSTBSFPOPSPGGBOEIPXUIFZBSFMJHIUOJOH

POWER STATUS FILTER Solution

Off Off Off

t $POOFDUUIFQPXFSDPSEUPUIFQSPKFDUPS

t 1MVHUIFQPXFSDPSEJOUPBXBMMPVUMFU

Steady red

Off Off

t *GBOZPCKFDUTBSFCMPDLJOHUIFBJSJOMFUPSPVUMFUHSJMMFSFNPWFUIFNBOE

carry out the following.

Unplug the power cord from the wall outlet.1.

Make sure that the projector has cooled off. 2.

Plug the power cord into a wall outlet.3.

Press the POWER button.4.

Blinking

orange Off

t *GBOZPCKFDUTBSFCMPDLJOHUIFBJSJOMFUPSPVUMFUHSJMMFSFNPWFUIFN

t %POUFYQPTFUIFBJSPVUMFUHSJMMFTUPIPUBJSFNJUUFEGSPNBIFBUJOH

appliance.

t $IFDLXIFUIFSUIFmMUFSJTEJSUZPSOPU

 Clean the ﬁlter. (See page 56.)

Blinking

green Off

t 8BJUVOUJMUIF45"564JOEJDBUPSTUPQTCMJOLJOHHSFFOBOEUIFOQSFTTUIF

POWER button.

t *GZPVVOQMVHUIFQPXFSDPSEXIJMFUIFGBOJTSPUBUJOHUIFMBNQNBZOPUUVSO

on about 2 and a half minutes when you plug the power cord next time.

t

The lamp can’t turn on again for 2 and a half minutes after it goes out.

t 1SFTTUIF108&3CVUUPOTFWFSBMUJNFT

Steady

red Off

t 3FQMBDFUIFMJHIUTPVSDFMBNQ5IFUJNFGPSSFQMBDJOHUIFMJHIUTPVSDF

lamp has come.)

Blinking

red/green

Off Off

t "UUBDIUIFMBNQDPWFSmMUFSDPWFSBOEMFOT

Steady*

Blinking*

t 6OQMVHUIFQPXFSDPSEGSPNUIFXBMMPVUMFUBOEDPOUBDUZPVSEFBMFS

*: Status of either or both of the indicators.

No image appears on

the screen.

t 1SFTTUIF#-"/,CVUUPOUPDBODFM#-"/,

t $IFDLUIBUUIFMFOTDBQJTSFNPWFE

t *UNBZUBLFBCPVUNJOVUFGPSUIFMBNQUPMJHIUVQ

t 5IFMBNQGBJMTUPMJHIUVQPOSBSFPDDBTJPOT*OTVDIBDBTFXBJUGPSBGFXNJOVUFT

and then try again.

t *GUIFQSPKFDUPSXBTUVSOFEPGGCFGPSFUIFMBNQXBTDPPMFEEPXOTVGmDJFOUMZMBTUUJNF

the fan may start rotating and the POWER button may not work after the power cord

is plugged. After the fan stops rotating, press the POWER button to turn back on the

POWER indicator.

t 4FU4$"35*/165JOUIF'&"563&NFOVUP0''4FFQBHF

t $IFDLUIBUUIFJOUBLFWFOUJTDMFBO

t $IFDLUIBUUIFDBCMFTDPOOFDUFEUPUIFFYUFSOBMEFWJDFTBSFOPUCSPLFO

t

When an extension cable is being used, replace it with the supplied cable for check.

When images are displayed correctly, add an RGB signal ampliﬁer to the extension cable.

Power turns off. t 5IJTQSPCMFNNBZPDDVSXIFOUIFJOUBLFWFOUBOEPSFYIBVTUWFOUTBSFCMPDLFE*O

such a case, the STATUS indicator brinks orange.)

 Remove the objects blocking the intake vent and/or exhaust vents and then carry

out the following procedure.

1. Wait for the intake fan and/or exhaust fan to stop. (Wait until the STATUS indicator

goes out.)

2. Unplug the power cord from the wall outlet.

3. Wait about 10 minutes.

4. Plug the power cord into a wall outlet.

5. Press the POWER button.

t 8IFOUIF45"564JOEJDBUPSJTTUFBEZSFEJUJTJOEJDBUJOHUIBUUIFMBNQTIPVMECF

replaced. Replace the lamp in this case.

t $IFDLUIBU"650108&30''IBTCFFOTFUUP0''

t *GUIFMBNQIBTEFUFSJPSBUFEJUNBZHPPVUBGUFSBXIJMFJUJMMVNJOBUFT

EN-59

Troubleshooting (continued)

No image appears on the screen. (continued)

Problem Solution

The screen for

entering the password

appears.

t 1"44803%'6/$5*0/JOUIF'&"563&NFOVIBTCFFOTFUUP%*41-":*/165 to

enable the password lock.

 Enter the password or contact the person in charge of management of the

projector. (See page 49.)

“NO SIGNAL” is

displayed.

t 5VSOPOUIFQPXFSPGUIFDPOOFDUFEEFWJDFPSDIFDLXIFUIFSUIFSFJTTPNFUIJOH

wrong with the connected device.

t $IFDLXIFUIFSUIFFYUFSOBMEFWJDFPVUQVUTJHOBMT$IFDLUIJTFTQFDJBMMZXIFOUIF

external device is a notebook computer.)

t $IFDLUIBUUIFDBCMFDPOOFDUFEUPUIFFYUFSOBMEFWJDFJTOUEFGFDUJWF

t $IFDLUIBUUIFQSPKFDUPSJTDPOOFDUFEUPUIFFYUFSOBMEFWJDFVTJOHUIFDPSSFDUUFSNJOBMT

t $IFDLUIBUUIFDPOOFDUFEEFWJDFJTDPSSFDUMZTFMFDUFEBTUIFJOQVUTPVSDF

t 8IFOBOFYUFOTJPODPSEJTCFJOHVTFESFQMBDFJUXJUIUIFTVQQMJFEDBCMFBOEDIFDL

whether images are projected correctly. If images are projected correctly, use an RGB

signal ampliﬁer along with the extension cord.

Images are not displayed correctly.

Problem Solution

Projected images are

shaking.

Projected images are

displaced.

t $IFDLUIBUUIFDBCMFDPOOFDUFEUPUIFFYUFSOBMEFWJDFJTOUJOUFSNJUUFOU

t $POOFDUUIFDBCMFTQMVHXJUIUIFFYUFSOBMEFWJDFTDPOOFDUPSmSNMZ

t 1SPKFDUBOJNBHFDPOUBJOJOHNBOZDIBSBDUFSTTVDIBTBIFMQNFOVBOEQSFTTUIF

AUTO POSITION button.

t 4PNFDPNQVUFSTPVUQVUPVUPGTQFDTJHOBMTPOSBSFPDDBTJPO"EKVTUUIF4*(/"-

menu. (See page 36.)

t $IFDLXIFUIFSUIFSFJTBXJOEUIBUCMPXTUIFFYIBVTUFEBJSGSPNUIFQSPKFDUPSUPUIF

direction of the projection lens.

Projected images are

distorted.

t "EKVTUUIFQSPKFDUPSBOEUIFTDSFFOTPUIBUUIFZBSFQFSQFOEJDVMBSUPFBDIPUIFS4FF

page 13.)

Projected images are

dark.

t "EKVTU#3*()5/&44BOE$0/53"45JOUIF*."(&NFOV4FFQBHF

t 3FQMBDFUIFMBNQ4FFQBHF

t %FDSFBTFUIFUFNQFSBUVSFXIFOUIFBNCJFOUUFNQFSBUVSFJTIJHIBOEUIFXBSOJOHJT

displayed.

Projected images are

blurred.

t Adjust the focus. (See page 12.)

t $MFBOUIFMFOT

t 1SFTTUIF or  button on the remote control to eliminate ﬂicker.

t "EKVTU53"$,*/(BOE'*/&4:/$JOUIF4*(/"-NFOV4FFQBHF

t "EKVTU#3*()5/&44BOE$0/53"45JOUIF*."(&NFOV4FFQBHF

t "EKVTUUIFQSPKFDUPSBOEUIFTDSFFOTPUIBUUIFZBSFQFSQFOEJDVMBSUPFBDIPUIFS4FF

page 13.)

Afterimages persist on

the screen. t This phenomenon is improved by keeping projecting an evenly bright image. (Such

“image burn-in” phenomenon where afterimages persist on the screen may occur if a

stationary image is kept displayed on the screen for a long time.)

Red, blue, and

green dots appear in

projected images.

Black dots appear in

projected images.

t This phenomenon is unique to LCD projector and isn’t a product malfunction.

(A small number of pixels always stay on or off, which are not malfunctions. More than

PGUIFQJYFMTBSFFGGFDUJWF

Fine streaks are seen

on projected images.

t 5IJTJTEVFUPJOUFSGFSFODFXJUIUIFTDSFFOTVSGBDFBOEJTOPUBNBMGVODUJPO3FQMBDF

the screen or displace the focus a little.

t 7FSUJDBMPSIPSJ[POUBMTUSFBLOPJTFNBZBQQFBSPOUIFQSPKFDUFEJNBHFEFQFOEJOHPO

the type of the DVD player or game console you use. In such a case, you can reduce

such streak noise by enabling the LPF.

Projected images

become wavy.

t $POOFDUUIFQMVHTPGUIFDBCMFTUPFYUFSOBMEFWJDFTTFDVSFMZ

t ,FFQUIFQSPKFDUPSBXBZGSPNEFWJDFTUIBUFNJUJOUFSGFSJOHSBEJPXBWFT

t

When the keystone adjustment is carried out, the image may not be displayed correctly

depending on the type of input signal. This isn’t a product malfunction. In this case,

readjust the keystone so that the amount of keystone correction is as small as possible.

EN-60

Troubleshooting (continued)

Images are not displayed correctly. (continued)

Problem Solution

Hue is not appropriate. t $IFDLUIBUUIFDBCMFTDPOOFDUFEUPUIFFYUFSOBMEFWJDFTBSFOPUCSPLFO

Tint in projected

images is incorrect.

t $IFDLUIBU$0.165&3*/165JOUIF4*(/"-NFOVJTDPSSFDUMZTFU4FFQBHF

t $IFDLUIBUUIFDBCMFDPOOFDUFEUPUIFFYUFSOBMEFWJDFJTOUCSPLFO

Different color tint. t

When comparing images projected by two projectors, tints in the displayed images may be

different because of variation between their optical components. This is not a malfunction.

t 8IFODPNQBSJOHUIFJNBHFQSPKFDUFECZUIJTQSPKFDUPSXJUIUIPTFEJTQMBZFEPOUIF

television or PC monitor, tints in the displayed images may be different because of

difference in the range of color reproducibility. This is not a malfunction.

Only the motion areas

in the images supplied

from the computer

aren’t displayed.

t 5IJTJTDBVTFECZUIFDPNQVUFSCFJOHVTFE$POUBDUUIFNBOVGBDUVSFSPGZPVS

computer.

Projected images are

obscured.

t .BUDIUIFPVUQVUSFTPMVUJPOPGZPVSDPNQVUFSXJUIUIFSFTPMVUJPOPGUIFQSPKFDUPS

For the method to change the output resolution of the computer, contact the

manufacturer of your computer. (See page 64.)

t 4PNFJNBHFTBOEUFYUTBQQFBSPCTDVSFEEVSJOHUIFLFZTUPOFBEKVTUNFOU*OTVDI

cases, use the projector without applying the keystone adjustment. (See page 13.)

t 8IFO461&33&40-65*0/JT0/UIFEJTQMBZFEJNBHFNBZCFPCTDVSFE4FUJUUP

OFF. (See page 32.)

Noise appears around

the image.

t *OTPNFJNBHFTTVDIBT%7%OPJTFNBZBQQFBSBSPVOEUIFSFDPSEFEJNBHF*OUIJT

case, decrease the setting value of OVER SCAN of the SIGNAL menu. (See page 36.)

Others

Problem Solution

The exhaust vents

emit warm air.

t 5IJTBJSDPNFTPVUBGUFSDPPMJOHUIFJOTJEFPGUIFQSPKFDUPS:PVNBZGFFMIPUCVUUIJT

is not a malfunction.

No audio is output. t $IFDLUIBUUIFWPMVNFJTOUTFUUPMPX

t 8IFOUIFFYUFSOBMEFWJDFJTDPOOFDUFEXJUIBO)%.*DBCMFTFUUIFBVEJPPVUQVUPG

the device to PCM output.

The menu can’t be

used.

t 5IFNJDSPDPNQVUFSTJOTJEFUIFQSPKFDUPSNBZCFXSPOHMZPQFSBUJOHCFDBVTFPGOPJTF

 Press the POWER button to turn off the lamp and unplug the power cord from the

wall outlet. Wait about 10 minutes, plug the power cord in, and try again.

“TEMPERATURE!!” is

displayed.

t 5IJTJOEJDBUJPOBQQFBSTXIFOUIFBNCJFOUUFNQFSBUVSFSJTFTIJHI8IFOUIFBNCJFOU

temperature stays high, the lamp goes out.

 Eliminate any causes of the rise in the ambient temperature.

t 5IJTJOEJDBUJPOBQQFBSTXIFOUIFBJSJOMFUPSPVUMFUHSJMMFJTCMPDLFE8IFOUIFZBSF

kept blocked, the lamp goes out.

 Remove the objects blocking the air inlet or outlet grille.

The mark appears. t

This mark appears when ineffective operation is carried out. This isn’t a product malfunction.

The remote control

doesn’t function easily

or at all.

t $IFDLUIBUUIFCBUUFSJFTBSFMPBEFEJOUIFSFNPUFDPOUSPMPSUIFCBUUFSJFTBSFOPU

weak. (See page 6.)

t $IFDLUIBUUIFSFNPUFDPOUSPMTFOTPSJTOUFYQPTFEUPEJSFDUTVOMJHIUPSnVPSFTDFOU

light. (See page 9.)

t 6TFUIFSFNPUFDPOUSPMXJUIJOJUTPQFSBUJPOSBOHF4FFQBHF

t 6TFUIFSFNPUFDPOUSPMBUMFBTUDNBXBZGSPNUIFQSPKFDUPS

t $IFDLUIBUUIF$0/530--&3*%NBUDIFTXJUIUIF130+&$503*%4FFQBHF

t When the terminal cover is attached, remote control may not work properly from

behind the projector.

 Remove the terminal cover.

The buttons on the

projector (except for

the POWER button)

don’t function.

t 1"44803%'6/$5*0/JOUIF'&"563&NFOVIBTCFFOTFUUP.&/6"$$&44 to

enable the password lock.

 Cancel the password lock or contact the person in charge of management of the

projector. (See page 49.)

EN-61

Troubleshooting (continued)

Problem Solution

FOCUS/ZOOM

doesn’t work.

Lens shift doesn’t work.

t $IFDLUIBU-&/4-0$,JOUIF*/45"--"5*0/NFOVJTOU0/ (See page 33.)

If the following problem occurs after the lamp is replaced, check the following ﬁrst.

Problem Solution

The projector does not

turn on.

t 'JUUIFMBNQDPWFSTFDVSFMZ4FFQBHF

t 3FTFUUIFMBNQPQFSBUJOHUJNF4FFQBHF

The STATUS indicator

illuminates red.

t 3FTFUUIFMBNQPQFSBUJOHUJNF4FFQBHF

Kensington Lock

This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System.

Refer to the information that came with the Kensington System for instructions on how to use it to secure the

projector. Please contact Kensington Technology Group below.

Kensington Technology Group

2855 Campus Drive

San Mateo, CA 94403, U.S.A.

Phone: +1- (650)572-2700 Fax: +1- (650)572-9675

EN-62

Indicators

This projector has 3 indicators, each of which shows the operation condition of the projector.

The following offer solutions to possible problems. If these problems persist, turn the projector off and consult your

dealer.

POWER indicator

FILTER indicator STATUS indicator

 Normal condition

POWER STATUS FILTER CONDITION NOTE

Steady red

Off Off Power standby

Blinking green Off

Cooling mode The power cannot be turned on by

pressing the power button.

Steady green

Blinking green Off

Lamp

warmup mode

The power cannot be turned off by

pressing the power button.

Steady green Off

The power is on. (Normal condition)

 Replacement

POWER STATUS FILTER CONDITION POSSIBLE SOLUTION

Steady green Blinking green/

red Off

Lamp operation time warning. (Total lamp operation

time reached 3000 hours*1 while the power was on.) Replace the light source lamp.

Contact your dealer.

Steady red

Blinking red Off

Lamp operation time warning. (Total lamp operation

time reached 3000 hours*1 while the power was off.)

Steady red Off

Lamp operation time warning. (Total lamp operation

time reached 4000 hours*2.)*3

 Abnormal condition

POWER STATUS FILTER CONDITION POSSIBLE SOLUTION

Blinking green/

red

Off Off

t "OZPGUIFMBNQDPWFSBOEmMUFSDPWFSJTPQFO

t 5IFMFOTJTOUNPVOUFE

t $MPTFBMMUIFDPWFST

t .PVOUUIFMFOT4FFQBHF

Steady*4

Blinking*4

Abnormal Unplug the power cord from the wall

outlet and contact your dealer.

Steady red

Steady green

Blinking orange Off

Abnormal temperature

t

The ventilation grilles are clogged with dust or dirt.

t 5IFQSPKFDUPSJTFYQPTFEUPIPUBJSFNJUUFEGSPN

a heating appliance.

t 5IFmMUFSJTEJSUZ

t $MFBOUIFWFOUJMBUJPOHSJMMFT

t 3FMPDBUFUIFQSPKFDUPSUPBDPPMFS

place.

t $MFBOUIFmMUFS4FFQBHF

Steady red Blinking green Off

The lamp is in an abnormal condition. t 8BJUVOUJMUIF45"564JOEJDBUPST

stop blinking green and then press

the POWER button.

t 8IFOUIFMJHIUTPVSDFMBNQEPFT

not light up after carrying out the

above procedure several times,

replace the light source lamp.

t $POUBDUZPVSEFBMFS

*1:

Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD, this duration will be shorted.

*2:

Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD,

this duration will be shorted

up to 3000 hours.

*3: When you press the POWER button on the projector or the remote controller, the STATUS indicator blinks red three times and

then resumes red illumination. During such a case, the power of the projector isn’t turned on.

*4: Status of either or both of the indicators.

EN-63

Speciﬁcations

The speciﬁcations and outside appearance of the projector are subject to change without prior notice.

Type LCD projector

Model XL7000U

Display technology 0.8-inch LCD panel: 3 pieces (for R,G,B)

Pixel: 1024 x 768 = 786432 pixels Total 2359296 pixels

"DUJWFQJYFMSBUFPSNPSFFBDIQBOFM

Projection lens F 1.8 - 2.6 f= 24.0 - 43.2 mm

Light-source lamp 321 W

Image size (projection distance) 40” min. to 300” max. (projection distance 1.2 to 9.1 m)

Maximum resolution Computer signal Maximum resolution: 1920 x 1200 dots (compressed)

Panel resolution: 1024 x 768 dots

Video signal NTSC/PAL/SECAM/4.43NTSC/PAL-M/PAL-N/PAL-60

Component signal 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Panel resolution: 1024 x 768 dots

Computer/component video input [Signal type] [Terminal type] [Line]

Analog RGB Mini D-SUB 15-pin 1

Analog RGB 5 BNC 1

Digital RGB DVI-D 24-pin 1

Video input [Signal type] [Terminal type] [Line]

Video input BNC 1

S-video input S 1

Audio input [Signal type] [Terminal type] [Line]

3(#$PNQPOFOU 4UFSFPNJOJKBDL 

%JHJUBM3(# 4UFSFPNJOJKBDL 

Video RCA (L, R) 1

S-video RCA (L, R) 1

HDMI input [Signal type] [Terminal type] [Line]

HDMI HDMI 19-pin 1

Monitor output [Signal type] [Terminal type] [Line]

Analog RGB Mini D-SUB 15-pin 1

Audio output [Signal type] [Terminal type] [Line]

3(#$PNQPOFOU 4UFSFPNJOJKBDL 

Speaker 10 W Mono Round type x 1

Control terminal/others

34$%46#QJO-"/3+3&.05&*/0654UFSFPNJOJKBDL

Operating temperatures

+41°F (+5°C) to +104°F (+40°C): ( Standard altitude mode: All projection angles)

+41°F (+5°C) to +86°F (+30°C): (High altitude mode: Floor installation/ceiling

installation)

Rated voltage AC 100 - 240 V, 50/60 Hz

Power consumption 5.7 A, 480 W

During standby:

AC 100 - 120 V: 5 W (when STANDBY MODE is STANDARD)

1.8 W (when STANDBY MODE is LAN)

0.2 W (when STANDBY MODE is LOW)

AC 220 - 240 V: 5 W (when STANDBY MODE is STANDARD)

1.8 W (when STANDBY MODE is LAN)

0.3 W (when STANDBY MODE is LOW)

Dimensions (not including protrusion) 481 mm (W) x 179 mm (H) x 418 mm (D) (projector only)

481 mm (W) x 179 mm (H) x 502 mm (D) (including the terminal cover)

Weight 10.5 kg (projector only), 11.0 kg (including the terminal cover)

Others S-video input Luminance signal: Vp-p=1.0 V 75 Ω (negative sync)

Chrominance signals: Vp-p=0.286 V 75 Ω (burst signal)

Video input Vp-p=1.0 V 75 Ω (negative sync)

Component video

input YCBCR: Vp-p=1.0 V 75 Ω (Y) (negative sync)

Vp-p=0.7 V 75 Ω (CB, CR)

Analog input RGB: Vp-p=0.7 V 75 Ω (negative sync)

YCBCR: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (CB, CR)

HD/CS: TTL-level (negative or positive polarity)

VD: TTL-level (negative or positive polarity)

Digital input (DVI) DVI-D interface (TMDS single link) with HDCP

Digital input (HDMI) HDMI interface (TMDS single link) (Only PCM audio is supported.)

Audio input 350 mVrms, 10 kΩ or more

Replacement part (option/not included in the box)

Spare lamp: VLT-XL7100LP

Option lenses: OL-XL7100SZ, OL-XL7100LZ, OL-XL7100TZ, OL-XL7100FR

EN-64

Speciﬁcations (continued)

Speciﬁcation of RGB signals in each computer mode of the projector

Signal mode Resolution

(H x V) Horizontal

frequency (kHz)

Vertical frequency

(Hz)

Normal mode

(H x V)

TV60, 480i (525i) 720 x 480 15.73 59.94 1024 x 768 *1

TV50, 576i (625i) 720 x 576 15.63 50.00 1024 x 768 *1

1080i60 (1125i60) 1920 x 1080 33.75 60.00 1024 x 576 *1, *2, *3

1080i50 (1125i50) 1920 x 1080 28.13 50.00 1024 x 576 *1, *2, *3

480p (525p) 720 x 480 31.47 59.94 1024 x 768 *1, *2, *3

576p (625p) 720 x 576 31.25 50.00 1024 x 768 *1, *2, *3

720p60 (750p60) 1280 x 720 45.00 60.00 1024 x 576 *1, *2, *3

720p50 (750p50) 1280 x 720 37.50 50.00 1024 x 576 *1, *2, *3

1080p60 (1125p60) 1920 x 1080 67.50 60.00 1024 x 576 *1, *2, *3

1080p50 (1125p50) 1920 x 1080 56.25 50.00 1024 x 576 *1, *2, *3

CGA70 640 x 400 31.47 70.09 1024 x 640

CGA84 640 x 400 37.86 84.13 1024 x 640

CGA85 640 x 400 37.86 85.08 1024 x 640

VGA60 640 x 480 31.47 59.94 1024 x 768 *2, *3

VGA72 640 x 480 37.86 72.81 1024 x 768

VGA75 640 x 480 37.50 75.00 1024 x 768

VGA85 640 x 480 43.27 85.01 1024 x 768

SVGA56 800 x 600 35.16 56.25 1024 x 768

SVGA60 800 x 600 37.88 60.32 1024 x 768 *2, *3

SVGA72 800 x 600 48.08 72.19 1024 x 768

SVGA75 800 x 600 46.88 75.00 1024 x 768

SVGA85 800 x 600 53.67 85.06 1024 x 768

SVGA95 800 x 600 59.97 94.89 1024 x 768

XGA60 1024 x 768 48.36 60.00 1024 x 768 *2, *3

XGA70 1024 x 768 56.48 70.07 1024 x 768

XGA75 1024 x 768 60.02 75.03 1024 x 768

XGA85 1024 x 768 68.68 85.00 1024 x 768

SXGA70a 1152 x 864 63.85 70.01 1024 x 768

SXGA75a 1152 x 864 67.50 75.00 1024 x 768

SXGA85a 1152 x 864 77.49 85.06 1024 x 768

WXGA60 1280 x 768 47.78 59.87 1024 x 614

WXGA60a 1280 x 800 49.70 59.81 1024 x 640 *2

WXGA60b 1360 x 768 47.71 60.02 1024 x 578

WXGA60c 1366 x 768 47.50 59.75 1024 x 576

WXGA+60 1440 x 900 55.94 59.89 1024 x 640 *2, *3

WXGA++60 1600 x 900 60.00 60.00 1024 x 576

SXGA60b 1280 x 960 60.00 60.00 1024 x 768

SXGA75b 1280 x 960 75.00 75.00 1024 x 768

SXGA85b 1280 x 960 85.94 85.00 1024 x 768

SXGA60 1280 x 1024 63.98 60.02 960 x 768 *2, *3

SXGA75 1280 x 1024 79.98 75.02 960 x 768

SXGA85 1280 x 1024 91.15 85.02 960 x 768

SXGA+60 1400 x 1050 63.98 60.02 1024 x 768

1400 x 1050 65.32 59.98 1024 x 768 *2, *3

SXGA+75 1400 x 1050 82.28 74.87 1024 x 768

WSXGA+60 1680 x 1050 65.29 59.95 1024 x 640

MAC13 640 x 480 35.00 66.67 1024 x 768

MAC16 832 x 624 49.72 74.55 1024 x 768

MAC19 1024 x 768 60.24 75.02 1024 x 768

HP75 1024 x 768 62.94 74.92 1024 x 768

HP72 1280 x 1024 78.13 72.00 960 x 768

SUN66a 1152 x 900 61.85 66.00 984 x 768

SUN76a 1152 x 900 71.81 76.64 984 x 768

SUN66 1280 x 1024 71.68 66.68 960 x 768

SUN76 1280 x 1024 81.13 76.11 960 x 768

SGI72 1280 x 1024 76.92 72.30 960 x 768

SGI76 1280 x 1024 82.01 76.00 960 x 768

UXGA60 1600 x 1200 75.00 60.00 1024 x 768 *2, *3

WUXGA60 1920 x 1200 74.04 59.95 1024 x 640

*1: The PinP mode, the MAGNIFY mode and IMAGE CAPTURE in the INSTALLATION menu don’t function with these signals.

*2: The COMPUTER/COMPONENT/VIDEO DVI-D IN (HDCP) terminal is available for these signals.

*3: The HDMI IN terminal is available for these signals.

EN-65

481

179

101*

418

Dimension drawings (unit: mm)

Speciﬁcations (continued)

Speciﬁcation of RGB signals in each computer

mode of the projector (continued)

Important:

t Some computers aren’t compatible with the

projector.

t The projector’s maximum resolution is 1024 x

768 pixels. It may not display images of higher

resolutions than 1024 x 768 correctly.

t Images with SYNC on G (Green) signal may jitter.

t Images with SYNC on G (Green) signal may be

tinged with green.

t If the resolution and frequency of your computer

aren’t shown on the table, ﬁnd the compatible

resolution and frequency by changing the resolution

of your computer.

t 57BOE57BSFFRVJWBMFOUUPJBOEJ

respectively. When these signals are supplied to

the VIDEO IN or S-VIDEO IN terminal, the signal

mode is indicated as TV60 or TV50. When they are

supplied to the COMPUTER/COMPONENT VIDEO

IN terminals, the signal mode is indicated as 480i or

576i.

t 5IJTQSPKFDUPSEPFTOUTVQQPSUQTJHOBMTGSPN

video devices having 4 lines (R, G, B, CS*) or having 5

lines (R, G, B, H, V).

* : Composite Sync

481

179

101*

502

Without terminal cover With terminal cover

Connectors

SERIAL

(D-SUB 9-pin)

Pin No.

Name I/O

1– –

2 TXD IN

3 RXD OUT

4– –

5 GND –

6– –

7– –

8– –

9– –

COMPUTER/COMPONENT/VIDEO

IN 1 (Mini D-SUB 15-pin)

Pin No.

Spec.

Pin No.

Spec.

1 R(RED)/PR/CR9 DDC 5V

2 G(GREEN)/Y 10 GND

3 B(BLUE)/PB/CB11 GND

4 GND 12 DDC Data

5 GND 13 HD/CS

6 GND 14 VD

7 GND 15 DDC Clock

8 GND

COMPUTER/COMPONENT/VIDEO

DVI-D IN (HDCP)

(DVI-D 24-pin

)

1724

16 9

Pin No.

Spec.

Pin No.

Spec.

1 TMDS DATA 2- 13

2 TMDS DATA 2+ 14

+5V Power

TMDS DATA 2 Shield

Ground (for +5V)

16 Hot Plug Detect

17 TMDS DATA 0-

6 DDC Clock 18 TMDS DATA 0+

7 DDC Data 19

TMDS DATA 0 Shield

9 TMDS DATA 1- 21

10 TMDS DATA 1+ 22

TMDS Clock Shield

TMDS DATA 1 Shield

23 TMDS Clock+

24 TMDS Clock-

HDMI IN

(HDMI 19-pin)

218

Pin No.

Spec.

Pin No.

Spec.

TMDS Data2+

TMDS Clock Shield

TMDS Data2 Shield

TMDS Clock-

TMDS Data2-

CEC

TMDS Data1+

–

TMDS Data1 Shield

SCL

TMDS Data1-

SDA

TMDS Data0+

DDC Ground

TMDS Data0 Shield

+5 V Power

TMDS Data0-

Hot Plug Detect

TMDS Clock+

*: Factory-defaults

EN-66

Speciﬁcations (continued)

Speciﬁcation of the attached lens

With short throw zoom lens (OL-XL7100SZ)

F No. F2.0 - F2.6

Focal distance f = 19.3 - 24.9 mm

Zoom/focus Electrical drive (zoom ratio 1.3 : 1)

Picture size 40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)

Screen size

Projection distance (L)

Lens shift height Lens shift

width

(W1)

Diagonal

size

Width

(W)

Height

(H)

Shortest

(Wide)

Longest

(Tele)

Standard

(H0) H1 H2

inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm inch cm

40 102 32 81 24 61 37 0.9 48 1.2 -12 -30 14 37 14 37 10 24

60 152 48 122 36 91 56 1.4 73 1.8 -18 -46 22 55 22 55 14 37

80 203 64 163 48 122 75 1.9 98 2.5 -24 -61 29 73 29 73 19 49

100 254 80 203 60 152 94 2.4 123 3.1 -30 -76 36 91 36 91 24 61

120 305 96 244 72 183 114 2.9 148 3.8 -36 -91 43 110 43 110 29 73

150 381 120 305 90 229 143 3.6 185 4.7 -45 -114 54 137 54 137 36 91

200 508 160 406 120 305 191 4.8 247 6.3 -60 -152 72 183 72 183 48 122

250 635 200 508 150 381 239 6.1 310 7.9 -75 -191 90 229 90 229 60 152

300 762 240 610 180 457 287 7.3 372 9.5 -90 -229 108 274 108 274 72 183

The above ﬁgures are approximate and may be slightly different from the actual measurements.

With long throw zoom lens (OL-XL7100LZ)

F No. F2.2 - F2.8

Focal distance f = 42.3 - 71.8 mm

Zoom/focus Electrical drive (zoom ratio 1.7 : 1)

Picture size 40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)

Screen size

Projection distance (L)

Lens shift height Lens shift

width

(W1)

Diagonal

size

Width

(W)

Height

(H)

Shortest

(Wide)

Longest

(Tele)

Standard

(H0) H1 H2

inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm inch cm

40 102 32 81 24 61 81 2.0 140 3.6 -12 -30 14 37 14 37 10 24

60 152 48 122 36 91 123 3.1 212 5.4 -18 -46 22 55 22 55 14 37

80 203 64 163 48 122

165 4.2 284 7.2 -24 -61 29 73 29 73 19 49

100 254 80 203 60 152

208 5.3 356 9.0 -30 -76 36 91 36 91 24 61

120 305 96 244 72 183

250 6.3 428 10.9 -36 -91 43 110 43 110 29 73

150 381 120 305 90 229 313 8.0 536 13.6 -45 -114 54 137 54 137 36 91

200 508 160 406 120 305 419 10.6 715 18.2 -60 -152 72 183 72 183 48 122

250 635 200 508 150 381 525 13.3 895 22.7 -75 -191 90 229 90 229 60 152

300 762 240 610 180 457 631 16.0 1075 27.3 -90 -229 108 274 108 274 72 183

The above ﬁgures are approximate and may be slightly different from the actual measurements.

With tele throw zoom lens (OL-XL7100TZ)

F No. F2.2 - F2.8

Focal distance f = 70.3 - 119.5 mm

Zoom/focus Electrical drive (zoom ratio 1.7 : 1)

Picture size 40 inch (81 cm X 61 cm) - 300 inch (610 cm X 457 cm)

Screen size

Projection distance (L)

Lens shift height Lens shift

width

(W1)

Diagonal

size

Width

(W)

Height

(H)

Shortest

(Wide)

Longest

(Tele)

Standard

(H0) H1 H2

inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm inch cm

40 102 32 81 24 61 133 3.4 231 5.9 -12 -30 14 37 14 37 10 24

60 152 48 122 36 91 203 5.2 351 8.9 -18 -46 22 55 22 55 14 37

80 203 64 163 48 122 274 7.0 471 12.0 -24 -61 29 73 29 73 19 49

100 254 80 203 60 152 344 8.7 591 15.0 -30 -76 36 91 36 91 24 61

120 305 96 244 72 183 414 10.5 710 18.0 -36 -91 43 110 43 110 29 73

150 381 120 305 90 229 520 13.2 890 22.6 -45 -114 54 137 54 137 36 91

200 508 160 406 120 305 696 17.7 1189 30.2 -60 -152 72 183 72 183 48 122

250 635 200 508 150 381 872 22.2 1488 37.8 -75 -191 90 229 90 229 60 152

300 762 240 610 180 457 1048 26.6 1788 45.4 -90 -229 108 274 108 274 72 183

The above ﬁgures are approximate and may be slightly different from the actual measurements.

LH0

W1W1

H1 H2

Center of

the lens

Maximum

projection area

LH0

W1W1

H1 H2

Center of

the lens

Maximum

projection area

LH0

W1W1

H1 H2

Center of

the lens

Maximum

projection area

EN-67

Speciﬁcations (continued)

With rear projection short throw (OL-XL7100FR)

F No. F2.2

Focal distance f = 12.9 mm

Focus Electrical drive

Picture size 40 inch (81 cm X 61 cm) - 200 inch (406 cm X 305 cm)

Screen size Projection

distance (L)

Lens shift height

Diagonal size Width (W) Height (H) Standard (H0)

inch cm inch cm inch cm inch m inch cm

40 102 32 81 24 61 24 0.6 -12 -30

60 152 48 122 36 91 37 0.9 -18 -46

80 203 64 163 48 122 50 1.3 -24 -61

100 254 80 203 60 152 63 1.6 -30 -76

120 305 96 244 72 183 76 1.9 -36 -91

150 381 120 305 90 229 95 2.4 -45 -114

200 508 160 406 120 305 127 3.2 -60 -152

The above ﬁgures are approximate and may be slightly different from the actual measurements.

t 1SPKFDUJPOOPUSFDPNNFOEFEJOTJ[FXJMMJODSFBTFEJTUPSUJPOBOESFEVDFUIFSFTPMVUJPO

t 5IFBEKVTUBCMFBOHMFJOUIFLFZTUPOFBEKVTUNFOUXJUIUIFMFOTEJGGFSTGSPNUIBUXJUIUIF9-6MFOT

t *OUIFLFZTUPOFBEKVTUNFOUXJUIUIFMFOTUIFQSPQFSBTQFDUSBUJPNBZOPUCFPCUBJOFE

LH0

1 Zusho Baba, Nagaokakyo-City, Kyoto Japan

ITSUBISHI

ELECTRIC CORPORATIO

U-A
