HOME-CINEMA TELEVISION

MODELS

738 Series

838 Series

BASIC OWNER’S GUIDE

®

This manual provides basic connection, setup, and operating instructions. Please visit our website at

www.Mitsubishi-tv.com to view or download a detailed owner’s guide that fully describes the features

of this TV. Follow the Support link to the Product Documents page.

For questions:•

Visit our website at www.mitsubishi-tv.com. -

E-mail us at MDEAservice@mdea.com. -

Call Consumer Relations at - 800-332-2119 for operational or connection assistance.

For information on • System Reset, please see the back cover.

To order replacement or additional remote controls, visit our website at www.mitsuparts.com or call •

800-553-7278.

838 Series.• IR emitter cables for NetCommand home-theater control are available for purchase from

Mitsubishi.

Call 800-553-7278 and

request either part number 242D483020 (two-ended cable) or part

number 299P254020 (four-ended cable).

For assistance call 1(800) 332-2119

FCC Declaration of Conformity

Product: Projection Television Receiver

Models: WD-60738, WD-65738, WD-73738,

WD-82738

WD-65838, WD-73838, WD-82838

Responsible

Party:

Mitsubishi Digital Electronics

America, Inc.

9351 Jeronimo Road

Irvine, CA 92618-1904

Telephone: (800) 332-2119

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1)

This device may not cause harmful interference,

and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential instal-

lation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may

cause harmful interference to radio communica-

tions. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this

equipment does cause harmful interference to radio

or television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by one

or more of the following measures:

Reorient or relocate the receiving antenna. -

Increase the separation between the equip- -

ment and the receiver.

Connect the equipment into an outlet on -

a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/ -

TV technician for help.

Changes or modifications not expressly

approved by Mitsubishi could cause harmful

interference and would void the user’s authority

to operate this equipment.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

TV WEIGHT: This TV is heavy. Exercise extreme care

when lifting or moving it. Lift or move the TV with a

minimum of two adults. To prevent damage to the TV,

avoid jarring or moving it while it is turned on. Always

power off your TV, unplug the power cord, and discon-

nect all cables before moving it.

WARNING: To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or moisture.

This apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

MAINS DISCONNECTION: The mains plug is used

as the disconnect device. The mains plug shall remain

readily operable.

WARNING: This product contains chemicals known

to the State of California to cause cancer and/or birth

defects or other reproductive harm.

Note: Features and specifications described in this

owner’s guide are subject to change without notice.

Stand Requirement

CAUTION: Use these Mitsubishi TV models only with

the Mitsubishi stand models shown here. Other stands

can result in instability and possibly cause injury.

TV Model Stand Model

WD-60738, WD-65738

WD-65838 MB-S60/65A

WD-73738

WD-73838 MB-S73A

82-inch TVs. Mitsubishi does not design, manufac-

ture, or sell matching bases for 82-inch televisions

(WD-82738, WD-82838). When selecting a stand, base,

or other furniture to support the TV, please make sure it

is designed with the appropriate dimensions for stabil-

ity and to support the TV’s total weight as well as the

weight of any additional equipment you plan to store.

The lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user of the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to consti-

tute a risk of electric shock to persons.

The exclamation point within an equilat-

eral triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the product.

For assistance call 1(800) 332-2119

Contents

1 Basic Setup and Operation

Remote Control ......................... 6

The STATUS Indicator ..................... 7

Setting Up and Using TV Inputs .............. 7

Basic TV Operation....................... 9

2 TV Connections

Main Connection Panel ................... 10

838 Series Side Inputs ................... 10

Connection Types and Audio/Video Quality .... 10

H

DMI Device .............................11

DVI Video Device ....................... 11

Y Pb Pr Component Video Device ........... 11

Composite Video Device .................. 11

Antenna or Cable TV Service ............... 12

VCR or DVD Recorder to an Antenna or

Wall Outlet Cable ...................... 12

A/V Receiver .......................... 13

A/V Receiver with HDMI Output ............. 13

3 TV Features

FAV (Favorites) ......................... 14

ChannelView Channel Listings .............. 15

Photos and Moving Video as Composite Video .. 15

3D Video ............................. 16

Sound Projector ........................ 18

StreamTV™ Internet Media ................ 19

Wireless Audio Playback .................. 20

4 TV Menus

Picture............................... 21

Sound ............................... 22

Captions ............................. 23

Setup ............................... 24

Inputs ............................... 25

Lock ................................ 26

Appendices

Appendix A: TV Care

Lamp-Cartridge Replacement and Cleaning . 27

Cleaning Recommendations ............ 29

Appendix B: Programming the Remote Control . 30

Appendix C: Troubleshooting .............. 31

Mitsubishi TV Software .................... 34

Warranty .............................. 38

Network Service Disclaimer ................ 39

Custom cabinet installation must allow for proper

air circulation around the television.

NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER

IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S

ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PRO-

VIDES GUIDELINES FOR THE PROPER GROUNDING AND,

IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND

SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF

THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY

AS PRACTICAL.

Internal Fans

Internal cooling fans maintain proper operating tem-

peratures inside the TV. It is normal to hear the fans

when you first turn on the TV, during quiet scenes

while viewing the TV, and for a short time after shutting

off the TV. You may notice louder fan noise about 30

seconds after shutting off the TV and while using the

Bright Lamp Energy setting.

Lamp Replacement

For lamp-replacement instructions, see Appendix A.

To Order a Replacement Lamp Under Warranty

Call (800) 553-7278. Please have model number, serial

number, and TV purchase date available.

Important: All lamps replaced under warranty

must be returned to Mitsubishi where they will be

inspected to verify failure defects.

To Purchase a Replacement Lamp After Warranty

Visit our website at www.mitsuparts.com or call (800)

553-7278. Order new lamp part number 915B441001.

TV Software

Do not attempt to update the software of this TV with

software or USB drives not provided by or authorized

by Mitsubishi Digital Electronics America, Inc. Non-

authorized software may damage the TV and will not be

covered by the warranty.

Children and TV Viewing

The American Academy of Pediatrics discourages

television viewing for children younger than two years of

age.

For Your Records

Record the model number, serial number, and

purchase date of your TV. The model and serial

numbers are on the back of the TV. Refer to this

page when requesting assistance with the TV.

MODEL NUMBER

SERIAL NUMBER

PURCHASE DATE

RETAILER NAME

LOCATION

4

For assistance call 1(800) 332-2119

Important Safety Instructions

Please read the following safeguards for your TV and

retain for future reference. Always follow all warnings

and instructions marked on the television.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart,

stand, tripod, bracket,

or table specified

by the manufacturer,

or sold with the

apparatus. When

a cart is used, use

caution when moving

the cart/apparatus

combination to avoid

injury from tip-over.

13) Unplug this apparatus

during lightning storms or when unused for long

periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

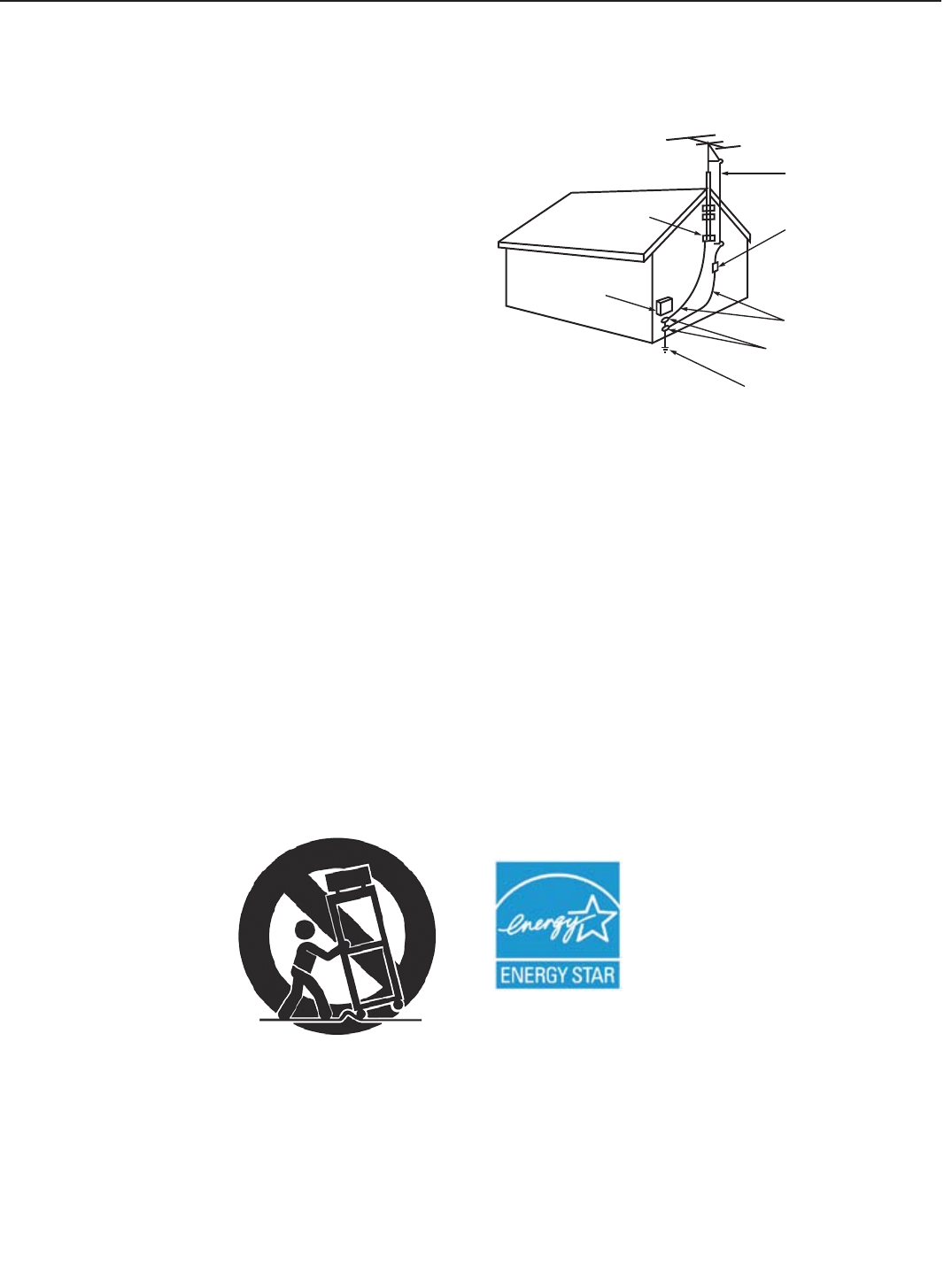

AN T E N NA

LE AD IN W IR E

AN T E N NA

DIS C HAR G E UNIT

(NE C AR TIC LE 810-20)

G R OUNDING

C ONDUC T OR S

(NE C AR TIC LE 810-21)

G R OUND C LAMP S

P OWE R S E R V IC E G R OUNDING

E L E C T R ODE S Y S TE M

(NE C AR T 250, P AR T H )

G R OUND C LAMP

E LE C T R IC

S E R V IC E

E QUIP ME NT

NE C — NAT IO NAL E LE C T R IC AL C O DE

E XAMP LE O F ANT E NNA G R OUNDING

Outdoor Antenna Grounding

If an outside antenna or cable system is connected

to the TV, be sure the antenna or cable system is

grounded so as to provide some protection against

voltage surges and built-up static charges.

Replacement Parts

When replacement parts are required, be sure the

service technician has used replacement parts speci-

fied by the manufacturer or have the same character-

istics as the original part. Unauthorized substitutions

may result in fire, electric shock or other hazards.

The following TV models are

ENERGY STAR® qualified:

WD-65738, WD-73738, WD-82738

WD-65838, WD-73838, WD-82838

Products that earn the ENERGY

STAR prevent greenhouse gas

emissions by meeting strict energy

efficiency guidelines set by the U.S.

Environmental Protection Agency

and the U.S. Department of Energy.

5

For assistance call 1(800) 332-2119

Basic Setup and Operation

1

Remote Control

Two AA Batteries

AA

AA

Basic Owner’s Guide

HDTV Quick Setup

Guide

Product Registration

Card

838 Series. Calibration

Microphone

Package Contents

Please take a moment to review the following list of

items to ensure that you have received everything.

Installing the Remote Control

Batteries

Remove the remote control’s back cover by

1.

gently pressing in the tab and lifting off the cover.

Load the batteries, making sure the polarities

2.

(+) and (-) are correct. For best results, insert

the negative (-) end first.

Snap the cover back in place.

3.

2

1The remote

control requires

two AA

batteries.

First-Time Power-On

Press the

1.

TV

key to

ensure that the remote

control is in

TV

mode.

TV

TV

Aim the emitter (bulb)

2.

end of the remote control

at the TV and press the

POWER

key . Wait for the

Welcome screen.

If you wish to change the

3.

menu language to Español,

press .

Press

4.

to highlight EXIT.

Press

ENTER

to clear the

menu.

Before You Begin

Review the important safety, installation, and oper-

1.

ating information at the beginning of this book.

Choose a location for your TV.

2.

• Allowatleastfourinchesofspaceonallsides

of the TV to help prevent overheating. Over-

heating may cause premature failure of the TV

as well as shortened lamp life.

• Avoidlocationswherelightmayreflectoffthe

screen.

• Seethestandrequirementsonpage 2.

Install the batteries in the remote control.

3.

Plug the TV into an AC power outlet.

4.

6 1. Basic Setup and Operation

For assistance call 1(800) 332-2119

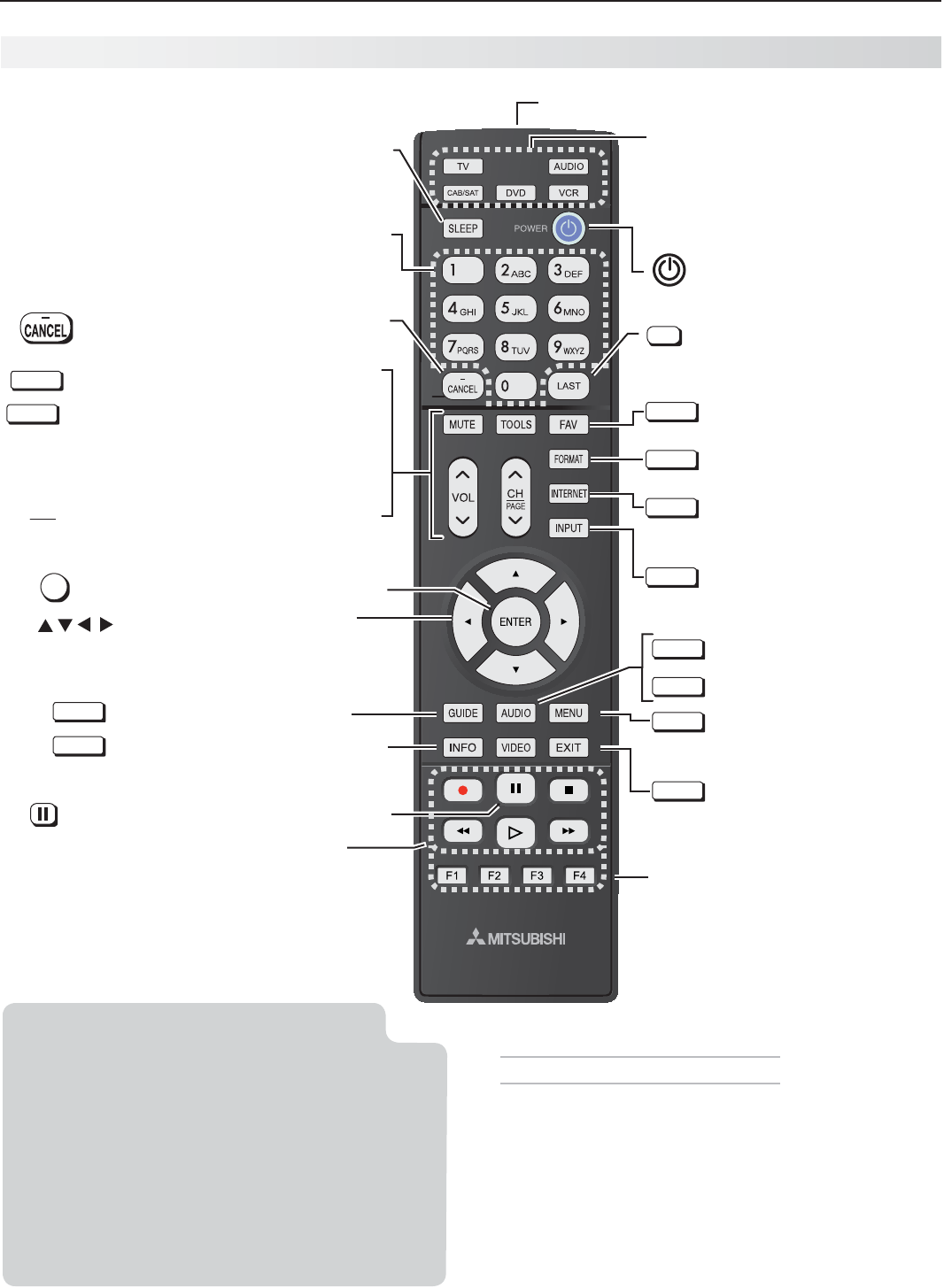

Remote Control

Powers TV on or off.

Number/letter keys

Channel tuning, page 8

Pass code entry, page 26

Sleep Timer

Emitter End

TV CAB/SAT DVD AUDIO VCR

P

ress the key for the device type to

control. Leave in TV mode for normal

TV viewing.

The TV’s remote control can operate other

audio/video devices using any of these

methods:

• Programtheremotecontrolforthedevice(page

30).

• SetupHDMIControlforHDMIdevicescompat-

ible with the TV.

• 838 Series. Perform NetCommand setup for

device keys.

See the detailed owner’s guide at

www.mitsubishi-tv.com for information.

GUIDE

ChannelView listings, page 15

.

INFO

TV status

or TV help.

(

PAUSE

)

Freezes a broadcast TV picture.

Record/Playback controls for external

devices. Additional setup is required.

MUTE

Mutes the TV speakers.

TOOLS

Displays shortcuts for the number keys.

Press to check if shortcuts are available

for the current device.

VOL

Controls volume of TV speakers.

CH

PAGE

Changes channels; moves to another

page in a menu or list.

Adds a separator in digital channel

numbers. Clears some menu entries.

AUDIO

Audio adjustments, page 22

VIDEO

Video adjustments, page 21

MENU

Displays or clears the TV main

menu (page 21).

Also steps

back one menu.

EXIT

Clears all menus.

LAST

Returns to the previous channel.

838 Series. Special keys for use

with NetCommand IR control.

See the detailed owner’s guide at

www.mitsubishi-tv.com.

ENTER

Selects a channel number or menu item.

Navigation and adjustment

controls

FAV

Displays up to nine favorite

sources. See page 14.

FORMAT

Changes picture shape,

page 14

INTERNET

Connects to internet content

provided by VUDU™. See

page 19.

INPUT

Press to select a TV input.

See page 8.

If You Turn Off the TV by Mistake

Press •

POWER

again, within about 60 seconds, to

have the TV come back on immediately.

If the •

STATUS

indicator is green and blinking rapidly,

(about 60 seconds after you shut off power), wait a

few moments for the indicator to stop blinking and

press

POWER

to turn the TV on again.

1. Basic Setup and Operation 7

For assistance call 1(800) 332-2119

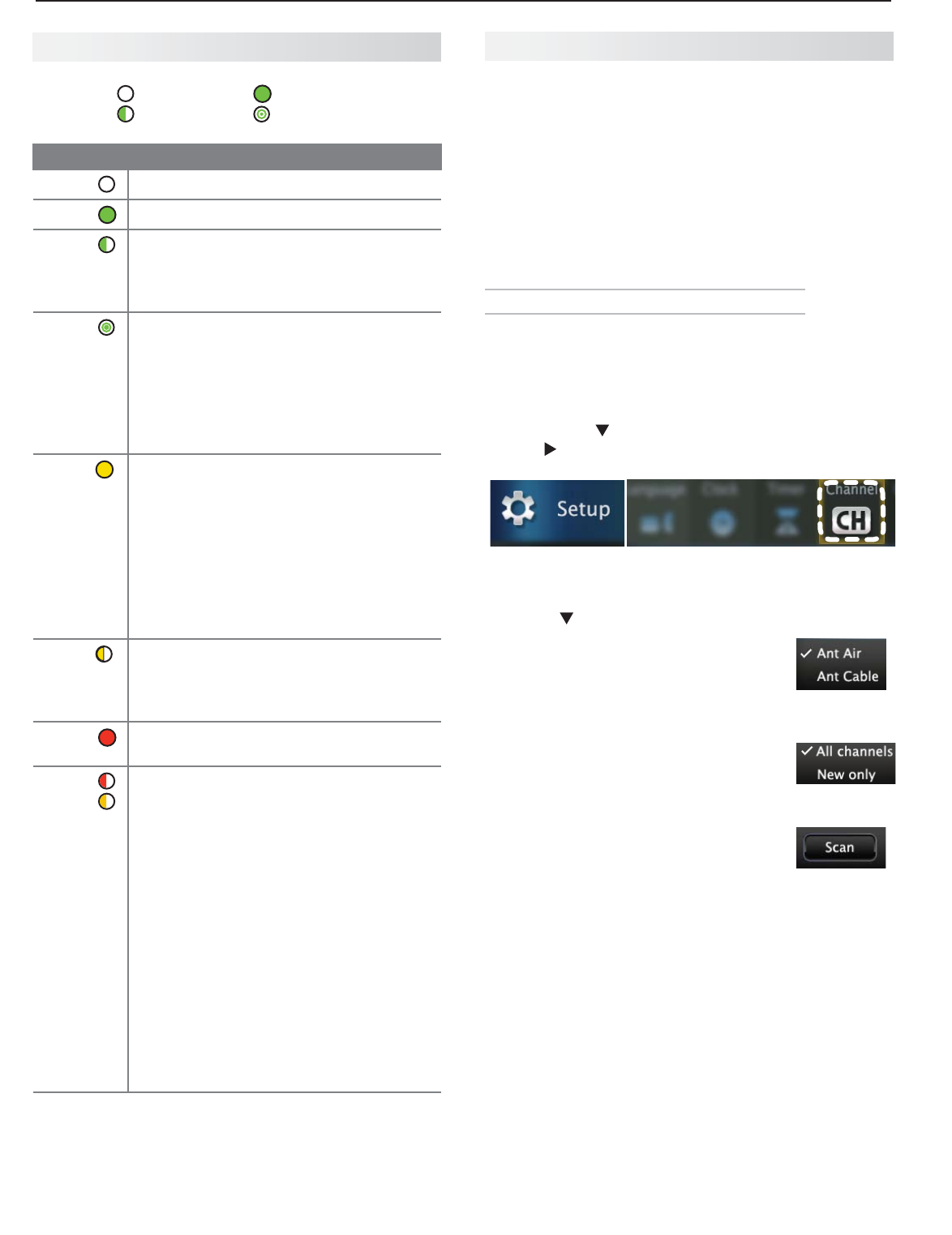

The STATUS Indicator

Key Off Steady On

Slow Blinking Fast Blinking

LED Color TV Condition

None TV is powered off. Normal operation.

Green TV is powered on. Normal operation.

Green TV powered off, auto-on TV Timer is

set.

Normal operation. TV can be turned on

at any time.

Green TV just powered off and lamp is

cooling.

Sixty seconds after turning off TV, LED

will start to blink. TV can be turned back

on before blinking starts or after blink-

ing stops, but not while the indicator is

blinking. Normal operation.

Yellow TV is too hot.

The TV will display a

warning message and shut off if it over-

heats.

• Ambientroomtemperaturemaybe

too high. Turn off the TV and let the

room temperature drop.

• Clearblockedairvents.Ensureat

least a four-inch clearance on all

sides of the TV.

Yellow Lamp access door is not secure or no

lamp installed.

TV will not operate until lamp access

door is secured. See Appendix A.

Red Lamp failure. Replace the lamp. See

Appendix A.

Red/

Yellow

TV may require service.

Hold power button on front panel for •

10 seconds to reset TV.

If LED continues to flash red and •

yellow after reset, turn off the TV and

unplug it from the AC power source.

Wait one minute and then plug the

set back in.

If LED continues to flash red and •

yellow,

go to www.mitsubishi-tv.com

or call 1-800-332-2119 to receive

Authorized Service Center informa-

tion.

You may be asked to count how

many times the LED flashes each

color to aid in troubleshooting.

Using the ANT (Antenna) Input

If using an antenna or direct cable service (no cable

box), connect the incoming coaxial cable to the TV’s

ANT

input. Refer to page 12.

You must perform a channel scan to enable recep-

tion of digital channels. If you skip this step, the TV

will receive only analog channels. The channel scan

will search for high-definition and standard-definition

channels available in the local area.

Memorizing Channels with Channel Scan

For the ANT input

To start channel memorization

Power on the TV.

1.

Press

2.

MENU

and open the Setup > Channel menu.

First press to navigate to the Setup icon, then

use to highlight the Channel icon.

Start channel memorization from the Setup > Channel

menu.

Press

3.

to enter the menu.

Highlight

4.

Ant Air if connected to an

over-the-air antenna. Highlight Ant

Cable for service over direct cable

(no cable box). Press

ENTER

to add a

check.

For first-time setup, highlight

5.

All

channels. To scan for channels not

already in memory, highlight New

only. Press

ENTER

to add a check.

Highlight

6.

Scan and press

ENTER

.

Channel memorization may take up

to 15 minutes to complete.

To stop channel memorization before completion,

press

CANCEL

.

Setting Up and Using TV Inputs

8 1. Basic Setup and Operation

For assistance call 1(800) 332-2119

Setting Up Other Inputs

Power on the TV.

1.

Power on the devices to ensure detection.

2.

Connect one device to the TV, making note of the

3.

TV input jack.

The TV will display the New Device Found screen if

the connection type is detectable.

Highlight the device type in the on-screen list and

4.

press

ENTER

. The name you select here will appear

in the Input Selection menu.

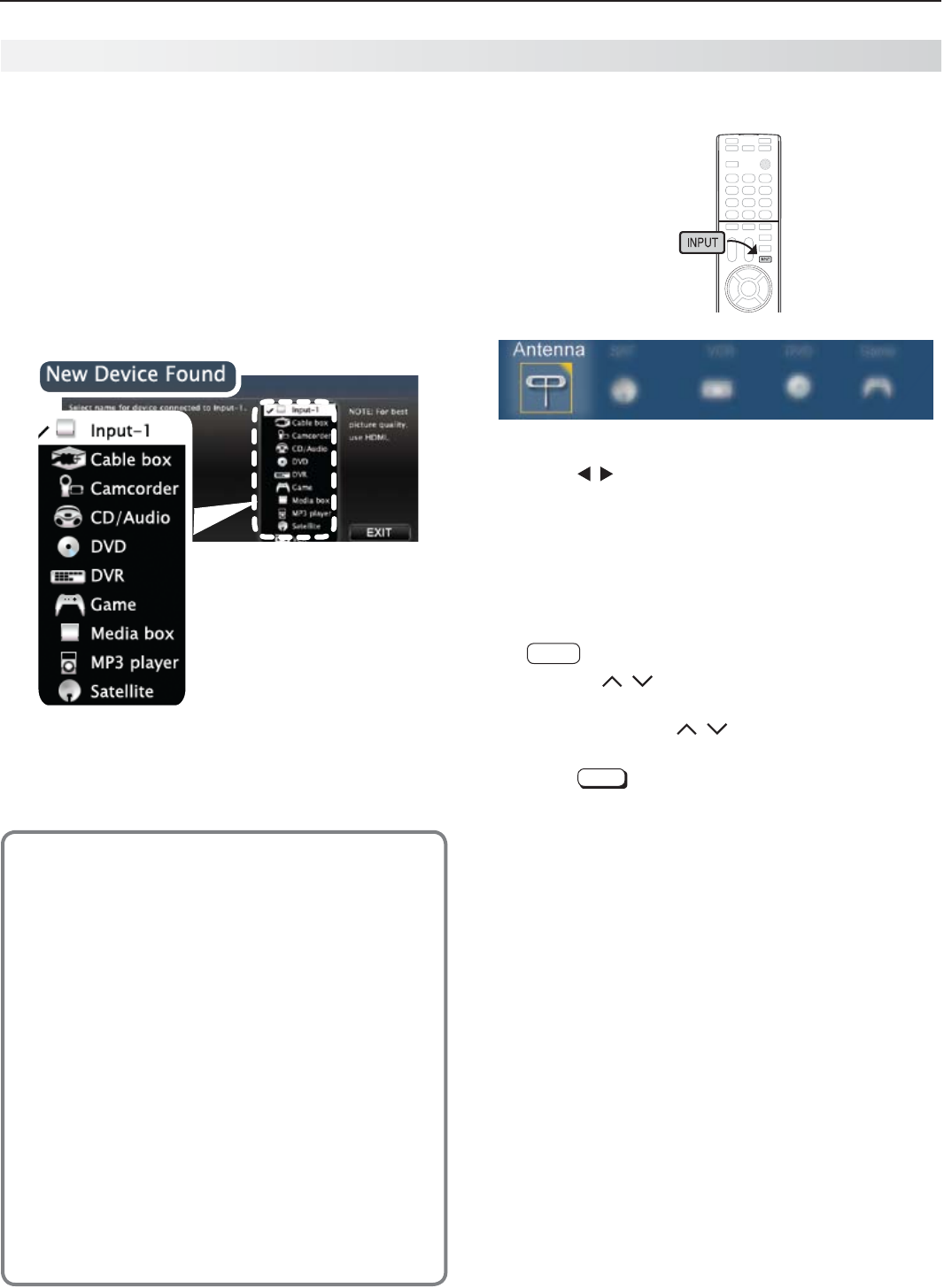

Sample New Device

Found screen.

Press

5.

EXIT

to close the New Device Found screen.

Repeat steps 3 through 5 for each additional device

6.

you want to add.

About Auto Input Sensing

This TV’s Easy Connect™ Auto Input Sensing

feature detects most input connections automati-

cally. Some exceptions are:

A connection on the •

ANT

input

TV audio outputs (analog and digital)•

An HDMI-equipped device that is powered off. •

Power on the device first to ensure detection.

Ethernet•

Auto Input Sensing for Most Devices

When you first connect a device, the TV will:

a. Detect the connected device and auto-

matically switch to it.

b. Prompt you to identify the device type.

c. Repeat these steps for other newly

detected devices.

Setting Up and Using TV Inputs, continued

Selecting an Input to Watch

Press

1.

INPUT

.

Sample Input Selection menu, antenna input selected

Press

2.

to highlight an input icon.

Press

3.

ENTER

to switch to the input.

Tuning to Channels on the Antenna Input

Enter the channel number using the number keys •

on the remote control and press

ENTER

.

For a two-part digital channel, such as 3-1, press •

3

—

CANCEL

.

Press •

CH

/ to change channels one channel at

a time.

Press and hold •

CH

/ to speed through chan-

nels.

Press •

LAST

to return to the previous channel.

Use the Fav (Favorites) feature to tune to up to nine •

favorite channels. See page 14.

Press • GUIDE to display ChannelView channel listings,

highlight a channel number, and press ENTER to tune.

1. Basic Setup and Operation 9

For assistance call 1(800) 332-2119

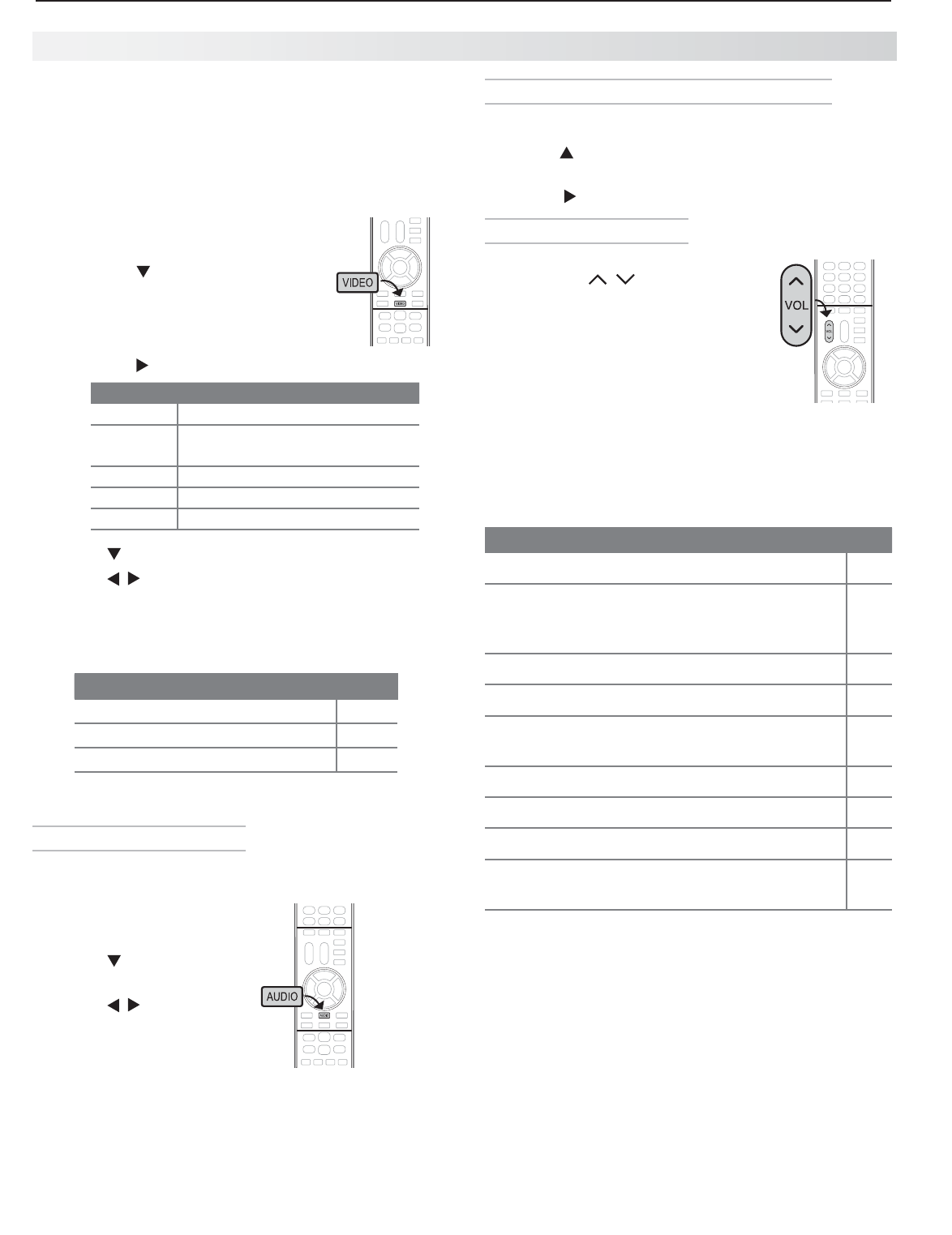

Picture Settings

To get the best picture under different viewing con-

1.

ditions, set the Picture Mode first before changing

other video settings. See page 21 for a description

of the options.

a. Press

VIDEO.

b. Press until the Picture Mode

option displays.

c. Press to make one of these selections:

Name When to Use

Brilliant

Under bright light

Game

With gaming consoles (inputs

named

Game

or

PC

only)

Bright For most daytime viewing

Natural For most nighttime viewing

Cinema For recreating theater colors

Press

2.

to display the name of another adjustment.

Press

3.

to make the adjustment.

Wait a few seconds and

4.

the display will clear.

Additional picture options are available through the fol-

lowing menus:

Menu Page

Picture > Picture Plus

21

Picture > Perfect (838 series) 22

Picture > 3D Mode 16

Audio Controls

Changing the Audio Output

To switch from the internal TV speakers to an external

sound system:

Press

1.

AUDIO

.

Press

2.

to display the

TV Speakers option.

Press

3.

to change.

Basic TV Operation

More TV Features

Features covered in this Basic Owner’s Guide include:

Feature

Page

Parental controls (Lock menu) 26

TV Clock. Set the TV Clock if you plan to use

the TV Timer (page 24) or ChannelView (page

15).

24

Favorite sources 14

ChannelView and custom channel collections 15

Changing the input names that appear in the

Input Selection menu (Inputs > Name menu)

25

3D Video 16

Internet video streaming with VUDU 19

Digital camera images as composite video 15

838 Series. Listening to a wireless audio

device with the TV speakers

20

See the detailed Owner’s Guide at

www.mitsubishi-tv.com for more on the features

described here and to learn about other features,

including:

HDMI control (CEC) of other A/V devices•

838 Series.• NetCommand IR control of other A/V

devices. Use of NetCommand requires purchase of

IR emitter cables available from Mitsubishi.

838 Series.• Center and rear channel audio output

838 Series.• Using an external subwoofer.

838 Series.• Viewing photo files from a USB device.

Changing Audio Settings (TV Speakers Only)

Press

1.

AUDIO

.

Press

2.

to display the name of the adjustment you

want. See page 22 for descriptions.

Press

3.

to change.

Controlling Sound Volume

Press •

VOL

/ to adjust the

sound level of the TV speakers.

See the full owner’s guide at •

www.mitsubishi-tv.com for

methods of controlling A/V receiver

volume.

10

For assistance call 1(800) 332-2119

2TV Connections

Auto Input Sensing

The TV’s Auto Input Sensing

feature automatically recog-

nizes many connections and

prompts you to identify the

type of device connected.

See page 8 for more on Auto

Input Sensing.

Component

GOODBEST GOODBEST

VIDEO QUALITY AUDIO QUALITY

HDMI-to-DVIHDMI Video Video

Composite L/R Analog

AudioAudio

Digital

HDMI

Connection Types and Audio/Video Quality

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

++

+

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

++

+

838 Series Side Inputs

HDMI

page 11

AUDIO

OUTPUT

(page 13)

AUDIO/SURROUND

OUTPUT

(838 series, page 23)

DVI/PC AUDIO

INPUT

page 11

DIGITAL

AUDIO

OUTPUT

(page 13)

838 Series Jacks. See

the full owner’s guide at

www.mitsubishi-tv.com.

R & L

Analog

Audio

Input

R & L

Analog

Audio

Input

Y Pb Pr

(component

video)

ANT

page 12

3D GLASSES

EMITTER

(page 16)

Main Connection Panel

USB

(Accessory power

on all models;

738 Series, wireless

adapter, page 19)

HDMI

USB

(

page 19

)

VIDEO

(

composite

video)

Y Pb Pr

(component

video)

USB HDMI 4

INPUT 3

AUDIO

L R

Pb

Y/ VIDEO

Pr

SEE DETAIL B

LAN

(Ethernet, port

page 19)

VIDEO

(composite

video)

2. TV Connections 11

For assistance call 1(800) 332-2119

H

DMI Device

Mitsubishi recommends using high-speed HDMI

cables to connect newer devices incorporating HDMI

technology.

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

1

HDMI

23

Any HDMI device

HDMI-to-HDMI

cable

TV main panel

HDMI and Digital Surround Sound

738 Series. The TV’s HDMI inputs can receive

digital stereo audio signals only when using the TV

speakers.

838 Series. The TV’s HDMI inputs can receive

digital surround sound from an HDMI device. Use an

HDMI connection if you want to hear digital surround

sound from the TV’s internal speaker array.

Y Pb Pr Component Video Device

Required:

RCA-type component video cables•

Left/right analog audio cables.•

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

Pb Pr

Y/ VIDEO

– AUDIO –

L

R

Pb Pr

Y/ VIDEO

AUDIO

LR

PbY Pr

AUDIO

LR

Incoming from

cable service or

satellite dish

Component video

device

TV main panel

Audio

cables

Component

video cables

CABLE IN or

SATELLITE IN

DVI Video Device

Required:

DVI-to-HDMI cable or DVI/HDMI adapter and •

HDMI cable

Left/right analog audio cables•

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

DVI/PC

LR INPUT

AUDIO

L

L

DVI/PC

R INPUT

AUDIO

3

HDMI

DVI OUT

AUDIO

R

L

Digital DVI

device

TV main panel

DVI-to-HDMI

cable Audio

cables

Composite Video Device

Required:

Composite video cable (usually yellow)•

Analog stereo audio cables.•

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

Y/ VIDEO

– AUDIO –

L

R

Y/ VIDEO

AUDIO

LR

PbY Pr

AUDIO

LR

AUDIO OUT

COMPOSITE

VIDEO OUT

L

R

TV main panel

Audio

cables

VCR or other device with

composite video output

Composite

video cable

12 2. TV Connections

For assistance call 1(800) 332-2119

Antenna or Cable TV Service

Connect the incoming cable to the TV’s

ANT

input.

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

ANT

ANT

IN OUT

Cable TV

service

Antenna

TV main panel

Not recommeded. Other

connection types provide

better quality audio and video.

Direct cable (no cable box)

or

or

Older cable box

VCR or DVD Recorder to an

Antenna or Wall Outlet Cable

Required:

1. Video cables

1a. Component video cables (red/blue/green)

or

1b. Composite video cable (usually yellow)

2. Left/right analog audio cables.

3. Two-way RF splitter

4. Two coaxial cables

Note: If your recording device has an analog-only

tuner, you must use a digital converter box to

enable recording of digital broadcasts.

AUDIO OUT COMPOSITE

VIDEO OUT COMPONENT

VIDEO OUT

L

R

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

Pb Pr

Y/ VIDEO

Y/ VIDEO

Pb Pr

Y/ VIDEO

AUDIO

LR

ANT

ANT

ANTENNA

IN

1a.

2.

3. 4.

4.

1b.

or

TV main panel

Incoming cable

RF Splitter

DVD Recorder or VCR

Composite

video cable

2. TV Connections 13

For assistance call 1(800) 332-2119

A/V Receiver

Most setups require either a digital audio cable or

analog stereo audio cables. To send audio from TV

channels received on the

ANT

input or devices con-

nected directly to the TV, you must use one of the con-

nections shown below.

The TV makes all audio available in digital and analog

formats:

Analog audio coming into the TV is available as •

output in digital stereo format on the

DIGITAL

AUDIO OUTPUT

jack.

Digital incoming audio is available as analog output •

on the

AUDIO OUTPUT L

and

R

jacks.

123

HDMI

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

DVI/PC

LR INPUT

AUDIO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LAN

DIGITAL

AUDIO

OUTPUT

AUDIO

OUTPUT

LR

DIGITAL

AUDIO

OUTPUT

AUDIO

OUTPUT

LR

COAXIAL

INPUT

OPTICAL

INPUT

COAXIAL

INPUT

AUDIO

RL

or

TV main panel

Digital coaxial

cable (for a digital

A/V receiver)

Stereo analog

cables (for an

analog A/V

receiver)

A/V receiver back panel

Note:

On rare occasions, an HDMI signal may be •

copy-restricted and cannot be output from

the TV as a digital signal. To hear these copy-

protected signals through the A/V receiver, use

the connection for an analog A/V receiver.

Check the A/V receiver’s Owner’s Guide for •

information concerning use of the digital input

and switching between digital sound and

analog stereo sound from the TV.

A/V Receiver with HDMI Output

Required: One HDMI-to-HDMI cable

This option allows you to view content from devices

connected to an A/V receiver. The A/V receiver can

send audio and video to the TV over a single HDMI

cable. You can use an HDMI connection as described

here in addition to an audio connection from the TV’s

audio output. The optional audio connection allows you

to hear, through the A/V receiver, devices connected to

the TV only, e.g., an antenna on the

ANT

input.

838 Series:

This setup allows you to use Net-

Command-controlled audio and video switching

over the HDMI cable. See the full owner’s guide at

www.mitsubishi-tv.com for details.

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

DVI/PC

LR INPUT

AUDIO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LAN

DIGITAL

AUDIO

OUTPUT

123

HDMI

HDMI cable

DIGITAL

AUDIO

OUTPUT

AUDIO

OUTPUT

LR

AUDIO

OUTPUT

LR

HDMI OUT

DIGITAL

AUDIO IN

ANALOG AUDIO IN

LR

High-definition

DVD player DVD player

Cable box

VCR

Y/ VIDEO

TV

A/V receiver with

HDMI output

Any connection

types

Optional

analog or

digital audio

connection

14

For assistance call 1(800) 332-2119

TV Features

3

FAV (Favorites)

The FORMAT Key and Picture Shape

Important

Black bars at the edges of the

picture are common in HD

pictures. Black bars are not a

defect of the TV.

Black bars are added by broad-•

casters to fill the 16:9 screen

area while preserving the original

aspect ratio of the picture.

Your cable box or satellite •

receiver may also be altering

the broadcast picture. If your

receiver offers output in native

format, try using it with Mitsubi-

shi’s picture formats.

Sample Uses of the

FORMAT

Key

You can use the

FORMAT

key to reduce or eliminate black areas at the

edges of the picture.

Press

Squarish 4:3 image is

narrower than the 16:9

screen; unused areas at the

sides are filled with black.

Wide Expand mode stretches

the picture sideways to fill the

screen.

Press

Wide 2.35:1 anamorphic DVD

image; unused areas at the

top and bottom are filled with

black (letterbox effect).

Zoom mode. The picture fills

the screen. All four edges are

cropped in this mode.

Repeatedly press the

FORMAT

key to cycle

through displays avail-

able for the current

program. The TV will

remember the format

you last used on each

input.

Adding

Press 1.

INPUT

and switch the TV to the input

you want to add. If adding a channel, switch

to the

ANT

input and tune to the channel.

Press the 2.

FAV

key.

Move the highlight to the number position 3.

you want to assign to the channel or input.

Press 4.

ENTER

.

Removing

While watching TV, press the 1.

FAV

key.

In the 2. Favorites menu, highlight the channel

or input you want to remove.

Press 3.

CANCEL

.

Selecting

While watching TV, press the 1.

FAV

key.

Press the number key for the channel or 2.

input you want.

The

FAV

key gives you quick access to favorite program

sources. Sources can be channels from the

ANT

input

or devices connected to the TV. You can store up to

nine favorites.

Sample Favorites menu. Switch to favorite channels or

inputs using number keys.

3. TV Features 15

For assistance call 1(800) 332-2119

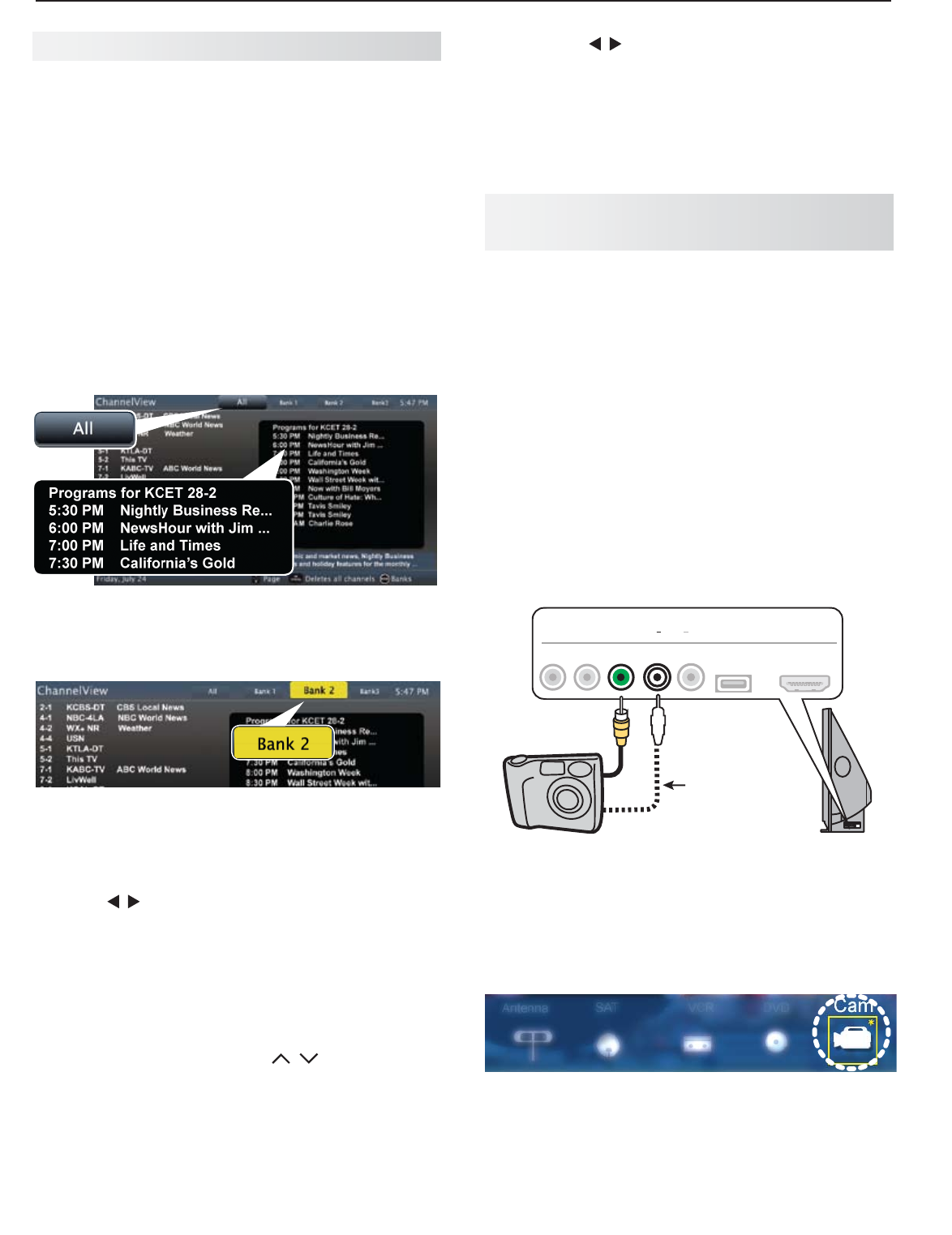

ChannelView, “All” tab. Programs for the tuned channel

are listed on the right.

ChannelView Custom Channel Banks

Select a channel bank to customize.

Press

1.

GUIDE

to display ChannelView.

Press

2.

MENU

to move the highlight to the bank

header.

Press

3.

to select Bank 1, 2, or 3.

With the bank name highlighted, press

4.

ENTER

to

enter setup mode where you can select channels to

include in the bank.

Press

5.

EXIT

when finished with setup.

Using Custom Channel Banks

While watching TV, press •

CH

/ . The TV will

tune only to channels stored in the current bank.

To • change to a different channel bank:

Press 1.

GUIDE.

Press 2.

MENU.

ChannelView displays program descriptions sent by

broadcasters. This information may be unavailable

in some areas.

About ChannelView

ChannelView™ shows memorized channels on the ANT

input. It displays channel names and program information

for digital channels. No program information is displayed

for analog channels.

ChannelView allows you to set up three banks of custom

channels for convenient access. You can save groups of

channels by content (e.g., news, sports, children’s program-

ming) or by TV user.

Note: You must first set the TV Clock (page 24)

t

o

receive ChannelView listings.

ChannelView Channel Listings

Photos and Moving Video as

Composite Video

Note: 838 series TVs can display photos and play mu-

sic from a USB drive. See the detailed owner’s

guide at www.mitsubishi-tv.com.

Connect the camera to the TV using a composite video

cable and control the slide show or movie through the

camera. The display resolution will be standard-defini-

tion (480i).

Refer to the owner’s manual supplied with the

1.

camera for instructions needed for this setup.

Set the camera’s output signal type to

2.

NTSC and

put the camera into playback mode.

With the camera still turned on, connect your digital

3.

camera’s composite video cable (usually yellow) to

the TV’s

Y/VIDEO

jack. To hear audio, connect the

camera’s audio output cable to the

AUDIO

L

jack.

Optional

Audio Cable

USB HDMI 4

INPUT 3

AUDIO

L R

Pb

Y/ VIDEO

Pr

AUDIO

L

Y/ VIDEO

Camera connection using a composite video cable

When the

4.

New Device Found screen displays,

assign the name Camcorder.

Press

5.

EXIT

to close the New Device Found screen.

Highlight the icon for the camera input and press

6.

ENTER

.

If viewing photos, control the slideshow from the

7.

camera. Advance through the images manually or

check if the camera can advance automatically.

Press 3. to highlight a bank.

Press 4.

MENU

to see channels in the bank.

To allow tuning to any channel in memory, select •

the All bank.

16 3. TV Features

For assistance call 1(800) 332-2119

To display 3D gaming or 3D cinema content, your

Mitsubishi TV requires:

A compatible 3D source device outputting a 3D •

signal in one of these formats:

Checkerboard format, 1080p, 60-Hz; (lower -

resolutions may be supported but will not fill the

screen)

Side-by-Side format, 1080p, 24/30/60 Hz; 720p, -

60 Hz

Active-shutter 3D glasses, DLP link type or IR •

emitter type with matching emitter

Please visit our website at www.mitsubishi-tv.com for infor-

mation about future TV software updates that will broaden

3D signal compatibility.

Initial Setup

If your 3D glasses came with an emitter box,

1.

connect the emitter box to the

3D GLASSES

EMITTER

jack. Place the box in front of the TV

where there is a clear path to the glasses.

Note: If your glasses are marked DLP Link, skip this

step; no emitter box is required with DLP Link

technology.

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

++

+

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

++

+

Power on the TV and the source device.

2.

Connect the source device to the TV’s HDMI input.

3.

When the

4.

New Device Found screen displays,

name the input.

Press

5.

EXIT

to close the New Device Found screen.

Watching 3D Video

Note: Active 3D glasses are required.

Press

1.

INPUT

.

Highlight the icon for the 3D video device and press

2.

ENTER

.

Press

3.

MENU

and select the Picture > 3D Mode

menu.

Select

4.

On

for 3D Mode

. The On setting will be

memorized for the current input when you exit this

menu.

Select the

5.

Source Format. If your source device

outputs an unsupported signal format see “Notice

Concerning Format Compatibility” on this page.

For

6.

Glasses Control, select the control type for

your 3D glasses, either IR Emitter or DLP Link.

Use the Picture > 3D Mode menu to enable 3D video.

Press

7.

EXIT

to close the menu.

If the image does not appear correct

8.

(e.g., objects

appear to be moving in instead of out),

open the

Picture > 3D Mode menu and set Glasses L-R to

Reverse.

To Watch Regular (non-3D) Video

The 3D Mode setting is memorized for each input.

When you want to watch non-3D video on the input

selected above, open the Picture > 3D Mode menu

and set 3D Mode to Off.

3D Video

Notice Concerning Format Compatibility

Mitsubishi 3DTVs (738 and 838 series) currently support

the side-by-side 3D signal format. For support of other 3D

formats, such as top-bottom and frame packing (3D Blu

Ray standard), Mitsubishi 3DTVs will require the use of a 3D

source device that outputs the 3D checkerboard format or

a 3D source device coupled with the Mitsubishi 3D adapter.

In all cases an emitter and matching 3D active shutter

glasses or DLP Link active shutter glasses are required in

order to view 3D content.

3. TV Features 17

For assistance call 1(800) 332-2119

3D Video, continued

3D Safety Requirements

3D Glasses are NOT designed as sunglasses or safety glasses and do not provide protection. 3D glasses should •

be worn only when viewing 3D material.

Do not wear the wireless glasses in any situations that require unimpaired visual perception.•

Children under the age of 5 should not view 3D programming.•

Under normal conditions, 3D viewing is safe for your movies or games. Some people may experience discomfort,

however. To minimize the potential for experiencing visual problems or any adverse symptoms:

Read and follow any and all safety warnings that accompany your 3D glasses or 3D source devices.•

Maintain a distance of no less than 2 to 2.5 feet away from the display. Viewing from too short a distance can •

strain your eyes.

Take regular breaks, at least 5 minutes after every hour of 3D viewing.•

If you experience any of the following symptoms, discontinue 3D viewing until the symptoms go away:

nausea, dizziness, or queasiness, •

headache, or eyestrain, •

blurry vision,•

double vision that lasts longer than a few seconds,•

Do not engage in any potentially hazardous activity (for example, driving a vehicle) until your symptoms have com-

pletely gone away. If symptoms persist, discontinue use and do not resume 3D viewing without discussing your

symptoms with a physician.

Epilepsy

WARNING!

IF YOU OR ANY MEMBER OF YOUR FAMILY HAS A HISTORY OF EPILEPSY, CONSULT A PHYSICIAN BEFORE

USING COMPUTER GAME PRODUCTS.

A small percentage of the population may experience epileptic seizures when viewing certain types of TV images or

video games that contain flashing patterns of light.

The following people should consult a physician before viewing 3D Games or Video:

Anyone with a history of epilepsy, or who has a family member with a history of epilepsy•

Anyone who has ever experienced epileptic seizures or sensory disturbances triggered by flashing light effects.•

WARNING!

SOME LIGHT PATTERNS MAY INDUCE SEIZURES IN PERSONS WITH NO PRIOR HISTORY OF EPILEPSY.

DISCONTINUE 3D VIEWING IF YOU EXPERIENCE ANY OF THE FOLLOWING SYMPTOMS:

Involuntary movements, eye or muscle twitching•

Muscle cramps•

Nausea, dizziness, or queasiness•

Convulsions•

Disorientation, confusion, or loss of awareness of your surroundings•

Do not engage in any potentially hazardous activity (for example, driving a vehicle) until your symptoms have com-

pletely gone away.

Do not resume 3D viewing without discussing the symptoms with your physician.

18 3. TV Features

For assistance call 1(800) 332-2119

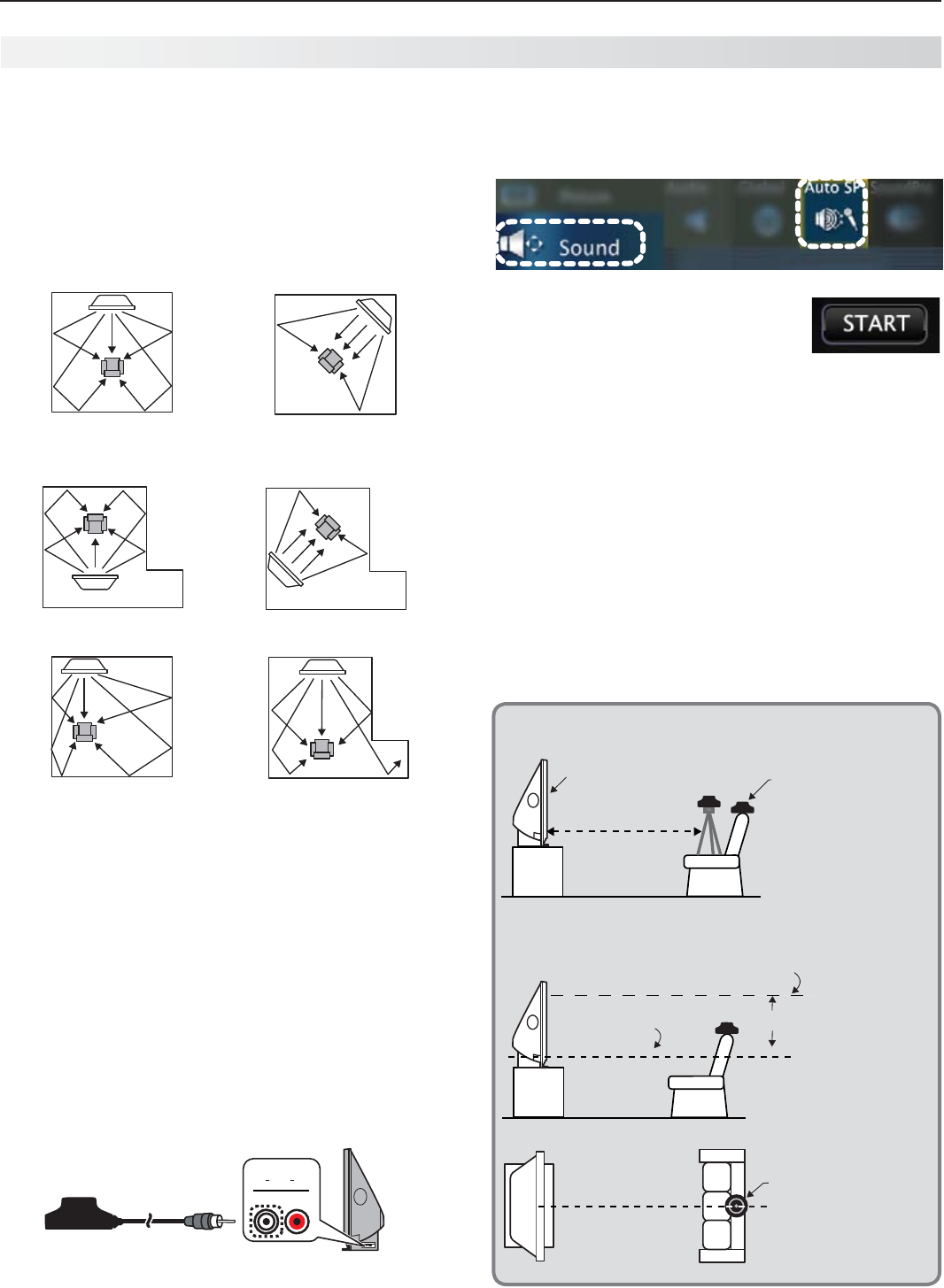

838 Series

The TV’s built-in speaker array can be set up to reflect

sound off the room walls to create a surround sound effect.

Positioning the TV

Center the seating area in front of the TV and at •

least six feet away.

Arrangements that give good results:•

If the room is an odd shape, locate the TV to take •

best advantage of wall reflections.

Avoid locations that may distort sound reflections.•

Connecting the TV

To hear digital surround sound, the TV must be con-

nected to a digital surround sound source. The surround

sound source can be on an HDMI input or the

ANT

input

(for some digital broadcasts). Other stereo connections

will provide Dolby Pro Logic surround sound.

Auto Setup

Auto setup uses the included calibration micro-

phone. For manual setup, see the full owner’s guide at

www.mitsubishi-tv.com.

Power on the TV and external subwoofer, if any.

1.

Plug the microphone cable into the TV’s

2. INPUT 3

left audio jack.

AUDIO

L R

AUDIO

L

Sound Projector

Place the microphone as described in the guide-

3.

lines.

Press

4.

MENU

and go to Sound > AutoSP.

Highlight

5.

START and press

ENTER

.

Quietly exit the room right away. The calibration

6.

sequence may be loud.

Wait for completion of setup

before returning to the room.

Play some sample audio material to check the

7.

sound quality.

Note: Do not perform manual adjustments after run-

ning auto setup as doing so will delete all auto-

setup results.

Store the microphone out of direct sunlight and

8.

away from heat.

Microphone Placement

Be sure the

height of the

microphone is

within three feet

of the speaker

height.

Center the micro-

phone in front of

the TV.

Set the microphone

on a level surface at

ear height at least

six feet from the TV.

Use a seat backrest

or tripod so as to

pick up sound from

all directions.

Maximum height above speakers

Microphone

TV

6 ft. minimum

Microphone

Height of TV

speakers

3 ft.

3. TV Features 19

For assistance call 1(800) 332-2119

StreamTV™ Internet Media

Internet services provided by VUDU™ Apps let you

access many popular on-line applications. In addition to

free content, VUDU’s movie service lets you buy and rent

movies through the TV. Visit www.VUDU.com to learn

more about available movie titles, prices, and services

offered. For a list of recommended routers and switches,

see the Support > FAQ section at VUDU.com.

Required for StreamTV internet media:

Broadband internet service (at least 2 Mbps for SD, 4 Mbps •

for HD, and 8 Mbps for 1080p HDX)

Ethernet cable • or an Azurewave AW-NU231 USB

wireless adapter.

Computer access to the VUDU.com website (required •

for initial account activation).

A credit card for rental and purchase transactions •

from VUDU’s movie service.

Home Network Setup

Before using StreamTV internet media, you must connect

the TV to the internet using one of these methods.

Ethernet Connection

DHCP (automatic)

Connect the TV to your network router with a Cat-

1.

egory-5 Ethernet cable

(not supplied).

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LANLAN

LAN

Ethernet

cable

Router or modem

providing high-speed

internet service

Incoming

internet

cable

TV Main Panel

Open the

2.

Setup > Network menu to review settings.

Press

3.

EXIT

to clear the menu.

Manual

Connect the TV to your network router with a Cat-

1.

egory-5 Ethernet cable

(not supplied).

In the

2.

Setup > Network menu, highlight Manual and

press

ENTER

.

Press

3.

to move to the Connection Data area.

Input the connection data.

4.

After entering connection data, press

5.

ENTER

to

connect.

Change any of the following if needed:

6.

Default Gateway•

DNS•

Subnet Mask•

Setup > Network menu

Highlight the desired network and press

4.

ENTER

to

connect. A check will appear next to the connected

network.

Setup > Network menu after connecting. The active

network is checked and connection data displays.

If connecting to a secure network, enter the

5.

network key or password on the remote control

when prompted.

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

USB HDMI 4

INPUT 3

AUDIO

L R

Pb

Y/ VIDEO

Pr

Wireless

adapter

Wireless

adapter

Back of 738

Series TV

IEEE 802.11n-compliant

wireless network router

providing

high-speed

internet service

Incoming

internet

cable

838 Series

TV

OR

Connecting the USB wireless adapter

Wireless Connection

Disconnect the Ethernet cable if present.

1.

Connect an Azurewave AW-NU231 USB wireless

2.

adapter to the TV’s USB port.

Open the

3.

Setup > Network menu. After a few

seconds, detected networks will appear listed on

the screen in order of signal strength.

20 3. TV Features

For assistance call 1(800) 332-2119

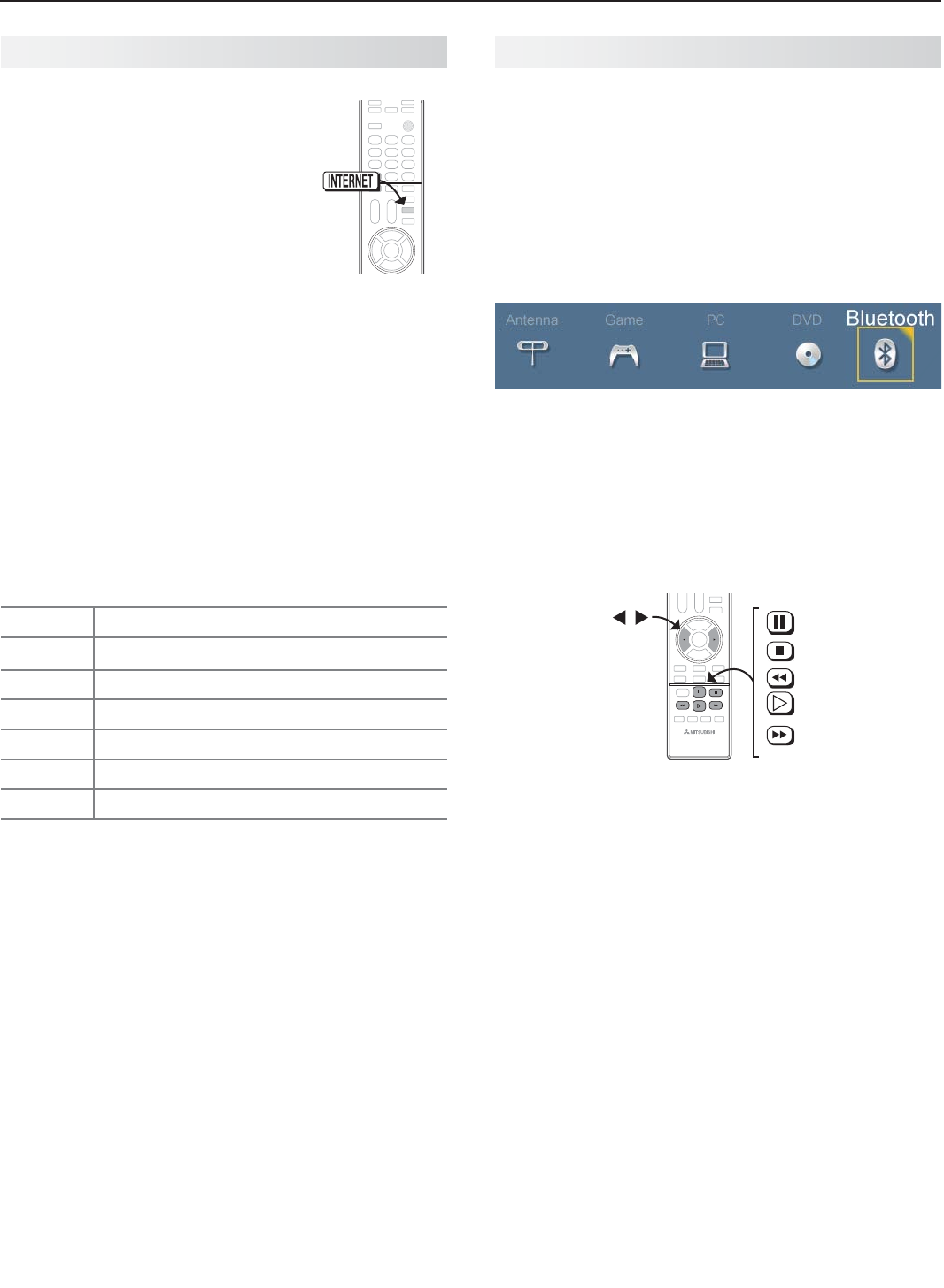

StreamTV™ Internet Media, continued

Wireless Audio Playback

838 Series. The TV’s built-in speaker array can play

audio from a handheld device using Bluetooth® A2DP

(stereo audio) wireless technology.

Pairing the TV with an Audio Device

Turn on the wireless device you wish to use for

1.

play-

back. Turn off all other wireless devices in the area as

the TV can pair with only one device at a time.

Press

2.

INPUT

to display the Input Selection menu.

Bluetooth® icon in Input Selection Menu

Highlight the

3.

Bluetooth icon and press

ENTER

.

Pair your device with the TV and then connect.

4.

Some devices pair and connect automatically,

while others require you to enter the TV pass code

displayed.

Use keys on the TV’s remote control to control play-

5.

back. Not all keys work for all devices.

(

PAUSE

)

(

STOP

)

(

REVERSE

)

(

PLAY

)

(

FORWARD

)

Skip a track

Resetting Bluetooth Pairing or Connection

Perform this reset if the audio device does not connect

properly to the TV.

If the audio device has been previously paired with

1.

the TV, delete the TV from the device’s paired list.

Go to the TV’s

2.

Inputs > Name menu and highlight

the Bluetooth icon. Press

ENTER

to select Off.

Press

3.

EXIT

.

Go to the

4.

Inputs > Name menu and highlight the

Bluetooth icon. Press

ENTER

to select On.

Press

5.

EXIT

.

Tips for Wireless Playback

Selecting the • Bluetooth icon at a later time will

reconnect the TV to the paired device.

If the paired device is not available, the TV will •

accept pairing from a different device.

Once connection is lost, the TV will power off after •

five minutes without receiving a signal.

To clear a paired device, turn off the • Bluetooth icon

(Inputs > Name menu) or pair the TV with a differ-

ent device.

Using StreamTV Internet Media

After establishing internet connectiv-

ity, press the

INTERNET

key to display

services from VUDU Apps. Press

ENTER

to launch an application.

Getting Started with VUDU

Movies

After establishing internet connectivity, press

1.

INTERNET

to display offerings from VUDU.

Select the VUDU movie service.

2.

Browse the VUDU movie catalog and offerings.

3.

When you are ready to rent or buy a movie, you

4.

will be prompted to activate your VUDU account.

Follow the on-screen instructions and use a com-

puter to go to www.VUDU.com/activation. A

credit card is required for activation.

Once your account is activated, you can rent and buy

movies using only the TV and the TV’s remote control.

Specialized Keys for VUDU

INTERNET

Displays the VUDU internet menu.

GUIDE

VUDU

HOME

key

INFO

VUDU

MORE

key

LAST

VUDU

BACK

key (goes to previous menu)

CANCEL

VUDU backspace (in text-entry screens)

F2

VUDU System menu

EXIT

Exit VUDU

Troubleshooting

If You Are Unable to Connect to the Internet

Check all power and data connections.•

If you can reach the internet with a computer or •

other device on the same internet service used by

the TV, consult the router or modem owner’s guide

for reset instructions.

If you cannot reach the internet, contact your •

service provider. You may be asked for network

information such as the TV’s IP address. Go to the

Setup > Network menu to see connection data.

For Further Assistance

If you are having trouble connecting your TV or •

accessing internet applications, contact Mitsubishi

Customer Care at 1-800-332-2119.

If you are having difficulty with your VUDU •

account, contact VUDU Customer Care at

www.VUDU.com/support.

See more troubleshooting tips in • Appendix C.

INTERNET

21

For assistance call 1(800) 332-2119

4TV Menus

Press

MENU

on the remote control to open the main menu and access these settings.

Picture VideoSettings in this menu are saved for the current input only.

To make picture adjustments:

From the Picture > Video menu

Press 1. to highlight an option

Press 2. to adjust.

While watching TV

Press the 1.

VIDEO

key.

Press 2. to select a video option.

Press 3. to change the setting.


Mode

Brilliant

For use under bright light.

Set the Picture Mode

before changing other

video settings, Use Picture

Modes to get the best

image under different

viewing conditions.

Game

Optimizes picture and video processing for game consoles.

Available only when the input name is

Game

or

PC

.

Bright For most daytime viewing

Natural For most nighttime viewing

Cinema Good for viewing movies in moderate to dim lighting.

Advanced Modes. Contact your professional installer for setup.

Contrast In most home lighting situations, medium contrast looks best. Stored for each Picture Mode.

Brightness

Adjusts overall picture brightness. Stored for each Picture Mode.

Color Adjusts overall color intensity from monochromatic to fully saturated. Saved by input.

Tint Adjusts the red-to-green ratio. Saved by input.

Sharpness Adjusts picture detail and clarity. Saved by input.

Color Temp

)

High

gives white a cool cast.

Low gives white a warm cast. Stored for each Picture Mode.

Video Noise

Reduces minor noise (graininess) in the picture. Saved by input.

EdgeEnhance

EdgeEnhance™ makes the image appear sharper. Saved by input.

DeepField

Imager

Provides strong contrast with detail over mixed screen content. Demo displays a split picture to

show On (right side) and Off (left side). Saved by input.


Picture+

(Picture Plus)

Video Mute Displays a solid background when there is no video signal from the current input.

Screensaver

Displays a screensaver pattern while playing an audio-only source.

Film Mode 480i and 1080i signals only.

In

Auto

, the TV automatically detects and applies film-decoding correc-

tion to movies filmed at 24 frames per second. Try the

Off

setting if images show many jagged edges.

Setting saved by input.

Smooth 120

Smooth 120 reduces motion blur in action scenes but may show pixel structure during slower motion or in still

images. Works in conjunction with Film Mode.

Test


Displays a test picture.


22 4. TV Menus

For assistance call 1(800) 332-2119

Picture Reset

Resets sound and picture adjustments for the current input. Highlight the • Reset icon

and press

ENTER

twice to perform reset

.

Reset• has no effect on universal settings (Balance, Listen To, Language) or on

Advanced picture settings.

Picture Perfect

(PerfectColor/PerfecTint) 838 Series. Sliders let you adjust the saturation (intensity) and

hues of six separate colors for the current image source.


Advanced

Advanced Modes. Contact your professional installer for setup.

738 Series. Special/ADV.

838 Series. ISF Day/ADV1, ISF Night/ADV2

Picture 3D Mode

See page 16.

TV Speakers

(sound source)

On Turns on the internal TV speakers.

Off

Turns off the internal TV speakers so you hear sound only through a connected device

(A/V receiver or headphones).

Center 838 Series.

Makes the TV’s speaker array act as a center channel. See the

detailed owner’s guide at www.mitsubishi-tv.com for use of this feature.

Sound Audio Settings in this menu are saved for the current input only. To make audio adjustments:

From the Sound > Audio menu

Press 1. to highlight an option

Press 2. to adjust.

While watching TV

Press the 1.

AUDIO

key.

Press 2. to select an audio option.

Press 3. to change the setting.

Sound

Picture, continued

Subwoofer

[Subwoofer

level adjust-

ment]

838 Series. Adjusts the volume level of a connected subwoofer. Set Sound >

Global > Subwoofer to On to make this adjustment available.

Bass Controls bass sound from the TV speakers.

Treble Controls high-pitched sound from the TV speakers.

Balance Controls audio balance between the right and left TV speakers (Sound Mode Stereo only)

Sound Mode Stereo No special audio effects from the TV speakers

Surround Modifies audio from the TV speakers.

• Formonaural(non-stereo)programs,createsasimulatedstereoeffect.

• Forstereoprograms,createsasimulatedsurround sound effect.

• 838 Series. The TV’s speaker array plays surround sound if available.

Music 838 Series. Optimizes the TV’s speaker array for music listening.

Night 838 Series. Focuses the TV’s speaker array to a single point to limit sound heard

by others outside the room. Press

ENTER

to adjust the focal point (Night Angle).

4. TV Menus 23

For assistance call 1(800) 332-2119

Sound Global

838 Series. Settings in this menu apply to all inputs.

Analog Audio

Out

These settings affect audio from the AUDIO/SURROUND OUTPUT jacks.

Fixed Use with an analog A/V receiver.

Variable Use with headphones; adjust headphone volume using the TV’s remote control.

Rear

838 Series. Use when supplementing the TV’s speaker array with external rear speakers.

Subwoofer Select On to turn on audio to a connected subwoofer. Set to Off if no subwoofer is connected.

Center Channel On allows the TV’s speakers to complement your external sound system as a center channel. Set

to Off if not in use.

Sound Auto Sp

838 Series. See page 18 for setup instructions.

Sound

SoundPro

838 Series. Lets you set up the Sound Projector speaker array manually. See the

detailed owner’s guide at www.mitsubishi-tv.com.

Sound, continued

Captions

Captions

Services

Service On if Mute: Displays digital closed-caption signal Caption 1 (digital) or CC1 (analog) when audio from the

TV speakers is muted. While watching TV, press

MUTE

to turn closed captions on/off.

Digital

Caption 1–Caption 6:

Caption signals sent by the broadcaster.

Analog

CC 1–CC 4.• Standard closed-caption signals

Text 1–Text 4. • Text-service signals

Captions

Font

As Broadcast changes settings to those selected by the captions provider, or, if none, to

the TV’s own caption defaults.

Captions

Color

A white font on a black translucent background makes an easy-to-read combination.

Level Sound On, Off Reduces differences in sound volume between programming segments.

Analog Listen To

(For

antenna

analog channels)

Stereo The TV plays stereo broadcasts in stereo and mono broadcasts in mono.

SAP Second Audio Program. Selects an additional monaural sound track.

Mono Reduces background noise. Use when receiving a weak stereo audio signal.

24 4. TV Menus

For assistance call 1(800) 332-2119

Setup

Setup

Language

Select either English or Spanish for on-screen menus.•

Select the language for a digital program from the •

ANT

input (if available).

Setup Clock

Set the TV clock to:

Use the TV Timer to power on the TV automatically at a preset time•

Receive correct updates to ChannelView listings•

Note: When the Daylight Savings Time change occurs, you must open this menu and set the TV’s clock ahead or back.

Setup Timer

The Timer tells the TV to power on automatically at a time you set. Use this menu to set a day,

time, input, and channel for the Timer. If the TV is already on at the set time, the TV will auto-

matically change to the designated channel or input.

• TheTVclockmustbesetbeforeyoucanusetheTimerfeature.

• AsareminderthattheTVTimerisset,theTV

POWER

indicator flashes slowly while the TV is powered off.

•

When the Timer turns on the TV, press any key on the remote control to keep it from turning off after five minutes.

Setup

Channel

See “Memorizing Channels with Channel Scan” on page 7 to scan for all available channels

on the

ANT

input.

Edit

After channel scan, Edit lets you add and delete memorized channels.

• Press

PAGE

/ to jump to the next or previous page of channel numbers.

• Press to move through all channel numbers, one at a time.

Adding/Deleting Channels Using the Channel Edit Menu

Channels marked with a check are in memory.•

To add or delete a channel from • memory, highlight the channel number and press

ENTER

.

To add a single digital channel not in the list, see the full owner’s guide at www.mitsubishi-tv.com.•

Setup Energy

Lamp

Energy

Standard,

Bright

Standard is for most viewing conditions. Use Bright in brightly lit rooms. You may

notice increased fan noise when using the Bright setting.

Blue Glow

(838 series)

On, Off Select On to see blue accent lighting when the TV is powered on.

Setup

Home

Network

Ethernet Connection

Wireless Connection

See “Home Network Setup,” page 19.

4. TV Menus 25

For assistance call 1(800) 332-2119

Inputs

Inputs Name

Lets you assign or • change names of inputs appearing in the Input Selection menu.

Highlight the input and press •

ENTER

to see the name choices.

Lets you turn the • Ant input On/Off (to display or hide it in the Input Selection menu).

838 Series.• Lets you turn the Bluetooth input On/Off (to display or hide it in the Input

Selection menu); a paired device is cleared from memory when the Bluetooth icon is

turned off.

Lets you delete unused HDMI inputs from the • Input Selection menu.

Inputs Learn

838

Series.

Sets up or changes NetCommand IR control of the current device.

See the full owner’s guide at www.mitsubishi-tv.com.

Inputs AVR 838

Series.

Sets up or changes NetCommand IR control of an A/V receiver.

See the detailed owner’s guide at www.mitsubishi-tv.com.

Inputs

HDMI

Control

On, Off Select On or Off to enable or disable the TV’s control of a CEC-enabled device.

See the detailed owner’s guide at www.mitsubishi-tv.com for use of this feature.

Inputs Order

Lets you rearrange icons in the Input Selection menu.

Inputs Demo

See demonstrations showcasing selected TV features.

26 4. TV Menus

For assistance call 1(800) 332-2119

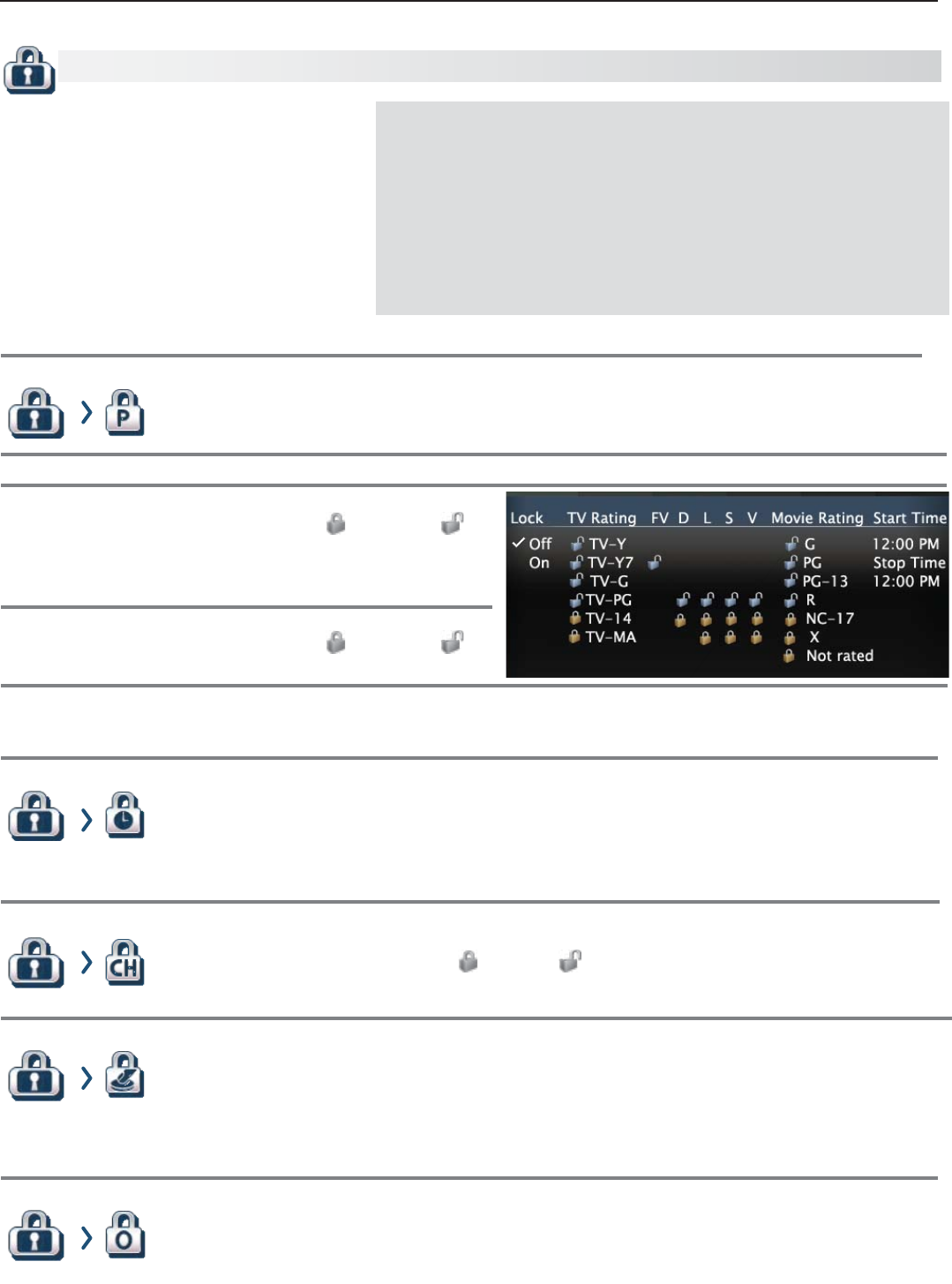

Parental Menu

The TV comes from the factory with the rating

locks turned off and with pre-set U.S. ratings

TV-PG and movie rating PG. You must turn

on blocking for U.S. ratings to activate these

rating restrictions. You will be prompted to

enter a pass code when you select Lock on

the main menu.

Lock

Important Notes on Rating Locks

• Parental menu rating locks apply only to channels and signals received

on the ANT and composite VIDEO jacks.

• Other menu rating locks apply only to digital channels received on ANT.

• Whenviewingacablebox,satellitereceiver,orotherdeviceconnected

to the component Y Pb Pr or HDMI inputs, check the device’s owner’s

guide for parental locks.

• WhenaccessingVUDU’sinternetmovieservice,usetheparentalcon-

trols provided by VUDU.

Lock

Parental

Lock

Disables or enables blocking based on V-Chip signals and the U.S. rating system.

TV

Rating

Highlight the rating level you wish to change

and press

ENTER

to block it ( ) or allow it ( ).

You can apply supplemental content block-

ing to the age-based ratings by using the TV

content categories. (FV, D, L, S, V)

Movie

Rating

Highlight the rating level you wish to change

and press

ENTER

to block it ( ) or allow it ( ).

Start Time/

Stop Time

Sets the time of day for enforcement of rating restrictions set in the Parental menu.

Note: To make rating restrictions active 24 hours a day, make Start Time and Stop Time the same.

Lock Time

Blocks all use of the TV during the time period you specify. Once a lock time is set, it goes

into effect immediately and you must enter a pass code to use the TV during the lock period.

To reactivate the time lock, power the TV off and then back on. T

o make

Lock by Time

active 24 hours a day, make Start Time and Stop Time the same.

Lock

Channel

The Channel Lock menu lists channels currently in memory (see page 24). Highlight a

channel and press

ENTER

to lock ( ) or allow ( ) the channel. Channels locks will be

cleared the next time you perform a channel scan.

Lock Panel

Use this option if small children try to press TV buttons.

To • release the Panel Lock from the TV’s control panel, press and hold the

INPUT

button for

ten seconds. If the TV is powered off, press

POWER

after the lock releases to power on the

TV.

To reactivate the lock, return to this menu and change the setting to • On.

Lock Other

Other Menu Options (alternate rating system)

This TV can recognize new rating systems that may come into effect in the future. Such alter-

nate rating systems will apply only to digital programming received on the ANT input.

Appendices 27

For assistance call 1(800) 332-2119

CAUTION

BURN DANGER! HOT SURFACES INSIDE!

Touch lamp cartridge handle only. Do not touch lamp or lamp car-

tridge housing. Keep lamp cartridge horizontal during removal. Do

not tilt as glass may come out and cause injury. Replace lamp car-

tridge only with the same part number 915B441001.

CAUTION: If the television is on, press POWER to turn it off. Unplug the television and

allow it to cool for at least one hour before attempting to replace the lamp cartridge.

Lamp

The light source for this television is a

lamp, which is part of a lamp cartridge

assembly. The life of the lamp can

vary, based on the lamp itself, the air

temperature around the TV while it is

operating, the selected lamp mode, and

your viewing patterns. Warmer air or

poor ventilation shorten the lamp life, as

does setting

Lamp Energy

to

Bright

and turning the television on and off

frequently.

Mitsubishi warrants the lamp for one (1) year from the date of original

TV purchase at retail.

To Order a New Lamp

To Receive a Replacement Lamp Under Warranty

Visit our website at www.mitsuparts.com.•

Call (800) 553-7278. Please have model number, serial number, •

and TV purchase date available.

Important: All lamps replaced under warranty must be returned to

Mitsubishi where they will be inspected to verify failure defects.

To Purchase a Replacement Lamp After Warranty

Visit our website at www.mitsuparts.com or call (800) 553-7278. Order the following:

Lamp Part Number 915B441001

Lamp-Cartridge Replacement and Cleaning

WARNING

• Donotremovethelampcartridgeimmediatelyafterturningoffthetelevision.Youmaygetburnedbecausethe

lamp is very hot. Allow the television to cool for at least one hour before replacing the lamp cartridge.

• Donotremovethelampcartridgeexceptwhenreplacingit.Carelesstreatmentcanresultininjuryorfire.

• Donottouchthelampglasselement.Itmaybeveryhotandbreak,causinginjuriesorburns.

•

Be sure not to insert any metal or flammable object into the lamp cartridge opening, as it may cause fire or electrical

shock. If a foreign object is inserted into the opening, unplug the AC cord of the TV and contact your dealer for service.

• Installthelampcartridgesecurely.Failuretodosomaycauseafire.

• Donottouchthelampglasselements.Oilsfromyourfingersmaycauseprematurelampfailure.

Hg = MERCURY

THE LAMP INSIDE THIS PRODUCT CONTAINS MERCURY AND MUST BE RECYCLED OR DIS-

POSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. For disposal or recycling infor-

mation, please contact your local authorities or the Electronic Industries Alliance at www.eiae.org

WARNING

THE ACCESS PANEL IS

PROVIDED WITH AN INTERLOCK

TO REDUCE THE RISK OF

EXCESSIVE ULTRAVIOLET

RADIATION. DO NOT DEFEAT

ITS PURPOSE OR ATTEMPT TO

SERVICE WITHOUT REMOVING

PANEL COMPLETELY.

Lamp-Substitution Alert

MDEA recommends that you use only genuine Replacement Lamp Assemblies purchased directly from Mitsubishi or a

Mitsubishi Authorized Dealer or Mitsubishi Authorized Service Center. MDEA advises that replacement lamps obtained

separately from the Lamp Cartridge and/or Lamp Assemblies obtained from unauthorized sellers may be incorrect for

your television, may not fit or perform properly and may even damage your television. MDEA can not be responsible

for the performance, reliability or safety of any replacement lamps that are obtained from unauthorized sources.

Appendix A: TV Care

28 Appendices

For assistance call 1(800) 332-2119

Lamp-Cartridge Replacement

Removing the Old Lamp Cartridge

Turn off TV power and unplug the TV. Allow the

1.

lamp to cool for at least one hour before proceed-

ing.

After the lamp has cooled, remove the cover of the

2.

lamp compartment, located on the back of the TV.

Refer to figures 1 and 2. Use a #2 (medium) Phillips

screwdriver to loosen the screw securing the cover.

Keep the screw and cover for re-installation

Wi

3.

th a medium Phillips screwdriver, loosen the two

screws securing the lamp cartridge until they dis-

engage from the mating threads. These are captive

screws and cannot be separated from the lamp

cartridge.

Fully open the bag supplied with the replacement

4.

lamp and set the opened bag aside.

Gently grasp the handle of the lamp cartridge and

5.

pull the old cartridge straight out. See figure 3.

CAUTION: Do not tilt or rotate the cartridge, as

small glass fragments may fall out.

Without tilting or putting down the lamp cartridge,

6.

insert it into the opened bag. Close the bag while

being careful not to let any glass particles fall out.

Installing the New Lamp Cartridge

Do not touch the glass parts of the new lamp car-

1.

tridge. Insert the new cartridge into the TV in the

same orientation as the old cartridge. Push on the

cartridge housing until it is fully seated.

Gently tighten the screws with the screwdriver.

2.

AVOID OVERTIGHTENING!

Replace the plastic cover and retaining screws.

3.

WASH YOUR HANDS THOROUGHLY, AS THIS

4.

LAMP CONTAINS MERCURY.

Disposal of the Old Lamp Cartridge

Lamp under warranty: All lamps replaced under war-

ranty must be returned to Mitsubishi. Use the return

shipping label provided and send to Mitsubishi Digital

Electronics, America, 625 Braselton Parkway, Suite 200,

Braselton, GA 30517.

IMPORTANT: Lamps found without defects will be

returned and charged back to the sender.

Lamp no longer under warranty:

Contact your

local authorities or the Electronic Industries Alliance at

www.eiae.org for lamp-disposal or recycling instructions.

Do not dispose of the old lamp with common trash.

Figure 3

Use only replacement lamp part number

915B441001.

Figure 4

Keep lamp

cartridge horizontal

and remove dust

from the mesh filter

using a vacuum

cleaner or soft dry

brush.

Figure 2

Figure 1

Lamp-Cartridge Filter Cleaning

If the TV shuts off after displaying the message “TV

will shut down in a few seconds. Please check if the

air flow is blocked” and/or the

STATUS

LED is yellow, the

air filter may need cleaning. The air filter is part of the

lamp cartridge. Use the following procedure to clean

the filter.

Remove the lamp cartridge from the TV as

1.

described under “Removing the Old Lamp Car-

tridge.” Do not tilt or rotate the cartridge. Do not

touch the glass parts of the lamp cartridge.

Holding the lamp cartridge horizontal (do not tilt or

2.

rotate), use a soft dry brush or vacuum cleaner to

remove any dust that may be present on the mesh

filters. Do not use liquids. See figure 4.

Reinstall the lamp cartridge as described under

3.

“Installing the New Lamp Cartridge.”

Appendix A: TV Care, continued

Appendices 29

For assistance call 1(800) 332-2119

Cleaning Recommendations

Normally, light dusting with a dry, non-scratching duster

will keep your TV clean. If cleaning beyond this is

needed, please use the following guidelines:

First, turn off the TV and unplug the power cord from the

power outlet.

Occasionally clean dust build-up from the air-intake

grilles on the back and sides of the TV. Clean using a

vacuum cleaner with a brush attachment.

Top and Sides of the TV

Gently wipe down your TV with a soft, non-abrasive •

cloth such as cotton flannel, microfiber, or a clean

cloth diaper, lightly moistened with water. Dry with a

second dry, soft, non-abrasive cloth.

For oily dirt, add a few drops of mild liquid detergent, •

such as dishwashing detergent, to the water used

to moisten the cloth. Rinse with a second cloth

moistened only with water. Dry with a third dry, soft,

non-abrasive cloth.

Screen

Follow the instructions for the top and sides, wiping •

gently in an up and down motion.

Clean the entire screen evenly, not just sections of •

the screen.

Do not allow liquid to drip down the screen, as some •

liquid may enter the TV through the gap between the

screen and screen frame.

You may purchase Mitsubishi Screen Cleaner, part •

number CLEANER-VSS, by calling (800) 553-7278.

General Cleaning Precautions

DO NOT allow liquid to enter the TV through the •

ventilation slots or any crevice.

DO NOT use any strong or abrasive cleaners, as •

these can scratch the surfaces.

DO NOT use any cleaners containing ammonia, •

bleach, alcohol, benzene, or thinners, as these can

dull the surfaces.

DO NOT spray liquids or cleaners directly on the •

TV’s surfaces.

DO NOT scrub or rub the TV harshly. Wipe it gently.•

Appendix A: TV Care, continued

30 Appendices

For assistance call 1(800) 332-2119

Enter the first five-digit code listed for your equip-

3.

ment.

Point the remote control at the equipment and press

4.

POWER

. If the product has no power on/off function,

press a different key, such as (

PLAY

), (

STOP

),

VOLUME UP

, or

MUTE.

If the equipment does not respond, repeat the pre-

5.

ceding two steps using the next five-digit code.

Once you have found the correct code, write it in the

6.

space below for future reference.

Mode

Device Type Code

CABLE/SAT

VCR

DVD

AUDIO

Programming the Remote Control

Change the control mode to match the device type.

1.

CAB/SAT DVD

TV AUDIO

VCR

CAB/SAT DVD

TV AUDIO

VCR

Mode Affected Device

CAB/SAT

Cable Box, DTV Receiver, Satellite Receiver

VCR

VCR, DVR, DVD Player/Recorder

DVD

DVD Player/Recorder, DVR, VCR

AUDIO

A/V Receiver, Audio Amplifier, CD Player

Press and hold

2.

POWER

on the remote control for

several seconds until the key blinks twice and goes off

.

Appendix B: Programming the Remote Control

This is an abbreviated list showing

the most popular codes. For a full

list, see the detailed owner’s guide at

www.mitsubishi-tv.com.

Cable Boxes

General Instrument

Jerrold

10476

Motorola 11376, 11187, 10476

Pace 11982, 11877, 11376

Pioneer 11877, 10877

Scientific Atlanta 11877, 10877

A/V Receivers

Bose 41933, 41841, 41629, 41253,

41229, 40639

Denon 42857, 42279

Harman/Kardon 42443, 42241, 41306, 41304,

40891

Integra 41805, 41320, 41298

JVC 42331, 42239, 42040,

41495, 41374

Kenwood 41570, 41569, 41313

Mitsubishi 41957, 41922, 41921, 41920,

41393

Onkyo 41805, 41531, 41320, 41298,

40842

Panasonic 41763, 41633, 41548, 41518,

41316, 41308, 41288, 41275,

42967, 42452, 42221, 41764

Pioneer 41935, 41384, 41023, 40630

Sony 41759, 41758, 41658, 41622,

41558, 41441, 41258, 41058,

42522, 42216, 42172, 41858,

41822

Technics 41518, 41308

Yamaha 41476, 41376, 41375, 41331,

41276, 41176, 40376, 40176

42471, 42467, 42061, 41815

Satellite Receivers

DirecTV 11749, 11377, 11142, 10749,

10639, 10566, 10392, 10247

11856, 11609, 11442, 11414,

1110 9, 11076

Dish Network

System

11775, 1150, 1077

Hughes Network

Systems

11749, 11442, 11142, 10749

Mitsubishi 10749

RCA 10566, 10392, 10143

Samsung 11609, 11442, 11377, 11276,

1110 9

VCRs

Hitachi 20042, 20000

JVC 20067

Magnavox 21593, 20593, 20081, 20039,

20035, 20000

Matsushita 20162, 20035

MGA 20043

Mitsubishi 20173, 20067, 20043

Panasonic 21062, 20616, 20614, 20162,

20035

RCA 20880, 20060, 20042

Sony 21972, 21032, 20636, 20035,

20033, 20032, 20000

Tivo 20739, 20636, 20618

Toshiba 21972, 21008, 20045, 20043

Zenith 21139, 20039, 20037, 20033,

20000

DVD Players

Apex Digital 31061, 31056, 31020, 31004,

30797, 30796, 30794, 30755,

30672

Coby 31628, 31351, 31177, 31165,

31107, 31086, 30852, 30778

Denon 32258, 30634, 30490

DVD Players

Funai 30675

Hitachi 30664, 30573

Insignia 32596, 32428, 32095, 30675

Integra 32147, 31769, 30627, 30571

JVC 32365, 31602, 31550, 31275,

31164, 30867, 30623, 30558

LG 31602, 30869, 30741, 30591

Magnavox 31506, 31472, 31354, 31177,

30675, 30646, 30539, 30503

Mitsubishi 31521, 30521

Onkyo 32147, 31769, 30627, 30503

Panasonic 31762, 31641, 31579, 30703,

30632, 30503, 30490

Philips 32084, 32056, 31340,,

31267, 30675, 30646, 30539,

30503, 32434, 31506, 31354

Pioneer 31571, 31512, 31460, 30632,

30631, 30571, 30525, 30142

32442

RCA 32213, 31769, 30822, 30790,

30571, 30522

Samsung 32069, 31470, 31075, 31044,

30820, 30573, 30490, 30199

32556, 32489, 32369, 32329

Sharp 32250, 31256, 30752, 30675,

30630

Sony 31633, 31536, 31516, 31431,

31070, 31033, 30864, 30533

Sylvania 30675

Tivo 31512, 31503

Yamaha 32558, 32298, 30817, 30646,

30545, 30539, 30490

Zenith 30869, 30741, 30591, 30503

Appendices 31

For assistance call 1(800) 332-2119

Reset Name When to Use How to Use Resulting Action

Format If the picture shape

seems incorrect, use

the

FORMAT

key to

change the picture

shape.

Press

FORMAT

to cycle through the

picture shapes available for the

signal.

The last-used format for a signal

type will be recalled on the input.

Note: Also check the aspect

ratio feature on your cable box or

satellite receiver as this may be

altering the picture.

PerfectColor™/

PerfecTint™

Reset (838

Series)

(for the single

input currently

being watched)

When the color

intensities seem out

of balance, use the

PerfectColor/PerfecTint

reset to reset the color

balances to the original

factory settings.

Both PerfectColor and

PerfecTint are reset at

the same time.

While viewing the input to be 1.

reset, press

MENU

and go to

Picture > Perfect.

Press 2.

ENTER

to display the

PerfectColor adjustment screen.

Press 3.

CANCEL

to reset the colors.

All PerfectColor/PerfecTint

sliders are reset to the original

center position. The PefectColor/

PerfecTint settings for other

inputs remain unchanged.

A/V Memory

Reset

(for the single

current input)

When audio and/

or video settings for

a single input seem

incorrect, use A/V

Memory Reset to

return the input to

the original factory

settings.

While viewing the input to reset, 1.

press

MENU

and go to Picture >

Reset.

Press 2.

ENTER

to highlight Reset.

Press 3.

ENTER

again to reset.

All Audio and Video settings for

the individual input are reset

except for the global settings

for audio Balance, Listen To,

Language, Video Mute, Smooth

120.

TV Reset Comparison Guide

You can resolve many common TV problems using the

reset functions described in the following table. .

IMPORTANT

Before you change sound or picture settings: If

picture or sound settings seem wrong for a broadcast

channel (a channel from the

ANT

input, a cable box,

or satellite receiver), first check other channels from

the same input before changing settings. If most other

channels from the same input seem correct, there is

likely a problem with the broadcast rather than with the

TV. Use care in this case, as changes you make to fix

problems on individual channels also affect all other

channels on the same input.

Appendix C: Troubleshooting

Service and Customer Support

Service

If you are unable to correct a problem with your TV,

consult your Mitsubishi dealer or Mitsubishi Con-

sumer Relations at (800) 332-2119.

• DONOTadjustanycontrolsotherthanthose

described in this Owner’s Guide.

• DONOTremovetheprotectivebackcoverof

your TV.

Customer Support

• Toorderreplacementoradditionalremotecon-

trols or lamp cart

ridges,

visit our website at www.

mitsuparts.com or call (800) 553-7278.

• Forquestions:

Call Consumer Relations at 800-332-2119.

E-mail: MDEAservice@mdea.com

Website: www.mitsubishi-tv.com

Important

All lamps replaced under warranty must be returned

to Mitsubishi where they will be inspected to verify

failure defects.

32 Appendices

For assistance call 1(800) 332-2119

Reset Name When to Use How to Use Resulting Action

A/V Reset

(for all inputs)

To reset audio and

video adjustments for

all inputs to the original

factory settings.

While viewing the TV, press the

control-panel buttons

INPUT

and

VOLUME DOWN

at the same time for at

least two seconds.

All Audio and Video settings are

returned to the original factory

settings, including global settings

not affected by Picture > Reset.

Channel

Memorization

To erase and

re-memorize channels

on the

ANT

input.

Press 1.

MENU

and go to Setup >

Channel.

Highlight the reception mode, 2.

e.g. Ant Air, and press

ENTER

.

Highlight 3. All Channels and

press

ENTER

.

Highlight 4. Scan.

Press 5.

ENTER

to start channel

memorization.

All previously memorized chan-

nels for the antenna input are

erased and a new set of memo-

rized channels is created. To

add or delete individual channels,

see the Setup > Channel > Edit

menu instructions on page 24.

Lock Menu

Pass Code

To change your Lock

menu pass code

See the detailed owner’s guide at www.mitsubishi-tv.com for instructions.

Control-Panel

Lock Release

To re-enable the

control-panel buttons

after activation of the

Control-Panel Lock

Press and hold the

INPUT

button on

the control panel for ten seconds. If

the TV is powered off, you can now

press the

POWER

button to turn it on.

Allows the control panel to be

unlocked if the remote control is

misplaced.

System Reset If the TV does not turn

on or off, does not

respond to the remote

control or control-

panel buttons, or has

audio but no video.

Press and hold the

POWER

button on

the control panel for ten seconds.

The TV will turn off. Power on the

TV and the green LED will flash

quickly for about one minute. The

changes you made most recently,

before using

SYSTEM RESET

, may

be lost.

TV Reset

IMPORTANT:

Use this reset

only if other

troubleshooting

has been unsuc-

cessful.

To reset all consumer-

accessible settings

and all memories to

the original factory

defaults.

Use TV Reset if the TV

can respond to con-

trols but TV behavior is

abnormal.

CAUTION: All owner-

performed setups and

adjustments will be

erased.

While viewing the TV, press 1.

MENU

to display the TV main

menu.

With the main menu displayed, 2.

press number keys 1 2 3 to

display the Reset menu.

READ THE ON-SCREEN 3.

WARNING AND INSTRUC-

TIONS.

If you do not wish to use this •

reset, press

EXIT

or

MENU

to

back out.

If you wish to continue, •

press

ENTER

to erase all

memories and settings.

The TV will start the initialization

process and then turn off.

Power on the TV and the front

green LED will start flashing. All

memory and settings outlined in

this Owner’s Guide will need to

be set again.

VUDU

Reset VUDU

Account Pass-

word

You have forgotten

your account pass-

word.

Using a computer, go to

www.VUDU.com.

Reset your account password

from the VUDU website (requires

access to e-mail).

VUDU

Reset Parental

Controls Pass

code

You have forgotten

your pass code.

Call VUDU Customer Care at

1-888-554-VUDU (8838).

VUDU Customer Care will reset

your pass code.

Appendix C: Troubleshooting, continued

Appendices 33

For assistance call 1(800) 332-2119

Appendix C: Troubleshooting, continued

Common Picture Problems

Symptom Remarks

1. Picture does not look like a high-defi-

nition picture.

Compare the picture to the TV’s test picture (Picture > Picture+ >

Test Picture) to check if the source signal is supplying a lesser-quality

image.

Not all signals are high-definition signals. To receive high-definition

programming from your cable or satellite provider, you must subscribe

to the provider’s high-definition service. Some over-the-air broadcasts

are in high-definition and can be received with a high-quality antenna

suited to your location.

2. TV has sound but no picture. Press •

MENU

on the remote control. If the menu displays, then there

is a problem with the incoming signal.

Check that all video inputs are plugged in firmly to the correct input •

jacks.

Press and hold the •

POWER

button on the control panel for ten

seconds to perform System Reset.

3. Picture has become dimmer. • Thelampisnearingtheendofitslife.Orderanewlamp.

• Adjustpicturebrightnessandcontrasttomaximumlevels.

• ChangeLamp Energy from Standard to Bright.

4. A color program appears as a black

and white image, or the colors are

dim, or the screen is black.

If using component video, check that the red, green, and blue input •

cables are correctly connected to the red, green, and blue compo-

nent video jacks.

If using composite video, check that the incoming cable is con-•

nected the TV’s green

Y/VIDEO

jack.

838 Series. The PerfectColor color balance has been incorrectly •

set. Reset the PerfectColor balance.

5. Picture from an HDMI input is noisy

(poor quality).

C• ompare the picture to the TV’s test picture (Picture > Picture+ >

Test Picture) to check if the noise is internal or external to the TV.

Upgrade a Category 1 (unmarked) HDMI cable to a newer type of •

high-speed HDMI cable.

Home Network

Symptom Remarks

1. I cannot connect the TV to the

network.

Go to the Setup > Network menu. Obtain the TV MAC address and

provide it to the router.

2. I plugged in a wireless USB adapter,

but the wireless connection is not

working.

The network may be locked. Go to Setup > Network. Highlight the

network name and supply the pass code.

3. The INTERNET key only goes to

VUDU.

Normal operation. The TV receives all internet services through VUDU.

The TV does not provide full internet access as does a web browser on

a computer.

34 Trademark and License Information

For assistance call 1(800) 332-2119

Mitsubishi TV Software

END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE

IMPORTANT – READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and

Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television (“Software”). By

utilizing this television and Software, you agree to be bound by the terms of this License Agreement.

The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property laws

and treaties. The Software is licensed, not sold.

1. LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software

only with the Mitsubishi television model that included this owner’s guide and owned by you.

2. RIGHTS AND LIMITATIONS.

Software Not for Resale. You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV that

Software has been pre installed.

Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary material

in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise reduce the

Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by applicable law.

Separation of Components. The Software is licensed as a single product. Its component parts may not be separated for use on more

than one TV.

No Rental. You may not rent, lease, lend, or sublicense the Software.

Trademarks. This License Agreement does not grant you any rights to any trademarks of MDEA.

3. VIOLATIONS. You understand that any use, copying or transfer of the Software, except as permitted pursuant to this License,

may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys’ fees in connection with any

violation of this License. You further understand that you may be held legally responsible for any copyright infringement or other violation

of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the License. This license

is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to comply with any

provision of this License.

4. COPYRIGHT. All title and intellectual property rights in and to the Software (including but not limited to any images, photographs,

animations, video, audio, music, text, and “applets” incorporated into the Software), and any accompanying printed materials are owned

by or licensed to MDEA. All title and intellectual property rights in and to the content which may be accessed through use of the Software

is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and

treaties. This License Agreement grants you no rights to use such content, except that you own the media on which the Software is

recorded, but MDEA and its licensors retain ownership of the Software itself. All rights not expressly granted are reserved by MDEA.

5. EXPORT RESTRICTIONS. MDEA is licensing the Software for use within the United States. You agree that you will not

export or re-export the Software. You specifically agree not to export or re-export the Software: (i) to any country to which the U.S. has

embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran, Iraq, Libya,

North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to transmit or transport the Software

back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software in the design, development,

or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from participating in

U.S. export transactions by any federal agency of the U.S. government. You warrant and represent that neither the BXA nor any other U.S.

federal agency has suspended, revoked, or denied your export privileges.

6. DISCLAIMER OF WARRANTY. EXCEPT AS OTHERWISE PROVIDED IN THIS LICENSE OR IN THE LIMITED WARRANTY

APPLICABLE TO THE TV, MDEA MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SOFTWARE

AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH

RESPECT TO THE SOFTWARE. ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED BY MDEA. IN

NO EVENT SHALL MDEA BE LIABLE TO YOU OR ANY THIRD PARTIES, IN CONTRACT, IN TORT OR OTHERWISE, FOR ANY

DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE. BECAUSE SOME

JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES, THE ABOVE LIMITATION MAY

NOT APPLY TO YOU.

7. LIMITATION OF LIABILITY. MDEA SHALL NOT, UNDER ANY CIRCUMSTANCES BE LIABLE TO YOU OR ANY THIRD

PARTIES FOR ANY DAMAGES OF ANY NATURE, WHETHER INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR

OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOST PROFITS, LOSS OF GOOD WILL OR EXPENDITURES

MADE OR COMMITTED FOR IN RELIANCE ON THE CONTINUATION OF THIS LICENSE. YOU AGREE THAT NEITHER MDEA’S

BREACH OF THIS LICENSE NOR ITS FAILURE TO REPAIR A DEFECT, ERROR OR BUG SHALL CONSTITUTE A FAILURE OF THE

ESSENTIAL PURPOSE OF THIS LICENSE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION

OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. MDEA’s

liability to you for direct damages for any cause whatsoever and regardless of the form of the action, will be limited to the money

paid by you for the TV (based on fair market value of the TV) that caused the damages.

8. GENERAL. This License Agreement will be governed by the laws of the State of California.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects

or other reproductive harm.

Trademark and License Information 35

For assistance call 1(800) 332-2119

GNU General Public License

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

675 Mass Ave, Cambridge, MA 02139, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to s

hare and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and

change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors

commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for

this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you

distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source

code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we

want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program

proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”,

below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion

of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is

covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate

copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along

with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above,

provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties

under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an

announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these

conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program

is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in them-

selves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on

the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works

based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other

work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the follow-

ing:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software

interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable

copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the

program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any

associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that

is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompa-

nies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of

the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and

will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties

remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are

prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its

terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to

these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this

License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or

otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License

and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those

who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circum-

stances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of

the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reli-

ance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may

add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limita-

tion as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in

detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and con-

ditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published

by the Free Software Foundation.

If you are interested in obtaining open source code for this product, please contact Mitsubishi at

(800) 332-2119. A nominal handling and mailing charge may apply.

36 Trademark and License Information

For assistance call 1(800) 332-2119

GNU GENERAL PUBLIC LICENSE

Version 3, 29 June 2007

Copyright © 2007 Free Software Foundation, Inc. <http://fsf.org/>

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The GNU General Public License is a free, copyleft license for software and other kinds of works.

The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share

and change all versions of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work

released this way by its authors. You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish),

that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.

To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you distribute copies of the software, or if you modify it:

responsibilities to respect the freedom of others.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the same freedoms that you received. You must make sure that they, too, receive or can get the source

code. And you must show them these terms so they know their rights.

Developers that use the GNU GPL protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License giving you legal permission to copy, distribute and/or modify it.

For the developers’ and authors’ protection, the GPL clearly explains that there is no warranty for this free software. For both users’ and authors’ sake, the GPL requires that modified versions be marked as changed, so that

their problems will not be attributed erroneously to authors of previous versions.

Some devices are designed to deny users access to install or run modified versions of the software inside them, although the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users’ free-

dom to change the software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it is most unacceptable. Therefore, we have designed this version of the GPL to

prohibit the practice for those products. If such problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GPL, as needed to protect the freedom of users.

Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development and use of software on general-purpose computers, but in those that do, we wish to avoid the special

danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS

0. Definitions.

“This License” refers to version 3 of the GNU General Public License.

“Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.

“The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees” and “recipients” may be individuals or organizations.

To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a “modified version” of the earlier work or

a work “based on” the earlier work.

A “covered work” means either the unmodified Program or a work based on the Program.

To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a

private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.

To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with a user through a computer network, with no transfer of a copy, is not conveying.

An interactive user interface displays “Appropriate Legal Notices” to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is

no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or

options, such as a menu, a prominent item in the list meets this criterion.

1. Source Code.

The “source code” for a work means the preferred form of the work for making modifications to it. “Object code” means any non-source form of a work.

A “Standard Interface” means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among

developers working in that language.

The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b)

serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A “Major Component”, in this context, means a

major essential component (kernel, window system, and so on) of the specific operating system (if any) on which the executable work runs, or a compiler used to produce the work, or an object code interpreter used to run it.

The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for an executable work) run the object code and to modify the work, including scripts to control those

activities. However, it does not include the work’s System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For

example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to

require, such as by intimate data communication or control flow between those subprograms and other parts of the work.

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding Source.

The Corresponding Source for a work in source code form is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodi-

fied Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as

provided by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them

make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright. Those thus

making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship

with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed; section 10 makes it unnecessary.

3. Protecting Users’ Legal Rights From Anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting

or restricting circumvention of such measures.

When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered

work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work’s users, your or third parties’ legal rights to forbid circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices

stating that this License and any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any warranty; and give all recipients a copy of this License along with the

Program.

You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified it, and giving a relevant date.

b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement modifies the requirement in section 4 to “keep intact all notices”.

c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of the

work, and all its parts, regardless of how they are packaged. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have separately received it.

d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.

A compilation of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a vol-

ume of a storage or distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation’s users beyond what the individual works permit.

Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways:

a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software inter-

change.

b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by a written offer, valid for at least three years and valid for as long as you offer spare parts or customer

support for that product model, to give anyone who possesses the object code either (1) a copy of the Corresponding Source for all the software in the product that is covered by this License, on a durable physical medium

customarily used for software interchange, for a price no more than your reasonable cost of physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network server at no charge.

c) Convey individual copies of the object code with a copy of the written offer to provide the Corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code

with such an offer, in accord with subsection 6b.

d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need

not require recipients to copy the Corresponding Source along with the object code. If the place to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third

party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source. Regardless of what server hosts the Corresponding Source, you

remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the

Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our

free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS

WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE

PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY

TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Trademark and License Information 37

For assistance call 1(800) 332-2119

e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object code and Corresponding Source of the work are being offered to the general public at no charge under subsection

6d.

A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work.

A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a

dwelling. In determining whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product received by a particular user, “normally used” refers to a typical or common

use of that class of product, regardless of the status of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of

whether the product has substantial commercial, industrial or non-consumer uses, unless such uses represent the only significant mode of use of the product.

“Installation Information” for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified

version of its Corresponding Source. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.

If you convey an object code work under this section in, or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the User Product is

transferred to the recipient in perpetuity or for a fixed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under this section must be accompanied by the Installation Information. But

this requirement does not apply if neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROM).

The requirement to provide Installation Information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User

Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communi-

cation across the network.

Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and

must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

“Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though

they were included in this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the entire

Program remains governed by this License without regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases

when you modify the work.) You may place additional permissions on material, added by you to a covered work, for which you have or can give appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms:

a) Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or

b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or

c) Prohibiting misrepresentation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version; or

d) Limiting the use for publicity purposes of names of licensors or authors of the material; or

e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or

f) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual

assumptions directly impose on those licensors and authors.

All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License

along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material

governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.

Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.

8. Termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under this License (includ-

ing any patent licenses granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminates your license, and (b)

permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this

License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under this License. If your rights have been terminated and not permanently reinstated, you do

not qualify to receive new licenses for the same material under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy

likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by

modifying or propagating a covered work, you indicate your acceptance of this License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance

by third parties with this License.

An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity

transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party’s predecessor in interest had or could give under the previous paragraph, plus a right to posses-

sion of the Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise of rights granted under this

License, and you may not initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it.

11. Patents.

A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is based. The work thus licensed is called the contributor’s “contributor version”.

A contributor’s “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of mak-

ing, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of this definition, “control” includes the right

to grant patent sublicenses in a manner consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor’s essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents

of its contributor version.

In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for pat-

ent infringement). To “grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available

network server or other readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive yourself of the benefit of the patent license for this particular work, or (3)

arrange, in a manner consistent with the requirements of this License, to extend the patent license to downstream recipients. “Knowingly relying” means you have actual knowledge that, but for the patent license, your convey-

ing the covered work in a country, or your recipient’s use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work

authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.

A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this

License. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of

your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a) in connection with copies of the covered work

conveyed by you (or copies made from those copies), or (b) primarily for and in connection with specific products or compilations that contain the covered work, unless you entered into that arrangement, or that patent license

was granted, prior to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others’ Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work

so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty

for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU Affero General Public License into a single combined work, and

to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU Affero General Public License, section 13, concerning interaction

through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address

new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies that a certain numbered version of the GNU General Public License “or any later version” applies to it, you have the option of following the terms

and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any

version ever published by the Free Software Foundation.

If the Program specifies that a proxy can decide which future versions of the GNU General Public License can be used, that proxy’s public statement of acceptance of a version permanently authorizes you to choose that ver-

sion for the Program.

Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE

THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICU-

LAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED

ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT

NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN

IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil

liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.

38 Warranty

For assistance call 1(800) 332-2119

Mitsubishi Home-Cinema Television Limited Warranty

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. (“MDEA”) warrants as follows to the original purchaser of this

television from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of against defects

arising from improper workmanship and/or material:

a. Parts. The lenticular (i.e. front picture) screen is warranted against defects in materials and workmanship for a

period of thirty (30) days from the date of the original purchase at retail. The lamp and all other parts (except any soft-

ware incorporated into this television) are warranted for a period of one (1) year from the date of the original purchase

at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replace-

ment may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replace-

ment are warranted for the remainder of the original warranty period.

b. Embedded Software. MDEA warrants that all software incorporated into this television set (the “Embedded

Software”) will perform in accordance with the functional description of Embedded Software in all material respects,

but MDEA does not warrant that the Embedded Software is error-free. The limited warranty contained in this section

shall continue for a period of one (1) year from the date of the original purchase at retail. If, after prompt notice within

the warranty period, MDEA determines that the Embedded Software has failed to perform in accordance with such

functional description in all material respects and if such failure is not due to accident, misuse, modification or misap-

plication of the Embedded Software, then MDEA shall modify or replace the nonconforming Embedded Software at

no charge to you, which at MDEA’s sole discretion may be fulfilled by means of modification or replacement software

contained on a replacement memory card for Customer installation. The foregoing shall be MDEA’s sole obligation

to you under this limited warranty. All rights under this limited warranty on the Embedded Software also subject to

your acceptance of and compliance with the terms of the Software License Agreement applicable to this television,

and this limited warranty on the Embedded Software shall be null and void if the Embedded Software is modified or

changed in any manner except as specifically authorized by MDEA.

c. Labor. For thirty (30) days after the original purchase at retail, we will repair or replace, at our option, the lenticu-

lar screen if it proves defective. For certain items that are designed to be replaced by the consumer, including (but

not limited to) some Embedded Software, the consumer is solely responsible for any replacement labor. For all other

parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for

one (1) year from the original date of purchase at retail.

d. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within

the applicable warranty time period.

e. This DLP Projection Television uses a single DLP chip to create the screen image. This technology creates the

image using small dots, or picture elements (pixels). Your DLP Projection TV is manufactured to a high level of perfor-

mance and quality, in fact, 99.99% perfect in the number of properly functioning pixels. As in other display technol-

ogy, sometimes a pixel is continuously active, inactive or the incorrect color. Our standard is clear; MDEA warrants

only that the percentage of properly functioning pixels will be not less than 99.99% of all pixels.

BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and

correct customer control adjustment. If the problem persists please arrange for warranty service.

1. TO OBTAIN WARRANTY SERVICE:

a. Contact your nearest authorized MITSUBISHI service center, whose name and address can be obtained from your

MITSUBISHI dealer, by writing at the address provided below, calling MDEA at the 800-332-2119, or by using the

support feature of our website at www.Mitsubishi-tv.com.

b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your

television is located within the geographic territory customarily covered by an authorized MITSUBISHI service center.

If not, you must either deliver your television to an authorized service location at your own expense, or pay for any

travel and/or transportation costs the service center may charge to and from your home. Actual service labor will be

provided without charge.

c. Proof of purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service.

Present your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE

OWNER REGISTRATION CARD IS NOT A CONDITION OF COVERAGE UNDER THIS LIMITED WARRANTY. However,

please return the Owner Registration Card so that we can contact you should a question of safety arise which could

affect you.

Warranty 39

For assistance call 1(800) 332-2119

d. To obtain a replacement lamp, order the lamp directly from the MDEA Parts Department at (800) 553-7278.

2. THIS LIMITED WARRANTY DOES NOT COVER:

a. Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).

b. Damage to the lenticular screen or Fresnel lens, screen frame, cosmetic damage or to any other damage where

such damage is caused by unauthorized modification, alteration, repairs to or service of the product by anyone other

than an authorized MITSUBISHI service center; physical abuse to or misuse of the product (including any failure to

carry out any maintenance as described in the Owner’s Guide including air vent cleaning or any product damaged

by excessive physical or electrical stress); any products that have had a serial number or any part thereof altered,

defaced or removed; product use in any manner contrary to the Owner’s Guide; freight damage; or any damage

caused by acts of God or other factors beyond the reasonable control of MDEA, such as power surge damage

caused by electrical system or lightning. This limited warranty also excludes service calls where no defect in the

product covered under this warranty is found, service calls related to unsatisfactory audio or visual reception or signal

unless caused by a defect in the product that is covered under this limited warranty, all costs, expenses or any other

damages arising from product installation, or set-ups, any adjustments of user controls (including contrast, bright-

ness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display or use, connection

with any external audio receiver, antenna, cable or satellite systems, or service of products purchased or serviced

outside the U.S.A. Please consult the operating instructions contained in the Owner’s Guide furnished with the

product for information regarding user controls.

3. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION,

MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY

LIMITED TO A TERM OF ONE YEAR.

4. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY

INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY,

BREACH OF CONTRACT, OR OTHERWISE.

5. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of inciden-

tal, special, or consequential damages, so the above limitations or exclusions may not apply to you.

6. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

7. In the event of any dispute under this limited warranty, jurisdiction and venue for resolving that dispute will be in the

state where the television was purchased and the laws of such state will govern.

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road

Irvine, CA 92618-1904

Network Service Disclaimer

Third party content and services, including without limitation home entertainment services by VUDU, Inc., are provided in accordance with what-

ever terms and conditions are established by the third party providers and agreed to by you. Mitsubishi Digital Electronics America (“MDEA”) has

no control over any such third parties or any agreement you reach with them. MDEA has no control over the networks or transmission facilities

by which content and services are provided by third parties. Your connection to the internet may vary in availability and quality. Customer service

questions are to be directed to the third-party provider, not MDEA.

MDEA DOES NOT WARRANT CONTENT OR SERVICES PROVIDED BY ANY THIRD PARTY, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY

PURPOSE. MDEA DOES NOT WARRANT THAT ANY THIRD PARTY SERVICE WILL REMAIN AVAILABLE FOR ANY PERIOD OF TIME OR THAT IT

WILL BE SATISFACTORY, UNINTERRUPTED OR ERROR FREE. MDEA EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT

NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO ANY THIRD PARTY

CONTENT AND SERVICES.

MDEA WILL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE, WHETHER IN CONTRACT OR TORT OR OTHER LEGAL THEORY, FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES

ARISING OUT OF, OR IN CONNECTION WITH, YOUR USE OF ANY CONTENT OR SERVICE THAT IS PROVIDED TO YOU BY ANY THIRD PARTY,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Website:

www.mitsubishi-tv.com

E-mail:

MDEAservice@mdea.com

Call Consumer Relations for operational or connection assistance at

800-332-2119

To order replacement or additional

remote controls, lamp cartridges, or NetCommand IR emitters,

Visit our website www.mitsuparts.com

or call

800-553-7278

SYSTEM RESET

If the TV does not respond to the remote control, control-panel

buttons, or will not power on/off, press and hold the

POWER

button on the control panel for ten seconds.

The TV will turn off. Power on the TV and the green LED will flash

quickly for about one minute. Recent settings changes

may be lost.

V43+/V43++

© 2010 Mitsubishi Digital Electronics America, Inc. 853B710A50

Trademark and License Information

LICENSOR’S SUPPLIERS DO NOT MAKE OR PASS ON TO END USER OR ANY OTHER THIRD PARTY, ANY

EXPRESS, IMPLIED OR STATUTORY WARRANTY OR REPRESENTATION ON BEHALF OF SUCH SUPPLIERS,

INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, TITLE, MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE.

Manufactured under license from Cambridge Mechatronics Ltd.

Rapidfire and the 1... logo are trademarks of Cambridge Mechatronics Ltd

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such

marks by Mitsubishi Electric is under license. Other trademarks and trade names are those of their respective owners.

Digital Light Processing® and DLP® are registered trademarks of Texas Instruments.

Manufactured under license from Dolby Laboratories. Dolby is a trademark of Dolby Laboratories.

ENERGY STAR® and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned

by the U.S. government.

HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

Imaging Science Foundation Certified Calibration Controls

The software in this TV is based in part on the work of the Independent JPEG Group, copyright © 1991-1998, Thomas

G. Lane, all rights reserved.

“x.v.Color” and the “x.v.Color” logo are trademarks of Sony Corporation.

VUDU™ is a trademark of VUDU, Inc.

ChannelView™, DeepField™ Imager, Easy Connect™, EdgeEnhance™, NetCommand®, PerfectColor™, PerfecTint™,

Plush 1080p® 5G, Smooth120Hz™, StreamTV™ are trademarks of Mitsubishi Digital Electronics America, Inc.
