DLPTM PROJECTOR

This User Manual is important to you.

Please read it before using your projector.

MODEL

HC4000

User Manual

HC4000

EN-2

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert

the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufficient magnitude to constitute a risk of electric shock.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE

EXPOSURE.

NOTE:

SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR

THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

WARNING

Use the attached specified power supply cord. If

you use another power supply cord, it may cause

interference with radio and television reception.

Use the attached RGB cable with this equipment so as

to keep interference within the limits of an FCC Class B

device.

This apparatus must be grounded.

DO NOT LOOK DIRECTLY INTO THE LENS WHEN

THE PROJECTOR IS IN THE POWER ON MODE.

CAUTION

Not for use in a computer room as defined in the

Standard for the Protection of Electronic Computer/

Data Processing Equipment, ANSI/NFPA 75.

When using the projector in Europe:

COMPLIANCE NOTICE

This projector complies with the requirements of

the EC Directive 2004/108/EC “EMC Directive” and

2006/95/EC “Low Voltage Directive”.

The electro-magnetic susceptibility has been chosen

at a level that gains proper operation in residential

areas, on business and light industrial premises and on

small-scale enterprises, inside as well as outside of the

buildings. All places of operation are characterised by

their connection to the public low voltage power supply

system.

WARNING

Use the attached RGB cable with this equipment so

as to keep interference within the limits of an EN55022

Class B device.

Please follow WARNING instructions.

EN-3

Note: This symbol mark is for EU countries only.

This symbol mark is according to the directive 2002/96/EC Article 10 Information

for users and Annex IV, and/or to the directive 2006/66/EC Article 20 Information

for end-users and Annex II.

Declaration of Conformity

Model number: HC4000

Trade name: MITSUBISHI ELECTRIC

Responsible party: Mitsubishi Digital Electronics America, Inc.

9351 Jeronimo Road, Irvine, CA 92618 U.S.A

Telephone number: +1-(949) 465-6000

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Trademark, Registered trademark

DLPTM, Digital Micromirror Device, DMD, and BrilliantColorTM are all trademarks of Texas Instruments.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

Other brand or product names are trademarks or registered trademarks of their respective holders.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components

which can be recycled and/or reused.

This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be

disposed of separately from your household waste.

If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or

accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:

Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%)

In the European Union there are separate collection systems for used electrical and electronic products, batteries and

accumulators.

Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/

recycling centre.

Please, help us to conserve the environment we live in!

Contents

Important safeguards.........................................................................................................................4

Preparing your projector ....................................................................................................................6

Using the remote control ...............................................................................................................8, 9

Setting up your projector .................................................................................................................10

Viewing video images ......................................................................................................................14

Viewing computer images ...............................................................................................................22

Menu operation ................................................................................................................................25

Adjusting projected images .............................................................................................................31

Advanced features ...........................................................................................................................35

Replacing the lamp ..........................................................................................................................36

Maintenance ....................................................................................................................................39

Troubleshooting ...............................................................................................................................40

Indicators .........................................................................................................................................44

Specifications ..................................................................................................................................45

EN-4

Please read all these instructions regarding your

projector and retain them for future reference. Follow all

warnings and instructions marked on the projector.

Read instructions

All the safety and operating instructions should be

read before the appliance is operated.

Retain instructions

The safety and operating instructions should be

retained for future reference.

Warnings

All warnings on the appliance and in the operating

instructions should be adhered to.

Instructions

All operating instructions must be followed.

Cleaning

Unplug this projector from the wall outlet before

cleaning it. Do not use liquid aerosol cleaners. Use

a damp soft cloth for cleaning.

Attachments and equipment

Never add any attachments and/or equipment

without the approval of the manufacturer as such

additions may result in the risk of fire, electric shock

or other personal injury.

Water and moisture

Do not use this projector near water or in contact

with water.

Accessories

Do not place this projector on an unstable cart,

stand, tripod, bracket or table. Use only with a

cart, stand, tripod, bracket, or table recommended

by the manufacturer or sold with the projector.

Any mounting of the appliance should follow

the manufacturer’s instructions and should use

a mounting accessory recommended by the

manufacturer.

An appliance and cart combination should be

moved with care. Quick stops, excessive force and

uneven surfaces may cause the appliance and cart

combination to overturn.

Ventilation

Slots and openings in the cabinet are provided

for ventilation, ensuring reliable operation of the

projector and to protect it from overheating. Do not

block these openings or allow them to be blocked

by placing the projector on a bed, sofa, rug, or

bookcase. Ensure that there is adequate ventilation

and that the manufacturer’s instructions have been

adhered to.

1.

2.

3.

4.

5.

6.

7.

8.

9.

Power sources

This projector should be operated only from the type

of power source indicated on the marking label. If

you are not sure of the type of power, please consult

your appliance dealer or local power company.

Power-cord protection

Power-supply cords should be routed so that

they are not likely to be walked on or pinched

by items placed upon or against them. Pay

particular attention to cords at plugs, convenience

receptacles, and points where they exit from the

appliance. Do not put the power cord under a

carpet.

Overloading

Do not overload wall outlets and extension cords as

this can result in a fire or electric shock.

Objects and liquids

Never push objects of any kind through openings of

this projector as they may touch dangerous voltage

points or short-out parts that could result in a fire or

electric shock. Never spill liquid of any kind on the

projector.

Servicing

Do not attempt to service this projector by yourself.

Refer all servicing to qualified service personnel.

Damage requiring service

Unplug this projector from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

(a) If the power-supply cord or plug is damaged.

(b) If liquid has been spilled, or objects have fallen

into the projector.

(c) If the projector does not operate normally after

you follow the operating instructions. Adjust only

those controls that are covered by the operating

instructions. An improper adjustment of other

controls may result in damage and may often

require extensive work by a qualified technician

to restore the projector to its normal operation.

(d) If the projector has been exposed to rain or

water.

(e) If the projector has been dropped or the cabinet

has been damaged.

(f) If the projector exhibits a distinct change in

performance - this indicates a need for service.

Replacement parts

When replacement parts are required, be sure

that the service technician has used replacement

parts specified by the manufacturer or parts having

the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric

shock or other hazards.

Safety check

Upon completion of any service or repair to this

projector, ask the service technician to perform

safety checks determining that the projector is in a

safe operating condition.

10.

11.

12.

13.

14.

15.

16.

17.

Important safeguards

EN-5

WARNING:

Unplug immediately if there is something wrong

with your projector.

Do not operate if smoke, strange noise or odor comes

out of your projector. It might cause fire or electric shock.

In this case, unplug immediately and contact your dealer.

Never remove the cabinet.

This projector contains high voltage circuitry. An

inadvertent contact may result in an electric shock.

Except as specifically explained in the User Manual do

not attempt to service this product by yourself. Please

contact your dealer when you want to fix, adjust or

inspect the projector.

Do not modify this equipment.

It can lead to fire or electric shock.

Do not keep using the damaged projector.

If the projector is dropped and the cabinet is damaged,

unplug the projector and contact your dealer for

inspection. It may lead to fire if you keep using the

damaged projector.

Do not face the projection lens to the sun.

It can lead to fire.

Use correct voltage.

If you use incorrect voltage, it can lead to fire.

Do not place the projector on uneven surface.

Place the projector on a leveled and stable surface only.

Please do not place equipment on unstable surfaces.

Do not look into the lens when the projector is

operating.

It may hurt your eyes. Never let children look into the

lens when it is on.

Do not unplug the power cord during operation.

It can lead to lamp breakage, fire, electric shock or

other trouble. It is best to wait for the fan to turn off

before turning the main power off.

Do not touch the air outlet grille and bottom plate,

which become hot.

Do not touch them or put other equipment close to

the air outlet grilles because they become hot during

operation. The heated air outlet grilles and bottom plate

may cause injury or damage to other equipment.

Also, do not put the projector on a desk that is easily

affected by heat.

Do not look into the air outlet grille when projector

is operating.

Heat, dust, etc. may blow out of it and hurt your eyes.

Do not block the air inlet and outlet grilles.

If they are blocked, heat may be generated inside the

projector, causing deterioration in the projector quality

and fire.

Do not use flammable solvents (benzene, thinner,

etc.) and flammable aerosols near the projector.

Flammable substances may ignite causing fire or

breakdown because the temperature inside the

projector rises very high while the lamp is illuminating.

Do not use the projector with condensation on it.

It can lead to breakdown or other failure.

Place of installation

For safety’s sake, refrain from setting the projector

at any place subjected to high temperature and high

humidity. Please maintain an operating temperature,

humidity, and altitude as specified below.

Operating temperature: between +41°F (+5°C) and

+95°F (+35°C)

Operating humidity: between 30% and 90%

Never put any heat-producing device under the

projector so that the projector does not overheat.

Do not install the projector to a place that is

unstable or subjected to vibration.

Do not install the projector near any equipment that

produces a strong magnetic field. Also refrain from

installing near the projector any cable carrying a

large current.

Place the projector on a solid, vibration free surface;

otherwise it may fall, causing serious injury to a

child or adult, and serious damage to the product.

Do not stand the projector; it may fall, causing

serious injury and damage to the projector.

Slanting the projector more than ±10°(right and

left) or ±15°(front and rear) may cause trouble or

explosion of the lamp.

Do not place the projector near air-conditioning unit,

heater, or humidifier to avoid hot or moist air to the

exhaust and ventilation hole of the projector.

•

•

•

•

•

•

•

•

•

Important safeguards (continued)

COMPLIANCE NOTICE OF FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced Radio/TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this

equipment.

COMPLIANCE NOTICE OF INDUSTRY CANADA

This Class B digital apparatus complies with Canadian ICES-003.

•

•

•

•

EN-6

2

3

1

What’s included in the box

AC power cord

1 RGB cable for PC

for US J2552-0063-03

for EU J2552-0066-02

for UK J2552-0065-02

J2552-0072-05

1 Remote control

1 User Manual/Quick Start up (English only)

1 Safety Manual/Quick Start up

1 CD-ROM (with User Manual)

2 Battery

1 Lens cap

1 Lamp replacement attachment

Important:

The attached power cords are to be used exclusively for this product. Never use them for other products.•

Inserting the batteries into the remote control

Remove the back lid of the remote control.

Check the polarity (+), (-) of the batteries, and set them

correctly, inserting their (-) side first.

If the battery is inserted from the (+) side first, inserting

the (-) side is difficult because the coil spring end hits

on the battery side. If the battery is forced in this way,

the outer label of the battery may get ripped and it may

cause a short-circuit and heating.

Attach the back lid.

Important:

Use two size-AA batteries (R6).

Replace the two batteries with new ones when the

remote control is slow to respond.

Removing the batteries from the remote control

Remove the back lid of the remote control and take out the batteries.

Caution:

Use of a battery of wrong type may cause explosion.

Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.

Dispose of used batteries according to your local regulations.

Batteries may explode if misused. Do not recharge, disassemble, or throw them in fire.

Be sure to handle the batteries according to the instructions.

Load the batteries with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.

Keep batteries out of reach of children and pets.

Remove the batteries, if the remote control is not used for a long time.

Do not combine a new battery with an old one.

If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in

contact with your eyes, rinse them with water and then consult your doctor.

1.

2.

•

3.

•

•

•

•

•

•

•

•

•

•

•

•

Preparing your projector

EN-7

Preparing your projector (continued)

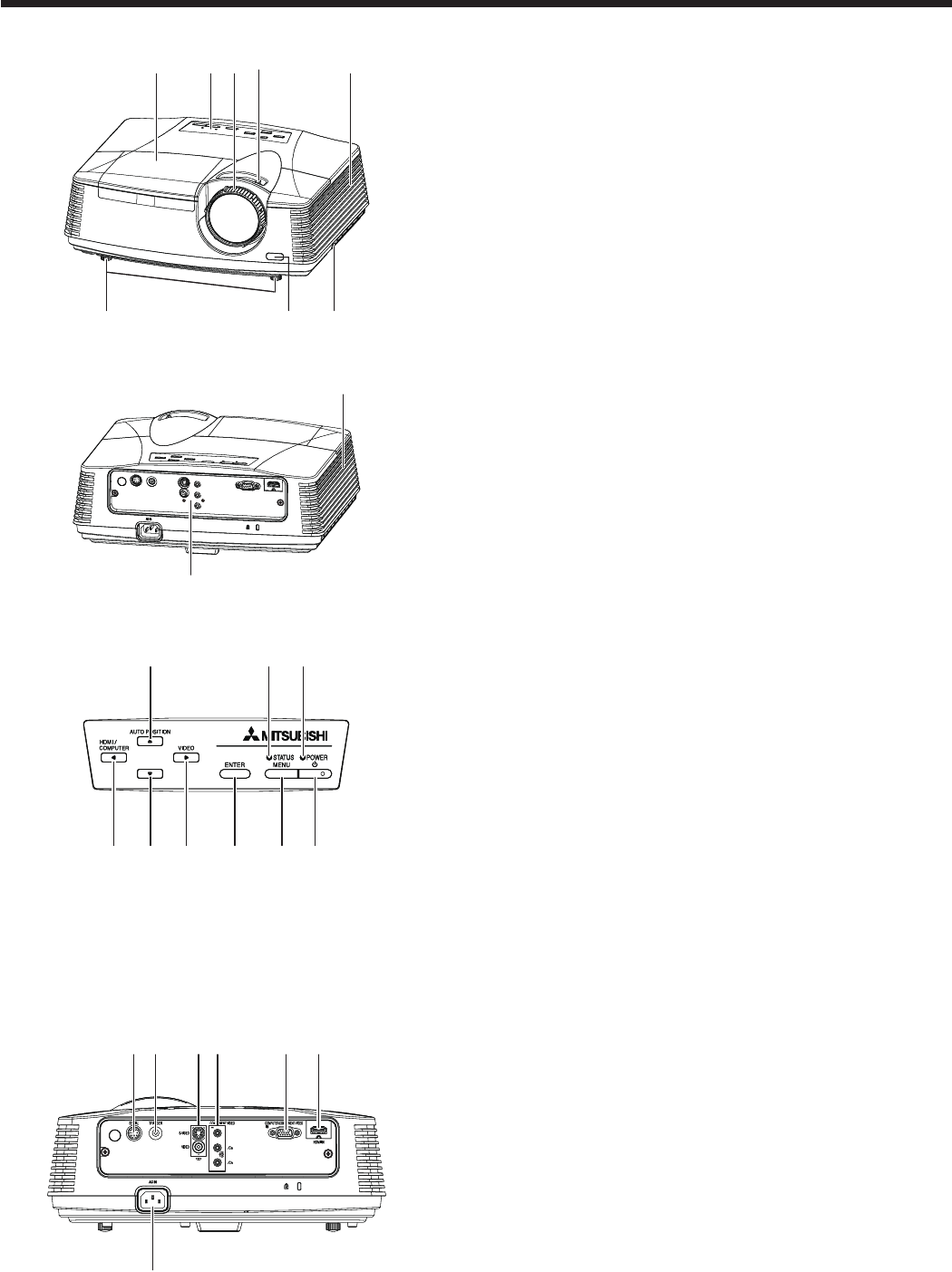

Overview

FOCUS ring

ZOOM ring

Control panel

Air inlet grille

Remote control sensor (Front)

Air outlet grille

Terminal board

Adjustment feet

Lock bar (SECURITY ANCHOR)

Attach a chain, etc. to this lock bar to anchor the projector.

Lamp cover

Caution:

Do not replace the lamp immediately after using the projector

because the lamp would be extremely hot and it may cause burns.

Control panel

Power button

POWER indicator

MENU button

STATUS indicator

ENTER button

AUTO POSITION / p button

HDMI / COMPUTER / t button

q button

VIDEO/ u button

Important:

While the menu or the screen for the keystone adjustment or

password entry is being displayed, the HDMI / COMPUTER,

VIDEO, and AUTO POSITION buttons function as the t, u,

and p buttons respectively.

Terminal panel

VIDEO IN and S-VIDEO IN terminals

COMPONENT VIDEO IN terminals

COMPUTER IN/COMPONENT VIDEO IN terminal

(Mini D-SUB 15-pin)

HDMI IN terminal (HDMI 19-pin)

SERIAL terminal (Mini DIN 8-pin)

Used for projector control by computer. Contact your

dealer for details.

TRIGGER terminal

Used for the optional electric screen.

Power jack

1

2

3

4

5

6

7

8

9

•

10

1

2

3

4

5

6

7

8

9

•

1

2

3

4

5

•

6

•

7

10

8 5

1 23 4

9

10

8 5

1 23 4

9

7

6

7

6

HC4000

6 4 2

8 9 5 3 17

HC4000

6 4 2

8 9 5 3 17

5 6 1 2 3 4

7

5 6 1 2 3 4

7

EN-8

Preparing your projector (continued)

Bottom side

Adjustment feet

Remote control ON ( I ) button

COMPUTER button

HDMI button

COMPONENT button

AV MEMORY buttons

ENTER button

MENU button

CONTRAST button*

BRIGHTNESS button*

GAMMA button*

SHARPNESS button*

COLOR button*

COLOR TEMP. button*

COLOR MANAGEMENT button

p, q, t, u buttons

VIDEO button

S-VIDEO button

AUTO POSITION button

ASPECT button

OFF ( ) button

* : See below for the picture quality adjusting buttons.

Important:

When you press any button on the remote control, the buttons on the remote control are lit. Wait approx. 6 seconds

after releasing the button to turn them off.

Using the picture quality adjusting buttons

When you press any of the picture quality adjusting buttons, the screen for adjusting the picture quality appears. Adjust

the picture quality by pressing the t and u buttons. The picture quality adjustment can be made alternatively in the

IMAGE menu. (See page 26.) Items in the menus are shown in parentheses below.

CONTRAST (CONTRAST) ............... Adjusts the contrast of the projected image.

BRIGHTNESS (BRIGHTNESS) ....... Adjusts the brightness of the projected image.

COLOR TEMP. (COLOR TEMP.) ...... Selects one of the preset color temperatures. Adjustment of USER mode is also

available. (See page 32.)

GAMMA (GAMMA MODE) ............... Selects one of the preset gamma mode. Adjustment of USER mode is also

available. (See page 33.)

SHARPNESS (SHARPNESS) .......... Adjusts the sharpness of the projected image.

COLOR (COLOR) ............................. Adjusts the color thickness of the projected image.

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

15

16

14

12

11

13

18

19

20

17

1

2

3

4

5

6

7

8

9

10

15

16

14

12

11

13

18

19

20

17

1

2

3

4

5

6

7

8

9

10

EN-9

Using the remote control

Operational range of the remote control

Keep the remote control photo-sensor out of direct

sunlight or fluorescent lamp light.

Keep the remote control photo-sensor at least 2 m (6

feet) away from fluorescent lamps. Otherwise, the remote

control may malfunction.

If there is an inverter-operated fluorescent lamp near the

remote control, the remote control operation may become

unstable.

When you use the remote control too close to the remote

control sensor, the remote control may not work correctly.

When operating the remote control, keep the distance

from the remote control to the projector via the screen

within about 5 m (15 feet). The operable range of the

remote control, however, depends on the characteristics

of the screen.

Reception angle

Vertical directions

20°

10°

20°

10˚

Vertical directions (ceiling mount)

20°

20°

•

•

•

•

30°30°

Operate the remote control within a distance of

10 m (30 feet) from the projector, pointing the IR

beam at the remote control photo-sensor (front

or rear) of the projector.

Front of projector Rear of projector

30°30°

30°30°

Operate the remote control within a distance of

10 m (30 feet) from the projector, pointing the IR

beam at the remote control photo-sensor (front

or rear) of the projector.

Front of projector Rear of projector

30°30°

EN-10

Setting up your projector

Setting up the screen

Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection

angle of the projector. (See page 12.)

Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of

the screen center.

Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen

makes the projected images washed-out and hard to view.

SCREEN SIZE

You can keep the image display area within the screen by setting SCREEN SIZE in the ADVANCED MENU of IMAGE

menu according to the aspect ratio of the actual screen. Select 16:9 when the aspect ratio of the screen is 16:9 or 4:3,

and select CINEMA SCOPE (2.35:1) when the aspect ratio is 2.35:1 (CinemaScope).

When setting SCREEN SIZE to CINEMA SCOPE (2.35:1):

CinemaScope size movies are projected in the full screen.

Set ASPECT in the FEATURE menu to 16:9 when displaying Vista-size images. In this case, they are squeezed

horizontally.

When ASPECT in the FEATURE menu is set to AUTO and 480i/p, 576i/p, 720p, or 1080i/p signal is input, the part

for displaying subtitles is not projected. To display subtitles, reset SCREEN SIZE to 16:9 and adjust the image

position using VERTICAL LOCATION in the ADVANCED MENU of the IMAGE menu. (To display the menu on the

screen, adjust SHUTTER(U) in the SIGNAL - USER menu to position the menu.)

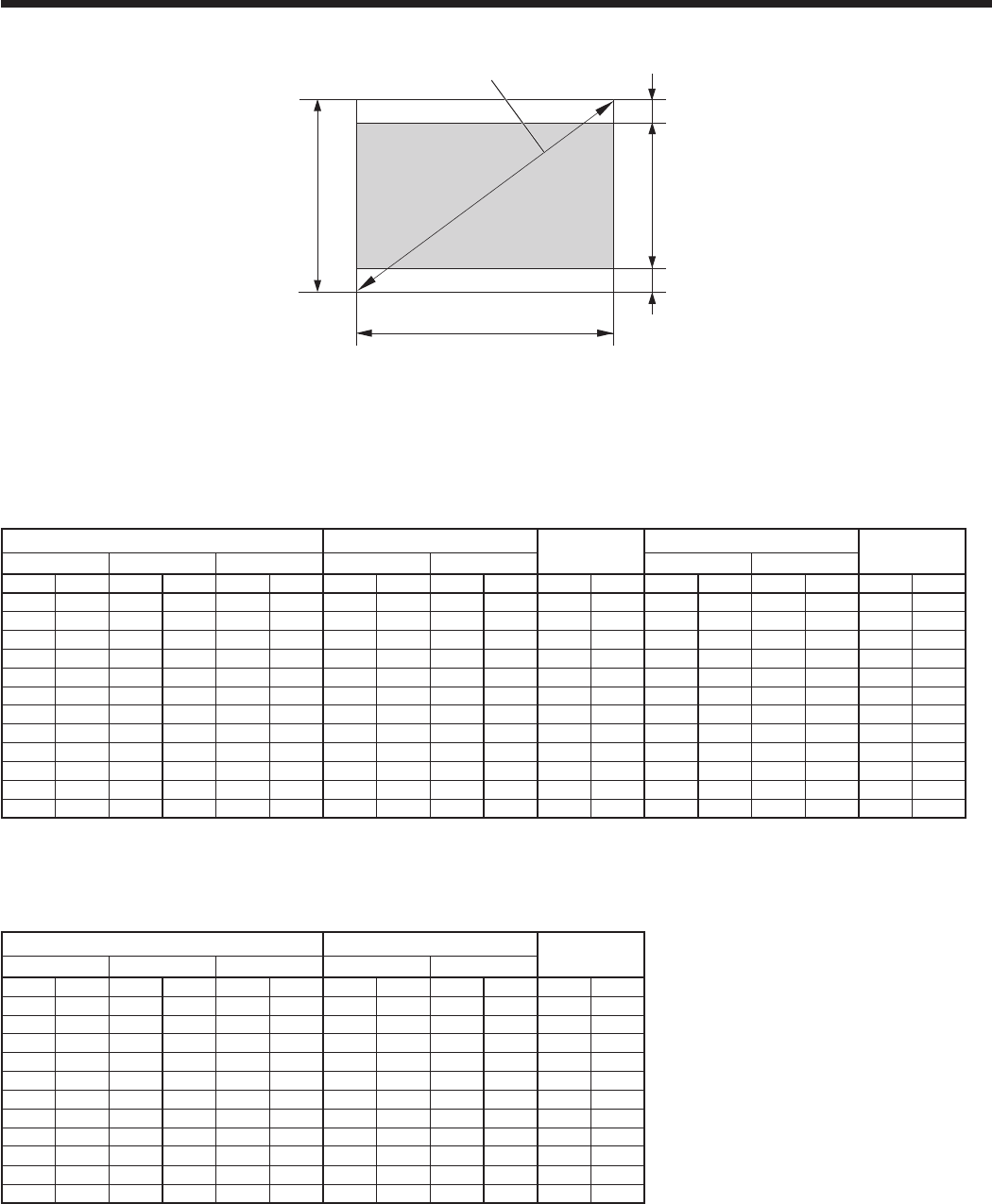

Screen size and projection distance

Refer to the following tables to determine the screen size and projection distance.

The figures in the tables are approximate and may be slightly different from the actual measurements.

SW

Hd

SH

Center of the lens

(Width of the projected image)

Projection distance (L)

(Height of the

projected image)

Screen size

When the aspect ratio of the screen is 16:9

Screen size Projection distance (L) Hd

Diagonal size Height (SH) Width (SW) Shortest (Wide) Longest (Tele)

inch cm inch cm inch cm inch m inch m inch cm

50 127 25 62 44 111 59 1.5 89 2.3 8.2 21

60 152 29 75 52 133 71 1.8 107 2.7 9.9 25

70 178 34 87 61 155 84 2.1 125 3.2 11.5 29

80 203 39 100 70 177 96 2.4 144 3.6 13.2 34

90 229 44 112 78 199 108 2.7 162 4.1 14.8 38

100 254 49 125 87 221 120 3.1 180 4.6 16.5 42

110 279 54 137 96 244 133 3.4 198 5.0 18.1 46

120 305 59 149 105 266 145 3.7 216 5.5 19.8 50

150 381 74 187 131 332 182 4.6 271 6.9 24.7 63

200 508 98 249 174 443 243 6.2 362 9.2 33.0 84

250 635 123 311 218 553 304 7.7 453 11.5 41.2 105

300 762 147 374 261 664 365 9.3 - - 49.5 126

Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the

case of “16:9.”

Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake

vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.

•

•

•

•

•

•

•

•

EN-11

Setting up your projector (continued)

Screen size and projection distance (continued)

SW (=W)

H

SH

BB

(Width of the projected image)

(Height of the screen)

(Height of the

projected image)

Screen size

When the aspect ratio of the screen is 4:3

When the aspect ratio of the screen is 4:3, the positional relation between the projected image and the screen is as

shown on the right. Refer to the following table for installation.

When the aspect ratio of the image is 16:9

Screen size (4:3)

Size of the projected image

(16:9) Black space

(B)

Projection distance (L) Hd

Diagonal size Height (SH) Width (SW) Height (H) Width (W) Shortest (Wide) Longest (Tele)

inch cm inch cm inch cm inch cm inch cm inch cm inch m inch m inch cm

50 127 30 76 40 102 23 57 40 102 3.8 10 54 1.4 82 2.1 7.6 19

60 152 36 91 48 122 27 69 48 122 4.5 11 65 1.7 98 2.5 9.1 23

70 178 42 107 56 142 32 80 56 142 5.3 13 77 1.9 115 2.9 10.6 27

80 203 48 122 64 163 36 91 64 163 6.0 15 88 2.2 132 3.3 12.1 31

90 229 54 137 72 183 41 103 72 183 6.8 17 99 2.5 148 3.8 13.6 35

100 254 60 152 80 203 45 114 80 203 7.5 19 110 2.8 165 4.2 15.1 38

110 279 66 168 88 224 50 126 88 224 8.3 21 122 3.1 182 4.6 16.7 42

120 305 72 183 96 244 54 137 96 244 9.0 23 133 3.4 199 5.0 18.2 46

150 381 90 229 120 305 68 171 120 305 11.3 29 166 4.2 249 6.3 22.7 58

200 508 120 305 160 406 90 229 160 406 15.0 38 223 5.7 332 8.4 30.3 77

250 635 150 381 200 508 113 286 200 508 18.8 48 279 7.1 416 10.6 37.8 96

300 762 180 457 240 610 135 343 240 610 22.5 57 335 8.5 - - 45.4 115

Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the

case of “16:9.”

When the aspect ratio of the screen is 2.35:1 (CinemaScope)

Screen size (2.35:1) Projection distance (L) Hd

Diagonal size Height (SH) Width (SW) Shortest (Wide) Longest (Tele)

inch cm inch cm inch cm inch m inch m inch cm

100 254 39 99 92 234 127 3.2 190 4.8 23.7 60

110 279 43 109 101 257 140 3.6 209 5.3 26.1 66

120 305 47 119 110 281 153 3.9 229 5.8 28.5 72

130 330 51 129 120 304 166 4.2 248 6.3 30.9 78

140 356 55 139 129 327 179 4.5 267 6.8 33.2 84

150 381 59 149 138 351 192 4.9 286 7.3 35.6 90

160 406 63 159 147 374 205 5.2 305 7.8 38.0 96

170 432 66 169 156 397 218 5.5 325 8.2 40.4 103

180 457 70 179 166 421 231 5.9 344 8.7 42.7 109

190 483 74 189 175 444 244 6.2 363 9.2 45.1 115

200 508 78 199 184 468 256 6.5 382 9.7 47.5 121

Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the

case of “CINEMA SCOPE (2.35:1).”

•

•

EN-12

Setting up your projector (continued)

Correcting skewed or distorted image

For the best projection, project images on a flat screen installed at 90 degrees to

the floor. If necessary, tilt the projector using the two adjustment feet on the bottom

of the projector.

Tilt up the projector to the appropriate angle.

Rotate the adjustment feet for fine adjustment.

Important:

Don’t transport the projector with its adjustment feet extended. Otherwise the adjustment feet may be damaged.

When fine streaks are seen on projected images

This is due to interference with the screen surface and is not a malfunction. Replace the screen or displace the focus a

little. (See page 18 or 23 for focus adjustment.)

When projected images are distorted to a trapezoid

When the screen and the projector are not placed perpendicularly to each other, projected images become

trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments,

adjust keystone.

With the INSTALLATION menu:

(See page 26 for menu setting.)

Display the INSTALLATION menu.

Select KEYSTONE by pressing the p or q button.

Equalize the widths at the top and bottom of the screen by pressing the t

or u button, viewing the screen.

To cancel the menu:

Press the MENU button several times.

When the keystone adjustment is carried out, the adjustment value is indicated. Note that this value doesn’t mean a

projection angle.

The allowable range of the adjustment value in the keystone adjustment varies depending on the installation

condition, Input signal and aspect settings in MENU.

When the keystone adjustment takes effect, the resolution decreases. In addition, stripes may appear or straight

lines may bend in images with complicated patterns. They are not due to product malfunctions.

When the keystone adjustment is carried out, the image may not be displayed correctly because of the type of input

signal.

When the keystone adjustment is performed, the displayed image may be distorted.

Depending on the installation conditions of the projector and the screen, a perfect rectangular image and the proper

aspect ratio may not be obtained.

1.

2.

1.

2.

3.

4.

•

•

•

•

•

•

Adjustment feet

Screen

Adjustment feet

Screen


REVERSE

OFF

OFF

BACK COLOR

OFF

opt.

STANDARDLAMP MODE

AV MEMORY 1

AUTO POWER

ON

AUTO POWER

OFF

INSTALLATION

TRIGGER OUT OFF

ON ON

BLUE

SPLASH

SCREEN

TEST PATTERN CROSS HATCH

KEYSTONE 0


REVERSE

OFF

OFF

BACK COLOR

OFF

opt.

STANDARDLAMP MODE

AV MEMORY 1

AUTO POWER

ON

AUTO POWER

OFF

INSTALLATION

TRIGGER OUT OFF

ON ON

BLUE

SPLASH

SCREEN

TEST PATTERN CROSS HATCH

KEYSTONE 0

Press the t

button.

Press the u

button.

Press the t

button.

Press the u

button.

EN-13

Setting up your projector (continued)

Front projection, ceiling mounting

For ceiling mounting,

you need the ceiling

mount kit designed for

this projector. Ask a

specialist for installation.

For details, consult your

dealer.

The warranty on this projector does not cover any

damage caused by use of any non-recommended

ceiling mount kit or installation of the ceiling mount

kit in an improper location.

When using the projector mounted on the ceiling,

set IMAGE REVERSE in the INSTALLATION menu

to MIRROR INVERT. See page 27.

When the projector is mounted on the ceiling,

images may appear darker than those projected in

the case of tabletop mounting. This isn’t a product

malfunction.

Ask your installation specialist to provide an A/C

power switch. When you do not use the projector, be

sure to shut down the main power by the switch.

Do not install the projector where the exhaust vents

are exposed to air emitted by an air conditioning.

Such installation may cause a breakdown.

Do not install the projector near a fire alarm

because it emits hot air from its exhaust vents.

Rear projection

Ask a specialist for

installation. For details,

consult your dealer.

For rear projection,

set IMAGE

REVERSE in the

INSTALLATION

menu to MIRROR. See page 27.

Caution:

Placing the projector directly on a carpet impairs

ventilation by the fans, causing damage or failure.

Put a hard board under the projector to facilitate

ventilation.

Place the projector at least 50 cm (or 20 inch)

away from the wall to prevent the air inlet grille

and the air outlet grilles that emit hot air from

being blocked.

Do not use the projector in the following locations

and manners, which may cause fire or electric

shock.

In a dusty or humid place.

In a sideways position, or with the lens facing

down.

Near a heater.

In an oily, smoky, or damp place such as a kitchen.

In direct sunlight.

Where the temperature rises high, such as in

a closed car.

Where the temperature is lower than +41°F

(or +5°C) or higher than +95°F (or +35°C ).

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

Important:

Do not apply force to the lens, because the lens may

be damaged.

Be sure to use this projector at an altitude of less than

1500 meters.

TRIGGER terminal

The TRIGGER terminal on the rear of the projector

is a terminal that outputs a 12 V signal to control an

externally connected device (electric screen) when

images are projected.

Ring (NC)

To externally

connected device

Tip (12 V)

(Ground 0 V)

TRIGGER

To use the TRIGGER terminal, set TRIGGER OUT

to SCREEN or ANAMORPHIC in the INSTALLATION

menu. (The factory default is OFF. See page 27 for

details.) Use the following steps to change the setting.

With the INSTALLATION menu:

(See page 26 for menu setting.)

Display the INSTALLATION menu.

Select TRIGGER OUT by pressing the p or q

button.

Select SCREEN or ANAMORPHIC by pressing the

t or u button.

To cancel the menu:

Press the MENU button.

Caution:

Do not use the signal output from the TRIGGER

terminal as a power for other devices.

Do not link the TRIGGER terminal with an audio

terminal of other device because that device may be

damaged.

The rated current for the TRIGGER terminal is

200 mA. If you use a current exceeding this rating, a

failure may occur.

For information about electric screens, please

contact screen manufacturers.

•

•

1.

2.

3.

4.

•

•

•

•

EN-14

Viewing video images

A. Connecting the projector to video equipment

When the projector and the connected devices are located too close to each other, the projected image may be

affected by their interference.

See the owner’s guide of each device for details about its connections.

Preparation:

Make sure that the power of the projector and that of the video equipment are turned off.

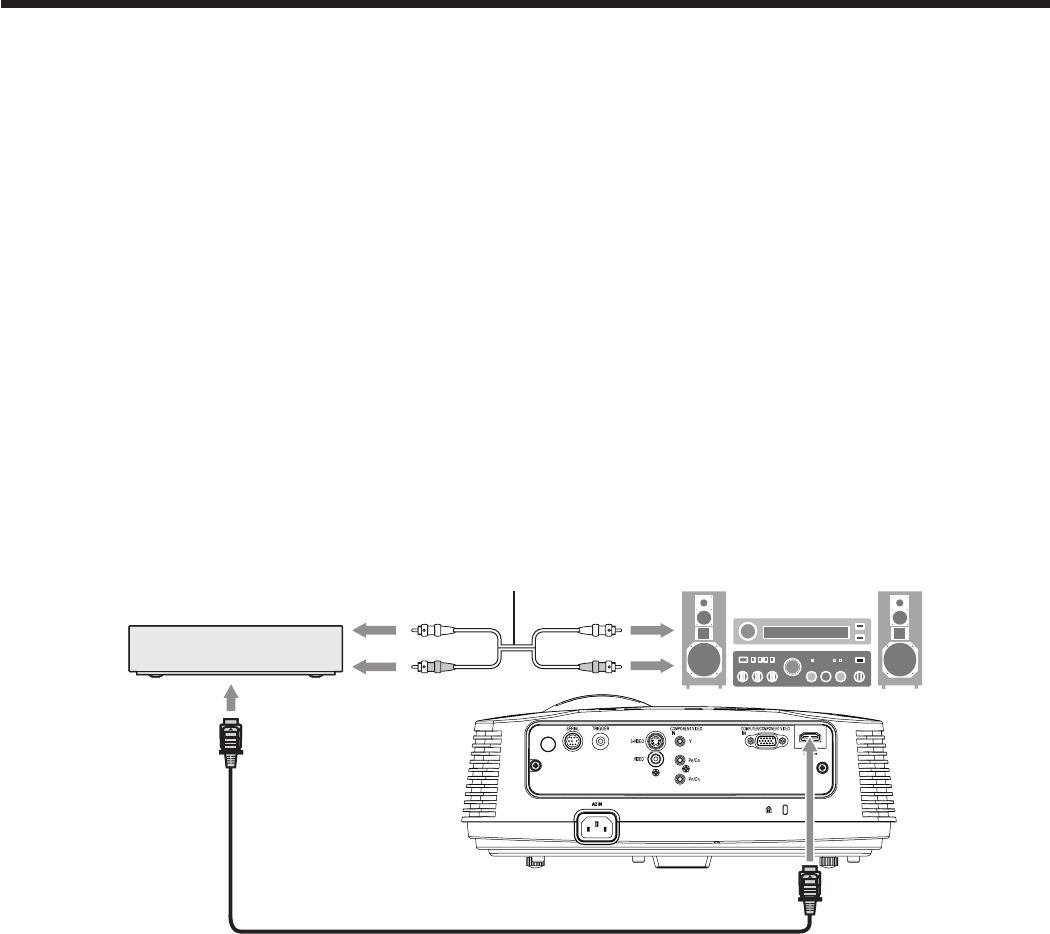

Basic home theater system connection

DVD player

Video player

Set-top box or digital tuner

•

•

•

EN-15

Viewing video images (continued)

Connecting to a video player, etc.

Connect one end of the optional video cable to the

VIDEO IN terminal of the projector.

Connect the other end of the video cable to the video

output terminal of the video equipment.

When the video equipment is equipped with the S-

video output terminal, make the connection as follows:

Connect one end of the optional S-video cable to the

S-VIDEO IN terminal of the projector.

Connect the other end of the S-video cable to the S-

video output terminal of the video equipment.

Also read the instruction manual of the equipment to be connected.

Contact your dealer for details of connection.

When a TV tuner or VCR is connected:

When you use this projector with a TV tuner or VCR connected, no image may appear or a message of NO SIGNAL

may appear on the screen when you change the channel via any channel that is not being received. In such a case,

set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip

function (that is a function not to display channels that are not being received) enabled.

Connecting to a DVD player or HDTV decoder

To connect this projector to video equipment that has component video output terminals, such as a DVD player, use

the COMPONENT VIDEO IN terminals.

PB/CB

Y

PR/CR

PB/CB

PR/CR

Y

Component cable (option)

DVD player or HDTV decoder

The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder is connected.

The terminal’s names vary depending on the connected devices.

Images may not be projected correctly depending on the type of the DVD player you use.

Though it may take some time before an image is displayed on the screen depending on the type of the input

signal, such symptom is not a malfunction.

When connecting a HDTV decoder having RGB output terminals, set COMPUTER INPUT to RGB in the SIGNAL

menu.

1.

2.

1.

2.

•

•

•

•

•

•

•

12

To video output

terminal

Video cable (option)

To VIDEO

IN terminal

Video player, or the like

12

To video output

terminal

Video cable (option)

To VIDEO

IN terminal

Video player, or the like

12

S-video cable (option)

To S-VIDEO

IN terminal

To S-video output

terminal

Video player, or the like

12

S-video cable (option)

To S-VIDEO

IN terminal

To S-video output

terminal

Video player, or the like

EN-16

Viewing video images (continued)

Connecting to video equipment having a HDMI terminal

You can project high-quality images by connecting the HDMI IN terminal of this projector to video equipment having a

HDMI output terminal. In addition, this projector supports HDCP and is able to receive encrypted digital video data that

are output from DVD players.

Select HDMI as the input source.

HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital

video data for the purpose of copy protection.

HDMI (High-Definition Multimedia Interface) is fully backward compatible with computers, displays and consumer

electronics devices incorporating the DVI standards.

This projector can be linked with video devices equipped with HDMI output terminal. However, with some of them,

this projector may not display any image or not operate correctly.

If this projector doesn’t display any image or not operate correctly, see the operation manual of the video device for

its connection.

When you use the video equipment other than HDMI conformity product, the image may not be projected properly.

Use of a long cable may decrease the quality of projected images.

Connection (for video equipment having an HDMI terminal)

Use a commercially available HDMI (with HDMI logo) cable.

Some cables may not be connected correctly depending on the size and shape of their connectors.

To connect to the video device using a HDMI Signal Distributor, make sure to use the HDMI Signal Distributor

compliant with the HDMI 1.3 Deep Color Standard. If you use the HDMI Signal Distributor not compliant with the

HDMI 1.3 standard, this projector may not display any image or not operate correctly.

Equipment having an

HDMI terminal

To HDMI terminal

To HDMI IN terminal

To audio input

terminals

To audio output

terminals

Audio cable (option)

HDMI (with HDMI logo) cable (option)

When you connect this projector and a Digital device (such as a DVD player) via the HDMI terminal, black color

may appear dark and deep, depending on the type of the connected device.

This depends on the black level setting of the connected device. There are two kinds of methods to digitally transfer

image data, in which different black level settings are employed respectively. Therefore, the specifications of the

signals output from DVD players differ, depending on the type of the digital data transfer method they use.

Some DVD players are provided with a function to switch the methods to output digital signals. When your DVD

player is provided with such function, set it as follows.

EXPAND or ENHANCED  NORMAL

See the users guide of your DVD player for details.

Set INPUT LEVEL of ADVANCED MENU in the IMAGE menu depending on the device to be used.

•

•

•

•

•

•

•

•

•

•

•

•

•

•

EN-17

Viewing video images (continued)

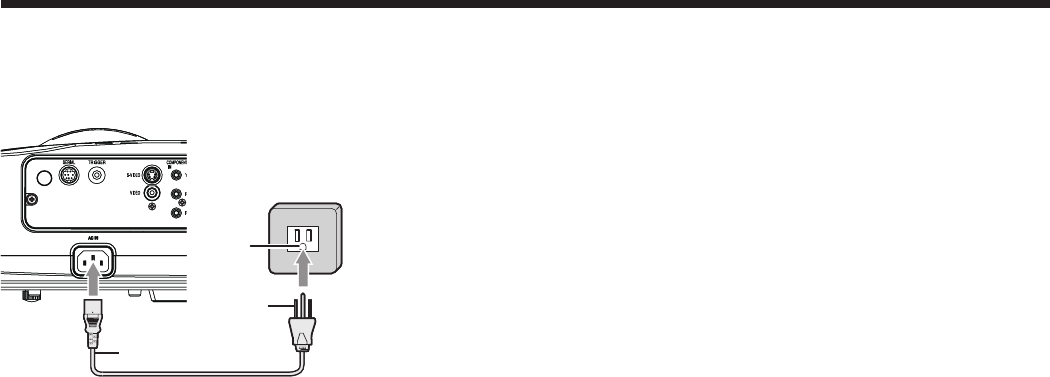

B. Plugging in the power cord

In order to ensure the safety in case of trouble with the projector, use an electrical outlet having an earth leakage

breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it.

Plug the attached power cord into the power cord inlet of this

projector.

Plug the other end of the power cord into a power outlet.

One of power cords for the U.S., Europe and U.K. is provided appropriately.

This projector uses the power plug of three-pin grounding type. Do not take away the grounding pin from the power

plug. If the power plug doesn’t fit your wall outlet, ask an electrician to change the wall outlet.

In case that the power cord for the U.S. is provided with this projector, never connect this cord to any outlet or power

supply using other voltages or frequencies than rated. If you want to use a power supply using other voltage than

rated, prepare an appropriate power cord separately.

Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.

Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to

the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause

fire or electric shock.

Do not modify or alter the power cord. If the power cord is modified or altered, it may cause fire or electric shock.

Caution:

Plug in the power cord firmly. When unplugging, hold and pull the power plug, not the power cord.

Do not plug in or out the power cord with your hand wet. It may cause electric shock.

•

1.

2.

•

•

•

•

•

•

•

•

1

2

Power cord (example)

Earthing

terminal

1

2

Power cord (example)

Earthing

terminal

EN-18

Viewing video images (continued)

C. Projecting images

Preparation:

Remove the lens cap.

Turn on the power of the connected video equipment.

VIDEO button

S-VIDEO button

p, q, t, u buttons

HDMI button

ON ( I ) button

COMPONENT button

HC4000

POWER button

POWER indicator

STATUS indicator

VIDEO/ u button

HDMI / COMPUTER / t button

Confirm the POWER indicator lights-up red.

If the projector was turned off before the lamp had cooled down sufficiently, the fan may start rotating and the

POWER button may not work after the power cord is plugged. (The STATUS indicator blinks green.) After the fan

stops rotating, press the POWER button to turn back on the POWER indicator.

Press the POWER button on the projector or ON ( I ) button on the remote control.

It may take about one minute for the lamp to light up.

The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.

Do not cover the lens with the lens cap while the lamp is on.

After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a product

malfunction.

The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP

MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.

The projector starts warming up when the POWER button is pressed. During the warm-up process, images may

appear dark and no commands are accepted.

By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when

the STATUS indicator blinks red. (See page 44.)

Adjust the focus by turning the focus ring.

Select an input source.

Press the VIDEO or HDMI/COMPUTER button on the projector or the VIDEO, S-VIDEO, COMPONENT or

HDMI button on the remote control that is corresponding to the terminal in use.

The input source is switched between VIDEO, S-VIDEO and COMPONENT every time you press the VIDEO

button on the projector.

The input source is switched between COMPUTER and HDMI every time you press the HDMI/COMPUTER

button on the projector.

The projector automatically selects the appropriate signal format. (The selected signal format is displayed on the

INFORMATION menu.)

You cannot change the input source while the menu is being displayed.

Though it may take some time before an image is displayed on the screen depending on the type of the input

signal, such symptom is not a malfunction.

Some images become easier to view when the setting of aspect ratio is changed. (See page 20.)

When this projector is connected with an HDMI device supporting HDCP, such as a DVD player, image is not

displayed correctly at the time of switching the input source on rare occasions. In such cases, switch to other

input source and then switch back to the HDMI input source.

When COMPONENT is chosen as the source, images supplied from the computer may flicker. Press the t or u

button on the remote control to reduce flicker, if it occurs. (Fine adjustment)

Adjust the position of the projector to keep an appropriate projection distance with which images are projected in

their specified sizes.

•

•

1.

•

2.

•

•

•

•

•

•

•

3.

4.

•

•

•

•

•

•

•

•

•

5.

EN-19

Viewing video images (continued)

Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page

10.)

When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page

12.)

Adjust the image size by turning the zoom ring.

If necessary, adjust the focus and zoom again.

To stop projecting:

HC4000

POWER button

POWER indicator

STATUS indicator

OFF ( ) button

Press the POWER button on the projector or the OFF ( ) button on the remote control.

A confirmation message is displayed.

To cancel the procedure, leave the projector for a while or press the MENU button.

Press the POWER button on the projector or the OFF ( ) button on the remote control again.

The lamp goes out and the projector goes into a standby mode. In this standby mode, the STATUS indicator

blinks green.

10

. Wait about 90 seconds.

During this period of 90 seconds in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.

The lamp can’t be lit again for 1 minute after turning off the projector for safety purpose. It will take another 1

minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator goes

out, and then press the POWER button.

The air outlet fans rotate faster as the temperature around the projector rises.

Do not unplug the power cord while the STATUS indicator is blinking. Unplugging the power cord immediately

after use may cause a lamp breakdown.

Though the fan makes loud sound during cooling, such symptom is not a malfunction.

11

. Unplug the power cord from the outlet.

The POWER indicator will go out.

If the power cord should be unplugged accidentally while either the air inlet fan or the air outlet fans are

operating or the lamp is on, allow the projector to cool down for 10 minutes with the power off. To light the lamp

again, press the POWER button. If the lamp doesn’t light up immediately, repeat pressing the POWER button

two or three times. If it should still fail to light up, replace the lamp.

Cover the lens with the lens cap to protect it from dust.

6.

•

7.

•

8.

•

•

9.

•

•

•

•

•

•

•

•

•

EN-20

Viewing video images (continued)

Setting the aspect ratio

You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the

setting according to the type of the input video signal. : Signal size : Image area

Setting

Original image size

4:3 16:9 ZOOM1 ZOOM2 STRETCH

ANAMORPHIC1 ANAMORPHIC2

Aspect ratio

changes depending

on the input signal.

Squeezed image is

expanded to 16:9.

CinemaScope image

is enlarged and

displayed together

with subtitles.

Vista image is

enlarged and

displayed together

with subtitles.

Image is enlarged to

16:9 while the center

aspect ratio remains

unchanged.

This mode is suitable

for viewing 2.35:1-

size images using the

anamorphic lens.

This mode is suitable for

viewing 16:9- or 4:3-size

images or images input

from personal computers

using the anamorphic lens.

4:3 image

(480i, 576i,

480p, 576p,

and PC)

480i, 576i,

480p, 576p

PC signal

Squeezed 4:3

(480i, 576i,

480p, 576p)

4:3

CinemaScope

(480i, 576i,

480p, 576p)

Sub Title

Sub Title

Sub Title

Sub Title

Sub Title

Sub Title

Sub Title

Sub Title

4:3 Vista


(480i, 576i,

480p, 576p)

16:9 image

(720p, 1080i,

1080p)

2.35:1 image

Bold frames are recommended modes.

When ASPECT is set to AUTO, an optimum aspect ratio is automatically selected depending on the input signal.

When ASPECT is set to ZOOM1, ZOOM2 or ANAMORPHIC1, display position can be changed with p or q button

on the remote control.

OVER SCAN in the SIGNAL menu is not available in the STRETCH mode.

Display pattern changes according to the setting of SCREEN SIZE in the IMAGE menu. The table above is in the

case of “16:9.”

This projector is equipped with a function to change the aspect ratio. If you select an aspect ratio that is inconsistent

with that of the input signal, images around the screen edges may be hidden or deformed. When viewing original

video works reflecting the authors’ intentions, you are recommended to keep their aspect ratios unchanged.

It may be an infringement of the rights protected by the copyright law to project images compressed or enlarged

by changing the aspect ratio in public areas, such as inside and outside shops and hotels, for commercial or public

viewing purposes.

When SCREEN SIZE of ADVANCED MENU is set to CINEMA SCOPE(2.35:1) in the IMAGE menu, STRETCH,

ANAMORPHIC1 and ANAMORPHIC2 cannot be selected for ASPECT.

•

•

•

•

•

•

•

•

EN-21

Viewing video images (continued)

How to change the settings:

With the remote control:

Press the ASPECT button.

Every time the ASPECT button is pressed, the aspect mode changes from AUTO to 4:3, 16:9, to ZOOM1, to

ZOOM2, to STRETCH, to ANAMORPHIC1, to ANAMORPHIC2, and back to AUTO.

Some modes are not available with certain signals.

With the FEATURE menu:

(See page 26 for menu setting.)

Display the FEATURE menu.

Select ASPECT by pressing the p or q button.

Select your desired aspect ratio by pressing the t or u button.

To cancel the menu:

Press the MENU button.

Important:

When a 4:3 or 2.35:1 (CinemaScope) image is kept displayed for a long time before displaying 16:9 image, the

afterimages of the black bars may appear on the 16:9 image screen. (See page 41.)

1.

•

•

1.

2.

3.

4.

•

FEATURE

AUTO

AUTO

AUTO

opt.

MENU POSITION

CINEMA MODE

VIDEO SIGNAL

?

ASPECT

RESET ALL

English

LANGUAGE

AË

OFF

AUTO

OK

DISPLAY

INPUT

PASSWORD

FUNCTION

1.

MENU DIMMER

AV MEMORY 1

SETUP

SCART INPUT

OFF

FEATURE

AUTO

AUTO

AUTO

opt.

MENU POSITION

CINEMA MODE

VIDEO SIGNAL

?

ASPECT

RESET ALL

English

LANGUAGE

AË

OFF

AUTO

OK

DISPLAY

INPUT

PASSWORD

FUNCTION

1.

MENU DIMMER

AV MEMORY 1

SETUP

SCART INPUT

OFF

EN-22

Viewing computer images

A. Connecting the projector to a computer

Preparation:

Make sure that the power of the projector and that of the computer are turned off.

When connecting the projector to a desktop computer, disconnect the RGB cables that are connected to the

monitor.

Connect one end of the supplied RGB cable to the

COMPUTER IN/COMPONENT VIDEO IN terminal of the

projector.

Connect the other end of the RGB cable to the monitor port

of the computer.

Additional devices, such as a conversion connector and an

analog RGB output adapter, are required depending on the

type of the computer to be connected.

When viewing images supplied from an analog-connected

computer, press the COMPUTER button on the remote

control.

Turn on the power of the projector before that of the

computer.

Additional devices, such as a conversion connector and an

analog RGB output adapter, are required depending on the

type of the computer to be connected.

Use of a long cable may decrease the quality of projected

images.

Also read the instruction manual of the equipment to be

connected.

Images may not be projected correctly, depending on the

type of the computer connected.

Contact your dealer for details of connection.

About DDC

The COMPUTER IN/COMPONENT VIDEO IN terminal of this projector complies with the DDC1/2B standard and the

HDMI IN terminal comply with the DDC2B standard. When a computer supporting this standard is connected to this

terminal, the computer will automatically load the information from this projector and prepare for output of appropriate

images.

After connecting a computer supporting this standard to this terminal, plug the power cord of the projector in the

wall outlet first, and then boot up the computer.

B. Plugging the power cord

Plug the power cord in the same way as described in “Viewing video images.” (See page 17.)

•

•

1.

2.

•

•

•

•

•

•

•

•

•

2

1

To monitor port

COMPUTER IN/

COMPONENT VIDEO IN

RGB cable

2

1

To monitor port

COMPUTER IN/

COMPONENT VIDEO IN

RGB cable

EN-23

Viewing computer images (continued)

C. Projecting images

Preparation:

Remove the lens cap.

Turn on the power of the connected computer.

COMPUTER button

p, q, t, u buttons

ON ( I ) button

HC4000

POWER button

POWER indicator

STATUS indicator

HDMI / COMPUTER / t button

Confirm the POWER indicator lights-up red.

If the projector was turned off before the lamp had cooled down sufficiently, the fan may start rotating and the

POWER button may not work after the power cord is plugged. (The STATUS indicator blinks green.) After the fan

stops rotating, press the power button to turn back on the POWER indicator.

Press the POWER button on the projector or ON ( I ) button on the remote control.

It may take about one minute for the lamp to light up.

The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.

Do not cover the lens with the lens cap while the lamp is on.

After the POWER button is pressed, the image may flicker before the lamp becomes stable. This is not a product

malfunction.

The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP

MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.

The projector starts warming up when the POWER button is pressed. During the warm-up process, images may

appear dark and no commands are accepted.

By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when

the STATUS indicator blinks red. (See page 44.)

Adjust the focus by turning the focus ring.

Select an input source.

Press the HDMI/COMPUTER button on the projector or the COMPUTER button on the remote control to select

COMPUTER.

The input source is switched between COMPUTER and HDMI every time you press the HDMI/COMPUTER

button on the projector.

Though it may take some time before an image is displayed on the screen depending on the type of the input

signal, such symptom is not a malfunction.

Images may not be projected in the correct position, depending on the type of the input signal. In such a case,

press the AUTO POSITION button. (See page 24.)

The projector automatically selects the appropriate signal format. (The selected signal format is displayed on the

INFORMATION menu.)

You cannot change the input source while the menu is being displayed.

When COMPUTER is chosen as the source, images supplied from the computer may flicker. Press the t or u

button on the remote control to reduce flicker, if it occurs. (Fine adjustment)

Adjust the position of the projector to keep an appropriate projection distance with which images are projected in

their specified sizes.

Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See page

10.)

When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See page

12.)

•

•

1.

•

2.

•

•

•

•

•

•

•

3.

4.

•

•

•

•

•

•

•

5.

6.

•

EN-24

Viewing computer images (continued)

Adjust the image size by turning the zoom ring.

If necessary, adjust the focus and zoom again.

To stop projecting:

Press the POWER button on the projector or the OFF ( ) button on the remote control.

A confirmation message is displayed.

To cancel the procedure, leave the projector for a while or press the MENU button.

Press the POWER button on the projector or the OFF ( ) button on the remote control again.

The lamp goes out and the projector goes into a standby mode. In this standby mode, the STATUS indicator

blinks green.

10

. Wait about 90 seconds.

During this period of 90 seconds in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.

The lamp can’t be lit again for 1 minute after turning off the projector for safety purpose. It will take another 1

minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator goes

out, and then press the POWER button.

The air outlet fans rotate faster as the temperature around the projector rises.

Do not unplug the power cord while the STATUS indicator is blinking. Unplugging the power cord immediately

after use may cause a lamp breakdown.

Though the fan makes loud sounds during cooling, such symptom is not a malfunction.

11

. Unplug the power cord from the outlet.

The POWER indicator will go out.

If the power cord should be unplugged accidentally while either the air inlet fan or the air outlet fans are

operating or the lamp is on, allow the projector to cool down for 10 minutes with the power off. To light the lamp

again, press the POWER button. If the lamp doesn’t light up immediately, repeat pressing the POWER button

two or three times. If it should still fail to light up, replace the lamp.

Cover the lens with the lens cap to protect it from dust.

AUTO POSITION button

When the image supplied from the computer is displaced, carry out the following procedure.

Display a bright image (such as a full-screen display of the Recycle Bin window).

When the screen saver has been enabled, disable it.

Press the AUTO POSITION button.

The projector automatically makes optimum positional settings for the input signal.

If the image is not projected in the correct position even after you press the AUTO POSITION button several

times, change the settings in the SIGNAL menu to put the image in the correct position. (See page 34.)

When you carry out this procedure with a dark image, the image may be displaced.

1.

2.

3.

•

•

When connecting to a notebook computer:

When the projector is connected to a notebook computer, images may not be projected in some cases. In such cases,

set the computer so that it can output signals externally. The setting procedure varies depending on the type of the

computer. See the instruction manual of your computer.

Example of the setting procedure for external output

Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of

the computer you use.)

Setting of the resolution

If the resolution of the computer doesn’t match with that of the projector, projected images may be obscured. Ensure

that their resolutions are the same (see page 46). For the method to change the output resolution of the computer,

contact the manufacturer of the computer.

7.

•

8.

•

•

9.

•

•

•

•

•

•

•

•

•

EN-25

Menu operation

Menus are not displayed when no signal is supplied to the projector.

AUTO, 0 - 10

BrilliantColor

TM

IMAGE GAMMA MODE

USER1 SPORTS, VIDEO, CINEMA

ALL, RED, GREEN, BLUE

±10(R) ±10(G) ±10(B)

±10(R) ±10(G) ±10(B)

±10(R) ±10(G) ±10(B)

COOL, MEDIUM, WARM

±60

±60

±60

±60

±60

±60

16:9, CINEMA SCOPE (2.35:1)

±26

0 - 5

±5

(for analog signal input)

AUTO, ENHANCED, NORMAL

(for digital signal input)

OFF

ON

COLOR

GAIN

RED, YELLOW, GREEN, CYAN, BLUE, MAGENTA

±20

SATURATION ±20

HUE ±10

POSITION

RESET

RIGHT UP, LEFT DOWN

OK

REFERENCE

ADJUST MODE

HIGH

MID

LOW

USER2

±30

±30

HIGH BRIGHTNESS

COOL

MEDIUM

WARM

USER

±10

±10

±5

OK

AV MEMORY1

AV MEMORY2

AV MEMORY3

±15

STANDARD, LOW

ON, OFF

OFF, 5, 10, 15, 30, 60min

ON, OFF

BLUE, BLACK

OFF, MIRROR, INVERT, MIRROR INVERT

SCREEN, ANAMORPHIC, OFF

CROSS HATCH , WHITE , BLACK

AUTO, 4:3, 16:9, ZOOM1, ZOOM2, STRETCH, ANAMORPHIC1, ANAMORPHIC2

DISPLAY INPUT , MENU ACCESS

1 (Upper left), 2 (Lower right)

ON, OFF

AUTO, VIDEO, FILM

OK

AUTO, NTSC , PAL , SECAM, 4.43NTSC, PAL-M, PAL-N, PAL-60

AUTO, OFF, 3.75%, 7.5%

ON, OFF

OK

0 - 999 *4

*4

*4

*4

*4

*4

*9

*4

0 - 999

0 - 31

0 - 9999

AUTO, RGB, YC

B

C

R

/ YP

B

P

R

100 - 90%

OFF 0 - 99

0 - 99

1- 255

1- 63

AUTO, OFF

ON, OFF

0 - 32

0 - 32

0 - 95

0 - 95

ON

OK

AUTO, SPORTS, VIDEO, CINEMA

CONTRAST

BRIGHTNESS

COLOR TEMP.

COLOR

SCREEN SIZE

VERTICAL LOCATION

CTI *1

INPUT LEVEL

COLOR MANAGEMENT

BEGIN

LOCK

UNLOCK

END

CLAMP POSITION

CLAMP WIDTH

VERT.SYNC

LPF

SHUTTER (U)

SHUTTER (L)

SHUTTER (LS)

SHUTTER (RS)

BRIGHTNESS B

BRIGHTNESS G

BRIGHTNESS R

CONTRAST B

CONTRAST G

CONTRAST R

REFERENCE

TINT

SHARPNESS *1

ADVANCED MENU

AV MEMORY SAVE

KEYSTONE

LAMP MODE

AUTO POWER ON

AUTO POWER OFF

SPLASH SCREEN

BACK COLOR

IMAGE REVERSE

TRIGGER OUT

TEST PATTERN

ASPECT

PASSWORD FUNCTION

MENU POSITION

MENU DIMMER

CINEMA MODE *2

*3

*1

*8

*6

*6

*5, *6

*5, *6

*5, *6

*5, *6

*5, *6, *7

*5, *6

*1, *5, *6

*5

VIDEO SIGNAL

SETUP

SCART INPUT

LANGUAGE

RESET ALL

HORIZ.POSITION

VERT.POSITION

FINE SYNC.

TRACKING

COMPUTER INPUT

OVER SCAN

HOLD

USER

LAMP TIME (LOW)

INPUT

RESOLUTION

VERTICAL FREQUENCY

HORIZONTAL FREQUENCY

SYNC. TYPE

INSTALLATION

FEATURE

SIGNAL

INFORMATION

OK

, English, Español, Deutsch, Français, Italiano, , , , PORTUGUÊS

* 1: Not available with certain signals.

* 2: Available only when the input signal is TV50, TV60, 480i, 576i or 1080i.

* 3: Available only when the input signal is from the VIDEO IN or S-VIDEO IN terminal.

* 4: Setting range differs depending on the input signals.

* 5: Not available when the input signal is from the VIDEO IN or S-VIDEO IN terminal.

* 6: Not available when the input signal is from the HDMI IN terminal.

* 7: Available only when the input signal is 480i, 480p, 576i, or 576p.

* 8: Available only when the input signal is from the COMPUTER IN/COMPONENT VIDEO IN terminal.

* 9: Available only when RGB output is selected on the output device side.

•

EN-26

Menu operation (continued)

1. IMAGE menu

How to set the menus:

The following describes how to set AUTO POWER OFF

time as an example.

Press the MENU button.

CONTRAST


0

BRIGHTNESS 0

0

COLOR

OK

MIDIUM

0

TINT

0SHARPNESS

COLOR TEM P.

ADVANCED MENU

opt.

AUTOGAMMA MODE

AV MEMORY 1

AV MENU SAVE AV MEMORY1

Press the t or u button to select a menu to use.


REVERSE

OFF

AUTO POWER

ON OFF

AUTO POWER

OFF

SCREEN SIZE

ON

INSTALLATION

ON

BACK COLOR

OFF

TEST PATTERN CROSS HATCH

BLUE

SPLASH

SCREEN

WXGA (FULL)

VERTICAL LOCATION 0

opt.

STANDARDLAMP MODE

AV MEMORY 1

Press the ENTER button (or q button).


REVERSE

OFF

OFF

BACK COLOR

OFF

opt.

STANDARDLAMP MODE

LENS LOCK OK

AUTO POWER

ON

AUTO POWER

OFF

TRIGGER OUT OFF

ON ON

BLUE

SPLASH

SCREEN

TEST PATTERN CROSS HATCH

KEYSTONE 0

INSTALLATION AV MEMORY 1

1.

2.

3.

Press the p or q button to select an item to adjust.


REVERSE

OFF

AUTO POWER

ON OFF

AUTO POWER

OFF

SCREEN SIZE

ON

INSTALLATION

ON

BACK COLOR

OFF

TEST PATTERN CROSS HATCH

BLUE

SVGA60

SPLASH

SCREEN

WXGA (FULL)

VERTICAL LOCATION 0

opt.

STANDARDLAMP MODE

AV MEMORY 1

Set the selected item by pressing the t or u button.


REVERSE

30 min

AUTO POWER

ON OFF

AUTO POWER

OFF

SCREEN SIZE

ON

ON

BACK COLOR

OFF

TEST PATTERN CROSS HATCH

BLUE

SPLASH

SCREEN

WXGA (FULL)

VERTICAL LOCATION 0

opt.

STANDARDLAMP MODE

INSTALLATION

SVGA60

AV MEMORY 1

To cancel the menu:

Press the MENU button several times.

Important:

When the MENU button doesn’t function, unplug

the power cord from the wall outlet. Wait about 10

minutes, plug the power cord in, and try again.

After selecting the items marked with , press the

ENTER button.

4.

5.

6.

•

•

Available settings in the menus

Set the following items on their relevant menus.

1. IMAGE menu

ITEM SETTING FUNCTION

CONTRAST


0

BRIGHTNESS 0

0

COLOR

OK

MEDIUM

0

TINT

0SHARPNESS

COLOR TEMP.

AUTOBrilliantColorTM

ADVANCED MENU

opt.

AUTOGAMMA MODE

AV MEMORY 1

AV MEMORY

SAVE AV MEMORY1

GAMMA MODE AUTO The proper gamma mode is automatically selected

depending on the input signal. Default is AUTO.

SPORTS This is a bright mode suitable for watching sports

images.

VIDEO This is a standard mode suitable for watching video

images, etc.

CINEMA This is a mode for watching movies in dim lighting as

in a theater.

USER1 /

USER2

Select to adjust the gamma curve. (See page 33.)

CONTRAST ±30 Use to adjust the contrast of the projected image. (See

page 31.)

BRIGHTNESS ±30 Use to adjust the brightness of the projected image.

(See page 31.)

COLOR TEMP. 5 options Use to adjust the color temperature. (See page 32.)

COLOR ±10 Use to adjust the color thickness of the projected image. (See page 31.)

TINT ±10 Use to adjust the color tint of the projected image. (See page 31.)

SHARPNESS ±5 Use to adjust the sharpness of the projected image. (See page 31.)

BrilliantColorTM AUTO BrilliantColorTM works automatically in response to the gamma mode. (See page 31.)

0 - 10 Use this setting to make colors with medium brightness, such as yellow and the skin tone appear

natural. Press the

t

button to decrease the value to lessen the effect. Press the

u

button to

increase the value to heighten the effect. (BrilliantColorTM has no effect at value 0.)

For more enhanced color reproduction, set BrilliantColorTM to 0. The white area of the color

wheel is disabled, and you can reproduce true-color images.

•

ADVANCED MENU

SCREEN SIZE 2 options Select according to the screen size.

VERTICAL

LOCATION

±26 Use to adjust the position (height) of the projected image.

CTI 0 - 5 Use to correct smeared color boundaries.

INPUT LEVEL ±5 For analog signal input: The input level of video signal differs among devices to be connected.

High input level causes solid white in displayed image and low input level causes displayed image

to get dark. Use this menu to adjust the input level of analog video signal.

AUTO /

ENHANCED /

NORMAL

For digital signal input:

AUTO: The proper setting is automatically selected.

ENHANCED: Select when solid black occurs.

NORMAL: Select when grayish black occurs.

(See page 16.)

COLOR

MANAGEMENT ON / OFF When you turn COLOR MANAGEMENT on, you can change to any desired color by adjusting

each of GAIN and SATURATION of six different colors. (See page 33.)

AV MEMORY SAVE 3 options Select the AV MEMORY to which you save the current setting. (See page 30.)

By using the AV memory function, you can save up to 3 setting patterns of IMAGE menu for each input terminal. (See

page 30.)

INPUT LEVEL is unavailable when the digital signal is supplied from the YCBCR/YPBPR terminal of the connected device.

•

•

EN-27

Menu operation (continued)

2. INSTALLATION menu


REVERSE

OFF

OFF

BACK COLOR

OFF

opt.

STANDARDLAMP MODE

AV MEMORY 1

AUTO POWER

ON

AUTO POWER

OFF

INSTALLATION

TRIGGER OUT OFF

ON ON

BLUE

SPLASH

SCREEN

TEST PATTERN CROSS HATCH

KEYSTONE 0

2. INSTALLATION menu

ITEM SETTING FUNCTION

KEYSTONE ±15 Use to correct vertical keystone distortion.

LAMP MODE STANDARD Select this option when you want to view images in a well-lit room.

LOW Select to moderate the intensity of the lamp. The fan operating sound is

reduced and the lamp lifetime becomes longer.

AUTO POWER ON

ON / OFF When ON is chosen, the lamp is automatically lit when the power cord is

plugged in the wall outlet. Choose ON when using the projector mounted on

the ceiling.

The projector is in the stand-by mode when the lamp is off. Use the

remote control to turn on the lamp.

•

AUTO POWER OFF

OFF / 5 - 60min Use to set the time elapsed before the projector enters the stand-by mode

when there is no signal input from the source.

SPLASH SCREEN

ON / OFF Choose ON to display the splash screen when the power is turned on.

BACK COLOR BLUE / BLACK Use to change the color of the screen that appears when no signal is

supplied.

IMAGE REVERSE

OFF Select when viewing images from the front with the projector installed on the

floor.

MIRROR Select when viewing images projected from the behind of the screen with the

projector installed on the floor.

INVERT Select when viewing images projected from the behind of the screen with the

projector installed on the ceiling.

MIRROR INVERT Select when viewing images from the front with the projector installed on the

ceiling.

TRIGGER OUT SCREEN The trigger output signal (12 V) is output from the TRIGGER terminal when

the lamp illuminates.

ANAMORPHIC The trigger output signal (12 V) is output from the TRIGGER terminal when

the aspect ratio is set to ANAMORPHIC 1 or ANAMORPHIC 2.

OFF The trigger output signal (12V) isn’t output.

TEST PATTERN CROSS HATCH Select to show the test cross hatch pattern.

WHITE Select to show the maximum brightness image.

BLACK Select to show the minimum brightness image.

The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP

MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.

When the lamp mode is switched, the projected image may flicker. This is not a product malfunction.

Do not change the setting of LAMP MODE frequently.

To cancel the test pattern, press any button.

•

•

•

•

EN-28

Menu operation (continued)

3. FEATURE menu

FEATURE

AUTO

AUTO

AUTO

opt.

MENU POSITION

CINEMA MODE

VIDEO SIGNAL

?

ASPECT

RESET ALL

English

LANGUAGE

AË

OFF

AUTO

OK

DISPLAY

INPUT

PASSWORD

FUNCTION

1.

MENU DIMMER

AV MEMORY 1

SETUP

SCART INPUT

OFF

3. FEATURE menu

ITEM SETTING FUNCTION

ASPECT AUTO Select to change the aspect ratio automatically depending on the input signal.

4:3 Select to project images with an aspect ratio of 4:3.

16:9 Select to project images with an aspect ratio of 16:9. (Linearly stretched.)

ZOOM1 Select to enlarge and project images of CinemaScope size.

ZOOM2 Select to enlarge and project images of Vista size.

STRETCH Select to enlarge to 16:9 and project of the images with an aspect ratio of 4:3. (Non-

linearly stretched.)

ANAMORPHIC1 This mode is suitable for viewing 2.35:1-size images using the anamorphic lens.

Use the p or q key to adjust the vertical display position.

This mode doesn’t support input signals from personal computers.

ANAMORPHIC2 This mode is suitable for viewing 16:9- or 4:3-size images or images input from personal

computers using the anamorphic lens.

PASSWORD FUNCTION

Use to enable or cancel the password lock. See page 35 for details.

MENU POSITION 2 options Use to change the position of the menu.

MENU DIMMER ON / OFF Use to reduce the brightness of the menu.

CINEMA MODE AUTO The film mode will be automatically activated when a film source signal is input.

Select AUTO for normal use.

When flicker occurs on the screen or jaggies on slanting lines are remarkable, select

FILM when a film source signal is input or select VIDEO for other signals.

VIDEO The film mode will not be activated.

FILM Fixed to the film mode.

VIDEO SIGNAL 8 options When AUTO is selected, the appropriate video format is automatically selected

depending on the input signal. If the image isn’t displayed correctly, select the desired

video format manually.

SETUP AUTO Select AUTO for normal use. When LANGUAGE is not set to and 480i, 480p or

TV60 signal is input, the SETUP changes to 7.5% automatically.

OFF Select to make black lighter.

3.75% / 7.5% Select to make black intense.

When 7.5% is chosen, the brightness is decreased by the set-up cancel function for

the U.S. Choose OFF when the image is dark.

•

SCART INPUT ON / OFF Choose ON when connecting the projector with a device equipped with the SCART

terminal that can output RGB signal. SCART terminal is used mainly in Europe.

Choose OFF normally. (Available only for the input signal from the COMPUTER IN/

COMPONENT VIDEO IN terminal.)

LANGUAGE 10 languages Use to select the language used in the menus.

RESET ALL OK Use to reset the settings of the menu (excluding PASSWORD FUNCTION and

LANGUAGE) to the factory setting values.

When SCREEN SIZE of ADVANCED MENU is set to CINEMA SCOPE(2.35:1) in the IMAGE menu, STRETCH,

ANAMORPHIC1 and ANAMORPHIC2 cannot be selected for ASPECT.

When SCART INPUT is set to ON, normal computer signals aren’t projected.

Use a SCART-BNC (or SCART-Mini D-SUB 15-pin) cable (option) when connecting this projector with an AV device

equipped with the SCART terminal.

Some AV devices equipped with the SCART terminal aren’t compatible with this projector.

It may take a little while to carry out RESET ALL in the FEATURE menu.

•

•

•

•

•

EN-29

Menu operation (continued)

4. SIGNAL menu 5. USER menu

R G B

R G B

SIGNAL

HORIZ. POSITION 0

VERT. POSITION 0

TRACKING 0

COMPUTER

INPUT AUTO

FINE SYNC. 0

USER

opt.

OK

ON

HOLD

100%

OVER SCAN

AV MEMORY 1

CLAMP

POSITION

USER

1

CLAMP WIDTH 1

LPF OFF

SHUTTER(U) 0

SHUTTER(L) 0

VERT. SYNC AUTO

?

SHUTTER(LS) 0

SHUTTER(RS) 0

4. SIGNAL menu

ITEM SETTING FUNCTION

HORIZ. POSITION

0 - 999 Use to adjust the horizontal position of the projected image.

VERT. POSITION

0 - 999 Use to adjust the vertical position of the projected image.

FINE SYNC. 0 - 31 Use to eliminate flickering or blur, if it appears, while viewing the projected

image.

TRACKING 0 - 9999 Use to eliminate vertical wide stripes, if it appears, while viewing the projected

image.

COMPUTER INPUT

AUTO The proper setting is automatically selected.

RGB Select this option when connecting the projector to high definition video

equipment having R, G, and B output terminals.

YCBCR / YPBPRSelect this option when connecting the projector to a DVD player or other

device having Y, CB, and CR (or Y, PB, and PR) component video output

terminals.

OVER SCAN 100 - 90% Use to adjust the display area of the projected image when playing LD and

DVD discs.

HOLD OFF / ON Use to adjust the image when flagging occurs near the top of the screen.

Though horizontal strips may appear on the enlarged projected image, such symptom is not a malfunction.

When you change the horizontal or vertical position to a large extent, noise may appear.

The adjustable range of the vertical position varies depending on the type of the input signal. Though the image

may stay in the same position even when the setting value is changed, such symptom is not a malfunction.

If you increase the OVER SCAN setting when viewing video signals, noise may appear on the screen. In this case,

decrease the OVER SCAN setting.

5. USER menu

ITEM SETTING FUNCTION

CLAMP POSITION

1 - 255 Use to correct solid white or solid black in the projected image.

CLAMP WIDTH 1 - 63 Use to correct solid black in the projected image.

VERT. SYNC AUTO / OFF Use to adjust the image when its motion doesn’t run smoothly. Select AUTO

for normal use.

LPF ON / OFF Use to select whether or not to enable the LPF.

SHUTTER(U) 0 - 32 Use to display the black bar on the top part of the image.

SHUTTER(L) 0 - 32 Use to display the black bar on the bottom part of the image.

SHUTTER(LS) 0 - 95 Use to display the black bar on the left half of the image.

SHUTTER(RS) 0 - 95 Use to display the black bar on the right half of the image.

•

•

•

•

EN-30

Menu operation (continued)

6. INFORMATION menu

INFORMATION

opt.

LAMP TIME(LOW)

INPUT

RESOLUTION

VERTICAL

FREQUENCY

HORIZONTAL

FREQUENCY

SYNC. TYPE 5wire

60.02 KHz

75.04 Hz

1024X768

COMPUTER

0 H

R G

H V

B

6. INFORMATION menu

ITEM DESCRIPTION

LAMP TIME(LOW) This item shows a lamp operating time (hour) calculated based on that LAMP MODE

is LOW.

When the LAMP MODE is STANDARD, this item shows a longer lamp operating

time than the actual time. (See page 36 for the interval of lamp replacement. )

When the lamp operating time is 0 to 10 hours, “0H” is displayed. The lamp

operating time exceeding 10 hours is indicated by the actual hours.

When the lamp operating time reaches 3750 hours, the bar turns to yellow. When

it reaches 4750 hours, the bar turns to red.

•

•

•

INPUT Indicates the name of the terminal to which the currently projected video signal is

being input.

RESOLUTION Indicates the resolution of the currently projected video signal.

VERTICAL FREQUENCY Indicates the vertical frequency of the currently projected video signal.

HORIZONTAL FREQUENCY Indicates the horizontal frequency of the currently projected video signal.

SYNC. TYPE Indicates the type of the sync signal for the currently projected video signal.

AV memory

You can store up to 3 patterns of the image quality setting for each input source.

To store the settings

Set the items of the IMAGE menu.

Setting the items by using the picture quality adjusting buttons on the remote control is also available.

Press the p or q button to select AV MEMORY SAVE.

Press the t or u button to select AV MEMORY (1, 2 or 3) to store the settings.

Press the ENTER button.

To enable the stored image quality settings

Press the AV MEMORY button to call up the stored setting.

When you make change to the stored setting you call up, the changed setting remains effective but is not saved to

the AV MEMORY unless AV MEMORY SAVE is executed.

When the input source is changed, the AV memory setting selected just before is automatically selected.

When RESET ALL in the FEATURE menu is selected, all the settings of the AV memory are cleared.

1.

•

2.

3.

4.

1.

•

•

•

EN-31

Adjusting projected images

To adjust the brightness (CONTRAST and BRIGHTNESS):

You can make adjustments for the brightness of the projected image using the menu.

(See page 26 for menu setting.)

Display the IMAGE menu.

Select CONTRAST or BRIGHTNESS by pressing the p or q button.

Adjust the selected item by pressing the t or u button.

To cancel the menu:

Press the MENU button.

CONTRAST

Select to adjust the contrast of the image. Every time the u button is pressed, the image becomes brighter and more

defined. Every time the t button is pressed, the image becomes darker and less defined.

BRIGHTNESS

Every time the u button is pressed, the image becomes brighter. Every time the t button is pressed, the image

becomes darker.

To adjust the color (COLOR and TINT):

You can adjust the color of the projected image using the menu.

(See page 26 for menu setting.)

Display the IMAGE menu.

Select COLOR or TINT by pressing the p or q button.

Adjust the selected item by pressing the t or u button.

To cancel the menu:

Press the MENU button.

COLOR

Use to adjust the color intensity of the projected image. Every time the u button is pressed, the color intensity

increases. Every time the t button is pressed, the color intensity decreases.

TINT

Use to adjust the tint of the projected image. Every time the u button is pressed, the image appears more greenish.

Every time the t button is pressed, the image appears more reddish.

To sharpen or soften the projected image (SHARPNESS):

You can adjust the sharpness of the projected image using the menu.

(See page 26 for menu setting.)

Display the IMAGE menu.

Select SHARPNESS by pressing the p or q button.

Adjust the selected item by pressing the t or u button.

To cancel the menu:

Press the MENU button.

How to Use BrilliantColorTM

Use the BrilliantColorTM effect through the menu.

(See page 26 for menu setting.)

Display the IMAGE menu.

Select BrilliantColorTM by pressing the p or q button.

BrilliantColorTM

AUTO

Select AUTO or ON by pressing the t or u button.

AUTO: BrilliantColorTM automatically works in response to the gamma mode, and switches between adjustment

to a bright home theater-like environment and that to dim lighting.

0 - 10: Use this setting to make colors with medium brightness, such as yellow and the skin tone appear natural.

Press the t button to decrease the value to lessen the effect. Press the u button to increase the value

to heighten the effect. (BrilliantColorTM has no effect at value 0.)

For more enhanced color reproduction, set BrilliantColorTM to 0. The white area of the color wheel is

disabled, and you can reproduce true-color images.

1.

2.

3.

4.

1.

2.

3.

4.

1.

2.

3.

4.

1.

2.

3.

•

•

•

EN-32

Adjusting projected images (continued)

To cancel the menu:

Press the MENU button.

To adjust the tone of white (COLOR TEMP.):

You can select a preset color temperature (white tone) using the menu.

(See page 26 for menu setting.)

Display the IMAGE menu.

Select COLOR TEMP. by pressing the p or q button.

Select your desired color temperature by pressing the t or u button.

The color temperature of each option is as follows:

COOL: Approx. 9300K, MEDIUM: Approx. 6500K (D65), WARM: Approx. 5800K.

To cancel the menu:

Press the MENU button.

To adjust the tone of white (To customize the color temperature):

To customize (and store) the color temperature to your preference, carry out the following procedure.

(See page 26 for menu setting.)

Select COLOR TEMP. in the IMAGE menu.

Press the t or u button to select USER .

Press the ENTER button.

Press the p or q button to select REFERENCE.

Press the t or u button to select basic color temperature.

Generally, select the most preferable color temperature from the preset color

temperature.

Press the p or q button to select the desired item.

Press the t or u button to adjust the selected item.

Repeat steps 6 and 7 for optimum adjustment results.

To cancel the menu:

Press the MENU button.

To enable the stored color temperature:

Select USER by pressing the COLOR TEMP. button on the remote control.

About color temperature

There are different kinds of white color. Color temperature is a way to show the differences in white. White of which

temperature is low appears reddish. When the color temperature rises, white appears bluish. For example, you can

change the color temperature using the following procedures.

To rise the color temperature: Increase the CONTRAST B (blue) and decrease the CONTRAST R (red).

To reduce the color temperature: Decrease the CONTRAST B (blue) and increase the CONTRAST R (red).

If you set all of CONTRAST R, G, and B to negative values, the original brightness of the image can’t be

obtained even when you maximize CONTRAST in the IMAGE menu.

•

4.

1.

2.

3.

4.

1.

2.

3.

4.

5.

•

6.

7.

8.

9.

1.

CONTRAST R

COLOR TEMP. - USER

0

CONTRAST G 0

BRIGHTNESS G 0

BRIGHTNESS B 0

CONTRAST B 0

BRIGHTNESS R 0

REFERENCE MEDIUM

CONTRAST R

COLOR TEMP. - USER

0

CONTRAST G 0

BRIGHTNESS G 0

BRIGHTNESS B 0

CONTRAST B 0

BRIGHTNESS R 0

REFERENCE MEDIUM

EN-33

Adjusting projected images (continued)

How to Use COLOR MANAGEMENT

This projector can individual adjusts each tone in red, yellow, green, cyan, blue and magenta. You can adjust the tone colors using

the COLOR MANAGEMENT menu.

Select ADVANCED MENU from the IMAGE menu.

Turn on COLOR MANAGEMENT on the ADVANCED MENU and open Color

Management menu.

Once the COLOR MANAGEMENT button on the remote control is pressed, this

Color Management menu will directly open.

The default setting is COLOR - RED.

Using the t or u button, select color RED ¦ YELLOW ¦ GREEN ¦ CYAN ¦

BLUE ¦ MAGENTA ¦ RED.

Using the q button, select GAIN ¦ SATURATION ¦ HUE as items to be

adjusted.

Select COLOR and items to be adjusted in advance and change numeric values using the t or u button while

watching the screen.

Once POSITION has been selected, you can change the display position of the Color Management menu.

When you select RESET and press the ENTER button, COLOR MANAGEMENT will be reset back to the default

settings. However, the contents of AV MEMORY will not be reflected in the reset unless AV MEMORY is saved.

To cancel the menu:

Press the MENU button.

To adjust the ratio of change in brightness (GAMMA MODE):

You can select a preset gamma mode using the menu.

(See page 26 for menu setting.)

Display the IMAGE menu.

Select GAMMA MODE by pressing the p or q button.

Select your desired gamma mode by pressing the t or u button.

To cancel the menu:

Press the MENU button.

To adjust the original ratio of change in brightness (To customize the gamma mode):

To customize (and store) the gamma mode to your preference, carry out the following procedure.

(See page 26 for menu setting.)

Select GAMMA MODE in the IMAGE menu.

Press the t or u button to select USER1 or USER2 .

Press the ENTER button.

Press the p or q button to select REFERENCE.

Press the t or u button to select basic gamma curve.

Generally, select the most preferable gamma curve from the preset gamma

curve.

Press the p or q button to select ADJUST MODE.

Press the t or u button to adjust mode of gamma curve (ALL, RED, GREEN, or BLUE).

Select whether to adjust RED, GREEN, and BLUE collectively or separately.

Press the p or q button to select the desired item.

HIGH : Use to adjust the gradation of the bright scenes. (The values displayed correspond to RED,

GREEN, and BLUE from the left respectively.)

MID : Use to adjust the gradation of the medium brightness scenes. (The values displayed correspond

to RED, GREEN, and BLUE from the left respectively.)

LOW : Use to adjust the gradation of the dark scenes. (The values displayed correspond to RED,

GREEN, and BLUE from the left respectively.)

Press the t or u button to adjust the selected item.

10

. Repeat steps 6 - 9 for optimum adjustment results.

To cancel the menu:

11

. Press the MENU button.

1.

2.

3.

4.

5.

•

•

6.

1.

2.

3.

4.

1.

2.

3.

4.

5.

•

6.

7.

•

8.

9.

GAIN

COLOR MANAGEMENT

0

SATURATION 0

POSITION RIGHT UP

HUE 0

RESET

opt.

REDCOLOR

OK

GAIN

COLOR MANAGEMENT

0

SATURATION 0

POSITION RIGHT UP

HUE 0

RESET

opt.

REDCOLOR

OK

REFERENCE

GAMMA MODE - USER1

VIDEO

0

0

0

0

0

0

HIGH

MID

LOW

ALL

ADJUST MODE

0

0

0

REFERENCE

GAMMA MODE - USER1

VIDEO

0

0

0

0

0

0

HIGH

MID

LOW

ALL

ADJUST MODE

0

0

0

EN-34

Adjusting projected images (continued)

To enable the stored gamma mode:

Select USER1 or USER2 by pressing the GAMMA button on the remote control.

Change in the brightness may be hard to recognize in some images.

This projector automatically and properly projects video signals supplied from the computer. However, some video

signals may not be projected, depending on the type of the computer. In such a case, press the AUTO POSITION

button. (See page 24.) When the signal is still not projected properly, adjust the projected image using the SIGNAL

menu.

How to adjust the image supplied from the computer using the menu:

Carry out the following procedures according to the symptoms.

Wide strips appear. .........................................................Adjust TRACKING in the SIGNAL menu.

The projected image flickers.

The projected image is blurred. ......................................Adjust FINE SYNC. in the SIGNAL menu.

The projected image is displaced horizontally. ..............Adjust HORIZ.POSITION in the SIGNAL menu. Every time the

t button is pressed, the image moves to the right. Every time

the u button is pressed, the image moves to the left.

The projected image is displaced vertically. ..................Adjust VERT.POSITION in the SIGNAL menu. Every time the

t button is pressed, the image moves down. Every time the u

button is pressed, the image moves up.

The top part of the image flags. ......................................

Change the setting of HOLD in the SIGNAL menu. Select ON ,

press the ENTER button, and adjust BEGIN or END to minimize

the flagging.

A solid black or solid white appears in the image. .........Adjust CLAMP POSITION or CLAMP WIDTH in the SIGNAL -

USER menu.

The motion doesn’t run smoothly. ...................................Adjust VERT. SYNC. in the SIGNAL - USER menu. Select

AUTO for normal use.

Noise appears on the right or left half of the image. .......Adjust SHUTTER(LS) or SHUTTER(RS) in the SIGNAL -

USER menu.

Noise appears on the top or bottom part of the image. ..Adjust SHUTTER(U) or SHUTTER(L) in the SIGNAL - USER

menu.

Display the SIGNAL menu.

Press the p or q button to select an item to adjust.

Adjust the selected item by pressing the t or u button.

To cancel the menu:

Press the MENU button.

Do not change the settings of the SIGNAL menu in normal use.

Simple method to adjust the image position

To adjust the horizontal position:

Align the left edge of the image with the left side of the screen by adjusting HORIZ.POSITION. Then, align the

right edge of the image with the right side of the screen by adjusting TRACKING.

Repeat step 1 above to complete the adjustment of the horizontal position.

To adjust the vertical position:

Align the upper edge of the image with the upper side of the screen by adjusting VERT.POSITION.

1.

2.

3.

LPF (Progressive filter)

You can select whether or not to enable the LPF.

Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player you

use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected images become

softened slightly.

1.

•

1.

2.

3.

4.

•

EN-35

Advanced features

Password function

This projector is equipped with the password function

that is designed for prevention of theft and wrong

operation by children and restriction on operation by

other than specified users. The password function has

two modes as follows.

DISPLAY INPUT .......... When the projector is turned

on, the startup screen (or splash screen) will

appear and stay on the screen until the password is

entered. When the password is entered, the startup

screen will switch to the regular operation screen.

MENU ACCESS .......... All the buttons except for the

POWER button on the projector are disabled. (The

buttons on the remote control are enabled.) You can

use this mode as a measure of prevention of wrong

operation by children and restriction on operation by

other than specified users.

To enable the password function:

Display the FEATURE menu.

Press the p or q button to select PASSWORD

FUNCTION.

Press the u button to change the mode among

DISPLAY INPUT and MENU ACCESS .

When the password has already been set, the

mode won’t be changed. In such cases, press

the ENTER button to cancel the password

function and try again.

Press the ENTER button.

The screen for setting the password function will

appear.

DISPLAY INPUT

LOCK

UNLOCK

OK

OK

Press the ENTER button.

The screen for entering a password will appear.

PASSWORD

CONFIRM

1

3

24 O K : ENTER CANCEL : MENU

Enter a 4 - 8 digit password using the p, u, q or t

buttons on the remote control as shown below.

(p=1, u=2, q=3, t =4)

Press the ENTER button.

To cancel the procedure, press the MENU

button.

Enter the password again for confirmation using the

same steps.

Press the ENTER button.

If the entered passwords don’t match, an error

message will appear.

To cancel the procedure, press the MENU

button.

1.

2.

3.

•

4.

•

5.

•

6.

7.

•

8.

9.

•

•

To cancel the password function:

Display the FEATURE menu.

Press the p or q button to select PASSWORD

FUNCTION.

Press the ENTER button.

The screen for canceling the password function

will appear.

DISPLAY INPUT

LOCK

UNLOCK

OK

OK

Press the ENTER button.

The screen for entering the password will

appear.

PASSWORD

1

3

24 O K : ENTER CANCEL : MENU

Enter a 4 - 8 digit password using the p, u, q or t

buttons on the remote control as shown below.

(p=1, u=2, q=3, t =4)

Press the ENTER button.

If you enter a wrong password, an error

message will appear.

To cancel the procedure, press the MENU

button.

Important:

Disable the password by pressing the MENU and

ENTER buttons on the control panel at the same

time about three seconds.

Kensington Lock

This projector has a Kensington Security Standard

connector for use with Kensington MicroSaver Security

System. Refer to the information that came with the

Kensington System for instructions on how to use it

to secure the projector. Please contact Kensington

Technology Group below.

Kensington Technology Group

2855 Campus Drive

San Mateo, CA 94403, U.S.A.

Phone: +1- (650)572-2700

Fax: +1- (650)572-9675

1.

2.

3.

•

4.

•

5.

6.

•

•

•

EN-36

Replacing the lamp

This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness

may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the

lamp with a new lamp sold separately that is exclusive to this projector. Contact your dealer for purchase of the lamp.

Spare lamp VLT-HC3800LP

Warning:

Be careful not to drop the lamp fixing screws inside of the projector. Don’t put a metal piece or flammable object into

the projector. Using the projector with any foreign object present inside may result in electric shock or fire. When

you can’t remove the foreign object from the inside, contact your dealer for removal.

Be sure to install the lamp securely. When the lamp isn’t installed properly, it won’t illuminate. Improper installation

may also result in fire.

Don’t shake the removed lamp or don’t lift it above your face. Your eyes may be injured by flying or falling glass

fragments.

Don’t replace the lamp immediately after use because the lamp cover will be very hot. You may get burned. Turn off

the power using the POWER button. After the lamp goes out, wait about 90 seconds until the intake and exhaust

fans for cooling the lamp stop rotating. Then unplug the power cord, and wait at least one hour to allow the lamp to

cool down enough to the touch.

Do not touch the lamp directly. It may break and cause injury or burn.

Interval of lamp replacement

The recommended interval of lamp replacement is about 5000 hours*1*2 of consecutive use. Such interval differs

depending on the operating environment and may be shorter than 5000 hours*1*2. Decrease in luminescence and/or

color brightness indicates that the lamp needs to be replaced. When the lamp operation time exceeds 3750 hours*1,

the indicator will blink alternately between green and red (while the lamp is lit; when the lamp is not lit, the indicator

will be lit red only) and the lamp replacement message will appear on the screen for one minute everytime the lamp

is turned on. When the lamp has been used for about 4750 hours*1, the replacement message (LAMP EXCHANGE)

will appear on the screen for one minute every 25 hours*1 thereafter. When the lamp operation time exceeds 5000

hours*1*2, the projector automatically shuts off and can’t be used until the lamp is replaced and the lamp

operation time is reset.

*1: Duration when LAMP MODE of the INSTALLATION menu is set to LOW. When it is set to STANDARD, this duration will be

shorted.

*2: When LAMP MODE is set to STANDARD, this duration will be shorted to 3000 hours.

Caution:

Don’t remove the lamp for any purpose other than replacement. Unnecessary removal of the lamp may result in a

breakdown.

This projector uses a high-pressure mercury lamp as the light source. The high-pressure mercury lamp may

explode or fail to illuminate permanently because of an impact, scratch, or deterioration through use. The period

of time until explosion or permanent failure to illuminate varies considerably from lamp to lamp, depending on

operation conditions. Therefore, the lamp may explode soon after the start of use.

The possibility of explosion of the lamp increases if you use it beyond its replacement period. When the instruction

of lamp replacement appears, replace it with a new one immediately even if the lamp is still lighting normally.

When the high-pressure mercury lamp explodes, glass fragments will scatter inside or outside the lamp box and the

gas charged inside the lamp will diffuse inside or outside the projector. The gas inside the lamp contains mercury.

Be careful not to breathe it or avoid it from entering your eye or mouth. If you should breathe it or if it should enter

your eye or mouth, see a doctor immediately.

In the event that the high-pressure mercury lamp exploded, glass fragments may have been scattered inside the

projector. Ask your dealer to replace the lamp and to inspect the inside of the projector. When you clean or replace

the lamp by yourself, be sure to hold the handle of the lamp. You may get injured by glass fragments.

When removing the lamp from the ceiling-mounted projector, use the Lamp Replacement Attachment packed with

the projector or option lamp to prevent glass fragments from scattering.

Be sure to use the lamp exclusive to this projector, VLT-HC3800LP. Use of other lamps may cause a failure of the

projector.

•

•

•

•

•

•

•

•

•

•

•

•

EN-37

Replacing the lamp (continued)

To replace the lamp:

A) When the projector is placed on the table

Make sure that the projector is securely held in place.

Remove the cover (a) of the screw fixing the lamp

cover with a fingernail. If it is difficult to remove

it with a fingernail, use a finetipped tool such as

flathead screwdriver.

(a)

Remove the screw (b) and slide the lamp cover (c)

for removal.

(c)

(b)

Loosen the two screws (d) of the lamp unit, and

then pull out the lamp unit (f) by the handle (e).

(f)

(d)

(e)

Caution:

When replacing the lamp, do not loosen the

screws other than two screws (d). It may cause

the failure of projector.

Pull the lamp unit out of the projector slowly.

If it is pulled out quickly, the lamp may break,

scattering glass fragments.

Do not spill liquid on the removed lamp unit or do

not place it near any flammable object or where

children can reach to prevent injuries or fire.

Insert the new lamp unit, and secure it with two

screws firmly.

Secure the lamp cover with screw (b) back again,

and mount the cover (a).

Caution:

Make sure that the lamp cover is secured firmly.

Otherwise, the POWER indicator flashes red and

green, disallowing the projector to be powered

on.

1.

2.

3.

•

•

•

4.

5.

•

B) When the projector is mounted to the ceiling

When removing the lamp unit from the projector

mounted to the ceiling, never fail to use the Lamp

Replacement Attachment to protect yourself from glass

fragments and so on.

Contact your dealer when replacing the lamp unit

with the projector mounted to the ceiling.

Remove the lamp cover referring to the procedure

1 and 2 of "A) When the projector is placed on the

table".

Caution:

When opening the lamp cover to replace the

lamp of the ceiling-mounted projector, pay

careful attention because glass fragments may

exist inside the lamp cover.

Loosen the two screws (d) of the lamp unit.

(d)

Caution:

When replacing the lamp, do not loosen the

screws other than two screws (d). It may cause

the failure of projector.

Assemble the Lamp Replacement Attachment

by folding two taping portions (g) and two cutout

portions (h) along the folding line as the figure.

(h)

(h)

(g)

(g)

•

1.

•

2.

•

3.

EN-38

Replacing the lamp (continued)

Insert the two cutout portions (h) in the slit of

the projector, paste the two taping portions (g)

with the tape included in the Lamp Replacement

Attachment, and then fix the Lamp Replacement

Attachment to the projector.

(g)

(h)

(g)

Pull out the lamp unit (f) in the bag by the handle

(e).

(f)

(e)

Remove the tape fixing the Lame Replacement

Attachment, and remove the Lamp Replacement

Attachment with the lamp unit remaining in the bag.

Caution:

Pull the lamp unit out of the projector slowly.

If it is pulled out quickly, the lamp may break,

scattering glass fragments.

Do not spill liquid on the removed lamp unit or do

not place it near any flammable object or where

children can reach to prevent injuries or fire.

Insert the new lamp unit, and secure it with two

screws firmly.

Secure the lamp cover with screw (b) back again,

and mount the cover (a).

Caution:

Make sure that the lamp cover is secured firmly.

Otherwise, the POWER indicator flashes red and

green, disallowing the projector to be powered

on.

4.

5.

6.

•

•

7.

8.

•

Reset of the lamp operation time

Plug in the power cord, and reset the lamp operation

time by keep pressing the t, u, and POWER buttons

on the control panel at the same time.

Important:

Unless these 3 buttons are held down at the same

time, the lamp operation time isn’t reset.

Make sure that the STATUS indicator blinks twice

and the lamp operation time is reset successfully.

The projector doesn’t turn on if the lamp cover isn’t

attached securely.

Be sure to reset the lamp operation time whenever

you replace the lamp.

Do not reset the lamp operation time unless you

replace the lamp.

The lamp is fragile. If it is broken, be careful not to

cut yourself with glass fragments.

Caution:

This projector uses a lamp that

contains mercury. Disposal of the lamp

or the projector with the lamp may

be regulated due to environmental

considerations. For disposal or recycling

information, please contact your local

authorities or the Electronic Industries

Alliance: www.eiae.org. (For the U.S.

only.)

•

•

•

•

•

•

•

EN-39

Warning:

Do not use flammable solvents (benzene, thinner, etc.) and flammable aerosols when cleaning the projector body and

lens. Flammable substances may ignite causing fire or breakdown while the lamp is illuminating.

Caution:

Be sure to turn off the lamp and unplug the power cord from the wall outlet before you perform any maintenance on the

projector.

Cleaning of the projector and the ventilation slots

Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft

cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.

To protect the surface of the projector from fading or deteriorating:

Do not spray insecticide on or inside the projector.

Do not use benzine or thinner to clean it.

Do not let rubber or plastic materials contact with projector.

Cleaning of the lens

Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning fluid. The lens surface is

fragile. Use only recommended, nonabrasive lens-cleaning materials. Do not touch the lens with your fingers.

•

•

•

Maintenance

EN-40

Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure

to unplug the power plug, and then contact your dealer.

No image appears on the screen.

Problem Solution

Power can not be

turned on.

Check whether the indicators are on or off and how they are lightning.

POWER STATUS Solution

Off Off

Connect the power cord to the projector.

Plug the power cord into a wall outlet.

•

•

Steady red

Off

If any objects are blocking the air inlet or outlet grill, re move them and carry out the

following.

Unplug the power cord from the wall outlet.

Make sure that the projector has cooled off.

Plug the power cord into the wall outlet.

Press the POWER button.

•

1.

2.

3.

4.

Blinking

orange

If any objects are blocking the air inlet or outlet grille, remove them.

Don’t expose the air outlet grilles to hot air emitted from a heating appliance.

•

•

Blinking

green

After the STATUS indicator stops blinking, press the POWER button.

If you unplug the power cord while the fan is rotating, the lamp may not turn on about one minute

when you plug the power cord next time.

The lamp can’t turn on again for one minute after it goes out.

Press the POWER button several times.

•

•

•

•

Steady red

Replace the lamp. (The lamp is at the end of its life.)•

Blinking

red/green

Off Attach the lamp cover.•

Steady

or

Blinking

Unplug the power cord from the wall outlet and contact your dealer .•

•

No image appears on

the screen.

Check that the lens cap is removed.

It may take about one minute for the lamp to light up.

The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and

then try again.

If the projector was turned off before the lamp was cooled down sufficiently last time,

the fan may start rotating and the POWER button may not work after the power cord

is plugged. After the fan stops rotating, press the POWER button to turn back on the

POWER indicator.

Check that the intake vent is clean.

Set SCART INPUT in the FEATURE menu to OFF. (See page 28.)

Check that the cables connected to the external devices are not broken.

When an extension cable is being used, replace it with the supplied cable for check.

When images are displayed correctly, add an RGB signal amplifier to the extension

cable.

When connecting the projector through a HDMI Signal Distributor or AV amplifier via

the HDMI cable, make sure that the HDMI Signal Distributor or AV amplifier support

HDMI 1.3 Deep Color.

Check the operation manual of the video device for its connection.

•

•

•

•

•

•

•

•

•

•

Power turns off. This problem may occur when the intake vent and/or exhaust vents are blocked. (In

such a case, the STATUS indicator brinks orange.)

Remove the objects blocking the intake vent and/or exhaust vents and then carry

out the following procedure.

Wait for the intake fan and/or exhaust fan to stop. (Wait until the STATUS indicator

goes out.)

Unplug the power cord from the wall outlet.

Wait at least 10 minutes.

Plug the power cord into the wall outlet.

Press the POWER button.

When the STATUS indicator is steady red, it is indicating that the lamp should be

replaced. Replace the lamp in this case.

Check that AUTO POWER OFF has been set to OFF.

If the lamp has deteriorated, it may go out after a while it illuminates.

•



1.

2.

3.

4.

5.

•

•

•

Troubleshooting

EN-41

No image appears on the screen. (continued)

Problem Solution

The screen for

entering the password

appears.

PASSWORD FUNCTION in the FEATURE menu has been set to DISPLAY INPUT to

enable the password lock.

Enter the password or contact the person in charge of management of the projector.

(See page 35.)

•



“NO SIGNAL” is

displayed.

Turn on the power of the connected device, or check whether there is something wrong

with the connected device.

Check whether the external device output signals. (Check this especially when the

external device is a notebook computer.)

Check that the cable connected to the external device isn’t defective.

Check that the projector is connected to the external device using the correct terminals.

Check that the connected device is correctly selected as the input source.

When an extension cord is being used, replace it with the supplied cable and check

whether images are projected correctly. If images are projected correctly, use an RGB

signal amplifier along with the extension cord.

•

•

•

•

•

•

Images may be jagged

when connecting the

projector using the

HDMI cable.

“NO SIGNAL” is

displayed when

connecting the

projector using the

HDMI cable.

Make sure if the cable is firmly plugged into the connecting terminal.

To accept and display 1080p signals on the screen, make sure to use a high-speed

HDMI cable that can transmit 1080p signals.

When connecting the projector through a HDMI Signal Distributor or AV amplifier via

the HDMI cable, make sure that the HDMI Signal Distributor or AV amplifier support

HDMI 1.3 Deep Color.

•

•

•

Images are not displayed correctly.

Problem Solution

Projected images are

shaking.

Projected images are

displaced.

Check that the cable connected to the external device isn’t intermittent.

Connect the cable’s plug with the external device’s connector firmly.

Project an image containing many characters such as a help menu and press the

AUTO POSITION button.

Some computers output out-of-spec signals on rare occasion. Adjust the SIGNAL

menu. (See page 34.)

•

•

•

•

Projected images are

distorted.

Adjust the projector and the screen so that they are perpendicular to each other. (See

page 10.)

•

Projected images are

dark.

Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 31.)

Replace the lamp. (See page 36.)

•

•

Projected images are

blurred.

Adjust the focus. (See pages 18 and 23.)

Clean the lens.

Press the t or u button on the remote control to eliminate flicker.

Adjust TRACKING and FINE SYNC. in the SIGNAL menu. (See page 34.)

Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See page 31.)

Adjust the projector and the screen so that they are perpendicular to each other. (See

page 10.)

•

•

•

•

•

•

White dots are seen

on projected images.

Black dots are seen on

projected images.

This symptom is normal for a DLPTM projector and is not a malfunction. (A very small

number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of

99.99% or more are effective.)

•

Rainbow effect is seen

on projected images.

This is due to color breaking noise that occurs in a DLPTM system and is not a

malfunction.

•

Fine streaks are seen

on projected images.

This is due to interference with the screen surface and is not a malfunction. Replace

the screen or displace the focus a little.

Vertical or horizontal streak noise may appear on the projected image, depending on

the type of the DVD player or game console you use. In such a case, you can reduce

such streak noise by enabling the LPF. (See page 29.)

•

•

Troubleshooting (continued)

EN-42

Troubleshooting (continued)

Images are not displayed correctly. (continued)

Problem Solution

Projected images

become wavy.

Connect the plugs of the cables to external devices securely.

Keep the projector away from devices that emit interfering radio waves.

When the keystone adjustment is carried out, the image may not be displayed correctly

because of the type of input signal. This isn’t a product malfunction. In this case,

readjust the keystone so that the amount of keystone correction is as small as possible.

•

•

•

Hue is not appropriate. Check that the cables connected to the external devices are not broken.•

Tint in projected

images is incorrect.

Check that COMPUTER INPUT in the SIGNAL menu is correctly set. (See page 29.)

Check that the cable connected to the external device isn’t broken.

•

•

Different color tint. When comparing images projected by two projectors, tints in the displayed images

may be different because of variation between their optical components. This is not a

malfunction.

When comparing the image projected by this projector with those displayed on the

television or PC monitor, tints in the displayed images may be different because of

difference in the range of color reproducibility. This is not a malfunction.

•

•

Color unevenness

appears in images.

Since the projector utilizes a high-definition DLP chip, color variations (at the center of

the screen and along the rims of the active area) that are caused by diffraction of light

may occur. This is not a malfunction.

•

Only the motion areas

in the images supplied

from the computer

aren’t displayed.

This is caused by the computer being used. Contact the manufacturer of your

computer.

•

Projected images are

obscured.

Match the output resolution of your computer with the resolution of the projector. For

the method to change the output resolution of the computer, contact the manufacturer

of your computer. (See page 46.)

Some images and texts appear obscured during the keystone adjustment. In such

cases, use the projector without applying the keystone adjustment. (See page 12.)

•

•

Image remains

freezing.

When image from VCR is projected, it may remain freezing during speed search. This

is not a malfunction.

•

Noise appears around

the image.

In some images such as DVD, noise may appear around the recorded image. In this

case, decrease the setting value of OVER SCAN of the SIGNAL menu. (See page 29.)

•

Projected images are

flickering.

After the Power button or On button on the remote has been pressed, or the Lamp

mode setting has changed, images may be flickering until the lamp lights stably. This is

an expected behavior.

When selecting the input signal, Auto Position, and Color Enhancer, the projected

image may be flickering temporarily. This is not a product malfunction.

•

•

EN-43

Troubleshooting (continued)

Others

Problem Solution

No sound comes

from the speakers

connected to the AV

amplifier.

(No sound comes

from the home theater

system speakers.)

The projector is not equipped with the speakers.

The AV amplifier reads the information that projector is not equipped with the speakers

and then passes this information along to the DVD player. Because of this, either the

DVD player may be temporarily stopping audio output, or the AV amplifier may be

temporarily stopping audio output from the DVD player.

Change the setting on the AV amplifier or the DVD player.

•



The exhaust vents

emit warm air.

This air comes out after cooling the inside of the projector. You may feel hot, but this is

not a malfunction.

•

The menu can’t be

used.

The microcomputers inside the projector may be wrongly operating because of noise.

Press the POWER button to turn off the lamp and wait about 90 seconds. Then

unplug the power cord from the outlet, wait at least 10 minutes, and plug the power

cord back into the outlet. When the POWER button doesn't function, unplug the

power cord from the outlet, wait at least 10 minutes, and then plug the power cord

back into the outlet.

•



“TEMPERATURE!!” is

displayed.

This indication appears when the ambient temperature rises high. When the ambient

temperature stays high, the lamp goes out.

Eliminate any causes of the rise in the ambient temperature.

This indication appears when the air inlet or outlet grille is blocked. When they are kept

blocked, the lamp goes out.

Remove the objects blocking the air inlet or outlet grille.

•



•



The mark appears. This mark appears when ineffective operation is carried out. This isn’t a product

malfunction.

•

The remote control

doesn’t function easily

or at all.

Check that the batteries are loaded in the remote control or the batteries are not weak.

(See page 6.)

Check that the remote control sensor isn’t exposed to direct sunlight or fluorescent

light. (See page 9.)

Use the remote control within its operation range. (See page 9.)

Use the remote control at least 10 cm away from the projector.

•

•

•

•

The buttons on the

control panel (except

for the POWER button)

don’t function.

PASSWORD FUNCTION in the FEATURE menu has been set to MENU ACCESS to

enable the password lock.

Cancel the password lock or contact the person in charge of management of the

projector. (See page 35.)

•



Abnormal sound is

heard.

Because the color wheel spins at a high speed, metallic sounds may be heard in rare

occasions. Such symptom is not a malfunction.

•

If the following problem occurs after the lamp is replaced, check the following first.

Problem Solution

The projector does not

turn on.

Fit the lamp cover securely. (See pages 36 and 37.)

Reset the lamp operating time. (See page 38.)

•

•

The STATUS indicator

blinks.

Reset the lamp operating time. (See page 38.)•

EN-44

This projector has two indicators, each of which shows the operation condition of the projector.

The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your

dealer.

POWER indicatorSTATUS indicator

Normal condition

POWER

STATUS CONDITION NOTE

Steady red Off

Stand-by

Steady green Blinking green

Lamp stand-by (about 1 minute) The power cannot be turned off by

pressing the POWER button.

Steady green Steady green

The power is on. (Normal condition)

Abnormal condition

POWER

STATUS CONDITION POSSIBLE SOLUTION

Steady green

or

Steady red

Blinking orange

Abnormal temperature

The ventilation grilles are clogged with dust or

dirt.

The room temperature is high.

•

•

Clean the ventilation grilles.

Relocate the projector to a cooler

place.

•

•

Steady red Blinking green

The protection circuit is working or the lamp is in an

abnormal condition.

Wait until the STATUS indicator goes

out, then press the POWER button.

If the above solution is not effective,

replace the lamp.

•

•

Steady green Blinking green/red

The lamp operation time exceeds the time elapsed

until the shut-off time notice while the power is on.

(See page 36.)

Replace the lamp.

Change with a new lamp if this problem

recurs.

Steady red Blinking red

The lamp operation time exceeds the time elapsed

until the shut-off time notice while the power is off.

(See page 36.)

Steady red Steady red

The lamp operation time exceeds the time elapsed

until the shut-off time. (See page 36.)

Blinking green/red Off

The lamp cover isn’t closed. Close the cover correctly.

Blinking green/red

Steady or

Blinking

Abnormal. Contact your dealer.

Indicators

EN-45

Specifications

The specifications and outside appearance of the projector are subject to change without prior notice.

Type DLPTM projector

Model HC4000

Display technology 0.65-inch single chip DMD (aspect ratio 16:9)

Pixel: 1920 x 1080 = 2073600 pixels

Projection lens F3.0 - 3.5 f= 20.6 - 30.1 mm

Light-source lamp 230 W

Image size (projection distance) 50” min. to 300” max. (projection distance 1.5 to 9.3 m (Wide))

Maximum

resolution

Computer signal Maximum resolution: 1600 x 1200 dots

Panel resolution: 1920 x 1080 dots

Video signal NTSC/PAL/SECAM/4.43NTSC/PAL-M/PAL-N/PAL-60

Component signal 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Panel resolution: 1920 x 1080 dots

Computer input [Signal type] [Terminal type] [Line]

Analog RGB Mini D-SUB 15-pin 1

Video input [Signal type] [Terminal type] [Line]

HDMI HDMI 1

Video input RCA 1

S-video input S 1

Component video input RCA x3 (YCBCR/YPBPR) 1

Control terminal/

others

SERIAL RS-232C (Mini DIN 8-pin)

TRIGGER DC 12 V, max. 200 mA (stereo mini jack)

Operating temperatures +41°F (+5°C) to +95°F (+35°C)

Rated voltage AC100 - 240 V, 50/60 Hz

Power consumption 3.3 A

Dimensions 345 mm (W) x 129 mm (H) x 270 mm (D) * Not including protrusion.

Weight 3.6 kg

Others S-video input Luminance signal: Vp-p=1.0 V 75 (negative sync)

Chrominance signals: Vp-p=0.286 V 75 (burst signal)

Video input Vp-p=1.0 V 75 (negative sync)

Component video

input

YCBCR: Vp-p=1.0 V 75 (Y) (negative sync)

Vp-p=0.7 V 75 (CB, CR)

Analog input RGB: Vp-p=0.7 V 75 (negative sync)

YCBCR: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (CB, CR)

HD/CS: TTL-level (negative or positive polarity)

VD: TTL-level (negative or positive polarity)

Digital input (HDMI) HDMI interface (TMDS single link)

Dimension drawings

(unit: mm)

HC4000

345

270129

HC4000

345

270129

EN-46

Specifications (continued)

Specification of RGB signals in each computer mode of the projector

Signal mode Resolution

(H x V)

Horizontal frequency

(kHz)

Vertical frequency

(Hz)

Normal mode

(H x V)*1

TV60, 480i (525i) – 15.73 59.94 1920 x 1080 *2

TV50, 576i (625i) – 15.63 50.00 1920 x 1080 *2

1080i 60 (1125i 60) – 33.75 60.00 1920 x 1080 *2

1080i 50 (1125i 50) – 28.13 50.00 1920 x 1080 *2

480p (525p) – 31.47 59.94 1920 x 1080 *2

576p (625p) – 31.25 50.00 1920 x 1080 *2

720p 60 (750p 60) – 45.00 60.00 1920 x 1080 *2

720p 50 (750p 50) – 37.50 50.00 1920 x 1080 *2

1080p 60 (1125p 60) – 67.50 60.00 1920 x 1080 *2

1080p 50 (1125p 50) – 56.25 50.00 1920 x 1080 *2

1080p 24 (1125p 24) – 27.00 24.00 1920 x 1080 *2

PC98 640 x 400 24.82 56.42 1728 x 1080

CGA70 640 x 400 31.47 70.09 1728 x 1080

VGA60 640 x 480 31.47 59.94 1440 x 1080 *2

VGA72 640 x 480 37.86 72.81 1440 x 1080

VGA75 640 x 480 37.50 75.00 1440 x 1080

VGA85 640 x 480 43.27 85.01 1440 x 1080

SVGA56 800 x 600 35.16 56.25 1440 x 1080

SVGA60 800 x 600 37.88 60.32 1440 x 1080 *2

SVGA72 800 x 600 48.08 72.19 1440 x 1080

SVGA75 800 x 600 46.88 75.00 1440 x 1080

SVGA85 800 x 600 53.67 85.06 1440 x 1080

XGA60 1024 x 768 48.36 60.00 1440 x 1080 *2

XGA70 1024 x 768 56.48 70.07 1440 x 1080

XGA75 1024 x 768 60.02 75.03 1440 x 1080

XGA85 1024 x 768 68.68 85.00 1440 x 1080

MAC13 640 x 480 35.00 66.67 1440 x 1080

MAC16 832 x 624 49.72 74.55 1440 x 1080

MAC19 1024 x 768 60.24 75.02 1440 x 1080

HP75 1024 x 768 62.94 74.92 1440 x 1080

SXGA60 1280 x 1024 63.98 60.02 1350 x 1080 *2

UXGA60 1600 x 1200 75.00 60.00 1440 x 1080 *2

*1: When ASPECT in the FEATURE menu is set to

AUTO.

*2: Available for the signal from the HDMI IN terminal.

Important:

Some computers aren’t compatible with the

projector.

The projector’s maximum resolution is 1920 x

1080 pixels. It may not display images of higher

resolutions than 1920 x 1080 correctly.

If the resolution and frequency of your computer

aren’t shown on the table, find the compatible

resolution and frequency by changing the resolution

of your computer.

This projector doesn’t support 480p signals from video

devices having 4 lines (R, G, B, CS*) or having 5 lines

(R, G, B, H, V).

* : Composite Sync

•

•

•

•

EN-47

Connectors

SERIAL (Mini DIN 8-pin)

5

3

4

1 2

6 8 7

Pin No. Name I/O

1 TXD IN

2 – –

3 – –

4 GND –

5 – –

6 – –

7 RXD OUT

8 – –

COMPUTER IN/COMPONENT VIDEO IN

(Mini D-SUB 15-pin)

15

11

6

10

15

Pin No. Spec.

1 R(RED)/PR/CR

2 G(GREEN)/Y

3 B(BLUE)/PB/CB

4 GND

5 GND

6 GND

7 GND

8 GND

9 DDC 5V

10 GND

11 GND

12 DDC Data

13 HD/CS

14 VD

15 DDC Clock

HDMI IN (HDMI 19-pin)

19

1

218

PIN No. Spec. PIN No. Spec.

1 TMDS Data2+ 11 TMDS Clock Shield

2 TMDS Data2 Shield 12 TMDS Clock-

3 TMDS Data2- 13 CEC

4 TMDS Data1+ 14 –

5 TMDS Data1 Shield 15 SCL

6 TMDS Data1- 16 SDA

7 TMDS Data0+ 17 DDC Ground

8

TMDS Data0 Shield

18 +5 V Power

9 TMDS Data0- 19 Hot Plug Detect

10 TMDS Clock+

Replacement part (option/not included in the box)

Spare lamp VLT-HC3800LP

Specifications (continued)

Mitsubishi Projector Warranty, Sales Support and Service Information

North America

MDEA (Mitsubishi Digital Electronics America, Inc.)

Presentation Products Division

9351 Jeronimo Road Irvine CA 92618, USA

For Warranty Registration, visit:

http://www.mitsubishi-presentations.com under Customer Care

Sales & Inquiries

Phone :Toll Free (888)307-0349

E-mail :ppdinfo@mdea.com

Technical Inquiries

Phone :Toll Free (888)307-0309

E-mail :TSUPPORT@mdea.com

MESCA (Mitsubishi Electric Sales Canada Inc.)

http://www.mitsubishielectric.ca

Information Technologies Group, 4299 14th Avenue,

Markham, Ontario L3R 0J2, Canada

Sales & Technical Inquiries

Phone :+1-(800) 450-6487

Fax :+1-(905) 475-7958

E-mail :projectors@mitsubishielectric.ca

Customer Care

E-mail :support@mitsubishielectric.ca

Europe

MEU-FRA (Mitsubishi Electric Europe B.V French Branch)

25, Boulevard des Bouvets 92 741, Nanterre CEDEX,

France

Sales Inquiries

Phone :+33 (0)1 55-68-55-53

Fax :+33 (0)1 55-68-57-31

Technical Inquiries

Phone :+33 (0)1 55-68-56-42

Fax :+33 (0)1 55-68-57-31

MEU-GER (Mitsubishi Electric Europe B.V. German Branch)

http://www.mitsubishi-evs.de/

Gothaer Strasse 8, 40880 Ratingen, Germany

Sales Inquiries

Phone :0049 - 2102 - 486 9250

Fax :0049 - 2102 - 486 7320

Technical Inquiries

Phone :0049 - 2102 - 486 1330

Fax :0049 - 2102 - 486 1340

MEU-IR (Mitsubishi Electric Europe B.V. Irish Branch)

http://www.mitsubishi.ie/

Westgate Business Park, Ballymount, Dublin 24, Ireland

Sales Inquiries

Phone :+353-1-4198807

Fax :+353-1-4198890

Technical Inquiries

Phone :+353-1-4198808

Fax :+353-1-4198895

MEU-IT (Mitsubishi Electric Europe B.V. Italian Branch)

Centro Direzionale Colleoni, Palazzo Sirio, Viale Colleoni 7,

20041 Agrate Brianza, Italy

Sales & Technical Inquiries

Phone :+39-(0)39-60531

Fax :+39-(0)39-6053214

E-mail :info.projector@it.mee.com

MEU-NL (Mitsubishi Electric Europe B.V. Benelux Branch)

http://www.mitsubishi.nl/LCD/ProdFrame.html

Nijverheidsweg 23A, 3641 RP Mijdrecht, The Netherlands

Sales Inquiries

Phone :+31-297-282461

Fax :+31-297-283936

E-mail :info@mitsubishi.nl

Technical Inquiries

Phone :+31-297-282461

Fax :+31-297-283936

E-mail :info@mitsubishi.nl

Russia (Mitsubishi Electric Europe B.V Moscow

Representative Office)

http://www.mitsubishi-projector.ru/

Moscow Representative Office, 52/5 Kosmodamianskaya

Nab., 115054, Moscow, Russia

Sales & Technical Inquiries

Phone :(7095) 721-2068

Fax :(7095) 721-2071

MEU-SP (Mitsubishi Electric Europe B.V. Spanish Branch)

http://www.mitsubishielectric.es/

Ctra. de Rubi, 76-80, 08173 Sant Cugat del Valles,

Barcelona, Spain

Sales Inquiries

Phone :+34-93.565.31.54

Fax :+34-93.589.43.88

E-mail :mitsubishi.profesional@sp.mee.com

Technical Inquiries

Phone :+34-93.586.27.51

Fax :+34-93.588.53.87

E-mail :mitsubishi.profesional@sp.mee.com

MEU-SWE (Mitsubishi Electric Europe B.V Scandinavian

Branch)

Hammarbacken 14, Box 750, S-19127, Sollentuna, Sweden

Sales Inquiries

Phone :+46-(0)8-6251070

Fax :+46-(0)8-6251036

Technical Inquiries

Phone :+46-(0)8-6251052

Fax :+46-(0)8-6251036

MEU-UK (Mitsubishi Electric Europe)

http://www.mitsubishi.co.uk/evs/

Visual Information Systems Division, Travellers Lane,

Hatfield, Hertfordshire, AL10 8XB U.K.

Sales Inquiries

Phone :+44 (1707) 278684

Fax :+44 (1707) 278541

E-mail :projector.info@meuk.mee.com

Technical Inquiries

Phone :+44 (870) 606 5008

Fax :+44 (1506) 431927

E-mail :projector.info@meuk.mee.com

Asia

CHINA (Mitsubishi Electric Air-Conditioning & Visual

Information Systems (Shanghai) Ltd.)

12/F., Hong Kong New World Tower, 300 Huaihai Middle

Road, Shanghai, 200021, China

Sales Inquiries

Phone :+86(21) 6335-3030 (Ext.3007)

Fax :+86(21) 6335-3600

Technical Inquiries

Phone :+86(21) 6335-3030 (Ext.3021)

Fax :+86(21) 6335-3600

HONG KONG (Mitsubishi Electric Ryoden Air-Conditioning

& Visual Information Systems (HongKong) Ltd.)

7th Floor, Manulife Tower, 169 Electric Road, North Point,

Hong Kong

Sales Inquiries

Phone :+852-2510-1505

Fax :+852-2510-0463

Technical Inquiries

Phone :+852-2422-0161

Fax :+852-2487-0181

SINGAPORE (Mitsubishi Electric Asia Pte. Ltd.)

http://www.mitsubishielectric.com.sg

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :+65-6473-2308

Fax :+65-6475-9503

E-mail :Peripherals@asia.meap.com

Technical Inquiries

Phone :+65-6470-2666

Fax :+65-6475-9503

INDIA (Mitsubishi Electric Asia Pte. Ltd.)

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :+65-6473-2308

Fax :+65-6475-9503

E-mail :Peripherals@asia.meap.com

Technical Inquiries

Phone :+65-6470-2666

Fax :+65-6475-9503

INDONESIA (Mitsubishi Electric Asia Pte. Ltd.)

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :+65-6473-2308

Fax :+65-6475-9503

E-mail :Peripherals@asia.meap.com

Technical Inquiries

Phone :+65-6470-2666

Fax :+65-6475-9503

PHILIPPINES (Mitsubishi Electric Asia Pte. Ltd.)
