Mitsumi Electric Co 0201JVA Wi-Fi WIN Card User Manual

Mitsumi Electric Co Ltd Wi-Fi WIN Card

User manual

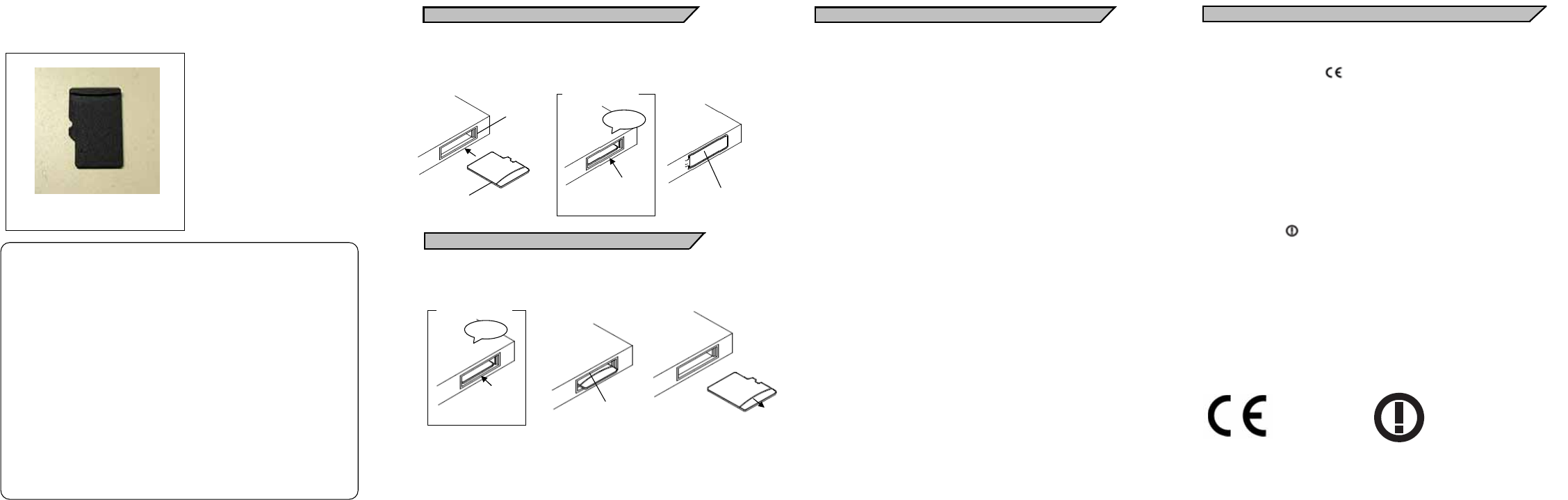

Insert the card to microSD slot in straight
Thank you for purchasing the product.
Please read this instruction manual before use When mobile PC has lock mechanism, insert card until you hear clicking noise
and keep this manual carefully.
Please follows cautions and warnings for proper use.
S
p
ecification Hold the tip of card and pull it slowly from a mobile PC
When a mobile PC equips lock mechanism, press it until you hear clicking noise to release lock,
Compliant IEEE802.11b/g then pull it out slowly
Channel IEEE802.11b/g: 11 channels for USA, 13 channels for Europe When card is pulled out by force, failure might occur.
Frequency IEEE802.11b/g: 2.4GHz bandwidth (2412 to 2462MHz)
(North America)
Frequency IEEE802.11b/g: 2.4GHz bandwidth (2412 to 2472MHz)
(Europe)
Modulation Method DSSS/OFDM
Transfer Rate DSSS1M/2M/5.5M/11Mbps
OFDM6M/9M/12M/18M/24M/36M/48M/54Mbps
Antenna 2.4GHz bandwidth chip antenna
Power DC3.0V to 3.46V (supplied by connected device)
Power Consumption Max. 950mW
External Dimension 11(W)×16(H)×0.7(D) mmRaised part on card tip1.0(D)mm
Weight 1.0g or less
Hereby, MITSUMI declares that this Mitsumi Wi-Fi WIN card (0201JVA) is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
This equipment is marked with the symbol and can be used throughout the European community.
This indicates compliance with the R&TTE Directive 1999/5/EC and meets the relevant parts of following
technical specifications:
Wi-Fi WIN card (0201JVA) Instruction Manual
EN 300 328 V1.7.1(2006-10), Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission Systems; Data transmission equipment operating in the 2.4GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive.
EN 301 489-17 V2.1.1 (2009-05), Electromagnetic Compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific Conditions
for Wideband Data and HYPERLAN Equipment.
EN 60950-1, Safety of Information Technology Equipment.
EN 62311, Assessment of electronic and electrical equipment related to human exposure restrictions for
electromagnetic fields (0 Hz - 300 GHz)
Marking by the symbol indicates that usage restrictions apply.
France – 2.4GHz for Metropolitan France :
In all Metropolitan départements, wireless LAN frequencies can be used under the following conditions, either
for public or private use:
Indoor use: maximum power (EIRP) of 100mW for the entire 2400-2483.5MHz frequency band
Outdoor use: maximum power (EIRP) of 100mW for the 2400-2454MHz band and with maximum power
(EIRP) of 10mW for the 2454-2483.5MHz band
Caution: Exposure to Radio Frequency Radiation
To comply with RF exposure compliance requirements, this device and its antenna must not to be co-located or
operating in conjunction with any other antenna or transmitter.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy. If not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by tuning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the distance between the equipment and the receiver.
-Connect the equipment to outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Caution: Exposure to Radio Frequency Radiation
To comply with FCC RF exposure compliance requirements, this device and its antenna must not to
be co-located or o
p
eratin
g
in con
j
unction with an
y
other antenna or transmitter.
USA-Federal Communications Commission
(
FCC
)
How to Insert
How to Remove
microSD slot
Clicking
Cover
Lock mechanism
microSD card
Lock mechanism
Press it until you hear
clicking noise
Clicking
Insert until you hear
clicking noise
Card Tip
Euro
p
e-EU Declaration of Conformit
y
and Restriction
s
0984
