System Components
System Components
WiiU Pro Controller (optional accessory)
Ř The WiiU Pro Controller is sold separately. This controller only works with Wii U software
that supports WiiU Pro Controller gameplay (see game packaging for compatibility informa-
tion). This controller can be used with the Wii U Menu and for Wii U system operations.
Front View
Back View
L Stick
Ř Can also function as a button when pressed.
L & ZL Buttons
USB Port
Connects to the USB cable for charging the controller (p. 18).
Battery LED
Indicates charging status and remaining battery life (p. 19).
R & ZR Buttons
R Stick
Ř Can also function as a button when pressed.
– Button/SELECT
HOME Button
Displays the HOME Menu, where you can configure or check the battery life of the WiiU
Pro Controller or view pre-installed electronic manuals (see the Wii U Electronic Manual
(), on the HOME Menu.
+ Button/START
A/B/X/Y Buttons
Player LED
Indicates the player number assigned to the controller currently in use.
POWER Button
Press to turn the Wii U console and WiiU GamePad on or off (p. 20).
+Control Pad
Battery Cover
You can remove the cover if you need to replace the rechargeable battery (p. 40).
Ř Do not remove the cover unless you need to replace the battery or check battery
installation.
SYNC Button
Press this to pair the WiiU Pro Controller with the console (p. 22).
RESET Button
See the Wii U Electronic Manual ( ), Troubleshooting, “The Wii U Pro Controller does not
respond,” for more information.
18 19
Charging the WiiU Pro Controller
Charging the WiiU Pro Controller
Charging the WiiU Pro Controller
The Wii U Pro Controller is a dedicated wireless
controller for the Wii U system. This accessory is sold
separately.
The battery LED will light orange when the battery is
charging and turn off when charging is complete.
Ř Be sure to fully charge the battery before use for the
first time, or if the system has not been used for a
long time.
Ř Optimal charging temperature is between 50°F-95°F
(10°C-35°C).
Ř Before use with the Wii U system, wireless controllers must be paired with the console (p. 22).
NOTE: The Wii U console must be turned on to charge the controller.
Charging Procedure
Connect the USB cable, Model No. WUP-018, included with the Wii U Pro Controller as shown
below. Make sure all plugs are inserted straight all the way into the connectors.
Estimated Charging Time and Battery Life
Ř
Charging Time: approx. 4.5 hours
Charging time will vary depending on how the system is being used and how much
charge is left in the battery.
Ř
Battery Life: approx. 80 hours
Actual battery life depends on the features used, such as the rumble feature or wireless
communication use, ambient temperature, and other factors.
Battery LED Status
The color and status of the LED changes depending on the remaining battery charge.
Ř If you run out of battery life while playing a game, you will not be able to use the controller.
If the battery LED turns red, charge the WiiU Pro Controller.
Full charge
Low Very low
Remaining battery life
Battery LED status
(Steady red)(Off) (Blinking red)
42
Battery Replacement
43
Replace the battery cover.
After replacing the battery cover, tighten the two screws, being careful not to
overtighten them.
IMPORTANT: Always be sure to replace the battery cover and tighten the screws
before resuming use.
PLEASE RECYCLE YOUR USED BATTERIES
When disposing of a rechargeable battery, take care to
follow appropriate local guidelines and regulations.
Cover the terminals with tape before recycling.
Ř Do not disassemble, attempt to repair, or deform the
battery pack.
Ř Do not dispose of rechargeable batteries in a fire.
To find a collection site near you, contact your local solid
waste authority or, in the United States, visit:
http://www.epa.gov/osw/conserve/materials/battery.htm
For more information or for assistance from Nintendo, visit:
recycle.nintendo.com
Battery for the
Wii U GamePad
Battery for the
Wii U Pro Controller
Wii U Pro Controller
Do not use any battery other than the Wii U Pro Controller rechargeable battery,
Model No. CTR-003.
A replacement battery can be ordered from the Nintendo website at store.nintendo.com (USA/
Canada only) or by calling Customer Service at 1-800-255-3700.
Ř Before replacing the battery, turn the Wii U console power off and disconnect the USB cable if
it is connected to the controller.
Ř To avoid damage to the screw or threads, use a screwdriver that is appropriate for the screw
(crosshead style, size 0).

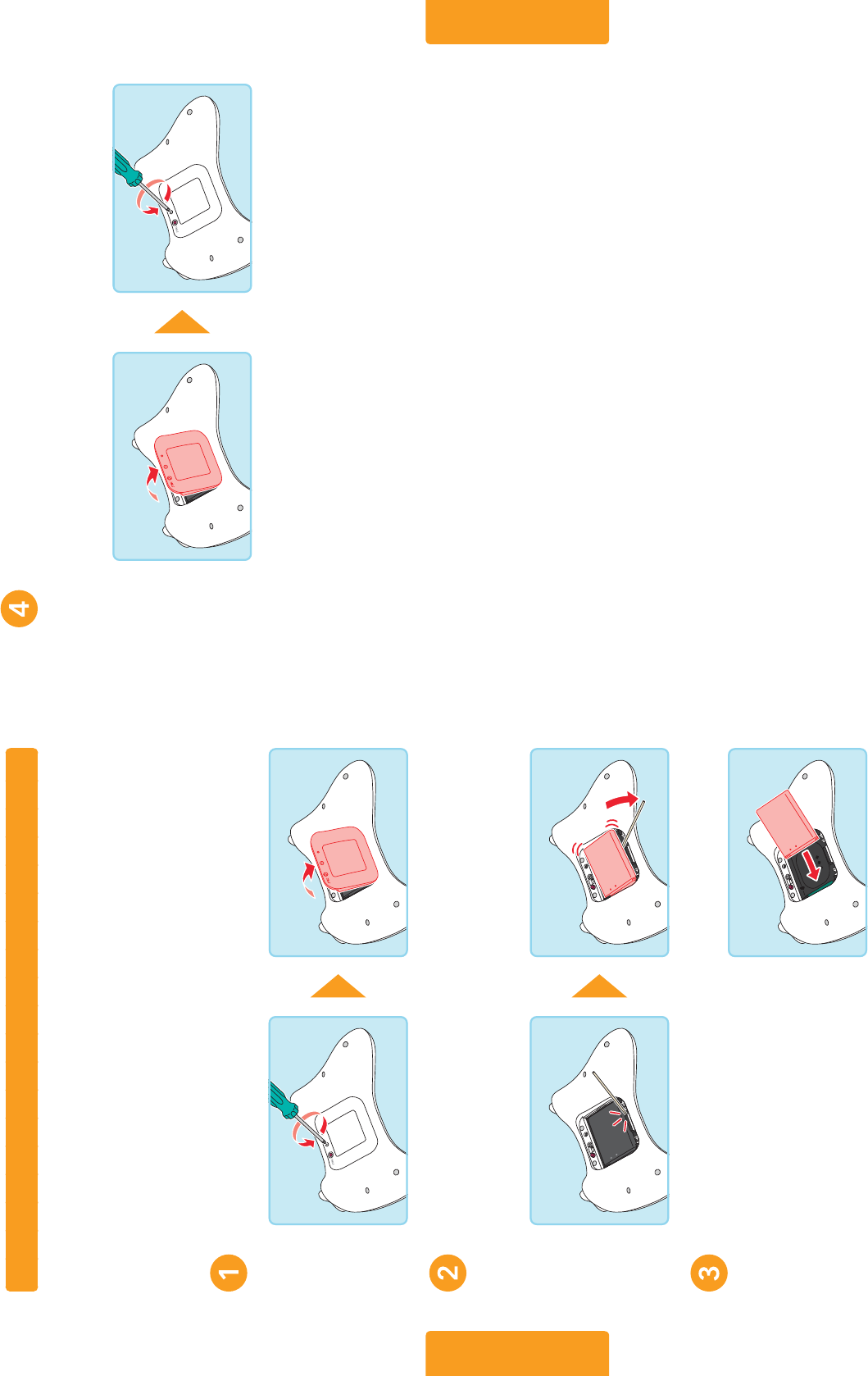

Loosen the screw and remove the battery cover.
The battery cover is designed so the screw can be loosened, but not fully removed.
Remove the battery.
Insert the stylus from the Wii U GamePad under the battery, as shown below, and gently
lift the edge, allowing you to remove the battery.
Ř Please recycle the used battery (p. 43).
Wait at least 10 seconds before inserting the new battery.
Make sure the battery is oriented correctly, as
show in the illustration.
Ř Waiting 10 seconds will allow the power LED
to reset correctly.
Battery Replacement
