Mitsumi Electric WC62 Wii Remote Controller User Manual
Mitsumi Electric Co., Ltd. Wii Remote Controller
User manual
IMPORTANT SAFETY INFORMATION:
READ THE FOLLOWING WARNINGS BEFORE YOU
OR YOUR CHILD PLAY VIDEO GAMES
• Some people (about 1 in 4000) may have seizures or blackouts triggered by light flashes or patterns, such
as while watching TV or playing video games, even if they have never had a seizure before.
• Anyone who has had a seizure, loss of awareness, or other symptom linked
to an epileptic condition
should consult a doctor before playing a video game.
• Parents should watch when their children play video games. Stop playing
and consult a doctor if you or
your child have any of the following symptoms:
Convulsions Eye or muscle twitching
Loss of awareness
Altered vision Involuntary movements Disorientation
• To reduce the likelihood of a seizure when playing video games:
1. Sit or stand as far from the screen as possible.
2. Play video games on the smallest available television screen.
3. Do not play if you are tired or need sleep.
4. Play in a well-lit room.
5. Take a 10 to 15 minute break every hour.
Playing video games can make your muscles, joints, skin or eyes hurt after a few hours. Follow these instructions to avoid problems such as tendinitis, carpal
tunnel syndrome, skin irritation or eyestrain:
• Avoid excessive play. It is recommended that parents monitor their children for appropriate play.
• Take a 10 to 15 minute break every hour, even if you don't think you need it.
• If your hands, wrists, arms or eyes become tired or sore while playing, stop and rest them for several
hours before playing again.
•
If you continue to have sore hands, wrists, arms or eyes during or after play, stop playing and see a doctor.
WARNING - Seizures
WARNING - Repetitive Motion Injuries and Eyestrain
IMPORTANT SAFETY INFORMATION:
READ THE FOLLOWING WARNINGS BEFORE YOU
OR YOUR CHILD PLAY VIDEO GAMES
To avoid electric shock when you use this system:
• Do not use the Wii during a lightning storm. There may be a risk of electric shock from lighting.
• Use only the AC Adapter that comes with your system.
• Do not use the AC Adapter if it has damaged, split or broken cords or wires.
• Make sure that the AC Adapter cord is fully inserted into the wall outlet or extension cord.
• Always carefully disconnect all plugs by pulling on the plug and not on the cord. Make sure the Wii power switch is turned OFF before removing the AC
Adapter cord from an outlet.
Playing video games can cause motion sickness. If you or your child feel dizzy or nauseous when playing video games with this system, stop playing and rest.
Do not drive or engage in other demanding activity until you feel better.
The Wii is a Class I laser product. Do not attempt to disassemble the Wii. Refer servicing to qualified personnel only.
Caution: Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure.
Specifications: Laser Type: Semiconductor laser Laser wave length: 662nm (typ.) (647nm~687nm)
Laser power: Max. 0.9mW Numeric aperture: 0.6
NOTE: This is a latex-free product.
WARNING - Electric Shock
CAUTION - Motion Sickness
CAUTION - Laser Device

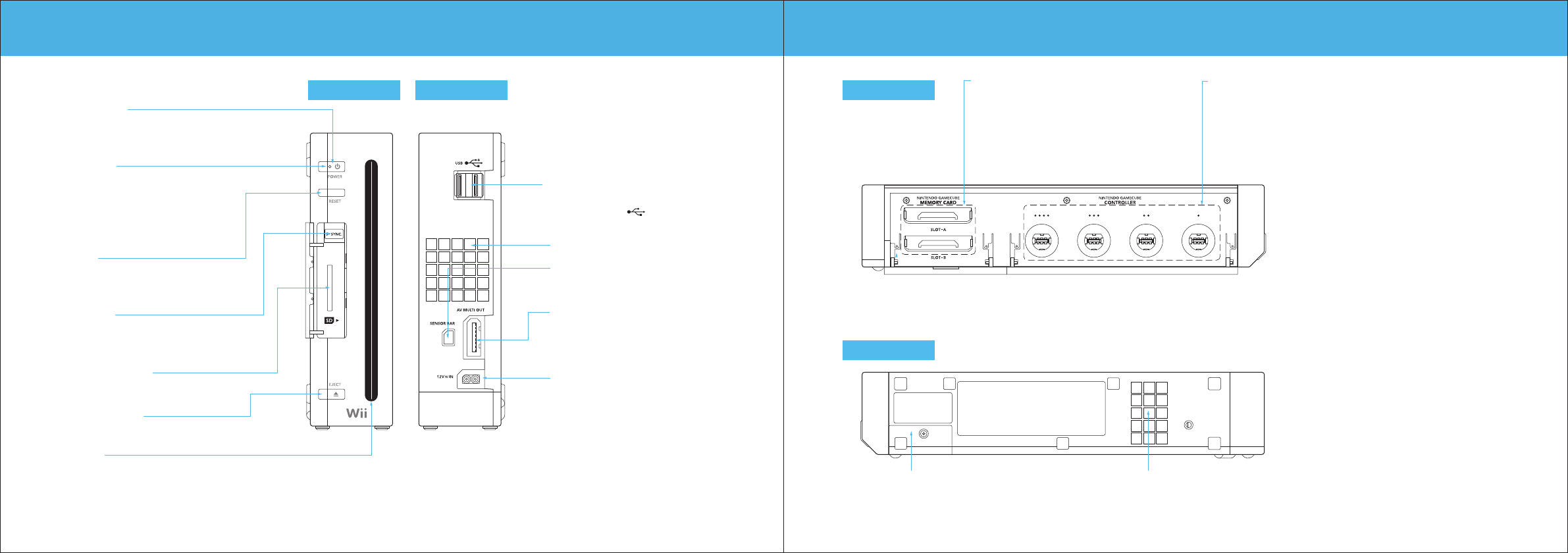

Components
Front View Back View TOP View
BACK View
Wii console
Use to turn the Power ON or OFF.
Power Button
Power LED
RESET
SYNCHRO
SD Card Slot
USB Connector
Connector for USB device which
has a mark like .
Green LED illuminates when power is
on. The color and the state(steady
light/blinking)of the Power Indicator
LED indicate system status.
Press to restart the game.
Press to resister a Wii Remote to be
used with the console.
Slot where a SD Card is inserted.
Disc Eject Button
Press to eject a disc
Disc Slot
Slot where the disc is inserted Blue light is
turned on when disc is inserted.
Vent
Sensor Bar Connector
Connector for Sensor Bar (RVL-014).
AV Multi Out
Connector for AV Cable (RVL-008) or
optional cable (Sold separately).
DC Input Connector
Connector for DC input of AC
Adapter (RVL-002 (USA)).
Nintendo GameＣube Memory Card Slots
Slot where Nintendo GameCube
Memory Ｃards are inserted.
Upper Slot is Slot-A and Bottom
slot is Slot-B.
Nintendo GameCube Controller Sockets
Socket for connecting Nintendo GameCube controllers
(including DK Bongo Controller and Mat Controller).
From the right: controller Socket 1,2,3,4.
Battery Cover
Button Battery (CR2032) is built- in.
Open cover only when the battery pack has to be removed for
disposal or replacement.
Inlet
Wii本体取説
縦148×横210
※95％表示
LR6(AA)1.5Vx2
0000000000
型 式
製 造 者
RVL-003
任天堂株式会社
FCC ID: XXXXXXXX IC:XXXXX-XXXXX

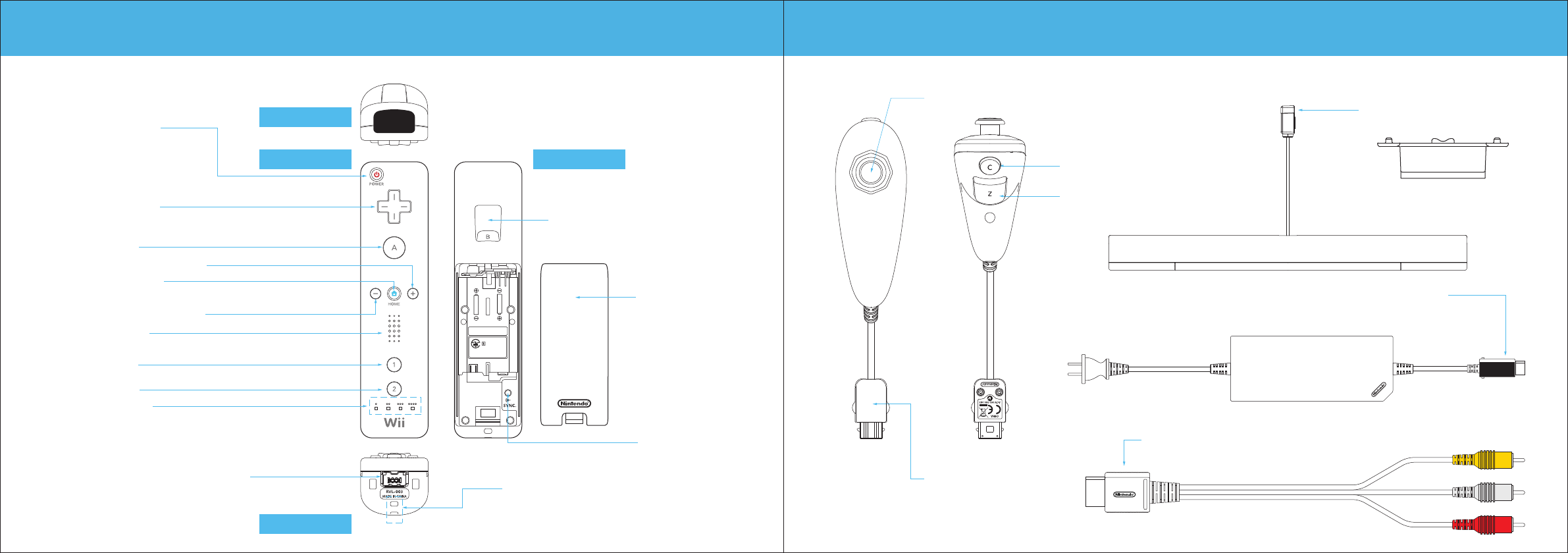

Wii Remote・Strap
Nunchuk Sensor Bar・Sensor Bar Stand
Use to turn the Power
ON or OFF
Power Button
+Control Pad
Speaker
Wrist Strap Attachment
HOME
This indicates you your player’
s number.
1 Button
2 Button
Player LED
Connector for External Extension device
such as Nunchuk and Classic Controller.
External Extension Connector
-Button (minus(-) button)
+Button(plus(+) button)
A Button
B Button
C Button
Sensor Bar Plug
DC JACK
AC Plug
Z Button
Nunchuk Plug
Control Stick
Battery cover
SYNCHRO
Press to register a Wii
Remote to be used
with the console.
For attachment of a
wrist strap.
Connects to 120V AC
wall outlet.
AV Multi Out ConnectorPlug
Connects to AV Multi Out connector on
back of the Wii.
Connects to DC input
Connector on back of
the Wii.
Components
Front View
TOP View
Bottom View
Back View
AC Adapter
Stereo AV Cable
Video(Yellow)
Audio Left(White)
Audio Right(Red)
Connects to External Extension
Connector of the Wii remote.
Remove the battery cover on the back of the Wii Remote, and insert
two AA (LR6) batteries as shown. Always insert the negative end
first.*When removing, please always remove the positive end first.
Setting a Wii Remote
(1) Attach the Wii Sensor Bar stand on the Wii Sensor Bar.
(See illustration below).
(2)Place the Wii Sensor Bar with Wii Sensor Bar stand endways on the
top or bottom of your TV.
Setting a Sensor Bar
電池カバーを元のようにセットしてください。
TV INPUT
VIDEO IN AUDIO IN
LEFT RIGHT
Connect AV cable with TV or VRC Inputs.

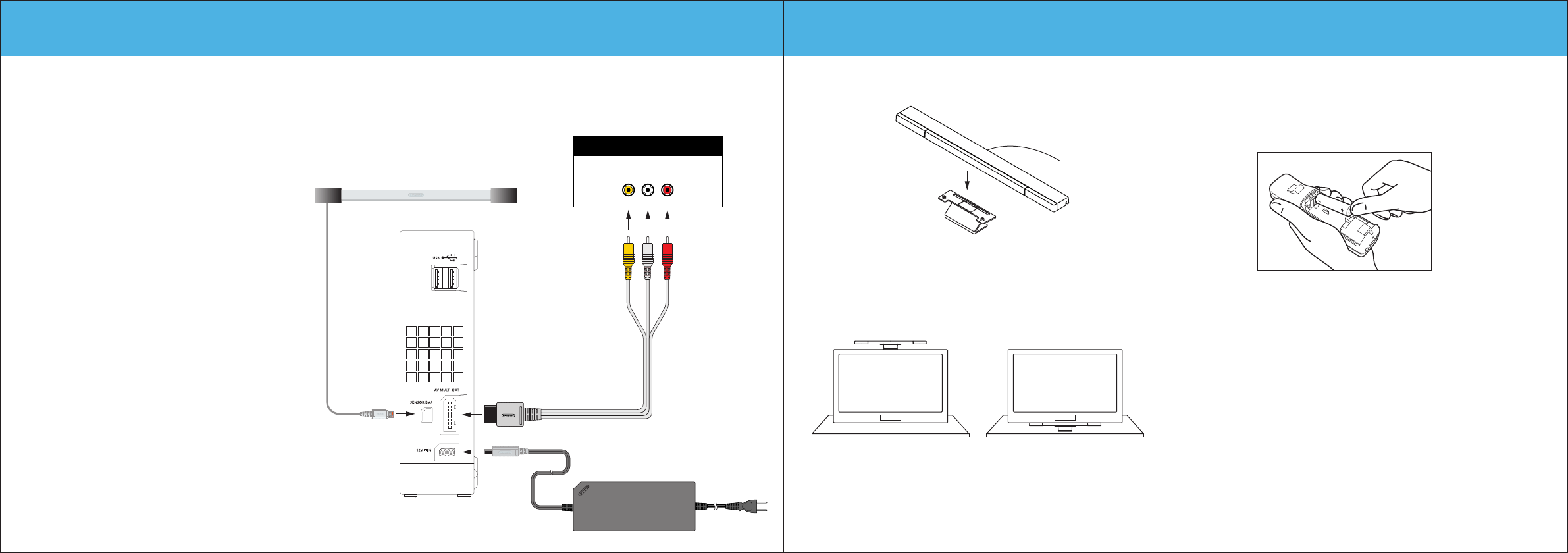

1. Connecting AV cable
Please check followings before connecting the console with each
peripheral device.
-AC adapter is not yet connecting the wall outlet.
-Make sure to be turned off the TV or VCR which will be connecting with
the console.
■Before connecting…
Connect Sensor Bar with Sensor Bar Connector.
2. Connecting Sensor Bar
(1) Connect AC Adapter DC plug with DC Input Connector.
(2) Plug AC plug of AC adapter into the wall outlet.
3. Connecting AC Adapter
System set up
SYSTEM OPERATION
お買い上げ後、Wiiを楽しんで頂く前に、初期設定を行います。
初期設定
Turn your TV on. If the console is connected to your VCR, turn it on also
and set the TV to VCR Mode.
Chose “Disc” channel and press A button to confirm.
For details on subsequent operations, see the instruction manual of the
specific game.
Insert the Wii disc or Nintendo GameCube Disk into the Disc slot of the
Wii console. Then power goes on automatically.
When playing Nintendo Gamecube disc with the Wii console,
please insert GameCube into the Nintendo Game Cube
Controller Sockets and the Memory Card into the Nintendo
GameCube Memory Card Slots, before inserting the disc.
Starting a game
1.
2.
3.
Push the Disc Eject Button and remove the Game Disc from the console.
REMOVING A GAME DISC
VIDEO
Wii Game Disc or
Nintendo GameCube Disk
WARNING - Seizures
WARNING -
Repetitive Motion Injuries and Eyestrain
WARNING - Electric Shock
IMPORTANT SAFETY INFORMATION
READ THE FOLLOWING WARNINGS BEFORE YOU
OR YOUR CHILD PLAY VIDEO GAMES
• Some people (about 1 in 4000) may have seizures or blackouts triggered
by light flashes or patterns, such as while watching TV or playing video
games, even if they have never had a seizure before.
•
Anyone who has had a seizure, loss of awareness, or other symptom linked
to an epileptic condition should consult a doctor before playing a video game.
• Parents should watch when their children play video games. Stop playing
and consult a doctor if you or your child have any of the following symptoms:
Convulsions Eye or muscle twitching
Loss of awareness
Altered vision
Involuntary movements Disorientation
• To reduce the likelihood of a seizure when playing video games:
1. Sit or stand as far from the screen as possible.
2. Play video games on the smallest available television screen.
3. Do not play if you are tired or need sleep.
4. Play in a well-lit room.
5. Take a 10 to 15 minute break every hour.
Playing video games can make your muscles, joints, skin or eyes hurt after a
few hours. Follow these instructions to avoid problems such as tendinitis,
carpal tunnel syndrome, skin irritation or eyestrain:
• Avoid excessive play. It is recommended that parents monitor their
children for appropriate play.
•
Take a 10 to 15 minute break every hour, even if you don't think you need it.
• If your hands, wrists, arms or eyes become tired or sore while playing, stop
and rest them for several hours before playing again.
• If you continue to have sore hands, wrists, arms or eyes during or after
play, stop playing and see a doctor.
To avoid electric shock when you use this system:
• Do not use the Wii during a lightning storm. There may
be a risk of electric shock from lightning.
• Use only the AC adapter that comes with your system.
•
Do not use the AC adapter if it has damaged, split or broken cords or wires.
• Make sure that the AC adapter cord is fully inserted into the wall outlet or
extension cord.
• Always carefully disconnect all plugs by pulling on the plug and not on the
cord. Make sure the Wii power switch is turned OFF
CAUTION - Laser Device
CAUTION - Motion Sickness
CAUTION - TV Screen Damage
The Wii is a Class I laser product. Do not attempt to disassemble the Wii. Refer
servicing to qualified personnel only.
Caution: Use of controls or adjustments or procedures other than those
specified herein may result in hazardous radiation exposure.
Playing video games can cause motion sickness. If you or your child feel
dizzy or nauseous when playing video games with this system, stop playing
and rest. Do not drive or engage in other demanding activity until you feel
better.
Some televisions can be damaged by the display of a stationary image, because
the image may be permanently "burned" into the screen. Playing video games with
stationary images or patterns, or leaving video games on hold or pause, may lead
to this type of damage. When taking a break, place the game on pause and turn
the TV off until you are ready to play again.
Before using your Nintendo system with any TV, especially front and rear
projection, be sure to review all documentation included with your TV to find
out whether video games can be played on the TV without damaging it.
If in doubt, contact the manufacturer of the TV. Neither Nintendo nor any of
Nintendo's licensees will be liable for any damage to your TV.
GAME DISC PRECAUTIONS / MAINTENANCE
1. Do not touch the bottom unprinted surface of the Game Disc. Always handle
the disc by the edges.
2. Do not use cracked, deformed or repaired discs.
3. Do not bend or put excessive pressure on discs when loading into console.
4. Do not leave discs in direct sunlight or expose to high temperatures, high
humidity or dust, dirt or other contaminates.
5. When not using discs, store them in their cases to prevent them from getting
scratched, dirty or damaged.
6. Do not write on, or place stickers on any part of the disc.
7. If a disc becomes dirty or contaminated with fingerprints, the system may
not be able to read the game data correctly. If necessary, clean the disc with
a soft, slightly damp cotton cloth (use water only). Clean the disc from
center towards the edges; do not use a circular motion.
HARDWARE PRECAUTIONS / MAINTENANCE
1. Always make sure that the Wii Game Disc has stopped
spinning before removing or loading a new disc. Load ONLY
Wii Game Discs into your Wii.
2. To prevent dust, dirt or other foreign matter from contaminating the console,
do not leave the disc cover open for long periods of time.
3. Do not use any type of AC Adapter other than the one provided with your
system. The AC Adapter and console may become warm during use; this is
normal and is no cause for concern.
4. The console has intake and exhaust vents on the right and left sides
designed to maintain adequate ventilation. Do not operate the console in
any location where these vents may become covered or obstructed.
5. Do not disassemble or try to repair the Wii, accessories orcomponents.
Doing so voids your warranty.
6. After you have finished playing, be sure to remove the Game Disc from the
console.
7. Do not store the Wii in a humid place, on the floor or inany location where
it may collect dirt, dust, lint, etc.
8. Do not drop, hit or otherwise abuse the Nintendo GameCube system,
components or accessories.
9. Do not leave the system turned on for extended periods when not in use.
10. When disconnecting any plugs from the console or wall outlet, first turn the
Wii off. Then carefully pull by the plug itself rather than by
the cord. Do not step on, sharply pull or bend any wire or cables.
11. Do not expose the Wii system, components or accessories to extreme
heat or cold.
12. Do not spill liquids on the Wii system, components or
accessories. To clean, use a soft slightly damp cloth. Allow the component
to dry completely before using again. (Use water only.)
PATENT INFORMATION
Nintendo products are protected by some or all of the following patents:
United States Patent Numbers: XXXXXXXXXXXXXXXXXXXXXXXXXXXX
Canadian Patent Numbers: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX.
Other patents are issued and pending in the U.S., Canada and elsewhere.
REGULATIONS FOR EQUIPMENT USE IN U.S.A.
AND CANADA
FCC and Industry Canada Information
In order to comply with FCC radio-frequency radiation exposure guidelines for
an uncontrolled exposure, this device and its antenna must not be co-located
or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
interference received, including interference that may cause undesired
operation of the device.
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate this device.
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician or call Nintendo
Consumer Service at 1-800-255-3700 for assistance.
The user may find the following booklet prepared by the Federal
Communications Commission helpful: How to Identify and Resolve Radio-TV
Interference Problems. This booklet is available from the U.S. Government
Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
The term IC before the certification/registration number only signifies that the
Industry Canada technical specifications were met.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference,
裏
