Mitsumi Electric WC69 Bluetooth LE Module User Manual WML C69 03x

Mitsumi Electric Co., Ltd. Bluetooth LE Module WML C69 03x

User manual

Page 1 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
WML- 69 User Manual
The purpose of this manual is to explain correct way how to integrate module WML-68 to the end
product. It includes procedures that shall assist you to avoid unforeseen problems.
This manual presents information that shows how module and OEM product, where module integrated,
complies with regulations in certain regions. Any modifications, not expressly approved by the
manufacturer could void the authority to operate in these regions.
Content
1. General
2. Description
3. European Community Declaration of Conformity with Regard to the R&TTE
Directive 1999/5/EC
4. FCC Regulatory Information
1. General
This Bluetooth radio module has to be installed and used in accordance with the technical
description/installation instructions provided by the manufacturer.
This Bluetooth radio module is intended to be placed on the market in all States, where
the Bluetooth™ technology and the used frequency band is released.
For detail information concerning type approval of this module (e.g. where this module is
already pre-approved) please contact the manufacturer.
The system may only be implemented in the configuration that was authorized.
Note that any changes or modifications to this equipment not expressly approved by
the manufacturer could void the user’s authority to operate this equipment.
Page 2 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
2.DESCRIPTION.
2.1 Model Number
WML-C69
2.2 Hardware: Version 1
This document describes the reference design for application as follows.
2.3 FEATURES
Bluetooth Ver4.0 Low Energy Single Mode
Host Interface：UART
Frequency: 2402-2480MHz (World Wide)
RF Channel band: 2MHz
RF Channel number: 40ch
Data Rate: 1Mbps
Output Power: 0dBm Sensitivity: -84dBm
Supply Voltage: 1.8V-3.6V
Current Consumption
Tx: 17mA, Rx: 15mA, Sleep: 0.6uA
Operating temperature: -30 to +85 degree C
Module size: 19.9mm x 10.8mm x 2.2mm
2.4 APPLICATIONS
Healthcare products, digital cameras, PC peripherals, PDA.
2.5 ARCHITECTONICS
WML-C69 has Bluetooth chip and Crystal inside.
UART interface is used for customer’s application.

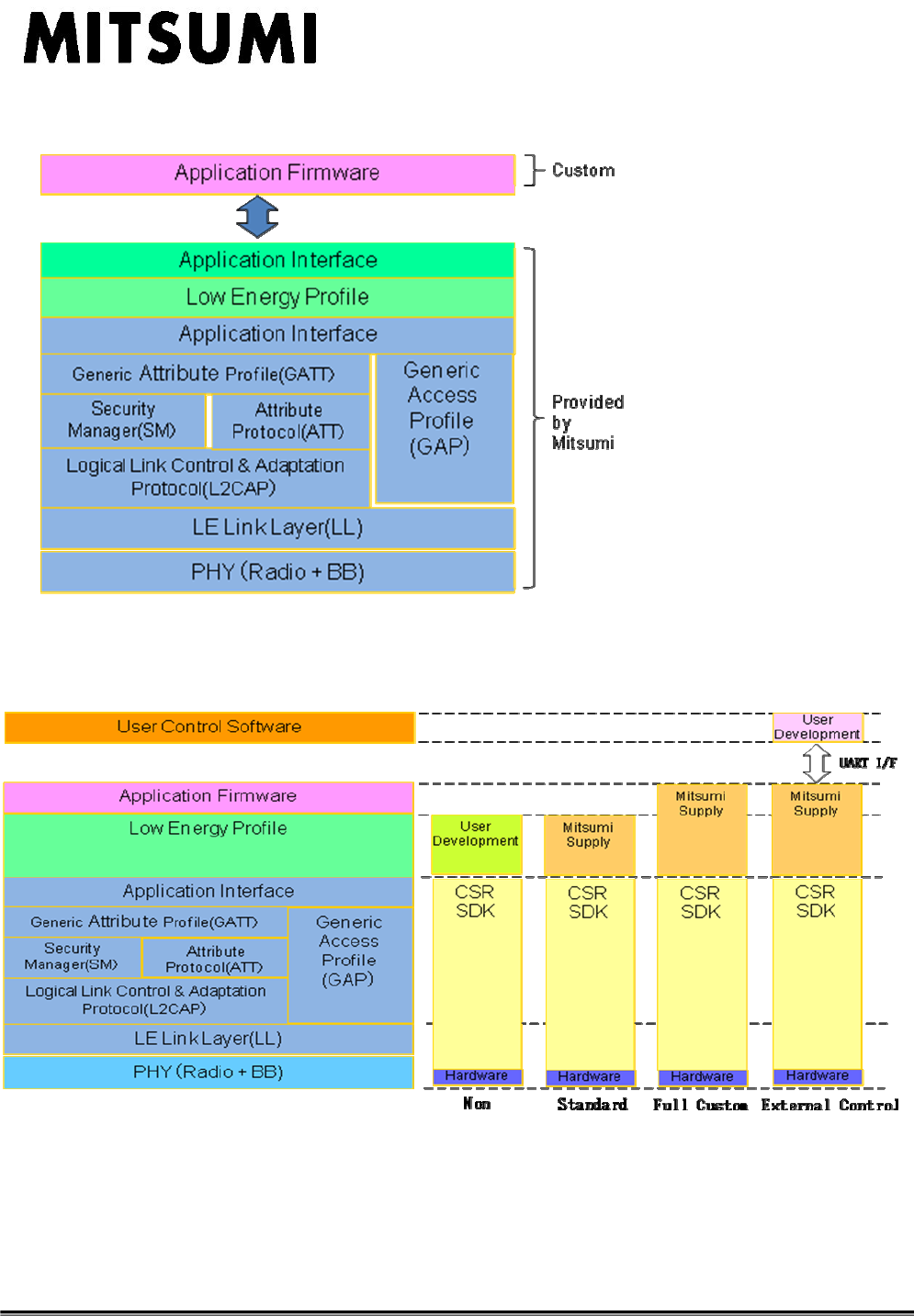

Following figure shows Software Stack for WML-C69 and customer’s application as example.
Page 3 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
2.6 SOFTWARE LAYERS
2.7 SOFTWARE SUPPORT
Non： Mitsumi provides HW only （Software developed by customer）
Standard： SIG- compliant Profiles (such as Proximity)
Full Custom： SIG-compliant Profiles + User specification
External Control：Standard, Full Custom + additional external I/F（external microprocessor)
Page 4 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.

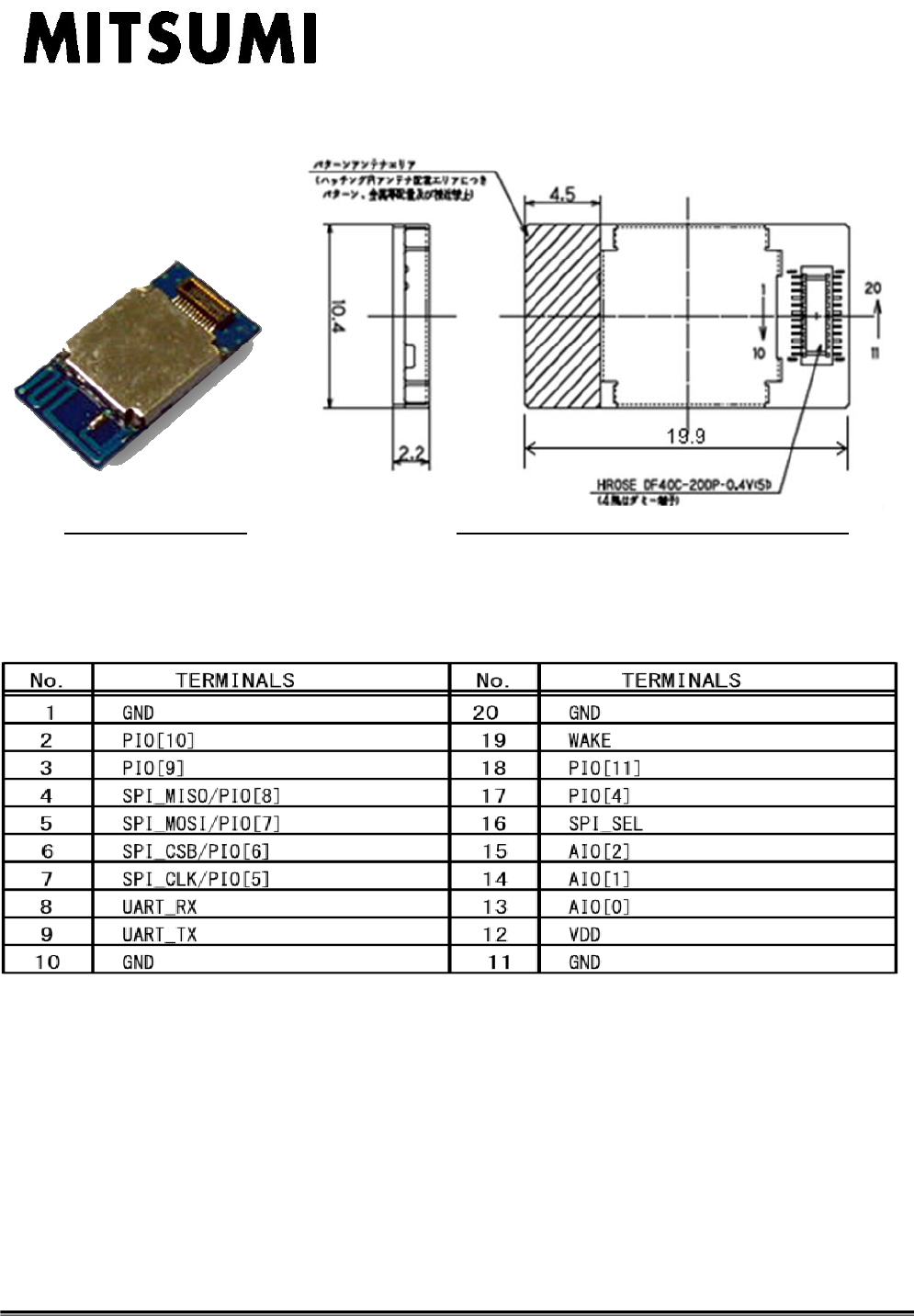

2.8 DIMENSIONS
19.9 x 10.8 x 2.2mm CONNECTOR:HIROSE:DF40C-20DP-0.4V(51)
Page 5 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
3. European Community Declaration of Conformity with Regard to the R&TTE
Directive 1999/5/EC
Hereby,MITSUMI declares that The Mitsumi module WML-C69 complies with the following
directive and standards:
Directive 1999/5/EG (R&TTE Directive):
EN 300 328 V1.8.1 (2012-04), Electromagnetic compatibility and Radio spectrum
Matters (ERM); Wideband transmission systems; Data transmission equipment operating in
the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
We hereby declare that the human exposure of the Mitsumi module WML-C69 is below
the SAR limits specified in the EU recommendation 1999/519/EC (the applicable limits are
specified in table 1 with 2W/kg).
The technical documentation as required by the Conformity Assessment procedure is kept at the
following address :
2-11-2, TSURUMAKI, TAMA-SHI, TOKYO, 206-8567 JAPAN.
MITSUMI ELECTRIC CO.,LTD.
ENGINEERING DEPTMENT
RF MODULE BUSINESS DIVISION
TEL:+81-42-310-5691
FAX:+81-42-310-5582
Labelling
CE conformity marking for product.
OEM product / application, where this radio module is integrated/ installed in , has to be labelled in
accordance to R&TTE directive, Article 12. An auxiliary label is included in the packaging to the
radio module, which can be used for that purpose and has to be permanently affixed to the OEM
product/ application, otherwise OEM product must be approved separately.
Regulatory information on the OEM devise should contain labelling that:
Approved in accordance to R&TTE directive transmitter module marked by CE,
manufactured by MITSUMI incorporated to OEM product.
4. FCC Regulatory Information
Page 6 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
The Federal Communication Commission Radio Frequency Interference Statement
includes the following paragraph:
This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and radiates radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio / TV technician for help.
FCC RF Radiation Exposure Statement:
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Not Authorized modification could void authority to use this equipment.
Page 7 of 7
WML-C69_User_Manual
1. APRIL. 2013
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Labelling.
MITSUMI module WML-C69 labelled as below.
FCC Regulatory information. OEM devise should contain labelling that:
Approved in accordance to FCC rules transmitter module marked by FCC-ID:POO-WML-C69 label,
manufactured by MITSUMI incorporated to OEM product. When its not possible, in user manual
should be included such information.
For example :
“This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.” This device contains
FCC-ID:POO-WC69
This label will be placed on the final product, clearly visible to all persons exposed to the
transmitter. The specific location on the final product will be consistent with each same final
product, but will vary in location across various final products, and in any case will always be
clearly visible to all persons exposed to the transmitter. The physical size of the label and font size
of the lettering will be dependent on the size of the final product, but in any case will always be
clearly visible to all persons exposed to the transmitter.
