Mitsumi Electric WML-C46 Bluetooth Module User Manual

Mitsumi Electric Co., Ltd. Bluetooth Module Users Manual

Users Manual

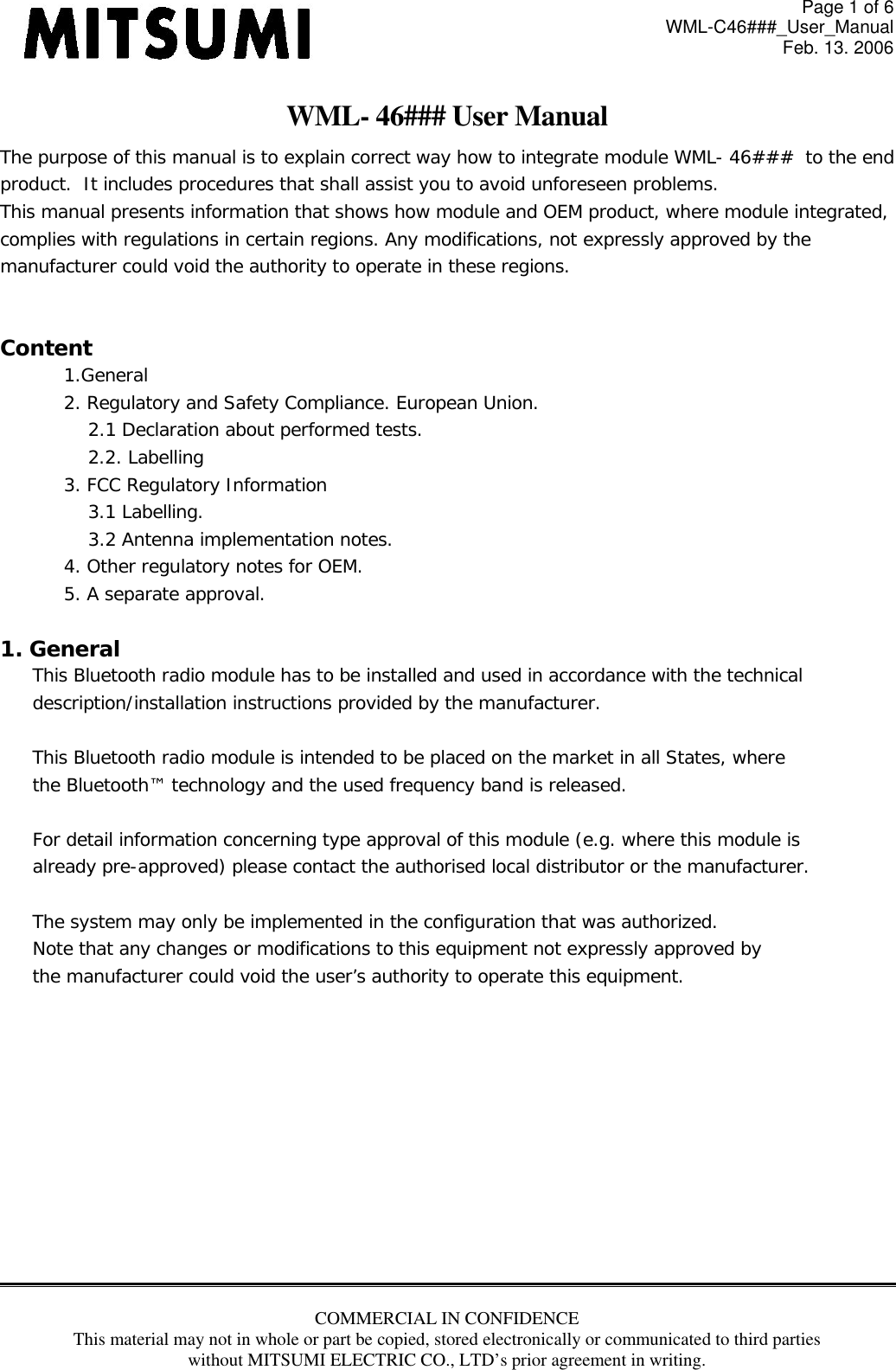

Page 1 of 6 WML-C46###_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. WML- 46### User Manual The purpose of this manual is to explain correct way how to integrate module WML- 46### to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Content 1.General 2. Regulatory and Safety Compliance. European Union. 2.1 Declaration about performed tests. 2.2. Labelling 3. FCC Regulatory Information 3.1 Labelling. 3.2 Antenna implementation notes. 4. Other regulatory notes for OEM. 5. A separate approval. 1. General This Bluetooth radio module has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. This Bluetooth radio module is intended to be placed on the market in all States, where the Bluetooth™ technology and the used frequency band is released. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorised local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

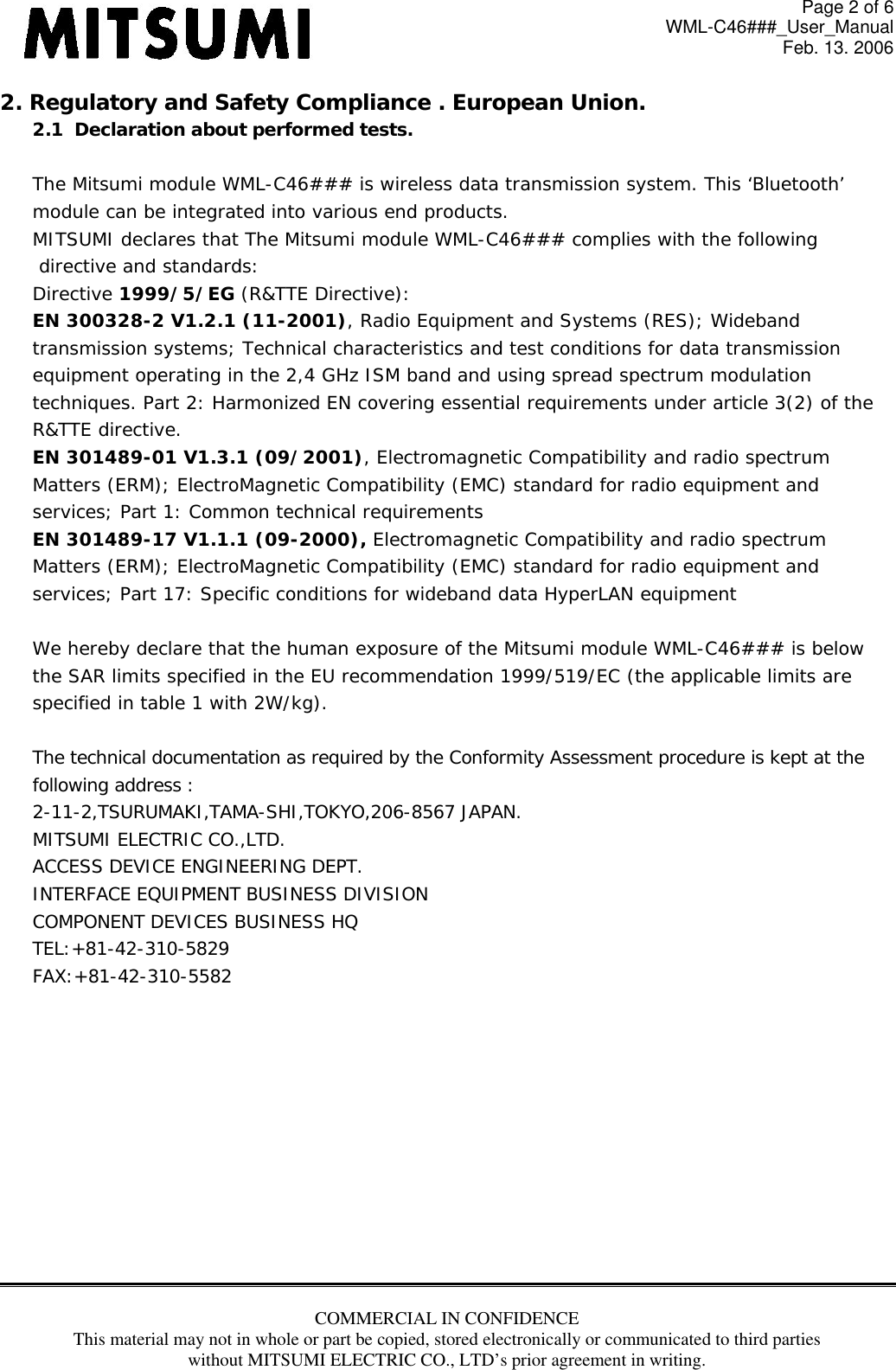

Page 2 of 6 WML-C46###_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2. Regulatory and Safety Compliance . European Union. 2.1 Declaration about performed tests. The Mitsumi module WML-C46### is wireless data transmission system. This ‘Bluetooth’ module can be integrated into various end products. MITSUMI declares that The Mitsumi module WML-C46### complies with the following directive and standards: Directive 1999/5/EG (R&TTE Directive): EN 300328-2 V1.2.1 (11-2001), Radio Equipment and Systems (RES); Wideband transmission systems; Technical characteristics and test conditions for data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques. Part 2: Harmonized EN covering essential requirements under article 3(2) of the R&TTE directive. EN 301489-01 V1.3.1 (09/2001), Electromagnetic Compatibility and radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301489-17 V1.1.1 (09-2000), Electromagnetic Compatibility and radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for wideband data HyperLAN equipment We hereby declare that the human exposure of the Mitsumi module WML-C46### is below the SAR limits specified in the EU recommendation 1999/519/EC (the applicable limits are specified in table 1 with 2W/kg). The technical documentation as required by the Conformity Assessment procedure is kept at the following address : 2-11-2,TSURUMAKI,TAMA-SHI,TOKYO,206-8567 JAPAN. MITSUMI ELECTRIC CO.,LTD. ACCESS DEVICE ENGINEERING DEPT. INTERFACE EQUIPMENT BUSINESS DIVISION COMPONENT DEVICES BUSINESS HQ TEL:+81-42-310-5829 FAX:+81-42-310-5582

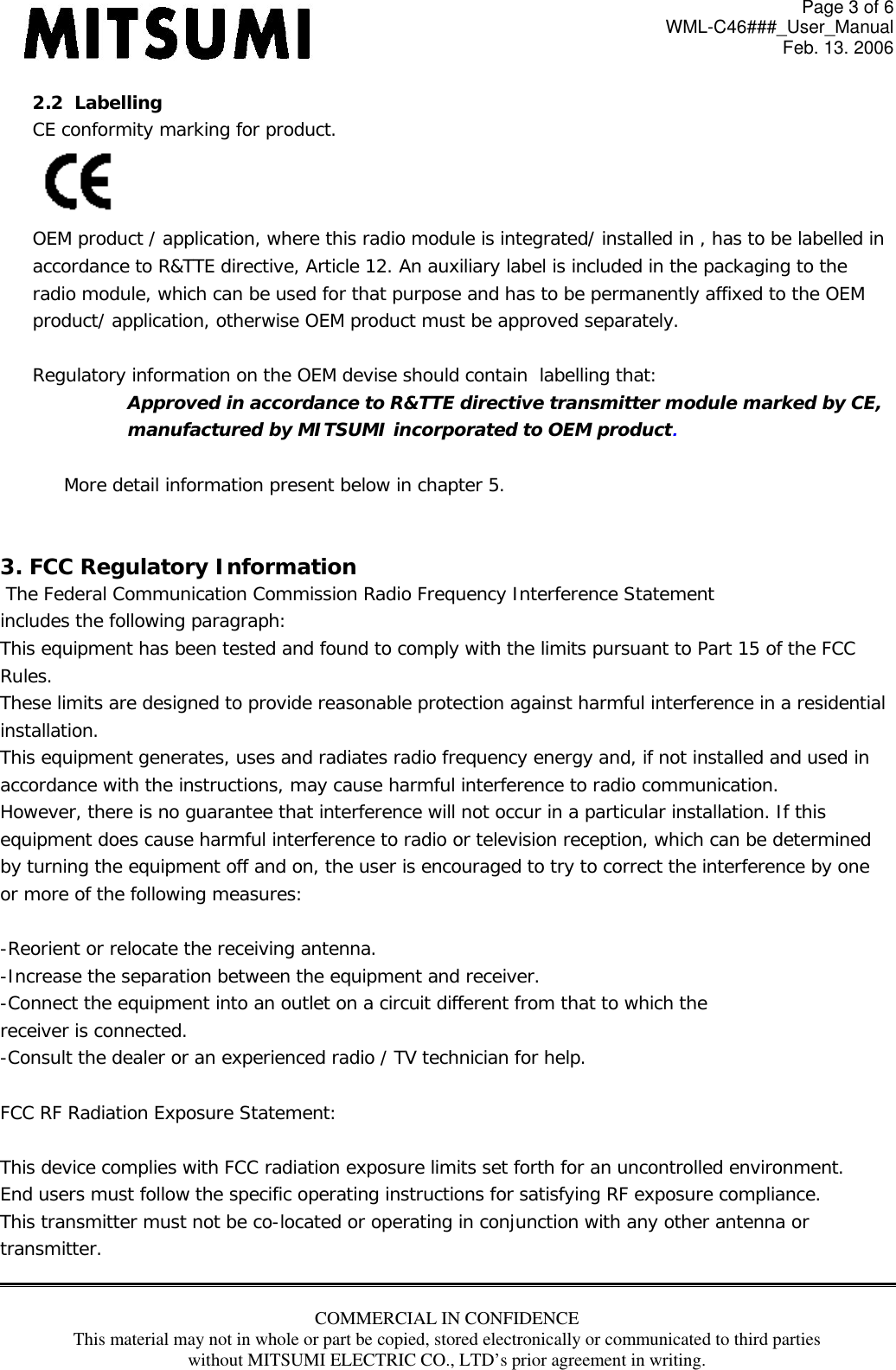

Page 3 of 6 WML-C46###_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2.2 Labelling CE conformity marking for product. OEM product / application, where this radio module is integrated/ installed in , has to be labelled in accordance to R&TTE directive, Article 12. An auxiliary label is included in the packaging to the radio module, which can be used for that purpose and has to be permanently affixed to the OEM product/ application, otherwise OEM product must be approved separately. Regulatory information on the OEM devise should contain labelling that: Approved in accordance to R&TTE directive transmitter module marked by CE, manufactured by MITSUMI incorporated to OEM product. More detail information present below in chapter 5. 3. FCC Regulatory Information The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio / TV technician for help. FCC RF Radiation Exposure Statement: This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 4 of 6 WML-C46###_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. Not Authorized modification could void authority to use this equipment. 3.1 Labelling. MITSUMI module WML-46### labelled as below. Module internal Antenna FCC Regulatory information. OEM devise should contain labelling that: Approved in accordance to FCC rules transmitter module marked by FCC-ID POOWML-C46 label, manufactured by MITSUMI incorporated to OEM product. When its not possible, in user manual should be included such information. For example : “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” This device contains FCC-ID POOWML-C46 MITSUMI Company LogoModule’s Serial Number
Page 5 of 6 WML-C46###_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. This label will be placed on the final product, clearly visible to all persons exposed to the transmitter. The specific location on the final product will be consistent with each same final product, but will vary in location across various final products, and in any case will always be clearly visible to all persons exposed to the transmitter. The physical size of the label and font size of the lettering will be dependent on the size of the final product, but in any case will always be clearly visible to all persons exposed to the transmitter. 3.2 Antenna implementation notes. Any antenna of a similar type witch listed in antenna declaration may be used without retesting. Use of an antenna of a different type than the tested antenna or one that exceeds the gain of a tested antenna would require retesting and new approval by either a Telecommunication Certification Body or the Commission. Manufacturers OEM would be expected to supply a list of acceptable antenna types with applications for equipment authorization. The external antennas are described as following. Model Name Manufacturer Max.Gain [dBi] ANT8030-2R4-01 TDK 2.0 Radio module WML-46### can be incorporated into many different devices. The modules generally consist of a completely self-contained radiofrequency transmitter missing only an input and a power source to make it functional. Once the modules are authorized by the Commission under our certification procedure, they may be incorporated into a number of host devices such as, PCs or PDAs, which have been separately authorized. The completed product generally is not subject to requirements for further certification by the FCC. More detail information present below in chapter 5. 4. Other regulatory notes for OEM. Modular transmitters save manufacturers the time and any related expenses that would be incurred if a new equipment authorization were needed for the same transmitter when it is installed in a new device. This means that it can be integrated into end products without further testing or approval listing. The manufacturer must state the MITSUMI part number and product reference in his literature in order to meet the requirements of the Bluetooth and regulatory. This should be clearly indicated in the OEM manuals. The purchaser / integrator ( developer) must satisfy all relevant FCC, SAR, EMC and Radio regulations which apply to their finished product. We believe such parties have the technical competence to ensure that the systems they deploy continue to comply with all those rules.
Page 6 of 6 WML-C46###_User_Manual Feb. 13. 2006 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. Further information and guidance on this subject and other equipment authorization matters can be found under -Regarding FCC regulatory information on the FCC’s website at: www.fcc.gov/oet/info/database/letters/. - Regarding R&TTE directive http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm 5. A separate approval. A separate approval of the device into which the module is incorporated is only required when it cannot be insured that the conditions on the module grant will be met. The purchaser must satisfy all relevant FCC, EMC and Radio regulations R&TTE directive which apply to their finished product.
