Congratulaons on the purchase of the Mobi® Pure Sounds™ Audio Monitor-
ing System, which brings you the latest in wireless technology. We recommend
that you read the instrucons carefully before use.
The Mobi® Pure Sounds™ enables you to transmit audio wirelessly, which is
ideal for monitoring a babies, young children, pets, or the elderly.
Your Mobi® Pure Sounds™ uses a digital transmission to ensure clear and con-
sistent audio transmission. The signal also passes easily through interior walls.
However, buildings with metal frames or placing the transmier near large
metal objects may cause signal degradaon. If recepon is poor, moving the
transmier or receiver may x this problem.
1
PACKAGE CONTENTS FEATURES
Trasmission Range up to 600Ft
2.4 GHz Private Digital Transmission
No installaon needed—ready to use
Compact design for easy portability
Auto Mute with Voice Acvaon
Low Baert and Out of Range Indicators
Rechargeable Baeries Included for Receiver
AC Adaptors included for Receiver and Transmior
1 x Receiver Unit (#70294R)
1 x Transmier Unit (#70294T)
1 X Receiver Power Cord
1 X Transmier Power Cord
1 x Rechargeable Baery Pack
NOTE: If you nd any of the contents are missing or should you need to order replace-
ment parts, please contact the manufacturer or visit www.getmobi.com.
2 3
Always use transmier and receiver where there is adequate
venlaon. To prevent overheang, keep away from heat sources
such as radiators, heat registers, stoves, or other appliances that
produce heat.
Use only a dry coon cloth to keep the Camera and Monitor units
free of dust. Do no use a dampened cloth, water, or liquid cleaner
of any kind.
Remove the baery from the Monitor during long periods of non-
use as alkaline baeries can leak.
Unplug the AC adaptors from the Monitor and Camera during peri
ods of non-use. To disconnect from the power supply, grip the
transformer and pull from the power socket. Never pull by the
cord.
Replace baery with the same equivalent type. Please dispose of
old, defecve baeries in an environmentally friendly manner in
accordance with the relevant legislaon.
Only use the Monitoring System with the supplied power adaptors.
CONSUMER GUIDE TO PRODUCT SAFETY
Please read this instrucon manual before using your Mobi® Pure Sounds™ sys-
tem. When using electrical appliances, basic safety precauons should always
be followed.
Please keep safe for future reference.
This product is not intended to be used as a medical monitor and its
use should not replace adult supervision.
Periodically examine this product for damage to the cord, housing or
other parts that may result in the risk of re, electric shock or injury.
Do not operate any product with a damaged cord or plug. If the Color
Wireless Monitor malfuncons or is damaged in any manner please
contact the manufacturer for examinaon and repair to avoid a hazard.
Never use transmier and receiver near water (i.e. bathtub, sink, etc.).
The AC adaptors are not Toys.
4 5
KNOWING YOUR RECEIVER KNOWING YOUR TRANSMITTER
11. Power On Indicator
12. DC Jack (5V/600mA)
Buon & LED Funcons
1. Power On/O Buon
2. Volume Up ( + )
3. Volume Down ( - )
4. Sound Level Indicator (LED will ash indicang noise level increase)
5. Power On Indicator (baery charge indicator)
6. Link Indicator LED (LED will blink if connecon is poor/lost)
7. Speaker
8. DC Jack (5V/600mA)
9. Belt Clip
10. Baery Compartment
6 7
1
2
3
4
5
6
7
89
10
11
12

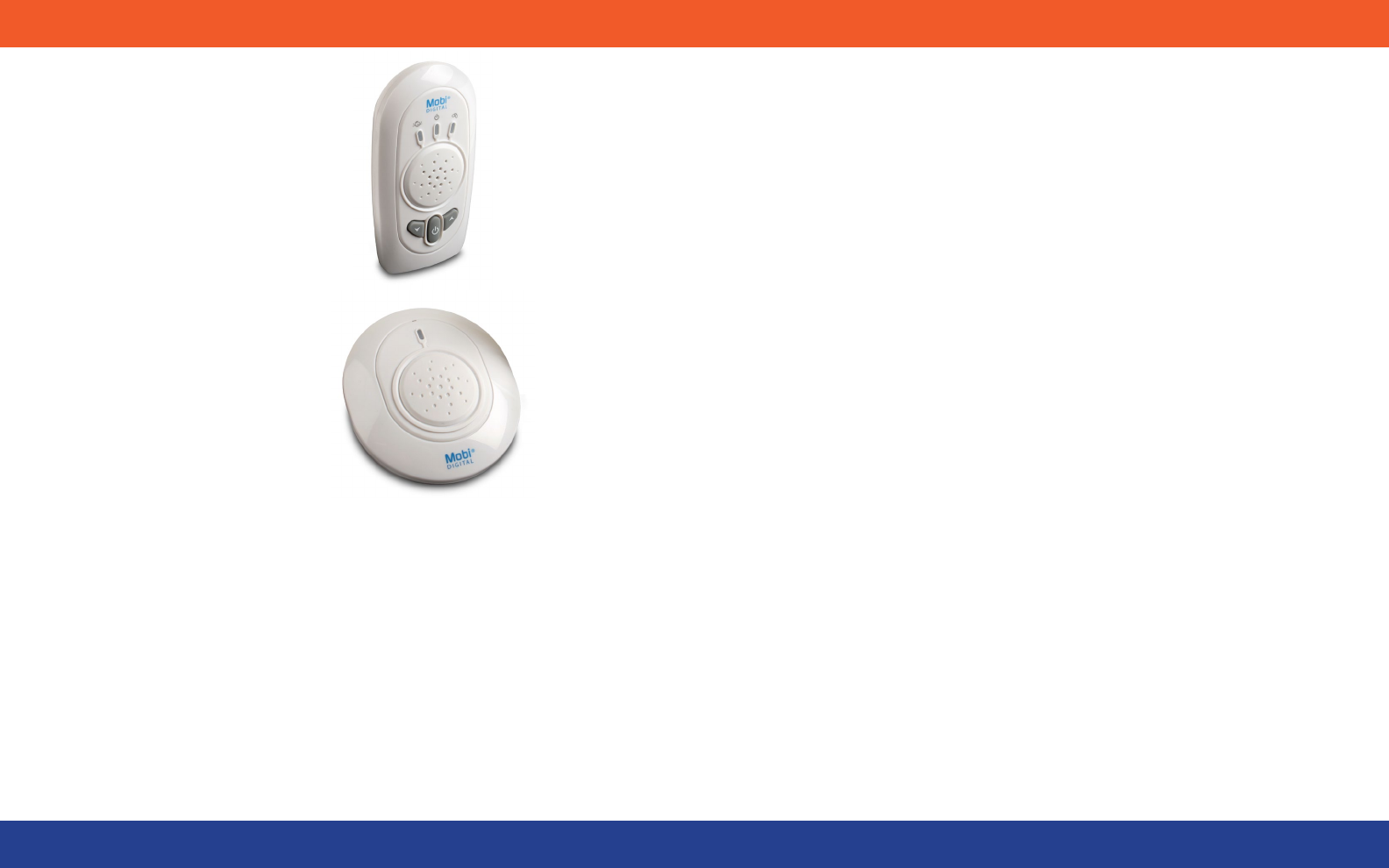

INSTALLATION & SETUP RECEIVER/TRANSMITTER OPERATION
The Mobi® Pure Sounds™ transmier is designed to be powered by either
rechargeable baeries (provided) or the AC/DC adaptors.
Using AC/DC adaptor:
Plug the connector of the AC adaptor into the DC Jack on the unit (g.
7 pg. 6, g. 12 pg. 7).
Plug the power cord into an outlet.
Press the Power On/O Buon (g. 1 pg. 7) to turn ON your receiver.
The power indicator lights will illuminate indicang units are ON
(g. 5 pg. 6, g. 11 pg. 7)
Using Baeries:
Remove the belt clip (g.8 pg. 6) by sliding the clip downwards
Remove the baery door on your receiver (g. 9 pg. 6)
Plug in the supplied baery pack into your baery compartment
Return baery cover and belt clip to their original posion
Note: Baery life is between 3-4 hours. When monitoring over long periods
and, in parcular, overnight, it is recommended to use AC adaptors for the
receiver.
Warning:
1. Use on the supplied baery pack with your receiver.
2. Do not mix old and new baeries.
3. Do not mix alkaline, standard or rechargeable baeries
4. Remove the baeries during long periods of non-use.
5. Use only the AC adaptors supplied with the package.
Note: Transmier only funcons with AC Adaptor.
Receiver Power ON/OFF
Press the Power On/O Buon (g. 1 pg. 7) to turn on your receiver. The power
indicator light (g. 5 pg. 6) will turn red indicang receiver is ON.
Volume Adjustment
Press the volume up (g. 2 pg. 6) or volume down (g. 3 pg. 6) to adjust the
volume to the desired level.
LED Indicator Lights
The Link Indicator Light (g. 6 pg 6)
will blink connuously if your
connecon to the receiver is poor or lost.
The Sound Indicator Light (g. 4 pg 6) will blink when sound levels increase
Auto Mute/VOX Acvaon Seng
Your receiver is equiped with automaca mute seng. When sound levels
reach a preset level the mute opon will engage to conserve baery power,
once the transmier picks up noise the receiver will automacally begin trans-
ming.
Note: If link is lost between transmier and receiver you must place both units near each
other, turn them o then on and link will resume.
Transmier Power ON/OFF
Your trasmier will automacally turn ON once you plug in the AC/DC adaptor
(g. 12 pg. 7)
8 9
RADIO INTERFERENCE ADVICETROUBLESHOOTING
10 11
Problem Soluon
Transmier will not
turn on
Check AC/DC Connecon.
Conrm power outlet is working properly.
Charge Baery Pack
Receiver will not turn
on
Check AC/DC Connecon.
Conrm power outlet is working properly.
Baery does not
recharge
AC/DC adaptor has not been connected.
Check baery pack connecon to receiver.
Connecon is lost Conrm receiver and transmier are ON.
Conrm AC/DC adaptor is connected properly.
Place transmier and receiver near each other,
turn o both units and turn the back on to
resume link
FCC Statement
15.19:
This device complies with part 15 of the FCC Rules.
Operaon is subject to the following two condions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received,
including interference that may cause undesired operaon.
15.21:
Changes or modicaons not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC Radiaon Exposure Statement:
-
-
IC STATEMENT:
Operaon of this device is subject to the following two condions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that
may cause undesired operaon of the device.
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment .For baby unit it should
be installed and operated with minimum distance 20cm between the
radiator& your body.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
WARRANTY
12
Mobi Technologies, Inc. warrants this product to be free from defects in
material and workmanship for a period of ninety (90) days from the date of
purchase. Should this product prove to be defecve at any me during the
warranty period, Mobi Technologies, Inc. will, at its opon, either replace
or repair it without charge. Aer the warranty period, a service charge will
be applied for replacement of parts or labor for repair. To obtain warranty
service, please return the product to Mobi along with a dated sales re-
ceipt from the place of purchase. Purchaser is responsible for shipping the
product to Mobi Technologies, Inc. at the address indicated below and for all
associated freight and insurance costs. This warranty does not cover damage
caused by accident, misuse, abuse, improper maintenance, unauthorized
modicaon, or connecon to an improper power supply. A charge will be
made for repair of such damage. This warranty excludes all incidental or
consequenal damages and any liability other than what is stated above. ©
2011 Mobi Technologies, Inc. All Rights Reserved.
Mobi Technologies, Inc.
5913 Blackwelder St
Culver City CA 90232
Toll Free Number (877) 662-4462
www.getmobi.com
Please register your product at: www.getmobi.com/registerproduct.php
NOTES
13
Mobi Technologies, Inc.
5913 Blackwelder St
Culver City CA 90232
Toll Free Number (877) 662-4462
www.getmobi.com
Mobi and Pure Sounds are registered
trademarks of Mobi Technologies, Inc.
© 2012 Mobi Technologies, Inc. All Rights Reserved
