MobiFren GBH-S880 Bluetooth Stereo Earset User Manual
GT Telecom Co., Ltd. Bluetooth Stereo Earset
MobiFren >
User manual
First Apple MFi certified Bluetooth earphone
User Guide
MobiFren is made by dreaming for all the user's happiness
■
Premium Sound
(MSTS™ Tuning Technology & apt-X codec & AAC codec)
■
Supporting Android & iOS App.
MobiFren Bluetooth earphone Features
MSTS™ Tuning Technology together with lossless
compression codec apt-X & AAC codec enables you to
enjoy premium Hi-Fi stereo sound.
With built-in DSP chip, it supplies optimal call quality
by noise reduction and echo cancellation.
You can use many kinds of useful functions like as
below, if you download MobiFren_SM from the store.
Caller ID TTS
If you press any button of the headset on incoming
call, the mobile phone reads you the caller's name
via phone speaker.
SMS/SNS message TTS ( Available with Android )
If there's new message of SMS, SNS or Line, it reads
you the message, together with beep.
Find mobile phone
If you can't remember well where you placed mobile
phone, it helps you to find out your mobile phone by
pressing headset button. Mobile phone will ring.
Anti Earphone loss
When the earphone is disconnected with mobile phone,
mobile phone alarms you with vibration or message.
Anti Mobile Phone loss
When the mobile phone and earphone is disconnected
during connection, earphone alarms its disconnection,
to prevent any possibility of your mobile phone loss.
You can stop alarm sound if you press any button of the
earphone.
Mobi Health
It counts steps, walking distance and measures calorie
consumption like as pedometer.
Hot call (Prompt call)
If you register one phone number in advance that you
call frequently, you can call easily by pressing headset
button for two times consecutively.
(For iPhone, it connects to call with Call button in mobile.)
Camera Remote control (Available with Android)
It enables to play as a remote control when you take a
picture. It's helpful when you take a self picture or
group picture.
■
Bluetooth 4.2
■
Multi Point
■
Voice prompts
It's available the latest firmware for optimized
usage if there's upgrade.
※ Its functions are variable depending on mobile phone.
■
Firmware upgrade
※ There's built-in magnet to hold the L&R earphone
together, to make it easier to carry while not using.
■
Fixing magnet
※ Caution
American Heart Association and British Drug Admini
stration warns that magnets can affect medical
equipments (pacemaker, defibrillators, insulin pump,
and other electronic medical equipment) if the distance
between magnets and medical equipment is within
15 cm)
Please do not use this product before you consult with
your doctor, if you are using the mentioned medical
equipment.
Please do not place this product to the places, influe
nced by magnetism.
The magnetic products like as credit card, telephone
card, bank account, ticket can be deleted its information.
Last Call
(Instant call for the latest number)
(Available with Android)
You can connects to call by earphone after searching
recent call list.
Present time notice
By pressing headset button for 2 times consecutively, it
notices you the present time.
Present time notice
By pressing headset button for 2 times consecutively, it
notices you the present time.
Incoming call alarm via earphone (Android only)
Alarm sound increases gradually via earphone if there's
incoming call. It's useful when your mobile is silent mode.
Manual
Contents
Headset & Accessories 2
1. About your MobiFren earphones
2-1. How to wear earphone
5
6
2-2. Attach/Detach ear foam and foam tip 7
4. Getting started with your MobiFren
(1) Getting started with your MobiFren
3. Button guide 8
14
15
15
(3) Call
(4) Factory reset
(5) Firmware upgrade
(6) Listening music
17
( 7) Changing Music Mode
(2) Multi point
16
16
17
( 8) Android application 18
5. What does LED color mean?
6. Troubleshooting & FAQ
7. Handle MobiFren with care
8. Certification and safety approvals
21
22
23
24
9. Features & Specifications
10.
Warranty
25
26
Turn on/off the headset 3
Charging 4

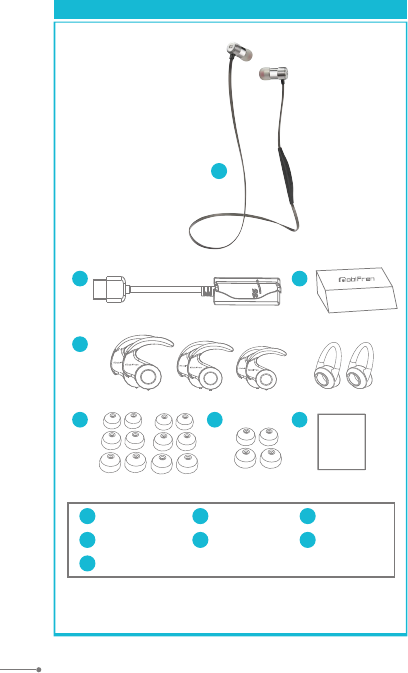

Headset & Accessories
Earphones
※ The drawings and examples in manual are for better understanding to
this product, so it may be different from the real goods.
Accessories and design can be changed without prior notice.
1
charging cradle
2
Pouch
3
Ear cushion(L,M,S)
4
Manual
4
Ear pad(L,M,S)
5
Foam tip(L,M)
6
1
2
2
Manual
7
6
5
4
3
Press MFB for 2 seconds.
It turns on and blue LED glitters
Press MFB for 4 seconds.
If you give a MFB button long press, the purple LED
glitters and the headset will be power off after you
hear " Power off".
Turn on
Turn off
Volume up ( )
Volume down ( )
Button
1
Microphone
4
MFB Button (Multi Function)
2
LED display
5
3
Charging port
6
Button
Fig.1 Turn on/off the headset
4
5
6
1
2
3
3
※
Make sure that your headset is fully charged before
you use it.
- The LED shows 'RED' during charging and will
turn 'BLUE' when fully charged.
LED
display
Fig.2 Charging
4

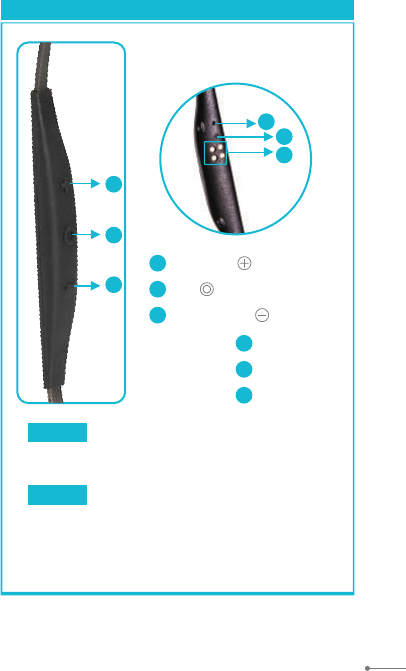

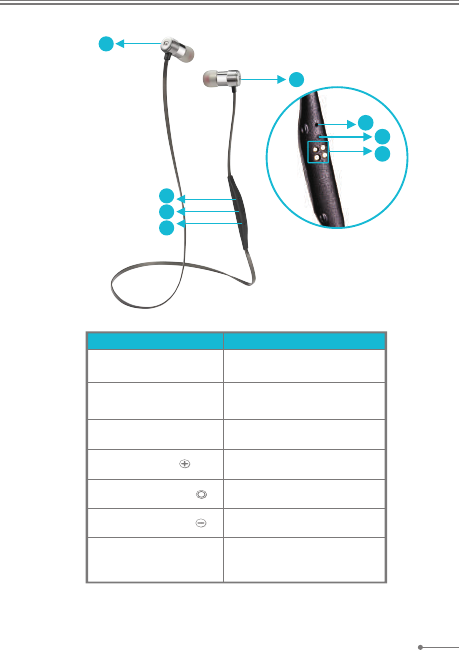

1. About your MobiFren
2. LED
3. Charging port
LED guide light for
headset status LED
1. Microphone
Designation Function
Microphone
Charging port
Volume control,
Previous song etc.
7. Fixing Magnet
Magnet to hold
L&R earphone together
Volume control,
Next song etc.
4. Volume up ( )
Turn on/off, Answer/Reject/
Convert a call/ Play/ etc.
5. Multi Function ( )
6. Volume down ( )
7
7
1
2
3
4
5
6
5

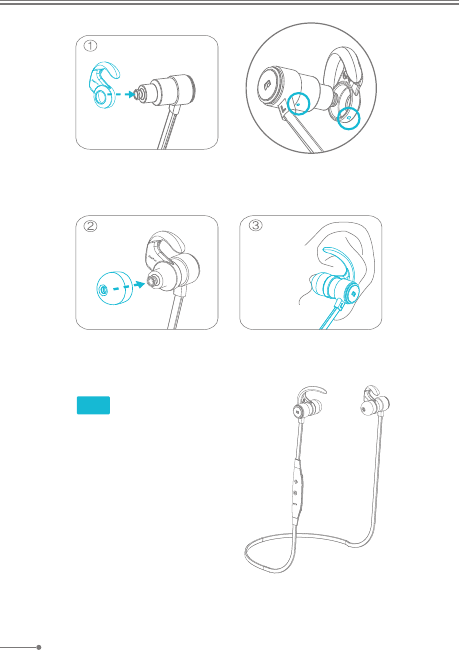

First, attach ear cushion to earphone.
(Like as Fig. 1, assemble the ear cushion projected part to
meet ear body hole at bottom.)
Fig.1
Then, wear the earphone after
fixing ear cushion to the ear.
Attach the proper size of
ear pad to earphone.
Select the best fit ear pad size for you,
and it's comfortable to wear with
supporting ear cushion.
Tip
2-1. How to wear earphone
6

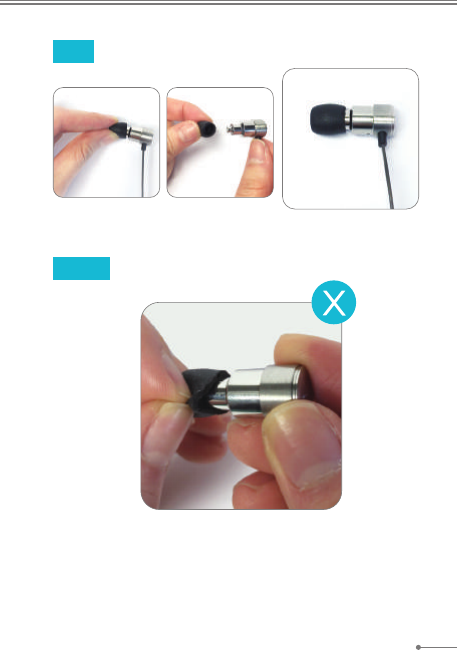

Attach/Detach holding ear foam and
foam tip holding together. Well assembled
If you handle excessive force for ear foam,
it will damage to the bonding area between ear foam and foam tip.
2-2. Attach/Detach ear foam and foam tip
7
Good
Not good

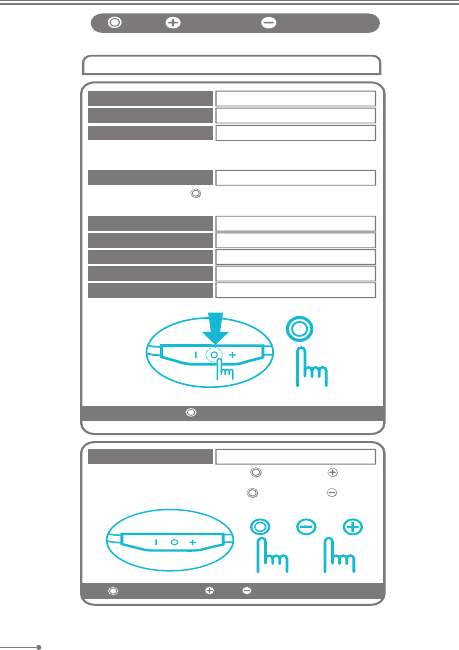

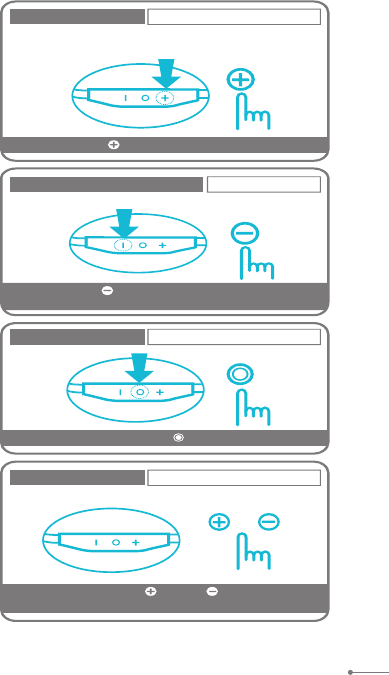

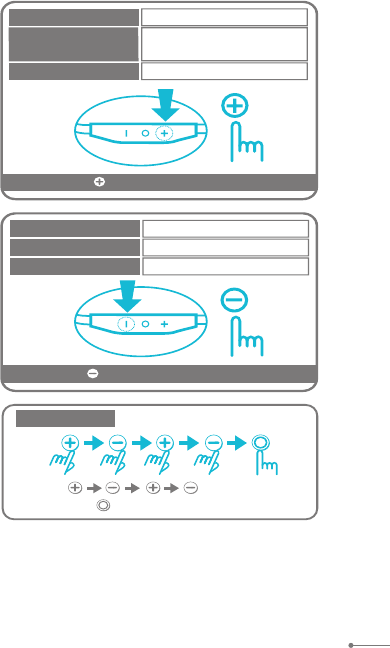

3. Button Guide
Basic Button Control
You can control earphone easily with these 3 buttons.
Volume down
Volume up
MFB
Answer a call Short press
End a call Short press
Turn on headset Press for 2 seconds
(If no paired device, it moves to pairing mode automatically.)
(If there's paired device, it connects to the paired device.)
Pairing mode
Reject a call
Convert a call
Play/Pause
Stop
Press for 4 seconds at power off
Press for 1 second
Press shortly during call
Short press
Press for 1 second (during play)
Turn off headset Press for 4 seconds
If you give a MFB long press, the purple LED glitters
and the headset will be power off after you hear "Power off"
Press MFB button
Music Mode change
Press for 1 second (during play)
To move forward direction, press( ) button and ( )button
simultaneously.
To go backward direction, press( ) button and ( )button
simultaneously.
( )MFB + Volume ( ) or ( ) Press at the same time.
+
or
Press for 1 second
8
Press volume up button.
Press for 1 second (during call)
Short pressVolume +
Next song
Press for 1 second (during play)
Waiting a call and put a
call on hold
Volume -
Mic mute
Previous song
Short press
Press for 1 second (during call)
Press for 1 second (during play)
Press volume down button
buttons in order, Press
then press ( )button
Factory Reset
9

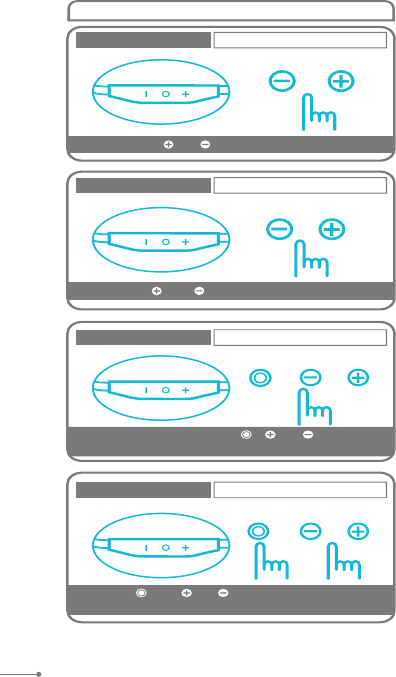

Operating App functions with earphone
TTS caller ID
Short press upon incoming call
( ) or ( ) Press volume button
or
Short press
Find mobile phone
Press for 1 second (at standby)
( ) and ( ) Press at the same time
+
Press buttons for a second
at the same time
TTS ( Stop during TTS)
Short press (during message TTS)
(Only with Android)
During message TTS, press ( ), ( ) or ( ) button.
oror
Short press during message TTS
TTS (Manual TTS play)
Short press
Press MFB( ) and ( ) or ( ) buttons at the same time after
received TTS message. (Only with Android )
+
or
Short press after received TTS message
10
※ It connects to call to the pre-registered number, with beep sound.
※ In case of iPhone, press Call button in your mobile.
Hot call (Prompt call) Short press for 2 times
Press Vol. up button
Short press for 2 times
Short press for 2 times
Time notice
Short press for 2 times
Press MFB ( ) button.
※ It works only when MobiFren camera application is on.
Camera remote control
Short press
Press Vol.( ) or Vol.( ) button.
(Available with Android)
or
※ You can connects to call by earphone after searching recent ca llist.
Short press for 2 times
Last Call (Direct call to the latest number)
Press Vol. down button
Short press for 2 times
(Available with Android )
11
Caution : Be careful not to separate the earphone charging
contact from the cradle, not to damage the earphone.

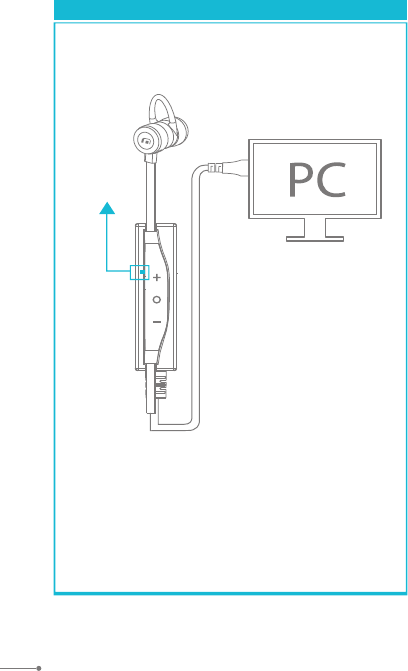

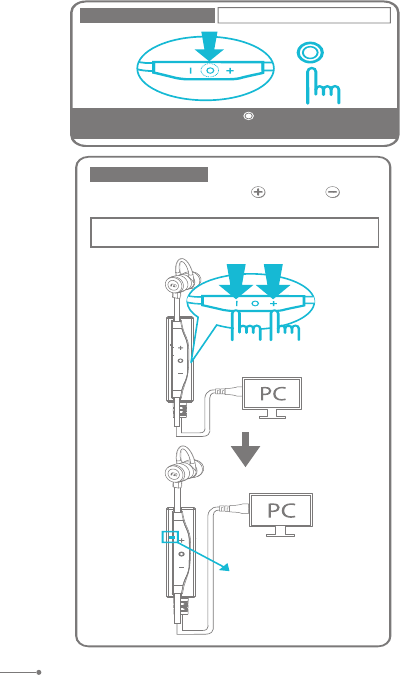

Firmware upgrade
During charging with PC USB, press ( ) button and ( ) button
at the same time for a second, then, red LED blinks and turn off.
LED display
Press simultaneously
for about 1 second.
12
1 seconds and hold pressed and release
Voice Memo
1 seconds and hold pressed and release
Press MFB ( ) button.
(Available with Android)
4. Getting started with your MobiFren
* Before you use MobiFren Bluetooth earphone, you
need to pair it with your mobile phone or Bluetooth
enabled device.
- On first purchasing, the earphone enters into pairing
mode automatically when the power is on.
And blue LED is continuously on.
(You need to pair with your mobile within 2 minutes.)
※ Entering into pairing mode with Bluetooth earphone
※ Pairing with mobile phone
1) Pairing on first purchasing
①

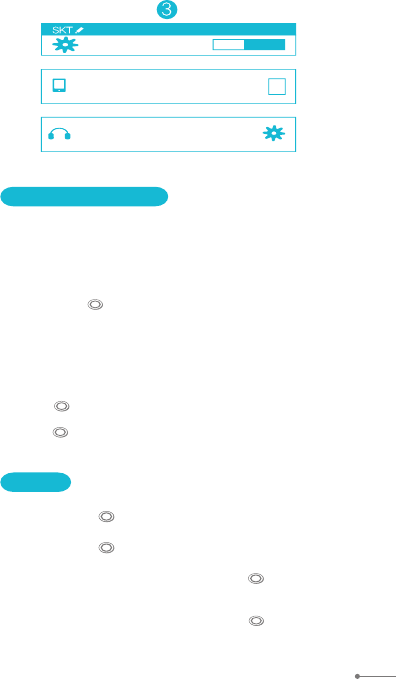

Install "MobiFren_SM" from Google play store or App store.
②
Press the first menu " Pair (Connect) headset ", then it goes
to Bluetooth setting.
③ Activate Bluetooth and search headset.
④
Select "GBH-S880" from the searched
devices,
then it pairs.
※ Pairing will be more easy with MobiFren_SM application.
① Activate Bluetooth function in your mobile phone according
to phone manual and
search GBH-S880 and select,
then,
it shows "Pairing".
(Some mobile phones need pass key(PIN), then, enter 0000.)
② If pairing is successful, it shows that " Connected to phone
and media audio" and blue LED glitters for 5 times. Now, it's
ready to use.
1. Pairing to your mobile phone
GBH-S880 are easy to use for everyone.
Way 1. Pairing with MobiFren App.
Way 2. Pairing with mobile phone setting
※ Entering into pairing mode with Bluetooth headset.
2) Pairing to other device
13
14
① Deactivate the Bluetooth function of the connected
device if there's connected device.
② Press MFB( ) button for 4 seconds to turn off.
③ Press MFB( ) button for 2 seconds, then, the head
set turns on and enters into pairing mode.
※ Pairing with mobile phone
① Follow the pairing procedure of way 1 or way 2 on
first purchasing.
② If the pairing is successful, it shows that " Connected
to phone and media audio"and blue LED glitters for
5 times. Now, it's ready to use.
※ When the headset is power off, if you press MFB
( ) for 4 seconds, it goes to pairing mode.
※ Useful tip (3 ways to go Bluetooth setting)
① Menu button ▶ Setting ▶ Bluetooth on main screen
② Drag down the screen and press Bluetooth icon.
③ Run MobiFren_SM app. and select the menu " Pair
(Connect) headset"
Settings
Wi-Fi
Bluetooth
Data usage
More settings
Wireless and network
Bluetooth
Available devices
GBH-S880
Bluetooth
SHV-E250S
Not visible to other Bluetooth devices
Pairing...
ON
ON
ON
※ Pairing process may be different from mobile phone makers.
Please refer to mobile phone's manual.
2. Multi point setting
1) Setting Multi point
- Please pair Bluetooth earphone to the first device
according to the pairing process.
(Refer to pairing process.)
- Turn off Bluetooth earphone.
- Press MFB( ) button for around 4 seconds till blue
LED is continuously on.
- Please pair Bluetooth earphone to 2nd device acc
ording to pairing process.
- Then, turn off Bluetooth earphone and turn on again,
it will be connected 2 devices.
※ It's possible to pair up to 8 Bluetooth enabled
devices and can use 2 devices simultaneously.
2) To use multi point
- At the status of connecting two devices, press
MFB( ) to answer a call if there's incoming call.
- At the status of connecting two devices, press
MFB( ) to listen the music that was played lately.
※ During multi point status, please refer that App
related functions are not workable.
3. Call
1) Answering a call
- Press MFB( ) button to answer a call.
2) Ending a call
- Press MFB( ) button shortly to end a call.
My device
Available devices
GBH-S880
Bluetooth
SHV-E250S
Not visible to other Bluetooth devices
Connected to phone and
media audio.
ON
15

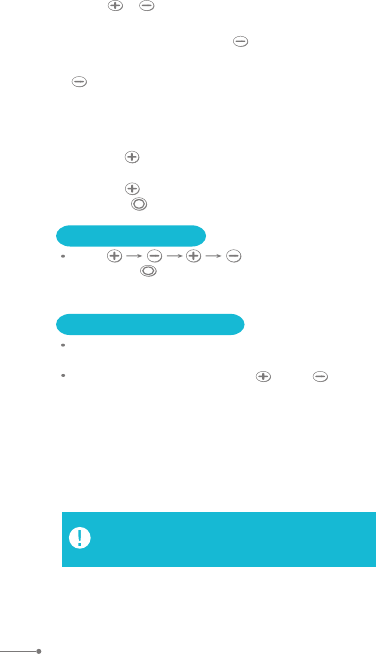

3) Rejecting a call
- During an incoming call, press MFB( )button
for about 1 second.
4) Converting a call
- During call with mobile, press MFB( )button
to convert to headset
(To call with mobile again, use your mobile phone menu.)
5) Volume control
- With ( )/( ) button, you can control volume.
- During call, if you press ( )button for about
1 second, the microphone becomes mute.
- During mute, it will be released, if you press
( )button for about 1 second.
6) Microphone Mute
Press
buttons in order and
press MFB( ) button.
Then, purple LED glitters and headset will be initialized.
Pair the headset again to use after factory reset.
4. Factory Reset
You can install firmware at our website, for improved
or added functions.
5. Firmware Upgrade
※ Firmware upgrade is available at www.mobifren.com
※ Do not disconnect the headset from PC during
firmware upgrading.
It may cause malfunction or damage to the headset.
※
After firmware upgrade, the headset becomes initialization
automatically.
During firmware upgrade, do not separate
earphone from the cradle.
It may cause out of order.
During charging in cradle, press ( ) and ( ) button
simultaneously for a second.
Then, red LED blinks and headset goes to firmware
upgrade mode.
16
- This feature allows you to put a call on hold during
conversation and answer a waiting call.
- Give the ( )a long press (press approximately 1 second)
to put an active call on hold and answer a waiting call.
- Give the ( ) a long press to switch between two calls
- Just press ( )shortly to end a call.
7) Waiting a call and put a call on hold
6 Playing music
7. Changing Music Mode
※ To enjoy the best audio quality, please set 70~80% from the max
volume in your device.
- On first purchasing, the volume sets in level 8 of all 15 levels.
(Please adjust with ( )/( ) button for volume. )
- Button details for playing music
Play / Pause : Press MFB( ) button shortly
Stop : Give a MFB( ) button long press
Volume up : Press ( ) button shortly
Volume down : Press ( ) button shortly
Next song : Give a ( ) button long press
Previous song : Give a ( ) button long press
- While playing music, if you press ( ) button and( ) button at
the same time for 1 second, the Music Mode changes forward direction.
And, if you press ( ) button and ( ) button at the same time for
1 second, the Music Mode changes backward direction.
※ There are several kinds of bit rate even though it's the same MP3 file.
If the file source is higher bit rate(320K) for listening, you can feel the real worth
for our Bluetooth earphone. And, if the speaker is not good even with good source,
the sound quality will not be good, and if the speaker is good with inferior source,
the sound quality can't touch to
the listener. The MobiFren earphone of
optimized tuning supplies you high quality sound, but, we also recommend
you to use high resolution source file (320K) to enjoy touching sound.
17
MobiFren SM Pro Reference Mode
A feast of high bass together with crystal clear highs
Bigboom Standard Mode
Natural sound tuned by a top mastering specialist
MobiFren Mode
Bass Boost Mode
Cinema Mode
B Mode
Sharp & Clean Mode
True bass with crystal clear highs
S Mode
Detailed & Spacious Mode
Extremely detailed highs and powerful bass stereophony
D Mode
Flat & Magnificent Mode
Flat highs & mid tone with magnificent scaled bass
F Mode
Bass Boost Mode
Powerful sound with ultra rich bass
Cinema Mode
Cinema surround sound
Wireless Hi Fi audio, the closest quality to Analogue
7
Music Mode
- Message TTS (SMS/ Line/ SNS)
(Available with Android)
- TTS caller ID
8. Using Android & iOS application
If you press ( ) or ( ) button shortly when
there's
an incoming call, you can listen the caller's name via
mobile phone speaker.
For more convenient and easy use of the headset,
please download "MobiFren_SM" at Google play
store or Apple App store.
(Workable with iPhone 4S or higher)
After setting Message TTS, in automatic mode, it reads
you message after the setting time, and in manual mode,
you can hear message by using
headset button.
(When you set this function, it goes to mobile phone's
accessibility menu automatically, then, select MobiFren_SM
in accessibility service. )
- Mobi Health
You can control Start/Stop and check walking steps,
consumption calorie and walking distance with application
like as pedometer.
(It considers as a step, after you walk at least 7 steps
for the beginning.)
-
Last Call (Direct call to the latest number)
(Available with Android )
If you press volume button shortly for 2 times,
earphone reads you the latest call. You can move the
call list by volume button.
Press button to connect a call. It's useful when you
drive or your mobile is not in hand.
Stop while playing TTS : TTS playing stop.
While reading TTS message, press( ),( ) or ( ) button
to stop playing.
Manual mode : It reads you message by pressing
headset
button.
Press ( ) and ( ) or ( )
button at the same time
to hear
message manually.
18
19
- Hot call (Prompt call)
- Camera Remote control (Available with Android)
Press ( ) or ( ) button shortly to take a picture after running
application.
※ It needs additional MobiFren camera application.
Please install it after searching MobiFren at Google play store.
※ Recording during a call may not be workable for an old mobile
phone models.
- Find mobile phone
If you can't remember well where you placed your mobile phone,
press ( ) and( ) buttons
at the same time for about 1 second to find out your mobile
phone. Then, the mobile phone will ring.
- Anti Earphone loss / Anti Mobile Phone loss
Anti Earphone loss : When the earphone is disconnected with mobile
phone, the earphone alarms.
Anti Mobile Phone loss : When the mobile phone and earphone is
disconnected during connection, earphone alarms its disconnection,
to prevent any possibility of your mobile phone loss. You can stop
alarm sound if you press any button of the earphone.
Register one frequent call number and press Volume ( )
button
shortly for 2 times.
(In case of iPhone, it needs to press Call button in your mobile.)
-Present time notice
Press ( ) button for 2 times to hear the present time.
- Voice Memo (Android only)
It's useful to record voice memo by pressing( )button
for 1 seconds and releasing during a call.
You can record it by pressing the same button during a call or not.
- Incoming call alarm via earphone (Android only)
Alarm sound increases gradually via earphone if there's
incoming call.
You can set On/Off in application and its default is Off.
It's useful when your mobile is silent mode.

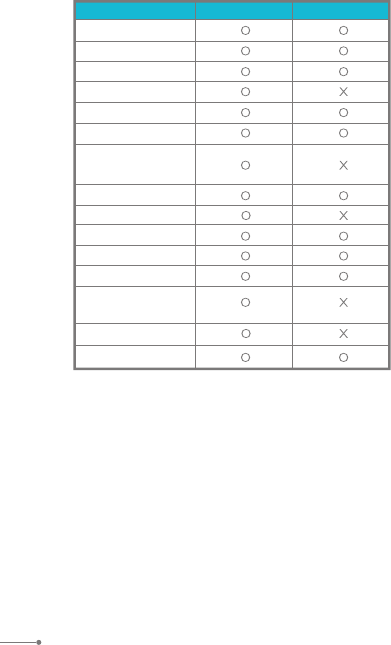

< Available functions for Android or iOS app.>
20
App function Android
iOS
Battery gauge
Message TTS
Anti Mobile Phone loss
Hot call (Prompt call)
Anti Earphone loss
Camera remote control
Voice Memo
Incoming call alarm
via earphone
Factory reset
Caller ID TTS
Present time notice
Find mobile phone
Music Mode control
Mobi Health
Last call
(call to the latest
call number
5. What does LED color mean?
Active on a call
Status LED indication
Standby
Battery is
running low
Charging
Fully charged
Pairing mode
Firmware upgrade
Blinks blue light every 8 second
LED OFF
(If press button, blue LED
blinks for 5 times)
Blinks red light
Red light ON
Blue light ON
Blue light ON
Turn off after glittering for 2 times.
21
6. FAQ & Troubleshooting
※I hear crackling noises
※I cannot hear anything
※I have problems with pairing even though my phone indicates otherwise.
- For the best audio quality, always locate your headset close to mobile phone.
- Increase the volume on the headset.
- Ensure that the headset is paired with the phone.
- Make sure that the phone is connected to the headset.
- If the headset fails to connect when you pressed MFB, try to connect
again following the pairing procedure.
- Please delete the headset paired in your mobile and pair the headset again.
Please refer to set up “Pairing mode” in Page 8.
※Will the MobiFren GBH-S880 work with other Bluetooth equipment?
- The MobiFren GBH-S880 is designed to work with Bluetooth mobile,
computer or portable audio devices which are built in.
It can also work with other Bluetooth devices that are compliant with
Bluetooth version 1.1/ 1.2/ 2.0/2.1+EDR /3.0/4.0 and that support
HSP, HFP, A2DP and AVRCP.
※Is the enclosed charging cable for only specified device?
- It’s compatible with all standardized micro USB charger, and in general,
compatible with Android mobile phone charger.
※When you use the headset in the car, the handsfree can be affected
by the internal noise.
22

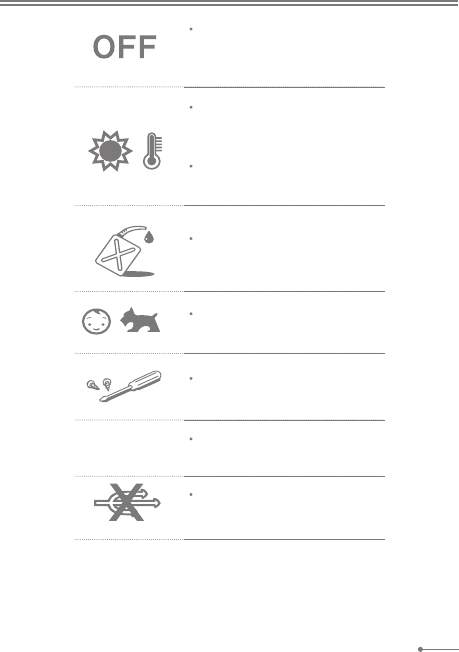

7. Handle MobiFren with care
Always store the MobiFren ear
phone with the power off and
protect safely when it’s not in use.
can affect the MobiFren’s battery
life and may be the cause of
malfunction.
High temperature may also
degrade performance.
Do not expose the MobiFren
earphone to rain or other liquids
Prevent baby, children or pets to
bite or suck this headset
Please do not disassemble at
user’s option
Please make sure to use certif ied
charger. (Rated Voltage : 5V)
Please make sure not to separate
from the charging cradle during
firmware upgrade
5V, 110mA
23
8. Certification and safety approvals
FCC ID : UZCGBH-S880
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to pro-vide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not in-stalled
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is encou
raged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different
from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION : Changes or modifications not expressly approved
by the manufacturer responsible for compliance
could void the user’s authority to operate the equipment.
24
This device comply with part15 of FCC rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• this device must accept any interference received, including
interference that may cause undesired operation.
9. Specifications
•Model
GBH-S880
•Talk time
•
Music play time
•
Standby time
•Charging time
•
Size
•
Weight
About 9 hrs
About 7.5 hrs
About 7 days
About 1hr 30mins
8.9mm (W) x 56mm (L) x
5.6mm (T) x 570mm (Cable)
Rechargeable Lithium Polymer
About 18g
•
Operation range
•
Supporting
Bluetooth profile
•
Bluetooth Version
Within 10m
Headset profile
Handsfree profile
A2DP
AVRCP
SPP
Ver. 4.0
※ Operation time may be variable, depending on
connected device or setting status.
25
Made in Korea
In accordance with the R & TTE Directive 1999 / 5 / EC of 09. March 1999
10. Warranty
※ The conditions and our responsibilities under this
warranty are as follows :
•The warranty is limited to the original purchaser.
•A copy of your receipt or other proof of purchase
is required.
•
The warranty is void if the serial number, date code
label or product label is removed, or if the product
has been subject to physical abuse,
improper installation, modification, or repair by unautho
rized third parties.
•The responsibility of MobiFren products shall be
limited to the repair or replacement of the product
at its sole discretion.
•
Any implied warranty on MobiFren products is limited
to one year from the date of purchase on all parts, including
any cord and connector. But, battery warranty is limited
to 6 months.
•Specifically exempt from any warranty are limited-life
consumable components subject to normal wear and
tear, such as microphone windscreens, ear cushions,
decorative finishes, batteries, and other accessories.
•
MobiFren is not liable for any incidental or consequential
damages arising from the use or misuse of any MobiFren
product.
•
This warranty gives you specific rights and you may have
other rights which vary from area to area.
•Unless otherwise instructed in the User Manual, the
user may not, under any circumstances, attempt to
perform service, adjustments or repairs on this unit,
whether in or out of warranty. It must be returned to
the purchase point, factory or authorized service agency
for all such work.
•MobiFren will not take any responsibility for any loss or
damage incurred in shipping.
Any repair work on MobiFren products by unauthorized
third parties voids any warranty.
" Contribute to our communities
with good technology and good product "
26
ISO 9001 Quality Management System
Certified Company
MSIP-CRM-GTT-GBH-S880
www.mobifren.com
(Gupyeong Dong A & B dong), 88, Indong 52 Gil,
Gumi City, Gyeongbuk, Korea 730-300
TEL : 82-54-474-2220 FAX : 82-54-474-2251
3.7V
,
140mA
1177
earphone
Charging cradle
Charging cradle
: MADE IN KOREA
: MADE IN KOREA
: MADE IN KOREA
