MobiWireS MOBIPRINT3 Connected mobile with Printer User Manual MP3 UM Content 20150209 ver1

MobiWire SAS Connected mobile with Printer MP3 UM Content 20150209 ver1

MP3 UM Content 20150209-ver1

1
Table of Contents
1.Foreword .......................................................... 2
2.Getting to know your device ........................... 5
3.Starting up the device ...................................... 6
4.Introduce the basic device function................ 8
5.Technical Specifications ................................ 14
6.SAR ................................................ 16
2
Foreword
Safety
In order to ensure the device is used safely and correctly, please
read the precautions below carefully before use.
1.1 General precaution
·Your device is only suitable for the battery and charger
approved by our company or else it may cause the battery to
leak, overheat, explode or even catch fire.
·Do not knock, vibrate or throw the device heavily to avoid
malfunction, fire, overheating, explosion or fire.
·If there are abnormal phenomena, like temperature rising, color
change or distortion during the usage, charging or storage of the
battery, please stop using it and replace it with a new battery.
·It may burn the skin if liquid in the battery leaks onto skin or
clothes. If this happens please flush with plenty of clean water
immediately and go to a hospital at once.
·Please keep the battery away from fire to avoid fire and
explosion if the battery leaks or emits a strange smell.
·Do not place expose the battery to moisture or it may cause
overheating, fumes and corrosion.
·Do not use or place the battery under direct sunlight, or in hot
places, it may cause leakage and overheating, thus reducing
performance and shortening the lifespan.
·Do not charge the battery for over 24 hours continuously.
1.2 Precaution for the use of charger
·Do not cause short circuit to the charger, or it may cause
electric shock, fumes and damage to the charger.
·Do not use the charger if the power wire is broken, or it may
cause fire and electric shock.
·Please remove accumulated dust on the power plug.
·Do not put water containers next to the power supply to avoid
overheating, fire, electric shock and malfunction in case they
come into contact.
·Do not disassemble or tamper with the charger or it may cause
personal injury, electric shock, fire and the damage of the
charger.
·Do not use the charger in places of high humidity, like
bathrooms, or it may cause electric shock, fire and damage of
charger.
·Do not touch the charger, power cord or power plug with wet
hands or it can cause electric shock.
·Do not put heavy objects on the power cord or change the
3
power cord or it may cause electric shock and fire.
·Please unplug the power socket before cleaning and
maintenance.
·Please hold the charger to unplug the socket as pulling the
power cord may damage the power wire and cause electric
shock and fire.
1.3 Cleaning and maintenance
·As the device, battery and charger are not waterproof, do not
use them in places of high humidity and avoid them being wet by
rain.
·Please clean the battery and charger with a soft dry cloth.
·Never use alcohol, thinner or solutions, like benzene, to wipe
the device.
·Dirty sockets can cause poor contact and power down, and
even make recharging unavailable. So, please clean them
periodically.
1.4 Common Precaution
Device:
·Please use the device in an environment with temperature
Charging -10- 55 Discharging -10- 55. Operating
Relativity Humidity Range:≦75%.
·Please use the device far away from regular telephones, TV
sets, radio sets and office automation equipment, to avoid
affecting the normal use of these equipments and device.
Battery:
·Store the battery in cool and ventilated place without direct
sunlight.
·The battery has a limited lifespan. The usage of battery will be
shortened progressively due to frequent charging. Once the
battery is out of use, it means that its lifespan has ended, and
you will need to replace it with an approved new battery.
·Do not dispose of old batteries as household waste. Give them
to specified disposal places and follow any stipulated
instructions for disposal.
CAUTION:RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCYIONS.
Charger:
·Do not charge under following conditions:
-- places with direct sunlight
-- places with ambient temperature -10-55, wet or dusty
places with strong vibrations (it may cause malfunction)
-- places near electrical appliances (it may affect the image and
4
sound) like TV set, radio, etc
-- Adapter shall be installed near the equipment and shall be
easily accessible. The plug considered as disconnect device of
adapter.
5
Getting to know your device
6
Starting up the device
To remove the back cover
·Make sure your device is turned off.
·Firmly hold the device with the front panel facing down.
·Slide your finger into the groove at the top of the device and
gently pull open the back cover.
To install the SIM card
·Remove the battery if it is installed.
·Locate the SIM card slot, and then insert the SIM card with its
gold contacts facing down and its cut-off corner facing out of the
card slot as shown in the diagram.
·Slide the SIM card completely into the slot
Note: The device can support two SIM cards.
To install a memory card
To have additional storage for your images, videos, music and
files, you can purchase a memory card and install it in your
device.
Locate the memory card slot on the upper part of the exposed
right panel.
Insert the memory card into the slot with its gold contacts facing
down until it clicks into place.
To install the battery
1. Align the battery’s exposed copper contacts with the battery
connectors at the bottom part of the battery compartment.
2. Insert the contacts side of the battery first and then gently
push the battery into place. Replace the back cover.
Charging the Battery
New batteries are shipped partially charged. Before you start
using your device, it is recommended that you install and charge
the battery. Some batteries perform best after several full
charge/discharge cycles.
Note: Only the AC adapter and USB sync cable provided with
your device must be used to charge the device.
Connect the USB connector of the AC adapter to the sync
connector on your device, and then plug in the AC adapter to an
electrical outlet to start charging the battery.
As the battery is being charged while the device is on, a
charging icon appears in the title bar of the Home screen. After
the battery has been fully charged, a full battery icon appears in
7
the title bar of the Home screen.
Warning:
• Do not remove the battery from the device while you are
charging it using the AC or car adapter.
As a safety precaution, the battery stops charging before it
overheat
Power on/off
To power off your device, press & hold POWER. On release, the
Device options menu opens. Select ‘Power off’ and confirm.
To power on again, press & hold power
8
Introduce the basic device function

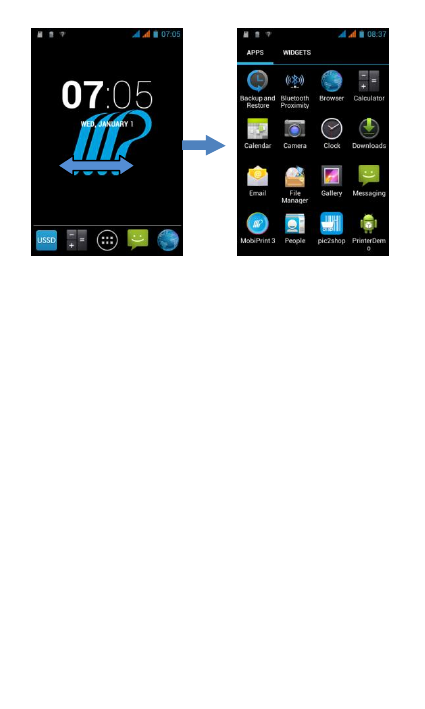

1. Switch MainMenu style
(1) In default Home screen, slide your fingertip left and right
along the screen to reveal the more home screen.
(2) On Home screen, click icon on the bottom of the screen
(Main menu icon) to enter the main menu screen, slide your
fingertip left and right along the screen to reveal the more
applications.
9

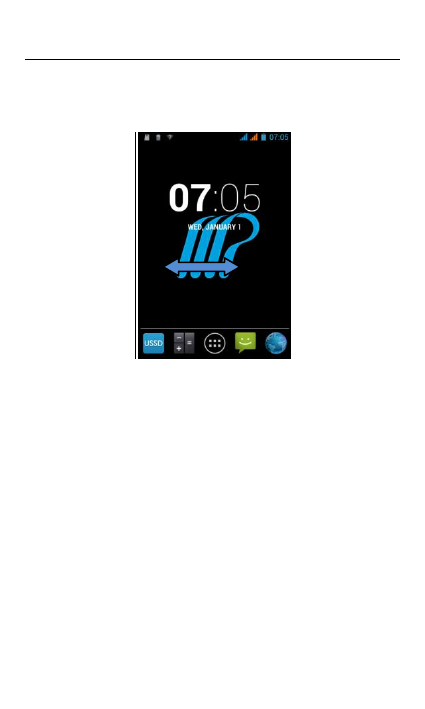

2. Home screen
(1) Read your notifications
When you see a notification in the status bar, touch the bar and
slide your finger down the screen to open the list of notifications
displayed in the sliding window.
Ongoing notifications report activities such as call forwarding
ON, current call status, song playing.
Notifications report the arrival of new messages, calendar
events, and alarms. You can clear notifications list by selecting
‘Clear’ notifications at the top of the notifications window.
To open the message, reminder or other notification, you can
touch the items. To close the notifications window, slide your
finger up the screen.
(2) Create Home screen shortcuts and widgets:
From the Home screen, touch the main menu, and then click the
WIDGETS. Touch&hold to pick up a widget to select a shortcut
to some of your saved information (such as a play list), a widget
(a clock) for your Home screen.
10
(3) Move objects on the Home screen
·To move an icon or other item on the Home screen, you must
first touch & hold it to enter move mode. The object will magnify
when it’s ready to be moved.
·Without lifting your finger (or you’ll drop out of move mode),
drag the object to the new position. To move an item to a section
of the Home screen not in view, move it to the edge of the
screen and hold it there for a moment. The screen view will shift;
position the object and release.

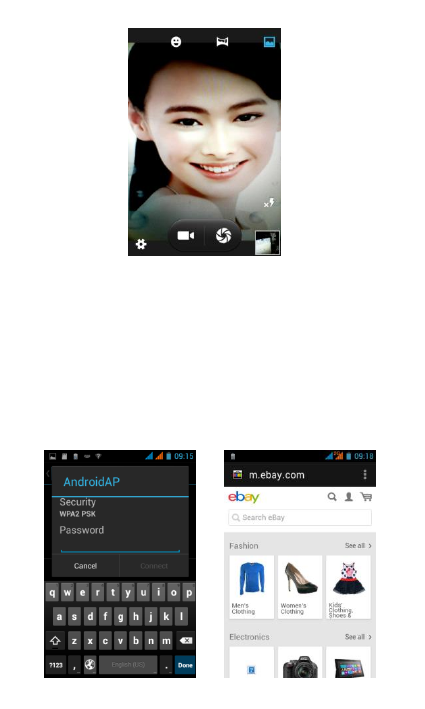

3. Camera
All the pictures you can capture or view on your device are
stored on a memory card, which must be installed in your device.
Before you can use the Camera or view pictures in Pictures,
make sure you have a card installed.
11
4. GPRS/WLAN network
Your device’s networking capabilities allow you to access the
Internet or your corporate network through WLAN, GPRS,
EDGE (if available). Date communication able to through GSM
antenna or wifi antenna.
You can also add and set up a VPN or proxy connection.
To use WLAN on your device, you need access to a wireless
access point
Note: The availability and range of your device’s WLAN signal
depends on the number, infrastructure, and other objects
through which the signal passes.
To open the Browser you need to be connected to a network.
12
5. U-disk storage
This device supports movable storage, i.e., the U-disk function.
When the device is switched on, you see the icon in the status
bar on the top of the screen when its connected to a PC by a
data line. Touch the bar and slide your finger down the screen to
open the list of notifications displayed in the sliding window.
Select [USB connected] and touch [Turn on USB storage] to
confirm, you can use the device as a U-disk.
6. Bluetooth
The device supports Bluetooth(BT) functions, you can establish
a wireless connection between the device with other compatible
devices, and data transmission, you can establish a wireless
connection between devices with a distance of up to 10 meters.
Bluetooth connection may be interference by obstacles, such as
walls or other electronic device.
1. Enter the setting menu, Touch the Bluetooth to open the
function, idle screen will display BT icon in the status bar.
2. Open the BT discoverable, and device cannot be searched .
3. Before using the device as a Bluetooth device, you need to
pair with the target device as follows:
-Sure your device has Bluetooth-enabled.
-Touch "Scan for devices." Bluetooth devices within the range of
the device will start scanning.
-Touch the device you want to pair, to confirm password to
complete the pairing
13
You can use Bluetooth to share the pictures, videos or music
files with family and friends
14
Technical Specifications
Technical Specifications
Weight: 350g
Dimensions: 183*76*68.3mm
Battery: Juda
GSM Band: 850/900/1800/1900
Battery Capacity: 2600mAh
Standby Time: 300 Hours
WIFI :802.11b\g\n
GPS:support
BT: support
Note: Actual operating conditions depend on the local network
environment, SIM, and user behavior.
Warning: Any consequence caused by misuse, abuse, or not
following any and all of the above-written suggestions and
instructions shall not hold the producer in any way responsible
to any degree.
Announcement: The manufacturer reserves the right to change
or upgrade specifications or software versions without prior or
separate notice. Trade marks mentioned or used in this material
belong to their respective owners.
1588
15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
16
SAR tests are conducted using standard operating positions
accepted by the FCC with the Device transmitting at its highest
certified power level in all tested frequency bands, although
the SAR is determined at the highest certified power level, the
actual SAR level of the device While operating can be well
below the maximum value, in general, the closer you are to a
Wireless base station antenna, the lower the power output.
Before a new model device is a available for sale to the public, it
must be tested and certified to the FCC that it does not exceed
the exposure limit established by the FCC, Tests for each
device are performed in positions and locations (e.g. at the ear
and worn on the body)as required by the FCC.
For body worn operation, this model device has been tested and
meets the FCC RF exposure Guidelines when used with an
accessory designated for this product or when used with an
accessory that Contains no metal and that positions the handset
a minimum of 1.5 cm from the body.Non-compliance with the
above restrictions may result in violation of RF exposure
guidelines.
FCC ID: QPN-MOBIPRINT3

Navigation menu
