Device Overview

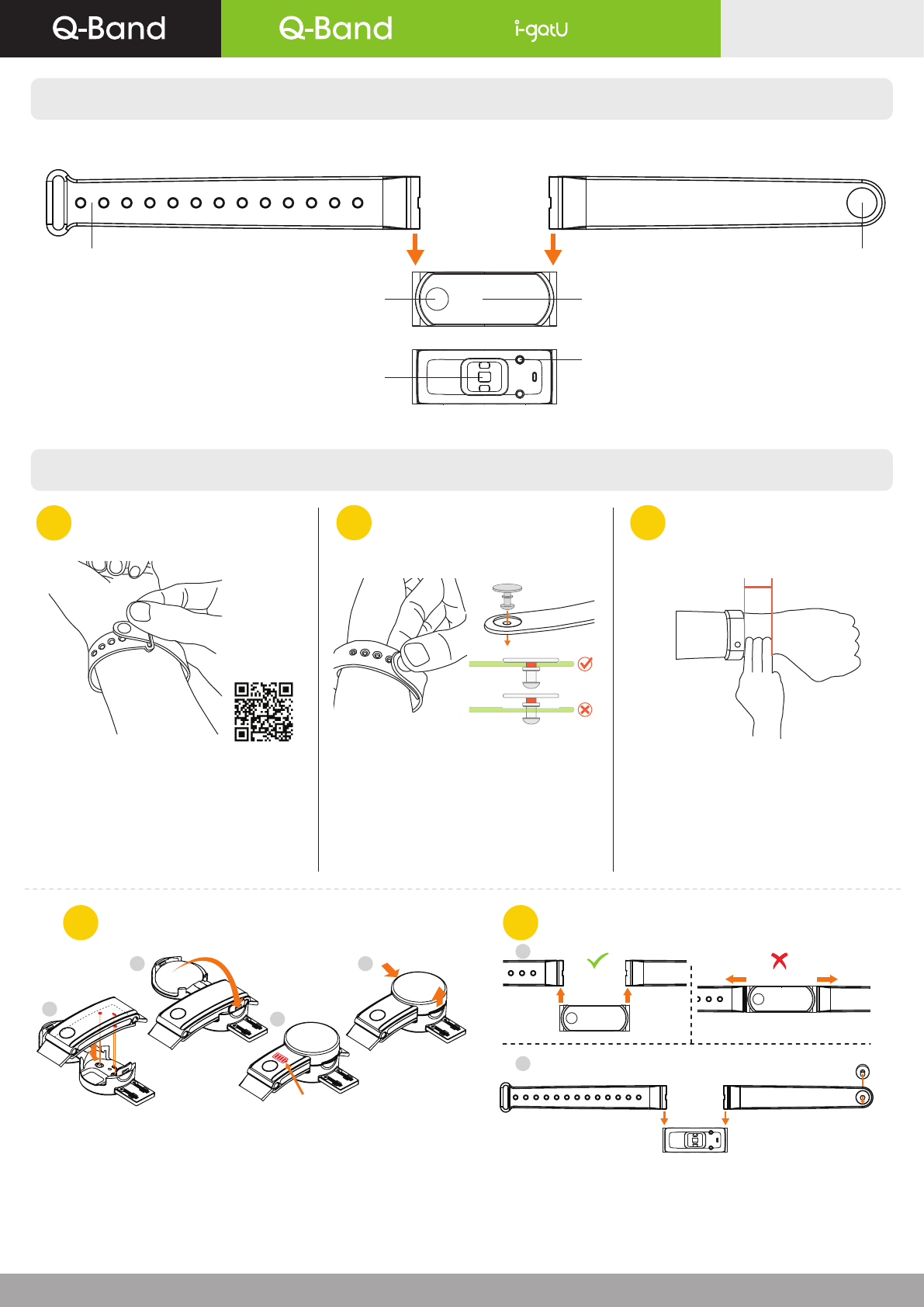

How to wear your Q-Band QR-69HR ?
User Manual
EN
Wear Q-Band Q69-HR on your wrist
1 2
4 5
Charge your Q-Band Q-69HR
Fasten Q-Band Q-69HR with clasp 3Detecting your Heart Rate
Change the wristband
Put on the wristband with the screen facing up
and the band wrapped around your wrist. Slide
one band through the loop of the other band, and
align the clasp along the band to find the holes
where best fit the clasps.
Video Demo:
http://ww2.voiis.com/igotu-life/wear/Q-Band-HR-Plus
Please make sure the wristband is worn as tightly as
possible on the wrist without any discomfort, in order
to enhance the accuracy of heart rate signals that
are detected.
Wear the wristband three fingers away from your
wrist. When “-----“ text appears on the screen,
please stay still briefly for about 10 seconds to obtain
a heart rate reading.
Squeeze both clasps into the holes on the wristband
until you hear a click, indicating the band is securely
fastened.
Note: The wristbands are both replaceable and
reversible.
Remove the wristbands by sliding out both bands from the slots on both sides
of the core.
Insert the new bands into the slots on both sides of the core.
Important Notice:
Failure to follow the instructions above might cause damage to the device.
1.
2.
1.
2.
Q-69HR
(
(
Reversible Wristband Clasp
CoreTouch Button
Metallic contact for charging
Optical Sensor
2
1
Video Demo
Prior to charging Q-Band Q-69HR, make sure it is securely placed inside the
charging box with the lid closed, and the USB connector is plugged in to a
computer or a power source via a power adapter.
Important Notice:
The product is shipped with the screen and keys locked, and will be unlocked once it is
charged via USB connection. Please make sure the "Charging" icon appears while it is
being charged, indicating the device is connected correctly and getting charged.
Video Demo:
http://ww2.voiis.com/igotu-life/charge/Q-Band-HR
1
2
3
4(1)Push
(2)Up
Charging icon
Bluetooth 4.0 Low Energy Wristband

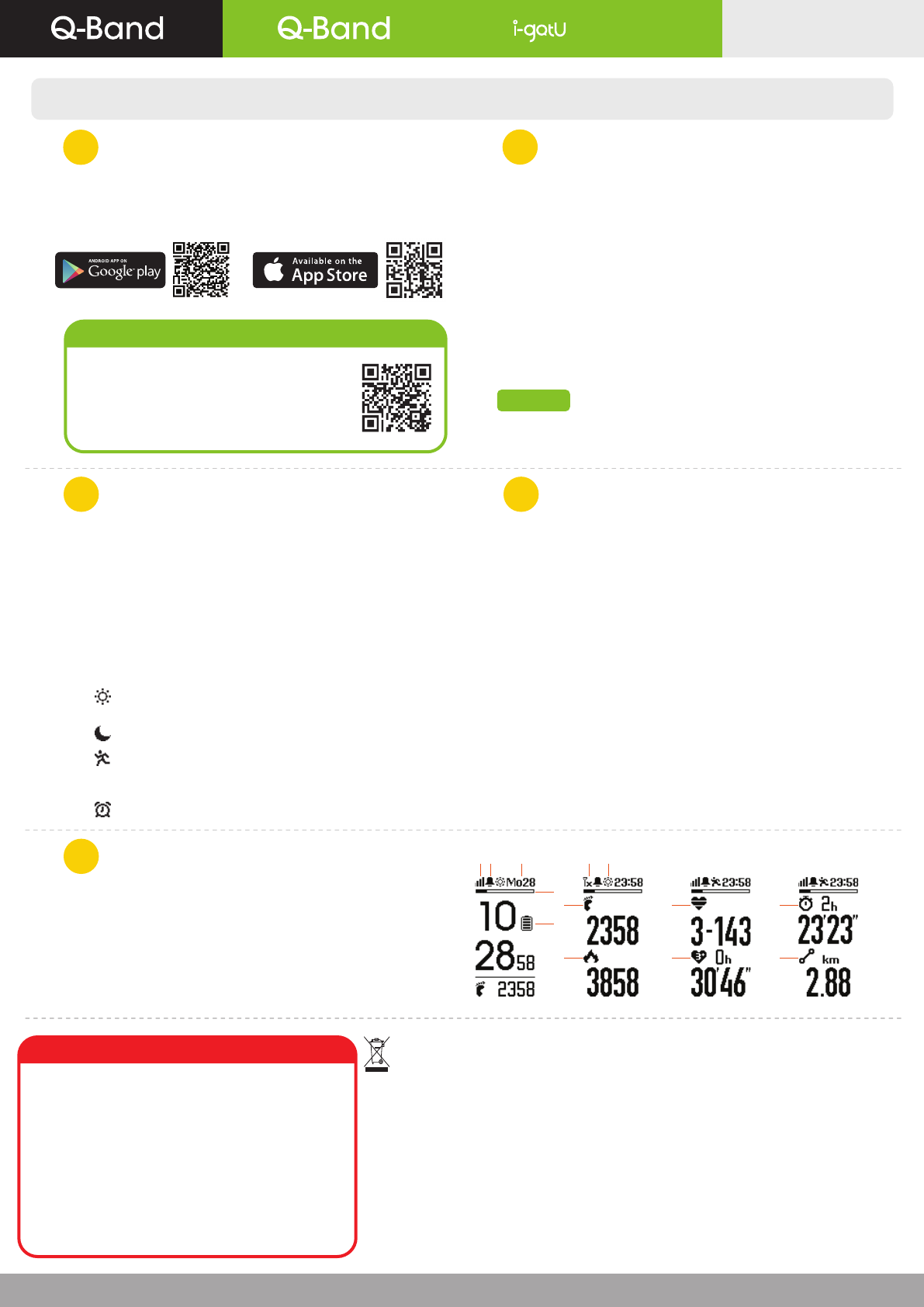

Get Started with Q-Band Q-69HR
Download i-gotU Life App
1 2
3 4
Start Using Q-Band Q-69HR
5Screen Description
Set up Q-Band Q-69HR
Features of Q-Band Q-69HR & i-gotU Life App
User Manual
Download i-gotU Life app from Google Play or App Store on your
smartphone:
https://play.google.com/store/apps/details?id=com.mobileaction.ilife
http://appstore.com/igotulife
Apk download: http://global.mobileaction.com/download/apk
Supported Device
Any Android smartphone (v4.3 and up) with built-in 4.0
Bluetooth connectivity; or
iPhone 4s and later models, iPad 2 and later models,
and iPod Touch (all with iOS version 7.0 and up).
A complete list of supported smartphone models or
mobile devices can be found at:
http://ww2.voiis.com/qband/devices.html
Your Q-Band Q-69HR can be configured directly on the i-gotU Life app.
First time setup:
Charge the device to unlock the key and screen.
Open the i-gotU Life app.
A Setup Wizard will be launched automatically.
Follow the on-screen instructions to proceed with more settings.
Set up a new device from Settings:
Open the i-gotU Life app.
Tap the app icon at the upper left corner to open function menu.
Choose Settings.
Tap Setup New Device under MORE DEVICE SETTINGS.
Follow the on-screen instructions to continue.
Note
Your personal information is used to calculate your Base Metabolic
Rate (BMR), which determines your calories burned.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1. Switch between different function modes
2. Change display information
3. Q-Band Q-69HR modes
1. Tap the button twice to wake up the device screen.
2. Long-press the button on the Q-Band Q-69HR until you see 4 icons
on the screen for mode selection.
3. Tap the button twice to switch mode.
4. You’ll be entering the selected mode in 3 seconds.
Information shown on the screen will vary as you press the
button on the Q-Band Q-69HR to toggle between screens.
Daily mode: Analyzes your daily data, including steps taken
and calories burned.
Sleep mode: Tracks your sleep pattern and quality.
Sports mode: Starts a workout and displays information
including duration, steps taken, calories burned, and distance
traveled during the workout.
Nap mode: Awakes you via vibration after a short nap.
1
2
3
4
5
6
7
8
9
10
Connecting
Disconnected
Alarm
Daily Mode
Date
Overall Progress
(the average of Calories + Steps)
Battery Status
Steps
Calories
Heart Rate
11
12
13
Aerobic (Zone 3 and above)
Duration
Distance
Silent Alarm
Notification
Online Help
Manual download
Frequently Asked Questions
Silent alarm of Q-Band Q69-HR gives you a wake-up alert via soft vibrations.
While in the sleep mode, the alarm can be dismissed by long-pressing
the button on Q-Band Q-69HR. By pressing the button once, the alarm will
not be dismissed but alert you again in 5 minutes. Alarm settings can be
changed in: open i-gotU Life app > Menu > Silent Alarm.
You will be notified with incoming calls, SMS, E-Mail, or alerts from the
social apps via vibration. When notified about an incoming call on an
Android smartphone, you may reject the call by long-pressing the button
on Q-Band Q-69HR. Notification can be set up from: i-gotU Life App Menu
-> Notification.
