Mobile Appliance AUDIHUD AUDI Head-Up Display User Manual
Mobile Appliance, Inc. AUDI Head-Up Display
User Manual
![](/img.php?id=3643985&img=bg1.png)
Audi Head-Up Display with TOLED Screen Manual
German
English
Spanish
French
Italian
Swedish
Portuguese
Dutch
Polish
Czech
Turkey
Korean
Table of Contents
Please read first! .......................................................... 1
General product information ........................................ 1
Safety notes ................................................................. 2
Using the smartphone .................................................. 2
Operating temperature ................................................ 2
Display brightness........................................................ 2
Cleaning / care.............................................................. 2
Product description ...................................................... 3
Screen display .............................................................. 4
Getting Started with the Application ........................... 4
Connecting a smartphone to the Head-Up Display ....... 4
Head-Up Display App ................................................... 5
Technical data .............................................................. 7
Scope of delivery .......................................................... 7
Disposal of electronic devices (WEEE directive) ............ 7
Imprint ......................................................................... 7
Service ......................................................................... 7
Simplified EU declaration of conformity in all languages9
Please read first!
General product information
Ensure that only the original parts included in the scope of delivery are used during installation of the
AUDI Head-Up Display (AUDI HUD). Installation should be carried out by an AUDI partner in order to
ensure that the system is installed correctly. In addition, the installation must be carried out in
accordance with the available AUDI Genuine fitting instructions.
Read the manual carefully before the initial activation of your AUDI HUD.
![](/img.php?id=3643985&img=bg2.png)
Safety notes
To prevent the driver from becoming distracted, ensure that the smartphone and the associated app are
not operated during the journey.
AUDI AG has no access to the data obtained using the AUDI HUD or to the app and any data saved on
the customer's smartphone. In addition, the data is not saved in the customer's vehicle.
The connection between the customer's smartphone and the AUDI HUD is encrypted with WPA/WPA2
and can be altered at any time by the customer.
Please observe and abide by all subsequent safety notes for your own safety.
Using the smartphone
Please do not operate your smartphone while driving.
To avoid being distracted during the journey, please connect the Head-Up Display to the smartphone
before starting the engine or departure. This also applies when entering your destination.
Operating temperature
If the Head-Up Display should exceed the permissible operating temperature, your Head-Up Display will
only be turned on with reduced brightness for 3 minutes.
If the ignition is turned off while parking and the Display temperature is too high, the display screen will
open to cool down.
Display brightness
The brightness of the HUD automatically adapts to the brightness of the instrument panel lighting of
your vehicle. However, it can still be manually adapted via the instrument panel light control in the
vehicle or via the settings in the “Head-Up Display App”.
Note: Changes of the brightness of the HUD via the instrument panel light control only work when
parking lights or low beam headlights are switched on.
For information regarding the regulation of the instrument panel lighting, please refer to the instructions
in your AUDI vehicle manual.
Please make sure that the display is not too bright when driving in the dark, so that your vision is not
impaired.
Cleaning / care
We recommend that you use a soft, dry cloth for cleaning the HUD.
In case of heavier soiling, it is advisable to moisten the cloth with a little water.
![](/img.php?id=3643985&img=bg3.png)

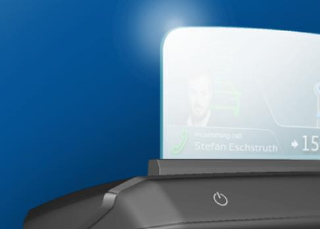

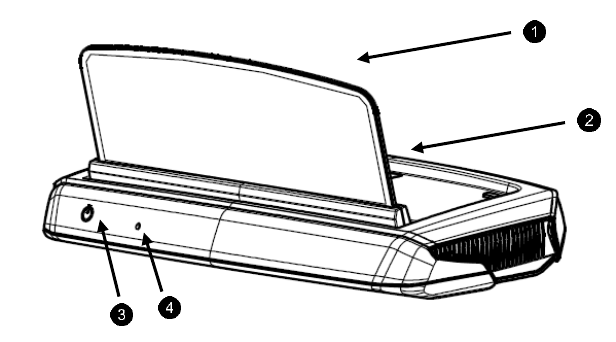

Product description
The HUD shows only driving-relevant information. It automatically turns on with the ignition. Settings of
the HUD can be adjusted by using the free “Head-Up Display App”.
1. Display: can always be closed or adjusted by pushing it down or up
2. Light Sensor: for display brightness control
3. ON/OFF power button: to manually open and close the Head-Up Display while the ignition is turned
on
4. Reset hole: to reset the Head-Up Display to factory settings and also to reset WLAN settings
![](/img.php?id=3643985&img=bg4.png)

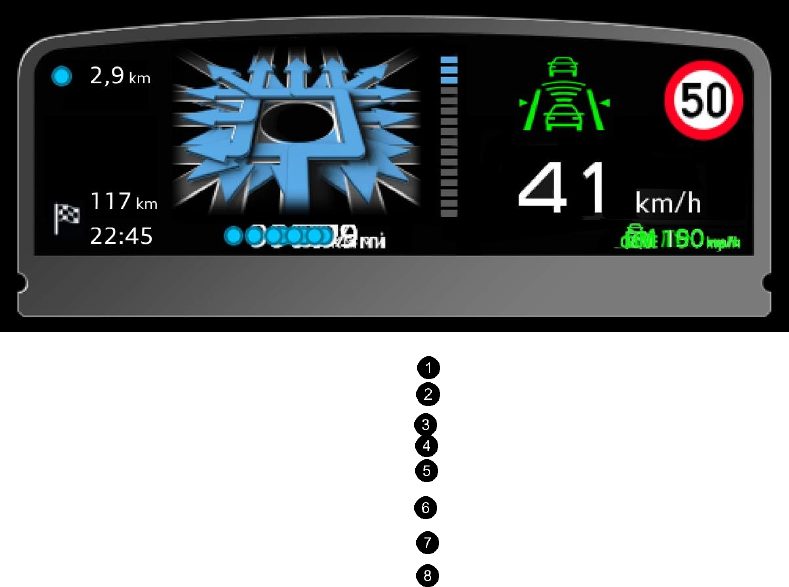

Screen display
1. Distance to destination
2. Estimated time of arrival
3. Route and turning instructions
4. Distance to next turning manoeuvre
5. Distance bar to next turning manoeuvre
6. ACC
7. Lane departure Warning
8. Speed of your vehicle
9. Speed limit information
10. GRA
Getting Started with the Application
The following system prerequisites are necessary in order to use the smartphone functions:
Android: from Android 4.0 and higher
iOS: devices from iPhone 5 with iOS 6 and higher
Install the free AUDI AG “Head-Up Display App” on your smartphone. It can be found in the respective
app store: iTunes (iOS) or Google Play store (Android).
The vehicle data is automatically displayed when the ignition is switched on. Data from a smartphone
can only be displayed when it is connected.
Prior to use, obtain information about the legal regulations in your place of destination.
Connecting a smartphone to the Head-Up Display
After the successful installation of the “Head-Up Display App”, you have to connect your smartphone to
the Head-Up Display (WLAN).
Switch on the ignition of your vehicle to start the Head-Up Display.
Start the Application in your smartphone. Under “WLAN” settings in your smartphone, search for the
WLAN Access Point with the SSID “AUDIHUD” and connect your smartphone.
![](/img.php?id=3643985&img=bg5.png)
The standard password is: “1234567890”
Please change the default password immediately under AUDI HUD App>Settings>Wi-Fi>.
After changing your password, you must log in with the new password to the Wi-Fi hotspot (SSID)
"AUDIHUD".
You can find the detailed manual with an explanation of each function in the smartphone app under
“Software”.

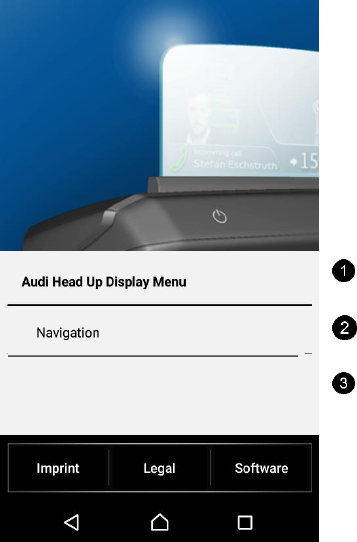

Head-Up Display App
Various settings can be changed (see illustrations).
Main Menu
Settings (Features)
Navigation (optional)
Imprint, Legal (Terms of Use, Privacy and License),
Software (Version, Manual, Firmware Update)
![](/img.php?id=3643985&img=bg6.png)

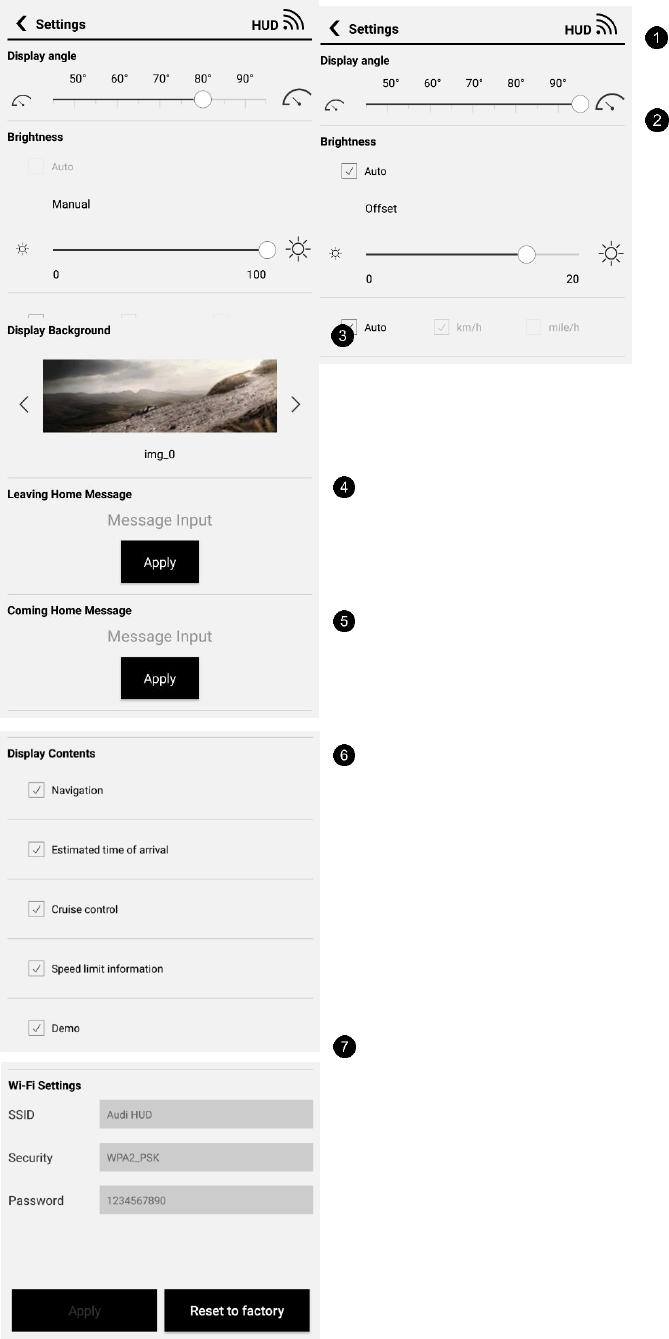

Settings
Setting the angle of the HUD
Setting the brightness
manually or automatically
(manual offset still possible)
Different images choose able
Individual defined text shown when the HUD opens
Individual defined text shown when the HUD closes
Features shown on the HUD
Edit the Wi-Fi settings
![](/img.php?id=3643985&img=bg7.png)
Apply: Save settings
Reset to factory: Reset settings
Technical data
– Transparent OLED display
– Screen dimensions: 126 mm x 50 mm
– Luminance: Typical. Approx. 750 cd/m² (max. 990 cd/m²)
– Screen transparency: approx. 55% (max. 65%)
– Operating temperature: -25°C ~ +70°C
* TOLED Display is fragile and weak against shock. Please take caution when handling HUD during
installation and use.
Scope of delivery
– Head-Up Display
– Operating instructions
Disposal of electronic devices (WEEE directive)
This symbol on the product or its packaging indicates that this product must not be treated as household
waste. In line with the EU Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC this
electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product
by returning it to the point of sale or to your local municipal collection point for recycling.
Imprint
All rights reserved. These operating instructions are protected by copyright. The right to make technical
and visual changes and printing errors is reserved.
The information contained in this document can be changed at any time without prior notice. AUDI
reserves the right to change or improve products and to make changes to the content with no obligation
to inform any person of company. Device specifications and scope of delivery may differ from the
information presented here.
Service
If you have any questions while using your AUDI AG Head-Up Display, contact your local AUDI AG centre.
For up-to-date information or questions regarding the use of your AUDI HUD, please see the detailed
manual, available as a PDF document in the app under software, or contact your AUDI partner.
![](/img.php?id=3643985&img=bg9.png)
Simplified EU declaration of conformity in all languages
Deutsch/ German
Frequenzbereich 2400-2484 GHz / Max. Sendeleistung 7dBm
Die vereinfachte EU-Konformitätserklärung gemäß Artikel 10 Absatz 9 hat folgenden Wortlaut:
Hiermit erklärt Mobile Appliance Inc., dass der Funkanlagentyp Wi-Fi der Richtlinie 2014/53/EU
entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden
Internetadresse verfügbar: www.audi.com/generalinfo
Schwedisch/ Swedish
Frekvensområde 2400-2484 GHz / Max. effektnivå 7dBm
Den förenklade EU-försäkran om överensstämmelse som avses i artikel 10.9 ska lämnas in enligt
följande: Härmed försäkrar Mobile Appliance Inc. att denna typ av radioutrustning Wi-Fi
överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran om
överensstämmelse finns på följande webbadress: www.audi.com/generalinfo
Dänisch/ Danish
Frekvensområde 2400-2484 GHz / Maksimal sendeydelse 7dBm
Den forenklede EU-overensstemmelseserklæ ring, som omhandlet i artikel 10, stk. 9, udformes som
følger: Hermed erklæ rer Mobile Appliance Inc., at radioudstyrstypen Wi-Fi er i overensstemmelse
med direktiv 2014/53/EU. EU-overensstemmelseserklæ ringens fulde tekst kan findes på følgende
internetadresse: www.audi.com/generalinfo
Arabisch/ Arabic
Tschechisch/ Czech
Frekvenční rozsah 2400-2484 GHz / Max. vysílací výkon 7dBm
Zjednodušené EU prohlášení o shodě uvedené v čl. 10 odst. 9 má tuto formu: Tímto Mobile
Appliance Inc. prohlašuje, že typ rádiového zařízení Wi-Fi je v souladu se směrnicí 2014/53/EU. Úplné
znění EU prohlášení o shodě je k dispozici na této internetové adrese: www.audi.com/generalinfo
Griechisch/ Greek
Περιοχή συχνοτήτων 2400-2484 GHz / Μέγ. ισχύς εκπομπής 7dBm
Η απλουστευμένη δήλωση συμμόρφωσης ΕΕ που αναφέρεται στο άρθρο 10 παράγραφος 9 έχει
ως εξής: Με την παρούσα ο/η Mobile Appliance Inc., δηλώνει ότι ο ραδιοεξοπλισμός Wi-Fi πληροί
την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην
ακόλουθη ιστοσελίδα στο διαδίκτυο: www.audi.com/generalinfo
Englisch/ English
Frequency band 2400-2484 GHz / Max. radio frequency power 7dBm
![](/img.php?id=3643985&img=bga.png)
The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows:
Hereby, Mobile Appliance Inc. declares that the radio equipment type Wi-Fi is in compliance with
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following
internet address: www.audi.com/generalinfo
Spanisch/ Spanish
Frecuencias 2400-2484 GHz / Potencia emisión máx. 7dBm
La declaración UE de conformidad simplificada a que se refiere el artículo 10, apartado 9, se ajustará
a lo siguiente: Por la presente, Mobile Appliance Inc. declara que el tipo de equipo radioeléctrico Wi-
Fi es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad
está disponible en la dirección Internet siguiente: www.audi.com/generalinfo
Finnisch/ Finnish
Taajuusalue 2400-2484 GHz / Enimmäislähetysteho 7dBm
Edellä 10 artiklan 9 kohdassa tarkoitettu yksinkertaistettu EU-vaatimustenmukaisuusvakuutus on
annettava seuraavasti: Mobile Appliance Inc. vakuuttaa, että radiolaitetyyppi Wi-Fi on direktiivin
2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla
seuraavassa internetosoitteessa: www.audi.com/generalinfo
Französisch/ French
Gamme d'ondes 2400-2484 GHz / Puissance d'émission max. 7dBm
La déclaration UE de conformité simplifiée visée à l'article 10, paragraphe 9, est établie comme suit:
Le soussigné, Mobile Appliance Inc., déclare que l'équipement radioélectrique du type Wi-Fi est
conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est
disponible à l'adresse internet suivante: www.audi.com/generalinfo
Kroatisch/ Croatian
Podr. frekv. 2400-2484 GHz / Maks. snaga odaš. 7dBm
Pojednostavljena EU izjava o sukladnosti iz članka 10. stavka 9. sastavlja se kako slijedi: Mobile
Appliance Inc. ovime izjavljuje da je radijska oprema tipa Wi-Fi u skladu s Direktivom 2014/53/EU.
Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi:
www.audi.com/generalinfo
Ungarisch/ Hungarian
Frekvenciatart. 2400-2484 GHz / Max. jelsug.-i teljes. 7dBm
A 10. cikk (9) bekezdésében említett egyszerűsített megfelelőségi nyilatkozat szövege a következő:
Mobile Appliance Inc. igazolja, hogy a Wi-Fi típusú rádióberendezés megfelel a 2014/53/EU
irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen:
www.audi.com/generalinfo
Italienisch/ Italian
Banda di frequenza 2400-2484 GHz / Potenza di trasmissione max. 7dBm
La dichiarazione di conformità UE semplificata di cui all'articolo 10, paragrafo 9, deve essere
presentata come segue: Il fabbricante, Mobile Appliance Inc., dichiara che il tipo di apparecchiatura
radio Wi-Fi è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità
UE è disponibile al seguente indirizzo Internet: www.audi.com/generalinfo
![](/img.php?id=3643985&img=bgb.png)
Irisch (Gälisch)/ Irish (Gaelic)
Banda minicíochta 2400-2484 GHz / Uaschumhacht mhinicíocht raidió 7dBm
Cuirfear dearbhú comhréireachta simplithe an AE, dá dtagraítear in Airteagal 10(9), ar fáil mar seo
a leanas: Leis seo, dearbhaíonn Mobile Appliance Inc. go bhfuil an cineál trealaimh raidió Wi-Fi i
gcomhréir le Treoir 2014/53/AE. Tá téacs iomlán dearbhú comhréireachta an AE ar fáil ag an seoladh
idirlín seo a leanas: www.audi.com/generalinfo
Niederländisch/ Dutch
Frequentiegebied 2400-2484 GHz / Max. zendvermogen 7dBm
De in artikel 10, lid 9, bedoelde vereenvoudigde EU-conformiteitsverklaring wordt als volgt
geformuleerd: Hierbij verklaar ik, Mobile Appliance Inc., dat het type radioapparatuur Wi-Fi conform
is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden
geraadpleegd op het volgende internetadres: www.audi.com/generalinfo
Norwegisch/ Norwegian
Frekvensområde 2400-2484 GHz / Maks. utgangseffekt 7dBm
Den forenklede EU-samsvarserklæ ringen i henhold til artikkel 10 avsnitt 9 har følgende ordlyd:
Mobile Appliance Inc. erklæ rer herved at radioutstyrstypen Wi-Fi samsvarer med direktivet
2014/53/EU. Den fullstendige teksten til EU-samsvarserklæ ringen er tilgjengelig på følgende
nettside: www.audi.com/generalinfo
Polnisch/ Polish
zakres częstotliwości 2400-2484 GHz / maks. moc nadawcza 7dBm
Uproszczoną deklarację zgodności UE, o której mowa w art. 10 ust. 9, należy podać w następujący
sposób: Mobile Appliance Inc. niniejszym oświadcza, że typ urządzenia radiowego Wi-Fi jest zgodny
z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym
adresem internetowym:
Portugiesisch/ Portuguese
 mbito frequência 2400-2484 GHz / Potência máx. Envio 7dBm
A declaração UE de conformidade simplificada a que se refere o artigo 10.o, n.o 9, deve conter os
seguintes dados: O(a) abaixo assinado(a) Mobile Appliance Inc. declara que o presente tipo de
equipamento de rádio Wi-Fi está em conformidade com a Diretiva 2014/53/UE. O texto integral da
declaração de conformidade está disponível no seguinte endereço de Internet:
www.audi.com/generalinfo
Rumänisch/ Romanian
Gamă de frecvenţă 2400-2484 GHz / Putere max. emisie 7dBm
Declaraţia UE de conformitate simplificată prevăzută la articolul 10 alineatul (9) include: Prin
prezenta, Mobile Appliance Inc. declară că tipul de echipamente radio Wi-Fi este în conformitate cu
Directiva 2014/53/UE. Textul integral al declaraţiei UE de conformitate este disponibil la următoarea
adresă internet: www.audi.com/generalinfo
Slowakisch/ Slovakia
Frekvenčný rozsah 2400-2484 GHz / Max. vysielací výkon 7dBm
![](/img.php?id=3643985&img=bgc.png)
Zjednodušené EÚ vyhlásenie o zhode uvedené v článku 10 ods. 9 znie takto: Mobile Appliance Inc.
týmto vyhlasuje, že rádiové zariadenie typu Wi-Fi je v súlade so smernicou 2014/53/EÚ . Ú plné EÚ
vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.audi.com/generalinfo
Slowenisch/ Slovenian
Frekvenčno območje 2400-2484 GHz / Maks. moč oddajanja 7dBm
Poenostavljena izjava EU o skladnosti iz člena 10(9) se predloži tako: Mobile Appliance Inc. potrjuje,
da je tip radijske opreme Wi-Fi skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o
skladnosti je na voljo na naslednjem spletnem naslovu: www.audi.com/generalinfo
Türkisch/ Turkish
Frekans aralığı 2400-2484 GHz / Maksimum verici gücü 7dBm
Madde 10 paragraf 9 uyarınca basitleştirilmiş AB uygunluk beyanı şunu belirtir: Bu beyanla Mobile
Appliance Inc., radyo sistemi tipinin Wi-Fi 2014/53/AB yönergesine uygun olduğunu beyan eder. AB
uygunluk beyanının tam metni şu internet adresi üzerinden bulunabilir: www.audi.com/generalinfo
Bulgarisch/ Bulgarian
Честотен диапазон 2400-2484 GHz / Макс. излъчвателна мощност 7dBm
Опростената ЕС декларация за съответствие, посочена в член 10, параграф 9, има следното
съдържание: С настоящото Mobile Appliance Inc. декларира, че този тип радиосъоръжение Wi-
Fi е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за
съответствие може да се намери на следния интернет адрес: www.audi.com/generalinfo
Estnisch/ Estonian
Sagedusavahemik 2400-2484 GHz / Max saatmisvõimsus 7dBm
Artikli 10 lõikes 9 osutatud lihtsustatud vastavusdeklaratsioon esitatakse järgmisel kujul:
Käesolevaga deklareerib Mobile Appliance Inc., et käesolev raadioseadme tüüp Wi-Fi vastab
direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel
internetiaadressil: www.audi.com/generalinfo
Hebräisch/ Hebrew
התדרים
תחום
2400-2484 GHz /
מירבי
שידור
הספק
7dBm
סוג
כי
בזאת
מצהיר
Mobile Appliance Inc. :
כדלקמן
היא
,9
פסקה
10
לסעיף
בהתאם
,
האירופי
האיחוד
של
המקוצרת
התאימות
הצהרת
לשון
בכתובת
זמין
האירופי
האיחוד
של
התאימות
הצהרת
של
המלא
המלל
.
2014
/53/EU
התקן
את
תואם
Wi-Fi
האלחוטי
ההתקן
:www.audi.com/generalinfo
הבאה
האינטרנט
Litauisch/ Lithuanian
Dažnio diapazonas 2400-2484 GHz / Didž. perdavimo galia 7dBm
Supaprastinta ES atitikties deklaracija, nurodyta 10 straipsnio 9 dalyje, suformuluojama taip: Aš,
Mobile Appliance Inc., patvirtinu, kad radijo įrenginių tipas Wi-Fi atitinka Direktyvą 2014/53/ES.
Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu:
www.audi.com/generalinfo
Lettisch/ Latvian
Frekv. Diapazons 2400-2484 GHz / Maks. pārraides jauda 7dBm
![](/img.php?id=3643985&img=bgd.png)
Vienkāršota ES atbilstības deklarācija saskaņā ar 10. panta 9. punktu ir šāda: Ar šo Mobile Appliance
Inc. deklarē, ka radioiekārta Wi-Fi atbilst Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas
teksts ir pieejams šādā interneta vietnē: www.audi.com/generalinfo
Maltesisch/ Maltese
Medda ta' frekwenza 2400-2484 GHz / Qawwa massima ta' frekwenza tar-radju 7dBm
Id-dikjarazzjoni ssimplifikata tal-konformità tal-UE msemmija fl-Artikolu 10(9) għandha tiġi prevista
kif ġej: B'dan, Mobile Appliance Inc., niddikjara li dan it-tip ta' tagħmir tar-radju Wi-Fi huwa konformi
mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli
f'dan l-indirizz tal-Internet li ġej: www.audi.com/generalinfo
RF Specification
Supported Protocol and Standard : IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Range : 2400MHz ~ 2483.5MHz
Amount of Working channel : 1-11 (America), 1-13 (Korea, China, Europe)
Channel Bandwidth : 20MHz
Modulation : DSSS / CCK / OFDM
Output Power : 10mW / MHz 이하 (Korea)
802.11b : 4 dBm ± 1dB (America)
802.11g : 6 dBm ± 1dB (America)
802.11n_HT20 : 6 dBm ± 1dB (America)
7 dBm (General)
General
Power Supply : DC 12V
Temperature Range : -25℃ ~ 70℃
![](/img.php?id=3643985&img=bge.png)
INFORMATION OF REGULATIONS
EUROPE
“Direct sunshine or any strong light may cause the loss of recognition of writing.”
This equipment may be operated in AT, BE, CY, CZ, DK, EE, FI, FR, DE, GR,
KU, IE, IT, LV, LT, LU, GB, NO, CH, BG, TO ,TR
United States
FCC ID: WHBAUDIHUD
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION : Any Changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment. This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
A minimum separation distance of 20 ㎝ must be maintained between the antenna and the
person for this appliance to satisfy the RF exposure requirements.
