Mobile Communications BRBUZ81975 Consumer Wide-band Bi-directional Booster User Manual

Mobile Communications Inc. Consumer Wide-band Bi-directional Booster

User Manual

®Stealth Series Dual Band Booster AmplifiersBRB Stealth Z1 User ManualCOTTAGESBUILDINGSHOMESIncreases your Cellular and PCS Band Signals, expands your service coverage area, enhances voice call quality and signicantly increases Data speeds.

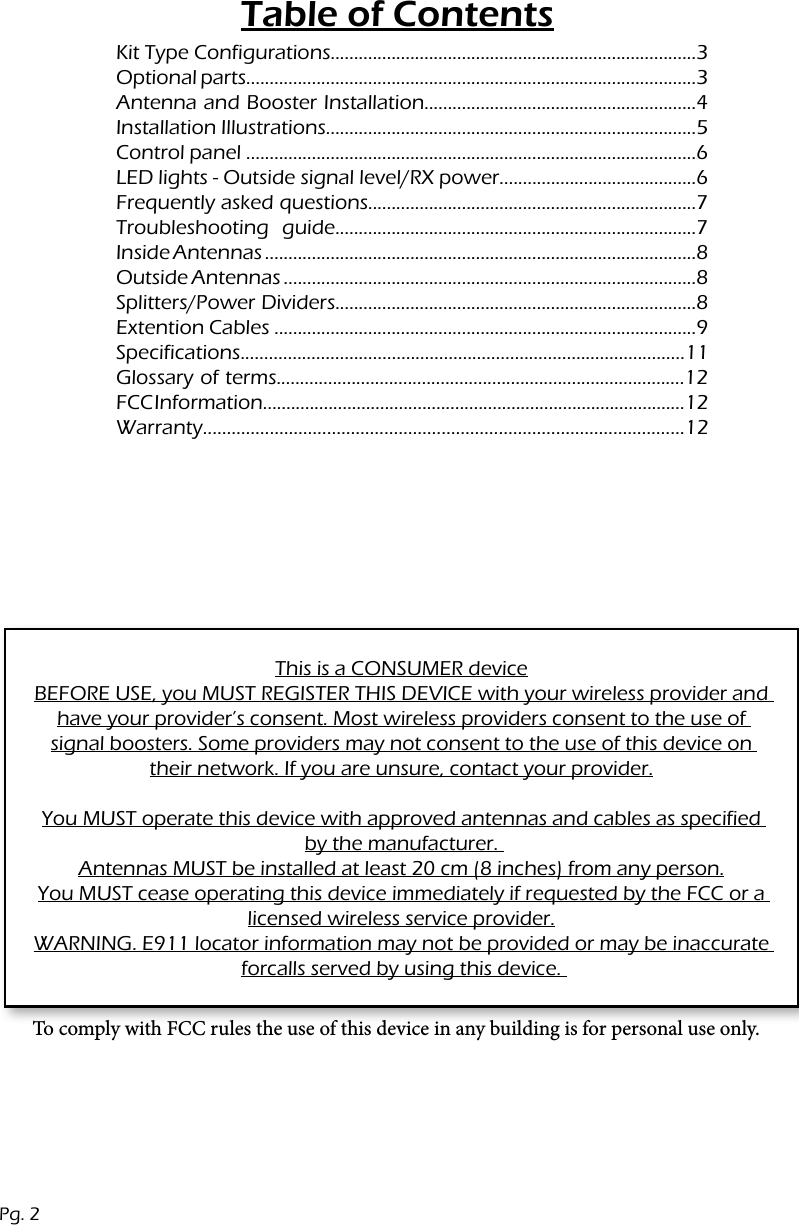

Table of ContentsPg. 2Kit Type Configurations..............................................................................3 Optional parts................................................................................................3Antenna and Booster Installation..........................................................4Installation Illustrations...............................................................................5Control panel ................................................................................................6LED lights - Outside signal level/RX power..........................................6Frequently asked questions......................................................................7 Troubleshooting guide.............................................................................7Inside Antennas ............................................................................................8 Outside Antennas ........................................................................................8 Splitters/Power Dividers.............................................................................8 Extention Cables ..........................................................................................9 Specifications..............................................................................................11Glossary of terms.......................................................................................12FCC Information..........................................................................................12Warranty.....................................................................................................12This is a CONSUMER deviceBEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.WARNING. E911 locator information may not be provided or may be inaccurate forcalls served by using this device. To comply with FCC rules the use of this device in any building is for personal use only.

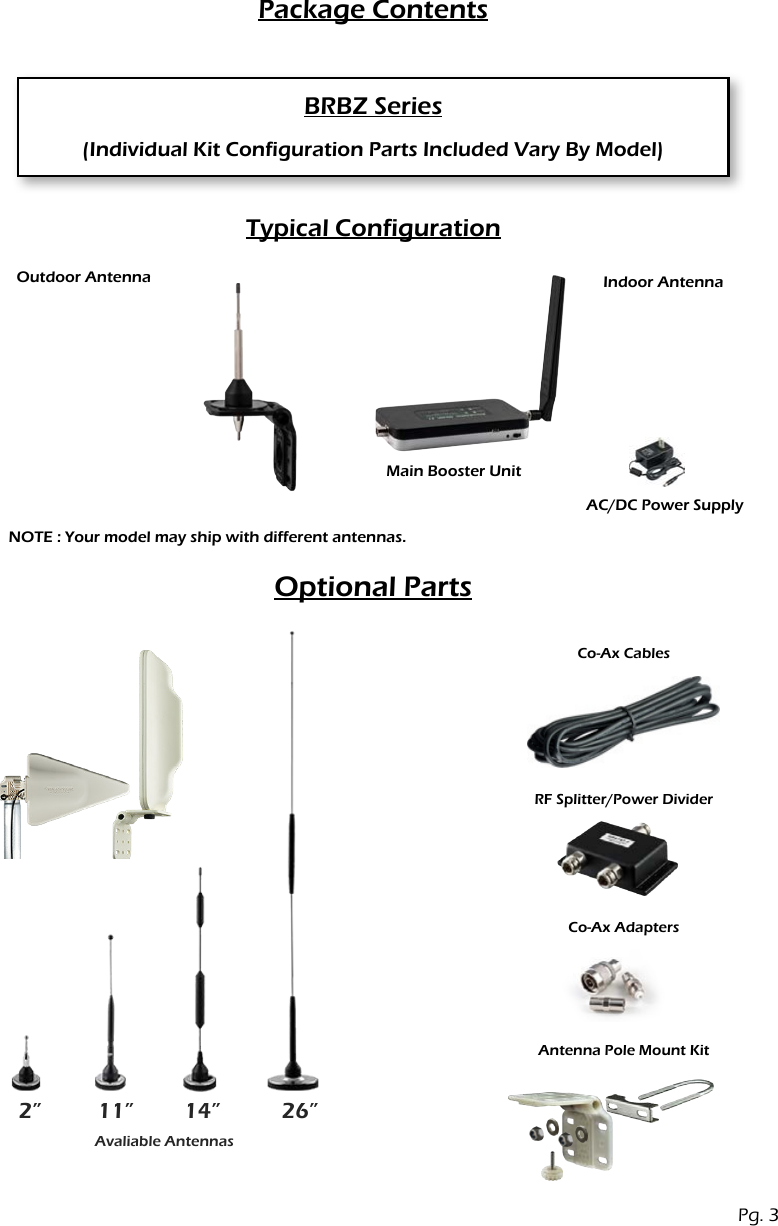

Package ContentsTypical ConfigurationPg. 3AC/DC Power SupplyIndoor AntennaOutdoor AntennaMain Booster UnitOptional PartsCo-Ax CablesRF Splitter/Power DividerCo-Ax Adapters2” 11” 14” 26”Avaliable AntennasAntenna Pole Mount KitBRBZ Series (Individual Kit Configuration Parts Included Vary By Model)NOTE : Your model may ship with different antennas.

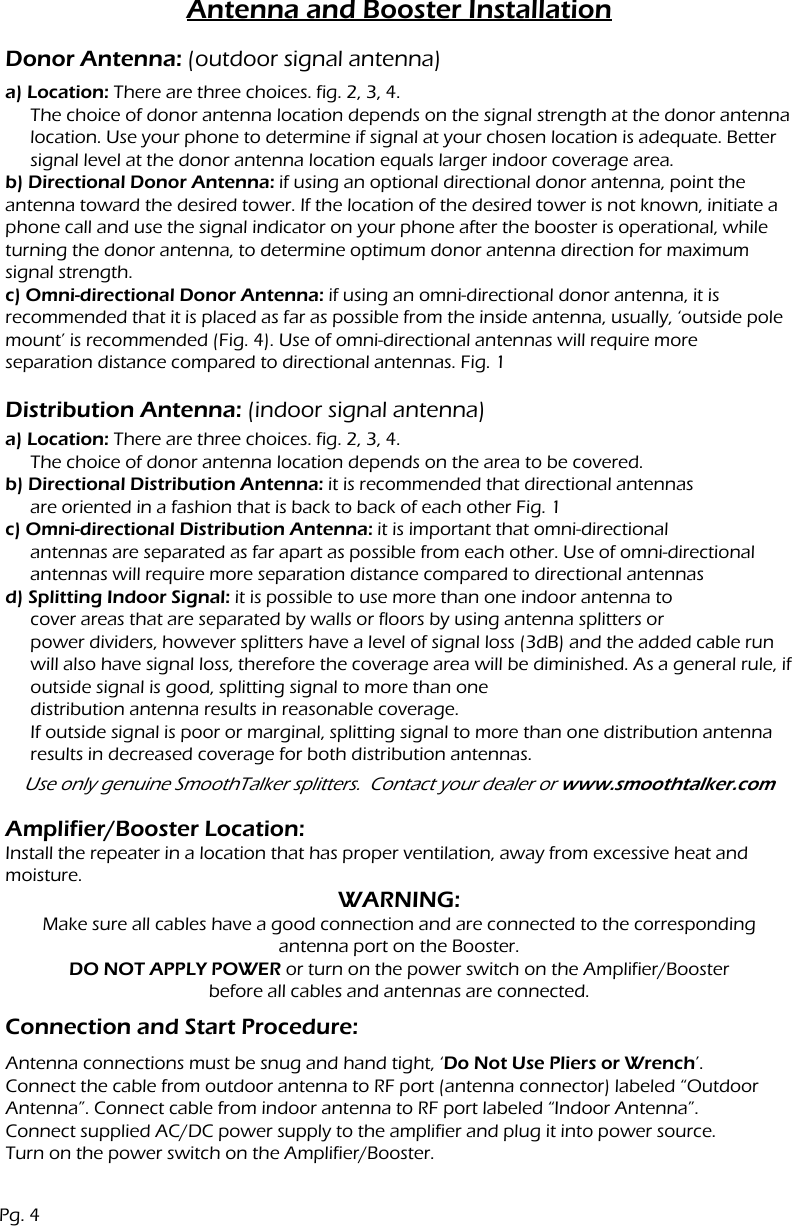

Antenna and Booster Installationa) Location: There are three choices. fig. 2, 3, 4.The choice of donor antenna location depends on the signal strength at the donor antenna location. Use your phone to determine if signal at your chosen location is adequate. Better signal level at the donor antenna location equals larger indoor coverage area.b) Directional Donor Antenna: if using an optional directional donor antenna, point the antenna toward the desired tower. If the location of the desired tower is not known, initiate a phone call and use the signal indicator on your phone after the booster is operational, while turning the donor antenna, to determine optimum donor antenna direction for maximum signal strength.c) Omni-directional Donor Antenna: if using an omni-directional donor antenna, it is recommended that it is placed as far as possible from the inside antenna, usually, ‘outside pole mount’ is recommended (Fig. 4). Use of omni-directional antennas will require moreseparation distance compared to directional antennas. Fig. 1Donor Antenna: (outdoor signal antenna)Distribution Antenna: (indoor signal antenna)Connection and Start Procedure:Amplifier/Booster Location:Install the repeater in a location that has proper ventilation, away from excessive heat and moisture.a) Location: There are three choices. fig. 2, 3, 4.The choice of donor antenna location depends on the area to be covered.b) Directional Distribution Antenna: it is recommended that directional antennasare oriented in a fashion that is back to back of each other Fig. 1c) Omni-directional Distribution Antenna: it is important that omni-directional antennas are separated as far apart as possible from each other. Use of omni-directional antennas will require more separation distance compared to directional antennasd) Splitting Indoor Signal: it is possible to use more than one indoor antenna tocover areas that are separated by walls or floors by using antenna splitters or power dividers, however splitters have a level of signal loss (3dB) and the added cable run will also have signal loss, therefore the coverage area will be diminished. As a general rule, if outside signal is good, splitting signal to more than one distribution antenna results in reasonable coverage.If outside signal is poor or marginal, splitting signal to more than one distribution antenna results in decreased coverage for both distribution antennas.Use only genuine SmoothTalker splitters. Contact your dealer or www.smoothtalker.comWARNING:Make sure all cables have a good connection and are connected to the correspondingantenna port on the Booster.DO NOT APPLY POWER or turn on the power switch on the Amplifier/Boosterbefore all cables and antennas are connected.Antenna connections must be snug and hand tight, ‘Do Not Use Pliers or Wrench’.Connect the cable from outdoor antenna to RF port (antenna connector) labeled “Outdoor Antenna”. Connect cable from indoor antenna to RF port labeled “Indoor Antenna”.Connect supplied AC/DC power supply to the amplifier and plug it into power source.Turn on the power switch on the Amplifier/Booster.Pg. 4

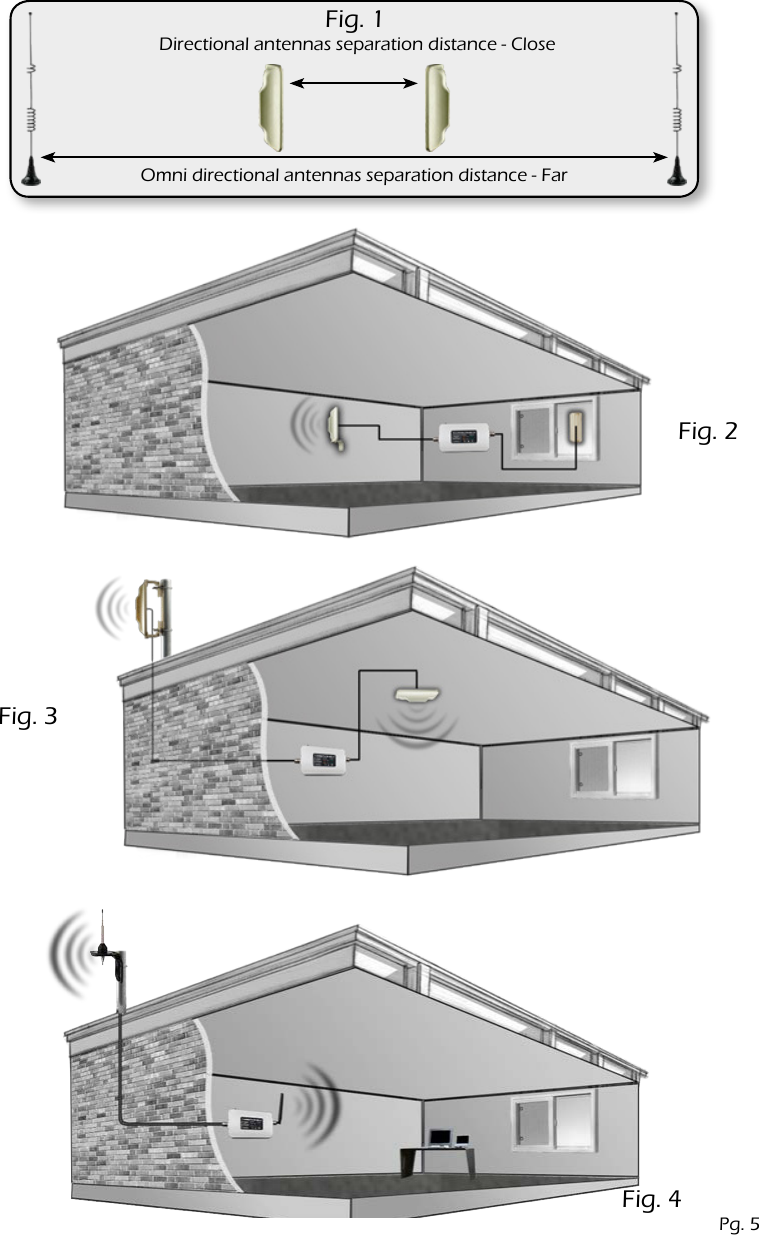

Omni directional antennas separation distance - FarDirectional antennas separation distance - CloseFig. 1Fig. 2Fig. 3Fig. 4Pg. 5

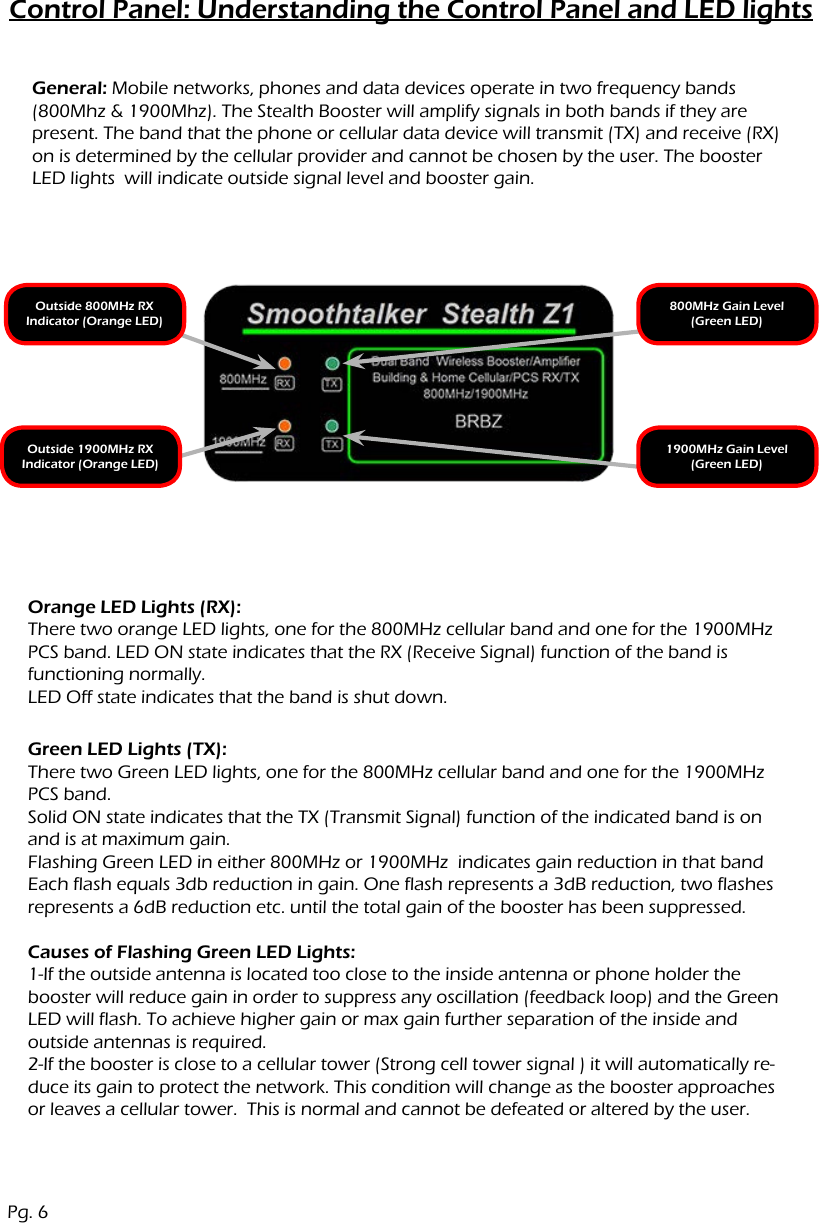

Control Panel: Understanding the Control Panel and LED lightsGeneral: Mobile networks, phones and data devices operate in two frequency bands (800Mhz & 1900Mhz). The Stealth Booster will amplify signals in both bands if they are present. The band that the phone or cellular data device will transmit (TX) and receive (RX) on is determined by the cellular provider and cannot be chosen by the user. The booster LED lights will indicate outside signal level and booster gain. Outside 800MHz RX Indicator (Orange LED)Outside 1900MHz RX Indicator (Orange LED)800MHz Gain Level(Green LED)1900MHz Gain Level(Green LED)Pg. 6Orange LED Lights (RX): There two orange LED lights, one for the 800MHz cellular band and one for the 1900MHz PCS band. LED ON state indicates that the RX (Receive Signal) function of the band is functioning normally.LED Off state indicates that the band is shut down.Green LED Lights (TX):There two Green LED lights, one for the 800MHz cellular band and one for the 1900MHz PCS band. Solid ON state indicates that the TX (Transmit Signal) function of the indicated band is on and is at maximum gain.Flashing Green LED in either 800MHz or 1900MHz indicates gain reduction in that band Each flash equals 3db reduction in gain. One flash represents a 3dB reduction, two flashes represents a 6dB reduction etc. until the total gain of the booster has been suppressed. Causes of Flashing Green LED Lights: 1-If the outside antenna is located too close to the inside antenna or phone holder the booster will reduce gain in order to suppress any oscillation (feedback loop) and the Green LED will flash. To achieve higher gain or max gain further separation of the inside and outside antennas is required.2-If the booster is close to a cellular tower (Strong cell tower signal ) it will automatically re-duce its gain to protect the network. This condition will change as the booster approaches or leaves a cellular tower. This is normal and cannot be defeated or altered by the user.

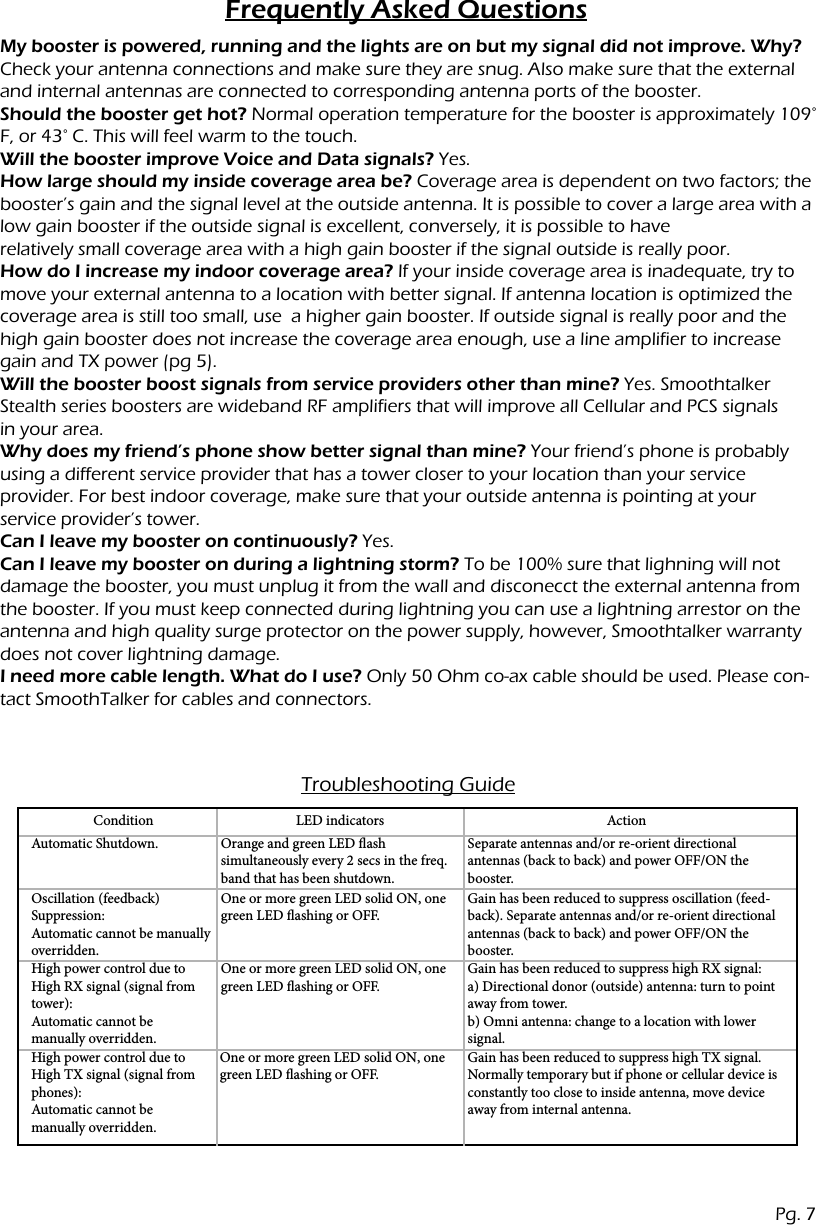

Frequently Asked QuestionsMy booster is powered, running and the lights are on but my signal did not improve. Why?Check your antenna connections and make sure they are snug. Also make sure that the external and internal antennas are connected to corresponding antenna ports of the booster.Should the booster get hot? Normal operation temperature for the booster is approximately 109° F, or 43° C. This will feel warm to the touch.Will the booster improve Voice and Data signals? Yes.How large should my inside coverage area be? Coverage area is dependent on two factors; the booster’s gain and the signal level at the outside antenna. It is possible to cover a large area with a low gain booster if the outside signal is excellent, conversely, it is possible to haverelatively small coverage area with a high gain booster if the signal outside is really poor.How do I increase my indoor coverage area? If your inside coverage area is inadequate, try to move your external antenna to a location with better signal. If antenna location is optimized the coverage area is still too small, use a higher gain booster. If outside signal is really poor and the high gain booster does not increase the coverage area enough, use a line amplifier to increase gain and TX power (pg 5).Will the booster boost signals from service providers other than mine? Yes. Smoothtalker Stealth series boosters are wideband RF amplifiers that will improve all Cellular and PCS signalsin your area.Why does my friend’s phone show better signal than mine? Your friend’s phone is probably using a different service provider that has a tower closer to your location than your serviceprovider. For best indoor coverage, make sure that your outside antenna is pointing at yourservice provider’s tower.Can I leave my booster on continuously? Yes.Can I leave my booster on during a lightning storm? To be 100% sure that lighning will not damage the booster, you must unplug it from the wall and disconecct the external antenna from the booster. If you must keep connected during lightning you can use a lightning arrestor on the antenna and high quality surge protector on the power supply, however, Smoothtalker warranty does not cover lightning damage.I need more cable length. What do I use? Only 50 Ohm co-ax cable should be used. Please con-tact SmoothTalker for cables and connectors.Troubleshooting GuideConditionAutomatic Shutdown.Oscillation (feedback) Suppression: Automatic cannot be manually overridden.High power control due to High RX signal (signal from tower): Automatic cannot be manually overridden.High power control due to High TX signal (signal from phones): Automatic cannot be manually overridden.Orange and green LED ash simultaneously every 2 secs in the freq. band that has been shutdown.One or more green LED solid ON, one green LED ashing or OFF.One or more green LED solid ON, one green LED ashing or OFF.One or more green LED solid ON, one green LED ashing or OFF.Separate antennas and/or re-orient directional antennas (back to back) and power OFF/ON the booster.Gain has been reduced to suppress oscillation (feed-back). Separate antennas and/or re-orient directional antennas (back to back) and power OFF/ON the booster.Gain has been reduced to suppress high RX signal: a) Directional donor (outside) antenna: turn to point away from tower. b) Omni antenna: change to a location with lower signal.Gain has been reduced to suppress high TX signal. Normally temporary but if phone or cellular device is constantly too close to inside antenna, move device away from internal antenna.LED indicators ActionPg. 7

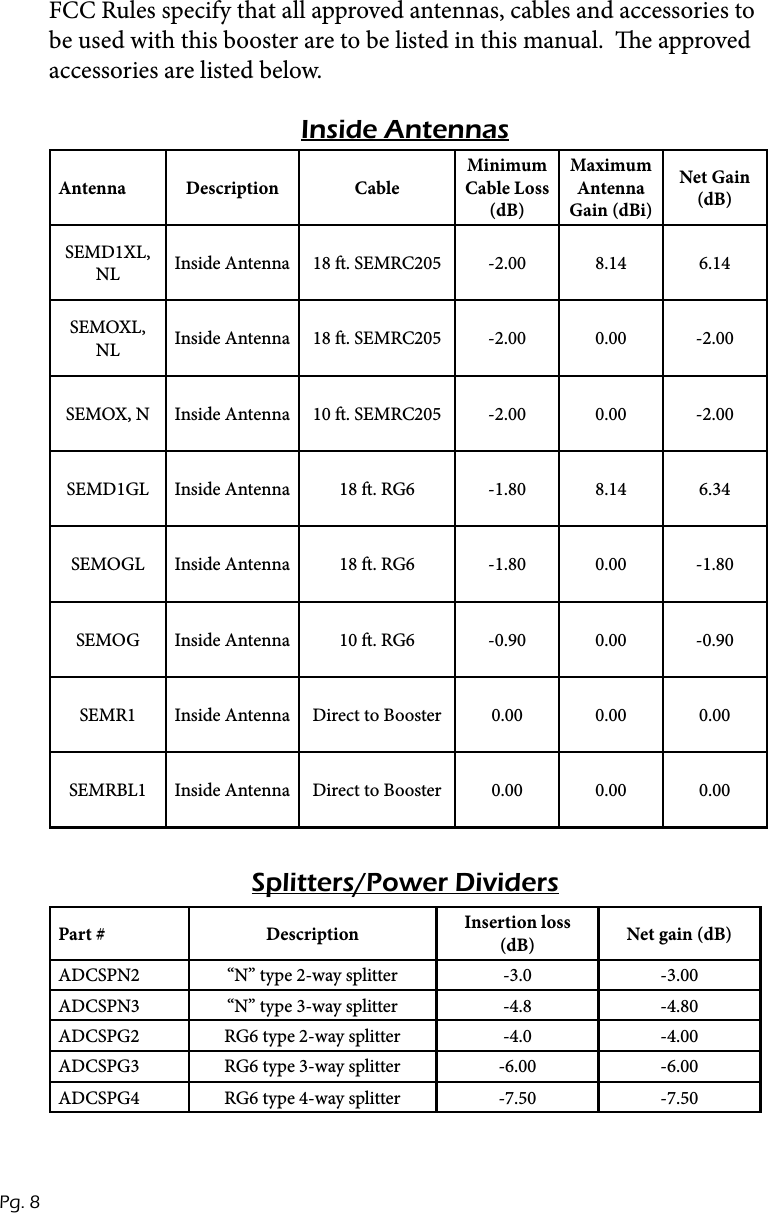

Antenna Description CableMinimum Cable Loss (dB)Maximum Antenna Gain (dBi)Net Gain (dB)SEMD1XL, NL Inside Antenna 18 . SEMRC205 -2.00 8.14 6.14SEMOXL, NL Inside Antenna 18 . SEMRC205 -2.00 0.00 -2.00SEMOX, N Inside Antenna 10 . SEMRC205 -2.00 0.00 -2.00SEMD1GL Inside Antenna 18 . RG6 -1.80 8.14 6.34SEMOGL Inside Antenna 18 . RG6 -1.80 0.00 -1.80SEMOG Inside Antenna 10 . RG6 -0.90 0.00 -0.90SEMR1 Inside Antenna Direct to Booster 0.00 0.00 0.00SEMRBL1 Inside Antenna Direct to Booster 0.00 0.00 0.00Inside AntennasFCC Rules specify that all approved antennas, cables and accessories to be used with this booster are to be listed in this manual. e approved accessories are listed below.Pg. 8 Splitters/Power DividersPart # Description Insertion loss (dB) Net gain (dB)ADCSPN2 “N” type 2-way splitter -3.0 -3.00ADCSPN3 “N” type 3-way splitter -4.8 -4.80ADCSPG2 RG6 type 2-way splitter -4.0 -4.00ADCSPG3 RG6 type 3-way splitter -6.00 -6.00ADCSPG4 RG6 type 4-way splitter -7.50 -7.50

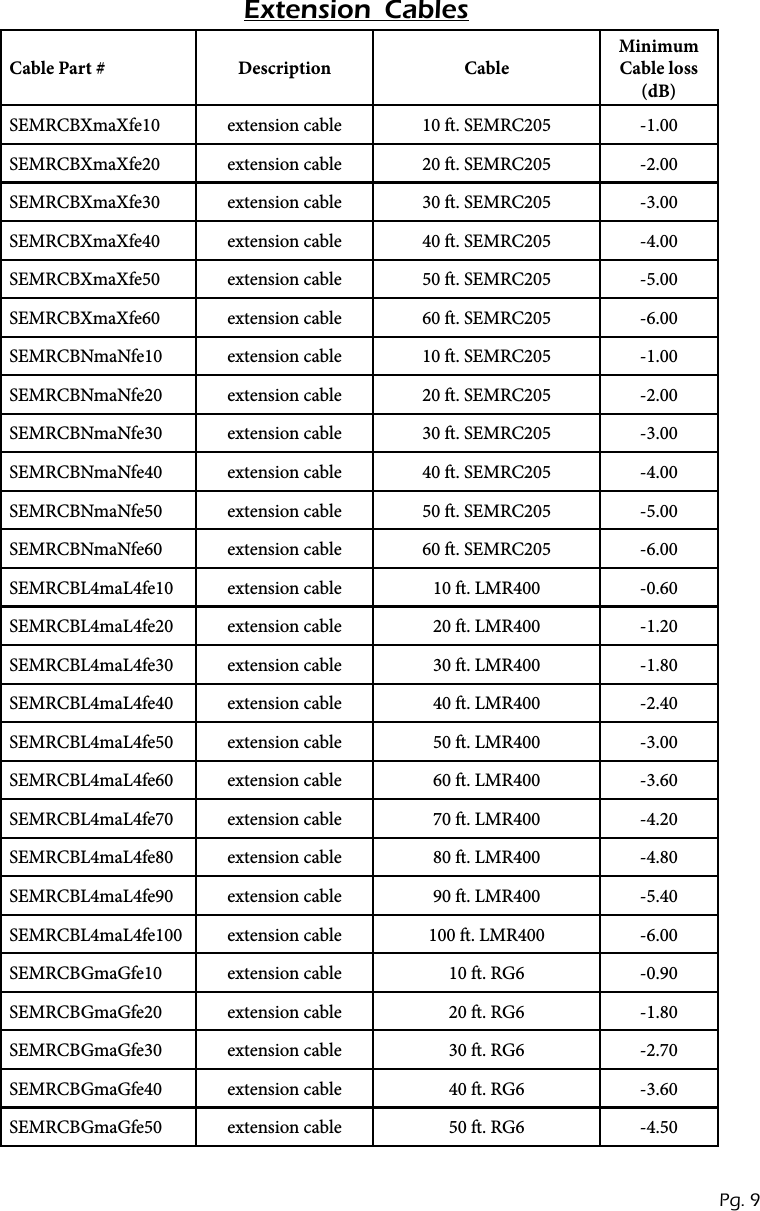

Cable Part # Description CableMinimum Cable loss (dB)SEMRCBXmaXfe10 extension cable 10 . SEMRC205 -1.00SEMRCBXmaXfe20 extension cable 20 . SEMRC205 -2.00SEMRCBXmaXfe30 extension cable 30 . SEMRC205 -3.00SEMRCBXmaXfe40 extension cable 40 . SEMRC205 -4.00SEMRCBXmaXfe50 extension cable 50 . SEMRC205 -5.00SEMRCBXmaXfe60 extension cable 60 . SEMRC205 -6.00SEMRCBNmaNfe10 extension cable 10 . SEMRC205 -1.00SEMRCBNmaNfe20 extension cable 20 . SEMRC205 -2.00SEMRCBNmaNfe30 extension cable 30 . SEMRC205 -3.00SEMRCBNmaNfe40 extension cable 40 . SEMRC205 -4.00SEMRCBNmaNfe50 extension cable 50 . SEMRC205 -5.00SEMRCBNmaNfe60 extension cable 60 . SEMRC205 -6.00SEMRCBL4maL4fe10 extension cable 10 . LMR400 -0.60SEMRCBL4maL4fe20 extension cable 20 . LMR400 -1.20SEMRCBL4maL4fe30 extension cable 30 . LMR400 -1.80SEMRCBL4maL4fe40 extension cable 40 . LMR400 -2.40SEMRCBL4maL4fe50 extension cable 50 . LMR400 -3.00SEMRCBL4maL4fe60 extension cable 60 . LMR400 -3.60SEMRCBL4maL4fe70 extension cable 70 . LMR400 -4.20SEMRCBL4maL4fe80 extension cable 80 . LMR400 -4.80SEMRCBL4maL4fe90 extension cable 90 . LMR400 -5.40SEMRCBL4maL4fe100 extension cable 100 . LMR400 -6.00SEMRCBGmaGfe10 extension cable 10 . RG6 -0.90SEMRCBGmaGfe20 extension cable 20 . RG6 -1.80SEMRCBGmaGfe30 extension cable 30 . RG6 -2.70SEMRCBGmaGfe40 extension cable 40 . RG6 -3.60SEMRCBGmaGfe50 extension cable 50 . RG6 -4.50Extension CablesPg. 9

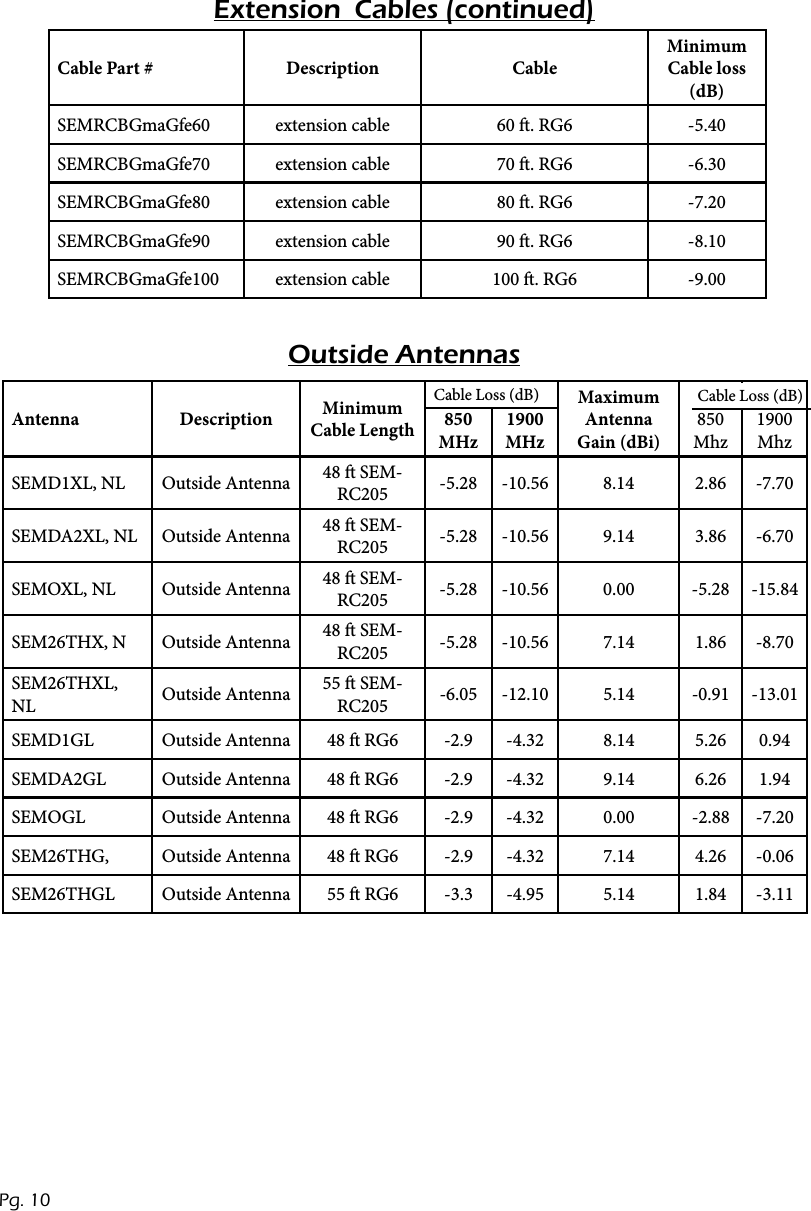

Cable Part # Description CableMinimum Cable loss (dB)SEMRCBGmaGfe60 extension cable 60 . RG6 -5.40SEMRCBGmaGfe70 extension cable 70 . RG6 -6.30SEMRCBGmaGfe80 extension cable 80 . RG6 -7.20SEMRCBGmaGfe90 extension cable 90 . RG6 -8.10SEMRCBGmaGfe100 extension cable 100 . RG6 -9.00Extension Cables (continued) Outside AntennasAntenna Description Minimum Cable Length 850 MHz 1900 MHzMaximum Antenna Gain (dBi) 850 Mhz 1900 MhzSEMD1XL, NL Outside Antenna 48  SEM-RC205 -5.28 -10.56 8.14 2.86 -7.70SEMDA2XL, NL Outside Antenna 48  SEM-RC205 -5.28 -10.56 9.14 3.86 -6.70SEMOXL, NL Outside Antenna 48  SEM-RC205 -5.28 -10.56 0.00 -5.28 -15.84SEM26THX, N Outside Antenna 48  SEM-RC205 -5.28 -10.56 7.14 1.86 -8.70SEM26THXL, NL Outside Antenna 55  SEM-RC205 -6.05 -12.10 5.14 -0.91 -13.01SEMD1GL Outside Antenna 48  RG6 -2.9 -4.32 8.14 5.26 0.94SEMDA2GL Outside Antenna 48  RG6 -2.9 -4.32 9.14 6.26 1.94SEMOGL Outside Antenna 48  RG6 -2.9 -4.32 0.00 -2.88 -7.20SEM26THG, Outside Antenna 48  RG6 -2.9 -4.32 7.14 4.26 -0.06SEM26THGL Outside Antenna 55  RG6 -3.3 -4.95 5.14 1.84 -3.11Cable Loss (dB) Cable Loss (dB)Pg. 10

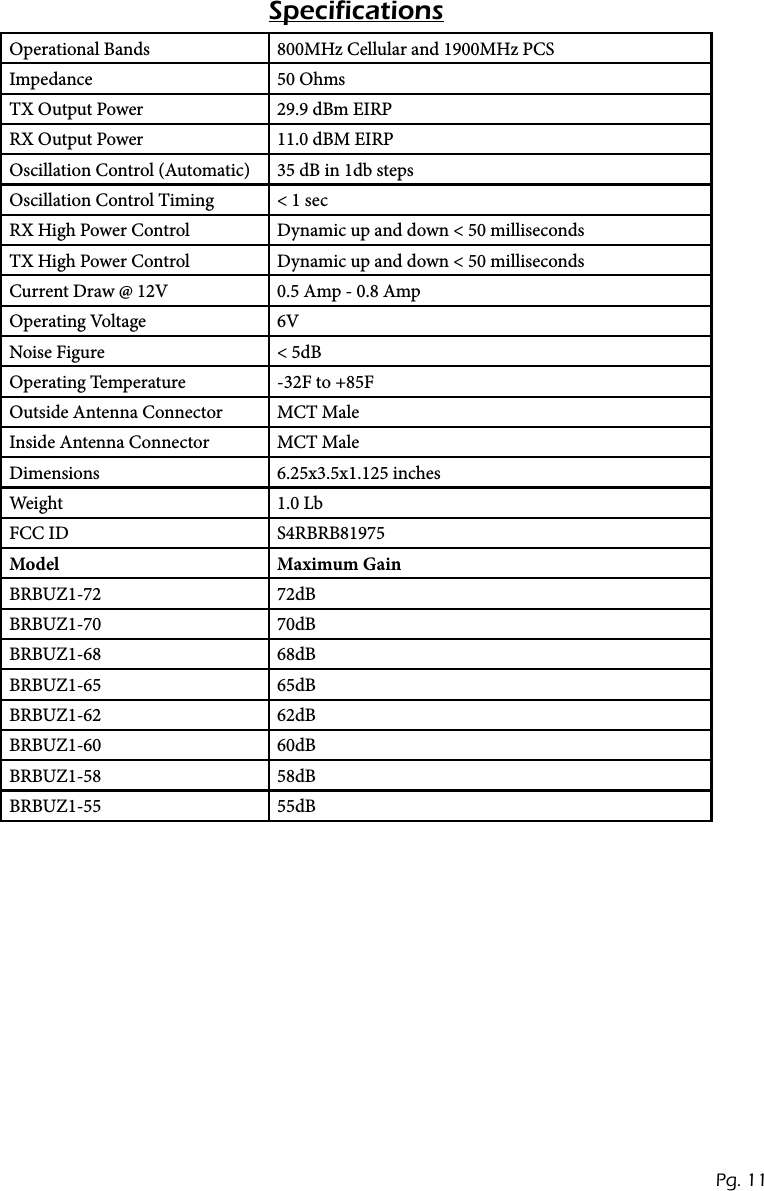

Operational Bands 800MHz Cellular and 1900MHz PCSImpedance 50 OhmsTX Output Power 29.9 dBm EIRPRX Output Power 11.0 dBM EIRPOscillation Control (Automatic) 35 dB in 1db stepsOscillation Control Timing < 1 secRX High Power Control Dynamic up and down < 50 millisecondsTX High Power Control Dynamic up and down < 50 millisecondsCurrent Draw @ 12V 0.5 Amp - 0.8 AmpOperating Voltage 6VNoise Figure < 5dBOperating Temperature -32F to +85FOutside Antenna Connector MCT MaleInside Antenna Connector MCT MaleDimensions 6.25x3.5x1.125 inchesWeight 1.0 LbFCC ID S4RBRB81975Model Maximum GainBRBUZ1-72 72dBBRBUZ1-70 70dBBRBUZ1-68 68dBBRBUZ1-65 65dBBRBUZ1-62 62dBBRBUZ1-60 60dBBRBUZ1-58 58dBBRBUZ1-55 55dBSpecificationsPg. 11

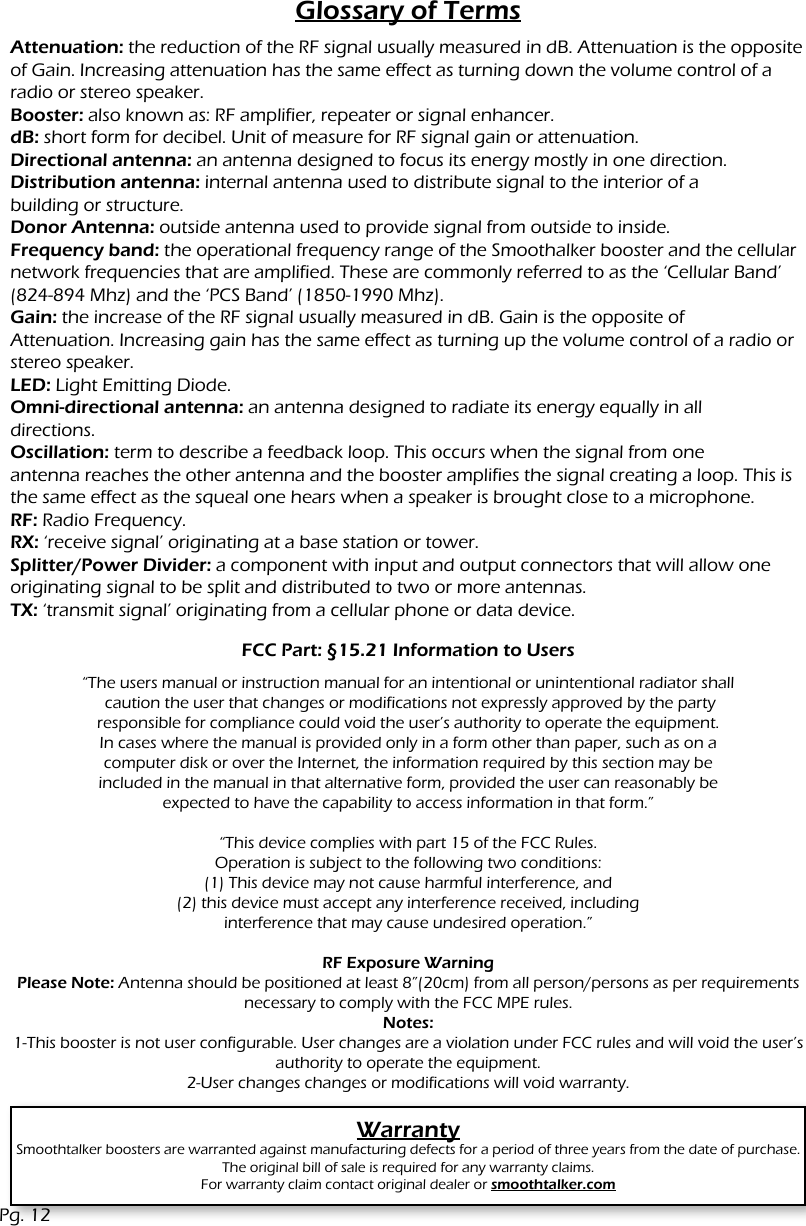

Glossary of TermsAttenuation: the reduction of the RF signal usually measured in dB. Attenuation is the opposite of Gain. Increasing attenuation has the same effect as turning down the volume control of a radio or stereo speaker.Booster: also known as: RF amplifier, repeater or signal enhancer.dB: short form for decibel. Unit of measure for RF signal gain or attenuation.Directional antenna: an antenna designed to focus its energy mostly in one direction.Distribution antenna: internal antenna used to distribute signal to the interior of abuilding or structure.Donor Antenna: outside antenna used to provide signal from outside to inside.Frequency band: the operational frequency range of the Smoothalker booster and the cellular network frequencies that are amplified. These are commonly referred to as the ‘Cellular Band’ (824-894 Mhz) and the ‘PCS Band’ (1850-1990 Mhz).Gain: the increase of the RF signal usually measured in dB. Gain is the opposite ofAttenuation. Increasing gain has the same effect as turning up the volume control of a radio or stereo speaker.LED: Light Emitting Diode.Omni-directional antenna: an antenna designed to radiate its energy equally in alldirections.Oscillation: term to describe a feedback loop. This occurs when the signal from oneantenna reaches the other antenna and the booster amplifies the signal creating a loop. This is the same effect as the squeal one hears when a speaker is brought close to a microphone.RF: Radio Frequency.RX: ‘receive signal’ originating at a base station or tower.Splitter/Power Divider: a component with input and output connectors that will allow one originating signal to be split and distributed to two or more antennas.TX: ‘transmit signal’ originating from a cellular phone or data device.WarrantySmoothtalker boosters are warranted against manufacturing defects for a period of three years from the date of purchase. The original bill of sale is required for any warranty claims.For warranty claim contact original dealer or smoothtalker.comPg. 12FCC Part: §15.21 Information to Users“The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operate the equipment.In cases where the manual is provided only in a form other than paper, such as on acomputer disk or over the Internet, the information required by this section may beincluded in the manual in that alternative form, provided the user can reasonably beexpected to have the capability to access information in that form.” “This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, includinginterference that may cause undesired operation.”RF Exposure WarningPlease Note: Antenna should be positioned at least 8”(20cm) from all person/persons as per requirements necessary to comply with the FCC MPE rules. Notes:1-This booster is not user configurable. User changes are a violation under FCC rules and will void the user’s authority to operate the equipment.2-User changes changes or modifications will void warranty.
