User Manual 1
MOBILE M2M
User Manual
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and
have your provider’s consent. Most wireless providers consent to the use of signal
boosters. Some providers may not consent to the use of this device on their network. If
you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specied by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for
calls served by using this device.
Warranty:
3 Year on manufacturing defects. Does not include misuse or customer damage.
Original Bill of Sale is required for all Warranty Claims

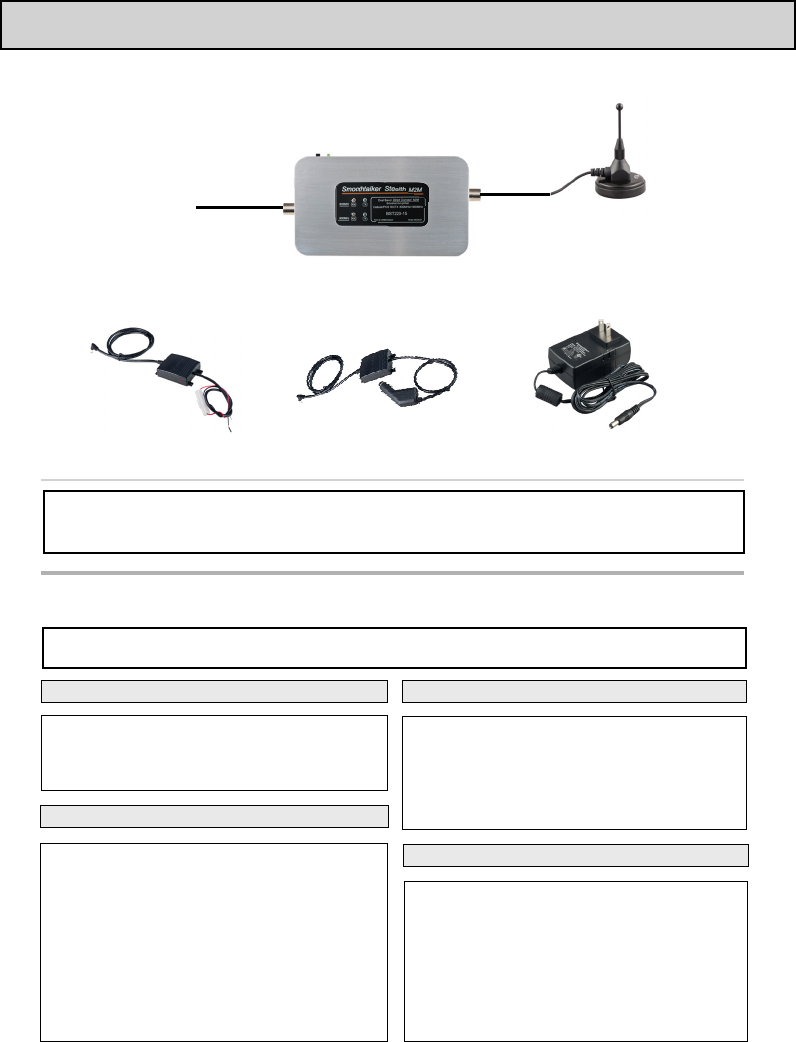

All parts shown may or may not be included depending on the product part number purchased
3 ft Cable to connect
to cellular device
cellular booster
outside antenna
12 volt install type 12 volt socket plug type 120 volt AC/DC
To comply with FCC rules, this booster must only be operated with cables, antennas
and coupling devices that have been approved for use with this equipment
For specications of any of the Smoothalker FCC approved part numbers listed below visit smoothtalker.com
APPROVED EQUIPMENT LIST
Extension Cables
Magnetic base Antennas
Thru-hole Antennas
ACX100
ACX900
SEMRCBXmaXfe10
SEMRCBXmaXfe20
SEMRCBXmaXfe30
SEMRCBXmaXfe40
SEMRCBXmaXfe50
SEMRCBXmaXfe60
SEMiniX1 SEM2M series
SEM11M series SEM14M series
SEM2LGM series SEM11LGM series
SEM14LGM series SEM26LGM series
SEM2LGML series SEM11LGML series
SEM14LGML series SEM26LGML series
CONTENTS
SEM2TH series SEM11TH series
SEM14TH series SEM26TH series
SEM2THL series SEM11THL series
SEM14THL series SEM26THL series
Directional Antennas
SEMD1 series
SEMDA2 series
Fig. 1 Fig. 2
Operational Bands 800MHz Cellular 1900MHz PCS
Maximum Radiated Power (EIRP) 29.9 dBm 29.9 dBm
Maximum Rated Power (conducted) 29 dBm 28 dBm
Gain 15 dB
Impedance (input/ouput) 50 Ohms
Power Supply 12 Volt DC or 120 Volt AC/DC
Operating Temperature -32C to +85C
Antenna Connectors MCT Male
Dimensions 6.25x3.5x1.125 inches
Weight 1.0 Lb
SPECIFICATIONS
1) Installation & Assembly:
Connect the cellular devise, the outside antenna and power supply to the booster.
Please make sure to connect each item to the correct ports as indicated on the booster.
2) Placement

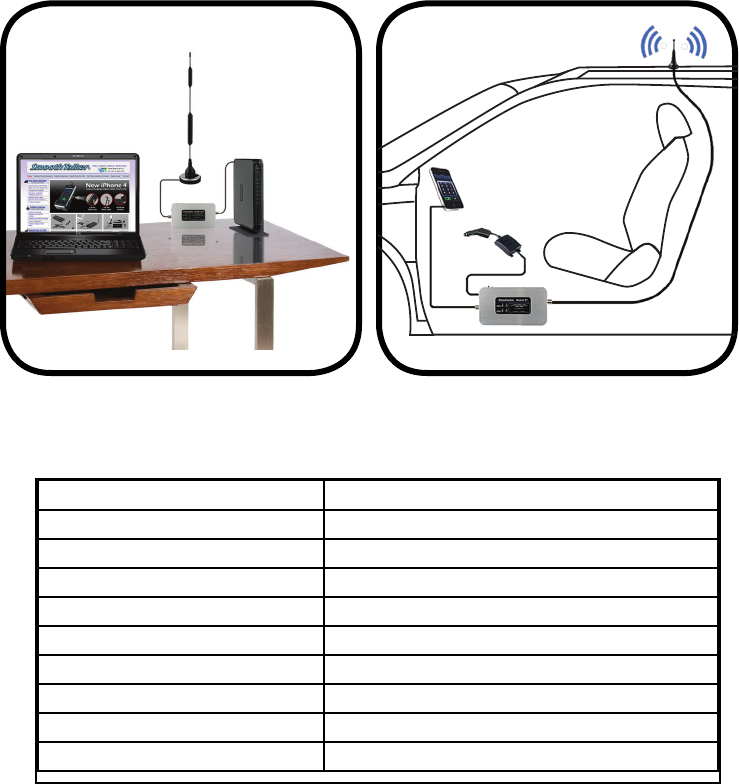

Connect the booster as shown in Fig. 1 and Fig. 2
Important:
Use only the power supply included with the booster. Connecting any other power
supply at any time will result in damage to the booster and will void the warranty.
Do not turn on the power switch until ALL cables have been screwed or plugged
into the booster or you can cause damage to the booster.

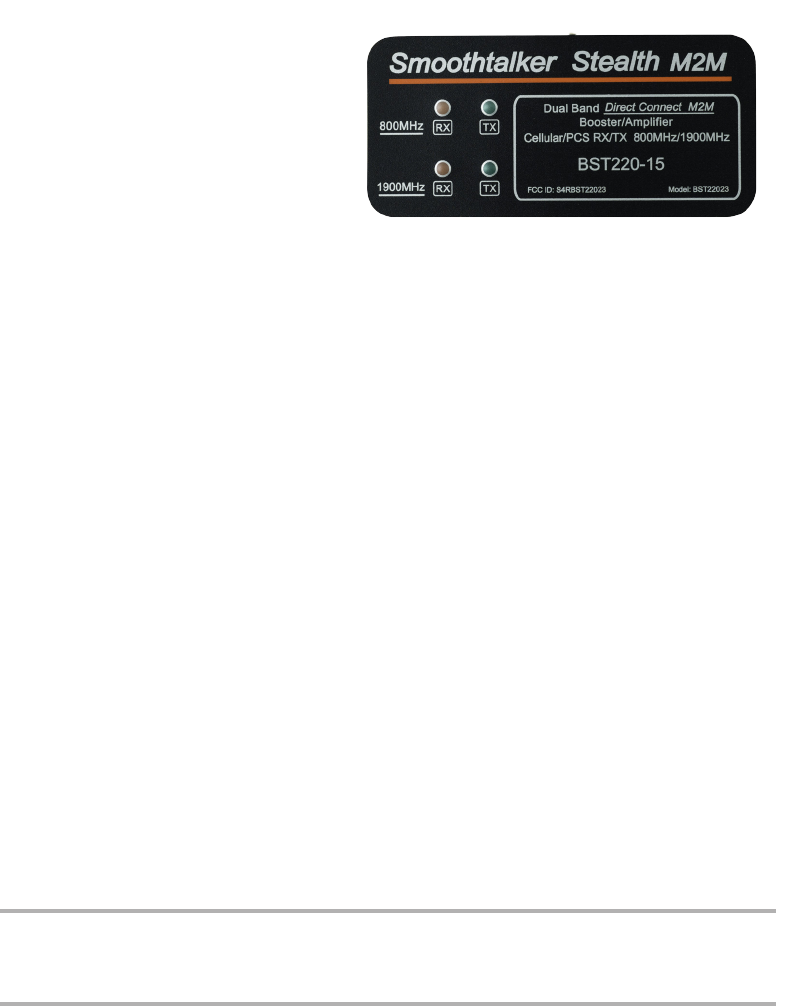

Orange LED Lights (RX):
There are two orange LED lights, one for the 800Mhz cellular band and one for the
1900Mhz PCS band. LED ON state indicates that the RX (Receive Signal) function of
the band is functioning normally. LED Off state indicates that the band is shut down.
Green LED Lights (TX):
There are two Green LED lights, one for the 800Mhz cellular band and one for the
1900Mhz PCS band. Solid ON state indicates that the TX (Transmit Signal) function of
the indicated band is on and is at maximum gain. A Flashing Green LED indicates gain
reduction in the indicated band. Each ash equals 3db reduction in gain. One ash
represents a 3dB reduction, two ashes represents a 6dB reduction etc. until the total
gain of the booster has been suppressed.
Causes of Flashing Green LED Lights:
1-If the outside antenna is located too close to the internal antenna or phone holder the
booster will reduce its gain in order to suppress any oscillation (feedback loop) and the
Green LED will ash. To achieve higer gain or max gain further separatiion of the inside
and outside antennas is required.
2-If the booster is close to a cellular tower (strong cell tower signal) it will automatically
reduce its gain to protect the network. This condition will change as the booster
approaches or leaves a cellular tower.
Understanding
the lights
NOTE: It is normal for the booster to be quite
warm while the phone is in use state.
TECH SUPPORT: www.smoothtalker.com
