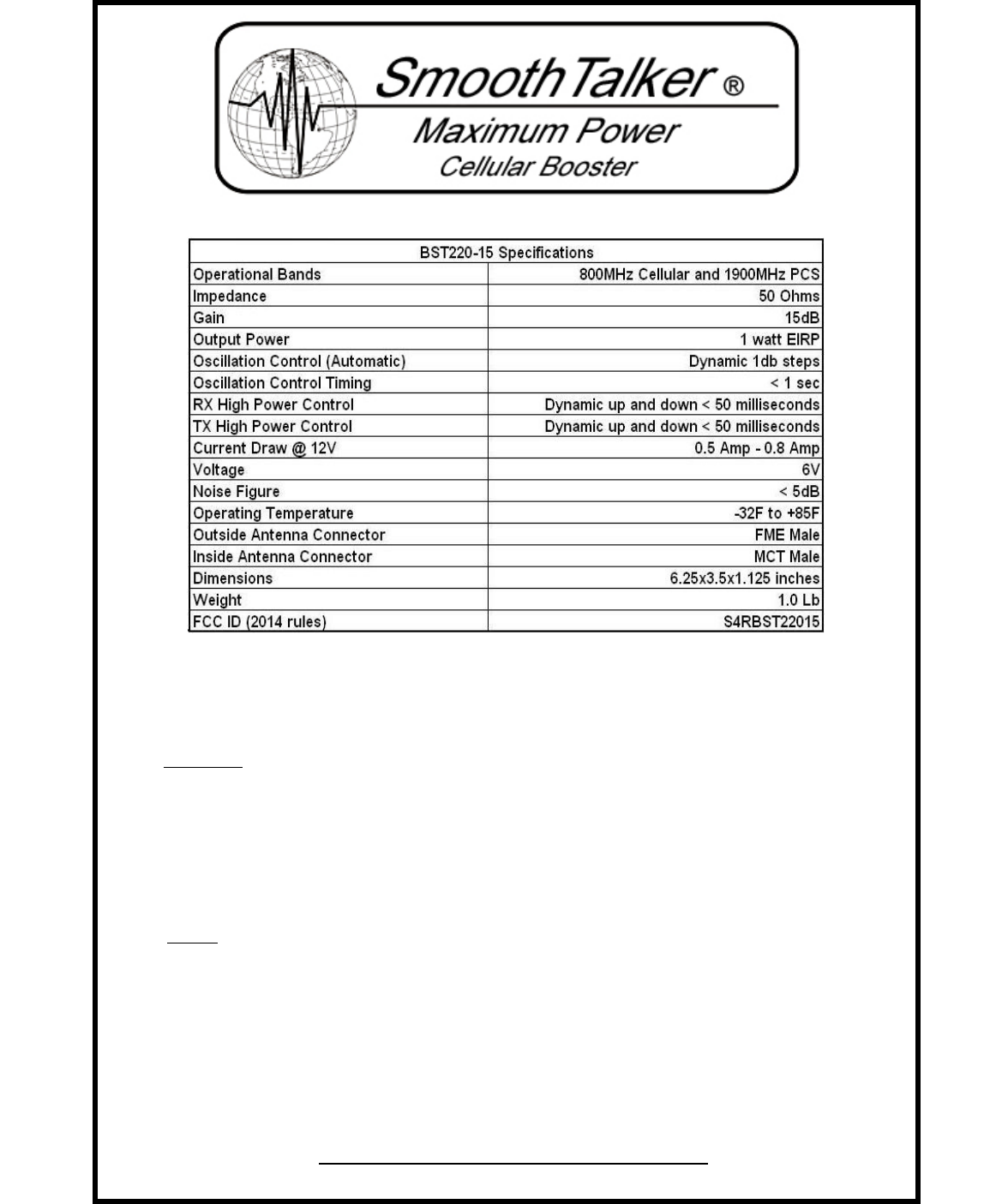

Mobile Communications BST22030 Dual Band Bi-directional Booster User Manual BST22015

Mobile Communications Inc. Dual Band Bi-directional Booster BST22015

Contents

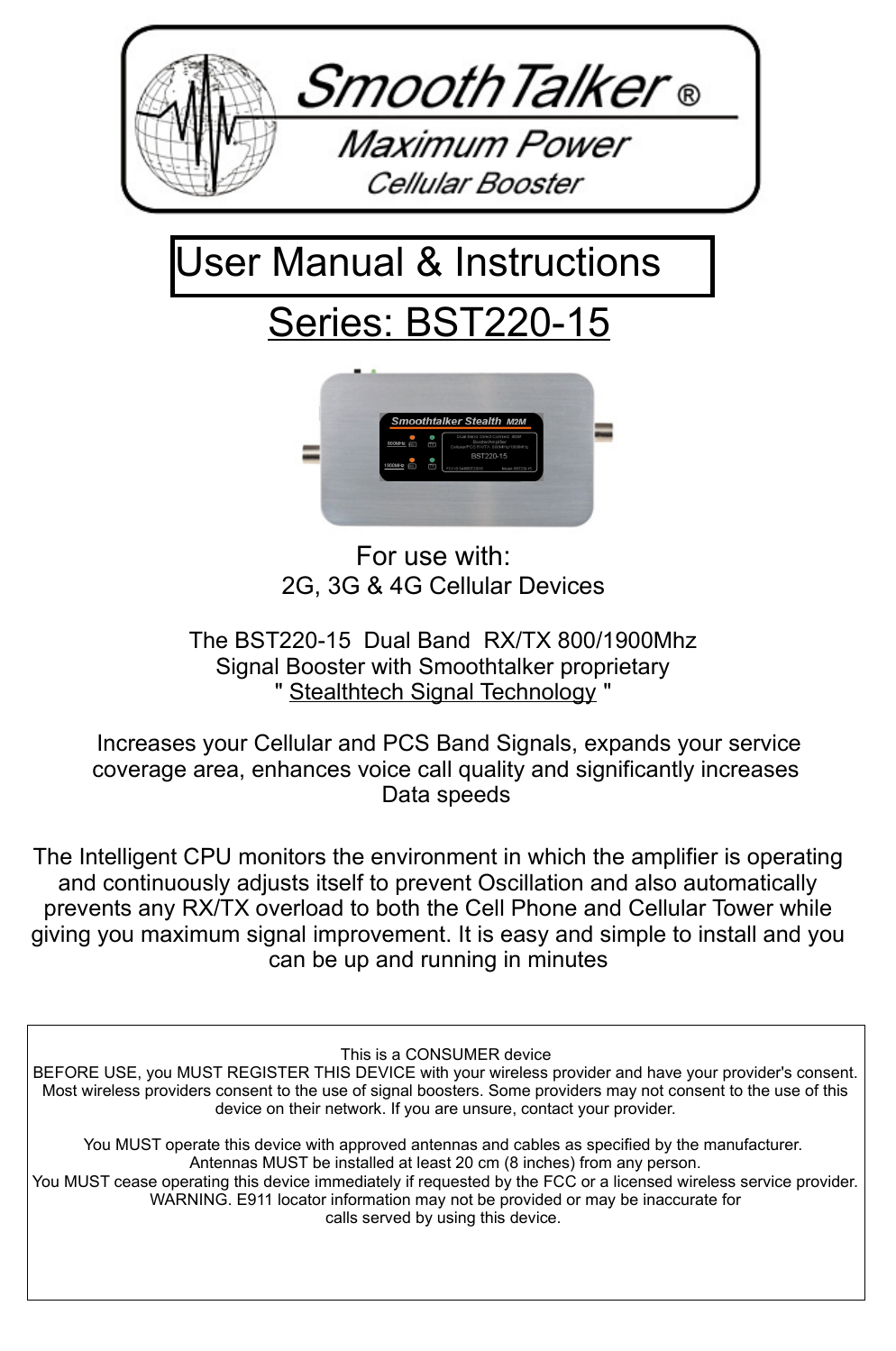

User Manual BST22015

For use with:
2G, 3G & 4G Cellular Devices
The BST220-15 Dual Band RX/TX 800/1900Mhz
Signal Booster with Smoothtalker proprietary
" Stealthtech Signal Technology "
Increases your Cellular and PCS Band Signals, expands your service
coverage area, enhances voice call quality and significantly increases
Data speeds
The Intelligent CPU monitors the environment in which the amplifier is operating
and continuously adjusts itself to prevent Oscillation and also automatically
prevents any RX/TX overload to both the Cell Phone and Cellular Tower while
giving you maximum signal improvement. It is easy and simple to install and you
can be up and running in minutes
Series: BST220-15
User Manual & Instructions
This is a CONSUMER device
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent.
Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this
device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer.
Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 locator information may not be provided or may be inaccurate for
calls served by using this device.

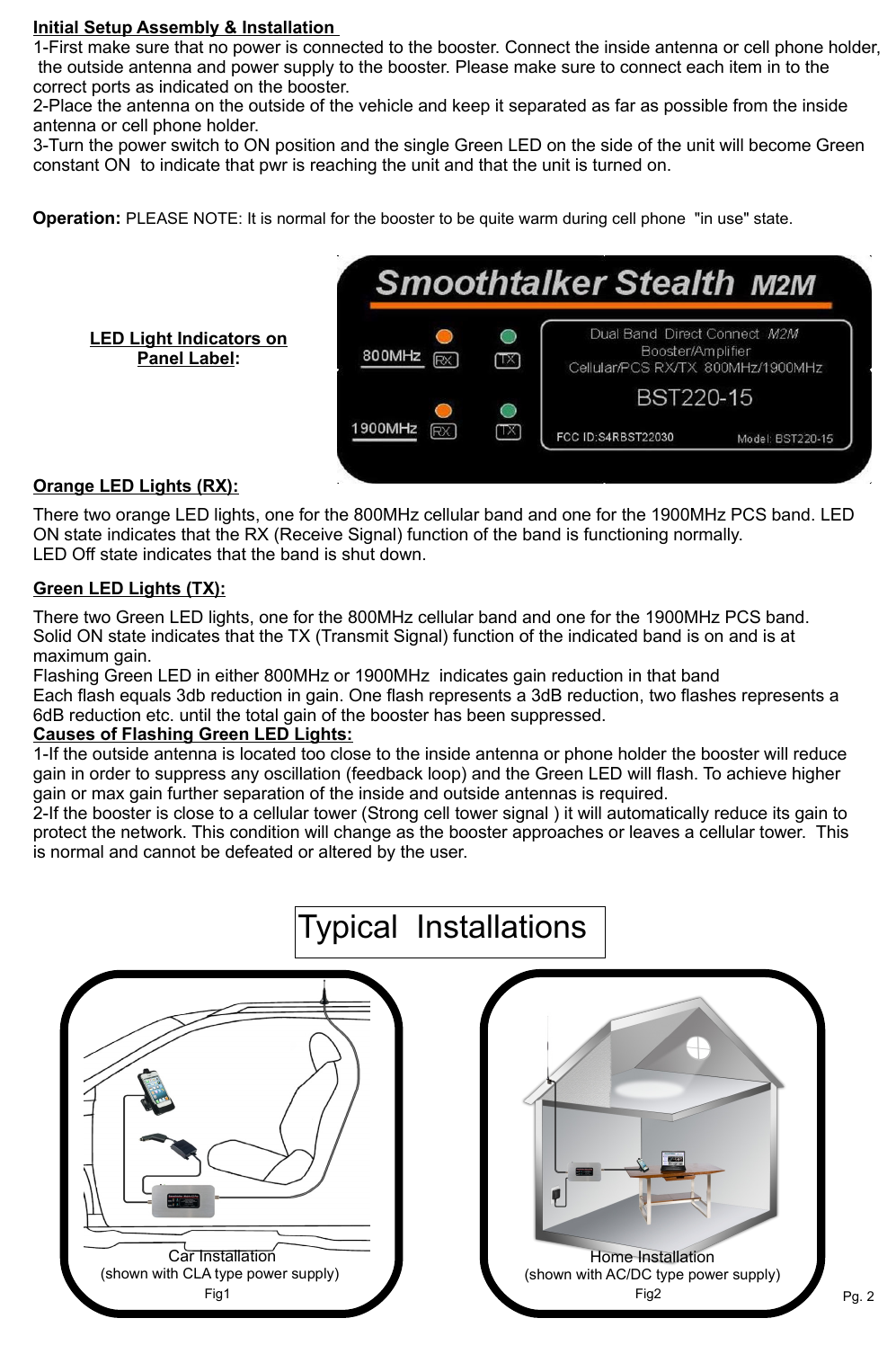

LED Light Indicators on Panel Label:
Initial Setup Assembly & Installation
1-First make sure that no power is connected to the booster. Connect the inside antenna or cell phone holder,
the outside antenna and power supply to the booster. Please make sure to connect each item in to the
correct ports as indicated on the booster.
2-Place the antenna on the outside of the vehicle and keep it separated as far as possible from the inside
antenna or cell phone holder.
3-Turn the power switch to ON position and the single Green LED on the side of the unit will become Green
constant ON to indicate that pwr is reaching the unit and that the unit is turned on.
Operation: PLEASE NOTE: It is normal for the booster to be quite warm during cell phone "in use" state.
LED Light Indicators on
Panel Label:
There two orange LED lights, one for the 800MHz cellular band and one for the 1900MHz PCS band. LED
ON state indicates that the RX (Receive Signal) function of the band is functioning normally.
LED Off state indicates that the band is shut down.
There two Green LED lights, one for the 800MHz cellular band and one for the 1900MHz PCS band.
Solid ON state indicates that the TX (Transmit Signal) function of the indicated band is on and is at
maximum gain.
Flashing Green LED in either 800MHz or 1900MHz indicates gain reduction in that band
Each flash equals 3db reduction in gain. One flash represents a 3dB reduction, two flashes represents a
6dB reduction etc. until the total gain of the booster has been suppressed.
Causes of Flashing Green LED Lights:
1-If the outside antenna is located too close to the inside antenna or phone holder the booster will reduce
gain in order to suppress any oscillation (feedback loop) and the Green LED will flash. To achieve higher
gain or max gain further separation of the inside and outside antennas is required.
2-If the booster is close to a cellular tower (Strong cell tower signal ) it will automatically reduce its gain to
protect the network. This condition will change as the booster approaches or leaves a cellular tower. This
is normal and cannot be defeated or altered by the user.
Green LED Lights (TX):
Orange LED Lights (RX):
Car Installation
(shown with CLA type power supply)
Pg. 2

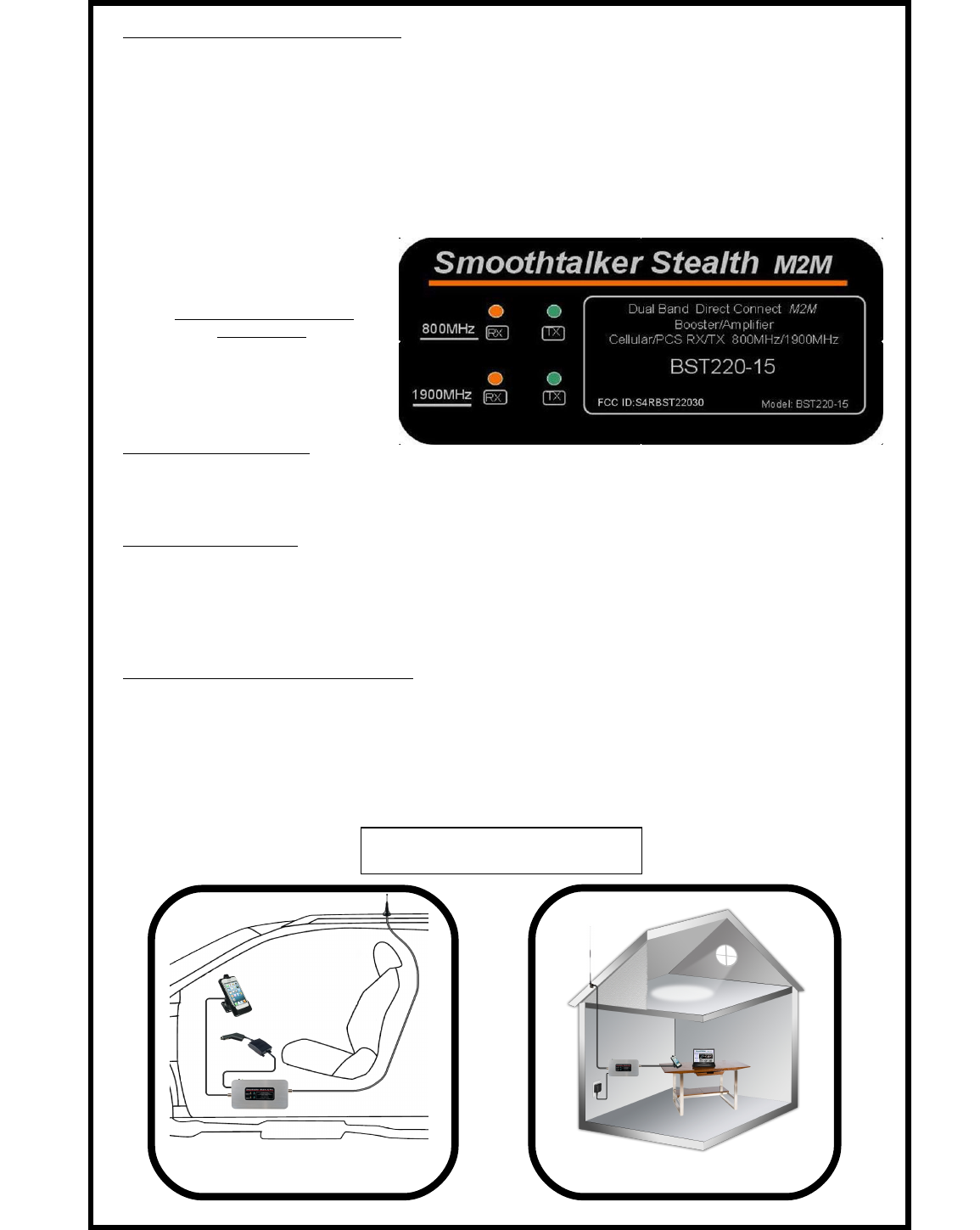

Typical Installations
Fig1 Fig2
Home Installation
(shown with AC/DC type power supply)

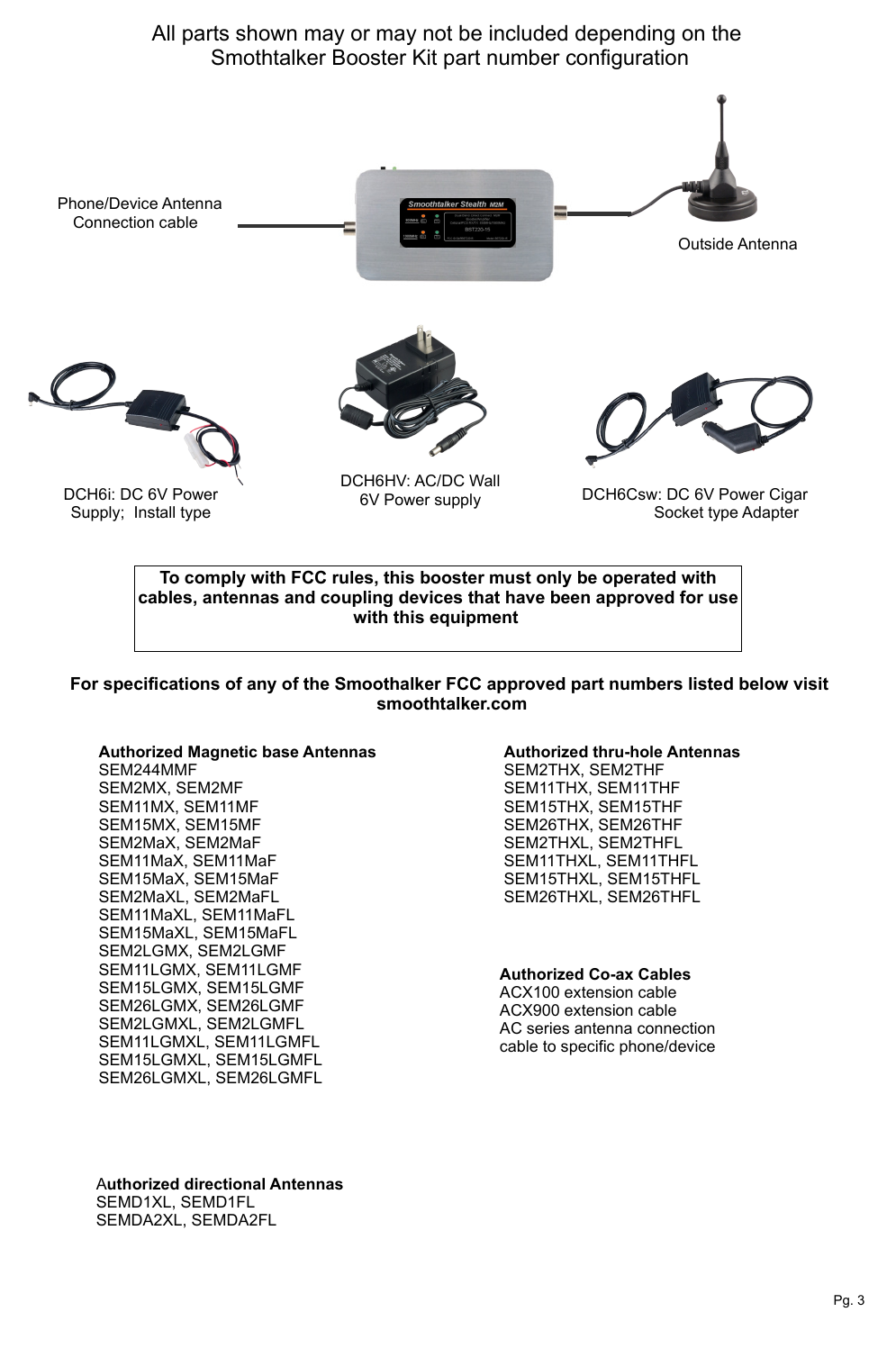

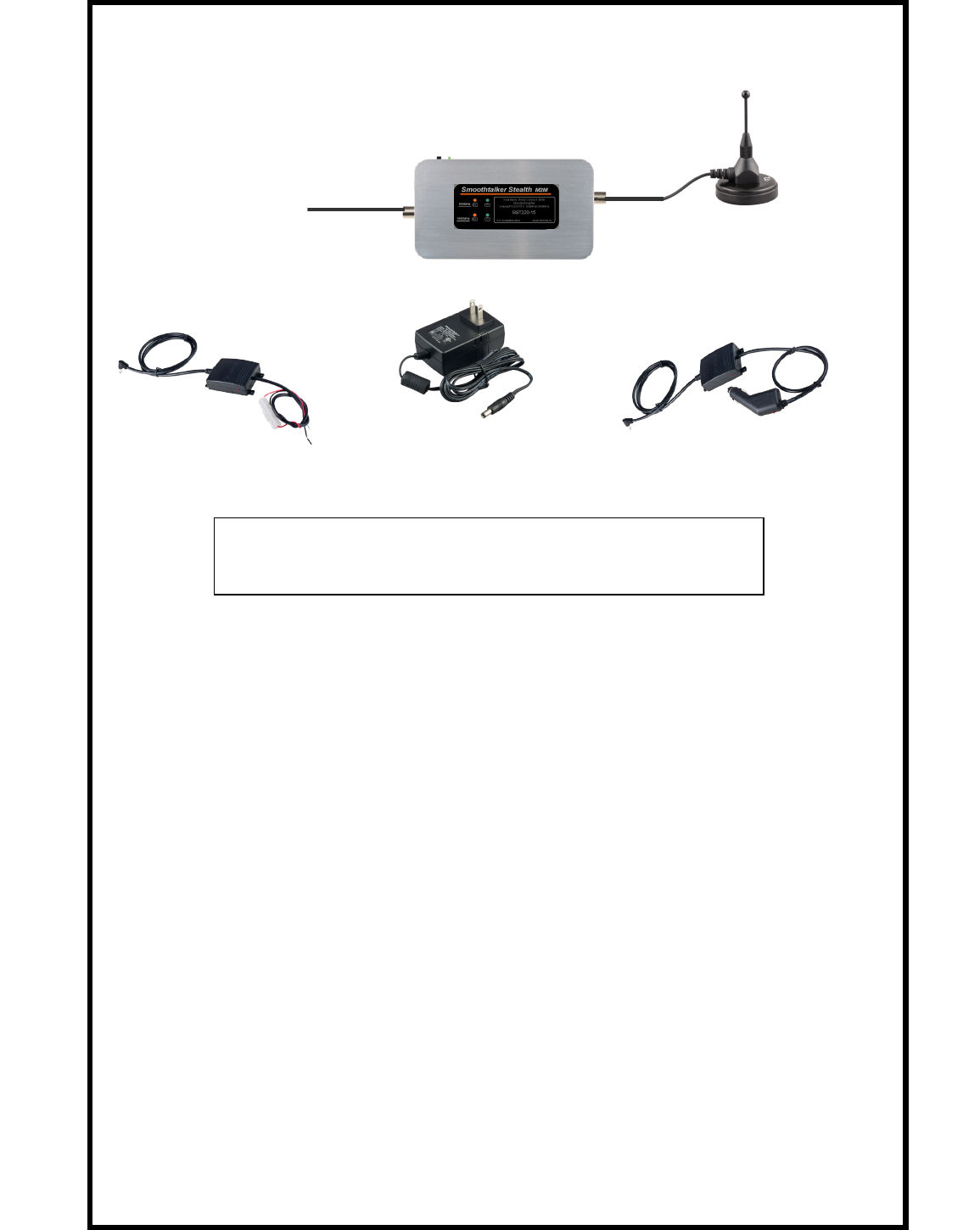

All parts shown may or may not be included depending on the
Smothtalker Booster Kit part number configuration
DCH6i: DC 6V Power
Supply; Install type
Signal Booster Outside Antenna
DCH6Csw: DC 6V Power Cigar
Socket type Adapter
Pg. 3
Phone/Device Antenna
Connection cable
To comply with FCC rules, this booster must only be operated with
cables, antennas and coupling devices that have been approved for use
with this equipment
Authorized Co-ax Cables
ACX100 extension cable
ACX900 extension cable
AC series antenna connection
cable to specific phone/device
For specifications of any of the Smoothalker FCC approved part numbers listed below visit
smoothtalker.com
Authorized Magnetic base Antennas
SEM244MMF
SEM2MX, SEM2MF
SEM11MX, SEM11MF
SEM15MX, SEM15MF
SEM2MaX, SEM2MaF
SEM11MaX, SEM11MaF
SEM15MaX, SEM15MaF
SEM2MaXL, SEM2MaFL
SEM11MaXL, SEM11MaFL
SEM15MaXL, SEM15MaFL
SEM2LGMX, SEM2LGMF
SEM11LGMX, SEM11LGMF
SEM15LGMX, SEM15LGMF
SEM26LGMX, SEM26LGMF
SEM2LGMXL, SEM2LGMFL
SEM11LGMXL, SEM11LGMFL
SEM15LGMXL, SEM15LGMFL
SEM26LGMXL, SEM26LGMFL
Authorized thru-hole Antennas
SEM2THX, SEM2THF
SEM11THX, SEM11THF
SEM15THX, SEM15THF
SEM26THX, SEM26THF
SEM2THXL, SEM2THFL
SEM11THXL, SEM11THFL
SEM15THXL, SEM15THFL
SEM26THXL, SEM26THFL
Authorized directional Antennas
SEMD1XL, SEMD1FL
SEMDA2XL, SEMDA2FL
DCH6HV: AC/DC Wall
6V Power supply

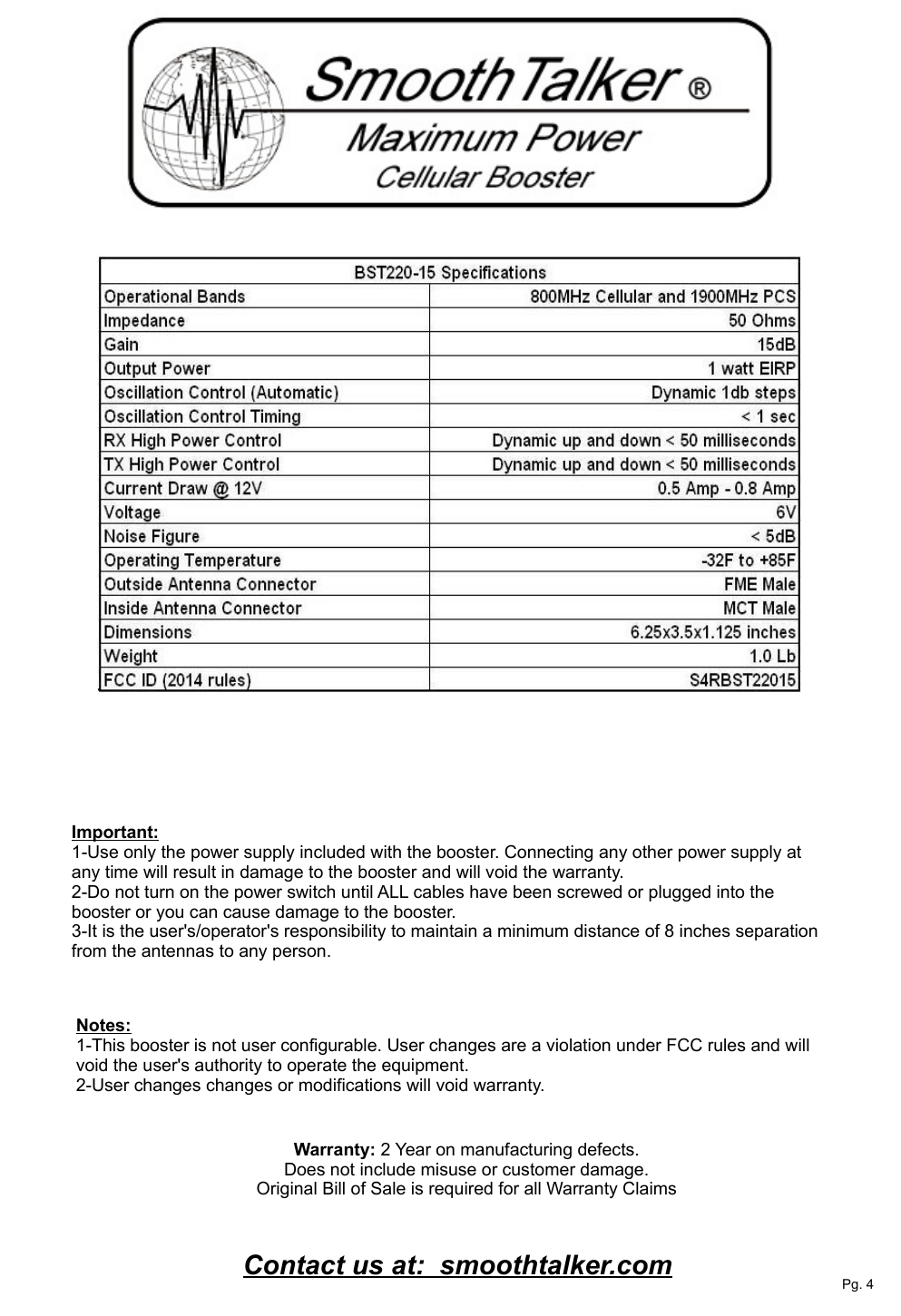

Warranty: 2 Year on manufacturing defects.
Does not include misuse or customer damage.
Original Bill of Sale is required for all Warranty Claims
Contact us at: smoothtalker.com
Important:
1-Use only the power supply included with the booster. Connecting any other power supply at
any time will result in damage to the booster and will void the warranty.
2-Do not turn on the power switch until ALL cables have been screwed or plugged into the
booster or you can cause damage to the booster.
3-It is the user's/operator's responsibility to maintain a minimum distance of 8 inches separation
from the antennas to any person.
Pg. 4
Notes:
1-This booster is not user configurable. User changes are a violation under FCC rules and will
void the user's authority to operate the equipment.
2-User changes changes or modifications will void warranty.
