Handheld xTablet A680 User Manual
Preface
Summary:
Hello, respected users, thank you for using our products; in order to familiarize you with the
products more quickly, please refer to the documentation for problems encountered in the use
process. This document mainly introduces the Q62 project fuselage interface and system usage
instructions, through the picture instruction information to enable users to quickly understand
the use of products. When you encounter unsolvable problems in use, please contact our
technical staff to deal with them. Thank you for your trust.
Catalog
1. File version information...........................................................................................................2
2. Product External Function Interface Description.................................................................3-4
3. Desktop and Menu Layout....................................................................................................5-7
4. Use warnings:..........................................................................................................................8
1.File version information
2.Product External Function Interface Description:
File name
xTablet A680 User Manual
Document number
0002
Edition
V1.0
Issue date
2017-09-29
Page number
Change record
Serial
number
Change number
Edition
Date of change
Change content
Maintenance
department
1
YDXX-02
V1.0
2017-09-29
First episode
Customer service
department FAE

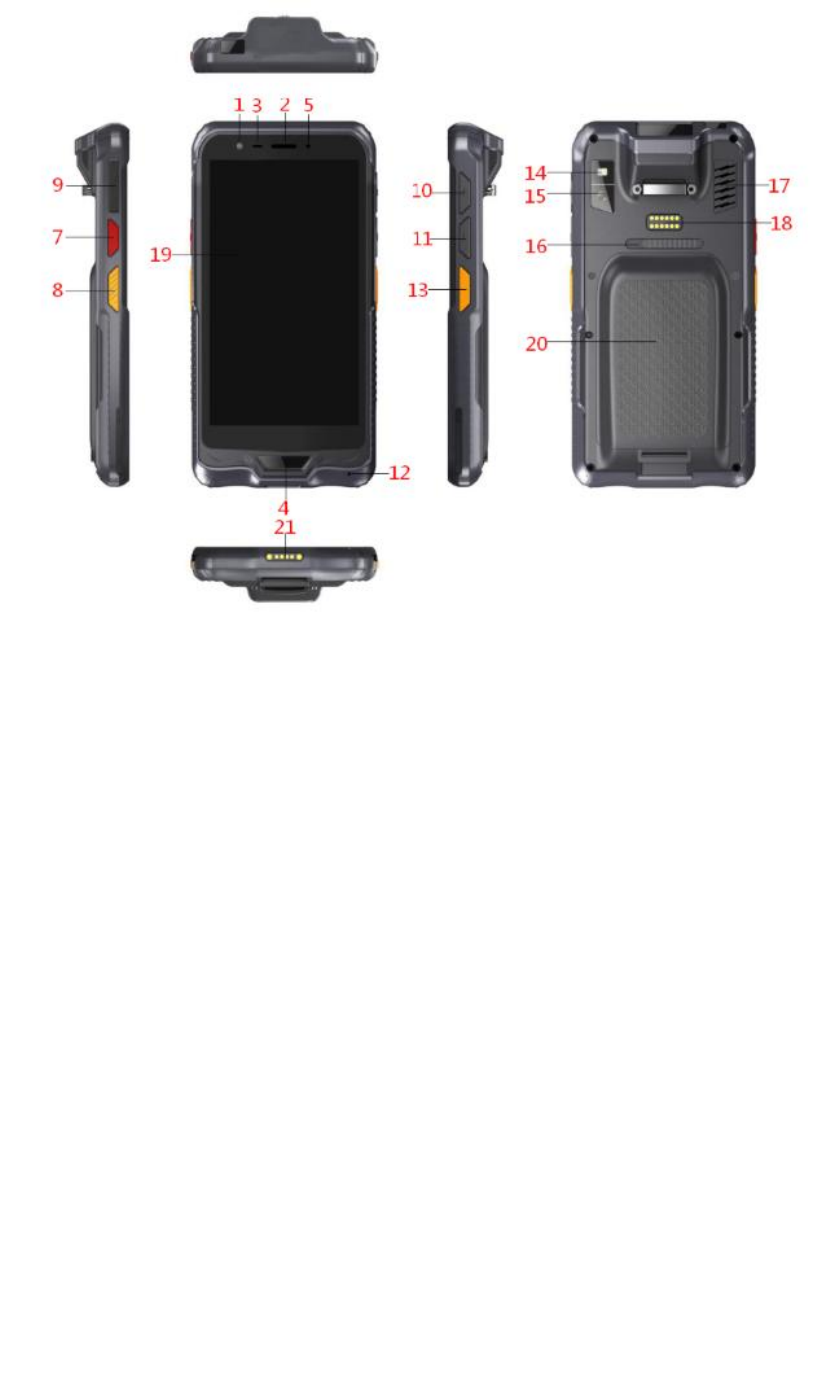

1.Front camera - 2 million front-end cameras, users can use video calls, take photos or record videos;
2.Receiver horn - used for answering telephone calls, network voice calls, etc.；
3.Light Sensor/Range Sensor-when it is close to the sensing distance of the face when the user is talking.
It reduces the power consumption and prevents the wrong touch from causing the interruption of the
call or other problems.
4.HOME key - When the user is in the application APP interface, he does not need to exit APP, and can
directly return to the desktop or the main menu through the HOME key.
5.LED-Indicate boot charging
7.Power button-Turn on, Shut down and Hibernate
8/13.Custom Function Keyboard
9.USB Waterproof Plug - Used for Waterproof and Dust-proof
10/11.Volume+/Volume-Keyboard-Control Volume
12.MIC-Microphone
14. Rear Camera/Flash - Rear 5 million cameras (batch optional 8 million), users can take photos and
record videos, flash can assist the camera at night, flashlight and other functions;
15.Flash Off - Auxiliary Photography in Darker Light
16. Battery bolt - for fixing batteries, sliding to the right to lock, sliding to the left to unlock the battery,
after locking the battery can not be removed;
17. Speakers - Source output for playing video or audio;
18.Extended Interface - Used for Customer Custom Functional Interface
19.LCD&TP-Display Screen and Touch Scree
20. Batteries - 3.7V/5000mAh lithium batteries, running for 6 hours (default 50% volume, default 200
lumen brightness, play 720P HD video);
21. POGO pin - Users can develop and make backclamp or base according to the definition of pogo pin.
3. Desktop and Menu Layout

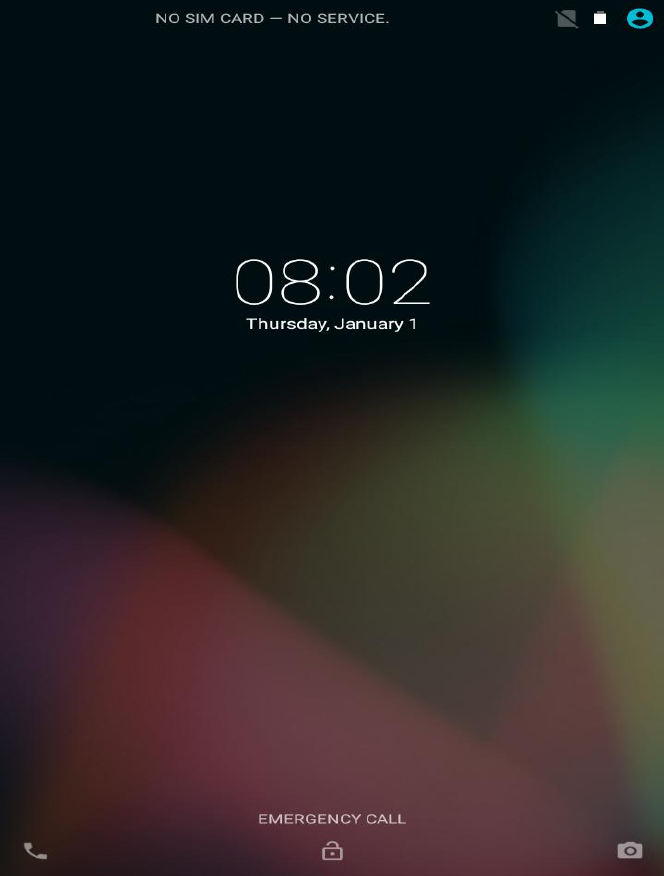

①Lock screen interface

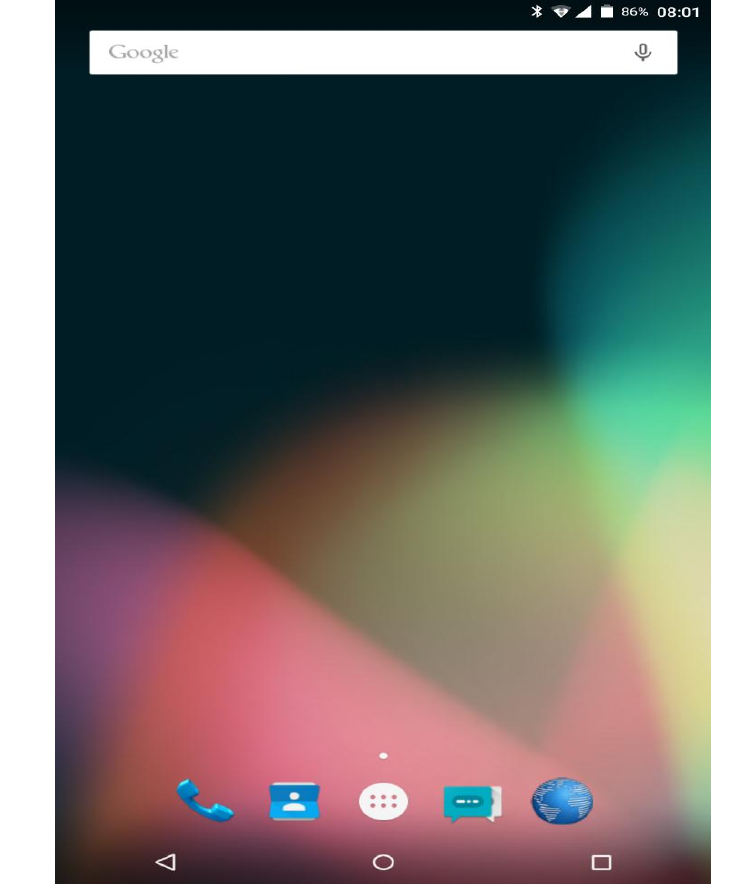

②Desktop Layout

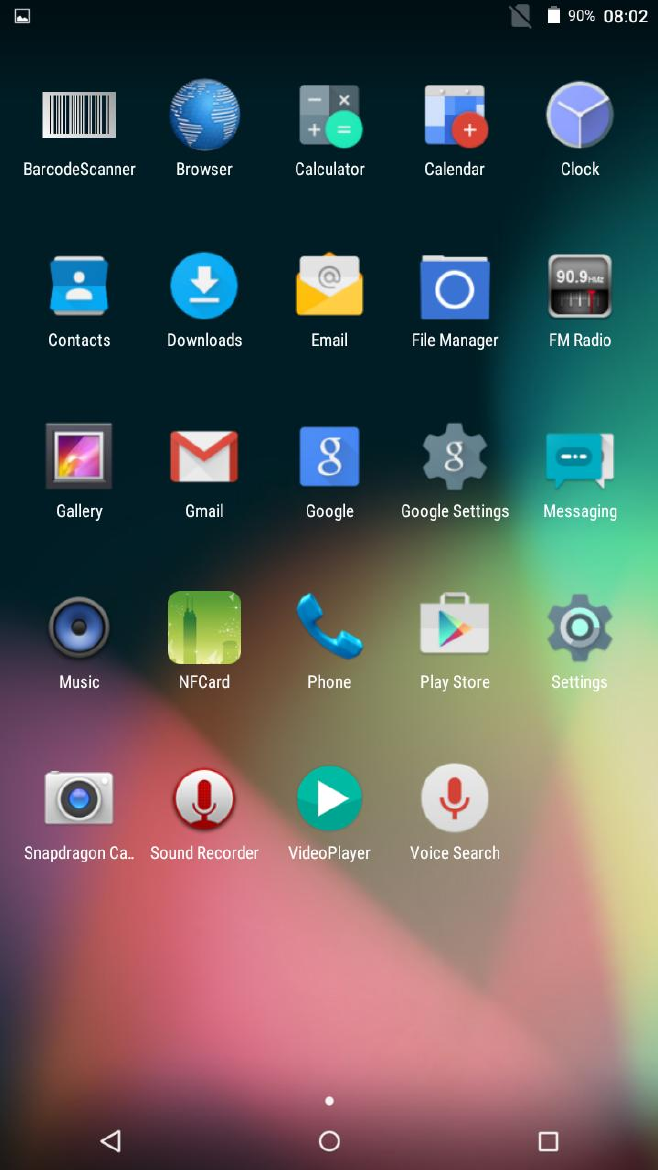

③system menu
Handheld
Model number: xTablet A680
FCC ID: O86A680
Made In China
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The devic
e can be used in portable exposure condition without restriction
SAR Statement:
This device has been tested and meets applicable limits for radio frequency (RF) exposure.
Specific Absorption Rate (SAR) refers to the rate at which the body and head absorbs RF energy. The
SAR limit is 1.6 watts per kilogram in USA that set the limit averaged over 1 gram of tissue. This
device (FCC ID:O86A680, ) has been tested against this SAR limit. During testing, the device radios
are set to their highest transmission levels and placed in positions that simulate uses against the
body and head, with no separation, the highest SAR value reported is 1.311 W / kg. SAR information
on this can be viewed on-line at https://www.fcc.gov/oet/ea/fccid. Please use the device FCC ID
number for search. Cases with metal parts may change the RF performance of the device, including
its compliance with RF exposure guidelines, in a manner that has not been tested or certified.
