MobileDemand LC FLEX8A 8 inch Tablet Computer With Rugged Protective Case User Manual

MobileDemand, LC 8 inch Tablet Computer With Rugged Protective Case

User manual

FLEX8A
Quick Start Guide
Introduction
Thank you for your choosing the new Tablet PC.
This guide serves to enable users to get to know and familiar with our product as soon as
possible. Here we have made a brief introduction to the key layout and definitions in
figures and words.
Contents
Ⅰ. Precautions before Use 03
Ⅱ.Key Layout and Definitions 04
Ⅲ. Key Descriptions and Applications 05
Ⅳ. Introduction to Desktop 06
1. Windows8.1 Start Screen 06
2. Image Slide Application 06
3. apps Introduction 08
4. Charm Menu Column 09
5. Double Screen Application 11
Ⅴ. Basic Operations 12
1. Dormancy, Restart, and Power off 12
Ⅰ. Precautions before Use
This production is suitable for use in non-tropic areas below 2,000 meters, and the mark
in the nameplate indicates the product is suitable for use in non-tropic areas.
2. Prevent the Tablet PC from falling to the ground or being strongly impacted otherwise.
3. Do not use it in the long term in any environment where the air is too cold, too hot
(<35℃), too humid or with too much dust. Do not expose the Tablet PC to sunlight.
4. Avoid using it in the strong magnetic and strong static environment as much as
possible.
5. Once any water or other liquid splashes onto the Tablet PC, close it immediately and do
not use it until it dries out.
6. Do not clean the Tablet PC with any detergent containing chemical element or other
liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really
necessary, clean it with dry soft cloth tissue paper.
7. Our company shall not bear any and all responsibilities for loss or deletion of material
inside the machine caused due to abnormal software and hardware operation,
maintenance or any other accident.
8. Please back up your important material at any time to avoid loss.
9. Please do not disassemble the Tablet PC by yourself; otherwise you will lose the right to
warranty.
10. Quick Use Guide and the relevant software shall be updated at any time. For updated
software version, visit www.xxx.com for downloading by yourself, and no notice shall be
given otherwise. If any anything is found to be inconsistent with the Quick Use Guide, the
material object shall prevail.
12. Replacement with incorrect type batteries may cause explosion. Make sure to use
original batteries.
○

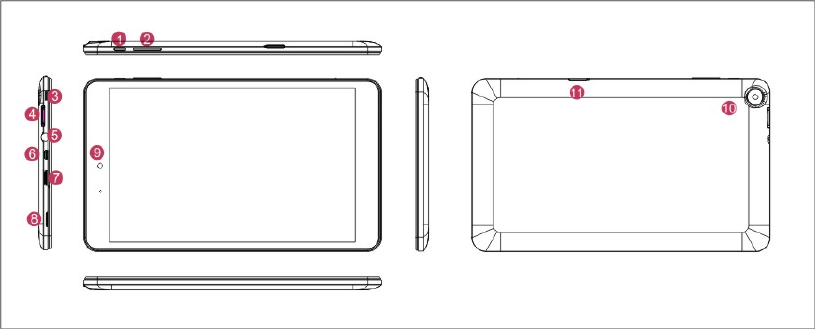

1Power button: Press it down to start or close the touch screen panel. You can also let the
computer to enter dormancy through this button or wake from the dormancy mode.
○
2Sound-/sound+: Lower/raise volume
○
3Windows key: Press this button to return to the Start screen.
○
4MicroSD& MicroSDHC Micro SD card slot: The built-in storage card reader slot supports
MicroSD and MicroSDHC format.
○
5Socket for earphone and microphone: This socket can transmit the audio signals of
Tablet PC to loudspeaker or earphone.
○
6Micro HDMI Interface: High-Definition Multimedia Interface
○
7Micro USB Interface: You can read the data through USB.
○
8 Loudspeaker: The built-in loudspeaker enables you to hear the sound without having to
linking additional device.
○
9Front camera: take photos, and record pictures
○
10Back camera: take photos, and record pictures.
Ⅵ. Introduction to Desktop

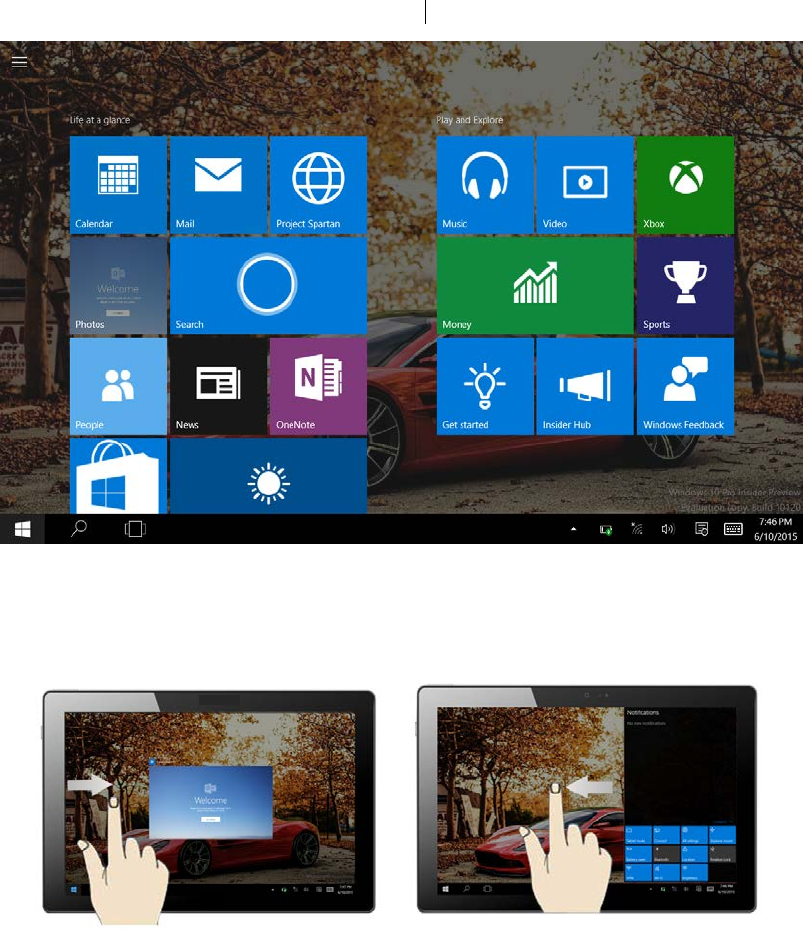

1. Windows 10 start image: On the start screen, you can see many programs fixed in
the image. These application programs are displayed in the form of “magnet”. As long as
you click them, you can easily visit them.
You need to log on your Microsoft account before the application program completely
runs.
2. Image slide applications
Slide to right Slide to left
Slide to the right from the left side Slide to the left from the right side of
the of the screen to scan the application screen to setting Charm menu column.
program in running.

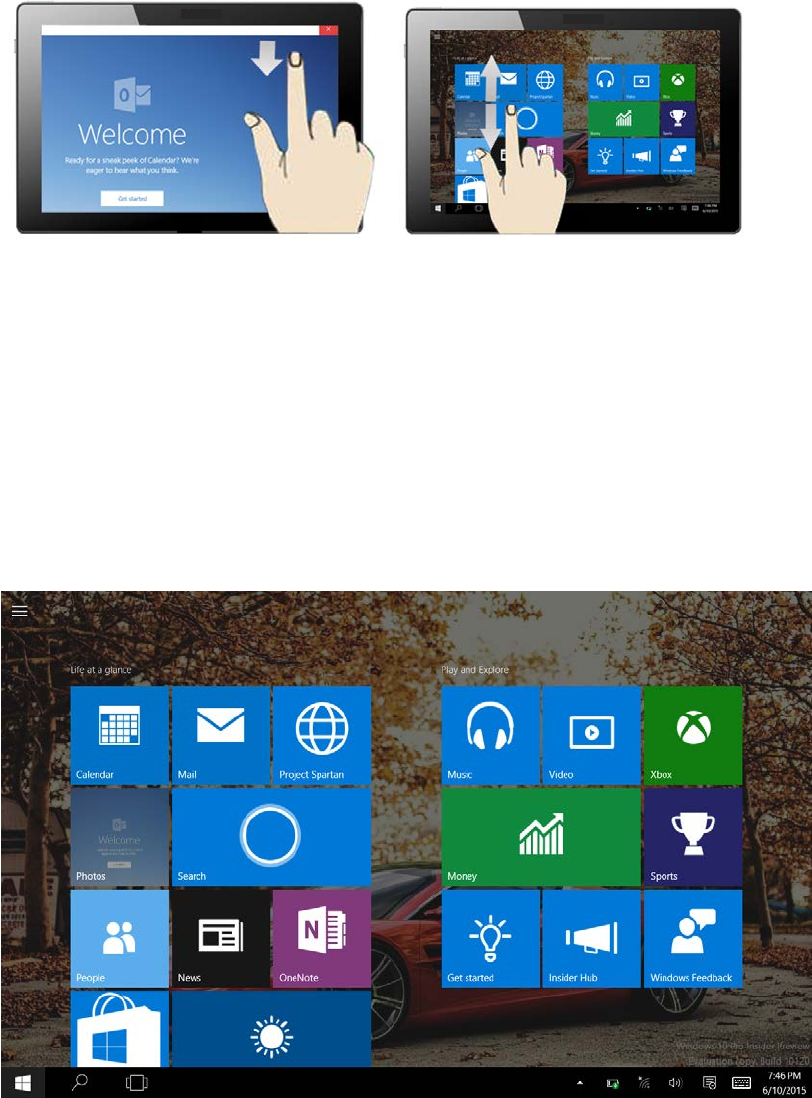

Slide downward Slide with finger
In start screen, slide from the top of the In start screen, slide finger up and down
screen to view application programs to move the image.
3． Introduction to app Interface
Besides the application programs already fixed on the start screen, you can also start
other application programs in all application programs, such as other software application
programs attached to the Tablet PC.

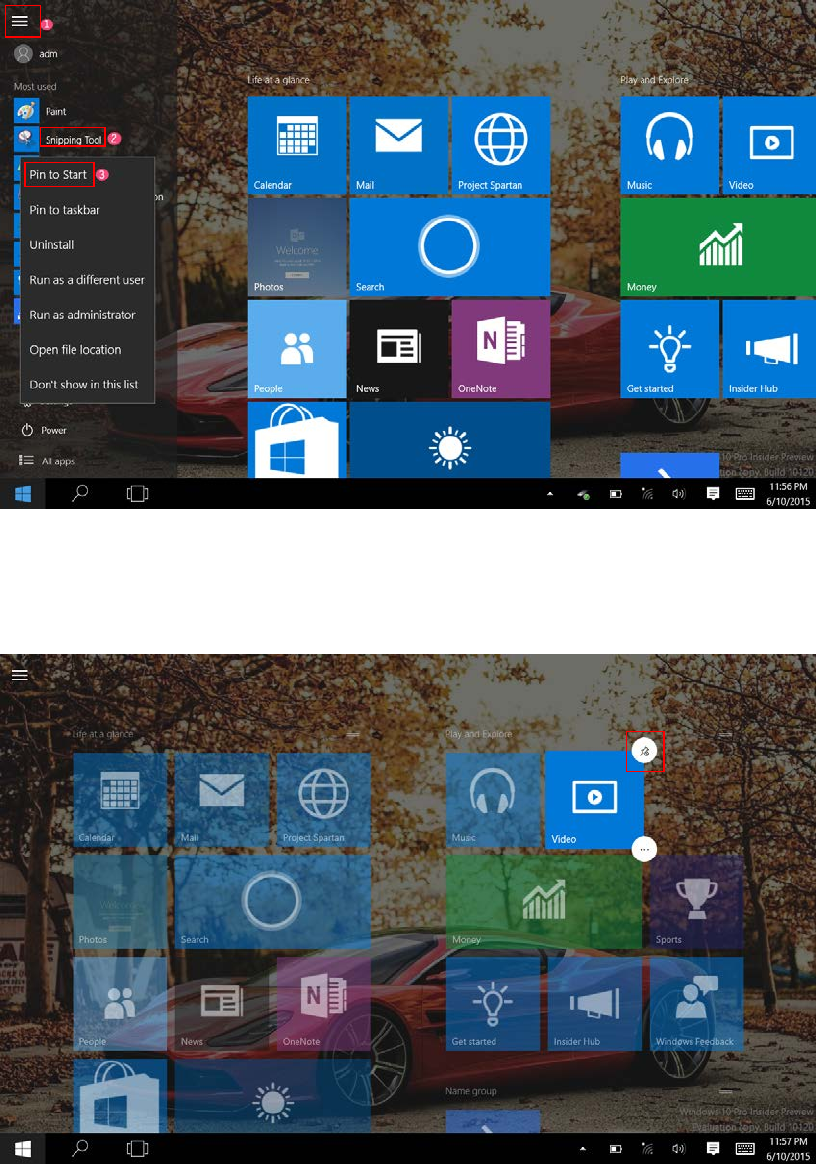

If you want to fix more application programs on the start interface, see the operation in the
figure below, (1) Click the properties icon(2) press and hold the application program
magnet for about one second and then let go (3) Click the Pin to start
Conversely, if you want to cancel or delete a certain application in the start screen, (1)
lightly touch, press and hold the application program magnet for about one second and
then let it go and run, and select
4． Charm menu column
Slide it to the left from the right side of the screen to start Charm menu column,
including: Start, Device, Setup, Share, and Search Program.

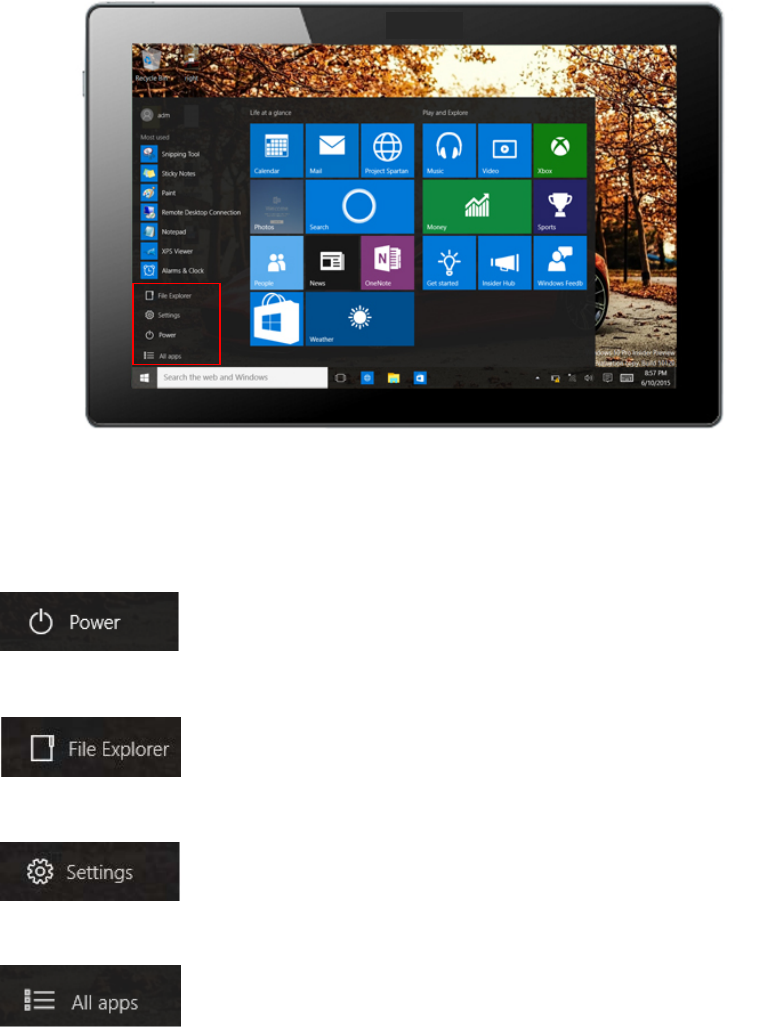

Slide it to the left from the right side of the screen to start Charm menu column, Usually:
File Explorer,Settings,Power, and All apps
Can Sleep/Shut down/Restart the Tablet PC
Can let you search the files and application programs in the Tablet PC.
Can let you set up the Table PC.
Can scan more apps
Search menu
Device Menu Set up Menu

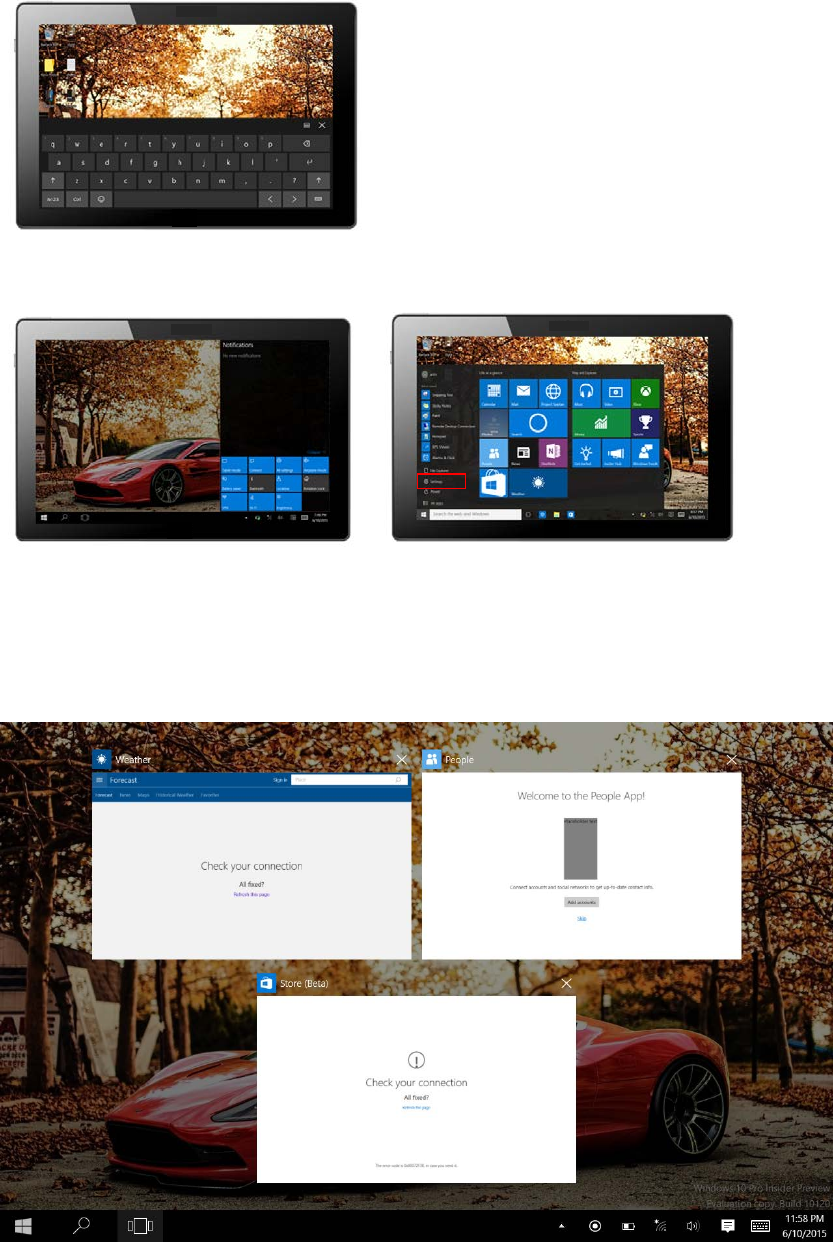

5． Multitasking operating interface
slide it right from the left side of the screen, Let go when Can see the running applications.
We can enter the application, also can be deleted.
Ⅴ. Basic Operations

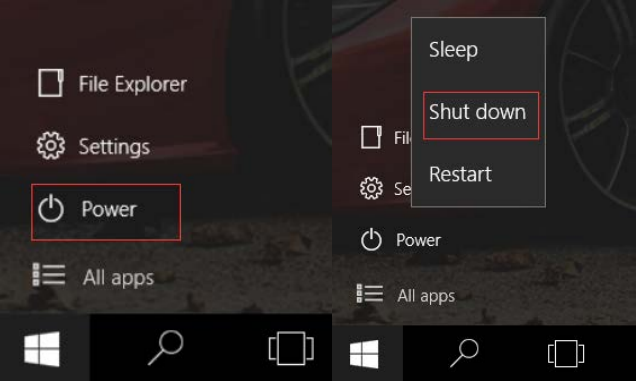

1. Sleep, restart and power off
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
