MPP-100 User Guide

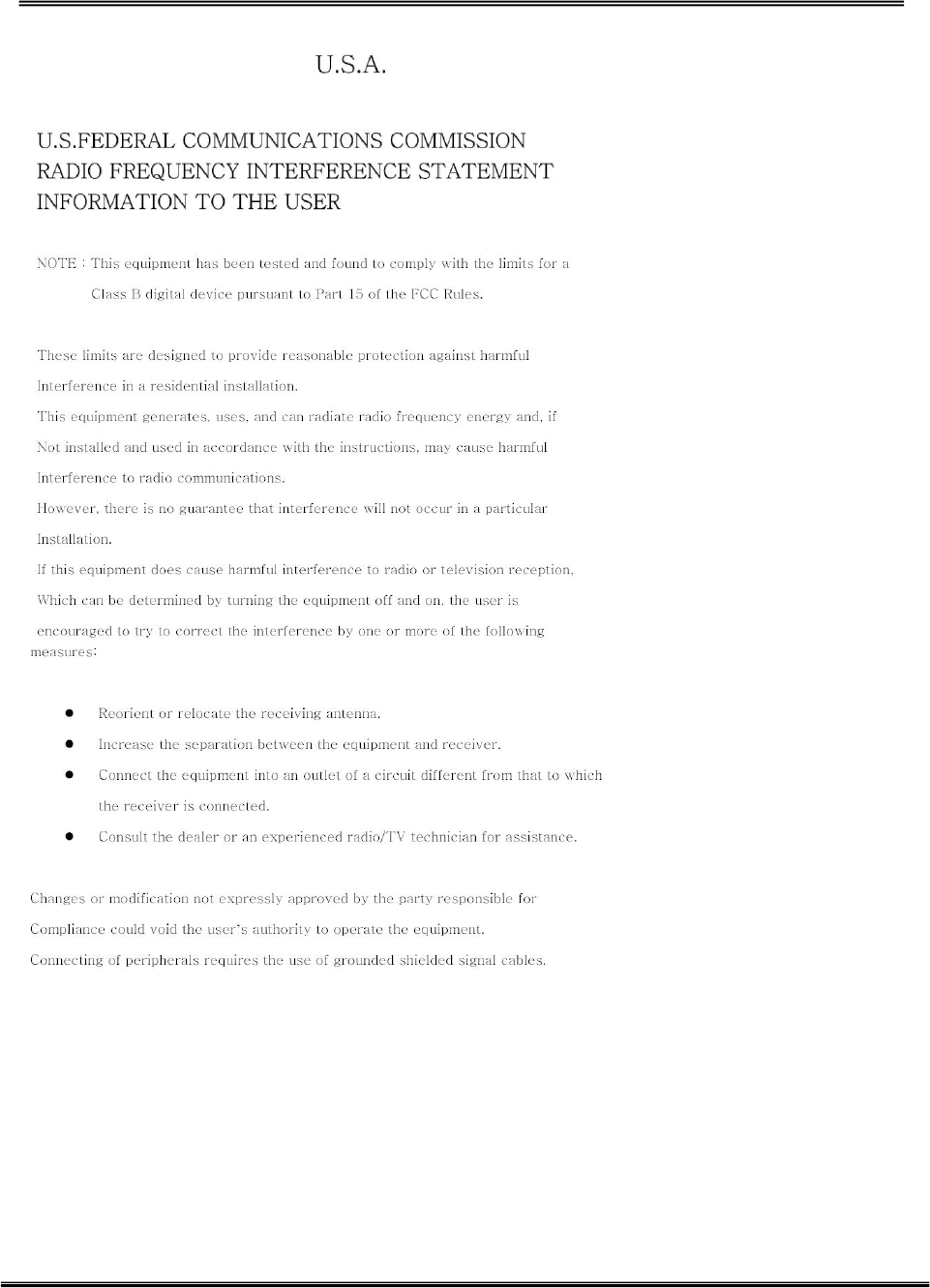

FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
I .Summary
MPP-100 USB Device have normal PC soundcard function and Data Storage function.
a. Sound Card function
b. Support Stereo 2.1channel Dolby output
c. AGC(Auto Gain Control) basic institution function
d. Support Mike input(support 8bit, 16bit sampling )
e. Supply separate Exterior speaker output port
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
f. Volume adjustment function
g. Speaker & MIC mute function
h. Support Ear-Mic’s in/output
. Specification
* MPP-100 Specification
Part Description
USB Spec USB Version 1.1
Operating Power USB Self Bus Power
USB Connector A Type to PC & Mini A Type to Module
USB Cable 1.2mm Shield Cable with Core
Speaker Jack 3.5pie Stereo Plug
Microphone Jack 3.5pie Mono Plug
Ear-Mic 2.5pie Mono Plug
Audio
MIC : 11kΩ, +22.5dB
Input : Mono 8~16 bit
SPE : 32Ω, 1130mVrms
Output : Stereo 24 bit
S/N A/D : 92dB , D/A : 96dB
Etc Volume Up & Down Switch
Speaker Mute & MIC Mute Switch
Size 79mm x 44mm x 14mm
I. Composition
Check your MPP-100 package for the following item-list.
1. MPP-100
2. Software & Driver support CD
3. 1.2m USB Cable
4. User Guide
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
5. Quick Setup Guide
IV. Installation
1. What is USB ?
It is a initial of Universal Serial Bus.
It is developed spec. easily to connect between PC and PC circumference .
It can transfer data quickly and has Plug & Play function.
2. Check the Circumstance of Utilization
You can use this product under over Windows 98 SE , Linux, Mac OS9 operating system.
Do you have USB port in your PC?
If you use Celeron or Pentium /, you have 100% of USB port.
There are two USB port which are located beside keyboard and mouse’s plug in
the rear of computer.
But it is possible to have USB port in front of computer, if your computer is
a new style.
Is your Operating system(OS) over Windows 98SE?
If you have over Windows 98SE’OS, it can be recognized USB automatically
regardless of a separate driver. But sometimes Installing driver can be
possibly to need a original CD.
3. Product picture
1) MPP-100
Mini USB port
Power Display Lamp
MIC Mute Display Lamp

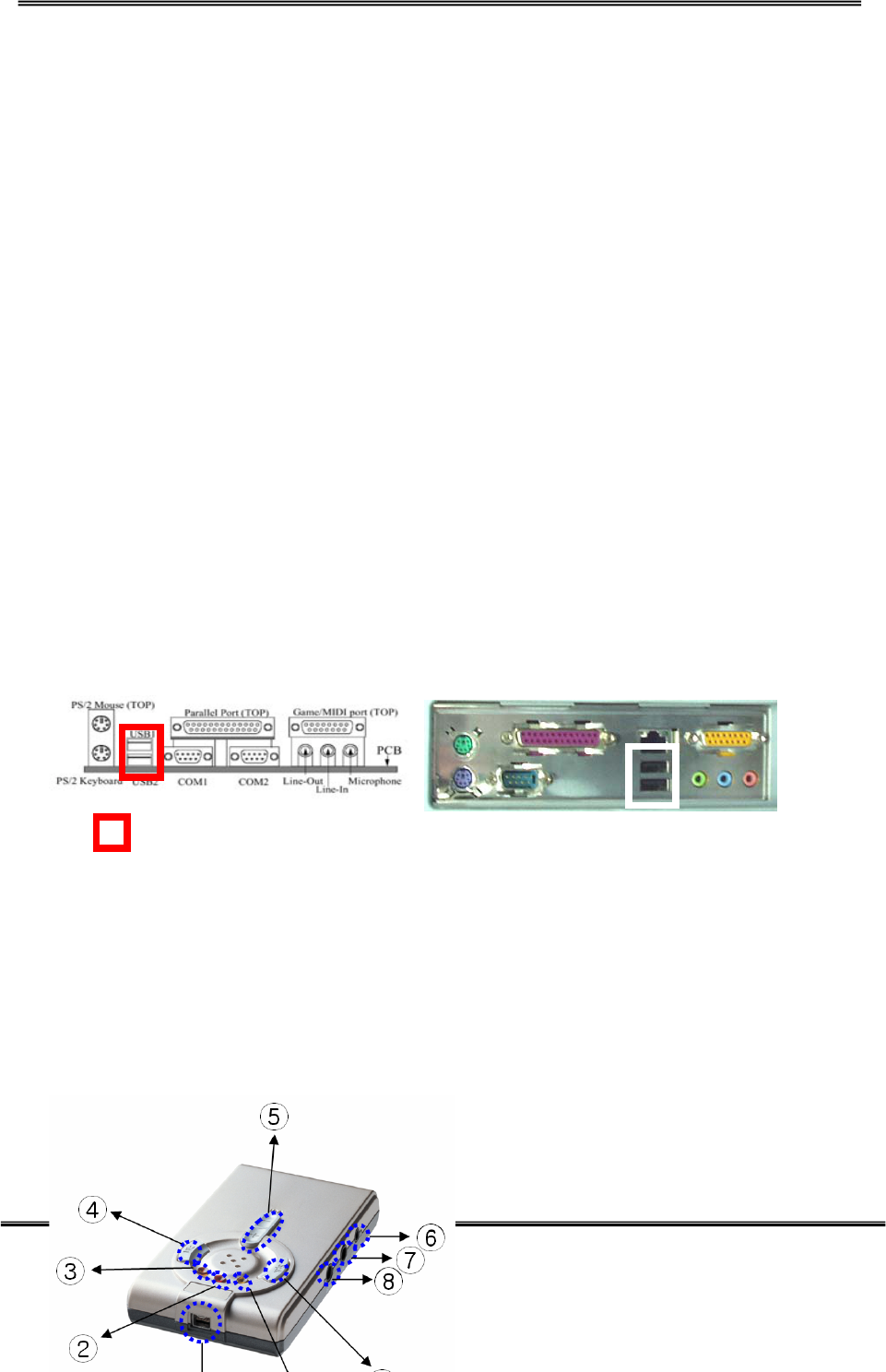

Wait! How to find USB port
“ ”’s mark is USB port, has to plug USB connecter.
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
MIC Mute Button
Volume Up & Down Button
EarMIC Jack
Microphone Jack
Speaker Jack
Speaker Mute Button
Speaker Mute Display Lamp

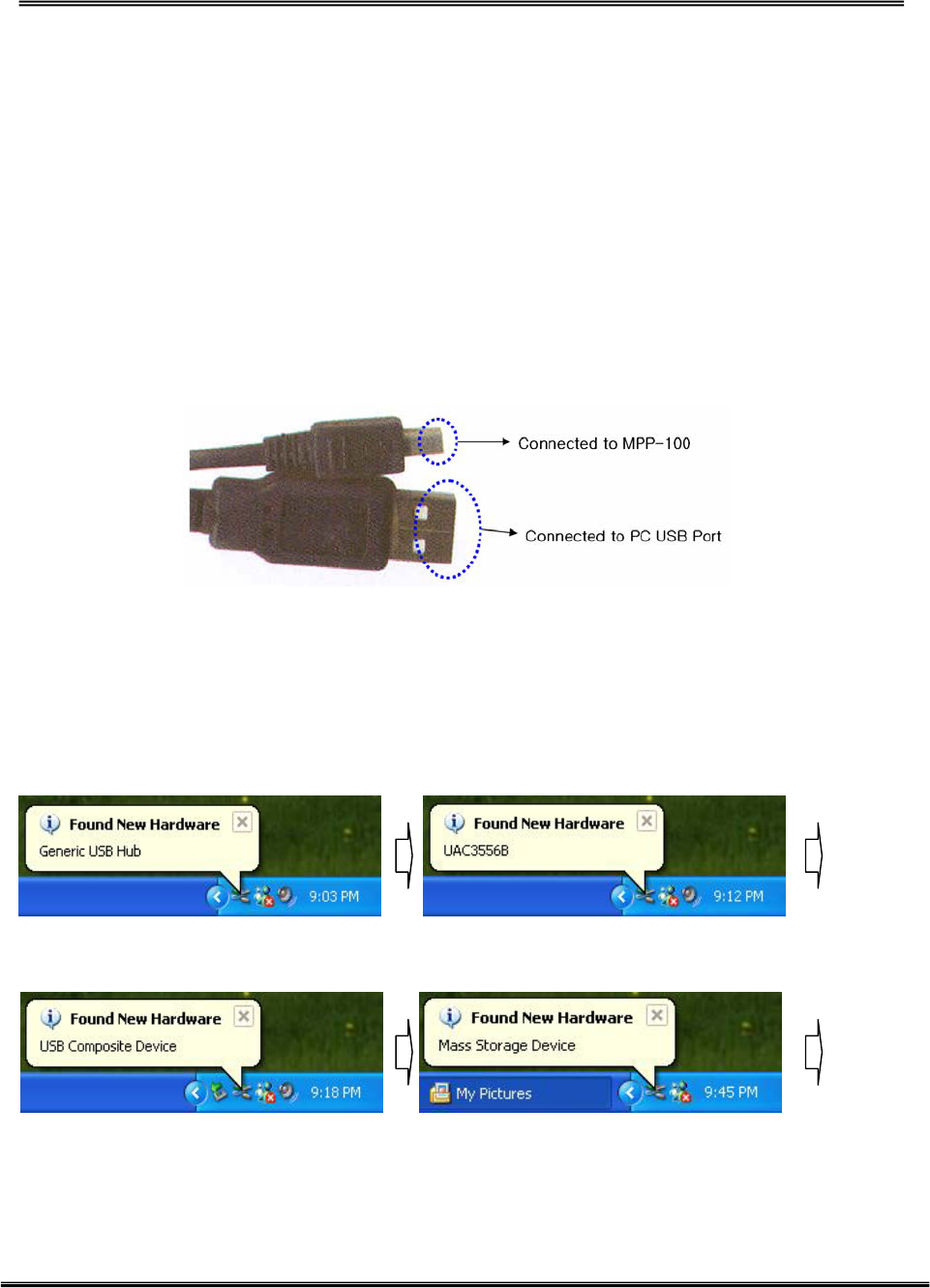

2) USB Cable
4. How to Install MPP-100
1) Connect offered USB Cable to PC and MPP-100.

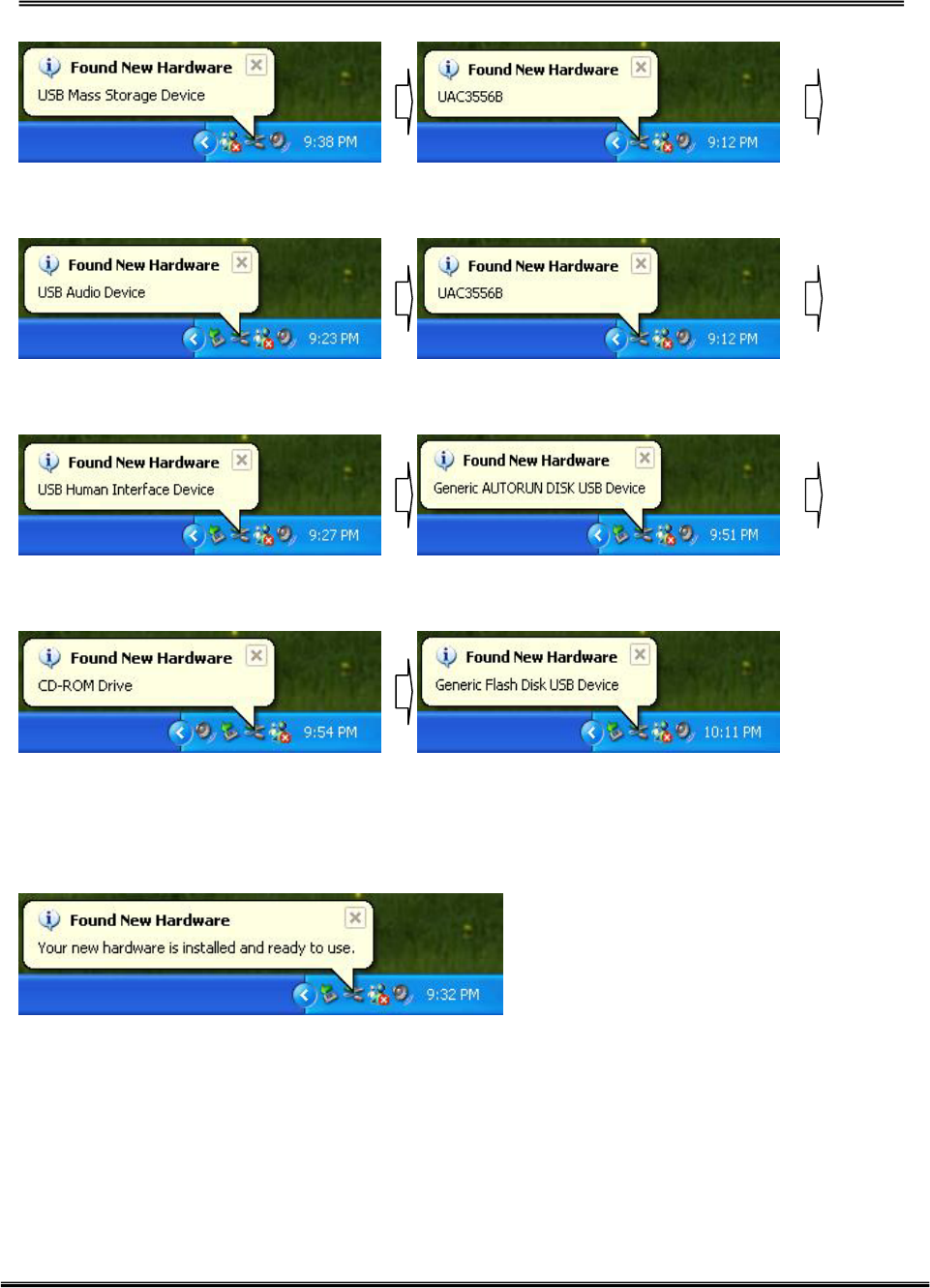

2) If your PC O/S is a standard Windows XP, there is a general recognition procedure of new hardware on the Taskbar.
[Picture4-1] [Picture 4-2]
[Picture 4-3] [Picture 4-4]
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
[Picture 4-5] [Picture 4-6]
[Picture 4-7] [Picture 4-8]
[Picture 4-9] [Picture 4-10]
[Picture 4-11] [4 Picture -12]
After proceeding as above procedure, it will be displayed as [Picture 13].
It means the recognition of MPP-100 hardware is done.
[Picture 4-13]
Now user can use MPP-100.
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
5. Check Installing a MPP-100

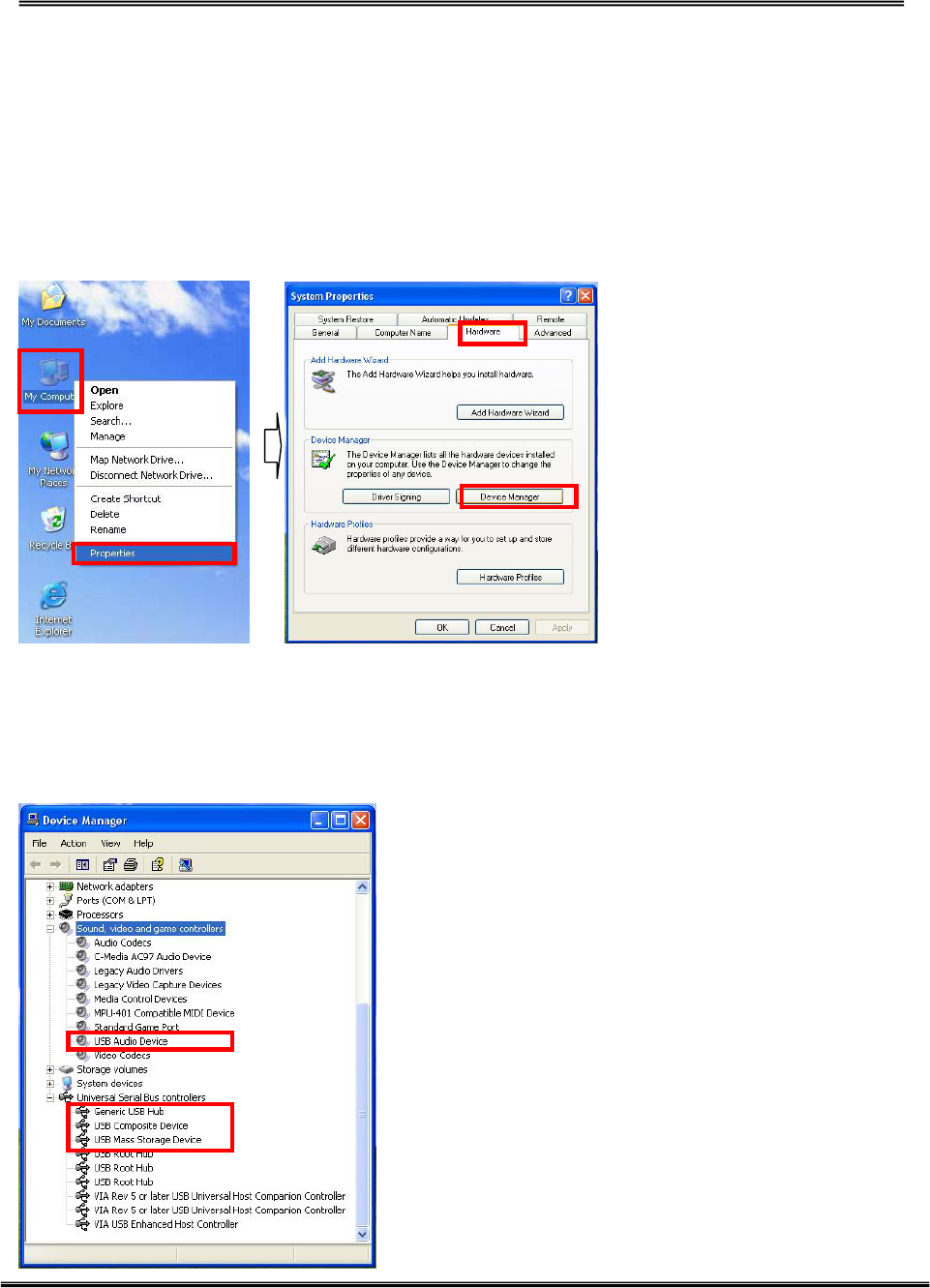

1) Device Manager Check
(1) After mouse pointer move from “My computer” to “Properties” on the menu as [Picture 5-1], click the right of
mouse. Then it will be showed the window of “System Properties” as [Picture 5-2].
[Picture 5-1] [Picture 5-2]
2) After clicking “Hardware” on System Properties as [Picture 5-2], select “Device Manager”.
Then it will be showed the window of “Device Manager” as [Picture 5-3].
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
[Picture 5-3]
If showed above marked information as [Picture 5-3], it means MPP – 100 is recognized correctly.
2) Control Panel Check

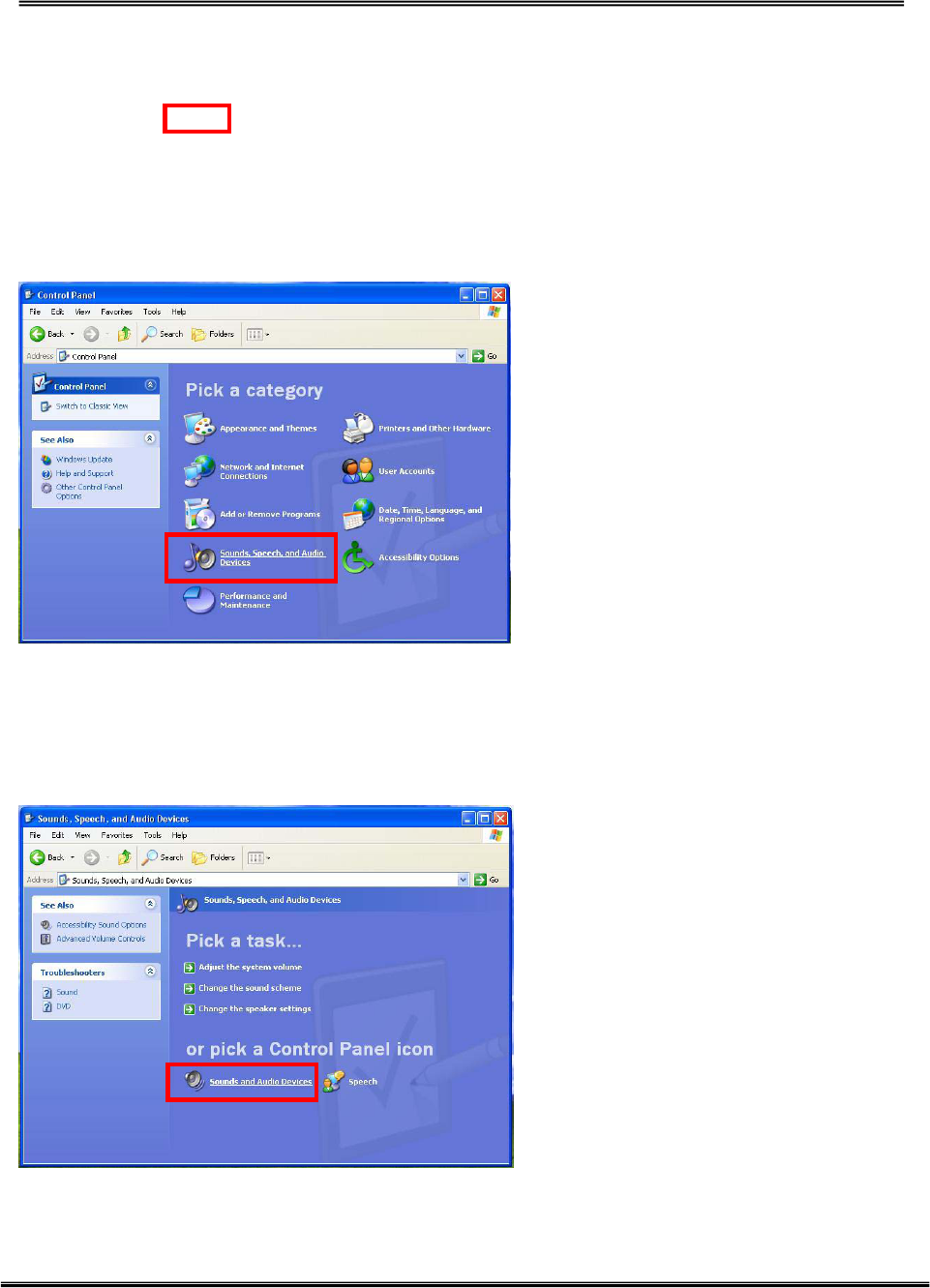

(1) After clicking “start” on the Taskbar, select “Control Panel” on menu.
Then it will be showed the window of “Control Panel” as [Picture 5-4].
[Picture 5-4]
Click “Sound Menu” on the “Control Panel” as[Picture 5-4], then it will be showed the window of “Sounds, Speech,
and Audio Devices” as [Picture 5-5].
[Picture 5-5]
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

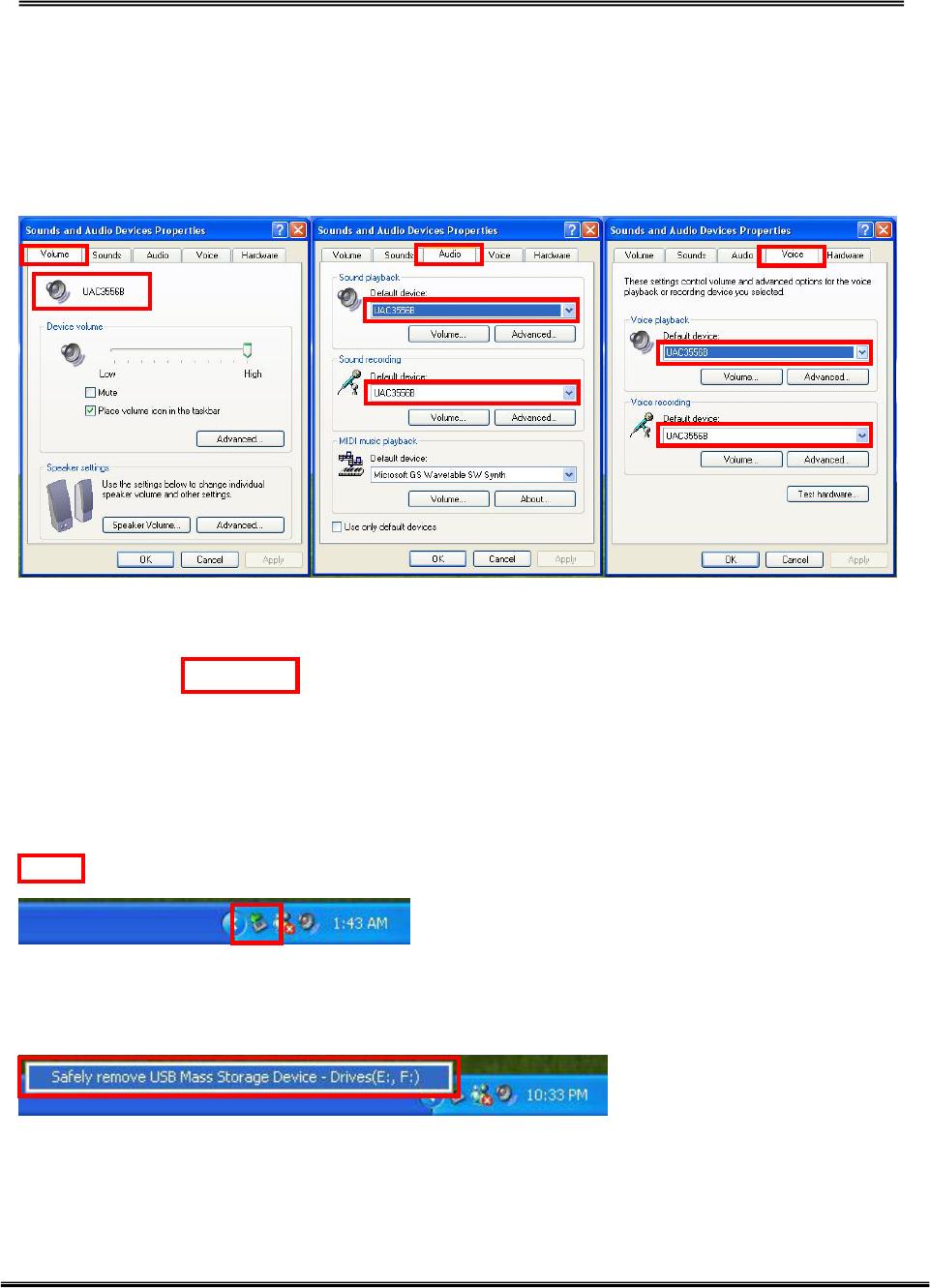

Click “Sounds, and Audio Devices” on the menu of “Sounds, Speech, and Audio Devices” as [Picture 5-5]. Then it will
be showed the window of “Sounds, and Audio Devices Properties” as [Picture 5-6].
[Picture 5-6] [Picture 5-7] [Picture 5-8]
If there is each of “UAC3556B” mark on the Volume menu as [Picture 5-6], on the Audio menu as [Picture 5-7], on the
Voice menu as [Picture 5-8], it means MPP – 100 is recognized correctly.
6. How to remove MPP-100
1) After Mouse Pointer move to “Show hidden icons”, click the left side of mouse on the marked
icon as [Picture 6-1]. Then it will be showed “Message bar” as [Picture 6-2].
[Picture 6-1]
2) Click “Message bar” as [Picture 6-2].
[Picture 6-2]

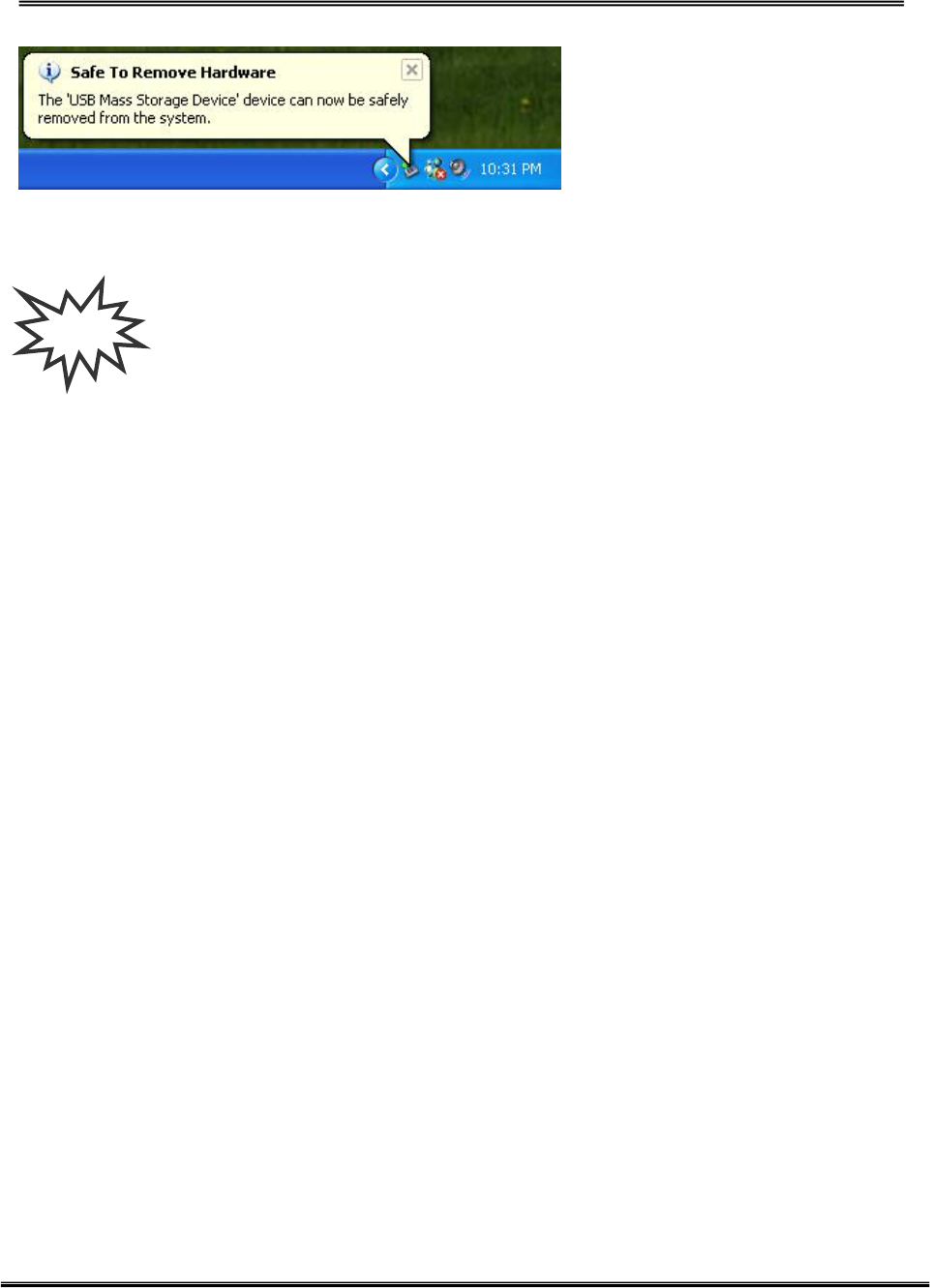

3) If you have the message of “Safe To Remove Hardware” as[Picture 6-3], MPP-100 can be removed from PC.
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
[Picture 6-3]
7. How to use MPP-100 and How to test functions
1) How to use MPP-100
Similar usage to general sound card of PC
(1) Make sure of connection between PC and MPP-100.
(2) If there is a “Red” lamp on MPP-100, it means correctly connected.
(3) Connect the terminal of general speaker or headset’s speaker to “spk” on the left side of MPP-100.
(4) Connect the terminal of general Microphone or headset’s microphone to “MIC” on the left side of MPP-
100.
(5) Connect the terminal of general 2.5 pie’ earset or served earset to “EARSET” on the left side of MPP-
100.
If you forcibly remove MPP-100 from PC without above procedure,
be careful to damage on stored MPP – 100 data.
Cautio
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

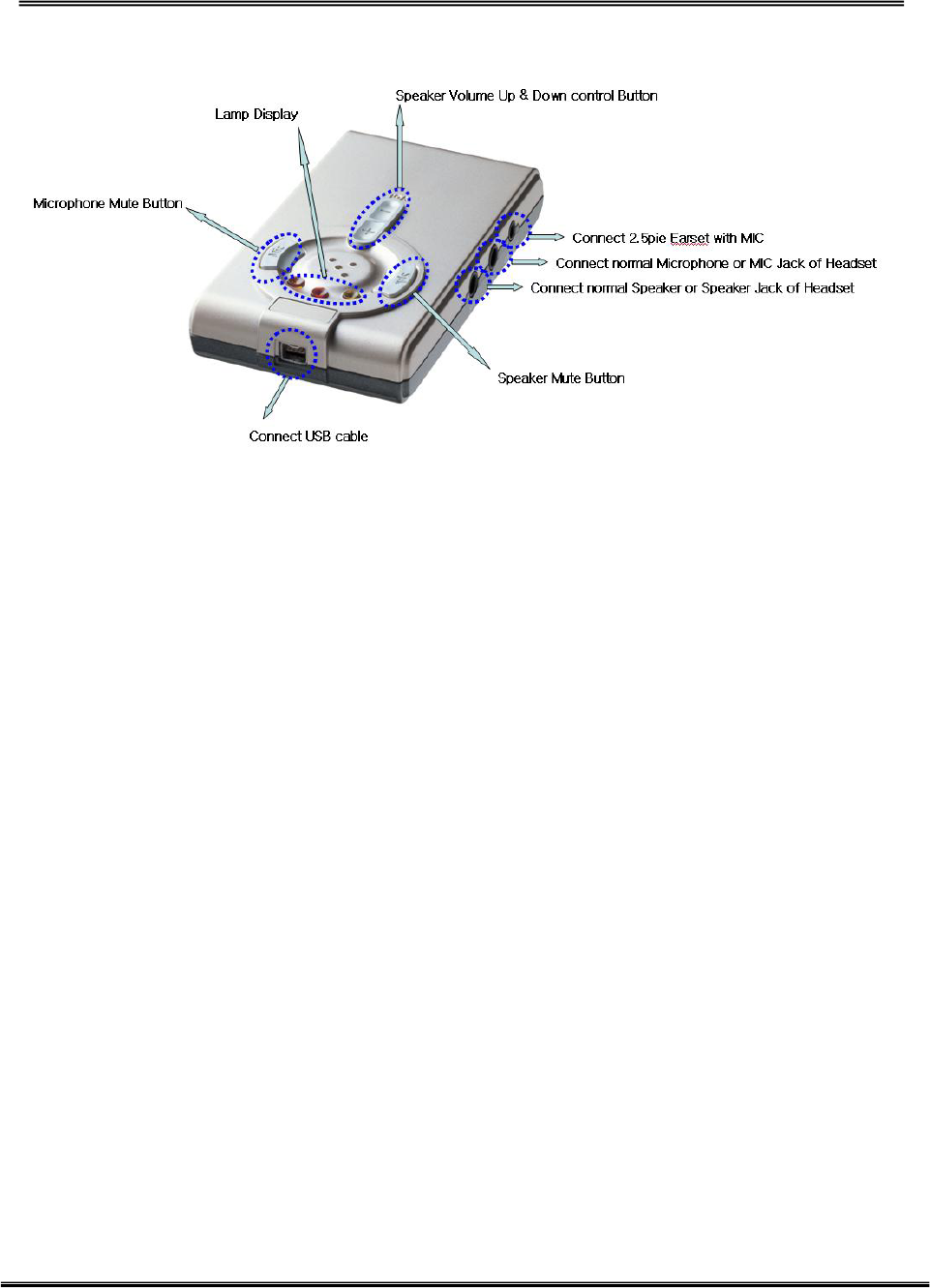

[The Description of Picture ]
[Picture 7-1]
(6) The description of functions
a. “spk” Button : “spk” button has “Speaker mute” function.
If “mute” is on, there is no sound-output from connected device because only mute function is
operated in the MPP-100 except for sound from “EARSET” port.
- Mute ON : Press “spk”’ button one time, operated with “Yellow Lamp”.
- Mute OFF : Press “spk” button one more time, operated without “Yellow Lamp”.
b. ‘Mic’ Button : “Mic” button has “MIC mute” function.
If “Mute” is on, there is no sound-input from connected device because all mute functions of “MIC”
port and “EARSET” port are opercated in the MPP-100.
- Mute ON : Press “Mic” button one time, operated with “Orange Lamp”.
- Mute OFF : Press “Mic” button one more time, operated without “Orange Lamp”.
c. “+/-” vol Button : “+/-” button has the function of adjusting volume.
- Press “+/-” button’s “+” once or continuously , increase sound-output volume.
- Press“+/-” button’s “-” once or continuously, decrease sound-output volume.
2) The advanced function of MPP-100
(1) How to output user voice

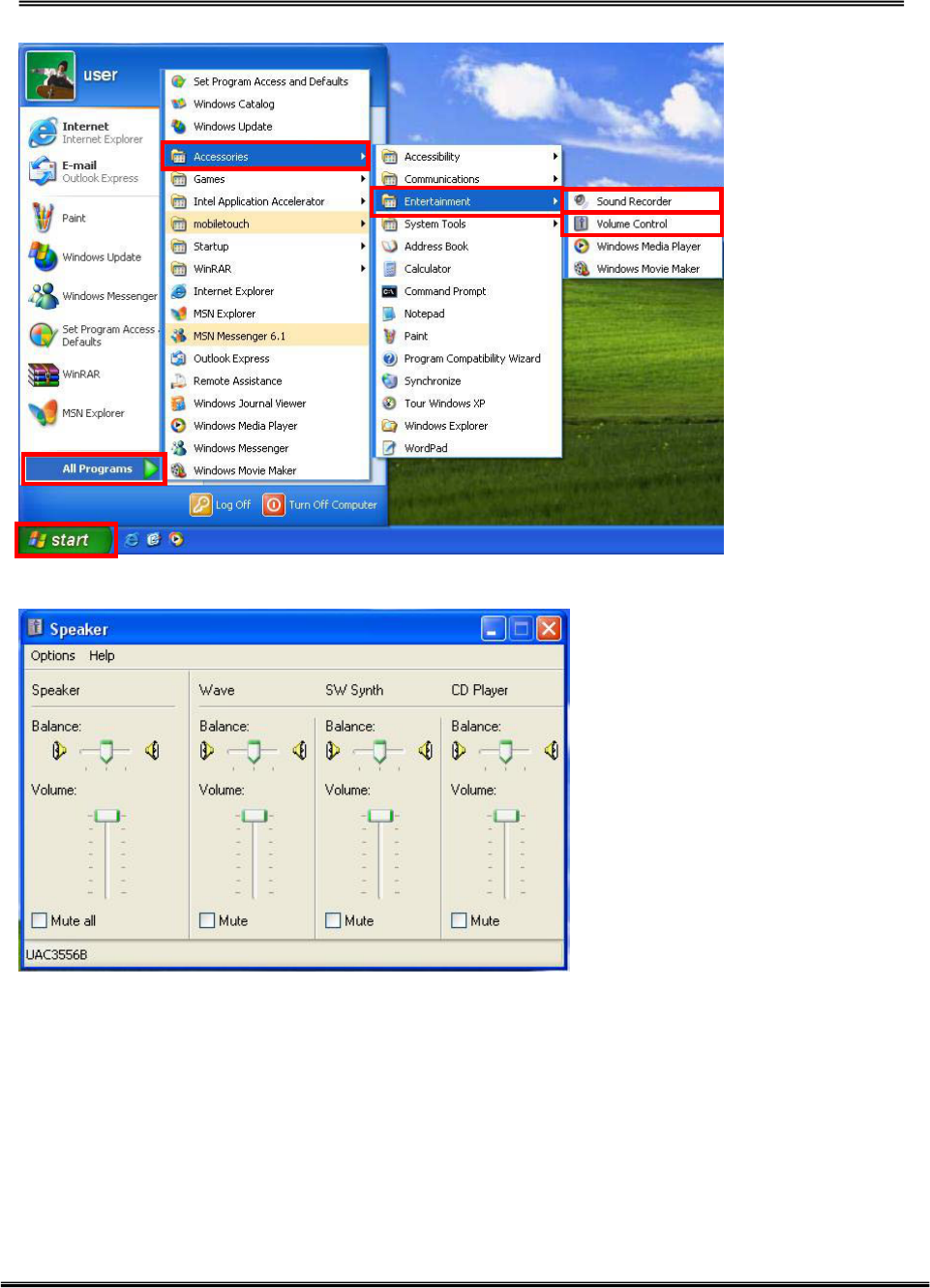

Click “start -> All Programs -> Accessories -> Entertainment -> Volume Control” on the Taskbar menu as
[Picture 7-2] in order, it will be showed the window of “speaker” as [Picture 7-3].
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
[Picture 7-2]
[Picture 7-3]

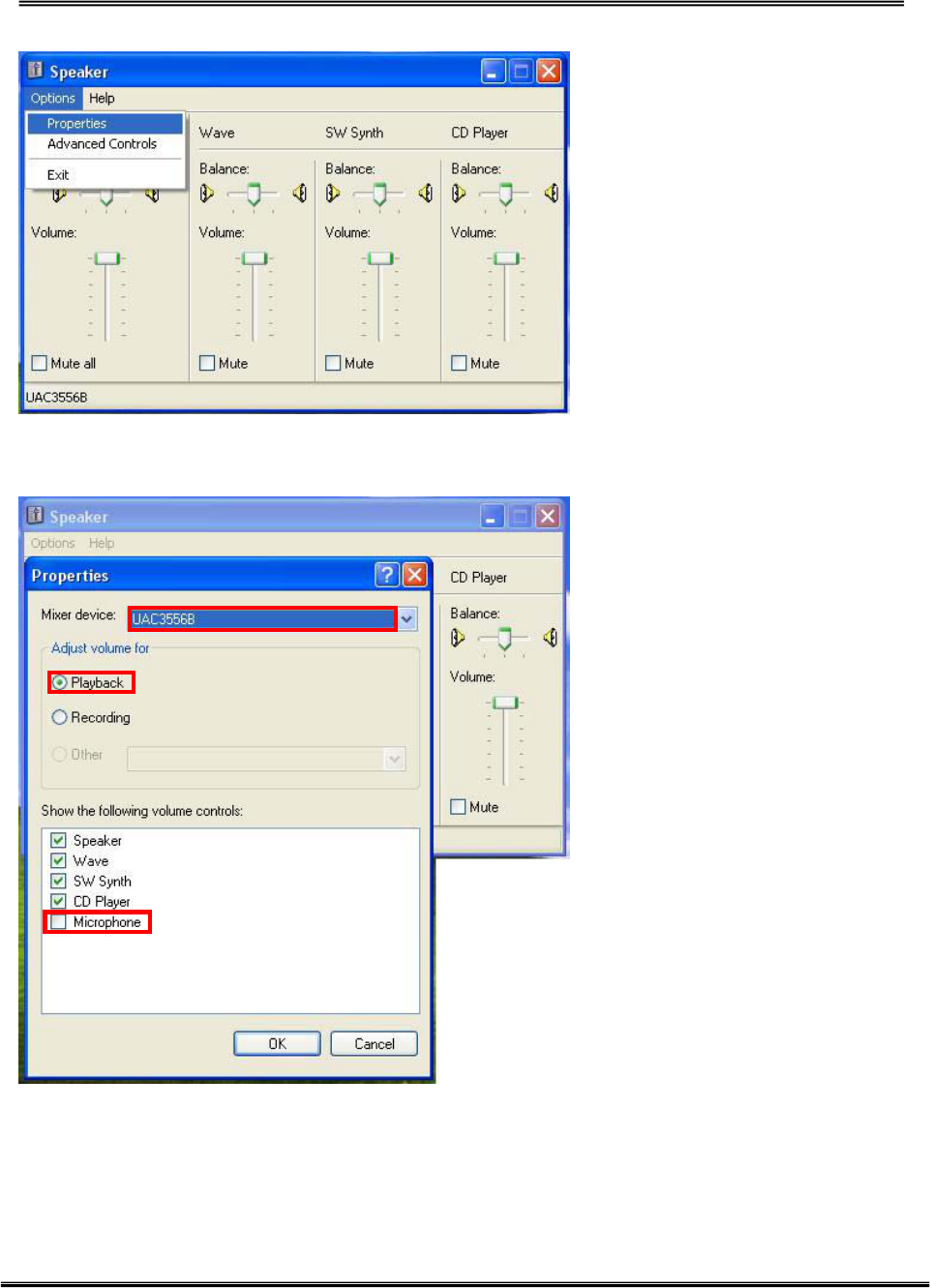

Click “Options” on the [Picture 7-3] as [Picture 7-4], select “Properties”. Then it will be showed the window of
“properties” as [Picture 7-5].
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
[Picture 7-4]
[Picture 7-5]
Select “Microphone” in the “Show the following volume controls” as [Picture 7-5], click “OK” button. Then it
will be showed the window of “Speaker” as [Picture 7-6].
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

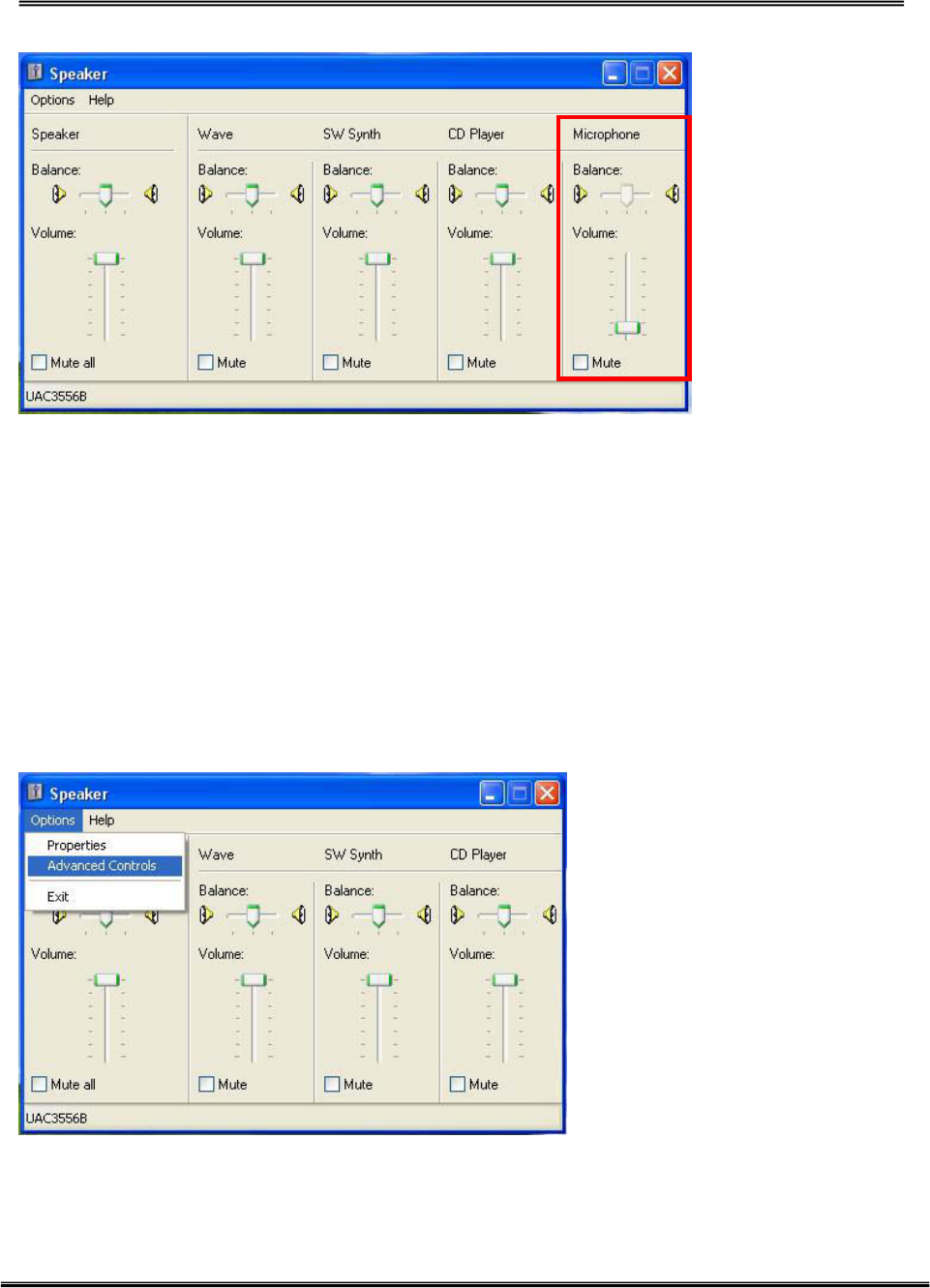

[Picture 7-6]
According to “Microphone” setting up as [Picture 7-6], adjust voice-output of user.
- Setting up by “Mute” : It doesn’t come out user voice from speaker, but mic is generally
operated.( Possible to communicate with contact in the chat program as messenger)
- Volume : According to height of Volume’s bar, increase/decrease volume.
(2) How to output advanced controls of Speaker
Click the window of “Speaker” same as “How to output user voice” on the [Picture 7-6].
[Picture 7-6]
After clicking “Options”, “Advanced Controls” in order as [Picture 7-6], it will be showed the window of
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

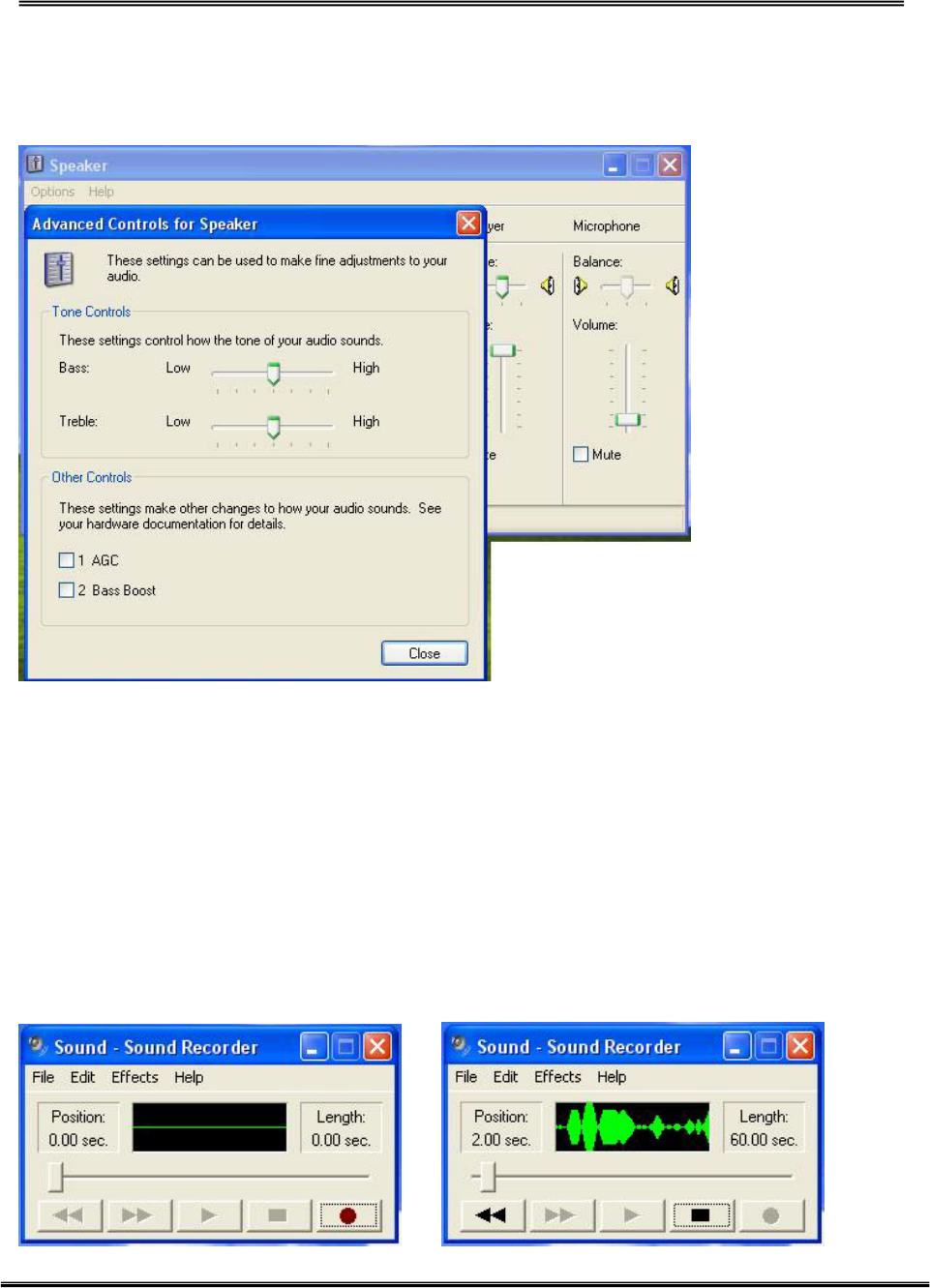

“Advanced Controls for Speaker” as [Picture 7-7].
[Picture 7-7]
You can adjust sound quality in the “Advanced Controls for Speaker” as [Picture 7-7]. After adjusting, if press
“Close” button, setting up is completed.

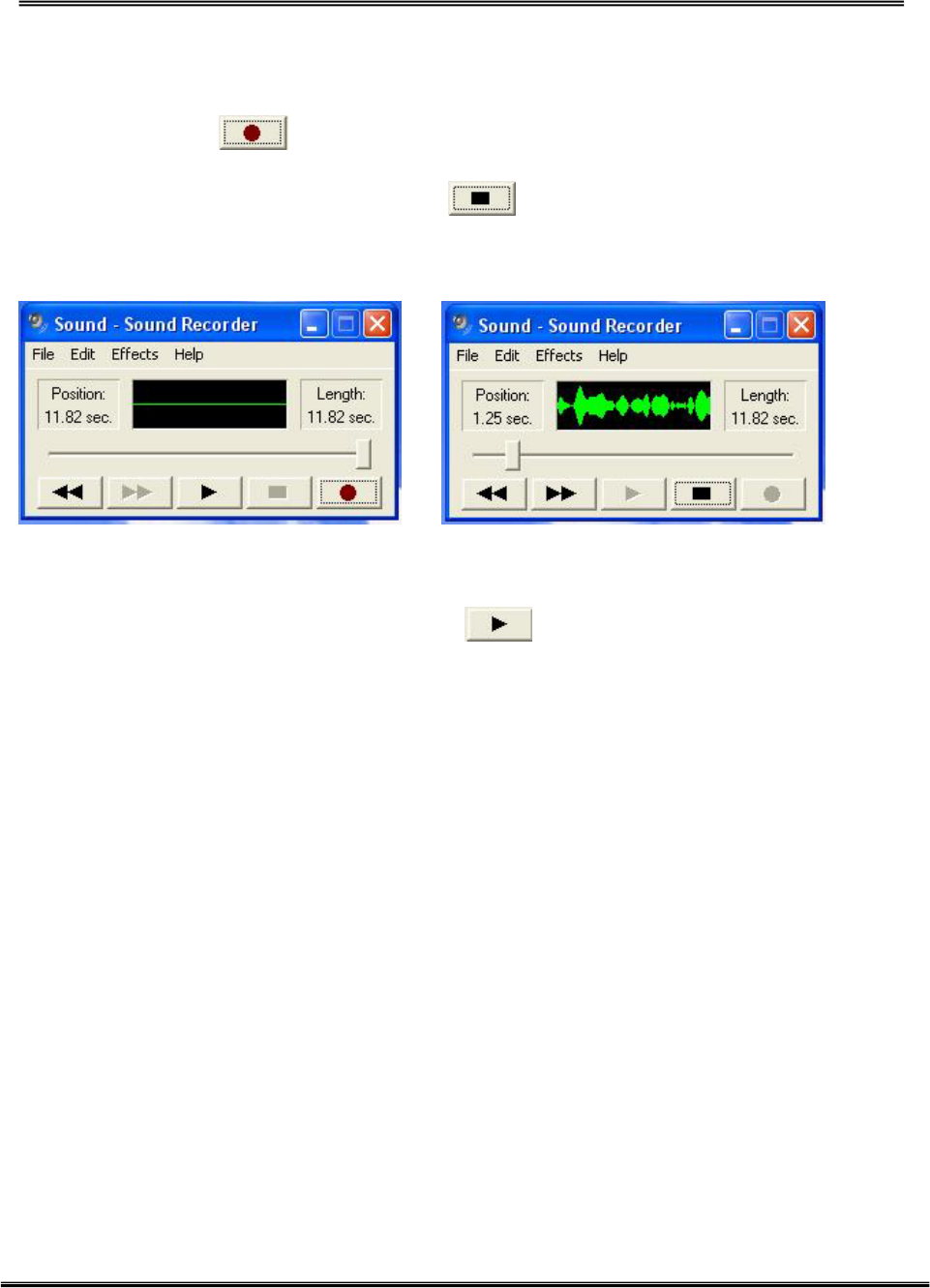

(3) How to test MIC
Click “start -> All Programs -> Accessories -> Entertainment -> Sound Recorder” on the Taskbar menu in
order same as [Picture 7-2] of “How to output user voice”, it will be showed the window of “Sound-Sound
Recorder” as [Picture 7-8].
REPORT NO : HCT-F03-1206 FCC ID : RQXMPP-100 DATE :DECEMBER 30,2003
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA
TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr
[Picture 7-8] [Picture 7-9]
Press Recording Button as [Picture 7-8], it will be started recording as [Picture 7-9].
If recording is completed or press the Stop Button in the middle of record, it will be showed as
[Picture 7-10].
[Picture 7-10] [Picture 7-11]
If you want to listen to the recorded, press Play Button as[Picture 7-11], then it will be started to play
the record.
(4) How to test Speaker
If you want to test sound-output form speaker normally, play stored audio file with general Audio and Media
player as general PC’s Sound Card.
